Article

An Efficient One-Pot Synthesis of Pyrano[3,2-c]quinolin-2,5-dione Derivatives Catalyzed by L-Proline

1
Key Laboratory of Biological Cancer Therapy of Jiangsu Province, Xuzhou Medical College, Xuzhou 221004, China
2
Department of Chemistry, Xuzhou Medical College, Xuzhou 221004, China
3
School of Pharmacy, Xuzhou Medical College, Xuzhou 221004, China
*
Author to whom correspondence should be addressed.
These authors contributed equally to this work.
Molecules 2012, 17(12), 13856-13863; https://doi.org/10.3390/molecules171213856
Submission received: 5 November 2012 / Revised: 17 November 2012 / Accepted: 20 November 2012 / Published: 22 November 2012
(This article belongs to the Section Organic Chemistry)

Abstract

:
A series of 4-aryl-6-methyl-3,4-dihydro-2H-pyrano[3,2-c]quinolin-2,5(6H)-diones were synthesized via the three-component reactions of aromatic aldehydes, 4-hydroxy-1-methylquinolin-2(1H)-one, and Meldrum’s acid catalyzed by L-proline. The structures of the products were identified by spectroscopic analysis. A mechanism for this three-component reaction catalyzed by L-proline was proposed.

1. Introduction

Multicomponent reactions (MCRs) play an increasingly important role in organic and medical chemistry for their high degree of atom economy, convergence, productivity, easy execution, generally excellent yields and broad applications in combinatorial chemistry [1]. MCRs are highly efficient strategies to achieve the rapid assembly of complex products, especially sequential carbon-carbon and carbon-heteroatom bond-forming reactions in the area of heterocycles and natural products [2,3,4].
Pyranoquinolines and their derivatives have been reported to possess antidiabetic activities [5] and pure calcium channel blocking activities [6]. A few methods have been reported for the synthesis of pyranoquinoline derivatives from 3-oxopropanoic acid [7], or by a MCRs of malononitrile (or cyanoacetate) with aldehydes and 4-hydroxyl-1,2-dihydroquinolin-2-one (or 8-hydroxyquinoline) in the presence of KF-Al2O3 [8,9,10], TEA [11] and NEt3 [12] as catalysts under reflux or microwave irradiation conditions.
In recent years, the use of L-proline in different organic reactions has drawn much interest because of its experimental simplicity, ease of handing, cost effectiveness, and excellent solubility in water and organic solvents [13,14,15,16,17]. L-proline is a very efficient catalyst in transformations such as enamine-based direct catalytic asymmetric aldol condensations [18,19], Mannich reactions [20,21], Diels-Alder reactions [22] and Michael additions [23]. Proline has also been used as a catalyst for two-carbon homologation and in various one-pot multicomponent reactions [24,25,26]. As continuation of our interest in developing new methodologies for the preparation of heterocyclic compounds, herein we report a mild and highly efficient protocol for the synthesis of 3,4-dihydro-2H-pyrano[3,2-c]quinolin-2,5(6H)-diones catalyzed by L-proline.

2. Results and Discussion

Initially, the three-component reaction of 4-methoxybenzaldehyde (1a), 4-hydroxy-1-methylquinolin-2(1H)-one (2), and Meldrum’s acid (3) was investigated as a model reaction to establish the feasibility of the strategy and to optimize the reaction conditions (Scheme 1). The effects of solvents and catalyst loading were evaluated for this model reaction, and the results are summarized in Table 1.
Scheme 1. The model reaction.
Scheme 1. The model reaction.
Molecules 17 13856 g001
Table 1. Optimization of reaction conditions.
Table 1. Optimization of reaction conditions.
EntrySolventsCatalyst (mol%)Temperature (°C)Time (h)Yield (%)
1EtOHNoreflux545
2EtOHL-proline (10%)reflux191
3CH3CNL-proline (10%)reflux270
4CHCl3L-proline (10%)reflux263
5HOAcL-proline (10%)100280
6DMFL-proline (10%)100252
7H2OL-proline (10%)reflux445
8EtOHL-proline (5%)reflux275
9EtOHL-proline (15%)reflux190
10EtOHL-proline (20%)reflux191
It was found that when the reaction was carried out without any catalyst, only a modest amount of product was obtained, even after 5 h (Table 1, entry 1). When the reaction was conducted in the presence of L-proline (10 mol%) in ethanol, the target compound 4a was obtained in 91% yield (Table 1, entry 2). Other solvents were also used in this reaction. The results indicated that ethanol provided much better results than acetonitrile, chloroform, acetic acid, N,N-dimethylformamide (DMF), and water (Table 1, entries 2–7).
To optimize the catalyst loading, 5 mol%, 10 mol%, 15 mol%, and 20 mol% of L-proline were tested in the reactions, respectively (Table 1, entries 2, and 8–10). A 10 mol% loading of L-proline was sufficient to efficiently push the reaction forward, while 5 mol% of L-proline was not enough. Higher amounts of L-proline did not lead to significant changes in the reaction yields. With these optimum conditions in hand, a series of 4-aryl-6-methyl-3,4-dihydro-2H-pyrano[3,2-c]quinolin-2,5(6H)-dione derivatives were synthesized via three-component reactions of aromatic aldehydes 1, 4-hydroxy-1-methylquinolin-2(1H)-one (2), and Meldrum’s acid (3) in ethanol in the presence of L-proline (Scheme 2). The results sare summarized in Table 2.

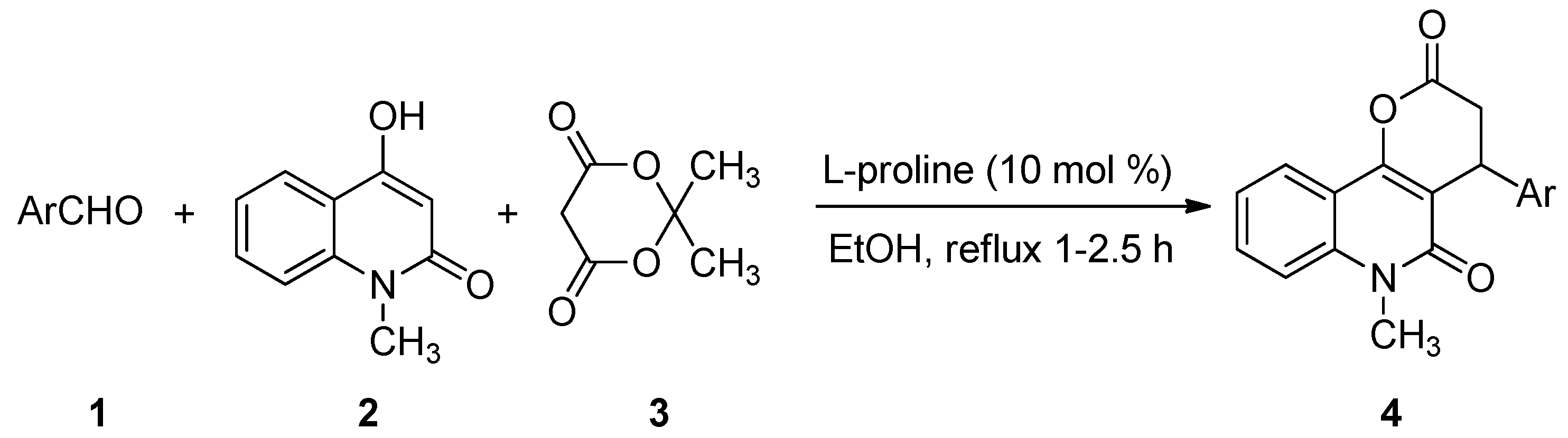

Scheme 2. Synthesis of 4-aryl-6-methyl-3,4-dihydro-2H-pyrano[3,2-c]quinolin-2,5(6H)-diones 4.
Scheme 2. Synthesis of 4-aryl-6-methyl-3,4-dihydro-2H-pyrano[3,2-c]quinolin-2,5(6H)-diones 4.
Molecules 17 13856 g002
Table 2. Synthesis of pyrano[3,2-c]quinoline-2,5-diones 4 catalyzed by L-proline
Table 2. Synthesis of pyrano[3,2-c]quinoline-2,5-diones 4 catalyzed by L-proline
EntryArProductTime (h)Yield (%)
14-CH3OC6H44a291
24-BrC6H44b194
34-HOC6H44c195
44-(CH3)2NC6H44d1.593
5Thiophen-2-yl4e292
63-ClC6H44f1.595
74-ClC6H44g192
84-FC6H44h290
93,4-(CH3)2C6H34i2.591
As shown in Table 2, this protocol could be applied not only to the aromatic aldehydes with electron-withdrawing groups (such as halides), but also to the aromatic aldehydes with electron-donating groups (such as alkyl and hydroxy groups) therefore, we concluded that the electronic nature of the substituents of aromatic aldehydes has no significant effect on this reaction.
The structures of the compound 4 were identified by their spectroscopic analysis. Thus, the infrared (IR) spectra of compound 4 measured in potassium bromide pellets showed two bands for the stretching vibrations of the C=O groups at 1,653–1,658 and 1,773–1,783 cm−1, respectively. In the 1H-NMR spectra of compounds 4 measured in dimethyl sulfoxide-d6, the quinoline N-CH3 proton signals at 3.64–3.69 ppm, the CH2 proton signals at 2.89–3.11 and 3.42–3.55 ppm, the CH proton signals at 4.44–4.81 ppm, and the aromatic proton signals at 6.64–7.95 ppm were observed.
Although the detailed mechanism of above reaction remains to be fully clarified, the formation of compounds 4 could be explained by a reaction sequence presented in Scheme 3. We propose that the reaction procees via a reaction sequence of condensation, addition, cyclization, and elimination. We suggest that L-proline may catalyze the formation of iminium ion 5 in a reversible reaction with aldehydes 1. The higher reactivity of the iminium ion compared with the carbonyl species could facilitate Knovenagel condensation between aldehyde 1 and Meldrum’s acid (3) via intermediate 6, and after elimination of L-proline, compound 7 might be produced as an intermediate. Then, intermediate 7 is attacked via Michael addition of 4-hydroxy-1-methylquinolin-2(1H)-one (2) to give the intermediate 8, which is followed by the cycloaddition and loss of acetone and carbon dioxide to form the desired products 4.
Scheme 3. Proposed mechanism for the formation of pyrano[3,2-c]quinoline-2,5-diones 4.
Scheme 3. Proposed mechanism for the formation of pyrano[3,2-c]quinoline-2,5-diones 4.
Molecules 17 13856 g003

3. Experimental

General

All reagents were purchased from commercial sources and used without further purification. Melting points were measured on an Electrothermal XT-5 apparatus. IR spectra were recorded on a Varian F-1000 spectrometer in KBr with absorptions given in cm−1. 1H-NMR spectra were determined on a Varian Invoa-400 MHz spectrometer in DMSO-d6 solutions. J values are in Hz. Chemical shifts are expressed in ppm downfield from internal standard TMS. HRMS data were obtained using a TOF-MS instrument (Micromass Inc., Manchester, UK).
General Procedure for the Synthesis of 4-Aryl-6-methyl-3,4-dihydro-2H-pyrano[3,2-c]quinolin-2,5(6H)-diones 4
A mixture of aromatic aldehyde 1 (1 mmol), 4-hydroxy-1-methylquinolin-2(1H)-one (2, 0.175 g, 1 mmol), Meldrum’s acid (3, 1 mmol), L-proline (0.0115 g, 0.1 mmol) and ethanol (2 mL) in a 50 mL round bottom flask was stirred at 80 °C for 1–2.5 h. At the end of the reaction, the mixture was cooled to room temperature. The precipitate was collected by filtration and purified by recrystallization from EtOH and DMF to give products 4.
4-(4-Methoxyphenyl)-6-methyl-3,4-dihydro-2H-pyrano[3,2-c]quinoline-2,5(6H)-dione (4a). White solid; m.p. 192–194 °C. IR: 3041 (C-H Ar), 2924 (C-H aliph), 1782 (C=O), 1654 (C=O), 1600 (C=C), 1514 (ArC=C), 1380 (C-H CH3), 1252 (C-O); 1H-NMR: δ (ppm) 2.92 (d, J = 16.0 Hz, 1H, CH2), 3.46 (dd, J1 = 7.6 Hz, J2 = 16.0 Hz, 1H, CH2), 3.64 (s, 3H, CH3), 3.69 (s, 3H, OCH3), 4.51 (d, J = 7.2 Hz, 1H, CH), 6.86 (d, J = 8.4 Hz, 2H, ArH), 7.09 (d, J = 8.8 Hz, 2H, ArH), 7.40 (t, J1 = 8.0 Hz, J2 = 7.2 Hz, 1H, ArH), 7.64 (d, J = 8.8 Hz, 1H, ArH), 7.75 (t, J1 = 7.6 Hz, J2 = 7.2 Hz, 1H, ArH), 7.93 (d, J = 8.0 Hz, 1H, ArH); HRMS calculated for C20H17NO4 [M]+: 335.1158, Found 335.1158.
4-(4-Bromophenyl)-6-methyl-3,4-dihydro-2H-pyrano[3,2-c]quinoline-2,5(6H)-dione (4b). White solid; m.p. 239–241 °C. IR: 3024 (C-H Ar), 2928 (C-H aliph), 1778 (C=O), 1655 (C=O), 1596 (C=C), 1503 (ArC=C), 1384 (C-H CH3), 1209 (C-O); 1H-NMR: δ (ppm) 2.96 (d, J = 16.0 Hz, 1H, CH2), 3.52 (dd, J1 = 7.6 Hz, J2 = 16.0 Hz, 1H, CH2), 3.65 (s, 3H, CH3), 4.56 (d, J = 7.2 Hz, 1H, CH), 7.16 (d, J = 8.4 Hz, 2H, ArH), 7.41 (t, J1 = 7.6 Hz, J2 = 7.2 Hz, 1H, ArH), 7.51 (d, J = 8.4 Hz, 2H, ArH), 7.66 (d, J = 8.8 Hz, 1H, ArH), 7.76 (t, J1 = 7.6 Hz, J2 = 8.4 Hz, 1H, ArH), 7.95 (d, J = 8.0 Hz, 1H, ArH); HRMS calculated for C19H14NO379Br [M]+: 383.0157, Found 383.0148.
4-(4-Hydroxyphenyl)-6-methyl-3,4-dihydro-2H-pyrano[3,2-c]quinoline-2,5(6H)-dione (4c). White solid; m.p. > 300 °C. IR: 3282 (O-H), 3013 (C-H Ar), 1781 (C=O), 1653 (C=O), 1600 (C=C), 1517 (ArC=C), 1385 (C-H CH3), 1202 (C-O); 1H-NMR: δ (ppm) 2.90 (d, J = 16.0 Hz, 1H, CH2), 3.43 (dd, J1 = 7.2 Hz, J2 = 15.6 Hz, 1H, CH2), 3.65 (s, 3H, CH3), 4.56 (d, J = 6.8 Hz, 1H, CH), 6.69 (d, J = 8.4 Hz, 2H, ArH), 6.97 (d, J = 8.4 Hz, 2H, ArH), 7.40 (t, J1 = 7.6 Hz, J2 = 7.6 Hz, 1H, ArH), 7.64 (d, J = 8.8 Hz, 1H, ArH), 7.75 (t, J1 = 8.4 Hz, J2 = 7.6 Hz, 1H, ArH), 7.93 (d, J = 8.0 Hz, 1H, ArH), 9.37 (s, 1H, OH); HRMS calculated for C19H15NO4 [M]+: 321.1001, Found 321.1001.
4-(4-Dimethylaminophenyl)-6-methyl-3,4-dihydro-2H-pyrano[3,2-c]quinoline-2,5(6H)-dione (4d). White solid; m.p. 220–222 °C. IR: 2981 (C-H aliph), 2798 (C-H aliph), 1773 (C=O), 1654 (C=O), 1598 (C=C), 1519 (ArC=C), 1382 (C-H CH3), 1208 (C-O); 1H-NMR: δ (ppm) 2.83 (s, 6H, 2 × CH3), 2.90 (d, J = 16.0 Hz, 1H, CH2), 3.42 (dd, J1 = 7.6 Hz, J2 = 16.0 Hz, 1H, CH2), 3.65 (s, 3H, CH3), 4.44 (d, J = 6.8 Hz, 1H, CH), 6.64 (d, J = 8.0 Hz, 2H, ArH), 6.98 (d, J = 8.4 Hz, 2H, ArH), 7.40 (t, J1 = 8.0 Hz, J2 = 7.2 Hz, 1H, ArH), 7.64 (d, J = 8.8 Hz, 1H, ArH), 7.73 (t, J1 = 7.6 Hz, J2 = 8.0 Hz, 1H, ArH), 7.93 (d, J = 8.0 Hz, 1H, ArH); HRMS calculated for C21H20N2O3 [M]+: 348.1474, Found 348.1478.
6-Methyl-4-(thiophen-2-yl)-3,4-dihydro-2H-pyrano[3,2-c]quinoline-2,5(6H)-dione (4e). White solid; m.p. 243–244 °C. IR: 3040 (C-H Ar), 2947 (C-H aliph), 1774 (C=O), 1658 (C=O), 1596 (C=C), 1587 (ArC=C), 1213 (C-O); 1H-NMR: δ (ppm) 3.11 (d, J = 15.2 Hz, 1H, CH2), 3.51–3.55 (m, 1H, CH2), 3.69 (s, 3H, CH3), 4.81 (d, J = 1.2 Hz, 1H, CH), 6.93 (d, J = 18.0 Hz, 2H, ArH), 7.39 (d, J = 5.6 Hz, 2H, ArH), 7.67 (s, 1H, ArH), 7.76 (s, 1H, ArH), 7.92 (s, 1H, ArH); HRMS calculated for C17H13NO3S [M]+: 311.0616, Found 311.0612.
4-(3-Chlorophenyl)-6-methyl-3,4-dihydro-2H-pyrano[3,2-c]quinoline-2,5(6H)-dione (4f). White solid; m.p. 232–233 °C. IR: 3054 (C-H Ar), 2939 (C-H aliph), 1783 (C=O), 1654 (C=O), 1594 (C=C), 1387 (C-H CH3), 1205 (C-O); 1H-NMR: δ (ppm) 2.99 (d, J = 16.0 Hz, 1H, CH2), 3.52 (dd, J1 = 7.6 Hz, J2 = 16.4 Hz, 1H, CH2), 3.65 (s, 3H, CH3), 4.59 (d, J = 6.8 Hz, 1H, CH), 7.11 (d, J = 5.6 Hz, 1H, ArH), 7.30–7.36 (m, 3H, ArH), 7.41 (t, J1 = 7.6 Hz, J2 = 7.6 Hz, 1H, ArH), 7.65 (d, J = 8.4 Hz, 1H, ArH), 7.76 (t, J1 = 7.2 Hz, J2 = 7.6 Hz, 1H, ArH), 7.94 (d, J = 8.0 Hz, 1H, ArH); HRMS calculated for C19H14NO335Cl [M]+: 339.0662, found 339.0648.
4-(4-Chlorophenyl)-6-methyl-3,4-dihydro-2H-pyrano[3,2-c]quinoline-2,5(6H)-dione (4g). White solid; m.p. 227–228 °C. IR: 3083 (C-H Ar), 2935 (C-H aliph), 1779 (C=O), 1657 (C=O), 1593 (C=C), 1385 (C-H CH3), 1207 (C-O); 1H-NMR: δ (ppm) 2.97 (d, J = 16.0 Hz, 1H, CH2), 3.52 (dd, J1 = 7.6 Hz, J2 = 16.0 Hz, 1H, CH2), 3.65 (s, 3H, CH3), 4.58 (d, J = 7.2 Hz, 1H, CH), 7.22 (d, J = 8.4 Hz, 2H, ArH), 7.37 (d, J = 8.4 Hz, 2H, ArH), 7.42 (d, J = 7.6 Hz, 1H, ArH), 7.66 (d, J = 8.8 Hz, 1H, ArH), 7.76 (t, J1 = 7.2 Hz, J2 = 8.4 Hz, 1H, ArH), 7.95 (d, J = 8.0 Hz, 1H, ArH); HRMS calculated for C19H14NO335Cl [M]+: 339.0662, Found 339.0654.
4-(4-Fluorophenyl)-6-methyl-3,4-dihydro-2H-pyrano[3,2-c]quinoline-2,5(6H)-dione (4h). White solid; m.p. 230–231 °C. IR: 3076 (C-H Ar), 2923 (C-H aliph), 1777 (C=O), 1656 (C=O), 1598 (C=C), 1506 (ArC=C), 1386 (C-H CH3), 1214 (C-O); 1H-NMR: δ (ppm) 2.96 (d, J = 16.0 Hz, 1H, CH2), 3.50 (dd, J1 = 7.6 Hz, J2 = 16.0 Hz, 1H, CH2), 3.64 (s, 3H, CH3), 4.58 (d, J = 7.2 Hz, 1H, CH), 7.13 (t, J1 = 8.4 Hz, J2 = 8.8 Hz, 2H, ArH), 7.23 (t, J1 = 7.6 Hz, J2 = 8.4 Hz, 2H, ArH), 7.40 (t, J1 = 7.6 Hz, J2 = 7.6 Hz, 1H, ArH), 7.64 (d, J = 8.4 Hz, 1H, ArH), 7.75 (t, J1 = 7.2 Hz, J2 = 8.4 Hz, 1H, ArH), 7.93 (d, J = 8.0 Hz, 1H, ArH); HRMS calculated for C19H14NO3F [M]+: 323.0958, Found 323.0961.
4-(3,4-Dimethylphenyl)-6-methyl-3,4-dihydro-2H-pyrano[3,2-c]quinoline-2,5(6H)-dione (4i). White solid; m.p. 170–171 °C. IR: 3010 (C-H Ar), 2939 (C-H aliph), 1777 (C=O), 1654 (C=O), 1596 (C=C), 1462 (ArC=C), 1382 (C-H CH3), 1215 (C-O); 1H-NMR: δ (ppm) 2.15 (s, 6H, 2 × CH3 ), 2.89 (d, J = 16.0 Hz, 1H, CH2), 3.46 (dd, J1 = 8.0 Hz, J2 = 15.6 Hz, 1H, CH2), 3.64 (s, 3H, CH3), 4.48 (d, J = 6.4 Hz, 1H, CH), 6.84 (d, J = 7.6 Hz, 1H, ArH), 6.96 (s, 1H, ArH), 7.04 (d, J = 7.6 Hz, 1H, ArH), 7.41 (t, J1 = 8.0 Hz, J2 = 7.2 Hz, 1H, ArH), 7.64 (d, J = 8.4 Hz, 1H, ArH), 7.75 (t, J1 = 7.2 Hz, J2 = 8.4 Hz, 1H, ArH), 7.94 (d, J = 8.0 Hz, 1H, ArH); HRMS calculated for C21H19NO3 [M]+: 333.1365, Found 333.1367.

4. Conclusions

In summary, we have developed an efficient synthesis of 4-aryl-6-methyl-3,4-dihydro-2H-pyrano [3,2-c]quinolin-2,5(6H)-diones via the three-component reactions of aromatic aldehydes, 4-hydroxy-1-methylquinolin-2(1H)-one, and Meldrum’s acid catalyzed by L-proline. This protocol has the advantages of easy work up, mild reaction conditions, and high yields. In view of the potential biological activities of these molecules, further biomedical screening work is in progress in our laboratories.

Acknowledgments

We gratefully acknowledge the Natural Science Foundation of Higher Education Institutions of Jiangsu Province (No.09KJB150012), the Key Laboratory of Cancer Biotherapy of Xuzhou Medical College (grant No. C0901), the Key Laboratory of Organic Synthesis of Jiangsu Province (No. KJS1010) and the Special Presidential Foundation of Xuzhou Medical College (No. 2010KJZ20) for support of this research.
  • Sample Availability: Samples of the compounds 4 are available from the authors.

References

  1. Nair, V.; Rajesh, C.; Vinod, A.U.; Bindu, S.; Sreekanth, A.R.; Mathen, J.S.; Balagopal, L. Strategies for heterocyclic construction via novel multicomponent reactions based on isocyanides and nucleophilic carbenes. Acc. Chem. Res. 2003, 36, 899–907. [Google Scholar] [CrossRef]
  2. Domling, A.; Ugi, I. Multicomponent reactions with isocyanides. Angew. Chem. Int. Ed. Engl. 2000, 39, 3168–3210. [Google Scholar] [CrossRef]
  3. Domling, A. Recent Developments in isocyanide based multicomponent reactions in applied chemistry. Chem. Rev. 2006, 106, 17–89. [Google Scholar]
  4. Zhu, J.; Bienaymé, H. Multicomponent Reactions; Wiley-VCH: Weinheim, Germany, 2005; pp. 33–75. [Google Scholar]
  5. Schnur, R.C. Spiro-quinolylhydantoins. U.S. Patent 4,176,185, 27 November 1979. [Google Scholar]
  6. Atwal, K.S.; McCullough, J.R.; Hedberg, A.; Conder, M.L.; Ahmed, S.Z.; Cucinotta, G.; Normandin, D.E. The discovery of a novel calcium channel blocker related to the structure of potassium channel opener cromakalim. Bioorg. Med. Chem. Lett. 1992, 2, 1475–1478. [Google Scholar] [CrossRef]
  7. Magdy, A.I.; Hany, M.H.; Yassin, A.A.G.; Youssef, A.S.A. Novel heterocyclic derivatives of pyrano[3,2-c]quinolinone from 3-(1-ethy1-4-hydroxy-2-oxo-2(1H)-quinolin-3-yl)-3-oxopropanoic acid. Eur. J. Chem. 2010, 1, 195–199. [Google Scholar] [CrossRef]
  8. Wang, X.S.; Zeng, Z.S.; Shi, D.Q.; Wei, X.Y.; Zong, Z.M. One-pot synthesis of 2-amino-3-cyano-4-aryl-1,4,5,6-tetrahydropyrano[3,2-c]quinolin-5-one derivatives using KF-Al2O3 as catalyst. Synth. Commun. 2004, 34, 3021–3027. [Google Scholar] [CrossRef]
  9. Wang, X.S.; Shi, D.Q.; Tu, S.J. Synthesis of 2-aminochromene derivatives catalyzed by KF/Al2O3. Chin. J. Chem. 2003, 21, 1114–1117. [Google Scholar]
  10. Wang, X.S.; Zeng, Z.S.; Shi, D.Q.; Tu, S.J.; Wei, X.Y.; Zong, Z.M. One-pot synthesis of 2-amino-4-aryl-5,6-dihydro-4H-pyrano[3,2-c]quinolin-5-one-3-carboxylate derivatives catalyzed by KF-alumina. Chin. J. Org. Chem. 2005, 25, 579–582. [Google Scholar]
  11. Vetrivel, N.; Senniappan, T.S.; Helen, P.B.; Sellappan, M.; Thangaian, D.T. Microwave solvent-free condition synthesis and pharmacological evaluation of pyrano[3,2-c]quinolines. Med. Chem. Res. 2012, 21, 2902–2910. [Google Scholar] [CrossRef]
  12. Igor, V.M.; Madhuri, M.; Marcia, A.O.; Adriana, S.D.; Snezna, R.; Severine, V.S.; Wim, F.A.S.; Nikolai, M.E.; Pavel, Y.U.; Eerik, M.E.; et al. Structural simplification of bioactive natural products with multicomponent synthesis. 2. Antiproliferative and antitubulin activities of pyrano[3,2-c]pyridones and pyrano[3,2-c] quinolones. J. Med. Chem. 2008, 51, 2561–2570. [Google Scholar] [CrossRef]
  13. Shi, C.L.; Shi, D.Q.; Kim, S.H.; Huang, Z.B.; Ji, S.J.; Ji, M. A novel and efficient one-pot synthesis of furo[3',4':5,6]pyrido[2,3-c]pyrazole derivatives using organocatalysts. Tetrahedron 2008, 64, 2425–2432. [Google Scholar] [CrossRef]
  14. Shi, C.L.; Shi, D.Q.; Kim, S.H.; Huang, Z.B.; Ji, M. A novel and efficient synthesis of 3,3'-benzylidenebis(4-hydroxy-6-methylpyridin-2(1H)-one) derivatives through a multi-component reaction catalyzed by L-proline. Aust. J. Chem. 2008, 61, 547–551. [Google Scholar] [CrossRef]
  15. Shi, C.L.; Wang, J.X.; Chen, H.; Shi, D.Q. Regioselective synthesis and in vitro anticancer activity of 4-aza-podophyllotoxin derivatives catalyzed by L-proline. J. Comb. Chem. 2010, 12, 430–434. [Google Scholar] [CrossRef]
  16. Li, Y.L.; Chen, H.; Shi, C.L.; Shi, D.Q.; Ji, S.J. Efficient one-pot synthesis of spirooxindole derivatives catalyzed by L-proline in aqueous medium. J. Comb. Chem. 2010, 12, 231–237. [Google Scholar] [CrossRef]
  17. Wang, H.Y.; Li, L.L.; Lin, W.; Xu, P.; Huang, Z.B.; Shi, D.Q. An efficient synthesis of pyrrolo[2,3,4-kl]acridin-1-one derivatives catalyzed by L-proline. Org. Lett. 2012, 14, 4598–4601. [Google Scholar] [CrossRef]
  18. Alcaide, B.; Almendros, P.; Luna, A.; Torres, M.S. Proline-catalyzed diastereoselective direct Aldol reaction between 4-oxoazoetidine-2-carbaldehydes and ketones. J. Org. Chem. 2006, 71, 4818–4822. [Google Scholar] [CrossRef]
  19. Zotova, N.; Franzke, A.; Armstrong, A.; Blackmond, D.G. Clarification of the role of water in proline-mediated Aldol reactions. J. Am. Chem. Soc. 2007, 129, 15100–15101. [Google Scholar]
  20. Janey, J.M.; Hsiao, Y.; Armstrong, J.D., III. Proline-catalyzed, Asymmetric Mannich reactions in the synthesis of a DPP-IV inhibitor. J. Org. Chem. 2006, 71, 390–392. [Google Scholar] [CrossRef]
  21. Kantam, M.L.; Rajasekhar, C.V.; Gopikrishna, G.; Reddy, K.R.; Choudary, B.M. Proline catalyzed two-component, three-component and self-asymmetric Mannich reactions promoted by ultrasonic conditions. Tetrahedron Lett. 2006, 47, 5965–5967. [Google Scholar] [CrossRef]
  22. Ramachary, D.B.; Chowdari, N.S.; Barbas, C.F., III. Organocatalytic asymmetric Domino Knoevenagel/Diels-Alder reactions: A bioorganic approach to the diastereospecific and enantioselective construction of highly substituted spiro[5,5]undecane-1,5,9-triones. Angew. Chem. Int. Ed. Engl. 2003, 115, 4365–4369. [Google Scholar] [CrossRef]
  23. Rasalkar, M.S.; Potdar, M.K.; Mohile, S.S.; Salunkhe, M.M. An ionic liquide influenced L-proline catalyzed asymmetric Michael addition of ketones to nitrostyrene. J. Mol. Catal. A Chem. 2005, 235, 267–270. [Google Scholar] [CrossRef]
  24. Ramachary, D.B.; Reddy, G.B. Towards organo-click reactions: Development of pharmaceutical ingredients by using direct organo catalytic bio-mimetic reductions. Org. Biomol. Chem. 2006, 4, 4463–4468. [Google Scholar] [CrossRef]
  25. Ramachary, D.B.; Kishore, M. Organocatalytic sequential one-pot double cascade asymmetric synthesis of Wieland-Miescher ketone analogues from a Knoevenagel/hydrogenation/Robinson Annulation sequence: Scope and applications of organocatalytic biomimetic reductions. J. Org. Chem. 2007, 72, 5056–5068. [Google Scholar] [CrossRef]
  26. Ramachary, D.B.; Ramakumar, K.; Narayana, V.V. Organocatlytic cascade reactions based on Push-Pull dienamine platform: Synthesis of highly substituted anilines. J. Org. Chem. 2007, 72, 1458–1463. [Google Scholar] [CrossRef]
