Norcembranoidal Diterpenes from a Formosan Soft Coral Sinularia sp.

Abstract

Two norcembranoidal diterpenes, 5-episinuleptolide acetate (1) and scabrolide D (2), were isolated from a Formosan octocoral identified as Sinularia sp. The structures of norcembranoids 1 and 2 were established by spectroscopic methods and by comparison of the spectral data with those of known analogues and 1 was proven to be a new natural product. Norcembranoid 1 was found to exhibit cytotoxicity toward a panel of tumor cells.

1. Introduction

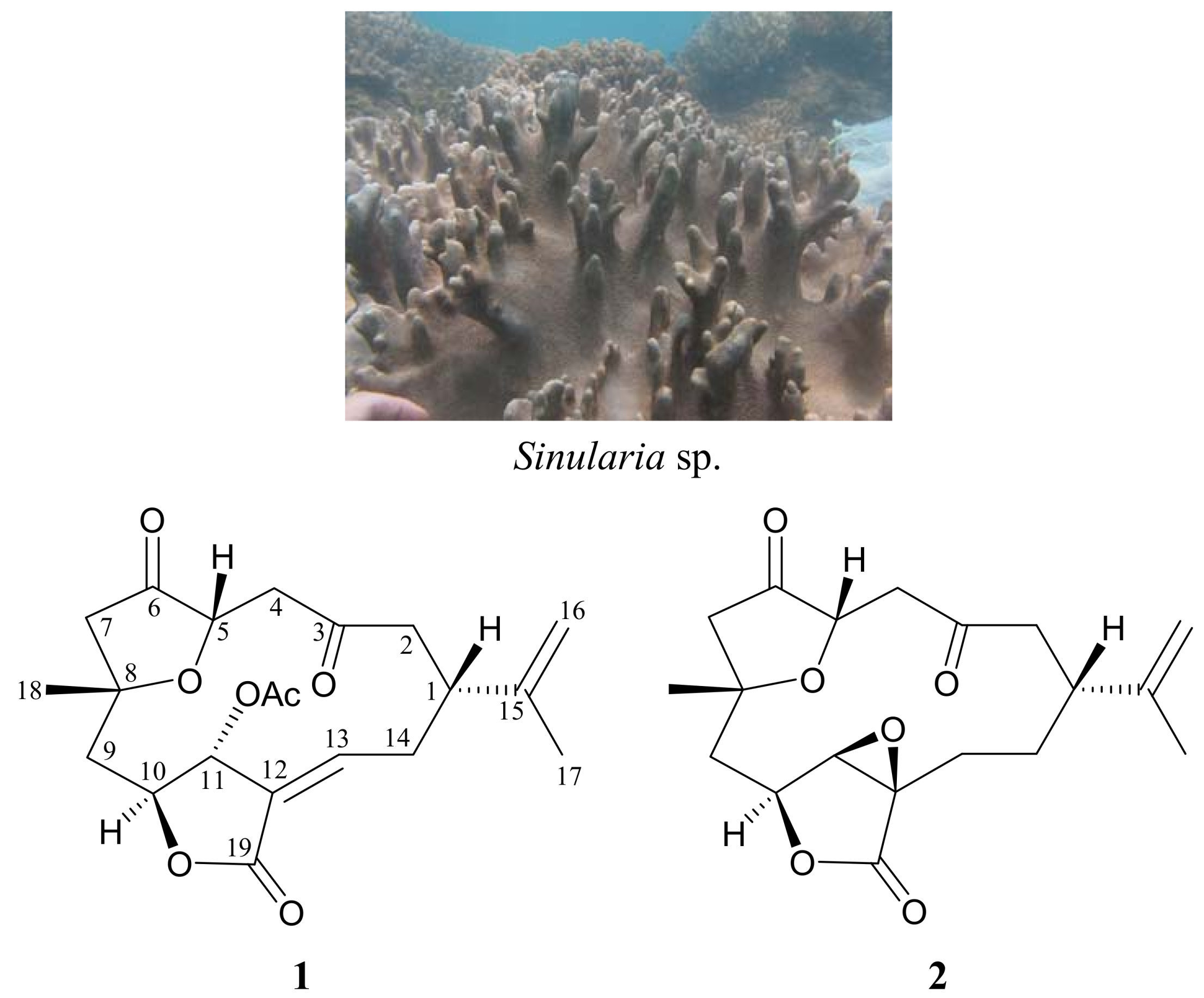

The search for bioactive natural products from marine organisms has been remarkably successful [1,2] and octocorals belonging to the genus Sinularia have proven to be rich sources of bioactive terpenoid analogues [3]. Among these terpenoid metabolites, the C₁₉-norcembranoid diterpene derivatives played an important role [4]. In continuation of our search for new natural substances from the marine invertebrates collected off the waters of Taiwan at the intersection of the Kuroshio current and the South China Sea surface current, we have further isolated two norcembranoidal diterpenes, 5-episinuleptolide acetate (1) and scabrolide D (2), from an octocoral identified as Sinularia sp. (Figure 1). In this paper, we describe the isolation, structure determination and cytotoxicity of norcembranoids 1 and 2.

2. Results and Discussion

The molecular formula for norcembranoidal diterpene 1 was determined to be C₂₁H₂₆O₇ (nine units of unsaturation) using HRESIMS (C₂₁H₂₆O₇+Na, m/z 413.1574, calculated 413.1576). The IR spectrum of 1 showed strong bands at 1756, 1738 and 1719 cm^–1, consistent with the presence of ester and ketone carbonyl groups. From the ¹H- and ¹³C-NMR spectra (

Table 1. ¹H (400 MHz, CDCl₃) and ¹³C (100 MHz, CDCl₃) NMR data, ¹H–¹H COSY and HMBC correlations for norcembranoidial diterpene 1.

Position	δΗ (J in Hz)	δC, Mult.	1H–1H COSY	HMBC (H→C)
1	2.99 m	39.6, CH	H2-2, H2-14	C-15
2α β	2.65 m 2.52 m	45.9, CH2	H-1, H-2β H-1, H-2α	C-1, -3, -14, -15 C-1, -3, -14, -15
3		205.3, C
4α β	2.53 dd (16.4, 8.8) 2.82 dd (16.4, 2.4)	43.1, CH2	H-4β, H-5 H-4α, H-5	C-3, -5, -6 C-3, -5, -6
5	4.27 dd (8.8, 2.4)	75.0, CH	H2-4	C-3, -4
6		214.5, C
7α β	2.60 m 2.46 m	51.1, CH2	H-7β H-7α	C-5, -6, -8, -9, -18 C-5, -6, -8, -9, -18
8		79.0, C
9α β	2.34 m 2.47 m	41.8, CH2	H-9β, H-10 H-9α, H-10	C-7, -8, -10, -11, -18 C-7, -8, -10, -11, -18
10	4.52 dt (6.8, 2.0)	80.8, CH	H2-9, H-11	C-8, -11, -19
11	5.47 br s	76.4, CH	H-10	C-9, -12, -13, -19, acetate carbonyl
12		127.6, C
13	6.45 ddd (10.8, 4.4, 1.2)	147.2, CH	H2-14	C-1, -11, -19
14α β	2.20 ddd (14.8, 4.4, 3.6) 3.78 ddd (14.8, 10.8, 6.8)	28.4, CH2	H-1, H-13 H-1, H-13	C-1, -2, -12, -13, -15 C-1, -2, -12, -13, -15
15		147.0, C
16a b	4.86 s 4.79 s	110.4, CH2	H-16b, H3-17 H-16a, H3-17	C-1, -15, -17 C-1, -15, -17
17	1.80 s	21.6, CH3	H2-16	C-1, -15, -16
18	1.42 s	26.5, CH3		C-7, -8, -9
19		167.7, C
11-OAc	2.08 s	171.2, C20.9, CH3		Acetate carbonyl

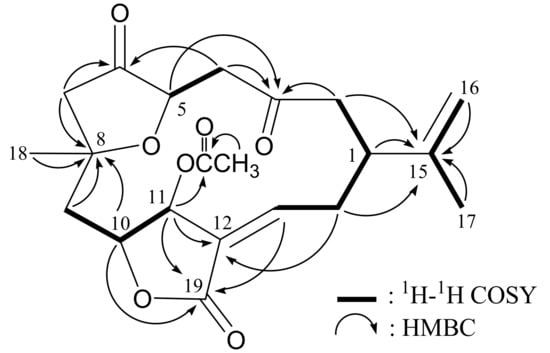

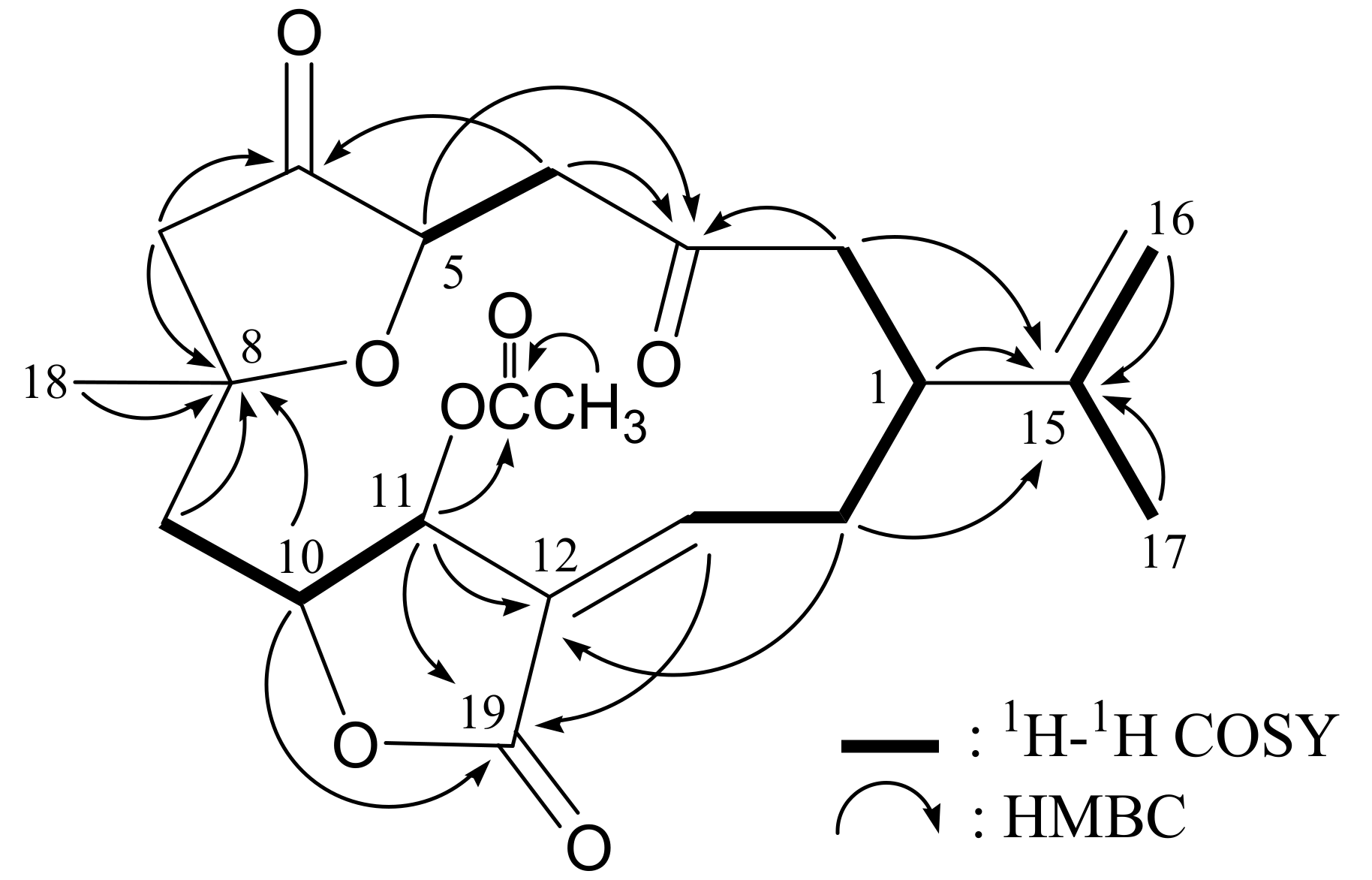

), 1 was found to possess an acetoxy group (δ_H 2.08, 3H, s; δ_C 171.2, C; 20.9, CH₃), an ester group (δ_C 167.7, C-19) and two ketone carbonyls (δ_C 205.3, C-3; 214.5, C-6). Two additional unsaturated functionalities were indicated by ¹³C resonances at δ_C 127.6 (C-12), 147.2 (CH-13), 147.0 (C-15) and 110.4 (CH2-16), suggesting the presence of a trisubstituted olefin and an exocyclic carbon-carbon double bond. From the ¹H–¹H COSY spectrum of 1 (Table 1 and Figure 2), it was possible to differentiate among the separate spin systems of H-1/H₂-2, H₂-4/H-5, H₂-9/H-10/H-11, H-13/H₂-14/H-1 and H₂-16/H₃-17 (by allylic coupling). These data, together with the key HMBC correlations between protons and quaternary carbons of 1 (Table 1 and Figure 2), such as H₂-2, H₂-4, H-5/C-3; H₂-4, H₂-7/C-6; H₂-7, H₂-9, H-10, H₃-18/C-8; H-11, H₂-14/C-12; H-1, H₂-2, H₂-14, H₂-16, H₃-17/C-15; and H-10, H-11, H-13/C-19, permitted the elucidation of the carbon skeleton. The acetoxy group positioned at C-11 was confirmed from the HMBC correlations of H-11 (δ_H 5.47) and protons of an acetate methyl (δ_H 2.08) to the ester carbonyl carbon at δ_C 171.2 (C). Thus, 1 was revealed as a norcembranoidal diterpene possessing a γ-lactone ring, on the basis of the above analysis.

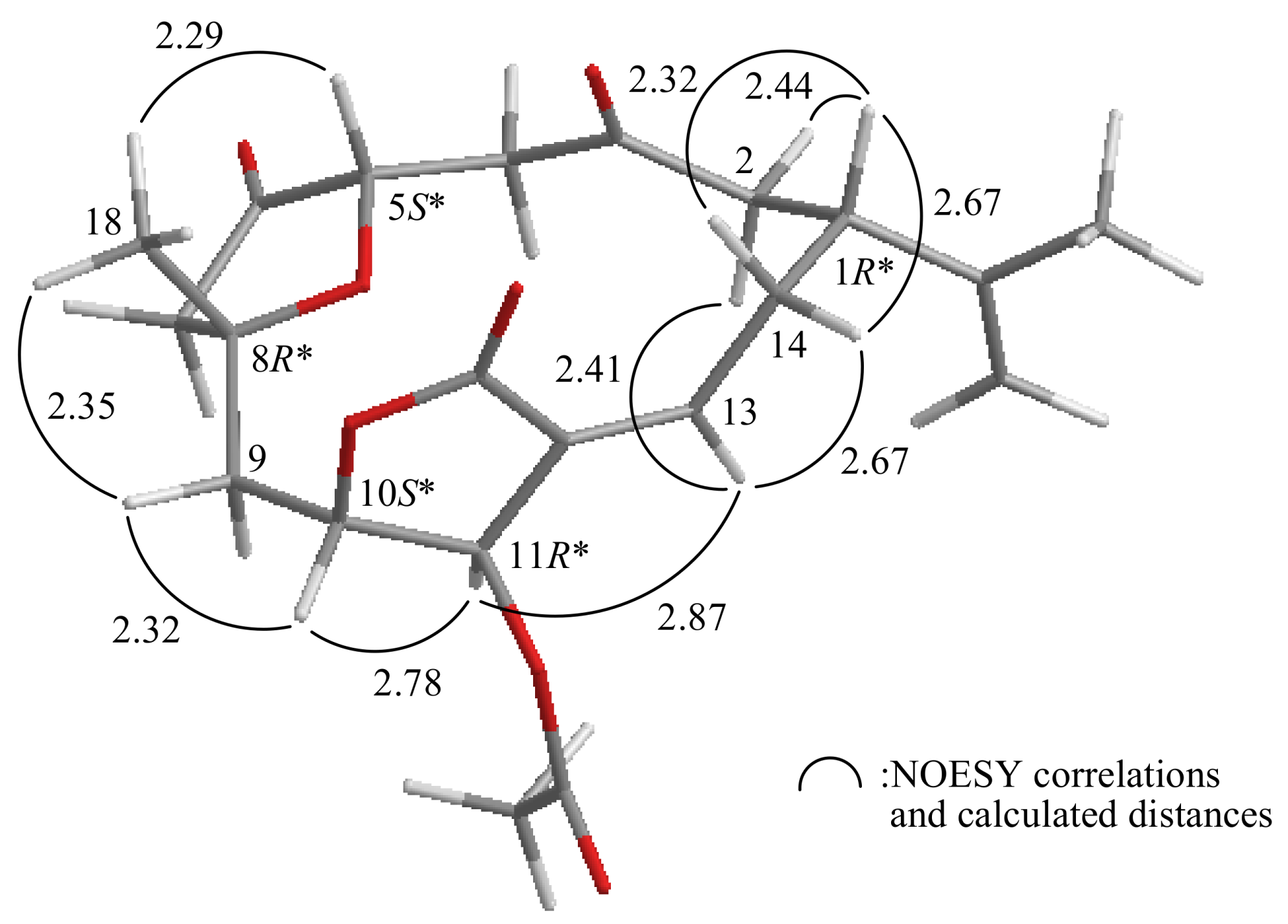

The relative configuration of 1 was elucidated mainly from a NOESY spectrum as being compatible with that of 1 offered by computer modeling (Figure 3), in which the close contacts of atoms in space calculated were consistent with the NOESY correlations [5]. Most naturally occurring cembrane-type natural products from soft coral belonging to the order Alcyonacea have the H-1 in the β-orientation [6]. In the NOESY experiment for 1, H-1 correlated with H₂-14 and one proton of C-2 methylene (δ_H 2.52, H-2β), supporting this reasoning by molecular modeling analysis. H-13 showed correlations with H-2α (δ_H 2.65), H-11 and one proton of C-14 methylene (δ_H 2.20, H-14α), but not with H-1, indicating the E-configuration of the C-12/13 double bond. H-10 showed a correlation with H-11, as well as the lack of coupling was detected between these two protons, indicating the dihedral angle between H-10 and H-11 is approximately 90° and the configurations of chiral carbons C-10 and C-11 were assigned as S*- and R*-forms, respectively. One proton of C-9 methylene (δ_H 2.47) correlated with H-10 and H₃-18, but not with H-11, and H₃-18 showed a strong correlation with H-5, indicating that Me-18 and H-5 were β-oriented in 1. From the above evidences, the relative configuration of the chiarl carbons of 1 were assumed to be 1R*, 5S*, 8R*, 10S* and 11R*.

By comparison of the spectral data with those of a known semisynthetic diterpene, compound 1 was elucidated unambiguously to be 5-episinuleptolide acetate [7]. To the best of our knowledge, norcembranoidal diterpene 1 was isolated for the first time from a natural source.

Norcembranoidial diterpene 2 was identified as scabrolide D, which had been isolated from a Formosan octocoral Sinularia scabra. Its spectral data were in full agreement with those previously reported [8].

Cytotoxicity of the norcembranoidal diterpenes 1 and 2 toward K562 (human erythromyeloblastoid leukemia), MOLT-4 (human acute lymphoblastic leukemia), HTC-116 (human acute promyelocytic leukemia), DLD-1 (human colorectal adenocarcinoma), T-47D (human breast ductal carcinoma) and MDA-MB-231 (human breast adenocarcinoma) cells was studied, and the results are shown in

Table 2. Cytotoxic data of norcembranoidal diterpenes 1 and 2.

Compounds	Cell lines IC50 (μg/mL)
	K562	MOLT-4	HTC-116	DLD-1	T-47D	MDA-MB-231
1	0.67	0.59	4.09	0.92	3.09	2.95
2	NA	NA	NA	NA	NA	NA
Doxorubicin a	0.15	0.01	1.11	0.22	0.40	1.30

^a Doxorubicin was used as positive control. NA = not active at 20 μg/mL for 72 h.

. These data showed that compound 1 (5-episinuleptolide acetate) exhibited modest cytotoxicity towards all the cells.

3. Experimental

3.1. General Procedures

Optical rotation values were measured with a Jasco-P1010 digital polarimeter. Infrared spectra were obtained on a Varian Diglab FTS 1000 FT-IR spectrophotometer. NMR spectra were recorded on a Varian Mercury Plus 400 FT-NMR at 400 MHz for ¹H and 100 MHz for ¹³C in CDCl₃ at 25 °C. Proton chemical shifts were referenced to the residual CHCl₃ signal (δ_H 7.26 ppm). ¹³C-NMR spectra were referenced to the center peak of CDCl₃ at δ_C 77.1 ppm. ESIMS and HRESIMS data were recorded on Bruker APEX II mass spectrometer. Column chromatography was performed on silica gel (230–400 mesh, Merck, Darmstadt, Germany). TLC was carried out on precoated Kieselgel 60 F₂₅₄ (0.25 mm, Merck) and spots were visualized by spraying with 10% H₂SO₄ solution followed by heating. HPLC was performed using a system comprised of a Hitachi L-7100 pump, a Hitachi L-7455 photodiode array detector and a Rheodyne 7725 injection port. A normal phase column (Hibar 250 × 10 mm, Merck, silica gel 60, 5 μm) was used for HPLC.

3.2. Animal Material

Specimens of the soft coral Sinularia sp. were collected by hand using scuba equipment off the coast of Sansiantai, Taitung County, Taiwan in October 13, 2011, and stored in a freezer (−20 °C) until extraction. This organism was identified by comparison with previous descriptions [9]. A voucher specimen was deposited in the National Museum of Marine Biology and Aquarium, Taiwan.

3.3. Extraction and Isolation

The freeze-dried and mince material of Sinularia sp. (wet weight 1.30 kg, dry weight 328 g) was extracted with ethyl acetate (EtOAc) at 25 °C (2 L × 10). The EtOAc extract left after removal of the solvent (11.4 g) was separated by silica gel and eluted using n-hexane/EtOAc in a stepwise fashion from 100:1 to pure EtOAc to yield 13 fractions A–M. Fraction H was separated by normal-phase HPLC (NP-HPLC) using a mixture of n-hexane and EtOAc (9:4) as the mobile phase to afford compounds 1 (29.5 mg) and 2 (4.4 mg).

5-Episinuleptolide acetate (1): [α]$25D$ −81 (c 0.5, CHCl₃); IR (neat) ν_max 1756, 1738, 1719 cm⁻¹; ¹H- (CDCl₃, 400 MHz) and ¹³C- (CDCl₃, 100 MHz) NMR data, see Table 1; ESIMS m/z 413 [M + Na]⁺; HRESIMS: m/z 413.1574 (calcd for C₂₁H₂₆O₇ + Na, 413.1576).

Scabrolide D (2): [α]$25D$ −67 (c 0.2, CHCl₃); IR (neat) ν_max 1775, 1762, 1711 cm⁻¹; ¹H- and ¹³C-NMR spectral data were found to be in full agreement with those of reported previously [8].

3.4. Molecular Mechanics Calculations

Implementation of the MM2 force field [5] in CHEM3D PRO software from CambridgeSoft Corporation (Cambridge, MA, USA; ver. 9.0, 2005) was used to calculate molecular models.

3.5. Cytotoxicity Testing

The cytotoxicity of norcembranoidal diterpenes 1 and 2 was assayed with a modification of the MTT [3-(4,5-dimethylthiazol-2-yl)-2,5-diphenyltetrazolium bromide] colorimetric method. Cytotoxicity assays were carried out according to previously described procedures [10,11].

4. Conclusions

Cembrane- and norcembrane-type natural products are major constituents of the extracts of Sinularia spp. octocorals distributed in the waters off Taiwan [8,12,13,14,15,16,17,18,19,20,21,22,23,24,25,26,27,28,29,30,31,32,33,34,35]. Our continuing studies on the chemical constituents of a wild-type soft coral Sinularia sp. has led to the isolation of a new natural product, 5-episinuleptolide acetate (1), which was found to exhibit modest cytotoxicity against K562, MOLT-4, HTC-116, DLD-1, T-47D and MDA-MB-231 tumor cells. This study suggested that 5-episinuleptolide acetate (1) is worthy of further biomedical investigation. The study material Sinularia sp. has begun to be transplanted to culturing tanks with a flow-through sea water system located in the National Museum of Marine Biology and Aquarium, Taiwan for the extraction of additional natural products in order to establish a stable supply of bioactive material.
