Formation of Sulfonyl Aromatic Alcohols by Electrolysis of a Bisazo Reactive Dye

by
María P. Elizalde-González
1,
Uriel Arroyo-Abad
1,
Esmeralda García-Díaz
2,
Enric Brillas
3,
Ignasi Sirés
3 and
Martín M. Dávila-Jiménez
2,*
1
Centro de Química, Instituto de Ciencias, Universidad Autónoma de Puebla, CU, San Claudio s/n, Edif 103H, 72570 Puebla, Pue., Mexico
2
Facultad de Ciencias Químicas, Universidad Autónoma de Puebla, CU, San Claudio s/n, Edif 105H, 72570 Puebla, Pue., Mexico
3
Laboratori d'Electroquímica dels Materials i del Medi Ambient, Departament de Química Física, Facultat de Química, Universitat de Barcelona, Martí i Franquès 1-11, 08028 Barcelona, Spain
*
Author to whom correspondence should be addressed.
Molecules 2012, 17(12), 14377-14392; https://doi.org/10.3390/molecules171214377
Submission received: 16 November 2012 / Revised: 29 November 2012 / Accepted: 29 November 2012 / Published: 5 December 2012
Browse Figures
Versions Notes

Abstract

:
Five sulfonyl aromatic alcohols, namely 4-((2-hydroxyethyl)sulfonyl)phenol, 4-((2-(2-((4-hydroxyphenyl)sulfonyl)ethoxy)vinyl)sulfonyl)phenol, 4-(ethylsulfonyl)phenol, 4-(vinylsulfonyl)phenol and 5-((4-aminophenyl)sulfonyl)-2-penten-1-ol were identified by LC-ESI-Qq-TOF-MS as products formed by electrolysis of the bisazo reactive dye Reactive Black 5 (RB5). Since electrolyses were performed in an undivided cell equipped with Ni electrodes in alkaline medium, amines like 4-(2-methoxyethylsulfonyl)benzene-amine (MEBA) with m/z 216 were also suspected to be formed due to the plausible chemical reaction in the bulk or the cathodic reduction of RB5 and its oxidation by-products. Aiming to check this hypothesis, a method was used for the preparation of MEBA with 98% purity, via chemical reduction also of the dye RB5. The logP of the synthesized sulfonyl aromatic compounds was calculated and their logkw values were determined chromatographically. These data were discussed in regard to the relationship between hydrophobicity/lipophilicity and toxicity.

Graphical Abstract

1. Introduction

Electrolysis can be considered as a physicochemical method for both the decomposition of environmental pollutants (electrodegradation) and the production of new chemical compounds (electrosynthesis). According to this point of view, a target pollutant functioning as remediation object, may serve also as reagent in a synthesis of new products. The well-known disazo dye Reactive Black 5 (RB5) has usually been chosen as a model organic pollutant to assess the performance of biodegradation [1,2,3,4], photoelectrochemical degradation [5,6] and electrodegradation [7,8,9,10] technologies. Electro-oxidation with anodes like Pt, platinised Ti, BDD, Ni, RuO2 and IrO2 has been the most applied electrochemical technology for the decolorization and mineralization of such dye solutions [5,6,7]. According to several recent comprehensive reviews, these electrode materials allow the production of large amounts of ·OH by simply controlling the applied current [11,12,13] and can lead to the formation of many different compounds. The identification of the reaction products has been most typically performed by means of chromatographic techniques coupled to mass spectrometry [2,3,4,6,7,8]. However, the identification of the products generated upon the application of a remediation treatment to polluted reservoirs or solutions tends to be certainly troublesome because in many cases there are no available standard compounds to confirm the hypothesized products [14,15]. In addition, the toxicity of the treated solutions has been largely demonstrated [5], which can be accounted for by the accumulation of hazardous by-products arising from some of the decomposition routes. In our former studies on RB5 [16,17], no products were identified. However, more recently, we have reported some of the products formed in the cathodic and anodic chambers of a divided cell [18].
A vast number of by-products can be formed during the treatment of waters containing an organic pollutant. For example, in the case of bioremediation, it has been reported that the anaerobic treatment of hydrolyzed RB5 yields 39% of unknown products [2]. These products cannot be identified, mainly due to the absence of spectra libraries for sulfonated compounds chromatographed with coupling to electrospray ionization MS. Previous studies on the identification of the products formed during the electrolysis of RB5 have applied LC coupled to MS and MS/MS detectors. But, the use of the Qq-TOF-MS detector becomes much more interesting, since the exact masses of oxidation products can be ascertained. This advantage allows a much more reliable, unequivocal identification in comparison to that provided by the simple nominal masses found in other works [2,3,4,7,8].
The first purpose of the present paper was to employ the electrolysis of a model reactive bisazo dye (RB5) solution as a parallel synthetic procedure to form products not previously reported. The second task was to perform their structural elucidation using several techniques, namely LC-DAD, LC-ESI-TOF-MS and LC-ESI-Qq-TOF-MS.
The presence of Cl− and SO42− ions leads to the formation of oxidizing agents like Cl2 and S2O82− which reroute the reaction by indirect pathways. Schellenträger demonstrated for the dye RB5 for example, that the oxidation product reported by Pham [4] with the m/z 200 was oxidized to the product with the m/z 216 by attachment of a hydroxyl group when peroxodisulfate was used [19]. This author assigned to this m/z of 216 the formula C8H11N04S corresponding to 2-amino-5-(hydroxyl-ethanesulfonyl)-phenol (AHEP). In our case, AHEP could also be formed during the electrochemical oxidation of RB5 because the reagent RB5 contains Cl− (5%) and SO42− (28%). We tested this point previously and could establish that the basic medium was unsuitable for the formation of S2O82− and the amount of chloride present in the RB5 reagent was not sufficient for the formation of Cl2 during the electrochemical oxidation of the dye RB5 in an undivided cell. Nevertheless, a different plausible intermediate such as 4-(2-methoxyethylsulfonyl)benzenamine (MEBA), also with m/z 216, may form via reduction of the azo bond and methylation. We aimed to test the formation of MEBA potentiostatically in an undivided cell using RB5 and nickel electrodes, but MEBA is not commercially available as a reference compound. For this reason, the dye RB5 itself was used as reagent to prepare MEBA by a simple, novel chemical reduction methodology. We focused specially on its purity and aiming at working under gentle conditions. MEBA was exhaustively characterized and compared with the unidentified electrolysis products. Finally, the study also converged towards an exploration of the toxicity of the products, based on the assessment of their hydrophobicity.

2. Results and Discussion

Advanced oxidation processes such as heterogeneous photocatalysis and biodegradation have been used plentifully to study the decolorization of RB5 solutions. In contrast, the implementation of electrochemical processes for the treatment of water containing RB5 is less documented [5,7,8,9,10,20,21,22]. Furthermore, only some few reports have dealt with the identification of the RB5 electrolysis products [7,8,18], which is mainly due to the lack of proper analytical equipment and standard reagents.

2.1. Identification of Products Formed by Electrolysis

The total ion chromatogram (TIC) obtained for the LC-MS analysis of the initial RB5 solution is shown in Figure 1a. On the right side of this figure, the molecular structures for the three peaks detected are depicted. As can be observed, the alkaline solution mainly contains the vinyl form (RB5-V) of the dye that appears at tR = 15.4 min with m/z 706.0068 (Δm 2.8). Other minor identified species in the initial solution were the partially hydrolyzed vinyl form (RB5-HV) at tR = 14.1 min, with m/z 724.0169 (Δm 2.2) and the completely hydrolyzed form (RB5-HH) at tR = 12.9 min, with m/z 742.0261 (Δm 0.3).
The chromatograms obtained in the LC-DAD and LC-MS analyses of the products formed by electrolysis of the RB5 solution at a cathodic potential of −3 V vs. SCE (I = 380 mA) and with Ecell = 4.0 V for 90 min are presented in Figure 1b,c, respectively, and reveal five main products formed by electrolysis. Peaks 1–5 exhibited well-defined UV/Vis spectra, which informed about the similarities between the aromatic moieties, as can be seen in Figure 2a. Peak 2 with bands at 258 and 322 nm presented much less similarities among these compounds. This may suggest the existence of transitions occurring in naphthalene or conjugated biphenyl structures, as it will be clearly demonstrated below. On the other hand, Figure 2b shows that peaks appearing within 10 and 13 min, marked with an asterisk in Figure 1b, exhibited less characteristic bands in their UV spectra, although they still maintain the aromaticity.
The TIC shown in Figure 1c was obtained in negative ionization mode. It can be seen that the peaks detected by DAD and marked with an asterisk in Figure 1b could not be detected by MS. Positive-ion (ESI(+)) full scans of the electrolyzed solution, recorded over the m/z range 100–1,000, did not yield signals in the LC-ESI-(Qq)-TOF-MS chromatograms for any of the products. This could be attributed to their low concentration and/or ionization capability in the positive mode.
Molecules 17 14377 g001 550

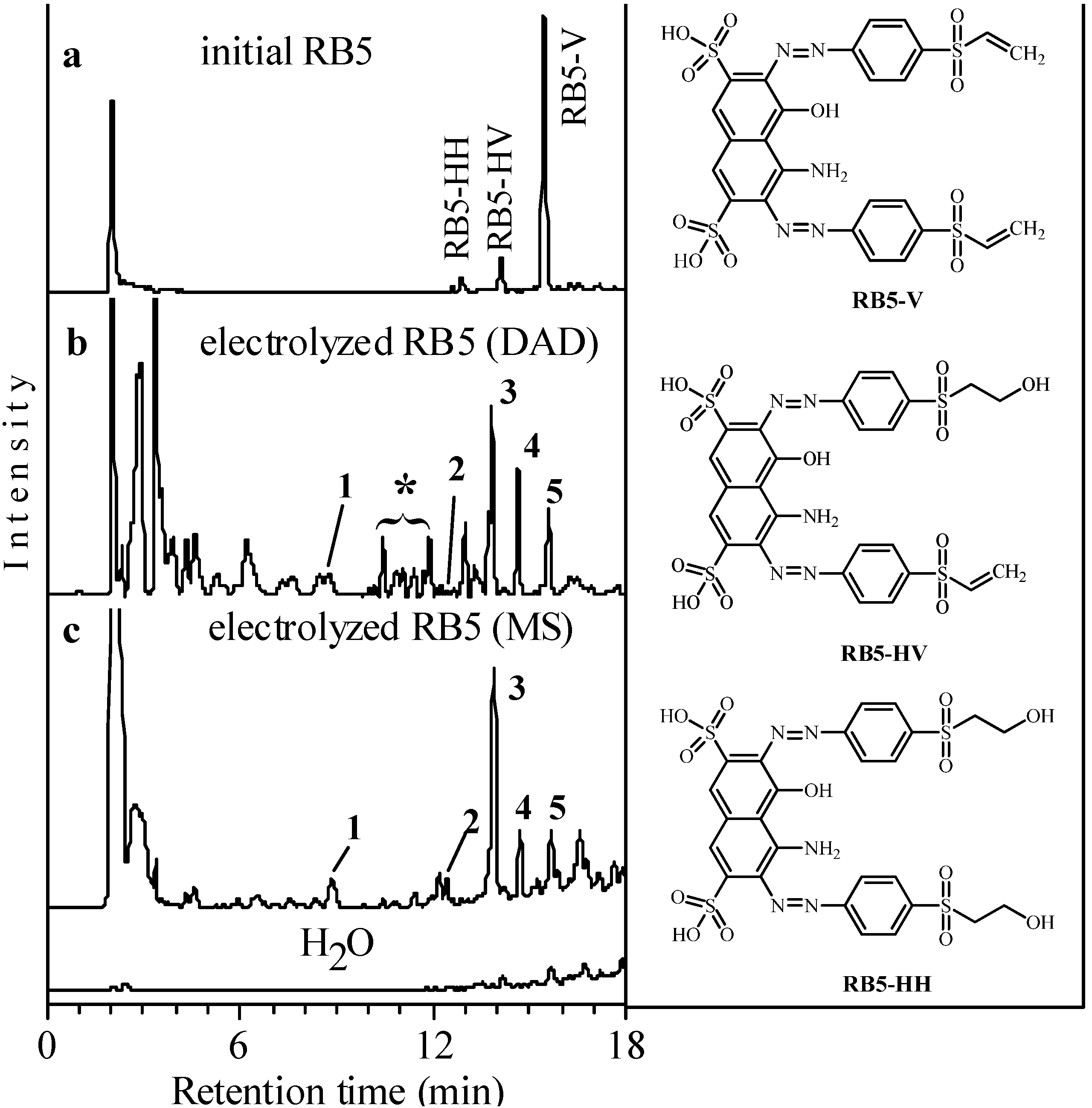

Figure 1. (a) TIC obtained for the LC-MS analysis of the initial solution of the reagent RB5. (b) LC-DAD chromatogram with baseline correction of the RB5 solution after electrolysis. (c) TIC for the same solution, compared to that of water.
Figure 1. (a) TIC obtained for the LC-MS analysis of the initial solution of the reagent RB5. (b) LC-DAD chromatogram with baseline correction of the RB5 solution after electrolysis. (c) TIC for the same solution, compared to that of water.
Molecules 17 14377 g001
Molecules 17 14377 g002 550

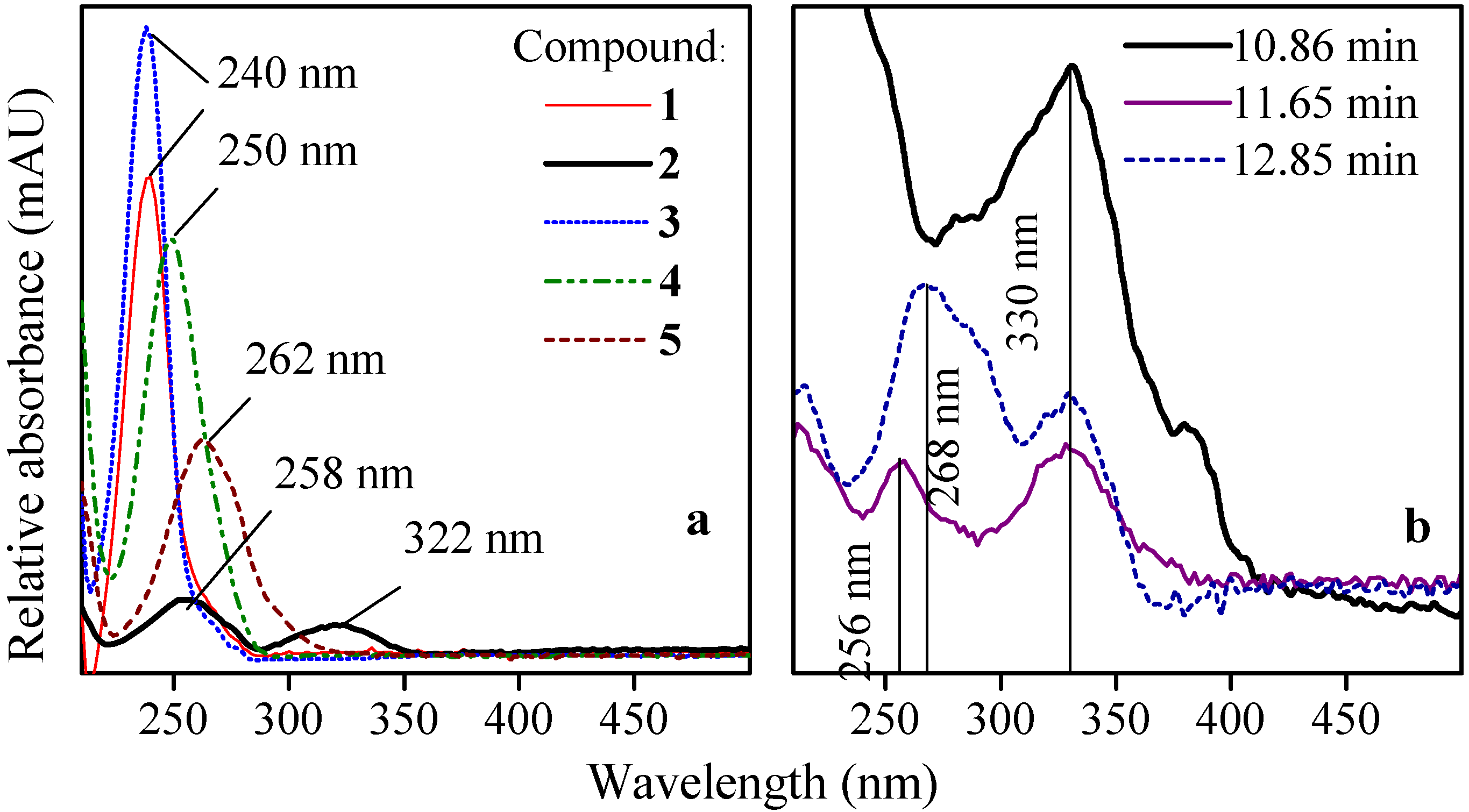

Figure 2. (a) UV/Vis spectra for: products 1–5 indicated in Figure 1b,c for the resulting mixture and (b) other peaks at different retention times.
Figure 2. (a) UV/Vis spectra for: products 1–5 indicated in Figure 1b,c for the resulting mixture and (b) other peaks at different retention times.
Molecules 17 14377 g002
The MS spectra of the five products included in Figure 1c acquired in ESI(−) mode, are then shown in Figure 3 and the proposed formulae have been summarized in Table 1 and Table 2, thus revealing that mainly sulfonyl aromatic alcohols are formed. The elucidation of the structure of compound 2 with two aromatic rings confirmed the presence of the two bands observed in the UV/Vis spectrum of Figure 2a.
Molecules 17 14377 g003 550

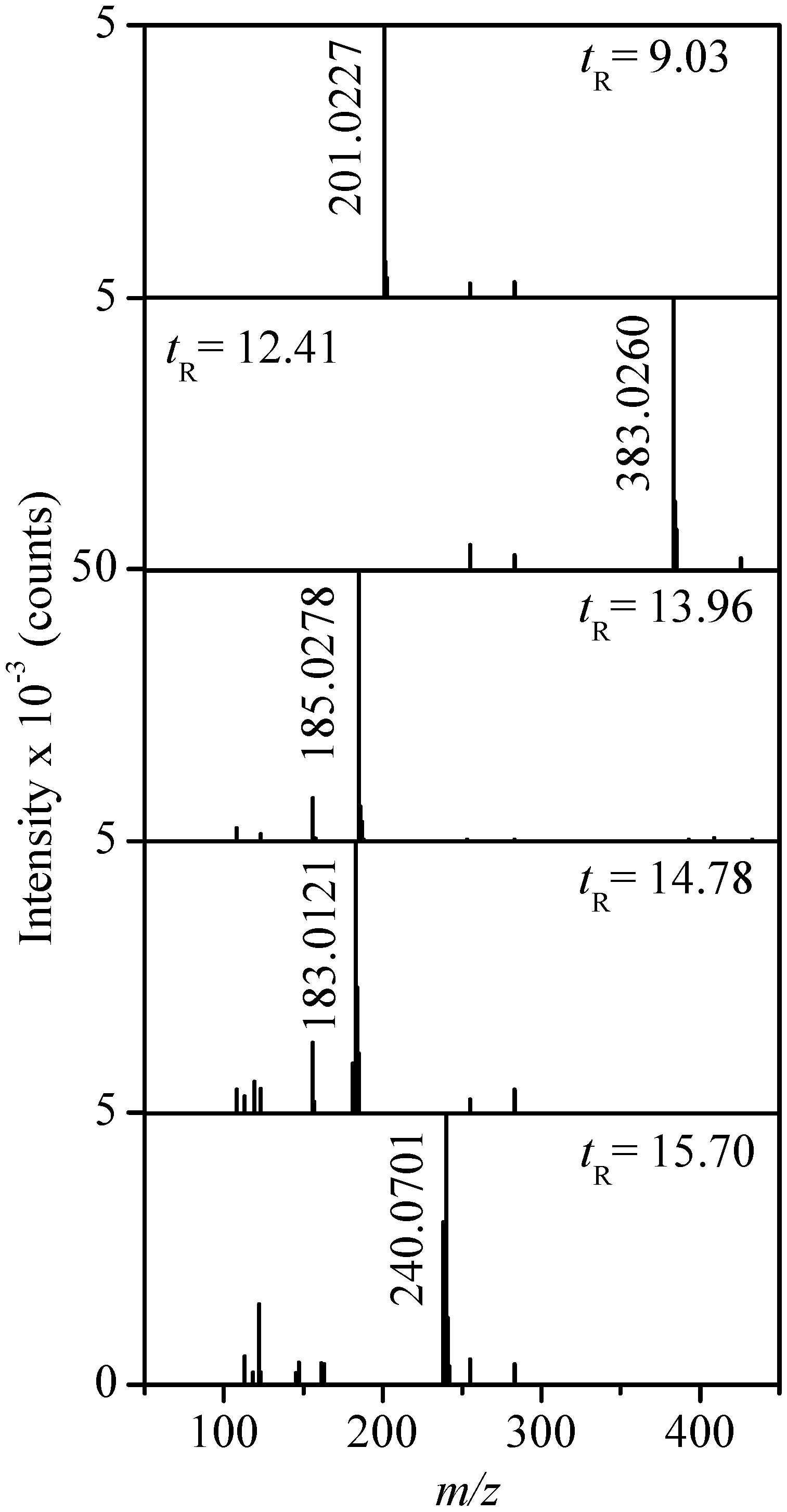

Figure 3. MS spectra of peaks 1–5 indicated in the TIC of Figure 1c.
Figure 3. MS spectra of peaks 1–5 indicated in the TIC of Figure 1c.
Molecules 17 14377 g003
Table
Table 1. Formulae and relevant mass spectrometry data for the sulfonyl aromatic alcohols (1–5) identified by LC-ESI(-)-(Qq)-TOF-MS as electrolysis products of RB5, as well as for MEBA.
Table 1. Formulae and relevant mass spectrometry data for the sulfonyl aromatic alcohols (1–5) identified by LC-ESI(-)-(Qq)-TOF-MS as electrolysis products of RB5, as well as for MEBA.
Compd.Condensed formulatR (min)[M-H]exper.[M-H]calc.Δ m (ppm)Reported by
1C8H10O4S9.03201.0227201.02270.0[18]
2C16H16O7S212.41383.0260383.0265−1.3new
3C8H10O3S13.96185.0278185.02780.0[18]
4C8H8O3S14.78183.0121183.01210.0new
5C11H15NO3S15.70240.0701240.07000.4new
[M+H]exper.[M+H]calc.
MEBAC9H13NO3S12.30216.0691216.06890.9[23]
Despite the low mass errors calculated for the proposed structures, collected in Table 1, MS/MS spectra were recorded for compounds 1–5 and the resulting product ions, are summarized in Table 2. In our previous work [18], we produced compounds 1 and 3 by electrolysis of an alkaline RB5 solution in the anodic chamber of a divided electrochemical cell.
Table
Table 2. Product ions of the electrolysis products 2, 4 and 5 obtained upon MS/MS analysis by means of LC-ESI-Qq-TOF-MS.
Table 2. Product ions of the electrolysis products 2, 4 and 5 obtained upon MS/MS analysis by means of LC-ESI-Qq-TOF-MS.
Compd.Proposed structure[M-H]exper.Product ions MS/MS
1 Molecules 17 14377 i001201.022792: [M-H-SO2C2H5O]−·
108: [M-H-SOC2H5O]−·
156: [M-H-C2H5OH]−·
2 Molecules 17 14377 i002383.0260353: [M-H-CH2O]−·
262: [M-H-C3H5O3S]−·
230: [M-H-C3H5O5S]−·
199: [M-H-C8H8O3S]−·
184: [M-H-C8H7O4S]−·
169: [M-H-C9H10O4S]−·
3 Molecules 17 14377 i003185.027892: [M-H-C2H5O2S]−·
108: [M-H-C2H5OS]−·
156: [M-H-C2H5]−·
4 Molecules 17 14377 i004183.012192: [M-H-C2H5]−·
108: [M-H-C2H3OS]−·
156: [M-H-C2H5]−·
5 Molecules 17 14377 i005240.0701107: [M-H-C2H5NO2S]−·
147: [M-H-CH3NO2S]−·
163: [M-H-CHO2S]−·
184: [M-H-C3H4O]−·
MEBA Molecules 17 14377 i006[M+H]exper. 216.0691
The amino form of the vinyl compound 4 depicted in Table 2 has also been confirmed as a biodegradation product of RB5 arising from anaerobic reduction process [3,24]. The same authors also reported a di-p-aminobenzeneethylsulfonic ether with m/z 383.5 differing slightly from compound 2 (m/z 383.0260, Δm −1.3 ppm) identified by us. The structure that we propose here for compound 2 contains an aliphatic C=C bond, as well as terminal hydroxyl groups instead of the amino groups indicated by Plum and Rehorek [3,24]. This discrepancy can be due to the strong alkaline conditions used by us or to the proper accuracy of the TOF mode or, more likely, to the singular results yielded by the reductive biodegradation compared to the electrolysis in an undivided cell, where redox processes can take place. In total anaerobic reduction, auto-oxidation reactions of o-aminohydroxynaphthalenes are conceived [24,25]. Similarly, the hydroxylated compounds 2 and 4 could then correspond to electro-oxidation products of the amino compounds reported by Rehorek and Plum, upon participation of strong oxidizing species such as hydroxyl radicals (·OH) formed at Ni anodes [18].
The collision energy for the MS/MS runs was set at a relative high value (25–30 V) in order to observe a larger number of product ions, as confirmed in Table 2. Moreover, the above mentioned amino form of compound 2 with a reported m/z 383.5 [3] would have an exact m/z 383.0741, which differs slightly from the m/z 383.0260 (Δm −1.3 ppm) corresponding to the hydroxylated form being suggested in the present paper.
Since amino, hydroxylated and methylated derivatives of the arylsulfonyl structure were produced by electrolysis of RB5 solutions, the identity of the peaks with an asterisk in Figure 1b may correspond to methylated arylsulfonyl amines. The synthesis of aromatic amines is often difficult. Methods based on the electrophilic aromatic substitution involving nitration followed by reduction or direct amination are incompatible with many functional groups. However, the chemical reduction of RB5 can yield arylsulfonyl amines, which may serve as standards for the identification of possible electrolysis products of RB5. Moreover, a methoxy group can be introduced into the arylsulfonyl amine by completing the chemical reduction of RB5 in an appropriate medium. We put forward the synthesis of MEBA (see molecular formula in Table 2), for which two procedures were reported elsewhere: (i) the treatment of p-acetanilidosulfinic acid with alkoxyethyl chloride [26] and (ii) the use of an addition reaction employing aryl β-chloroethyl sulfones prepared from β-hydroxyethyl sulfides and thionyl chloride [23].

2.2. Consideration of MEBA as One of the Unidentified Electrolysis Products

Other experiments performed by us in a divided cell demonstrated that during the electrolysis of 80 mg dm−3 RB5 at a cathodic potential of −3 V vs. SCE and with Ecell = 4.0 V for 120 min, the compound with m/z 384.0581 (Δm = 1.56) depicted in Figure 4, was formed:
Molecules 17 14377 g004 550

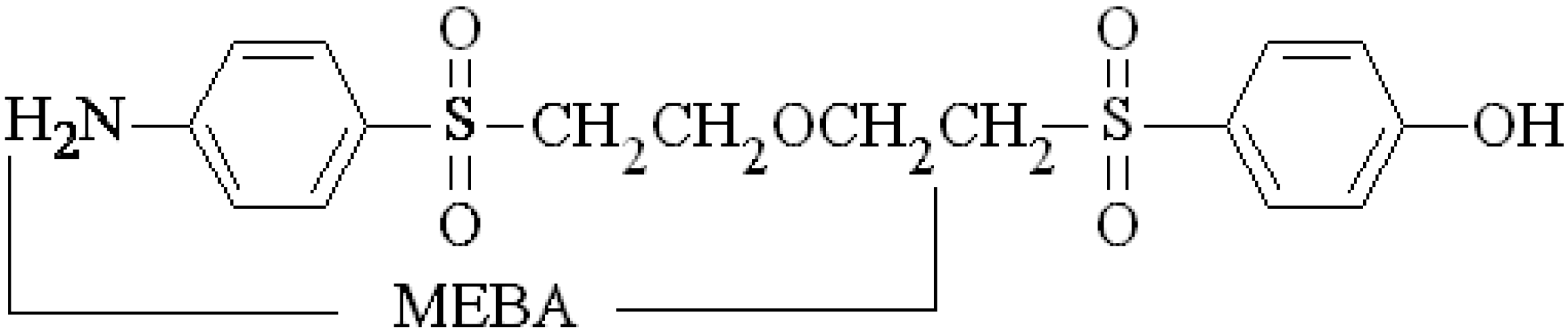

Figure 4. Condensation product formed during the electrolysis of RB5 in a divided cell.
Figure 4. Condensation product formed during the electrolysis of RB5 in a divided cell.
Molecules 17 14377 g004
Its structure could correspond to a condensation product arising from smaller sulfonyl aromatic compounds. This finding, together with Schellenträger’s compound AHEP motivated the preparation of a sulfonyl derivative with m/z 216 carrying a terminal methyl group, i.e., MEBA to be used as a standard. Further, the possible formation of MEBA as one of the electrolysis products of RB5 was surveyed. The peak corresponding to MEBA appeared at tR = 12.30 min in the TIC for an LC-MS analysis (see Table 1). On the other hand, several well-defined peaks (marked with an asterisk in Figure 1b were observed in the LC-DAD mixture of products of the electrolyzed solution in Figure 1b at tR = 10.44, 10.89, 11.06, 11.41, 11.72 and 11.88 min. Other peaks with much lower definition, were eluted at tR = 12.07, 12.21, 12.42 and 12.64 min. Therefore, all these latter peaks were candidates to correspond to MEBA. In principle, the following facts could support the consideration of the synthesized MEBA as one of the peaks within 12.07 and 12.64: (i) the compound was synthesized from the chemical reduction of RB5, which is a process that may also occur under the electrochemical conditions carried out and (ii) the structure should ionize positively, then being logic its absence in the TIC when doing the LC-MS analysis recorded in negative mode (see Figure 1c). By spiking the electrolyzed solution with MEBA, no height increment of none of the peaks at tR = 12.21, 12.42, 12.64 min was observed in the DAD chromatogram. These peaks rather became overlapped, which means that MEBA eluted at a slightly different tR. This suggests that neither AHEP, nor MEBA could be synthesized by electrolysis of the dye RB5 under the conditions tested in this work.

2.3. Hydrophobicity/Lipophilicity/Toxicity of the Decomposition Products

Two of the most intriguing and challenging questions within the field of environmental electrochemistry are the identification and the toxicity assessment of the products formed by electrolysis. While hydrophobicity refers to the association of non-polar species in aqueous media, lipophilicity informs about the relative affinity of the molecule for lipophilic binding sites [27]. Although both terms are routinely used indistinctly, it can be argued that lipophilicity is a property determining the biological activity of a substance, whereas hydrophobicity can be considered as the anti-driving force for the transport of the pollutant in the aqueous environment. Furthermore, hydrophobicity (defined by the logarithm of the partition coefficient, logP) has shown a dependence on non-specific toxicity, mutagenicity and carcinogenicity [28]. The logP, which is normally given as the partition coefficient of a compound between octanol and water (logkow), has become fundamental for the prediction of toxicity [29].
Different computational systems yield logP values diverging markedly [27,30]. We carried out the theoretical calculation of this coefficient for the identified products by using suitable software. Isocratic chromatographic runs in the reversed phase mode were also performed for the experimental determination of logkw, which is the extrapolated logarithm of the chromatographic capacity factor k for pure water. In particular, it is known that a good correlation between logkw and logP or logkow (experimentally determined by the shaking flask method) is found for closely related molecules [31].
The strategy used in this part of the study consisted of three stages: (a) theoretical generation of the logkow values of the chemical structures of the compounds depicted in Table 2, (b) correlation of the calculated logkow with the logkw obtained analytically from Figure 5 (extrapolation of the parabolic fitting curves—continuous lines—up to 0% acetonitrile content in the mobile phase) and (c) correlation of the calculated logkow with the logkw obtained analytically at 0% acetonitrile in the same figure (extrapolation of the linear fitting curves—dotted lines—arising from data available in the range 10–25% acetonitrile). Figure 5 and Table 3 show that logkw,parab. > logkw,linear. This effect is similar to the downward curvature observed at lower methanol fractions when n-octanol was supplied to the mobile phase as additive for compounds with intermediate lipophilicity [32]. As demonstrated by Giaginis et al. [32] for a set of 45 drugs, the linear extrapolation of the logkw values correlated practically 1:1 with the measured logP obtained by the shake flask method, using n-octanol as additive. This promoted the use logkw,linear instead of logkw,parabolic. The logkw,linear values of the products obtained by us as a result of the electrolysis of RB5 and of MEBA varied in the range 0.98–1.92 (see Table 3). For comparison, logP of aniline is 0.90, of phenol is 1.47 and, for the methyl-substituted phenols, it varies within 1.94–1.96 [29]. The data of logkw~logkow~logP reported in the present paper for the identified products generated by electrolysis of RB5 then allow an estimation of their possible level of a toxicity, which is similar to that of phenol and its methylated derivatives.
Molecules 17 14377 g005 550

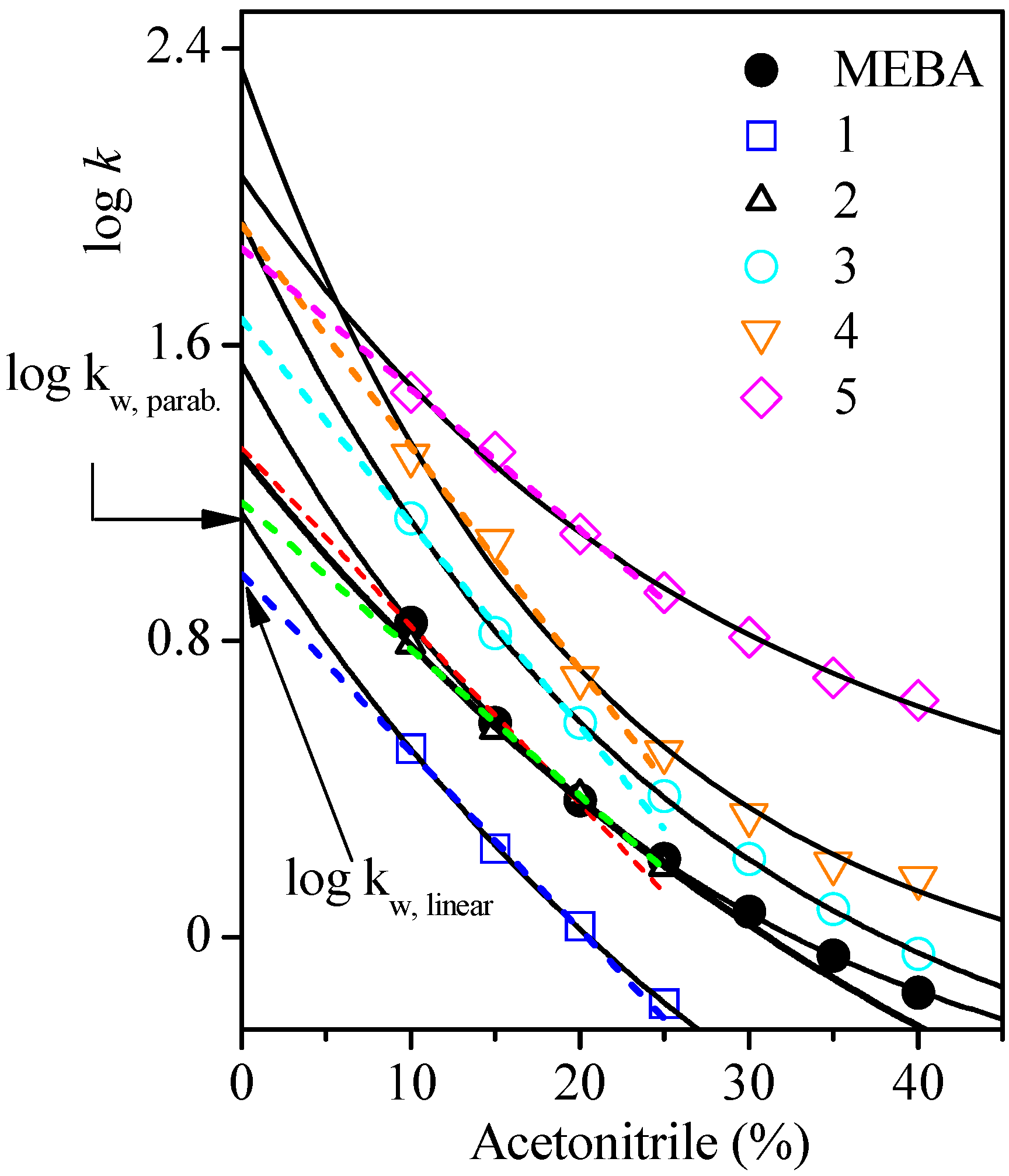

Figure 5. Dependence of logk of compounds 1–5 and MEBA with the content of acetonitrile in the mobile phase eluted under isocratic conditions, showing a parabolic (continuous lines) or linear (dotted lines) fitting with extrapolation up to 0% acetonitrile to yield logkw.
Figure 5. Dependence of logk of compounds 1–5 and MEBA with the content of acetonitrile in the mobile phase eluted under isocratic conditions, showing a parabolic (continuous lines) or linear (dotted lines) fitting with extrapolation up to 0% acetonitrile to yield logkw.
Molecules 17 14377 g005
Table
Table 3. Chromatographic capacity factor k (= (tR – t0)/t0, where tR is the retention time and t0 is the dead time) under gradient conditions, experimental logkw,parabolic andlogkw,linear, calculated logkow and total dipole moment of the identified compounds and MEBA.
Table 3. Chromatographic capacity factor k (= (tR – t0)/t0, where tR is the retention time and t0 is the dead time) under gradient conditions, experimental logkw,parabolic andlogkw,linear, calculated logkow and total dipole moment of the identified compounds and MEBA.
Compound and IUPAC nameklogkw,parab. (exper.)logkw,lin. (exper.)logkow (calc.)m (Debye)
14-((2-hydroxyethyl)sulfonyl)phenol3.41.140.980.373.8
MEBA4-(2-methoxyethylsulfonyl)benzenamine5.01.551.320.695.1
24-((2-(2-((4-hydroxyphenyl)sulfonyl)ethoxy)vinyl)sulfonyl)phenol5.11.301.170.765.6
34-(ethylsulfonyl)phenol5.81.931.671.185.5
44-(vinylsulfonyl)phenol6.22.341.921.036.7
55-((4-aminophenyl)sulfonyl)-2-penten-1-ol6.72.051.861.147.9
When the calculated logkow values were compared with the experimental logkw,parabolic and the logkw,linear, the resulting R2 values were 0.8621 and 0.8848, respectively. Thus, the logkw,linear data were preferably used for the examination of the elution sequence of the studied compounds, i.e., to establish a congruence between their elution expressed in terms of the chromatographic retention capacity factor k and their experimental logkw magnitudes. Usually, chromatographists search for linear dependences between logk and structural parameters. In the present study, such congruence can be directly related to the correct identification, that is, it serves as a complementary strategy for the verification of the proposed structures. As can be noted, despite the reduced number of data (N = 5), the chromatographic retention capacity factor k of the identified sulfonyl aromatic alcohols (i.e., excluding MEBA) formed in the RB5 solution after electrolysis, showed a sufficient linear correlation with logkw,linear (R2 = 0.9277), with logkow (R2 = 0.9448) and also with the dipole moment (R2 = 0.9437), as can be seen in Table 4 summarizing the statistical analysis.
Table
Table 4. Statistical analysis of the relationship of logkw,linear, logkow, and the dipole moment with the elution order, expressed by the chromatographic capacity factor k reported in Table 3.
Table 4. Statistical analysis of the relationship of logkw,linear, logkow, and the dipole moment with the elution order, expressed by the chromatographic capacity factor k reported in Table 3.
Statistical parametersk vs. logkw,lineark vs. logkowk vs. dipole moment
R20.92770.94480.9437
SD0.18190.12730.5878
RSS0.09930.04861.0364
F18.5224.9624.43
P0.02310.015430.01588

3. Experimental

3.1. General

3.1.1. Materials

The dye RB5 (tetrasodium (6Z)-4-amino-5-oxo-3-[4-(2-sulfonatooxyethylsulfonyl)phenyl]diazenyl-6-[[4-(2-sulfonatooxyethylsulfonyl)phenyl] hydrazinylidene]naphthalene-2,7-disulfonate, C.I. 20505, C26H21N5Na4O19S6, CAS 12225-25-1,dye content 55%) was purchased from Sigma-Aldrich (St. Louis, MO, USA). The other required reagents were obtained from Sigma-Aldrich and Fluka (Buchs, Switzerland). Solutions of RB5 were freshly prepared in 0.1 M KOH (Merck, Darmstadt, Germany) without previous hydrolyzation and using high-purity water obtained from a Millipore Milli-Q system with resistivity >18 MΩ cm.

3.1.2. Methods

The electrolysis using RB5 solutions was performed at room temperature with a conventional three-electrode system under potentiostatic conditions with a Volta Lab PGZ301 potentiostat/galvanostat using an undivided cell of 50 cm3 capacity. Two pieces of cylindrical Ni wire mesh with an electrode area of 40 and 70 cm2 were used as the cathode and anode, respectively, whereas a saturated calomel electrode (SCE) was used as the reference electrode. In all cases, the solutions were previously deaerated by bubbling pure N2 gas for 30 min and a flow of this gas was maintained over them during the measurements. Aqueous solutions containing 80 mg dm−3 RB5 and 0.1 mol dm−3 KOH were treated under mild electrolytic conditions in the cell by applying a cathodic potential of −3 V for 90 min. The difference between the anode and the cathode was 4.0 V. The electrolyses were performed under vigorous solution stirring with a magnetic bar to ensure a good mixing and reproducible mass transport conditions. Under these conditions, both electro-oxidation and electroreduction processes took place on the surface of the Ni anode and cathode, respectively, during the electrolysis of RB5.

3.1.3. General Analytical Instrumentation

The electrolysis mixtures were analyzed by using an LC-ESI-(Qq)-TOF-MS equipment consisting of an LC Series 1260 chromatograph equipped with a degasser, binary pump and thermostated autosampler, coupled with an ESI-(Qq)-TOF-MS 6520 detector from Agilent Technologies (Santa Clara, CA, USA). For the separation, which was carried out by means of ion pair chromatography (IPC), a Macherey-Nagel Nucleodur EC C18 Isis (250 mm × 4.6 mm (i.d.), 5 µm particles) column (Düren, Germany) was used at room temperature. A mixture of 40 mmol dm−3 triethylammonium acetate (TEAA) as component A and acetonitrile with 0.1% HCOOH as component B was eluted at 1 cm3 min−1 as the mobile phase, with a relative percentage of A of 90% for 5 min, 10% between 5 and 25 min and 90% again up to 30 min. The injection volume was 0.1 cm3, whereas the dead time (t0 = 2.04 min) was determined by injecting D2O. The following mass spectrometry conditions were used: (i) for accurate mass analysis, ESI-TOF-MS was performed in the negative ionization mode (ESI(-)) with drying gas (N2) at 11 dm3 min−1, TOF fragmentor voltage of 175 V, capillary voltage of 3500 V, m/z range of 50–1000, gas temperature of 350 °C and nebulizer pressure of 60 psi, and (ii) for the MS/MS analyses, ESI(-)-Qq-TOF-MS was used as well applying the following particular collision energy for the identified products (in parentheses): 25 V (for 1, 3 and 5) and 30 V (for 2 and 4). The abovementioned liquid chromatograph was also used to perform the LC-DAD analysis, by coupling an UV/Vis diode array detector instead. The separation conditions were analogous to those described above and the samples were monitored at λ = 254 nm.

3.1.4. Other Techniques and Instruments Used for the Thorough Characterization of MEBA

The absorption spectrum of MEBA was recorded using a Beckman DU 7500 UV/Vis spectrophotometer. The infrared spectrum was obtained by Fourier transform infrared spectroscopy (FTIR) performed with a Nicolet Magna-750 FTIR spectrometer. Proton and 13C-NMR spectra were acquired with a Varian VX400 (400 MHz) spectrometer, using tetramethylsilane (TMS) as the internal standard. The differential scanning calorimetric analyses carried out for the determination of the MEBA purity were performed on a DSC Model 2010 from TA Instruments. RP-HPLC was carried out for the preparative separation of MEBA using a Beckman System Gold chromatograph equipped with an autosampler 507 and a diode-array detector selected at 210 and 265 nm, and fitted with a Macherey-Nagel Nucleosil EC 100-7-C18 [250 mm × 4.6 mm (i.d.)] column at room temperature. The mobile phase was 75:25 (v/v) methanol/water at a flow rate of 1.0 cm3 min−1.

3.1.5. Calculations

The coefficients of determination R2, standard deviations (SD), of each linear dependence used in the work were calculated by means of the OriginPro 8.0 SR0 v8.0724 software from OriginLab Corporation (Northampton, MA, USA). The melting point of MEBA, the total dipole moment and the logarithm of the octanol-water partition coefficient (kow) for the identified products were calculated by means of the Molecular Modeling Pro software from Chem SW. The most probable conformer was considered upon energy minimization and the molecular parameters were computed for the optimized geometry obtained by the Complete Neglect of Differential Overlap (CNDO) approximation.

3.2. Synthesis of 4-(2-Methoxyethylsulfonyl)benzenamine (MEBA)

The novel procedure for the preparation of MEBA consisted in the chemical reduction of RB5 in three consecutive steps in acetic acid/methanol medium (see Scheme 1). A mixture of RB5 (1 mmol dm−3), acetic acid (10 cm3), and Zn (7 g, 20–30 mesh) in methanol (15 mL) was stirred under a nitrogen atmosphere at 85 °C for 4.5 h and further cooled down to room temperature. Acetic acid acted first as a protonation agent, followed by methylation in the presence of methanol and final reduction with Zn to yield the amine group from the original azo bond. The mixture was then filtered, and afterwards a 1 mol dm−3 NaOH solution was added until the filtrate turned to alkaline. The crude of the reaction (yellow liquid) was directly extracted with diethyl ether several times and concentrated under reduced pressure on a rotary evaporator. Subsequently, it was passed through a silica gel chromatographic column with acetate/hexane as the mobile phase to collect twelve fractions. MEBA (C9H13NO3S), with a retention factor of k = 2.38, was isolated by reversed-phase (RP) HPLC after collecting the eluted fractions 8–12.
Molecules 17 14377 g007 550

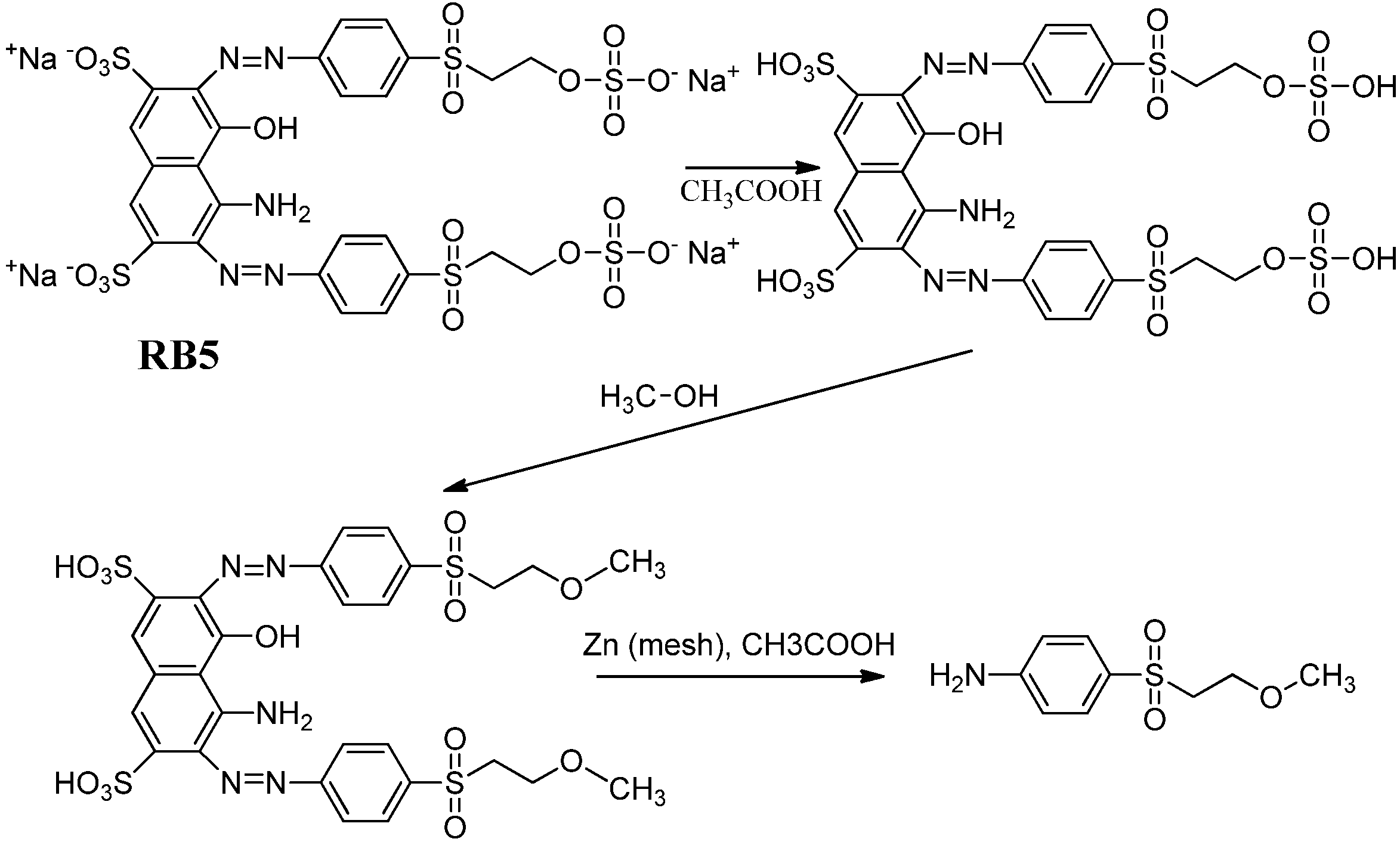

Scheme 1. Reactions for the synthesis of MEBA.
Scheme 1. Reactions for the synthesis of MEBA.
Molecules 17 14377 g007

3.3. Characterization of MEBA

MEBA synthesized as explained in Section 3.2 was characterized as follows. The FTIR spectrum showed the characteristic bands of the N-H bond and C-O-C moiety of MEBA, along with those specific for the aromatic sulfonyl (-SO2-) substituent. The 1H NMR spectrum was in good agreement with the proposed structure, which was also confirmed by 13C-NMR spectroscopy (Figure 6a,b). A purity of 98% was confirmed by differential scanning calorimetric analysis and HPLC. The following results were obtained from the different characterization techniques: Yield = 15.04%; m.p. = 91.2 °C; UV/Vis (Figure 6c) λmax (CH3OH): 271.0 nm; UV/Vis λmax (CHCl3): 264.0 nm; IR vmax (KBr/cm−1) (Figure 6d): str 3459, 3365, wag 836 (N–H), str 2989, 2927 (C–H, aliphatic), str 2879 (H–C–O), str 1637, 1594 (C–C, aromatic), str 1288, 1137 (O=S=O), str 1090 (C–O–C). For the NMR (CDCl3) assignments, see formula of MEBA in Figure 6). 1H-NMR δ (ppm): 7.66, 7.64 (d, J = 8.8 Hz, 2H Hb), 6.71, 6.69 (d, J = 8.8 Hz, 2H Ha), 3.73, 3.71, 3.69 (t, 2H Hd), 3.35, 3.33, 3.31 (t, 2H Hc), 3.26 (s, 3H He). 13C-NMR δ (ppm): 151.47, 130.10, 127.52, 113.98, 65.90, 58.71, 56.32 (C-1, C-4, C-3,5, C-2,6, C-8, C-7, C-9). The structure was corroborated by LC-MS analysis with positive ionization (see MS spectrum in Figure 6e), where m/z 216.0691 was found at tR = 12.30 min (see Table 1).
Molecules 17 14377 g006 550

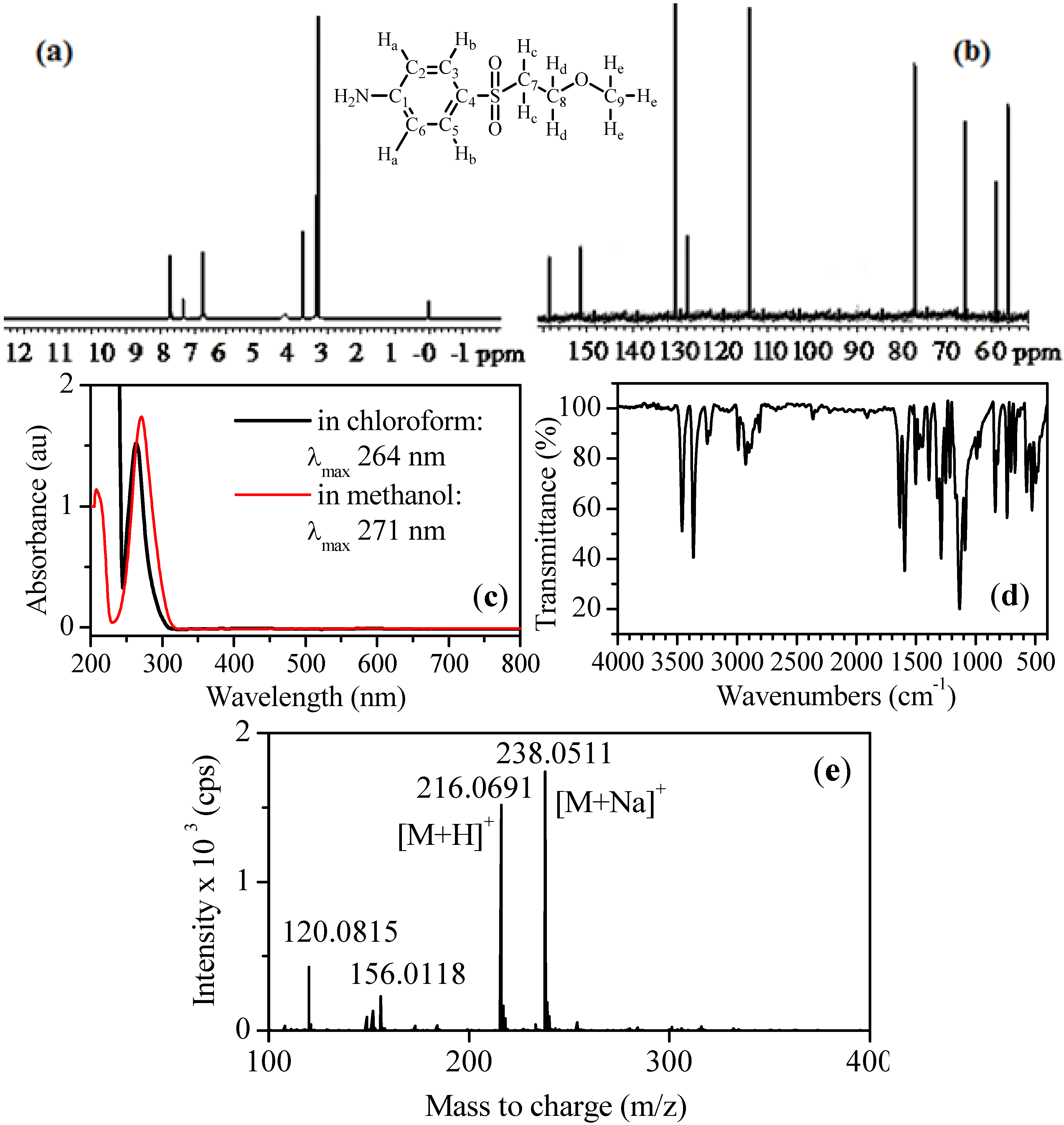

Figure 6. NMR (a,b), UV-Vis (c), FTIR (d) and MS (e) spectra of MEBA.
Figure 6. NMR (a,b), UV-Vis (c), FTIR (d) and MS (e) spectra of MEBA.
Molecules 17 14377 g006
In previous synthesis of MEBA (C9H13NO3S) and related compounds, melting points of 194~196 °C for C9H13NO3S·HCl [26] and 113~115 °C for C9H13NO3S [23] were reported. These values differ substantially from the one obtained in the present work (91.2 °C), which is close to the one arising from our theoretical calculations (86.8 °C). Furthermore, the reported amines [23,26] were characterized uniquely by elemental analysis and, in contrast to our work, neither thermal nor chromatographic analyses were carried out to confirm their purity and structure. As a conclusion, it has been confirmed that the proposed synthesis is a good alternative to previously established routes.

4. Conclusions

Five sulfonyl aromatic alcohols were obtained by electrolysis of the azo dye RB5 in an undivided cell with a Ni electrode. Some of these compounds have not been previously synthesized, and the amine 5, namely 5-((4-aminophenyl)sulfonyl)-2-penten-1-ol, has been reported for the first time. The phenolic character of two products: 4-((2-(2-((4-hydroxyphenyl)sulfonyl)ethoxy)vinyl)sulfonyl)phenol (compound 2) and 4-(vinylsulfonyl)phenol (compound 4) has been demonstrated and contrasted with the amino analogues reported as biodegradation products. A novel, simple method to obtain MEBA from RB5 via chemical reduction under gentle conditions has been also developed because it was a suspected electrolysis product. The synthesized MEBA was then used as standard reagent and was essential to assess the possible formation of methoxy derivatives among the electrolysis products. LC analyses and spiking trials led to conclude that MEBA can be discarded as an electrolysis product of RB5 under the current conditions. The logP values of the series of identified products obtained by electrolysis were similar to those of phenol and its methylated derivatives, therefore suggesting a similar toxicity.

Acknowledgments

We are indebted to P. Amador (UAP, Mexico) for her assistance in the DSC technique. Authors thank CONACyT (Mexico) for its financial support under the research project I003-CB-2008-01-100439 and for equipment acquisition INFR-2009-01-123779, and also acknowledge the financial support of MICINN (Spain) under the project CTQ2010-16164, co-financed with FEDER funds.
  • Sample Availability: Samples of the compound MEBA are available from the authors.

References

  1. Libra, J.A.; Borchert, M.; Vigelahn, L.; Storm, T. Two stage biological treatment of a diazo reactive textile dye and the fate of the dye metabolites. Chemosphere 2004, 56, 167–180. [Google Scholar] [CrossRef]
  2. Rehorek, A. Forschungsprojekt zur Verbesserung des Abbaus von Textilabwässern in einem anaerob/aerob Reaktor zur Vorbehandlung von Abwasserkonzentraten, Abschlussbericht Fachhochschule Köln; Project Report. University of Applied Sciences: Köln, Germany, 2006; 1–231. [Google Scholar]
  3. Rehorek, A.; Plum, A. Online LC-MS-MS process monitoring for optimization of biological treatment of wastewater containing azo dye concentrates. Anal. Bioanal. Chem. 2006, 384, 1123–1128. [Google Scholar] [CrossRef]
  4. Pham, T.L.H.; Weisshoff, H.; Mügge, C.; Krause, E.; Rotard, W.; Preiss, A.; Zaspel, I. Non-Target-Analytik in der Ökologie. Mitt. Umweltchem. Ökotox. 2010, 16, 2–8. [Google Scholar]
  5. Wang, K.-S.; Chen, H.-Y.; Huang, L.-Ch.; Su, Y.-Ch.; Chang, S.-H. Degradation of Reactive Black 5 using combined electrochemical degradation-solar-light/immobilized TiO2 film process and toxicity evaluation. Chemosphere 2008, 72, 299–305. [Google Scholar] [CrossRef]
  6. Riera-Torres, M.; Gutiérrez, M.-C. Colour removal of three reactive dyes by UV light exposure after electrochemical treatment. Chem. Eng. J. 2010, 156, 114–120. [Google Scholar] [CrossRef]
  7. Sakalis, A.; Ansorgová, D.; Holčapek, M.; Jandera, P.; Voulgaropoulos, A. Analysis of sulphonated azo dyes and their degradation products in aqueous solutions treated with a new electrochemical method. Int. J. Environ. Anal. Chem. 2004, 84, 875–888. [Google Scholar] [CrossRef]
  8. Vaněrková, D.; Sakalis, A.; Holčapek, M.; Jandera, P.; Voulgaropoulos, A. Analysis of electrochemical degradation products of sulphonated azo dyes using high-performance liquid chromatography/tandem mass spectrometry. Rapid Commun. Mass Spectrom. 2006, 20, 2807–2815. [Google Scholar] [CrossRef]
  9. Raghu, S.; Basha, C.A. Dye destruction and simultaneous generation of sodium hydroxide using a divided electrochemical reactor. Ind. Eng. Chem. Res. 2008, 47, 5277–5283. [Google Scholar] [CrossRef]
  10. Soloman, P.A.; Basha, C.A.; Velan, M.; Ramamurthi, V.; Koteeswarwn, K.; Balasubramanian, N. Electrochemical degradation of Remazol Black B Dye effluent. Clean Soil Air Water 2009, 37, 889–900. [Google Scholar] [CrossRef]
  11. Martínez-Huitle, C.A.; Brillas, E. Decontamination of wastewaters containing synthetic organic dyes by electrochemical methods: A general review. Appl. Catal. B Environ. 2009, 87, 105–145. [Google Scholar] [CrossRef]
  12. Panizza, M.; Cerisola, G. Direct and mediated anodic oxidation of organic pollutants. Chem. Rev. 2009, 109, 6541–6569. [Google Scholar] [CrossRef]
  13. Brillas, E.; Sirés, I.; Oturan, M.A. Electro-Fenton process and related electrochemical technologies based on Fenton´s reaction chemistry. Chem. Rev. 2009, 109, 6570–6631. [Google Scholar] [CrossRef]
  14. Mattusch, J.; Möller, D.; Elizalde-González, M.P.; Wennrich, R. Investigation of the degradation of arsenobetaine during its contact with natural zeolites and the identification of metabolites using HPLC coupled to ICP-MS and ESI-MS. Anal. Bioanal. Chem. 2008, 390, 1707–1715. [Google Scholar] [CrossRef]
  15. Elizalde-González, M.P.; Fuentes-Ramírez, L.E.; Guevara-Villa, M.R.G. Degradation of immobilized azo dyes by Klebsiella sp. UAP-b5 isolated from maize bioadsorbent. J. Hazard. Mater. 2009, 161, 769–774. [Google Scholar] [CrossRef]
  16. Cerón-Rivera, M.; Dávila-Jiménez, M.M.; Elizalde-González, M.P. Degradation of the textile dyes Basic yellow 28 and Reactive black 5 using diamond and metal alloys electrodes. Chemosphere 2004, 55, 1–10. [Google Scholar] [CrossRef]
  17. Méndez, M.A.; Tovar, G.R.; Dávila, M.M.; Ornelas, O.; Elizalde, M.P. Degradation of reactive black 5 and basic yellow 28 on metallic-polymer composites. Port. Electrochim. Acta 2008, 26, 89–100. [Google Scholar]
  18. Méndez-Martínez, A.J.; Dávila-Jiménez, M.M.; Ornelas-Dávila, O.; Elizalde-González, M.P.; Arroyo-Abad, U.; Sirés, I.; Brillas, E. Electrochemical reduction and oxidation pathways for Reactive Black 5 dye using nickel electrodes in divided and undivided cells. Electrochim. Acta 2012, 59, 140–149. [Google Scholar] [CrossRef]
  19. Schellenträger, M. Untersuchungen zur oxidativen Entfärbung ausgewählter Reaktivfarbstoffe: Analyse der Abbauprodukte mittels hochauflösender LC-MS.
  20. Bechtold, T.; Burtscher, E.; Turcanu, A. Cathodic decolourisation of textile waste water containing reactive dyes using a multi-cathode electrolyser. J. Chem. Technol. Biotechnol. 2001, 76, 303–311. [Google Scholar] [CrossRef]
  21. Rajkumar, D.; Kim, J.G. Oxidation various reactive dyes with in situ electro-generated active chlorine for textile dyeing industry wastewaters treatment. J. Hazard. Mater. 2006, 136, 203–212. [Google Scholar] [CrossRef]
  22. Sakalis, A.; Fytianos, K.; Nickel, U.; Voulgaropoulos, A. A comparative study of platinised titanium and niobe/synthetic diamond as anodes in the electrochemical treatment of textile wastewater. Chem. Eng. J. 2006, 119, 127–133. [Google Scholar] [CrossRef]
  23. Kitao, T.; Kuroki, N.; Konishi, K. On the synthesis of aryl vinyl sulfones and their reactive properties. Kogyo Kagaku Zasshi 1959, 62, 825–828. [Google Scholar] [CrossRef]
  24. Plum, A.; Rehorek, A. Strategies for continuous on-line high performance liquid chromatography coupled with diode array detection and electrospray tandem mass spectrometry for process monitoring of sulphonated azo dyes and their intermediates in anaerobic-aerobic bioreactors. J. Chromatogr. A 2005, 1084, 119–133. [Google Scholar] [CrossRef]
  25. Kudlich, M.; Hetheridge, M.J.; Knackmuss, H.-J.; Stolz, A. Autoxidation Reactions of Different Aromatic o-Aminohidroxynaphthalenes That Are Formed during the Anaerobic Reduction of Sulfonated Azo Dyes. Environ. Sci. Technol. 1999, 33, 896–901. [Google Scholar]
  26. Ishidate, M.; Noguchi, S.; Tamano, A. Studies on chemotherapeutics for acid-fast bacilli. VII. Further studies on p-aminophenyl- and p-aminomethylphenyl alkyl sulfones and related compounds. Pharm. Bull. 1953, 1, 287–289. [Google Scholar] [CrossRef]
  27. Janicka, M. Liquid chromatography in studying lipophylicity and bioactivity of pesticides. In Pesticides-Strategies for Pesticides Analysis; Stoytcheva, M., Ed.; In Tech: Rijeka, Croatia; New York, NY, USA; Shanghai, China, 2011; pp. 263–292. [Google Scholar]
  28. Hansch, C. Structure-activity relationships of chemical mutagens and carcinogens. Sci. Total Environ. 1991, 109, 17–29. [Google Scholar] [CrossRef]
  29. Cronin, M.T.D.; Zhao, Y.H.; Yu, R.L. pH-dependence and QSAR analysis of the toxicity of phenols and anilines to Daphnia magna. Environ. Toxicol. 2000, 15, 140–148. [Google Scholar] [CrossRef]
  30. Bączek, T.; Kaliszan, R. Predictive approaches to gradient retention based on analyte structural descriptors from calculation chemistry. J. Chromatogr. A 2003, 987, 29–37. [Google Scholar] [CrossRef]
  31. Ayouni, L.; Cazorla, G.; Chaillou, D.; Herbreteau, B.; Rudaz, S.; Lantéri, P.; Carrupt, P.-A. Fast Determination of Lipophilicity by HPLC. Chromatographia 2005, 62, 251–255. [Google Scholar] [CrossRef]
  32. Giaginis, C.; Theocharis, S.; Tsantili-Kakoulidou, A. Octanol/water partitioning simulation by reversed-phase high performance liquid chromatography for structurally diverse acidic drugs: Effect of n-octanol as mobile phase additive. J. Chromatogr. A 2007, 1166, 116–125. [Google Scholar] [CrossRef]
