Review

Key to Xenobiotic Carotenoids

Department of Chemistry, Norwegian University of Science and Technology, 7491 Trondheim, Norway
*
Author to whom correspondence should be addressed.
Molecules 2012, 17(3), 2877-2928; https://doi.org/10.3390/molecules17032877
Submission received: 9 January 2012 / Revised: 21 February 2012 / Accepted: 22 February 2012 / Published: 7 March 2012
(This article belongs to the Special Issue Carotenoids)

Abstract

:
A listing of carotenoids with heteroatoms (X = F, Cl, Br, I, Si, N, S, Se, Fe) directly attached to the carotenoid carbon skeleton has been compiled. The 178 listed carotenoids with C,H,X atoms demonstrate that the classical division of carotenoids into hydrocarbon carotenoids (C,H) and xanthophylls (C,H,O) has become obsolete.

1. Introduction

The number of natural occurring carotenoids registered in the relevant books on the topic has increased continuously: 19 carotenoids in 1934, 67 in 1948, 273 in 1971, 563 in 1987, 750 in 2004 [1,2,3,4,5]. The importance of the Carotenoids Handbook is evident for all those working frequently or occasionally with carotenoids. However, the extensive compilation of natural occurring carotenoids has ignored the existence of the numerous xenobiotic carotenoids [6]. The impact of the Carotenoids Handbook is overwhelming insofar that carotenoids with atoms other than C,H,O are barely thinkable. Carotenoids are still classified in two groups: carotenes (polyenes containing C,H) and xanthophylls (polyenes with C,H,O), and the occurrence of carotenoids with other atoms was not contemplated by the existing nomenclature rules. In contrast, the Natural Product Reports dedicate a specific chapter to steroids with heteroelements, sulfur flavonoids and heteroatom-substituted carbohydrates have been reviewed. [7,8,9,10]. Admittedly, no hetero-carotenoids have been detected so far in Nature, but nonetheless, it is not incongruous to expect carotenoids from sea organisms to incorporate Cl (compounds 5Cl-8Cl in the list) [11]; the interactions between selenium and carotenoids support speculations about the existence of combination products [12,13,14]. After all, heterocarotenoids may not keep forever their status as xenobiotic compounds, though by then, xenophobia towards xenobiotic carotenoids may be encountered. In a historical review on the “Development of Carotenoid Chemistry 1922–1991” the first Br-, N- and S-carotenoids (4Br-9Br, 2N, 12S) were ignored [15]. When the author’s first manuscript on carotenoid thioketones (1S-3S) was rejected by the referees, the honorary co-author commented the rejection as the logical consequence of working with bizarre compounds. The syntheses of selenium carotenoids (1Se-7Se) were regarded by some of the author’s colleagues as a completely useless, ill-famed and ill-smelling occupation. Strangely enough, the summarizing speaker at the end of a carotenoid conference intentionally omitted to mention the author’s presentation on S, N and Se carotenoids. Fortunately, these narrow-minded discriminatory prejudices have now tended to cease; heterocarotenoids have found applications impossible to achieve with “normal” carotenoids, e.g., 2S, 15S, 3Se, 12N, 46N [16,17,18,19].
Despite the increasing interest in xenobiotic carotenoids, searching the databases for these compounds often results in zero hits. The unawareness of heterocarotenoids may perhaps be the reason for avoidable syntheses. The molecular wire carotenoid thiol 15S was prepared in several steps [16]. Carotenoid thione 2S, synthesized previously from a commercial carotenoid in a one-step synthesis, could probably have been more appropriate for the investigation [20]. Even an author sensitized to xenobiotic carotenoids witnessed ignorance; compounds 25N, 27N, 29N were not cited in a paper on carotenoid oxime hydrochlorides 19N-22N [21,22]. Unfamiliarity with heterocarotenoids is possibly the cause for further lack of mention, e.g., nitrile carotenoid 6N was patented in 1990 and published in 2011 without referring to previous work from 1988; thienyl carotenoid 3◉S, first reported in 1981, was not cited when the compound was resynthesized 20 years later (for an explanation of the designation 3S see Section 4: Nomenclature).
This thematic issue of Molecules on “Carotenoids” now offers the opportunity to compile a systematic listing of xenobiotic carotenoids. This inventory is a first attempt to take these carotenoids out of their obscurity.

2. Historical Remarks

Carotenoids became eye-catching in 1906 with the invention of chromatography by Tswett and got scientific consecration with the first determination of their molecular formula by Willstäter in 1907 [23,24]. During the period of structure determination the first nitrogen carotenoids were prepared as analytical derivatives (oxime, semicarbazone) [25,26]. Bromo and sulfur carotenoids were synthesized in 1958 and 1959 and chloro carotenoids in 1976 [27,28,29]. The synthesis of carotenoid amines was not successful until 1990 [30,31,32]. The most heterogenic carotenoids are probably iron carbonyl compounds 5Fe-7Fe. The common Greek-letter termed cyclic end groups are now increasingly being replaced by heterocycles.

3. Selection Criteria

Polyenes with a branched polyene chain >C20 capped with different cyclic or acyclic end groups and with heteroatoms covalently bound to the carbon carotenoid were considered. Thus, compounds with a heteroatom linked via oxygen to the carotenoid scaffold were omitted (e.g., phosphates). Adhering strictly to the isoprenoid nature of carotenoids would not allow including the interesting aza compound 37N [33]. This compound has been perceived as an azine of retinal, but is much more attractive when viewed as a diazapolyene. Various carotenoid derivatives prepared for analytical purposes (oximes, hydrazones amides etc.) are not mentioned [34,35], unless the derivative has also found an application extending characterization, e.g., canthaxanthin oxime was skipped, canthaxanthin oxime hydrochloride 21N as a surface active hydrophilic carotenoid was included [22]. Some carotenoids are drawn in the concise all-trans form, since the dimension of the actual cis-isomers would be too space demanding, e.g., 32N and 33N. The main concern of the recording, the heteroatom character of the compound, is not affected by this presentation.
In a departure from Molecules’ normal style, reference registration in the compound list follows the example of the handbooks excluding article title and search-irrelevant data on the length of a paper. The references for the individual compounds are not exhaustive. A reader interested in a particular compound should perform a structural search in a database to receive complete and updated citations.
There certainly exist more xenobiotic carotenoids than presented in the list. Many hetero-carotenoids, especially from the patent literature, are not recorded owing to search problems or involuntary neglect. Such compounds ought to be included in a forthcoming extended register. Enlarging the selection criteria to <C20 chains, to xenobiotic C,H,O carotenoids, considering heteroatoms outside the carotenoid carbon skeleton sphere and taking into account ionic bounded heteroatoms is desirable for future compilation [36,37]. It would furthermore be valuable to have at hand a complete directory of isotope-substituted carotenoids (D, T, 13C, 14C) [38,39,40]. A catalog of modified carotenoids (e.g., long chain carotenoids, carotenoid dimers, carotenoids with deviated conjugation, hydrophilic carotenoids) and of compounds where carotenoids are part of other molecule classes (e.g., carotenoid lipids, antioxidant combinations) would likewise be desirable [41,42,43,44,45,46,47,48,49,50,51].

4. Nomenclature

The designation “xenobiotic carotenoids” is synonymously used with the term “heterocarotenoids”.
Whereas “heterocarotenoids” may appear more precise, the prefix hetero- is too strongly linked with heterocyclic chemistry and could create confusing expressions such as heterocyclic heterocarotenoids. Xenobiotic is, at present, the more explanatory designation.
Applying the nomenclature rules to xenobiotic carotenoids can lead to unintelligible descriptions; consequently, many authors have avoided naming their products, e.g., 11Cl-15Cl [52]. Keeping in mind that a short trivial name engenders more associative information than a (semi)systematic designation, some names in the list may appear randomly chosen or meaningless. A name search in a database will, therefore, often be unsuccessful, e.g., the name dicyano-C48:15 for 9N is certainly not canonical, but articulates the essential information: a dicyano substituted carotenoid of 48 C with 15 conjugated double bonds. The exact name would hide this evidence. In any case, the interested reader should certainly scrutinize the carotenoids visually and not by their appellation, and a structure search in a database is, therefore, recommended. The structures are approximately listed according to increasing structural complexity; however, the relation to a parent compound was considered more important than complexity ranking.
Aryl carotenoids have been recorded separately within a heteroatom section. Natural occurring aryl carotenoids display trimethylbenzene ɸ− or χ− end groups. Phenyl end groups without methyl are identified as either 16,17,18-trinor-ɸ− or 16,17,18-trinor-χ−; nevertheless, the letter ɸ is preferred, in analogy to the widely used short form of ɸ for °phenyl [53]. Thus, all carotenoids with a benzene ring are termed ɸ-carotenoids; the ɸ-ring positions are indicated as recommended by the nomenclature rule.
The compounds were arbitrarily numbered; the numbers are not intended to reflect the appointed personal identification digits used in the Key to Carotenoids and the Carotenoids Handbook [4,5]. Carotenoids with heterocycles were, for example, enumerated as x◉S, ◉S indicating a cycle with sulfur.
The catalog of xenobiotic carotenoids definitely proves that the termxanthophyll has become obsolete [54]. Applying the classical two level differentiation − hydrocarbon carotenoids (C, H) and xanthophylls (C,H,O)—simply implies denying the existence of the listed 178 carotenoids. The use of xanthophyll is therefore discouraged and should be replaced by oxygen carotenoids; such a designation is unequivocally extendable to sulfur (nitrogen, halogen…) carotenoids.

5. Conclusions

Xenobiotic carotenoids have been synthesized for a long time but have remained largely unnoticed by carotenoid chemists. Many of those who work with these compounds may not consider themselves carotenoid chemists. Heteroatoms have helped carotenoids to leave their terrain of origin: xenobiotic carotenoids merit the same appreciation as biotic carotenoids.

6. List of Xenobiotic Carotenoids

6.1. Halogen-Carotenoids

6.1.1. Fluorine F

1F 9-trifluoromethyl-β,β-carotene C40H53F3
Molecules 17 02877 i001
D. Hoischen, L.U. Colmenares, I. Koukhareva, M. Ho, R.S.H. Liu, J. Fluorine Chem. 1999, 97, 165
2F 13-trifluoromethyl-β,β-carotene C40H53F3
Molecules 17 02877 i002
D. Hoischen, L.U. Colmenares, I. Koukhareva, M. Ho, R.S.H. Liu, J. Fluorine Chem. 1999, 97, 165
3F 9,9'-bis(trifluoromethyl)-β-carotene C40H50F6
Molecules 17 02877 i003
D. Hoischen, L.U. Colmenares, I. Koukhareva, M. Ho, R.S.H. Liu, J. Fluorine Chem. 1999, 97, 165
4F 13,13'-bis(trifluoromethyl)-β-carotene C40H50F6
Molecules 17 02877 i004
D. Hoischen, L.U. Colmenares, I. Koukhareva, M. Ho, R.S.H. Liu, J. Fluorine Chem. 1999, 97, 165

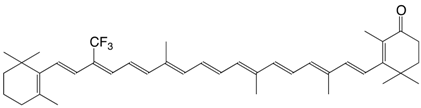

5F 9-trifluoromethyl echinenone C40H51F3O
Molecules 17 02877 i005
D. Hoischen, L.U. Colmenares, I. Koukhareva, M. Ho, R.S.H. Liu, J. Fluorine Chem. 1999, 97, 165

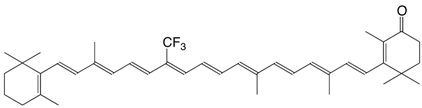

6F 13-trifluoromethyl echinenone C40H51F3O
Molecules 17 02877 i006
D. Hoischen, L.U. Colmenares, I. Koukhareva, M. Ho, R.S.H. Liu, J. Fluorine Chem. 1999, 97, 165

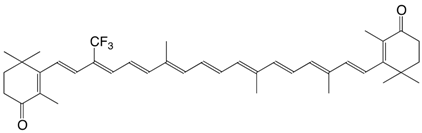

7F 9-trifluoromethyl canthaxanthin C40H49F3O2
Molecules 17 02877 i007
D. Hoischen, L.U. Colmenares, I. Koukhareva, M. Ho, R.S.H. Liu, J. Fluorine Chem. 1999, 97, 165

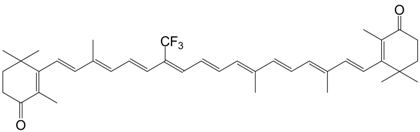

8F 13-trifluoromethyl canthaxanthin C40H49F3O2
Molecules 17 02877 i008
D. Hoischen, L.U. Colmenares, I. Koukhareva, M. Ho, R.S.H. Liu, J. Fluorine Chem. 1999, 97, 165

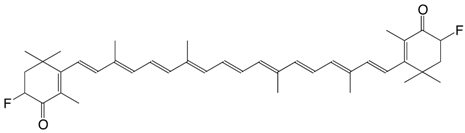

9F 3,3'-difluoro-canthaxanthin C40H50F2O2
Molecules 17 02877 i009
R.S.H. Liu, J. Liu, J. Nat. Prod. 2011, 74, 512
10F 10-fluoro-astaxanthin C40H51FO4
Molecules 17 02877 i010
R.S.H. Liu, J. Liu, J. Nat. Prod. 2011, 74, 512
11F 14-fluoro-astaxanthin C40H51FO4
Molecules 17 02877 i011
R.S.H. Liu, J. Liu, J. Nat. Prod. 2011, 74, 512

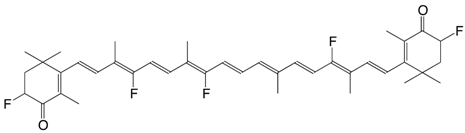

12F 3,3',10,10',14-pentafluoro-canthaxanthin C40H47F5O2
Molecules 17 02877 i012
R.S.H. Liu, J. Liu, J. Nat. Prod. 2011, 74,512
ɸ-carotenoids

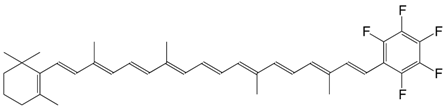

13F 1',2',3',4',5'-pentafluoro-β,ɸ-carotene C37H41F5
Molecules 17 02877 i013
E. Hand, K.A. Belmore, L.D. Kispert, Helv. Chim. Acta 1993, 76, 1928

6.1.2. Chlorine Cl

1Cl crocetin dichloride C20H22Cl2O2
Molecules 17 02877 i014
H. Pfander, F. Wittwer, Helv. Chim. Acta 1979, 62, 1944
2Cl norbixin dichloride C24H26Cl2O2
Molecules 17 02877 i015
L. Levy, R.H. Binnington, A. Tabatnik, WO 02/068385, 2002

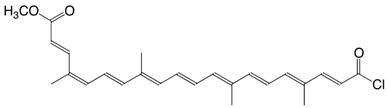

3Cl bixin chloride C25H29ClO3
Molecules 17 02877 i016
G. Ferrari, V. Vecchietti, EP 30009, 1981
T. Komatsu, E. Tsuchia, C. Böttcher, D. Donner, C. Messerschmidt, U. Siggel, W. Stocker, J.P. Rabe, J.H. Fuhrhop, J. Am. Chem. Soc. 1997, 119, 11660
4Cl β-apo-8'-carotenoyl chloride, C30-acid chloride C30H39ClO
Molecules 17 02877 i017
T. Naalsund, K.E. Malterrud, V. Partali, H.R. Sliwka, Chem. Phys. Lipids 2001, 112, 59
L. Levy, R. H. Binnington, A. Tabatnik, WO 02/068385, 2002

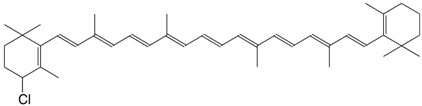

5Cl 4-chloro-β,β-carotene C40H55Cl
Molecules 17 02877 i018
H. Pfander, U. Leuenberger, Chimia 1976, 30, 71

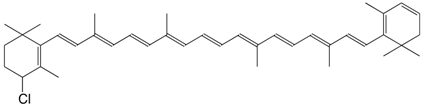

6Cl 4-chloro-3',4'-didehydro-β,β-carotene C40H53Cl
Molecules 17 02877 i019
H. Pfander, U. Leuenberger, Chimia 1976, 30, 71

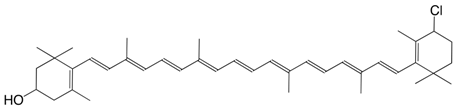

7Cl 4'-chloro-β,β-caroten-3-ol C40H55ClO
Molecules 17 02877 i020
H. Pfander, U. Leuenberger, Chimia 1976, 30, 71

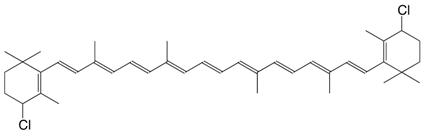

8Cl 4,4'-dichloro-β,β-carotene C40H54Cl2
Molecules 17 02877 i021
H. Pfander, U. Leuenberger, Chimia 1976, 30, 71

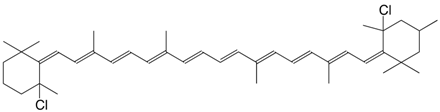

9Cl 5,5'-dichloro-4,5,4',5'-tetrahydroisocarotene C41H58Cl2
Molecules 17 02877 i022
C. Bodea, E. Nicoara, Acad. rep. populare Romîne, Filiala Cluj, Studii Cercetâri Chim. 1959, 10, 1959
10Cl 7-chloro-mutatoxanthin-3,3'-diacetate C44H59ClO5
Molecules 17 02877 i023
J.E. Johansen, S. Liaaen-Jensen, Acta Chem. Scand. 1974, B28, 949
R. Buchecker, S. Liaaen-Jensen, Helv. Chim. Acta 1975, 58, 89
11Cl 3'-chloro-4,5-dehydro-5-dehydroxy-neochrome C37H49ClO2
Molecules 17 02877 i024
R. Buchecker, S. Liaaen-Jensen, Helv. Chim. Acta 1975, 58, 89
12Cl 3'-chloro-2,3-didehydro-5,18-dehydro-5-dehydroxy-neochrome C37H47ClO
Molecules 17 02877 i025
R. Buchecker, S. Liaaen-Jensen, Helv. Chim. Acta 1975, 58, 89
13Cl 7-chloro-mutatoxanthin-19',11'-olide 3-acetate C42H53ClO6
Molecules 17 02877 i026
J.E. Johansen, S. Liaaen-Jensen, Acta Chem. Scand. 1974, B28, 949

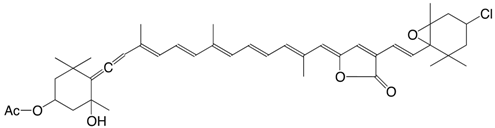

14Cl 3'-chloro-6,7-didehydro-peridinol-3-acetate C42H53ClO6
Molecules 17 02877 i027
J.E. Johansen, S. Liaaen-Jensen, Acta Chem. Scand. 1974, B28, 949
15Cl 4,5-didehydro-5-dehydroxy-3'-chloro-peridinin-3-acetate C42H51ClO5
Molecules 17 02877 i028
J.E. Johansen, S. Liaaen-Jensen, Acta Chem. Scand. 1974, B28, 949

6.1.3. Bromine Br

1Br 20-bromo-crocetindial C20H23BrO2
Molecules 17 02877 i029
J.E. Johansen, S. Liaaen-Jensen, Acta Chem. Scand. 1975, B29, 315
2Br 20,20'-dibromo-crocetindial C20H22Br2O2
Molecules 17 02877 i030
J.E. Johansen, S. Liaaen-Jensen, Acta Chem. Scand. 1975, B29, 315

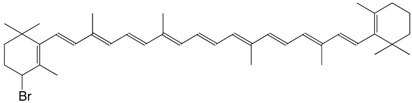

3Br 4-bromo-β,β-carotene C40H55Br
Molecules 17 02877 i031
R. Entschel, P. Karrer, Helv. Chim. Acta 1958, 41, 983
J. Morel, DE2001957, 1970

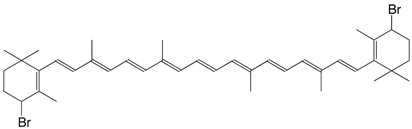

4 Br 4,4'-dibromo-β,β-carotene C40H58Br2
Molecules 17 02877 i032
R. Entschel, P. Karrer, Helv. Chim. Acta 1958, 41, 402
C. Martin, P. Karrer, Helv. Chim. Acta 1959, 42, 464

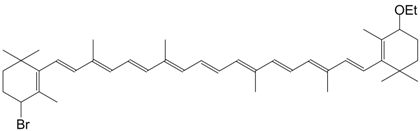

5Br 4-bromo-4'-ethoxy-β,β-carotene C42H59BrO
Molecules 17 02877 i033
R. Entschel, P. Karrer, Helv. Chim. Acta 1958, 41, 402
6Br 4-bromo-4'-ethoxy-β,β-carotene C44H63BrO2
Molecules 17 02877 i034
R. Entschel, P. Karrer, Helv. Chim. Acta 1958, 41, 402
7Br 4-bromo-4-ethoxy echinenone C42H57BrO2
Molecules 17 02877 i035
R. Entschel, P. Karrer, Helv. Chim. Acta 1958, 41, 402

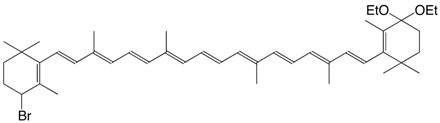

8Br 4 bromo-4',4'-diethoxy-β,β-carotene C44H63BrO2
Molecules 17 02877 i036
F.J. Petracek, L. Zechmeister, J. Am. Chem. Soc. 1956, 78, 1427

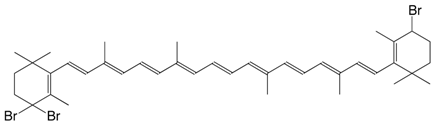

9Br 4,4,4'-tribromo-β,β-carotene C40H53Br3
Molecules 17 02877 i037
F.J. Petracek, L. Zechmeister, J. Am. Chem. Soc. 1956, 78, 1427
10Br 7-bromo-mutatoxanthin-diacetate C44H59BrO5
Molecules 17 02877 i038
R. Buchecker, S. Liaaen-Jensen, Helv. Chim. Acta 1975, 58, 89

6.1.4. Iodine I

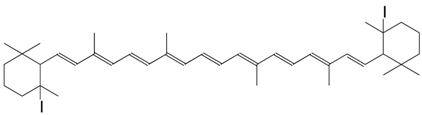

1I 5,5'-diiodo-5,6,5',6'-didehydro-β,β-carotene C40H58I2
Molecules 17 02877 i039
unconfirmed structure
B.G. Savinov, G.S. Tretyakova, Vitaminy Akad. Nauk Ukr. S.S.R 1953, 1, 137
Other carotenoid-iodine compounds are formulated as ionic complexes:
B.F. Lutnaes, J. Krane, S. Liaaen-Jensen, Org. Biomol. Chem. 2004, 2, 2821

6.2. Silicon-Carotenoids Si

1Si (= 2◉S) 7,5'-diapo-7-thienyl-carotene-5'-triethoxysilane C34H46O3SSi
Molecules 17 02877 i040
F. Effenberger, M. Wezstein, Synthesis 2001, 1368

6.3. Nitrogen-Carotenoids N

1N 8'-apo-β-carotene-8'-nitrile C30H39N
Molecules 17 02877 i041
Z. He, D. Gosztola, Y. Deng, G. Gao, M.R. Wasielewski, L.D. Kispert, J. Phys. Chem. B 2000, 104, 6668
2N 10'-apo-5,6-seco-β-carotene-10'-nitrile C27H35NO2
Molecules 17 02877 i042
R. Kuhn, H. Brockmann, Chem. Ber. 1934, 67, 885
3N 6'-apo-β-carotene-6'-nitrile C32H41N
Molecules 17 02877 i043
Z. He, D. Gosztola, Y. Deng, G. Gao, M.R. Wasielewski, L.D. Kispert, J. Phys. Chem. B 2000, 104, 6668
S. Tretiak, V. Chernyak, S. Mukamel, J. Am. Chem. Soc. 1997, 119, 11408
S. Gilmour, S.R. Marder, B.G. Tiemann, L.T. Cheng, J. Chem. Soc. Chem. Commun. 1993, 432
4N 4'-apo-β-carotene-4'-nitrile C34H43N
Molecules 17 02877 i044
Z. He, D. Gosztola, Y. Deng, G. Gao, M.R. Wasielewski, L.D. Kispert, J. Phys. Chem.B2000, 104, 6668
5N 7'-cyano-β-apo-7'-carotenoic acid methyl ester C34H43NO2
Molecules 17 02877 i045
H. Ikeda, T. Sakai, Y. Kawabe, JP 2-2534, 1990
6N 7'-apo-7',7'-dicyano-β−carotene C33H40N2
Molecules 17 02877 i046
M. Blanchard-Desce, I. Ledoux, J.M. Lehn, J. Malthête, J. Zyss, J. Chem. Soc. Chem. Commun. 1988, 737
H. Ikeda, T. Sakai, Y. Kawabe, JP 2-2534, 1990
M.P. O’Neil, M.R. Nasielewski, M.M. Khaled, L.D. Kispert, J. Chem.Phys. B, 1991, 95, 7212
S. Gilmour, S.R. Marder, B.G. Tiemann, L.T. Cheng, J. Chem. Soc. Chem. Commun. 1993, 432
E.S. Hand, K.A. Belmore, L.D. Kispert, J. Chem.Soc. Perkin Trans 2, 1993, 659
S. Tretiak, V. Chernyak, S. Mukamel, J. Am. Chem. Soc. 1997, 119, 11408
A.J. Cruz, K. Siam, D.P. Rillema, J. Phys. Chem. 2011, 115, 1108
7N 4,14'-dicyano-20,20’-dinor-β,β-carotene- C40H50N2
Molecules 17 02877 i047
H.H. Haeck, T. Kralt, Rec. Trav. Chim. Pays-Bas 1966, 85, 343
P.B. Braun, J. Hornstra, J.I. Leenhouts, Acta Cryst. 1971, B27, 90
8N dicyano-C44:14 C48H60N2
Molecules 17 02877 i048
H.H. Haeck, T. Kralt, Rec. Trav. Chim. Pays-Bas 1966, 85, 343
9N dicyano-C48:15 C52H66N2
Molecules 17 02877 i049
H.H. Haeck, T. Kralt, Rec. Trav. Chim. Pays-Bas 1966, 85, 343
10N (3S)-2',3’-didehydro-β,β-carotene-3-amine C40H55N
Molecules 17 02877 i050
H.R. Sliwka, S. Liaaen-Jensen, Tetrahedron Asym. 1993, 4, 2377
11N (3R,3'S)-3'-amino-β,β-carotene-3-ol C40H57NO
Molecules 17 02877 i051
H.R. Sliwka, S. Liaaen-Jensen, Tetrahedron Asym. 1993, 4, 2377
12N (3S,3'S)-β,β-carotene-3,3'-amine C40H58N2
Molecules 17 02877 i052
H.R. Sliwka, S. Liaaen-Jensen, Tetrahedron Asym. 1993, 4, 2377
J. Inananga, M. Yamaguchi, Mem. Fac. Sci. Kyushi Univ. Ser. C, 1989, 17, 109

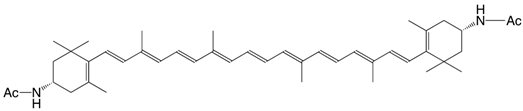

13N (3S,3'S)-β,β-carotene-3,3'-diacetamide C44H62N2O2
Molecules 17 02877 i053
J. Inananga, M. Yamaguchi, Mem. Fac. Sci. Kyushi Univ. Ser. C, 1989, 17, 109

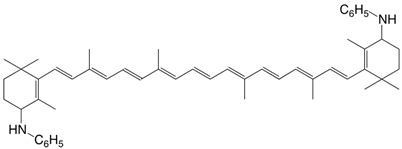

14N 4,4'-dianilino-β,β-carotene C52H66N2
Molecules 17 02877 i054
C. Martin, P. Karrer, Helv. Chim. Acta 1959, 42, 464
H. Budzikiewicz, H.Brzezinka, B. Johannes, Monatshefte 1970, 101, 579
15N 4,4'-bis(N-methyl-anilino)-β,β-carotene C54H70N2
Molecules 17 02877 i055
C. Martin, P. Karrer, Helv. Chim. Acta 1959, 42, 464
16N (3S)-3-azido-2',3'-didehydro-β,β-carotene C40H53N3
Molecules 17 02877 i056
H.R. Sliwka, S. Liaaen-Jensen, Tetrahedron Asym. 1993, 4, 2377
H.R. Sliwka, Helv. Chim. Acta 1999, 82, 161
17N (3R,3'S)-3'-azido-β,β-carotene-3-ol C40H55N3O
Molecules 17 02877 i057
H.R. Sliwka, S. Liaaen-Jensen, Tetrahedron Asym. 1993, 4, 2377
H.R. Sliwka, Helv. Chim. Acta 1999, 82, 161
18N (3S,3'S)-diazido-β,β-carotene C40H54N6
Molecules 17 02877 i058
H.R. Sliwka, S. Liaaen-Jensen, Tetrahedron Asym. 1993, 4, 2377
J. Inananga, M. Yamaguchi, Mem. Fac. Sci. Kyushi Univ. Ser. C, 1989, 17, 109
H.R. Sliwka, Helv. Chim. Acta 1999, 82, 161
19N 8'-apo-β-caroten-8'-aldoxime hydrochloride, C30-aldoxime hydrochloride C30H42ClNO
Molecules 17 02877 i059
J. Willibald, S. Rennebaum, S. Breukers, S.H. Abdel Hafez, A. Patel, C.L. Øpstad, R. Schmid, S. Nalum Naess, H.R. Sliwka, V. Partali, Chem. Phys. Lipids 2009, 161, 32
H.R. Sliwka, V. Partali, S.F. Lockwood, in Carotenoids, ed. J.T. Landrum, CRC Press, Boca Raton, USA, 2010, chpt. 3

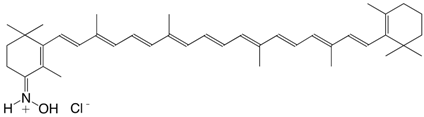

20N echinenenon oxime hydrochloride C40H56ClNO
Molecules 17 02877 i060
J. Willibald, S. Rennebaum, S. Breukers, S.H. Abdel Hafez, A. Patel, C.L. Øpstad, R. Schmid, S. Nalum Naess, H.R. Sliwka, V. Partali, Chem. Phys. Lipids 2009, 161, 32
H.R. Sliwka, V. Partali, S.F. Lockwood, in Carotenoids, ed. J.T. Landrum, CRC Press, Boca Raton, USA, 2010, chpt. 3

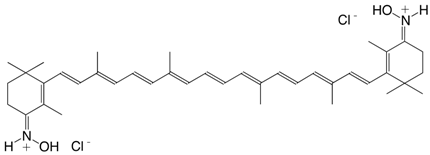

21N canthaxanthin dioxime hydrochloride C40H56Cl2N2O2
Molecules 17 02877 i061
J. Willibald, S. Rennebaum, S. Breukers, S.H. Abdel Hafez, A. Patel, C.L. Øpstad, R. Schmid, S. Nalum Naess, H.R. Sliwka, V. Partali, Chem. Phys. Lipids 2009, 161, 32
H.R. Sliwka, V. Partali, S.F. Lockwood, in Carotenoids, ed. J.T. Landrum, CRC Press, Boca Raton, USA, 2010, chpt. 3

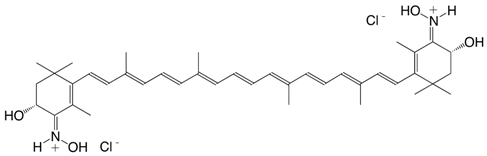

22N astaxanthin dioxime hydrochloride C40H56Cl2N2O4
Molecules 17 02877 i062
J. Willibald, S. Rennebaum, S. Breukers, S.H. Abdel Hafez, A. Patel, C.L. Øpstad, R. Schmid, S. Nalum Naess, H.R. Sliwka, V. Partali, Chem. Phys. Lipids 2009, 161, 32
H.R. Sliwka, V. Partali, S.F. Lockwood, in Carotenoids, ed. J.T. Landrum, CRC Press, Boca Raton, USA, 2010, chpt. 3
23N 7'-aza-7'-methyl-7'-apo-β-carotene C31H43N
Molecules 17 02877 i063
G.A.J. Pitt, F.D. Collins, R.A. Morton, P. Stok, Biochem. J. 1955, 59, 122
24N 7'-aza-7'-butyl-7'-apo-β-carotene C34H49N
Molecules 17 02877 i064
T.A. Moore, P.S. Song, J. Mol. Spec. 1974, 52, 224
25N 7'-aza-7'-butyl-7'-apo-β-carotene hydrochloride C35H52ClN
Molecules 17 02877 i065
T.A. Moore, P.S. Song, J. Mol. Spec. 1974, 52, 224
26N 5'-aza-5'-butyl-5'-apo-β-carotene C37H53N
Molecules 17 02877 i066
T.A. Moore, P.S. Song, J. Mol. Spec. 1974, 52, 224
27N 5'-aza-5'-butyl-5'-apo-β-carotene hydrochloride C37H54ClN
Molecules 17 02877 i067
T.A. Moore, P.S. Song, J. Mol. Spec. 1974, 52, 224
28N 5'-aza-5'-butyl-5'-apo-β-caroten-3-ol C36H51NO
Molecules 17 02877 i068
T.A. Moore, P.S. Song, J. Mol. Spec. 1974, 52, 224
29N 5'-aza-5'-butyl-5'-apo-β-caroten-3-ol hydrochloride C36H52ClNO
Molecules 17 02877 i069
T.A. Moore, P.S. Song, J. Mol. Spec. 1974, 52, 224
30N 7'-aza-7'-ureido-7'-apo-β-caroten-3-ol, β-citraurin semicarbazone C31H43N3O2
Molecules 17 02877 i070
L. Zechmeister, L. von Cholnoky, Liebigs Ann. 1937, 530, 291
31N 7'-nitro-7'-apo-β-carotene C31H41NO2
Molecules 17 02877 i071
H. Ikeda, T. Sakai, Y. Kawabe, JP 2-2534, 1990
32N 4-nitro-β,β-carotene C40H55NO2
Molecules 17 02877 i072
D.L. Baker, E.S. Kroll, N. Jacobsen, D.C. Liebler, Chem. Res. Toxicol. 1999, 12, 535

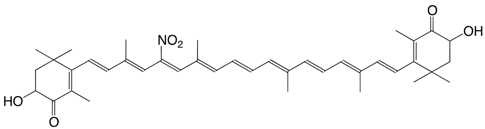

33N 11-nitroastaxanthin C40H51NO6
Molecules 17 02877 i073
R. Yoshioka, T. Hayakawa, K. Ishuzuka, A. Kulkarni, Y. Terada, T. Maoka, H. Etoh, Tetrahedron Lett. 2006, 47, 3637 (cis-isomer)
34N 15-nitroastaxanthin C40H51NO6
Molecules 17 02877 i074
R. Yoshioka, T. Hayakawa, K. Ishuzuka, A. Kulkarni, Y. Terada, T. Maoka, H. Etoh, Tetrahedron Lett. 2006, 47, 3637 (cis-isomer)
35N 12-nitrocapsanthin C40H55NO5
Molecules 17 02877 i075
M. Tsuboi, H. Etoh, K. Kato, H. Nakatugawa, H. Kato, Y. Maejima, G. Matsumoto, H. Mori, M. Hosokawa, K. Miyashita, H. Tokuda, N. Suzui, T. Maoka, J. Agric. Food Chem. 2011, 59, 10572

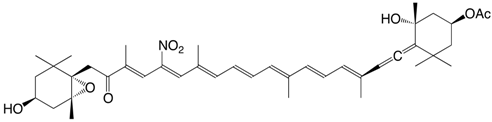

36N 11-nitrofucoxanthin C42H57NO8
Molecules 17 02877 i076
M. Tsuboi, H. Etoh, K. Kato, H. Nakatugawa, H. Kato, Y. Maejima, G. Matsumoto, H. Mori, M. Hosokawa, K. Miyashita, H. Tokuda, N. Suzui, T. Maoka, J. Agric. Food Chem. 2011, 59, 10572

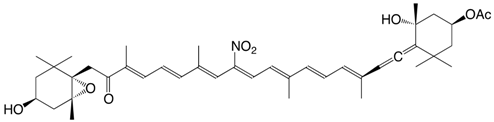

37N 15-nitrofucoxanthin C42H57NO8
Molecules 17 02877 i077
M. Tsuboi, H. Etoh, K. Kato, H. Nakatugawa, H. Kato, Y. Maejima, G. Matsumoto, H. Mori, M. Hosokawa, K. Miyashita, H. Tokuda, N. Suzui, T. Maoka, J. Agric. Food Chem. 2011, 59, 10572
38N 16,16'-diaza-β,β-carotene (diretinyliden hydrazine) C40H56N2
Molecules 17 02877 i078
T. Miki, Y. Hara, JP 34-002118, 1959
T. Miki, Y. Hara, Chem. Pharm. Bull. 1962, 10, 922
39N 5-acetyl-2-nor-β-apo-7'-carotenoic acid amide C32H41NO2
Molecules 17 02877 i079
R. Kuhn, H. Brockmann, Chem. Ber. 1934, 67, 885
40N N-hexyl crocetinamide C26H35NO3
Molecules 17 02877 i080
G. Quinkert, K.R. Schmieder, G. Dürner, K. Hache, A. Stegk, D.H.R. Barton, Chem. Ber. 1977, 110, 3582

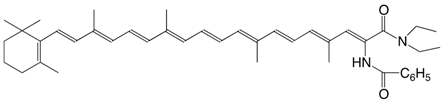

41N β-apo-7'-benzoylamino-7'-carotenoic acid N,N-diethylamide C43H56N2O2
Molecules 17 02877 i081
M. Tomoaia-Cotisel, J. Zsako, E. Chifu, D.A. Ladenhead, Langmuir 1990,6,191. The authors list several related amides.

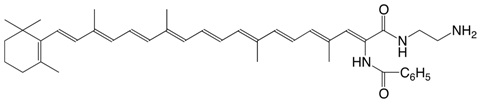

42N β-apo-7'-benzoylamido-7'-carotenoic acid N-aminoethylamide C41H53N3O2
Molecules 17 02877 i082
M. Tomoaia-Cotisel, J. Zsako, E. Chifu, D.A. Ladenhead, Langmuir 1990,6,191

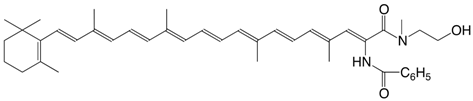

43N β-apo-7'-benzoylamido-7'-carotenoic acid N-methyl-N-(2-hydroxyethyl)-amide C42H54N2O3
Molecules 17 02877 i083
M. Tomoaia-Cotisel, J. Zsako, E. Chifu, D.A. Ladenhead, Langmuir 1990,6,191
44N β-apo-7'-benzoylamido-7'-carotenoic acid N,N-(bis(2-hydroxyethyl)-amide C43H56N2O4
Molecules 17 02877 i084
M. Tomoaia-Cotisel, J. Zsako, E. Chifu, D.A. Ladenhead, Langmuir 1990,6,191

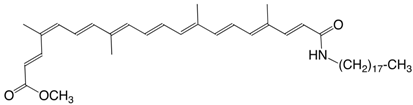

45N N-octadecyl bixinamide C42H65NO3
Molecules 17 02877 i085
J.H. Fuhrhop, M. Krull, A. Schulz, D. Möbius, Langmuir 1990, 6,497. The authors list several related bixin amides.
G. Ferrari, V. Vecchietti, EP 030009, 1980 describe numerous bixin amides.

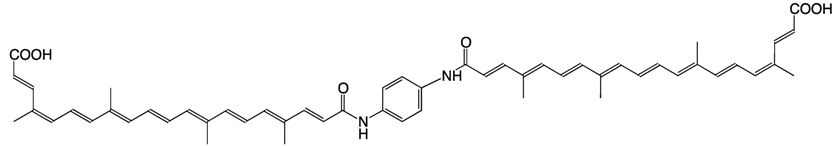

46N dibixine diphenylenediamid C54H60N2O6
Molecules 17 02877 i086
J.H. Fuhrhop, M. Krull, A. Schulz, D. Möbius, Langmuir 1990, 6, 497
47N imine of tris-(8,8'-diapo-ψ,ψ-carotene-8.8'-diimine) C72H96N8
Molecules 17 02877 i087
J.M. Lehn, J.P. Vigneron, I. Bkouhe-Waksman, J. Guilhem, C. Pascal, Helv. Chim. Acta 1992, 75, 1069
ɸ-carotenoids
48N 7'-aza-3'-methyl-β,ɸ-carotene C37H47N
Molecules 17 02877 i088
H. Kamogawa, Polym. Lett. Ed. 1972, 10, 929
49N 7'-aza-3'-dimethylamino-β,ɸ-carotene C36H46N2
Molecules 17 02877 i089
H. Ikeda, T. Sakai, Y. Kawabe, JP 2-2534, 1990
50N 7'-aza-β,ɸ-caroten-3'-amine C36H46N2
Molecules 17 02877 i090
H. Ikeda, T. Sakai, Y. Kawabe, JP 2-2534, 1990
51N 7'-aza-3'-methoxy-β,ɸ-carotene C37H47NO
Molecules 17 02877 i091
H. Ikeda, T. Sakai, Y. Kawabe, JP 2-2534, 1990
52N β,ɸ-carotene-3'-acetamide C39H49NO
Molecules 17 02877 i092
M.R. Wasielewski, P.A. Liddel, D. Barrett, T.A. Moore, D. Gust, Nature 1986, 322, 570

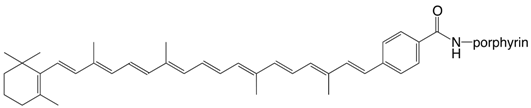

53N β,ɸ-carotene-3'-porphyrinamide
Molecules 17 02877 i093
D. Gust, T.A. Moore, P.A. Liddell, G.A. Nemeth, L.R. Makings, A.L. Moore, D. Barrett, P.J. Pessiki, R.V. Bemasson, M. Rougiée, C. Chachaty, F.C. De Schryver, M. Van der Auweraer, A.R. Holzwarth, J. S. Connolly, J. Am. Chem. Soc. 1987, 109, 846
54N 3'-nitro-β,ɸ-carotene C37H45NO2
Molecules 17 02877 i094
H. Ikeda, T. Sakai, Y. Kawabe, JP 2-2534, 1990
S. Gilmour, S.R. Marder, B.G. Tiemann, L.T. Cheng, J. Chem. Soc. Chem. Commun. 1993, 432
E.S. Hand, K.A. Belmore, L.D. Kispert, Helv. Chim. Acta 1993, 76, 1928
55N 1',3'-dinitro-β,ɸ-carotene C37H44N2O4
Molecules 17 02877 i095
H. Ikeda, T. Sakai, Y. Kawabe, JP 2-2534, 1990
56N 2-dimethylamino-ɸ,ɸ-carotene-3'-nitrile C37H40N2
Molecules 17 02877 i096
A. Slama-Schwok, M. Blanchard-Desce, J.M Lehn, J. Phys. Chem. 1990, 94, 3894
57N 3'-nitro-ɸ,ɸ-carotene-2-dimethylamine C36H40N2O2
Molecules 17 02877 i097
A. Slama-Schwok, M. Blanchard-Desce, J.M Lehn, J. Phys. Chem. 1990, 94, 3894
58N 7'-cyano-3'-nitro-β,ɸ-carotene C38H44N2O2
Molecules 17 02877 i098
H. Ikeda, T. Sakai, Y. Kawabe, JP 2-2534, 1990
59N 7'-cyano-7'-benzoxo-β-carotene C39H45NO
Molecules 17 02877 i099
H. Ikeda, T. Sakai, Y. Kawabe, JP 2-2534, 1990
60N 3'-dimethylamino-β,ɸ-carotene C39H51N
Molecules 17 02877 i100
H. Ikeda, T. Sakai, Y. Kawabe, JP 2-2534, 1990
61N 3'-dioctylamino-β,ɸ-carotene C53H79N
Molecules 17 02877 i101
T. Wagner, S. Roth, Synth. Metals 1993, 54, 307
62N 2',3'-dicyano-β,ɸ-carotene C39H44N2
Molecules 17 02877 i102
H. Ikeda, T. Sakai, Y. Kawabe, JP 2-2534, 1990

6.3. Chalcogen-Carotenoids

6.3.1. Sulfur S

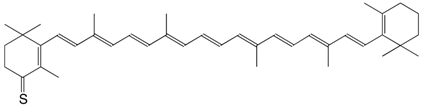

1S echinenone thione C40H54S
Molecules 17 02877 i103
H.R. Sliwka, S. Liaaen-Jensen, Acta Chem. Scand. 1994, 48, 679

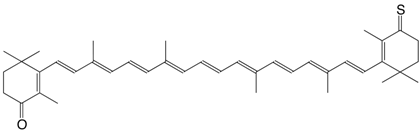

2S canthaxanthin thione C40H52OS
Molecules 17 02877 i104
H.R. Sliwka, S. Liaaen-Jensen, Acta Chem. Scand. 1994, 48, 679
3S rhodoxanthin thione C40H50OS
Molecules 17 02877 i105
H.R. Sliwka, S. Liaaen-Jensen, Acta Chem. Scand. 1994, 48, 679
4S 3'-thiolutein C40H56OS
Molecules 17 02877 i106
H.R. Sliwka, S. Liaaen-Jensen, Acta Chem. Scand. 1990, 44, 61
5S (3S)-2',3'-didehydro-β,β-carotene-3-thiol C40H54S
Molecules 17 02877 i107
H.R. Sliwka, S. Liaaen-Jensen, Tetrahdron Asym. 1993, 4, 361
H.R. Sliwka, Helv. Chim. Acta 1999, 82, 161
6S (3R,3'S)-3'-sulfanyl-β,β-caroten-3-ol C40H56OS
Molecules 17 02877 i108
H.R. Sliwka, S. Liaaen-Jensen, Tetrahdron Asym. 1993, 4, 361
H.R. Sliwka, Helv. Chim. Acta 1999, 82, 161
7S 3'-thioacetyl lutein C42H58O2S
Molecules 17 02877 i109
H.R. Sliwka, S. Liaaen-Jensen, Acta Chem. Scand. 1990, 44, 61

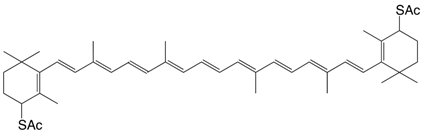

8S 4,4'-dithioacetyl-β,β-carotene C44H60O2S2
Molecules 17 02877 i110
H.R. Sliwka, Helv. Chim. Acta 1999, 82, 161

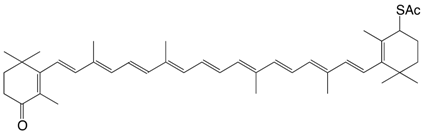

9S 4'-thioacethyl-β,β-caroten-4-one C42H56O2S
Molecules 17 02877 i111
H.R. Sliwka, S. Liaaen-Jensen, Acta Chem. Scand. 1990, 44, 61
10S (3R)-3',4'-didehydro-3-phenylsulfanyl-β,β-carotene C46H58S
Molecules 17 02877 i112
J. Inananga, M. Yamaguchi, Mem. Fac. Sci. Kyushi Univ. Ser. C, 1989, 17, 109
11S 3,3'-diphenylsulfanyl-β,β-carotene C52H64S2
Molecules 17 02877 i113
J. Inananga, M. Yamaguchi, Mem. Fac. Sci. Kyushi Univ. Ser. C, 1989, 17, 109

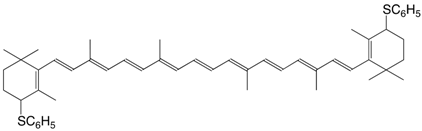

12S 4,4'-diphenylsulfanyl-β,β-carotene C52H64S2
Molecules 17 02877 i114
C. Martin, P. Karrer, Helv. Chim. Acta 1959, 42, 464

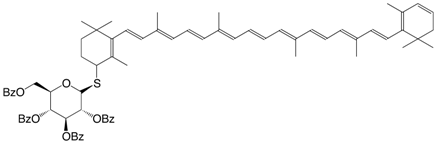

13S 3,4'-dehydro-β,β-carotene-4-thioglucopyranoside C74H80O9S
Molecules 17 02877 i115
V. Nagy, A. Agócs, E. Turcsi, J. Deli, Tetrahedron Lett. 2010, 52, 1020

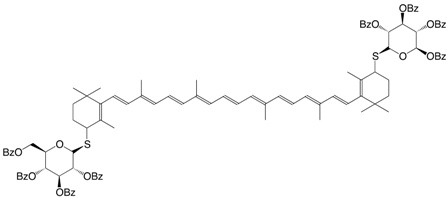

14S β,β,-carotene-4,4'-bisthioglucopyranoside C107H106O18S2
Molecules 17 02877 i116
V. Nagy, A. Agócs, E. Turcsi, J. Deli, Tetrahedron Lett. 2010, 52, 1020
15S β,β-carotene-15-yl-phenylsulfone C46H60O2S
Molecules 17 02877 i117
K. Berhard, S. Jäggli, P. Kreienbühl, U. Schwieter, EU298404, 1989. The patent lists numerous other phenylsulfones and p-chlorophenylsulfones as synthetic intermediates.
ɸ-carotenoids
16S 3-methylsulfanyl-8'-apo-ɸ-carotenal C28H32OS
Molecules 17 02877 i118
Y.Q. Shen, W. Göhring, S. Hagen, S. Roth, J. Mol. Electron. 1990, 6, 31
17S β,ɸ-carotene-3'-methanethiol C38H48S
Molecules 17 02877 i119
G. Leatherman, E.N. Duranti, D. Gust, T.A. Moore, A.L. Moore, S. Stone, Z. Zhou, P. Rez, Y.Z. Liu, S.M. Lindsay, J. Phys. Chem. B 1999, 103, 4006

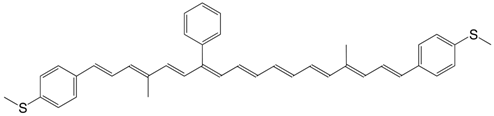

18S 10,10'-dimethyl-13-phenyl-9,9',13,13'-tetranor-ɸ,ɸ−carotene-3,3'-dimethanethiol C40H40S2
Molecules 17 02877 i120
J. Maeng, S.B. Kim, N.J. Lee, E. Choi, S.Y. Jung, I. Hong, S.H. Bae, J.T. Oh, B. Lim, J.W. Kim, C.J. Kang, S. Koo, Chem. Eur. J. 2010, 16, 7395. The authors list other similar compounds.

6.3.1. Selenium Se

1Se (3S)-2',3'-didehydro-β,β-carotene-3-phenylselenide C46H58Se
Molecules 17 02877 i121
H.R. Sliwka, S. Liaaen-Jensen, Acta Chem. Scand. 1995, 49, 428
E. Oliveros, A.M. Braun, T. Aminian-Saghafi, H.R. Sliwka, New J. Chem. 1994, 18, 535
H.R. Sliwka, Helv. Chim. Acta 1999, 82, 161
2Se zeaxanthin phenylselenide, (3R,3'S)-3'-phenylseleno-β,β-caroten-3-ol C46H60OSe
Molecules 17 02877 i122
H.R. Sliwka, S. Liaaen-Jensen, Acta Chem. Scand. 1995, 49, 428
H.R. Sliwka, Helv. Chim. Acta 1999, 82, 161
3Se zeaxanthin diphenylselenide, (3S,3'S)-β,β-carotene-3,3'-diphenylselenide C52H64Se2
Molecules 17 02877 i123
H.R. Sliwka, S. Liaaen-Jensen, Acta Chem. Scand. 1995, 49, 428
H.R. Sliwka, Helv. Chim. Acta 1999, 82, 161
4Se lutein phenylselenide, (3R,3'R,S,6'R)-3'-phenyleleno-β,ε-caroten-3-ol C46H60OSe
Molecules 17 02877 i124
H.R. Sliwka, S. Liaaen-Jensen, Acta Chem. Scand. 1995, 49, 428
5Se rhodoxanthin diphenylselenide, 7,7'-di(phenylseleno)-7,8,7',8'-dihydro-retro-ε,ε-carotene-
3,3'-dione C52H62O2Se2
Molecules 17 02877 i125
postulated unstable intermediate
H.R. Sliwka, S. Liaaen-Jensen, Acta Chem. Scand. 1995, 49, 856

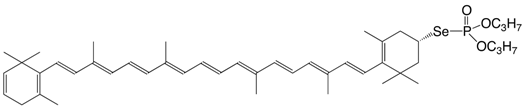

6Se (3S)-2',3'-didehydro-β,β-caroten-3-yl-di-O,O-propylselenophosphate C46H67O3PSe
Molecules 17 02877 i126
H.R. Sliwka, Acta Chem. Scand. 1997, 51, 345
H.R. Sliwka, Helv. Chim. Acta 1999, 82, 161

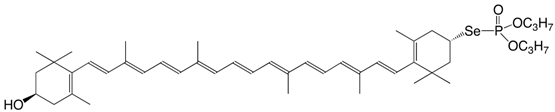

7Se (3R,3'S)-3-hydroxy-3-yl-di-O,O-propylselenophosphate C46H69O4PSe
Molecules 17 02877 i127
H.R. Sliwka, Acta Chem. Scand. 1997, 51, 345
H.R. Sliwka, Helv. Chim. Acta 1999, 82, 161

6.4. Combinations

6.4.1. Nitrogen, Sulfur N,S

1NS zeaxanthin thiocyanate, (3S)-3'-thiocyano-β,β-caroten-3-ol C41H55NOS
Molecules 17 02877 i128
H.R. Sliwka, S. Liaaen-Jensen, Tetrahedron Asym. 1993, 4, 2377
2NS zeaxanthin dithiocyanat, (3S,3'S)-β,β-carotene-3,3'-dithiocyanate C42H54N2S2
Molecules 17 02877 i129
H.R. Sliwka, S. Liaaen-Jensen, Tetrahedron Asym. 1993, 4, 2377

6.5. Iron Fe

1Fe ferrocenyl-C21 aldehyde, 7-ferrocenyl-7,8'-diapocaroten-8'-al C31H35FeO
Molecules 17 02877 i130
F. Effenberger, H. Schlosser, Synthesis 1990, 1085
2Fe ferrocenyl-C31 aldehyde C41H47FeO
Molecules 17 02877 i131
F. Effenberger, H. Schlosser, Synthesis 1990, 1085
3Fe C22 bis(ferrocenyl), 7,7'-bis(ferrocenyl)-7,7'-diapocarotene C42H48Fe
Molecules 17 02877 i132
F. Effenberger, H. Schlosser, Synthesis 1990, 1085
4Fe C26 bis(ferrocenyl) C46H52Fe2
Molecules 17 02877 i133
J.M. Lehn, Angew. Chem. Int. Ed. 1990, 29, 1304

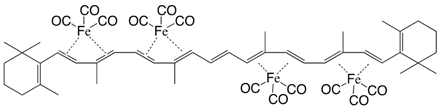

5Fe tetrakis(iron tricarbonyl)-β,β-carotene C52H56Fe4O12
Molecules 17 02877 i134
M. Ichikawa, M. Tsutsui, F. Vohwinkel, Z. Naturforschg. 1967, 22b, 376
6Fe tetrakis(iron tricarbonyl)-β,β-carotene C52H56Fe4O12
Molecules 17 02877 i135
M. Ichikawa, M. Tsutsui, F. Vohwinkel, Z. Naturforschg. 1967, 22b, 376

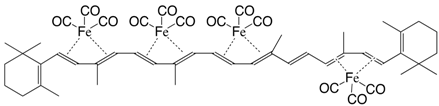

7Fe tetrakis(iron tricarbonyl)-β,β-carotene C52H56Fe4O12
Molecules 17 02877 i136
M. Ichikawa, M. Tsutsui, F. Vohwinkel, Z. Naturforschg. 1967, 22b, 376

6.6. Heterocycle Carotenoids

6.6.1. N-heterocycle ◉N

1◉N crocetin-di-imidazolide C26H30N4O2
Molecules 17 02877 i137
H. Pfander, F. Wittwer, Helv. Chim. Acta 1979, 62, 1944
2◉N crocetin-bis(1,2,4-triazolide) C26H30N4O2
Molecules 17 02877 i138
H. Pfander, F. Wittwer, Helv. Chim. Acta 1979, 62, 1944

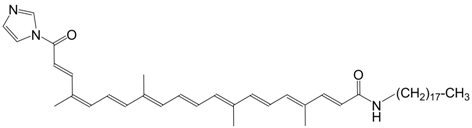

3◉N octadexylbixin imidazolide C45H67N3O2
Molecules 17 02877 i139
J.H. Fuhrhop, M. Krull, A. Schulz, D. Möbius, Langmuir 1990, 6,497
4◉N N-(8'-apo-β-carotene-8-ylidene)-pyrrolidium perchlorate C34H48ClNO4
Molecules 17 02877 i140
D.L. Coffen, E. Ho, C. Nocka, G. Sasso, V. Toome, T.R. Wagler, T.H. Williams, J. Prakt. Chem. 1993, 335, 135
5◉N 7'-apo-7'-(N-methyl-4-pyridinium)-β-carotene iodide C37H48IN
Molecules 17 02877 i141
H. Ikeda, T. Sakai, Y. Kawabe, JP 2-2534, 1990
6◉N 7'-apo-7'-(N-methyl-2-pyridinium)-β-carotene iodide C37H48IN
Molecules 17 02877 i142
H. Ikeda, T. Sakai, Y. Kawabe, JP 2-2534, 1990
7◉N 7,7'-diapo-7,7'-bis(2-pyridyl)-carotene C32H34N2
Molecules 17 02877 i143
H.R. Brahmana, K. Katsuyama, J. Inaga, T. Katsuki, M. Yamaguchi, Tetrahedron Lett. 1981, 22, 1695
8◉N 7,7'-diapo-7,7'-bis(3-pyridyl)-carotene C32H34N2
Molecules 17 02877 i144
H.R. Brahmana, K. Katsuyama, J. Inaga, T. Katsuki, M. Yamaguchi, Tetrahedron Lett. 1981, 22, 1695
T.S. Arrhenius, M. Blanchard-Desce, M. Dvolaitzky, J.M. Lehn, J. Malthête, Proc. Natl. Acad. Sci. USA 1986, 83, 5355
9◉N 7,7'-diapo-7,7'-bis(4-pyridyl)-carotene C32H34N2
Molecules 17 02877 i145
I. Visoly-Fisher, K. Daie, Y. Terazono, C. Herrero, F. Fungo, L. Otero, E. Durantini, J.J. Silber, L. Sereno, D. Gust, T.A. Moore, A.L. Morre, S.M. Lindsay, PNAS 2006, 103, 8686
10◉N bis(4-pyridyl)-C26:11-carotene C36H38N2
Molecules 17 02877 i146
I. Visoly-Fisher, K. Daie, Y. Terazono, C. Herrero, F. Fungo, L. Otero, E. Durantini, J.J. Silber, L. Sereno, D. Gust, T.A. Moore, A.L. Morre, S.M. Lindsay, PNAS 2006, 103, 8686
11◉N bis(4-pyridyl)-C26:11-carotene C36H38N2
Molecules 17 02877 i147
T.S. Arrhenius, M. Blanchard-Desce, M. Dvolaitzky, J.M. Lehn, J. Malthête, Proc. Natl. Acad. Sci. USA 1986, 83, 5355
12◉N bis(4-pyridyl)-C34:15-carotene C36H38N2
Molecules 17 02877 i148
T.S. Arrhenius, M. Blanchard-Desce, M. Dvolaitzky, J.M. Lehn, J. Malthête, Proc. Natl. Acad. Sci. USA 1986, 83, 5355

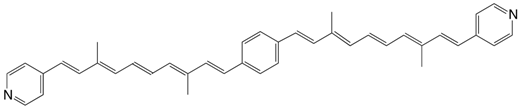

13◉N 1,4-bis(4-pyridyl-C12:5)-benzene C40H40N2
Molecules 17 02877 i149
T.S. Arrhenius, M. Blanchard-Desce, M. Dvolaitzky, J.M. Lehn, J. Malthête, Proc. Natl. Acad. Sci. USA 1986, 83, 5355

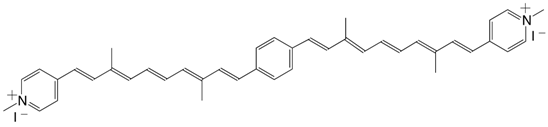

14◉N 1,4-bis(4-pyridinium-C12:5)-benzene diiodide C42H46I2N2
Molecules 17 02877 i150
T.S. Arrhenius, M. Blanchard-Desce, M. Dvolaitzky, J.M. Lehn, J. Malthête, Proc. Natl. Acad. Sci. USA 1986, 83, 5355
15◉N 7,7'-diapo-7,7'-bis(4-methylpyridinium)-carotene diiodide C34H40I2N2
Molecules 17 02877 i151
T.S. Arrhenius, M. Blanchard-Desce, M. Dvolaitzky, J.M. Lehn, J. Malthête, Proc. Natl. Acad. Sci. USA 1986, 83, 5355
16◉N 7,7'-diapo-7,7'-bis(4-ethylpyridinium)-carotene dibromide C36H44Br2N2
Molecules 17 02877 i152
T. Okumoto, N. Morita, I. Nakamura, M. Konishi, M. Yamaguchi, J. Cancer Res.. Clin. Oncol. 1985, 109, 257
17◉N bis(4-pyridinium)-C34:15-carotene diiodide C38H44I2N2
Molecules 17 02877 i153
T.S. Arrhenius, M. Blanchard-Desce, M. Dvolaitzky, J.M. Lehn, J. Malthête, Proc. Natl. Acad. Sci. USA 1986, 83, 5355
18◉N 7,7'-diapo-7,7'-bis(1,3,3 trimethylindolenium)-carotene dichlorate C42H48Cl2N2O8
Molecules 17 02877 i154
S. Hünig, F. Linhart, D. Scheutzow, Liebigs Ann. 1975, 2089
19◉N 7,7'-diapo-7'-(4-pyridyl)-ɸ-carotene-2-dimethylamine C35H40N2
Molecules 17 02877 i155
M. Blanchard-Desce, J.M. Lehn, I. Ledoux, J. Zyss, Special Publication - Royal Society of Chemistry (Org. Mater. Non-linear Opt.) 1989, 69, 170
20◉N 7'-cyano-7'-(4-pyridyl)-β,ɸ-carotene C37H44N2
Molecules 17 02877 i156
A.J. Cruz, K. Siam, D.P. Rillema, J. Phys. Chem. 2011, 115, 1108
21◉N lutein-6H-1,2-oxazine C39H53NO3
Molecules 17 02877 i157
M. Tsuboi, H. Etoh, Y. Yomoda, K. Kato, H. Kato, A. Kulkarni, Y. terada, T. Maoka, H. Mori, T. Inakuma, Tetrahedron Lett. 2010, 521, 676
22◉N 6,6'-diapocarotenal-6'-(2-phenyl-azlactone) C33H33NO3
Molecules 17 02877 i158
J. Zsako, M. Tomoaia-Cotisel, V. Tamas, C. Coman, E. Chifu, Rev. Roum. Chim. 1987, 32, 1193.
The authors describe several other azlactones.

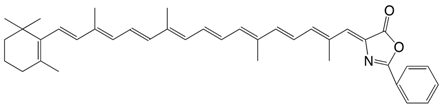

23◉N β-apo-6'-carotenal-2-phenyl-azlactone C39H45NO2
Molecules 17 02877 i159
V. Tamas, V. Ciurdaru, C. Bodea, Rev. Roum. Chim. 1973, 18, 1409

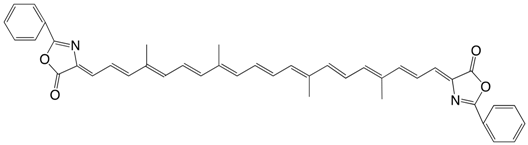

24◉N β-apo-6'-carotendial bis-2-phenyl diazlactone, C24:11 diazlactone C42H38N2O4
Molecules 17 02877 i160
V. Tamas, V. Ciurdaru, C. Bodea, Rev. Roum. Chim. 1973, 18, 1409

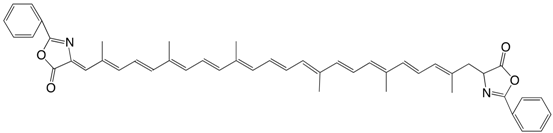

25◉N C30:13-diazlactone C48H48N2O4
Molecules 17 02877 i161
V. Tamas, V. Ciurdaru, C. Bodea, Rev. Roum. Chim. 1973, 18, 1409. The authors describe several other azlactones.

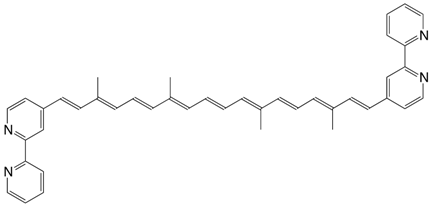

26◉N bis(2,2'-bipyridine-4-yl)-carotene C42H40N4
Molecules 17 02877 i162
F. Effenberger, M. Wezstein, Synthesis 2001, 1368

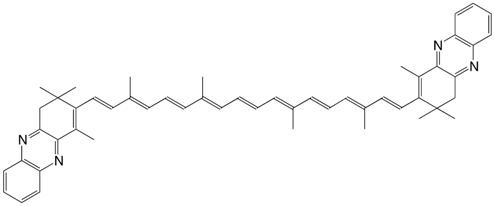

27◉N astacene bisphenazine C52H56N4
Molecules 17 02877 i163
P. Karrer, L. Loewe, Helv. Chim. Acta 1934, 17, 745
S. Hertzberg, S. Liaaen-Jensen, C.R. Enzell, G.W. Francis, Acta Chem. Scand. 1969, 23, 3290
28◉N violerythrin bisquinoxaline C50H52N4
Molecules 17 02877 i164
S. Hertzberg, S. Liaaen-Jensen, C.R. Enzell, G.W. Francis, Acta Chem. Scand. 1969, 23, 3290
29◉N 7,7'-diapo-7',7'-dicyano-7-julolidinyl-carotene C36H39N3
Molecules 17 02877 i165
M. Blanchard-Desce, J.M. Lehn, M. Barzoukas, I. Ledoux, J. Zyss, Chem. Phys. 1994, 181, 281
30◉N 7'-apo-3-cyano-7'-julolidinyl-ɸ−carotene C41H44N2
Molecules 17 02877 i166
M. Blanchard-Desce, J.M. Lehn, M. Barzoukas, I. Ledoux, J. Zyss, Chem. Phys. 1994, 181, 281
31◉N 7'-apo-7'-julolidinyl-3-nitro-ɸ-carotene C40H44N2O2
Molecules 17 02877 i167
M. Blanchard-Desce, J.M. Lehn, M. Barzoukas, I. Ledoux, J. Zyss, Chem. Phys. 1994, 181, 281

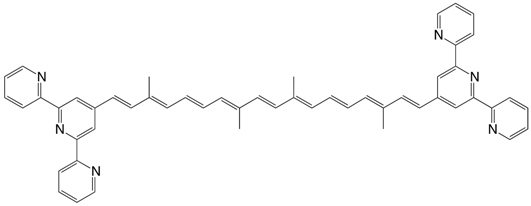

32◉N diterpyridine carotenoid C52H46N6
Molecules 17 02877 i168
G. Pickaert, R. Ziessel, Tetrahedron Lett. 1998, 39, 3497

6.6.2. S-heterocycle ◉S

1◉S 3,4,3',4',-tetrahydrospirilloxanthin-20-(1,3-dithiolane) C44H66O2S2
Molecules 17 02877 i169
A.J. Aasen, S. Liaaen Jensen, Acta Chem. Scand. 1967, 21, 2185
2◉S (= 1Si) 7,5'-diapo-7-thienyl-carotene-5'-triethoxysilane C34H46O3SSi
Molecules 17 02877 i170
F. Effenberger, M. Wezstein, Synthesis 2001, 1368
3◉S 7,7'-diapo-bis(2-thienyl)-carotene C30H32S2
Molecules 17 02877 i171
H.R. Brahmana, K. Katsuyama, J. Inaga, T. Katsuki, M. Yamaguchi, Tetrahedron Lett. 1981, 22, 1695
F. Effenberger, M. Wezstein, Synthesis 2001, 1368
4◉S 7,7'-diapo-bis(3-thienyl)-carotene C30H32S2
Molecules 17 02877 i172
H.R. Brahmana, K. Katsuyama, J. Inaga, T. Katsuki, M. Yamaguchi, Tetrahedron Lett. 1981, 22, 1695
5◉S 7',8-diapo-7',7'-dicyano-8-(benzodithiol-2-ylidene)-carotene C30H28N2S2
Molecules 17 02877 i173
M. Blanchard-Desce, I. Ledoux, J. Malthête, J. Zyss, J. Chem. Soc., Chem. Commun. 1988, 737
6◉S 8'-apo-8'-(benzodithiol-2-ylidene)-3-cyano-ɸ−carotene C35H33NS2
Molecules 17 02877 i174
M. Blanchard-Desce, I. Ledoux, J. Malthête, J. Zyss, J. Chem. Soc., Chem. Commun. 1988, 737
7◉S 8'-apo-8'-(benzodithiol-2-ylidene)-3-nitro-ɸ-carotene C34H33NO2S2
Molecules 17 02877 i175
M. Blanchard-Desce, I. Ledoux, J. Malthête, J. Zyss, J. Chem. Soc., Chem. Commun. 1988, 737

6.6.3. N,S-heterocycle ◉N,S

1◉N,S 7,8'-diapo-8'-(benzodithiol-2-ylidene)-7-(4-pyridyl)-carotene C33H33NS2
Molecules 17 02877 i176
M. Blanchard-Desce, I. Ledoux, J. Malthête, J. Zyss, J. Chem. Soc., Chem. Commun. 1988, 737
2◉N,S 7,8'-diapo-8'-(benzodithiol-2-ylidene)-7-(4-pyridinium)-carotene iodide C34H36INS2
Molecules 17 02877 i177
M. Blanchard-Desce, I. Ledoux, J. Malthête, J. Zyss, J. Chem. Soc., Chem. Commun. 1988, 737
3◉N,S C30-aldehyde rhodanine, 8'-apo-β-carotenyliden-rhodanine C33H41NOS2
Molecules 17 02877 i178
H. Hegedus, US3071583, 1963
H. Thommen, Int. Z. Vitaminforsch. 1967, 37, 175

Acknowledgements

The authors thank a reviewer for a reference to additional sulfur carotenoids.

References

  1. Zechmeister, L. Carotenoide; Springer: Berlin, Germany, 1934. [Google Scholar]
  2. Karrer, P.; Jucker, E. Carotenoide; Birkhäuser: Basel, Switzerland, 1948. [Google Scholar]
  3. Karrer, P.; Jucker, E. Carotenoids; Elsevier: Amsterdam, The Netherlands, 1950. [Google Scholar]
  4. Straub, O.; Pfander, H. Key to Carotenoids; Birkhäuser: Basel, Switzerland, 1987. [Google Scholar]
  5. Carotenoids Handbook; Britton, G.; Liaaen-Jensen, S.; Pfander, H. (Eds.) Birkhäuser: Basel, Switzerland, 2004.
  6. IUPAC. “A xenobiotic is a compound that is foreign to a living organism”. Glossary of terms used in bioinorganic chemistry (IUPAC Recommendations). Pure Appl. Chem 1997, 69, 1303.
  7. Levine, P.A.; Sobotka, H. The thio-sugar from yeast. J. Biol. Chem. 1925, 65, 551–554. [Google Scholar]
  8. Kocourek, J.; Klenha, J.; Jiracek, V. Preparation of 1-seleno-1-deoxy-D-glucose. Chem. Ind. 1963, 1397–1397. [Google Scholar]
  9. Ohle, H.; Lichtenstein, R. Über die Aceton-Verbindungen der Zucker und ihrer Derivate XVII: Umwandlung der Monoaceton-Glucose in eine neue Amino- und Anhydro-Hexose. Ber. Dtsch. Chem. Ges. 1930, 64, 2905–2912. [Google Scholar]
  10. Balint, R.; Bognar, R.; Rakoski, M. Chemistry of sulfur containing flavonoids. In Organic Sulfur Chemistry: Theoretical and Experimental Advances; Bernardi, F., Csizmadia, I.G., Mangini, A., Eds.; Elsevier: Amsterdam, The Netherlands, 1985; pp. 660–706. [Google Scholar]
  11. Gribble, G.W. Naturally-occurring organohalogen compounds—A survey. J. Nat. Prod. 1992, 55, 1353–1395. [Google Scholar] [CrossRef]
  12. Neamţu, G.; Bodea, C. Chemotaxonomy of higher plants 1. Carotinoid pigments in genus Astragalus. Rev. Roum. Biochim. 1969, 6, 157–161. [Google Scholar]
  13. Krief, A.; Hevesi, L. Organoselenium Chemistry; Springer: Berlin, Germany, 1988. [Google Scholar]
  14. Biacs, P.A.; Daood, H.G.; Kadar, I. Effect of Mo, Se, Zn, and Cr Treatments on the yield, element concentration, and carotenoid content of carrot. J. Agric. Food Chem. 1995, 43, 589–591. [Google Scholar] [CrossRef]
  15. Eugster, C.H. Die Entwicklung der Carotinoid-Chemie im Spiegel der Helvetica Chimica Acta 1922–1991. Helv. Chim. Acta 1992, 75, 941–994. [Google Scholar] [CrossRef]
  16. Sliwka, H.R. Conformation and circular dichroism of β,β-carotene derivatives with nitrogen-, sulfur-, and selenium-containing substituents. Helv.Chim. Acta 1999, 82, 161–169. [Google Scholar] [CrossRef]
  17. Leatherman, G.; Durantini, E.N.; Gust, D.; Moore, T.A.; Moore, A.L.; Stone, S.; Zhou, Z.; Rez, P.; Liu, Y.Z.; Lindsay, S.M. Carotene as a molecular wire: Conducting atomic force microscopy. J. Phys. Chem. B 1999, 103, 4006–4010. [Google Scholar]
  18. Ion, A.; Partali, V.; Sliwka, H.R.; Banica, F.G. Electrochemistry of a carotenoid self-assembled monolayer. Electrochem. Commun. 2002, 4, 674–678. [Google Scholar] [CrossRef]
  19. Mohamad, S.B.B.; Yousef, Y.A.; Melø, T.B.; Javorfi, T.; Partali, V.; Sliwka, H.R.; Naqvi, K.R. Singlet oxygen quenching by thione analogues of canthaxanthin, echinenone and rhodoxanthin. J. Photochem. Photobiol. B Biol. 2006, 84, 135–140. [Google Scholar] [CrossRef]
  20. Sliwka, H.R.; Liaaen-Jensen, S. Synthetic sulfur carotenoids 3. Carotenoid thiones 1st preparation and spectroscopic properties. Acta Chem. Scand. 1994, 48, 679–683. [Google Scholar] [CrossRef]
  21. Moore, T.A.; Song, P.S. Electronic-spectra of carotenoids—Schiff´s bases of carotenal and carotenones. J. Mol. Spec. 1974, 52, 224–232. [Google Scholar] [CrossRef]
  22. Willibald, J.; Rennebaum, S.; Breukers, S.; Abdel Hafez, S.H.; Patel, A.; Øpstad, C.L.; Schmid, R.; Nalum Naess, S.; Sliwka, H.R.; Partali, V. Hydrophilic carotenoids: Facile syntheses of carotenoid oxime hydrochlorides as long-chain, highly unsaturated cationic (bola)amphiphiles. Chem. Phys. Lipids 2009, 161, 32–37. [Google Scholar] [CrossRef]
  23. Tswett, M. Physikalisch-chemische Studien über das Chlorophyll. Ber. Dtsch. Botan. Ges. 1906, 24, 316–323. [Google Scholar]
  24. Willstätter, R.; Mieg, W. Über eine Methode der Trennung und Bestimmung von Chlorophyllderivaten. Liebigs Ann. Chem. 1906, 350, 1–47. [Google Scholar] [CrossRef]
  25. Kuhn, R.; Grundmann, C. Die Konstitution des Lycopins. Ber. Dtsch. Chem. Ges. 1932, 65B, 1880–1889. [Google Scholar]
  26. Karrer, P.; Solmssen, U.; Gugelmann, W. β-Apo-4-carotinal, ein weiteres Abbauproduckt des β- Carotins. Helv. Chim. Acta 1937, 20, 1020–1024. [Google Scholar] [CrossRef]
  27. Entschel, R.; Karrer, P. Carotinoidsynthesen 22. Umsetzungsprodukte des β-Carotins mit Bromsuccinimid—(Einführung von Äther-Gruppen und Hydroxyl-Gruppen in den Kohlenwasserstoff). Helv. Chim. Acta 1958, 41, 402–414. [Google Scholar] [CrossRef]
  28. Martin, C.; Karrer, P. Carotinoidsynthesen 26. Einführung von Mercapto-Gruppen und Anilido-Gruppen in das β-Carotin. Helv. Chim. Acta 1959, 42, 464–466. [Google Scholar] [CrossRef]
  29. Pfander, H.; Leuenberger, U. Chlorinated carotenoids from CHCl3-HCl-reaction. Chimia 1976, 30, 71–73. [Google Scholar]
  30. Petracek, F.J.; Zechmeister, L. The Hydrolytic cleavage products of boron trifluoride complexes of β-carotene, some dehydrogenated carotenes and anhydrovitamin-A. J. Am. Chem. Soc. 1956, 78, 3188–3191. [Google Scholar] [CrossRef]
  31. Bush, W.V.; Zechmeister, L. On some cleavage products of the boron trifluoride complexes of α- carotene, lycopene and γ-carotene. J. Am. Chem. Soc. 1958, 80, 2991–2999. [Google Scholar] [CrossRef]
  32. Inanaga, J.; Yamaguchi, M. Transformation of zeaxanthin into 3,3´-diamino- and dimercapto-β- carotene derivatives. Mem. Fac. Sci. Kyushu Univ. Ser. C 1989, 17, 109–112. [Google Scholar]
  33. Weedon, B.C.L.; Moss, G.P. Structure and nomenclature. In Carotenoids; Britton, G., Liaaen-Jensen, S., Pfander, H., Eds.; Birkhäuser: Basel, Switzerland, 1995; Volume 1A, p. 28. [Google Scholar]
  34. Liaaen-Jensen, S. Isolation, reactions. In Carotenoids; Isler, O., Ed.; Birkhäuser: Basel, Switzerland, 1971; p. 87. [Google Scholar]
  35. Winterstein, A.; Studer, A.; Ruegg, R. Neuere Ergebnisse der Carotinoidforschung. Chem. Ber. 1960, 93, 2951–2965. [Google Scholar] [CrossRef]
  36. Dirks, G.; Moore, A.L.; Moore, T.A.; Gust, D. Light-absorption and energy-transfer in polyene- porphyrin esters. Photochem. Photobiol. 1980, 32, 277–280. [Google Scholar] [CrossRef]
  37. Rudatsikira, A.; Francois, B.; Mathis, C. Electron-transfer from carbanionic salts to linear sequences of conjugated double-bonds 2. Reaction with trans-β-carotene. Makromol. Chem. 1989, 190, 93–105. [Google Scholar] [CrossRef]
  38. Liebman, A.A.; Burger, W.; Choudhry, S.C.; Cupano, J. Synthesis of carotenoids specifically labeled with isotopic carbon and tritium. Methods Enzymol. 1992, 213, 42–49. [Google Scholar]
  39. Lugtenburg, J.; Creemers, A.F.L.; Verhoeven, M.A.; van Wijk, A.A.C.; Verdegem, P.J.E.; Monnee, M.C.F.; Jansen, F.J.H.M. Synthesis of 13C-labeled carotenoids and retinoids. Pure Appl. Chem. 1999, 71, 2245–2251. [Google Scholar] [CrossRef]
  40. Eguchi, T.; Dekishima, Y.; Aizawa, H.; Tamegai, H.; Kakinuma, K.; Misawa, N.; Kuzuyama, T.; Seto, H. Preparation of highly deuterated zeaxanthin, lycopene, and β-carotene from fully deuterated mevalonate using engineered Escherichia coli. Tetrahedron 2005, 61, 2027–2035. [Google Scholar] [CrossRef]
  41. Karrer, P.; Eugster, C.H. Carotinoidsynthesen VIII. Synthese des Dodecapreno-β-Carotins. Helv. Chim. Acta 1951, 34, 1805–1814. [Google Scholar] [CrossRef]
  42. Partali, V.; Kvittingen, L.; Sliwka, H.R.; Anthonsen, T. Stable, highly unsaturated glycerides—Enzymatic synthesis with a carotenoic acid. Angew. Chem. Int. Ed. 1996, 35, 329–330. [Google Scholar] [CrossRef]
  43. Broszeit, G.; Diepenbrock, F.; Graf, O.; Hecht, D.; Heinze, J.; Martin, H.D.; Mayer, B.; Schaper, K.; Smie, A.; Strehblow, H.H. Vinylogous β-carotenes: Generation, storage, and delocalization of charge in carotenoids. Liebigs Ann. 1997, 1997, 2205–2213. [Google Scholar] [CrossRef]
  44. Larsen, E.; Abendroth, J.; Partali, V.; Schulz, B.; Sliwka, H.R.; Quartey, E.G.K. Combination of vitamin E with a carotenoid: α-tocopherol and trolox linked to β-apo-8'-carotenoic acid. Chem. Eur. J. 1998, 4, 113–117. [Google Scholar] [CrossRef]
  45. Naalsund, T.; Malterud, K.E.; Partali, V.; Sliwka, H.R. Synthesis of a triantioxidant compound: Combination of beta-apo-8'-carotenoic acid, selenacapryloic acid and trolox in a triglyceride. Chem. Phys. Lipids 2001, 112, 59–65. [Google Scholar] [CrossRef]
  46. Levy, L.W.; Binnington, R.H.; Tabatznik, A.S. Novel carotenoid ester. U.S. Patent 0,169,334,14, November 2002. [Google Scholar]
  47. Jørgensen, M.; Krebs, F.C. Stepwise and directional synthesis of end-functionalized single- oligomer OPVs and their application in organic solar cells. J. Org. Chem. 2004, 69, 6688–6696. [Google Scholar] [CrossRef]
  48. Beutner, S.; Frixel, S.; Ernst, H.; Hoffmann, T.; Hernandez-Blanco, I.; Hundsdörfer, C.; Kiesendahl, N.; Kock, S.; Martin, H.D.; Mayer, B.; et al. Carotenylflavonoids, a novel group of potent, dual-functional antioxidants. ARKIVOC 2007, VIII, 279–295. [Google Scholar]
  49. Foss, B.J.; Nalum Naess, S.; Sliwka, H.R.; Partali, V. Stable and highly water-dispersible, highly unsaturated carotenoid phospholipids—Surface properties and aggregate size. Angew. Chem. Int. Ed. 2003, 42, 5237–5240. [Google Scholar] [CrossRef]
  50. Sliwka, H.R.; Partali, V.; Lockwood, S.F. Hydrophilic Carotenoids: Carotenoid Aggregates. In Carotenoids: Physical, Chemical, and Biological Functions and Properties; Landrum, J.T., Ed.; CRC Press: Boca Raton, FL, USA, 2009; pp. 31–58. [Google Scholar]
  51. Øpstad, C.L.; Sliwka, H.R.; Partali, V. New colours for carotenoids—Synthesis of pyran polyenes. Eur. J. Org. Chem. 2010, 2010, 435–439. [Google Scholar] [CrossRef]
  52. Johansen, J.E.; Liaaen-Jensen, S. Algal Carotenoids 13. Chemical-reactions of allenic carotenoids. Acta Chem. Scand. 1974, B 28, 949–954. [Google Scholar]
  53. Weedon, B.C.L.; Moss, G.P. Structure and nomenclature. In Carotenoids; Britton, G., Liaaen-Jensen, S., Pfander, H., Eds.; Birkhäuser: Basel, Switzerland, 1995; Volume 1A, p. 57. [Google Scholar]
  54. Kuhn, R. Xanthophylle. Z. Physiol. Chem. 1931, 197, 141. [Google Scholar] [CrossRef]
  • Sample Availability: Not available.

Share and Cite

MDPI and ACS Style

Sliwka, H.-R.; Partali, V. Key to Xenobiotic Carotenoids. Molecules 2012, 17, 2877-2928. https://doi.org/10.3390/molecules17032877

AMA Style

Sliwka H-R, Partali V. Key to Xenobiotic Carotenoids. Molecules. 2012; 17(3):2877-2928. https://doi.org/10.3390/molecules17032877

Chicago/Turabian Style

Sliwka, Hans-Richard, and Vassilia Partali. 2012. "Key to Xenobiotic Carotenoids" Molecules 17, no. 3: 2877-2928. https://doi.org/10.3390/molecules17032877

Article Metrics

Back to TopTop
