Article

Oxime Esters of 2,6-Diazaanthracene-9,10-dione and 4,5-Diazafluoren-9-one as Photo-induced DNA-Cleaving Agents

1
Department of Chemistry, Fu Jen Catholic University, New Taipei 24205, Taiwan
2
Department of Chemistry, National Central University, Jhongli 32001, Taiwan
3
Department of Chemistry, National Tsing Hua University, Hsinchu 30013, Taiwan
*
Authors to whom correspondence should be addressed.
Molecules 2012, 17(3), 3370-3382; https://doi.org/10.3390/molecules17033370
Submission received: 29 January 2012 / Revised: 10 March 2012 / Accepted: 12 March 2012 / Published: 15 March 2012
(This article belongs to the Section Organic Chemistry)

Abstract

:
Two series of oxime esters containing the 2,6-diazaanthracene-9,10-dione bis-(O-benzoyloxime) and 4,5-diazafluoren-9-one O-9-benzoyloxime moieties have been synthesized and tested as photo-induced DNA cleaving agents. All these compounds were found to cleave DNA upon irradiation with 312 nm UV light. The structure-activity relationship of these molecules for DNA cleavage was established. A plausible reaction mechanism is also proposed.

1. Introduction

Photocleavage of nucleic acids (DNA and RNA) can be very useful for molecular biological applications [1]. Organic molecules with DNA-cleaving ability are of great potential in the development of biotechnology and gene therapy [2]. A very important feature of this method is that all components can be mixed together without initiating the chemical reaction until it is irradiated [3]. If such “photocleavage agents” absorb light at wavelengths longer than 300 nm, nucleic acids will not be affected while selective excitation of the photocleavage agents can be achieved [4]. Since single-strand DNA damage is easily repaired by enzymatic processes [5], photocleavage of double-strand DNA molecules would be a more efficient tool for cancer therapy [6,7,8,9,10,11,12].
We were particularly interested in developing methods of DNA cleavage by radical species. A key feature is to facilitate the generation of radicals which are also reactive enough to cleave the DNA, as shown in the photolysis of N-aroyloxy-2-thiopyridones [13]. Along this line we have synthesized oxime esters 1 to cleave the calf thymus DNA upon UV irradiation (Scheme 1) [14].

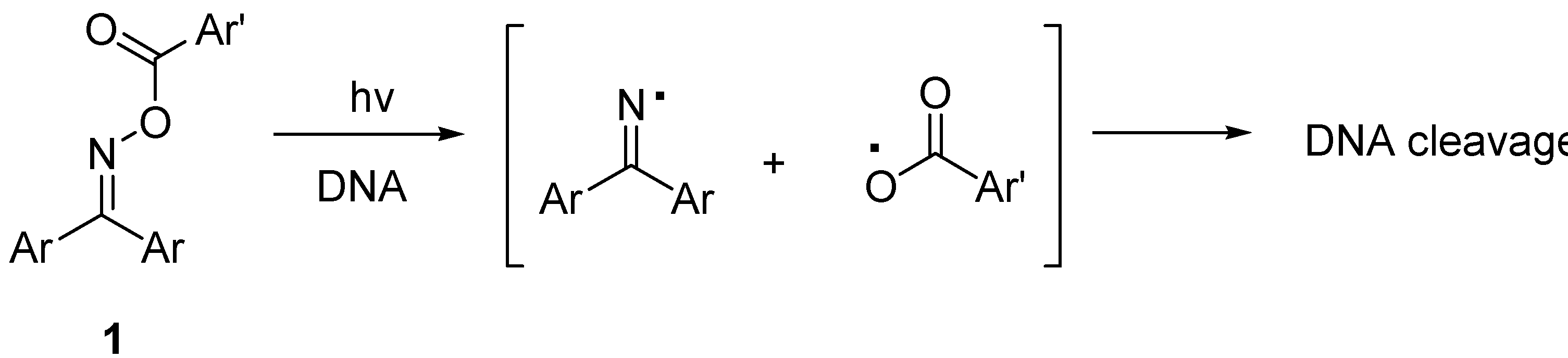

Scheme 1. DNA cleavage by photolysis of oxime esters.
Scheme 1. DNA cleavage by photolysis of oxime esters.
Molecules 17 03370 g001
The weak N–O bond of the oxime esters can be selectively cleaved to generate the iminyl and carboxy radicals which can then cause the cleavage of the DNA. The radicals were detected by EPR (electron paramagnetic resonance) spectroscopy. We incorporated the anthraquinone, fluoren-9-one, or thioxanthen-9-one moiety into the structure of the oxime esters as well as different substituents on the aromatic carboxyl group to determine their effects on the efficiency of DNA cleavage. Most of these compounds exhibited single-strand scission of DNA, but some anthraquinone derivatives caused double-strand scission. We also studied the photo-induced DNA cleavage by heteroaromatic oxime esters of anthraquinone [15], and discovered that one particular compound could cleave DNA at the concentration as low as 1.0 μM. Recently, anthracenone-based oxime esters have been reported to display strong antiproliferative activity against K562 leukemia cells [16]. N,O-Diacyl-4-benzoyl- N-phenylhydroxylamines, also having a weak N–O bond, were recently reported to produce single strand cleavage of DNA [17]. Photolysis of the carboxylic esters of N-acyl-N-phenylhydroxylamines generated the corresponding carboxylic acids by cleaving the N–O bond [18].

2. Results and Discussion

The reaction of 2,6-diazaanthracene-9,10-dione (2) [19] with hydroxylamine hydrochloride (4 equiv.) in refluxing pyridine for 24 h gave the bis-oxime 3 in good yield. Treatment of compound 3 in anhydrous THF with sodium hydride (4 equiv.) at room temperature followed by the reaction with benzoyl chloride derivatives afforded the corresponding bis-oxime esters 4ad in fair yields (Scheme 2). 4,5-Diazafluoren-9-one (5) [20] was similarly converted to its oxime 6 and oxime esters 7ad (Scheme 3).
The characteristic 1H NMR absorptions for compounds 4a-d and 7a-d are provided in the Experimental section. The number of different carbons in the 13C-NMR spectra of compounds 4a-d clearly demonstrates that they only have the anti configuration. The X-ray crystal structure of compound 7b (Figure 1) shows the more stable cisoid conformation of the C=O and N-O group [21].

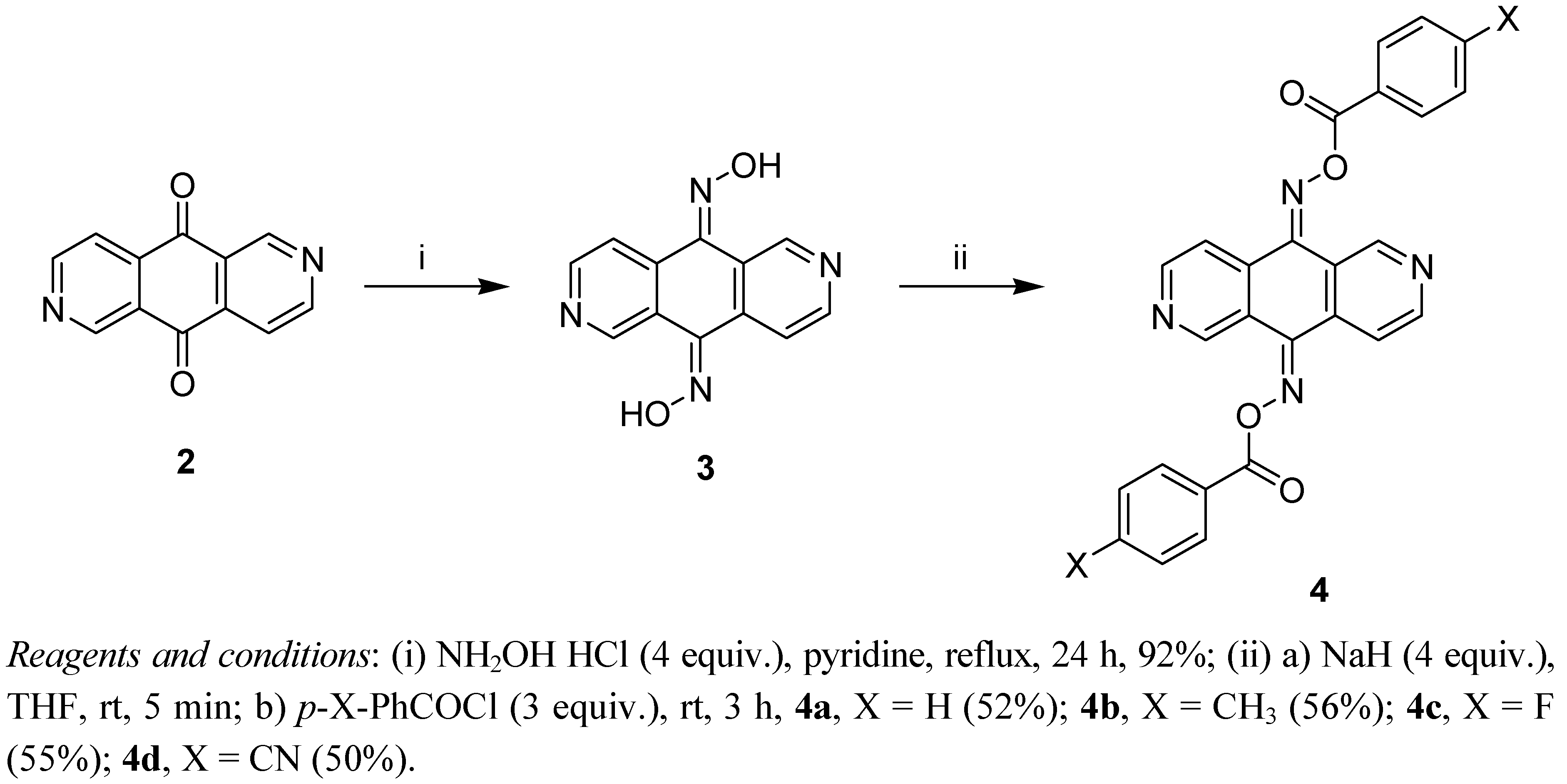

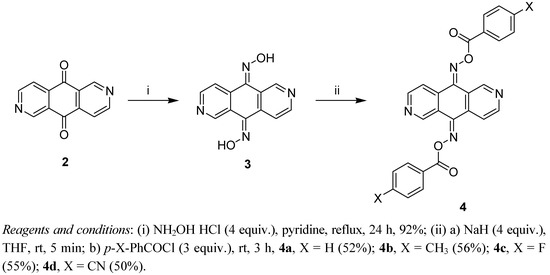

Scheme 2. Synthesis of bis-oxime esters 4ad.
Scheme 2. Synthesis of bis-oxime esters 4ad.
Molecules 17 03370 g002

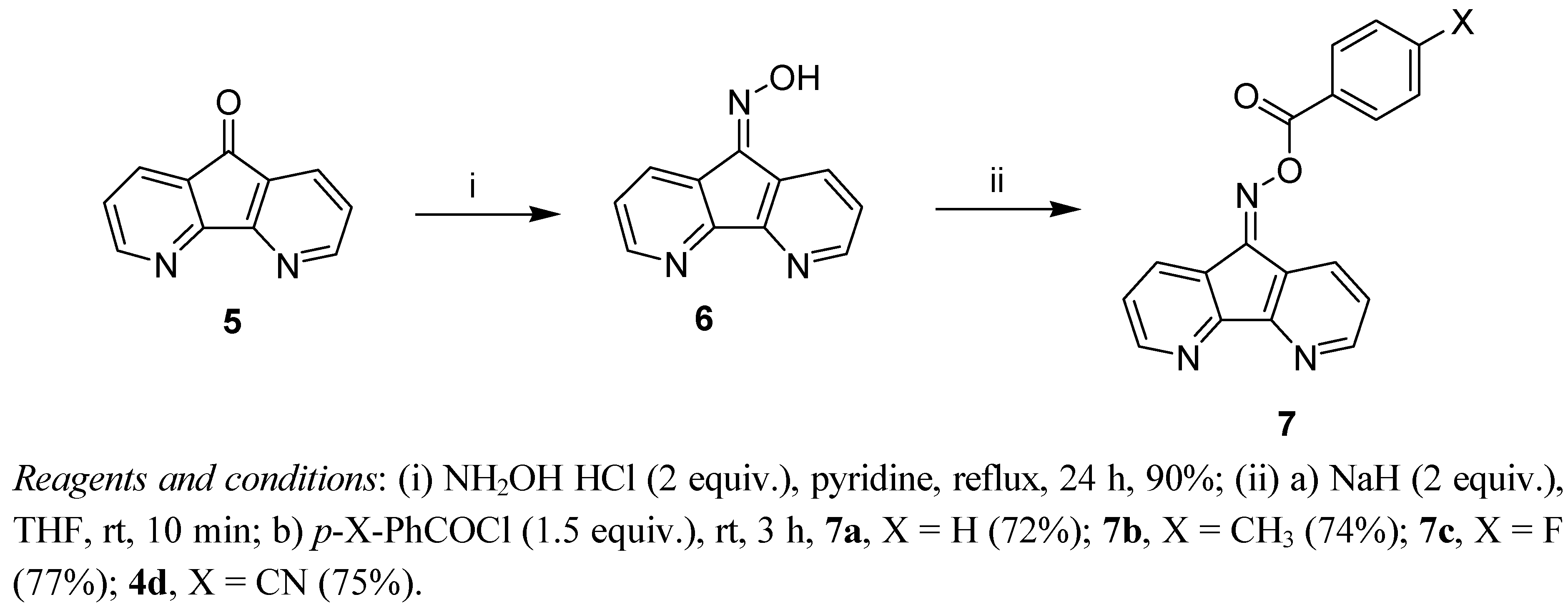

Scheme 3. Synthesis of bis-oxmie esters 7ad.
Scheme 3. Synthesis of bis-oxmie esters 7ad.
Molecules 17 03370 g003

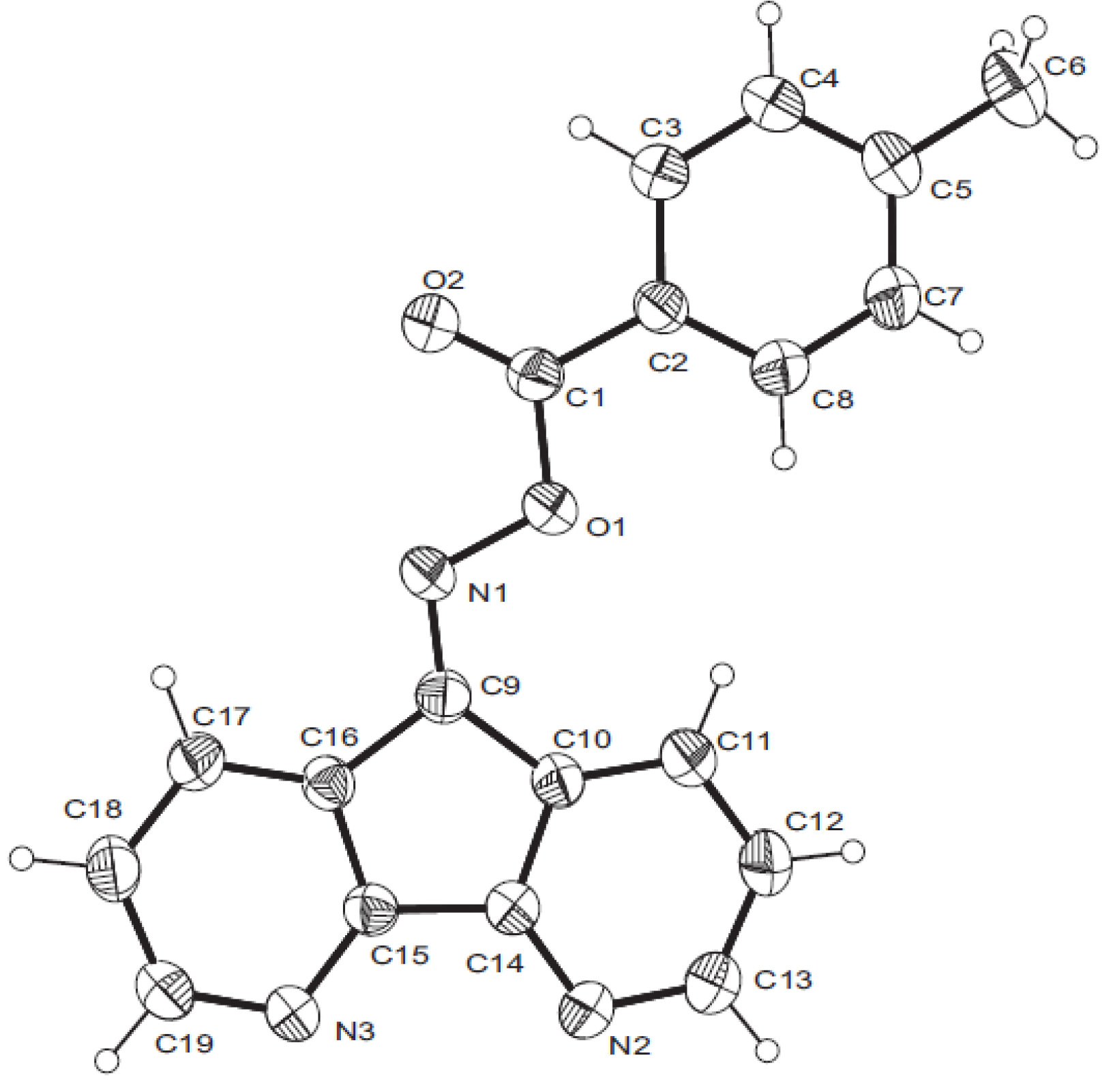

Figure 1. X-ray crystal structure of compound 7b.
Figure 1. X-ray crystal structure of compound 7b.
Molecules 17 03370 g004
The UV-VIS absorption spectra for compounds 4a4d and 7a7d were measured in CH2Cl2 (Figure 2), and their λmax and molar absorptivity (ε) values are listed in Table 1. It can be seen that compounds 4ad and 7ad all have some absorption at the 312 nm normally used for the photo-induced DNA cleavage.

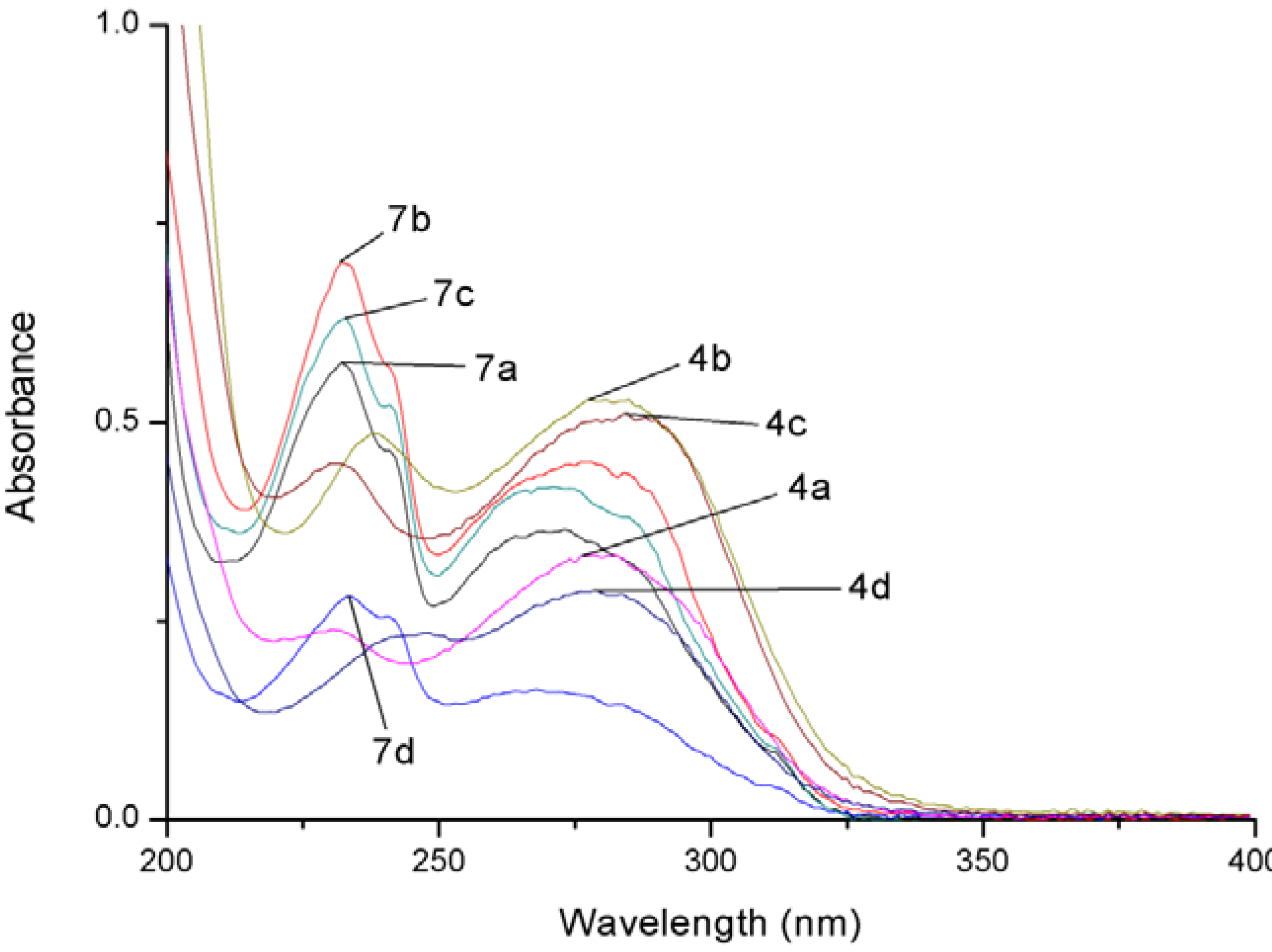

Figure 2. UV-VIS absorption spectra for compounds 4ad and 7ad.
Figure 2. UV-VIS absorption spectra for compounds 4ad and 7ad.
Molecules 17 03370 g005
Table 1. λmax and molar absorptivity (ε) for compounds 4ad and 7ad.
Table 1. λmax and molar absorptivity (ε) for compounds 4ad and 7ad.
Compoundλmax (ε)
4a230 (23888), 280 (32944)
4b238 (48714), 277 (52709)
4c230 (44888), 283 (50593)
4d248 (23504), 279 (28855)
7a233 (57149), 273 (36500)
7b232 (70174), 276 (45050)
7c233 (63071), 271 (41946)
7d234 (28102), 268 (16377)
The oxime esters 4ad and 7ad were individually irradiated with UV light (312 nm) at the concentration of 100 μM in phosphate buffers (pH 6.0) and 2.5% DMSO containing the supercoiled circular ϕX174 RFI DNA (form I; 50 μM/base pair) under aerobic conditions at room temperature for 2 h. The cleavage results from gel electrophoresis on 1% agarose with ethidium bromide staining for compounds 4ad and 7ad are shown in Figure 3. It can be seen that all these compounds nicked the supercoiled circular DNA to give the relaxed circular (i.e., form II) DNA, and the cleaving ability of compounds 4ad was greater than of compounds 7ad. A simple explanation for the higher cleaving effect of compounds 4ad is that they have bis-oxime ester moieties, whereas compounds 7ad are mono-oxime esters. However, other factors such as degree of intercalation, polarity, and steric effect, etc. may also be involved. It is interesting to note that the substituent effect in these two series of compounds is almost reversed: for compounds 4ad, F > CH3 > CN > H; for compounds 7ad, H > CH3 > CN > F. Among these eight compounds, compound 4c exhibited the best results, so we carried out further cleavage experiments with different concentrations of compound 4c (Figure 4). In lane 1, without compound 4c, DNA was not decomposed by irradiation with 312 nm of UV for 2 h. In lane 2, in the presence of 500 μM of compound 4c, DNA cleavage did not occur in the dark. However, in lanes 3–6, in the presence of 500, 250, 100 or 50 μM of compound 4c, significant amount of the relaxed circular (i.e., form II) DNA was obtained. Thus the UV light functioned as a “trigger” to initiate the DNA scission process. However, with 25 or 12.5 μM of compound 4c, DNA cleavage did not occur.

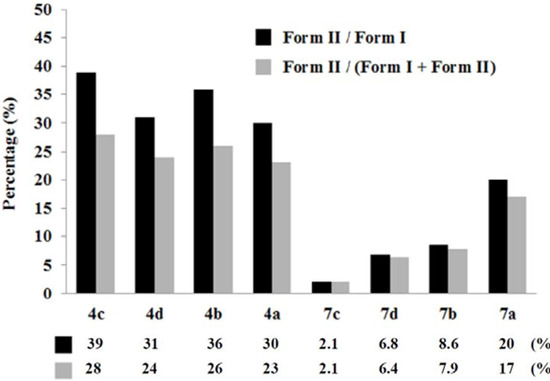

Figure 3. DNA cleaving abilities of compounds 4ad and 7ad (100 μM).
Figure 3. DNA cleaving abilities of compounds 4ad and 7ad (100 μM).
Molecules 17 03370 g006

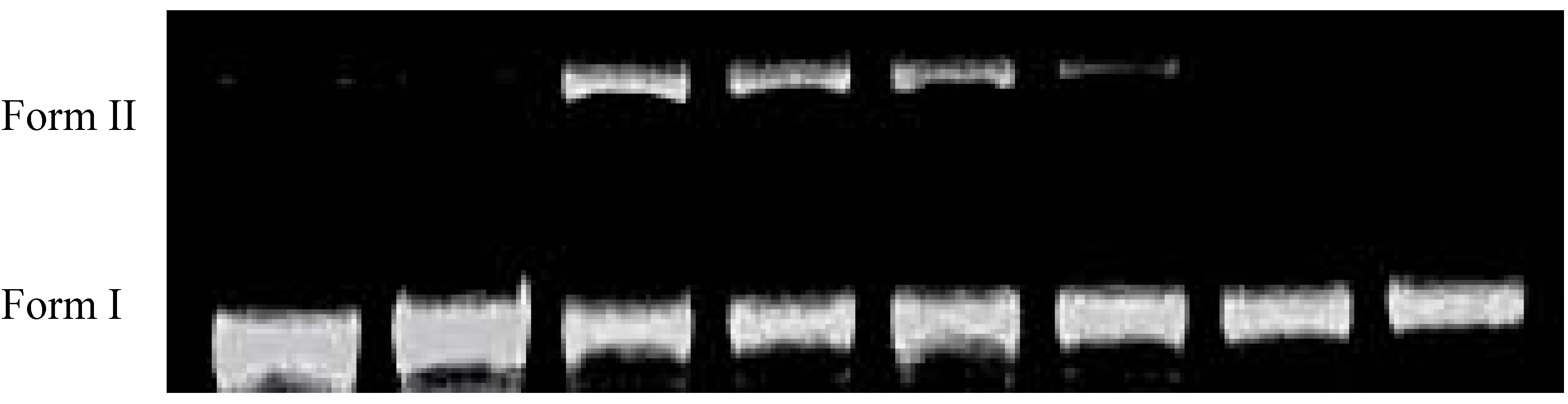

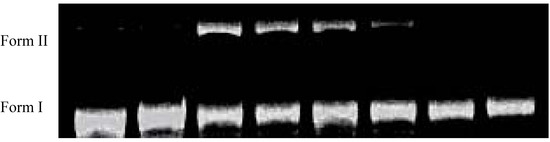

Figure 4. Dose measurement of compound 4c for DNA cleavage. Lane 1, DNA at 312 nm for 2 h; Lane 2, DNA and 4c (500 μM) in the dark; Lanes 3–8, DNA and 500, 250, 100, 50, 25, 12.5 μM of 4c, individually, at 312 nm for 2 h.
Figure 4. Dose measurement of compound 4c for DNA cleavage. Lane 1, DNA at 312 nm for 2 h; Lane 2, DNA and 4c (500 μM) in the dark; Lanes 3–8, DNA and 500, 250, 100, 50, 25, 12.5 μM of 4c, individually, at 312 nm for 2 h.
Molecules 17 03370 g007
We have also carried out the photolysis of compound 4a with a medium pressure mercury lamp (222–366 nm) in benzene under nitrogen using 1,4-cyclohexadiene [22] as the radical scavenger (Scheme 4). The products were purified by column chromatography to give 2,6-diazaanthracene-9,10-dione (2) and benzoic acid in good yields. These DNA-cleaving processes were further investigated in control experiments with oxime ester 4c and 7a, respectively, by addition of sodium azide (100 to 500 mM) as a scavenger of singlet oxygen [23,24]. The presence of singlet oxygen may contribute to the DNA damage [25,26].We found that the DNA cleavage results did not show obvious reduction after the addition of sodium azide. This outcome implies that singlet oxygen did not participate in these DNA-cleaving processes. In order to explain the photolysis products a plausible mechanism is proposed (Scheme 5) [27,28,29]. The weak N–O bond is first cleaved by the UV light to generate the bis-iminyl radical and benzoyloxy radical which can then abstract hydrogen atoms from 1,4-cyclohexadiene to give the bis-imine 9 and benzoic acid (8). The bis-imine 9 can be easily hydrolyzed to 2,6-diaza- anthracene-9,10-dione (2) during workup. Based on the photolysis results, we propose that the DNA cleavage is initiated by the homolytic cleavage of the weak N–O bond of oxime esters 4 or 7 to generate the bis-iminyl radical and benzoyloxy radical, which could then abstract hydrogen atom from the sugar moiety of the DNA.

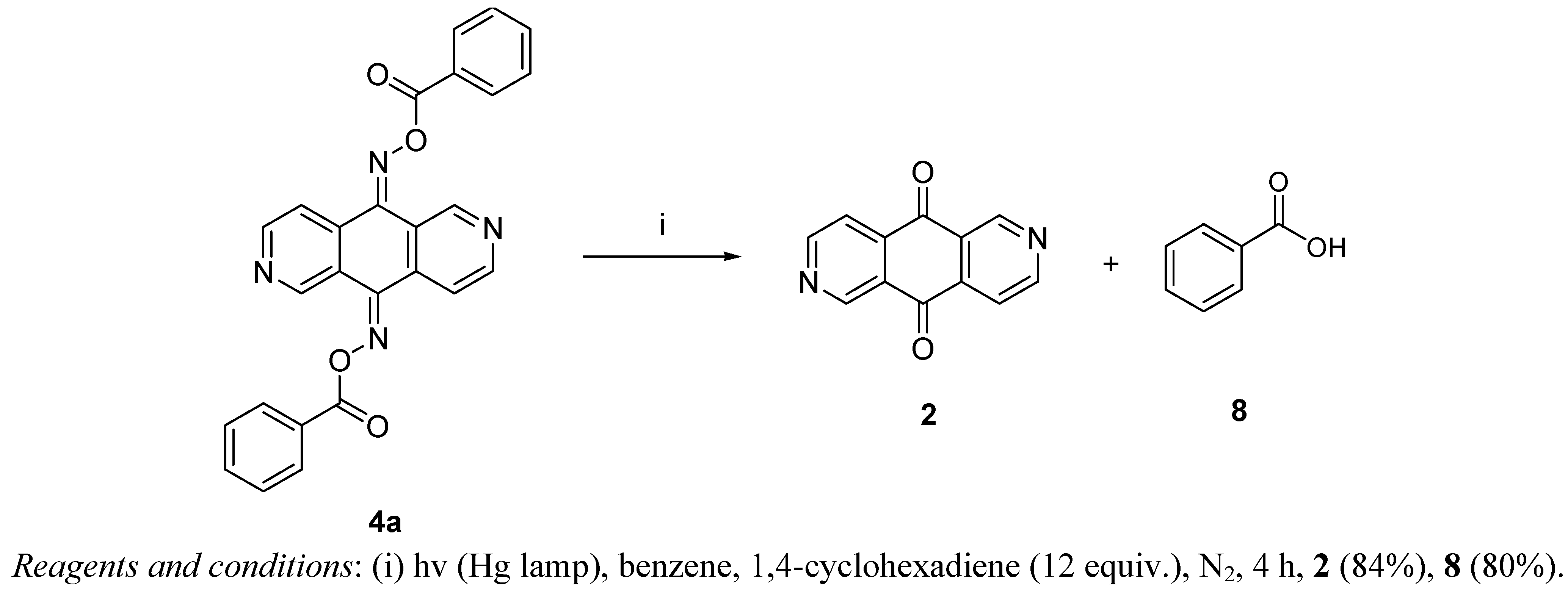

Scheme 4. Photolysis of compound 4a in the presence of 1,4-cyclohexadiene.
Scheme 4. Photolysis of compound 4a in the presence of 1,4-cyclohexadiene.
Molecules 17 03370 g008
Scheme 5. Proposed mechanism for the photolysis of compound 4.
Scheme 5. Proposed mechanism for the photolysis of compound 4.
Molecules 17 03370 g009

3. Experimental

3.1. General

Melting points were determined with a SMP3 melting apparatus, and were uncorrected. Infrared spectra were recorded with a Perkin-Elmer Spectrum 1600 FT-IR spectrometer. NMR spectra were recorded on a Bruker AV-300 spectrometer. Me4Si (δ 0.00 ppm) and the center of the CDCl3 triplet (δ 77.00 ppm) were used as the internal standard for 1H- and 13C-NMR spectra, respectively. All NMR chemical shifts are reported as δ values in parts per million (ppm) and coupling constants (J) are given in Hertz (Hz). High resolution mass spectra (HRMS) were measured with a JEOL JMS-SX102A mass spectrometer. UV-VIS spectra were taken with a Scino S-3100 spectrophotometer. Flash column chromatographic purifications were performed using Merck 60 H silica gel.

3.2. General Procedure for the Preparation of Oximes 3 and 6

A mixture of compound 2 or 5 (0.48 mmol) and hydroxylamine hydrochloride (4 equiv. for 2, 2 equiv. for 5) in pyridine (5 mL) was heated under reflux for 24 h. After cooling to room temperature, water (50 mL) was added, and the solid formed was collected by vacuum filtration and was washed sequentially with CH2Cl2 (50 mL) and acetone (10 mL), and then dried under vacuum to give products 3 or 6.

3.2.1. 2,6-Diazaanthracene-9,10-dioxime (3)

Yield: 105 mg (92%); yellowish white solid: mp 236 °C (decomp); IR (film) v 3369, 3123, 2806, 2688, 2556, 1824, 1636, 1593, 1541, 1493, 1462, 1408, 1331, 1282, 1239, 1201, 1157, 1070, 1032, 949, 833, 796 cm−1; 1H-NMR (DMSO-d6) δ 9.90 (1H, s), 8.68 (2H, d, J = 5.1 Hz), 7.97 (2H, d, J = 4.5 Hz); 13C-NMR (DMSO-d6) δ 151.1, 150.0, 141.6, 139.2, 121.0, 118.0; EI-MS (relative intensity) m/z 240 (M+, 1), 256 (2), 240 (1), 129 (2), 86 (4), 79 (32), 78 (100), 63 (99), 62(6), 61(17); Exact mass calcd for C12H8N4O2 m/z 240.0647 (M+), EI-HRMS m/z 240.0641.

3.2.2. 4,5-Diazafluoren-9-oxime (6)

Yield: 97 mg (90%); white solid: mp 253.2–254.4 °C; IR (film) v 3133, 3032, 2761, 2561, 1624, 1564, 1494, 1466, 1398, 1351, 1287, 1158, 1004, 948, 817, 751, 701, 638 cm−1; 1H-NMR (DMSO-d6) δ 8.72 (2H, dd, J = 9.0, 4.5 Hz), 8.65 (1H, dd, J = 7.8, 1.2 Hz), 8.17 (1H, dd, J = 7.5, 0.9 Hz), 7.54–7.45 (2H, m); 13C-NMR (DMSO-d6) δ 157.6, 156.7, 151.5, 151.0, 146.5, 135.5, 130.7, 128.6, 124.9, 124.3, 124.1; EI-MS (relative intensity) m/z 197 (M+, 1), 197 (1), 80 (4), 79 (26), 78 (100), 63 (57), 61 (12), 45 (13), 31 (26), 17 (14); Exact mass calcd for C11H7N3O m/z 197.0589 (M+), EI-HRMS m/z 197.0587.

3.3. General Procedure for the Prepartion of Oxime Esters 4 and 7

To a mixture of compound 3 or 6 (0.20 mmol) in THF (3.5 mL) at room temperature was added NaH (60% in oil, 4 equiv. for 3, 2 equiv. for 6). After stirring for 5 min, the appropriate acid chloride (3 equiv for 3, 1.5 equiv. for 6) was added in one portion. The mixture was stirred for 3 h, and then the solvent was evaporated under vacuum. The residue was dissolved in CH2Cl2 (30 mL) and was washed with water (20 mL × 3), dried (MgSO4), and evaporated under vacuum. The crude products 4 or 7 were rinsed with hexane, and then recrystallized from CH2Cl2/hexane.

3.3.1. 2,6-Diazaanthracene-9,10-dione bis-(O-benzoyloxime) (4a)

Yield: 39 mg (52%); white solid: mp 214–215 °C; IR (film) v 3051, 1774, 1573, 1418, 1264, 1234, 1152, 1040, 1023, 990, 896, 732, 702 cm−1; 1H-NMR see Table 2; 13C-NMR (CDCl3) δ 163.3, 152.3, 151.6, 149.5, 139.6, 134.3, 130.2, 129.2, 127.7, 121.4, 120.1; EI-MS (relative intensity) m/z 448 (M+, 1), 226 (5), 208 (5), 122 (8), 105 (100), 84 (6), 77 (37), 51 (5); Exact mass calcd for C26H16N4O4 m/z 448.1172 (M+), EI-HRMS m/z 448.1167.

3.3.2. 2,6-Diazaanthracene-9,10-dione bis-[O-(4-methylbenzoyl)oxime] (4b)

Yield: 44 mg (56%); white solid mp 224–225 °C; IR (film) v 3037, 1767, 1612, 1574, 1411, 1332, 1237, 1179, 1151, 1039, 983, 915, 866, 849, 800, 769, 737, 682 cm−1; 1H-NMR see Table 2; 13C-NMR (CDCl3) δ 163.3, 152.1, 151.5, 149.2, 145.3, 139.5, 130.2, 129.8, 124.8, 121.4, 120.0, 21.9; EI-MS (relative intensity) m/z 476 (M+, 1), 331 (11), 330 (8), 258 (40), 253 (15), 211 (13), 136 (13), 119 (100), 91 (39), 89 (21), 65 (11); Exact mass calcd for C28H20N4O4 m/z 476.1485 (M+), EI-HRMS m/z 476.1477.

3.3.3. 2,6-Diazaanthracene-9,10-dione bis-[O-(4-fluorobenzoyl)oxime] (4c)

Yield: 44 mg (55%); white solid: mp 217–218 °C (decomp); IR (film) v 3055, 2981, 1777, 1602, 1505, 1421, 1264, 1158, 1147, 1029, 991, 896, 828, 721, 703 cm−1; 1H-NMR see Table 2; 13C-NMR (CDCl3) δ 162.3, 152.4, 151.4, 149.6, 139.5, 132.9, 132.8, 124.0, 121.4, 120.1, 116.7, 116.5; EI-MS (relative intensity) m/z 484 (M+, 1), 123 (9), 79 (46), 78 (100), 63 (89), 61 (16); Exact mass calcd for C26H14F2N4O4 m/z 484.0983 (M+), EI-HRMS m/z 484.0981.

3.3.4. 2,6-Diazaanthracene-9,10-dione bis-[O-(4-cyanobenzoyl)oxime] (4d)

Yield: 42 mg (50%); white solid: mp 209–210 °C; IR (film) v 3101, 3053, 2228, 1777, 1607, 1567, 1535, 1402, 1328, 1291, 1229, 1179, 1145, 1039, 978, 914, 853, 789, 749, 680 cm−1; 1H-NMR see Table 2; 13C-NMR (CDCl3) δ 161.8, 152.7, 151.3, 150.3, 139.3, 133.0, 131.6, 130.6, 121.2, 120.2, 117.9, 117.6; EI-MS (relative intensity) m/z 498 (M+, 1), 331 (28), 330 (21), 259 (17), 258 (100), 208 (22), 182 (17), 147 (27), 130 (64), 102 (22); Exact mass calcd for C28H14N6O4 m/z 498.1077 (M+), EI-HRMS m/z 498.1080.
Table 2. The characteristic 1H-NMR absorptions for compounds 4ad a. Molecules 17 03370 i001
Table 2. The characteristic 1H-NMR absorptions for compounds 4ad a. Molecules 17 03370 i001
4a (X = H)4b (X = CH3)4c (X = F)4d (X = CN)
H-1, H-59.84 (s)9.83 (s)9.79 (s)9.76 (s)
H-3, H-78.94 (d, 5.2)8.92 (d, 5.1)8.94 (d, 5.1)8.97 (d, 5.2)
H-4, H-88.34 (d, 5.2)8.32 (d, 5.1)8.33 (dd, 5.1, 0.6)8.32 (d, 5.2)
H-3′, H-5′, H-3′′, H-5′′8.15 (dd, 7.2, 1.2)8.04 (d, 8.1)8.21–8.15 (m)8.25 (d, 8.1)
H-1′, H-1′′7.69 (br t, 7.3)2.47 (s)
H-2′, H-4′, H-2′′, H-4′′7.57 (br t, 7.3)7.36 (d, 8.1)7.29–7.21 (m)7.88 (d, 8.1)
a The data are expressed as chemical shift in δ (splitting pattern, coupling constant in Hz).

3.3.5. 4,5-Diazafluoren-9-one O-9-benzoyloxime (7a)

Yield: 44 mg (72%); white solid: mp 184–185 °C; IR (film) v 3055, 2981, 1754, 1596, 1563, 1449, 1398, 1264, 1239, 1169, 1079, 1045, 1021, 977, 891, 861, 819, 732, 703 cm−1; 1H-NMR see Table 3; 13C-NMR (CDCl3) δ 163.7, 160.3, 158.9, 154.5, 153.6, 153.4, 136.6, 134.1, 130.9, 130.1, 130.0, 129.1, 128.3, 125.3, 124.3, 124.2; EI-MS (relative intensity) m/z 301 (M+, 31), 181 (37), 137 (32), 125 (44), 111 (72), 105 (85), 97 (100), 83 (80), 71 (84), 55 (96); Exact mass calcd for C18H11N3O2 m/z 301.0851 (M+), EI-HRMS m/z 301.0850.

3.3.6. 4,5-Diazafluoren-9-one O-9-(4-methylbenzoyl)oxime (7b)

Yield: 48 mg (74%); white solid: mp 232–233 °C; IR (film) v 3078, 3057, 2916, 1748, 1631, 1608, 1583, 1563, 1473, 1410, 1397, 1288, 1249, 1171, 1154, 1109, 1093, 1045, 1015, 977, 893, 861, 821, 748, 737, 684 cm−1; 1H-NMR see Table 3; 13C-NMR (CDCl3) δ 163.7, 160.2, 158.8, 154.1, 153.5, 153.2, 145.0, 136.5, 130.8, 129.9 (×2), 129.8, 125.3 (×2), 124.2 (×2), 21.8; EI-MS (relative intensity) m/z 315 (M+, 15), 181 (32), 180 (13), 166 (17), 131 (10), 119 (100), 91 (30), 69 (17), 65 (12), 28 (13); Exact mass calcd for C19H13N3O2 m/z 315.1008 (M+), EI-HRMS m/z 315.1008.

3.3.7. 4,5-Diazafluoren-9-one O-9-(4-fluorobenzoyl)oxime (7c)

Yield: 50 mg (77%); white solid: mp 228–229 °C; IR (film) v 3069, 3013, 1764, 1603, 1562, 1396, 1281, 1243, 1156, 1114, 1098, 1041, 1011, 976, 945, 899, 852, 814, 792, 747, 678 cm−1; 1H-NMR see Table 3; 13C-NMR (CDCl3) δ 168.1, 164.7, 162.8, 160.4, 158.9, 154.6, 153.6, 136.5, 132.7, 132.6, 131.0, 130.0, 125.3, 124.6, 124.2, 116.5; EI-MS (relative intensity) m/z 319 (M+, 15), 181 (27), 180 (10), 140 (14), 123 (100), 95 (22); Exact mass calcd for C19H13N3O2 m/z 319.0757 (M+), EI-HRMS m/z 319.0754.

3.3.8. 4,5-Diazafluoren-9-one O-9-(4-cyanobenzoyl)oxime (7d)

Yield: 50 mg (75%); white solid: mp 238–239 °C; IR (film) v 3056, 2959, 2926, 2851, 2231, 1767, 1731, 1593, 1563, 1471, 1394, 1236, 1175, 1097, 1054, 1016, 977, 892, 866, 814, 749, 705, 682 cm−1; 1H-NMR see Table 3; 13C-NMR (CDCl3) δ 162.3, 160.6, 159.0, 155.3, 154.0, 153.7, 136.5, 133.0, 132.3, 131.1 (×2), 130.4, 130.0, 125.2, 124.4, 124.2, 117.6; EI-MS (relative intensity) m/z 326 (M+, 24), 181 (90), 180 (31), 147 (26), 130 (100), 123 (26), 102 (32), 57 (23); Exact mass calcd for C19H10N4O2 m/z 326.0804 (M+), EI-HRMS m/z 326.0799.
Table 3. The characteristic 1H-NMR absorptions for compounds 7ada. Molecules 17 03370 i002
Table 3. The characteristic 1H-NMR absorptions for compounds 7ada. Molecules 17 03370 i002
7a (X = H)7b (X = CH3)7c (X = F)7d (X = CN)
H-2, H-78.80 (dd, 4.8, 0.9)8.83–8.78 (m)8.83–8.78 (m)8.85–8.81 (m)
H-58.56 (dd, 7.8, 1.2)8.58 (dd, 7.6, 1.3)8.52 (dd, 7.6, 1.0)8.47 (dd, 6.6, 1.0)
H-48.35 (dd, 7.5, 0.9)8.36 (dd, 7.8, 1.2)8.35 (dd, 7.5, 0.9)8.36 (dd, 6.3, 1.0)
H-3′, H-5′8.19 (d, 7.5)8.09 (d, 8.1)8.22 (dd, 8.7, 5.4)8.31 (d, 8.4)
H-1′7.72 (dd, 7.5, 7.5)2.50 (s)
H-2′, H-4′7.60 (dd, 7.8, 7.2)8.09 (d, 8.1)7.44–7.36 (m)7.92 (d, 8.4),
H-3, H-67.43–7.35 (m)7.43–7.36 (m)7.29 (t, 8.4)7.44–7.38 (m)
a The data are expressed as chemical shifts in δ (splitting pattern, coupling constant in Hz).

3.4. General Procedures for DNA-Cleavage by Use of Oxime Esters

A reaction mixture (10.0 μL), containing supercoiled circular ϕX174 RFI DNA stock solution (form I, 50.0 μM/base pair) and an oxime ester (100 μM), was dissociated in the phosphate buffers (pH 6.0) and DMSO (0.25 μL) in a Pyrex vial. It was then preincubated at 37.0 °C for 30.0 min and irradiated with UV light (312 nm, 1.43 mW/cm2) under aerobic conditions at room temperature for 2.0 h. After addition of gel-loading buffer (2.50 μL containing 0.25% bromophenol blue, 0.25% xylene cyanol, and 30.0% glycerol), the reaction mixture was loaded on a 1.0% agarose gel with ethidium bromide staining. The electrophoresis tank was attached to a power supply at a constant current (~100 mA). The gel was visualized by 312 nm UV transilluminator and photographed by a Canon PowerShot S5 IS digital camera. Quantitation of DNA-cleavage was performed by integration of the optical density as a function of the band area by use of a Scion image beta 4.03 program.

3.5. Photolysis of 2,6-Diazaanthracene-9,10-dione bis-(O-benzoyloxime) (4a)

A mixture of compound 4a (40 mg, 0.089 mmol) and 1,4-cyclohexadene (0.10 mL, 1.057 mmol) in benzene (5 mL) was placed in a quartz tube and was irradiated with a medium pressure mercury lamp (222–366 nm) under nitrogen for 4 h. The solvent was then removed by a rotary evaporator, and the residue was dissolved in CH2Cl2 (10 mL) and was then treated with 5% NaOH (10 mL). The organic solution was concentrated and then purified by flash column chromatography using ethyl acetate/hexane (1:1) as eluent to give 2,6-diazaanthracene-9,10-dione (2, 15.8 mg, 84%). The aqueous solution was neutralized with 5% HCl, extracted with CH2Cl2 (10 mL), dried (MgSO4) and evaporated to give benzoic acid (8, 17.4 mg, 80%).

4. Conclusions

In conclusion, oxime esters 4ad and 7ad newly synthesized from 2,6-diazaanthracene-9,10-dione (2) and 4,5-diazafluoren-9-one (5) were found to possess DNA cleaving ability upon UV irradiation. All of these bis-oxime esters 4ad showed greater cleaving ability than the mono-oxime esters 7ad. Upon UV irradiation, the most potent compound 4c caused significant amounts of single-strand cleavage at the concentration of 100 μM. Results from our mechanistic study indicate that the iminyl and carboxyl radical species are responsible for DNA nicking.

Acknowledgements

Financial support of this work by the National Science Council of the Republic of China is gratefully acknowledged (NSC 97-2113-M-030-001-MY3 and NSC100-2120-M-006-002), National Central University (grant No. 100G907-1), and Ministry of Education of R.O.C. (grant No. 100N2011E1).
  • Sample Availability: Not available.

References and Notes

  1. Nielsen, P.E. Chemical and photochemical probing of DNA complexes. J. Mol. Recognit. 1990, 3, 1–25. [Google Scholar] [CrossRef]
  2. Nucleic Acid Targeted Drug Design; Prost, C.L.; Perun, T.J. (Eds.) Dekker: New York, NY, USA, 1992.
  3. Kochevar, I.E.; Dunn, D.A. Photosensitized reactions of DNA: Cleavage and addition. Bioorg. Photochem. 1990, 1, 273–315. [Google Scholar]
  4. Armitage, B. Photocleavage of nucleic acids. Chem. Rev. 1998, 98, 1171–1200. [Google Scholar] [CrossRef]
  5. Molecular Biology of the Gene, 5th; Watson, J.D.; Baker, T.A.; Bell, S.P.; Gann, A.; Levine, M.; Losick, R. (Eds.) Cold Spring Harbor Laboratory Press: Plainview, NY, USA, 2004.
  6. Pogozelski, W.K.; Tullius, T.D. Oxidative strand scission of nucleic acids: Routes initiated by hydrogen abstraction from the sugar moiety. Chem. Rev. 1998, 98, 1089–1107. [Google Scholar] [CrossRef]
  7. Yang, W.-Y.; Roy, S.; Phrathep, B.; Rengert, Z.; Kenworthy, R.; Zorio, D.A.R.; Alabugin, I.V. Engineering pH-gated transitions for selective and efficient double-strand DNA photocleavage in hypoxic tumors. J. Med. Chem. 2011, 54, 8501–8516. [Google Scholar] [CrossRef]
  8. Zheng, K.-W.; Zhang, D.; Zhang, L.-X.; Hao, Y.-H.; Zhou, X.; Tan, Z. Dissecting the strand folding orientation and formation of G-quadruplexes in single- and double-stranded nucleic acids by ligand-induced photocleavagefootprinting. J. Am. Chem. Soc. 2011, 133, 1475–1483. [Google Scholar] [CrossRef]
  9. Naik, H.R.P.; Naik, H.S.B.; Ravikumar, T.R.; Naik, T.R.R.; Aravinda, T.; Lamani, D.S.; Naika, H.R. 2-Thieno/selenopyrano[2,3-b]quinolines: microwave-induced one-pot synthesis, DNA binding, and photocleavage studie. Phosphor. Sulfur Silicon 2009, 184, 2583–2593. [Google Scholar] [CrossRef]
  10. Roy, M.; Bhowmick, T.; Santhanagopal, R.; Ramakumar, S.; Chakravarty, A.R. Photo-induced double-strand DNA and site-specific protein cleavage activity of L-histidine (μ-oxo)diiron(III) complexes of heterocyclic bas. Dalton Trans. 2009, 4671–4682. [Google Scholar]
  11. Hwu, J.R.; Huang, J.J.-T.; Tsai, F.-Y.; Tsay, S.-C.; Hsu, M.-H.; Hwang, K.-C.; Horng, J.-C.; Ho, J.A.; Lin, C.-C. Photochemical activities of N-nitrosocarboxamides and sulfoximides and their application to DNA cleavage. Chem. Eur. J. 2009, 15, 8742–8750. [Google Scholar] [CrossRef]
  12. Kovalenko, S.V.; Alabugin, I.V. Lysine-enediyne conjugates as photochemically triggered DNA double-strand cleavage agents. Chem. Commun. 2005, 1444–1446. [Google Scholar] [CrossRef]
  13. Theodorakis, E.A.; Wilcoxen, K.M. N-Aroyloxy-2-thiopyridones as efficient oxygen-radical generators: novel time-controlled DNA photocleaving reagents. Chem. Commun. 1996, 1927–1928. [Google Scholar] [CrossRef]
  14. Hwu, J.R.; Tsay, S.-C.; Hong, S.C.; Leu, Y.-J.; Liu, C.-F.; Chou, S.-S.P. Oxime esters of anthraquinone as photo-induced DNA-cleaving agents for single- and double-strand scissions. Tetrahedron Lett. 2003, 44, 2957–2960. [Google Scholar] [CrossRef]
  15. Hwu, J.R.; Yang, J.-R.; Tsay, S.-C.; Hsu, M.-H.; Chen, Y.-C.; Chou, S.-S.P. Photo-induced DNA cleavage by (heterocyclo)carbonyl oxime esters of anthraquinone. Tetrahedron Lett. 2008, 49, 3312–3315. [Google Scholar]
  16. Surkau, G.; Boehm, K.J.; Mueller, K.; Prinz, H. Synthesis, antiproliferative activity and inhibition of tubulin polymerization by anthracenone-based oxime derivatives. Eur. J. Med. Chem. 2010, 45, 3354–3364. [Google Scholar] [CrossRef]
  17. Chowdhury, N.; Dutta, S.; Nishitha, B.; Dasgupta, S.; Singh, N.D.P. N,O-Diacyl-4-benzoyl-N-phenylhydroxylamines as photoinduced DNA cleaving agents. Bioorg. Med. Chem. Lett. 2010, 20, 5414–5417. [Google Scholar] [CrossRef]
  18. Ikbal, M.; Jana, A.; Singh, N.D.P.; Banerjee, R.; Dhara, D. Photoacid generators (PAGs) based on N-acyl-N-phenylhydroxylamines for carboxylic and sulfonic acids. Tetrahedron 2011, 67, 3733–3742. [Google Scholar] [CrossRef]
  19. Bolitt, V.; Mioskowski, C.; Reddy, S.P.; Flack, J.R. A convenient synthesis of pyrido[3,4-g]isoquinoline via ortho-directed metallation/dimerization. Synthesis 1988, 388–389. [Google Scholar]
  20. Wong, K.T.; Chen, R.T.; Fang, F.C.; Wu, C.C.; Lin, Y.T. 4,5-Diazafluorene-incorporated ter(9,9-diarylfluorene): a novel molecular doping strategy for improving the electron injection property of a highly efficient OLED blue emitter. Org. Lett. 2005, 7, 1979–1982. [Google Scholar] [CrossRef]
  21. Crystal data for 7b: C19H13N3O2, M = 315.32, bond precision: C–C = 0.0041 Å, cell: a = 7.3611(2), b = 11.2055(3), c = 18.5898(6) Å, β = 90.643(1), T = 293 K, V = 1533.28(8) Å3, space group P 21/c, Dx = 1.366 g cm−3, Z = 4, μ = 0.091 mm−1, F(000) = 656.0. CCDC 836168 contains the supplementary crystallographic data for 7b. These data can be obtained free of charge via www.ccdc.cam.ac.uk/conts/retrieving.html (or from the CCDC, 12 Union Road, Cambridge CB2 1EZ, UK; fax: +44 1223 336033; e-mail: [email protected]).
  22. Grissom, J.W.; Klingberg, D. Aryl radical additions to aldehydes and oxime ethers: the tandem enediyne-radical cyclization. J. Org. Chem. 1993, 58, 6559–6564. [Google Scholar] [CrossRef]
  23. Sako, M.; Nagai, K.; Maki, Y. Facile generation of hydroxyl radical by photolyis of pyrimido[5,4-g]pteridinetetrone N-oxides in aqueous solution. A new efficient DNA-photocleaving agent. J. Chem. Soc. Chem. Commun. 1993, 750–751. [Google Scholar]
  24. Sentagne, C.; Meunier, B.; Paillous, N. DNA cleavage photoinduced by new water-soluble zinc porphyrins linked to 9-methoxyellipticine. J. Photochem. Photobiol. B Biol. 1992, 16, 47–59. [Google Scholar] [CrossRef]
  25. Saito, I.; Takayama, M. Photoactivatable DNA-cleaving amino acids: Highly sequence-selective DNA photocleavage by novel L-lysine derivatives. J. Am. Chem. Soc. 1995, 117, 5590–5591. [Google Scholar] [CrossRef]
  26. Devasagayam, T.P.A.; Steenken, S.; Obendorf, M.S.W.; Schulz, W.A.; Sies, H. Formation of 8-hydroxy(deoxy)guanosine and generation of strand breaks at guanine residues in DNA by singlet oxygen. Biochemistry 1991, 30, 6283–6289. [Google Scholar] [CrossRef]
  27. Okada, T.; Kawanisi, M.; Nozaki, H. Photolysis of aromatic oxime benzoates. Bull. Chem. Soc. Jpn. 1969, 42, 2981–2983. [Google Scholar] [CrossRef]
  28. Ohta, H.; Tokumaru, K. Finding of aromatic substitution bydiphenylmethyleneimino radicals. Bull. Chem. Soc. Jpn. 1975, 48, 2393–2394. [Google Scholar] [CrossRef]
  29. Sakuragi, H.; Ishikawa, S.-I.; Nishimura, T.; Yoshida, M.; Inamoto, N.; Tokumaru, K. Homolytic aromatic substitution by iminyl radicals. Photolysis of aromatic ketone O-acyloximes in aromatic solvents. Bull. Chem. Soc. Jpn. 1976, 49, 1949–1954. [Google Scholar] [CrossRef]
