Communication

Selective Formation of Twisted Intramolecular Charge Transfer and Excimer Emissions on 2,7-bis(4-Diethylaminophenyl)-fluorenone by Choice of Solvent

by
Masayuki Shigeta
1,
Mifumi Morita
1 and
Gen-ichi Konishi
1,2,*
1
Department of Organic and Polymeric Materials, Graduate School of Science and Engineering, Tokyo Institute of Technology, Tokyo 152-8552, Japan
2
PRESTO, Japan Science and Technology Agency, Saitama 332-0012, Japan
*
Author to whom correspondence should be addressed.
Molecules 2012, 17(4), 4452-4459; https://doi.org/10.3390/molecules17044452
Submission received: 1 March 2012 / Revised: 30 March 2012 / Accepted: 6 April 2012 / Published: 13 April 2012
(This article belongs to the Special Issue Fluorophores - The Fluorescent Toolbox in Biological and Biomedical Research)
Browse Figures
Versions Notes

Abstract

:
We designed and synthesized a donor-acceptor-donor dye consisting of a 2,7-disubstituted fluorenone with diethylaminophenyl moieties present as strong electron donating groups. Switching between twisted intramolecular charge transfer (TICT) emission and excimer emission was achieved, with no ground state changes, by simply changing the solvent used. In a nonpolar solvent, excimer emission was observed; with increasing polarity, the emission gradually disappeared, and the TICT emission appeared.

Graphical Abstract

1. Introduction

Twisted intramolecular charge transfer (TICT) with donor-acceptor dyes is a basic phenomenon utilized in various applications, and investigations have been carried out in order to analyze this phenomenon in detail [1,2]. One of the aims of these studies was to achieve TICT emission with the least possible participation of other relaxation mechanisms, such as emission from locally excited (LE) states and interactions within a local state. The criteria for this purpose were determined on the basis of extensive investigations; these criteria specify rigorous dye design [3,4] in addition to control parameters, such as solvent choice and temperature [5,6,7,8,9]. Consequently, this phenomenon can be applied to dye-sensitized solar cells [10,11,12], OLEDs [13,14], and chemosensors [15,16,17].
In the case when a donor-acceptor dye forms an excimer, the ratio of TICT emission decreases, and excimer emission appears (Scheme 1) [18,19]. This had raised the possibility that switching between TICT and excimer emissions could be easily facilitated by environmental changes in the surroundings. Subsequently, such switching was achieved by changes in concentration [20] or aggregation stimuli [21]. However, to date, there has been little investigation on the effect of changing the solvent used, which is a very simple environment change [19]. Previous studies have reported only shifts of the emission peaks when the solvent was changed [22,23,24].
Molecules 17 04452 g004 550

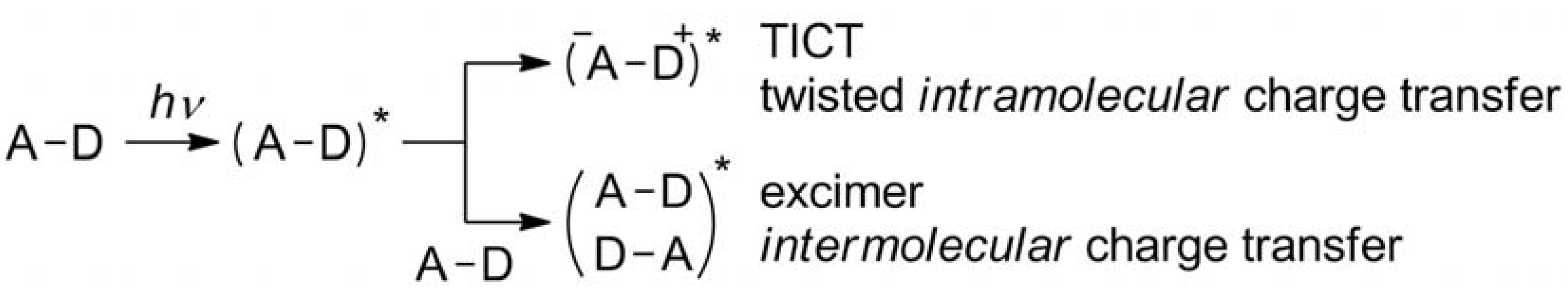

Scheme 1. TICT and excimer formation by a rigid dye consisting of a donor and an acceptor [18,19].
Scheme 1. TICT and excimer formation by a rigid dye consisting of a donor and an acceptor [18,19].
Molecules 17 04452 g004
In this paper, we report a newly synthesized donor-acceptor type dye that can be switched between TICT and excimer emission, without any ground state changes, by simply changing the solvent. We hypothesized that fluorenone was a suitable structure to use in this study owing to its tendency to form excimers [25]. Furthermore, the photophysical properties of fluorenone derivatives have been studied in detail including their dependence on various changes in the surrounding environment [26,27,28,29,30,31,32,33]. Various fluorenone derivatives have been synthesized with an attached amino moiety as a strong electron donor group. The direct attachment of this donor group to the fluorenone molecule changes the spectra in the ground state [34], and the addition of a rigid π-spacer, such as a phenylene or ethynylene group, inhibits the ground state interaction [22]. These spacer-containing compounds were also shown to display TICT emission behavior [35]; however, they have not been sufficiently investigated.

2. Results and Discussion

The structure of the dye and its synthesis condition are shown in Scheme 2. The dye is based on fluorenone, with two diethylaniline moieties attached at the 2,7-positions. The dialkylamine moiety is a very strong electron donating species, and the phenylene moiety is used as a spacer between the donor and acceptor parts to control the photophysical properties of the molecule [22,35].
Molecules 17 04452 g005 550

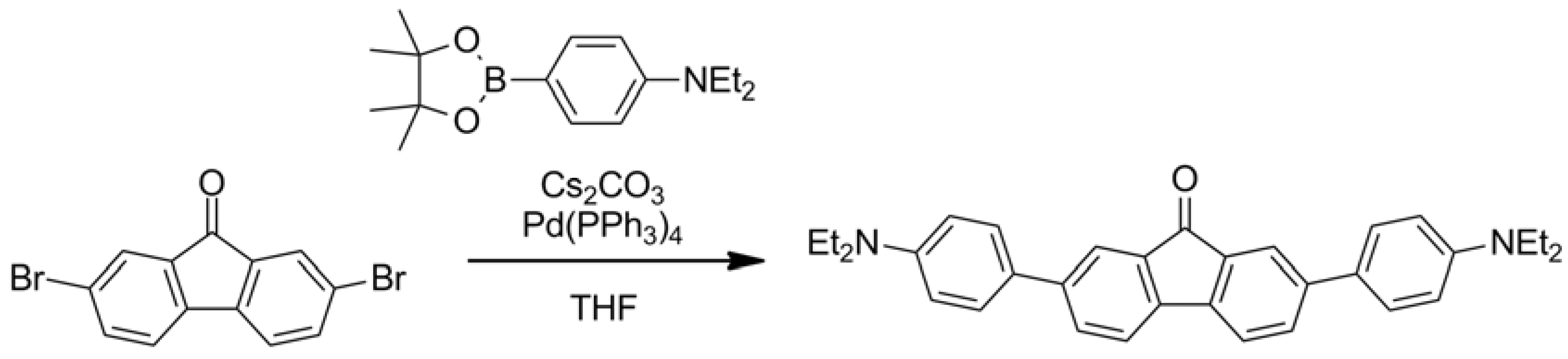

Scheme 2. D-A-D type fluorenone dye synthesis.
Scheme 2. D-A-D type fluorenone dye synthesis.
Molecules 17 04452 g005
The dye was synthesized via a Suzuki-Miyaura coupling [36] using 2,7-dibromofluorenone and 4-diethylaminophenylboronic acid pinacol ester over Pd(PPh3)4 and Cs2CO3 catalysts in THF at 60 °C for 2 days.
We obtained absorption spectra of the compound in various solvents: acetonitrile, DMF, chloroform, THF, and toluene. The dye concentration was set as the concentration at which a maximum absorbance of 0.1 was achieved. Figure 1 shows the collected spectra, which have been smoothed by an FFT filter to reduce the noise due to vibration. The spectra consist of three absorption peaks, which are detailed in Table 1. The wavelengths of the peaks do not deviate much from 310, 370, and 520 nm, indicating that solvent changes do not cause any change in the ground state. The two high-energy peaks were due to fluorenone and were assigned to n-π* or π-π* absorptions, whereas the low-energy absorption peak, at around 500 nm, was due to charge transfer assigned with reference to the previous investigation [22]. However, it is difficult to determine whether the peak is n-π* or π-π*, because only slight solvatochromic effects were observed.
Molecules 17 04452 g001 550
Figure 1. Absorption spectra in various solvents (smoothed by an FFT filter).
Figure 1. Absorption spectra in various solvents (smoothed by an FFT filter).
Molecules 17 04452 g001
The concentration dependence of the fluorescence properties was examined in THF. The spectra were measured at 370 nm excitation in order to prevent the irradiation of charge-transferred species. The obtained fluorescence spectra are shown in Figure 2. Three peaks were detected: one sharp peak at 416 nm and two broad, structureless peaks at approximately 436 nm and 644 nm. The fluorescence intensity of the peak at 644 nm increased constantly with dye concentration from 1.0 × 10−6 to 1.0 × 10−5 mol/L. For the other two peaks, the intensities gradually stopped increasing. This suggested that the 645 nm fluorescence peak was due to excimer emission, and the other two peaks originated from single molecule emissions. From previous reports [19,22], and the solvatochromic effects shown in Figure 3, it was deduced that the sharp peak at 417 nm was due to emission from the LE state and the broad peak at around 435 nm was due to the TICT state. Their wavelengths are summarized in Table 1. It was concluded that these peaks were not due to Raman scattering, because their intensity is higher than that of scattered excitation light and also because a Raman peak was observed at around 390 nm (not shown).
Molecules 17 04452 g002 550

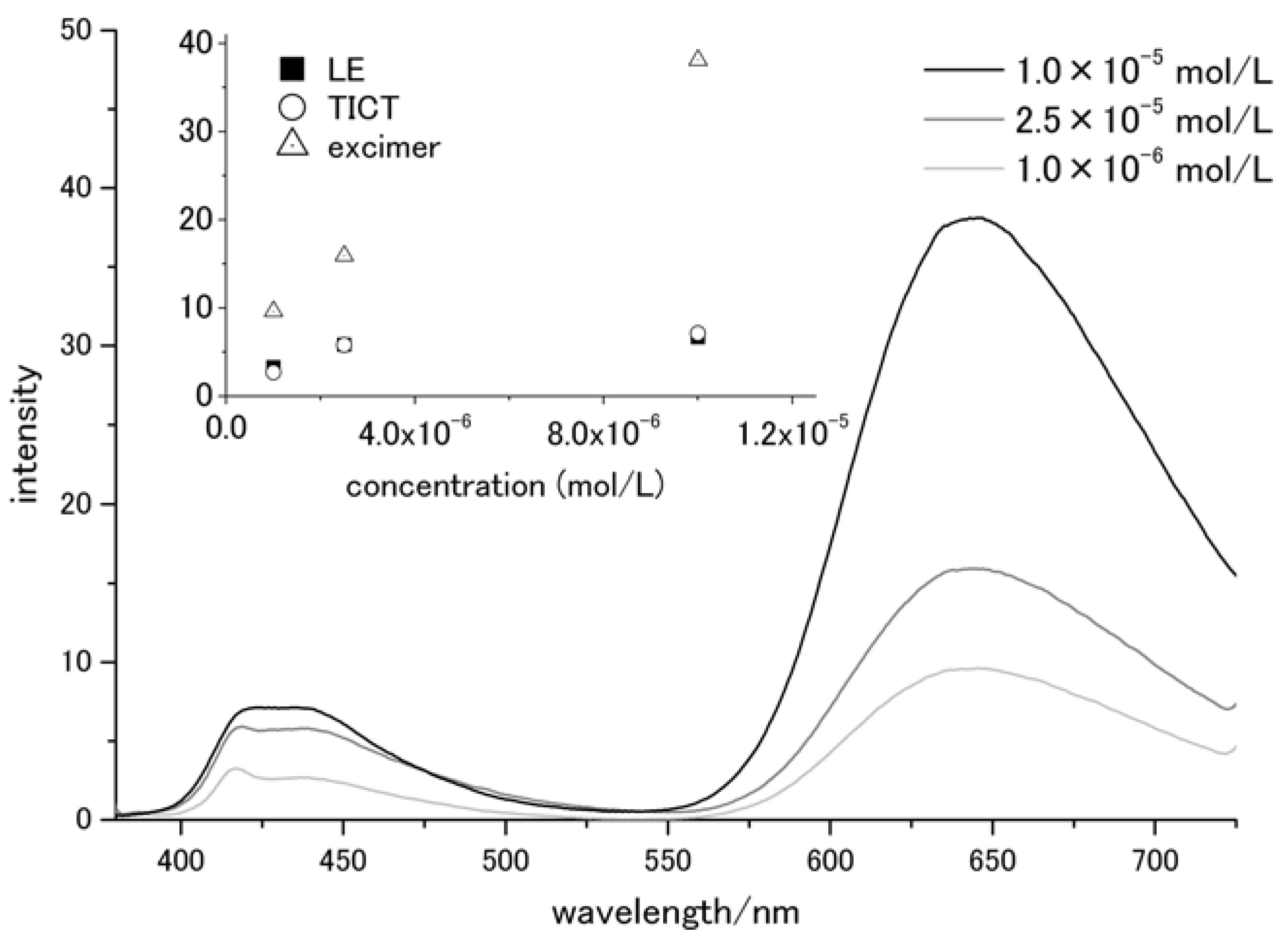

Figure 2. Concentration dependence of fluorescence spectra in THF at 370 nm excitation.
Figure 2. Concentration dependence of fluorescence spectra in THF at 370 nm excitation.
Molecules 17 04452 g002
We then investigated the effects of different solvents on the emission spectra, and the obtained spectra are shown in Figure 3, with the heights normalized to the LE peak, the existence of which was independent of the tested solvents. Drastic changes were observed between TICT and excimer emission. Toluene enhanced the excimer emission (λem = 619 nm). In more polar solvents (that is, chloroform, DMF, and acetonitrile), TICT emission was observed and no excimer emission was detected.
Molecules 17 04452 g003 550
Figure 3. Fluorescence spectra in various solvents.
Figure 3. Fluorescence spectra in various solvents.
Molecules 17 04452 g003
The absorption peaks, the emission peaks, and their normalized solvent polarity parameters are summarized in Table 1. Excimer emission was observed in toluene; with increasing solvent polarity, the excimer peak red-shifted until it disappeared, and the TICT peak appeared. The TICT peak also exhibited positive solvatochromic behavior.
TICT formation was expected to be faster than excimer formation, as it is an intramolecular event. Therefore, in all polar solvents, the broad emission was found to be due to TICT [24]. In the less-polar solvents, toluene and THF, excimer emission was observed, and it is hypothesized that either a TICT was not formed or once a TICT was formed, it was converted into an excimer by a Coulombic force, such as the Harpooning effect [37]. Under this hypothesis, it is possible that TICT stability was enhanced by polar solvents, resulting in the absence of excimer emission.
Table
Table 1. Photophysical parameters of the fluorenone dye.
Table 1. Photophysical parameters of the fluorenone dye.
Solvent (line color)λabs/nmλem/nmENT b
LETICTexcimer
MeCN (―)307, 369, 529409- a-0.460
DMF ( Molecules 17 04452 i001) 310, 372, 520419450-0.386
CHCl3 ( Molecules 17 04452 i002)310, 366, 503413442-0.259
THF ( Molecules 17 04452 i003)307, 371, 5224164366440.207
toluene ( Molecules 17 04452 i004)308, 371, 496417-6190.099
a The peak wavelength could not be measured, but broad emission was observed; b Normalized solvent polarity parameters were cited from [38].

3. Experimental

3.1. Instruments

All the 1H- and 13C-NMR spectra were recorded on a 400 MHz JEOL LMN-EX400 instrument with tetramethylsilane (TMS) as the internal standard. FT-IR spectra were recorded on a JASCO FT-IR 469 plus spectrometer. Melting points were obtained by a Stuart Scientific Melting Point Apparatus SMP3. MS spectra (FAB+) were obtained by JEOL JMS700 mass spectrometer. UV-vis spectra were recorded by a Beckman Coulter DU800 UV-vis Spectrophotometer. Fluorescence spectra were recorded by a JASCO FP-6500 Spectrofluorometer.

3.2. Materials: Synthesis of 2,7-(4-Diethylaminophenyl)-fluorenone

To a mixture of 2,7-dibromofluorenone (0.10 g, 0.30 mmol), Pd(PPh3)4 (0.017 g, 0.0015 mmol), Cs2CO3 (0.68 g, 2.1 mmol), in THF (20 mL) was added 4-diethylaminophenylboronic acid pinacol ester (0.18 g, 0.65 mmol), and the mixture was stirred at 60 °C. After stirring 2 days, the mixture was cooled and filtrated with CH2Cl2 to remove insoluble solids. Then, the filtrate was extracted with CH2Cl2 washed with brine, and dried over MgSO4. After removal of solvent in vacuo, the residue was purified by silica gel column chromatography (hexane/CH2Cl2 = 1/1.5) and recrystallization to afford the title compound as a purple solid (0.087 g, 0.18 mmol, 61%). MP 274–276 °C; 1H-NMR (CDCl3): δ 1.21 (t, 12H, J = 7.3 Hz), 3.41 (q, 8H, J = 7.3 Hz),6.75 (d, 4H, J = 8.8 Hz), 7.50 (d, 2H, J = 9.5 Hz), 7.52 (d, 4H, J = 8.8 Hz), 7.66 (dd, 2H, J = 1.7, 9.5 Hz), 7.87 (d, 2H, J = 1.7 Hz); 13C-NMR (CDCl3): δ 12.7, 44.4, 112.1, 120.3, 121.8, 126.7, 127.6, 131.7, 135.3, 141.95, 141.96, 147.7, 194.5; IR (KBr): νmax 3,438, 2,972, 2,929, 2,884, 2,193, 1,720, 1,610, 1,600, 1,518, 1,464, 1,399, 1,376, 1,358, 1,268, 1,198, 1,184, 1,156, 1,127, 1,079, 1,012, 911, 833, 815, 786, 773 cm−1; HRMS (FAB+) [M+Na]+ Calcd for C33H34N2ONa: 497.2564, Found : 497.2555.

4. Conclusions

In this work, we designed a donor-acceptor-donor dye based on fluorenone, in order to achieve switching between TICT and excimer emission without ground state changes, by the simple expedient of changing the solvent. The dye was synthesized via a Suzuki-Miyaura coupling, and absorption and emission spectra in various solutions were obtained. The results indicate that excimer formation was enhanced in nonpolar solvents and that by increasing the solvent polarity, the excimer quantum yield decreased gradually and a TICT peak appeared. This unique phenomenon constitutes a very promising basis for the development of solvent polarity sensors.

Supplementary Materials

Supplementary materials can be accessed at: https://www.mdpi.com/1420-3049/17/4/4452/s1.
  • Sample Availability: Samples of the compounds are available from G.K.

References and Notes

  1. Grabowski, Z.R.; Rotkiewicz, K.; Rettig, W. Structural changes accompanying intramolecular electron transfer: Focus on twisted intramolecular charge-transfer states and structures. Chem. Rev. 2003, 103, 3899–4032. [Google Scholar] [CrossRef]
  2. Rettig, W. Charge separation in excited states of decoupled systems—TICT compounds and implications regarding the development of new laser dyes and the primary process of vision and photosynthesis. Angew. Chem. Int. Ed. Engl. 1986, 25, 971–988. [Google Scholar] [CrossRef]
  3. Biczók, L.; Bérces, T.; Inoue, H. Effects of molecular structure and hydrogen bonding on the radiationless deactivation of singlet excited fluorenone derivatives. J. Phys. Chem. A 1999, 103, 3837–3842. [Google Scholar] [CrossRef]
  4. Bhattacharyya, K.; Chowdhury, M. Environmental and magnetic field effects on exciplex and twisted charge transfer emission. Chem. Rev. 1993, 93, 507–535. [Google Scholar] [CrossRef]
  5. Schuddeboom, W.; Jonker, S.A.; Warman, J.M.; Leinhos, U.; Kuehnle, W.; Zachariasse, K.A. Excited-state dipole moments of dual fluorescent 4-(dialkylamino)benzonitriles: Influence of alkyl chain length and effective solvent polarity. J. Phys. Chem. 1992, 96, 10809–10819. [Google Scholar] [CrossRef]
  6. Amdursky, N.; Gepshtein, R.; Erez, Y.; Huppert, D. Temperature dependence of the fluorescence properties of thioflavin-T in propanol, a glass-forming liquid. J. Phys. Chem. A 2011, 115, 2540–2548. [Google Scholar] [CrossRef]
  7. Gazi, H.A.R.; Biswas, R. Heterogeneity in binary mixtures of (water + tertiary butanol): Temperature dependence across mixture composition. J. Phys. Chem. A 2011, 115, 2447–2455. [Google Scholar]
  8. Thayer, M.P.; McGuire, C.; Stennett, E.M.S.; Lockhart, M.K.; Canache, D.; Novak, M.; Schmidtke, S.J. pH-Dependent spectral properties of para-aminobenzoic acid and its derivatives. Spectrochim. Acta A 2011, 84, 227–232. [Google Scholar] [CrossRef]
  9. Zhang, C.H.; Chena, Z.B.; Jiang., Y.B. Intramolecular charge transfer dual fluorescence of p-dimethylaminobenzoates. Spectrochim. Acta A 2004, 60, 2729–2732. [Google Scholar] [CrossRef]
  10. Hagfeldt, A.; Boschloo, G.; Sun, L.; Kloo, L.; Pettersson, H. Dye-sensitized solar cells. Chem. Rev. 2010, 110, 6595–6663. [Google Scholar] [CrossRef]
  11. Mishra, A.; Fischer, M.K.R.; Bäuerle, P. Metal-free organic dyes for dye-sensitized solar cells: From structure: Property relationships to design rules. Angew. Chem. Int. Ed. Engl. 2009, 48, 2474–2499. [Google Scholar] [CrossRef]
  12. Chang, Y.J.; Watanabe, M.; Chou, P.; Chow, T.J. [2.2]Paracyclophane as a bridging unit in the design of organic dyes for sensitized solar cells. Chem. Commun. 2012, 48, 726–728. [Google Scholar]
  13. Kulkarni, A.P.; Kong, X.; Jenekhe, S.A. High-performance organic light-emitting diodes based on intramolecular charge-transfer emission from donor-acceptor molecules: Significance of electron-donor strength and molecular geometry. Adv. Funct. Mater. 2006, 16, 1057–1066. [Google Scholar] [CrossRef]
  14. Cravino, A.; Leriche, P.; Alévêque, O.; Roquet, S.; Roncali, J. Light-emitting organic solar cells based on a 3D conjugated system with internal charge transfer. Adv. Mater. 2006, 18, 3033–3037. [Google Scholar] [CrossRef] [Green Version]
  15. Morozumi, T.; Anada, T.; Nakamura, H. New fluorescent “Off-On” behavior of 9-anthryl aromatic amides through controlling the twisted intramolecular charge transfer relaxation process by complexation with metal ions. J. Phys. Chem. B 2001, 105, 2923–2931. [Google Scholar] [CrossRef]
  16. Wu, J.; Liu, W.; Ge, J.; Zhang, H.; Wang, P. New sensing mechanisms for design of fluorescent chemosensors emerging in recent years. Chem. Soc. Rev. 2011, 40, 3483–3495. [Google Scholar] [CrossRef]
  17. Hall, M.J.; Allen, L.T.; O’Shea, D.F. PET modulated fluorescent sensing from the BF2 chelated azadipyrromethene platform. Org. Biomol. Chem. 2006, 4, 776–780. [Google Scholar] [CrossRef]
  18. Choi, L. Triple fluorescence of 4-(1,4,8,11-tetraazacyclotetradecyl)benzonitrile. Chem. Commun. 1998, 1998, 893–894. [Google Scholar] [CrossRef]
  19. Heldt, J.R.; Heldt, J.; Józefowicz, M.; Kamiński, J. Spectroscopic studies of fluorenone derivatives. J. Fluoresc. 2001, 11, 65–73. [Google Scholar] [CrossRef]
  20. Revill, J.A.T.; Browna, R.G. Excimer versus TICT state formation in polar solutions of methyl 4-(N,N-dimethylamino)benzoate. Chem. Phys. Lett. 1992, 188, 433–438. [Google Scholar] [CrossRef]
  21. Zhen, Z.; Tung, C. Hydrophobic effects on photophysical and photochemical processes: Excimer fluorescence and aggregate formation of long-chain alkyl 4-(N,N-dimethylamino) benzoate in water—Organic binary mixtures. Chem. Phys. Lett. 1991, 180, 211–215. [Google Scholar] [CrossRef]
  22. Estrada, L.A.; Yarnell, J.E.; Neckers, D.C. Revisiting fluorenone photophysics via dipolar fluorenone derivatives. J. Phys. Chem. A 2011, 115, 6366–6375. [Google Scholar]
  23. Sahoo, D.; Bhattacharya, P.; Chakravorti, S. Spectral signature of 2-[4-(dimethylamino)styryl]-1-methylquinolinium iodide: A case of negative solvatochromism in water. J. Phys. Chem. B 2011, 115, 10983–10989. [Google Scholar] [CrossRef] [Green Version]
  24. Kotaka, H.; Konishi, G.; Mizuno, K. Synthesis and photoluminescence properties of π-extended fluorene derivatives: The first example of a fluorescent solvatochromic nitro-group-containing dye with a high fluorescence quantum yield. Tetrahedron Lett. 2010, 51, 181–184. [Google Scholar] [CrossRef]
  25. Rani, S.A.; Sobhanadri, J.; Rao, T.A.P. Solvent and concentration effects on the steady state fluorescence of fluorenone. J. Photochem. Photobiol. A 1996, 94, 1–5. [Google Scholar] [CrossRef]
  26. Kuboyama, A. Electronic spectrum of fluorenone. Bull. Chem. Soc. Jpn. 1964, 37, 1540–1544. [Google Scholar] [CrossRef]
  27. Biczók, L.; Bérces, T.; Linschitz, H. Quenching processes in hydrogen-bonded pairs: Interactions of excited fluorenone with alcohols and phenols. J. Am. Chem. Soc. 1997, 119, 11071–11077. [Google Scholar] [CrossRef]
  28. Kobayashi, T.; Nagakura, S. Picosecond time-resolved spectroscopy and the intersystem crossing rates of anthrone and fluorenone. Chem. Phys. Lett. 1976, 43, 429–434. [Google Scholar] [CrossRef]
  29. Andrews, L.J.; Deroulede, A.; Linschitz, H. Photophysical processes in fluorenone. J. Phys. Chem. 1978, 82, 2304–2309. [Google Scholar] [CrossRef]
  30. Yoshihara, K.; Kearns, D.R. Spectroscopic properties of the lower lying excited states of fluorenone. J. Chem. Phys. 1966, 45, 1991–1999. [Google Scholar] [CrossRef]
  31. Ghosh, H.N.; Adamczyk, K.; Verma, S.; Dreyer, J.; Nibbering, E.T.J. On the role of hydrogen bonds in photoinduced electron-transfer dynamics between 9-fluorenone and amine solvents. Chem. Eur. J. 2012, 18, 4930–4937. [Google Scholar] [CrossRef]
  32. Zhao, G.; Han, K. Ultrafast hydrogen bond strengthening of the photoexcited fluorenone in alcohols for facilitating the fluorescence quenching. J. Phys. Chem. A 2007, 111, 9218–9223. [Google Scholar] [CrossRef]
  33. Zhao, G.; Han, K. Role of intramolecular and intermolecular hydrogen bonding in both singlet and triplet excited states of aminofluorenones on internal conversion, intersystem crossing, and twisted intramolecular charge transfer. J. Phys. Chem. A 2009, 113, 14329–14335. [Google Scholar] [CrossRef]
  34. Yatsuhashi, T.; Nakajima, Y.; Shimada, T.; Inoue, H. Photophysical properties of intramolecular charge-transfer excited singlet state of aminofluorenone derivatives. J. Phys. Chem. A 1998, 102, 3018–3024. [Google Scholar]
  35. Estrada, L.A.; Neckers, D.C. Synthesis and photophysics of ambipolar fluoren-9-ylidene malononitrile derivatives. J. Org. Chem. 2009, 74, 8484–8487. [Google Scholar] [CrossRef]
  36. Miyaura, N.; Suzuki, A. Palladium-catalyzed cross-coupling reactions of organoboron compounds. Chem. Rev. 1995, 95, 2457–2483. [Google Scholar] [CrossRef]
  37. Grabowski, Z.R. Electron transfer and the structural changes in the excited state. Pure Appl. Chem. 1992, 64, 1249–1255. [Google Scholar] [CrossRef]
  38. Reichardt, C. Solvatochromic dyes as solvent polarity indicators. Chem. Rev. 1994, 94, 2319–2358. [Google Scholar] [CrossRef]
