Article

Preparation of SRN1-Type Coupling Adducts from Aliphatic gem-Dinitro Compounds in Ionic Liquids

Department of Applied Molecular Bioscience, Graduate School of Medicine, Yamaguchi University, Ube 755-8611, Japan
*
Author to whom correspondence should be addressed.
Molecules 2012, 17(5), 4782-4790; https://doi.org/10.3390/molecules17054782
Submission received: 29 February 2012 / Revised: 2 April 2012 / Accepted: 12 April 2012 / Published: 25 April 2012
(This article belongs to the Collection Ionic Liquids)

Abstract

:
SRN1-type coupling adducts are readily prepared by the reaction between α-sulfonylesters or α-cyanosulfones and gem-dinitro compounds in ionic liquids. The reactions progress smoothly and recovered ionic liquids can be used for several iterations, as long as they are washed with water to remove alkali metallic salts. The reaction rate is slower than the corresponding SRN1 reaction in DMSO, but no acceleration on irradiation or no inhibition in the presence of m-DNB are observed.

1. Introduction

The SRN1 reaction is a unique reaction that proceeds via a single electron transfer process [1,2,3]. The reaction usually starts with a single electron transfer that generates a radical anion species, which then gives a radical species via cleavage of the anion radical. Then, the radical reacts with a coupling partner to form products. The reaction is usually performed in either liquid ammonia or a dipolar aprotic solvent such as DMSO and HMPA. The reaction progresses through a radical chain mechanism and the reaction rate are significantly lowered by the presence of small amounts of a radical inhibitor such as p-dinitrobenzene. The SRN1 reaction is frequently used to construct aromatic compounds [4,5,6,7,8,9,10,11,12,13,14,15]. The SRN1 reaction between aliphatic compounds produces a new carbon-carbon or carbon-heteroatom bond between sterically hindered carbons in good yields. This type of bond formation is usually not easily achieved using any other reactions in organic synthesis. The adducts from an aliphatic SRN1 reaction are regarded as precursors for further palladium coupling materials [16] or tri- or tetrasubstituted alkenes [17,18,19,20,21,22].
Recently ionic liquids have attracted significant interest in organic synthesis because of their unique properties such as wide redox windows, high polarities and high solubilities [23,24,25,26,27,28]. During the course of our investigation on ionic liquid chemistry [29,30,31], it occurred to us that ionic liquids could become a new solvent system for a reaction via electron transfer such as SRN1 reaction. To our best of knowledge, there have been no reports that employ ionic liquids for such reactions. In this paper, we demonstrate that the SRN1-type coupling adducts are indeed readily obtained in the reaction in ionic liquids.

2. Results and Discussion

We first examined various ionic liquids for the SRN1-type coupling reaction between gem-dinitro compounds and α-sulfonylesters. gem-Dinitropropane 2a was added to a mixture of tert-BuOK and α-sulfonyl propionic ester 1a in different ionic liquids under photoirradiation produced by a usual tungsten lamp, and the desired coupling product 3a was isolated (Scheme 1) [32]. Table 1 summarizes the results.

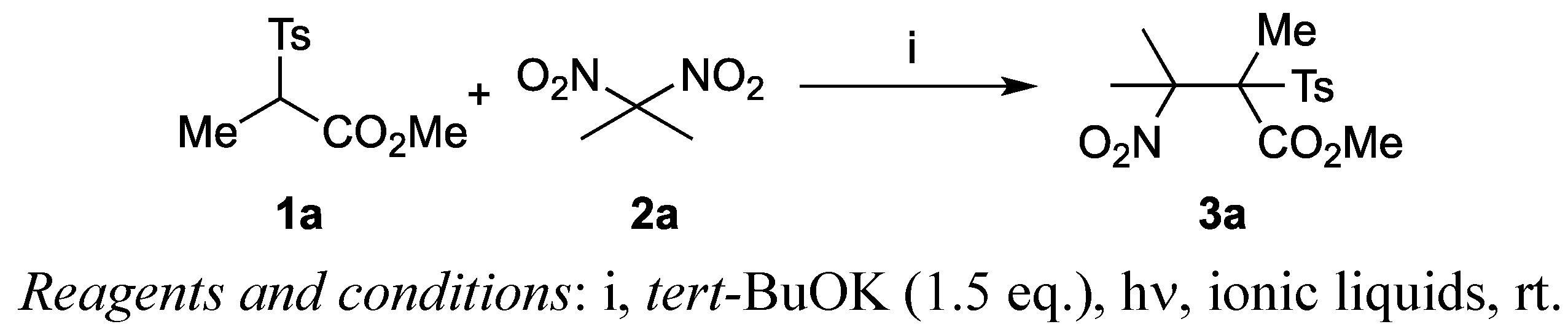

Scheme 1. SRN1-type coupling reactions between 1a and 2a.
Scheme 1. SRN1-type coupling reactions between 1a and 2a.
Molecules 17 04782 g002
Table 1. SRN1-type coupling reactions of 1a in various ionic liquids.
Table 1. SRN1-type coupling reactions of 1a in various ionic liquids.
EntryIonic liquids aTime (h)3a; yield (%) b
1[bmim][PF6]1158 (13)
2[bmim][BF4]771 (23)
3[bmim][NTf2]755 (5)
4[PP13][NTf2]466
5[TMPA][NTf2]776
6[DEME][BF4]658 (17)
a [bmim]:1-butyl-3-methyimidazolium; [PP13]:1-methyl-1-propylpiperidinium; [TMPA]: propyltrimethylammonium; [DEME]; N,N-diethyl-N-methyl-N-(2-methoxyethyl)ammonium; b Isolated yields. Recovery of 1a is in parentheses.
The coupling reaction between 1a and 2a took place smoothly in ionic liquids to give 3a in good yield. For example, the reaction in [bmim][PF6] resulted in the formation of the coupling product 3a in 58% yield (entry 1). The reaction was complete after 11 h at room temperature, but some amounts of the starting material 1a remained and were recovered from the reaction mixture. Although we have examined many bases such as Me4NOH, DBU and Et3N, none of these amine bases worked well in the reaction. Starting material 1a was recovered completely. Use of other ionic liquids that contained BF4 and NTf2 as a counter anion were examined (entries 2–6). The reaction progressed smoothly and the corresponding adduct 3a was isolated in good yield. Thus, ionic liquids were useful solvents for the coupling reaction. The reaction for other starting materials was explored next (Scheme 2). Table 2 summarizes the results. A mixture of 1b and 2,2-dinitropropane (2a) in [TMPA][NTf2], for example, afforded coupling adduct 3b in 69% yield (entry 1). The reaction was complete within 8 to 24 h. Coupling with 2,2-dinitrobutane (2b) also gave the products in a 1:1 mixture of two possible diastereomers (entries 2 and 3). α-Cyanosulfonyl compounds also underwent the reaction in ionic liquid, producing the corresponding coupling products 3e to 3h in moderate to good yields (entries 4–7). Thus, ionic liquids are useful solvents for promoting the coupling reaction effectively.

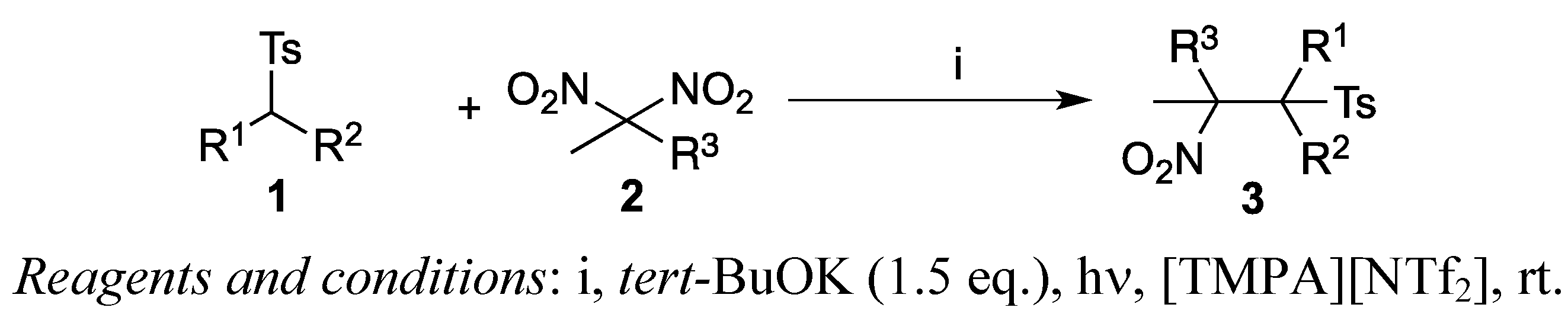

Scheme 2. SRN1-type coupling reaction in ionic liquids.
Scheme 2. SRN1-type coupling reaction in ionic liquids.
Molecules 17 04782 g003
Table 2. The coupling reactions with various sulfonyl compounds 1.
Table 2. The coupling reactions with various sulfonyl compounds 1.
Entry1R1R2R3Time (h)3; Yield (%) a
11bMeCO2EtMe83b; 69
21aMeCO2MeEt223c; 68
31bMeCO2EtEt203d; 66
41cMeCNMe243e; 50
51dEtCNMe243f; 75
61eC4H9CNMe213g; 47
71fCH2=CH(CH2)3CNMe213h; 44
a Isolated yields.
The repeated use of ionic liquids was examined for the reaction between 1a and 2a in [bmim][PF6] (Scheme 3). Table 3 summarizes the results.

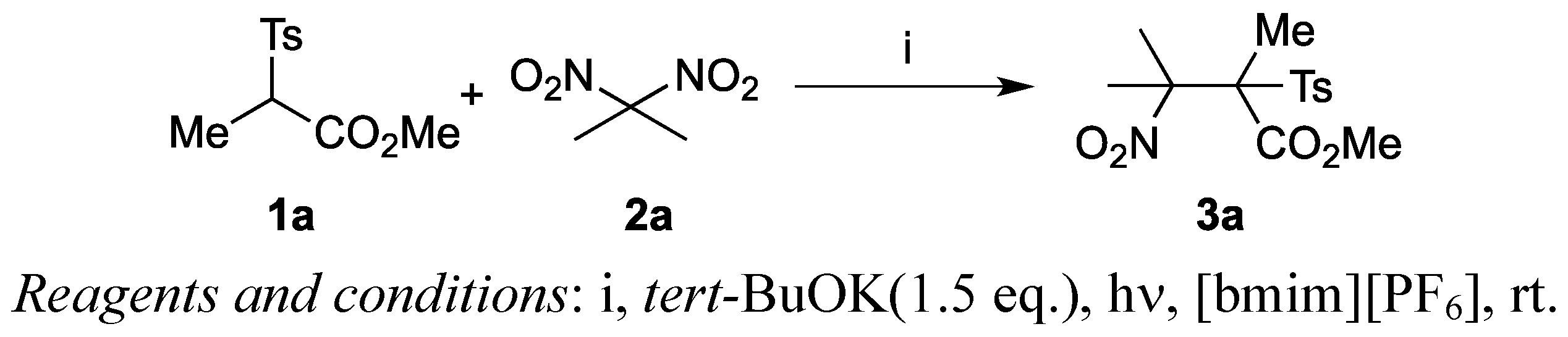

Scheme 3. Iteration use of ionic liquids for SRN1-type coupling reaction.
Scheme 3. Iteration use of ionic liquids for SRN1-type coupling reaction.
Molecules 17 04782 g004
Table 3. Recycling use of [bmim][PF6] for the coupling reaction to give 3a.
Table 3. Recycling use of [bmim][PF6] for the coupling reaction to give 3a.
TimesTime(h)3a; Yield (%) a
11158
2762
3719
4751 b
5750 b
a Isolated yields; b The washing treatment of ionic liquid was carried out before the reaction.
The recycling of the ionic liquids was performed in the following way: after the first reaction was completed, we performed a usual work-up. Thus, product 3a was isolated in 58% yield by direct extraction with ether from the ionic liquid and the remaining [bmim][PF6] was used directly for the next reaction. The second run worked well and 3a was prepared in 62% yield. The third run, however, occurred sluggishly, and the desired product 3a was isolated in only 19% yield. We thought this might be due to accumulating side products such as sodium nitrite. Therefore, [bmim][PF6] was washed with water to remove salts and other water-soluble impurities that had accumulated during the reaction. The ionic liquid was recovered without significant loss. After drying, we used the recovered [bmim][PF6] for the reaction and obtained 3a in 51% yield. When we used it for the fifth time, [bmim][PF6] worked well and product 3a was isolated in 50% yield. Thus, the present procedure allowed us to use the ionic liquid several times. We examined iterative use of ionic liquids [TMPA][NTf2] for the reaction and successfully obtained 3a in good to moderate yields (Table 4). High yields of 3a were achieved until six times use, when 3a was obtained in 60%, after then the yields decreased to less than 40%.
Table 4. Coupling reactions of compounds 1a with iterative use of [TMPA][NTf2].
Table 4. Coupling reactions of compounds 1a with iterative use of [TMPA][NTf2].
Times12345678910
3a; Yield (%) a86878078686040323024
a Isolated yields. The washing treatment of ionic liquid was carried out for each time.
To explore the reaction profile, we examined the reaction kinetics. Figure 1 shows the comparison of the reaction between 1a and 2a under classical conditions employing DMSO as a solvent and under the present conditions using [TMPA][NTf2] as a solvent.

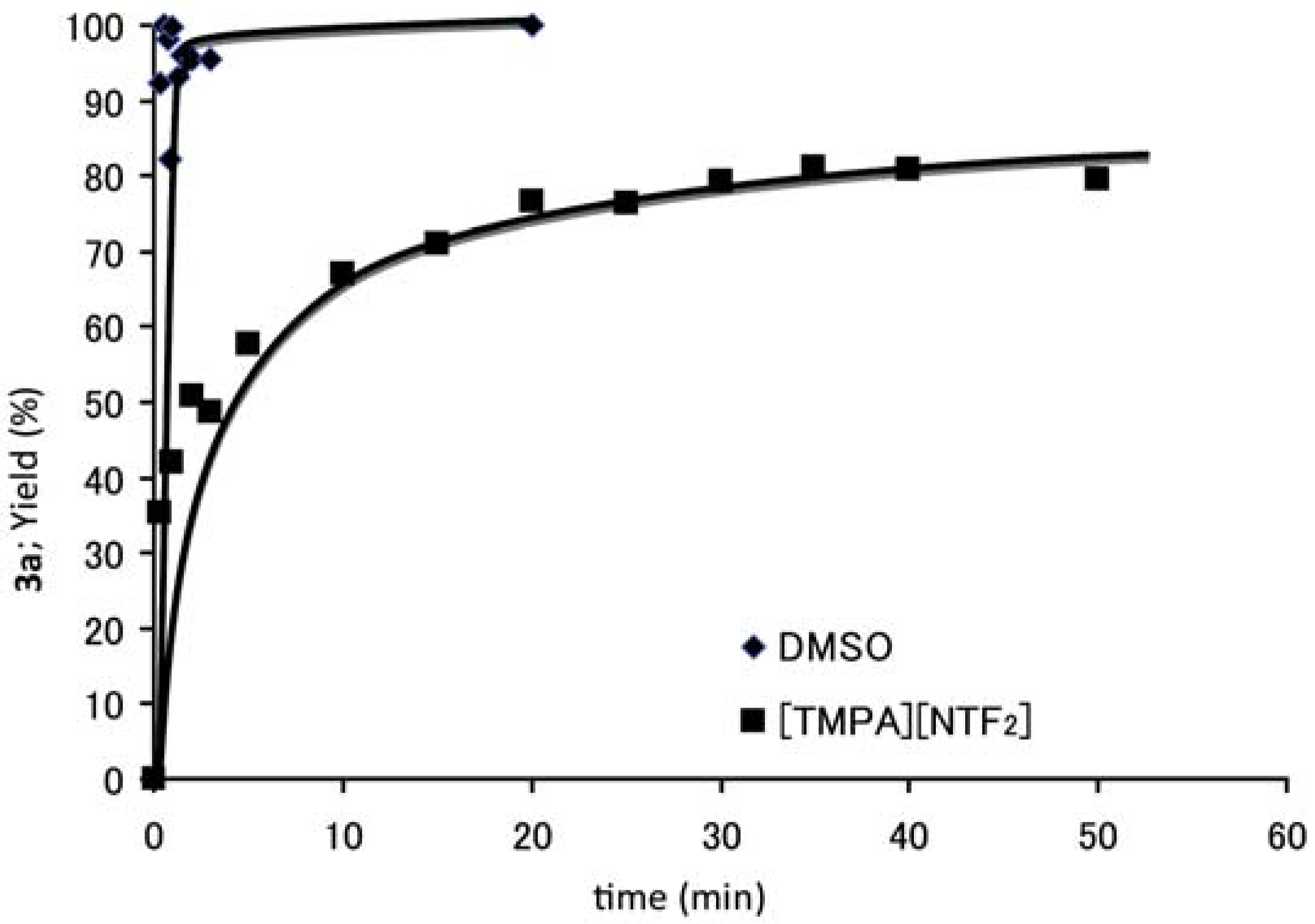

Figure 1. Time course of the SRN1 reaction of 1a and 2a.
Figure 1. Time course of the SRN1 reaction of 1a and 2a.
Molecules 17 04782 g001
Kinetic measurements were performed for the reaction on a 0.2 M scale. Thus, the mixture of 0.6 mmol of α-tosylpropionate 1a and 2,2-dinitropropane (2a) in DMSO or [TMPA][NTf2] (2.5 mL) was used for the kinetic measurements. We detected product 3a by HPLC analyses and estimated it using the curve fitting method. The reaction in DMSO progressed very fast to give 3a almost quantitatively within a minute, while the reaction in [TMPA][NTf2] progressed much slowly, and the yield of 3a increased to greater than 80% after about 40 minutes. This difference in the reaction rate should arise from the difference in viscosity because ionic liquids usually possess greater viscosities than any other usual organic solvent [33].

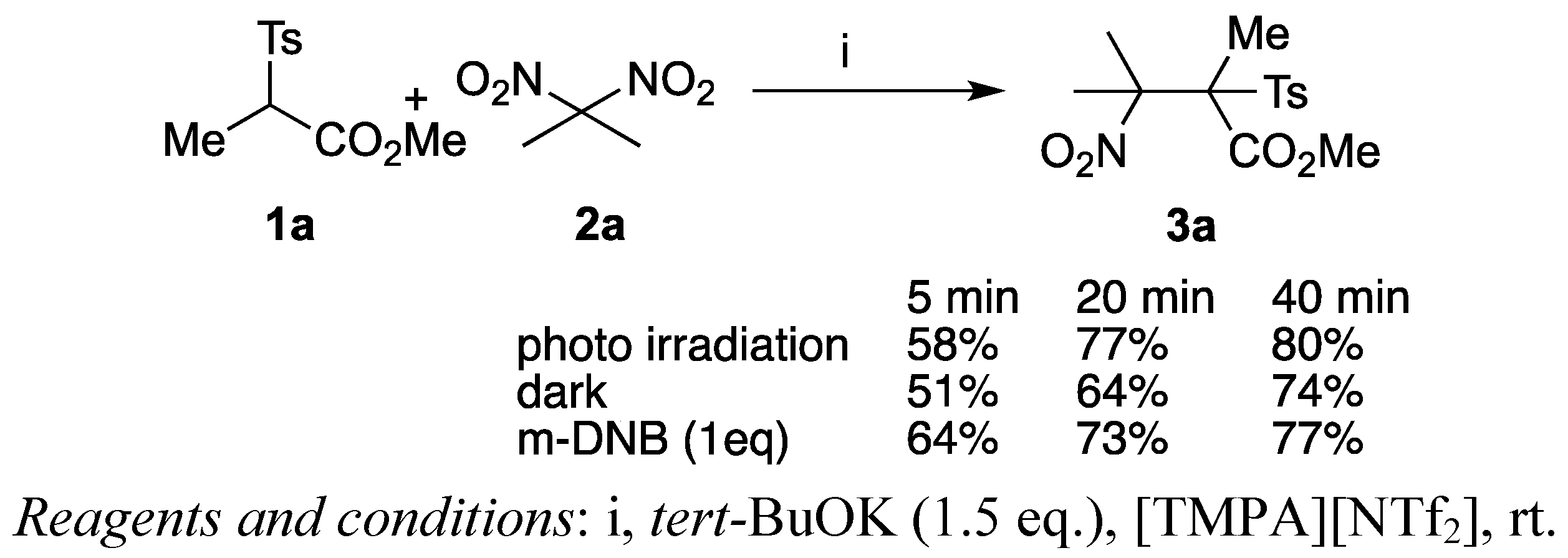

Scheme 4. Photo irradiation and additive effects.
Scheme 4. Photo irradiation and additive effects.
Molecules 17 04782 g005
It is noteworthy that the coupling reaction in ionic liquids showed no inhibition by additives or acceleration by photoirradiation. Scheme 4 summarizes the results in which the reaction progress was almost the same even on addition of m-dinitrobenzene or with irradiation from a tungsten lamp. These results are in sharp contrast with the conventional SRN1 reaction in which inhibition by adding aromatic nitro compounds and acceleration with photo irradiation have been clearly observed [32].

3. Experimental

General

All 1H- and 13C-NMR spectra were measured in CDCl3 and recorded on a JEOL Lamda-500 spectrometer (at 500 MHz for 1H and 126 MHz for 13C). All reactions were performed under a nitrogen atmosphere unless otherwise mentioned. DMSO was dried over CaH2 and distilled under reduced pressure before use. Ionic liquids, except for [DEME][NTf2], were purchased from Kanto Chemical Co. Ltd. [DEME][NTf2] was supplied by Nisshinbo Co. Ltd. Photoirradiation was carried out by a standard 40 W tungsten lamp. Elemental analyses and high-resolution mass spectra were measured at Tokiwa Instrumental Analysis Center, Yamaguchi University, Ube, Japan.
Methyl 2,3-dimethyl-3-nitro-2-tosylbutanoate (3a): Under a nitrogen atmosphere, t-BuOK (102.2 mg, 0.91 mmol) was added to a solution of 1a (147.9 mg, 0.61 mmol) in [TMPA][NTf2] (2.5 mL) at room temperature. Then 2,2-dinitropropane (91.0 mg, 0.68 mmol) was added and the reaction mixture was stirred at room temperature for 7 h under irradiation by a fluorescent light (365 nm). The reaction mixture was extracted with ether (3 mL × 30) and the combined organic phase was washed with 1 M HCl (10 mL) and saturated NaCl (20 mL). The organic phase was dried over Na2SO4, filtered, and concentrated in vacuo. The residue was purified by flash chromatography (silica gel, 10:1, 8:1, and then 5:1 hexane-EtOAc) to give 3a (153.3 mg, 465.4 mmol, 76%) as a white solid; mp. 101.5–102.5 °C; 1H-NMR (CDCl3) δ 7.70 (dd, 2 H, J = 13.4, 8.5 Hz), 7.29 (dd, 2 H, J = 10.9, 4.7 Hz), 3.80–3.42 (m, 3 H), 2.44 (s, 3 H), 2.26 (s, 3 H), 1.97 (s, 3 H), 1.66 (s, 3 H); 13C-NMR (CDCl3) δ 166.85, 146.21, 133.53, 130.90, 129.59, 93.80, 76.20, 53.40, 26.44, 25.23, 21.83, 18.25; Anal. Calcd. for C14H19NO6S: C, 51.05; H, 5.81; N, 4.25%. Found: C, 50.91; H, 5.85; N, 4.32%.
Ethyl2,3-dimethyl-3-nitro-2-tosylbutanoate (3b): Isolated as an oil (175.2 mg, 69%); 1H-NMR (CDCl3). 7.68 (d, 2 H, J = 8.4 Hz), 7.31 (d, 2 H, J = 8.6 Hz), 4.13–3.94 (m, 2 H), 2.42 (s, 3 H), 2.26 (s, 3 H), 1.95 (s, 3 H), 1.66 (s, 3 H), 1.12 (t, 3 H, J = 7.2 Hz); 13C-NMR (CDCl3). 166.23, 146.13, 133.56, 130.97, 129.50, 93.69, 76.11, 62.87, 26.36, 25.44, 21.79, 18.35, 13.57; HRMS (ESI+ M+NH4)+ m/z 361.1438. Calcd. for C15H25N2O6S 361.1433.
Methyl2,3-dimethyl-3-nitro-2-tosylpentanoate (3c): Isolated as a white solid (116.9 mg, 68%, 1:1 inseparable diastereomeric mixture); mp. 136–137 °C; 1H-NMR (CDCl3). 7.72 (dd, 2 H for one isomer, J = 8.4, 1.8 Hz), 7.67 (dd, 2 H for another isomer, J = 8.3, 1.6 Hz), 7.35–7.30 (m, 2 H for both isomers), 3.66 (s, 3 H for one isomer), 3.51 (s, 3 H for 1 isomer), 2.85 (dq, 1 H for one isomer, J = 14.6, 7.3 Hz), 2.68 (dq, 1 H for another isomer, J = 14.9, 7.4 Hz), 2.44–2.40 (m, 1 H for another isomer), 2.44 (s, 3 H for one isomer), 2.43 (s, 3 H for another isomer), 2.35 (dq, 1 H for one isomer, J = 14.2, 7.0 Hz), 2.20 (s, 3 H one isomer), 1.94 (s, 3 H for another isomer), 1.78 (s, 3 H for one isomer), 1.61 (s, 3 H for another isomer), 0.95 (t, 3 H for one isomer, J = 7.2 Hz), 0.83 (t, 3 H for another isomer, J = 6.4 Hz); 13C-NMR (CDCl3). 166.92, 166.35, 146.19, 146.06, 133.93, 133.90, 130.99, 129.64, 129.47, 98.47, 96.10, 77.16, 76.90, 53.48, 53.38, 29.91, 29.89, 21.82, 20.29, 18.86, 18.53, 17.53, 9.21, 8.78; HRMS (ESI+ M+NH4) m/z = 361.1437. Calcd. for C15H25N2O6S 361.1433.
Ethyl2,3-dimethyl-3-nitro-2-tosylpentanoate (3d): Isolated as an oil (135.4 mg, 66%, 1:1 inseparable diastereomeric mixture); 1H-NMR (CDCl3). 7.74 (d, 2 H for one isomer, J = 8.4 Hz), 7.69 (d, 2 H for another isomer, J = 8.4 Hz), 7.34 (dd, 2 H for one isomer, J = 3.7, 0.6 Hz), 7.32 (d, 2 H for another isomer, J = 3.7 Hz), 4.19–4.08 (m, 2 H for one isomer), 4.00–3.89 (m, 2 H for another isomer), 2.95–2.83 (m, 1 H for one isomer), 2.69 (dq, 1 H for another isomer, J = 14.9, 7.4 Hz), 2.45 (s, 3 H for one isomer), 2.44 (s, 3 H for another isomer), 2.44–2.37 (m, 1 H for one isomer), 2.37–2.28 (m, 1 H for another isomer), 2.23 (s, 3 H for one isomer), 1.95 (s, 3 H for another isomer), 1.78 (s, 3 H for one isomer), 1.62 (s, 3 H for another isomer), 1.20 (t, 3 H for one isomer, J = 7.2 Hz), 1.06 (t, 1 H for one isomer, J = 7.2 Hz), 0.95 (t, 3 H for another isomer, J = 7.3 Hz), 0.84 (t, 3 H for another isomer, J = 7.4 Hz); 13C-NMR (CDCl3). 166.38, 165.72, 146.07, 145.97, 134.04, 133.87, 131.13, 131.09, 129.53, 129.40, 98.46, 96.01, 77.63, 77.08, 63.16, 62.74, 30.19, 29.85, 21.82, 21.80, 20.33, 19.02, 18.57, 17.50, 13.60, 13.55, 9.21, 8.79; HRMS (ESI+ M+H) m/z = 375.1569. Calcd. for C16H27N2O6S 375.1590.
2,3-Dimethyl-3-nitro-2-tosylbutanenitrile (3e): Isolated as a white solid (174.1 mg, 50%) mp. 75–76 °C; 1H-NMR (CDCl3). 7.92 (d, 2 H, J = 8.4 Hz), 7.44 (d, 2 H, J = 8.0 Hz), 2.50 (s, 3 H), 2.15 (s, 3 H), 1.98 (s, 3 H), 1.69 (s, 3 H); 13C-NMR (CDCl3). 147.66, 131.54, 130.11, 130.09, 116.13, 90.97, 66.61, 25.82, 22.43, 22.00, 19.27; Anal. Calcd. for C13H16N2O4S: C, 52.69; H, 5.44; N, 9.45%. Found: C, 52.74; H, 5.38; N, 9.11%.
2-(2-Nitropropan-2-yl)-2-tosylhexanenitrile (3f): Isolated as a white solid (142.5 mg, 75%); mp. 68–70 °C; 1H-NMR (CDCl3). 7.89 (d, 2 H, J = 8.3 Hz), 7.43 (d, 2 H, J = 8.1 Hz), 2.49 (s, 3 H), 2.36 (dq, 1 H, J = 15.0, 7.5 Hz), 2.09 (s, 3 H), 1.95 (s, 3 H), 1.91 (dq, 1 H, J = 15.1, 7.5 Hz), 0.87 (t, 3 H, J = 7.5 Hz); 13C-NMR (CDCl3). 147.51, 132.70, 131.43, 130.11, 114.90, 91.81, 72.66, 25.81, 25.22, 23.29, 22.00, 11.50; HRMS (ESI+ M+NH4) m/z = 328.1360. Calcd. for C14H21N3O4S 328.1331.
2-Ethyl-3-methyl-3-nitro-2-tosylbutanenitrile (3g): Isolated as a white solid (110.8 mg, 47%); mp. 72.8–73.0 °C; 1H-NMR (CDCl3). 7.91 (d, 2 H, J = 8.4 Hz), 7.43 (d, 2 H, J = 8.1 Hz), 2.49 (s, 3 H), 2.23 (ddd, 1 H, J = 15.2, 12.4, 4.3 Hz), 2.10 (s, 3 H, s), 1.96 (3 H, s), 1.79 (1 H, ddd, J 15.2, 12.6, 5.0), 1.38–1.08 (3 H, m), 0.93–0.82 (1 H, m) and 0.77 (3 H, t, J 7.3); 13C-NMR (CDCl3). 147.53, 132.63, 131.44, 130.05, 115.04, 92.03, 71.90, 31.11, 29.01, 25.97, 23.04, 22.66, 21.99 and 13.53. Anal. Calcd. for C16H22N2O4S: C, 56.78; H, 6.55; N, 8.28%. Found: C, 56.86; H, 6.44; N, 8.27%.
2-(2-Nitropropan-2-yl)-2-tosylhept-6-enenitrile (3h): Isolated as a white solid (115.9 mg, 44%); mp. 74–75 °C; 1H-NMR (CDCl3). 7.90 (d, 2 H, J = 8.4 Hz), 7.42 (d, 2 H, J = 8.1 Hz), 5.55 (ddt, 1 H, J = 17.0, 10.3, 6.7 Hz), 4.96 (dt, 1 H, J = 10.9, 1.7 Hz), 4.93 (dq, 1 H, J = 17.2, 1.6 Hz), 2.49 (s, 3 H), 2.23 (ddd, 1 H, J = 15.3, 12.6, 4.4 Hz), 2.09 (s, 3 H), 1.95 (s, 3 H), 1.99–1.95 (m, 1 H), 1.93–1.85 (m, 1 H), 1.79 (ddd, 1 H, J = 15.3, 12.6, 5.0 Hz), 1.50–1.38 (m, 1 H), 1.10–0.94 (m, 1 H); 13C-NMR (CDCl3). 147.59, 136.60, 132.53, 131.48, 130.08, 116.30, 115.00, 92.02, 71.81, 33.23, 30.66, 26.00, 25.93, 23.07, 21.99. Anal. Calcd. for C17H22N2O4S: C, 58.27; H, 6.33; N, 7.99%. Found: C, 58.20; H, 6.30; N, 7.94%.

4. Conclusions

We have demonstrated the first examples of SRN1-type coupling reactions in an ionic liquid, which not only possesses high polarity but is also regarded as a good solvent for promoting the electron transfer process. The ionic liquids [bmim][PF6] and [TMPA][NTf2] were useful for the efficient progress of the reaction. Although amine base was not effective for the progress of the reaction, t-BuOK was a useful base to enhance the reactions. Although the reaction rate in the SRN1 reaction was not as fast as that in the conventional SRN1 reaction in DMSO, ionic liquids have an advantage over the conventional method because of the reusability of the solvent if it was washed with water; a simple manipulation that enabled the ionic liquid to be reused for another reaction. A notable contrast from the conventional SRN1 reaction in DMSO was the fact that the reaction was not impeded by the presence of m-DNB, and the coupling products were obtained in a similar yield. The use of ionic liquids for other reactions is now under investigation in our laboratory.

Supplementary Materials

Supplementary materials can be accessed at: https://www.mdpi.com/1420-3049/17/5/4782/s1.

Acknowledgments

The authors are grateful for the financial support by a Grant-in-Aid for Scientific Research on Priority Areas (Science of Ionic Liquids, 2005–2009) from The Ministry of Education, Culture, Sports, Science and Technology, Japan. A financial aid from Yamaguchi University based on The YU Strategic Program for Fostering Research Activities (2010–2011) is also acknowledged.

References and Notes

  1. Rossi, R.A.; Pierini, A.B.; Santiago, A.N. Aromatic substitution by the SRN1 reaction. Org. React. 1999, 54, 1–271. [Google Scholar]
  2. Rossi, R.A.; Pierini, A.B.; Penenory, A.B. Nucleophilic substitution reactions by electron transfer. Chem. Rev. 2003, 103, 71–167. [Google Scholar]
  3. Galli, C.; Rappoport, Z. Unequivocal SRN1 route of vinyl halides with a multitude of competing pathways: Reactivity and structure of the vinyl radical intermediate. Acc. Chem. Res. 2003, 36, 580–587. [Google Scholar] [CrossRef]
  4. Baumgartner, M.T.; Lotz, G.A.; Palacios, S.M. Diastereoselective C-arylation of prochiral enolates by the SRN1 reaction. Chirality 2004, 16, 212–219. [Google Scholar] [CrossRef]
  5. Layman, W.J.T.Jr.; Greenwood, D.; Downey, A.L.; Wolfe, J.F. Synthesis of 2H-1,2-benzothiazine 1,1-dioxides via heteroannulation reactions of 2-iodobenzenesulfonamide with ketone enolates under SRN1 conditions. J. Org. Chem. 2005, 70, 9147–9155. [Google Scholar] [CrossRef]
  6. Wu, K.Jr.; Dolbier, W.R.; Battiste, M.A.; Zhai, Y. The SRN1 chemistry of 4-iodo-1,1,2,2,9,9,10,10-octafluoro[2.2]paracyclophane. Mendeleev Commun. 2006, 16, 146–147. [Google Scholar] [CrossRef]
  7. Barolo, S.M.; Teng, X.; Cuny, G.D.; Rossi, R.A. Syntheses of aporphine and homoaporphine alkaloids by intramolecular ortho-arylation of phenols with aryl halides via SRN1 reactions in liquid ammonia. J. Org. Chem. 2006, 71, 8493–8499. [Google Scholar] [CrossRef]
  8. Guastavino, J.F.; Barolo, S.M.; Rossi, R.A. One-pot synthesis of 3-substituted isoquinolin-1-(2H)-ones and fused isoquinolin-1-(2H)-ones by SRN1 reactions in DMSO. Eur. J. Org. Chem. 2006, 3898–3902. [Google Scholar]
  9. Bude, M.E.; Rossi, R.A. Syntheses of phenanthridines and benzophenanthridines by intramolecular ortho-arylation of aryl amide ions with aryl halides via SRN1 reactions. Tetrahedron Lett. 2007, 48, 8739–8742. [Google Scholar] [CrossRef]
  10. Roydhouse, M.D.; Walton, J.C. Formation of a tetracyclic isoquinoline derivative by rearrangement of a [(bromophenyl)butyryl]oxazolidinone. Eur. J. Org. Chem. 2007, 1059–1063. [Google Scholar] [CrossRef]
  11. Marshall, L.J.; Roydhouse, M.D.; Slawin, A.M.Z.; Walton, J.C. Effect of chain length on radical to carbanion cyclo-coupling of bromoaryl alkyl-linked oxazolines: 1,3-Areneotropic migration of oxazolines. J. Org. Chem. 2007, 72, 898–911. [Google Scholar] [CrossRef]
  12. Szabo, R.; Crozet, M.D.; Vanelle, P. Original SRN1 reactions on new non-nitrated heterocyclic system. Synlett 2008, 2836–2840. [Google Scholar]
  13. Vaillard, V.A.; Buden, M.E.; Martin, S.E.; Rossi, R.A. Synthesis of novel fused azaheterocycles by photostimulated intramolecular SRN1 reactions with nitrogen nucleophiles. Tetrahedron Lett. 2009, 50, 3829–3832. [Google Scholar] [CrossRef]
  14. Buden, M.E.; Vaillard, V.A.; Martin, S.E.; Rossi, R.A. Synthesis of carbazoles by intramolecular arylation of diarylamide anions. J. Org. Chem. 2009, 74, 4490–4507. [Google Scholar] [CrossRef]
  15. Argüello, J.E.; Schmidt, L.C.; Peñéñory, A.B. One-pot” two-step synthesis of aryl sulfur compounds by photoinduced reactions of thiourea anion with aryl halides. Org. Lett. 2003, 5, 4133–4136. [Google Scholar] [CrossRef]
  16. Corsico, E.F.; Rossi, R.A. Sequential reactions of trimethylstannyl anions with vinyl chlorides and dichlorides by the SRN1 mechanism followed by palladium-catalyzed cross-coupling processes. J. Org. Chem. 2004, 69, 6427–6432. [Google Scholar] [CrossRef]
  17. Kornblum, N.; Boyd, S.D.; Pinnick, H.W.; Smith, R.G. New synthesis of olefins. J.Am. Chem. Soc. 1971, 93, 4316–4318. [Google Scholar] [CrossRef]
  18. Kornblum, N.; Cheng, L. The synthesis of functionalized tetrasubstituted olefins. Calcium amalgam—A novel reducing agent. J. Org. Chem. 1977, 42, 2944–2945. [Google Scholar]
  19. Ono, N.; Tamura, R.; Eto, H.; Hamamoto, I.; Nakatsuka, T.; Hayami, J.; Kaji, A. A new olefin synthesis. Synchronous elimination of nitro and ester groups or nitro and keto groups from β-nitro esters or β-nitro ketones. J. Org. Chem. 1983, 48, 3678–3684. [Google Scholar]
  20. Beugelmans, R.; Lechevallier, A.; Rousseau, H. Substitution nucleophile radicalaire en chaine (SRN1): 11ème mémoire. Substrats et nucleophiles derives de nitroalcanes aliphatiques fonctionnalises. Tetrahedron Lett. 1983, 24, 1787–1790. [Google Scholar] [CrossRef]
  21. Russell, G.A.; Mudryk, B.; Jawdosiuk, M. α-Alkylidene derivatives of β-diketones and β-keto esters; 2-Chloro-2-nitropropane as an acetone equivalent in controlled cross-aldol-type processes. Synthesis 1981, 1, 62–64. [Google Scholar]
  22. Ono, N.; Miyake, H.; Tamura, R.; Hamamoto, I.; Kaji, A. Free radical chain elimination reaction (ERC1). Conversion of vicinal dinitro compounds or β-nitro sulfones to olefins with tributyltin hydride. Chem. Lett. 1981, 10, 1139. [Google Scholar]
  23. Gu, Y.; Li, G. Ionic liquids-based catalysis with solids: State of the art. Adv. Synth. Cat. 2009, 351, 817–847. [Google Scholar] [CrossRef]
  24. Chowdhury, S.; Mohanb, R.S.; Scott, J.L. Reactivity of ionic liquids. Tetrahedron 2007, 63, 2363–2389. [Google Scholar] [CrossRef]
  25. Ohno, H. Functional design of ionic liquids. Bull. Chem. Soc. Jpn. 2006, 79, 1665–1680. [Google Scholar] [CrossRef]
  26. Miao, W.; Chan, T.H. Ionic-liquid-supported synthesis: A novel liquid-phase strategy for organic synthesis. Acc. Chem. Res. 2006, 39, 897–908. [Google Scholar] [CrossRef]
  27. Lévêque, J.-M.; Cravotto, G. Microwaves, power ultrasound, and ionic liquid. A new synergy in green organic synthesis. Chimia 2006, 60, 313–320. [Google Scholar] [CrossRef]
  28. Welton, T. Room-temperature ionic liquids. Solvents for synthesis and catalysis. Chem. Rev. 1999, 99, 2071–2084. [Google Scholar] [CrossRef]
  29. Kamimura, A.; Yamamoto, S. An efficient method to depolymerize polyamide plastics: A new use of ionic liquids. Org. Lett. 2007, 9, 2533–2235. [Google Scholar] [CrossRef]
  30. Kamimura, A.; Yamamoto, S. A novel depolymerization of nylons in ionic liquids. Polym. Adv. Technol. 2008, 19, 1391–1395. [Google Scholar] [CrossRef]
  31. Yamamoto, S.; Kamimura, A. Preparation of novel functionalized ammonium salts that effectively catalyze depolymerization of nylon-6 in ionic liquids. Chem Lett. 2009, 39, 1016–1017. [Google Scholar] [CrossRef]
  32. Ono, N.; Tamura, R.; Nakatsuka, T.; Hayami, J.; Kaji, A. Substitution and elimination reactions via one electron transfer process. A new olefin synthesis from β-nitro sulfones. Bull. Chem. Soc. Jpn. 1980, 53, 3295–3300. [Google Scholar]
  33. Froeba, A.P.; Kremer, H.; Leipertz, A. Density, refractive index, interfacial tension, and viscosity of ionic liquids [EMIM][EtSO4], [EMIM][NTf2], [EMIM][N(CN)2], and [OMA][NTf2] in dependence on temperature at atmospheric pressure. J. Phys. Chem. B 2008, 112, 12420–12430. [Google Scholar] [CrossRef]
  • Sample Availability: Not available.
