Absorption and Fluorescence Spectroscopic Properties of 1- and 1,4-Silyl-Substituted Naphthalene Derivatives

by
Hajime Maeda
1,*,
Tomohiro Maeda
2 and
Kazuhiko Mizuno
2,*
1
Division of Material Sciences, Graduate School of Natural Science and Technology, Kanazawa University, Kakuma-machi, Kanazawa, Ishikawa 920-1192, Japan
2
Department of Applied Chemistry, Graduate School of Engineering, Osaka Prefecture University, 1-1 Gakuen-cho, Naka-ku, Sakai, Osaka 599-8531, Japan
*
Authors to whom correspondence should be addressed.
Molecules 2012, 17(5), 5108-5125; https://doi.org/10.3390/molecules17055108
Submission received: 13 February 2012 / Revised: 21 April 2012 / Accepted: 23 April 2012 / Published: 3 May 2012
(This article belongs to the Special Issue Fluorophores - The Fluorescent Toolbox in Biological and Biomedical Research)
Browse Figures
Versions Notes

Abstract

:
Silyl-substituted naphthalene derivatives at the 1- and 1,4-positions were synthesized and their UV absorption, fluorescence spectroscopic properties, and fluorescence lifetimes were determined. Analysis of the results shows that the introduction of silyl groups at these positions of the naphthalene chromophore/fluorophore causes shifts of the absorption maxima to longer wavelengths and increases in fluorescence intensities. Bathochromic shifts of the absorption maxima and increases in fluorescence intensities are also promoted by the introduction of methoxy and cyano groups at the naphthalene 4- and 5-positions. In addition, the fluorescence of 9,10-dicyanoanthracene is efficiently quenched by these naphthalene derivatives with Stern-Volmer plot calculated rate constants that depend on the steric bulk of the silyl groups.

Graphical Abstract

1. Introduction

Organosilicon compounds are environmentally friendly and generally can be readily synthesized from commercially available halosilanes. The photochemistry of organosilicon compounds [1] has been investigated from the perspective of absorption and emission spectroscopic properties of polysilanes [2], the generation of silylenes and disilenes by photoirradiation to oligosilanes [3,4,5,6,7,8], the formation of intramolecular charge transfer complexes of aromatic disilanes [9,10], and photoinduced electron transfer reactions of organosilicon compounds [11,12,13,14]. In addition, the enhancing effects of silyl groups on the fluorescence intensities of aromatic hydrocarbons, such as anthracenes, naphthacenes, pentacenes, triphenylenes, and pyrenes, has been probed and discussed in detail earlier [15,16,17,18,19,20,21,22,23,24,25,26,27,28,29]. Our previous studies in this area have focused on the effects of silyl, silylethynyl, germyl, and stannyl groups on the absorption and fluorescence spectroscopic properties of pyrene [30,31,32,33,34]. In the photochemistry of silylnaphthalenes, the absorption and fluorescence properties as well as the photoreactions of disilanes [35,36,37,38,39] and oligosilanes [40,41,42] have been subjected to detailed investigation. The results of EPR studies and MO calculations of radical ions generated from silylnaphthalenes have also been described [43,44,45,46,47,48]. In spite of this intense activity, fundamental studies of the absorption and fluorescence properties of monosilyl-group substituted naphthalene derivatives have not been carried out. In the effort described below, the effects of silyl substitution on absorption and fluorescence properties of naphthalene derivatives have been determined, and the steric effects of silyl substituents on quenching of 9,10-dicyanoanthracene fluorescence by naphthalenes has been evaluated.

2. Results and Discussion

2.1. Synthesis of Silyl-Substituted Naphthalene Derivatives

In order to evaluate the effects of hydrogen atom and alkyl group containing silyl substituents, an acetylene linkage between the naphthalene ring and silyl groups, and the presence of electron donating (OMe) and electron accepting (CN) groups on the absorption and fluorescence properties of naphthalenes, the naphthalene derivatives 2–14 were prepared (Figure 1). The 1-silylnaphthalenes 2–5 were prepared by sequences involving lithiation of 1-bromonaphthalene with tert-BuLi followed by addition of the appropriate chlorosilanes. The dimethyl-n-octylsilyl group-containing derivative 6 was prepared using a hydrosilylation reaction of 1-octene with the dimethylsilyl substituted naphthalene 3. The 1,4-disilylnaphthalenes 7–9 were prepared by using an initial dilithiation reaction of 1,4-dibromonaphthalene followed by bis-silylation of the aryl bis-lithium intermediate with chlorosilanes. 1-Bromo-4-methoxynaphthalene was employed as the starting material for the route utilized along with a lithiation-silylation sequence to synthesize the methoxy-substituted derivative 10. The naphthalene derivatives 11 and 12, containing 4- and 5-cyano groups respectively, were prepared by employing a cyanation reaction of 1-bromo-4-(trimethylsilyl)naphthalene and a photoinduced electron transfer reaction between 2 and potassium cyanide, respectively. The trimethylsilylethynyl derivatives 13 and 14 were synthesized by using Sonogashira coupling reactions of the corresponding bromonaphthalenes with trimethylsilylacetylene. The detailed synthetic procedures employed to prepare 1–14 are described in the Experimental Section.

2.2. Effects of Hydrogen Atom and Alkyl Group Containing Substituents on the Absorption and Fluorescence Properties of Substituted Naphthalenes

UV-absorption spectra of aerated cyclohexane (ca. 10−4 M) solutions of the naphthalene derivatives 1–6 are displayed in Figure 2. Evaluation of the spectra shows that the absorption maxima of the silyl-substituted naphthalene derivatives 2–6 shift by 8–9 nm to longer wavelengths and their molecular absorption coefficients (ε) increase, compared with those of naphthalene (1). Similarly, analysis of the fluorescence spectra of aerated cyclohexane solutions of these compounds (Figure 3) demonstrates that silyl substitution causes emission maxima to shift to longer wavelengths by 4–5 nm and fluorescence intensities to increase, relative to those of naphthalene. Close examination of these spectra shows that substituents on silicon of the silyl groups (SiMe3, SiMe2H, SiMe2nBu, SiMe2tBu, and SiMe2nOct) have only a small effect on the absorption and fluorescence properties of the naphthalene chromophore/fluorophore. In contrast, silyl-substituents at C-9 of anthracene bring about dramatic changes in absorption and fluorescence properties [20,34]. A possible reason for this phenomenon is steric repulsion, which exists between the C-9 silyl groups and peri-hydrogens at C-1 and C-8 of the anthracene ring. However, this type of effect does normally not occur in naphthalene derivatives, which only possess one peri-hydrogen.

2.3. Absorption and Fluorescence Properties of Mono- and Di-silyl Substituted Naphthalene Derivatives

Absorption and fluorescence spectra of cyclohexane solutions of 1,4-bis(trimethylsilyl)naphthalene (7), 1,4-bis(dimethylsilyl)naphthalene (8), and 1,4-bis(tert-butyldimethylsilyl)naphthalene (9) were recorded in order to compare their photophysical properties with those of 1-(trimethylsilyl)naphthalene (2) and naphthalene (1) (Figure 4 and Figure 5). Analysis of the spectra shows that, in general, the absorption maxima of 7–9 occur at longer wavelengths than those of 2 and that the spectrum of the di-tert-butyldimethylsilyl derivative 9 displays the most dramatic bathochromic shift. In addition, the fluorescence intensities and emission wavelengths of the disilylnaphthalenes 7–9 are observed to increase relative to those of 1 and 2.

2.4. Effects of Electron-Donating and Withdrawing Groups on Absorption and Fluorescence Properties

Since the presence of electron-donating and withdrawing groups can dramatically influence the photophysical properties of organic chromophores/fluorophores, we investigated the influence of such inductive effects by various substituent groups on the absorption and fluorescence properties of 1-(trimethylsilyl)naphthalenes. For this purpose, absorption and fluorescence spectra recorded using cyclohexane solutions of cyanonaphthalenes 11 and 12 and methoxynaphthalene 10 were compared with those of naphthalene and its 1-trimethylsilyl (2) and 1,4-bis-trimethylsilyl (7) derivatives (Figure 6 and Figure 7). As can be deduced from the recorded spectra, the presence of the 4-methoxy (10), 4-cyano (11), and 5-cyano (12) groups results in long wavelength shifts of the absorption maxima and slight increases in the molar absorption coefficients (ε), which is in stark contrast to those of the parent arene. Moreover, the fluorescence intensities of 10–12 are larger than those of 1, 2, and 7.

2.5. Effects of Silylethynyl Group(s) on Absorption and Fluorescence Properties

The results of recent studies have shown that the silylethynyl group(s) brings about bathochromic shifts of the maxima in the absorption spectra of aromatic substances and that these groups lead to increases in fluorescence intensities [24,27,28,29,31]. Consequently, we probed the influence of the silylethynyl group(s) on the absorption and fluorescence properties of naphthalenes 13 and 14, and found that the absorption maxima of the naphthalene chromophore/fluorophore shift to longer wavelengths and ε increases as a consequence of the presence of silylethynyl group(s) (Figure 8). Especially noteworthy is the observation that, in the 1,4-bis-(trimethylsilylethynyl) derivative 14, the absorption maximum is strongly bathochromically shifted to 347 nm and ε increases to 4.4 × 104 mol−1dm3cm−1 in comparison with those of other substances studied. Moreover, the fluorescence intensities of the silylethynyl-substituted naphthalenes 13 and 14 are also larger than the other naphthalene derivatives (Figure 9).

2.6. Fluorescence Quenching of 9,10-Dicyanoanthracene by Silylnaphthalenes

Experiments were carried out to evaluate how the electronic and steric effects of silyl groups govern the ability of naphthalene derivatives to serve as quenchers of the singlet excited state of 9,10-dicyanoanthracene. For this purpose, fluorescence emission intensities of benzene solutions of 9,10-dicyanoanthracene in the presence of various concentrations of 1-methylnaphthalene and the naphthalene derivatives 1–3, 6 and 8 were determined (Figure 10). The rate constants of 9,10-dicyanoanthracene fluorescence quenching, calculated by using Stern-Volmer analysis and falling in range of 5.68 × 109 to 1.06 × 109 M−1s−1, were observed to decrease in the following order: 1-methylnaphthalene > 1 > 3 > 2 > 6 > 8.
Additionally, analysis of the fluorescence profiles shows that weak emission from singlet exciplexes, formed between 9,10-dicyanoanthracene and the naphthalene derivatives, occurs at longer wavelengths. The results indicate that the rate constant for fluorescence quenching is dependent on the steric bulk and not on the electronic effects of the silyl substituents present in the naphthalene quenchers.

2.7. HOMO-LUMO Energy Calculations, Fluorescence Lifetimes, and Fluorescence Quantum Yields

The results described above demonstrate that the introduction of silyl group(s) promotes a shift in the maxima and an increase in molar absorption coefficients (ε) in the absorption spectra of naphthalenes (Table 1). Bathochromic shifts and incremental increases of ε were also observed when electron-withdrawing, electron-donating, and silylethynyl groups are attached to the naphthalene ring. In order to understand these effects, the HOMO and LUMO energies of 1–14 were calculated using the PM3 method. Inspection of the results shows that the HOMO and LUMO energy gaps in these arenes decrease in the following order: 1 > 2–6 > 7–9 > 10–12 > 13–14, a finding that is in good agreement with the experimental absorption spectroscopic results. Specifically, introduction of silyl groups causes an increase in both the HOMO and LUMO energies of naphthalenes and a net overall decrease in energy gaps between these orbitals. In this regard, silyl substituents act as electron-donating groups as a consequence of σ(C-Si)-π*(naphthalene) molecular orbital interactions. Because introduction of silylethynyl group(s) significantly lowers the energy of the naphthalene LUMO, both σ*(C-Si)-π(naphthalene) and σ(C-Si)-π*(naphthalene) orbital interactions are taking place in these substances.
Since both the fluorescence lifetime and the quantum yield are important physical properties of fluorophores, we determined these parameters for a number of the naphthalene compounds synthesized. Fluorescence lifetimes (τs) of the naphthalenes were determined in both aerated and carefully degassed cyclohexane solutions. The accumulated data show that the fluorescence lifetimes of these substances decrease in the following order: 1 > 2–6 > 7–9 > 10–12 > 13–14. In addition, the large differences observed between the fluorescence lifetimes of aerated and degassed solutions indicate that molecular oxygen has a significant fluorescence quenching effect.
Finally, the fluorescence quantum yields (Φf) of selected members of the series of naphthalenes explored in this investigation were determined in thoroughly degassed solutions to exclude the influence of dioxygen. The data produced, which included quantum yield values of Φf 0.30 (2), 0.33 (7), 0.65 (10), 0.66 (11), and 0.85 (14), demonstrate that these substances fluoresce significantly more efficiently than naphthalene (Φf = 0.23 [49]).

3. Experimental

3.1. General

Purifications of solvents were carried out in the following manner: acetonitrile was distilled from P2O5 and then from CaH2. Benzene was distilled from CaH2 and then from Na. Isopropanol was distilled from CaH2. Piperidine was distilled from KOH. THF was distilled from CaH2, and then from Na and Ph2C=O. Other chemicals were used as purchased.
Melting points were determined on a Yanagimoto Yanaco MP-500 Micro Melting Point apparatus, and are uncorrected. 1H- and 13C-NMR spectra were recorded using a Varian MERCURY-300 (300 MHz and 75 MHz, respectively) spectrometer with Me4Si as an internal standard. Mass spectra (CI) were recorded utilizing a JEOL JMS-DX303 spectrometer. High-performance liquid chromatographic (HPLC) separations were performed using a recycling preparative HPLC, equipped with a Jasco PU-2086 Plus pump, RI-2031 Plus differential refractometer, Megapak GEL 201F columns (GPC) with CHCl3 as the eluent. HPLC separations (packed silica gel) were performed by a recycling preparative HPLC equipped with Jasco PU-987 pump, UV-970 uv-vis detector, CHEMCOSORB I-5Si column (Chemco Scientific Co., Ltd.) with hexane and EtOAc as eluents. Column chromatography was conducted by using MERCK silica gel 60 (0.063–0.200 mm). Thin layer chromatography (TLC) was performed using MERCK silica gel 60 F254.
UV-vis and fluorescence spectra were recorded using Jasco UV-160 and FP-770 spectrophotometers, respectively, employing a 1 cm pathlength cell at 298 K. Solutions of the naphthalenes in spectral grade cyclohexane (ca. 10−4 M (1–12) or 10−5 M (13, 14)) were prepared under aerated conditions. Excitation wavelengths were the longest wavelength absorption maxima unless otherwise noted and absorbances at the excitation wavelengths were 0.5. Fluorescence lifetimes were measured by using a HORIBA NAES-550 nano-second fluorometer equipped with a SSU-111A photomultiplier, SCU-121A optical chamber, SGM-121A monochromator, and LPS-111 lamp power supply. All decay curves were fitted by utilizing a single exponential decay with chi square values less than 2. Fluorescence quantum yields (Φf) were determined using carefully degassed (freeze-pump-thaw method) cyclohexane solutions. Standards for fluorescence quantum yields are listed in the footnotes of Table 1. Fluorescence quenching experiments were performed by adding benzene solutions of quenchers (1.00 M (1-methylnaphthalene and 1) or 0.25 M (2, 3, 6, and 8)) to 10−5 M benzene solutions of 9,10-dicyanoanthracene (λex = 426 nm). Stern-Volmer plots were obtained by using fluorescence intensities at λex = 437 nm and the reported fluorescence lifetime of 9,10-dicyanoanthracene (τs = 15.3 ns [50]).

3.2. Preparation of Silyl-Substituted Naphthalene Derivatives

1-(Trimethylsilyl)naphthalene (2). A tert-butyllithium (1.49 M in n-pentane, 30.0 mL, 44.7 mmol) solution was slowly added to argon-purged THF solution (100 mL) of 1-bromonaphthalene (2.80 mL, 20.0 mmol) at −78 °C. The resulting solution was stirred for 30 min at −78 °C before adding Me3SiCl (7.6 mL, 60.1 mmol). Subsequently, the solution was warmed to room temperature and stirred overnight before slowly adding saturated aqueous NaHCO3. The Et2O layer obtained by extraction was dried over Na2SO4, filtered, and concentrated in vacuo to give a residue which was subjected to column chromatography on silica gel (eluent: hexane) followed by HPLC (GPC). These procedures yielded 1-(trimethylsilyl)naphthalene (2, 96% yield) as a colorless liquid, 1H-NMR (CDCl3) δ 0.47 (s, 9 H), 7.42–7.53 (m, 3 H), 7.69 (dd, J = 1.28, 6.78 Hz, 1 H), 7.83–7.88 (m, 2 H), 8.08–8.11 (m, 1 H).
1-(Dimethylsilyl)naphthalene (3). This substance was prepared by using a similar procedure as employed in the preparation of 2, starting with 1-bromonaphthalene (2.80 mL, 20.0 mmol), tert-butyllithium (1.49 M in n-pentane, 28.6 mL, 42.6 mmol), Me2HSiCl (6.7 mL, 60.3 mmol) and THF (150 mL). Purification of the product by using column chromatography on silica gel (eluent: hexane, Rf = 0.5–0.6) followed by HPLC (GPC) produced 1-(dimethylsilyl)naphthalene (3, 88% yield) as a colorless liquid; 1H-NMR (CDCl3) δ 0.49 (d, J = 3.85 Hz, 6 H), 4.82–4.90 (m, 1 H), 7.45–7.55 (m, 3 H), 7.72 (dd, J = 1.37, 6.68 Hz, 1 H), 7.84–7.89 (m, 2 H), 8.10–8.14 (m, 1 H).
1-(n-Butyldimethylsilyl)naphthalene (4). This substance was prepared by using a similar procedure as employed in the preparation of 2, starting with 1-bromonaphthalene (4.2 mL, 30.0 mmol), n-butyllithium (1.5 M in n-hexane, 37.5 mL, 56.3 mmol), Me2HSiCl (10.0 mL, 90.0 mmol) and THF (150 mL). GC-Mass analysis of the crude product mixture indicated that it contained 1-(dimethylsilyl)naphthalene (3, 81%) and 1-(n-butyldimethylsilyl)naphthalene (4, 16%). Separation by using column chromatography on silica gel (eluent: hexane) followed by HPLC (GPC) yielded 1-(n-butyldimethylsilyl)naphthalene (4) as a colorless liquid; 1H-NMR (CDCl3) δ 0.45 (s, 6 H), 8.82–0.87 (m, 3 H), 0.95–1.00 (m, 2 H), 1.29–1.35 (m, 4 H), 7.41–7.52 (m, 3 H), 7.67 (dd, J = 1.28, 6.78 Hz, 1 H), 7.83–7.87 (m, 2 H), 8.07–8.10 (m, 1 H).
1-(tert-Butyldimethylsilyl)naphthalene (5). This substance was prepared by using a similar procedure as employed in the preparation of 2, starting with 1-bromonaphthalene (1.40 mL, 10.0 mmol), tert-butyllithium (1.51 M in n-pentane, 15.0 mL, 22.7 mmol), tBuMe2SiCl (3.8 g, 25.2 mmol) and THF (100 mL). Purification by using column chromatography on silica gel (eluent: hexane, Rf = 0.7) followed by HPLC(GPC) gave 1-(tert-butyldimethylsilyl)naphthalene (5, 43% yield) as a colorless solid; mp 75–77 °C; 1H-NMR (CDCl3) δ 0.50 (s, 6 H), 0.94 (s, 9 H), 7.42–7.47 (m, 3 H), 7.70 (dd, J = 1.28, 6.96 Hz, 1 H), 7.82–7.86 (m, 2 H), 8.10–8.14 (m, 1 H).
1-(Dimethyl-n-octylsilyl)naphthalene (6). An i-PrOH (0.15 mL) solution containing H2PtCl6•6H2O (5.0 mg, 0.009 mmol) and 1-octene (1.57 mL, 10.0 mmol) was heated to 70 °C before slowly adding 10 mL of a benzene solution of 1-(dimethylsilyl)naphthalene (3, 1.590 g, 8.5 mmol). After stirring the solution at reflux for 24 h, benzene and water were added. Extraction with benzene gave an organic layer that was dried over Na2SO4 and concentrated in vacuo. Subjection of the residue to column chromatography on silica gel (eluent: hexane, Rf = 0.6–0.7) followed by HPLC(GPC) gave 1-(dimethyl-n-octylsilyl)naphthalene (6, 55% yield) as a colorless liquid; 1H-NMR (CDCl3) δ 0.44 (s, 6 H), 0.85 (t, J = 6.78 Hz, 3 H), 0.94–1.06 (m, 2 H), 1.21–1.30 (m, 12 H), 7.41–7.53 (m, 3 H), 7.67 (dd, J = 1.28, 6.78 Hz, 1 H), 7.83–7.87 (m, 2 H), 8.07–8.10 (m, 1 H).
1,4-Dibromonaphthalene. To a stirred CCl4 mixture (150 mL) naphthalene (1, 12.817 g, 100 mmol) and iron powder (59 mg, 1.1 mmol), a CCl4 solution (20 mL) of Br2 (10.3 mL, 201 mmol) was slowly added under stirring. The resulting mixture was stirred vigorously for 25 h at room temperature. Concentrated HCl was slowly added until the pH of the mixture reached 7. Extraction with Et2O gave an organic layer that was dried over Na2SO4 and concentrated in vacuo to give a solid. Recrystallization from EtOH (twice) yielded 1,4-dibromonaphthalene (56% yield) as a colorless solid; 1H-NMR (CDCl3) δ 7.64 (s, 2 H), 7.65 (dd, J = 3.48, 6.41 Hz, 2 H), 8.26 (dd, J = 3.20, 6.50 Hz, 2 H).
1,4-Bis(trimethylsilyl)naphthalene (7). A tert-butyllithium (1.49 M in n-pentane, 23.5 mL, 35.0 mmol) solution was slowly added to as argon-purged THF solution (150 mL) containing 1,4-dibromo-naphthalene (2.000 g, 7.0 mmol) at −78 °C. After stirring for 30 min, Me3SiCl (5.3 mL, 42.0 mmol) was added at −78 °C and the resulting solution was warmed to room temperature and stirred overnight. Slow addition of saturated aqueous NaHCO3 followed by extraction with Et2O gave an organic layer that was dried over Na2SO4 and concentrated in vacuo. The residue was subjected to column chromatography on silica gel (eluent: hexane, Rf = 0.65) followed by recrystallization from MeOH and yielded 1,4-bis(trimethylsilyl)naphthalene (7, 80% yield) as a colorless solid; mp 88–89 °C; 1H-NMR (CDCl3) δ 0.46 (s, 18 H), 7.50 (dd, J = 3.48, 6.41 Hz, 2 H), 7.66 (s, 2 H), 8.13 (dd, J = 3.30, 6.41 Hz, 2 H).
1,4-Bis(dimethylsilyl)naphthalene (8). This substance was prepared analogously to 7, starting with 1,4-dibromonaphthalene (503 mg, 1.8 mmol), tert-butyllithium (1.49 M in n-pentane, 5.0 mL, 7.5 mmol), Me2HSiCl (1.2 mL, 10.8 mmol) and THF (100 mL). Purification of the product by using column chromatography on silica gel (eluent: hexane, Rf = 0.6) followed by HPLC(GPC) gave 1,4-bis(dimethylsilyl)naphthalene (8, 70% yield) as a colorless liquid; 1H-NMR (CDCl3) δ 0.49 (d, J = 3.85 Hz, 12 H), 4.85 (m, 2 H), 7.53 (dd, J = 3.30, 6.41 Hz, 2 H), 7.70 (s, 2 H), 8.14 (dd, J = 3.30, 6.41 Hz, 2 H).
1,4-Bis(tert-butyldimethylsilyl)naphthalene (9). This substance was prepared analogously to 7, starting with 1,4-dibromonaphthalene (1.400 g, 4.9 mmol), tert-butyllithium (1.51 M in n-pentane, 8.2 mL, 12.4 mmol), tBuMe2SiCl (2.183 g, 14.5 mmol) and THF (100 mL). Purification of the product by using column chromatography on silica gel (eluent: hexane, Rf = 0.8) followed by HPLC(GPC) and recrystallization from MeOH gave 1,4-bis(tert-butyldimethylsilyl)naphthalene (9, 12% yield) as colorless needle-like crystals; mp 100–101 °C; 1H-NMR (CDCl3) δ 0.50 (s, 12 H), 0.95 (s, 18 H), 7.43 (dd, J = 3.39, 6.50 Hz, 2 H), 7.65 (s, 2 H), 8.12 (dd, J = 3.39, 6.50 Hz, 2 H).
1-Methoxy-4-(trimethylsilyl)naphthalene (10). To a CCl4 solution (50 mL) of 1-methoxynaphthalene (1.597 g, 10.1 mmol), a CCl4 solution (20 mL) of Br2 (0.47 mL, 9.2 mmol) was slowly added under stirring. After stirring the solution vigorously for 25 h at room temperature, concentrated HCl was added slowly until the pH of the mixture reached 7. Extraction with Et2O gave an organic layer that was dried over Na2SO4 and concentrated in vacuo to give crude 1-bromo-4-methoxynaphthalene (2.373 g, ca 10.0 mmol) as a yellow liquid. To an argon-purged THF solution (100 mL) of crude 1-bromo-4-methoxynaphthalene (2.373 g, ca 10.0 mmol), tert-butyllithium (1.40 M in n-pentane, 14.3 mL, 20.0 mmol) was slowly added at −78 °C. After stirring the solution for 30 min, Me3SiCl (3.8 mL, 30.1 mmol) was added at −78 °C. The resulting solution was warmed to room temperature, stirred overnight and diluted by addition of saturated aqueous NaHCO3. Extraction with Et2O gave an organic layer that was dried over Na2SO4 and concentrated in vacuo. The residue was subjected to column chromatography on silica gel (eluent: hexane/EtOAc = 9/1, Rf = 0.8–0.9) followed by HPLC (GPC) to give 1-methoxy-4-(trimethylsilyl)naphthalene (10, 65% yield based on 1-methoxynaphthalene) as a colorless liquid; 1H-NMR (CDCl3) δ 0.44 (s, 9 H), 4.00 (s, 3 H), 6.80 (d, J = 7.69 Hz, 1 H), 7.44–7.54 (m, 2 H), 7.60 (d, J = 7.69 Hz, 1 H), 8.02–8.06 (m, 1 H), 8.31–8.34 (m, 1 H).
1-Cyano-4-(trimethylsilyl)naphthalene (11). To a an argon-purged THF solution (150 mL) of 1,4-dibromonaphthalene (1.400 g, 4.9 mmol), tert-butyllithium (1.51 M in n-pentane, 3.9 mL, 5.9 mmol) was slowly added at −78 °C. After stirring for 30 min, Me3SiCl (0.75 mL, 5.9 mmol) was added at −78 °C. The resulting solution was warmed to room temperature and stirred overnight. Saturated NaHCO3 aqueous solution was slowly added. Extraction with Et2O gave an organic layer that was dried over Na2SO4 and concentrated in vacuo. Subjection of the residue to column chromatography on silica gel (eluent: hexane, Rf = 0.8) gave crude 1-bromo-4-(trimethylsilyl)naphthalene (991 mg, ca. 3.5 mmol) as a colorless liquid. A solution containing N-methyl-2-pyrrolidone (NMP, 50 mL), crude 1-bromo-4-(trimethylsilyl)naphthalene (991 mg, ca 3.5 mmol), and CuCN (310 mg, 3.5 mmol) was stirred at reflux (ca. 200 °C) for 15 h, cooled to room temperature, and diluted by the addition of aqueous NH3, benzene, and Et2O. The organic layer was separated, washed with dilute aqueous NH3 solution (twice), H2O (twice), and brine (twice), subsequently dried over Na2SO4, and concentrated in vacuo. Subjection of the residue to column chromatography on silica gel (eluent: benzene, Rf = 0.75) followed by HPLC(GPC) yielded 1-cyano-4-(trimethylsilyl)naphthalene (11, 30% yield) as a colorless liquid; 1H-NMR (CDCl3) δ 0.49 (s, 9 H), 7.61–7.72 (m, 2 H), 7.72 (d, J = 7.14 Hz, 1 H), 7.86 (d, J = 7.14 Hz, 1 H), 8.16–8.19 (m, 1 H), 8.28–8.31 (m, 1 H).
1-Cyano-5-(trimethylsilyl)naphthalene (12) [51,52]. Dioxygen was bubbled for 20 min through a solution of KCN (195 mg, 3.0 mmol), 1-(trimethylsilyl)naphthalene (2, 60 mg, 0.3 mmol), and 9-cyanophenanthrene (8 mg, 0.04 mmol) in H2O (0.5 mL) and CH3CN (3 mL) in a cyrindrical Pyrex glass vessel (φ = 8 mm, l = 20 cm). This solution was irradiated for 10 h at room temperature with a 300 W high-pressure mercury lamp (Eikosha, PIH-300), under continuous aeration with dioxygen. The temperature of the solution was kept constant arround room temperature during irradiation with a water cooling system. After the reaction was completed (as monitored by TLC), benzene, Et2O, and brine were added. The separated organic phase was dried over Na2SO4 and concentrated in vacuo, giving a residue that was subjected to column chromatography on silica gel (eluent: toluene, Rf = 0.5–0.6) followed by HPLC (GPC) and HPLC (packed silica gel) to yield 1-cyano-5-(trimethylsilyl)naphthalene (12, 35% yield) and 1-cyano-4-(trimethylsilyl)naphthalene (11, 36% yield). Data for 12: 1H-NMR (CDCl3) δ 0.48 (s, 9 H), 7.55 (dd, J = 7.23, 8.51 Hz, 1 H), 7.65 (dd, J = 6.78, 8.42 Hz, 1 H), 7.82 (dd, J = 1.28, 6.78 Hz, 1 H), 7.92 (dd, J = 1.10, 7.14 Hz, 1 H), 8.27–8.36 (m, 2 H).
1-(Trimethylsilylethynyl)naphthalene (13). A N2-purged solution containing 1-bromonaphthalene (2.8 mL, 20.0 mmol), trimethylsilylacetylene (3.3 mL, 23.9 mmol), Pd(PPh3)2Cl2 (565 mg, 0.8 mmol), CuI (82 mg, 0.4 mmol), and piperidine (50 mL) was stirred for 2 h at room temperature and then at 80 °C overnight. After cooling to room temperature, piperidine was removed by distillation under reduced pressure. Concentrated HCl was added to the residue and the solution was extracted with CHCl3. The separated organic phase was dried over Na2SO4 and concentrated in vacuo, giving a residue that was subjected to column chromatography on silica gel [eluent: gradient from hexane to hexane/benzene = 4/1, Rf = 0.6 (hexane)] followed by HPLC (GPC) to yield 1-(trimethylsilylethynyl)naphthalene (13, 43% yield) as a colorless liquid; 1H-NMR (CDCl3) δ 0.34 (s, 9 H), 7.40 (dd, J = 7.14, 8.24 Hz, 1 H), 7.48–7.60 (m, 2 H), 7.70 (dd, J = 1.10, 7.14 Hz, 1 H), 7.80–7.85 (m, 2 H), 8.33 (dd, J = 0.73, 8.24 Hz, 1 H).
1,4-Bis(trimethylsilylethynyl)naphthalene (14). A N2-purged solution containing 1,4-dibromo-naphthalene (2.860 g, 10.0 mmol), trimethylsilylacetylene (3.4 mL, 24.6 mmol), Pd(PPh3)2Cl2 (560 mg, 0.8 mmol), CuI (76 mg, 0.4 mmol), and piperidine (50 mL) was stirred for 2 h at room temperature and then at 80 °C overnight. After cooling to room temperature, piperidine was removed by distillation under reduced pressure. Concentrated HCl was added to the residue and the solution was extracted with CHCl3. The separated organic phase was dried over Na2SO4 and concentrated in vacuo, giving a residue that was subjected to column chromatography on silica gel [eluent: gradient from hexane to hexane/benzene = 4/1, Rf = 0.4 (hexane)] followed by HPLC (GPC) and recrystallization from MeOH to yield 1,4-bis(trimethylsilylethynyl)naphthalene (14, 95% yield) as a colorless solid; mp 73.5–75 °C; 1H-NMR (CDCl3) δ 0.33 (s, 18 H), 7.61 (dd, J = 3.30, 6.41 Hz, 2 H), 7.62 (s, 2 H), 8.33 (dd, J = 3.11, 6.41 Hz, 2 H); 13C-NMR (CDCl3) δ -14.72, 86.42, 87.79, 106.50, 111.53, 112.24, 114.96, 118.02; MS (CI), m/z (%) = 73 (1), 305 (4), 321 (M++1, 100). Anal. Calcd for C20H24Si2: C, 74.93; H, 7.55. Found: C, 74.90; H, 7.40.

4. Conclusions

In the study described above, the absorption and fluorescence properties of 1-silyl-, 1,4-disilyl-, 1-silylethynyl- and 1,4-disilylethynyl-naphthalenes were evaluated. The findings show that the absorption maxima of the 1-silyl- and 1,4-disilylnaphthalenes occur at longer wavelengths with larger ε values than those of naphthalene (1). Bathochromic effects and incremental increases in ε were also observed for electron-donating, electron-withdrawing and silylethynyl group substituted naphthalenes. The results of PM3 calculations of HOMO-LUMO energy gaps are in accord with the experimental observations. Furthermore, fluorescence quantum efficiencies were found to increase and fluorescence lifetimes decrease when the silyl substituents are present on the naphthalene ring system. Also, the respective fluorescence quantum yield and lifetime of 1,4-bis(trimethylsilylethynyl)naphthalene (14) were found to be 0.85 and 2 ns. Finally, the fluorescence of 9,10-dicyanoanthracene is efficiently quenched by silylnaphthalenes, with quenching rate constants that depend on the steric bulk and not the electronic properties of these substituents.

Acknowledgements

This study was financially supported by Grant-in-Aids for Scientific Research on Priority Areas “Molecular Nano Dynamics” (17034056), Scientific Research (C) (20550049, 23550047), and Cooperation for Innovative Technology and Advanced Research in Evolutional Areas (CITY AREA) program from the Ministry of Education, Culture, Sports, Science and Technology (MEXT) of Japan. We also acknowledge a research grant from The Mazda Foundation.

References and Notes

  1. Steinmetz, M.G. Organosilane Photochemistry. Chem. Rev. 1995, 95, 1527–1588. [Google Scholar] [CrossRef]
  2. Miller, R.D.; Michl, J. Polysilane High Polymers. Chem. Rev. 1989, 89, 1359–1410. [Google Scholar] [CrossRef]
  3. West, R.; Fink, M.J.; Michl, J. Tetramesityldisilene, a Stable Compound Containing a Silicon-Silicon Double Bond. Science 1981, 214, 1343–1344. [Google Scholar] [CrossRef] [PubMed]
  4. Murakami, S.; Collins, S.; Masamune, S. Photo-Induced Fragmentation of Tri-t-butyl-trimethylsilylcyclotrisilanes and E,Z-Interconversion of Di-t-butyldimethylsilyldisilenes. Tetrahedron Lett. 1984, 25, 2131–2134. [Google Scholar] [CrossRef]
  5. Michalczyk, M.J.; West, R.; Michl, J. Kinetics of Thermal Cis-Trans Isomerizations in Disilenes. Organometallics 1985, 4, 826–829. [Google Scholar] [CrossRef]
  6. Dewan, J.C.; Murakami, S.; Snow, J.T.; Collins, S.; Masamune, S. Crystal Structures of Two Isomeric Cyclotrisilanes. J. Chem. Soc. Chem. Commun. 1985, 892–894. [Google Scholar] [CrossRef]
  7. Yokelson, H.B.; Maxka, J.; Siegel, D.A.; West, R. 29Si NMR Observation of an Unprecedented Rearrangement in Tetraaryldisilenes. J. Am. Chem. Soc. 1986, 108, 4239–4241. [Google Scholar] [CrossRef]
  8. Shepherd, B.D.; Powell, D.R.; West, R. Synthesis, Geometrical Isomerism, and Crystal Structure of a Highly Hindered Disilene. Organometallics 1989, 8, 2664–2669. [Google Scholar] [CrossRef]
  9. Shizuka, H.; Sato, Y.; Ueki, Y.; Ishikawa, M.; Kumada, M. The 2pπ-3dπ Interaction in Aromatic Silanes. J. Chem. Soc. Faraday Trans. 1 1984, 80, 341–357. [Google Scholar] [CrossRef]
  10. Sakurai, H. Structure and reaction controlled by strong sigma/pi interactions. Pure Appl. Chem. 1987, 59, 1637–1646. [Google Scholar] [CrossRef]
  11. Yoon, U.C.; Mariano, P.S. Mechanistic and Synthetic Aspects of Amine-Enone Single Electron Transfer Photochemistry. Acc. Chem. Res. 1992, 25, 233–240. [Google Scholar] [CrossRef]
  12. Mizuno, K.; Tamai, T.; Sugimoto, A.; Maeda, H. Photoinduced Electron Transfer Reactions of Organosilicon Compounds. In Advances in Electron Transfer Chemistry; Mariano, P.S., Ed.; JAI Press: London, UK, 1999; Volume 6, pp. 131–165. [Google Scholar]
  13. Tamai, T.; Hayamizu, T.; Mizuno, K. Photoinduced Electron Transfer Reactions of Organosilicon Compounds. In Handbook of Photochemistry and Photobiology; Nalwa, H.S., Ed.; American Scientific Publishers: Stevenson Ranch, CA, USA, 2003; pp. 125–156. [Google Scholar]
  14. Mizuno, K.; Hayamizu, T.; Maeda, H. Regio- and stereoselective functionalization of electron-deficient alkenes by use of organosilicon compounds via photoinduced electron transfer. Pure Appl. Chem. 2003, 75, 1049–1054. [Google Scholar] [CrossRef]
  15. Daney, M.; Vanucci, C.; Desvergne, J.-P.; Castellan, A.; Bouas-Laurent, H. Photochemistry of Bichromophoric Systems. Silicon Guided Intramolecular 9,10:1’,2’ Anthracene Photodimerization in Bis(9-anthryl)dimethylsilane. Tetrahedron Lett. 1985, 26, 1505–1508. [Google Scholar] [CrossRef]
  16. Desvergne, J.-P.; Bitit, N.; Castellan, A.; Webb, M.; Bouas-Laurent, H. Non-conjugated Bichromophoric Systems. Part 4. Synthesis and Photochemical Study of Bis-9-anthryls with a Four-membered Chain; Influence of the Replacement of Methylene Links by Oxygen Atoms or Dimethylsilyl Groups on the Formation of Intramolecular Excimers and Photocyclomers. J. Chem. Soc. Perkin Trans. 2 1988, 1885–1894. [Google Scholar]
  17. Declercq, D.; De Schryver, F.C.; Miller, R.D. Fluorescence behaviour of pyrene substituted tri- and hexa-silanes. Chem. Phys. Lett. 1991, 186, 467–473. [Google Scholar] [CrossRef]
  18. Declercq, D.; Delbeke, P.; De Schryver, F.C.; Van Meervelt, L.; Miller, R.D. Ground- and Excited-State Interactions in Di-1-pyrenyl-Substituted Oligosilanes. J. Am. Chem. Soc. 1993, 115, 5702–5708. [Google Scholar] [CrossRef]
  19. Suzuki, H.; Satoh, S.; Kimata, Y.; Kuriyama, A. Synthesis and Properties of Poly(methylphenylsilane) Containing Anthracene Units. Chem. Lett. 1995, 451–452. [Google Scholar] [CrossRef]
  20. Kyushin, S.; Ikarugi, M.; Goto, M.; Hiratsuka, H.; Matsumoto, H. Synthesis and Electronic Properties of 9,10-Didilylanthracenes. Organometallics 1996, 15, 1067–1070. [Google Scholar] [CrossRef]
  21. Yamaguchi, S.; Akiyama, S.; Tamao, K. Synthesis, Structures, Photophysical Properties, and Dynamic Stereochemistry of Tri-9-anthrylsilane Derivatives. Organometallics 1998, 17, 4347–4352. [Google Scholar] [CrossRef]
  22. Desvergne, J.-P.; Bonneau, R.; Dörr, G.; Bouas-Laurent, H. Photoprotodesilylation of 9-trimethylsilylanthracene in alcohols. Photochem. Photobiol. Sci. 2003, 2, 289–296. [Google Scholar] [CrossRef] [PubMed]
  23. Kyushin, S.; Takemasa, N.; Matsumoto, H.; Horiuchi, H.; Hiratsuka, H. 2,3,6,7,10,11-Hexakis(dimethylsilyl)triphenylene. Chem. Lett. 2003, 32, 1048–1049. [Google Scholar] [CrossRef]
  24. Karatsu, T.; Hazuku, R.; Nishioka, D.; Yagai, S.; Kobayashi, N.; Kitamura, A. Photoluminescence and Electroluminescence of 9,10-Bis(silylethynyl)anthracene. J. Photopolym. Sci. Tech. 2005, 18, 65–68. [Google Scholar]
  25. Kyushin, S.; Ishikita, Y.; Matsumoto, H.; Horiuchi, H.; Hiratsuka, H. Yellow-green Fluorescence of 5,11- and 5,12-Bis(diisopropylsilyl)naphthacenes. Chem. Lett. 2006, 35, 64–65. [Google Scholar] [CrossRef]
  26. Kyushin, S.; Matsuura, T.; Matsumoto, H. 2,3,4,5-Tetrakis(dimethylsilyl)thiophene: The First 2,3,4,5-Tetrasilylthiophene. Organometallics 2006, 25, 2761–2765. [Google Scholar] [CrossRef]
  27. Bénard, C.P.; Geng, Z.; Heuft, M.A.; VanCrey, K.; Fallis, A.G. Double Diels-Alder Strategies to Soluble 2,9- and 2,9,6,13-Tetraethynylpentacenes, Photolytic [4 + 4] Cycloadditions, and Pentacene Crystal Packing. J. Org. Chem. 2007, 72, 7229–7236. [Google Scholar] [CrossRef] [PubMed]
  28. Karatsu, T.; Hazuku, R.; Asuke, M.; Nishigaki, A.; Yagai, S.; Suzuri, Y.; Kita, H.; Kitamura, A. Blue electroluminescence of silyl substituted anthracene derivatives. Org. Electronics 2007, 8, 357–366. [Google Scholar] [CrossRef]
  29. Asai, K.; Konishi, G.; Nakajima, Y.; Kawauchi, S.; Ozawa, F.; Mizuno, K. Enhanced absorption and fluorescence efficiency of silylethynyl-functionalized oligothiophenes and thieno[3,2-b]thiophene. J. Organomet. Chem. 2011, 696, 1266–1271. [Google Scholar] [CrossRef]
  30. Maeda, H.; Inoue, Y.; Ishida, H.; Mizuno, K. UV Absorption and Fluorescence Properties of Pyrene Derivatives Having Trimethylsilyl, Trimethylgermyl, and Trimethylstannyl Groups. Chem. Lett. 2001, 1224–1225. [Google Scholar] [CrossRef]
  31. Maeda, H.; Maeda, T.; Mizuno, K.; Fujimoto, K.; Shimizu, H.; Inouye, M. Alkynylpyrenes as Improved Pyrene-Based Biomolecular Probes with the Advantages of High Fluorescence Quantum Yields and Long Absorption/Emission Wavelengths. Chem. Eur. J. 2006, 12, 824–831. [Google Scholar] [CrossRef] [PubMed]
  32. Ara, A.M.; Iimori, T.; Nakabayashi, T.; Maeda, H.; Mizuno, K.; Ohta, N. Electric Field Effects on Absorption and Fluorescence Spectra of Trimethylsilyl- and Trimethylsilylethynyl-Substituted Compounds of Pyrene in a PMMA Film. J. Phys. Chem. B 2007, 111, 10687–10696. [Google Scholar] [CrossRef] [PubMed]
  33. Tamai, T.; Watanabe, M.; Maeda, H.; Mizuno, K. Fluorescence Polymer Particles Incorporating Pyrene Derivatives. J. Polym. Sci. Part A Polym. Chem. 2008, 46, 1470–1475. [Google Scholar] [CrossRef]
  34. Maeda, H.; Ishida, H.; Inoue, Y.; Merpuge, A.; Maeda, T.; Mizuno, K. UV absorption and fluorescence properties of fused aromatic hydrocarbons having trimethylsilyl, trimethylgermyl, and trimethylstannyl groups. Res. Chem. Intermed. 2009, 35, 939–948. [Google Scholar] [CrossRef]
  35. Pitt, C.G.; Carey, R.N.; Toren, E.C., Jr. Nature of the Electronic Interactions in Aryl-Substituted Polysilanes. J. Am. Chem. Soc. 1972, 94, 3806–3811. [Google Scholar] [CrossRef]
  36. Ishikawa, M.; Oda, M.; Miyoshi, N.; Fábry, L.; Kumada, M.; Yamabe, T.; Akagi, K.; Fukui, K. Photochemically Generated Silicon-Carbon Double-Bonded Intermediates. 10. Photochemical Behavior of 1-Disilanyl- and 2-Disilanylnaphthalenes. J. Am. Chem. Soc. 1979, 101, 4612–4618. [Google Scholar] [CrossRef]
  37. Shizuka, H.; Obuchi, H.; Ishikawa, M.; Kumada, M. Photochemical and Photophysical Behaviour of Phenylsilanes and Naphthylsilanes. J. Chem. Soc. Faraday Trans. 1 1984, 80, 383–401. [Google Scholar] [CrossRef]
  38. Ohshita, J.; Ohsaki, H.; Ishikawa, M.; Tachibana, A.; Kurosaki, Y.; Yamabe, T.; Minato, A. Silicon-Carbon Unsaturated Compounds. 26. Photochemical Behavior of 1,4- and 1,5-Bis(pentamethyldisilanyl)naphthalene. Organometallics 1991, 10, 880–887. [Google Scholar] [CrossRef]
  39. Ohshita, J.; Ohsaki, H.; Ishikawa, M.; Tachibana, A.; Kurosaki, Y.; Yamabe, T.; Tsukihara, T.; Takahashi, K.; Kiso, Y. Silicon-Carbon Unsaturated Compounds. 29. Photochemical Behavior of 2,6- and 2,7-Bis(pentamethyldisilanyl)naphthalene. Organometallics 1991, 10, 2685–2695. [Google Scholar] [CrossRef]
  40. Karatsu, T.; Shibata, T.; Nishigaki, A.; Fukui, K.; Kitamura, A. π-π and σ-π Interactions in α,ω-Dinaphthyl and -Dianthryl Oligosilanes in Solution. Chem. Lett. 2001, 994–995. [Google Scholar] [CrossRef]
  41. Karatsu, T.; Shibata, T.; Nishigaki, A.; Kitamura, A.; Hatanaka, Y.; Nishimura, Y.; Sato, S.; Yamazaki, I. π-π and σ-π Interactions in α,ω-Di-(9-anthryl) and Di-(1-naphthyl) Oligosilanes Studied by Time-Resolved Fluorescence in Solution. J. Phys. Chem. B 2003, 107, 12184–12191. [Google Scholar] [CrossRef]
  42. Karatsu, T.; Terasawa, M.; Yagai, S.; Kitamura, A.; Nakamura, T.; Nishimura, Y.; Yamazaki, I. Time-resolved fluorescence of α-(9-anthryl)-ω-(1-naphthyl)-oligosilanes: Intramolecular electronic energy and charge transfer through π-π and σ-π interactions. J. Organomet. Chem. 2004, 689, 1029–1035. [Google Scholar] [CrossRef]
  43. Gerson, F.; Heinzer, J.; Bock, H.; Alt, H.; Seidl, H. ESR.-Messungen an Radikal-Anionen Trimethylsilyl-substituierter π-Elektronensysteme. Helv. Chim. Acta 1968, 51, 707–718. [Google Scholar] [CrossRef]
  44. Allred, A.L.; Bush, L.W. Electron Spin Resonance Studies of Silicon- and Germanium-Substituted Anion Radicals. J. Am. Chem. Soc. 1968, 90, 3352–3360. [Google Scholar] [CrossRef]
  45. Evans, A.G.; Jerome, B.; Rees, N.H. The dπ-pπ interaction in trimethylsilyl substituted naphthalenes. I. Study using polarography, andcharge transfer and ultraviolet spectroscopy. J. Chem. Soc. Perkin Trans. 2 1973, 447–452. [Google Scholar] [CrossRef]
  46. Evans, A.G.; Jerome, B.; Rees, N.H. dπ-pπ Interaction in Trimethylsilyl-substituted Naphthalenes. Part II. Electron Spin Resonance Studies. J. Chem. Soc. Perkin Trans. 2 1973, 2091–2093. [Google Scholar] [CrossRef]
  47. Sipe, H.J., Jr.; West, R. Electron Spin Resonance Studies of Group IV Organometallic Radical Anions. J. Organomet. Chem. 1974, 70, 353–366. [Google Scholar] [CrossRef]
  48. Kaim, W.; Tesmann, H.; Bock, H. Me3C-, Me3Si-, Me3Ge-, Me3Sn- und Me3Pb-substituierte Benzol- und Naphthalin-Derivate und ihre Radikalanionen. Chem. Ber. 1980, 113, 3221–3234. [Google Scholar] [CrossRef]
  49. Berlman, I.B. Handbook of Fluorescence Spectra of Aromatic Molecules, 2nd ed.; Academic Press, Inc.: New York, NY, USA, 1971. [Google Scholar]
  50. Eriksen, J.; Foote, C.S. Electron-Transfer Fluorescence Quenching and Exciplexes of Cyano-Substituted Anthracenes. J. Phys. Chem. 1978, 82, 2659–2662. [Google Scholar] [CrossRef]
  51. Mizuno, K.; Pac, C.; Sakurai, H. Photochemical Cyanation of Aromatic Hydrocarbons with Cyanide Anion. J. Chem. Soc. Chem. Commun. 1975, 553. [Google Scholar] [CrossRef]
  52. Yasuda, M.; Pac, C.; Sakurai, H. Photochemical Reactions of Aromatic Compounds. Part 34. Direct Photocyanation of Arenes with Sodium Cyanide in the Presence of Electron Acceptors. J. Chem. Soc. Perkin Trans. 1 1981, 746–750. [Google Scholar] [CrossRef]
Sample Availability: Samples of the compounds are not available from the authors.
Molecules 17 05108 g001 550

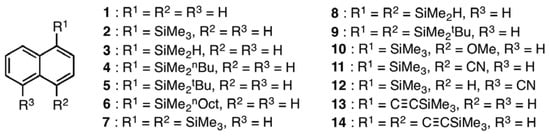

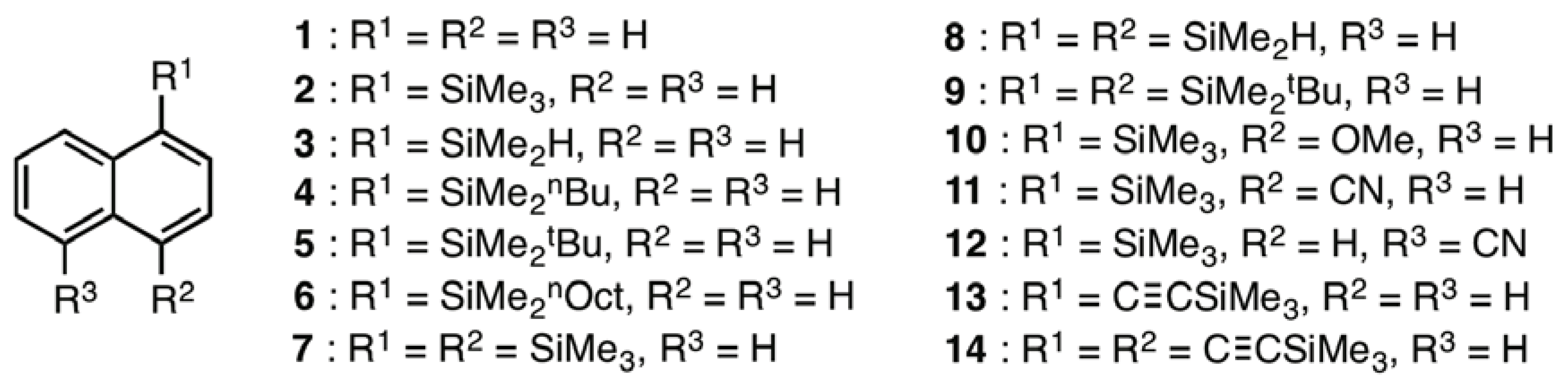

Figure 1. Structures of silyl-substituted naphthalene derivatives.
Figure 1. Structures of silyl-substituted naphthalene derivatives.
Molecules 17 05108 g001
Molecules 17 05108 g002 550

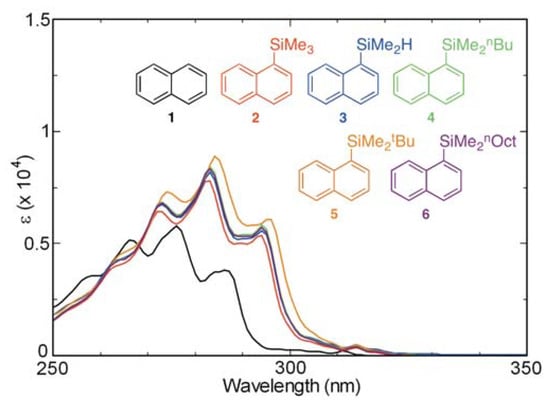

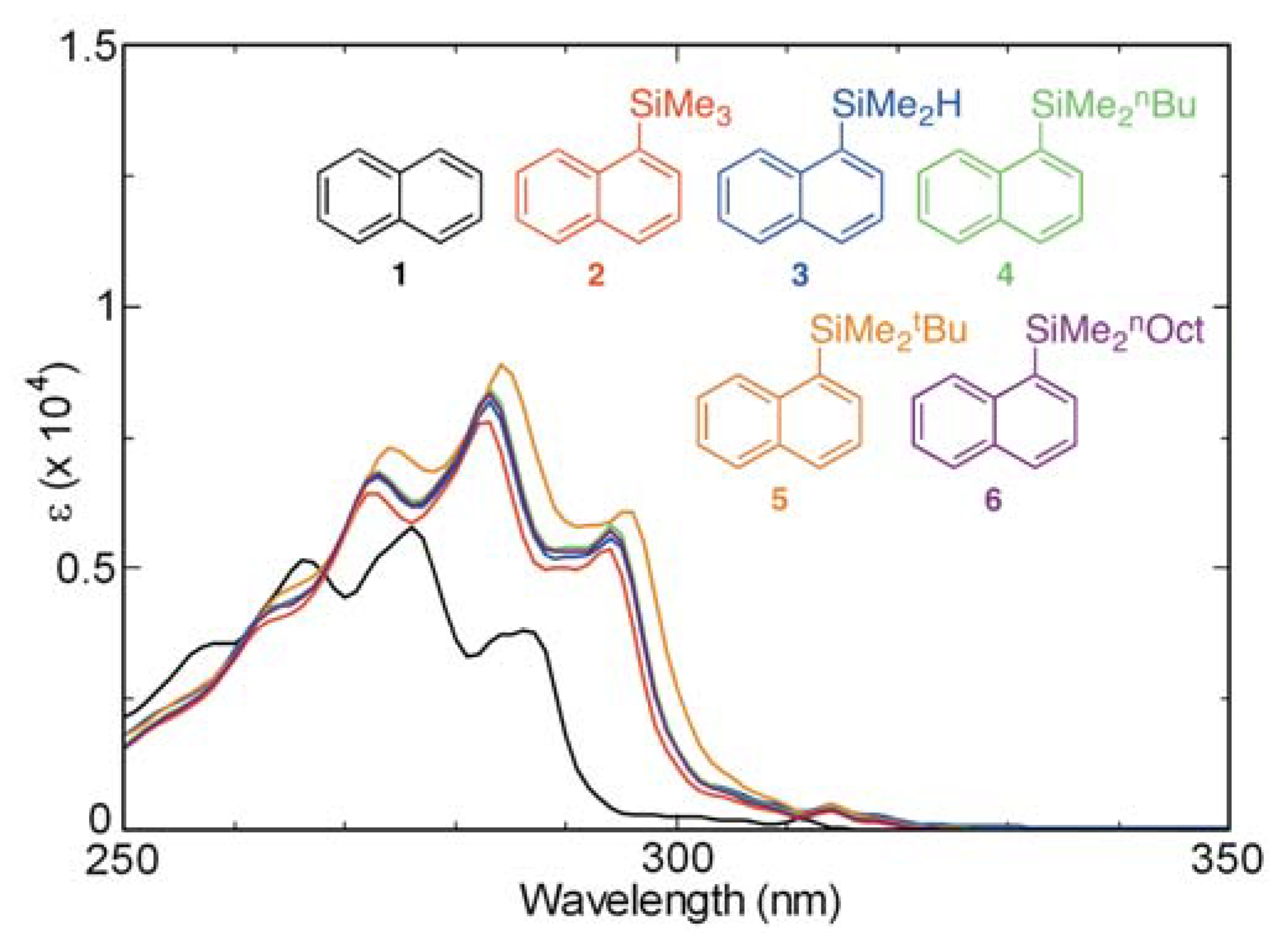

Figure 2. UV absorption spectra of 1–6 in cyclohexane (aerated, ca. 10−4 M).
Figure 2. UV absorption spectra of 1–6 in cyclohexane (aerated, ca. 10−4 M).
Molecules 17 05108 g002
Molecules 17 05108 g003 550

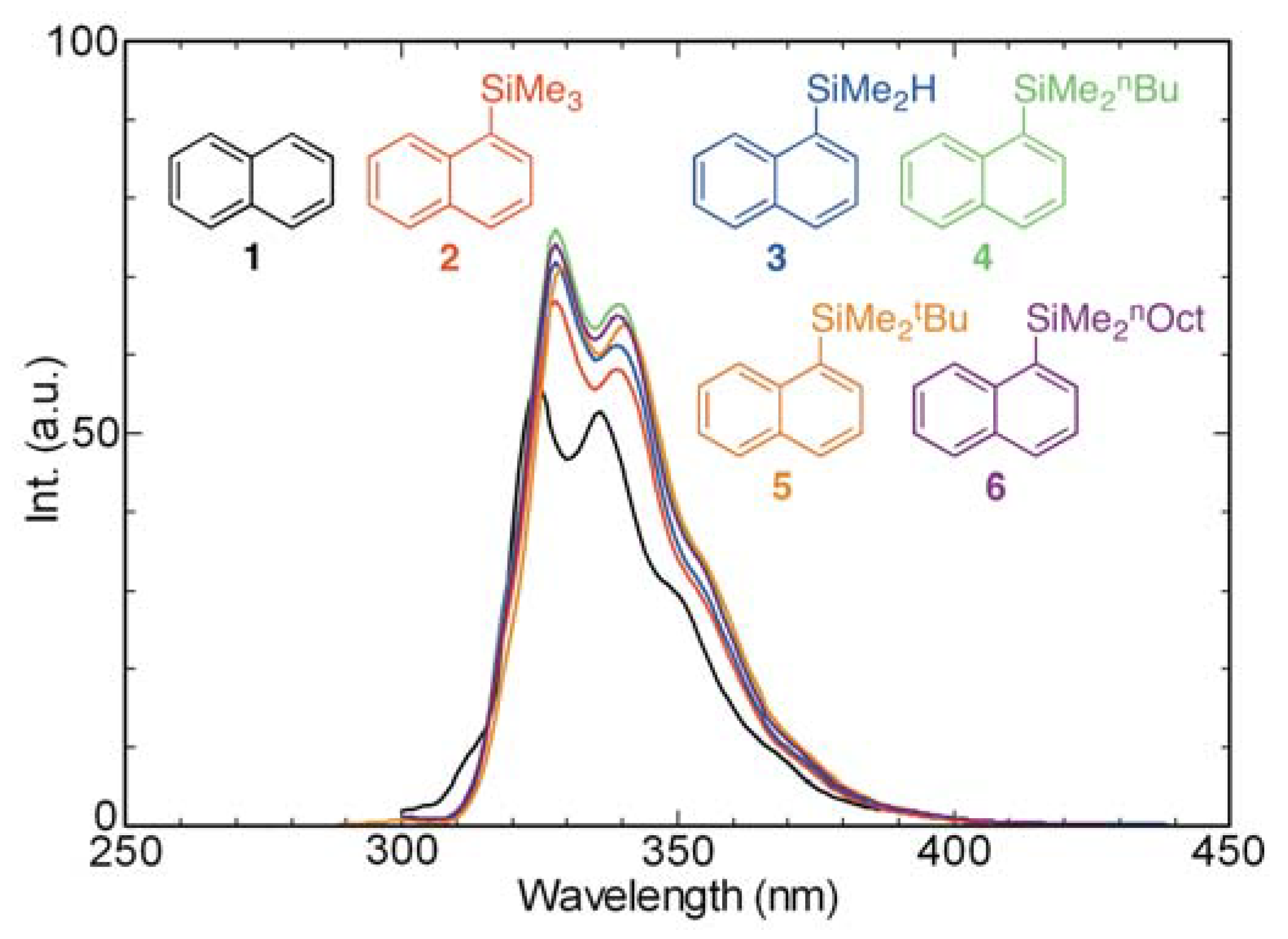

Figure 3. Fluorescence spectra of 1–6 in cyclohexane (aerated, ca. 10−4 M).
Figure 3. Fluorescence spectra of 1–6 in cyclohexane (aerated, ca. 10−4 M).
Molecules 17 05108 g003
Molecules 17 05108 g004 550

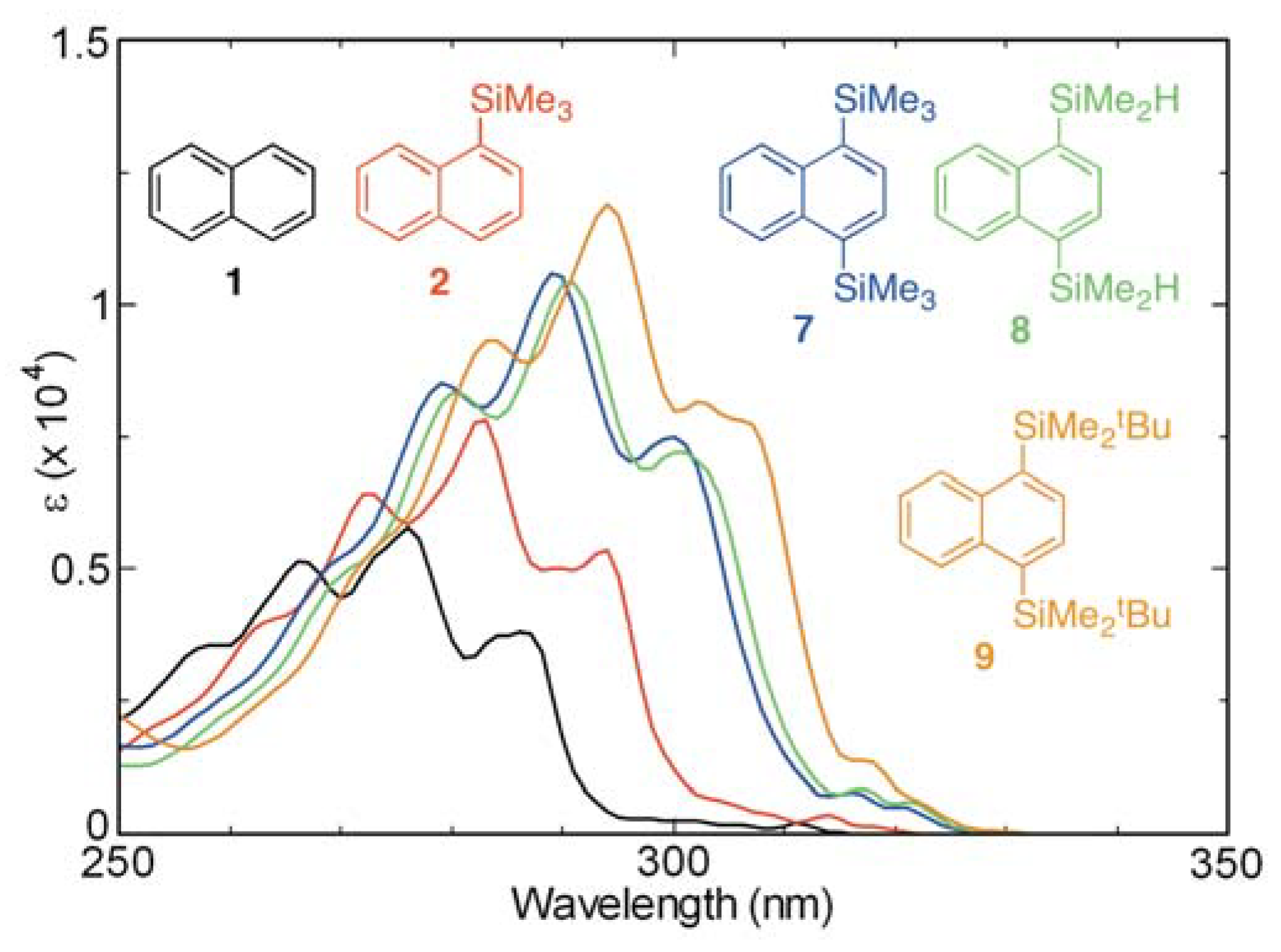

Figure 4. UV absorption spectra of 1, 2, and 7–9 in cyclohexane (aerated, ca. 10−4 M).
Figure 4. UV absorption spectra of 1, 2, and 7–9 in cyclohexane (aerated, ca. 10−4 M).
Molecules 17 05108 g004
Molecules 17 05108 g005 550

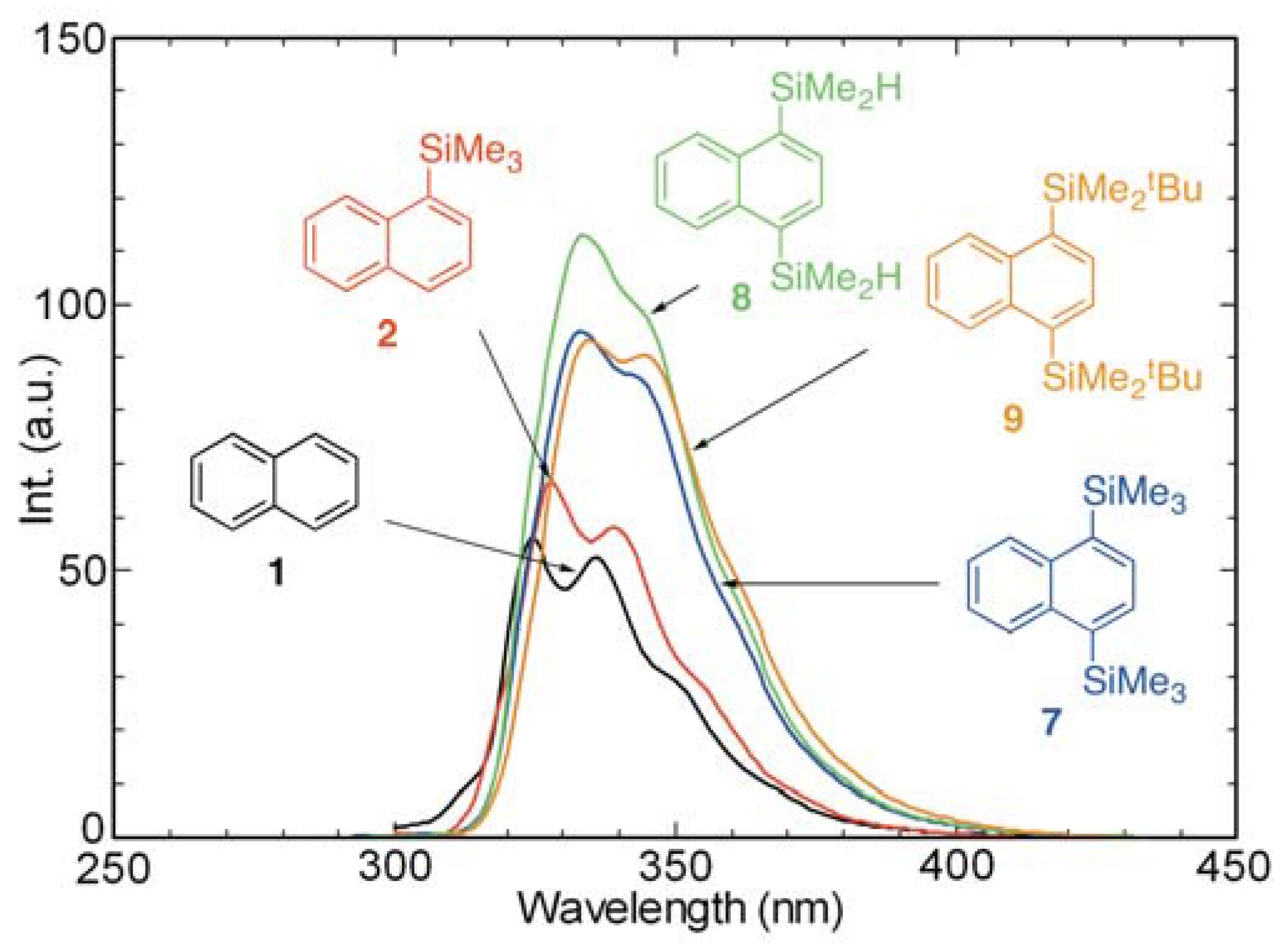

Figure 5. Fluorescence spectra of 1, 2, and 7–9 in cyclohexane (aerated, ca. 10−4 M).
Figure 5. Fluorescence spectra of 1, 2, and 7–9 in cyclohexane (aerated, ca. 10−4 M).
Molecules 17 05108 g005
Molecules 17 05108 g006 550

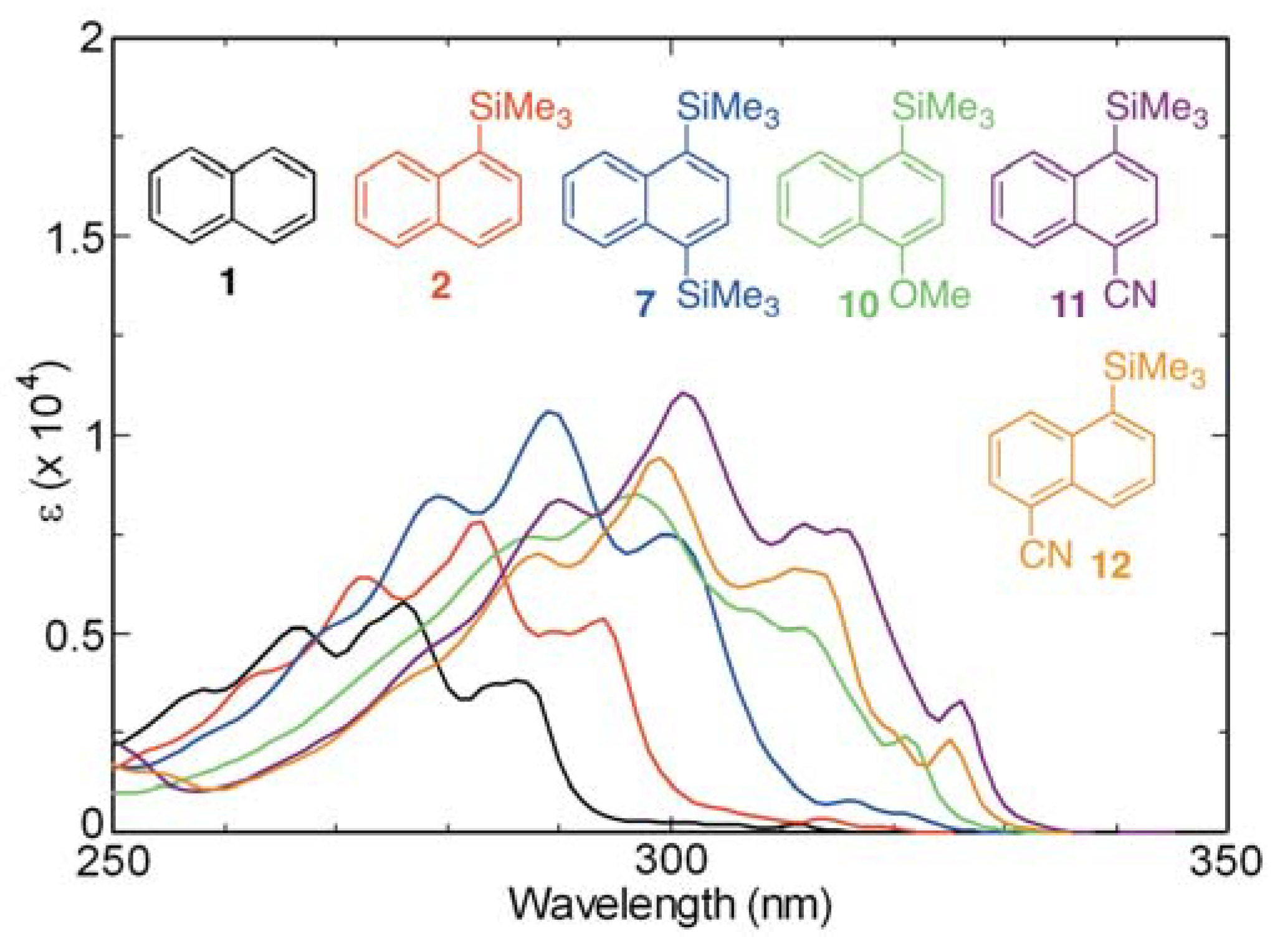

Figure 6. UV absorption spectra of 1, 2, 7, and 10–12 in cyclohexane (aerated, ca. 10−4 M).
Figure 6. UV absorption spectra of 1, 2, 7, and 10–12 in cyclohexane (aerated, ca. 10−4 M).
Molecules 17 05108 g006
Molecules 17 05108 g007 550

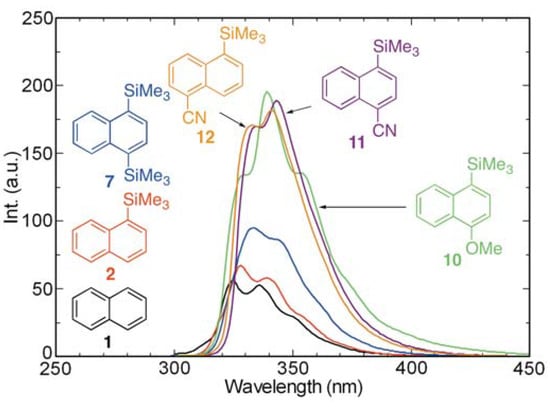

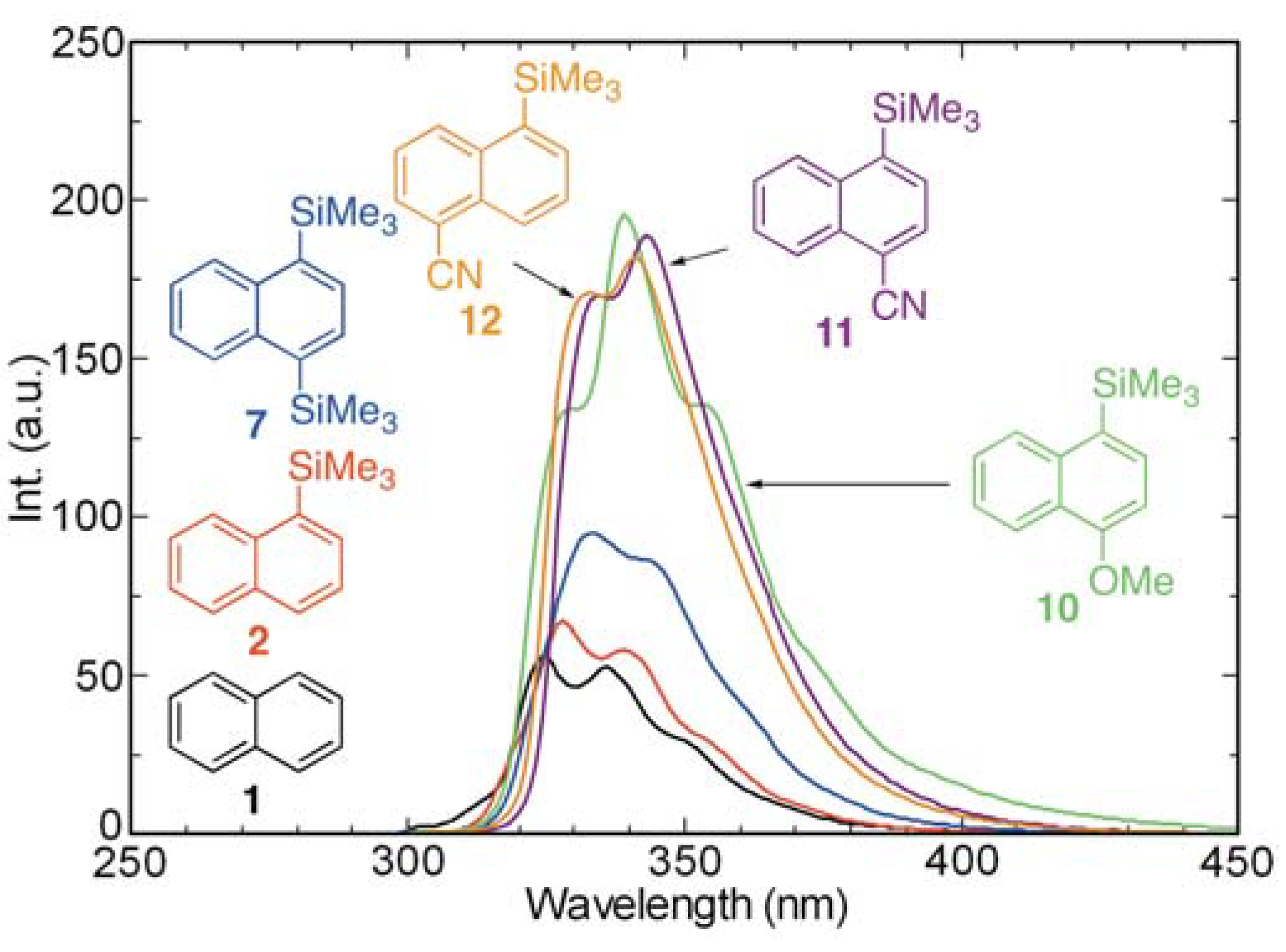

Figure 7. Fluorescence spectra of 1, 2, 7, and 10–12 in cyclohexane (aerated, ca. 10−4 M).
Figure 7. Fluorescence spectra of 1, 2, 7, and 10–12 in cyclohexane (aerated, ca. 10−4 M).
Molecules 17 05108 g007
Molecules 17 05108 g008 550

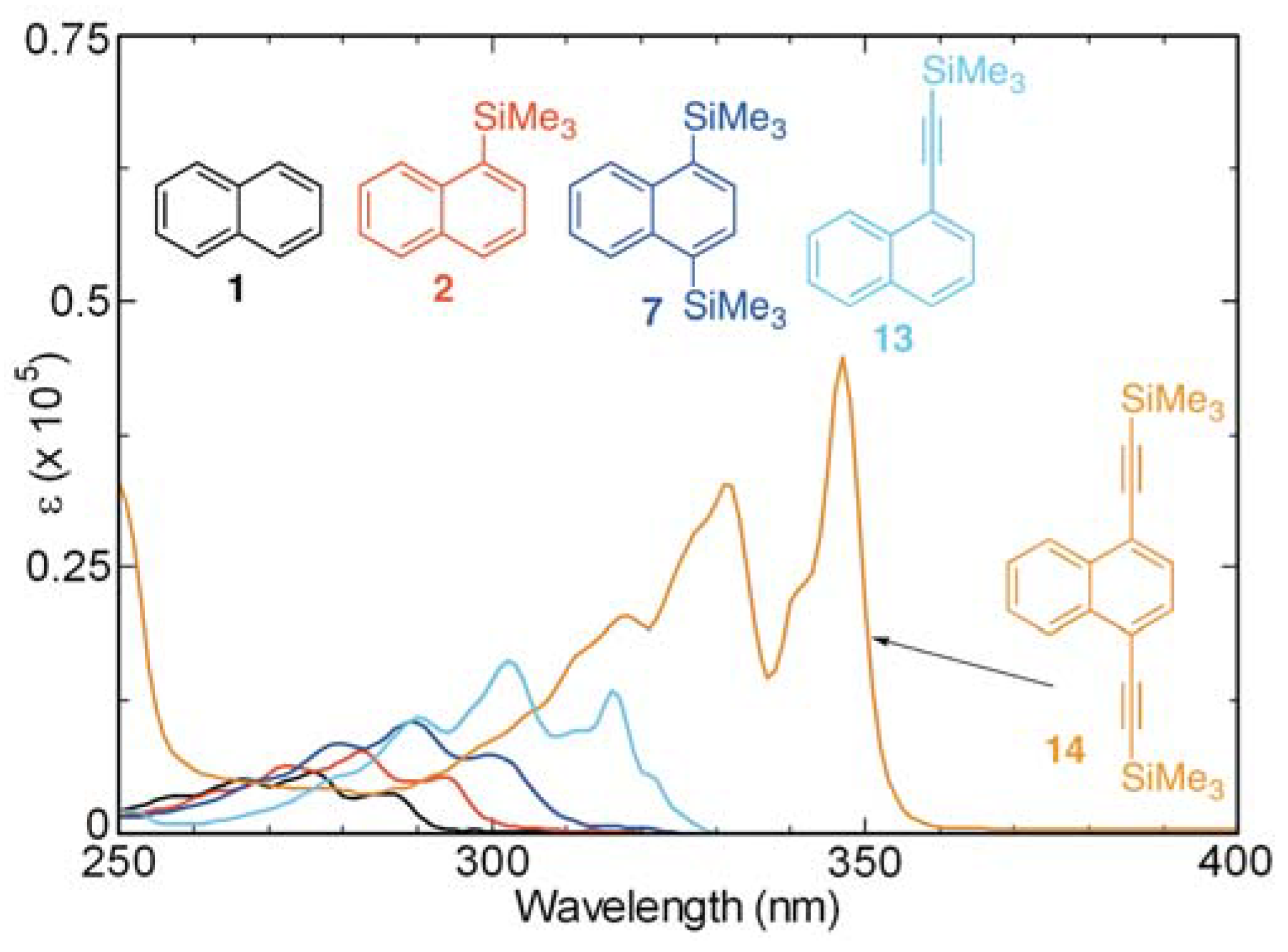

Figure 8. UV absorption spectra of 1, 2, 7, 13, and 14 in cyclohexane (aerated, 10−4–10−5 M).
Figure 8. UV absorption spectra of 1, 2, 7, 13, and 14 in cyclohexane (aerated, 10−4–10−5 M).
Molecules 17 05108 g008
Molecules 17 05108 g009 550

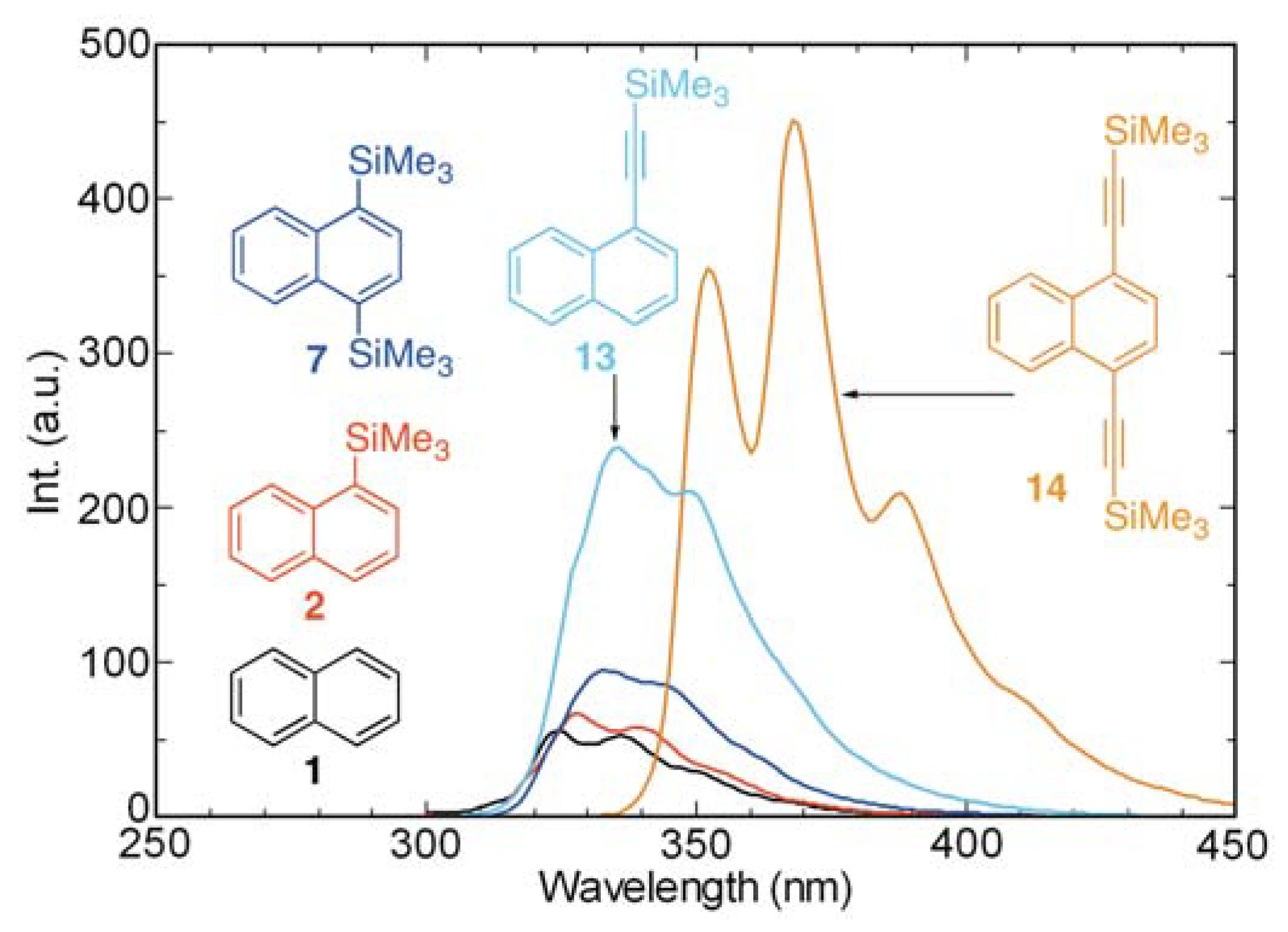

Figure 9. Fluorescence spectra of 1, 2, 7, 13, and 14 in cyclohexane (aerated, 10−4–10−5 M).
Figure 9. Fluorescence spectra of 1, 2, 7, 13, and 14 in cyclohexane (aerated, 10−4–10−5 M).
Molecules 17 05108 g009
Molecules 17 05108 g010a 550Molecules 17 05108 g010b 550

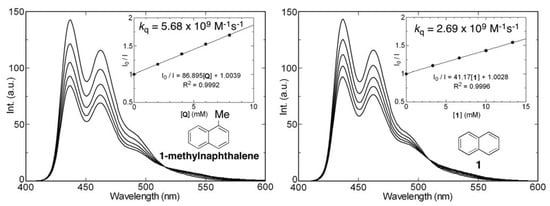

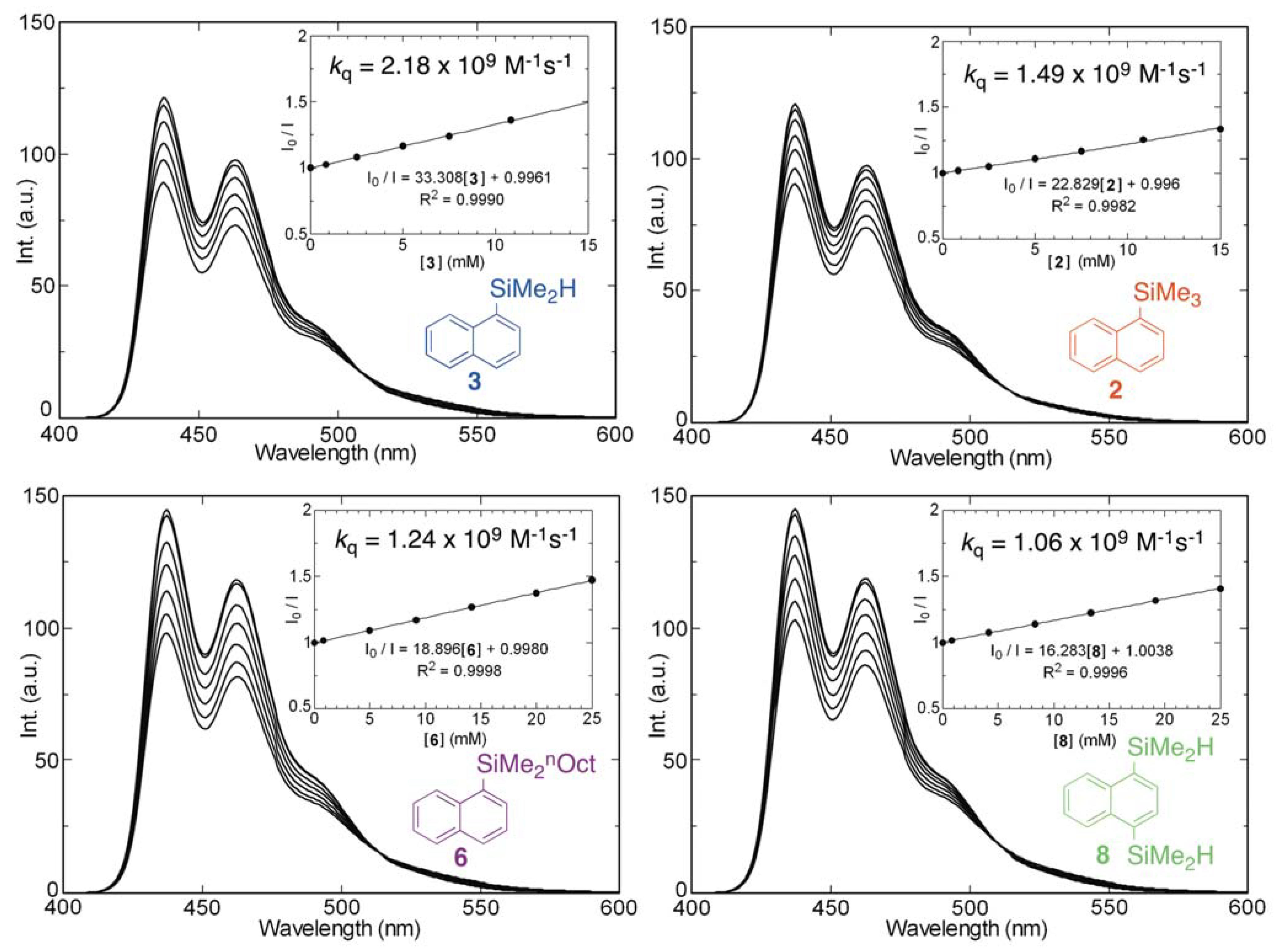

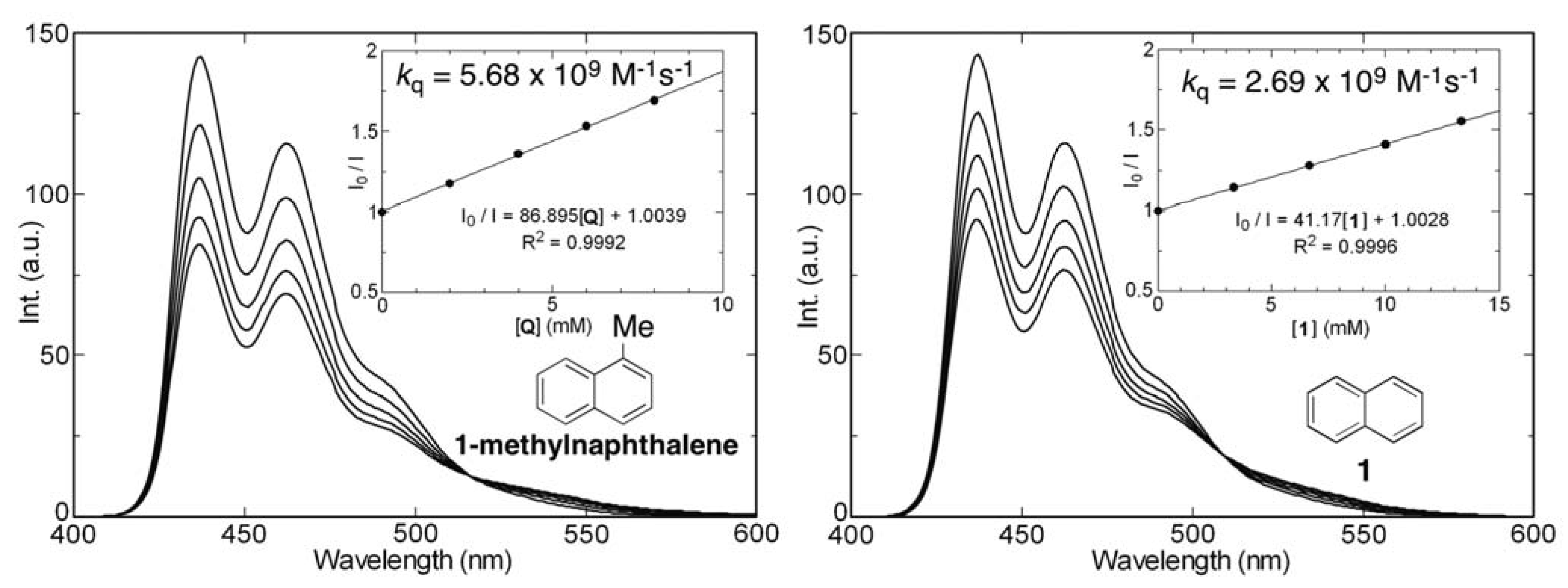

Figure 10. Quenching of the fluorescence of 9,10-dicyanoanthracene (aerated benzene, λex = 426 nm) by naphthalene derivatives. Insets are Stern-Volmer plots determined by using fluorescence intensities at λex = 437 nm.
Figure 10. Quenching of the fluorescence of 9,10-dicyanoanthracene (aerated benzene, λex = 426 nm) by naphthalene derivatives. Insets are Stern-Volmer plots determined by using fluorescence intensities at λex = 437 nm.
Molecules 17 05108 g010aMolecules 17 05108 g010b
Table
Table 1. Photophysical properties of 1–14.
Table 1. Photophysical properties of 1–14.
R1R2R3Absorption a Eigenvalues b (eV) fluorescence Quenching e
λabs
(nm)		log ε HOMOLUMOenergy
gap		 λema
(nm)		τs c
(aerated)
(ns)		τs d
(degassed)
(ns)		Φf kq
(M−1s−1)
1HHH2863.58 –8.765–0.4678.298 3241696f0.23f 2.69 × 109
2SiMe3HH2943.73 –8.543–0.3458.198 32815640.30g 1.49 × 109
3SiMe2HHH2943.75 –8.568–0.3628.206 3281561–i 2.18 × 109
4SiMe2nBuHH2943.74 –8.560–0.3618.199 3291563–i –i
5SiMe2tBuHH2953.78 –8.557–0.3618.196 3291556–i –i
6SiMe2nOctHH2943.76 –8.562–0.3638.199 3291662–i 1.24 × 109
7SiMe3SiMe3H3003.87 –8.341–0.2508.091 33314230.33g –i
8SiMe2HSiMe2HH3003.86 –8.385–0.2808.105 3331330–i 1.06 × 109
9SiMe2tBuSiMe2tBuH3023.91 –8.369–0.2868.083 33512–i–i –i
10SiMe3OMeH3123.71 –8.260–0.2608.000 3276100.65g –i
11SiMe3CNH3153.88 –8.876–0.9567.920 3338110.66g –i
12SiMe3HCN3113.82 –8.894–0.9597.935 3338–i–i –i
13C≡CSiMe3HH3164.13 –8.487–0.5847.903 3369–i–i –i
14C≡CSiMe3C≡CSiMe3H3474.65 –8.236–0.7147.522 352220.85h –i
a [1-12] = ~1 × 10−4 M in cyclohexane. [13-14] = ~1 × 10−5 M in cyclohexane; b Calculated by PM3; c Aerated, 10−5–10−4 M in cyclohexane, 1–8, 10, and 12 were excited at peak top of absorption band appeared at the longest wavelength. Compounds 9 and 14 were excited at 265 nm. Compound 11 was excited at 312 nm. Compound 13 was excited at 302 nm. Filter glass used was UV-32; d Degassed by freeze-pump-thaw method, 10−5–10−4 M in cyclohexane. Compounds 1–4, 6-12 were excited at 265 nm. Compound 5 was excited at 254 nm. Filter glass used was UV-32; e Fluorescence quenching of 9,10-dicyanoanthracene (aerated, ~1 × 10−5 M in benzene, 3.0 mL, excited at 426 nm, Stern-Volmer plot: 437 nm, τs = 15.3 ns by silylnaphthalenes; f Value in reference 49; g Degassed by freeze-pump-thaw method, 10−5–10−4 M in cyclohexane, excited at 265 nm (1, 2: Abs = 0.5 at 265 nm, 7, 10, and 11: Abs = 0.05 at 265 nm). Reference compound was naphthalene (1); h Degassed by freeze-pump-thaw method, ~5 × 10−6 M in cyclohexane, excited at 323 nm (Abs = 0.1 at 323 nm). Reference compound was anthracence (Φf = 0.36, Data from reference 49); i Not measured.

Share and Cite

MDPI and ACS Style

Maeda, H.; Maeda, T.; Mizuno, K. Absorption and Fluorescence Spectroscopic Properties of 1- and 1,4-Silyl-Substituted Naphthalene Derivatives. Molecules 2012, 17, 5108-5125. https://doi.org/10.3390/molecules17055108

AMA Style

Maeda H, Maeda T, Mizuno K. Absorption and Fluorescence Spectroscopic Properties of 1- and 1,4-Silyl-Substituted Naphthalene Derivatives. Molecules. 2012; 17(5):5108-5125. https://doi.org/10.3390/molecules17055108

Chicago/Turabian Style

Maeda, Hajime, Tomohiro Maeda, and Kazuhiko Mizuno. 2012. "Absorption and Fluorescence Spectroscopic Properties of 1- and 1,4-Silyl-Substituted Naphthalene Derivatives" Molecules 17, no. 5: 5108-5125. https://doi.org/10.3390/molecules17055108

Article Metrics

Back to TopTop
