Communication

A Facile One-Pot Process for the Formation of Hindered Tertiary Amines

1
Department of Pharmaceutics Engineering, Xihua University, Chengdu 610039, China
2
Natural Products Research Center, Chengdu Institute of Biology, Chinese Academy of Sciences, Chengdu 610041, China
*
Authors to whom correspondence should be addressed.
Molecules 2012, 17(5), 5151-5163; https://doi.org/10.3390/molecules17055151
Submission received: 4 April 2012 / Revised: 25 April 2012 / Accepted: 25 April 2012 / Published: 3 May 2012
(This article belongs to the Section Organic Chemistry)

Abstract

:
A simple and convenient method was developed for the preparation of hindered tertiary amines via direct reductive amination of ketones with secondary aryl amines, using trichlorosilane as reducing agent and tetramethylethylenediamine (TMEDA) as organic Lewis base activator. A broad range of ketones were reacted with N-methylaniline to afford the corresponding tertiary amine products in high yield. An open transition model was proposed for the reductive step.

1. Introduction

Tertiary amines are a key structural motif in numerous biologically active natural products such as alkaloids and pharmaceutical molecules. They is also regarded as one of the privileged functional groups in identifying lead compounds for drug discovery. Direct reductive amination (DRA) of carbonyls with amines (Scheme 1) is one of the most convenient and straightforward methods for the synthesis of amines [1,2,3,4,5,6,7,8,9,10,11,12,13]. It proceeds in a one-pot fashion under mild conditions and is compatible with many functional groups. While DRA has been widely used as a highly effective method for the preparation of primary and secondary amines, the application of such protocols for the synthesis of sterically demanding tertiary amines have been much less developed. This is particularly true for the preparation of sterically hindered tertiary arylamines.

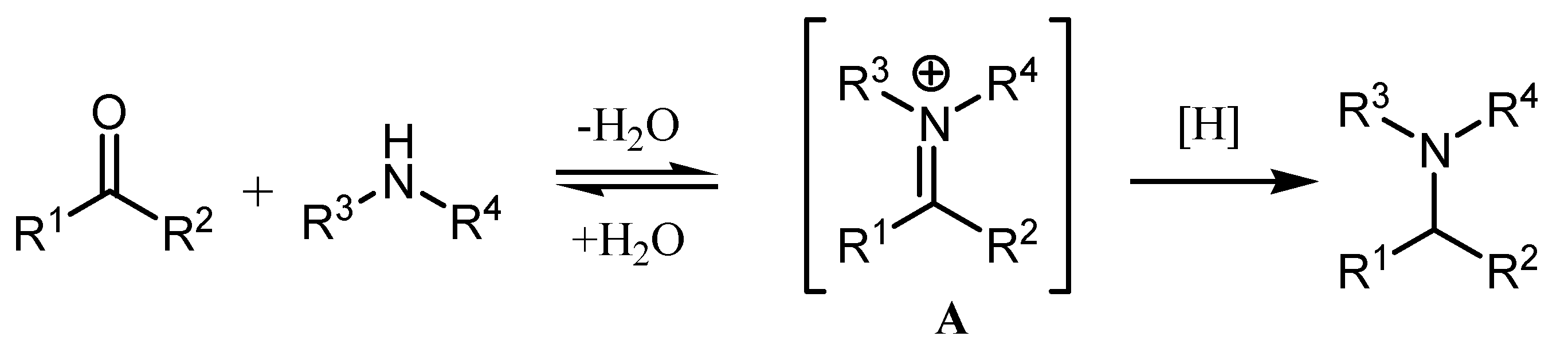

Scheme 1. Direct reductive amination.
Scheme 1. Direct reductive amination.
Molecules 17 05151 g001
In principle, both aldehydes and ketones are applicable in the DRA of secondary amines for the preparation of tertiary amines. In practice, aldehydes normally undergo smooth reactions and give good yields [14,15,16,17,18,19], whereas reactions with ketones have proven to be much more difficult due to increased steric hindrance. In the latter case, steric hindrance makes formation of the iminium intermediate A (Scheme 1) very difficult, and its formation is disfavored in the equilibrium, and inevitably the ketone is preferentially reduced with the reducing systems. In fact, successful and high-yielding intermolecular DRA approaches involving ketones and secondary amines have been limited to the reactions with less bulky cyclic ketones and/or less bulky cyclic amines [1,2,3,4,5,6,7,8,9,10,11,12,13]. Successful examples of acyclic ketone-participating intermolecular DRA with acyclic secondary amines are extremely rare [14,15,16,17]. Sodium cyanoborohydride (NaBH3CN) has been previously shown to be able to accomplish this transformation, but only gives poor yields. Recently, Xiao presented a highly effective new hydrogen transfer reduction system using an iridium complex as the catalyst, which was shown to efficiently promote the DRA of acyclic ketones with secondary amines [19]. However, the ketones that reacted with secondary amines with high efficiency are limited to aliphatic ones, aromatic ketones exhibited low reactivity and afforded low yields, with only one exception in that high yields could be achieved when the secondary amine partner is the cyclic amine pyrrolidine. Therefore, the development of a general and highly effective method for the intermolecular DRA of ketones with secondary amines represents a big challenge. Herein, we report that a metal-free reduction system could efficiently furnish the DRA of N-methylaniline with a broad range of ketones under mild conditions to produce sterically hindered tertiary amines in good to high yields.
Kobayashi first demonstrated that trichlorosilane and Lewis basic N, N-dimethylformamide (DMF) could form an efficient reduction system for the reductive amination of primary amines with aldehydes [20]. Later, we and others proved that use of chiral organic Lewis bases could enable this reduction system to be applicable for catalytic asymmetric indirect reductive amination (IRA) of prochiral ketones with primary amines [21,22,23,24,25,26,27,28,29,30,31,32,33,34,35,36,37,38,39,40,41,42,43], and high yields and excellent enantioselectivities have been obtained for a broad range of substrates using elaborate chiral Lewis base catalysts. We were interested to test if this reduction system could be applicable for the challenging intermolecular DRA of ketones and secondary amines, particularly the DRA of acyclic ketones and secondary amines.

2. Results and Discussion

Initially, we examined the DRA of acetophenone (1a) with different secondary amines using one equivalent of DMF as the Lewis base activator in dichloromethane at room temperature, and found that only the aromatic secondary arylamine 2 is reactive [44], which afforded the desired aromatic tertiary amine 3a with 63% yield in 36 h (entry 2, Table 1). Next, we tested different organic Lewis bases as activator for the DRA of 1a with 2. As shown in Table 1, besides DMF and its analogue DMAc, other Lewis bases such as pyridine, 2,6-lutidine, diisopropylamine, triethylamine, and HMPA also promoted the reaction and afforded moderate to good yields (entries 4–8). Tetramethylethylenediamine (TMEDA) proved to be the best activator, furnishing product 3a in up to 92% yield (entry 9).
Table 1. Direct reductive amination under different conditions a. Molecules 17 05151 i001
Table 1. Direct reductive amination under different conditions a. Molecules 17 05151 i001
EntrySolventActivator (equiv.)Yield (%) b
1DCM-19
2DCMDMF (1.0)63
3DCMDMAc (1.0)70
4DCMLutidine (1.0)78
5DCMPyridine (1.0)88
6DCMDIEA (1.0)84
7DCMTEA (1.0)43
8DCMHMPA (1.0)68
9DCMTMEDA (1.0)92
10DCMTMEDA (0.5)85
11DCMTMEDA (0.2)80
12TolueneTMEDA (1.0)60
13CH3CNTMEDA (1.0)76
14CHCl3TMEDA (1.0)74
15ClCH2CH2ClTMEDA (1.0)73
16THFTMEDA (1.0)24
a The reaction was carried out on a 0.2 mmol scale (1a:2:HSiCl3 = 1:1.2:2) in 1 mL solvent at room temperature for 36 h; b Isolated yield based on the ketone.
When the amount of TMEDA was decreased from 1.0 to 0.5 and 0.2 equivalent, the DRA of 1a with 2 could also proceed to give 3a with reasonable yields (85% and 80%, respectively, entries 10 and 11), implying that this transformation could be catalytic.
The TMEDA-promoted DRA of 1a with 2 could also be run in different solvents other than dichloromethane, including toluene, acetonitrile, chloroform, and dichloroethane, albeit with moderate yields (entries 12–16).
To probe the generality of the TMEDA-promoted DRA by trichlorosilane, we next examined various ketones as substrates under optimal conditions. Table 2 summarizes the results. The aromatic ketones, either electron-deficient or electron-rich, all underwent facile DRA with 2 to afford the desired tertiary amine products in good to high yields (entries 1–14). In particular, the ortho-substituted phenylmethyl ketones 1m and 1n, which are normally more difficult substrates due to steric hindrance and/or electronic interference, also proved to be good substrates (entries 13 and 14). The α,β-unsaturated ketone 1o was also found to be an excellent substrate, which gave the desired 1,2-reduction amine product with up to 90% yield (entry 15). The possible 1,4-reduction and Michael addition by-products were not observed. Moreover, the DRA of cyclic ketone 1p and acyclic alipahtic ketones 1q and 1r could also be accomplished to afford the corresponding amine products in good to high yields (entries 16–18).
Table 2. Direct reductive amination of various acetophenone analogues with N-methylaniline a. Molecules 17 05151 i002
Table 2. Direct reductive amination of various acetophenone analogues with N-methylaniline a. Molecules 17 05151 i002
EntryKetoneYield (%) bEntryKetoneYield (%) b
1 Molecules 17 05151 i003(1a)9210 Molecules 17 05151 i004(1j)62
2 Molecules 17 05151 i005(1b)7611 Molecules 17 05151 i006(1k)82
3 Molecules 17 05151 i007(1c)8312 Molecules 17 05151 i008(1l)89
4 Molecules 17 05151 i009(1d)8613 Molecules 17 05151 i010(1m)88
5 Molecules 17 05151 i011(1e)8514 Molecules 17 05151 i012(1n)61
6 Molecules 17 05151 i013(1f)8915 Molecules 17 05151 i014(1o)90
7 Molecules 17 05151 i015(1g)6016 Molecules 17 05151 i016(1p)88
8 Molecules 17 05151 i017(1h)8717 Molecules 17 05151 i018(1q)76
9 Molecules 17 05151 i019(1i)7918 Molecules 17 05151 i020(1r)66
a The reaction was carried out on a 0.2 mmol scale (1:2:TMEDA:HSiCl3 = 1:1.2:1:2) in 1 mL solvent at room temperature for 36 h; b Isolated yield based on the ketone.
In Scheme 2, a plausible reaction mechanism was proposed for the present Lewis base-promoted DRA of ketones with N-methylaniline. The ketone reacts with the amine first to yield iminium intermediate A and release one equivalent of water. Supposedly, this step is very difficult and slow due to steric hindrance and the equilibrium is much more favourable for the backwards conversion, which is also commonly complicated with the reduction of the ketone. The reasons why the present reduction system could be highly effective most likely lie in the following facts: the reductant HSiCl3 also happens to be a good water scavenger, which helps to push the iminium ion formation step forwards; moreover, the Lewis base-HSiCl3 reduction system is known to have much lower reactivity towards C=O bond than C=N bond [23], which largely avoids the unwanted reduction of ketone.
The reduction of the imine intermediate A by the TMEDA-activated HSiCl3 is proposed to pass through transition state B. Unlike the previously proposed transition models for the reduction of primary amine derived imines that feature a closed structure due to the interaction of the imine nitrogen with either the central silicon or the hydrogen donor(s) of the catalyst for activation [23,24], B has a fully occupied iminium nitrogen and can only adopt an open structure.

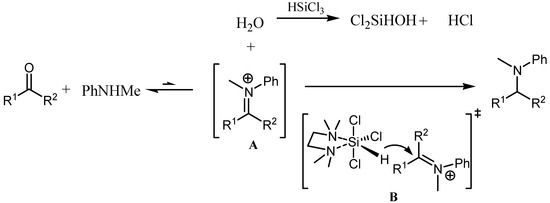

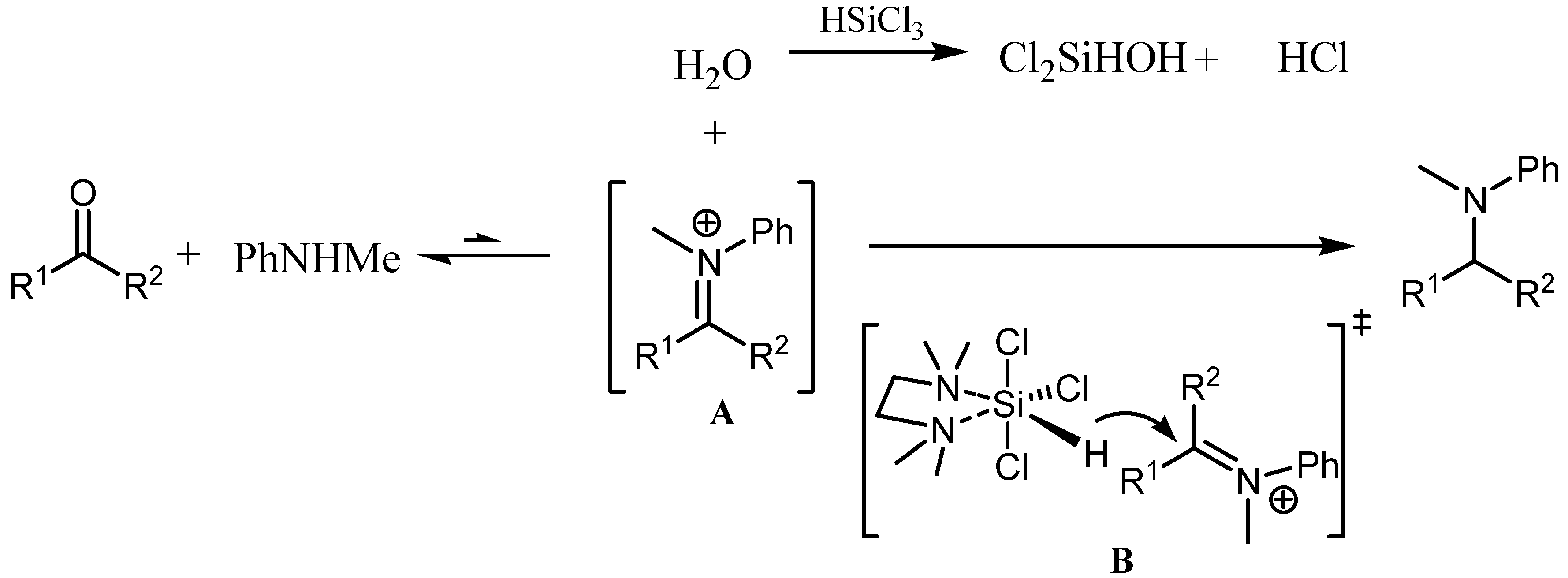

Scheme 2. A plausible mechanism for the TMEDA-promoted direct reductive amination of ketone with secondary arylamine.
Scheme 2. A plausible mechanism for the TMEDA-promoted direct reductive amination of ketone with secondary arylamine.
Molecules 17 05151 g002

3. Experimental

3.1. General

All starting materials were of the highest commercially available grade and used without further purification. All solvents used in the reactions were distilled from appropriate drying agents prior to use. Reactions were monitored by thin layer chromatography using silica gel HSGF254 plates. Flash chromatography was performed using silica gel HG/T2354-92. 1H - and 13C-NMR (300 or 600 and 75 or 150 MHz, respectively) spectra were recorded in CDCl3. 1H-NMR chemical shifts are reported in ppm (δ) relative to tetramethylsilane (TMS) with the solvent resonance employed as the internal standard (CDCl3, δ 7.26 ppm). Data are reported as follows: chemical shift, multiplicity (s = singlet, d = doublet, t = triplet, m = multiplet), coupling constants (Hz) and integration. 13C-NMR chemical shifts are reported in ppm from tetramethylsilane (TMS) with the solvent resonance as the internal standard (CDCl3, δ 77.0 ppm). ESIMS spectra were recorded on BioTOF Q. Chemical yields refer to pure isolated substances.

3.2. General Procedure for the Direct Reductive Amination of Ketones with N-Methylaniline

To a solution of ketone (0.2 mmol) and amine (0.24 mmol) in dichloromethane (1.0 mL) was added tetramethylethylenediamine (TMEDA) (22 mg, 0.2 mmol). After stirring at room temperature for 0.5 h, trichlorosilane (40 μL, 0.4 mmol) was added, and the mixture was continued to stir for 36 h. The reaction mixture was then quenched with saturated aqueous sodium bicarbonate and was extracted with dichloromethane. The combined extracts were washed with water, dried over MgSO4, and concentrated under vacuum. The residue was purified by column chromatography over silica gel (hexane/ethyl acetate as eluent) to afford pure product.
N-Methyl-N-(1-phenylethyl)aniline (3a). Light yellow oil; Yield: 92%; purification by flash chromatography (hexane/EtOAc = 20:1). 1H-NMR (300 MHz, CDCl3): δ = 1.57 (d, J = 6.90 Hz, 3H), 2.70 (s, 3H), 5.15 (q, J = 6.91 Hz, 1H), 6.75 (t, J = 7.24 Hz, 3H), 6.86 (d, J = 8.15 Hz, 2H), 7.25–7.38 (m, 7H); 13C-NMR (150 MHz, CDCl3): δ = 16.3, 31.9, 56.6, 113.1, 116.7, 126.8, 126.9, 128.4, 129.2, 142.8, 150.3; ESI HRMS exact mass calcd. for (C15H17N1 + H)+, requires m/z 212.1439, found m/z 212.1440.
N-Methyl-N-(1-(4-nitrophenyl)ethyl)aniline (3b). Light yellow oil; Yield: 76%; purification by flash chromatography (hexane/EtOAc = 20:1); 1H-NMR (300 MHz, CDCl3): δ = 1.61 (d, J = 6.91 Hz, 3H), 2.72 (s, 3H), 5.15 (q, J = 6.99 Hz, 1H), 6.77–6.81 (m, 3H), 7.26–7.29 (m, 2H), 7.49 (d, J = 8.51 Hz, 2H), 8.18 (d, J = 8.74 Hz, 2H). 13C-NMR (75 MHz, CDCl3): δ = 16.6, 32.3, 56.9, 113.5, 117.7, 123.7, 127.7, 129.3, 147.0, 149.7, 150.9; ESI HRMS exact mass calcd. for (C15H16N2O2 + H)+, requires m/z 257.1285, found m/z 257.1281.
N-Methyl-N-(1-(4-(trifluoromethyl)phenyl)ethyl)aniline (3c). Light yellow oil; Yield: 83%; purification by flash chromatography (hexane/EtOAc = 20:1); 1H-NMR (300 MHz, CDCl3): δ = 1.58 (d, J = 6.91 Hz, 3H), 2.71 (s, 3H), 5.14 (q, J = 6.85 Hz, 1H), 6.75–6.80 (m, 1H), 6.84 (d, J = 8.02 Hz, 2H), 7.24–7.30 (m, 2H), 7.44 (d, J = 8.57 Hz, 2H), 7.60 (d, J = 8.22 Hz, 2H). 13C-NMR (75 MHz, CDCl3): δ = 16.5, 32.0, 56.7, 113.4, 117.3, 125.4, 126.8, 129.3, 147.2, 150.0; ESI HRMS exact mass calcd. for (C16H16F3N1 + H)+, requires m/z 280.1308, found m/z 280.1294.
N-(1-(4-Fluorophenyl)ethyl)-N-methylaniline (3d). Light yellow oil; Yield: 86%; purification by flash chromatography (hexane/EtOAc = 20:1); 1H-NMR (300 MHz, CDCl3): δ = 1.53 (d, J = 6.93 Hz, 3H), 2.66 (s, 3H), 3.81 (s, 3H), 5.11 (q, J = 6.84 Hz, 1H), 6.74 (t, J = 7.12 Hz, 1H), 6.86 (d, J = 8.37 Hz, 2H), 7.04 (t,J = 8.69 Hz, 2H), 7.23–7.29 (m, 4H). 13C-NMR (75 MHz, CDCl3): δ = 16.4, 31.8, 56.2, 113.4, 115.0, 117.0, 128.4, 129.2, 138.5, 150.2, 161.8 (d, J = 243 Hz); ESI HRMS exact mass calcd. for (C15H16F1N1 + H)+, requires m/z 230.1340, found m/z 230.1341.
N-(1-(4-Bromophenyl)ethyl)-N-methylaniline (3e). Light yellow oil; Yield: 85%; purification by flash chromatography (hexane/EtOAc = 20:1); 1H-NMR (300 MHz, CDCl3): δ = 1.53 (d, J = 6.88 Hz, 3H), 2.67 (s, 3H), 5.06 (q, J = 6.92 Hz, 1H), 6.74 (t, J = 7.21 Hz, 1H), 6.83 (d, J = 8.19 Hz, 2H),7.22–7.28 (m, 4H), 7.46 (d, J = 6.72 Hz, 2H). 13C-NMR (75 MHz, CDCl3): δ = 16.3, 31.8, 56.2, 113.3, 117.0, 120.7, 128.7, 129.2, 131.4, 141.9, 150.0; ESI HRMS exact mass calcd. for (C15H16Br1N1 + H)+, requires m/z 290.0539, found m/z 290.0535.
N-(1-(4-Chlorophenyl)ethyl)-N-methylaniline (3f). Light yellow oil; Yield: 89%; purification by flash chromatography (hexane/EtOAc = 20:1); 1H-NMR (300 MHz, CDCl3): δ = 1.55 (d, J = 6.87 Hz, 3H), 2.68 (s, 3H), 5.10 (q, J = 6.88 Hz, 1H), 6.76 (t, J = 7.25 Hz, 1H), 6.84 (d, J = 8.13 Hz, 2H),7.24–7.32 (m, 6H). 13C-NMR (75 MHz, CDCl3): δ = 16.3, 31.8, 56.2, 113.3, 117.0, 128.3, 128.5, 129.2, 132.5, 141.4, 150.0; ESI HRMS exact mass calcd. for (C15H16Cl1N1 + H)+, requires m/z 246.1044, found m/z 246.1038.
N-Methyl-N-(1-p-tolylethyl)aniline (3g). Light yellow oil; Yield: 60%; purification by flash chromatography (hexane/EtOAc = 20:1); 1H-NMR (300 MHz, CDCl3): δ = 1.55 (d, J = 6.88 Hz, 3H), 2.36 (s, 3H), 2.69 (s, 3H), 5.12 (q, J = 6.89 Hz, 1H), 6.74 (t, J = 7.28 Hz, 1H), 6.84 (d, J = 8.28 Hz, 2H), 7.14–7.29 (m, 6H). 13C-NMR (75 MHz, CDCl3): δ = 16.3, 21.0, 31.8, 56.4, 113.2, 116.7, 126.9, 129.0, 129.1, 136.4, 139.6, 150.1; ESI HRMS exact mass calcd. for (C16H19N1 + H)+, requires m/z 226.1590, found m/z 226.1592.
N-(1-(4-Methoxyphenyl)ethyl)-N-methylaniline (3h). Light yellow oil; Yield: 87%; purification by flash chromatography (hexane/EtOAc = 20:1); 1H-NMR (300 MHz, CDCl3): δ = 1.53 (d, J = 6.87 Hz, 3H), 2.66 (s, 3H), 3.82 (s, 3H), 5.11 (q, J = 6.66 Hz, 1H), 6.74 (t, J = 7.23 Hz, 1H), 6.84–6.90 (m, 4H),7.23–7.29 (m, 4H). 13C-NMR (75 MHz, CDCl3): δ = 16.1, 31.6, 55.2, 55.9, 113.1, 113.6, 116.5, 128.0, 129.1, 134.7, 150.2, 158.4; ESI HRMS exact mass calcd. for (C16H19N1O1 + H)+, requires m/z 242.1539, found m/z 242.1547.
N-Methyl-N-(1-(naphthalen-2-yl)ethyl)aniline (3i). Light yellow oil; Yield: 79%; purification by flash chromatography (hexane/EtOAc = 20:1); 1H-NMR (300 MHz, CDCl3): δ = 1.67 (d, J = 6.84 Hz, 3H), 2.72 (s, 3H), 5.30 (q, J = 6.74 Hz, 1H), 6.78 (t, J = 8.31 Hz, 1H), 6.92 (d, J = 8.31 Hz, 2H). 7.26–7.32 (m, 2H), 7.46–7.51 (m, 3H), 7.77–7.86 (m, 4H); 13C-NMR (75 MHz, CDCl3): δ = 16.0, 31.9, 56.7, 113.2, 116.8, 124.9, 125.7, 126.0, 127.6, 127.9, 128.1, 129.3, 132.6, 133.4, 140.5, 150.2; ESI HRMS exact mass calcd. for (C19H19N1 + H)+, requires m/z 262.1590, found m/z 262.1596.
N-Methyl-N-(1-(3-nitrophenyl)ethyl)aniline (3j). Light yellow oil; Yield: 62%; purification by flash chromatography (hexane/EtOAc = 20:1); 1H-NMR (300 MHz, CDCl3): δ = 1.61 (d, J = 6.90 Hz, 3H), 2.71 (s, 3H), 5.16 (q, J = 6.76 Hz, 1H), 6.77–6.87 (m, 3H), 7.26–7.30 (m, 2H), 7.50 (t, J = 7.91 Hz, 1H), 7.66 (d, J = 7.73 Hz, 1H), 8.12 (d, J = 8.06 Hz, 1H), 8.21 (s, 1H). 13C-NMR (75 MHz, CDCl3): δ = 16.3, 32.0, 56.7, 113.6, 117.7, 121.7, 122.1, 129.3, 133.2, 145.5, 148.6, 149.8; ESI HRMS exact mass calcd. for (C15H16O2N2 + H)+, requires m/z 257.1285, found m/z 257.1283.
N-(1-(3-Chlorophenyl)ethyl)-N-methylaniline (3k). Light yellow oil; Yield: 82%; purification by flash chromatography (hexane/EtOAc = 20:1); 1H-NMR (300 MHz, CDCl3): δ = 1.55 (d, J = 6.89 Hz, 3H), 2.71 (s, 3H), 5.14 (q, J = 6.88 Hz, 1H), 6.78 (t, J = 7.26 Hz, 1H), 6.83 (d, J = 8.10 Hz, 2H), 7.20–7.35 (m, 6H); 13C-NMR (75 MHz, CDCl3): δ = 16.3, 32.0, 56.5, 113.3, 117.1, 125.1, 127.0, 129.2, 129.6, 134.4, 145.2, 150.0; ESI HRMS exact mass calcd. for (C15H16ClN + H)+, requires m/z 246.1044, found m/z 246.1034.
N-(1-(3-Bromophenyl)ethyl)-N-methylaniline (3l). Light yellow oil; Yield: 89%; purification by flash chromatography (hexane/EtOAc = 20:1); 1H-NMR (300 MHz, CDCl3): δ = 1.55 (d, J = 6.89 Hz, 3H), 2.71 (s, 3H), 5.10 (q, J = 6.89 Hz, 1H), 6.78 (t, J = 7.28 Hz, 1H), 6.85 (d, J = 8.23 Hz, 2H), 7.18–7.31 (m, 4H), 7.42 (d, J = 7.52 Hz, 1H), 7.50 (s, 1H); 13C-NMR (75 MHz, CDCl3): δ = 16.3, 32.0, 56.5, 113.3, 117.1, 122.7, 124.9, 125.5, 129.2, 129.9, 145.5, 150.0; ESI HRMS exact mass calcd. for (C15H16BrN + H)+, requires m/z 290.0539, found m/z 290.0544.
2-(1-(Methyl(phenyl)amino)ethyl)phenol (3m). Light yellow oil; Yield: 88%; purification by flash chromatography (hexane/EtOAc = 20:1); 1H-NMR (300 MHz, CDCl3): δ = 1.35 (d, J = 6.75 Hz, 3H), 2.63 (s, 3H), 4.93 (q, J = 6.69 Hz, 1H), 6.87–6.93 (m, 2H), 7.05–7.16 (m, 2H), 7.21–7.25 (m, 3H), 7.34–7.39 (m, 2H), 10.08 (s, 1H); 13C-NMR (75 MHz, CDCl3): δ = 12.9, 34.3, 60.3, 116.4, 119.6, 120.0, 122.7, 126.3, 127.1, 128.9, 129.3, 149.1, 157.2; ESI HRMS exact mass calcd. for (C15H17ON + H)+, requires m/z 228.1383, found m/z 228.1387.
N-(1-(2-Methoxyphenyl)ethyl)-N-methylaniline (3n). Light yellow oil; Yield: 61%; purification by flash chromatography (hexane/EtOAc = 20:1); 1H-NMR (300 MHz, CDCl3): δ = 1.50 (d, J = 6.98 Hz, 3H), 2.83 (s, 3H), 3.80 (s, 3H), 5.32 (q, J = 6.96 Hz, 1H), 6.67 (t, J = 7.21 Hz, 1H), 6.81 (d, J = 8.08 Hz, 2H), 6.87–6.93 (m, 2H), 7.17–7.26 (m, 4H); 13C-NMR (75 MHz, CDCl3): δ = 16.9, 31.9, 52.3, 55.4, 110.7, 113.2, 116.3, 120.3, 127.0, 128.0, 128.8, 131.6, 150.2, 157.3; ESI HRMS exact mass calcd. for (C16H19NO + H)+, requires m/z 242.1539, found m/z 242.1554.
(E)-N-Methyl-N-(4-phenylbut-3-en-2-yl)aniline (3o). Light yellow oil; Yield: 90%; purification by flash chromatography (hexane/EtOAc = 20:1); 1H-NMR (300 MHz, CDCl3): δ = 1.37 (d, J = 6.78 Hz, 3H), 2.80 (s, 3H), 4.66 (m, 1H), 6.32 (dd, J = 16.15, 4.37 Hz, 1H), 6.47 (d, J = 16.15 Hz, 1H), 6.74 (m, 1H), 6.85 (d, J = 8.01 Hz, 2H), 7.23–7.40 (m, 7H); 13C-NMR (75 MHz, CDCl3): δ = 16.2, 31.7, 54.9, 113.4, 116.8, 126.3, 127.4, 128.5, 129.1, 130.0, 131.5, 137.0, 150; ESI HRMS exact mass calcd. for (C17H19N + H)+, requires m/z 238.1590, found m/z 238.1598.
N-Cyclohexyl-N-methylaniline (3p). Light yellow oil; Yield: 88%; purification by flash chromatography (hexane/EtOAc = 20:1); 1H-NMR (300 MHz, CDCl3): δ = 1.12–1.44 (m, 5H), 1.67–1.87 (m, 5H), 2.78 (s, 3H), 3.54–3.61 (m, 1H), 6.69 (t, J = 7.22 Hz, 1H), 6.79 (d, J = 8.29 Hz, 2H), 7.24 (t, J = 7.56 Hz, 2H); 13C-NMR (75 MHz, CDCl3): δ = 26.0, 26.2, 30.0, 31.2, 58.2, 113.2, 116.2, 129.0; ESI HRMS exact mass calcd. for (C13H19N + H)+, requires m/z 190.1596, found m/z 190.1602.
N-Methyl-N-(4-phenylbutan-2-yl)aniline (3q). Light yellow oil; Yield: 76%; purification by flash chromatography (hexane/EtOAc = 20:1); 1H-NMR (300 MHz, CDCl3): δ = 1.18 (d, J = 6.60 Hz, 3H), 1.80–1.87 (m, 1H), 1.95–2.03 (m, 1H), 2.62–2.69 (m, 2H), 2.79 (s, 3H), 3.92–3.99 (m, 1H), 6.71–6.79 (m, 3H), 7.19–7.33 (m, 7H); 13C-NMR (75 MHz, CDCl3): δ = 16.9, 29.8, 33.1, 36.4, 52.7, 113.1, 116.3, 125.7, 128.3, 128.4, 129.1, 142.1, 150.5; ESI HRMS exact mass calcd. for (C17H21N + H)+, requires m/z 240.1747, found m/z 240.1738.
N-Methyl-N-(4-methylpentan-2-yl)aniline (3r). Light yellow oil; Yield: 66%; purification by flash chromatography (hexane/EtOAc = 20:1); 1H-NMR (300 MHz, CDCl3): δ = 0.88 (d, J = 6.34 Hz, 3H), 0.91 (d, J = 6.34 Hz, 3H), 1.08 (d, J = 6.55 Hz, 3H), 1.25–1.27 (m, 1H), 1.53–1.61 (m, 2H) 2.69 (s, 3H), 4.00 (m, 1H), 6.67 (t, J = 7.23 Hz, 1H), 6.78 (d, J = 8.26 Hz, 2H), 7.20–7.26 (m, 2H); 13C-NMR (75 MHz, CDCl3): δ = 17.0, 22.6, 23.0, 25.1, 29.8, 43.7, 50.9, 112.8, 116.0, 129.1, 150.5; ESI HRMS exact mass calcd. for (C13H21N + H)+, requires m/z 192.1752, found m/z 192.1750.

4. Conclusions

In summary, we have developed a practical protocol enabling the direct reductive amination of a broad range of ketones with a secondary arylamine using trichlorosilane as the reducing agent and TMEDA as the Lewis base activator. This protocol provides a facile and efficient method for the preparation of bulky tertiary amines under mild and metal-free conditions. The development of the asymmetric version of this protocol is underway.

Supplementary Materials

Supplementary materials can be accessed at: https://www.mdpi.com/1420-3049/17/5/5151/s1.

Acknowledgments

We are grateful for financial supports from the National Natural Science Foundation of China (Project Nos. 21102115, 20972152 and 91013006).

References and Notes

  1. Birtill, J.J.; Chamberlain, M.; Hall, J.; Wilson, R.; Costello, I. Optimization of reaction conditions in single-stage reductive amination of aldehydes and ketones. In Catalysis of Organic Reactions; Herkers, F.E., Ed.; Dekker: New York, NY, USA, 1998; pp. 255–271. [Google Scholar]
  2. Baxter, E.W.; Reitz, A.B. Reductive aminations of carbonyl compounds with borohydride and borane reducing agents. In Organic Reactions; Denmark, S.E., Ed.; Wiley: New York, NY, USA, 2002; Volume 59, pp. 1–57. [Google Scholar]
  3. Gomez, S.; Peters, J.A.; Maschmeyer, T. The reductive amination of aldehydes and ketones and the hydrogenation of nitriles: mechanistic aspects and selectivity control. Adv. Syn. Catal. 2002, 344, 1037–1057. [Google Scholar] [CrossRef]
  4. Tararov, V.I.; Kadyrov, R.; Riermeier, T.H.; Fischer, C.; Börner, A. Direct reductive amination versus hydrogenation of intermediates—A comparison. Adv. Syn. Catal. 2004, 346, 561–565. [Google Scholar] [CrossRef]
  5. Ohkuma, T.; Noyori, R. Hydrogenation of imino groups. In Comprehensive Asymmetric Catalysis; Jacobsen, E.N., Pfaltz, A., Yamamoto, H., Eds.; Springer: New York, NY, USA, 2004; Volume 1, pp. 199–242. [Google Scholar]
  6. Nugent, T.C.; El-Shazly, M. Chiral amine synthesis—Recent developments and trends for enamide reduction, reductive amination, and imine reduction. Adv. Synth. Catal. 2010, 352, 753–819. [Google Scholar] [CrossRef]
  7. Tripathi, R.P.; Verma, S.S.; Pandey, J.; Tiwari, V.K. Recent development on catalytic reductive amination and applications. Curr. Org. Chem. 2008, 12, 1093–1115. [Google Scholar] [CrossRef]
  8. Kadyrov, R.; Riermeier, T.H. Highly enantioselective hydrogen-transfer reductive amination: Catalytic asymmetric synthesis of primary amines. Angew. Chem. Int. Ed. 2003, 42, 5472–5474. [Google Scholar] [CrossRef]
  9. Storer, R.I.; Carrera, D.E.; Ni, Y.; MacMillan, D.W.C. Enantioselective organocatalytic reductive amination. J. Am. Chem. Soc. 2006, 128, 84–86. [Google Scholar] [CrossRef]
  10. Höhne, M.; Kühl, S.; Robins, K.; Bornscheuer, U.T. Efficient asymmetric synthesis of chiral amines by combining transaminase and pyruvate decarboxylase. ChemBioChem 2008, 9, 363–365. [Google Scholar] [CrossRef]
  11. Koszelewski, D.; Lavandera, I.; Clay, D.; Guebitz, G.M.; Rozzell, D.; Kroutil, W. Formal asymmetric biocatalytic reductive amination. Angew. Chem. Int. Ed. 2008, 47, 9337–9340. [Google Scholar]
  12. Nugent, T.C.; Negru, D.E.; El-Shazly, M.; Hu, D.; Sadiq, A.; Bibi, A.; Umar, M.N.J. Sequential reductive amination hydrogenolysis: Aone-pot synthesis of challenging chiral primary amines. Adv. Synth. Catal. 2011, 353, 2085–2092. [Google Scholar] [CrossRef]
  13. Villa-Marcos, B.; Li, C.; Mulholland, K.R.; Hogan, P.J.; Xiao, J. Bifunctional catalysis: Direct reductive amination of aliphatic ketones with an Iridium-phosphate catalyst. Molecules 2010, 15, 2453–2472. [Google Scholar] [CrossRef]
  14. Abdel-Magid, A.F.; Carson, K.G.; Harris, B.D.; Maryanoff, C.A.; Shah, R.D. Reductive amination of aldehydes and ketones with sodium triacetoxyborohydride. Studies on direct and indirect reductive amination procedures. J. Org. Chem. 1996, 61, 3849–3862. [Google Scholar]
  15. Alinezhad, H.; Tajbakhsh, M.; Zamani, R. One-pot reductive amination of aldehydes and ketones using N-methylpiperidine zinc borohydride (ZBNMPP) as a new reducing agent. Synlett 2006, 431–434. [Google Scholar]
  16. Menche, D.; Böhm, S.; Li, J.; Rudolph, S.; Zander, W. Synthesis of hindered tertiary amines by a mild reductive amination procedure. Tetrahedron Lett. 2007, 48, 365–369. [Google Scholar] [CrossRef]
  17. Lee, O.Y.; Law, K.L.; Ho, C.Y.; Yang, D. Highly chemoselective reductive amination of carbonyl compounds promoted by InCl3/Et3SiH/MeOH system. J. Org. Chem. 2008, 73, 8829–8837. [Google Scholar] [CrossRef]
  18. Jung, Y.J.; Bae, J.W.; Park, E.S.; Chang, Y.M.; Yoon, C.M. An efficient conversion of nitroaromatics and aromatic amines to tertiary amines in one-pot way. Tetrahedron 2003, 59, 10333–10338. [Google Scholar]
  19. Wang, C.; Pettman, A.; Basca, J.; Xiao, J. A Versatile Catalyst for Reductive Amination by Transfer Hydrogenation. Angew. Chem. Int. Ed. 2010, 49, 7548–7552. [Google Scholar]
  20. Kobayashi, S.; Yasuda, M.; Hachiya, I. Trichlorosilane-dimethylformamide (Cl3SiH-DMF) as an efficient reducing agent. Reduction of aldehydes and imines and reductive amination of aldehydes under mild conditions using hypervalent hydridosilicates. Chem. Lett. 1996, 407–408. [Google Scholar]
  21. Guizzetti, S.; Benaglia, M. Trichlorosilane-mediated stereoselective reduction of C=N bonds. Eur.J. Org. Chem. 2010, 5529–5541. [Google Scholar] [CrossRef]
  22. Jones, S.; Warner, C.J.A. Trichlorosilane mediated asymmetric reductions of the C=N bond. Org. Biomol. Chem. 2012, 10, 2189–2200. [Google Scholar] [CrossRef]
  23. Iwasaki, F.; Onomura, O.; Mishima, K.; Kanematsu, T.; Maki, T.; Matsumura, Y. First chemo- and stereoselective reduction of imines using trichlorosilane activated with N-formylpyrrolidine derivatives. Tetrahedron Lett. 2001, 42, 2525–2527. [Google Scholar]
  24. Matsumura, Y.; Ogura, K.; Kouchi, Y.; Iwasaki, F.; Onomura, O. New efficient organic activators for highly enantioselective reduction of aromatic ketones by trichlorosilane. Org. Lett. 2006, 8, 3789–3792. [Google Scholar] [CrossRef]
  25. Malkov, A.V.; Mariani, A.; MacDougall, K.N.; Kočovský, P. Role of noncovalent interactions in the enantioselective reduction of aromatic ketimines with trichlorosilane. Org. Lett. 2004, 6, 2253–2256. [Google Scholar] [CrossRef]
  26. Malkov, A.V.; Liddon, A.; Ramirez-Lopez, P.; Bendova, L.; Haigh, D.; Kočovský, P. Remote chiral induction in the organocatalytic hydrosilylation of aromatic ketones and ketimines. Angew. Chem. Int. Ed. 2006, 45, 1432–1435. [Google Scholar]
  27. Malkov, A.V.; Stoncius, S.; Vrankova, K.; Arndt, M.; Kocovsky, P. Dynamic kinetic resolution in the asymmetric synthesis of β-amino acids by organocatalytic reduction of enamines with trichlorosilane. Chem. Eur. J. 2008, 14, 8082–8085. [Google Scholar] [CrossRef]
  28. Malkov, A.V.; Vrankova, K.; Stoncius, S.; Kocovsky, P. Asymmetric reduction of imines with trichlorosilane, catalyzed by sigamide, an amino acid-derived formamide: Scope and limitations. J. Org. Chem. 2009, 74, 5839–5849. [Google Scholar] [CrossRef]
  29. Figlus, M.; Caldwell, S.T.; Walas, D.; Yesilbag, G.; Cooke, G.; Kocovsky, P.; Malkov, A.V.; Sanyal, A. Dendron-anchored organocatalysts: The asymmetric reduction of imines with trichlorosilane, catalysed by an amino acid-derived formamide appended to a dendron. Org. Biomol. Chem. 2010, 8, 137–141. [Google Scholar]
  30. Wang, Z.Y.; Ye, X.X.; Wei, S.Y.; Wu, P.C.; Zhang, A.J.; Sun, J. A highly enantioselective Lewis Basic organocatalyst for reduction of N-aryl imines with unprecedented substrate spectrum. Org. Lett. 2006, 8, 999–1001. [Google Scholar] [CrossRef]
  31. Wang, Z.Y.; Cheng, M.N.; Wu, P.C.; Wei, S.Y.; Sun, J. L-piperazine-2-carboxylic acid derived N-formamide as a highly enantioselective Lewis basic catalyst for hydrosilylation of N-aryl imines with an unprecedented substrate profile. Org. Lett. 2006, 8, 3045–3048. [Google Scholar] [CrossRef]
  32. Pei, D.; Wang, Z.Y.; Zhang, Y.; Wei, S.Y.; Sun, J. S-chiral sulfinamides as highly enantioselective organocatalysts. Org. Lett. 2006, 8, 5913–5915. [Google Scholar]
  33. Zhou, L.; Wang, Z.Y.; Wei, S.Y.; Sun, J. Evolution of chiral Lewis basic N-formamide as highly effective organocatalyst for asymmetric reduction of both ketones and ketimines with an unprecedented substrate scope. Chem. Commun. 2007, 2977–2979. [Google Scholar]
  34. Pei, D.; Zhang, Y.; Wei, S.Y.; Wang, M.; Sun, J. Rationally-designed S-chiral bissulfinamides as highly enantioselective organocatalysts for reduction of ketimines. Adv. Synth. Catal. 2008, 350, 619–623. [Google Scholar] [CrossRef]
  35. Wang, C.; Wu, X.; Zhou, L.; Sun, J. A highly enantioselective organocatalytic method for reduction of aromatic N-alkyl ketimines. Chem. Eur. J. 2008, 14, 8789–8792. [Google Scholar] [CrossRef]
  36. Baudequin, C.; Chaturvedi, D.; Tsogoeva, S.B. Organocatalysis with chiral formamides: asymmetric allylation and reduction of imines. Eur.J. Org. Chem. 2007, 2623–2629. [Google Scholar]
  37. Guizzetti, S.; Benaglia, M.; Rossi, S. Highly stereoselective metal-free catalytic reduction of imines: An easy entry to enantiomerically pure amines and natural and unnatural α-amino esters. Org. Lett. 2009, 11, 2928–2931. [Google Scholar] [CrossRef]
  38. Xiao, Y.C.; Wang, C.; Yao, Y.; Sun, J.; Chen, Y.C. Direct asymmetric hydrosilylation of indoles: Combined Lewis base and brønsted acid activation. Angew. Chem. Int. Ed. 2011, 50, 10661–10664. [Google Scholar] [CrossRef]
  39. Wu, X.; Li, Y.; Wang, C.; Zhou, L.; Lu, X.; Sun, J. Chiral Lewis base catalyzed highly enantioselective reduction of N-alkyl β-enamino esters with trichlorosilane and water. Chem. Eur. J. 2011, 17, 2846–2848. [Google Scholar] [CrossRef]
  40. Zheng, H.J.; Chen, W.B.; Wu, Z.J.; Deng, J.G.; Lin, W.Q.; Yuan, W.C.; Zhang, X.M. Highly enantioselective synthesis of β-Amino acid derivatives by the Lewis base catalyzed hydrosilylation of β-enamino esters. Chem. Eur. J. 2008, 14, 9864–9867. [Google Scholar]
  41. Xue, Z.Y.; Jiang, Y.; Peng, X.Z.; Yuan, W.C.; Zhang, X.M. The first general, highly enantioselective Lewis base organocatalyzed hydrosilylation of benzoxazinones and quinoxalinones. Adv. Synth. Catal. 2010, 352, 2132–2136. [Google Scholar] [CrossRef]
  42. Chen, X.; Zheng, Y.; Shu, C.; Yuan, W.; Liu, B.; Zhang, X. Enantioselective synthesis of 4-substituted 4,5-dihydro-1H-[1,5]benzodiazepin-2(3H)-onesby the Lewis base-catalyzed hydrosilylation. J. Org. Chem. 2011, 76, 9109–9115. [Google Scholar] [CrossRef]
  43. Xue, Z.Y.; Liu, L.X.; Jiang, Y.; Yuan, W.C.; Zhang, X.M. Highly enantioselective Lewis base organocatalyzed hydrosilylation of γ-imino esters. Eur. J. Org. Chem. 2012, 251–255. [Google Scholar]
  44. We examined the DRA of acetophenone 1a with aliphatic secondary amine and cyclic secondary amine using one equivalent of DMF as the Lewis base activator in dichloromethane at room temperature. No desired product was observed.
  • Sample Availability: Not available.
