Article

Synthesis and Characterization of Positively Charged Pentacationic [60]Fullerene Monoadducts for Antimicrobial Photodynamic Inactivation

1
Department of Chemistry, Institute of Nanoscience and Engineering Technology, University of Massachusetts, Lowell, MA 01854, USA
2
Wellman Center for Photomedicine, Massachusetts General Hospital, Boston, MA 02114, USA
3
Department of Dermatology, Harvard Medical School, Boston, MA 02115, USA
4
Harvard-MIT Division of Health Sciences and Technology, Cambridge, MA 02139, USA
5
Department of Laboratory Medicine and Pathobiology, University of Toronto, Toronto, ON M5S 1A8, Canada
*
Authors to whom correspondence should be addressed.
Molecules 2012, 17(5), 5225-5243; https://doi.org/10.3390/molecules17055225
Submission received: 31 March 2012 / Revised: 22 April 2012 / Accepted: 28 April 2012 / Published: 7 May 2012
(This article belongs to the Special Issue Fullerene Chemistry)

Abstract

:
We designed and synthesized two analogous pentacationic [60]fullerenyl monoadducts, C60(>ME1N6+C3) (1) and C60(>ME3N6+C3) (2), with variation of the methoxyethyleneglycol length. Each of these derivatives bears a well-defined number of cationic charges aimed to enhance and control their ability to target pathogenic Gram-positive and Gram-negative bacterial cells for allowing photodynamic inactivation. The synthesis was achieved by the use of a common synthon of pentacationic N,N′,N,N,N,N-hexapropyl-hexa(aminoethyl)amine arm (C3N6+) having six attached propyl groups, instead of methyl or ethyl groups, to provide a well-balanced hydrophobicity–hydrophilicity character to pentacationic precursor intermediates and better compatibility with the highly hydrophobic C60 cage moiety. We demonstrated two plausible synthetic routes for the preparation of 1 and 2 with the product characterization via various spectroscopic methods.

1. Introduction

Broad-spectrum one-photon based photodynamic therapy (1γ-PDT)-mediated killing of pathogenic Gram-positive (e.g., Staphylococcus aureus) and Gram-negative (e.g., Escherichia coli) bacterial targets using a conventionally accessible light source is an emerging medical approach to treat infectious diseases, especially, those caused by multi-antibiotic-resistant bacteria [1,2,3,4,5]. The efficacy of 1γ-PDT depends on several parameters, including photophysical characteristics of the photosensitizer, the ability of the photosensitizer to target bacteria, the method of administration, and the availability of an appropriate light source. Fullerenes are highly photostable molecules suitable for single-dose multiple-treatments applications. Nearly quantitative efficiency of intersystem crossing from the excited singlet state of [60]fullerene (1C60*) to its triplet excited state (3C60*) readily allows intermolecular triplet energy transfer from 3C60* to molecular oxygen leading to the production of singlet oxygen (1O2) [6,7], which is highly reactive toward biological substrates producing subsequent cell damage. This photochemical mechanism serves as the basis of photodynamic cytotoxicity against pathogenic microorganisms, including multi-antibiotic-resistant bacteria. However, chemical functionalization of C60 is necessary to enhance its solubility in water. In general, attachment of multiple hydroxyl, carboxylic acid, and glycolic oxide addend groups may serve the purpose. Water-solubility of these derivatives increases as the number of hydrophilic groups increases, whether these functional groups are located in either the same addend group or different addend moieties. The latter case leads to the synthesis of fullerenyl multiadducts that may change significantly the molecular orbital configuration of the fullerene cage and, thus, its HOMO–LUMO energy gap level and effectiveness in the production of 1O2. The 1γ-PDT efficiency can be optimized by performing only a limited number of addition reactions to the fullerenyl olefinic bonds to preserve the low HOMO–LUMO energy gap level of the cage. This restriction suggests that [60]fullerene monoadducts using hydrophilic or amphiphilic groups would be suitable candidates. However, since only one addend group is able to be attached to the cage in a monoadducts, sufficient hydrophilicity is required to allow compatibility of the resulting derivative with water.
It has been demonstrated that polycationic photosensitizers exhibited high activity as 1γ-PDT agents for targeting and photokilling against both Gram-positive and Gram-negative bacterial species [8,9]. These reported findings revealed the importance of cell surface interactions between multicationic drug molecules and anionic peptide residues in the cell wall. Specifically, several factors including differences in physiology, cell wall, and cytoplasmic membrane structures between Gram-positive and Gram-negative bacteria [10,11,12] affect the properties of particular functional groups to be attached on the fullerene cage to allow effective targeting selectivity, drug-delivery, and photodynamic inactivation.
Accordingly, we considered the structural modification of C60 to allow the increase of its solubility in physiologic media and its compatibility in an environment of bacterial disease in tissue. This led to our design and synthesis of [60]fullerenyl monoadducts bearing a well-defined high number of cationic charges that hitherto had remained challenging and has rarely been reported to date. In this paper, we describe a rational linkage of water-soluble quaternary alkylammonium multi-salts and ester-amide functional groups to a well-defined pentacationic arm together with an efficient synthetic method for its attachment on a C60 nanocage. The synthesis led to the preparation of new pentacationic [60]fullerene-based nano-photosensitizers 1 and 2, as shown in Scheme 1 and Scheme 2.
Scheme 1. The first synthetic steps of C60(>ME1N6+C3) 1 and C60(>ME3N6+C3) 2.
Scheme 1. The first synthetic steps of C60(>ME1N6+C3) 1 and C60(>ME3N6+C3) 2.
Molecules 17 05225 g004

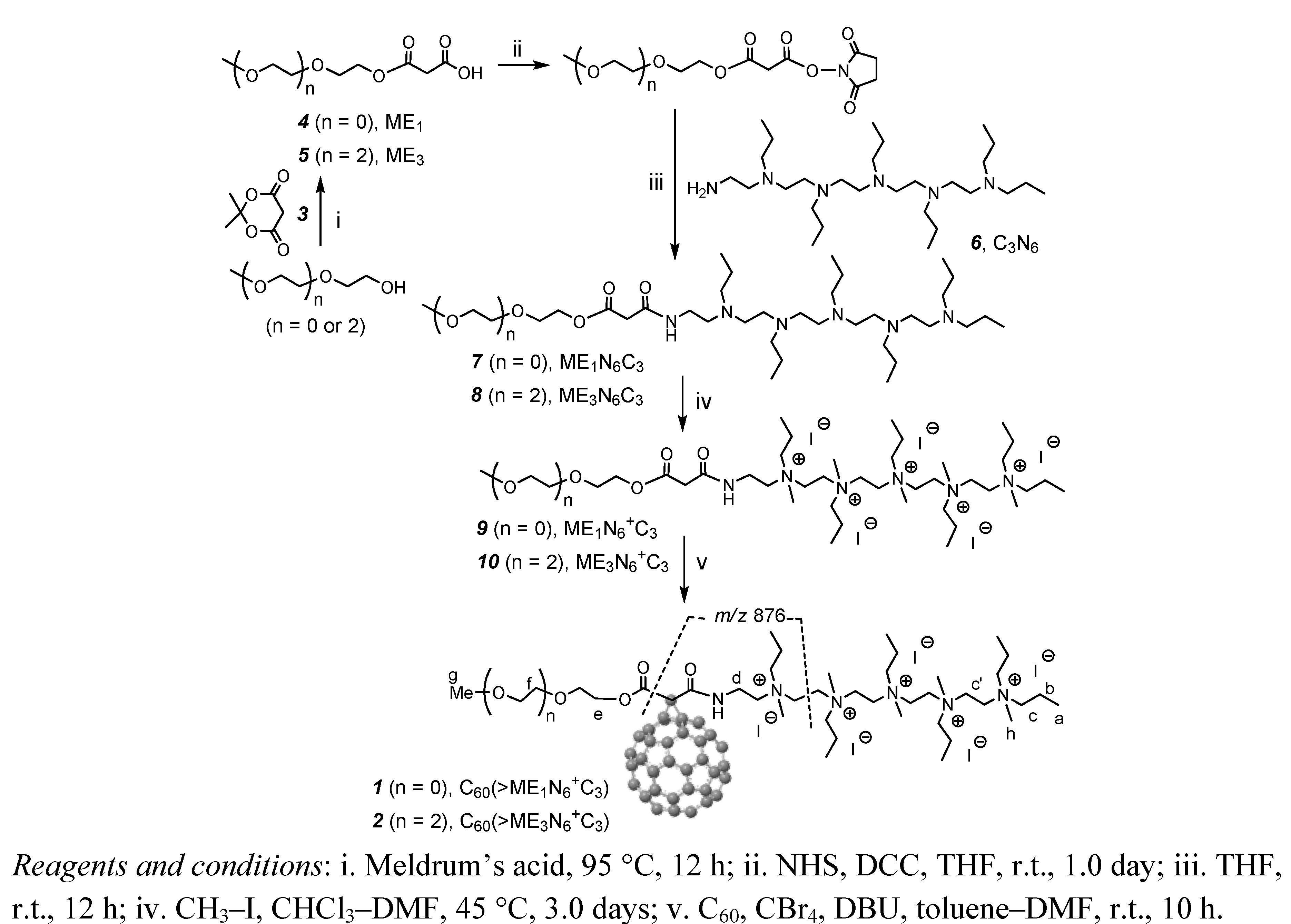

Scheme 2. The second synthetic steps of C60(>ME1N6+C3) 1 and C60(>ME3N6+C3) 2.
Scheme 2. The second synthetic steps of C60(>ME1N6+C3) 1 and C60(>ME3N6+C3) 2.
Molecules 17 05225 g005
In these structures, arm moieties each bearing a high number of cationic charges and an amide moiety are capable of inducing the H-bonding in the vicinity of the fullerene cage.

2. Results and Discussion

Enhancement of the hydrophilicity of fullerene derivatives can be achieved by incorporation of the oligo(ethylene glycol) unit [13,14,15], an aminoacid moiety [16], or ionic functional groups [17,18,19] as addend attachments of C60 cage. The resulting amphiphilic derivatives have been reported to undergo different forms of solid aggregation in aqueous solution if the hydrophilic moiety of the addend is insufficiently large to overcome the high hydrophobicity of the fullerene cage. To circumvent this solid aggregation problem, we undertook the effort to synthesize a well-defined water-soluble pentacationic N,N′,N,N,N,N-hexapropyl-hexa(aminoethyl)amine arm moiety C3N6+, as a charged C3N6 (6), with the number of charge being fixed at five per arm and used as the common synthon in the preparation of [60]fullerene monoadducts, as shown in Scheme 1. One example was given by the combination of a water-compatible ethylene glycol unit with a C3N6+ arm to a single addend, such as the arm precursors ME1N6+C3 (9) and ME3N6+C3 (10), to enhance the water-solubility. Synthesis of 9 and 10 began with the reaction of either 2-methoxyethanol or triethylene glycol monomethyl ether with 2,2-dimethyl-1,3-dioxane-4,6-dione (3, Meldrum’s acid) at 90–95 °C for a period of 12 h to afford malonic acid methoxyethyleneglycol ester, ME1 (4), or malonic acid methoxytriethyleneglycol ester, ME3 (5), in 95 or 90% yield, respectively. Amidation reaction of 4 and 5 was carried out by the treatment with N-hydroxysuccinamide and N,N′-dicyclohexyl carbodiimide (DCC) in anyhydrous THF at ambient temperature over a period of 12 h, followed by the removal of insoluble byproduct of N,N′-dicyclohexyl urea and the further treatment with N,N′,N,N,N,N-hexapropyl-hexa(aminoethyl)amine, C3N6 (6), for an additional period of 12 h. These reactions resulted in the corresponding products of methoxyethyleneglycol-[N,N′,N,N,N,N-hexapropyl-hexa(aminoethyl)-amino]malonamide ester, ME1N6C3 (7), and methoxy-tri(ethyleneglycol)-[N,N′,N,N,N,N-hexapropyl-hexa(aminoethyl)amino]malonamide ester, ME3N6C3 (8), in 82 and 80% yield, respectively. Quaternization reaction of mono- and tri(ethoxylated) hexaaminomalonamide precursors 7 and 8 using methyl iodide as the methylation agent at 45–50 °C for a period of 3.0 days afforded the corresponding methoxyethyleneglycol-[N,N′,N,N,N,N-hexapropyl-hexa(aminoethyl)amino]malonamide ester methyl quaternary ammonium salt, ME1N6+C3 (9), and its tri(ethyleneglycolated) analogue ME3N6+C3 (10) in 94 and 92% yield, respectively. Attachment of a C60 cage on the quaternary ammonium salts of malonamide was accomplished by the treatment of 9 and 10 in DMF with predissolved C60 in toluene in the presence of 1.8-diazabicyclo[5.4.0]-undec-7-ene (DBU) at ambient temperature for a period of 8.0 h. In this reaction, carbon tetrabromide was applied as the bromination agent for the replacement of malonyl α-proton in situ. To minimize the possible formation of partial fullerenyl byproducts containing multiaddends, an excess amount (2.5 equiv.) of C60 was applied. At the end of fullerenation, an excessive amount of C60 molecules was recovered and removed by repeatedly washing the crude products with toluene until the observation of a clear toluene solution in washings. The reaction procedure led to the isolation of methoxyethyleneglycol-(20-oxo-4,7,10,13,16-pentapropyl-4,7,10,13,16,19-hexaaza-nonadecan-19-yl)[60]fullerenyl malonate quaternary methyl ammonium salt, C60(>ME1N6+C3) (1), and its tri(ethyleneglycolated) analogue C60(>ME3N6+C3) (2) in 55 and 50% yield, respectively.
Alternatively, as shown in Scheme 2, (ethyleneglycolated)malonic acids 4 and 5 were converted to their corresponding tert-butyl(2-methoxyethyl)malonate ester, ME1(t-C4) (11), and its tri(ethyleneglycolated) analogue ME3(t-C4) (12) in 74 and 77% yield, respectively, byan esterification reaction with t-butyl alcohol in anyhydrous dichloromethane (DCM) in the presence of N,N'-dicyclohexylcarbodiimide (DCC) at ambient temperature for a period of 8.0 h. Subsequent fullerenyl cyclopropanation reaction of 11 and 12 was carried out by treatment with [60]fullerene solution in a mixture of toluene and 1,2-dichlorobenzene in the presence of carbon tetrabromide and 1.8-diazabicyclo[5.4.0]-undec-7-ene (DBU) over a period of 12 h at room temperature. The products tert-butyl(2-methoxyethyl)[60]fullerenyl malonate, C60[>ME1(t-C4)] (13), and tert-butyl(methoxy-triethyleneglycol)[60]fullerenyl malonate, C60[>ME3(t-C4)] (14), were purified by column chromatography [SiO2, toluene−ethyl acetate (20:1) as eluent] as brown solids in 78 and 75% yield, respectively. Direct transamidation reaction of 13 and 14 with C3N6 was not successful owing to the complicated side-reaction arising from the attack of C3N6 on C60 itself at elevated temperatures which is required for the effective transamidation. Therefore, we carried out the transformation of 13 and 14 to the corresponding methoxyethyleneglycol-(20-oxo-4,7,10,13,16-pentapropyl-4,7,10,13,16,19-hexaaza-nonadecan-19-yl)[60]fullerenyl malonate 17, C60(>ME1N6C3), and its methoxytriethyleneglycol ester analogous 18, C60(>ME3N6C3), respectively, by the acid hydrolysis of 13 and 14 first to 2-[60]fullerenyl-3-(2-methoxyethoxy)-3-oxopropanoic acid 15, C60(>ME1H), and its methoxy-triethyleneglycol ester analogous 16, C60(>ME3H), respectively. The latter products were obtained as brown solids in yields of 89% and 87%, respectively. Conversion of 15 and 16 to their acid chloride intermediates was carried out by the reaction with thionyl chloride in THF. To minimize the amination of C3N6 on C60, subsequent reaction with the acid chloride intermediate was performed at 0 °C to room temperature over a period of 3.0 h. A relatively pure C60(>ME1N6C3) 17 was obtained in 47% yield. It was accompanied with a small quantity of byproduct as a decarboxylated fullerene malonate-monoadduct that is removable. The stability of 17 and 18 in either solution or solid phase was found to be low owing to possible intermolecular complex formation between the hexaamine moiety and C60 cage giving insoluble aggregate solids. Therefore, compound 17 and 18 was quaternized to the protonated ammonium–trifluoroacetate salt C60(>ME1N6+C3) (1′) and C60(>ME3N6+C3) (2′), respectively, with trifluoroacetic acid in a short period of time immediately after the workup procedure and purification. Final synthesis of the products pentacationic methoxyethyleneglycol-(20-oxo-4,7,10,13,16-pentapropyl-4,7,10,13,16,19-hexaaza-nonadecan-19-yl)[60]fullerenyl malonate quaternary methyl ammonium salt C60(>ME1N6+C3) (1), and its analogous methoxy-triethyleneglycol ester C60(>ME3N6+C3) (2), was carried out by the neutralization of 1′ and 2′ first with aqueous potassium carbonate in CHCl3 as a biphase solution. Resulting [60]fullerenyl malonates 17 and 18, respectively, were then transferred to a solvent mixture of anhydrous CHCl3 and DMF (2:1) for methyl quaternization with an excess amount of iodomethane added portionwise over a period of 3.0 days at 45 °C to afford 1 and 2. Successful amidation conversion from malonic acid 5 to ME3N6C3 was verified by the FT-IR spectrum of 8 (Figure 1a) showing two clear and strong vibrational carbonyl absorption bands centered at 1667 and 1736 cm−1 corresponding to malonylamide carbonyl [–NH-C(=O)–] and ester carbonyl (–C=O) moieties, respectively. In the same spectrum, IR peaks located at 2952, 2928, 2862, and 2805 cm−1 were assigned to the stretching absorption bands of aliphatic –C-H. Anti-symmetric deformations of –CH3 groups and scissor vibrations of –CH2 groups appeared as medium intensity bands centered around 1456 cm−1, while symmetric deformations of CH3 groups exhibited the absorption around 1379 cm−1 that overlaps with the –N-C− stretching vibration of amide [–N-(C=O)–] bands at 1400 cm−1. A strong broad band centered at 1104 cm−1 was assigned to the stretching vibrations of –C-O-C– and –C-N– moieties. Methyl quaternization of 8, having tertiary penta(ethylamino) arms, to ME3N6+C310 with iodide salts showed retention of some of IR absorption bands (Figure 1b), except the shift of –NH-C(=O)– band to 1669 cm−1 and a new broad band at 947 cm−1, corresponding to the absorption of a number of quaternary –C-N+– bonds. Formation of ME3N6+C3-attached C60monoadduct was verified by the observation of a sharp characteristic fullerene half-cage absorption band of C60(>ME3N6+C3) 2 at 524 cm−1 in the spectrum of Figure 1c. These results provided a good agreement of the product structure of 2. Similar infrared absorption bands of C60(>ME1N6+C3) 1 were observed, except a relatively smaller –C-O-C– band than that of 2 centered at 1000–1200 cm−1.
Figure 1. FT-IR spectra of (a) ME3N6C3 8, (b) ME3N6+C3 10, and (c) C60(>ME3N6+C3) 2.
Figure 1. FT-IR spectra of (a) ME3N6C3 8, (b) ME3N6+C3 10, and (c) C60(>ME3N6+C3) 2.
Molecules 17 05225 g001
Mass spectroscopic data collection of both 1 and 2 was proven to be difficult due to their polycationic nature and facile fragmentations occurring at the conjunction of the C60 cage and the pentacationic malonate arm, giving mainly the highly detectable C60 ion mass fragment at m/z 721, as displayed in MALDI−TOF mass spectra using sinapic acid as the matrix. All fragmented high mass ions were very weak in intensity including peaks at m/z 1930 (M+–I) (supporting information) and 2019 (MH+–I) as the molecular ion of 1 and 2, respectively. The most pronounced mass fragmentation ions at m/z 874 and 876 in both spectra of 1 and 2 were assigned to the substructure of C60[>H(C=O)NHCH2CH2N+-PrMe2], indicating a main malonylamide moiety being attached on a C60 cage, consistent with the [60]fullerenyl monoadduct structure.
In the case 1H-NMR spectroscopic analyses, we first well-characterized the arm structures ME1(t-C4) (11, Figure 2a) and ME3(t-C4) (12) by identification of all protons (Hα, He, Hf, Hg, and Hi indicated in Scheme 2) with their assignments to peaks shown in the spectra. Attachment of 11 on C60 leading to a monoadduct C60[>ME1(t-C4)] (13) was evident by the disappearance of a Hα proton peak with the chemical shift at δ 3.33. It was also accompanied with up-fielded shifts of two proton peaks to δ 3.06 and 3.26, corresponding to the chemical shift of terminal methoxy protons Hg and ethylene oxide protons Hf, in toluene-d8 from δ 3.34 and 3.56 of 11 in CDCl3, respectively, reflecting partly the solvent effect. Hydrolysis of 13 to C60(>ME1H) (15) was also apparent by the loss of t-butyl protons at δ 1.55, as shown in Figure 2b and Figure 2c, accompanied with down-fielded shifts of proton peaks (Hg, Hf, and He) to δ 3.34, 3.71, and 4.59, respectively, in THF-d8 showing a larger solvent effect. Monoadduct structures of 13 and 14 were also confirmed by the detection of well-defined characteristic fullerenyl sp2 carbon peaks in their 13C-NMR spectra (Figure 3b) showing a group of 26 and 27 peaks, respectively, each accounted for two carbons and a group of 6 single carbon peaks for 13 (two of these single carbon peaks may be derived from the slightly unsymmetrical environment around the malonate moiety) and 4 single carbon peaks for 14 in the region of δ 135–150, consistent with a Cv molecular symmetry for both 13 and 14. It also displayed two clear carbonyl carbon peaks at δ 163.45 (O=C-O-tert-butyl) and 161.86 (O=C-O–) in toluene-d8, for 13 and the corresponding peaks at δ 163.95 and 162.16 in CDCl3 for 14. Evidence of the acid formation in the structure of 15 and C60(>ME3H) (16) was given by the solubility change and up-fielded shifts of the carbonyl chemical-shift to δ 161.13 (O=C-OH) and 161.62 (O=C-O–) in THF-d8–CS2 (2:1) for 15 (Figure 3c), partly due to the solvent effect. More clear changes of carbonyl carbon peak positions were observed for the case of 16 showing down-fielded shifts to δ 163.79 (O=C-OH) and 164.12 (O=C-O–) (Figure 3d) from those of 14 in the same solvent, consistent with the corresponding structural modification.
Figure 2. 1H NMR spectra of (a) 11 in CDCl3, (b) 13 in toluene-d8, (c) 15 in THF-d8, (d) 1’ in CDCl3−toluene-d8, and (e) 1 in DMSO-d6–toluene-d8.
Figure 2. 1H NMR spectra of (a) 11 in CDCl3, (b) 13 in toluene-d8, (c) 15 in THF-d8, (d) 1’ in CDCl3−toluene-d8, and (e) 1 in DMSO-d6–toluene-d8.
Molecules 17 05225 g002

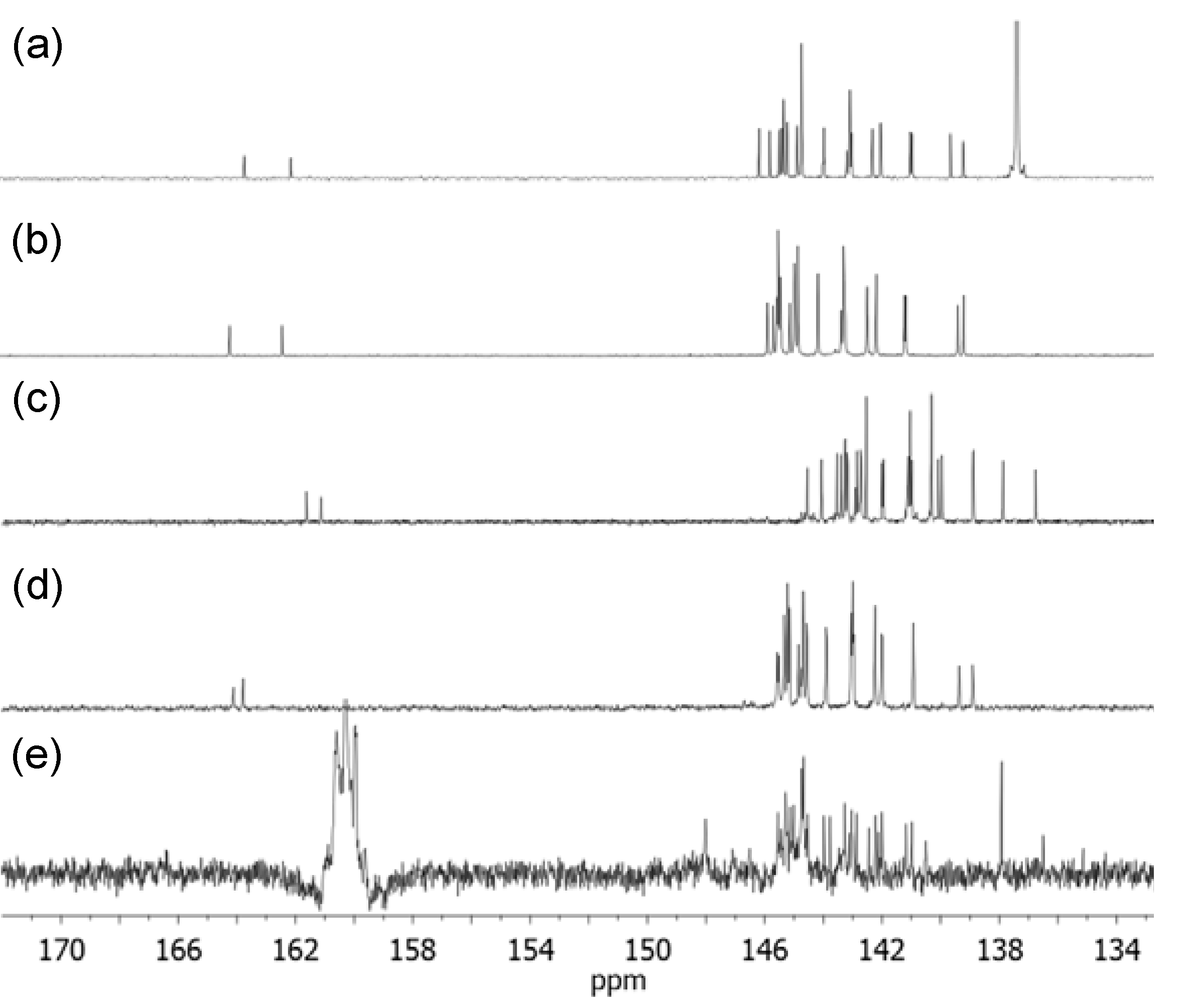

Figure 3. 13C-NMR spectra of (a) 13 in toluene-d8; (b) 14 in CDCl3; (c) 15 in THF-d8–CS2; (d) 16 in CDCl3; and (e) 1′ in CDCl3.
Figure 3. 13C-NMR spectra of (a) 13 in toluene-d8; (b) 14 in CDCl3; (c) 15 in THF-d8–CS2; (d) 16 in CDCl3; and (e) 1′ in CDCl3.
Molecules 17 05225 g003
In addition, the spectra of both compounds 15 and 16 displayed a group of 27 peaks each accounted for two sp2 fullerenyl carbons and four single sp2 carbon peaks in the region of δ 135–145 provided the further confirmation of a Cv molecular symmetry of C60(>ME1H) and C60(>ME3H), respectively, as monoadducts without change during the chemical reaction.
Attachment of hexa(aminoethyl)amine C3N6+ arm to the malonic acid moiety of C60(>ME1H) leading to the structure of C60(>ME1N6+C3) 1′ and subsequently 1 was confirmed by the analyses of both infrared and 1H-NMR spectra. The latter of 1′ showed proton peaks corresponding to the C3N6+ arm moiety with overlap of a number of terminal ammonium-propyl α-protons (Hc), α-protons to amide group (Hd), glycol ether protons (Hf), and terminal methoxy protons (Hg) giving broad multiplet peaks in the region of δ 3.0–4.25 in CDCl3–toluene-d8 (Figure 2d). The second broad multiplet peaks in the region of δ 4.25–4.75 were assigned to ammonium-ethyl protons (Hc) and α-protons to the ester group (He). In the case of 1, chemical shifts of similar groups of protons (Hc, Hd, Hf, and Hg) and (Hc, He, and ammonium-methyl protons Hh) were assigned to those of broad multiplet peaks at δ 3.0–3.75 and 3.75–4.5, respectively, in DMSO-d6–toluene-d8 (2:1), as shown in Figure 2(e). Interestingly, 13C-NMR spectrum of C60(>ME1N6+C3) 1′ (Figure 3e) showed a group of 27 peaks each accounted for two sp2 fullerenyl carbons and four single sp2 carbon peaks (two of them having an identical chemical shift) in the region of δ 135−150 that provided a clear confirmation of a Cv molecular symmetry of C60(>ME1N6+C3) monoadduct.

3. Experimental

3.1. Materials

The reagents 2-methoxyethanol, triethylene glycol monomethyl ether, 2,2-dimethyl-1,3-dioxane-4,6-dione (Meldrum’s acid), N-hydroxysuccinamide (NHS), N,N′-dicyclohexyl carbodiimide (DCC), iodomethane, carbon tetrabromide (CBr4), 1,8-diazabicyclo[5,4,0]-undec-7-ene (DBU), 2-methyl-2-propanol, trifluoroacetic acid (TFA), thionyl chloride (SOCl2), K2CO3, γ-butyrolactone (GBL), BF3·Et2O, triethylamine, and pyridine were purchased from Aldrich Chemicals and used without further purification. Malonyl chloride was purchased from TCI America. A C60 sample with a purity of 99.0% was used. Sodium sulfate was employed as a drying agent. Solvents were routinely distilled before use.

3.2. Spectroscopic Measurements

Infrared spectra were recorded as KBr pellets on a Thermo Nicolet Avatar 370 FT-IR spectrometer. 1H-NMR and 13C-NMR spectra were recorded on a Bruker Avance Spectrospin-500 spectrometer. UV-Vis spectra were recorded on a Perkin Elmer Lambda 750 UV-Vis-NIR Spectrometer. MALDI-mass spectra were recorded on a WATERS Micromass MALDI-TOF mass spectrometer. Elemental analysis was taken by Galbraith Laboratories, Inc. (Knoxville, TN, USA).

3.3. Synthetic Procedures

3.3.1. Synthesis of Malonic Acid Methoxyethyleneglycol Ester, ME1 (4)

A mixture of 2-methoxyethanol (1.0 g, 13.1 mmol) and 2,2-dimethyl-1,3-dioxane-4,6-dione (3, Meldrum’s acid, 1.9 g, 13.2 mmol) was stirred under an Ar atmosphere over a period of 12 h at 95 °C. The reaction mixture was cooled to room temperature, treated with aqueous sodium carbonate solution (5%), and washed with diethyl ether. The resulting aqueous layer was subsequently treated with dil. HCl (2.0 N) and extracted with ethyl acetate (50 mL). The ethyl acetate solution was dried over Na2SO4 and concentrated on rotary evaporator to give the product ME1 (4) in 95% yield (2.0 g). Spectroscopic data: FT-IR (KBr) υmax 3060 (w), 2880 (w), 2814 (w), 1727 (vs), 1458 (w), 1399 (m), 1318 (s), 1249 (s), 1134 (s), 1100 (s), 1039 (m), 952 (w), 848 (s), and 755 (m) cm−1; 1H-NMR (500 MHz, CDCl3, ppm) δ 10.60 (s, br, 1H), 4.31 (t, J = 4.63 Hz, 2H), 3.62 (t, J = 4.63 Hz, 2H), 3.45 (s, 2H), and 3.38 (s, 3H).

3.3.2. Synthesis of Malonic Acid Methoxytriethyleneglycol Ester, ME3 (5)

A mixture of triethylene glycol monomethyl ether (1.0 g, 6.1 mmol) and 2,2-dimethyl-1,3-dioxane-4,6-dione (3, Meldrum’s acid, 0.9 g, 6.2 mmol) was stirred under Ar atmosphere over a period of 12 h at 90 °C. The reaction mixture was cooled to room temperature, treated with aqueous sodium carbonate solution (5%), and washed with diethyl ether. The resulting aqueous layer was subsequently treated with dil. HCl (2.0 N) and extracted with ethyl acetate (50 mL). The ethyl acetate solution was dried over Na2SO4 and concentrated on rotary evaporator to give the product ME3 (5) in 90% yield (1.37 g). Spectroscopic data: FT-IR (KBr) υmax 3056 (w), 2880 (w), 2817 (w), 1728 (vs), 1455 (w), 1394 (m), 1318 (s), 1251 (s), 1134 (vs), 1098 (vs), 1034 (m), 952 (w), 847 (s), and 753 (m) cm−1; 1H-NMR (500 MHz, CDCl3, ppm) δ 9.65 (s, br, 1H), 4.32 (t, J = 4.50 Hz, 2H), 3.70 (t, J = 4.50 Hz, 2H), 3.65–3.55 (m, 8H), 3.42 (s, 3H), and 3.41 (s, 2H).

3.3.3. Synthesis of Methoxyethyleneglycol-[N,N′,N,N,N,N-hexapropyl-hexa(aminoethyl)amino]-malonamide Ester, ME1N6C3 (7)

A mixture of malonic acid methoxyethyleneglycol ester 4 (0.5 g, 3.08 mmol), N-hydroxysuccinamide (0.35 g, 3.08 mmol), and N,N′-dicyclohexyl carbodiimide (DCC, 0.63 g, 4.0 mmol) in anyhydrous tetrahydrofuran (20 mL) were stirred under N2 atmosphere over a period of 12 h at ambient temperature. The resulting white solids of N,N′-dicyclohexyl urea byproduct were filtered off and the filtrate was taken into a second round-bottom flask containing N,N′,N,N,N,N-hexapropyl-hexa(aminoethyl)amine 6 (1.49 g, 3.08 mmol). The mixture was stirred under N2 atmosphere for an additional period of 12 h. At the end of the reaction, the solvent was removed on rotavap. To this residue, ice-cold hexane–dichloromethane (1:1, 15 mL) was added followed by filtration to remove further white solids of N-hydroxysuccinamide. The filtrate was washed with aqueous sodium carbonate (5%) solution (10 mL). The organic layer was then dried and concentrated to give ME1N6C3 (7) as yellow liquid in 82% yield (1.59 g). Spectroscopic data: ESI–MS (rel. intensity) m/z 568, 570 (M–CH3OCH2CH2, 75%), 571, 629 (M+), 630 (MH+, 100%), 631, 646, 666, 670, 688, 700, 715 [MH++CH2CH2N(CH2CH2CH3), 48%], 716, 755, 757, 772, 773, 775, 800 (MH+2[CH2CH2N(CH2CH2CH3)], 15%), 801, 832, 860, 1150, 1210, 1212 (the dimer mass–CH3OCH2), 1236, and 1252 (from the dimer ion mass); FT-IR (KBr) υmax 3259 (w), 2956 (vs), 2932 (s), 2872 (m), 2808 (m), 1742 (s), 1660 (s), 1550 (w), 1459 s), 1273 (m), 1128 (m), 1074 (s), 1031 (m), and 742 (w) cm−1; 1H-NMR (500 MHz, CDCl3, ppm) δ 4.29 (t, J = 4.25 Hz, 2H), 3.61 (t, J = 4.25 Hz, 2H), 3.40 (s, 3H), 3.34–3.32 (m, 4H), 2.38–2.57 (m, 30H), 1.47–1.44 (m, 12H), and 0.90–0.87 (t, J = 7.15 Hz, 18H); 13C-NMR (500 MHz, CDCl3, ppm) δ 168.78 (–C=O), 164.65 (O=C-NH–), 70.06, 64.15, 58.90, 57.35, 57.29, 57.13, 56.83 (4C), 56.72, 56.55, 53.65, 53.00, 52.81, 52.58, 52.46, 52.00, 41.60, 37.58, 20.41, 20.39, 20.37, 20.32 (2C), 20.18, 11.90 (3C), 11.87 (2C), and 11.74.

3.3.4. Synthesis of Methoxy-tri(ethyleneglycol)-[N,N′,N,N,N,N-hexapropyl-hexa(aminoethyl)-amino]-malonamide Ester, ME3N6C3 (8)

A mixture of malonic acid methoxytriethyleneglycol ester 5 (1.0 g, 4.0 mmol), N-hydroxysuccinamide (0.45 g, 4.0 mmol), and N,N′-dicyclohexyl carbodiimide (0.82 g, 4.0 mmol) in anyhydrous tetrahydrofuran (30 mL) were stirred under N2 atmosphere for a period of 12 h at ambient temperature. The resulting white solids of N,N′-dicyclohexyl urea byproduct were filtered off and the filtrate was taken into a second round-bottom flask containing N,N′,N,N,N,N-hexapropyl-hexa(aminoethyl)amine 6 (1.94 g, 3.9 mmol). The mixture was stirred under N2 atmosphere for an additional period of 12 h. At the end of the reaction, the solvent was removed on rotavap. To this residue, ice-cold hexane–dichloromethane (1:1, 20 mL) was added followed by filtration to remove white solids of N-hydroxysuccinamide. The filtrate was washed with aqueous sodium carbonate (5%) solution (10 mL). The organic phase was then dried and concentrated to give ME3N6C3 (8) as yellow liquid in 80% yield (2.29 g). Spectroscopic data: ESI–MS (rel. intensity) m/z 512, 568 [M–CH3O(CH2CH2O)2CH2, 65%], 660 (M–CH3OCH2CH2, 55%), 716, 718 (MH+, 100%), 734, 776, 803 [MH++CH2CH2N(CH2CH2CH3) from the dimer mass, 46%], 819, 860, 888 (MH++2[CH2CH2N(CH2CH2CH3)] from the dimer mass, 8%), 944, 951, 1008, 1090, 1226 (the dimer mass–[MeO(EG)3-CO], 3%), 1238, 1282, 1340, 1430, and 1434 (the dimer ion); FT-IR (KBr) υmax 3328 (w), 2952 (m), 2928 (m), 2862 (m), 2805 (m), 1736 (vs), 1667 (s), 1533 (m), 1456 (m), 1400 (m), 1379 (m), 1245 (m), 1104 (vs), 1032 (w), 938 (w), and 732 (m) cm−1; 1H-NMR (500 MHz, CDCl3, ppm) δ 4.22 (t, J = 4.68 Hz,2H), 3.65 (t, J = 4.68 Hz, 2H), 3.58–3.60 (m, 6H), 3.48 (t, J = 4.60 Hz, 2H), 3.32 (s, 5H), 3.26 (s, br, 2H), 2.31−2.48 (m, 30H), 1.40–1.38 (m, 12H), and 0.82−0.79 (t, J = 6.95 Hz, 18H); 13C-NMR (500 MHz, CDCl3, ppm) δ 168.83 (–C=O), 164.70 (O=C-NH–), 71.86 (2C), 70.53, 70.51, 68.74, 64.30, 58.95, 57.32 (2C), 57.14, 56.83 (4C), 56.72, 56.53, 53.64, 53.41, 52.98 (2C), 52.80, 52.45, 41.54, 37.55, 20.40, 20.37, 20.31 (3C), 20.24, 11.91 (3C), 11.88 (2C), and 11.76.

3.3.5. Synthesis of Methoxyethyleneglycol-[N,N′,N,N,N,N-hexapropyl-hexa(aminoethyl)amino]-malonamide Ester Quaternary Methyl Ammonium Salt, ME1N6+C3 (9)

A solution of malonamide ester 7 (1.0 g, 1.6 mmol) in anhydrous chloroform–DMF (10:1) was added iodomethane (6.0 mL, excess, in portions) and stirred at 45 °C for a period of 3.0 days. At the end of quaternization, the solvent was evaporated to afford ME1N6+C3 (9) in 94% yield (2.0 g). Spectroscopic data: FT-IR (KBr) υmax 3444 (s), 3236 (m), 2968 (vs), 2937 (vs), 2877 (m), 1735 (s), 1667 (s), 1536 (m), 1459 (vs), 1331 (w), 1126 (m), 1032 (m), 948 (m), 872 (w), 750 (vs), and 661 (m) cm−1; 1H-NMR (500 MHz, DMSO-d6, ppm) δ 3.80–4.25 (m, br, 16H), 3.22–3.80 (m, br, 41H), 1.50–1.85 (m, br, 12H), and 0.88-0.99 (m, br, 18H); 13C-NMR (500 MHz, DMSO-d6, ppm) δ 168.09 (-C=O), 166.69 (O=C-NH–), 79.90, 79.70, 70.01, 64.28 (4C), 63.59 (5C), 58.54, 55.54 (4C), 53.96 (2C), 49.37 (3C), 48.85 (2C), 42.62, 16.27 (2C), 15.95 (4C), 10.94 (2C), 10.82 (2C), and 10.72 (2C) (one peak is covered by DMSO peaks). Anal. Calcd for C34H72N6O4∙4.5CH3I∙2H2O (based on 90% quarternization on average): C, 35.47; H, 6.92; N, 6.45; I, 43.80; O, 7.36%. Found: C, 34.72; H, 6.82; N, 6.46; I, 42.31%.

3.3.6. Synthesis of Methoxy-tri(ethyleneglycol)-[N,N′,N,N,N,N-hexapropyl-hexa(aminoethyl)-amino]-malonamide Ester Quaternary Methyl Ammonium Salt, ME3N6+C3 (10)

A solution of malonamide ester 8 (0.50 g, 0.70 mmol) in anhydrous chloroform–DMF (10:1) was added iodomethane (3.0 mL, excess, in portions) and stirred at 45 °C for a period of 3.0 days. At the end of quaternization, the solvent was evaporated to afford ME3N6+C3 (10) in 92% yield (0.92 g). Spectroscopic data: ESI–MS (rel. intensity) m/z 448 (100%), 503, 588 (40%), 731 (M+–5I–4CH3, 6%), 760, 815, 872, 873 (M+–4I–3CH3, 8%), 930, 1014, 1016 (M+–3I–2CH3, 13%), 1074, 1099, 1157 (M+–2I–CH3, 37%), 1198, 1216, 1299, 1300 (M+–I, 22%), 1385, 1391, 1392, 1442, 1443, and 1444 (M++H2O); FT-IR (KBr) υmax 3436 (vs), 3255 (m), 3006 (m), 2968 (s), 2935 (s), 2877 (m), 1736 (s), 1665 (s), 1634 (s), 1545 (w), 1459 (s), 1383 (w), 1351 (w), 1332 (w), 1271 (w), 1200 (m), 1110 (s), 1034 (m), 950 (m), 877 (w), 757 (w), and 600 (m) cm−1; 1H-NMR (500 MHz, DMSO-d6, ppm) δ 3.80–4.25 (m, br, 16H), 2.90–3.80 (m, br, 49H), 1.50–1.80 (m, br, 12H), and 0.85–0.99 (m, br, 18H); 13C-NMR (500 MHz, DMSO-d6, ppm) δ 168.13 (–C=O), 166.69 (O=C-NH–), 71.72, 70.23, 70.18, 70.03, 68.57, 63.56 (9C), 54.79 (6C), 49.05 (5C), 42.62, 16.18 (2C), 15.97 (4C), 10.95 (2C), 10.82 (3C), and 10.70 (one peak is covered by DMSO peaks). Anal. Calcd for C38H80N6O6∙4CH3I∙3H2O (based on 80% quarternization on average): C, 37.67; H, 7.38; N, 6.28; I, 37.91; O, 10.76%. Found: C, 36.10; H, 7.03; N, 6.81; I, 37.90%.

3.3.7. Synthesis of Pentacationic Methoxyethyleneglycol-(20-oxo-4,7,10,13,16-pentapropyl-4,7,10,13, 16,19-hexaaza-nonadecan-19-yl)[60]fullerenyl Malonate Quaternary Methyl Ammonium Salt, C60(˃ME1N6+C3) (1)

Finely divided [60]fullerene (0.94 g, 1.30 mmol, more than two-fold excess to allow the formation of monoadduct only) was taken into a round bottom flask and added anhydrous toluene (700 mL) under nitrogen. The solution was stirred for 12 h at ambient temperature to ensure complete dissolution of C60. To the resulting purple-colored solution added carbon tetrabromide (0.19 g, 0.57 mmol) followed by a solution of the compound 9 (0.70 g, 0.52 mmol) in anhydrous DMF (100 mL). The solution mixture was stirred for an additional 30 min and added slowly 1.8-diazabicyclo[5.4.0]-undec-7-ene (DBU, 0.17 g, 1.15 mmol) over a period of 45 min. The color of solution slowly turns into brown in a reaction period of 8.0 h. The solution was then concentrated on rotavap to roughly 100 mL. Upon the addition of methanol to this concentrated solution, the crude product was precipitated as brown solids which were collected via centrifugation. Unreacted C60 in the crude solids was removed by repeated washings with toluene (5 × 100 mL) until no color in the washing solution or filtrate. The remaining product of C60(>ME1N6+C3) (1) was obtained as brown solids in 55% yield (0.59 g, after recovered C60). Spectroscopic data: FT-IR (KBr) υmax 3383 (vs), 2963 (m), 2932 (m), 2870 (m), 2814 (w), 1739 (s), 1686 (s), 1625 (s), 1455 (vs), 1426 (s), 1373 (w), 1240 (w), 1067 (s), 1031 (s), 947 (m), 728 (m), 575 (m), and 525 (vs, a characteristic band of C60monoadduct) cm−1; UV-Vis (DMF, cutoff at 268 nm, 2.0 × 10–5 M) λmax 323 nm (shoulder peak); 1H-NMR [500 MHz, DMSO-d6–toluene-d8 (2:1), ppm] δ 3.80–4.25 (m, br, 16H), 2.90–3.80 (m, br, 39H), 1.50–1.80 (m, br, 12H), and 0.88–0.99 (m, br, 18H). We found that electronic interferences of iodide anions in a high quantity with the fullerene cage or possible partial electron-transfer events prohibited the detection of fullerenyl carbon peaks (in low signal intensity).

3.3.8. Synthesis of Pentacationic Methoxy-tri(ethyleneglycol)-(20-oxo-4,7,10,13,16-pentapropyl-4,7,10,13,16,19-hexaaza-nonadecan-19-yl)[60]fullerenyl Malonate Methyl Quaternary Ammonium Salt, C60(˃ME1N6+C3) (2)

Finely divided [60]fullerene (1.0 g, 1.40 mmol, more than two-fold excess to allow the formation of monoadduct only) was taken into a round bottom flask and added anhydrous toluene (700 mL) under nitrogen. The solution was stirred for 12 h at ambient temperature to ensure complete dissolution of C60. To the resulting purple-colored solution added carbon tetrabromide (0.17 g, 0.51 mmol) followed by a solution of compound 10 (0.65 g, 0.45 mmol) in anhydrous DMF (100 mL). The solution mixture was stirred for an additional 30 min of stirring and added slowly 1.8-diazabicyclo[5.4.0]-undec-7-ene (DBU, 0.15 g, 0.98 mmol) over a period of 45 min. The color of solution slowly turns into brown in a reaction period of 8 h. The solution was then concentrated on rotavap to roughly 100 mL. Upon the addition of methanol to this concentrated solution, the crude product was precipitated as brown solids which were collected via centrifugation. Unreacted C60 in the crude solids was removed by repeated washings with toluene (5 × 100 mL) until no color in the washing solution or filtrate. The remaining product of C60(>ME3N6+C3) (2) was obtained as brown solids in 50% yield (0.343 g, after recovered C60). Spectroscopic data: FT-IR (KBr) υmax 3433 (vs), 3262 (s), 2963 (m), 2925 (m), 2868 (m), 2809 (w), 1736 (s), 1695 (m), 1630 (s), 1459 (s), 1384 (w), 1197 (m), 1107 (s), 1071 (s), 938 (m), 757 (w), and 525 (s, a characteristic band of C60monoadduct) cm−1; UV-Vis (DMF, cutoff at 268 nm, 2.0 × 10−5 M) λmax 323 nm (shoulder peak); 1H-NMR [500 MHz, DMSO-d6–toluene-d8 (2:1), ppm] δ 3.80–4.20 (m, br, 16H), 2.90–3.80 (m, br, 47H), 1.50–1.75 (m, br, 12H), and 0.88–0.99 (m, br, 18H). We found that electronic interferences of iodide anions in a high quantity with the fullerene cage or possible partial electron-transfer events prohibited the detection of fullerenyl carbon peaks (in low signal intensity).

3.3.9. Synthesis of tert-Butyl(2-methoxyethyl)malonate, ME1(t-C4) (11)

A mixture of malonic acid methoxyethyleneglycol ester 4 (1.0 g, 6.16 mmol), 2-methyl-2-propanol (0.54 g, 7.39 mmol), and N,N′-dicyclohexyl carbodiimide (DCC, 1.27 g, 6.16 mmol) in anyhydrous dichloromethane (20 mL) were stirred under atmospheric pressure of N2 over a period of 8.0 h at ambient temperature. The resulting white solid of N,N′-dicyclohexyl urea was filtered and the filtrate was washed with aqueous sodium carbonate solution (5%, 10 mL). The organic layer was then dried over sodium sulfate and concentrated on rotavap to give ME1(t-C4) (11) in 74% yield (1.0 g) as light yellow liquid. Spectroscopic data: FT-IR (KBr) υmax 2980 (w), 2930 (w), 2880 (w), 2824 (w), 1748 (s), 1726 (vs), 1455 (w), 1406 (w), 1393 (w), 1368 (m), 1330 (m), 1281 (m), 1250 (m), 1199 (m), 1127 (vs), 1100 (m), 1037 (s), 966 (m), 864 (m), 838 (m), 759 (w), and 738 (w) cm−1; 1H-NMR (500 MHz, CDCl3, ppm) δ 4.27 (t, J = 3.94 Hz, 2H), 3.56 (t, J = 3.94 Hz, 2H), 3.34 (s, 3H), 3.29 (s, 2H, Hα), and 1.43 (s, 9H).

3.3.10. Synthesis of tert-Butyl(methoxy-triethyleneglycol)malonate, ME3(t-C4) (12)

A mixture of malonic acid methoxytriethyleneglycol ester 5 (3 g, 11.98 mmol), 2-methyl-2-propanol (1.06 g, 14.38 mmol), and N,N′-dicyclohexyl carbodiimide (2.47 g, 11.98 mmol) in anyhydrous dichloromethane (20 mL) were stirred under atmospheric pressure of N2 over a period of 8.0 h at ambient temperature. The resulting white solid of N,N′-dicyclohexyl urea was filtered and the filtrate was washed with aqueous sodium carbonate solution (5%, 10 mL). The organic layer was then dried over sodium sulfate and concentrated on rotavap to give ME3(t-C4) (12) in 77% yield (2.85 g) as light yellow liquid. Spectroscopic data: FT-IR (KBr) υmax 2973 (w), 2930 (w), 2876 (w), 2817 (w), 1748 (s), 1727 (vs), 1455 (w), 1393 (w), 1368 (m), 1330 (m), 1282 (m), 1250 (m), 1198 (m), 1134 (vs), 1104 (vs), 1040 (m), 966 (m), 864 (m), 759 (w), and 735 (w) cm−1; 1H-NMR (500 MHz, CDCl3, ppm) δ 4.26 (t, J = 4.50 Hz, 2H), 3.68 (t, J = 4.50 Hz, 2H), 3.63 (m, 6H), 3.52 (t, J = 4.50 Hz, 2H), 3.35 (s, 3H), 3.29 (s, 2H, α-H), and 1.44 (s, 9H).

3.3.11. Synthesis of tert-Butyl(2-methoxyethyl)[60]fullerenyl Malonate, C60[˃ME1(t-C4)] (13)

Finely divided [60]fullerene (1.23g, 1.70 mmol) was taken into a round bottom flask and added anhydrous toluene (850 mL) and 1,2-dichlorobenzene (30 mL) under nitrogen. The solution was stirred for 1.0 h at ambient temperature to ensure complete dissolution of C60. To the resulting purple-colored solution was added carbon tetrabromide (0.50 g, 1.51 mmol) followed by a solution of tert-butyl(2-methoxyethyl)malonate (11, 0.30 g, 1.37 mmol) in anhydrous toluene (10 mL). The solution mixture was stirred for an additional 30 min and added slowly 1.8-diazabicyclo[5.4.0]-undec-7-ene (DBU, 0.44 g, 2.88 mmol) over a period of 1.0 h. The color of solution slowly turned into brown in a reaction period of 12 h. The solution was then concentrated on a rotavap. The resulting crude product was purified using column chromatography with silica gel as the stationary phase and toluene–ethyl acetate (20:1) as eluent, giving the isolation of tert-butyl(2-methoxyethyl)[60]fullerenyl malonate (13), C60[>ME1(t-C4)], as brown solids in 78% yield (1.00 g). Spectroscopic data: FT-IR (KBr) υmax 3442 (br, s), 2972 (w), 2917 (w), 2873 (w), 2814 (w), 1739 (vs), 1645 (m), 1426 (m), 1390 (w), 1366 (m), 1268 (s), 1232 (vs), 1179 (m), 1151 (s), 1110 (m), 1059 (m) 1026 (m), 828 (w), 738 (w), 704 (w), 577 (m), 551 (m), and 525 (vs, a characteristic band of C60 monoadduct) cm−1; 1H-NMR (500 MHz, toluene-d8, ppm) δ 4.28 (t, J = 4.55 Hz, 2H), 3.26 (t, J = 4.55 Hz, 2H), 3.06 (s, 3H), and 1.55 (s, 9H); 13C-NMR (500 MHz, toluene-d8, ppm) δ 163.45 (O=C-O-tert-butyl), 161.86 (O=C-O–), 145.89 (2C), 145.53 (2C), 145.22 (2C), 145.13 (2C), 145.06 (3C), 144.95 (2C), 144.93 (2C), 144.60 (2C), 144.59 (2C), 144.46 (3C), 144.45 (4C), 143.71 (2C), 143.68 (2C), 142.91 (C), 142.89 (C), 142.83 (2C), 142.81 (3C), 142.80 (3C), 142.74 (2C), 142.03 (2C), 142.02 (2C), 141.76 (2C), 141.74 (2C), 140.74 (2C), 140.68 (2C), 139.37 (2C), 138.93 (2C), 84.13, 72.07 (fullerenyl sp3 carbons, 2C), 69.74, 65.49, 58.00, 53.45, and 27.49 (3C).

3.3.12. Synthesis of tert-Butyl(methoxy-triethyleneglycol)[60]fullerenyl Malonate, C60[˃ME3(t-C4)] (14)

Finely divided [60]fullerene (1.86 g, 2.59 mmol) was taken into a round bottom flask and added anhydrous toluene (850 mL) and 1,2-dichlorobenzene (50 mL) under nitrogen. The solution was stirred for 1.0 h at ambient temperature to ensure complete dissolution of C60. To the resulting purple-colored solution was added carbon tetrabromide (0.75 g, 2.27 mmol) followed by a solution of tert-butyl(methoxy-triethyleneglycol)malonate 12 (0.63 g, 2.07 mmol) in anhydrous toluene (10 mL). The solution mixture was stirred for an additional 30 min and added slowly 1.8-diazabicyclo[5.4.0]-undec-7-ene (DBU, 0.66 g, 4.35 mmol) over a period of 1.0 h. The color of solution slowly turned into brown in a reaction period of 12 h. The solution was then concentrated on rotavap and the resulting crude product was purified by column chromatography with silica gel as the stationary phase and toluene−ethyl acetate (9:1) as eluent to afford C60[>ME3(t-C4)] (14) as brown solids in 75% yield (1.60 g). Spectroscopic data: FT-IR (KBr) υmax 3421 (br, s), 2967 (w), 2914 (w), 2864 (w), 2814 (w), 1740 (s), 1634 (m), 1456 (m), 1426 (m), 1392 (m), 1368 (m), 1269 (s), 1253 (s), 1226 (s), 1180 (m), 1154 (s), 1108 (m), 1029 (m), 845 (m), 737 (m), 702 (m), 669 (m), 576 (m), 550 (m), and 525 (vs) cm−1; 1H-NMR (500 MHz, CDCl3, ppm) δ 4.65 (t, J = 4.60 Hz, 2H), 3.90 (t, J = 4.60 Hz, 2H), 3.73 (t, J = 4.60 Hz, 2H), 3.65–3.72 (m, 4H), 3.56 (t, J = 4.60 Hz, 2H), 3.39 (s, 3H), and 1.70 (s, 9H); 13C-NMR (500 MHz, CDCl3, ppm) δ 163.95 (O=C-O-tert-butyl), 162.16 (O=C-O–), 145.61 (2C), 145.41 (2C), 145.29 (2C), 145.25 (4C), 145.22 (2C), 145.16 (3C), 144.85 (2C), 144.71 (C), 144.69 (3C), 144.66 (2C), 144.57 (4C), 143.89 (3C), 143.09 (2C), 143.08 (2C), 143.01 (4C), 142.99 (2C), 142.97 (2C), 142.23 (2C), 142.21 (2C), 141.91 (2C), 141.90 (2C), 140.94 (2C), 140.89 (2C), 139.11 (2C), 138.92 (2C), 85.16, 71.95 (fullerenyl sp3 carbons, 2C), 71.84, 70.68, 70.67, 70.65, 68.84, 66.07, 59.10, 53.06, and 28.07 (3C).

3.3.13. Synthesis of 2-[60]Fullerenyl-3-(2-methoxyethoxy)-3-oxopropanoic Acid, C60(˃ME1H) (15)

The compound of [60]fullerenyl malonate 13 (0.5 g, 0.64 mmol) was taken into a round bottom flask containing anhydrous dichloromethane (50 mL) and purged with N2 for 15 minutes at ambient temperature. To this reaction mixture was added trifluoroacetic acid (30 mL, excess) and stirred for overnight at room temperature. At the end of the reaction, dichloromethane was removed on rotavap. Additional dichloromethane (3 × 15 mL) was added and removed on rotavap in order to fully eliminate an excessive amount of trifluoroacetic acid. The resulting residue was then washed with diethyl ether (2 × 15 mL) to afford C60(>ME1H) (15) as brown solids in 89% yield (0.50 g). Spectroscopic data: FT-IR (KBr) υmax 3670 (br, s), 2977 (w), 2917 (w), 2878 (w), 2814 (w), 1792 (w), 1750 (s), 1708 (s), 1681 (m), 1541 (w), 1427 (m), 1390 (w), 1366 (m), 1267 (s), 1250 (s), 1231 (s), 1186 (m), 1114 (w), 1059 (w) 1020 (w), 864 (w), 743 (w), 701 (m), 572 (m), 552 (m), and 525 (vs, a characteristic band of C60 monoadduct) cm−1; 1H-NMR (500 MHz, THF-d8, ppm) δ 4.59 (t, J = 4.50 Hz,2H), 3.71 (t, J = 4.50 Hz, 2H), and 3.34 (s, 3H); 13C-NMR [500 MHz, THF-d8–CS2 (2:1), ppm] δ 161.62 (O=C-O–), 161.13 (O=C-OH), 144.54 (2C), 144.06 (2C), 143.53 (2C), 143.39 (2C), 143.26 (2C), 143.25 (2C), 143.19 (2C), 143.16 (2C), 142.91 (C), 142.85 (2C), 142.78 (C), 142.73 (2C), 142.70 (2C), 142.53 (4C), 141.99 (2C), 141.95 (2C), 141.14 (C), 141.12 (C), 141.10 (2C), 141.04 (4C), 140.98 (2C), 140.31 (4C), 140.07 (2C), 139.95 (2C), 138.89 (2C) , 138.87 (2C), 137.87 (2C), 136.76 (2C), 70.48 (fullerenyl sp3 carbons, 2C), 68.14, 63.98, 56.30, and 51.46

3.3.14 Synthesis of 2-[60]Fullerenyl-3-(methoxy-triethyleneglycol)-3-oxopropanoic Acid, C60(˃ME3H) (16)

The compound of [60]fullerenyl malonate 14 (0.75 g, 0.73 mmol) was taken into a round bottom flask containing anhydrous dichloromethane (50 mL) and purged with N2 for a period of 15 minutes at ambient temperature. To this reaction mixture was added trifluoroacetic acid (50 mL) and stirred for overnight at room temperature. At the end of the reaction, dichloromethane was removed on rotavap. Additional dichloromethane (3 × 20 mL) was added and removed on rotavap in ordered to fully eliminate an excessive amount of trifluoroacetic acid. The resulting residue was then washed with diethyl ether (3 × 20 mL) to afford C60(>ME3H) (16) as brown solids in 87% yield (0.62 g). Spectroscopic data: FT-IR (KBr) υmax 3673 (br, s), 2917 (w), 2894 (w), 2870 (w), 2814 (w), 1788 (w), 1741 (vs), 1578 (w), 1532 (w), 1426 (m), 1383 (w), 1266 (m), 1230 (s), 1203 (m), 1180 (w), 1095 (m), 1060 (w) 845 (w), 698 (m), 579 (m), 549 (m), and 525 (vs) cm−1; 1H-NMR (500 MHz, CDCl3, ppm) δ 4.70 (t,J = 4.55 Hz, 2H), 3.95 (t, J = 4.55 Hz, 2H), 3.80 (m, 6H), 3.76 (t, J = 4.60 Hz, 2H), and 3.59 (s, 3H); 13C-NMR (500 MHz, CDCl3, ppm) δ 164.12 (O=C-O–), 163.79 (O=C-OH), 145.57 (2C), 145.52 (2C), 145.33 (3C), 145.32 (3C), 145.22 (4C), 145.15 (3C), 144.84 (2C), 144.75 (C), 144.68 (4C), 144.57 (2C), 144.54 (2C), 143.90 (2C), 143.88 (2C), 143.04 (3C), 142.99 (4C), 142.96 (2C), 142.23 (3C), 142.01 (2C), 141.97 (2C), 140.93 (3C), 140.92 (3C), 139.36 (2C), 138.90 (2C), 72.19, 71.88 (fullerenyl sp3 carbon, 2C), 70.89, 70.64, 70.33, 69.70, 68.34, 65.99, 58.78, and 52.51.

3.3.15. Synthesis of Methoxyethyleneglycol-(20-oxo-4,7,10,13,16-pentapropyl-4,7,10,13,16,19-hexaaza-nonadecan-19-yl)[60]fullerenyl Malonate, C60(˃ME1N6C3) (17) and C60(>ME1N6+C3) (1′)

The compound of 2-[60]fullerenyl-3-(2-methoxyethoxy)-3-oxopropanoic acid 15 (0.15 g, 0.17 mmol) was taken into a round bottom flask containing anhydrous tetrahydrofuran (20 mL). To this reaction mixture was added thionyl chloride (0.03 g, 2.55 mmol) under N2 atmosphere and refluxed for a period of 2.0 h. An excessive amount of thionyl chloride was removed on rotavap. Fresh anhydrous tetrahydrofuran (20 mL) was added. To this reaction solution was added slowly N,N′,N,N,N,N-hexapropyl-hexa(aminoethyl)amine 6 (0.08 g, 0.17 mmol) at 0 °C. It was warmed gradually to room temperature and stirred at this temperature for a period of 3.0 h. The resulting solution was concentrated on rotavap with the residue washed sequentially with hexane (10 mL), methanol (2 × 10 mL), and toluene (3 × 10 mL) to fully remove unreacted N,N′,N,N,N,N-hexapropyl-hexa(aminoethyl)amine and decarboxylated C60 byproducts. A relatively pure C60(>ME1N6C3) (17) was obtained in 47% yield (0.11 g). It was subsequently treated with CF3COOH to result in pentacationic quaternary ammonium−trifluoroacetate salt, C60(>ME1N6+C3) (1′), specifically, for NMR measurements. Spectroscopic data of the compound 17: FT-IR (KBr) υmax 3670 (br, s), 2977 (w), 2917 (w), 2878 (w), 2814 (w), 1792 (w), 1750 (s), 1708 (s), 1681 (m), 1541 (w), 1427 (m), 1390 (w), 1366 (m), 1267 (s), 1250 (s), 1231 (s), 1186 (m), 1114 (w), 1059 (w), 1020 (w), 864 (w), 743 (w), 701 (m), 572 (m), 552 (m), and 525 (vs, a characteristic band of C60monoadduct) cm−1. Spectroscopic data of the compound 1′:1H-NMR [500 MHz, CDCl3–toluene-d8–TFA (3:1:1), ppm] δ 4.22–4.68 (m, br, 2H), 3.90–4.05 (m, br, 2H), 3.22–3.75 (m, br, 35H), 1.28–1.36 (m, br, 12H), and 0.97 (m, br, 18H); 13C-NMR [500 MHz, CDCl3–toluene-d8–TFA (3:1:1), ppm] d 167.72 (O=C-O–), 166.46 (O=C-NH–), 148.00 (2C), 145.54 (2C), 145.30 (2C), 145.29 (2C), 145.24 (2C), 145.14 (2C), 145.02 (2C), 144.73 (4C), 144.68 (4C), 144.53 (2C), 143.98 (2C), 143.77 (2C), 143.27 (2C), 143.11 (C), 143.04 (2C), 143.01 (2C), 142.98 (C), 142.87 (2C), 142.44 (2C), 142.22 (2C), 142.12 (2C), 142.01 (2C), 141.17 (2C), 140.98 (2C), 140.51 (2C), 137.92 (4C), 136.50 (2C), 70.47, 70.23 (fullerenyl sp3 carbon, 2C), 70.08, 69.73, 64.65, 64.40, 58.94, 58.68, 38.43, 31.84, 22.04, 21.40, 16.66, and 10.10 (quaternary aminocarbon peaks were low in intensity).

3.3.16. Synthesis of Pentacationic Methoxyethyleneglycol-(20-oxo-4,7,10,13,16-pentapropyl-4,7,10,13,16,19-hexaaza-nonadecan-19-yl)[60]fullerenyl Malonate Quaternary Methyl Ammonium Salt, C60(˃ME1N6+C3) (1)

A solution of [60]fullerenyl malonate quaternary ammonium−trifluoroacetate salt 1′ (100 mg) in chloroform (50 mL) was neutralized with aqueous potassium carbonate (10%, 50 mL). The resulting [60]fullerenyl malonate 17 was then dissolved in a mixture of anhydrous chloroform (30 mL) and dimethylformamide (15 mL). To this reaction, an excess amount of iodomethane was added in several portions over the reaction period and stirred at 45 °C for 3.0 days. At the end of the reaction, the solvent was removed on rotavap to yield pentacationic C60(>ME1N6+C3) (1). Spectroscopic data: MALDI–TOF–MS (sinapic acid as the matrix, rel. intensity) m/z 673 (20%), 697 (50%), 721 (C60H+, 100%), 734 (80%), 746 (15%), 761 (10%), 772 (10%), 874 [C60(>H(C=O)NHCH2CH2N+-propylMe2), 20%], 1442 [(C60H)2+ cluster], 1565, 1634, 1709, 1769, 1851, 1930 (M+–I); FT-IR (KBr) υmax 3688 (br, s), 2918 (s), 2870 (m), 2840 (m), 2807 (w), 1784 (w), 1736 (vs), 1663 (s), 1574 (w), 1433 (m), 1383 (w), 1252 (w), 1187 (m), 1163 (s), 1126 (m), 1090 (m), 1031 (s), 842 (w), 762 (w), 704 (w), 661 (w), 569 (w), and 524 (vs, a characteristic band of C60 monoadduct) cm−1; UV-Vis (DMF, cutoff at 268 nm, 2.0 × 10–5 M) λmax 323 nm (shoulder peak); 1H-NMR [500 MHz, DMSO-d6–toluene-d8 (2:1), ppm] δ 3.80–4.25 (m, br, 16H), 2.90–3.80 (m, br, 39H), 1.50–1.80 (m, br, 12H), and 0.88–0.99 (m, br, 18H). We found that electronic interferences of iodide anions in a high quantity with the fullerene cage or possible partial electron-transfer events prohibited the detection of fullerenyl carbon peaks (in low signal intensity).

3.3.17. Synthesis of Pentacationic Methoxy-tri(ethyleneglycol)-(20-oxo-4,7,10,13,16-pentapropyl-4,7,10,13,16,19-hexaaza-nonadecan-19-yl)[60]fullerenyl Malonate Methyl Quaternary Ammonium Salt, C60(˃ME3N6+C3) (2)

Synthesis of the compound 2 was carried out by using a similar procedure as that of 1 except methoxytriethyleneglycol ester was applied instead. Spectroscopic data: MALDI–TOF–MS (sinapic acid as the matrix, rel. intensity)m/z 698 (10%), 721 (C60H+, 100%), 735 (C60>H2, 20%), 749, 773, 782, 789, 809, 874 [C60(>H(C=O)NHCH2CH2N+-propylMe2)], 914, 940, 995, 1027, 1054, 1278 (w), 1395 (w), 1417 (vw), 1499 (vw), 1792 (vw), and 2019 (vw, MH+–I); FT-IR (KBr) υmax 3424 (vs), 2967 (m), 2925 (m), 2874 (m), 2824 (w), 1738 (s), 1681 (s), 1628 (s), 1454 (vs), 1429 (s), 1383 (m), 1064 (s), 1028 (s), 941 (m), 727 (m), 572 (m), and 524 (vs, a characteristic band of C60monoadduct) cm−1; UV-vis (DMF, cutoff at 268 nm, 2.0 × 10−5 M) λmax 323 nm (shoulder peak); 1H-NMR [500 MHz, DMSO-d6–toluene-d8 (2:1), ppm] δ 3.80–4.20 (m,br, 16H), 2.90–3.80 (m, br, 47H), 1.50–1.75 (m, br, 12H), and 0.88–0.99 (m, br, 18H). We found that electronic interferences of iodide anions in a high quantity with the fullerene cage or possible partial electron-transfer events prohibited the detection of fullerenyl carbon peaks (in low signal intensity).

4. Conclusions

We have designed and synthesized two analogous pentacationic [60]fullerenyl monoadducts, C60(>ME1N6+C3) (1) and C60(>ME3N6+C3) (2), with variation of the methoxyethyleneglycol length. Each of these derivatives bears a well-defined number of cationic charges aimed to enhance and control their ability to target pathogenic Gram-positive and Gram-negative bacterial cells. The intrinsic nature of the high charge number and increased water-solubility of the precursor arm intermediates hindered the efficiency of their reactions with a highly hydrophobic C60 cage having low compatibility in polar solvents. Furthermore, consecutive ethylamino group linkage in a structure of N,N′,N,N,N,N-hexapropyl-hexa(aminoethyl)amine (C3N6) largely increased its electron-donating capability that gave complication in forming an insoluble partial charge-transfer complex with C60 during the reaction and workup procedures. After many attempts, we found a circumventive solution by the use of partially quaternized C3N6 prior to the reaction with C60 coupled with the modification of C3N6 arm using propyl groups, instead of methyl or ethyl groups, to provide a well-balanced hydrophobicity– hydrophilicity character of pentacationic precursor intermediates and better compatibility with the C60 cage moiety.

Supplementary Materials

Supplementary materials can be accessed at: https://www.mdpi.com/1420-3049/17/5/5225/s1.

Acknowledgements

We thank the financial support of National Institute of Health (NIH) under the grant number R01CA137108.
  • Sample Availability: Samples of the compounds 1 and 2 may be available from the authors.

References and Notes

  1. Dolmans, D.E.; Fukumura, D.; Jain, R.K. Photodynamic therapy for cancer. Nat. Rev. Cancer 2003, 3, 380–387. [Google Scholar]
  2. Hamblin, M.R.; Hasan, T. Photodynamic therapy: A new antimicrobial approach to infectious disease? Photochem. Photobiol. Sci. 2004, 3, 436–450. [Google Scholar] [CrossRef]
  3. O’Riordan, K.; Akilov, O.E.; Hasan, T. The potential for photodynamic therapy in the treatment of localized infections. Photodiagn.Photodyn. 2005, 2, 247–262. [Google Scholar] [CrossRef]
  4. Silva, J.N.; Filipe, P.; Maziere, P.; Maziere, J.C.; Freitas, J.P.; Cine de Castro, J.P.; Santus, R. Photodynamic therapy: Dermatology and ophthalmology as main fields of current applications in clinic. Bio-Med. Mater. Eng. 2006, 16, S147–S154. [Google Scholar]
  5. Sharma, S.K.; Chiang, L.Y.; Hamblin, M.R. Photodynamic therapy with fullerenes in vivo: Reality or a dream? Nanomedicine 2011, 6, 1813–1825. [Google Scholar]
  6. Guldi, D.M.; Prato, M. Excited-state properties of C60 fullerene derivatives. Acc. Chem. Res. 2000, 33, 695–703. [Google Scholar]
  7. Yamakoshi, Y.; Umezawa, N.; Ryu, A.; Arakane, K.; Miyata, N.; Goda, Y.; Masumizu, T.; Nagano, T. Active oxygen species generated from photoexcited fullerene (C60) as potential medicines: O2−• versus 1O2. J. Am. Chem. Soc. 2003, 125, 12803–12809. [Google Scholar]
  8. Hamblin, M.R.; O’Donnell, D.A.; Murthy, N.; Rajagopalan, K.; Michaud, N.; Sherwood, M.E.; Hasan, T. Polycationic photosensitizer conjugates: Effects of chain length and Gram classification on the photodynamic inactivation of bacteria. J. Antimicrob. Chemother. 2002, 49, 941–951. [Google Scholar] [CrossRef]
  9. Hamblin, M.R.; O’Donnell, D.A.; Murthy, N.; Contag, C.H.; Hasan, T. Rapid control of wound infections by targeted photodynamic therapy monitored by in-vivo bioluminescence imaging. Photochem.Photobiol. 2002, 75, 51–57. [Google Scholar] [CrossRef]
  10. Navarre, W.W.; Schneewind, O. Surface proteins of Gram-positive bacteria and mechanisms of their targeting to the cell wall envelope. Microbiol. Mol. Biol. Rev. 1999, 63, 174–229. [Google Scholar]
  11. Scott, J.R.; Barnett, T.C. Surface proteins of Gram-positive bacteria and how they get there. Annu.Rev. Microbiol. 2006, 60, 397–423. [Google Scholar] [CrossRef]
  12. Kell, A.J.; Stewart, G.; Ryan, S.; Peytavi, R.; Boissinot, M.; Huletsky, A.; Bergeron, M.G.; Simard, B. Vancomycin-modified nanoparticles for efficient targeting and preconcentration of Gram-positive and Gram-negative bacteria. ACS Nano 2008, 2, 1777–1788. [Google Scholar] [CrossRef]
  13. Da Ros, T.; Prato, M.; Novello, F.; Maggini, M.; Banfi, E. Easy access to water-soluble fullerene derivatives via 1,3-dipolar cycloadditions of azomethineylides to C(60). J. Org. Chem. 1996, 61, 9070–9072. [Google Scholar] [CrossRef]
  14. Rio, Y.; Nicoud, J.F.; Rehspringer, J.L; Nierengarten, J.F. Fullerodendrimers with peripheral triethyleneglycol chains. Tetrahedron Lett. 2000, 41, 10207–10210. [Google Scholar]
  15. Zhiguo, Z.; Schuster, D.I.; Wilson, S.R. Selective syntheses of novel polyether fullerene multiple adducts. J. Org. Chem. 2003, 68, 7612–7617. [Google Scholar] [CrossRef]
  16. Bianco, A.; Da Ros, T.; Prato, M.; Toniolo, C. Fullerene-based amino acids and peptides. J. Peptide Sci. 2001, 7, 208–219. [Google Scholar] [CrossRef]
  17. Cusan, C.; Da Ros, T.; Spalluto, G.; Foley, S.; Janot, J.M.; Seta, P.; Larroque, C.; Tomasini, M.C.; Antonelli, T.; Ferraro, L.; Prato, M. A new multi-charged C60 derivative: Synthesis and biological properties. Eur. J. Org. Chem. 2002, 2928–2934. [Google Scholar]
  18. Braun, M.; Atalick, S.; Guldi, D.M.; Lanig, H.; Brettreich, M.; Burghardt, S.; Hatzimarinaki, M.; Ravanelli, E.; Prato, M.; van Eldik, R.; Hirsch, A. Electrostatic complexation and photoinduced electron transfer between Zn-cytochrome c and polyanionic fullerene dendrimers. Chem. Eur. J. 2003, 9, 3867–3875. [Google Scholar]
  19. Carano, M.; Ceroni, P.; Paolucci, F.; Roffia, S.; Da Ros, T.; Prato, M.; Sluch, M.I.; Pearson, C.; Petty, M.C.; Bryce, M.R. Novel fulleropyrrolidinium-based materials. J. Mater. Chem. 2000, 10, 269–273. [Google Scholar]
