Bromination and Diazo-Coupling of Pyridinethiones; Microwave Assisted Synthesis of Isothiazolopyridine, Pyridothiazine and Pyridothiazepines

Abstract

Isothiazolopyridines, pyridothiazines and pyridothiazepines are important compounds that possess valuable biological activities. This paper reports on the synthesis of these compounds using both conventional chemical methods and modern microwave techniques. 3-Bromo-6-hydroxy-4-methyl-2-thioxo-2,3-dihydropyridine-3-carboxamide, 5-arylazo-6-hydroxy-4-methyl-2-thioxo-1,2-dihydropyridine-3-carboxamides, 3,5-bis-arylazo-6-hydroxy-4-methyl-2-thioxo-2,3-dihydropyridine-3-caboxamide, 4-methyl-2,3,6,7-tetra-hydroisothiazolo[5,4-b]-pyridine-3,6-dione, 2,2'-(methylene-bis-(sulfanediyl))bis(4-methyl-6-oxo-1,6-dihydropyridine-3-carboxamide), 2-hydroxy-5-methyl-4H-pyrido[3,2-e][1,3]-thiazine-4,7(8H)-dione and 2-arylmethylene-8-hydroxy-6-methyl-2,3,4,5-tetrahydropyrido-[3,2-f][1,4]thiazepine-3,5-diones have been prepared from 6-hydroxy-4-methyl-2-thioxo-2,3-dihydropyridine-3-carboxamide. Some of these compounds were prepared using microwave-assisted reaction conditions, that provided higher yields in shorter times than the conventional methods.

1. Introduction

In continuation of our research groups’ work in the field of synthetic organic chemistry [1,2,3,4,5]; we would like to report here on the annulation of isothiazole, 1,3-thiazine and 1,4-thiazepine ring systems to pyridine. Promising biological activities are reported in the literature concerning the targeted ring systems: Isothiazolo[5,4-b]pyridines could be used as analgesics [6,7] and as CNS and antimicrobial agents [8], pyrido[3,2-e][1,3]thiazines could be used as CNS and antioxidant agents [9] and as analgesic agents [10] and pyrido[3,2-f]-[1,4]-thiazepines were used as calcium antagonists in both cardiac and smooth muscles [11] and as channel blockers for treatment of cardiovascular diseases [12]. Microwave-assisted technique offer several advantages over conventional methods of synthesis. Reduced reaction times [13,14,15], less effects on the environment and better reaction yields are some of the common advantages of using microwave irradiation. In the present research project, we used both the microwave technique as well as conventional methods to prepare the targeted compounds with expected biological activity.

2. Results and Discussion

The starting compound 6-hydroxy-4-methyl-2-thioxo-2,3-dihydropyridine-3-carboxamide (2) was prepared from 3-amino-3-thioxopropanamide [monothiomalonamide, (1)] [16] and ethyl acetoacetate according to the literature procedure [17] (Scheme 1). Bromination of 2 with bromine in acetic acid yielded 3-bromo-6-hydroxy-4-methyl-2-thioxo-2,3-dihydropyridine-3-carboxamide (3).

Our preference for structure 3 for the reaction product was based on the comparison of both the ¹H-NMR and ¹³C-NMR spectra (DMSO-d₆) of 2 and 3. In the ¹H-NMR spectrum of 2, there are two signals at δ 5.24 and δ 6.10 ppm corresponding to the pyridine-H3 and pyridine-H5, respectively. The ¹H-NMR spectrum of the reaction product revealed a signal at δ 6.12 ppm corresponding to the pyridine-H5. The ¹³C-NMR spectrum of 2 showed two signals at δ 71.5 and δ 112.1 ppm corresponding to C3 and C5, respectively. The reaction product showed two signals at δ 91.3 and 111.8 ppm corresponding to the same carbon atoms. The downfield shift of C3 indicates that bromination took place on this carbon atom, favouring structure 3 for the reaction product. The reaction product assigned structure 3 was most probably due to an initial protonation on the amide carbonyl that leads to higher activity of position 3 in compound 2, and so the formation of the kinetically controlled product 3 is favoured.

Attempts to couple compound 3 with benzenediazonium chloride to produce 4 have all failed, most probably due to lack of aromaticity in compound 3. In contrast to the reaction of bromine with compound 2, the latter compound coupled with some arenediazonium salts at position 5 to give the monoarylazo derivatives. Thus, treatment of 2 with equimolar amounts of some arenediazonium salts yielded 5-arylazo-6-hydroxy-4-methyl-2-thioxo-1,2-dihydropyridine-3-carboxamides 5a–c (Scheme 1).

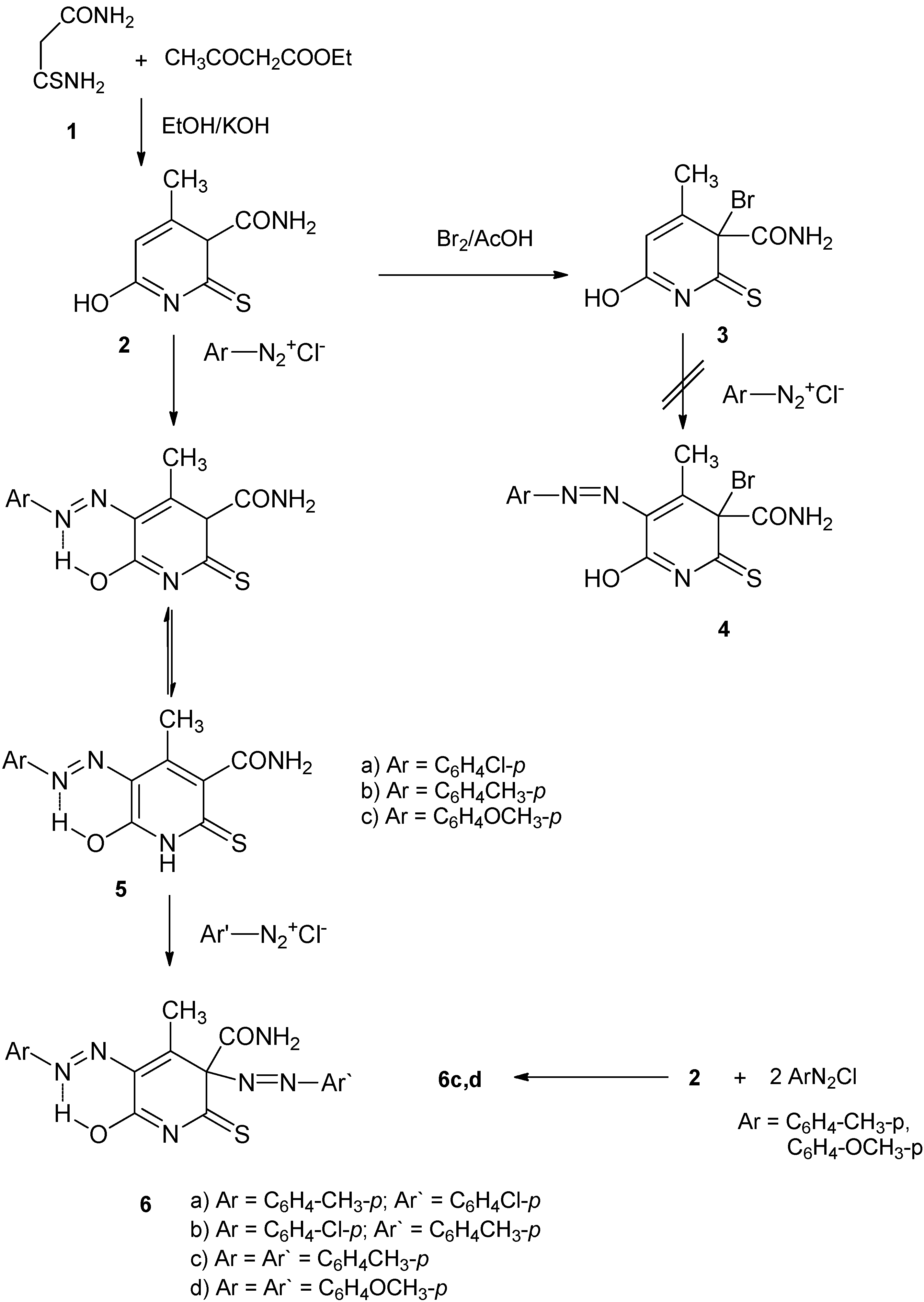

Scheme 1. Bromination and diazo coupling of the pyridinethione derivative 2.

Scheme 1. Bromination and diazo coupling of the pyridinethione derivative 2.

Structure 5 for the reaction product was based on a comparison between the ¹H-NMR spectra of 2 and 5a that revealed the disappearance of the signals at δ 5.24 & 6.10 ppm in 5a. The disappearance of the second one indicates that substitution takes place at position 5, while disappearance of the first one is due to tautomerization and appearance of a D₂O exchangeable signal at δ 12.86 ppm. Also, the ¹³C-NMR spectrum of compound 2 showed signals at 71.5 and 112.1, corresponding to C-3 and C-5, respectively. The same two carbons in 5a showed signals at 72.3 and 123.8, respectively. The downfield shift of C-5 signal indicates that substitution took place at this carbon atom. As further evidence, the monoarylazo derivatives 5a,b could be coupled with some arenediazonium salts to give bisarylazo derivatives (see below). An alternative ipso attack structure would have no aromaticity and would not undergo further coupling.

The monoarylazo derivatives 5a,b coupled with some arenediazonium salts to give 3,5-bis-arylazo-6-hydroxy-4-methyl-2-thioxo-2,3-dihydropyridine-3-caboxamides 6a,b (Scheme 1). Bisarylazo derivatives 6c,d could be synthesized directly from 2 by treatment with double amount of the diazonium salt (Scheme 1).

Next, we aimed to annulate five, six and seven-membered rings to the starting pyridine. A five-membered ring is annulated by oxidation of 2 with potassium ferricyanide in ethanolic potassium hydroxide solution, which led to the formation of 4-methyl-2,3,6,7-tetrahydroisothiazolo[5,4-b]-pyridine-3,6-dione (7, Scheme 2).

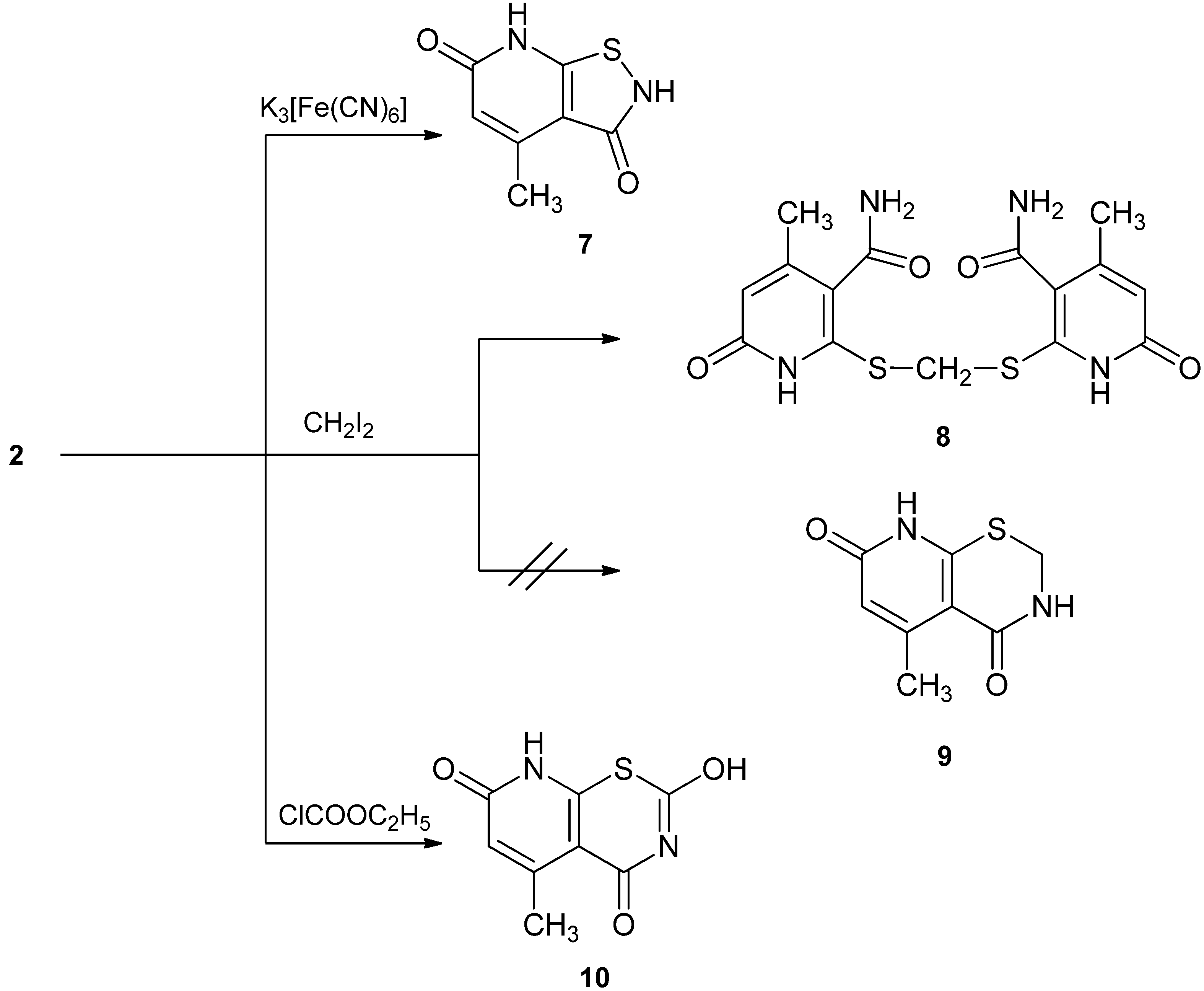

Scheme 2. Formation of isothiazolopyridine, methylene-bis-sulfanediyl-bis-pyridinone and pyridothiazine.

Scheme 2. Formation of isothiazolopyridine, methylene-bis-sulfanediyl-bis-pyridinone and pyridothiazine.

To annulate a six-membered ring to the starting pyridinethione derivative, compound 2 was allowed to react with diiodomethane in ethanolic potassium hydroxide solution. The reaction product was proved to be 2,2'-(methylene-bis(sulfanediyl))bis(4-methyl-6-oxo-1,6-dihydropyridine-3-carboxamide) (i.e., 8 instead of the expected pyrido[3,2-e][1,3]thiazine 9 (Scheme 2).

The IR spectrum of 8 displayed absorption bands at 3358 and 3171 cm⁻¹ (NH) and 1681 and 1635 cm⁻¹ (CO). Its ¹H-NMR spectrum (DMSO-d₆) showed signals at δ 2.22 ppm (s, 6H, 2CH₃), 4.90 (s, 2H, CH₂), 6.27 (s, 2H, pyridine-H-5), 7.52–7.77 (brs, 4H, 2 NH₂, D₂O exchangeable) and 11.00 (s, 2H, 2 × NH, D₂O exchangeable). The mass spectrum of 8 showed the molecular ion peak at m/z 380 (1.5%), corresponding to C₁₅H₁₆N₄O₄S₂. The base peak appeared at m/z 53.

Treatment of 2 with ethyl chloroformate, in ethanol in the presence of sodium ethoxide, led directly to the formation of 2-hydroxy-5-methyl-4H-pyrido[3,2-e][1,3]thiazine-4,7(8H)-dione (10, Scheme 2).

Heating under reflux compound 2 with chloroacetic acid and an appropriate aromatic aldehyde, in acetic acid/acetic anhydride mixture in the presence of anhydrous sodium acetate, gave directly 2-arylmethylene-8-hydroxy-6-methyl-2,3,4,5-tetrahydropyrido[3,2-f][1,4]thiazepine-3,5-diones 11a,b, as shown in Scheme 3.

Scheme 3. Formation of pyridothiazepine derivatives.

Scheme 3. Formation of pyridothiazepine derivatives.

The selection of structure 11 was based firstly on the ¹H-NMR spectrum of the reaction product that showed two types of exchangeable protons at δ 7.92 and 11.10 ppm. Secondly, structure 11 behaves like a typical 2-hydroxypyridine and couples with arenediazonium salts to give the 7-arylazoderivatives 14, (see below). Moreover, compounds 11a,b could also be synthesized in a stepwise fashion. Thus, heating under reflux compound 2 with chloroacetic acid in acetic acid solution in the presence of sodium acetate, yielded 2-[(3-carbamoyl-6-hydroxy-4-methylpyridin-2-yl)thio]acetic acid (12, Scheme 3).

Heating compound 12 in acetic acid/acetic anhydride solution, gave 8-hydroxy-6-methyl-2,3,4,5-tetrahydropyrido[3,2-f][1,4]thiazepine-3,5-dione (13, Scheme 3). Compound 13 could also be directly obtained from compound 2 by heating with chloroacetic acid in a mixture of acetic acid and acetic anhydride at 100 °C in the presence of anhydrous sodium acetate. Compound 13 condensed with p-chlorobenzaldehyde by heating under reflux in acetic acid in the presence of anhydrous sodium acetate to give 11a, with identical m.p., m.m.p., and IR data (Scheme 3).

Compound 11b, as a typical 2-hydroxpyridine, coupled with arenediazonium salts to give 7-arylazo-2-(p-methoxyphenylmethylene)-8-hydroxy-6-methyl-2,3,4,5-tetrahydropyrido[3,2-f][1,4]-thia-zepine-3,5-diones 14a–c, (Scheme 3).

Our research group has recently [17,18,19] been interested in performing synthesis of some heterocyclic compounds under environmentally friendly, time saving microwave-assisted conditions. Accordingly, we re-synthesized the previously described compounds 8, 10, 11a,b, 12 and 13 under microwave conditions, aiming to increase reaction yields and reduce the reaction times. The results of these preparations indicated that reaction yields were increased by 17–23% compared to the conventional conditions. Reaction times were also significantly reduced. Table 1 summarizes the benefits of using microwave conditions for the synthesis of the above-mentioned compounds.

Table 1. Comparison between traditional methods and microwave assisted methods of synthesis of compounds 10, 12, 13a, 13b, 15 and 16.

Compound no.	Reaction Yield %		Reaction Time
	Microwave	Conventional Method	Microwave	Conventional Method
10	90	68	5 min	2 h
12	92	75	30 min	24 h
13a	93	73	10 min	5 h
13b	88	71	10 min	5 h
15	92	74	5 min	3 h
16	66	43	5 min	3 h

Table 1. Comparison between traditional methods and microwave assisted methods of synthesis of compounds 10, 12, 13a, 13b, 15 and 16.

Compound no.	Reaction Yield %		Reaction Time
	Microwave	Conventional Method	Microwave	Conventional Method
10	90	68	5 min	2 h
12	92	75	30 min	24 h
13a	93	73	10 min	5 h
13b	88	71	10 min	5 h
15	92	74	5 min	3 h
16	66	43	5 min	3 h

3. Experimental

3.1. General

Melting points were determined in open glass capillaries on a Gallenkamp melting point apparatus and are uncorrected. IR spectra (KBr discs) were recorded on a Shimadzu FTIR-8201PC spectrophotometer. ¹H-NMR and ¹³C-NMR spectra were recorded on a Varian Mercury 300 MHz and Varian Gemini 200 MHz spectrometers using TMS as an internal standard and DMSO-d₆ as solvent. Chemical shifts were expressed as δ (ppm) units. Mass spectra were recorded at 70 eV on a Shimadzu GCMS-QP1000EX using an inlet type injector. All reactions were followed by TLC (silica gel, aluminum sheets 60 F254, Merck). The Microanalytical Center of Cairo University performed the microanalyses. Microwave reactions were performed with a Millstone Organic Synthesis Unit (MicroSYNTH with touch control terminal) with a continuous focused microwave power delivery system in a pressure glass vessel (10 mL) sealed with a septum under magnetic stirring. The temperature of the reaction mixture was monitored using a calibrated infrared temperature control under the reaction vessel, and control of the pressure was performed with a pressure sensor connected to the septum of the vessel. 3-Amino-3-thioxopropanamide [monothiomalonamide (1)] and 6-hydroxy-4-methyl-2-thioxo-2,3-dihydropyridine-3-carboxamide (2) were prepared according to literature procedures [16,17]. Reported ¹H-NMR and ¹³C-NMR of 2 [14] are given for comparison: ¹H-NMR: 2.30 (s, 3H, CH₃), 3.85 (br s, 1H, OH, D₂O exchangeable), 5.24 (s, 1H, H-3), 6.10 (s, 1H, H-5), 7.40 (br s, 2H, NH₂, D₂O exchangeable); ¹³C-NMR: 20.3 (CH₃), 71.5 (C-3), 112.1 (C-5), 137.3, 162.3 (sp2 C), 173.1 (CO), 188.0 (CS).

3.2. 3-Bromo-6-hydroxy-4-methyl-2-thioxo-1,2,3,6-tetrahydropyridine-3-carboxamide (3)

To a solution of 2 (2.84 g, 0.01 mole) in glacial acetic acid (50 mL), bromine (0.5 mL, 0.01 mole) was added dropwise with stirring at room temperature in sunlight. The mixture was then stirred at water bath for two hours and then diluted with cold water (30 mL). The resultant crude product thus precipitated was collected by filtration, washed with water, dried and crystallized from dilute dimethylformamide to afford 3 in 73% yield as pale brown crystals; m.p. 310 °C; IR ν: 3100–2250 cm⁻¹ (OH, NH, hydrogen bond), and 1689 cm⁻¹ (CO); ¹H-NMR: 2.42 (s, 3H, CH₃), 6.12 (s, 1H, pyridine-H), 11.91 (broad s, 3H, NH₂, OH, D₂O exchangeable); ¹³C-NMR: 13.5 (CH₃), 91.3 (C-3), 111.8 (C-5), 131.5 (C-4), 158.9 (C-6), 171.1 (CO), 182.3 (CS); Mass spectrum m/z: 264 (49%), 262 (48.5%), 182 (100.0%), 154 (20.8%) and 99 (19%); Anal. Calcd for C₇H₇BrN₂O₂S: C, 31.95%; H, 2.68%; Br, 30.37%; N, 10.65%; S, 12.19%. Found: C, 32.20%; H, 2.50%; Br, 30.70%; N, 10.40%; S, 12.40%.

3.3. 5-Arylazo-6-hydroxy-44-methyl-2-thioxo-1,2-dihydropyridine-3-carboxamides 5a–c

General procedure: To a cold solution of 2 (1.84 g, 0.01 mole) in pyridine (50 mL), containing 0.3 g potassium hydroxide, the arenediazonium chloride (0.01 mole) [prepared by adding concentrated hydrochloric acid (3 mL) to aromatic amine (0.01 mol) at 0 °C and treating the resulting hydrochloride with a cold solution of sodium nitrite (0.69 g, 0.01 mol) in water (5 mL)] was added dropwise with stirring at 0 °C. The coupling mixture was stirred at room temperature for two hours and then diluted with water (30 mL). The resultant crude product thus precipitated was collected by filtration, washed with water, dried and crystallized from the proper solvent.

5-(p-Chlorophenylazo)-6-hydroxy-4-methyl-2-thioxo-1,2-dihydropyridine-3-carboxamide (5a). Crystallized from dioxane in 93% yield; m.p. 270 °C; IR ν: 3580–2122 (NH, OH) and 1651 (CO). ¹H-NMR: 2.22 (s, 3H, CH₃), 7.48–7.68 (m, 6H, 4 aromatic protons and NH₂, D₂O exchangeable), 12.86 (s, 1H, NH, D₂O exchangeable), 13.87 (s, 1H, hydrogen bonded OH, D₂O exchangeable); ¹³C-NMR: 13.4 (CH₃), 72.3 (C-3), 123.8 (C-5), 129.8, 132.2, 134.5, 137.3, 146.0, 160.4 (Ar-H + pyridine C-4, C-6), 172.7 (CO), 185.3 (CS); Mass spectrum m/z: 324 (15.1%), 322 (44.9%), 287 (24.5%), 276 (6.2%), 198 (3.8%), 111 (80%) and 60 (100.0%); Anal. Calcd for C₁₃H₁₁ClN₄O₂S: C, 48.37%; H, 3.44%; Cl, 10.98%; N, 17.36%; S, 9.93%. Found: C, 48.60%; H, 3.50%; Cl, 11.20%; N, 17.40%; S, 10.20%.

6-Hydroxy-4-methyl-2-thioxo-5-(p-tolyldiazenyl)-1,2-dihydropyridine-3-carboxamide (5b). Crystallized from dimethylformamide in 87% yield; m.p. 308 °C; IR ν: 3433–2160 (NH, OH) and 1678 (CO); ¹H-NMR: 2.03 (s, 3H, CH₃), 2.35 (s, 3H, CH₃), 7.20–7.79 (m, 6H, 4 aromatic protons and NH₂, D₂O exchangeable), 12.86 (s, 1H, NH, D₂O exchangeable), 14.53 (s, 1H, hydrogen bonded OH, D₂O exchangeable); ¹³C-NMR: 13.4 (CH₃), 72.0 (C-3), 122.8 (C-5), 129.8, 132.2, 134.5, 137.3, 146.0, 160.4 (Ar-H + pyridine C-4, C-6), 172.7 (CO), 185.3 (CS); Mass spectrum m/z: 302 (21.6%), 269 (7.5%), 257 (6.5%), 196 (5.8%), 168 (5.8%) and 91 (100.0%); Anal. Calcd for C₁₄H₁₄N₄O₂S: C, 55.61%; H, 4.67%; N, 18.53%; S, 10.61%. Found: C, 55.30%; H, 4.50%; N, 18.40%; S, 10.30%.

6-Hydroxy-5-(p-methoxyphenylazo)-4-methyl-2-thioxo-1,2-dihydropyridine-3-carbox-amide (5c). Crystallized from dimethylformamide in 91% yield; m.p. 254 °C; IR ν: 3580, 2122 (NH, OH) and 1666 (CO); ¹H-NMR: 1.98 (s, 3H, CH₃), 3.85 (s, 3H, OCH₃), 6.99–7.90 (m, 6H, 4 aromatic protons and NH₂, D₂O exchangeable), 12.70 (s, 1H, NH, D₂O exchangeable), 14.43 (s, 1H, hydrogen bonded OH, D₂O exchangeable); ¹³C-NMR: 13.6 (CH₃), 55.8 (OCH₃), 72.1 (C-3), 120.6 (C-5), 117.4, 132.5, 136.5, 140.3, 156.0, 160.6 (Ar-H + pyridine C-4, C-6), 173.5 (CO), 183.1 (CS); Mass spectrum m/z: 318 (16.1%), 274 (22.5%), 242 (9.5%), 183 (5.0%), and 107 (100.0%); Anal. Calcd for C₁₄H₁₄N₄O₃S: C, 52.82%; H, 4.43%; N, 17.60%; S, 10.07%. Found: C, 53.00%; H, 4.70%; N, 17.60%; S, 10.30%.

3.4. 3,5-Bis-arylazo-6-hydroxy-4-methyl-2-thioxo-2,3-dihydropyridine-3-carboxamides 6a–d

Route A: To a cold solution of 5 (0.01 mole) in pyridine (50 mL), containing potassium hydroxide (0.3 g), the arenediazonium chloride (0.01 mole) [prepared by adding concentrated hydrochloric acid (3 mL) to aromatic amine (0.01 mol) at 0 °C and treating the resulting hydrochloride with a cold solution of sodium nitrite (0.69 g, 0.01 mol) in water (5 mL)] was added dropwise with stirring at 0 °C. The coupling mixture was stirred at room temperature for two hours and then diluted with water (30 mL). The resultant crude product thus precipitated was collected by filtration, washed with water, dried and crystallized from the proper solvent.

3-(p-Chlorophenylazo)-6-hydroxy-4-methyl-2-thioxo-5-(p-tolylazo)-2,3-dihydropyridine-3-carboxamide (6a). According to the general method a cold solution of 5b (3.02 g, 0.01 mol) in pyridine (50 mL), containing 0.3 g potassium hydroxide, the (p-chlorophenyl)diazonium chloride (0.01 mol) [prepared by adding concentrated hydrochloric acid (3 mL) to p-chloroaniline (1.27 g, 0.01 mole) at 0 °C and treating the resulting hydrochloride with a cold solution of sodium nitrite (0.69 g, 0.01 mole) in water (5 mL)] was added dropwise with stirring at 0 °C. The coupling mixture was stirred at room temperature for two hours and then diluted with water (30 mL). The resultant crude product thus precipitated was collected by filtration, washed with water, dried and crystallized from ethanol to afford 6a in 90% yield as a deep reed crystals. m.p. 249 °C; IR ν: 3406–2222 (NH, OH) and 1659 (CO); ¹H-NMR: 2.09 (s, 3H, CH₃), 2.63 (s, 3H, CH₃), 7.26–8.90 (m, 10H, 8 aromatic protons and NH₂, D₂O exchangeable), 14.23 (s, 1H, OH, D₂O exchangeable); ¹³C-NMR: 10.3 (CH₃), 25.1 (CH₃), 94.8 (pyridine C-3), 110.6, 122.4, 128.7, 130.0, 131.9, 132.5, 136.5, 138.8, 144.3, 150.0, 160.4 (Ar-H + pyridine C-4, C-5, C-6), 172.3 (CO), 184.1 (CS); Mass spectrum m/z: 442 (17.1%), 440 (53.0%), 396 (12.6%), 268 (93.1%), 257 (2.7%), 228 (2.1%) and 91 (100.0%); Anal. Calcd for C₂₀H₁₇ClN₆O₂S: C, 54.48%; H, 3.89; Cl, 8.04; N, 19.06; S, 7.27. Found: C, 54.80%; H, 3.90%; Cl, 7.90%; N, 19.30%; S, 7.30%.

5-(p-Chlorophenylazo)-6-hydroxy-4-methyl-2-thioxo-3-(p-tolylazo)-2,3-dihydropyridine-3-carboxamide (6b). Crystallized from ethanol in 76% yield; m.p. 259 °C; IR ν: 3375–1909 (NH, OH) and 1659 (CO); ¹H-NMR: 2.11 (s, 3H, CH₃), 2.63 (s, 3H, CH₃), 7.20–8.88 (m, 10H, 8 aromatic protons and NH₂, D₂O exchangeable), 14.23 (s, 1H, OH, D2O exchangeable); ¹³C-NMR: 10.5 (CH₃), 25.1 (CH₃), 94.2 (pyridine C-3), 110.6, 122.5, 128.6, 130.0, 131.5, 132.3, 136.1, 139.0, 144.3, 150.0, 160.4 (Ar-H + pyridine C-4, C-5, C-6), 172.0 (CO), 184.5 (CS); Mass spectrum m/z: 442 (23.9%), 440 (73.1%), 396 (18.7%), 268 (77.1%), 248 (2.1%) and 91 (100.0%); Anal. Calcd for C₂₀H₁₇ClN₆O₂S: C, 54.48; H, 3.89; Cl, 8.04; N, 19.06; S, 7.27. Found: C, 54.60%; H, 3.70%; Cl, 8.20%; N, 19.20%; S, 7.50%.

3,5-Bis-(p-tolylazo)-6-hydroxy-4-methyl-2-thioxo-2,3-dihydropyridine-3-carboxamide (6c). Crystallized from ethanol in 96% yield; m.p. 212 °C; IR ν: 3402–2226 (NH, OH) and 1659 (CO); ¹H-NMR: 1.94 (s, 3H, CH₃), 2.38 (s, 3H, CH₃), 2.44 (s, 3H, CH₃), 7.16–7.80 (m, 10H, 8 aromatic protons and NH₂, D₂O exchangeable), 14.30 (s, 1H, OH, D₂O exchangeable); ¹³C-NMR: 11.1 (CH₃), 22.1 (CH₃), 22.8 (CH₃), 97.2 (pyridine C-3), 110.6, 122.5, 128.6, 129.6, 130.3, 135.3, 136.1, 139.0, 144.3, 148.1, 160.4 (Ar-H + pyridine C-4, C-5, C-6), 171.1 (CO), 184.0 (CS); Mass spectrum m/z: 420 (74.4%), 376 (5.4%), 329 (7%), 301 (6.6%), 210 (3.4%) and 91 (100.0%); Anal. Calcd for C₂₁H₂₀N₆O₂S: C, 59.98%; H, 4.79%; N, 19.99%; S, 7.63%. Found: C, 60.10%; H, 4.50%; N, 20.10%; S, 7.80%.

3,5-Bis-(p-methoxyphenylazo)-6-hydroxy-4-methyl-2-thioxo-2,3-dihydropyridine-3-carboxamide (6d). Crystallized from ethanol in 87% yield; m.p. 248 °C; IR ν: 3418–2195 (NH, OH) and 1659 (CO); ¹H-NMR: 2.17 (s, 3H, CH₃), 3.82 (s, 3H, OCH₃), 3.88 (s, 3H, OCH₃), 7.04–8.13 (m, 10H, 8 aromatic protons and 2H, NH₂, D₂O exchangeable), 14.17 (s, 1H, OH, D₂O exchangeable); ¹³C-NMR: 11.5 (CH₃), 53.1 (OCH₃), 53.8 (OCH₃), 92.5 (pyridine C-3), 110.3, 115.3, 123.2, 126.5, 130.1, 133.3, 135.2, 137.0, 155.0, 158.9, 160.2 (Ar-H + pyridine C-4, C-5, C-6), 173.0 (CO), 184.6 (CS); Mass spectrum m/z: 452 (3.4%), 424 (66.5%), 408 (10.1%), 379 (13.3%), 273 (2.5%), 229 (22.1%) and 107 (100.0%); Anal. Calcd for C₂₁H₂₀N₆O₄S: C, 55.74%; H, 4.46%; N, 18.57%; S, 7.09%. Found: C, 55.70%; H, 4.30%; N, 18.40%; S, 7.30%.

Route B: To a cold solution of 2 (0.92 g, 0.005 mole) in pyridine (50 mL), containing potassium hydroxide (0.3 g), the arenediazonium chloride (0.01 mole) [prepared by adding concentrated hydrochloric acid (3 mL) to aromatic amine (0.01 mol) at 0 °C and treating the resulting hydrochloride with a cold solution of sodium nitrite (0.69 g, 0.01 mol) in water (5 mL)] was added dropwise with stirring at 0 °C. The coupling mixture was stirred at room temperature for two hours and then diluted with water (30 mL). The resultant crude product thus precipitated was collected by filtration, washed with water, dried and crystallized. Compound 6c was thus obtained in 93% yield and matched the same compound prepared by Route A in every aspect (m.p., mixed m.p. and IR spectrum). Compound 6d was thus obtained in 96% yield and matched the same compound prepared by Route A in every aspect (m.p., mixed m.p. and IR spectrum).

3.5. 4-Methyl-2,3,6,7-tetrahydroisothiazolo[5,4-b]pyridine-3,6-dione (7)

To a solution of 2 (1.84 g, 0.01 mole) in ethanol (50 mL), in the presence of potassium hydroxide (0.56 g, 0.01 mole), potassium ferricyanide (2.5 g, 0.01 mol) was added dropwise with stirring at room temperature. The mixture was then stirred at room temperature for two hours and then diluted with cold water (30 mL). The resultant crude product thus precipitated was collected by filtration, washed with water, dried and crystallized from dimethylformamide to afford 7 in 80% yield as a white powder; m.p. 292 °C; IR ν: 3420 (NH) and 1681 and 1636 (2 CO); ¹H-NMR: 2.42 (s, 3H, CH₃), 6.11 (s, 1H, pyridine-H5), 11.37 (br.s, 2H, 2 NH, D₂O exchangeable); ¹³C-NMR: 23.1 (CH₃), 112.3, 127.1, 131.4, 143.0 (pyridine C atoms), 165.3 (CO), 175.0 (CO); Mass spectrum m/z: 182 (27.3%), 154 (100.0%), 107 (14.3%) and 99 (4.8%); Anal. Calcd for C₇H₆N₂O₂S: C, 46.14%; H, 3.32%; N, 15.38%; S, 17.60%. Found: C, 45.90%; H, 3.50%; N, 15.30%; S, 17.40%.

3.6. 2,2'-(Methylene-bis(sulfanediyl))bis(4-methyl-6-oxo-1,6-dihydropyridine-3-carboxamide) (8)

Method A: To a solution of 2 (1.84 g, 0.01 mol) in ethanol (50 mL) in the presence of potassium hydroxide (0.56 g, 0.01 mol), methylene iodide (0.53 mL, 0.005 mol) was added dropwise with stirring at room temperature. The mixture was then stirred under reflux for two hours and then diluted with cold water (30 mL). The resultant crude product thus precipitated was collected by filtration, washed with water, dried and crystallized from dioxane to afford 8. Method B: The same reactants of method A were heated under microwaves at 500 W and 140 °C for 5 min. The reaction mixture was treated in a similar manner to method A to give compound 8. Compound 8 was obtained as a white powder in 68% yield (Method A) or 90% yield (Method B); m.p. 304 °C; IR ν: 3358 and 3171 (NH) and 1681, 1635 (2 CO); ¹H-NMR: 2.22 (s, 6H, 2 CH₃), 4.90 (s, 2H, CH₂), 6.27 (s, 2H, pyridine H-5), 7.52–7.77 (br.s, 4H, 2 NH₂, D₂O exchangeable), 11.00 (s, 2H, 2 NH, D₂O exchangeable); ¹³C-NMR: 20.1 (CH₃), 32.7 (CH₂), 100.4, 125.1, 143.3, 148.0 (pyridine C atoms), 162.3 (CO), 171.2 (CO); Mass spectrum m/z: 380 (1.5%), 336 (2.0%), 321 (1.4%), 197 (29.4%), 183 (4.2) and 53 (100.0%); Anal. Calcd for C₁₅H₁₆N₄O₄S₂: C, 47.36; H, 4.24%; N, 14.73%; % S, 16.86%. Found: C, 47.20%; H, 4.30%; N, 14.70%; S, 16.80%.

3.7. 2-Hydroxy-5-methyl-4H-pyrido[3,2-e][1,3]thiazine-4,7(8H)-dione (10)

Method A: A mixture of 2 (1.84 g, 0.01 mole) and ethyl chloroformate (0.01 mole) was heated under reflux in absolute ethanol (30 mL) in the presence of sodium ethoxide (0.46 g, 0.02 mole) for 24 h. The reaction mixture was then poured onto water, the deposited precipitate was filtered off, dried and crystallized from ethanol to give 10. Method B: The same reactants of method A were heated under microwaves at 500 W and 140 °C for 30 min. The reaction mixture was treated in a similar manner to method A to give compound 10. The product was obtained as a white powder in 75% yield (Method A) and 92% yield (Method B); m.p. 205 °C; IR ν: 3410 and 3175 (NH, OH) and 1651 and 1645 (2 CO); ¹H-NMR: 2.41 (s, 3H, CH₃), 6.11 (s, 1H, pyridine-H), 8.13 (s, 1H, NH, D₂O exchangeable), 9.16 (s, 1H, OH, D₂O exchangeable); ¹³C-NMR: 21.0 (CH₃), 123.8, 128.0, 134.9, 144.0, 160.1 (thiazine C-2 + pyridine C atoms), 163.0 (CO), 171.6 (CO); Mass spectrum m/z: 210 (0.8%), 167 (100.0%), 150 (1.5%), 139 (21.0%) and 107 (21.9); Anal. Calcd for C₈H₆N₂O₃S: C, 45.71%; H, 2.88%; N, 13.33%; S, 15.25%. Found: C, 45.40%; H, 3.10%; N, 13.10%; S, 15.00%.

3.8. 2-Arylmethylene-8-hydroxy-6-methyl-2,3,4,5-tetrahydropyrido[3,2-f][1,4]thiazepine-3,5-diones 11a,b

Method A: A mixture of 2 (1.84 g, 0.01 mole), chloroacetic acid (1.2 g, 0.012 mole), the appropriate aromatic aldehyde (0.01 mole) and anhydrous sodium acetate (2 g) was refluxed in glacial acetic acid (30 mL) and acetic anhydride (15 mL) for five hours. The reaction mixture was allowed to cool, poured into water, the deposited precipitated thus formed was filtered off, washed with water, dried and crystallized from the proper solvent. Method B: The same reactants of method A were heated under microwaves at 500 w and 140 °C for 10 min. The reaction mixture was treated in a similar manner to method A to give compounds 11a,b.

2-(p-Chlorophenylmethylene)-8-hydroxy-6-methyl-2,3,4,5-tetrahydropyrido[3,2-f][1,4]-thiazepine-3,5-dione (11a). Crystallized from dimethylformamide in 73% yield (Method A) and 93% yield (Method B); m.p. 282 °C; IR ν: 3440–2927 (broad, OH and NH), 3024 (CH aromatic), 2927 (CH aliphatic), 1764 and 1670 (2 CO); ¹H-NMR: 2.35 (s, 3H, CH₃), 6.25 (s, 1H, pyridine-H), 7.50–7.85 (m, 5H, 4 aromatic protons + methine proton), 7.92 (s, 1H, OH, D₂O exchangeable), 11.10 (s, 1H, NH, D₂O exchangeable); ¹³C-NMR: 19.3 (CH₃), 109.3, 122.0, 124.6, 130.9, 132.0, 134.4, 135.1, 136.9, 146.1, 156.3, 160.1 (pyridine C atoms + thiazepine C-2 + aromatic C atoms + methine C), 167.0 (CO), 171.2 (CO); Mass spectrum m/z: 348 (5.3%), 346 (16.7%), 235 (47.1%), 210 (11.5%), 179 (21.0%) and 111 (100.0%); Anal. Calcd for C₁₆H₁₁ClN₂O₃S: C, 55.42%; H, 3.20%; Cl, 10.22%; N, 8.08%; S, 9.25%. Found: C, 55.30%; H, 3.40%; Cl, 10.10%; N, 8.20%; S, 9.40%.

8-Hydroxy-2-(p-methoxyphenylmethylene)-6-methyl-2,3,4,5-tetrahydro-pyrido[3,2-f]-[1,4]thiazepine-3,5-dione (11b). Crystallized from dimethylformamide in 71% yield (Method A) and 88% yield (Method B); m.p. 263 °C; IR ν: 3416–2924 (broad, OH and NH), 3068 (CH aromatic), 2924 (CH aliphatic), 1747 and 1664 (2 CO); ¹H-NMR: 2.40 (s, 3H, CH₃), 3.90 (s, 3H, OCH₃), 6.13 (s, 1H, pyridine-H), 6.85–7.75 (m, 5H, 4 aromatic protons + methine proton), 8.11 (s, 1H, OH, D₂O exchangeable), 11.40 (s, 1H, NH, D₂O exchangeable); ¹³C-NMR: 18.8 (CH₃), 108.5, 115.0, 120.1, 130.9, 132.0, 135.4, 136.1, 136.9, 146.1, 156.5, 160.0 (pyridine C atoms + thiazepine C-2 + aromatic C atoms + methine C), 166.8 (CO), 170.4 (CO); Mass spectrum m/z: 342 (15.0%), 235 (42.5%), 207 (14.5%), 175 (11.8%) and 107 (100.0%); Anal. Calcd for C₁₇H₁₄N₂O₄S: C, 59.64%; H, 4.12%; N, 8.18%; S, 9.37%. Found: C, 59.80%; H, 4.30%; N, 8.50%; S, 9.40%.

3.9. 2-[(3-Carbamoyl-6-hydroxy-4-methylpyridin-2-yl)thio]acetic Acid (12)

Method A: A mixture of 2 (1.84 g, 0.01 mole), chloroacetic acid (1.2 g, 0.012 mole), and anhydrous sodium acetate (2 g) was refluxed in glacial acetic acid (30 mL) for three hours. The reaction mixture was then allowed to cool, poured into water, the deposited precipitated thus formed was filtered off, washed with water, dried and crystallized from acetic acid to yield 12. Method B: The same reactants of method A were heated under microwaves at 500 W and 140 °C for 5 min. The reaction mixture was treated in a similar manner to method A to give compound 12. The product was obtained as purple crystals in 74% yield (Method A) and 92% yield (Method B); m.p. 224 °C; IR ν: 3375–2473 (NH, OH) and 1724 & 1651 (2 CO); ¹H-NMR: 2.48 (s, 3H, CH₃), 4.10 (s, 2H, CH₂), 5.90 (s, 1H, pyridine-H), 10.23 (s, 1H, OH, D₂O exchangeable), 11.10 (s, 2H, 2 NH, D₂O exchangeable), 11.60 (s, 1H, COOH, D₂O exchangeable); ¹³C-NMR: 20.1 (CH₃), 32.5 (CH₂), 111.2, 115.4, 142.0, 153.6, 154.0 (pyridine C), 168.5 (CO), 173.9 (CO); Mass spectrum m/z: 242 (8.5%), 197 (51.5%), 151 (78.5%), 107 (11.0%) and 45 (100.0%); Anal. Calcd for C₉H₁₀N₂O₄S: C, 44.62%; H, 4.16%; N, 11.65%; S, 13.24%. Found: C, 44.70%; H, 4.40%; N, 11.80%; S, 13.10%.

3.10. 8-Hydroxy-6-methyl-2,3,4,5-tetrahydropyrido[3,2-f][1,4]thiazepine-3,5-dione (13)

Method A: A mixture of 2 (1.84 g, 0.01 mole), chloroacetic acid (1.2 g, 0.012 mole), and anhydrous sodium acetate (2 g) in glacial acetic acid/acetic anhydride (30 mL/15 mL) was heated in a boiling water bath for three hours. The reaction mixture was then allowed to cool, poured into water, the deposited precipitate thus formed was filtered off, washed with water, dried and crystallized from acetic acid to afford 13. Method B: The same reactants of method A were heated under microwaves at 500 W and 140 °C for 5 min. The reaction mixture was treated in a similar manner to method A to give compound 13. Product 13 was obtained as a brown powder in 43% yield (Method A) and 66 % yield (Method B); m.p. 258 °C; IR ν: 3400 and 3314 (NH, OH) and 1774 and 1678 (2 CO); ¹H-NMR: 2.50 (s, 3H, CH₃), 3.95 (s, 2H, CH₂), 6.04 (s, 1H, pyridine-H), 9.31 (s, 1H, NH, D₂O exchangeable), 11.55 (s, 1H, OH, D₂O exchangeable); ¹³C-NMR: 19.4 (CH₃), 38.9 (CH₂), 110.0, 114.3, 140.1, 154.3, 155.0 (pyridine C), 167.4 (CO), 170.0 (CO); Mass spectrum m/z: 224 (17.0%), 196 (34.7%), 181 (10.3%), 153 (3.6%) and 107 (100.0%); Anal. Calcd for C₉H₈N₂O₃S: C, 48.21%; H, 3.60%; N, 12.49%; S, 14.30%. Found: C, 48.40%; H, 3.50%; N, 12.30%; S, 14.10%.

3.11. 7-Arylazo-2-(p-methoxyphenylmethylene)-8-hydroxy-6-methyl-2,3,4,5-tetrahydropyrido[3,2-f]-[1,4]thiazepine-3,5-diones 14a–c

To a cold solution of 11b (3.42 g, 0.01 mole) in pyridine (50 mL), containing potassium hydroxide (0.3 g), the arenediazonium chloride (0.01 mole) [prepared by adding concentrated hydrochloric acid (3 mL) to aromatic amine (0.01 mole) at 0 °C and treating the resulting hydrochloride with a cold solution of sodium nitrite (0.69 g, 0.01 mole) in water (5 mL)] was added dropwise with stirring at 0 °C. The coupling mixture was then stirred at room temperature for two hours and then diluted with water (30 mL). The resultant crude product thus precipitated was collected by filtration, washed with water, dried and crystallized from the proper solvent.

7-(p-Chlorophenylazo)-2-(p-methoxyphenylmethylene)-8-hydroxy-6-methyl-2,3,4,5-tetrahydropyrido-[3,2-f][1,4]thiazepine-3,5-dione (14a). Crystallized from dilute dimethyl-formamide in 63% yield; m.p. 310 °C; IR ν: 3480–2100 (NH, OH) and 1740 and 1670 (2 CO); ¹H-NMR: 2.45 (s, 3H, CH₃), 3.88 (s, 3H, OCH₃), 6.90–7.81 (m, 9H, 8 aromatic protons + methine proton), 9.23 (s, 1H, NH, D₂O exchangeable), 11.00 (s, 1H, OH, D₂O exchangeable); ¹³C-NMR: 13.4 (CH₃), 57.0 (OCH₃), 109.0, 115.3, 124.3, 127.1, 127.9, 128.8, 129.7, 131.2, 135.1, 136.0, 142.9, 145.0, 156.4, 160.2, 161.3 (pyridine C atoms + thiazepine C-2 + aromatic C atoms + methine C), 169.0 (CO), 173.7 (CO); Mass spectrum m/z: 482 (3.5%), 480 (11.3%), 373 (28.8%), 341 (5.7%) and 107 (100.0%); Anal. Calcd for C₂₃H₁₇ClN₄O₄S: C, 57.44%; H, 3.56%; Cl, 7.37%; N, 11.65%; S, 6.67%. Found: C, 57.60%; H, 3.30%; Cl, 7.50%; N, 11.70%; S, 6.90%.

7-(p-Methoxyphenylazo)-2-(p-methoxyphenylmethylene)-8-hydroxy-6-methyl-2,3,4,5-tetrahydropyrido-[3,2-f][1,4]thiazepine-3,5-dione (14b). Crystallized from ethanol in 72% yield; m.p. 332 °C; IR ν: 3454–2218 (NH, OH) and 1751 and 1666 (2 CO); ¹H-NMR: 2.52 (s, 3H, CH₃), 3.85 (s, 3H, OCH₃), 3.95 (s, 3H, OCH₃), 6.94–7.74 (m, 9H, 8 aromatic protons + methine proton), 9.15 (s, 1H, NH, D₂O exchangeable), 11.10 (s, 1H, OH, D₂O exchangeable); ¹³C-NMR: 12.8 (CH₃), 56.9 (OCH₃), 57.9 (OCH₃), 108.0, 114.3, 115.2 122.1, 125.6, 127.1, 129.8, 130.7, 135.1, 142.9, 145.0, 156.4, 159.1, 160.3, 163.8 (pyridine C atoms + thiazepine C-2 + aromatic C atoms + methine C), 168.3 (CO), 170.3 (CO); Mass spectrum m/z: 476 (15.1%), 369 (31.1%), 341 (5.2%), 273 (10.4%) and 107 (100.0%); Anal. Calcd for C₂₄H₂₀N₄O₅S: C, 60.49%; H, 4.23%; N, 11.76%; S, 6.73%. Found: C, 60.60%; H, 4.10%; N, 11.70%; S, 6.90%.

7-(p-Tolylazo)-2-(p-methoxyphenylmethylene)-8-hydroxy-6-methyl-2,3,4,5-tetrahydro-pyrido[3,2-f]-[1,4]thiazepine-3,5-dione (14c). Crystallized from ethanol in 66% yield; m.p. 325 °C. IR ν: 3414–2213 (NH, OH) and 1753 and 1661 (2 CO). ¹H-NMR: 2.30 (s, 3H, CH₃), 2.43 (s, 3H, CH₃), 3.85 (s, 3H, OCH₃), 6.90–7.80 (m, 9H, 8 aromatic protons + methine proton), 9.41 (s, 1H, NH, D₂O exchangeable), 11.22 (s, 1H, OH, D₂O exchangeable); ¹³C-NMR: 11.0 (CH₃), 21.9 (CH₃), 55.9 (OCH₃), 108.8, 113.7, 115.1 124.1, 125.3, 126.3, 128.8, 130.0, 135.1, 142.6, 144.1, 155.2, 157.0, 160.3, 162.9 (pyridine C atoms + thiazepine C-2 + aromatic C atoms + methine C), 168.0 (CO), 171.7 (CO); Mass spectrum m/z: 460 (17.5%), 353 (25.5%), 341 (6.6%), 253 (5.4%) and 107 (100.0%). Anal. Calcd for C₂₄H₂₀N₄O₄S: C, 62.60%; H, 4.38%; N, 12.17%; S, 6.96%. Found: C, 62.40%; H, 4.50%; N, 12.10%; S, 7.10%.

4. Conclusions

Several new isothiazolopyridines, pyridothiazines and pyridothiazepines have been synthesized using both traditional methods and microwave assisted conditions. The latter methods proved much more efficient in reducing reaction times as well as increasing the overall yield of the reactions. Structures of the newly synthesized compounds were proven by both spectral and chemical methods.
