Cooperative Al(Salen)-Pyridinium Catalysts for the Asymmetric Synthesis of trans-Configured β-Lactones by [2+2]-Cyclocondensation of Acylbromides and Aldehydes: Investigation of Pyridinium Substituent Effects

by
Patrick Meier
1,2,
Florian Broghammer
1,
Katja Latendorf
1,
Guntram Rauhut
2 and
René Peters
1,*
1
Institut für Organische Chemie, Universität Stuttgart, Pfaffenwaldring 55, 70569 Stuttgart, Germany
2
Institut für Theoretische Chemie, Universität Stuttgart, Pfaffenwaldring 55, 70569 Stuttgart, Germany
*
Author to whom correspondence should be addressed.
Molecules 2012, 17(6), 7121-7150; https://doi.org/10.3390/molecules17067121
Submission received: 26 April 2012 / Revised: 23 May 2012 / Accepted: 4 June 2012 / Published: 12 June 2012
(This article belongs to the Special Issue Asymmetric Catalysis)
Browse Figures
Versions Notes

Abstract

:
The trans-selective catalytic asymmetric formation of β-lactones constitutes an attractive surrogate for anti-aldol additions. Recently, we have reported the first catalyst which is capable of forming trans-β-lactones with high enantioselectivity from aliphatic (and aromatic) aldehyde substrates by cyclocondensation with acyl bromides. In that previous study the concepts of Lewis acid and organic aprotic ion pair catalysis were combined in a salen-type catalyst molecule. Since a pyridinium residue on the salen periphery is essential for high trans- and enantioselectivity, we were interested in the question of whether substituents on the pyridinium rings could be used to further improve the catalyst efficiency, as they might have a significant impact on the effective charges within the heterocycles. In the present study we have thus compared a small library of aluminum salen/bispyridinium catalysts mainly differing in the substituents on the pyridinium residues. As one result of these studies a new catalyst was identified which offers slightly superior stereoselectivity as compared to the previously reported best catalyst. NBO calculations have revealed that the higher stereoselectivity can arguably not be explained by the variation of the effective charge.

Graphical Abstract

1. Introduction

β-Lactones (systematic name 2-oxetanones), are attracting the interest of scientists for mainly two reasons: (1) a number of natural and synthetic β-lactones are known to act as specific enzyme inhibitors [1,2,3,4]. Tetrahydrolipstatin (Xenical®, orlistat), for instance, is used for the treatment of obesity and has recently received renewed attention due to the finding that it is capable of specifically inhibiting fatty acid synthase (FAS-TE), an approved drug target for cancer treatment [5,6,7]; (2) as a result of their inherent ring strain [8] β-lactones are useful synthetic building blocks. Ring opening with hard nucleophiles offers the possibility to a divergent access to aldol products [9,10,11,12,13], whereas treatment with soft nucleophiles can be utilized to synthesize β-functionalized carboxylic acid derivatives [9,10,12]. In both cases the stereoinformation of the β-lactone ring can be completely transferred into the ring opening product and the acyl-oxygen bond cleavage with hard nucleophiles typically proceeds with retention of configuration. Cis- and trans-configured β-lactones thus behave as masked and activated syn- and anti-aldol equivalents, respectively.
The catalytic asymmetric formation of ester or amide aldol derivatives via β-lactones is not only attractive for the high divergency of accessible aldol structures, but also for the high atom-economy of the overall process, since no preformation of silylketene acetals or related nucleophiles is necessary [14]. Instead an acyl halide is usually used to generate a ketene in situ as a reactive intermediate by dehydrohalogenation induced by a base [15,16,17,18,19]. The ketene then undergoes a cycloaddition with an aldehyde, either catalyzed by a Lewis acid [20,21,22,23,24,25,26,27,28,29] or by a Lewis base [30,31,32,33,34,35,36,37] or by a combination of both [38,39,40,41,42]. Particularly appealing appears the development of trans-selective catalytic asymmetric β-lactone formations as a surrogate for anti-aldol additions, since for the latter reaction type only few efficient catalytic asymmetric protocols exist to date [43,44,45,46].
Unfortunately, the catalytic asymmetric [2+2] cycloaddition approach of ketenes and aldehydes provides in general only cis-diastereomers as the major products [47,48,49]. In 2008, Calter et al. described the first catalytic enantioselective access to trans-configured β-lactones by a formal [2+2] cycloaddition [39]. However, this method is so far limited to the use of aromatic aldehydes, whereas the large majority of bioactive compounds such as tetrahydrolipstatin carry an aliphatic chain at the 4-position of the 3,4-disubstituted 2-oxetanone core [50,51,52].
Recently, we have reported a conceptually new approach which is applicable to both aliphatic and aromatic aldehydes [53,54]. Aluminum salen complexes carrying aprotic organic ion pairs in the periphery of the salen core were investigated. The most useful described catalyst 4aA in terms of enantioselectivity and reactivity was equipped with two pyridinium bromide functionalities connected via benzylic methylene linkers to the ortho-position of the phenolate O atoms (3/3'-position, Scheme 1).
Molecules 17 07121 g004 550

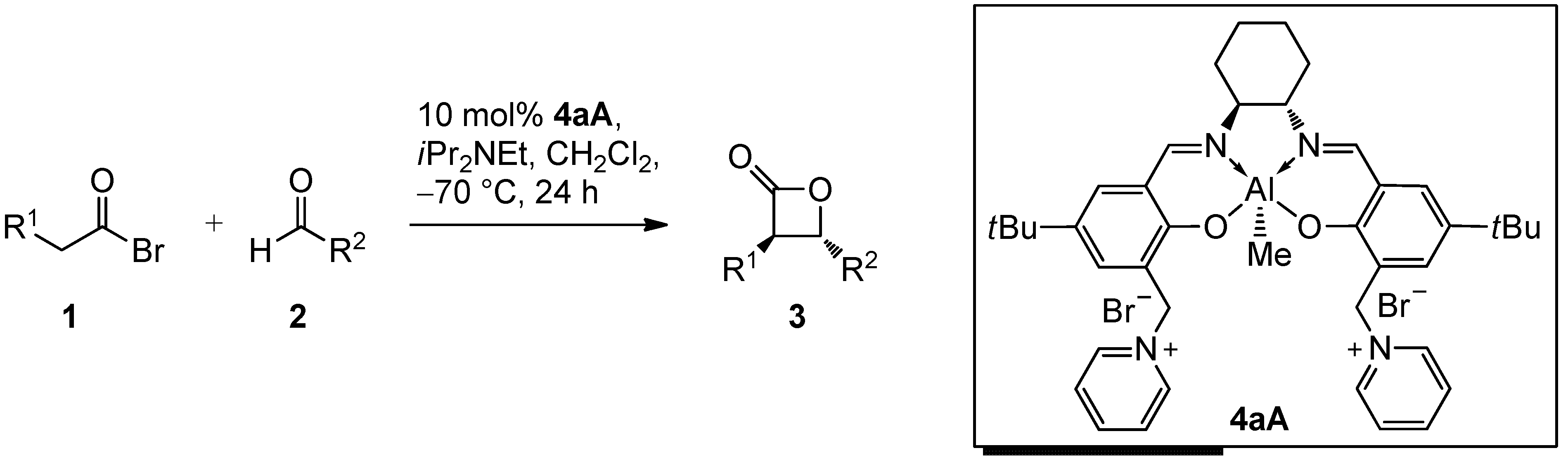

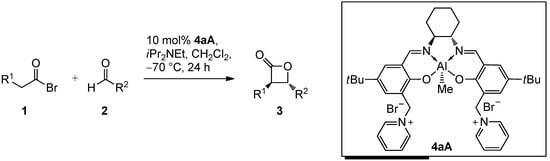

Scheme 1. Application of bispyridinium Al-salen complex 4aA for the trans-selective catalytic asymmetric synthesis of 3,4-disubstituted 2-oxetanones 3 [53,54].
Scheme 1. Application of bispyridinium Al-salen complex 4aA for the trans-selective catalytic asymmetric synthesis of 3,4-disubstituted 2-oxetanones 3 [53,54].
Molecules 17 07121 g004
By the choice of a Lewis acid with only one available coordination site a cyclic Zimmerman-Traxler-type transition state leading to the cis-configured product would be avoided. Our catalyst combines the cooperative action of a Lewis acid and of an aprotic onium halide ion pair Q+X− (in the case of 4aA pyridinium bromide), the latter being arguably used to generate the acyl halide enolate 6 in the catalyst sphere (Scheme 2). Q+ might stabilize the otherwise unstable enolate [55,56,57,58] by ion pair formation to increase the lifetime of the enolate species and to direct the enolate to the aldehyde-Lewis acid complex 7 via an open transition state 8 adopting a staggered conformation around the generated C–C bond [54]. In the reactive conformation the disubstituted enolate C-1 atom should be oriented gauche to the aldehyde function’s H atom and the C-2-enolate-H atom would be expected to direct toward the sterically demanding Lewis acid-ligand complex, so as to minimize repulsive interactions. The initial aldol adduct could then cyclize to form the heterocyclic product 3.
Molecules 17 07121 g005 550

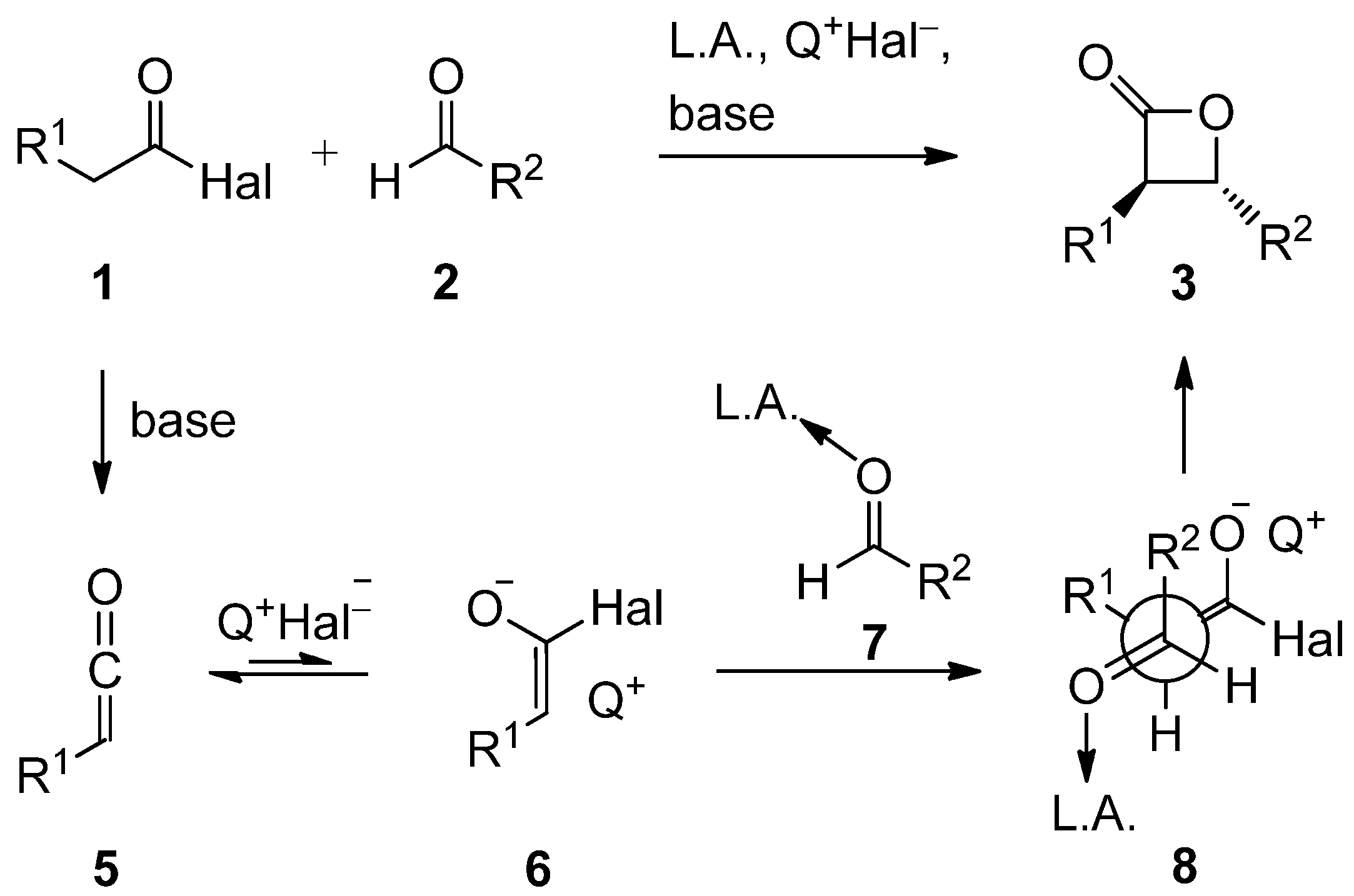

Scheme 2. Rationale of the catalyst design for the trans-selective catalytic asymmetric synthesis of 3,4-disubstituted 2-oxetanones 3 [54].
Scheme 2. Rationale of the catalyst design for the trans-selective catalytic asymmetric synthesis of 3,4-disubstituted 2-oxetanones 3 [54].
Molecules 17 07121 g005
The general catalyst principle, utilizing the cooperative action of a Lewis acid and an aprotic organic ion pair, is illustrated in Figure 1.
Molecules 17 07121 g001 550

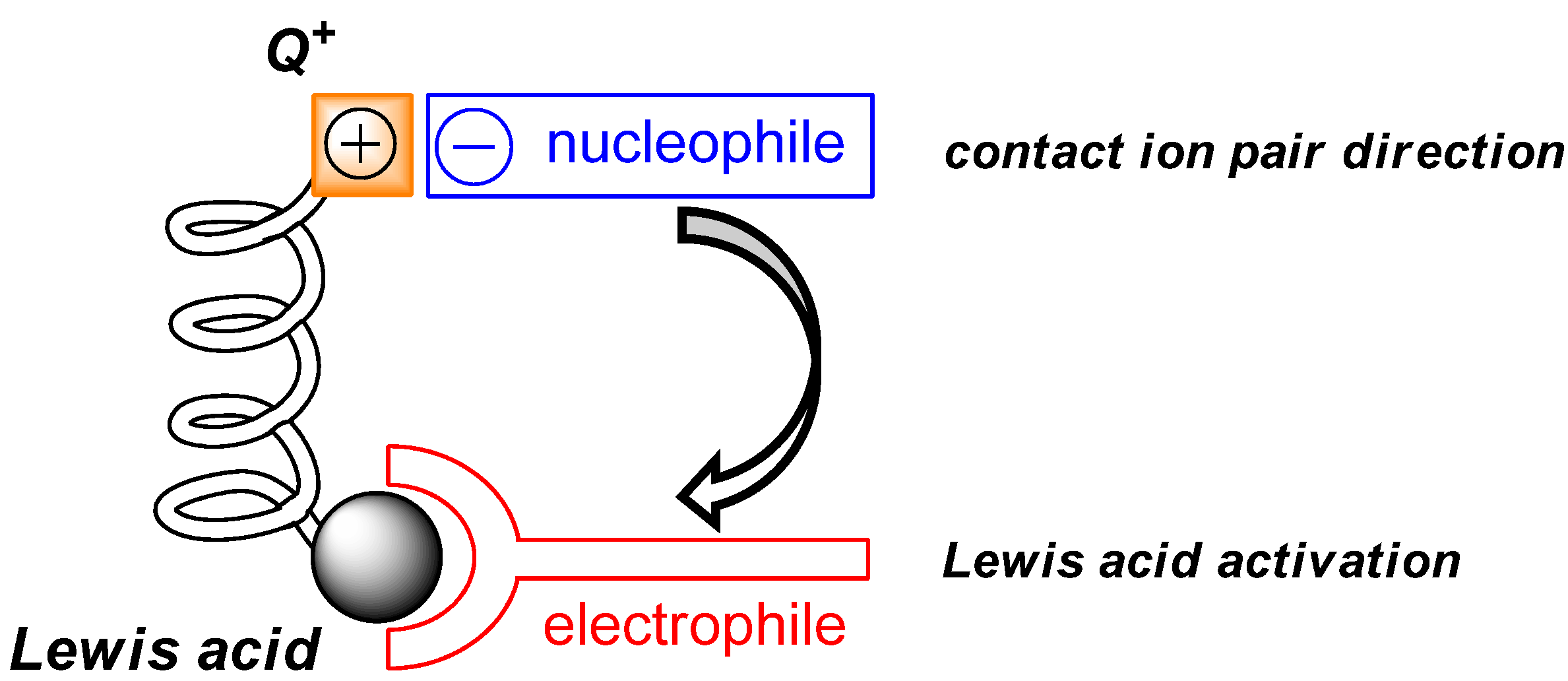

Figure 1. Cooperative action of a Lewis acid and an aprotic organic ion pair within a single catalyst entity: the Lewis-acid serves to activate an electrophile, whereas the in situ generated anionic nucleophile forms an ion pair with an aprotic organic cation (Q+), which stabilizes and directs the nucleophile towards the electrophile [53,54].
Figure 1. Cooperative action of a Lewis acid and an aprotic organic ion pair within a single catalyst entity: the Lewis-acid serves to activate an electrophile, whereas the in situ generated anionic nucleophile forms an ion pair with an aprotic organic cation (Q+), which stabilizes and directs the nucleophile towards the electrophile [53,54].
Molecules 17 07121 g001
Salen ligands were chosen due to their modular nature and their ready and rapid accessibility [59,60,61]. As a result of the proposed stabilizing electrostatic interaction of Q+ and the acyl halide enolate 6, the charge density of Q+ was expected to play a decisive role on the reaction outcome, in particular in terms of trans/cis-diastereoselectivity and enantioselectivity, because neutral substituents at the 3/3'-position lead predominantly to the undesired almost racemic cis-diastereomer [53,54].
In our continuing efforts to utilize ketenes [62,63,64,65] and related reactive intermediates [66,67,68,69,70,71] for a rapid and practical access to chiral building blocks we have therefore investigated a series of Al-salen catalysts 4 (Figure 2) carrying different substituents Z on the pyridinium moiety (acting as Q+) to study electronic effects on the catalyst performance. The results are compared to NBO calculations which have revealed the charge distribution within the pyridinium rings.
Molecules 17 07121 g002 550

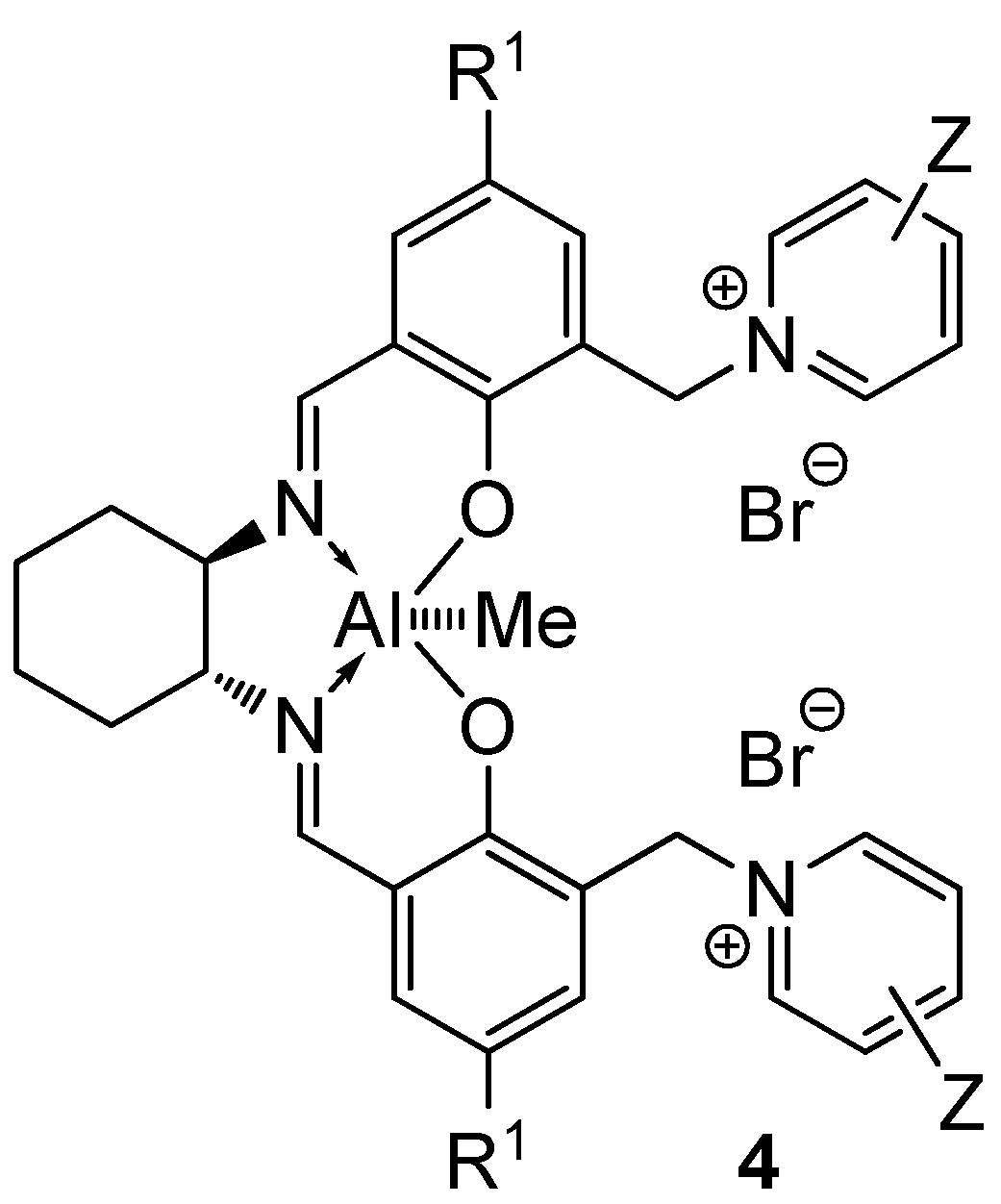

Figure 2. Structure of the investigated aluminum-bispyridinium catalysts 4 carrying different residues R1 and pyridinium substituents Z.
Figure 2. Structure of the investigated aluminum-bispyridinium catalysts 4 carrying different residues R1 and pyridinium substituents Z.
Molecules 17 07121 g002

2. Results and Discussion

2.1. Ligand Preparation

In our previous studies we found that a major limitation of catalyst 4aA results from its relatively low solubility at low reaction temperatures. For that reason we were also interested in derivatives in which the phenolic t-Bu-substituents have been formally replaced by n-pentyl groups in order to increase the rotational freedom of the alkyl substituents R1 and hence the catalyst solubility. To investigate the steric influence of the R1 substituent on the stereoselectivity, R1 = Me was also studied.
Based on our previously established protocol [53,54] the ligands 14 could be prepared via a general 4-step procedure (Scheme 3). Phenols 9 were formylated with paraformaldehyde in the presence of NEt3 and MgCl2 [72,73]. A subsequent bromomethylation of 10 with paraformaldehyde, HBr and catalytic amounts of sulfuric acid gave benzyl bromides 11 in high yields [74]. The latter were then treated with different commercially available pyridine derivatives in a nucleophilic substitution reaction in acetonitrile (Table 1). The pyridinium salts 12 could be isolated and purified by precipitation and washing with diethyl ether. Nucleophilic substitution proceeded smoothly in most cases. Only the 4-Cl derivative 12bH was prone to releasing the starting pyridine in the back reaction (entry 11). This is ascribed to the electron-withdrawing character of the Cl-substituent, which reduces the nucleophilicity of the pyridine N and leads to a more potent leaving group. The chloro- and iodo-substituents at the 4-position of the pyridine were also found to be sensitive to a partial halogen exchange with bromide (entries 10 and 11).
Molecules 17 07121 g006 550

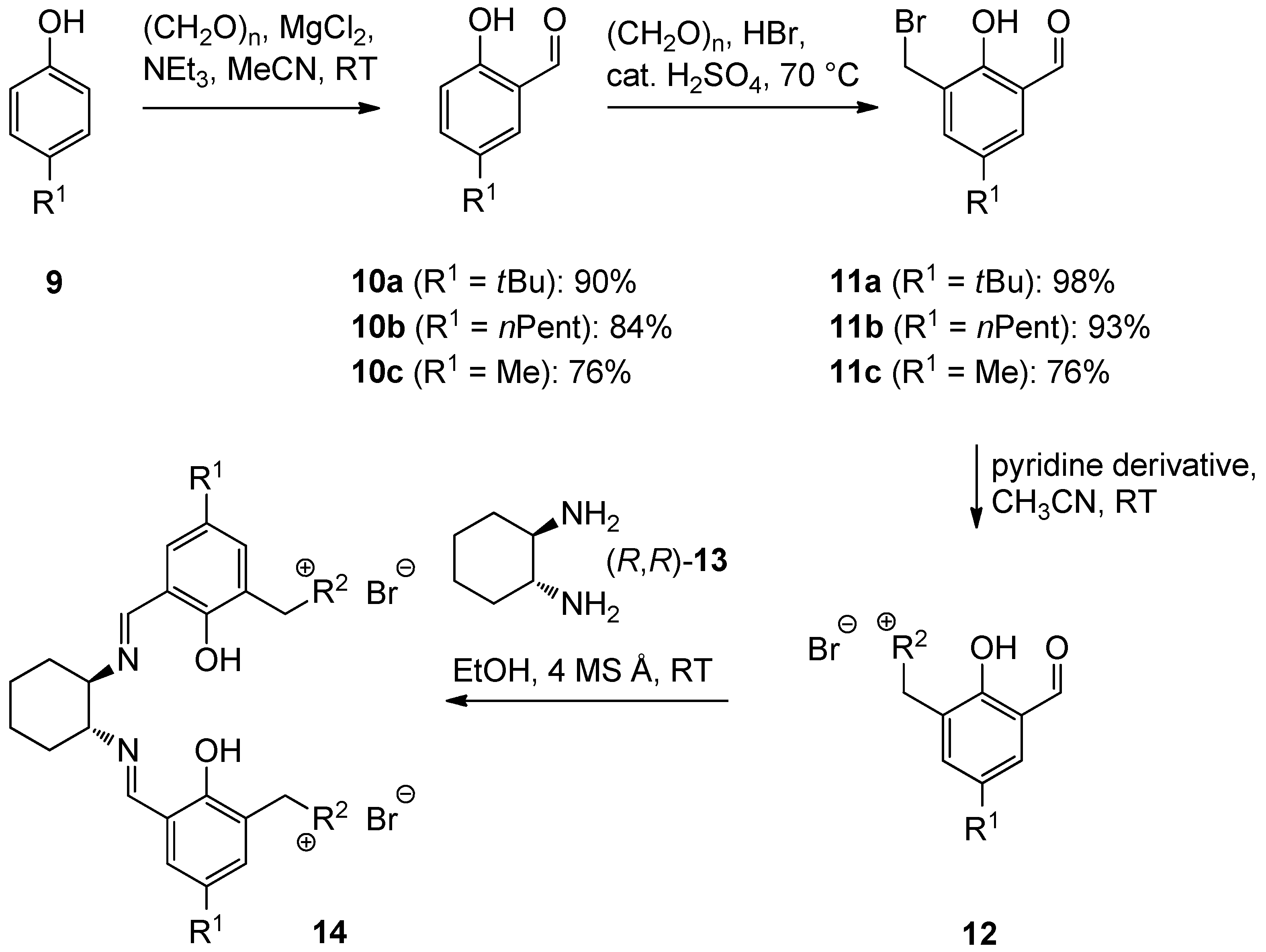

Scheme 3. Synthesis of a salen ligand library 14 with different residues R1 and R2.
Scheme 3. Synthesis of a salen ligand library 14 with different residues R1 and R2.
Molecules 17 07121 g006
Treatment of two equivalents of the corresponding aldehyde 12 with enantiopure (R, R)-1,2-diaminocyclohexane (13) in EtOH at room temperature for 15 h in the presence of 4 Å molecular sieves provided the salen ligands 14 (Scheme 3 and Table 1). The diimine formation from aldehydes 12 usually furnished 14 in high yields, with the exception of the 4-chloro- and the 4-cyanopyridine derivatives 14bH and 14bI (entries 11 and 12). In both cases none of the desired ligands was obtained, again arguably due to the pronounced leaving group properties of the more electron poor pyridines.
Table

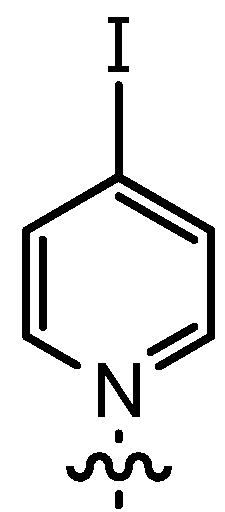

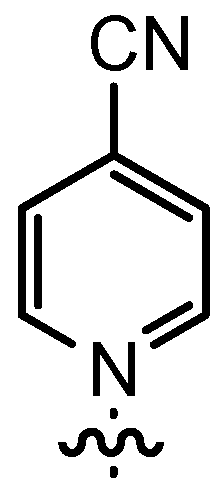

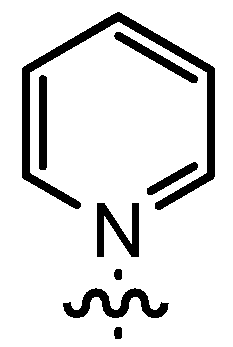

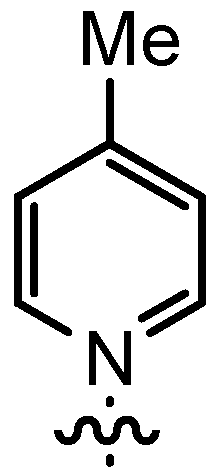

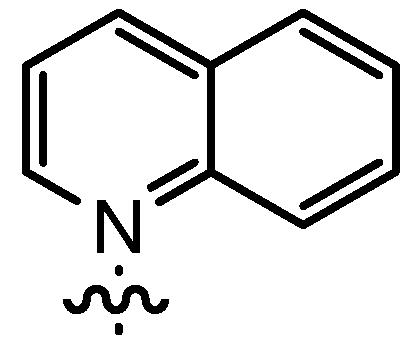

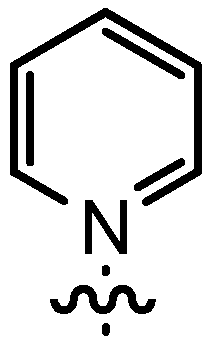

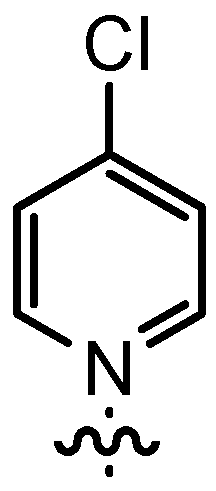

Table 1. Preparation of pyridinium aldehydes 12 and the ionic salen ligands 14.
Table 1. Preparation of pyridinium aldehydes 12 and the ionic salen ligands 14.
EntryR1R212Yield 12 [%] a14Yield 14 [%] a

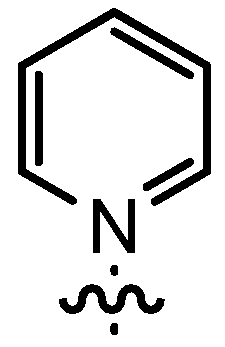

1tBu Molecules 17 07121 i00112aA9214aA100
2n-Pent Molecules 17 07121 i00212bA6214bA91

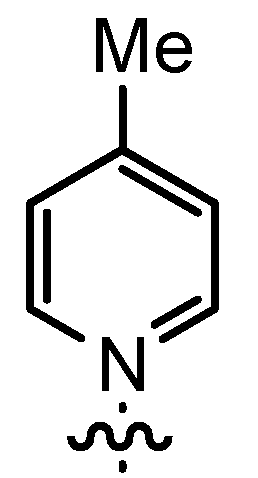

3Me Molecules 17 07121 i00312cA7914cA84
4t-Bu Molecules 17 07121 i00412aB6714aB89
5n-Pent Molecules 17 07121 i00512bB91 14bB93

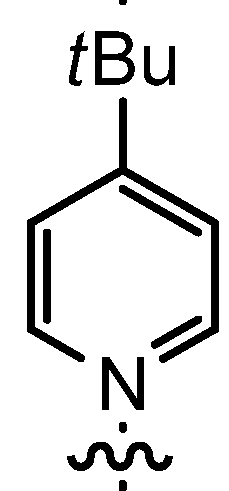

6n-Pent Molecules 17 07121 i00612bC9614bC82

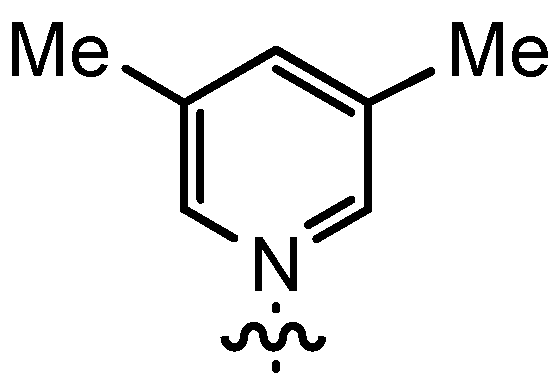

7n-Pent Molecules 17 07121 i00712bD5414bD91

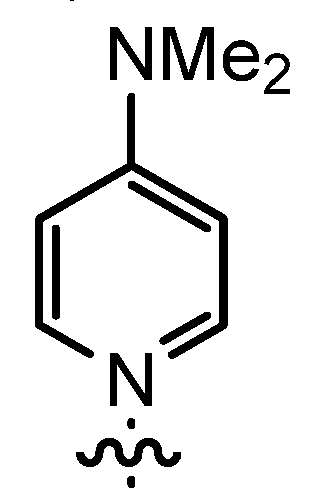

8nPent Molecules 17 07121 i00812bE4714bE86
9n-Pent Molecules 17 07121 i00912bF8114bF92
10n-Pent Molecules 17 07121 i01012bG6514bG77
11n-Pent Molecules 17 07121 i01112bH2914bH0
12n-Pent Molecules 17 07121 i01212bI8014bI0
a Yield of isolated product.

2.2. Catalysis

To examine the impact of the different pyridinium residues R2, all accessible ligands were investigated in the cyclocondensation of propionylbromide (1A) and dihydrocinnamaldehyde (2a, Table 2). Due to the air and moisture sensitivity of the investigated aluminum complexes 4, the catalysts were generated in situ from 10 mol% of the corresponding ligand 14 and 10 mol% AlMe3 in CH2Cl2 at room temperature. We have previously already reported that the yields of β-lactone formation are generally higher with isolated catalysts, but isolation has only a small impact on enantio- and diastereoselectivity [53,54]. The catalyst solution was cooled to −70 °C and treated with both reagents and finally with iPr2NEt. After stirring for 24 h at −70 °C, the reaction was terminated by addition of hydrochloric acid.
Table

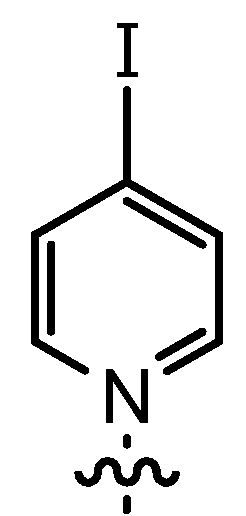

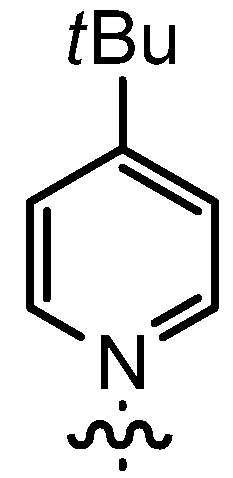

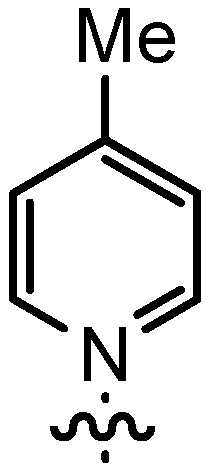

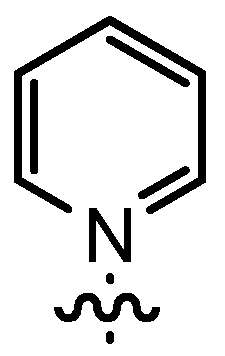

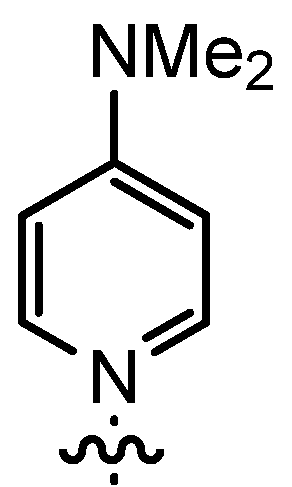

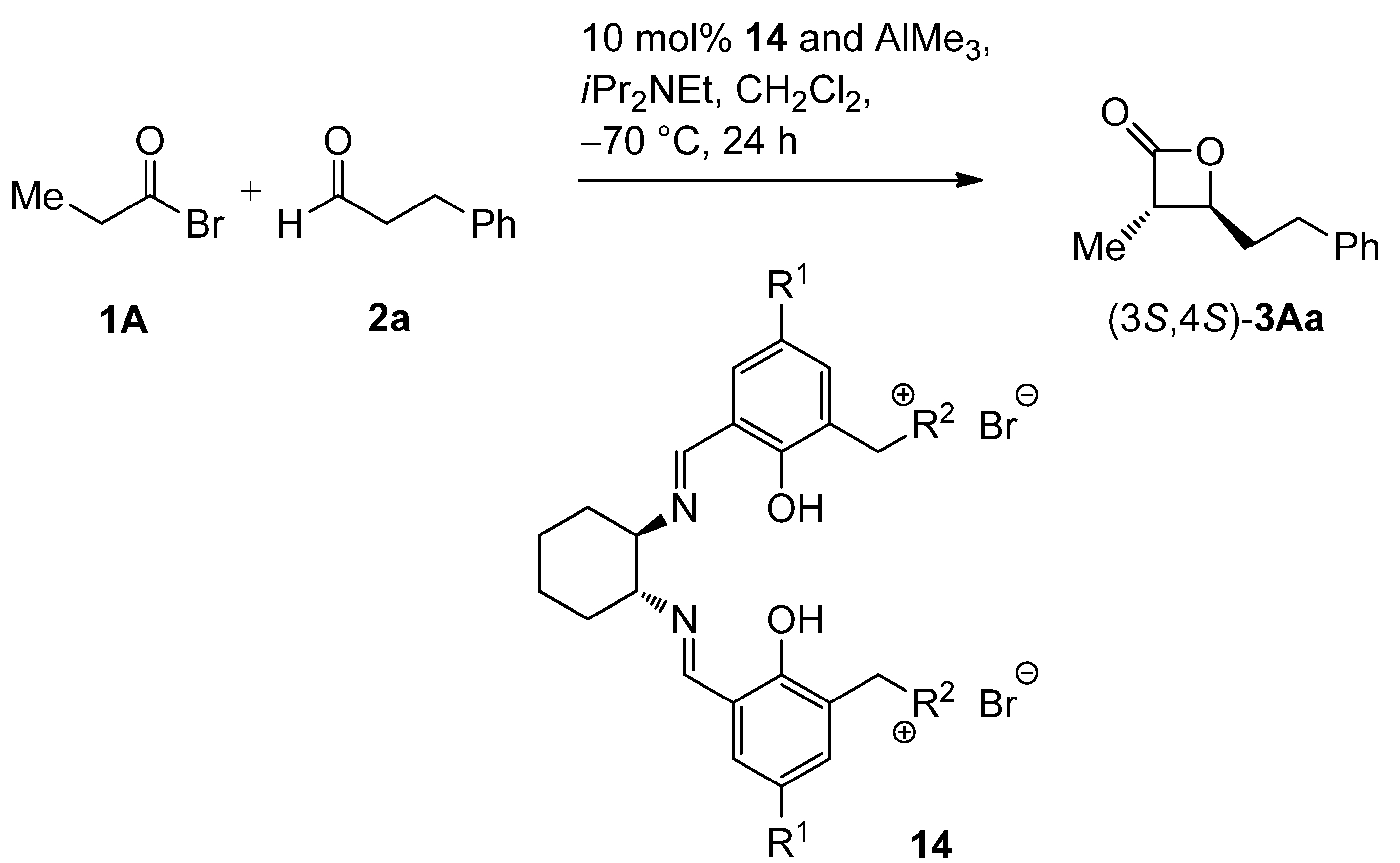

Table 2. Investigation of salen ligands 14 carrying different pyridinium moieties R2 in the cyclocondensation reaction of propionylbromide (1A) and dihydrocinnamaldehyde (2a) a. Molecules 17 07121 i013
Table 2. Investigation of salen ligands 14 carrying different pyridinium moieties R2 in the cyclocondensation reaction of propionylbromide (1A) and dihydrocinnamaldehyde (2a) a. Molecules 17 07121 i013
Entry14R1R2Conversion [%] bYield 3Aa [%] bdr 3Aa [trans/cis] cee 3Aa [%] d

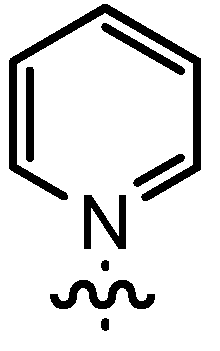

114aAt-Bu Molecules 17 07121 i014>959193:789

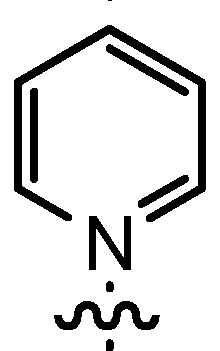

214bAn-Pent Molecules 17 07121 i015>989893:788
314cAMe Molecules 17 07121 i016n.d.7191:988

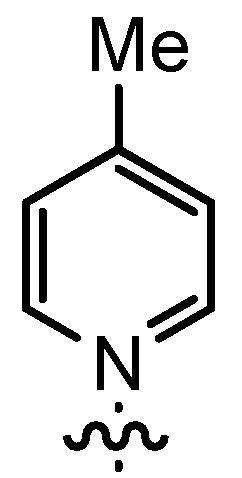

414aBt-Bu Molecules 17 07121 i017712997:389
514bBn-Pent Molecules 17 07121 i018886097:390
614bCn-Pent Molecules 17 07121 i019755692:880

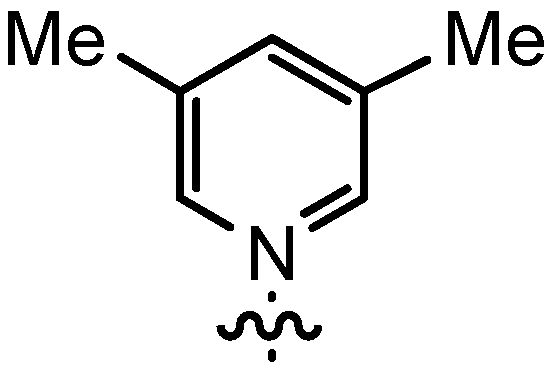

714bDn-Pent Molecules 17 07121 i020823988:1280

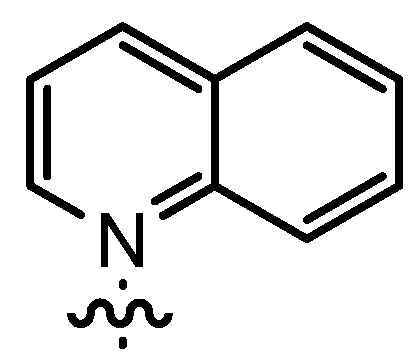

814bEn-Pent Molecules 17 07121 i021623888:1277
914bFn-Pent Molecules 17 07121 i022733794:682
1014bGn-Pent Molecules 17 07121 i023784592:881
a The catalyst was prepared in situ from 14 and AlMe3; b Determined by 1H-NMR using mesitylene as standard; c Determined by 1H-NMR; d Determined by HPLC on a chiral stationary phase.
In most cases, conversion of the aldehyde was good and yields of β-lactone 3Aa were moderate to good. Catalysts generated from 14bA and 14bB with R1 = n-Pent (entries 2 and 5) resulted in higher conversions and yields than their direct counterparts derived from 14aA and 14aB, respectively, carrying a t-Bu residue R1 (entries 1 and 4). This is attributed to a higher solubility in CH2Cl2 at −70 °C with a more flexible alkyl chain [75]. 14cA with R1 = Me resulted in poor solubility, explaining the lower yield (entry 3) compared to the results with 14aA and 14bA, respectively (entries 1 and 2). For that reason additional Me derivatives were not studied.
Interestingly, the nature of R1 was found to have only a minor effect on both enantio- and diastereoselectivity (compare entries 1, 3, 4 and 5), whereas most salen catalyzed reactions require enhanced steric demand at that position for an efficient transfer of chirality [76]. In the present case, the stereoselectivity is much more dependent on the pyridine substituents. The best combination of enantioselectivity (ee = 90%) and diastereoselectivity (trans/cis = 97:3) was attained with ligand 14bB carrying a 4-Me substituent as a weak σ-donor on the pyridine ring (entry 5). This ligand also allowed for a useful product yield.
Increasing the steric demand of the pyridine by a 4-t-Bu substituent had only a minor impact on the reactivity, but both the dr (92:8) and the ee (80%) were negatively affected (entry 6). Reduced diastereoselectivity data were also noticed with a 3,5-dimethyl substitution pattern on the pyridine (entry 7) or with a quinoline residue (entry 8).
The DMAP derivative 14bF (entry 9) carrying the potent p-donor group NMe2 at the pyridine 4-position and the derivative 14bG (entry 10) carrying an iodo atom as a weak σ-acceptor at the 4-position resulted in similar reactivity and stereoselectivity. For 14bF, a lower diastereoselectivity was expected as a consequence of the +M-effect which should result in a wider charge distribution thereby weakening the postulated contact ion pair with the acyl halide enolate 6. Consequently, σ-acceptors like in 14bG should result in a more efficient ion pair formation and improved stereoselectivity, but steric effects as well as the poor solubility of 14bG even at room temperature might have overwritten this effect. Unfortunately, it appears to be difficult to study the effect of σ-acceptors in ligands 14, as they result in a lower stability of the catalysts.
In contrast, the 4-Me group does not only lead to an improved catalyst stability (the ligand 14bB can be stored for at least two months at room temperature with no decomposition detected) and solubility, but might also have a positive effect on a uniform reactive conformation of the generated acyl halide enolate, whereas larger residues might hamper an efficient ion pair formation of the enolate and the pyridinium residue.
The most stereoselective catalyst 4bB was applied to different substrates (Table 3). For the investigated aldehydes and acyl bromides 4bB gave always slightly higher enantioselectivities compared to our previously reported system 4aA.
Table

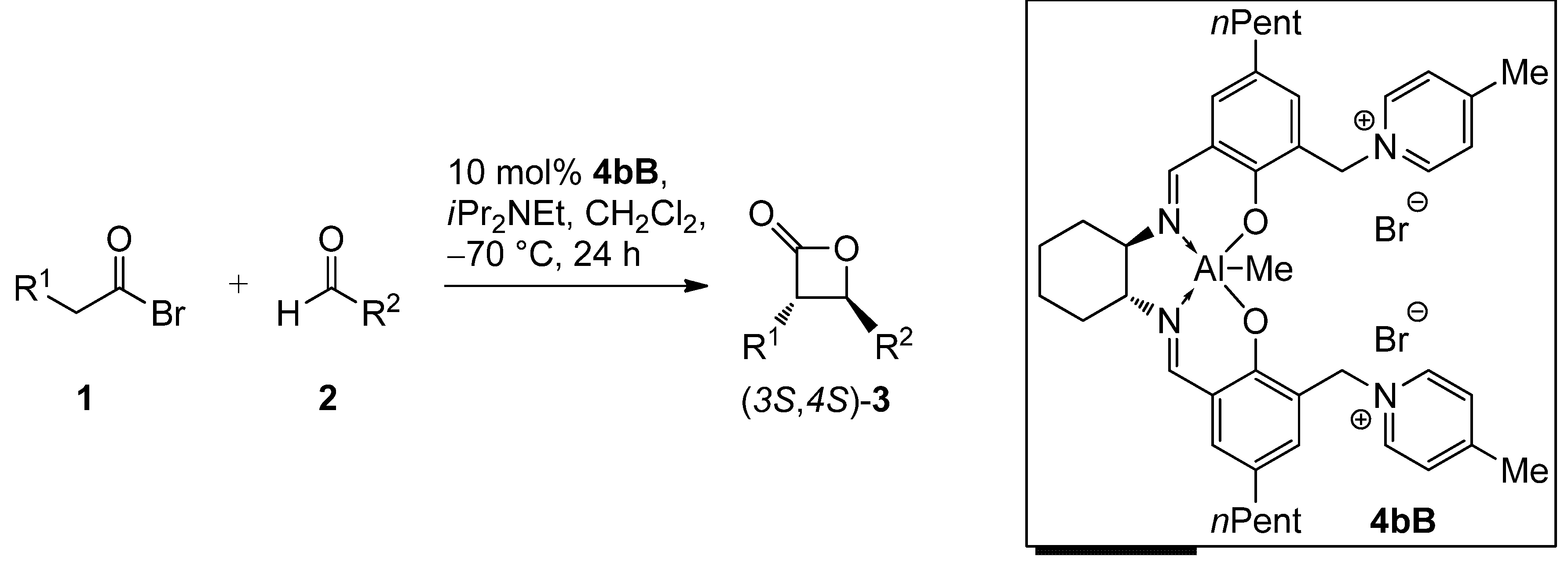

Table 3. Asymmetric synthesis of trans-configured β-lactones 3 catalyzed by the aluminum bis-picolinium catalyst 4bB. Molecules 17 07121 i024
Table 3. Asymmetric synthesis of trans-configured β-lactones 3 catalyzed by the aluminum bis-picolinium catalyst 4bB. Molecules 17 07121 i024
Entry1R12R23Yield [%] adr [trans/cis] bee [%] c
1 d1AMe2a(CH2)2Ph3Aa6097:3 (97:3)90 (88)
2 e1AMe2a(CH2)2Ph3Aa6997:3 (97:3)90 (88)
3 d1AMe2bEt3Ab5998:2 (95:5)90 (87)
4 d1AMe2cPh3Ac3798:2 (94:6)96 (91)
5 d1Bn-Pr2a(CH2)2Ph3Ba5999:1 (98:2)95 (94)
a Yield of isolated product; b Diastereomeric ratio determined by 1H-NMR (data in brackets refer to the reported data obtained with 10 mol% catalyst 4aA); c Determined by HPLC on a chiral stationary phase (data in brackets refer to the reported data obtained with 10 mol% catalyst 4aA); d The catalyst was formed in situ; e The catalyst was isolated prior to use.
Moreover, the trans-selectivity was equal (entries 1 and 2) or better (entries 3 and 5) than with catalyst 4aA. Entry 2 shows that improved yields can be obtained with the isolated catalyst 4bB. However, the more convenient protocol with in-situ catalyst formation allows for similar diastereo- and enantioselectivity (compare entries 1 and 2). The highest enantioselectivity was attained with the aromatic benzaldehyde (entry 4, ee = 96%), but the yield is significantly lower than for aliphatic aldehydes. This is mainly a consequence of the marked sensitivity towards elimination of 4-aryl substituted 2-oxetanones explaining a partial decomposition during the workup [77].

2.3. Mechanistic and Theoretical Investigations

Reactions catalyzed by salen complexes are known to proceed in several cases via bimetallic reaction pathways [78]. As part of our programme on bimetallic cooperative catalysis [79,80,81,82], we were therefore interested if two salen units might also cooperate to form the β-lactone products 3. In that case the presence of a non-linear effect (NLE) would be expected [78,83]. The absence of a NLE in the present case (Figure 3) indicates that a major product formation pathway involving two salen molecules is most likely no realistic scenario. Our mechanistic considerations thus focus on reaction pathways involving a single catalyst molecule.
Molecules 17 07121 g003 550

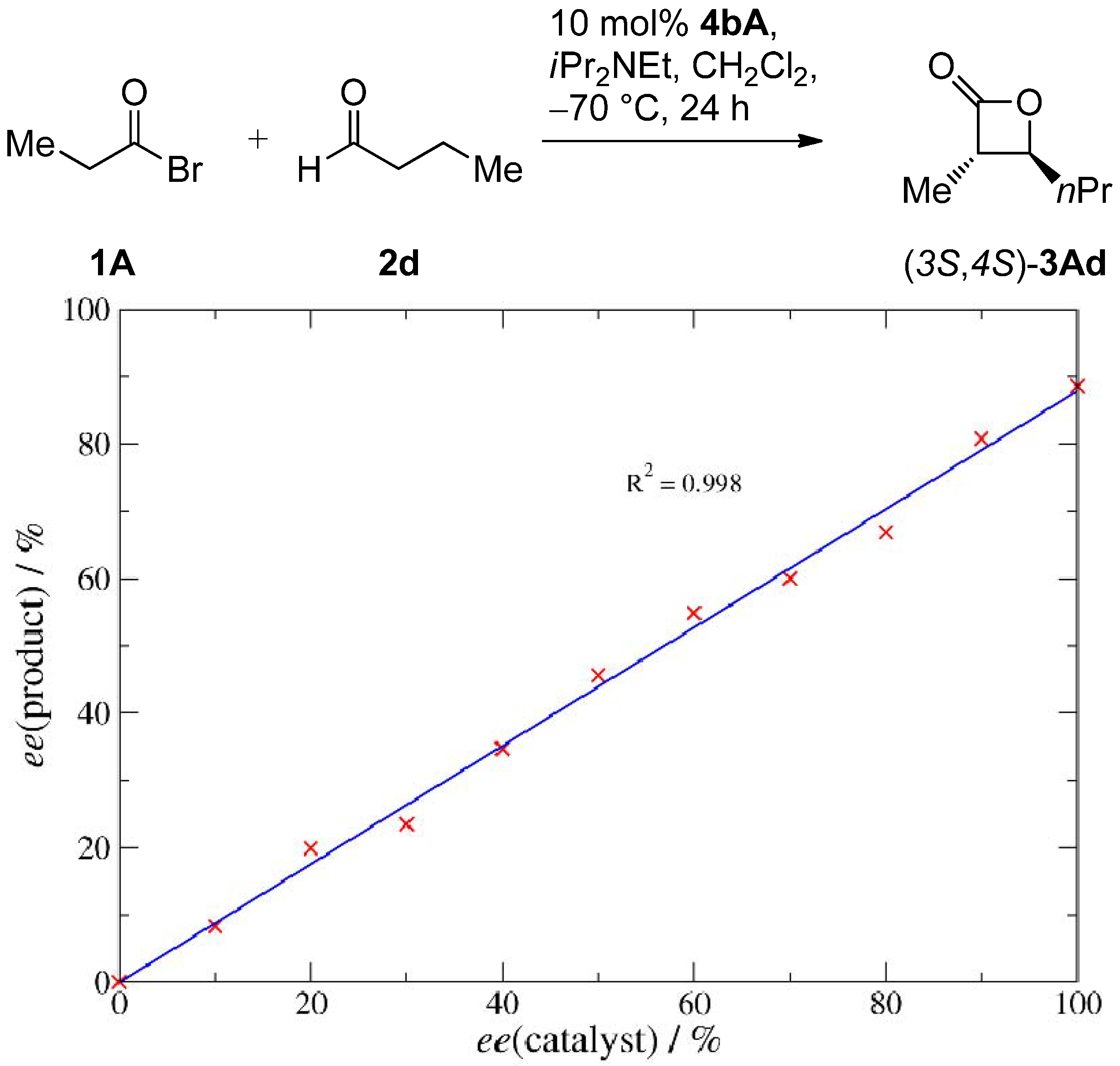

Figure 3. Investigation of a potential nonlinear effect for the formation of 3Ad catalyzed by 4bA.
Figure 3. Investigation of a potential nonlinear effect for the formation of 3Ad catalyzed by 4bA.
Molecules 17 07121 g003
As mentioned above, we have previously shown that a cationic residue on the salen periphery is essential for high trans-selectivity, but also for high enantioselectivity and reactivity [53,54]. In the case of standard Al-salen complexes carrying a H atom or an isobutyl residue at the 3/3'-position, reactivity was poor and almost racemic product was formed favoring the cis-isomer. With a t-Bu residue no product was formed at all. In the initial study a pyridinium residue was found to be superior compared to ammonium residues [53,54]. We have tentatively explained this preference by a more efficient contact ion pair formation of the planar enolate moiety with the planar pyridinium system as compared to tetrahedral ammonium moieties.
As the positive charge of the substituent at the 3/3'-position is essential for a successful reaction outcome, we were interested in the effective charges for the derivatives described above. For that reason we accomplished a series of NBO analyses using the MOLPRO package of ab initio programmes [84]. For the electronic structure calculations we chose density functional theory in combination with a double-ζ basis set, i.e., B3LYP/cc-pVDZ. Our original idea was that an acceptor substituent in the 4-position of the pyridinium ring might amplify the effect of the positive charge and could further stabilize the contact ion pair. In agreement with the literature [85], our calculations revealed a negative partial charge for the nitrogen atoms, for both tetramethylammonium and pyridinium cation systems (see Table 4). The positive partial charges in the tetramethylammonium reference are distributed over the nine hydrogen atoms. In contrast the pyridinium cation has positive partial charges on the α-carbon atoms, which might stabilize the enolate in the proposed contact ion pair more efficiently than in the case of quaternary ammonium cations, since the positive charge is wider distributed in the latter case. Pyridinium derivatives with substituents in the 4-position give nearly identical partial charges for the nitrogen and the α-carbon atoms as the parent system with a H atom in 4-position. Only the partial charge of the carbon in the 4-position shows a noticeable change on substitution.
Table

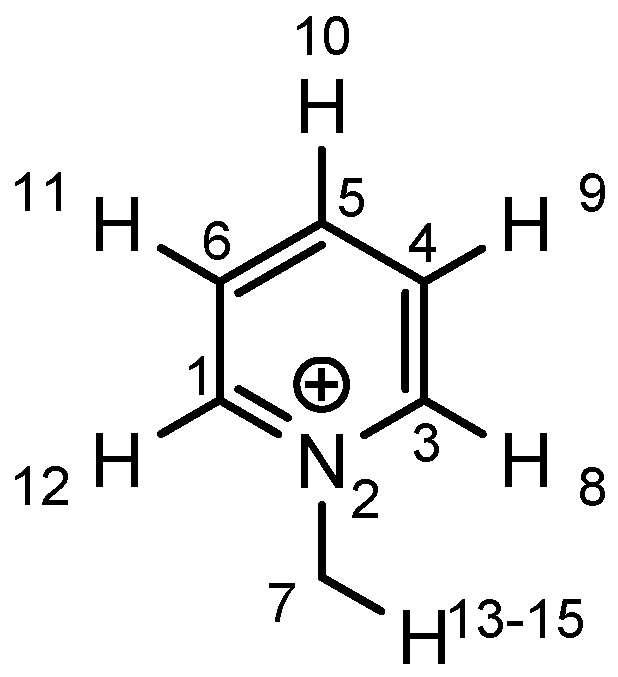

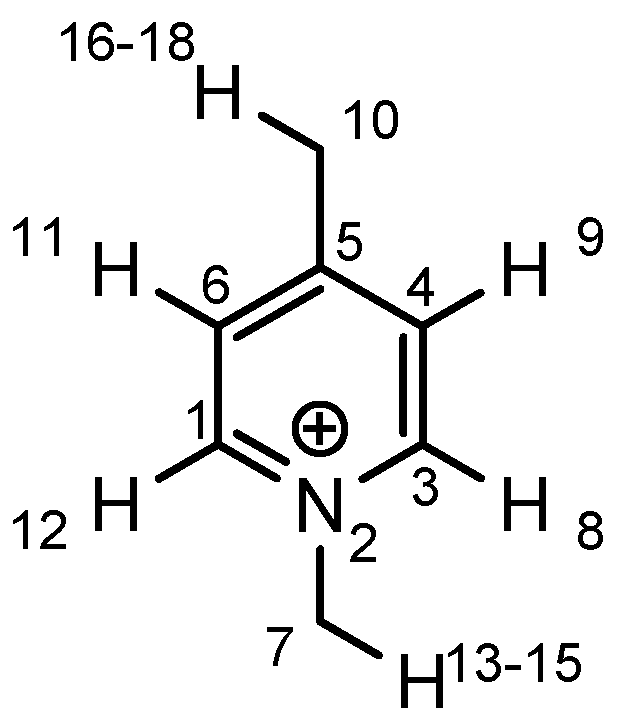

Table 4. Results of the NBO analysis.
Table 4. Results of the NBO analysis.

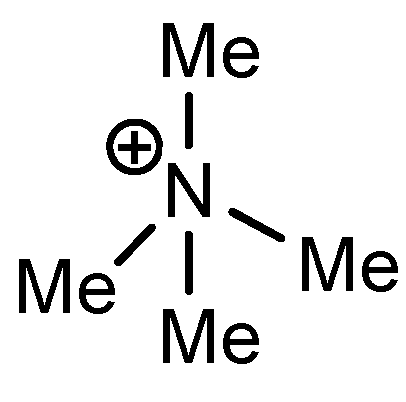

Molecules 17 07121 i025 Molecules 17 07121 i026 Molecules 17 07121 i027 Molecules 17 07121 i028
atomchargeatomchargeatomchargeatomcharge
N−0.36C (1)+0.11C (1)+0.12C (1)+0.11
C−0.41N (2)−0.35N (2)−0.36N (2)−0.36
H+0.25C (3)+0.11C (3)+0.11C (3)+0.10
C (4)−0.22C (4)−0.24C (4)−0.22
C (5)−0.12C (5)+0.02C (5)+0.07
C (6)−0.22C (6)−0.24C (6)−0.23
C (7)−0.41C (7)−0.40C (7)−0.41
H (8)+0.26H (8)+0.26H (8)+0.26
H (9)+0.28H (9)+0.29H (9)+0.27
H (10)+0.27Cl (10)+0.14C (10)−0.67
H (11)+0.28H (11)+0.29H (11)+0.27
H (12)+0.26H (12)+0.26H (12)+0.26
H (13–15)+0.25H (13–15)+0.25H (13–15)+0.25
H (16–18)+0.26

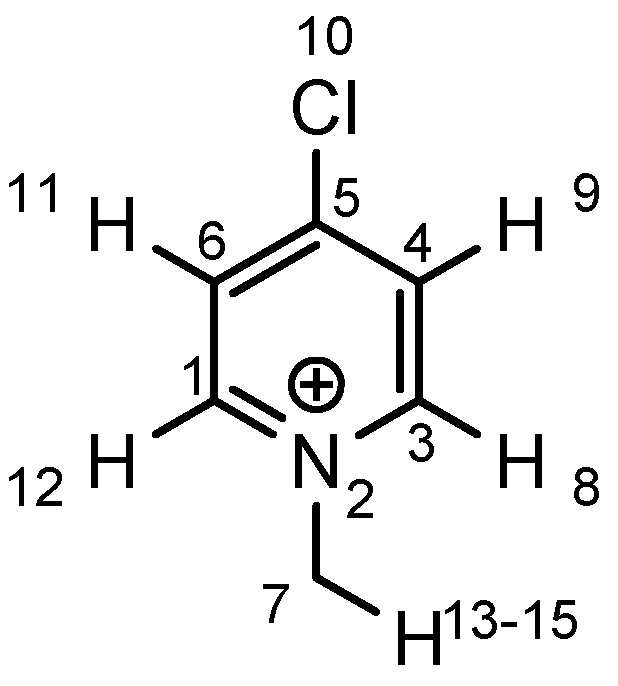

Exemplarily, the 4-chloropyridinium cation is shown in Table 4 as an example of a σ-acceptor substituent and the 4-methylpyridinium cation bearing a σ-donor substituent. Hence the most important effects of the substituents are presumably: (1) the (de)stabilization of the bond between the pyridinium and the salen framework, since electron acceptors result in a higher leaving group tendency of the corresponding pyridine, whereas donor substituents have the opposite effect, and (2) the steric influence on the enolate.
For the cooperative contact ion pair/Lewis acid activation two reaction pathways appear to be feasible (Scheme 4), both leading to the observed absolute and relative β-lactone configurations. The two reaction mechanisms differ in the reactive conformations of the coordinated aldehyde and in the pyridinium unit involved. In path A presented in Scheme 4, the aldehyde group’s H atom is expected to point toward the C=N imine bond in 15 connected to phenolate ring A. Pyridinium ring A forms the reactive contact ion pair with the acylbromoenolate. The depicted aldehyde conformation appears to be required to get the aldehyde in close distance to the reactive enolate in a transition state adopting the above proposed staggerd conformation (see Scheme 2) to form the trans-β-lactone with a (3S, 4S)-configuration.
Molecules 17 07121 g007 550

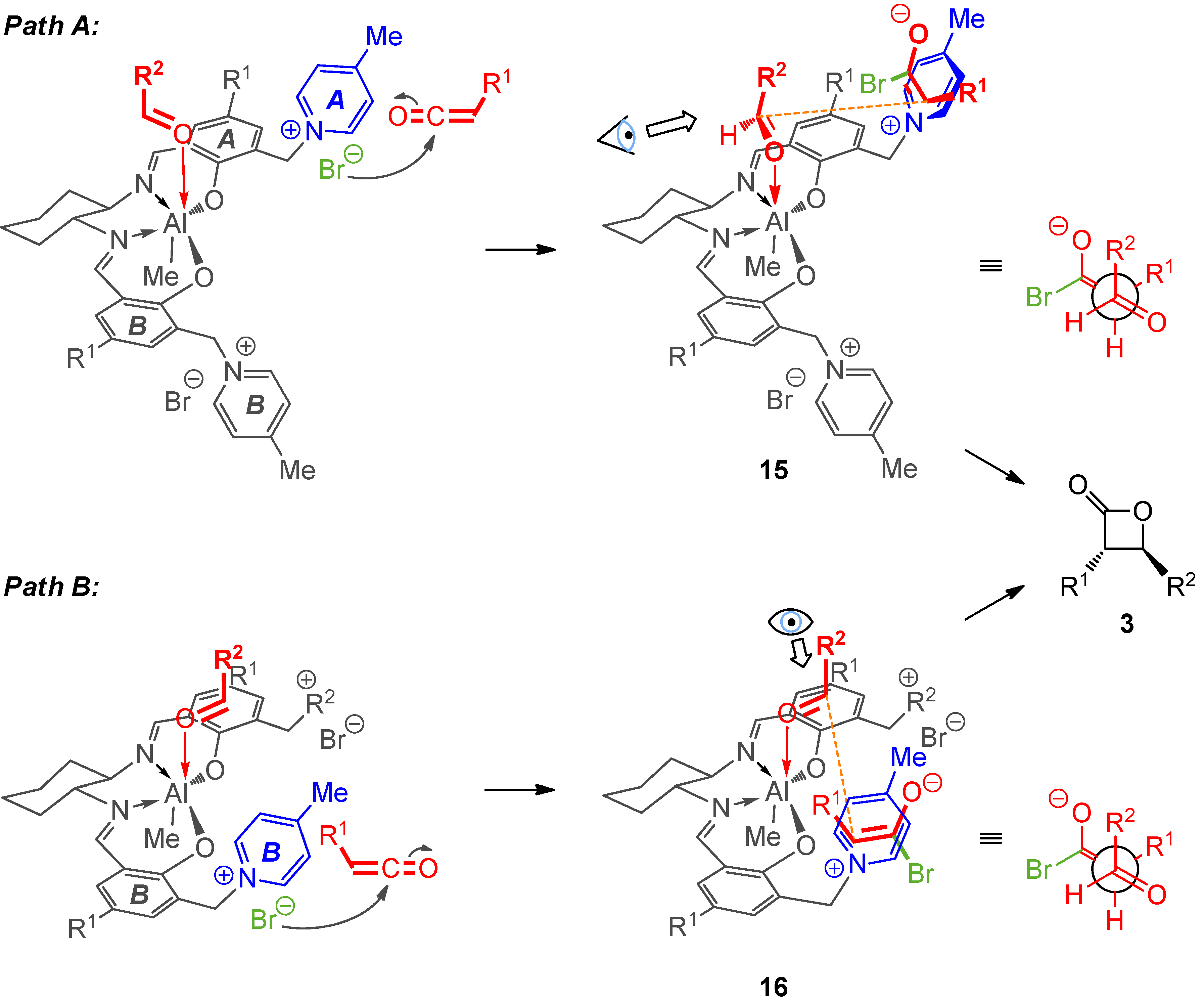

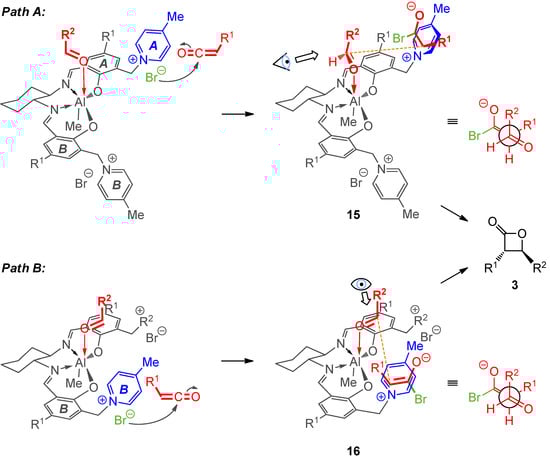

Scheme 4. Two plausible reaction pathways via cooperative contact ion pair directed Lewis acid activation leading to the observed absolute and relative configuration of β-lactones 3.
Scheme 4. Two plausible reaction pathways via cooperative contact ion pair directed Lewis acid activation leading to the observed absolute and relative configuration of β-lactones 3.
Molecules 17 07121 g007
In path B the same aldehyde H atom would point away from the chiral salen backbone. To form the product with the observed absolute configuration again the Re-face of the aldehyde has to react and this would require the action of the other pyridinium moiety B.
We favor this scenario because the repulsive interactions of the aldehyde and the salen core would be minimized. An aldehyde conformation like in path B is often hampered in salen-complex catalyzed reactions by the presence of tBu groups at the 3/3'-position [76,86]. However, the aldehyde conformation in path A appears more unfavorable in the present case given the folding of chiral salen metal complexes derived from trans-1,2-diaminocyclohexane which describes the ligand deviation from a planar arrangement [87,88,89]. In the present case phenolate ring B is expected, based on literature precedent for related Al salen complexes [90], to fold downward toward the Me-Al bond in a stepped conformation. That means, the B-half offers more available space for substrate accomodation.

3. Experimental

3.1. General

1H-NMR and 13C-NMR spectra were measured on a Bruker Avance spectrometer (300 or 500 MHz, Rheinstetten, Germany) in CDCl3 or DMSO as solvent using TMS as internal standard and chemical shifts are expressed as δ in ppm. Molecular masses were determined with the electron spray ionization (ESI) method on a MicroTOFQ (Bruker, Bremen, Germany) spectrometer. IR spectra were recorded on a Bruker Vector 22 FT-IR spectrometer (Bremen, Germany) with an ATR module (Golden Gate). Melting points are uncorrected and were measured on a Büchi Melting Point B-535 analysis device. The enantiomeric excesses were determined by HPLC on an Elite LaChrom system equipped with Hitachi modules. A chiral stationary phase Daicel column of the Chiracel OD-H type was used.

3.2. General Procedure for the Synthesis of 10 (GP1)

This procedure was according to a published protocol [72,73]. To a solution of the phenol derivative 9 (1 eq., 15.0 mmol) in acetonitrile, paraformaldehyde (6.7 eq.), magnesium chloride (1.5 eq.) and triethylamine (3.8 eq.) were added and the mixture was heated under reflux for 24 h. After cooling to ambient temperature, 1 M hydrochloric acid was added till the yellow residue dissolved, followed by extraction with diethyl ether (3 × 20 mL). The organic layers were dried over MgSO4, filtered and the solvent was removed in vacuo. Purification by column chromatography (petroleum ether/ethyl acetate 10:1) gave the aldehyde 10.
2-Hydroxy-5-tert-butylbenzaldehyde (10a) was prepared according to GP1 using 4-tert-butylphenol (1 eq., 15.0 mmol, 2.25 g) and paraformaldehyde (6.7 eq., 101 mmol, 3.02 g). The product was formed as a yellow oil (13.5 mmol, 2.40 g, 90%). C11H14O2, MW: 178.23 g/mol. 1H-NMR (300 MHz, CDCl3, 20 °C): δ = 10.87 (s, 1H, Ar-OH), 9.89 (s, 1H, Ar-CHO), 7.58 (dd, J = 8.8, 2.5, 1H, p-Ar-H), 7.51 (d, J = 2.5, 1H, o-Ar-H), 6.94 (d, J = 8.7, 1H, m-Ar-H), 1.33 (s, 9H, Ar-C(CH3)3). The analytical data were in agreement with the literature values [72].
2-Hydroxy-5-pentylbenzaldehyde (10b) was prepared according to GP1 using 4-n-pentylphenol (1 eq., 8.0 mmol, 1.31 g, 1.4 mL) and paraformaldehyde (6.7 eq., 53.6 mmol, 1.61 g). The product was formed as a yellow oil (6.7 mmol, 1.29 g, 84%). C12H16O2, MW: 192.25 g/mol. 1H-NMR (300 MHz, CDCl3, 20 °C): δ = 10.85 (s, 1H, Ar-OH), 9.87 (s, 1H, Ar-CHO), 7.33–7.37 (m, 2H, o-, p-Ar-H), 6.91 (d, J = 8.5, 1H, m-Ar-H), 2.59 (t, J = 7.7, 2H, Ar-CH2(CH2)3CH3), 1.65–1.55 (m, 2H, Ar-CH2CH2(CH2)2CH3), 1.36–1.28 (m, 4H, Ar-(CH2)2(CH2)2CH3), 0.90 (t, J = 6.9, 3H, Ar-(CH2)4CH3). The analytical data are in agreement with the literature [91].
2-Hydroxy-5-methylbenzaldehyde (10c) was prepared according to GP1 using 4-methylphenol (1 eq., 14.0 mmol, 1.50 g) and paraformaldehyde (6.7 eq., 93.0 mmol, 2.80 g). The product was formed as a slightly yellow oil (10.5 mmol, 1.43 g, 76%) after Kugelrohr distillation (no column chromatography in this case). C8H8O2, MW: 136.15 g/mol. 1H-NMR (300 MHz, CDCl3, 20 °C): δ = 10.84 (s, 1H, Ar-OH), 9.86 (s, 1H, Ar-CHO), 7.35–7.33 (m, 2H, o-, p-Ar-H), 6.90 (d, J = 9.2, 1H, m-Ar-H), 2.34 (s, 3H, CH3). The analytical data are in agreement with the literature [72].

3.3. General Procedure for the Synthesis of 11 (GP2)

This procedure was according to a published protocol [74]. To the corresponding aldehyde 10 (1 eq., 10.5 mmol) were added aq. hydrobromic acid (48%, 7.5 eq., 78.9 mmol, 8.6 mL), paraformaldehyde (1.5 eq., 15.8 mmol, 0.47 g) and a catalytic amount of sulfuric acid (3 drops). Depending on the alkyl chain R1, the mixture was stirred at 70 °C for 1 to 5 days. After cooling to ambient temperature, water (10 mL) was added followed by extraction with methylene chloride (3 × 10 mL). The collected organic layers were dried over Na2SO4, filtered and the solvent was removed in vacuo.
3-(Bromomethyl)-2-hydroxy-5-tert-butylbenzaldehyde (11a) was prepared according to GP2 using 10a (1 eq., 13.5 mmol, 2.40 g), paraformaldehyde (1.5 eq., 20.2 mmol, 0.61 g) and aq. hydrobromic acid (48%, 7.5 eq., 101.1 mmol, 11.5 mL). After 1 day reaction time a brown oil (13.3 mmol, 3.61 g, 98%) was isolated. C12H15BrO2, MW: 271.15 g/mol. 1H-NMR (300 MHz, CDCl3, 20 °C): δ = 11.32 (s, 1H, Ar-OH), 9.90 (s, 1H, Ar-CHO), 7.64 (d, J = 2.5, 1H, Ar-H), 7.51 (d, J = 2.5, 1H, Ar-H), 4.59(s, 2H, CH2Br), 1.34 (s, 9H, C(CH3)3). The analytical data are in agreement with the literature [74].
3-(Bromomethyl)-2-hydroxy-5-pentylbenzaldehyde (11b) was prepared according to GP2 using 10b (1 eq., 10.5 mmol, 2.02 g), paraformaldehyde (1.5 eq., 15.8 mmol, 0.47 g) and aq. hydrobromic acid (48%, 7.5 eq., 78.9 mmol, 8.6 mL). After 5 days reaction time a brown oil (9.77 mmol, 2.79 g, 93%) was isolated. C13H17BrO2, MW: 285.18 g/mol. M.p.: 32–34 °C. 1H-NMR (300 MHz, CDCl3, 20 °C): δ = 11.31 (s, 1H, Ar-OH), 9.87 (s, 1H, Ar-CHO), 7.43 (d, J = 2.1, 1H, Ar-H), 7.33 (d, J = 2.1, 1H, Ar-H), 4.57 (s, 2H, CH2Br), 2.59 (t, J = 7.8, 2H, Ar-CH2-C4H9), 1.61 (m, 2H, (CH2)pentyl), 1.33 (m, 4H, (CH2)pentyl), 0.90 (t, J = 6.9, 3H, CH3). 13C-NMR (75 MHz, CDCl3, 21 °C): δ = 196.5 (1C, CHO), 157.6 (1C, CAr-OH), 138.3 (1C, CAr-H), 134.5 (1C, CAr-C5H11), 133.6 (1C, CAr-H), 126.0 (1C, CAr-CH2Br), 120.5 (1C, CAr-CHO), 34.6 (1C, CAr-CH2-C4H9), 31.3 (1C, (CH2)pentyl), 31.0 (1C, (CH2)pentyl), 26.8 (1C, CAr-CH2Br), 22.5 (1C, (CH2)pentyl), 14.0 (1C, CH3). IR (solid): line graphic = 3046, 2954, 2930, 2854, 2753, 2185 (b), 1967 (b), 1811, 1646, 1438, 1209, 760. HRMS (EI)m/z: Anal. Calcd. for [C13H17BrO2+]: 284.0412, found 284.0412.
3-(Bromomethyl)-2-hydroxy-5-methylbenzaldehyde (11c) was prepared according to GP2 using 10c (1 eq., 9.0 mmol, 1.23 g), paraformaldehyde (1.5 eq., 13.5 mmol, 0.407 g) and aq. hydrobromic acid (48%, 7.5 eq., 67.5 mmol, 7.8 mL). After 70 h reaction time a beige-colored solid (5.8 mmol, 1.58 g, 76%) was isolated. C9H9BrO2, MW: 229.07 g/mol. 1H-NMR (300 MHz, CDCl3, 20 °C): δ = 11.28 (s, 1H, Ar-OH), 9.84 (s, 1H, Ar-CHO), 7.42 (d, J = 1.9, 1H, o-Ar-H), 7.31 (d, J = 1.9, 1H, p-Ar-H), 4.54 (s, 2H, Ar-CH2-Br), 2.33 (s, 3H, CH3). The analytical data are in agreement with the literature [74].

3.4. General Procedure for the Synthesis of 12 (GP3)

This procedure was according to a published protocol [92]. To a solution of 11 (1 eq., 3.0 mmol) in acetonitrile (8 mL) was added the corresponding pyridine derivative (1.1 eq., 3.3 mmol). The mixture was stirred for 15 h at ambient temperature. For the workup the solvent was removed in vacuo till a volume of ca. 5 mL was reached and the product was precipitated with diethyl ether (10 mL). After drying in vacuo the salt 12 was obtained.
1-(5-tert-Butyl-3-formyl-2-hydroxybenzyl)pyridinium bromide (12aA) was prepared according to GP3 using 11a (1 eq., 1.50 mmol, 406.7 mg) and pyridine (1.1 eq., 1.65 mmol, 130.5 mg, 133 µL). The product was formed as a white solid (1.39 mmol, 483.2 mg, 92%). C17H20BrNO2, MW: 350.25 g/mol. 1H-NMR (300 MHz, CDCl3, 20 °C): δ =11.37 (s, 1H, Ar-OH), 9.83 (s, 1H, Ar-CHO), 9.62 (d, J = 6.6, 2H, o-Py-H), 8.70 (d, J = 2.5, 1H, Ar-H), 8.38 (tt, J = 7.9, 1.3, 1H, p-Py-H), 7.97 (t, J = 7.0, 2H, m-Py-H), 7.57 (d, J = 2.5, 1H, Ar-H), 6.30 (s, 2H, Ar-CH2-Py), 1.32 (s, 9H, C(CH3)3). The analytical data are in agreement with the literature [54].
1-(3-Formyl-2-hydroxy-5-pentylbenzyl)pyridinium bromide (12bA) was prepared according to GP3 using 11b (1 eq., 9.8 mmol, 2.79 g) and pyridine (1.1 eq., 10.7 mmol, 0.85 g, 866 µL). The product was formed as a beige-colored solid (6.1 mmol, 3.56 g, 62%). C18H22BrNO2, MW: 364.28 g/mol. M.p.: 146–147 °C. 1H-NMR (300 MHz, CDCl3, 20 °C): δ =14.45 (s, 1H, Ar-OH), 9.87 (s, 1H, Ar-CHO), 9.63 (d, J = 6.1, 2H, o-Py-H), 8.43 (d, J = 2.5, 1H, Ar-H), 8.39 (tt, J = 7.9, 1.3, 1H, p-Py-H), 7.99 (t, J = 7.2, 2H, m-Py-H), 7.47 (d, J = 2.1, 1H, Ar-H), 6.35 (s, 2H, Ar-CH2-Py), 2.67 (t, J = 8.0, 2H, Ar-CH2-C4H9), 1.64 (m, 2H, (CH2)pentyl), 1.33 (m, 4H, (CH2)pentyl), 0.89 (t, J = 6.9, 3H, CH3). 13C-NMR (75 MHz, CDCl3, 21 °C): δ = 196.6 (1C, CHO), 157.9 (1C, CAr-OH), 145.6 (1C, α-CPy), 145.6 (1C, α-CPy), 145.1 (1C, γ-CPy), 140.2 (1C, CAr-H), 136.2 (1C, CAr-C5H11), 135.0 (1C, CAr-CHO), 127.8 (2C, β-CPy), 121.1 (1C, CAr-H), 120.6 (1C, CAr-CH2-NPy), 59.2 (1C, CAr-CH2-NPy), 34.5 (1C, CAr-CH2-C4H9), 31.4 (1C, (CH2)Pentyl). 31.0 (1C, (CH2)Pentyl), 22.5 (1C, (CH2)Pentyl), 14.1 (1C, CH3). IR (solid): line graphic = 3046, 2949, 2860, 2196, 1966, 1641,1627, 1154, 690. HRMS (ESI) m/z: Anal. Calcd. for [[C18H22NO2]+]: 284.1645, found 284.1641.
1-(3-Formyl-2-hydroxy-5-methylbenzyl)pyridinium bromide (12cA) was prepared according to GP3 using 11c (1 eq., 7.0 mmol, 1.62 g) and pyridine (1.1 eq., 7.7 mmol, 597 μL). The product was formed as a colorless solid (6.5 mmol, 1.99 g, 92%). C14H14BrNO2, MW: 308.17 g/mol. M.p.: 189–192 °C. 1H-NMR (300 MHz, CDCl3, 20 °C): δ = 11.39 (s, 1H, Ar-OH), 9.84 (s, 1H, Ar-CHO), 9.63 (d, J = 5.7, 2H, o-Py-H), 8.44 (m, 2H, p-CPy-H und CAr-H), 8.02 (t, J = 7.2, 2H, m-Py-H), 7.44 (d, J = 1.9, 1H, o-Ar-H), 6.33 (s, 2H, Ar-CH2-Py), 2.39 (s, 9H, CH3). 13C-NMR (75 MHz, CDCl3, 20 °C): δ = 196.6 (CO), 157.7 (CAr-OH), 145.6 (α-Py-C), 145.1 (α-Py-C), 140.8 (γ-Py-C), 135.7 (CArH), 135.7 (CAr-CH3), 131.0 (CAr-CO), 127.8 (2 x β-Py-C), 121.1 (CAr-CH2-Py), 120.5 (CArH), 58.9 (CAr-CH2-Py), 20.2 (CH3). IR (solid): line graphic = 3446, 3378, 3117, 3046, 2927, 2051, 1882, 1626, 1463. MS (ESI) m/z: 228.1 (20%, M+), 149.1 (100%, M+–pyridine), 133.1 (10%, M+–pyridine–OH).
1-(5-tert-Butyl-3-formyl-2-hydroxybenzyl)-4-methylpyridinium bromide (12aB) was prepared according to GP3 using 11a (1 eq., 3.00 mmol, 813.5 mg) and picoline (1.1 eq., 3.30 mmol, 307.3 mg, 321 µL). The product was formed as a white solid (2.02 mmol, 734.9 mg, 67%). C18H22BrNO2, MW: 364.28 g/mol. M.p.: 247.2–248.0 °C. 1H-NMR (300 MHz, DMSO, 20 °C): δ = 11.16 (b, 1H, Ar-OH), 10.06 (s, 1H, Ar-CHO), 8.99 (d, J = 6.7, 2H, o-Py-H), 8.09 (d, J = 2.4, 1H, Ar-H), 7.98 (d, J = 6.5, 2H, m-Py-H), 7.89 (d, J = 2.6, 1H, Ar-H), 5.82 (s, 2H, Ar-CH2-Py), 2.59 (s, 3H, Py-CH3), 1.32 (s, 9H, C(CH3)3). 13C-NMR (125 MHz, DMSO, 20 °C): δ = 196.5, 159.3, 156.7, 143.9, 142.8, 136.1, 130.8, 128.3, 122.0, 121.2, 58.2, 34.1, 31.0, 21.4. IR (solid): line graphic = 3419, 3018, 2951, 2864, 1639, 1473, 1379, 1280, 1226, 1151, 1018, 826, 761, 700, 617. MS (ESI) m/z: 284.2 (57%, [M]+), 191.1 (100%, [M]+−[Py]), 94.1 (15%, [PyH]+). HRMS (ESI) m/z: Anal. Calcd. for [[C18H22NO2]+]: 284.1645, found: 284.1634.
1-(3-Formyl-2-hydroxy-5-pentylbenzyl)-4-methylpyridinium bromide (12bB) was prepared according to GP3 using 11b (1 eq., 14.0 mmol, 4.0 g) and picoline (1.1 eq., 15.4 mmol, 1.4 g, 1.5 mL). The product was formed as a yellow solid (12.8 mmol, 4.8 g, 91%). C19H24BrNO2, MW: 378.30 g/mol. M.p.: 118.2–120.6 °C. 1H-NMR (300 MHz, CDCl3, 20 °C): δ = 11.41 (s, 1H, Ar-OH), 9.86 (s, 1H, Ar-CHO), 9.40 (d, J = 6.7, 2H, o-Py-H), 8.39 (d, J = 2.0, 1H, Ar-H), 7.72 (d, J = 6.4, 2H, m-Py-H), 7.45 (d, J = 2.1, 1H, Ar-H), 6.24 (s, 2H, Ar-CH2-Py), 2.68–2.63 (m, 5H, Ar-CH2-C4H9 and Py-CH3), 1.68–1.58 (m, 2H, (CH2)pentyl), 1.38–1.25 (m, 4H, (CH2)pentyl), 0.89 (t, J = 6.8, 3H, CH3). 13C-NMR (75 MHz, CDCl3, 20 °C): δ = 196.6, 158.9, 157.9, 144.6, 140.3, 136.2, 134.9, 128.2, 121.3, 120.5, 58.3, 34.5, 31.4, 31.0, 22.5, 22.3, 14.1. IR (solid): line graphic = 3013, 2927, 2855, 1637, 1466, 1278, 1151, 1016, 830, 748, 699. MS (ESI) m/z: 298.2 (100%, [M]+), 205.1 (13%, [M]+−[Py]). HRMS (ESI) m/z: Anal. Calcd. for [[C19H24NO2]+]: 298.1802, found: 298.1793.
4-tert-Butyl-1-(3-formyl-2-hydroxy-5-pentylbenzyl)-pyridinium bromide (12bC) was prepared according to GP3 using 11b (1 eq., 1.0 mmol, 285.2 mg) and 4-tert-butylpyridine (1.1 eq., 1.1 mmol, 148.7 mg, 107 µL). The product was formed as a yellow solid (0.96 mmol, 403.4 mg, 96%). C22H30BrNO2, MW: 420.38 g/mol. M.p.: 188.6–189.8 °C. 1H-NMR (300 MHz, CDCl3, 20 °C): δ = 11.45 (s, 1H, Ar-OH), 9.87 (s, 1H, Ar-CHO), 9.50 (d, J = 6.8, 2H, o-Py-H), 8.46 (d, J = 2.0, 1H, Ar-H), 7.86 (d, J = 6.8, 2H, m-Py-H), 7.45 (d, J = 2.0, 1H, Ar-H), 6.24 (s, 2H, Ar-CH2-Py), 2.67 (t, J = 7.7, 2H, Ar-CH2-C4H9), 1.69–1.59 (m, 2H, (CH2)pentyl), 1.39 (s, 9H, Py-C(CH3)3). 1.37–1.25 (m, 4H, (CH2)pentyl), 0.89 (t, J = 6.8, 3H, CH3). 13C-NMR (75 MHz, CDCl3, 20 °C): δ = 196.7, 157.9, 144.8, 140.5, 136.3, 134.8, 124.7, 121.3, 120.5, 58.0, 36.6, 34.5, 31.4, 31.0, 30.0, 22.5, 14.1. IR (solid): line graphic = 3035, 2956, 2928, 2857, 1643, 1462, 1384, 1270, 1219, 1169, 1109, 1015, 849, 749, 712, 647, 561. MS (ESI) m/z: 340.2 (15%, [M]+), 205.1 (100%, [M]+−[Py]). HRMS (ESI) m/z: Anal. Calcd. for [[C22H30NO2]+]: 340.2271, found: 340.2255.
3,5-Dimethyl-1-(3-formyl-2-hydroxy-5-pentylbenzyl)-pyridinium bromide (12bD) was prepared according to GP3 using 11b (1 eq., 1.0 mmol, 285.2 mg) and 3,5-dimethylpyridine (1.1 eq., 1.1 mmol, 117.9 mg, 126 µL). The product was formed as a yellow solid (0.54 mmol, 211.4 mg, 54%). C20H26BrNO2, MW: 392.33 g/mol. M.p.: 150.3–151.3 °C. 1H-NMR (300 MHz, CDCl3, 20 °C): δ = 11.37 (s, 1H, Ar-OH), 9.86 (s, 1H, Ar-CHO), 9.24 (b, 2H, o-Py-H), 8.39 (b, 1H, Ar-H), 7.94 (s, 1H, p-Py-H), 7.44 (m, 1H, Ar-H), 6.15 (s, 2H, Ar-CH2-Py), 2.64 (t, J = 7.8, 2H, Ar-CH2-C4H9), 2.54 (s, 6H, Py-CH3). 1.61 (m, 2H, (CH2)pentyl), 1.30 (m, 4H, (CH2)pentyl), 0.86 (t, J = 6.6, 3H, CH3). 13C-NMR (125 MHz, CDCl3, 20 °C): δ = 196.7, 157.9, 146.2, 142.3, 140.5, 138.5, 136.1, 134.8, 121.3, 120.6, 58.5, 34.5, 31.4, 30.9, 22.5, 18.6, 15.3, 14.1. IR (solid): line graphic = 2994, 2927, 2869, 1650, 1467, 1279, 1224, 1020, 1005, 922, 871, 781, 738, 699. MS (ESI) m/z: 312.2 (34%, [M]+), 205.1 (100%, [M]+−[Py]), 108.1 (52%, [PyH]+). HRMS (ESI) m/z: Anal. Calcd. for [[C20H26NO2]+]: 312.1958, found: 312.1962.
1-(3-Formyl-2-hydroxy-5-pentylbenzyl)-quinolinium bromide (12bE) was prepared according to GP3 using 11b (1 eq., 1.0 mmol, 285.2 mg) and quinoline (1.1 eq., 1.1 mmol, 142.1 mg, 129 µL). The product was formed as a white solid (0.47 mmol, 194.0 mg, 47%). C22H24BrNO2, MW: 414.34 g/mol. M.p.: 215.1–216.4 °C. 1H-NMR (300 MHz, DMSO, 20 °C): δ = 11.20 (s, 1H, Ar-OH), 10.04 (s, 1H, Ar-CHO), 9.68 (d, J = 5.8, 1H, quinoline-H), 9.37 (d, J = 8.3, 1H, quinoline-H), 8.58–8.50 (m, 2H, quinoline-H), 8.29–8.19 (m, 2H, quinoline-H), 8.03 (t, J = 7.6, 1H, quinoline-H), 7.65 (d, J = 1.8, 1H, Ar-H), 7.57 (d, J = 1.8, 1H, Ar-H), 6.32 (s, 2H, Ar-CH2-quinoline), 2.52 (m, 2H, Ar-CH2-C4H9), 1.50 (m, 2H, (CH2)pentyl), 1.20 (m, 4H, (CH2)pentyl), 0.80 (t, J = 6.9, 3H, CH3). 13C-NMR (125 MHz, DMSO, 20 °C): δ = 196.2, 156.3, 150.7, 148.1, 137.6, 137.0, 135.7, 134.3, 133.1, 130.9, 129.9, 129.7, 122.1, 121.7, 121.3, 118.9, 55.7, 33.6, 30.5, 30.3, 21.8, 13.9. IR (solid): line graphic = 3024, 2924, 2852, 1644, 1620, 1527, 1449, 1370, 1278, 1224, 1158, 1012, 821, 785, 709. MS (EI) m/z: 334.2 (32%, [M]+), 205.1 (100%, [M]+−[quinoline]). HRMS (ESI) m/z: Anal. Calcd. for [[C22H24NO2]+]: 334.1802, found: 334.1796.
4-Dimethylamino-1-(3-formyl-2-hydroxy-5-pentylbenzyl)-pyridinium bromide (12bF) was prepared according to GP3 using 11b (1 eq., 1.0 mmol, 285.2 mg) and 4-dimethylaminopyridine (1.1 eq., 1.1 mmol, 134.4 mg). The product was formed as a beige-colored solid (0.81 mmol, 330.2 mg, 81%). C20H27BrN2O2, MW: 407.34 g/mol. M.p.: 187.6–188.9 °C. 1H-NMR (300 MHz, CDCl3, 20 °C): δ = 11.29 (b, 1H, Ar-OH), 9.85 (s, 1H, Ar-CHO), 8.68 (d, J = 7.8, 2H, o-Py-H), 8.08 (d, J = 2.2, 1H, Ar-H), 7.38 (d, J = 2.2, 1H, Ar-H), 6.88 (d, J = 7.8, 2H, m-Py-H), 5.65 (s, 2H, Ar-CH2-Py), 3.22 (s, 6H, Py-CH3), 2.61 (t, J = 7.8, 2H, Ar-CH2-C4H9), 1.60 (m, 2H, (CH2)pentyl), 1.29 (m, 4H, (CH2)pentyl), 0.86 (t, J = 6.8, 3H, CH3). 13C-NMR (75 MHz, CDCl3, 20 °C): δ = 196.6, 157.8, 156.2, 143.0, 139.7, 135.7, 134.2, 122.4, 120.5, 107.8, 55.3, 40.4, 34.5, 31.4, 31.0, 22.5, 14.1. IR (solid): line graphic = 3065, 2955, 2927, 2855, 1640, 1562, 1443, 1402, 1384, 1261, 1164, 1013, 943, 838, 820, 770, 715, 702. MS (EI) m/z: 327.2 (68%, [M]+), 205.1 (70%, [M]+−[Py]), 123.1 (100%, [PyH]+). HRMS (ESI) m/z: Anal. Calcd. for [[C20H27N2O2]+]: 327.2067, found: 327.2069.
1-(3-Formyl-2-hydroxy-5-pentylbenzyl)-4-iodopyridinium bromide (12bG) was prepared according to GP3 using 11b (1 eq., 1.0 mmol, 285.2 mg) and 4-iodopyridine (1.1 eq., 1.1 mmol, 225.5 mg). The product was formed as a green solid (0.68 mmol, 332.7 mg, 65%). C18H21BrINO2, MW: 490.17 g/mol. M.p.: 182.5–183.3 °C (decomposition). 1H-NMR (300 MHz, CDCl3, 20 °C): δ = 11.34 (s, 1H, Ar-OH), 9.86 (s, 1H, Ar-CHO), 9.21 (d, J = 6.7, 2H, o-Py-H), 8.35 (d, J = 2.0, 1H, Ar-H), 8.30 (d, J = 6.8, 2H, m-Py-H), 7.47 (d, J = 2.1, 1H, Ar-H), 6.22 (s, 2H, Ar-CH2-Py), 2.66 (t, J = 7.7, 2H, Ar-CH2-C4H9), 1.69–1.58 (m, 2H, (CH2)pentyl), 1.38–1.28 (m, 4H, (CH2)pentyl), 0.89 (t, J = 6.8, 3H, CH3). 13C-NMR (125 MHz, CDCl3, 20 °C): δ = 196.0, 156.7, 144.1, 138.3, 137.1, 134.2, 133.4, 121.8, 121.5, 120.9, 58.5, 33.6, 30.7, 30.2, 21.8, 13.8. IR (solid): line graphic = 3012, 2959, 2928, 2856, 1645, 1615, 1448, 1275, 1261, 1223, 1153, 1017, 837, 807, 703. MS (ESI) m/z: 410.1 (9%, [M]+), 205.1 (100%, [M]+−[Py]). HRMS (ESI) m/z: Anal. Calcd. for [[C18H21INO2]+]: 410.0611, found: 410.0609.
4-Chloro-1-(3-formyl-2-hydroxy-5-pentylbenzyl)-pyridinium bromide (12bH) was prepared according to GP3 using 11b (1 eq., 1.0 mmol, 285.2 mg) and 4-chloropyridine (1.1 eq., 1.1 mmol, 187.3 mg, 156 µL). The product was formed as a beige-colored solid (0.67 mmol, 267.2 mg, 29%). C18H21BrClNO2, MW: 398.72 g/mol. M.p.: 131.6–133.2 °C. 1H-NMR (500 MHz, CDCl3, 20 °C): δ = 11.35 (s, 1H, Ar-OH), 9.84 (s, 1H, Ar-CHO), 9.59 (d, J = 6.8, 2H, o-Py-H), 8.29 (m, 1H, Ar-H), 7.94 (d, J = 6.8, 2H, m-Py-H), 7.44 (m, 1H, Ar-H), 6.31 (s, 2H, Ar-CH2-Py), 2.63 (t, J = 7.8, 2H, Ar-CH2-C4H9), 1.60 (m, 2H, (CH2)pentyl), 1.30 (m, 4H, (CH2)pentyl), 0.86 (t, J = 6.6, 3H, CH3). 13C-NMR (125 MHz, CDCl3, 20 °C): δ = 196.5, 157.9, 154.0, 146.6, 139.9, 136.1, 135.0, 128.1, 121.0, 120.6, 59.0, 34.5, 31.4, 31.0, 22.5, 14.1. IR (solid): line graphic = 3021, 2952, 2925, 2857, 1650, 1622, 1493, 1456, 1275, 1224, 1212, 1108, 1020, 845, 821, 713, 697. MS (EI) m/z: 318.1 (100%, [M]+), 205.1 (54%, [M]+−[Py]). HRMS (ESI) m/z: Anal. Calcd. for [[C18H21ClNO2]+]: 318.1255, found: 318.1255.
4-Cyano-1-(3-formyl-2-hydroxy-5-pentylbenzyl)-pyridinium bromide (12bI) was prepared according to GP3 using 11b (1 eq., 1.0 mmol, 285.2 mg) and 4-cyanopyridine (1.1 eq., 1.1 mmol, 114.5 mg). The product was formed as a yellow solid (0.80 mmol, 312.5 mg, 80%). C19H21BrN2O2, MW: 389.29 g/mol. M.p.: 131.6–133.2 °C. 1H-NMR (300 MHz, CDCl3, 20 °C): δ = 11.43 (s, 1H, Ar-OH), 9.88–.85 (m, 3H, Ar-CHO and o-Py-H), 8.30 (m, 1H, Ar-H), 8.23 (d, J = 6.5, 2H, m-Py-H), 7.49 (m, 1H, Ar-H), 6.46 (s, 2H, Ar-CH2-Py), 2.66 (t, J = 7.8, 2H, Ar-CH2-C4H9), 1.63 (m, 2H, (CH2)pentyl), 1.33 (m, 4H, (CH2)pentyl), 0.89 (t, J = 6.8, 3H, CH3). 13C-NMR (125 MHz, CDCl3, 20 °C): δ = 196.5, 157.9, 147.3, 139.9, 136.2, 135.3, 130.1, 128.1, 120.7, 120.4, 113.7, 60.8, 34.5, 31.4, 31.0, 22.5, 14.1. IR (solid): line graphic = 3112, 2960, 2928, 2849, 1654, 1635, 1603, 1456, 1274, 1189, 1142, 1010, 830, 716, 557. MS (EI) m/z: 309.2 (11%, [M]+), 205.1 (100%, [M]+−[Py]). HRMS (ESI) m/z: Anal. Calcd. for [[C19H21N2O2]+]: 309.1598, found: 309.1606.

3.5. General Procedure for the Synthesis of 14 (GP4)

This procedure is according to a published protocol [54]. To a solution of (1R,2R)-(−)-1,2-diaminocyclohexane (1 eq., 0.15 mmol, 17.1 mg) in ethanol (0.7 mL) at ambient temperature molecular sieves (4 Å) and the corresponding salt 12 (2 eq., 0.30 mmol) were added. The mixture was stirred for 15 h at ambient temperature. For workup the mixture was filtered and washed with ethanol. The solvent was removedin vacuo till a volume of 5 mL was reached and the ligand was precipitated with diethyl ether (30 mL). The solid product was then dried in vacuo.
(R,R)-(−)-N,N'-Bis(3-tert-butyl-5-(pyridinium-1-ylmethyl)salicylidene)-1,2-cyclohexanediamine dibromide (14aA) was prepared according to GP4 using 12aA (2 eq., 1.06 mmol, 371.3 mg) and (1R,2R)-(−)-1,2-diaminocyclohexane (1 eq., 0.53 mmol, 60.5 mg). The product was formed as an orange solid (0.53 mmol, 438.0 mg, 100%). C40H50Br2N4O2, MW: 778.66 g/mol. 1H-NMR (300 MHz, CD2Cl2, 20 °C): δ = 14.16 (b, 2H, Ar-OH), 9.55 (d, J = 5.5, 4H, o-Py-H), 8.46 (t, J = 7.8, 2H, p-Py-H), 8.38 (s, 2H, Ar-CH=N-Cy), 8.22 (d, J = 2.5, 2H, Ar-H), 7.99 (m, 4H, m-Py-H), 7.32 (d, J = 2.5, 2H, Ar-H), 6.13 (m, 4H, Ar-CH2-Py), 3.43 (d, J = 9.5, 2H, Cy-HN=CHR)), 1.90 (m, 4H, Cy-H2), 1.67 (m, 2H, Cy-H2), 1.47 (m, 2H, Cy-H2), 1.27 (s, 18H, C(CH3)3). The analytical data are in agreement with the literature [54].
(R,R)-(−)-N,N'-Bis(3-pentyl-5-(pyridinium-1-ylmethyl)salicylidene)-1,2-cyclohexanediamine dibromide (14bA) was prepared according to GP4 using 12bA (2 eq., 0.90 mmol, 328.0 mg) and (1R,2R)-(−)-1,2-diaminocyclohexane (1 eq., 0.45 mmol, 51.4 mg). The product was formed as an orange solid (0.41 mmol, 329.3 mg, 91%). C42H54Br2N4O2, MW: 806.71 g/mol. M.p.: 128.4–129.6 °C. line graphic (c = 10 mg/mL, CH2Cl2) = −273.0. 1H-NMR (300 MHz, CD2Cl2, 20 °C): δ = 14.13 (b, 2H, Ar-OH), 9.44 (d, J = 9.7, 4H, o-Py-H), 8.41 (tt, J = 7.9, 1.4, 2H, p-Py-H), 8.32 (s, 2H, Ar-CH=N-Cy), 7.94 (t, J = 7.2, 4H, m-Py-H), 7.81 (d, J = 2.2, 2H, Ar-H), 7.13 (d, J = 1.9, 2H, Ar-H), 6.09 (m, 4H, Ar-CH2-Py), 3.41 (m, 2H, Cy-HN=CHR)), 2.51 (m, 4H, Ar-CH2-C4H9), 1.98–1.85 (m, 4H, Cy-H2), 1.72–1.43 (m, 10H, Cy-H2 und (CH2)pentyl), 1.33–1.25 (m, 8H, (CH2)pentyl), 0.86 (t, J = 6.7, 6H, (CH3)pentyl). 13C-NMR (125 MHz, CD2Cl2, 21 °C): δ = 164.8 (2C, CAr-CH=N), 159.4 (2C, CAr-OH), 145.6 (2C, α -CPy), 145.6 (2C, α-CPy), 145.4 (2C, γ -CPy), 135.5 (2C, CAr-C5H11), 134.0 (2C, CAr), 133.5 (2C, CAr), 128.2 (4C, β-CPy), 120.8 (2C, CAr-CH2-NPy), 118.9 (2C, CAr-CHN), 71.7 (2C, CCyHN), 60.4 (2C, Ar-CH2-Py), 35.0 (2C, CAr-CH2-C4H9), 33.2 (2C, CCyH2), 31.8 (2C, (CH2)Pentyl), 31.6 (2C, (CH2)Pentyl), 24.5 (2C, CCyH2), 22.9 (2C, (CH2)Pentyl), 14.2 (2C, CH3). IR (solid): line graphic = 3396, 2925, 2854, 2561, 2374, 2186, 1967, 1627, 1472, 683. HRMS (ESI)m/z: Anal. Calcd. for [[C42H54BrN4O2]+]: 725.3413, found 725.3422.
(R,R)-(−)-N,N'-Bis(3-methyl-5-(pyridinium-1-ylmethyl)salicylidene)-1,2-cyclohexanediamine dibromide (14cA) was prepared according to GP4 using 12cA (2 eq., 6.5 mmol, 2.0 g) and (1R,2R)-(−)-1,2-diaminocyclohexane (1 eq., 3.2 mmol, 370 mg). The product was formed as a slightly yellow solid (2.7 mmol, 1.89 g, 84%). C34H38Br2N4O2, MW: 694.50 g/mol. M.p.: Decomp. at T > 200 °C. line graphic (c = 10 mg/mL, CH2Cl2) = −296.0. 1H-NMR (300 MHz, CD2Cl2, 20 °C): δ = 14.09 (b, 1H, Ar-OH), 9.48 (d, J = 9.7, 4H, o-Py-H), 8.42 (tt, J = 7.9, J = 1.4, 2H, p-Py-H), 8.31 (s, 2H, Ar-CH=N-Cy), 7.96 (t, J = 7.2, 4H, m-Py-H), 7.84 (d, J = 2.2, 2H, Ar-H), 7.12 (d, J = 1.9, 2H, Ar-H), 6.08 (q, J = 13.7, Ar-CH2-Py), 3.42 (m, 2H, CCyHN=CHR), 2.26 (s, 6H, CH3), 1.98–1.48 (m, 8H, (CH2)Cy). 13C-NMR (75 MHz, CDCL3, 21 °C): 164.8 (2C, CHN), 159.2 (2C, CAr-OH), 145.6 (2C, γ-CPy), 145.6 (2C, α-Py-C), 145.5 (2C, α-Py-C), 136.1 (2C, CAr), 134.1 (2C, CAr-Me), 128.6 (2C, CAr), 128.3 (4C, β-Py-C), 120.9 (2C, CAr-CH2-Py), 118.9 (2C, CAr-CHN), 71.8 (2C,CCyHN), 60.1 (2C, Ar-CH2-Py), 33.1 (2C,CCyH2), 24.5(2C,CCyH2), 20.4 (2C, CH3). IR (solid): line graphic = 3381, 3123, 3044, 2928, 2857, 2054, 1627, 1476. MS (ESI) m/z: 613.2 (20%, M+), 597.1 (60%, M+–OH), 518.0 (100%, M+–Br), 454.2 (90%, M+–pyridine). HRMS (ESI) m/z: Anal. Calcd. for [[C34H38BrN4O2]+]: 613.2173, found: 613.2182.
(R,R)-(−)-N,N'-Bis(3-tert-butyl-5-(4-methylpyridinium-1-ylmethyl)salicylidene)-1,2-cyclohexane-diamine dibromide (14aB) was prepared according to GP4 using 12aB (2 eq., 0.30 mmol, 109.3 mg) and (1R,2R)-(−)-1,2-diaminocyclohexane (1 eq., 0.15 mmol, 17.1 mg). The product was formed as a yellow solid (0.13 mmol, 107.3 mg, 89%). C42H54Br2N4O2, MW: 806.71 g/mol. M.p.: 198.2–200.3 °C (decomposition). line graphic (c = 6.4 mg/mL, CH2Cl2) = −286.1. 1H-NMR (500 MHz, CDCl3, 20 °C): δ =14.00 (b, 2H, Ar-OH), 9.31 (d, J = 6.4, 4H, o-Py-H), 8.37 (s, 2H, Ar-CH=N-Cy), 8.08 (d, J = 3.3, 2H, Ar-H), 7.78 (d, J = 6.3, 4H, m-Py-H), 7.28 (d, J = 2.3, 2H, Ar-H), 6.07–5.94 (m, 4H, Ar-CH2-Py), 3.42 (m, 2H, Cy-HN=CHR)), 2.59 (s, 6H, Py-CH3), 1.94–1.84 (m, 4H, Cy-H2), 1.67 (m, 2H, Cy-H2), 1.46 (m, 2H, Cy-H2), 1.25 (s, 18H, C(CH3)3). 13C-NMR (125 MHz, CDCl3, 20 °C): δ = 164.7, 158.9, 158.7, 144.4, 142.1, 132.7, 130.2, 128.4, 120.5, 118.0, 71.4, 59.4, 34.3, 33.1, 31.5, 24.1, 22.3. IR (solid): line graphic = 3387, 2946, 2862, 1628, 1469, 1280, 1224, 1149, 1019, 824, 787. MS (ESI) m/z: 725.3 (1%, [M]+−[Br]), 552.4 (7%, [M]+−[Py]), 459.3 (100%, [M]+−2×[Py]), 323.2 (1%, [M]2+), 276.7 (93%, [M]2+−[Py]). HRMS (ESI) m/z: Anal. Calcd. for [[C42H54N4O2]2+]: 323.2118, found: 323.2097.
(R,R)-(−)-N,N'-Bis(3-pentyl-5-(4-methylpyridinium-1-ylmethyl)salicylidene)-1,2-cyclohexanediamine dibromide (14bB) was prepared according to GP4 using 12bB (2 eq., 0.30 mmol, 113.5 mg) and (1R,2R)-(−)-1,2-diaminocyclohexane (1 eq., 0.15 mmol, 17.1 mg). The product was formed as a beige-colored solid (0.14 mmol, 116.9 mg, 93%). C44H58Br2N4O2, MW: 834.76 g/mol. M.p.: 143.7–146.8 °C. line graphic line graphic (c = 9.5 mg/mL, CH2Cl2) = −289.1. 1H-NMR (300 MHz, CDCl3, 20 °C): δ = 13.97 (b, 2H, Ar-OH), 9.26 (d, J = 6.7, 4H, o-Py-H), 8.33 (s, 2H, Ar-CH=N-Cy), 7.78 (m, 2H, Ar-H), 7.76 (m, 4H, m-Py-H), 7.11 (m, 2H, Ar-H), 6.08–5.91 (m, 4H, Ar-CH2-Py), 3.41 (m, 2H, Cy-HN=CHR)), 2.59 (s, 6H, Py-CH3), 2.48 (t, J = 7.8, 4H, Ar-CH2C4H9), 1.93–1.84 (m, 4H, Cy-H2), 1.71–1.62 (m, 2H, Cy-H2), 1.55–1.43 (m, 6H, (CH2)pentyl und Cy-H2), 1.29–1.19 (m, 8H, (CH2)pentyl), 0.81 (t, J = 6.8, 6H, C4H9CH3). 13C-NMR (125 MHz, CDCl3, 20 °C): δ =164.4, 159.0, 158.7, 144.3, 135.0, 133.6, 133.1, 128.4, 120.6, 118.4, 71.4, 59.2, 34.6, 33.0, 31.5, 31.3, 24.1, 22.5, 22.3, 14.1. IR (solid): line graphic = 3380, 2926, 2855, 1629, 1468, 1276, 1152, 1028, 829, 787. MS (ESI) m/z: 487.3 (5%, [M]+−2×[Py]), 337.2 (1%, [M]2+), 290.7 (100%, [M]2+−[Py]), 244.2 (8%, [M]2+−2×[Py]). HRMS (ESI) m/z: Anal. Calcd. for [[C44H58N4O2]2+]: 337.2274, found: 337.2298.
(R,R)-(−)-N,N'-Bis(3-pentyl-5-(4-tert-butylpyridinium-1-ylmethyl)salicylidene)-1,2-cyclohexane-diamine dibromide (14bC) was prepared according to GP4 using 12bC (2 eq., 0.30 mmol, 126.1 mg) and (1R,2R)-(−)-1,2-diaminocyclohexane (1 eq., 0.15 mmol, 17.1 mg). The product was formed as a beige-colored solid (0.12 mmol, 113.1 mg, 82%). C50H70Br2N4O2, MW: 918.92 g/mol. M.p.: 154.7–157.3 °C. line graphic (c = 10.2 mg/mL, CH2Cl2) = −289.1. 1H-NMR (300 MHz, CDCl3, 20 °C): δ = 13.97 (b, 2H, Ar-OH), 9.44 (d, J = 6.7, 4H, o-Py-H), 8.34 (s, 2H, Ar-CH=N-Cy), 7.89 (d, J = 6.8, 4H, m-Py-H), 7.84 (m, 2H, Ar-H), 7.11 (m, 2H, Ar-H), 6.13–5.95 (m, 4H, Ar-CH2-Py), 3.42 (m, 2H, Cy-HN=CHR)), 2.48 (t, J = 7.8, 4H, Ar-CH2C4H9), 1.92–1.85 (m, 4H, Cy-H2), 1.72–1.61 (m, 2H, Cy-H2), 1.55–1.44 (m, 6H, (CH2)pentyl and Cy-H2), 1.34 (s, 18H, Py-C(CH3)3), 1.29–1.19 (m, 8H, (CH2)pentyl), 0.81 (t, J = 6.8, 6H, C4H9CH3). 13C-NMR (125 MHz, CDCl3, 20 °C): δ = 170.6, 164.5, 158.9, 144.7, 135.2, 133.7, 133.1, 124.9, 120.7, 118.4, 71.5, 58.8, 36.5, 34.6, 33.1, 31.5, 31.3, 30.5, 30.0, 24.0, 22.5, 14.1. IR (solid): line graphic = 3380, 2927, 2857, 1630, 1459, 1275, 1167, 1109, 1025, 850, 815. MS (ESI) m/z: 379.3 (27%, [M]2+), 311.7 (100%, [M]2+−[Py]). HRMS (ESI) m/z: Anal. Calcd. for [[C50H70N4O2]2+]: 379.2744, found: 379.2770.
(R,R)-(−)-N,N'-Bis(3-pentyl-5-(3,5-dimethylpyridinium-1-ylmethyl)salicylidene)-1,2-cyclohexane-diamine dibromide (14bD) was prepared according to GP4 using 12bD (2 eq., 0.30 mmol, 117.8 mg) and (1R,2R)-(−)-1,2-diaminocyclohexane (1 eq., 0.15 mmol, 17.1 mg). The product was formed as a yellow solid (0.14 mmol, 117.9 mg, 91%). C46H62Br2N4O2, MW: 862.82 g/mol. M.p.: 139.3–141.2 °C. line graphic (c = 10.7 mg/mL, CH2Cl2) = −271.0. 1H-NMR (300 MHz, CDCl3, 20 °C): δ = 13.91 (b, 2H, Ar-OH), 9.13 (m, 4H, o-Py-H), 8.33 (s, 2H, Ar-CH=N-Cy), 7.92 (m, 2H, p-Py-H), 7.80 (d, J = 2.0, 2H, Ar-H), 7.08 (d, J = 2.0, 2H, Ar-H), 6.06–5.91 (m, 4H, Ar-CH2-Py), 3.43 (m, 2H, Cy-HN=CHR)), 2.54–2.47 (m, 16H, Ar-CH2C4H9 and Py-CH3), 1.93–1.85 (m, 4H, Cy-H2), 1.73–1.60 (m, 2H, Cy-H2), 1.55–1.43 (m, 6H, (CH2)pentyl und Cy-H2), 1.29–1.20 (m, 8H, (CH2)pentyl), 0.82 (t, J = 6.8, 6H, C4H9CH3). 13C-NMR (125 MHz, CDCl3, 20 °C): δ = 164.5, 158.8, 146.0, 142.0, 138.3, 135.4, 133.7, 133.0, 120.6, 118.4, 71.6, 59.4, 34.6, 33.2, 31.5, 31.2, 24.1, 22.5, 18.7, 14.1. IR (solid): line graphic = 3386, 2924, 2855, 1627, 1468, 1277, 1171, 1030, 863, 783, 700. MS (ESI) m/z: 487.3 (52%, [M]+−2 × [Py]), 351.2 (34%, [M]2+), 595.4 (100%, [M]2+−[Py]). HRMS (ESI) m/z: Anal. Calcd. for [[C46H62N4O2]2+]: 351.2431, found: 351.2424.
(R,R)-(−)-N,N'-Bis(3-pentyl-5-(quinolinium-1-ylmethyl)salicylidene)-1,2-cyclohexanediamine dibromide (14bE) was prepared according to GP4 using 12bE (2 eq., 0.30 mmol, 124.3 mg) and (1R,2R)-(−)-1,2-diaminocyclohexane (1 eq., 0.15 mmol, 17.1 mg). The product was formed as an orange solid (0.14 mmol, 127.9 mg, 94%). C50H58Br2N4O2, MW: 906.83 g/mol. M.p.: 146.2–147.8 °C. line graphic (c = 10.4 mg/mL, CH2Cl2) = −193.3. 1H-NMR (300 MHz, CDCl3, 20 °C): δ = 14.15 (b, 2H, Ar-OH), 10.32 (d, J = 5.5, 2H, quinoline-H), 9.17 (d, J = 8.3, 2H, quinoline-H), 8.59 (d, J = 8.9, 2H, quinoline-H), 8.39 (s, 2H, Ar-CH=N-Cy), 8.23 (d, J = 7.8, 2H, quinoline-H), 8.08 (m, 2H, quinoline-H), 7.83 (m, 2H, quinoline-H), 7.73 (m, 2H, quinoline-H), 7.43 (m, 2H, Ar-H), 7.11 (m, 2H, Ar-H), 6.48–6.36 (m, 4H, Ar-CH2-quinolinium), 3.47 (m, 2H, Cy-HN=CHR)), 2.59 (s, 6H, Py-CH3), 2.44 (t, J = 7.8, 4H, Ar-CH2C4H9), 1.96–1.84 (m, 4H, Cy-H2), 1.73–1.61 (m, 2H, Cy-H2), 1.54–1.38 (m, 6H, (CH2)pentyl and Cy-H2), 1.28–1.12 (m, 8H, (CH2)pentyl), 0.77 (t, J = 6.8, 6H, C4H9CH3). 13C-NMR (125 MHz, CDCl3, 20 °C): δ = 164.5, 158.6, 150.8, 147.6, 137.9, 135.7, 133.7, 133.3, 132.9, 130.9, 129.9, 122.0, 119.5, 119.0, 118.5, 71.1, 56.6, 34.6, 32.9, 31.3, 31.2, 24.1, 22.4, 14.1. IR (solid): line graphic = 3385, 2924, 2854, 1626, 1593, 1526, 1465, 1373, 1230, 1020, 769. MS (ESI) m/z: 616.4 (10%, [M]+−[quinoline]), 487.3 (80%, [M]+−2×[quinoline]), 373.2 (14%, [M]2+), 308.7 (100%, [M]2+−[quinoline]). HRMS (ESI) m/z: Anal. Calcd. for [[C50H58N4O2]2+]: 373.2274, found: 373.2284.
(R,R)-(−)-N,N'-Bis(3-pentyl-5-(4-(dimethylamino)pyridinium-1-ylmethyl)salicylidene)-1,2-cyclo- hexanediamine dibromide (14bF) was prepared according to GP4 using 12bF (2 eq., 0.30 mmol, 122.2 mg) and (1R,2R)-(−)-1,2-diaminocyclohexane (1 eq., 0.15 mmol, 17.1 mg). The product was formed as a yellow solid (0.14 mmol, 123.1 mg, 92%). C46H64Br2N6O2, MW: 892.85 g/mol. M.p.: 145.9–147.1 °C. line graphic (c = 10.2 mg/mL, CH2Cl2) = −269.1. 1H-NMR (300 MHz, CDCl3, 20 °C): δ = 13.91 (b, 2H, Ar-OH), 8.51 (d, J = 7.7, 4H, o-Py-H), 8.35 (s, 2H, Ar-CH=N-Cy), 7.73 (d, J = 1.9, 2H, Ar-H), 7.09 (d, J = 2.0, 2H, Ar-H), 6.89 (d, J = 7.8, 4H, m-Py-H), 5.50–5.37 (m, 4H, Ar-CH2-Py), 3.42 (m, 2H, Cy-HN=CHR)), 3.21 (s, 12H, Py-N(CH3)2), 2.47 (t, J = 7.8, 4H, Ar-CH2C4H9), 1.96–1.86 (m, 4H, Cy-H2), 1.74–1.59 (m, 2H, Cy-H2), 1.54–1.45 (m, 6H, (CH2)pentyl and Cy-H2), 1.33–1.20 (m, 8H, (CH2)pentyl), 0.82 (t, J = 6.7, 6H, C4H9CH3). 13C-NMR (125 MHz, CDCl3, 20 °C): δ = 164.5, 158.4, 156.2, 142.6, 134.4, 133.4, 132.5, 121.5, 118.5, 108.0, 71.5, 56.0, 40.6, 34.7, 33.0, 31.5, 31.3, 24.1, 22.5, 14.1. IR (solid): line graphic = 3378, 2924, 2855, 1643, 1563, 1443, 1400, 1226, 1160, 1027, 823, 775. MS (ESI) m/z: 487.3 (38%, [M]+−2×[Py]), 366.3 (26%, [M]2+), 305.2 (100%, [M]2+−[Py]). HRMS (ESI) m/z: Anal. Calcd. for [[C46H64N6O2]2+]: 366.2540, found: 366.2536.
(R,R)-(−)-N,N'-Bis(3-pentyl-5-(4-iodopyridinium-1-ylmethyl)salicylidene)-1,2-cyclohexanediamine dibromide (14bG) was prepared according to GP4 using 12bG (2 eq., 0.30 mmol, 147.1 mg) and (1R,2R)-(−)-1,2-diaminocyclohexane (1 eq., 0.15 mmol, 17.1 mg). The product was formed as a brown solid (0.14 mmol, 142.4 mg, 77%). C42H52Br2I2N4O2, MW: 1058.50 g/mol. M.p.: 221.2–223.7 °C (decomposition). line graphic (c = 9.6 mg/mL, DMSO) = −242.8. 1H-NMR (300 MHz, DMSO, 20 °C): δ = 14.19 (b, 2H, Ar-OH), 8.73 (d, J = 6.4, 4H, o-Py-H), 8.54 (d, J = 6.5, 4H, m-Py-H), 8.48 (s, 2H, Ar-CH=NCy), 7.47 (b, 2H, Ar-H), 7.20 (b, 2H, Ar-H), 5.69–5.60 (m, 4H, Ar-CH2-Py), 3.49 (m, 2H, Cy-HN=CHR)), 2.46 (m, 4H, Py-CH2C4H9), 1.93–1.86 (m, 4H, Cy-H2), 1.81–1.74 (m, 4H, (CH2)pentyl), 1.63–1.40 (m, 4H, Cy-H2), 1.33–1.19 (m, 8H, (CH2)pentyl), 0.84 (t, 6H, C4H8CH3). 13C-NMR (125 MHz, DMSO, 20 °C): δ = 165.4, 159.7, 144.0, 137.0, 134.7, 132.8, 132.7, 131.5, 121.1, 118.4, 117.4, 69.4, 58.9, 33.8, 32.2, 30.7, 30.4, 23.5, 21.8, 13.8. IR (solid): line graphic = 3396, 2923, 2852, 1615, 1441, 1160, 1026, 806. MS (ESI) m/z: 977.1 (1%, [M]+−[Br]), 4.87.3 (31%, [M]+−2×[Py]), 346.6 (100%, [M]2+−[Py]). HRMS (ESI) m/z: Anal. Calcd. for [[C42H52I2N4O2]2+]: 449.1084, found: 449.1105.

3.6. General Procedure for the Catalytic Asymmetric Synthesis of 3 (GP5)

To a solution of the salen ligand 14 (0.1 eq., 75 µmol) in CH2Cl2 (3 mL) a solution of Me3Al in toluene (2 M, 0.1 eq., 75 µmol, 38 µL) was added and the mixture was stirred for 3 h at ambient temperature. Afterwards aldehyde 1 (1 eq., 0.75 mmol), acylbromide 2 (6 eq., 4.5 mmol) and diisopropylethylamine (2.5 eq., 1.88 mmol) were added at −70 °C and the reaction mixture was stirred for 24 h at this temperature. The reaction was quenched by pouring into aqueous 1 M HCl (30 mL) and the product was extracted with CH2Cl2 (2 × 20 mL). The combined organic layers were dried over MgSO4 and filtered through a pad of silica gel. After removing the solvent in vacuo the desired trans-β-lactone 3 was obtained.
(3S,4S)-trans-3-Methyl-4-(2-phenylethyl)-oxetan-2-one (3Aa, 0.45 mmol, yield: 60%, ee = 90%, dr = 97:3) was prepared from propionyl bromide (1A) and 3-phenylpropionaldehyde (2a) according to GP5. The dr value was determined by 1H-NMR and the ee value by HPLC (Chiralcel OD-H, 97:3 n-hexane/ iPrOH, 1.0 mL/min, 210 nm). An analytically pure sample was obtained as a colorless oil by flash chromatography (pentane/diethyl ether 20:1). C12H14O2, MW: 190.24 g/mol. 1H-NMR (300 MHz, CDCl3, 20 °C): δ = 7.34–7.17 (m, 5H, Ar-H), 4.16 (ddd, J = 7.5, 5.9, 4.0, 1H, CH-O), 3.20 (qd, J = 7.5, 4.0, 1H, CH-C(O)), 2.77 (m, 2H, CH2-CH2-Ph), 2.13 (m, 2H, CH2-CH2-Ph), 1.32 (d, J = 7.5, 3H, CH3). The analytical data are in agreement with the literature [54].
(3S,4S)-trans-3-Methyl-4-ethyloxetan-2-one (3Ab, 0.44 mmol, yield: 59%, ee = 90%, dr = 98:2) was prepared from propionyl bromide (1A) and propanal (2b) according to GP5. The dr value was determined by 1H-NMR and the ee value by GC (Fisons Instruments HRGC Mega 2, Bondex-UN-β-column 20 m × 0.30 mm, 0.5 bar H2, method: 40 °C hold 5 min, ramp @ 2.5 °C/min till 100 °C, ramp @ 10.0 °C/min till 200 °C). An analytically pure sample was obtained as a colorless oil by flash chromatography (pentane/diethyl ether 20:1). C6H10O2, MW: 114.14 g/mol. 1H-NMR (300 MHz, CDCl3, 20 °C): δ = 4.13 (td, J = 6.6, 4.0, 1H, CH-O), 3.23 (qd, J = 7.5, 4.0, 1H, CH-C(O)), 1.97–1.72 (m, 2H, CH3-CH2-CH-O), 1.39 (d, J = 7.5, 3H, CH-CH3), 1.02 (t, J = 7.5, 3H, CH2-CH3). The analytical data are in agreement with the literature [54].
(3S,4S)-trans-3-Propyl-4-(2-phenylethyl)-oxetan-2-one (3Ba, 0.44 mmol, yield: 59%, ee = 95%, dr = 99:1) was prepared from valeroyl bromide (1B) and 3-phenylpropionaldehyde (2a) according to GP5. The dr value was determined by 1H-NMR and the ee value by HPLC (Chiralcel OD-H, 97:3 n-hexane/iPrOH, 1.0 mL/min, 210 nm). An analytically pure sample was obtained as a colorless oil by flash chromatography (CH2Cl2/pentane 3:1, then pentane/diethyl ether 40:1). C14H18O2, MW: 218.29 g/mol. 1H-NMR (300 MHz, CDCl3, 20 °C): δ =7.34–7.16 (m, 5H, Ar-H), 4.22 (ddd, J = 7.9, 5.0, 4.0, 1H, CH-O), 3.19 (ddd, J = 8.4, 6.9, 4.0, 1H, CH-C(O)), 2.75 (m, 2H, CH2-CH2-Ph), 2.11 (m, 2H, CH2-CH2-Ph), 1.70 (m, 2H, CH2-CH-C(O)), 1.41 (m, 2H, CH3-CH2-CH2), 0.92 (t, J = 7.3, 3H, CH3). The analytical data are in agreement with the literature [54].
(3S,4R)-trans-3-Methyl-4-phenyloxetan-2-one (3Ac, 0,18 mmol, yield 37%, ee = 96%, dr = 98:2) was prepared from propionyl bromide (1A) and benzaldehyde (2c) according to GP5, but using 0.49 mmol of aldehyde in 2 mL of CH2Cl2 and basic workup conditions. The reaction mixture was quenched with diisopropylethylamine (2 mL) and filtered through a short plug of Et3N-deactivated silica gel. CH2Cl2 was subsequently removed in vacuo. The crude mixture was purified by flash chromatography (Et3N-deactivated silica gel, ethyl acetate/petroleum ether 1:10). The dr value was determined by 1H-NMR and the ee value by HPLC (Chiralcel OD-H, 99:1 n-hexane/iPrOH, 0.5 mL/min, 210 nm). C10H10O2, MW: 162.18 g/mol. 1H-NMR (300 MHz, CDCl3, 20 °C): δ = 7.45–7.36 (m, 5H, Ar-H), 5.15 (d, J = 4.2, 1H, CH-O), 3.58 (qd, J = 7.5, 4.2, 1H, CH-C(O)), 1.53 (d, J = 7.5, 3H, CH3). The analytical data are in agreement with the literature [54].
Preformation of the catalyst {[1,1'-[(1R,2R)-1,2-cyclohexandiylbis[imino-к2N[5-pentyl-2-(hydroxy-к2O)-3,1-phenylen]methylen]bis[4-methyl-pyridinium]](2-)]-methylaluminum(III)}dibromide (4bB): To a solution of ligand 14bB (0.13 g, 0.16 mmol, 1.0 equiv.) in CH2Cl2 (3.0 mL) a solution of Me3Al in toluene (2 M, 0.10 mL, 0.16 mmol, 1.0 equiv.) was added. The mixture was stirred for 3 h at ambient temperature. The reaction mixture was poured into 20 mL of pentane to precipitate complex 4bB. Subsequently the mixture was centrifuged and the supernatant removed. Washing the catalyst with additional pentane (10 mL) and drying in vacuo afforded the active catalyst as orange powder in quantitative yield. C45H59AlBr2N4O2, MW: 874.77 g/mol. 1H-NMR (500 MHz, CD2Cl2, 20 °C): δ = 9.48 (m, 2H, o-Py-H), 9.42 (m, 2H, o-Py-H), 8.49 (m, 1H, Ar-CH=N-Cy), 8.15 (m, 1H, Ar-CH=NCy), 7.78 (m, 1H, m-Py-H), 7.74–7.71 (m, 3H, m-Py-H), 7.53 (d, J = 5.5, 2H, Ar-H), 7.28 (m, 1H, Ar-H), 7.24 (m, 1H, Ar-H), 6.52 (d, J = 13.7, 1H, Ar-CH2-Py), 6.38 (d, J = 13.5, 1H, Ar-CH2-Py), 5.98 (d, J = 13.7, 1H, Ar-CH2-Py), 5.86 (d, J = 13.5, 1H, Ar-CH2-Py), 3.63 (m, 1H, Cy-HN=CHR), 3.15 (m, 1H, Cy-HN=CHR), 2.61–2.45 (m, 11H, Cy-H2 and (CH2)pentyl and Py-CH3), 2.34 (m, 1H, Cy-H2), 2.05 (m, 2H, Cy-H2), 1.66–1.58 (m, 4H), 1.52–1.45 (m, 4H), 1.39–1.26 (m, 8H, (CH2)pentyl), 0.93–0.87 (m, 6H, (CH2)pentyl), −1.31 (s, 3H, Al-CH3). 13C-NMR (125 MHz, CD2Cl2, 20 °C): δ = 168.8, 162.1, 161.3, 160.7, 158.7, 158.4, 144.6, 144.5, 138.5, 136.9, 135.5, 134.5, 131.9, 131.3, 127.9, 127.7, 124.9, 124.3, 119.2, 119.1, 66.2, 62.5, 60.6, 60.1, 34.4, 31.5, 31.4, 31.2, 31.2, 29.7, 26.9, 24.1, 23.7, 22.5, 22.3, 21.9, 13.9, 13.8. MS (ESI) m/z: 793.4 (100%, [M]+–Br) 700.3 (86%, [M]+–Py–Br). HRMS (ESI) m/z: Anal. Calcd. for [[C45H59AlBrN4O2]+]: 793.3631, found: 793.3620.

4. Conclusions

In summary, we have reported a catalyst which offers the highest enantio- and trans-selectivity known so far for the catalytic asymmetric synthesis of β-lactones by [2+2] cyclocondensation of acyl halides and aldehydes. Catalysts for the asymmetric formation of trans-β-lactones are of major interest, since trans-β-lactones offer a divergent and atom-economic access to the important class of anti-aldol products. In our catalyst, an Al-center (offering a single coordination site) cooperates with a picolinium bromide moiety based on our recently published strategy to combine the concepts of Lewis acid and organic aprotic ion pair catalysis in a single catalyst system. Since cationic residues like pyridinium units have been found to be essential for both high trans- and enantioselectivity (suggesting that the positive charge enables an ion pair catalysis pathway), we have investigated the question, if substituents on the pyridinium rings can be utilized to further improve the catalyst efficiency, as they might display a significant impact on the effective charges. In the present study we have thus compared a small library of aluminum-salen/bispyridinium catalysts, mainly differing in the substituents on the pyridinium rings. NBO calculations have revealed though that the different catalyst efficiencies can arguably not be explained by the variation of the effective charges, since there are only very small differences for σ-donor or σ-acceptor substituted pyridinium systems. However, we have noticed that the substituents have a major impact on the catalyst stability and presumably they have also an impact on the reactive conformation of the proposed acyl halide enolate intermediates.

Acknowledgements

This work was financially supported by the Deutsche Forschungsgemeinschaft (DFG, PE 818/3-1). We thank Thomas Kull (Peters group) for initial investigations on substituent effects.

References and Notes

  1. Lowe, C.; Vederas, J.C. Naturally occurring β-lactones: Occurrence, syntheses and properties. A review. Org. Prep. Proceed. Int. 1995, 27, 305–346. [Google Scholar] [CrossRef]
  2. Pommier, A.; Pons, J.-M. The Synthesis of Natural 2-Oxetanones. Synthesis 1995, 729–744. [Google Scholar] [CrossRef]
  3. Feling, R.H.; Buchanan, G.O.; Mincer, T.J.; Kauffman, C.A.; Jensen, P.R.; Fenical, W. Salinosporamide A: A Highly Cytotoxic Proteasome Inhibitor from a Novel Microbial Source, a Marine Bacterium of the New Genus Salinospora. Angew. Chem. Int. Ed. Engl. 2003, 42, 355–357. [Google Scholar] [CrossRef]
  4. Masse, C.; Morgan, J.; Adams, J.; Panek, J. Syntheses and Biological Evaluation of (+)-Lactacystin and Analogs. Eur. J. Org. Chem. 2000, 2513–2528. [Google Scholar]
  5. Kridel, S.J.; Axelrod, F.; Rosenkrantz, N.; Smith, J.W. Orlistat Is a Novel Inhibitor of Fatty Acid Synthase with Antitumor Activity. Cancer Res. 2004, 64, 2070–2075. [Google Scholar] [CrossRef]
  6. Knowles, L.M.; Axelrod, F.; Browne, C.D.; Smith, J.W. A Fatty Acid Synthase Blockade Induces Tumor Cell-cycle Arrest by Down-regulating Skp2. J. Biol. Chem. 2004, 279, 30540–30545. [Google Scholar]
  7. Yang, P.-Y.; Liu, K.; Hong Ngai, M.; Lear, M.J.; Wenk, M.R.; Yao, S.Q. Activity-Based Proteome Profiling of Potential Cellular Targets of Orlistat—An FDA-Approved Drug with Anti-Tumor Activities. J. Am. Chem. Soc. 2010, 132, 656–666. [Google Scholar] [CrossRef]
  8. Greenberg, A.; Liebman, J.F. Strained Organic Molecules; Academic Press: New York, NY, USA, 1978. [Google Scholar]
  9. Yang, H.W.; Romo, D. Methods for the synthesis of optically active β-lactones (2-oxetanones). Tetrahedron 1999, 55, 6403–6434. [Google Scholar] [CrossRef]
  10. Wang, Y.; Tennyson, R.L.; Romo, D. β-Lactones as Intermediates for Natural Product Total Synthesis and New Transformations. Heterocycles 2004, 64, 605–658. [Google Scholar] [CrossRef]
  11. Nelson, S.G.; Wan, Z. Catalytic Asymmetric Propionate Aldol Reactions via Acyl Halide-Aldehyde Cyclocondensations. Org. Lett. 2000, 2, 1883–1886. [Google Scholar] [CrossRef]
  12. Zipp, G.G.; Hilfiker, M.A.; Nelson, S.G. Enantioenriched Dihydropyrones from β-Lactone Templates. Org. Lett. 2002, 4, 1823–1826. [Google Scholar] [CrossRef]
  13. Nelson, S.G.; Cheung, W.S.; Kassick, A.J.; Hilfiker, M.A. A de Novo Enantioselective Total Synthesis of (−)-Laulimalide. J. Am. Chem. Soc. 2002, 124, 13654–13655. [Google Scholar]
  14. Palomo, C.; Oiarbide, M.; Garcia, J.M. Current progress in the asymmetric aldol addition reaction. Chem. Soc. Rev. 2004, 33, 65–75. [Google Scholar]
  15. Tidwell, T.T. Ketenes; Wiley: Hoboken, NJ, USA, 2006. [Google Scholar]
  16. Tidwell, T.T. Ketene Chemistry after 100 Years: Ready for a New Century. Eur. J. Org. Chem. 2006, 563–576. [Google Scholar] [CrossRef]
  17. Tidwell, T.T. The First Century of Ketenes (1905–2005): The Birth of a Versatile Family of Reactive Intermediates. Angew. Chem. Int. Ed. Engl. 2005, 44, 5778–5785. [Google Scholar] [CrossRef]
  18. Paull, D.H.; Weatherwax, A.; Lectka, T. Catalytic, asymmetric reactions of ketenes and ketene enolates. Tetrahedron 2009, 65, 6771–6803. [Google Scholar]
  19. Orr, R.K.; Calter, M.A. Asymmetric synthesis using ketenes. Tetrahedron 2003, 59, 3545–3565. [Google Scholar]
  20. Tamai, Y.; Yoshiwara, H.; Someya, M.; Fukumoto, J.; Miyano, S. Asymmetric [2+2] cycloaddition of ketene with aldehydes catalysed by chiral bissulfonamide-trialkylaluminium complexes. J. Chem. Soc. Chem. Commun. 1994, 2281–2282. [Google Scholar]
  21. Dymock, B.W.; Kocienski, P.J.; Pons, J.-M. 3-(Trimethylsilyl)oxetan-2-ones via enantioselective [2+2] cycloaddition of (trimethylsilyl)ketene to aldehydes catalysed by methylaluminiomidazolines. Chem. Commun. 1996, 1053–1054. [Google Scholar]
  22. Yang, H.W.; Romo, D. Studies of the asymmetric [2+2] cycloaddition of silylketenes and aldehydes employing Ti-TADDOL catalysts. Tetrahedron Lett. 1998, 39, 2877–2880. [Google Scholar] [CrossRef]
  23. Nelson, S.G.; Peelen, T.J.; Wan, Z. Catalytic Asymmetric Acyl Halide-Aldehyde Cyclocondensations. A Strategy for Enantioselective Catalyzed Cross Aldol Reactions. J. Am. Chem. Soc. 1999, 121, 9742–9743. [Google Scholar]
  24. Evans, D.A.; Janey, J.M. C 2-Symmetric Cu(II) Complexes as Chiral Lewis Acids. Catalytic, Enantioselective Cycloadditions of Silyl Ketenes. Org. Lett. 2001, 3, 2125–2128. [Google Scholar]
  25. Nelson, S.G.; Wan, Z. Catalytic Asymmetric Propionate Aldol Reactions via Acyl Halide−Aldehyde Cyclocondensations. Org. Lett. 2000, 2, 1883–1886. [Google Scholar] [CrossRef]
  26. Nelson, S.G.; Zhu, C.; Shen, X. Catalytic Asymmetric Acyl Halide-Aldehyde Cyclocondensation Reactions of Substituted Ketenes. J. Am. Chem. Soc. 2004, 126, 14–15. [Google Scholar] [CrossRef]
  27. Forslund, R.E.; Cain, J.; Colyer, J.; Doyle, M.P. Chiral Dirhodium(II) Carboxamidate-Catalyzed [2+2]-Cycloaddition of TMS-Ketene and Ethyl Glyoxylate. Adv. Synth. Catal. 2005, 347, 87–92. [Google Scholar] [CrossRef]
  28. Kull, T.; Peters, R. Practical Enantioselective Synthesis of β-Lactones Catalyzed by Aluminum Bissulfonamide Complexes. Adv. Synth. Catal. 2007, 349, 1647–1652. [Google Scholar] [CrossRef]
  29. Schneider, C. Catalytic, Enantioselective Syntheses of β-Lactones—Versatile Synthetic Building Blocks in Organic Chemistry. Angew. Chem. Int. Ed. 2002, 41, 744–746. [Google Scholar] [CrossRef]
  30. Borrmann, D.; Wegler, R. Über die Umsetzung von Carbonylverbindungen mit Säurechloriden in Gegenwart tertiärer Amine, II. Optisch aktive β-Lactone. Chem. Ber. 1967, 100, 1575–1575. [Google Scholar]
  31. Wynberg, H.; Staring, E.G.J. Asymmetric synthesis of (S)- and (R)-malic acid from ketene and chloral. J. Am. Chem. Soc. 1982, 104, 166–168. [Google Scholar]
  32. Wynberg, H.; Staring, E.G.J. Catalytic asymmetric synthesis of chiral 4-substituted 2-oxetanones. J. Org. Chem. 1985, 50, 1977–1979. [Google Scholar]
  33. Cortez, G.S.; Tennyson, R.L.; Romo, D. Intramolecular, Nucleophile-Catalyzed Aldol-Lactonization (NCAL) Reactions: Catalytic, Asymmetric Synthesis of Bicyclic β-Lactones. J. Am. Chem. Soc. 2001, 123, 7945–7946. [Google Scholar] [CrossRef]
  34. Wilson, J.E.; Fu, G.C. Asymmetric Synthesis of Highly Substituted β-Lactones by Nucleophile-Catalyzed [2+2] Cycloadditions of Disubstituted Ketenes with Aldehydes. Angew. Chem. Int. Ed. 2004, 43, 6358–6360. [Google Scholar] [CrossRef]
  35. Oh, S.H.; Cortez, G.S.; Romo, D. Asymmetric Synthesis of Bicyclic β-Lactones via the Intramolecular, Nucleophile-Catalyzed Aldol Lactonization: Improved Efficiency and Expanded Scope. J. Org. Chem. 2005, 70, 2835–2838. [Google Scholar]
  36. Henry-Riyad, H.; Lee, C.; Purohit, V.C.; Romo, D. Bicyclic- and Tricyclic-β-lactones via Organonucleophile-Promoted Bis-Cyclizations of Keto Acids: Enantioselective Synthesis of (+)-Dihydroplakevulin. Org. Lett. 2006, 8, 4363–4366. [Google Scholar] [CrossRef]
  37. Mondal, M.; Ibrahim, A.A.; Wheeler, K.A.; Kerrigan, N.J. Phosphine-Catalyzed Asymmetric Synthesis of β-Lactones from Arylketoketenes and Aromatic Aldehydes. Org. Lett. 2010, 12, 1664–1667. [Google Scholar] [CrossRef]
  38. Zhu, C.; Shen, X.; Nelson, S.G. Cinchona Alkaloid-Lewis Acid Catalyst Systems for Enantioselective Ketene−Aldehyde Cycloadditions. J. Am. Chem. Soc. 2004, 126, 5352–5353. [Google Scholar] [CrossRef]
  39. Calter, M.A.; Tretyak, O.A.; Flaschenriem, C. Formation of Disubstituted β-Lactones Using Bifunctional Catalysis. Org. Lett. 2005, 7, 1809–1812. [Google Scholar]
  40. Gnanadesikan, V.; Corey, E.J. Enantioselective β-Lactone Formation from Ketene and Aldehydes Catalyzed by a Chiral Oxazaborolidine. Org. Lett. 2006, 8, 4943–4945. [Google Scholar] [CrossRef]
  41. Lin, Y.-M.; Boucau, J.; Li, Z.; Casarotto, V.; Lin, J.; Nguyen, A.N.; Ehrmantraut, J. A Lewis Acid-Lewis Base Bifunctional Catalyst from a New Mixed Ligand. Org. Lett. 2007, 9, 567–570. [Google Scholar]
  42. Chidara, S.; Lin, Y.-M. Reaction rate acceleration enabled by tethered Lewis acid-Lewis base bifunctional catalysis: A catalytic, enantioselective [2+2] ketene aldehyde cycloaddition reaction. Synlett 2007, 9, 1675–1679. [Google Scholar]
  43. Denmark, S.E.; Wynn, T.; Beutner, G.L. Lewis Base Activation of Lewis Acids. Addition of Silyl Ketene Acetals to Aldehydes. J. Am. Chem. Soc. 2002, 124, 13405–13407. [Google Scholar]
  44. Ishitani, H.; Yamashita, Y.; Shimizu, H.; Kobayashi, S. Highly anti-Selective Catalytic Asymmetric Aldol Reactions. J. Am. Chem. Soc. 2000, 122, 5403–5404. [Google Scholar] [CrossRef]
  45. Denmark, S.E.; Chung, W.-J. Lewis Base Activation of Lewis Acids: Catalytic Enantioselective Glycolate Aldol Reactions. Angew. Chem. Int. Ed. 2008, 47, 1890–1892. [Google Scholar] [CrossRef]
  46. Yoshikawa, N.; Kumagai, N.; Matsunaga, S.; Moll, G.; Ohshima, T.; Suzuki, T.; Shibasaki, M. Direct Catalytic Asymmetric Aldol Reaction: Synthesis of Either syn- or anti-α,β-Dihydroxy Ketones. J. Am. Chem. Soc. 2001, 123, 2466–2467. [Google Scholar] [CrossRef]
  47. Lecea, B.; Arrieta, A.; Lopez, X.; Ugalde, J.M.; Cossio, F.P. J. Am. Chem. Soc. 1995, 117, 12314–12321. [CrossRef]
  48. Pons, J.-M.; Oblin, M.; Pommier, A.; Rajzmann, M.; Liotard, D. Formation of β-Lactones through Lewis Acid-Promoted [2+2] Cycloaddition Reaction. A Theoretical Study. J. Am. Chem. Soc. 1997, 119, 3333–3338. [Google Scholar]
  49. Singleton, D.A.; Wang, Y.; Yang, H.W.; Romo, D. Mechanism and Origin of Stereoselectivity in Lewis Acid Catalyzed [2+2] Cycloadditions of Ketenes with Aldehydes. Angew. Chem. Int. Ed. Engl. 2002, 41, 1572–1575. [Google Scholar] [CrossRef]
  50. Shen, X.; Wasmuth, A.S.; Zhao, J.; Zhu, C.; Nelson, S.G. Catalytic Asymmetric Assembly of Stereodefined Propionate Units: An Enantioselective Total Synthesis of (−)-Pironetin. J. Am. Chem. Soc. 2006, 128, 7438–7439, For a trans-diastereoselective Lewis acid-Lewis base catalyzed procedure using chiral enantiopure aldehydes. . [Google Scholar] [CrossRef]
  51. Mulzer, J.; Kerkmann, T. α Deprotonation of β-lactones—An example of a forbidden β elimination. J. Am. Chem. Soc. 1980, 102, 3620–3622, For trans-selective alkylation of β-lactones. . [Google Scholar] [CrossRef]
  52. Mulzer, J.; Chucholowski, A.; Lammer, O.; Ibrill, I.; Huttner, G. Diastereoselective Michael additions of β-lactone enolates to dimethyl maleate. J. Chem. Soc. Chem. Commun. 1983, 869–871. [Google Scholar]
  53. Kull, T.; Peters, R. Contact Ion Pair Directed Lewis Acid Catalysis: Asymmetric Synthesis of trans-Configured β-Lactones. Angew. Chem. Int. Ed. Engl. 2008, 47, 5461–5464. [Google Scholar] [CrossRef]
  54. Kull, T.; Cabrera, J.; Peters, R. Catalytic Asymmetric Synthesis of trans-Configured β-Lactones: Cooperation of Lewis Acid and Ion Pair Catalysis. Chem. Eur. J. 2010, 16, 9132–9139. [Google Scholar]
  55. Nelson, S.G.; Peelen, T.J.; Wan, Z. Mechanistic alternatives in Lewis acid-catalyzed acyl halide-aldehyde cyclocondensations. Tetrahedron Lett. 1999, 40, 6541–6543, Mechanistic studies by Nelson et al. support a ketene-aldehyde reaction pathway as the operative mechanism in AlIII-catalyzed acid chloride/aldehyde cyclocondensations. In contrast, for TiIV-catalyzed reactions providing racemic dioxanones acyl halide enolates were suggested as reactive intermediates. . [Google Scholar] [CrossRef]
  56. Rosenberg, R.E. Enols and Enolates of Carboxylic Acid Derivatives. A G2(MP2) ab Initio Study. J. Org. Chem. 1998, 63, 5562–5567, Species such as H2C=C(O)−Cl proved computationally unstable relative to ketene and chloride.. [Google Scholar]
  57. Brady, W.T.; Scherubel, G.A. Halogenated ketenes. XXIII. Mechanism of the dehydrohalogenation of acid halides. J. Am. Chem. Soc. 1973, 95, 7447–7449, Ammonium salts of acid chloride enolates can be isolated, if the electron density of the enolate C atom is stabilized by an electron withdrawing group such as a Cl atom. Studies by Brady and Scherubel have shown that the enolate forming step is reversible. In contrast, in the absence of an electron withdrawing substituent, the enolate salts could neither be isolated nor detected spectroscopically as a result of their instability.. [Google Scholar]
  58. Brady, W.T.; Scherubel, G.A. Halogenated ketenes. XXVII. Mechanism of the dehydrohalogenation of α-halo acid halides. J. Org. Chem. 1974, 39, 3790–3791. [Google Scholar]
  59. Yoon, T.P.; Jacobsen, E.N. Privileged Chiral Catalysts. Science 2003, 299, 1691–1693. [Google Scholar] [CrossRef]
  60. Matsumoto, K.; Saito, B.; Katsuki, T. Asymmetric catalysis of metal complexes with non-planar ONNO ligands: Salen, salalen and salan. Chem. Commun. 2007, 35, 3619–3627. [Google Scholar]
  61. Myers, J.K.; Jacobsen, E.N. Asymmetric Synthesis of β-Amino Acid Derivatives via Catalytic Conjugate Addition of Hydrazoic Acid to Unsaturated Imides. J. Am. Chem. Soc. 1999, 121, 8959–8960. [Google Scholar] [CrossRef]
  62. Cabrera, J.; Hellmuth, T.; Peters, R. Synthesis of Densely Substituted Trans-Configured 4-Acylated Piperidine-2,4-diones as 3:1 adducts of Imines and Ketenes. J. Org. Chem. 2010, 75, 4326–4329. [Google Scholar]
  63. Tiseni, P.S.; Peters, R. Catalytic Asymmetric Formation of d-Lactones from Unsaturated Acyl Halides. Chem. Eur. J. 2010, 16, 2503–2517. [Google Scholar] [CrossRef]
  64. Tiseni, P.S.; Peters, R. Lewis Acid-Lewis Base Catalyzed Enantioselective Hetero-Diels-Alder Reaction for Direct Access to d-Lactones. Org. Lett. 2008, 10, 2019–2022. [Google Scholar] [CrossRef]
  65. Tiseni, P.S.; Peters, R. Catalytic Asymmetric Formation of d-Lactones by [4+2]-Cycloaddition of Zwitterionic Dienolates Generated fromα,β-Unsaturated Acid Chlorides. Angew. Chem. Int. Ed. 2007, 46, 5325–5328. [Google Scholar] [CrossRef]
  66. Koch, F.M.; Peters, R. Lewis-Acid/Lewis-Base Catalyzed [2+2]-Cycloaddition of Sulfenes and Aldehydes: A Versatile Entry to Chiral Sulfonyl and Sulfinyl Derivatives. Chem. Eur. J. 2011, 17, 3679–3692. [Google Scholar]
  67. Zajac, M.; Peters, R. Catalytic Asymmetric Synthesis of β-Sultams as Precursors for Taurine Derivatives. Chem. Eur. J. 2009, 15, 8204–8222. [Google Scholar] [CrossRef]
  68. Peters, R.; Fischer, D.F.; Jautze, S.; Koch, F.M.; Kull, T.; Tiseni, P.S.; Xin, Z.-Q.; Zajac, M. Catalytic Methods for Direct Access to Chiral High-Added-Value Products. Chimia 2008, 62, 497–505. [Google Scholar]
  69. Koch, F.M.; Peters, R. Rapid Asymmetric Access to β-Hydroxysulfinic Acids and Allylsulfonic Acids by Chemoselective Reduction of β-Sultones. Synlett 2008, 1505–1509. [Google Scholar]
  70. Zajac, M.; Peters, R. Catalytic Asymmetric Formation of β-Sultams. Org. Lett. 2007, 9, 2007–2010. [Google Scholar] [CrossRef]
  71. Koch, F.M.; Peters, R. First Catalytic Enantio- and Diastereoselective Formation of β-Sultones: Ring-Strained Precursors for Enantioenriched β-Hydroxysulfonyl Derivatives. Angew. Chem. Int. Ed. 2007, 46, 2685–2689. [Google Scholar]
  72. Bhatt, S.; Nayak, S.K. Reductive deoxygenation of ortho-hydroxyaromatic aldehydes to 1,2-bis(hydroxyaryl)ethanes: Application to the synthesis of ethylene bridged calixarene-analogous metacyclophanes. Tetrahedron Lett. 2009, 50, 5823. [Google Scholar] [CrossRef]
  73. Hofsløkken, N.U.; Skattebøl, L. Convenient Method for the ortho-Formylation of Phenols. Acta Chem. Scand. 1999, 53, 258. [Google Scholar] [CrossRef]
  74. Wang, Q.; Wilson, C.; Blake, A.J.; Collinson, S.R.; Tasker, P.A.; Schröder, M. The one-pot halomethylation of 5-substituted salicylaldehydes as convenient precursors for the preparation of heteroditopic ligands for the binding of metal salts. Tetrahedron Lett. 2006, 47, 8983–8986. [Google Scholar] [CrossRef]
  75. Precipitation of catalyst 14aB is for instance visible at −70 °C prior to addition of the reagents.
  76. Larrow, J.F.; Jacobsen, E.N. Asymmetric processes catalyzed by chiral (salen)metal complexes. Top. Organomet. Chem. 2004, 6, 123–152. [Google Scholar]
  77. Pommier, A.; Pons, J.M. Recent Advances in β-Lactone Chemistry. Synthesis 1993, 441–459. [Google Scholar] [CrossRef]
  78. Konsler, R.G.; Karl, J.; Jacobsen, E.N. Cooperative Asymmetric Catalysis with Dimeric Salen Complexes. J. Am. Chem. Soc. 1998, 120, 10780–10781. [Google Scholar] [CrossRef]
  79. Weber, M.; Jautze, S.; Frey, W.; Peters, R. Bis-Palladacycle Catalyzed Brønsted-Acid/-Base Promoted Asymmetric Tandem Azlactone Formation-Michael Addition. J. Am. Chem. Soc. 2010, 132, 12222–12225. [Google Scholar] [CrossRef]
  80. Jautze, S.; Peters, R. Bimetallic Enantioselective Catalysis of Michael Additions Forming Quaternary Stereocenters. Angew. Chem. Int. Ed. Engl. 2008, 47, 9284–9288. [Google Scholar] [CrossRef]
  81. Jautze, S.; Seiler, P.; Peters, R. Synthesis of nearly Enantiopure Allylic Amines by Aza-Claisen Rearrangement of Z-Configured Allylic Trifluoroacetimidates Catalyzed by Highly Active Ferrocenylbispalladacycles. Chem. Eur. J. 2008, 14, 1430–1444. [Google Scholar] [CrossRef]
  82. Jautze, S.; Seiler, P.; Peters, R. Angew. Chem. Int. Ed. Engl. 2007, 46, 1260–1264. [CrossRef]
  83. Satyanarayana, T.; Abraham, S.; Kagan, H.B. Nonlinear Effects in Asymmetric Catalysis. Angew. Chem. Int. Ed. Engl. 2009, 48, 456–494. [Google Scholar] [CrossRef]
  84. Werner, H.-J.; Knowles, P.J.; Manby, F.R.; Schütz, M.; Celani, P.; Knizia, G.; Korona, T.; Lindh, R.; Mitrushenkov, A.; Rauhut, G.; et al. MOLPRO, 2010; 1, a package of ab initio programs .
  85. Wang, X.-L.; Wan, H.; Guan, G.-F. Structure and Interaction of Ion-Pairs of [EPy]Cl and [EPy]Br in Gas and Liquid Phases. Acta Phys.-Chim. Sin. 2008, 24, 2077–2082. [Google Scholar]
  86. 86. This might also explain why the standard salen ligand with tBu moieties showed no reactivity at all for the title reaction.
  87. Katsuki, T. Some recent advances in metallosalen chemistry. Synlett 2003, 281–297. [Google Scholar] [CrossRef]
  88. Katsuki, T. Unique asymmetric catalysis of cis-βmetal complexes of salen and its related Schiff-base ligands. Chem. Soc. Rev. 2004, 33, 437–444. [Google Scholar] [CrossRef]
  89. Jacobsen, H. Computational Studies of the Hydrolytic Kinetic Resolution of Terminal Epoxides Catalysed by Co(salen) Complexes: Evaluation of Suitable Model Systems and Appropriate Density Functional Approaches. In Frontiers in Organometallic Chemistry; Cato, M.A., Ed.; Nova Science Publishers: New York, NY, USA, 2006; pp. 1–16. [Google Scholar]
  90. Darensbourg, D.J.; Billodeaux, D.R. Aluminum Salen Complexes and Tetrabutylammonium Salts: A Binary Catalytic System for Production of Polycarbonates from CO2 and Cyclohexene Oxide. Inorg. Chem. 2005, 44, 1433–1442. [Google Scholar] [CrossRef]
  91. Yu, X.; Scheller, D.; Rademacher, O.; Wolff, T. Selectivity in the Photodimerization of 6-Alkylcoumarins. J. Org. Chem. 2003, 68, 7386–7399. [Google Scholar] [CrossRef]
  92. Aldoshin, S.M.; Sanina, N.A.; Minkin, V.I.; Voloshin, N.A.; Ikorskii, V.N.; Oveharenko, V.I.; Smirnov, V.A.; Nagaeva, N.K. Molecular photochromic ferromagnetic based on the layered polymeric tris-oxalate of Cr(III), Mn(II) and 1-[(1′,3′,3′-trimethyl-6-nitrospiro[2H-1-benzopyran-2,2′-indoline]-8-yl)methyl]pyridinium. J. Mol. Struct. 2007, 826, 69–74. [Google Scholar] [CrossRef]
  • Samples Availability: Not available.

Share and Cite

MDPI and ACS Style

Meier, P.; Broghammer, F.; Latendorf, K.; Rauhut, G.; Peters, R. Cooperative Al(Salen)-Pyridinium Catalysts for the Asymmetric Synthesis of trans-Configured β-Lactones by [2+2]-Cyclocondensation of Acylbromides and Aldehydes: Investigation of Pyridinium Substituent Effects. Molecules 2012, 17, 7121-7150. https://doi.org/10.3390/molecules17067121

AMA Style

Meier P, Broghammer F, Latendorf K, Rauhut G, Peters R. Cooperative Al(Salen)-Pyridinium Catalysts for the Asymmetric Synthesis of trans-Configured β-Lactones by [2+2]-Cyclocondensation of Acylbromides and Aldehydes: Investigation of Pyridinium Substituent Effects. Molecules. 2012; 17(6):7121-7150. https://doi.org/10.3390/molecules17067121

Chicago/Turabian Style

Meier, Patrick, Florian Broghammer, Katja Latendorf, Guntram Rauhut, and René Peters. 2012. "Cooperative Al(Salen)-Pyridinium Catalysts for the Asymmetric Synthesis of trans-Configured β-Lactones by [2+2]-Cyclocondensation of Acylbromides and Aldehydes: Investigation of Pyridinium Substituent Effects" Molecules 17, no. 6: 7121-7150. https://doi.org/10.3390/molecules17067121

Article Metrics

Back to TopTop
