Synthesis and Antibacterial Evaluation of Novel Heterocyclic Compounds Containing a Sulfonamido Moiety

Abstract

Aiming for the synthesis of new heterocyclic compounds containing a sulfonamido moiety suitable for use as antibacterial agents, the precursor ethyl {[4-N-(4,6-dimethylpyrimidin-2-yl)sulfamoyl]phenylazo}cyanoacetate was reacted with a variety of active methylene compounds producing pyran, pyridine and pyridazine derivatives. Also, the reactivity of the precursor hydrazone towards hydrazine derivatives to give pyrazole and oxazole derivatives was studied. On the other hand, treatment of the same precursor with urea, thiourea and/or guanidine hydrochloride furnished pyrimidine and thiazine derivatives, respectively. The newly synthesized compounds were tested for antibacterial activity, whereby eight compounds were found to have high activities.

1. Introduction

Simple nitrogen-containing heterocycles attached to sulfonamido moieties have received a large amount of attention in the literature, as a consequence of their exciting biological properties and their role as pharmacophores of considerable historical importance. Heterocyclic sulfonamides are used as carbonic anhydrase inhibitors [1,2,3], antibacterial agents [4], anticancer, anti-inflammatory and analgesic agents [5], β3-adrenergic receptor agonists [6], PC-1 inhibitors [7], antifungal agents [8] and antiviral agents [9]. For these vast biological activities and in continuation of our work [10,11,12,13,14,15,16,17,18] on the synthesis of novel heterocyclic systems exhibiting biological activity, we undertook the synthesis of a new series of compounds incorporating the abovementioned biologically active moieties in one molecule.

2. Results and Discussion

2.1. Chemistry

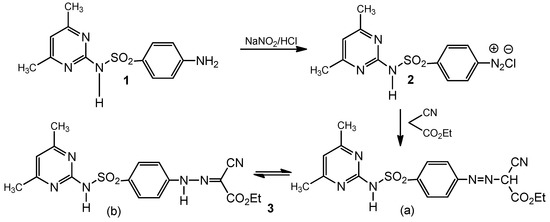

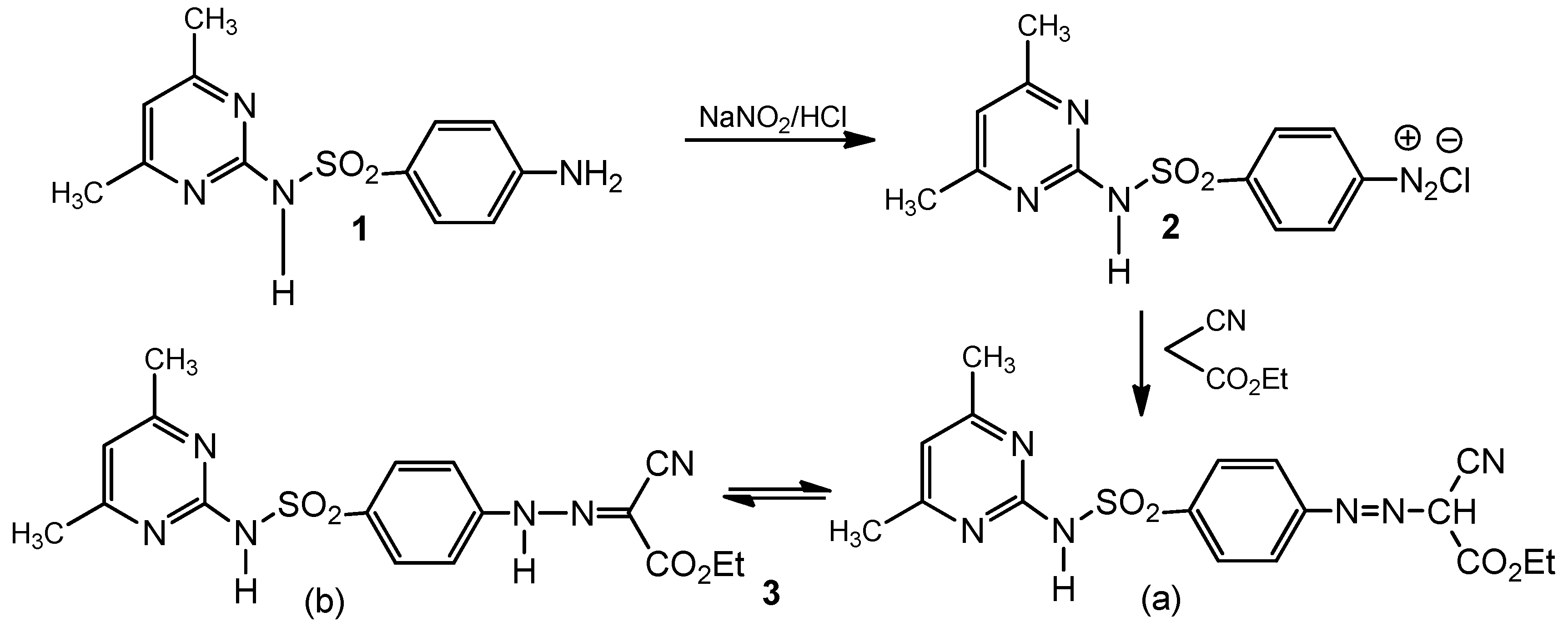

Synthesis of the precursor hydrazone 3 was achieved by diazotization of sulfamethazine, [N¹-(4,6-dimethyl-2-pyrimidinyl)sulfanilamide, 1] followed by coupling with ethyl cyanoacetate in the presence of sodium acetate at room temperature [19] (Scheme 1). The spectral data revealed that this compound exists in the hydrazone form (b), as the ¹H-NMR spectrum showed two (exchangeable) signals at 6.91 and 9.12 corresponding to two NH groups and the MS indicated the molecular ion peak at 402, which is in accordance with the molecular formula.

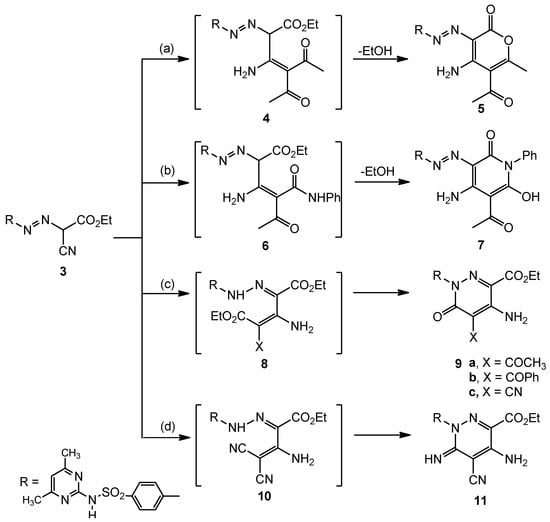

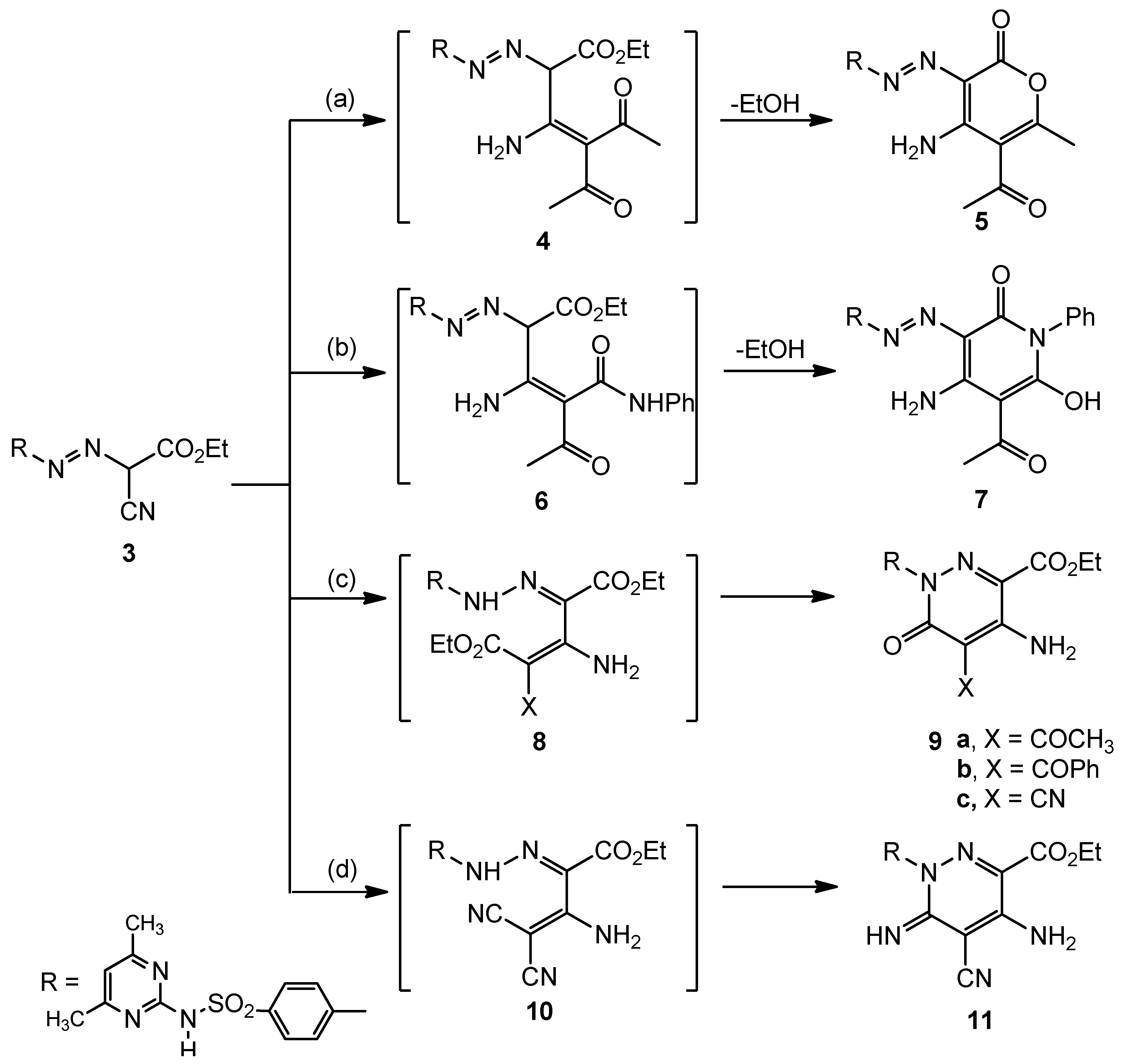

The reactivity of compound 3 towards active methylene reagents was investigated. Firstly, reaction of hydrazone 3 with dicarbonyl compounds was studied. Thus, when compound 3 reacted with acetylacetone in refluxing dioxane in the presence of catalytic amounts of triethylamine, the pyranone derivative 5 was obtained. Formation of 5 is believed to be formed via the intermediate 4 followed by the intramolecular cyclization with loss of an ethanol molecule. The structure of 5 was confirmed by the analytical and spectral data. Similarly, reaction of 3 with acetoacetanilide under the same reaction conditions afforded the pyridinone derivative 7 which is formed through the intermediate 6 followed by loss of an ethanol molecule (Scheme 2).

Secondly, the behavior of 3 with other active methylene compounds, such as ethyl acetoacetate, ethyl benzoylacetate, ethyl cyanoacetate and malononitrile, was investigated. This investigation resulted in the synthesis of polyfunctional substituted pyridazine derivatives 9a–c, through the intermediate 8 and 11 through the intermediate 10, respectively (Scheme 2). The structures of the synthesized compounds were elucidated based on their spectral data.

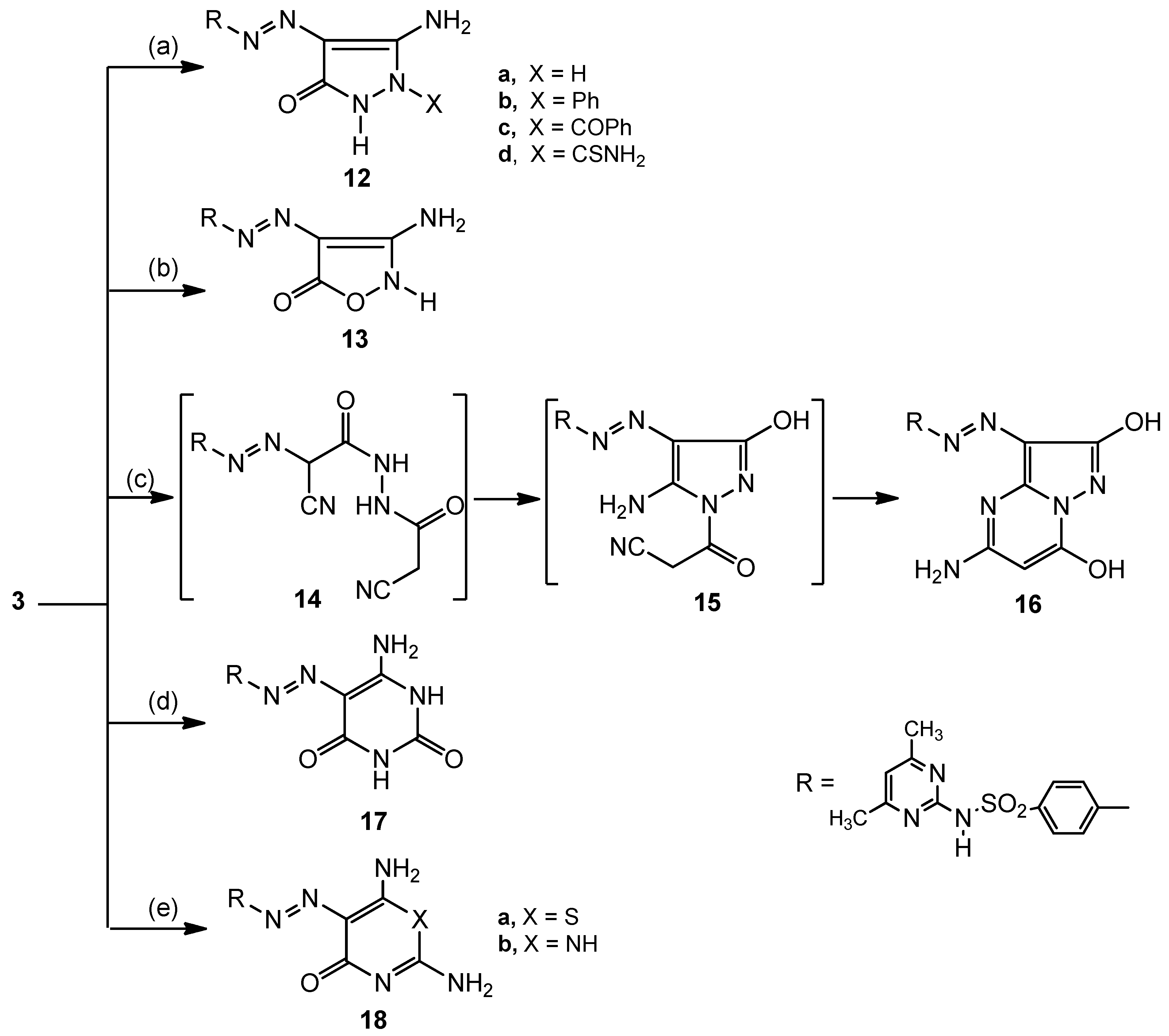

The behaviour of 3 towards hydrazine derivatives was examined in order to prepare pyrazoles. Thus, treatment of 3 with hydrazine hydrate [20] (98%), phenylhydrazine, benzoylhydrazine or thiosemicarbazide [21] furnished the aminopyrazole derivatives 12a–d, respectively. On the other hand, reaction of 3 with hydroxylamine hydrochloride in the presence of sodium acetate produced the isoxazole derivative 13 (Scheme 3). The structure of the prepared compounds were in accordance with their spectral data.

Pyrazolopyrimidine [22] derivative 16 was obtained when the hydrazone 3 was treated with cyanoacetohydrazide in refluxing dioxane in the presence of triethylamine. As a speculative mechanism for the formation of compound 16, the intermediate 14 is firstly formed followed by an internal nucleophilic attack by the NH group on the cyano group. Then a migration of the two NH protons to the negatively charged nitrogen atom takes place to form the second intermediate 15. Finally, 15 cyclized via nucleophilic attack by the NH₂ group on the cyano group to produce the pyrazolopyrimidine derivative 16 (Scheme 3).

Treatment of compound 3 with urea, thiourea and guanidine in the presence of ethanolic sodium ethoxide [23] produces the pyrimidine and thiazine derivatives 17, 18a,b (Scheme 3). The formation of these compounds is assumed to be occur via the addition of the NH₂ or SH groups to the cyano group followed by cyclization with elimination of an ethanol molecule.

2.2. Antibacterial Activity Evaluation

2.2.1. Agar Diffusion Method

The obtained new compounds were screened in vitro for their antibacterial activities against Gram positive bacteria [Staphylococcus aureus (ATCC 25923) and Bacillus cereus (ATCC 10987)], Gram negative bacteria [Serratia marcesens (ATCC 274) and Proteus mirabilis (SM514)], using the agar diffusion technique. The results of the antibacterial activity tests are shown in

Table 1. Antibacterial activity of the synthesized compounds: Agar diffusion method.

Compound No.	Gram positive		Gram negative
	Staphylococcus aureus	Bacillus cereus	Serratia marcesens	Proteus mirabilis
3	++	++	++	++
5	-	-	+	+
7	++	++	+	+
9a	+	+	+	+
9b	+	-	+	+
9c	+	+	-	-
11	+	+	+	+
12a	+++	+++	+++	+++
12b	++	+++	++	++
12c	++	++	++	++
12d	+++	++	+	++
13	+	+	+	+
16	++	++	+++	+++
17	++	+++	+++	++
18a	+	+	+++	+
18b	++	++	+++	+++

The width of the zone of inhibition indicates the potency of antibacterial activity; (-) no antibacterial activity; (+) mild activity with the diameter of the zones equal to 0.5–0.8 cm, (++) moderate activity with the diameter of the zones equal to 1.1–1.2 cm; (+++) marked high activity with the diameter of the zones equal to 1.8–2.0 cm.

.

Most of the synthesized compounds were found to possess some antibacterial activity towards all the microorganisms used. Compounds 3, 12a, 12b, 12c, 12d, 16, 17, 18b possess the highest antibacterial activities.

2.2.2. Filter Paper Disc-Diffusion Method

The newly synthesized heterocyclic compounds listed in

Table 2. Antibacterial activity of the synthesized compounds.

Comp. No.	Inhibition zone (mm)
	Gram-positive		Gram-negative
	Staphylococcus aureus	Bacillus cereus	Serratia marcesens	Proteus mirabilis
3	12	10	11	8
5	0	0	5	7
7	13	11	6	6
9a	3	5	3	4
9b	6	7	2	6
9c	6	6	8	5
11	5	7	7	8
12a	17	16	16	18
12b	15	12	13	11
12c	12	11	10	10
12d	16	12	7	11
13	7	7	5	8
16	13	11	16	17
17	17	12	18	14
18a	9	8	15	7
18b	12	13	17	15
Chloram-phenicol®	18	19	22	21
Ampicilin®	19	22	24	20

The sensitivity of microorganisms to the tested compounds is identified in the following manner: Highly sensitive = Inhibition zone 15–20 mm; Moderately sensitive = Inhibition zone: 10–15 mm; Slightly sensitive = Inhibition zone: 5–10 mm; Not sensitive = Inhibition zone: 0–5 mm; Each result represents the average of triplicate readings.

were tested for their antibacterial activity against Gram positive bacteria [Staphylococcus aureus (ATCC 25923) and Bacillus cereus (ATCC 10987)], Gram negative bacteria [Serratia marcesens (ATCC 274) and Proteus mirabilis (SM514)]. The preliminary screening of the investigated compounds was performed using the filter paper disc-diffusion method. The most active compounds were 12a, 12b, 12d, 16, 17, 18a and 18b, which were strongly inhibitory to all or some of the tested bacteria. Compounds 3, 7 and 12c showed moderate activities against the tested bacteria. The rest of compounds showed low or no sensitivity at all to the bacteria under investigation, and the results are summarized in Table 2.

3. Experimental

3.1. General

All melting points reported are uncorrected and were determined on a Stuart electric melting point apparatus. The microanalysis were within ±0.4% of theoretical values and were determined at the Microanalytical Unit of the Faculty of Science, Cairo University. The IR spectra were measured on a Perkin-Elmer 1600 FT-IR using the KBr wafer technique. The mass spectra were recorded on a Shimadzu GCMS-QP-1000EX mass spectrometer at 70 e.v. The ¹H-NMR spectra were recorded in CDCl₃ or DMSO-d₆ solutions on a Bruker 200 MHz instrument using TMS as internal standard with chemical shifts expressed in ppm. ¹³C-NMR spectra were recorded on a Varian Mercury 300 MHz spectrometer using TMS as an internal standard and DMSO-d₆ as solvent. TLC was performed on ready-to-use Merck 60 silica gel plates to monitor the reactions and test the purity of the new synthesized compounds.

3.1.1. Ethyl {[4-N-(4,6-dimethylpyrimidin-2-yl)sulfamoyl]phenylazo}cyanoacetate (3)

This compound was prepared according to a previously reported method [19]. Yellow solid (from ethanol), yield 81%, m.p. 228–230 °C. IR (ν/cm⁻¹): 3232, 3192 (NH), 3053 (CH_ar), 2989 (CH_al), 2221 (C≡N), 1723 (C=O), 1610 (C=N), 1563 (N=N), 1327, 1150 cm⁻¹ (SO₂). ¹H-NMR (DMSO-d₆): 1.22 (t, 3H, OCH₂CH₃, J = 4.4 Hz), 2.21 (s, 6H, 2 CH₃), 4.27 (q, 2H, OCH₂CH₃, J = 4.4 Hz), 6.91 (s, 1H, NH, D₂O exchangeable), 7.57–8.15 (m, 5H, Ar-H + pyrimidine-H), 9.12 (s, 1H, NH, D₂O exchangeable). MS (%): molecular ion peak at 402 (3.5) and M+1 at 403 (4.5). C₁₇H₁₈N₆O₄S (402); Calcd: C, 50.74; H, 4.51; N, 20.88; S, 7.97; Found: C, 51.00; H, 4.70; N, 21.10; S, 7.80.

3.1.2. Reaction of 3 with Acetylacetone or Acetoacetanilide; Formation of 5 and 7

A mixture of 3 (5 mmol, 2.06 g) and acetylacetone or acetoacetanilide (5 mmol) was dissolved in dioxane (40 mL) containing triethylamine (5 drops). The reaction mixture was heated under reflux for 6–8 h and concentrated. The solid product that precipitated after cooling was filtered of and crystallized from the proper solvent to compound 5 and 7, respectively.

5-Acetyl-4-amino-3-{[4-N-(4,6-dimethylpyrimidin-2-yl)sulfamoyl]phenylazo}-6-methyl-2H-pyran-2-one (5): Pale yellow solid (from dioxane), yield 68% (1.55 g), m.p. 263–265 °C. IR (ν/cm⁻¹): 3433, 3364, 3224, 3171 (NH₂, NH), 2996, 2943 (CH), 1689, 1661 (C=O) cm⁻¹. ¹H-NMR (DMSO-d₆): 2.21 (s, 6H, 2 CH₃), 2.47 (s, 3H, CH₃), 2.68 (s, 3H, COCH₃), 5.66(s, 2H, NH₂, D₂O exchangeable), 6.95 (s, 1H, NH, D₂O exchangeable), 7.51–8.22 (m, 5H, Ar-H + pyrimidine-H). ¹³C-NMR (DMSO-d₆): 20.3 (CH₃), 25.1 (2CH₃), 35.6 (CH₃CO), 113.4, 118.5, 119.3, 121.7, 122.3, 124.8, 125.5, 128.4, 131.6, 133.9, 138.4 (Ar-C), 166.4, 181.5 (CO). MS (%): molecular ion peak at 456 (3.5) and M+1 at 457 (4.5). C₂₀H₂₀N₆O₅S (456); Calcd: C, 52.62; H, 4.42; N, 18.41; S, 7.02; Found: C, 52.40; H, 4.70; N, 18.20; S, 7.30.

5-Acetyl-4-amino-3-{[4-N-(4,6-dimethylpyrimidin-2-yl)sulfamoyl]-phenylazo}-6-hydroxy-1-phenylpyridin-2(1H)-one (7): Yellow solid (from dioxane), yield 60% (1.60 g), m.p. 271–274 °C. IR (ν/cm⁻¹): 3502, 3435, 3364, 3228, 3176 (OH, NH₂, NH), 2996, 2943 (CH), 1691, 1660 (C=O) cm⁻¹. ¹H-NMR (DMSO-d₆): 2.23 (s, 6H, 2 CH₃), 2.64 (s, 3H, COCH₃), 5.78(s, 2H, NH₂, D₂O exchangeable), 6.94 (s, 1H, NH, D₂O exchangeable), 7.23–8.12 (m, 10H, Ar-H + pyrimidine-H), 10.34 (s, 1H, OH, D₂O exchangeable). ¹³C-NMR (DMSO-d₆): 25.1 (2CH₃), 35.5 (CH₃CO), 114.1, 116.8, 119.2, 120.0, 120.7, 122.3, 124.5, 125.6, 128.3, 129.7, 132.1, 134.3, 140.6, 141.4, 143.1 (Ar-C), 161.7, 184.1 (CO). MS (%): molecular ion peak at 533 (2.7). C₂₅H₂₃N₇O₅S (533); Calcd: C, 56.28; H, 4.34; N, 18.38; S, 6.01; Found: C, 56.00; H, 4.60; N, 15.20; S, 6.10.

3.1.3. Reaction of 3 with β-ketoesters, β-cyanoesters and β-dicarbonitriles; Formation of 9a–c and 11

Equimolar amounts of 3 (5 mmol, 2.06 g) and an active methylene compound, namely ethyl acetoacetate, ethyl benzoylacetate, ethyl cyanoacetate or malononitrile (5 mmol) in dioxane (40 mL) containing triethylamine (5 drops), were heated under reflux for 8–10 h. The solid product so obtained on cooling was collected by filtration and crystallized from the appropriate solvent to give compounds 9a–c and 11, respectively.

Ethyl 5-acetyl-4-amino-1-[4-N-(4,6-dimethylpyrimidin-2-yl)sulfamoyl]phenyl-1,6-dihydro-6-oxopyrid-azine-3-carboxylate (9a): Yellow solid (from dioxane), yield 51% (1.24 g), m.p. 260–263 °C. IR (ν/cm⁻¹): 3443, 3356, 3229, 3169 (NH₂, NH), 1728, 1686, 1666 (C=O) cm⁻¹. ¹H-NMR (DMSO-d₆): 1.29 (t, 3H, OCH₂CH₃, J = 4.3 Hz), 2.24 (s, 6H, 2 CH₃), 2.68 (s, 3H, COCH₃), 4.25 (q, 2H, OCH₂CH₃, J = 4.3 Hz), 5.76(s, 2H, NH₂, D₂O exchangeable), 6.89 (s, 1H, NH, D₂O exchangeable), 7.49–8.14 (m, 5H, Ar-H + pyrimidine-H). ¹³C-NMR (DMSO-d₆): 15.2 (CH₃), 25.1 (2CH₃), 35.5 (CH₃CO), 63.2 (CH₂), 110.1, 117.3, 119.4, 120.3, 126.5, 129.7, 132.4, 134.1, 139.1, 142.7 (Ar-C), 161.5, 168.4, 183.9 (CO). MS (%): molecular ion peak at 486 (22.4). C₂₁H₂₂N₆O₆S (486); Calcd: C, 51.84; H, 4.56; N, 17.27; S, 6.59; Found: C, 52.00; H, 4.70; N, 16.90; S, 6.80.

Ethyl 4-amino-5-benzoyl-1-[4-N-(4,6-dimethylpyrimidin-2-yl)sulfamoyl]phenyl-1,6-dihydro-6-oxo-pyridazine-3-carboxylate (9b): Orange solid (from dioxane-water), yield 52% (1.43 g), m.p. 272–275 °C. IR (ν/cm⁻¹): 3435, 3345, 3230, 3173 (NH₂, NH), 2989, 2941 (CH₃), 1730, 1688, 1662 (C=O) cm⁻¹. ¹H-NMR (DMSO-d₆): 1.30 (t, 3H, OCH₂CH₃, J = 4.4 Hz), 2.22 (s, 6H, 2 CH₃), 4.23 (q, 2H, OCH₂CH₃, J = 4.4 Hz), 5.81 (s, 2H, NH₂, D₂O exchangeable), 6.92 (s, 1H, NH, D₂O exchangeable), 7.33–8.17 (m, 10H, Ar-H + pyrimidine-H). MS (%): molecular ion peak at 548 (13.1). C₂₆H₂₄N₆O₆S (548); Calcd: C, 56.93; H, 4.41; N, 15.32; S, 5.85; Found: C, 57.10; H, 4.70; N, 15.10; S, 5.60.

Ethyl 4-amino-5-cyano-1-[4-N-(4,6-dimethylpyrimidin-2-yl)sulfamoyl]phenyl-1,6-dihydro-6-oxopyrid-azine-3-carboxylate (9c): Yellow solid (from dioxane), yield 59% (1.38 g), m.p. 281–284 °C. IR (ν/cm⁻¹): 3445, 3349, 3240, 3179 (NH₂, NH), 2218 (C≡N), 1728, 1690 (C=O) cm⁻¹. ¹H-NMR (DMSO-d₆): 1.28 (t, 3H, OCH₂CH₃, J = 4.4 Hz), 2.26 (s, 6H, 2 CH₃), 4.28 (q, 2H, OCH₂CH₃, J = 4.4 Hz), 5.78 (s, 2H, NH₂, D₂O exchangeable), 6.94 (s, 1H, NH, D₂O exchangeable), 7.52–8.11 (m, 5H, Ar-H + pyrimidine-H). MS (%): molecular ion peak at 469 (18.1). C₂₀H₁₉N₇O₅S (469): Calcd; C, 51.17; H, 4.08; N, 20.88; S, 6.83; Found: C, 51.30; H, 3.80; N, 21.10; S, 7.00.

Ethyl 4-amino-5-cyano-1-[4-N-(4,6-dimethylpyrimidin-2-yl)sulfamoyl]phenyl-1,6-dihydro-6-iminopy-ridazine-3-carboxylate (11): Light brown solid (from acetic acid), yield 71% (1.38 g), m.p. 293–296 °C. IR (ν/cm⁻¹): 3430, 3339, 3235, 3176 (NH₂, NH), 2220 (C≡N), 1726 (C=O) cm⁻¹. ¹H-NMR (DMSO-d₆): 1.30 (t, 3H, OCH₂CH₃, J = 4.4 Hz), 2.27 (s, 6H, 2 CH₃), 4.22 (q, 2H, OCH₂CH₃, J = 4.4 Hz), 5.67 (s, 2H, NH₂, D₂O exchangeable), 6.88 (s, 1H, NH, D₂O exchangeable), 7.42–8.16 (m, 5H, Ar-H + pyrimidine-H), 10.88 (br s, 1 H, =NH, D₂O exchangeable). MS (%): molecular ion peak at 468 (24.8). ¹³C-NMR (DMSO-d₆): 15.3 (CH₃), 25.1 (2CH₃), 63.4 (CH₂), 115.3 (CN), 118.1, 119.3, 120.8, 121.4, 125.3, 127.1, 129.7, 132.4, 135.1, 139.7, 153.3 (Ar-C), 164.3 (CO). MS (%): molecular ion peak at 468 (19.5). C₂₀H₂₀N₈O₄S (468); Calcd: C, 51.27; H, 4.30; N, 23.92; S, 6.84; Found: C, 51.50; H, 4.10; N, 24.10; S, 7.10.

3.1.4. Reaction of 3 with Diamino Compounds; Formation of 12a–d

To a solution of 3 (5 mmol, 2.06 g) in dioxane (40 mL), hydrazine hydrate (98%), phenylhydrazine, benzoylhydrazine or thiosemicarbazide (5 mmol, 0.25 mL) was added and the reaction mixture was refluxed for 2–6 h. The solid product which formed on heating was collected and crystallized from the proper solvent to afford compounds 12a–d, respectively.

5-Amino-4-{[4-N-(4,6-dimethylpyrimidin-2-yl)sulfamoyl]phenylazo}-pyrazol-5(1H,2H)-one (12a): Brown solid, (from acetic acid), yield 79% (1.53 g), m.p. 261–263 °C. IR (ν/cm⁻¹): 3444, 3351, 3239, 3171 (NH₂, NH), 1677 (C=O), 1626 (C=N) cm⁻¹. ¹H-NMR (DMSO-d₆): 2.25 (s, 6H, 2 CH₃), 5.85 (s, 2H, NH₂, D₂O exchangeable), 6.87 (s, 1H, NH, D₂O exchangeable), 7.42–8.19 (m, 5H, Ar-H + pyrimidine-H), 8.99, 10.63 (br s, 2 H, 2NH, D₂O exchangeable). ¹³C-NMR (DMSO-d₆): 24.1 (2CH₃), 101.1, 110.3, 117.2, 119.8, 121.4, 123.6, 128.1, 133.5, 140.3 (Ar-C), 164.9 (CO). MS (%): molecular ion peak at 388 (36.8). C₁₅H₁₆N₈O₃S (388); Calcd: C, 46.38; H, 4.15; N, 28.85; S, 8.26; Found: C, 46.60; H, 3.90; N, 29.10; S, 8.10.

5-Amino-4-{[4-N-(4,6-dimethylpyrimidin-2-yl)sulfamoyl]phenylazo}-1-phenylpyrazol-5(2H)-one (12b): Light brown solid, (from acetic acid), yield 63% (1.46 g), m.p. 254–256 °C. IR (ν/cm⁻¹): 3435, 3346, 3231, 3167 (NH₂, NH), 1679 (C=O), 1619 (C=N) cm⁻¹. ¹H-NMR (DMSO-d₆): 2.24 (s, 6H, 2 CH₃), 5.90 (s, 2H, NH₂, D₂O exchangeable), 6.86 (s, 1H, NH, D₂O exchangeable), 7.32–8.13 (m, 10H, Ar-H + pyrimidine-H), 10.61 (s, 1H, NH, D₂O exchangeable). C₂₁H₂₀N₈O₃S (464); Calcd: C, 54.30; H, 4.34; N, 24.12; S, 6.90; Found: C, 54.50; H, 4.10; N, 24.30; S, 7.10.

5-Amino-1-benzoyl-4-{[4-N-(4,6-dimethylpyrimidin-2-yl)sulfamoyl]-phenylazo}pyrazol-5(2H)-one (12c): Brown solid, (from acetic acid), yield 56% (1.38 g), m.p. 248–250 °C. IR (ν/cm⁻¹): 3439, 3342, 3221, 3174 (NH₂, NH), 1680, 1652 (C=O), 1617 (C=N) cm⁻¹. ¹H-NMR (DMSO-d₆): 2.25 (s, 6H, 2 CH₃), 5.93 (s, 2H, NH₂, D₂O exchangeable), 6.89 (s, 1H, NH, D₂O exchangeable), 7.39–8.13 (m, 10H, Ar-H + pyrimidine-H), 10.66 (s, 1H, NH, D₂O exchangeable). C₂₂H₂₀N₈O₄S (492); Calcd: C, 53.65; H, 4.09; N, 22.75; S, 6.51; Found: C, 53.80; H, 3.90; N, 22.50; S, 6.30.

5-Amino-1-carbothioamido-4-{[4-N-(4,6-dimethyl-pyrimidin-2-yl)sulfamoyl]phenylazo}-pyrazol-5(2H)-one (12d): Brown solid, (from acetic acid), yield 66% (1.47 g), m.p. 277–280 °C. IR (ν/cm⁻¹): 3438, 3337, 3212, 3162 (NH₂, NH), 1678 (C=O), 1615 (C=N) cm⁻¹. ¹H-NMR (DMSO-d₆): 2.21 (s, 6H, 2 CH₃), 5.82 (s, 2H, NH₂, D₂O exchangeable), 6.26 (s, 2H, NH₂, D₂O exchangeable), 6.96 (s, 1H, NH, D₂O exchangeable), 7.48–8.19 (m, 5 H, Ar-H + pyrimidine-H), 10.65 (s, 1H, NH, D₂O exchangeable). C₁₆H₁₇N₉O₃S₂ (447); Calcd: C, 42.94; H, 3.83; N, 28.17; S, 14.33; Found: C, 43.20; H, 4.00; N, 27.90; S, 14.10.

3.1.5. 3-Amino-4-{[4-N-(4,6-dimethylpyrimidin-2-yl)sulfamoyl]phenylazo}-isoxazol-5(2H)one (13)

To dioxane (40 mL) containing sodium acetate (0.5 g), the hydrazone 3 (5 mmol, 2.06 g) and hydroxylamine hydrochloride (5 mmol, 0.35 g) were added. The mixture was refluxed for 8 h., left to cool then poured onto ice/water. The solid product so formed was filtered off, dried and crystallized from dioxane-water as pale brown solid, yield 61% (1.21 g), m.p. 267–269 °C. IR (ν/cm⁻¹): 3434, 3339, 3218, 3164 (NH₂, NH), 1679 (C=O), 1616 (C=N) cm⁻¹. ¹H-NMR (DMSO-d₆): 2.22 (s, 6H, 2 CH₃), 5.88 (s, 2H, NH₂, D₂O exchangeable), 6.94 (s, 1H, NH, D₂O exchangeable), 7.52–8.21 (m, 5 H, Ar-H + pyrimidine-H), 10.77 (s, 1H, NH, D₂O exchangeable). ¹³C-NMR (DMSO-d₆): 24.1 (2CH₃), 98.3, 110.1, 117.2, 119.3, 121.4, 123.6, 128.1, 138.5, 145.6 (Ar-C), 173.0 (CO). MS (%): molecular ion peak at 389 (21.3). C₁₅H₁₅N₇O₄S (389); Calcd: C, 46.27; H, 3.88; N, 25.18; S, 8.23; Found: C, 46.10; H, 4.10; N, 24.90; S, 8.10.

3.1.6. 5-Amino-3-{[4-N-(4,6-dimethylpyrimidin-2-yl)sulfamoyl]phenylazo}-2,7-dihydroxypyrazolo-[1,5-a]pyrimidine (16)

Compound 3 (5 mmol, 2.06 g) and cyanoacetohydrazide (5 mmol, 0.45 g) were dissolved in dioxane (40 mL) containing a few drops of triethylamine. The mixture was refluxed for 19 h., left to cool then poured onto dil.HCl/ice. The solid product precipitated was filtered off, dried and crystallized from dioxane as orange solid, yield 55% (1.25 g), m.p. 291–293 °C. IR (ν/cm⁻¹): 3503, 3423, 3331, 3221, 3169 (OH, NH₂, NH), 1619 (C=N) cm⁻¹. ¹H-NMR (DMSO-d₆): 2.21 (s, 6H, 2 CH₃), 5.86 (s, 2H, NH₂, D₂O exchangeable), 6.92 (s, 1H, NH, D₂O exchangeable), 7.42–8.27 (m, 6H, Ar-H + 2pyrimidine-H), 10.88 (s, 1H, OH, D₂O exchangeable), 11.43 (s, 1H, OH, D₂O exchangeable) ¹³C-NMR (DMSO-d₆): 24.1 (2CH₃), 103.4, 111.7, 117.3, 120.1, 122.3, 123.7, 128.0, 130.4, 137.2, 139.3, 141.4, 145.1 (Ar-C). MS (%): molecular ion peak at 455 (13.9). C₁₈H₁₇N₉O₄S (455); Calcd: C, 47.47; H, 3.76; N, 27.68; S, 7.04; Found: C, 47.20; H, 4.00; N, 27.90; S, 6.90.

3.1.7. Reaction of 3 with Urea, Thiourea & Guanidine; Formation of 17, 18a,b

To a mixture of 3 (5 mmol, 1.42 g) and the proper amino compound (6 mmol) (urea thiourea or guanidine) in absolute ethanol (40 mL), sodium ethoxide (0.23 g of Na in 10 mL ethanol) was added. The reaction mixture was refluxed for 6–8 h, concentrated and cooled. The separated solid was filtered off, washed with water several times and crystallized from the proper solvent to afford compounds 17,18a,b, respectively.

6-Amino-5-{[4-N-(4,6-dimethylpyrimidin-2-yl)sulfamoyl]phenylazo}-pyrimidine-2,4-(1H,3H)-dione (17): Yellow solid (from dioxane), yield 77% (1.47 g), m.p. 270–272 °C. IR (ν/cm⁻¹): 3448, 3347, 3212, 3162 (NH₂, NH), 1670 (C=O) cm⁻¹. ¹H-NMR (DMSO-d₆): 2.27 (s, 6H, 2 CH₃), 5.62 (s, 2H, NH₂, D₂O exchangeable), 6.87 (s, 1H, NH, D₂O exchangeable), 7.56–8.18 (m, 5H, Ar-H + pyrimidine-H), 9.41–9.89 (br, 2H, 2NH, D₂O exchangeable). ¹³C-NMR (DMSO-d₆): 24.1 (2CH₃), 95.3, 110.1, 118.7, 120.4, 123.1, 126.3, 131.6, 135.2, 142.9 (Ar-C), 159.3, 162.7 (CO). MS (%): molecular ion peak at 416 (11.2). C₁₆H₁₆N₈O₄S (416); Calcd: C, 46.15; H, 3.87; N, 26.91; S, 7.70; Found: C, 46.40; H, 3.70; N, 27.10; S, 7.90.

2,6-Diamino-5-{[4-N-(4,6-dimethylpyrimidin-2-yl)sulfamoyl]phenyl-azo}-4H-1,3-thiazin-4-one (18a): Orange solid (from dioxane), yield 69% (1.47 g), m.p. 296–299 °C. IR (ν/cm⁻¹): 3441, 3355, 3225, 3176 (NH₂, NH), 1667 (C=O) cm⁻¹. ¹H-NMR (DMSO-d₆): 2.25 (s, 6H, 2CH₃), 5.33 (s, 2H, NH₂, D₂O exchangeable), 5.65 (s, 2H, NH₂, D₂O exchangeable), 6.84 (s, 1H, NH, D₂O exchangeable), 7.51–8.23 (m, 5H, Ar-H + pyrimidine-H). ¹³C-NMR (DMSO-d₆): 24.1 (2CH₃), 107.9, 110.1, 119.3, 120.8, 123.2, 125.0, 130.1, 136.0, 143.9, 151.2 (Ar-C), 167.4 (CO). MS (%): molecular ion peak at 432 (7.7). C₁₆H₁₆N₈O₃S₂ (432); Calcd: C, 44.43; H, 3.73; N, 25.91; S, 14.83; Found: C, 44.20; H, 3.80; N, 26.10; S, 15.00.

2,6-Diamino-5-{[4-N-(4,6-dimethylpyrimidin-2-yl)sulfamoyl]phenylazo}-pyrimidin-4(1H)-one (18b): Orange solid (from dioxane), yield 61% (1.27 g), m.p. 261–263 °C. IR: 3433, 3364, 3189 (NH₂, NH), 1669 (C=O) cm⁻¹. ¹H-NMR (DMSO-d₆): 2.29 (s, 6H, 2 CH₃), 5.38 (s, 2H, NH₂, D₂O exchangeable), 5.67 (s, 2H, NH₂, D₂O exchangeable), 6.89 (s, 1H, NH, D₂O exchangeable), 7.43–8.24 (m, 5H, Ar-H + pyrimidine-H), 9.83 (br., 1H, NH, D₂O exchangeable). ¹³C-NMR (DMSO-d₆): 24.1 (2CH₃), 92.9, 110.1, 118.5, 120.1, 121.7, 125.4, 130.1, 135.5, 141.3, 153.0 (Ar-C), 162.1 (CO). MS (%): molecular ion peak at 415 (14.5). C₁₆H₁₇N₉O₃S (415); Calcd: C, 46.26; H, 4.12; N, 30.34; S, 7.72; Found: C, 46.10; H, 3.50; N, 30.10; S, 7.60.

3.2. Antibacterial Screening

The newly synthesized heterocyclic compounds were tested for their antimicrobial activity against Gram positive bacteria (Staphylococcus aureus and Bacillus cereus) and Gram negative bacteria (Serratia marcesens and Proteus mirabilis).

Medium: For all bacteria (Nutrient Medium), consisting of (g/L distilled water): peptone, 5 and meat extract, 3. pH was adjusted to 7.0. For solid media, 2% agar was added. All media were sterilized at 121 °C for 20 min.

3.2.1. Agar Diffusion Method [24]

One mg of each of the newly synthesized compounds was dissolved in dimethyl sulphoxide (DMSO, 1 mL) then made up to 10 mL with sterile water to give a concentration of 100 μg/mL. A solution of the tested compounds was placed separately in the agar medium. The inhibition zones were measured after 24 h incubation.

3.2.2. Filter Paper Disc-Diffusion Method [25]

Proper concentrations of microbial suspensions were prepared from one-day-old liquid stock cultures incubated on a rotary shaker (100 rpm). The mycelia were then subdivided by mechanical stirring at speed No. 1 for 30 min. Turbidity of bacteria was adjusted with a spectrophotometer at 350 nm to give an optical density of 1.0. Appropriate agar plates were aseptically surface inoculated uniformly by a standard volume (ca. 1 mL) of the microbial broth culture of the tested bacteria.Whatman No. 3 filter paper discs of 10 mm diameter were sterilized by autoclaving for 15 min at 121 °C. Test compounds were dissolved in 80% ethyl alcohol to give final concentration of 5 μg/mL. The sterile discs were impregnated with the test compounds (5 μg/disc). After the impregnated discs have been air dried, they were placed on the agar surface previously seeded with the organism to be tested. Discs were gently pressed with forceps to insure thorough contact with the media. Each test compound was conducted in triplicate. Plates were kept in the refrigerator at 5 °C for 1 h to permit good diffusion before transferring them to an incubator at 37 °C for 24 h.

4. Conclusion

Several new pyridines, pyrans, pyridazines, pyrazoles, isoxazoles and thiazines that contain a sulfonamido moiety were prepared using simple methods, their structures were proven by spectral methods and they were tested for their antibacterial activities. Most of these compounds showed promising activities against both Gram-positive and Gram-negative bacteria. These results are encouraging for synthesis of similar compounds in the near future.
