Article

Selective Oxidation Reactions of Natural Compounds with Hydrogen Peroxide Mediated by Methyltrioxorhenium

Dipartimento di Scienze Chimiche, Università di Catania, Viale A. Doria 6, Catania 95125, Italy
*
Author to whom correspondence should be addressed.
Molecules 2013, 18(11), 13754-13768; https://doi.org/10.3390/molecules181113754
Submission received: 17 September 2013 / Revised: 24 October 2013 / Accepted: 25 October 2013 / Published: 7 November 2013
(This article belongs to the Section Natural Products Chemistry)

Abstract

:
We have investigated the oxidative behaviour of natural compounds such as methyl abietate (1), farnesyl acetate (2), α-ionone (3), β-ionone (4), methyl linolelaidate (5), methyl linolenate (6) and bergamottin (7) with the oxidant system methyltrioxo-rhenium/H2O2/pyridine. The reactions, performed in CH2Cl2/H2O at 25 °C, have shown good regio- and stereoselectivity. The oxidation products were isolated by HPLC or silica gel chromatography and characterized by MS(EI), 1H-, 13C-NMR, APT, gCOSY, HSQC, TOCSY and NOESY measurements. The selectivity seems to be controlled by the nucleophilicity of double bonds and by stereoelectronic and steric effects.

1. Introduction

Oxyfunctionalization of cheap natural compounds is a useful protocol to obtain molecules widely employed in the fine chemicals-based industries as fragrances, flavors, and therapeutically active substances [1]. The most commonly employed stoichiometric oxidants are organic peroxy- acids, particularly m-chloroperbenzoic acid (MCPBA). However, these oxidants are economically unattractive and are not selective for the preparation of acid-sensitive epoxides [2].
Methyltrioxorhenium (CH3ReO3, MTO) in the presence of H2O2 has proven itself as an efficient and versatile oxidation catalyst with interesting selectivity towards natural compounds, which can be oxidized under quite mild conditions [3,4,5,6,7,8,9,10,11,12,13,14,15,16,17,18,19,20,21]. In previous work [22] we have observed good regio- and stereoselectivity in the oxidation reactions by MTO/H2O2 of steroidal compounds such as 7-dehydrocholesteryl or ergosteryl acetate and the vitamins D2 and D3.
The active species involved in the oxygen transfer to the olefinic double bond are probably a monoperoxo complex [MeRe(O)2(O2)] and a diperoxo complex [MeRe(O)(O2)2], obtained respectively by the addition of one or two H2O2 molecules to MTO [23]. However, depending on the nature of the epoxide, a ring opening catalyzed by the Re(VII) metal center can also occur to give 1,2-diols [3]. Moreover, the epoxide ring opening can be minimized by employing pyridine as a basic ligand. Mechanistic investigations [24], incorporating the positive pyridine effect [16], showed that the added pyridine minimizes also the MTO decomposition to perrhenate (ReO4) [25,26,27,28,29]. In this report we have investigated the oxidation reactions of some natural compounds by MTO/H2O2/pyridine, leading to products of practical interest or of interest as synthons in the synthesis of fine chemicals, with the aim of assessing the parameters controlling the process.

2. Results and Discussion

We have investigated the behaviour of methyl abietate (1), farnesyl acetate (2), α-ionone (3), β-ionone (4), methyl linolelaidate (5), methyl linolenate (6) and bergamottin (7) (Figure 1) which underwent oxidation reactions with MTO/H2O2/pyridine in CH2Cl2 at 25 °C (Table 1).

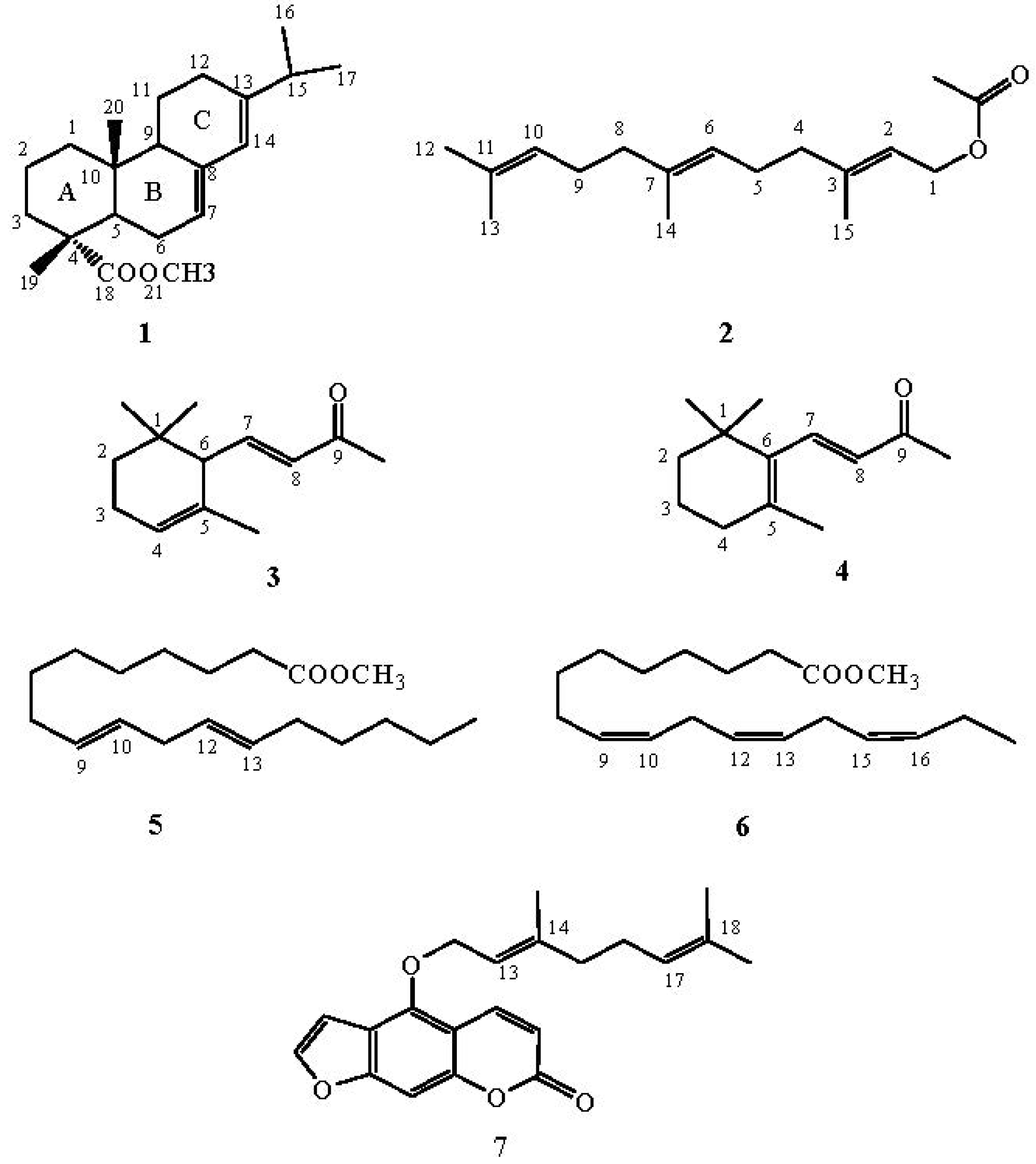

Figure 1. Selected natural compounds which undergo oxidation reactions with MTO/H2O2/pyridine.
Figure 1. Selected natural compounds which undergo oxidation reactions with MTO/H2O2/pyridine.
Molecules 18 13754 g001
Table 1. Oxidation products of selected natural compounds with MTO/H2O2/pyridine in CH2Cl2 at 25 °C a.
Table 1. Oxidation products of selected natural compounds with MTO/H2O2/pyridine in CH2Cl2 at 25 °C a.
EntryTime (h)Conv. (%) Product selectivities (%)
10.588 Molecules 18 13754 i001 Molecules 18 13754 i008 Molecules 18 13754 i013
8 (53)9 (28)10 (19)
20.595 Molecules 18 13754 i002 Molecules 18 13754 i009 Molecules 18 13754 i014
11 (32)12 (26)13 (42)
318100 Molecules 18 13754 i003 Molecules 18 13754 i010
14 cis (86)15 trans (14)
42075 Molecules 18 13754 i004
16 (100)
5899 Molecules 18 13754 i005 Molecules 18 13754 i011 Molecules 18 13754 i015
17 (22)18 (20)19 (58)
6 b898 Molecules 18 13754 i006 Molecules 18 13754 i012 Molecules 18 13754 i016
20 (18)21 (17)22 (18)
7462 Molecules 18 13754 i007
23 (100)
Entries 17 referred to the starting natural compounds reported in Figure 1, respectively. a Substrate/H2O2/MTO/pyridine (1:1.5:0.05:0.12); b A mixture of bisepoxides is also obtained (47%).

2.1. Methyl Abietate (1)

The oxyfunctionalization of methyl abietate (1), the diterpene which is the main component of rosin acids, is of interest in the research field on separation of rosin acids from pine oleoresin—based on double bond oxidation processes—and in the low cost synthesis of rosin acid derivatives having multiple functional groups. The oxidation of methyl abietate with MTO/H2O2/pyridine leads to synthons for the stereoselective syntheses of bioactive natural compounds. Ketone 8, derived from the oxidation of ring B, is the main product. Formation of 8 has been already observed by Haslinger et al. [30]. Probably, the first step of the reaction involves the formation of the epoxide obtained by electrophilic oxygen transfer to the double bond of ring B. Subsequent reorganization of the epoxide mediated by the presence of the rhenium derivative (Lewis acid) leads to the formation of the ketone 8 (Scheme 1).

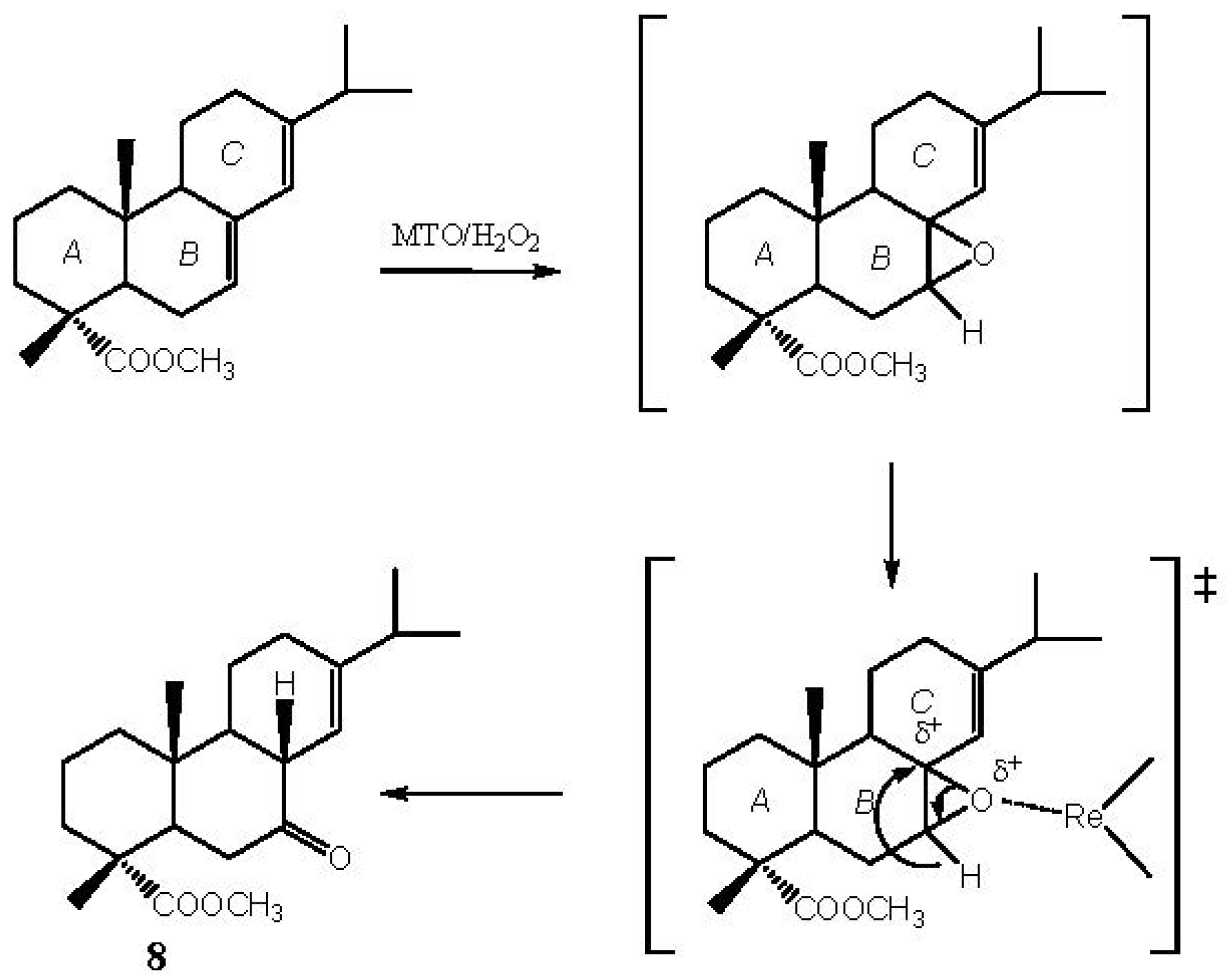

Scheme 1. Suggested formation pathway for the oxidation product 8.
Scheme 1. Suggested formation pathway for the oxidation product 8.
Molecules 18 13754 g004
Lewis acid promoted rearrangement of epoxides into carbonyl compounds is an important and well known reaction [31,32] utilised in many cases for the synthesis of biologically active compounds. The remaining oxidation products 9 [33,34] and 10 are secondary oxidation products derived from the further oxidation of 8 (Scheme 2).

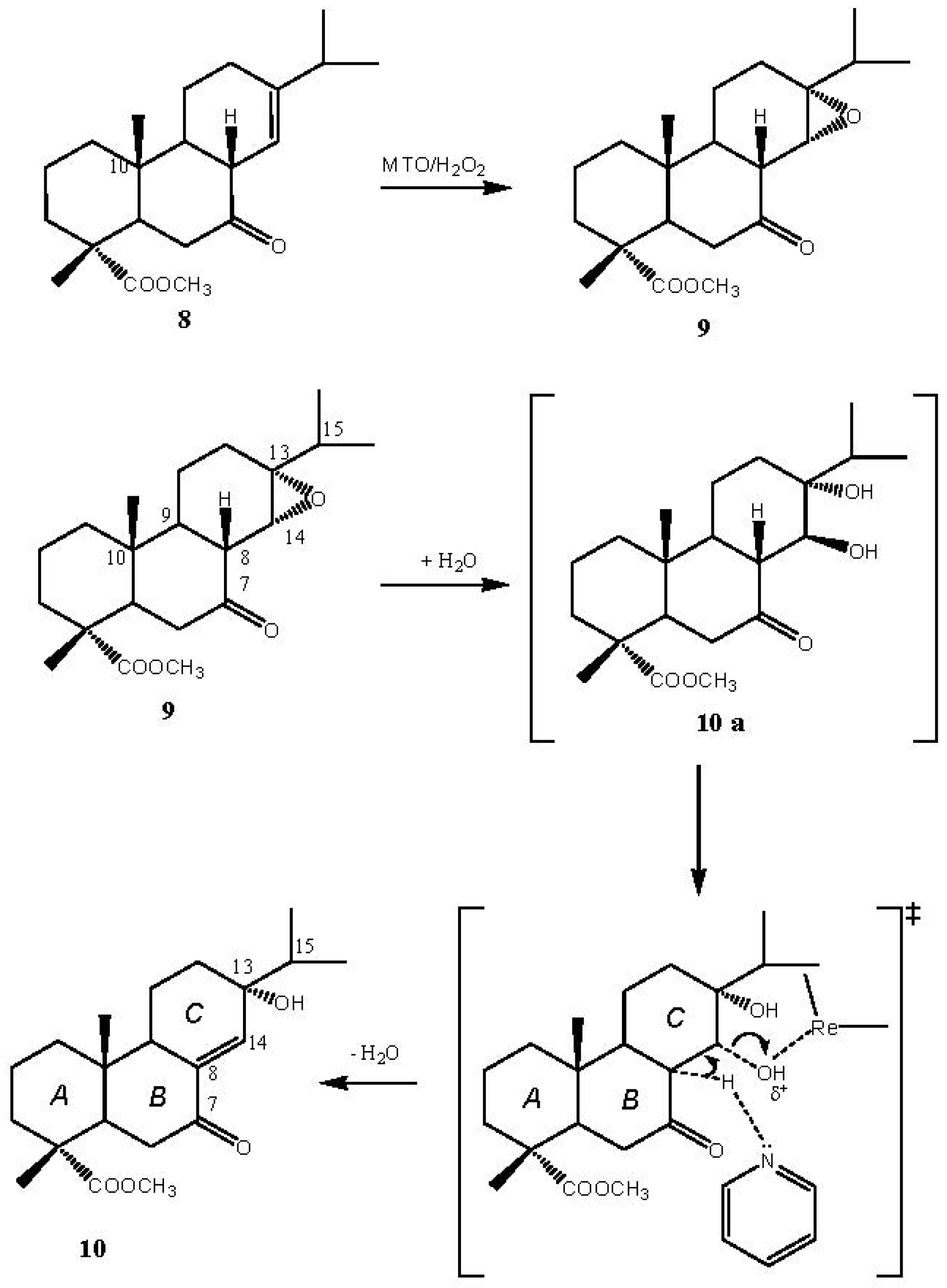

Scheme 2. Suggested pathway of formation of γ-hydroxyketone 10.
Scheme 2. Suggested pathway of formation of γ-hydroxyketone 10.
Molecules 18 13754 g005
The diastereoselective formation of compound 9 by oxidation of 8 is probably due to the presence of the methyl group in position 10 which makes the attack of the upper face of the ring C by the bulky oxidant reagent (rhenium peroxide) sterically hard. The formation of the α-epoxide is supported by the 1H-NMR signal of H-14 which appears as a singlet rather than a doublet indicating that there is no coupling with H-8 because the two protons form a 90° dihedral angle. Hydration of ketoepoxide 9 leads to the formation of diol 10a, which undergoes a 1,2-elimination assisted by rhenium and pyridine to yield the γ-hydroxyketone 10. Since it is reported [33,34] that when the OH group of the γ-hydroxyketone 10 linked at the C-13 atom is in axial position the 1H-NMR signal of H-14 occurs at 6.75 ppm, we assume that in our case this OH group is in equatorial position because H-14 signal shifts upfield to 5.26 ppm.

2.2. All-Trans Farnesyl Acetate (2)

Farnesyl epoxides are very useful starting compounds for the biomimetic synthesis of a large variety of natural monocyclic terpenoids [35,36]. Oxidation of farnesyl acetate (2) afforded the two monoepoxides 11 [37] and 12 [35,37] and a mixture of stereoisomeric diepoxides 13 [38] (see Table 1). The formation of the oxidation products, in agreement with the electrophilic oxygen transfer mechanism, is controlled by the nucleophilicity of double bonds. Therefore the reaction occurs in a regioselective manner at the double bonds C10-C11 and C6-C7 since the double bond C2-C3 is less reactive because is located nearby an electron withdrawing functional group.
The formation of the mixture of stereoisomeric diepoxides 13 was confirmed by the presence in the 1H-NMR spectrum (see ESI, S18) of six singlets assigned to the three methyl groups linked to carbons C-11 and C-7 of the two three-membered rings, respectively.

2.3. α-Ionone (3) and β-Ionone (4)

α-Ionone (3) undergoes the oxidation reaction in a very good selective manner to yield mainly the monoepoxide 14 [39] (racemic cis-4,5-epoxy-4,5-dihydro-α-ionone) and small amounts of monoepoxide 15 [39] (racemic trans-4,5-epoxy-4,5-dihydro-α-ionone) (cis/trans ratio ~6), shown in Figure 2.

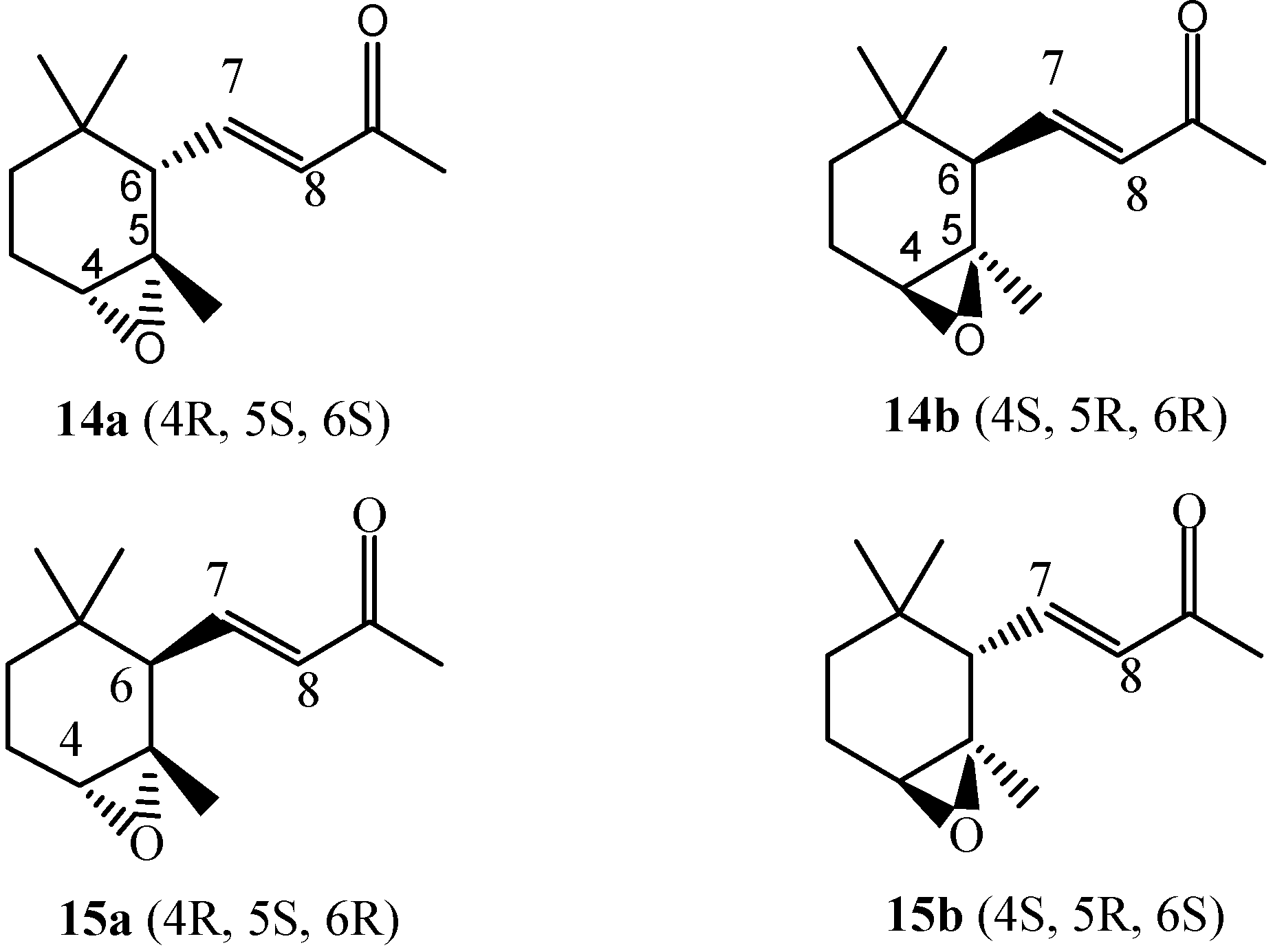

Figure 2. Oxidation products of α-ionone 3.
Figure 2. Oxidation products of α-ionone 3.
Molecules 18 13754 g002
The reaction is regioselective because the double bond C7-C8 is not involved in the reaction due to its lower nucleophilicity due to the presence of the carbonyl group. Similar results have already been observed using m-chloroperbenzoic acid as oxidant (cis/trans ratio = 5) [39]. The high face selectivity (Table 1) is probably controlled by the larger crowding in the transition state leading to the trans epoxide which increases the activation energy and makes unfavourable the formation of the corresponding isomer. In fact, as Scheme 3 shows, during the oxygen transfer, the C-5 (as well as the C-4) undergoes a rehybridation from sp2 to sp3 and the methyl group linked to C-5, which in the transition state forming the trans epoxide is going to occupy an opposite position with respect to that of the incoming oxidant, assumes an axial direction parallel to that of one of the methyl groups linked to C-1, developing therefore repulsive interactions (1,3-diaxial interactions).

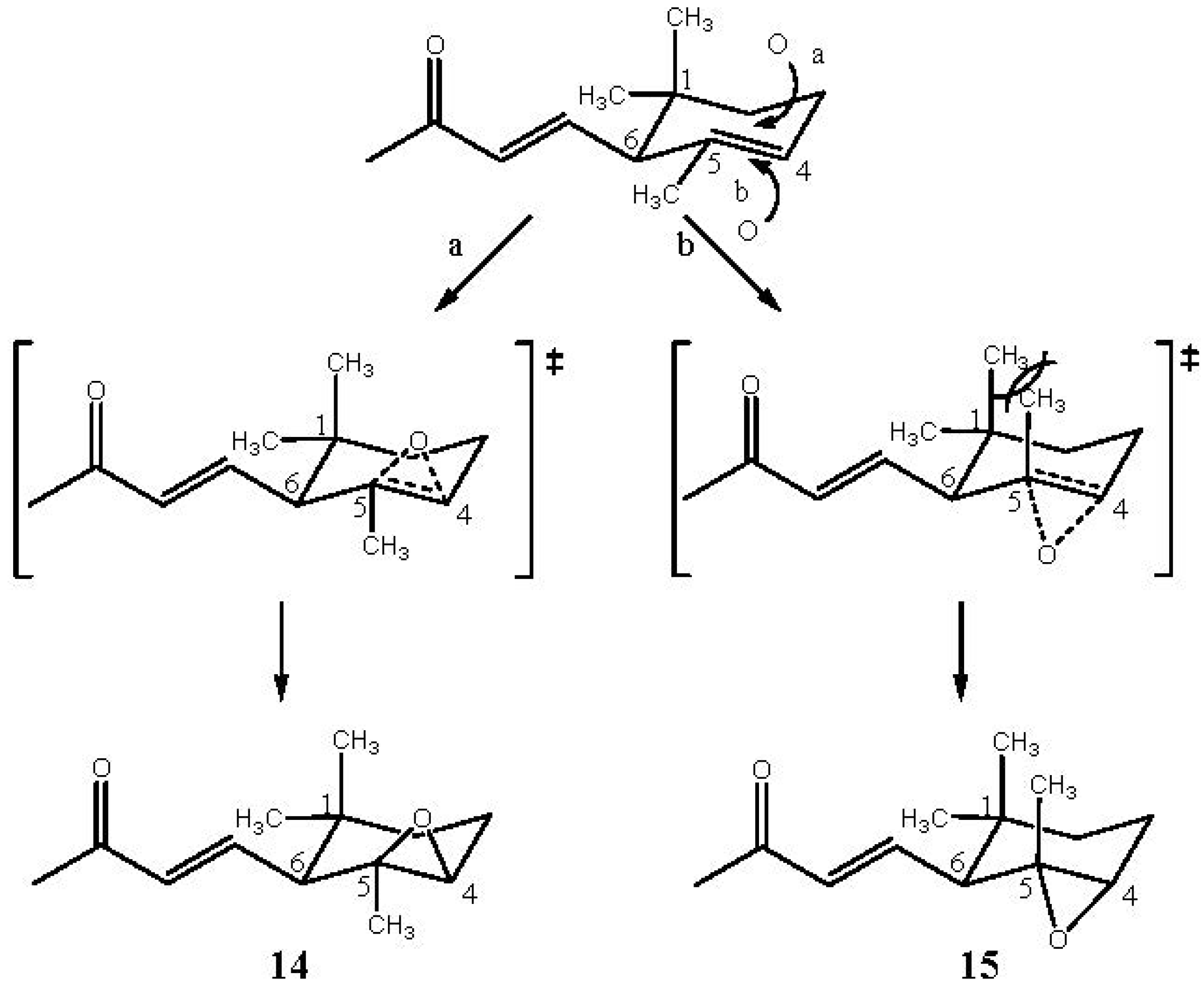

Scheme 3. Suggested pathway for the formation of monoepoxides 14 and 15.
Scheme 3. Suggested pathway for the formation of monoepoxides 14 and 15.
Molecules 18 13754 g006
On the other hand, the oxidation of β-ionone (4) is highly regioselective because the double bond C5-C6 is quite more nucleophilic than the C7-C8 double bond (which bears an electron withdrawing carbonyl functionality in the α-position) and therefore the epoxide 16 [40] is obtained as the solae product (see Table 1).

2.4. Methyl Linolelaidate (5)

Oxidation of methyl linolelaidate (5) afforded the two monoepoxides 17 (9-undecenoic acid, 11-(3-pentyloxiranyl) methyl ester) and 18 [41,42] (oxiraneoctanoic acid, 3-(2-octenyl)-methyl ester), and, as main product, a mixture of two diastereoisomer diepoxides 19 [41,42] (methyl 9,10-12,13-diepoxyoctadecenoate) obtained by a further oxidation of both 17 and 18 epoxides.

2.5. Methyl Linolenate (6)

Oxidation of methyl linolenate leads to the nearly equal formation of three monoepoxides: 9-undecenoic acid,11-[3-(2-pentenyl)oxiranyl]-methyl ester 20 [43,44], 9,12-tetradecadienoic acid,14-(3-ethyloxiranyl)- methyl ester (9Z,12Z) 21 [43,44], and oxiraneoctanoic acid, 3-(2,5-octadienyl)methyl ester [2S[2α,3α(2Z,5Z)]] 22 [43,44] according to the similar nucleophilicity of the corresponding double bonds.

2.6. Bergamottin (7)

The bergamottin is a member of the furanocoumarin family and is most commonly found in grapefruit juice. Along with the chemically related compound 17,18-dihydroxybergamottin (24, Figure 3), it is believed to be responsible for the inhibitory effects of grapefruit juice on cytochrome P450 enzyme activity interfering therefore on the metabolism of a variety of pharmaceutical drugs [45,46].

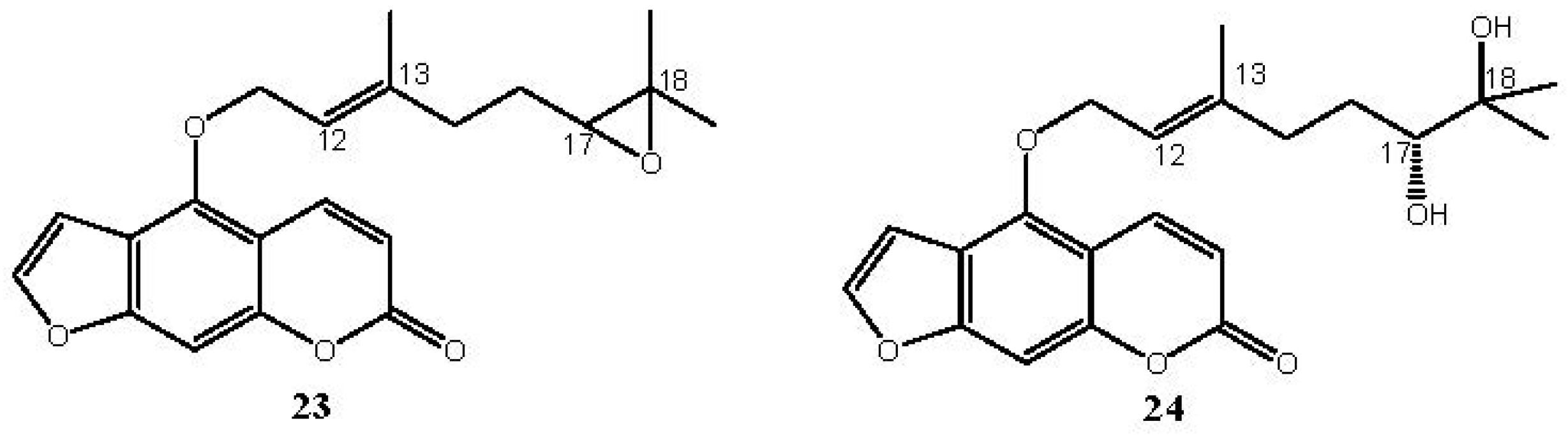

Figure 3. Chemical structures of bergamottin derivatives 23 and 24.
Figure 3. Chemical structures of bergamottin derivatives 23 and 24.
Molecules 18 13754 g003
Hence the need to provide easy and very selective synthetic routes for 24. Since the configuration of the C-17 of 24, isolated from both grapefruit juice and its peel oil [47], is R, we have developed a synthetic strategy to obtain 24 (yield 5%) by the highly regioselective oxidation of the C17-C18 double bond of bergamottin (7) with MTO/H2O2/pyridine to yield the racemic epoxide 23 and subsequent hydrolytic kinetic resolution (HKR) catalyzed by chiral (S,S)(salen)Co(III) complex [48,49,50]. The oxidation of bergamottin (7) is regioselective because, of the two double bonds, C17-C18 and C12-C13, present in the molecule, only the first one is involved in the oxidative process, probably because the C12-C13 double bond is nearby an electronegative oxygen atom and, being located in a position sterically hindered by the coumarin ring, undergoes unfavourable steric effects which contribute to make it scarcely reactive.

3. Experimental

3.1. General Methods

Dichloromethane was dried by distillation over P2O5. Fourier transform IR (FTIR) spectra were obtained with a Perkin-Elmer Paragon 500 FT-IR spectrophotometer. 1H- and 13C-NMR spectra were recorded in CDCl3 on a Varian Unity Inova spectrometer at 500 and 125.7 MHz, respectively. The chemical shifts are given in ppm and referenced to residual CHCl3 (δ = 7.26) signal for 1H experiments and to the solvent signal (CDCl3, δ = 77.0) for 13C ones. 1H- and 13C-NMR assignments were supported by 2D (gCOSY, NOESY, HSQC, TOCSY) experiments. Electron impact mass spectra EIMS were recorded on a Kratos-MS 50 mass spectrometer with data system DS-90. High-performance liquid chromatography (HPLC) was performed on a Varian ProStar Solvent Delivery Module 230 apparatus equipped with a Varian ProStar 350 dual cell refractometer, using a semi-preparative Zorbax Sil (250 × 9.4 mm) column. The reactions were monitored by TLC and the components of the plates were visualized after spraying with 5% ammonium molybdate and 0.2% cerium sulfate in 10% sulfuric acid followed by heating. The reagents farnesyl acetate (2), α-ionone (3), β-ionone (4), methyl linolelaidate (5), methyl linolenate (6) and bergamottin (7) (commercial substances) were used as received. The methyl abietate (1) was obtained by esterification of abietic acid (commercial product Fluka, Milan, Italy) according to literature method [51]. Hydrogen peroxide (35%), pyridine and methyltrioxorhenium are commercial products (Aldrich, Milan, Italy).

3.2. General Oxidation Procedure

Pyridine (0.02 mmol, 12%) and 35% hydrogen peroxide (22 µL, 0.25 mmol, 1.5 equiv) were added to a solution of the MTO (0.008 mmol, 5%) in CH2Cl2 (2.5 mL) at 25 °C and this yellow mixture was stirred for 1 min. A solution of substrate (0.16 mmol, 1 equiv) in CH2Cl2 (1 mL) was added to this mixture and the stirring was continued for a suitable reaction time. The reaction mixture was dried over MgSO4 and the solvent was evaporated under reduced pressure. HPLC separation of the reaction mixture afforded desired products.

3.2.1. Oxidation of Methyl Abietate (1)

The reaction mixture was kept under stirring for 30 min. Separation of the mixture was performed by HPLC, utilizing n-hexane/EtOAc 75:25 (v/v), (ɸ = 3.5 mL/min), to afford the three main compounds 8 (tR = 8.1), 9 (tR = 10.1), 10 (tR = 11.6).
1-Phenanthrenecarboxylic acid, 1,2,3,4,4a,4b,5,6,8a,9,10,10a-dodecahydro-1,4a-dimethyl-7-(1-methylethyl)-9-oxo-, methyl ester, [1R,(1α,4αβ,4βα,8αβ,10αα)] (8). This compound has been identified on the basis of the comparison of its 1H- and 13C-NMR, EIMS, and IR data with those reported in the literature [30], gCOSY and NOESY confirm the proposed configuration (see ESI, S5-6).
Phenanthro[1,2-b]oxirene-4-carboxylic acid, tetradecahydro-4,7a-dimethyl-9a-(1-methylethyl)-2-oxo-, methyl ester, [1aR-(1aα,1bα,3aβ,4β,7aα,7b β,9aα)] (9). The structure of this compound was determined by 1H-NMR, APT, gCOSY, NOESY, TOCSY, HSQC, IR, EIMS (18eV), data. 1H-NMR: δ = 0.98 (d, J = 7 Hz, 3H, 16-H or 17-H), 0.94 (d, J = 7 Hz, 3H, 16-H or 17-H), 1.04 (s, 3H, 20-H), 1.07 (m, 1H, 1-Hax), 1.22 (s, 3H, 19-H), 1.56 (m, 1H, 11-Hax), 1,09 (m, 1H, 9-H), 1.58–1.67 (m, 3H, 2-Hax, 2-Heq, 3-Heq), 1.68–1.81 (m, 1H, 3-Hax), 1.80 (m, 1H, 1-Heq), 2.02 (m, 1H, 11-Heq), 2.02 (dd, J = 14.0, 1H, 3.0 Hz, 6-Heq), 1.08 (m, 1H, 12-Hax), 1.12 (m, 1H, 12-Heq), 2.16 (dd, J = 14.0, 3.0 Hz, 1H, 5-H), 1.53 (m, 1H, 15-H), 2.44 (t, J = 14.0 Hz, 1H, 6-Hax), 2.58 (d, J = 12.5 Hz, 1H, 8-H), 3.68 (s, 3H, 21-H), 3.67 (s, 1H, 14-H) ppm; 13C-NMR: δ = 14.1 (C-20), 16.1 (C-19), 18.0 (C-2), 17.9 (C-16 or C-17), 18.6 (C-17 or C-26), 24.3 (C-11), 18.5 (C-12), 34.5 (C-15), 36.6 (C-10), 37.0 (C-3), 37.4 (C-1), 41.5 (C-6), 47.5 (C-4), 49.1 (C-8), 49.8 (C-5), 52.5 (OCH3), 53.5 (C-9), 56.5 (C-14), 64.4 (C-13), 177.8 (C-18), 208.1 (C-7) ppm; IR (neat, cm−1): ν = 2952, 2857, 1725, 1715, 1455, 1437, 1385, 1243, 1097; EIMS (18 eV): m/z (%) = 348 (9) [M]+, 330 (100) [M−H2O]+, 305 (53) [M–C3H7]+, 270 (63) [330-CH3COOH].
1-Phenanthrenecarboxylic acid, 1,2,3,4,4a,4b,5,6,7,9,10,10a-dodecahydro-7-hydroxy-1,4a-dimethyl-7-(1-methylethyl)-9-oxo-, methyl ester, [1R-([1R-(1α4αβ4βα7β10αα] (10). The structure of this compound was determined by 1H-NMR, APT, gCOSY, NOESY, TOCSY, HSQC, IR, EIMS (18eV) data. 1H-NMR: δ = 1.01 (d, J = 7 Hz, 6H, 16-H e 17-H), 1.10 (s, 3H, 20-H), 1.13 (m, 1H, 1-Hax), 1.22 (s, 3H, 19-H), 1.58–1.67 (m, 4H, 2-Hax, 2-Heq, 3-Heq, 11-H), 1.71–1.73 (m, 2H, 3-Hax, 9-H), 1.95–1.98 (m, 3H, 1-Heq, 11-H, 12-H), 2.05–2.13 (m, 2H, 6-Heq, 12-H), 2.16–2.22 (m, 2H, 5-H, 15-H), 2.52 (t, J = 14 Hz, 1H, 6-Hax), 3.67 (s, 3H, 21-H), 5.26 (s, 1H, 14-H) ppm; 13C-NMR: δ = 15.4 (C-20), 17.0 (C-19), 17.7(C-2), 17.6 C-11), 21.2 (C-16 or C-17), 21.5 (C-17 or C-16), 24.4 (C-12), 35.5 (C-15), 36.8 (C-10), 38.6 (C-3), 38.7(C-6), 40.0 (C-1), 47.4 (C-4), 47.9 (C-5), 52.5 (c-21), 55.3 (C-9), 75.2 (C-13), 119.1 (C-14), 151.5 (C-8), 178.1 (C-18), 213.2 (C-7) ppm; IR (neat, cm−1): ν = 2926, 2859, 1734, 1718, 1538, 1253; EIMS (18 eV): m/z (%) = 348 (5) [M]+, 330 (81) [M+−H2O], 270 (45) [330–CH3COOH], 255(100) [270–CH3].

3.2.2. Oxidation of Farnesyl Acetate (2)

The reaction mixture was kept under stirring for 30 min. HPLC separation with hexane/AcOEt (60:40 v/v, ɸ = 3.5 mL/min) afforded pure sample of the diepoxide 13 (tR = 8.14 min) and a mixture of two compounds. HPLC separation of this mixture with n-hexane/EtOAc (90:10 v/v, ɸ = 3.5 mL/min) resulted in the isolation of the monoepoxide 11 (tR = 13.26) and the monoepoxide 12 (tR = 14.31).
2-Penten-1-ol,3-methyl-5-[3-methyl-3-(4-methyl-3-penten-1-yl)-2-oxiranyl]-,1-acetate (11). The structure of this compound was determined by 1H-NMR [35,36], and gCOSY and NOESY data. 1H-NMR: δ = 1.25 (s, 3H, 14-H), 1.43 (m, 1H, 8-H) 1.55 (s, 3H, 12-H or 13-H), 1.68 (s, 3H, 12-H or 13-H), 1.63–1.72 (m, 3H, 5,5',8'-H), 1.72 (s, 3H, 15-H), 2.05–2.21 (m, 4H, 4,4', 9,9'-H), 2.05 (s, 3H, CH3CO), 2.69 (t, J = 6.0 Hz, 1H, 6-H), 4.60 (d, J = 6.0 Hz, 2H, 1,1'-H), 5.07 (m, 1H, 10-H), 5.39 (m, 1H, 2-H) ppm.
2,6-Nonadien-1-ol, 9-(3,3-dimethyloxiranyl)-3,7-dimethyl-acetate (2E,6E) (12). The structure of this compound was determined by 1H-NMR, as reported in the literature [35,36,37] and supported by gCOSY and NOESY experiments.
2-Dodecen-1-ol, 6,7,:10,11-diepoxy-3,7,11-trimethyl-acetate (mixture of diasteroisomers) (13). The identification of this diepoxides mixture was determined by 1H-NMR, gCOSY and NOESY data. In the literature [35,36] the 1H-NMR spectrum of one of the possible diastereoisomers is reported. 1H-NMR: δ = 1.26 (s, 3H, CH3), 1.27 (s, 3H, CH3), 1.28 (s, 3H, CH3), 1.31 (s, 3H, CH3), 1.60 (m, 2H, 9,9'-H), 1.67 (m, 1H, 8-H), 1.69 (m, 2H, 5,5'-H), 1.72 (s, 3H, 15-H), 1.79 (m, 1H, 8'-H), 2.05 (s, 3H, CH3CO), 2.22 (m, 2H, 4,4'-H), 2,69 (m, 1H, 10-H), 2.75 (m, 1H, 6-H), 4.59 (d, J = 7.5 Hz, 2H, 1,1'-H), 5.38 (m, 1H, 2-H) ppm.

3.2.3. Oxidation of α-Ionone (3)

The reaction mixture was kept under stirring for 18 h. Separation of the reaction mixture by HPLC, eluting with n-hexane/EtOAc (80:20 v/v, ɸ = 3.5 mL/min) leads to the formation of a racemic mixture of cis-4,5-epoxy-α-ionone (14, tR = 12.0 min) and of a racemic mixture of trans-4,5-epoxy-α-ionone (15, tR = 13.30 min). The two epoxides were identified on the basis of their spectroscopic data (1H-NMR and IR) as reported in the literature [39] and supported by gCOSY and NOESY experiments.

3.2.4. Oxidation of β-Ionone (4)

The reaction mixture was kept under stirring for 20 h. Separation of the reaction mixture by HPLC, eluting with n-hexane/EtOAc (80:20 v/v, ɸ = 3.5 mL/min) afforded pure sample of the (±)-5,6-epoxy-β-ionone (16, tR = 7.3 min). The (±)-5,6-epoxy-β-ionone has been identified on the basis of its spectroscopic data (1H-NMR and IR) which are identical to those reported in the literature [40] and supported by gCOSY and NOESY experiments.

3.2.5. Oxidation of Methyl Linolelaidate (5)

The reaction mixture was kept under stirring for 8 h. HPLC separation with n-hexane/EtOAc (75:25 v/v, ɸ = 3.5 mL/min) afforded a mixture of two compounds (tR = 4.36 min) and an inseparable mixture of diastereomeric bisepoxides 19 (tR = 6.53 min). The mixture of two compounds was separate by HPLC (n-hexane/EtOAc 90:10 v/v, ɸ = 3.5 mL/min) to yield the monoepoxide 17 (tR = 7.03 min) and the monoepoxide 18 (tR = 7.84 min).
9-Undecenoic acid, 11-(3-pentyloxiranyl) methyl ester (17). This compound has been identified on the basis of its 1H- and 13C-NMR data, supported by gCOSY and NOESY experiments and EIMS. 1H-NMR: δ = 0.89 (3H, m, CH3), 1.31 (12H, m, 4,5,6,7,16,17-H ), 1.41 (2H, m, 15-H), 1.52 (2H, m, 14-H), 1.62 (2H, m, 3-H), 1.99 (2H, q, J = 7.0 Hz, 8-H), 2.19 (1H, m, 11-H), 2.25 (1H, m, 11-CH), 2.30 (2H, t, J = 7.5 Hz, 2-H), 2.69 (2H, m, 12 and 13-H), 3.67 (3H, s, OCH3), 5.40 (1H, m, 10-H), 5.52 (1H, m, 9-H); 13C-NMR: δ 14.0, 22.6, 24.9, 25.7, 28.9, 29.1, 29.3, 31.6, 31.9, 32.6, 34.1, 35.2, 51.4, 58.2, 58.5, 124.4, 133.5, 174.3; EIMS (20 eV): m/z (%) = 310 (2) [M]+, 292 (5) [M−18]+, 279 (4) [M−31]+, 207 (17) [O≡CCH2CH=CH(CH2)7COOCH3-18]+, 164 (51) [M–CH3(CH2)4CH(O)CHCH3–18]+, 147 (42) [M–CH3(CH2)4CH(O)CH2–31–18]+.
Oxiraneoctanoic acid, 3-(2-octenyl)-methyl ester (18). This compound has been identified on the basis of its 1H- and 13C-NMR data, supported by gCOSY and NOESY experiments and EIMS. 1H-NMR: δ = 0.88 (3H, t, J = 7.5 Hz, CH3), 1.31 (12H, m, 4,5,6,7,16,17-H), 1.42 (2H, m, 15-H), 2.0 (2H, m, 14-H), 1.62 (2H, m, 3-H), 1.51 (2H, m, 8-H), 2.19 (1H, m, 11-H), 2.25 (1H, m, 11'-H), 2.30 (2H, t, J = 8 Hz, 2-H), 2.69 (2H, m, 9 and 10-H), 3.67 (3H, s, OCH3), 5.40 (1H, m, 12-H), 5.53 (1H, m, 13-H); 13C-NMR: δ 14.0, 22.5, 24.9, 25.9, 29.02, 29.04, 29.1, 29.2, 31.4, 31.9, 32.6, 34.1, 35.2, 51.4, 58.2, 58.4, 124.3, 133.7, 174.3; EIMS (20 eV): m/z (%) = 292 (1) [M−18]+, 279 (2) [M−31]+, 200 (3) [CH2(O)CH(CH2)7COOCH3]+, 125 (11) [M CH3(CH2)4CH=CHCH2(O)CH2–31]+, 109 (19) [CH3(CH2)6COOCH3-49]+.
Methyl 9,10-12,13-diepoxyoctadecenoate (19). The mixture of diastereomeric bisepoxides has been identified by 1H data supported by gCOSY and NOESY experiments and EIMS. 1H-NMR: δ = 0.88 (3H, t, J = 7 Hz, CH3), 1.24–1.38 (14H, m, 4,5,6,7,15,16,17-H), 1.52 (4H, m, 8 and 14-H), 1.61 (2H, m, 3-H), 1.72–1.78 (2H, m, 11-H), 1.90–1.96 (2H, m, 11-H), 2.28 (2H, t, J = 7.5 Hz, 2-H), 2.68–2.76 (2H, m, 9 and 13-H), 2.75–2.82 (2H, m, 10 and 12-H), 3.65 (3H, s, OCH3); EIMS (20 eV): m/z = 308 [M-18]+, 295[M−31]+, 277[M−49]+, 251 [CH2CH(O)CHCH2CH(O)CH(CH2)7COOCH3–18]+, 237 [CH2CH(O)CH CH2CH(O)CH(CH2)7COOCH3–32]+, 223 [O≡CCHCH2CH(O)CH(CH2)7COOCH3–31]+, 211 [O=CHCH2 CH(O)CH(CH2)7COOCH3–31]+, 165 [CH3CH(O)CH(CH2)7COOCH3–31–18]+, 137 [O=CH(CH2)7COO CH3-31-18]+, 109 [CH3(CH2)6COOCH3–49]+.

3.2.6. Oxidation of Methyl Linolenate (6)

The reaction mixture was kept under stirring for 8 h. HPLC separation by n-hexane/EtOAc 75:25 (v/v, ɸ = 3.5 mL/min) afforded two mixtures of products. The first mixture was separated by n-hexane/EtOAc 95:5 (v/v, ɸ = 3.5 mL/min) to yield the monoepoxides 20 (methyl cis-12,13-epoxy-9Z,15Z-octadecadienoate) (tR = 17.86 min), 21 (methyl cis-15,16-epoxy-9Z,12Z-octadecadienoate) (tR = 23.08 min) and 22 (methyl cis-9,10-epoxy-12Z,15Z-octadecadienoate) (tR = 25.38 min). The three epoxides were identified on the basis of their spectroscopic data (1H-, and 13C-NMR, EIMS) [43,44] and supported by gCOSY and NOESY experiments. The second mixture was separated with hexane/AcOEt (80: 20 v/v, ɸ = 3.5 ml/min) affording two fractions (A and B) which are both inseparable mixtures of two bisepoxides (A: tR = 10.59 and tR = 10.84; B: tR = 11.86 and tR = 12.14 min).

3.2.7. Oxidation of Bergamottin (7)

The reaction mixture was kept under stirring at room temperature for 4 h. Then was dried over molecular sieves (3 Å) for three hours and the solvent was evaporated under reduced pressure. The residue was purified by silica gel chromatography (n-hexane/EtOAc 85:15) to afford the racemic mixture 23 (17-epoxybergamottin) (tR = 17.54 min and tR = 20.77 min as determined by HPLC analysis on a chiral stationary phase column, Chiralcel OD-H n-hexane/EtOAc 9:1). The racemic mixture of epoxides has been identified on the basis of their spectroscopic data (1H- and 13C-NMR) [47].

3.2.8. Representative Procedures for the HKR of Terminal Epoxides

The (S,S)salen Co(II) (see ESI, S2) (4.6 × 10−4 mmol in 20 µL of THF) was treated with racemic 17,18-epoxy bergamottin (9.9 × 10−2 mmol) in 200 µL of THF and 2.1 × 10−3 mmol of AcOH. To this solution, cooled to 0 °C, 5.5 × 10−2 mmol of H2O were added. The solution was allowed to warm to room temperature and stirred for 28 h. The reaction mixture was dried over molecular sieves (3 Å) and the solvent was evaporated under reduced pressure. PLC separation with n-hexane/EtOAc 1:1 afforded a pure sample of 17(R)-18 DHB (yield 5%) identified on the basis of its 1H-NMR data [47]. The presence of a doublet at δ = 3.31 ppm is attributed to the H-17 of the (R)-enantiomer, while the same proton for the (S)-enantiomer is at 3.22 ppm.

4. Conclusions

We have oxidized some natural compounds, containing conjugate double bonds with the versatile oxidant system MTO/H2O2/pyridine. Some reactions have shown very good regio- and stereoselectivity. Stereoelectronic and steric effects and nucleophilicity of double bonds control the selectivity. Under the experimental conditions adopted in this work, the oxidation of methyl abietate leads to the oxidation of the double bond of the ring B with formation of the ketone 8, while the remaining oxidation products 9 and 10 are secondary oxidation products derived from the further oxidation of 8. α- and β-ionones are very selectively converted into the corresponding epoxides, whereas oxidation of methyl linolelaidate and methyl linolenate yields mixtures of mono- and diepoxides. Furthermore, we have developed a synthetic strategy leading to the 17(R),18-dihydroxybergamottin by HKR of the racemic epoxide obtained by a very regioselective epoxidation of bergamottin with MTO/H2O2/pyridine. Some of the oxidation products obtained are relevant as synthons in the biomimetic synthesis of cyclic terpenoids (farnesyl derivatives), in perfumery and fragrance industry (α- and β-ionone epoxides) or in medical implications (17(R),18-dihydroxybergamottin).

Supplementary Materials

Supplementary materials can be accessed at: https://www.mdpi.com/1420-3049/18/11/13754/s1.

Acknowledgments

The authors thank the MIUR (PRIN-2008AZT7RKproject) and University of Catania for financial support.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Bauer, K.; Garbe, D.; Surburg, H. Common Fragance and Flavor Materials. Preparation, Properties and Uses; Wiley: New York, NY, USA, 1997. [Google Scholar]
  2. Strukul, G.; Scarso, A. Environmentally Benign Oxidants; John Wiley & Sons: New York, NY, USA, 2013. [Google Scholar]
  3. Herrmann, W.A.; Fischer, R.W. Methyltrioxorhenium as catalyst for olefin oxidation. Angew. Chem. Ed. Engl. 1991, 30, 1638–1641. [Google Scholar] [CrossRef]
  4. Herrmann, W.A.; Fischer, R.; Scherer, M.U.W. Methyltrioxorhenium(VII) als epoxidationskatalysator: Struktur der aktiven spezies und katalysemechanismus. Angew. Chem. 1993, 105, 1209–1212. [Google Scholar] [CrossRef]
  5. Al-Ajlouni, A.M.; Espenson, J.H. Epoxidation of styrenes by hydrogen peroxide as catalyzed by methylrhenium trioxide. J. Am. Chem. Soc. 1995, 117, 9243–9250. [Google Scholar] [CrossRef]
  6. Adam, W.; Saha-Moller, C.R.; Weichold, O. Epoxidation of trans-cyclooctene by methyltrioxorhenium/H2O2: Reaction of trans-epoxide with the monoperoxo complex. J. Org. Chem. 2000, 65, 5001–5004. [Google Scholar] [CrossRef]
  7. Murray, R.W.; Iyanar, K. Oxidation of [60] fullerene by the methyltrioxorhenium-hydrogen peroxide system. Tetrahedron Lett. 1997, 38, 335–338. [Google Scholar] [CrossRef]
  8. Murray, R.W.; Iyanar, K.; Chen, J.; Wearing, J.T. Synthesis of nitrones using the methyltrioxorhenium/hydrogen peroxide system. J. Org. Chem. 1996, 61, 8099–8102. [Google Scholar] [CrossRef]
  9. Goti, A.; Nannelli, L. Synthesis of nitrones by methyltrioxorhenium catalyzed direct oxidation of secondary amines. Tetrahedron Lett. 1996, 37, 6025–6028. [Google Scholar] [CrossRef]
  10. Zhu, Z.; Espenson, J.H. Oxidation of alkynes by hydrogen peroxide catalyzed by methylrhenium trioxide. J. Org. Chem. 1995, 60, 7728–7732. [Google Scholar] [CrossRef]
  11. Wang, Y.; Espenson, J.H. Oxidation of symmetric disulfides with hydrogen peroxide catalyzed by methyltrioxorhenium(VII). J. Org. Chem. 2000, 65, 104–107. [Google Scholar] [CrossRef]
  12. Adam, W.; Herrmann, W.A.; Lin, J.; Saha-Moller, C.R.; Fischer, R.W.; Correia, J.D.J. Homogeneous-catalytic oxidation of arenes and a new synthesis of vitamin K3. Angew. Chem. Ed. Engl. 1994, 33, 2475–2477. [Google Scholar]
  13. Zhu, Z.; Espenson, J.H. Kinetics and mechanism of oxidation of anilines by hydrogen peroxide as catalyzed by methylrhenium trioxide. J. Org. Chem. 1995, 60, 1326–1332. [Google Scholar] [CrossRef]
  14. Adam, W.; Mitchell, C.M.; Saha-Moller, C. Chemoselective methyltrioxorhenium(VII)-catalyzed sulfoxidations with hydrogen peroxide. Tetrahedron 1994, 50, 13121–13124. [Google Scholar] [CrossRef]
  15. Vassel, K.A.; Espenson, J.H. Oxidation of organic sulfides by electrophilically activated hydrogen peroxide: The catalytic ability of methylrhenium trioxide. Inorg. Chem. 1994, 33, 5491–5498. [Google Scholar] [CrossRef]
  16. Adam, W.; Mitchell, C.M.; Saha-Moller, C.R. Regio- and diastereoselective catalytic epoxidation of acyclic allylic alcohols with methyltrioxorhenium: A mechanisti comparison with metal (peroxy and peroxo complexes) and nonmetal (peracids and dioxirane) oxidants. J. Org. Chem. 1999, 64, 3699–3707. [Google Scholar] [CrossRef]
  17. Adam, W.; Mitchell, C.M.; Saha-Moller, C. Steric and electronic effects in the diastereoselective catalytic epoxidation of cyclic allylic alcohols with methyltrioxorhenium (MTO). Eur. J. Org. Chem. 1999, 1999, 785–790. [Google Scholar]
  18. Lane, B.S.; Burgess, K. Metal-catalyzed epoxidations of alkenes with hydrogen peroxide. Chem. Rev. 2003, 103, 2457–2473. [Google Scholar] [CrossRef]
  19. Yamazaki, S. An effective procedure for the synthesis of acid-sensitive epoxides: Use of 1-methylimidazole as the additive on methyltrioxorhenium-catalyzed epoxidation of alkenes with hydrogen peroxide. Org. Biomol. Chem. 2010, 8, 2377–2385. [Google Scholar] [CrossRef]
  20. Yamazaki, S. Methyltrioxorhenium-catalyzed epoxidation of homoallylic alcohols with hydrogen peroxide. J. Org. Chem. 2012, 77, 9884–9888. [Google Scholar]
  21. Crucianelli, M.; Saladino, R.; de Angelis, F. Methyltrioxorhenium catalysis in nonconventional solvents: A great catalyst in a safe reaction medium. ChemSusChem 2010, 3, 524–540. [Google Scholar] [CrossRef]
  22. Ballistreri, F.P.; Chillemi, R.; Sciuto, S.; Tomaselli, G.A.; Toscano, R.M. Regio and stereoselective oxidations of usaturated steroidal compounds with H2O2 mediated by CH3ReO3. Steroids 2006, 71, 565–577. [Google Scholar] [CrossRef]
  23. Herrmann, W.A.; Fischer, R.A.; Scherer, W.; Rauch, M.U. Methyltrioxorhenium(VII) as catalyst for epoxidations: Structure of the active species and mechanism of catalysis. Angew. Chem. Int. Ed. 1993, 32, 1157–1160. [Google Scholar] [CrossRef]
  24. Al-Ajlouni, A.M.; Espenson, J.H. Kinetics and mechanism of the epoxidation of alkyl-substituted alkenes by hydrogen peroxide, Catalyzed by methylrhenium trioxide. J. Org. Chem. 1996, 61, 3969–3976. [Google Scholar] [CrossRef]
  25. Copéret, C.; Adolfsson, H.; Sharpless, K.B. A simple and efficient method for epoxidation of terminal alkenes. Chem. Commun. 1997. [Google Scholar] [CrossRef]
  26. Herrmann, W.A.; Ding, H.; Kratzer, R.M.; Kühn, F.E.; Haider, J.J.; Fischer, R.W.J. Multiple bonds between transition metals and main-group elements Part 168. I Methyltrioxorhenium/Lewisbase catalysts in olefin Epoxidation. Organomet. Chem. 1997, 549, 319–322. [Google Scholar] [CrossRef]
  27. Wang, W.D.; Espenson, J.H. Effects of pyridine and its derivatives on the equilibria and kinetics pertaining to epoxidation reactions catalyzed by methyltrioxorhenium. J. Am. Chem. Soc. 1998, 120, 11335–11341. [Google Scholar] [CrossRef]
  28. Tan, H.; Espenson, J.H. Kinetics and mechanism of the dihydroxylation and epoxidation of conjugated dienes with hydrogen peroxide catalyzed by methylrhenium trioxide. Inorg. Chem. 1998, 37, 467–472. [Google Scholar] [CrossRef]
  29. Espenson, J.H. Atom-transfer reactions catalyzed by methyltrioxorhenium(VII)—mechanisms and applications. Chem. Commun. 1999, 6, 479–488. [Google Scholar] [CrossRef]
  30. Presser, A.; Hasingerl, E.; Weis, R.; Hüfner, A. Synthetic transformations of abietic acid IV[1]. B- and C-ring oxidation. Monatsh. Chem. 1998, 129, 921–930. [Google Scholar]
  31. Suda, K.; Kikkawa, T.; Nakajima, S.; Takanami, T. Highly regio- and stereoselective rearrangement of epoxides to aldehydes catalyzed by high-valent metalloporphyrin complex, Cr(TPP)OTf. J. Am. Chem. Soc. 2004, 126, 9554–9555. [Google Scholar] [CrossRef]
  32. Silva, L.F., Jr. Construction of cyclopentyl units by ring contraction reactions. Tetrahedron 2002, 58, 9137–9161. [Google Scholar] [CrossRef]
  33. Silko, Y.A.; Raldugin, V.A.; Shmidt, E.N.; Mamatyuk, V.I.; Pentegova, V.A. Oxidation of methyl abietate with peracetic acid. Izv. Sibir. Otd. Akad. Nauk Khim. 1984, 3, 107–112. [Google Scholar]
  34. Silko, Y.A.; Raldugin, V.A.; Shmidt, E.N.; Mamatyuk, V.I.; Pentegova, V.A. Methyl abietate epoxides and their reaction products. Izv. Sibir. Otd. Akad. Nauk Khim. 1983, 2, 124–128. [Google Scholar]
  35. Tsangarakis, C.; Arkoudis, E.; Raptis, C.; Stratakis, M. Selective monocyclization of epoxy terpenoids promoted by zeolite NaY. A short biomimetic synthesis of elegansidiol and farnesiferols B-D. Org. Lett. 2007, 9, 583–586. [Google Scholar] [CrossRef]
  36. Van Tamelen, E.E.; McCormickg, J.P. Terpene terminal epoxides. Mechanistic aspects of conversion to the bicyclic level. J. Am. Chem. Soc. 1969, 91, 1847–1848. [Google Scholar] [CrossRef]
  37. Cane, D.E.; Iyengar, R.; Shiao, M. Cyclonerodiol biosynthesis and the enzymatic conversion of farnesyl to nerolidyl pyrophosphate. J. Am. Chem. Soc. 1981, 103, 914–931. [Google Scholar] [CrossRef]
  38. Tong, R.; McDonald, F.E. Mimicking biosynthesis: Total synthesis of the triterpene natural product abudinol B from a squalene-like precursor. Angew. Chem. Int. Ed. 2008, 47, 4377–4379. [Google Scholar] [CrossRef]
  39. Uebelhart, P.; Baumeler, A.; Haag, H.; Prewo, R.; Bieri, J.H.; Eugster, C.H. Optisch aktive 4,5-Epoxy-4,5-dihydro-α-ionone und Synthese der stereoisomeren 4,5:4′,5′-Diepoxy-4,5,4′,5′-tetrahydro-ϵ,ϵ-carotine und der sterische Verlauf ihrer Hydrolyse. Helv. Chim. Acta 1986, 69, 816–834. [Google Scholar] [CrossRef]
  40. Sakamaki, H.; Itoh, K.; Chai, W.; Hayashida, Y.; Kitanaka, S.; Horiuchi, C.A. Biotransformation of (±)-α-ionone and β-ionone by cultured cells of Caragana chamlagu. J. Mol. Catal. B-Enzym. 2004, 27, 177–181. [Google Scholar] [CrossRef]
  41. Gunstone, F.D.; Schuler, H.R. Fatty acids, Part 46 PMR spectra of several epoxyoctadecenoic, epoxyoctadecynoic, and diepoxyoctadecanoic esters. Chem. Phys. Lipids 1975, 15, 189–197. [Google Scholar] [CrossRef]
  42. Du, G.; Tekin, A.; Hammond, E.G.; Woo, L.K. Catalytic epoxidation of methyl linoleate. J. Am. Oil Chem. Soc. 2004, 81, 477–480. [Google Scholar] [CrossRef]
  43. Cui, P.H.; Duke, R.K.; Tattam, B.N.; Duke, C.C. Monoepoxy octadecadienoates and monoepoxy octadecatrienoates 2: Mass spectral characterization. Chem. Phys. Lipids 2008, 152, 65–70. [Google Scholar] [CrossRef]
  44. Cui, P.H.; Duke, R.K.; Duke, C.C. Monoepoxy octadecadienoates and monoepoxy octadecatrienoates: 1: NMR spectral characterization. Chem. Phys. Lipids 2008, 152, 122–130. [Google Scholar] [CrossRef]
  45. Bailey, D.G.; Malcolm, J.; Arnold, O.; Spence, J.D. Grapefruit juice-drug interactions. Br. J. Clin. Pharmacol. 1998, 46, 101–110. [Google Scholar]
  46. Row, E.C.; Brown, S.A.; Stachulski, A.V.; Lennard, M.S. Design, Synthesis and evaluation of furanocoumarin monomers as inhibitors of CYP3A4. Org. Biomol. Chem. 2006, 4, 1604–1610. [Google Scholar] [CrossRef]
  47. Ohta, T.; Maruyama, T.; Nagahashi, M.; Miyamoto, Y.; Hosoi, S.; Kiuchi, F.; Yamazoe, Y.; Tsukamoto, S. Paradisin C: A new CYP3A4 inhibitor from grapefruit juice. Tetrahedron 2002, 58, 6631–663. [Google Scholar] [CrossRef]
  48. Schaus, S.E.; Brandes, B.D.; Larrow, J.F.; Tokunaga, M.; Hansen, K.B.; Gould, A.E.; Furrow, M.E.; Jacobsen, E.N. Highly selective hydrolytic kinetic resolution of terminal epoxides catalyzed by chiral (salen)CoIII complexes. Practical synthesis of enantioenriched terminal epoxides and 1,2-diols. J. Am. Chem. Soc. 2002, 124, 1307–1315. [Google Scholar] [CrossRef]
  49. Larrow, J.F.; Jacobsen, E.N. Asymmetric processes catalyzed by chiral (salen)metal complexes. Top. J. Organomet. Chem. 2004, 6, 123–152. [Google Scholar]
  50. Nielsen, L.P.C.; Stevenson, C.P.; Blackmond, D.G.; Jacobsen, E.N. Mechanistic investigation leads to a synthetic improvement in the hydrolytic kinetic resolution of terminal epoxides. J. Am. Chem. Soc. 2004, 126, 1360–1362. [Google Scholar] [CrossRef]
  51. Abad, A.; Arno, M.; Domingo, L.R.; Zaragoza, R.J. Synthesis of (+)-podocarp-8(14)-en-13-one and methyl-(+)-13-oxo-podocarp-8(14)-en-18-oate from abietic acid. Tetrahedron 1985, 41, 4937–4940. [Google Scholar] [CrossRef]
