Neglschisandrins E–F: Two New Lignans and Related Cytotoxic Lignans from Schisandra neglecta

Abstract

Phytochemical investigation of an ethanolic extract of stems of Schisandra neglecta led to the isolation and identification of two new dibenzocyclooctadiene lignans, designated neglschisandrins E (1) and F (2), and thirteen known lignans. All structures and stereochemistries were determined by spectroscopic methods, including 2D-NMR techniques. The isolates were evaluated for in vitro cytotoxic activity. Among them, compounds 2–6 exhibited moderate to weak cytotoxicity against the human colorectal carcinoma HCT-8 cell line with EC₅₀ values of 7.33~19.8 μg/mL. In addition, compounds 2–4 also exhibited marginal cytotoxicity against the human lung carcinoma A549 cell line with EC₅₀ values of 11.8~15.0 μg/mL.

1. Introduction

Stems or fruits of plants in the Schisandraceae family are used widely in China as tonic and astringent agents for the treatment of rheumatic arthritis, traumatic injury, and related diseases [1]. Schisandraceae plants are rich in lignans, especially dibenzocyclooctadiene lignans, which show beneficial pharmacological effects, including anti-HIV, antitumor-promoting, calcium antagonistic, and anti-lipid peroxidative actions [2,3,4,5,6,7,8,9,10,11,12,13].

In our previous study, we reported four new dibenzocyclooctadiene lignans from the stems of Schisandra neglecta, which is indigenous to the Tibet Autonomous Region of China [14,15]. Our further investigation of the same plant has now led to the isolation and identification of two new dibenzocyclooctadiene lignans, named neglschisandrins E (1) and F (2) (Figure 1), together with thirteen known lignans, 6-O-benzoylgomisin O (3) [16], (+)-γ-rubschisandrin (4) [17], rubschisantherin (5) [17], benzoylisogomisin O (6) [18], schisandrin A (7) [19], schisanhenol (8) [20], angeloylgomisin H (9) [21], gomisin H (10) [21], tigloylgomisin H (11) [21], benzoylgomisin H (12) [21], schisandrin (13) [22], gomisin B (14) [23], and angeloyl-(+)-gomisin K₃ (15) [24]. This paper reports the isolation and structural elucidation of these compounds as well as their in vitro cytotoxicity against human lung carcinoma A549 and human colorectal carcinoma HCT-8 cell lines.

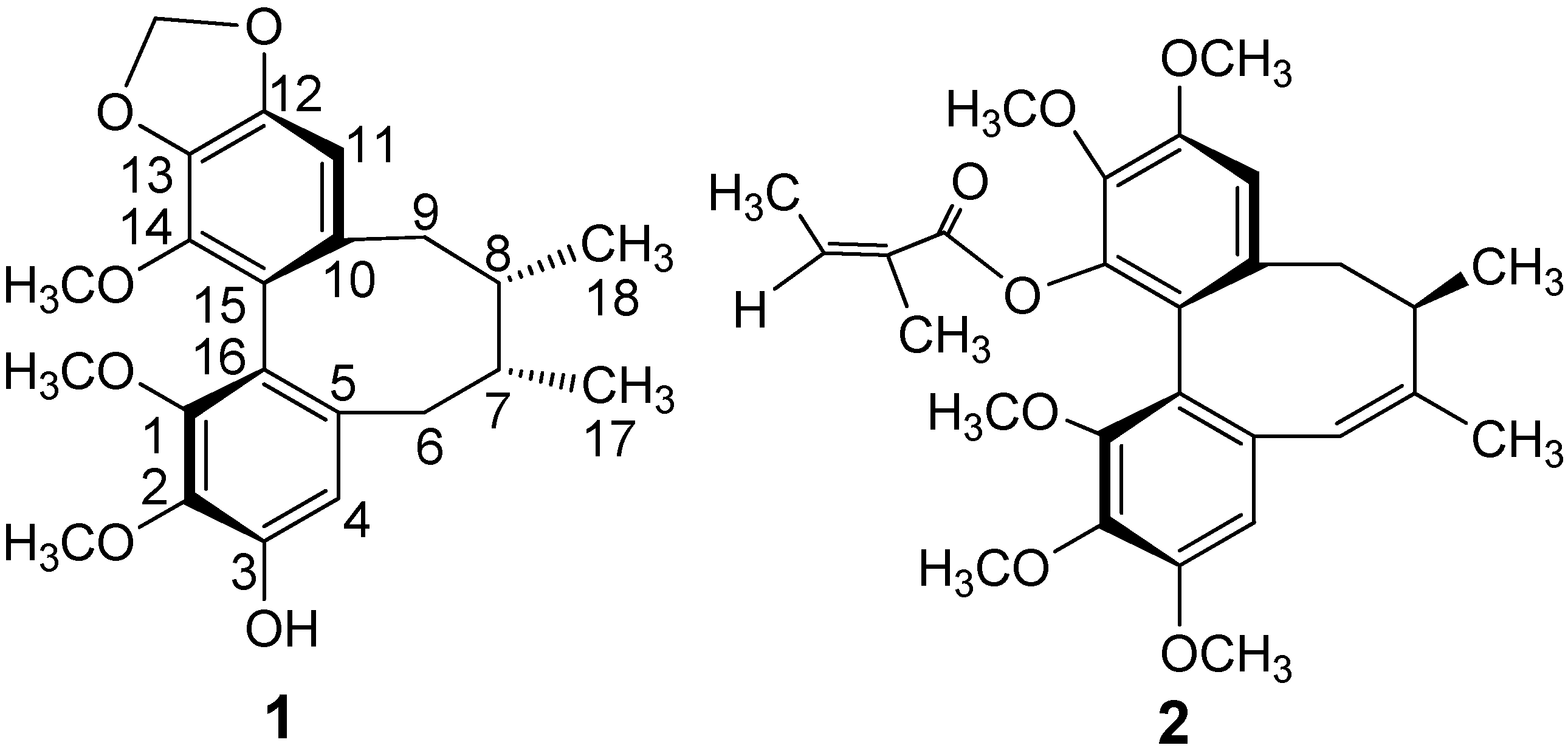

Figure 1. Structures of Compounds 1–2.

Figure 1. Structures of Compounds 1–2.

2. Results and Discussion

A 95% alcoholic extract prepared from stems of Schisandra neglecta was partitioned between diethyl ether and water. The diethyl ether extract was subjected to silica gel column chromatography (CC), preparative TLC, and semi-preparative reversed phase HPLC to give the two new and thirteen known dibenzocyclooctadiene lignans named above.

Compound 1, obtained as amorphous powder, had the molecular formula C₂₂H₂₆O₆ based on HR-ESI-MS (m/z 387.1810 [M+H]⁺). The UV and NMR spectra indicated that 1 was a dibenzocyclooctadiene lignan [25]. The ¹H-NMR spectrum of 1 (Table 1) showed signals due to two secondary methyl groups (δ_H 0.97, 0.73, each 3H, d, J = 7.1 Hz), assignable to the cis-oriented Me-7 and Me-8, respectively [26]. The presence of four benzylic methylene signals (δ_H 2.25, 1H, dd, J = 13.0, 9.6; 2.01 Hz, 1H, d, J = 13.0 Hz; 2.55, 1H, dd, J = 13.6, 7.4; 2.45 Hz, 1H, dd, J = 13.6, 1.5 Hz) indicated that C-6 and C-9 were unsubstituted. The ¹H-NMR spectrum also showed signals for two aromatic protons (δ_H 6.63, 6.49 each 1H, s), assignable to CH-4 and CH-11, respectively. Three methoxy groups [δ_H 3.50, 3.79 and 3.93, each 3H, s) and a methylenedioxy (–OCH₂O–) moiety (δ_H 5.96, 5.95, each 1H, d, J = 1.3 Hz] were also observed as substituents on the aromatic rings. The proton signal at δ_H 5.68 (br s) showed no correlations in the HMQC spectrum, and was assigned as an hydroxyl on the aromatic ring. This assignment was supported by an IR band at 3447 cm⁻¹ [27].

Table 1. ¹H- (400 MHz) and ¹³C- (100 MHz) NMR data (measured in CDCl₃) for compounds 1 and 2 (δ in ppm, J in Hz).

	1		2
Position	δC	δH	δC	δH
			S
1	150.3 (s)	-	152.3 (s)	-
2	137.4 (s)	-	139.9 (s)	-
3	148.8 (s)	-	152.6 (s)	-
4	110.2 (d)	6.63 (s)	106.3 (d)	6.38 (s)
5	140.3 (s)	-	136.5 (s)	-
6	35.1 (t)	2.25 (dd, J = 9.6,13.0)	125.3 (t)	6.20 (s)
		2.01 (d, J = 13.0)		-
7	40.9 (d)	1.79 (m)	142.2 (s)	-
8	33.8 (d)	1.88 (m)	34.2 (d)	2.79 (m)
9	38.9 (t)	2.55 (dd, J = 13.6,7.4)	42.9 (t)	3.10 (dd, J = 9,15.1)
		2.45 (dd, J = 13.6,1.5)		2.38 (dd, J = 10.0,15.1)
10	132.7 (s)	-	135.3 (s)	-
11	106.2 (d)	6.49 (s)	111.5 (d)	6.57 (s)
12	147.7 (s)	-	151.6 (s)	-
13	135.1 (s)	-	139.3 (s)	-
14	141.3 (s)	-	142.5 (s)	-
15	122.5 (s)	-	124.1 (s)	-
16	121.3 (s)	-	122.1 (s)	-
17	21.8 (q)	0.97 (d, J = 7.1)	18.9 (q)	1.63 (s)
18	12.4 (q)	0.73 (d, J = 7.1)	19.4 (q)	1.03 (d, J = 6.9)
MeO-C (1)	60.1 (q)	3.50 (s)	60.7 (q)	3.61 (s)
MeO-C (2)	61.0 (q)	3.93 (s)	60.8 (q)	3.84 (s)
MeO-C (3)	-	-	55.9 (q)	3.83 (s)
MeO-C (12)	-	-	55.9 (q)	3.88 (s)
MeO-C (13)	-	-	60.7 (q)	3.80 (s)
MeO-C (14)	59.7 (q)	3.79 (s)	-	-
HO-C (3)		5.68 (brs)		-
OCH2O	100.8 (t)	5.96, 5.95 (d, J = 1.3)	-	-
Ang:1'	-	-	165.2 (s)	-
2'	-	-	127.8 (s)	-
3'	-	-	136.8 (d)	5.86 (m)
4'	-	-	15.3 (q)	1.78 (s)
5'	-	-	20.3 (q)	1.72 (d, J = 7.1)

Table 1. ¹H- (400 MHz) and ¹³C- (100 MHz) NMR data (measured in CDCl₃) for compounds 1 and 2 (δ in ppm, J in Hz).

	1		2
Position	δC	δH	δC	δH
			S
1	150.3 (s)	-	152.3 (s)	-
2	137.4 (s)	-	139.9 (s)	-
3	148.8 (s)	-	152.6 (s)	-
4	110.2 (d)	6.63 (s)	106.3 (d)	6.38 (s)
5	140.3 (s)	-	136.5 (s)	-
6	35.1 (t)	2.25 (dd, J = 9.6,13.0)	125.3 (t)	6.20 (s)
		2.01 (d, J = 13.0)		-
7	40.9 (d)	1.79 (m)	142.2 (s)	-
8	33.8 (d)	1.88 (m)	34.2 (d)	2.79 (m)
9	38.9 (t)	2.55 (dd, J = 13.6,7.4)	42.9 (t)	3.10 (dd, J = 9,15.1)
		2.45 (dd, J = 13.6,1.5)		2.38 (dd, J = 10.0,15.1)
10	132.7 (s)	-	135.3 (s)	-
11	106.2 (d)	6.49 (s)	111.5 (d)	6.57 (s)
12	147.7 (s)	-	151.6 (s)	-
13	135.1 (s)	-	139.3 (s)	-
14	141.3 (s)	-	142.5 (s)	-
15	122.5 (s)	-	124.1 (s)	-
16	121.3 (s)	-	122.1 (s)	-
17	21.8 (q)	0.97 (d, J = 7.1)	18.9 (q)	1.63 (s)
18	12.4 (q)	0.73 (d, J = 7.1)	19.4 (q)	1.03 (d, J = 6.9)
MeO-C (1)	60.1 (q)	3.50 (s)	60.7 (q)	3.61 (s)
MeO-C (2)	61.0 (q)	3.93 (s)	60.8 (q)	3.84 (s)
MeO-C (3)	-	-	55.9 (q)	3.83 (s)
MeO-C (12)	-	-	55.9 (q)	3.88 (s)
MeO-C (13)	-	-	60.7 (q)	3.80 (s)
MeO-C (14)	59.7 (q)	3.79 (s)	-	-
HO-C (3)		5.68 (brs)		-
OCH2O	100.8 (t)	5.96, 5.95 (d, J = 1.3)	-	-
Ang:1'	-	-	165.2 (s)	-
2'	-	-	127.8 (s)	-
3'	-	-	136.8 (d)	5.86 (m)
4'	-	-	15.3 (q)	1.78 (s)
5'	-	-	20.3 (q)	1.72 (d, J = 7.1)

HMBC correlations of CH-11 (δ_H 6.49) and methylenedioxy (δ_H 5.96, 5.95) protons with aromatic carbons at δ_C 147.7, 135.1 indicated that the methylenedioxy group was located at C-12 and C-13. Correlations of the CH-4 proton (δ_H 6.63) with carbons at δ_C 148.8 (C-3) and 137.4 (C-2) and of the hydroxyl proton at δ_H 5.68 with carbons at δ_C 110.2 (C-4), 148.8 (C-3) and 137.4 (C-2), indicated that the hydroxyl was located at C-3. Thus, the three methoxy groups were located at C-1, C-2, and C-14, based on HMBC correlations of the protons at δ_H 3.79, 3.93 and 3.50 with aromatic carbons at δ_C 141.3 (C-14), 137.4 (C-2) and 150.3 (C-1), respectively.

The circular dichroism (CD) spectrum of 1 showed a negative Cotton effect at 216 nm and a positive Cotton effect at 254 nm, which indicated an R-biphenyl configuration in 1 [28]. NOESY correlations between CH-11/Me-18, CH-4/CH-6α and CH-11/CH-9β indicated a twist-boat-chair (TBC) conformation for the cyclooctadiene ring [29] (Figure 2). The substituent positions and stereochemical assignments in the cyclooctadiene ring of 1 were further supported by NOESY correlations of MeO-1/MeO-14, Me-17/Me-18, CH-6β/Me-18 and CH-4/CH-7. Thus, the structure of 1 was determined as that shown in Figure 1. Compound 1 and (−)-gomisin L₂ have the same planar structure, but different stereochemistry [30].

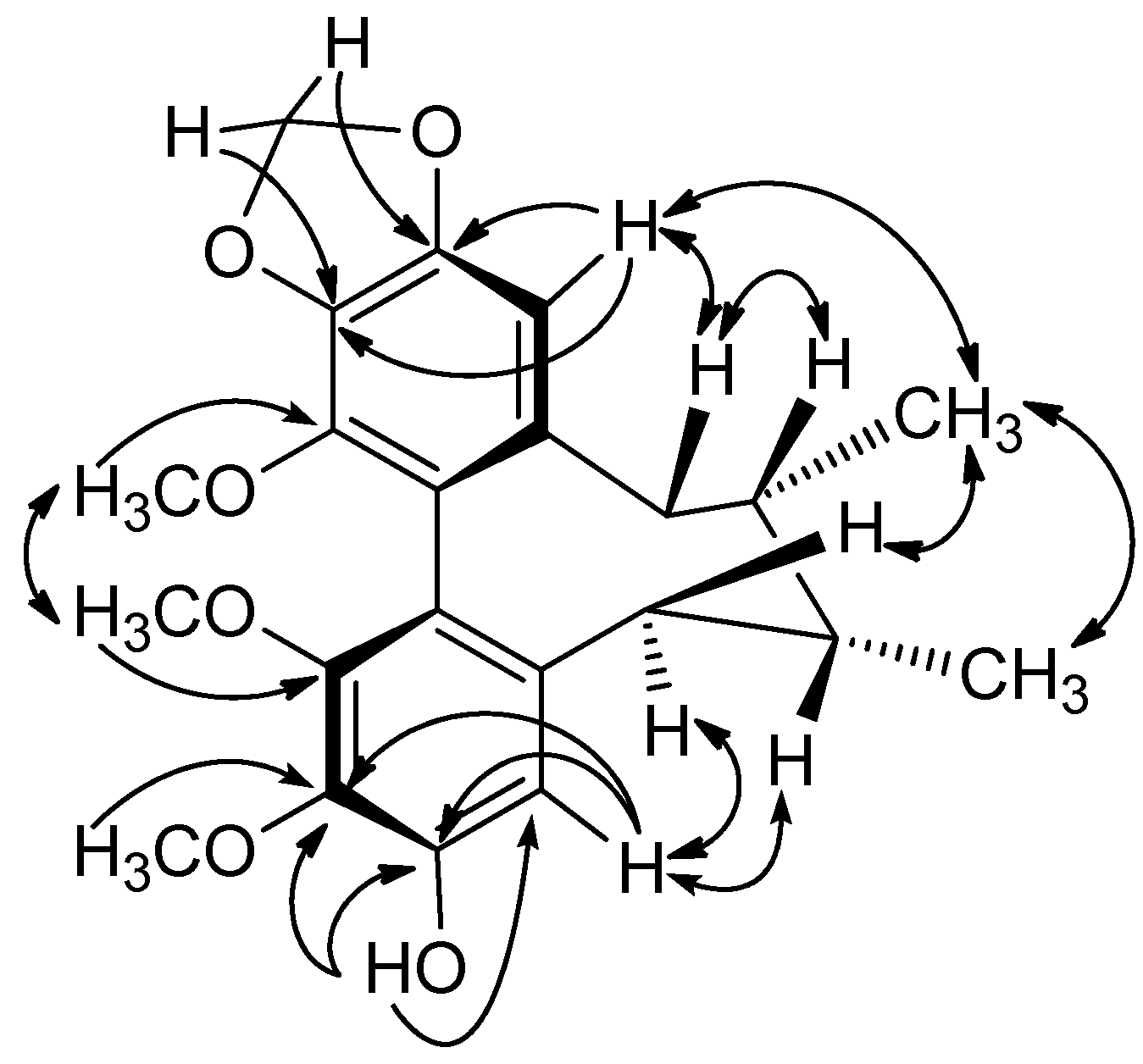

Figure 2. Key HMBC (→) and NOESY (↔) Correlations of 1.

Figure 2. Key HMBC (→) and NOESY (↔) Correlations of 1.

Compound 2, obtained as colorless powder, has the molecular formula C₂₈H₃₄O₇ according to HR-ESI-MS (m/z 505.2187 [M+Na]⁺). Its IR, UV, CD and NMR data indicated that 2 is a also a dibenzocyclooctadiene lignan. The ¹H-NMR spectrum of 2 (Table 1) showed the presence of five methoxy groups at δ_H 3.61, 3.80, 3.83, 3.84 and 3.88 (each 3H, s), and an angeloyl group at δ_H 5.86 (1H, m), 1.78 (3H, s), 1.72 (3H, d, J = 7.1 Hz) on aromatic rings [24].

The following proton-carbon HMBC correlations were observed: CH-4 (δ_H 6.38) with C-3 (δ_C 152.6) and C-2 (δ_C 139.9), CH-11 (δ_H 6.57) with C-12 (δ_C 151.6), C-13 (δ_C 139.3) and C-14 (δ_C 142.5), and the five methoxy signals at δ_H 3.61, 3.84, 3.83, 3.88 and 3.80 with aromatic carbon signals at δ_C 152.3 (C-1), 139.9 (C-2), 152.6 (C-3), 151.6 (C-12) and 139.3 (C-13), respectively. These correlations indicated that the five methoxy groups were attached to C-1, C-2, C-3, C-12, and C-13, and the angeloyl group was located at C-14 (Figure 3).

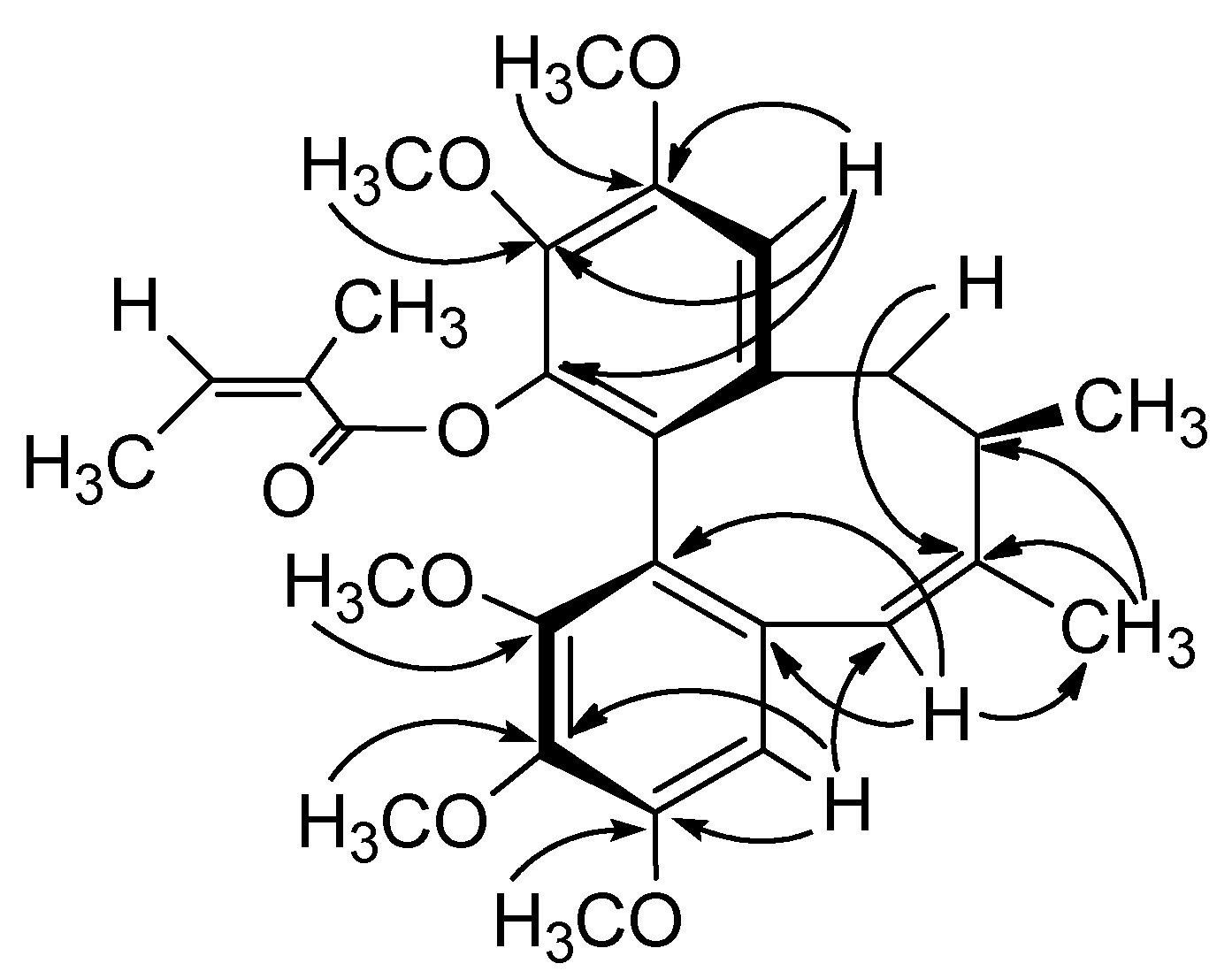

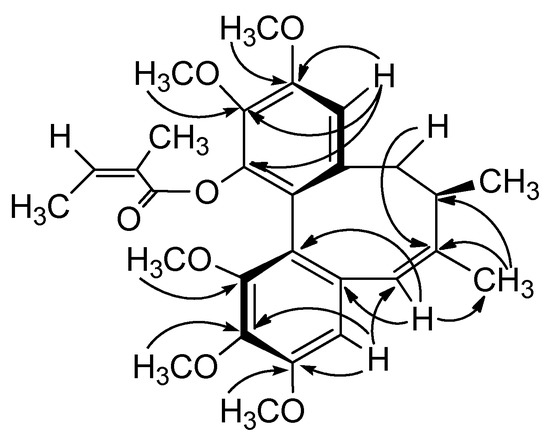

Figure 3. Key HMBC correlations of 2.

Figure 3. Key HMBC correlations of 2.

Furthermore, the ¹H-NMR spectrum of 2 showed a proton signal at δ_H 6.20 (1H, s) and the ¹³C-NMR spectrum showed a quaternary olefinic carbon at δ_C 142.2 and a methine olefinic carbon at δ_C 125.3, suggesting the formation of a double bond. A singlet methyl signal at δ_H 1.63 (3H, s, Me-17) in the ¹H-NMR spectrum indicated that the double bond was located between C-6 and C-7 and was substituted with a methyl group. HMBC correlations of δ_H 6.38 (CH-4) with δ_C 125.3 (C-6), δ_H 6.20 (CH-6) with δ_C 136.5 (C-5), 122.1 (C-16) and 18.9 (C-17), δ_H1.63 (Me-17) with δ_C 142.2 (C-7) and 34.2 (C-8), δ_H 2.38 and 3.10 (CH₂-9) with δ_C 142.2 (C-7) confirmed the substructure.

The CD spectrum of 2 had a negative Cotton effect at 219 nm and a positive Cotton effect at 251 nm, indicating that 2 has an R-biphenyl configuration. The NOESY correlations between CH-4/CH-6, CH-6/Me-17, and CH-11/CH-9β, CH-9α/CH-8, CH-11/MeO-12, CH-9β/Me-18, and Me-17/Me-18 fully supported the assigned structure and stereochemistry (Figure 4). Compound 2 has an endocylic double bond rather than the exocyclic double bond found in the previously reported neglschisandrin B [14].

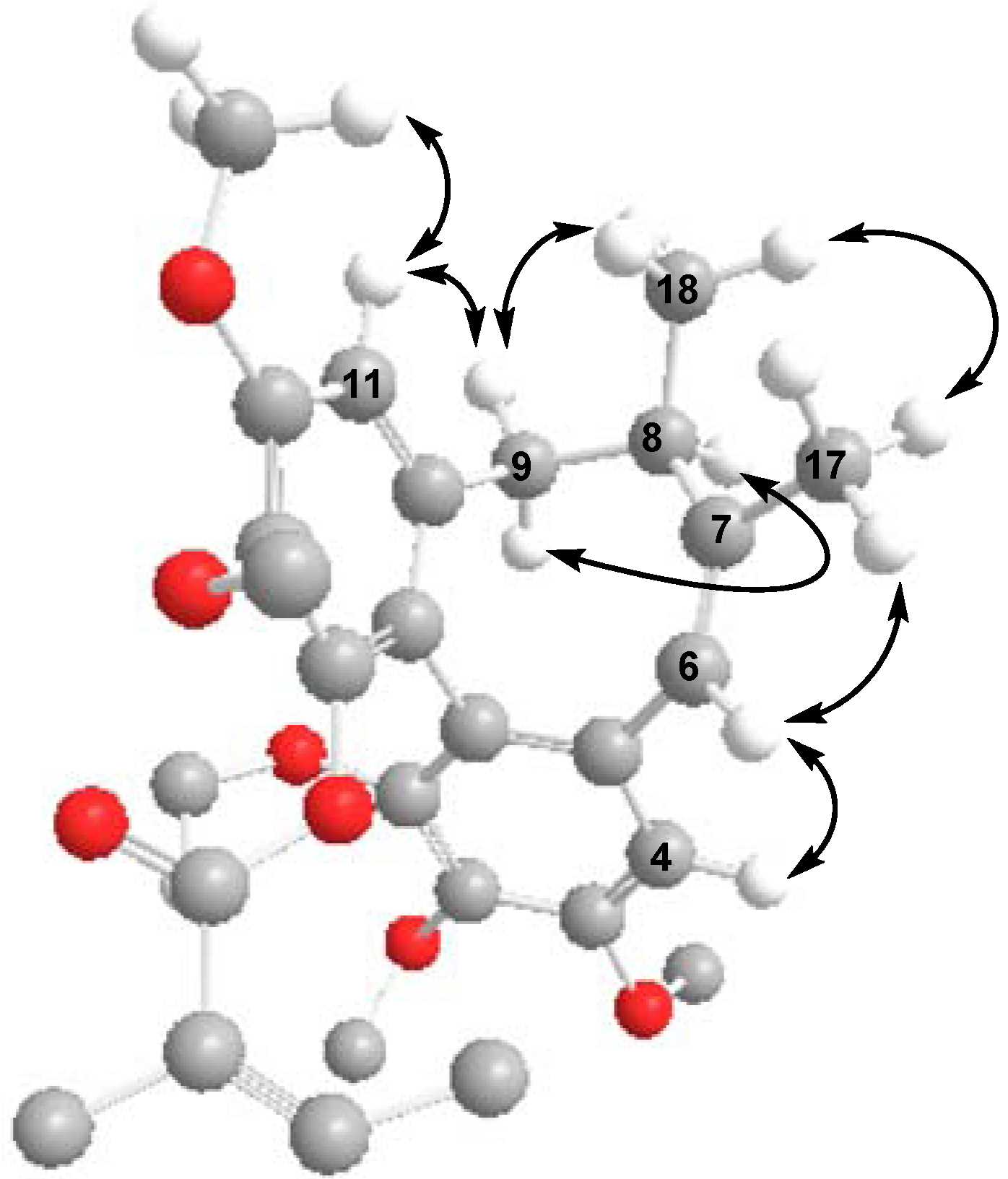

Figure 4. Key NOESY correlations of 2.

Figure 4. Key NOESY correlations of 2.

The lignans were evaluated in vitro for cytotoxicity against human lung carcinoma A549 and human colorectal carcinoma HCT-8 cell lines employing a MTT-assay with paclitaxel as the positive control (Table 2). Five lignans exhibited moderate cytotoxicity, while the remaining lignans showed no activity. Against HCT-8, compounds 3 and 6 showed moderate cytotoxicity (EC₅₀ 9.58 and 7.33 μg/mL, respectively); compounds 2 and 4 exhibited marginal cytotoxicity (EC₅₀ 13.8 and 12.6 μg/mL, respectively), and compound 5 showed weak cytotoxicity (EC₅₀ 19.6 μg/mL). Against A549, compounds 2–4 exhibited marginal cytotoxicity with EC₅₀ values ranging from 11.8 to 15.0 μg/mL.

Table 2. Cytotoxicity data of lignans from Schisandra neglecta.

Compound	Cytotoxicity (EC50, μg/mL)
	HCT-8	A549
2	13.8	11.8
3	9.58	13.8
4	12.6	15.09
5	19.8	NA a
6	7.33	NA a
Paclitaxel	0.21	<0.005

^a NA (not active)--test compound (20 μg/mL) did not reach 50% inhibition.

Table 2. Cytotoxicity data of lignans from Schisandra neglecta.

Compound	Cytotoxicity (EC50, μg/mL)
	HCT-8	A549
2	13.8	11.8
3	9.58	13.8
4	12.6	15.09
5	19.8	NA a
6	7.33	NA a
Paclitaxel	0.21	<0.005

^a NA (not active)--test compound (20 μg/mL) did not reach 50% inhibition.

3. Experimental

3.1. General

Optical rotations: P-1020 digital spectropolarimeter (JASCO) with MeOH as solvent. UV spectra: Hitachi U-3010 spectrophotometer in MeOH; λ_max (log ε) in nm. ¹H-, ¹³C-, 2D-NMR spectra: Bruker DRX400 (400 MHz for ¹H, 100 MHz for ¹³C) spectrometer in CDCl₃; δ in ppm rel. to Me₄Si as internal references. J in Hz. ESI mass: Bio TOF Q spectrometer; in m/z (rel. %). HR-ESI-MS: Bruker Daltonics BioToF-ШQ mass spectrometer in positive-ion mode (Bremen, Germany). IR spectra: Avatar Thermo Nicolet 360-ESP spectrophotometer. TLC was performed on silica gel plates GF₂₅₄ (Yantai Institute of Chemical Technology, Yantai, China). The TLC spots were visualized by UV light (254 nm) and sprayed with 10% H₂SO₄, followed by heating. Column chromatography (CC) was carried out on silica gel (200–300 mesh or 300–400 mesh Qingdao Marine Chemical Factory, Qingdao, China). Semi-prep HPLC was carried out on an octadecylsilane column (RP-18, 250 × 10 mm, 10 μm, YMC, detector: Amersham UV-900) with a flow rate of 3.0 mL/min.

3.2. Plant Material

Stems of Schisandra neglecta were collected in Lin-zhi County, Tibet Autonomous Region, People’s Republic of China in September of 2004, and identified by Professor Hong-ping Deng, School of Life Sciences, Southwest University. A voucher specimen (MC-LZ-040901) is deposited in the Herbarium of Medicinal Plant, School of Life Sciences, Southwest University, Chongqing, China.

3.3. Extraction and Isolation

Powdered air-dried stems (5.0 kg) of Schisandra neglecta were extracted exhaustively with 95% EtOH (5 × 10 L, each three days) at room temperature. The alcoholic extract was evaporated in vacuo to yield a semisolid (430 g), which was suspended in water (1,000 mL) and extracted five times with diethyl ether. The organic solution was concentrated to yield 112 g of residue, which was subjected to silica gel CC eluted with petroleum ether/acetone mixtures of increasing polarity (99:1 to 3:7) to obtain ten fractions. Fraction 3 (8.3 g), eluted with petroleum ether–acetone (95:5), gave 7 (1.2 g), and then was further chromatographed with silica gel CC eluting with petroleum ether/CHCl₃ (9:2) to obtain six subfractions. Subfraction 3–3 (1.3 g) was subjected to preparative TLC with petroleum ether/CHCl₃ (1:1) to yield 4 (14 mg). Fraction 4 (7.4 g), eluted with petroleum ether/acetone (9:1), was subjected to CC with petroleum ether/EtOAc (15:1~4:1) to obtain eight subfractions. Subfraction 4–3 (0.5 g) was purified by preparative HPLC with MeOH/H₂O (70:30) to yield 5 (4 mg, RT 25.3 min) and 6 (10 mg, RT 31.1 min). Subfraction 4–4 (0.7 g) was subjected to preparative TLC with petroleum ether/CHCl₃ (1:1) to yield 3 (17 mg). Subfraction 4–5 (0.3 g) was purified by semi-preparative HPLC with MeOH-H₂O (70:30) to yield 1 (2 mg, RT 33.4 min). Subfraction 4–6 (3.2 g) was subjected to silica gel CC with petroleum ether-EtOAc (5:1) to yield 8 (2.3 g). Fraction 5 (6.7 g) eluted with petroleum ether-acetone (8:2) was subjected to silica gel CC with petroleum ether/EtOAc (10:2–5:2). Subfraction 5–2 (0.6 g) was purified by semi-preparative HPLC with MeOH/H₂O (75:25) to yield 9 (32 mg, RT 37.5) and 15 (46 mg, RT 40.2). Subfraction 5–3 (1.7 g) was subjected to silica gel CC with petroleum ether/EtOAc (9:2), then purified by semi-preparative HPLC with MeOH/H₂O (64:36–80:20) to yield 10 (4 mg, RT 25.6 min), 11 (10 mg, RT, 28.7 min), and 12 (43 mg, RT 37.9 min), Subfraction 5–5 (0.9 g) was subjected to silica gel CC with petroleum ether/CHCl₃ (5:6), and further purified by semi-preparative HPLC with MeOH/H₂O (7:3) to yield 13 (24 mg, RT 40.3 min) and 14 (19 mg, RT 44.5 min). Fraction 6 (5.2 g) eluted with petroleum ether-acetone (7:3) was subjected to silica gel CC with petroleum ether/EtOAc (10:3). Subfraction 6–3 (0.7 g) was purified by semi-preparative HPLC with MeOH-H₂O (75:25 to 85:15) to yield 2 (10 mg, RT 24. 7 min).

6R,7S,R-biar-[5,6,7,8-Tetrahydro-1,2,13-trimethoxy-6,7-dimethyl-benzo-[3',4']cycloocta[1',2':4,5]-benzo[1,2-d][1,3]dioxol-3-ol (neglschisandrin E, 1). White amorphous powder; [α]²²_D +26.9° (c = 0.26, MeOH). UV (MeOH): 216 (4.67), 250 (4.22), 280 (3.97). CD (c = 0.08, MeOH), [θ]¹⁵ (nm): −28275 (216), +28636 (254). IR (KBr): 3447, 2925, 1615, 1585, 1476, 737. ¹H-NMR and ¹³C-NMR: see Table 1. HR-ESI-MS: found 387.1810 ([M+H]⁺, C₂₂H₂₇O₆⁺, calc. 387.1808).

5Z,7R,R-biar-7,8-Dihydro-1,2,3,10,11-pentamethoxy-13-(2Z)-methylbut-2-enoyl-6,7-dimethyl-dibenzo[a,c]cycloocten-5(6H)-one (neglschisandrin F, 2). White amorphous powder; [α]²²_D +16.9° (c = 0.31, MeOH). UV (MeOH): 216 (4.78), 250 (4.37), 279 (3.97). CD (c = 0.052, MeOH), [θ]¹⁵ (nm): −295132 (219), +155445 (251). IR (KBr): 3404, 2936, 1737, 1636, 1591, 1488, 734. ¹H-NMR and ¹³C-NMR: see Table 1. HR-ESI-MS: found 505.2187 ([M+Na]⁺, C₂₈H₃₄NaO₇⁺, calc. 505.2197).

3.4. Cytotoxicity Assay

Freshly trypsinized cell suspensions were seeded in 96-well microtiter plates at densities of 5,000–10,000 cells per well with compounds added from DMSO-diluted stock. After three days in culture, attached cells were incubated with cold 10% trichloroacetic acid (MTT, 0.5 mg/mL, 2 h) and subsequently solubilized in DMSO, and the isolates were tested against A549 and HCT-8 cancer cell lines using established colorimetric MTT assay protocols [31]. Paclitaxel was used as a positive control. All stock cultures were grown in T-25 flasks. The mean EC₅₀ is the concentration of agent that reduces cell growth by 50% under the experimental conditions and is the average from at least three independent determinations that were reproducible and statistically significant. The absorbance was measured at 550 nm using a microplate reader.

4. Conclusions

Two new lignans, neglschisandrins E and F (1 and 2, respectively), and thirteen known lignans were isolated from stems of Schisandra neglecta. Their structures and stereochemistries were established by means of NMR and ESI-MS analyses, including 2D-NMR techniques. The isolates were evaluated for in vitro cytotoxic activity. Compounds 2–6 showed cytotoxicity against the human HCT-8 colorectal carcinoma cell line with EC₅₀ values of 7.33~19.8 μg/mL, while compounds 2–4 also exhibited cytotoxicity against the human A549 lung carcinoma cell line with EC₅₀ values of 11.8~15.0 μg/mL, respectively. Since other dibenzocyclooctadiene lignans in the genus Schisandra exhibit proven antitumor activities [32], further research to identify related potent cytotoxic compounds or explore detailed structure-activity relationships is merited.
