Article

A Straightforward Diphenylmethyl Protection Method and Deprotection of Some Pyrimidine Nucleosides

Medicinal Chemistry, Rega Institute for Medical Research, KU Leuven, Minderbroedersstraat 10, Leuven 3000, Belgium
*
Author to whom correspondence should be addressed.
Molecules 2013, 18(7), 8524-8534; https://doi.org/10.3390/molecules18078524
Submission received: 31 May 2013 / Revised: 10 July 2013 / Accepted: 16 July 2013 / Published: 18 July 2013
(This article belongs to the Special Issue Synthesis of Nucleosides, Nucleotides and Their Derivatives)

Abstract

:
Benzhydryl protection of primary and secondary alcohols has been reported previously via reaction with metal alcoholates. Our aim was to find generally useful and very mild conditions for the alcoholic protection and deprotection of nucleosides with the diphenylmethyl group. This was accomplished for some pyrimidine nucleosides using PdCl2 as the transition metal catalyst, and with optimization yields of 70–90% have been achieved. A lack of solubility of other nucleosides hampers its more general use.

1. Introduction

Nucleoside and nucleotide chemistry generally involves multistep synthesis protocols, where selective and efficient protection and deprotection reactions have always played a central role. The criteria involved in the choice of protecting groups are based on high yielding protection and deprotection steps, chemoselectivity and orthogonality with other protecting and functional groups. For example, various acyl, benzyl, trityl, triethylsilyl [1], and tert-butyldimethylsilyl ethers [2] have found common use for selective protection of primary/secondary alcohols, particularly in carbohydrate and nucleoside/nucleotide chemistry. To our knowledge, only very few specific reviews for nucleoside protection are available [3,4]. For a complete overview of alcohol protecting groups readers may consult Greene and Wuts [5].
Due to their orthogonality regarding deprotection conditions, the 5′-, 3′- and 2′-hydroxyl groups of nucleosides are usually temporarily acylated or converted to either silyl or alkyl ethers for protection, of which the benzyl and trityl groups represent the most popular ethers [6]. The trityl moiety can be readily introduced even on a secondary alcohol under neutral conditions in presence of a hydrogen chloride scavenger like pyridine or triethylamine. In contrast, O-alkylation with a benzyl or diphenyl methyl group generally requires increased activity of the alcohol via deprotonation [7], or activation of the benzyl moiety as a trichloroacetimidate combined with acidic reaction conditions [8]. In some instances, robust protection is mandatory as with a benzyl moiety. The latter however requires hydrogenation conditions for its removal. An alternative protecting strategy therefore is warranted. Hence, we now want to report on metal-catalyzed conditions for protection and deprotection of nucleoside analogues using the diphenylmethyl (DPM) ether group.
Synthesis of DPM ethers using many different strategies has been previously reported, but this protecting group is not very common. As for most benzyl-type ethers, its introduction usually involves nucleophilic substitution of chloro- or bromodiphenylmethane using sodium hydride-generated alkoxides [9]. However, diphenylmethanol in the presence of either a Brønsted acid, Lewis acid, or supported acids likewise has been shown to form DPM ethers. Mechanistically the reaction occurs either via intimate ion-molecule pairs, via solvent separated ion-molecule pairs or via benzhydryl carbocations [10]. A few other methods can nevertheless be found in the literature. These include reagents such as diphenyl-methylphosphate–trifluoroacetic acid [11], diphenylmethyldiazomethane [12,13], or the use of orthoformates [14] at high temperature.
Many other strategies involve metal-catalysed reactions. Ishii, in 2003, reported the first use of Yb(OTf)3, Sc(OTf)3 and Hf(OTf)3 as Lewis acids for the direct reaction of alcohols. Quite interestingly, Ishii found that phenylethanol is in equilibrium with its diether during the reaction with La(OTf)3 as catalyst [15]. Pale and co-workers reported the use of palladium (II) chloride as a catalyst [16,17]. Later they reported CuBr2 to be an even better catalyst [18]. Recently, an effective method for the allylation of heteroarenes has also been catalysed by PdCl2 [19]. Baba and his co-workers reported the use of InCl3 in the direct substitution of allylic alcohols, benzylic alcohols and benzhydrylic alcohols with nucleophiles. Mechanistic investigation showed that the ether was obtained by the action of In (III) salts [20]. Highly regioselective catalytic amination of Baylis-Hillman adduct with aromatic amines has been promoted by the Lewis acid In(OTf)3 [21].
As for any benzyl-type ether, deprotection of DPM ethers is mostly achieved under hydrogenation conditions [22], but many other protocols have been reported, including acidolysis [23] and electrolytic reduction [24]. Our research focused on finding a simpler and environmentally acceptable procedure for protection and deprotection of DPM ethers specifically for nucleoside chemistry. We therefore adopted a strategy using transition metals as the catalyst with preference for Pd salts.

2. Results and Discussion

In search for the best catalyst, we allowed thymidine (1) at a scale of 100 mg to react with diphenylmethanol (DPM-OH) in dichloroethane (DCE) in presence of 0.2 equivalents (eq) of various metal salts. Initially, as the rate of reaction was too low at room temperature, we decided to heat the reaction to 85 °C. As shown in Scheme 1, we expected three different products, the mono- and di-O-protected thymidines 3a and 3b, and ether 4, resulting from dimerization of diphenylmethanol. However, using 2.5 eq of DPM-OH and following heating overnight, thymidine 1 was cleanly converted to its protected form 3b in 87% yield with only trace formation of the unwanted ether 4 (Table 1). Likewise formation of benzophenone was not observed. This result indicated that there is complex formation by coordination between the Pd catalyst and diphenylmethanol in which the Lewis acid character of the Pd-complex outbalances the β-elimination pathway (Scheme 2).

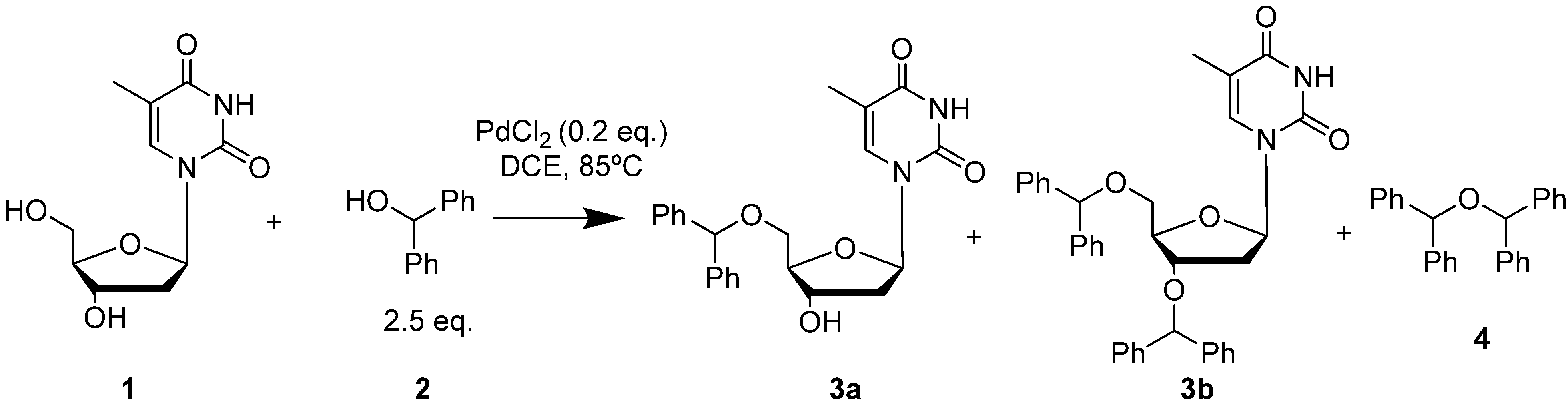

Scheme 1. Protection of both hydroxyl groups of thymidine as diphenylmethyl ether.
Scheme 1. Protection of both hydroxyl groups of thymidine as diphenylmethyl ether.
Molecules 18 08524 g001
Table 1. Comparison of catalyst effectiveness for formation of bis-benzhydryl thymidine (3b).
Table 1. Comparison of catalyst effectiveness for formation of bis-benzhydryl thymidine (3b).
Exp.CatalystRecovered 1 (%)Recovered 2 (%)Yield 3b (%) aYield 4 (%)
1PdCl2-687Trace
2NiCl295942-
3CuCl2·2H2O43055 (24 h)Trace
4Pd(OAc)210065-
5Ni(OAc)29000Trace
6Cu(OAc)232-45Trace
a Reactions on 100 mg scale were run in refluxing DCE for 16 h with 0.2 eq of the metal catalyst and 2.5 eq of DPM-OH.

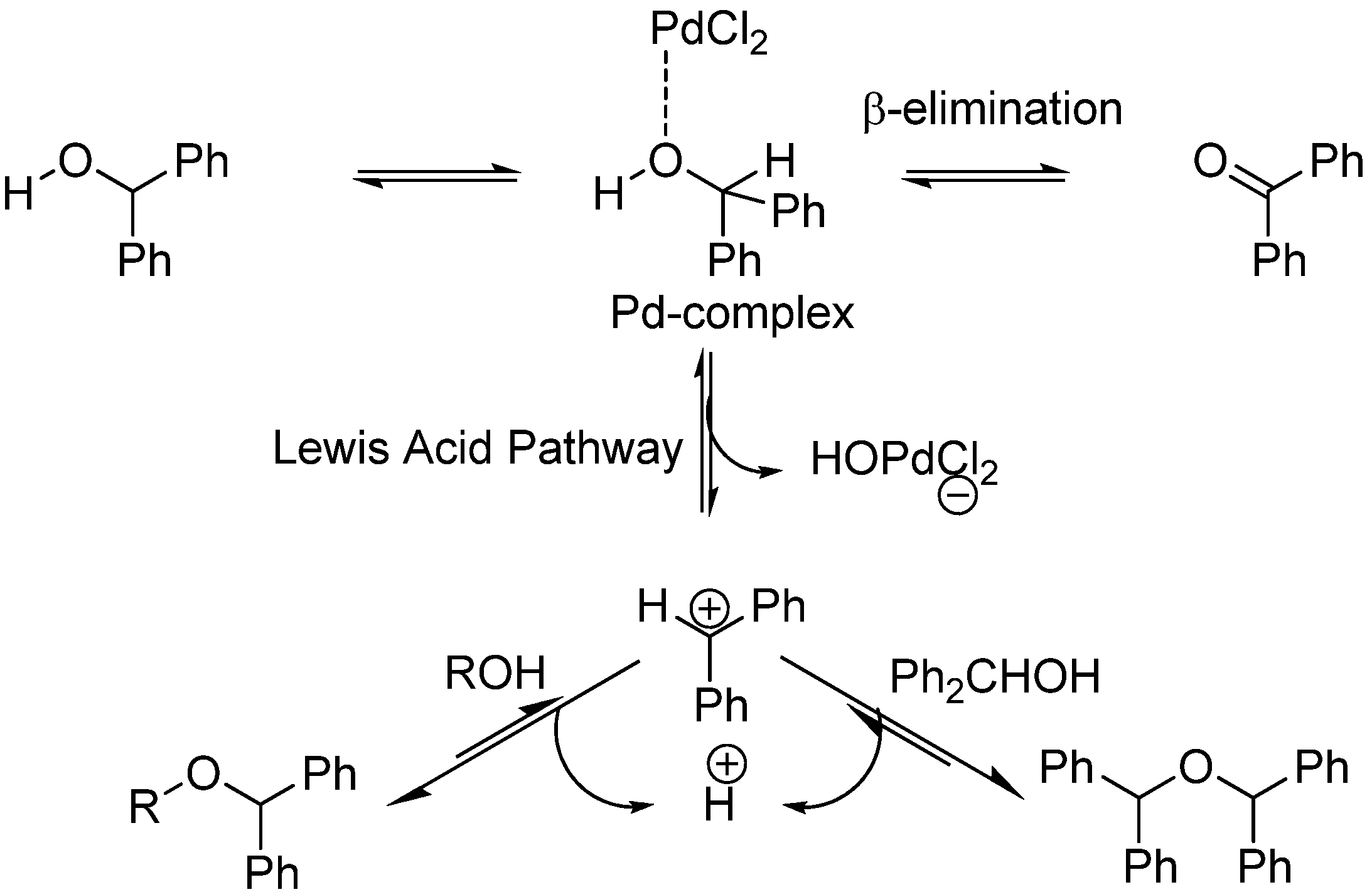

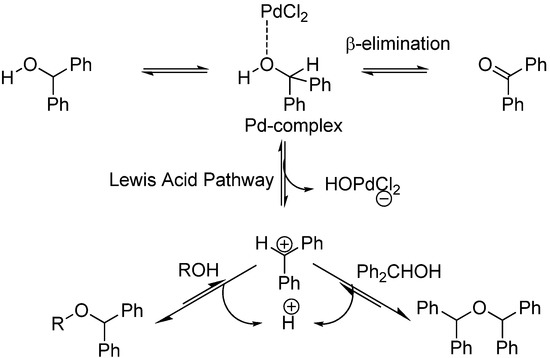

Scheme 2. Mechanism for diphenylmethyl ether protection.
Scheme 2. Mechanism for diphenylmethyl ether protection.
Molecules 18 08524 g002
As we wanted to favor the Lewis acid pathway, we further evaluated catalysts which can form more acidic salt complexes, e.g., nickel being located in the same column as palladium in the Mendeleev periodic table. Unfortunately, when NiCl2 was used we did not obtain the expected product, and even after 48 h 95% of the starting material was recovered. Reaction in presence of CuCl2·2H2O offered the desired product, albeit in low yield. This metal salt screening showed that PdCl2 was the most effective catalyst for protection of both hydroxyl groups in 1 as their diphenylmethyl ethers, affording almost quantitative yields of the desired product (Table 1).
We also evaluated the effectiveness of metal-catalysed DPM protection in different solvents with thymidine as substrate. As expected, non-polar solvents like dichloroethane, being non-coordinating, proved to be the best and reactions looked very clean on TLC. Formation of diphenylmethanol dimer remained below 5%. On the other hand, polar solvents like DMF led to messy reactions in which the desired product could not be isolated (Table 2). Finally, when carried out on a 2 mmol scale in DCE, 70% of the desired 3b was isolated.
Table 2. Solvent influence on DPM ether formation at either 85 °C or boiling temperature.
Table 2. Solvent influence on DPM ether formation at either 85 °C or boiling temperature.
EntrySolventTime (h)Yield 3b (%)
1DCE1687
2Acetonitrile4847
3THF4842
4Dioxane16Degradation
5DMF16Degradation
Having optimized the conditions for DPM protection for 1, we decided to evaluate this reaction for other nucleosides under similar conditions. Using 2.5 eq of DPM-OH, both 2′-deoxyuridine and 5-fluoro-2′-deoxyuridine reacted cleanly to afford the ethers 6b and 7b in 88% and 85% yield, respectively. Moreover selective protection of the 5′ primary alcohol proved feasible for 2′-deoxynucleosides using only 1.2 eq of DPM-OH with heating at 85 °C, and afforded around 65% for each of the mono-O-alkylated analogues 3a, 6a and 7a (Table 3) with likewise 67% yield for 3a on a 2 mmol scale. Only trace amounts of the bis-diphenylmethyl ether analogues were isolated. Unfortunately, reaction of the ribonucleosides uridine and 5-fluorouridine with 1.2 eq of DPM-OH only afforded a trace of the desired 5′-O-protected nucleoside (Table 3, experiments 7 and 10, respectively). Using 2.5 eq of DPM-OH on both uridine analogues, more than 80% of the bisalkylated derivatives were obtained as a mixture of the 2′,5′- and 3′,5′-O-alkylated conformers (Table 3, experiments 8 and 11, respectively). Finally, per-O-alkylation of ribonucleosides in about 80% yield proved feasible by increasing the incoming DPM-OH ratio to 3.7 eq. This proves much more difficult with the sterically more demanding trityl moieties [25]. Separation of both bis-diphenylmethyl ethers (2′,5′- and 3′,5′-derivative) was cumbersome, but was achieved by using appropriate solvent polarity during column chromatography. The correct position of the diphenylmethyl moiety was determined using 2D-NMR techniques (COSY, HSQC), with the 2′,5′-analogue proving slightly more lipophilic than the 3′,5′-analogue.
As reported before [17], the reaction is believed to occur via formation of the latter benzhydryl carbocation. As shown in Scheme 2, coordination of the hydroxyl oxygen atom to the mild Lewis acid PdII is highly likely. Following coordination, there may be transfer of the hydroxyl group to the palladium affording the benzhydryl carbocation.
As shown in Scheme 3, deprotection of synthesized 3′,5′-di-O-benzhydryl-thymidine 3b was successfully achieved by only changing solvent. Following heating of 3b in ethanol at 85 °C with catalytic PdCl2 (0.2 eq) for 16 h, it was cleanly converted to thymidine.
Table 3. Synthesis of different benzhydryl protected nucleosides.
Table 3. Synthesis of different benzhydryl protected nucleosides.
EntrySubstrateEq DPM-OHProductYield (%)
1thymidine1.25′-O-benzhydryl-thymidine 3a67
2 2.53′,5′-di-O-benzhydryl-thymidine 3b87
32′-deoxyuridine1.25′-O-benzhydryl-2′-deoxyuridine 6a65
4 2.53′,5′-di-O-benzhydryl-2′-deoxyuridine 6b88
55-fluoro-2′-deoxyuridine1.25′-O-benzhydryl-5-fluoro-2′-deoxyuridine 7a64
6 2.53′,5′-di-O-benzhydryl-5-fluoro-2′-deoxyuridine 7b85
7uridine1.25′-O-benzhydryl-uridine 8aTrace
8 2.52′,5′-di-O-benzhydryl-uridine 8b54 Molecules 18 08524 i001
3′,5′-di-O-benzhydryl-uridine 8c32
9 3.72′,3′,5′-tris-O-benzhydryl-uridine 8d81
105-fluorouridine1.25′-O-benzhydryl-5-fluorouridine 9aTrace
11 2.52′,5′-di-O-benzhydryl-5-fluorouridine 9b59 Molecules 18 08524 i002
3′,5′-di-O-benzhydryl-5-fluorouridine 9c23
12 3.72′,3′,5′-tris-O-benzhydryl-5-fluorouridine 9d79
The resulting byproduct ethoxydiphenylmethane 5 was also isolated and characterized by 1H-NMR showing a singlet at 5.44δ, a quartet at 3.61δ and a triplet at 1.35δ. Deprotection was also attempted using CuBr2 in catalytic amounts, but even after refluxing for 16 h, presence of the starting material was still observed along with some degraded material (Table 4). The use of CuBr2 however has been reported before for clean cleavage of bis-(methoxyphenyl)methyl ether moieties [18]. The latter are much more prone to cleavage in agreement with the strongly reduced acid stability of dimethoxytrityl ether in comparison with trityl moieties.

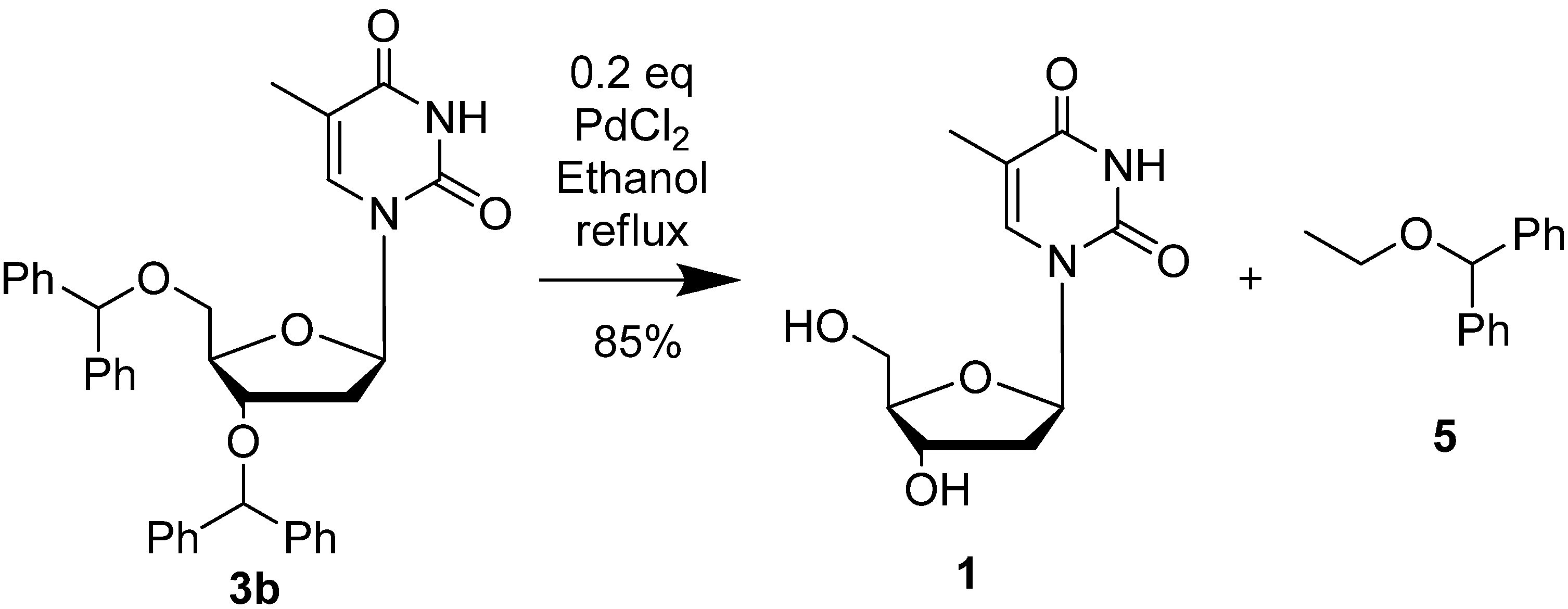

Scheme 3. Deprotection of the DPM ether moiety in refluxing ethanol.
Scheme 3. Deprotection of the DPM ether moiety in refluxing ethanol.
Molecules 18 08524 g003
Table 4. Deprotection of DPM ethers in ethanol at 85 °C.
Table 4. Deprotection of DPM ethers in ethanol at 85 °C.
EntryCatalystTime (h)Yield of 1 (%) a
1PdCl21685
2CuBr21643
a Reaction on 100 mg scale in refluxing ethanol for 16 h with 0.2 eq of metal catalyst.
As reported before [16], introduction of DPM ether is compatible with the presence of different protecting groups like acyl groups, silyl and benzyl ethers or ester moieties. In our hands, following overnight treatment of 3b with conc. ammonia:MeOH (1:1) or 2M NaOH:dioxane (1:1) no reaction was observed. The compounds likewise proved relatively stable in acidic conditions showing no reaction at RT in 80% acetic acid with overnight treatment, but starting to degrade after heating for 4 h at 80 °C. Finally, a 3% trichloroacetic acid solution in DCE afforded deprotection only after 15 h of reaction, with 50% benzhydryl cleavage after 6 h. Unfortunately, use of the DPM group seems limited to a small series of pyrimidine nucleosides. When evaluating cytidine, adenosine or guanosine nucleosides, the lack of solubility of the starting compounds prevented reaction in DCE while in more polar solvents, degradation was noticed with time. In an attempt to remediate the problem, prior persilylation with bis(trimethylsilyl)acetamide afforded soluble substrates for 2′-deoxycytidine and guanosine, but upon addition of DPM-OH and PdCl2, rapid precipitation occurred and no alkylated nucleosides could be obtained. Finally, adding small amounts of polar solvents like NMP to improve the solubility in DCE prevented reaction as of likely complexation of the PdCl2. In conclusion, straightforward introduction and ease of removal of the DPM ether on uridine analogues, promised to make a nice addition to the nucleosidic protecting group repertoire, but unfortunately, the lack of solubility of other nucleosides hampers its general use.

3. Experimental

3.1. General

Reagents and solvents were purchased from commercial suppliers (Acros, Sigma-Aldrich, Bachem, Novabiochem) and used as provided, unless indicated otherwise. All the solvents were of analytical grade and were stored over 4Å molecular sieves. Reactions were carried out in oven-dried glassware under a nitrogen atmosphere with stirring at 85 °C.
1H and 13C-NMR spectra of the compounds dissolved in CDCl3, MeOD or DMSO-d6 were recorded on a Bruker UltraShield Avance 300 MHz or 600 MHz spectrometer. The chemical shifts are expressed as δ values in parts per million (ppm), using the residual solvent peaks (CDCl3: 1H, 7.26 ppm; 13C, 77.16 ppm; MeOD: 1H, 3.31 ppm; 13C, 49.00 ppm) as a reference. Coupling constants are given in Hertz (Hz). The peak patterns are indicated by the following abbreviations: bs = broad singlet, d = doublet, m = multiplet, q = quadruplet, s = singlet and t = triplet. High resolution mass spectra were recorded on a quadrupole time-of-flight mass spectrometer (Q-Tof-2, Micromass, Manchester, UK) equipped with a standard ESI interface; samples were infused in 2-propanol/H2O (1:1) at 3 µL min−1.
For TLC, precoated aluminium sheets were used (Merck, Silica gel 60 F254). The spots were visualized by UV light at 254 nm. Column chromatography was performed on ICN silica gel 60A° 40–60 µM.

3.2. General Procedure for Protection

To a solution of the respective nucleoside (100 mg) and diphenylmethanol in dichloroethane (5 mL/mmol) was added palladium chloride (0.2 eq). The reaction mixture was heated at 85 °C under an argon atmosphere for 16 h or until disappearance of the starting materials as monitored by TLC. The solvent was removed in vacuo and the crude mixture obtained was purified by column chromatography to afford the desired compound.
5′-O-Benzhydryl-thymidine (3a). White solid; TLC (DCM/MeOH 9:1): Rf = 0.70. 1H-NMR (300 MHz, CDCl3): δ 8.96 (bs, 1H, NH), 7.55 (s, 1H), 7.54–7.28 (m, 10H), 6.50–6.45 (m, 1H, H-1′), 5.44 (s, 1H, CH), 4.63 (s, 1H), 4.14–4.13 (m, 1H), 3.80–3.76 (m, 1H, H-5′/H-5′′), 3.68–3.63 (m, 1H, H-5′/H-5′′), 2.79 (bs, 1H, OH), 2.46–2.39 (m, 1H, H-2′/H-2′′), 2.36–2.27 (m, 1H, H-2′/H-2′′), 1.41 (s, 3H). 13C-NMR (75 MHz, CDCl3) δ: 163.4, 150.2, 141.2, 141.0, 135.4, 128.4, 127.7, 127.5, 126.6, 126.0, 111.0, 85.8, 84.6, 84.5, 72.5, 68.8, 40.7, 11.4. HRMS calcd for C23H24N2O5 [M+Na]+: 431.1577; found:431.1576.
3′,5′-di-O-Benzhydryl-thymidine (3b). White solid; TLC (ethyl acetate/hexane 1:1): Rf = 0.70. 1H-NMR (300 MHz, CDCl3): δ 9.28 (bs, 1H, NH), 7.50 (s, 1H), 7.49–7.19 (m, 20H), 6.53–6.48 (m, 1H, H-1′), 5.47 (s, 1H, CH), 5.37 (s, 1H, CH), 4.43–4.39 (m, 1H), 4.33–4.30 (m, 1H), 3.77–3.72 (m, 1H, H-5′/H-5′′), 3.53–3.49 (m, 1H, H-5′/H-5′′), 2.62–2.54 (m, 1H, H-2′/H-2′′), 2.24–2.15 (m, 1H, H-2′/H-2′′), 1.42 (s, 3H). 13C-NMR (75 MHz, CDCl3): δ 163.6, 150.2, 141.3, 141.2, 141.1, 141.0, 135.2, 128.4, 128.3, 128.3, 128.2, 127.6, 127.5, 127.5, 126.8, 126.7, 126.5, 126.1, 110.9, 84.8, 84.3, 83.8, 82.1, 77.2, 77.2 68.7, 38.3, 11.4. HRMS calcd for C36H34N2O5 [M+H]+: 575.2540; found: 575.2540.
5′-O-Benzhydryl-2′-deoxyuridine (6a). White solid; TLC (ethyl acetate/hexane 1:1): Rf = 0.30. 1H-NMR (600 MHz, CDCl3): δ 8.35 (bs, 1H, NH), 7.77 (d, 1H, J = 7.8 Hz), 7.36–7.26 (m, 10H), 6.39 (t, 1H, H-1′, J = 6.6 Hz), 5.39 (s, 1H, CH), 5.21–5.19 (m, 1H), 4.64–4.62 (m, 1H), 4.10 (s, 1H), 3.81–3.78 (m, 1H, H-5′/H-5′′), 3.72–3.70 (m, 1H, H-5′/H-5′′), 2.41–2.38 (m, 1H, H-2′/H-2′′), 2.29–2.24 (m, 1H, H-2′/H-2′′), 2.05 (d, 1H, OH, J = 3.6 Hz). 13C-NMR (150 MHz, CDCl3): δ 162.7, 150.0, 141.2, 140.9, 140.3, 128.7, 128.7, 128.1, 128.0, 126.8, 126.7, 102.1, 86.0, 85.1, 85.0, 72.3, 68.9, 59.5, 41.3. HRMS calcd for C22H22N2O5 [M+Na]+: 417.1421; found: 417.1421.
3′,5′-di-O-Benzhydryl-2′-deoxyuridine (6b). White solid; TLC (ethyl acetate/hexane 1:1): Rf = 0.70. 1H-NMR (600 MHz, CDCl3): δ 8.32 (bs, 1H, NH), 7.70 (d, 1H, J =8.4 Hz), 7.36–7.18 (m, 20H), 6.41 (t, 1H, H-1′, J =6.3 Hz), 5.44 (s, 1H, CH), 5.31 (s, 1H, CH), 5.19–5.15 (m, 1H), 4.39–4.36 (m, 1H), 4.31–4.28 (m,1H), 3.77–3.73 (m, 1H, H-5′/H-5′′), 3.57–3.53 (m, 1H, H-5′/H-5′′), 2.56–2.50 (m, 1H, H-2′/H-2′′), 2.16–2.07 (m, 1H, H-2′/H-2′′). 13C-NMR (150 MHz, CDCl3): δ 162.8, 150.0, 141.4, 141.3, 141.2, 140.8, 140.2, 128.7, 128.6, 128.5, 128.0, 127.9, 127.8, 127.1, 127.0, 126.7, 126.6, 102.1, 85.3, 84.9, 84.3, 82.4, 69.0, 38.8. HRMS calcd for C35H32N2O5 [M+H]+: 561.2383; found: 561.2377.
5′-O-Benzhydryl-5-fluoro-2′-deoxyuridine (7a). White solid; TLC (ethyl acetate/hexane 1:1): Rf = 0.20. 1H-NMR (300 MHz, CDCl3): δ 8.39 (bs, 1H, NH), 7.95 (d, 1H, J = 6.3 Hz), 7.37–7.28 (m, 10H), 6.40–6.35 (m, 1H, H-1′), 5.43(s, 1H, CH), 4.64–4.62 (m, 1H), 4.15–4.13 (m, 1H), 3.87–3.82 (m, 1H, H-5′/H-5′′), 3.70–3.66 (m, 1H, H-5′/H-5′′), 2.48–2.40 (m, 1H, H-2′/H-2′′), 2.31–2.22 (m, 1H, H-2′/H-2′′), 1.95 (bs, 1H, OH). 13C-NMR (75 MHz, CDCl3): δ 156.6, 156.4, 148.5, 141.2, 141.0, 140.8, 139.6, 128.8, 128.1, 128.0, 126.8, 126.6, 124.3, 124.1, 86.3, 85.6, 85.3, 72.6, 69.0, 41.3. HRMS calcd for C22H21FN2O5 [M+Na]+: 435.1327; found: 435.1328.
3′,5′-di-O-Benzhydryl-5-fluoro-2′-deoxyuridine (7b). White solid; TLC (ethyl acetate/hexane 1:1): Rf = 0.70. 1H-NMR (600 MHz, CDCl3): δ 8.42 (bs, 1H, NH), 7.86 (d, 1H, J= 6Hz), 7.34–7.15 (m, 20H), 6.37–6.34 (m, 1H, H-1′), 5.40(s, 1H, CH), 5.29 (s, 1H, CH), 4.33–4.28 (m, 2H), 3.75–3.73 (m, 1H, H-5′/H-5′′), 3.48–3.46 (m, 1H, H-5′/H-5′′), 2.56–2.52 (m, 1H, H-2′/H-2′′), 2.09–2.04 (m, 1H, H-2′/H-2′′). 13C-NMR (150 MHz, CDCl3): δ 156.6, 156.4, 141.4, 141.3, 141.2, 140.9, 139.6, 128.7, 128.6, 128.5, 128.5, 128.0, 127.9, 127.8, 127.1, 127.0, 124.3, 124.1, 85.8, 85.1, 84.5, 82.5, 76.8, 69.0, 38.7. HRMS calcd for C35H31FN2O5 [M+Na]+: 601.2109; found: 601.2098.
2′,5′-di-O-Benzhydryl-uridine (8b). White solid; TLC (ethyl acetate/hexane 1:1): Rf = 0.60. 1H-NMR (600 MHz, CDCl3): δ 8.78 (bs, 1H, NH), 7.65 (d, 1H, J = 8.2 Hz), 7.37–7.19 (m, 20H), 6.22 (d, 1H, H-1′, J = 4.2 Hz), 5.80 (s, 1H, CH), 5.37 (s, 1H, CH), 4.93–4.91 (m, 1H), 4.37–4.34 (m, 1H), 4.23–4.21 (m, 1H), 4.15 (t, 1H, J = 4.8 Hz), 3.85–3.83 (m, 1H, H-5′/H-5′′), 3.71–3.69 (m, 1H, H-5′/H-5′′), 2.75 (d, 1H, OH, J = 6 Hz). 13C-NMR (150 MHz, CDCl3): δ 162.7, 149.9, 140.9, 140.6, 140.4, 139.9, 139.6, 128.5, 128.4, 128.3, 127.9, 127.7, 126.9, 126.6, 126.6, 126.4, 101.7, 86.6, 84.8, 83.7, 82.6, 79.5, 69.2, 67.7. HRMS calcd for C35H32N2O6 [M+H]+: 577.2333; found : 577.2336.
3′,5′-ditri-O-Benzhydryl-uridine (8c). White solid; TLC (ethyl acetate/hexane 1:1): Rf = 0.40. 1H-NMR (600 MHz, CDCl3): δ 8.39 (bs, 1H, NH), 7.63 (d, 1H, J = 8.2 Hz), 7.39–7.17 (m, 20H), 6.02 (d, 1H, H-1′, J = 4.2 Hz), 5.52 (s, 1H, CH), 5.26 (s, 1H, CH), 5.13–5.11 (m, 1H), 4.27–4.25 (m, 2H), 4.20–4.17 (m, 1H), 3.72–3.70 (m, 1H, H-5′/H-5′′), 3.41–3.39 (m, 1H, H-5′/H-5′′), 2.95 (d, 1H, OH, J = 7.2 Hz). 13C-NMR (150 MHz, CDCl3): δ 162.4, 150.0, 140.7, 140.4, 140.2, 139.7, 128.5, 128.4, 128.3, 127.9, 127.9, 127.8, 127.6, 126.8, 126.6, 126.4, 126.3, 101.9, 89.0, 84.6, 83.6, 81.5, 75.9, 74.0, 67.8. HRMS calcd for C35H32N2O6 [M+H]+: 577.2333; found: 577.2330.
2′,3′,5′-tri-O-Benzhydryl-uridine (8d): White solid; TLC (ethyl acetate/hexane 1:1): Rf = 0.80. 1H-NMR (600 MHz, CDCl3): δ 8.63 (bs, 1H, NH), 7.63 (d, 1H, J = 8.4 Hz), 7.27–7.03 (m, 30H), 6.23 (d, 1H, H-1′, J = 3 Hz), 5.75(s, 1H, CH), 5.25 (s, 1H, CH), 5.21 (s, 1H, CH), 4.78–4.76 (m, 1H), 4.46 (d, 1H, J = 6 Hz), 4.14 (t, 1H, J = 5.4 Hz), 4.06–4.04 (m, 1H), 3.78–3.76 (m, 1H, H-5′/H-5′′), 3.56–3.54 (m, 1H, H-5′/H-5′′). 13C-NMR (150 MHz, CDCl3): δ 162.5, 149.5, 141.3, 140.7, 140.6, 140.5, 139.6, 128.5, 128.4, 128.3, 128.2, 128.1, 128.0, 127.9, 127.7, 127.6, 127.6, 127.5, 127.4, 127.3, 127.2, 127.1, 126.5, 126.4, 126.4, 126.3, 101.3, 87.4, 84.5, 81.8, 81.8, 77.7, 72.4, 67.0. HRMS calcd for C48H42N2O6 [M+H]+: 743.3115; found: 743.3107.
2′,5′-di-O-Benzhydryl-5-fluorouridine (9b). White solid; TLC (ethyl acetate/hexane 1:1): Rf = 0.60. 1H-NMR (600 MHz, CDCl3): δ 8.61 (bs, 1H, NH), 7.68 (d, 1H, J = 12.6 Hz), 7.36–7.22 (m, 20H), 6.21–6.20 (m, 1H, H-1′), 5.67 (s, 1H, CH), 5.38 (s, 1H, CH), 4.33–4.31 (m, 1H), 4.24–4.22 (m, 1H), 4.17–4.15 (m, 1H), 3.86–3.83 (m, 1H, H-5′/H-5′′), 3.65–3.62 (m, 1H, H-5′/H-5′′), 2.75 (d, 1H, OH, J = 5.4 Hz). 13C-NMR (150 MHz, CDCl3): δ 148.6, 140.9, 140.6, 140.4, 140.3, 139.9, 139.0, 128.5, 128.4, 128.3, 127.9, 127.7, 126.8, 126.6, 126.5, 126.3, 123.5, 123.3, 86.6, 85.2, 83.9, 83.2, 79.4, 69.5, 68.1. HRMS calcd for C35H31FN2O6 [M+Na]+: 617.2058; found: 617.2062.
3′,5′-ditri-O-Benzhydryl-5-fluorouridine (9c): White solid; TLC (ethyl acetate/hexane 1:1): Rf = 0.40. 1H-NMR (600 MHz, CDCl3): δ 8.38 (bs, 1H, NH), 7.78 (d, 1H, J = 7.2 Hz), 7.36–7.16 (m, 20H), 6.02–6.00 (m, 1H, H-1′), 5.50 (s, 1H, CH), 5.27 (s, 1H, CH), 4.25–4.23 (m, 2H), 4.20–4.17 (m, 1H), 3.73–3.70 (m, 1H, H-5′/H-5′′), 3.32–3.30 (m, 1H, H-5′/H-5′′), 2.94 (d, 1H, OH, J = 9.6 Hz). 13C-NMR (150 MHz, CDCl3): δ 156.2, 155.9, 148.5, 141.2, 140.4, 140.3, 140.1, 139.3, 128.5, 128.4, 128.3, 128.0, 127.9, 127.8, 127.6, 126.8, 126.6, 126.5, 126.4, 123.8, 123.5, 89.0, 84.8, 83.8, 81.9, 76.3, 74.1, 67.9. HRMS calcd for C35H31FN2O6 [M+Na]+: 617.2058; found: 617.2061.
2′,3′,5′-tri-O-Benzhydryl-5-fluorouridine (9d). White solid; TLC (ethyl acetate/hexane 1:1): Rf = 0.80. 1H-NMR (600 MHz, CDCl3): δ 8.55 (d, 1H, NH, J = 5.4 Hz), 7.64 (d, 1H, J = 7.2 Hz), 7.37–7.06 (m, 30H), 6.23 (m, 1H, H-1′), 5.60 (s, 1H, CH), 5.34 (s, 1H, CH), 5.23 (s, 1H, CH), 4.43–4.41 (m, 1H), 4.16–4.13 (m, 1H), 4.08–4.05 (m, 1H), 3.79–3.76 (m, 1H, H-5′/H-5′′), 3.46–3.44 (m, 1H, H-5′/H-5′′). 13C-NMR (150 MHz, CDCl3): δ 156.7, 148.6, 141.5, 141.1, 141.0, 140.9, 140.8, 140.6, 139.1, 128.6, 128.5, 128.4, 128.3, 128.0, 127.9, 127.8, 127.7, 127.5, 127.3, 127.2, 127.0, 126.9, 126.8, 126.7, 123.8, 123.5, 87.4, 85.1, 82.7, 82.5, 82.4, 78.3, 73.2.4, 67.9. HRMS calcd for C48H41FN2O6 [M+H]+: 761.3021; found: 761.3037.

3.3. General Procedure for Deprotection

To a solution of 3′,5′-di-O-benzhydryl-thymidine 3b (100 mg) in ethanol (5 mL/mmol) was added palladium chloride (0.2 eq). The reaction mixture was heated at 85 °C for 16 h until disappearance of the starting material monitoring by TLC. The solvent was removed in vacuo and the crude mixture obtained was purified by column chromatography affording compound 5 and recovered 1 in 85% yield.
Ethoxydiphenylmethane (5). White solid; TLC (ethyl acetate/hexane 1:1): Rf = 0.90. 1H-NMR (300 MHz, CDCl3): δ 7.46–7.28 (m, 10H), 5.44 (s,1H), 3.61 (q, 2H, J =6.9 Hz), 1.35 (t, 3H, J =6.9 Hz). 13C-NMR (75 MHz, CDCl3): δ 142.3, 128.1, 127.1, 126.7, 83.2, 64.3, 15.1.
Recovered Thymidine (1). White solid; TLC (DCM/MeOH 9:1): Rf = 0.40. 1H-NMR (300 MHz, CD3OD): δ 7.2 (bs, 1H, NH), 6.29 (t, 1H, H-1′, J = 6.6 Hz), 4.43–4.39 (m, 1H), 3.94–3.90 (m, 1H), 3.84–3.71 (m, 2H), 2.27–2.22 (m, 2H), 1.89 (s, 3H, CH3). 13C-NMR (75 MHz, CD3OD): δ 164.7, 150.6, 136.5, 109.8, 87.1, 84.5, 70.5, 61.1, 39.5, 10.7.

4. Conclusions

A convenient and effective method for the protection of hydroxyl groups of nucleosides as the corresponding diphenylmethyl ether has been developed with the aid of a transition metal catalyst. In addition, only by changing the solvent, the corresponding diphenylmethyl ethers can be deprotected under similar conditions using palladium (II) chloride as catalyst. With both protection and deprotection reactions proceeding under mild conditions and with nice selectivity, this high yielding strategy can be useful for the synthesis of complex nucleosides and nucleotides.

Supplementary Materials

A supplementary file with scanned spectra is provided. Supplementary materials can be accessed at: https://www.mdpi.com/1420-3049/18/7/8524/s1.

Acknowledgments

We would like to acknowledge Erasmus Mundus External Cooperation Window lot 13 for their financial support. Mass spectrometry was done by Jef Rozenski and made possible by the support of the Hercules Foundation of the Flemish Government (grant 20100225–7). The chemistry part was supported by the Rega Foundation. Our thanks also go to Luc Baudemprez for the help with NMR acquisition.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Lalonde, M.; Chan, T.H. Use of organosilicon reagents as protective groups in organic synthesis. Synthesis 1985, 1985, 817–845. [Google Scholar] [CrossRef]
  2. Corey, E.J.; Venkateswarlu, A. Protection of hydroxyl groups as tert-butyldimethylsilyl derivatives. J. Am. Chem. Soc. 1972, 94, 6190–6191. [Google Scholar]
  3. Somoza, A. Protecting groups for RNA synthesis: an increasing need for selective preparative methods. Chem. Soc. Rev. 2008, 37, 2668–2675. [Google Scholar]
  4. Pitsch, S. Protecting groups for the synthesis of ribonucleic acids. Chimia 2001, 55, 320–324. [Google Scholar]
  5. Greene, T.W.; Wuts, P.G.M.; Wiley, J. Protective Groups in Organic Synthesis; Wiley: New York, NY, USA, 1999; Volume 168. [Google Scholar]
  6. Weissman, S.A.; Zewge, D. Recent advances in ether dealkylation. Tetrahedron 2005, 61, 7833–7863. [Google Scholar] [CrossRef]
  7. Marco, J.L.; Hueso-Rodríguez, J.A. Synthesis of optically pure 1-(3-furyl)-1,2-dihydroxyethane derivatives. Tetrahedron Lett. 1988, 29, 2459–2462. [Google Scholar] [CrossRef]
  8. Tilve, M.J.; Gallo-Rodriguez, C. Glycosylation studies on conformationally restricted 3,5-O-(di-tert-butylsilylene)-d-galactofuranosyl trichloroacetimidate donors for 1,2-cis α-d-galactofuranosylation. Carbohydr. Res. 2011, 346, 2838–2848. [Google Scholar]
  9. Dobson, D.; Todd, A.; Gilmore, J. The Synthesis of 7-Alkoxyindoles. Synthetic Commun 1991, 21, 611–617. [Google Scholar] [CrossRef]
  10. Paredes, R.; Pérez, R.L. Borderline mechanisms involving ion-molecule pairs for the nucleophilic substitution reactions of benzhydrol and its derivatives. Facile formation and cleavage of diphenylmethyl ethers for the protection of hydroxyl groups. Tetrahedron Lett. 1998, 39, 2037–2038. [Google Scholar] [CrossRef]
  11. Kolovos, M.; Froussios, C. O-diphenylmethylation of alcohols and carboxylic acids using diphenylmethyl diphenyl phosphate as alkylating agent. Tetrahedron Lett. 1984, 25, 3909–3912. [Google Scholar] [CrossRef]
  12. Roberts, J.D.; Watanabe, W. The Kinetics and Mechanism of the Acid-Catalyzed Reaction of Diphenyldiazomethane with Ethyl Alcohol. J. Am. Chem. Soc. 1950, 72, 4869–4879. [Google Scholar] [CrossRef]
  13. Di Gioia, M.L.; Leggio, A.; Liguori, A.; Perri, F.; Siciliano, C.; Viscomi, M.C. A preparation of N-Fmoc-N-methyl-α-amino acids and N-nosyl-N-methyl-a-amino acids. Amino Acids 2010, 38, 133–143. [Google Scholar]
  14. Gazizov, M.B.; Ibragimov, S.N.; Khamidullina, O.D.; Karimova, R.F.; Pudovik, M.A.; Sinyashin, O.G. New Reaction of Organic Monohalides with Orthoformates. Russ. J. Gen. Chem. 2005, 75, 1325–1326. [Google Scholar]
  15. Noji, M.; Ohno, T.; Fuji, K.; Futaba, N.; Tajima, H.; Ishii, K. Secondary Benzylation Using Benzyl Alcohols Catalyzed by Lanthanoid, Scandium, and Hafnium Triflate. J. Org. Chem. 2003, 68, 9340–9347. [Google Scholar] [CrossRef]
  16. Bikard, Y.; Mezaache, R.; Weibel, J.-M.; Benkouider, A.; Sirlin, C.; Pale, P. Diarylmethyl ethers and Pd salts or complexes: a perfect combination for the protection and deprotection of alcohols. Tetrahedron 2008, 64, 10224–10232. [Google Scholar] [CrossRef]
  17. Bikard, Y.; Weibel, J.-M.; Sirlin, C.; Dupuis, L.; Loeffler, J.-P.; Pale, P. PdCl2, a useful catalyst for protection of alcohols as diphenylmethyl (DPM) ethers. Tetrahedron Lett. 2007, 48, 8895–8899. [Google Scholar]
  18. Mezaache, R.; Dembelé, Y.A.; Bikard, Y.; Weibel, J.-M.; Blanc, A.L.; Pale, P. Copper(II) bromide as an efficient catalyst for the selective protection and deprotection of alcohols as bis(4-methoxyphenyl)methyl ethers. Tetrahedron Lett. 2009, 50, 7322–7326. [Google Scholar]
  19. Yuan, F.-Q.; Sun, F.-Y.; Han, F.-S. A simple and efficient method for the allylation of heteroarenes catalyzed by PdCl2. Tetrahedron 2012, 68, 6837–6842. [Google Scholar]
  20. Yasuda, M.; Somyo, T.; Baba, A. Direct Carbon-Carbon Bond Formation from Alcohols and Active Methylenes, Alkoxyketones, or Indoles Catalyzed by Indium Trichloride. Angew. Chem. Int. Ed. 2006, 45, 793–796. [Google Scholar]
  21. Liu, Y.-L.; Liu, L.; Wang, D.; Chen, Y.-J. A highly α-regioselective In(OTf)3-catalyzed N-nucleophilic substitution of cyclic Baylis-Hillman adducts with aromatic amines. Tetrahedron 2009, 65, 3473–3479. [Google Scholar] [CrossRef]
  22. Olah, G.A.; Surya Prakash, G.K.; Narang, S.C. Synthetic Methods and Reactions; 53. Convenient Reductive Cleavage of Benzylic (Benzhydrilic) Ethers and Acetals Using AlCl3/Pd-Catalyzed Hydrogen Transfer from Cyclohexene. Synthesis 1978, 1978, 825–825. [Google Scholar] [CrossRef]
  23. Froussios, C.; Kolovos, M. Preparation of Diphenylmethyl Esters and Ethers of Unprotected Amino Acids and β-Hydroxy-α-amino Acids. Synthesis 1987, 1987, 1106–1108. [Google Scholar] [CrossRef]
  24. Mairanovsky, V.G. Electro-Deprotection—Electrochemical Removal of Protecting Groups. Ang. Chem. Int. Ed. Engl. 1976, 15, 281–292. [Google Scholar] [CrossRef]
  25. Codington, J.F.; Fox, J.J. Nucleosides. XXXIV. 1-(2,3,5-Tri-O-trityl-β-D-ribosyl)uracil (2′,3′,5′-tri-O-trityluridine). Carbohydr. Res. 1966, 3, 124–127. [Google Scholar] [CrossRef]
  • Sample Availability: Samples of the compounds are available from the authors.
