Article

Three New Phenolics and Other Constituents from the Seeds of Lithocarpus pachylepis

1
Key Laboratory of Bioactive Substances and Resources Utilization of Chinese Herbal Medicine, Ministry of Education, Institute of Medicinal Plant Development, Peking Union Medical College and Chinese Academy of Medical Sciences, Beijing 100193, China
2
Institute of Chinese Materia Medica, China Academy of Chinese Medical Sciences, Beijing 100700, China
3
National Engineering Laboratory of Southwest Endangered Medicinal Resources Development, National Development and Reform Commission, Guangxi Botanical Garden of Medicinal Plant, Nanning 530023, China
*
Author to whom correspondence should be addressed.
These authors contributed equally to this work.
Molecules 2013, 18(9), 10397-10403; https://doi.org/10.3390/molecules180910397
Submission received: 1 July 2013 / Revised: 25 August 2013 / Accepted: 26 August 2013 / Published: 28 August 2013
(This article belongs to the Section Natural Products Chemistry)

Abstract

:
Twelve phenolics, including the three new compounds balanophonin C (1), balanophonin D (2), balanophonin E (3), were isolated from the seeds of Lithocarpus pachylepis. Their structures were elucidated by various spectroscopic techniques (UV, IR, MS, 1D and 2D NMR). Compounds 19 were evaluated for their anti-inflammatory activities on lipopolysaccharide (LPS)-induced nitric oxide (NO) production in RAW 264.7 and showed moderate inhibitory activities, with IC50 values ranging from 10.9 to 34.7 μM.

1. Introduction

Lithocarpus pachylepis A. Campus is a member of the family Fagaceae. The plant, which grows in the southeast area of China, especially Nanning city of Guangxi Province, is very rare. In Guangxi folk medicine, the seeds of the Lithocarpus pachylepis, known as “fengliuguo”, have long been used for the treatment of scapulohumeral periarthritis, impotence, anemia, and hypertension [1]. However, the material basis by which the seeds can treat disease is still unclear. In order to find the bioactive compounds in this plant, our laboratory examined the ethanol extract of its seeds and isolated twelve phenolics, namely balanophonin C (1), balanophonin D (2), balanophonin E (3) balanophonin (4) [2], threo-honokitriol (5) [3], erythro-honokitriol (6) [3], 2-methoxy-4-[3′-(3′′,4′′,5′′trimethoxyphenyl)allyloxymethyl]phenol (7) [4], daphneresinol (8) [5], 4,4’-dihydroxy-3,3’-dimethoxybenzophenone (9) [6], cassiferaldehyde (10) [7], coniferaldehyde (11), and vanillin (12) (Figure 1). Among them, compounds 13 are new compounds, the others being isolated from the genus Lithocarpus for the first time. In this paper, we report the isolation, structural elucidation, and their inhibitory activities against LPS-induced NO production in macrophages.

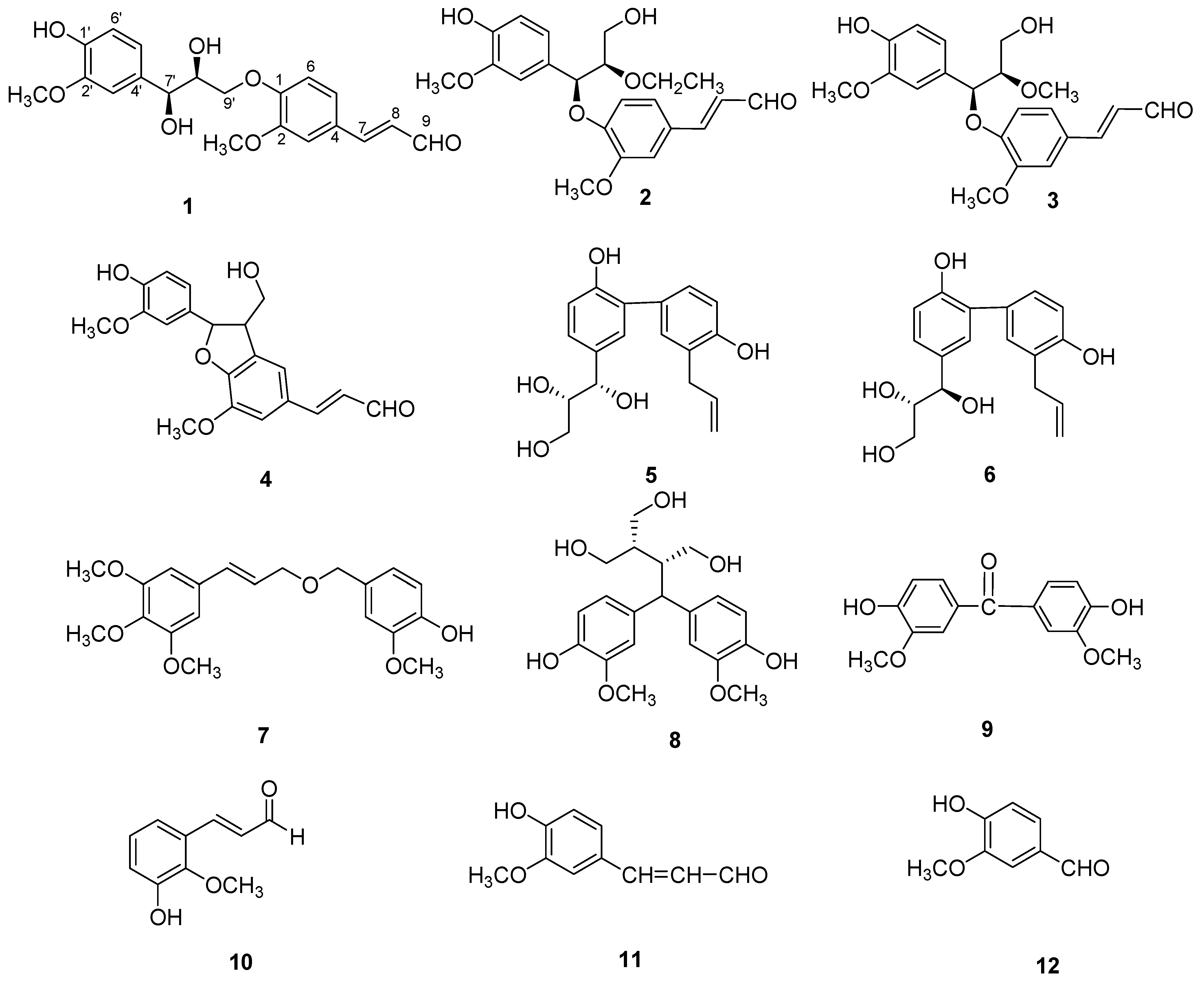

Figure 1. Structures of compounds 112.
Figure 1. Structures of compounds 112.
Molecules 18 10397 g001

2. Results and Discussion

Compound 1 was obtained as yellow amorphous powder with Molecules 18 10397 i001 −0.2 (c = 0.10, MeOH). It possessed the molecular formula C20H22O7, as revealed by its HR-ESI-MS (m/z: 397.1279 [M + Na]+, calcd: 397.1263). The IR spectrum showed a hydroxyl absorption at 3,518 cm−1 and an α,β-unsaturated CHO group at 1,670 cm−1. A bathochromic shift was observed upon addition of alkali, indicating that the presence of a phenolic benzenoid moiety [5]. The 1H-NMR spectrum of 1 (Table 1) showed the presence of two ABX system aromatic rings [δH 7.22 (d, J = 1.8), 7.16 (dd, J = 8.4, 1.8), 7.01 (d, J = 8.4); δH 7.04 (d, J = 1.8), 6.85 (dd, J = 8.4, 1.8), 6.71 (d, J = 8.4)], two methoxyl groups (δH: 3.78, 3.83), one trans-configuration double bond (δH: 7.58, d, J = 15.6; 6.65, dd, J = 15.6, 7.8) and one aldehyde group (δH: 9.58, d, J = 7.8).
Table 1. 1H- and 13C-APT data of compounds 13 in CD3OD (δ in ppm, J in Hz).
Table 1. 1H- and 13C-APT data of compounds 13 in CD3OD (δ in ppm, J in Hz).
Position123
δCδHδCδHδCδH
1152.9 153.0 153.2
2152.0 152.1 152.1
3113.17.22 (d, 1.8)113.17.21 (d, 1.8)113.07.21 (d, 1.8)
4129.5 129.4 129.6
5124.67.16 (dd, 8.4, 1.8)124.57.14 (dd, 8.4, 1.8)124.27.16 (dd, 8.4,1.8)
6117.57.01 (d, 8.4)116.46.98 (d, 8.4)116.56.94 (d, 8.4)
7155.67.58 (d, 15.6)155.67.57 (d, 15.6)155.67.54 (d, 15.6)
8127.96.65 (dd, 15.6, 7.8)127.86.67 (dd, 15.6, 7.8)127.86.67 (dd, 15.6,7.8)
9196.39.58 (d, 7.8)196.29.59 (d, 7.8)196.49.60 (d, 7.8)
1′147.3 147.3 147.3
2′148.9 149.1 149.0
3′112.37.04 (d, 1.8)112.86.96 (d, 1.8)112.86.96 (d, 1.8)
4′134.2 131.6 131.2
5′121.46.85 (dd, 8.4, 1.8)117.46.82 (dd, 7.8, 1.8)117.46.82 (dd, 7.8,1.8)
6′115.86.71 (d, 8.4)115.96.74 (d, 7.8)115.96.76 (d, 7.8)
7′74.44.82 (d, 3.6)76.04.50 (d, 3.6)79.54.55 (d, 3.6)
8′85.64.55 (m)84.94.61 (m)85.24.64 (m)
9′72.73.50 (dd, 12.0, 5.4)62.83.48 (m)62.63.47 (m)
3.85 (dd, 12.0, 3.6)3.89 (m)3.86 (m)
2-OCH356.93.83 (s)56.83.83 (s)56.73.81 (s)
2′-OCH356.63.78 (s)56.63.80 (s)56.63.79 (s)
8′-OCH2CH3 65.23.42 (m); 3.85 (m)
8′-OCH2CH3 15.81.17 (t, 7.2)
8′-OCH3 51.93.15 (s)
The 13C-APT spectrum of 1 (Table 1) exhibited 20 carbons, including 14 olefinic carbons, one aldehyde group (δC: 196.3), two methoxyl groups (δC: 56.6, 56.9), two oxygenated methines (δC: 74.4, 85.6) and one oxygenated methylene (δC: 72.7). The 1H-NMR and 13C-APT spectra suggested compound 1 was a lignan composed of cinnamyl alcohol and cinnamaldehyde [7,8]. In the HMBC spectrum (Figure 2), the correlations from δH 3.50 (H-9', dd, J = 12.0, 5.4); 3.85 (H-9', dd, J = 12.0, 3.6) to δC: 152.1 (C-1) indicated the C-9' was attached to a phenolic O atom; the correlations from δH 7.58 (H-7, d, J = 15.6) to δC 113.1 (C-3), 129.5 (C-4), 124.6 (C-5); δH 4.82 (H-7', d, J = 3.6) to δC 112.3 (C-3'), 134.2 (C-4'), 121.4 (C-5') indicated that the trans double bond was attached to C-4 and the three-carbon chain was linked to C-4'. In addition, the HMBC correlations from δH 3.83 (3H, s, -OCH3) to δC 152.0 (C-2); δH 3.78 (3H, s, -OCH3) to δC 148.9 (C-2') suggested that the methoxy groups were located at C-2 and C-2'. The relative configuration of 1 was obtained through analysis of coupling constants and the NOESY spectrum. H-7' and H-8' were both determined to be α-oriented on the basis of the NOE enhancement of H-7'/H-8' and the small coupling constant (J = 3.6 Hz) between H-7' and H-8'. Therefore, compound 1 was identified as 1',7',8'-trihydroxy-2,2'-dimethoxy-1,9'-oxo-phenylpropylconiferaldehyde and named balanophonin C.
Figure 2. The key HMBC correlations of compound 1.
Figure 2. The key HMBC correlations of compound 1.
Molecules 18 10397 g002
Compound 2 was isolated as yellow amorphous powder. Its molecular formula was deduced as C22H26O7 from HR-ESI-MS (m/z: 425.1564 [M + Na]+, calcd: 425.1576). The 1H-NMR and 13C-APT spectra (Table 1) were similar to those of balanophonin A, except for the extra ethoxyl signals [δH: 3.42 (1H, m), 3.85 (1H, m), 1.17 (3H, t, J = 7.2); δC: 65.2, 15.8] [9]. In the HMBC spectrum, the signals at δH: 3.42 (1H, m), 3.85 (1H, m) had direct correlations to δC: 62.8 (C-9'), 76.0 (C-7'), 84.9 (C-8') suggested that the ethoxyl group was located at C-8’. Otherwise, the HMBC correlations from δH: 4.50 (H-7', d, J = 3.6) to δC: 112.8 (C-3'), 131.6 (C-4'), 117.4 (C-5'), 153.0 (C-1) indicated the C-7' was attached to the C atom of one aromatic ring and the O atom of another phenolic ether. Combined with the NOESY spectrum, compound 2 was established as 1',9'-dihydroxy-2,2'-dimethoxy-8' -ethoxy-1,7’-oxo-phenylpropylconiferaldehyde and it was named balanophonin D.
Compound 3, a yellow amorphous powder, was assigned as C21H24O7 on the basis of its positive HR-ESI-MS (m/z 411.1416 [M + Na]+). Comparison of the NMR data (Table 1) between 3 and balanophonin A indicated that compound 3 was another derivative of balanophonin A [9]. The only difference lies in that the hydroxy group at C-8' in balanophonin A was replaced by a methoxy group in 3. This was fully confirmed by the HMBC correlations from δH 3.15 (8'-OCH3, s) to δC 85.2 (C-8'). The similar NOE for 3 and balanophonin A suggested that their relative configuration were identical. Accordingly, the structure of 3 was identified as 1',9'-dihydroxy-2,2'-dimethoxy-8'-methoxy-1,7'-oxo-phenylpropylconiferaldehyde and it was named balanophonin E.
Considering this medicinal herb as a therapeutical agent for the treatment of scapulohumeral periarthritis, the isolated compounds 19 were studied for their anti-inflammatory activities on lipopolysaccharide (LPS)-induced nitric oxide (NO) production in RAW 264.7. The results indicated that compounds 19 show moderate inhibitory activities, with IC50 values ranging from 10.9 to 34.7 μM (Table 2). From the biological results, it can be inferred that anti-inflammatory activities of the isolated compounds may be partially due to their phenolic structure, while neoligans prevented NO production maybe by suppressing the activation of NF-κB or protein tyrosine phosphorylation reported in previous research [10].
Table 2. Inhibitory Activity of Compounds 19 on LPS-Induced NO Production in RAW 264.7 Macrophages.
Table 2. Inhibitory Activity of Compounds 19 on LPS-Induced NO Production in RAW 264.7 Macrophages.
CompoundsIC50 (μM)
116.4 ± 1.1
210.9 ± 0.6
311.8 ± 0.3
424.5 ± 2.5
534.7 ± 0.8
629.8 ± 1.7
727.1 ± 3.6
812.3 ± 1.2
921.5 ± 1.4
Aminoguanidine a6.8 ± 0.4
a Positive control substance.

3. Experimental

3.1. General

Optical rotations were obtained on a Perkin-Elmer 341 digital polarimeter. UV and IR spectra were recorded on a Shimadzu UV2550 and FTIR-8400S spectrometer, respectively. One-dimensional (1H, 13C-APT) and two-dimensional (1H-1H COSY, HSQC, HMBC) NMR experiments were performed on a Bruker AV Ш 600 spectrometer operating at 600 MHz (1H) and 150 MHz (13C). HR-ESIMS spectra were performed on a LTQ-Obitrap XL spectrometer. The detection of all the compounds was achieved in ESI modes. C18 reversed-phase silica gel (40–63 μm, Merck, Darmstadt, Germany), Sephadex LH–20 (Pharmacia, Uppsala, Sweden) were used for the column chromatography. Precoated silica gel of GF254 plates (Zhi Fu Huang Wu Pilot Plant of Silica Gel Development, Yantai, China) were used for TLC. All solvents used were of analytical grade (Beijing Chemical Works, China). Preparative HPLC was performed on a LUMTECH instrument with UV detector at 254 nm and using an YMC-Pack C18 column (250 mm × 20 mm inside diameter (I.D), 5 μm, YMC, Tokyo, Japan).

3.2. Plant Material

The seeds of L. pachylepis were collected in November 2011 from Nanning, Guangxi Province, China, and identified by Prof. Jing-Quan Yuan, Department of Pharmaceutical Chemistry, Guangxi Botanical Garden of Medicinal Plants, where a voucher specimen (No. 21700) was deposited.

3.3. Extraction and Isolation

The air-dried and powdered seeds of L. pachylepis (0.7 kg) were refluxed three times with ethanol (3 × 6 L) at 50 °C under reduced pressure. After concentration under reduced pressure, the ethanol extract (16 g) was subjected to column chromatography on silica gel eluting with hexane, chloroform, ethyl acetate, acetone and methanol, respectively (3 × 1,000 mL each). The ethyl acetate fraction (1.8 g) was subjected to reverse phase C-18 chromatography with a gradient of MeOH-H2O system (40:60; 50:50; 60:40; 80:20; 100:0) as eluents, yielding five fractions (Fr. 1–5). Fr. 4 (0.31 g) was separated over the Sephadex LH-20 (1 × 45 cm) to remove pigments, then the fraction was subjected to column chromatography on MCI GEL with MeOH-H2O system, yielding three fractions (Fr. 4.1–4.3). All the three fractions (Fr. 4.1–4.3) were subjected to HPLC on a Kromasil column. Finally, compounds 2 (2.6 mg) and 4 (4.1 mg) were obtained from fraction 4.1 using a MeOH-H2O (38:72) system. Compounds 1 (3.0 mg), 5 (1.8 mg) and 6 (2.9 mg) were obtained from fraction 4.2 using a MeOH-H2O (46:54) system. Compounds 3 (2.7 mg) and 8 (5.3 mg) was obtained from fraction 4.3 using a MeOH-H2O (50:50) system. Fr. 5 (0.18 g) was separated over Sephadex LH-20 and MCI GEL respectively, yielding two fractions (Fr. 5.1–5.2). These two fractions were subjected to HPLC on a Kromasil column. Finally, compound 7 (4.5 mg) and 9 (6.5 mg) were obtained from fraction 5.1 using a MeOH-H2O (52:48) system. Compound 10 (4.7 mg), 11 (5.9 mg) and 12 (3.7 mg) were obtained from fraction 5.2 using a MeOH-H2O (58:42) system.

3.4. Spectral Data

Compound 1: Yellow amorphous powder. Molecules 18 10397 i001 −0.2 (c = 0.10, MeOH). UV λmax (MeOH) nm (log ε): 285 (3.15), 256 (3.78), 212 (4.16). IR (KBr) cm−1 3518, 1670. 1H and 13C-APT (CD3OD): See Table 1. HR-ESI-MS m/z: 397.1279 [M + Na]+ (Calcd for 397.1263).
Compound 2: Yellow amorphous powder. Molecules 18 10397 i001 −0.38 (c = 0.09, MeOH). UV λmax (MeOH) nm (log ε): 285 (3.42), 256 (4.01), 212 (4.62). IR (KBr) cm−1 3524, 1674. 1H and 13C-APT (CD3OD): See Table 1. HR-ESI-MS m/z: 425.1564 [M + Na]+ (Calcd for 425.1576).
Compound 3: Yellow amorphous powder. Molecules 18 10397 i001 −0.36 (c = 0.08, MeOH). UV λmax (MeOH) nm (log ε): 285 (3.23), 256 (3.61), 212 (4.04). IR (KBr) cm−1 3520, 1672. 1H and 13C-APT (CD3OD): See Table 1. HR-ESI-MS m/z: 411.1416 [M + Na]+ (Calcd for 411.1420).
The structures of compounds 412 were identified by comparison of their spectral data with those reported in the literature.

4. Conclusions

Three new phenolics named balanophonin C (1), balanophonin D (2), balanophonin E (3), together with nine known phenolics balanophonin (4) [2], threo-honokitriol (5) [3], erythro-honokitriol (6) [3], 2-methoxy-4-[3'-(3'',4'',5''trimethoxyphenyl)allyloxymethyl]phenol (7) [4], daphneresinol (8) [5], 4,4'-dihydroxy-3,3'-dimethoxybenzophenone (9) [6], cassiferaldehyde (10) [7], coniferaldehyde (11), and vanillin (12) were isolated from the seeds of L. pachylepis. The isolation of the new compounds is an addition to the molecular diversity of L. pachylepis. All the isolated compounds showed moderate anti- inflammatory activities.

Acknowledgments

The work was supported by the National Natural Science Foundation of China (No. 81273432).

Conflicts of Interest

The authors declare no conflict of interest.
