Article

Cobalt-Catalyzed Methoxycarbonylation of Substituted Dichlorobenzenes as an Example of a Facile Radical Anion Nucleophilic Substitution in Chloroarenes

1
Chemistry Department, Saint Petersburg State University, Universitetskiy pr., 26, Staryj Petergof, 198504 St. Petersburg, Russia
2
Department of Organic Chemistry, University of Geneva, 30 Quai Ernest Ansermet, CH-1211, Geneva 4, Switzerland
*
Author to whom correspondence should be addressed.
Molecules 2014, 19(5), 5876-5897; https://doi.org/10.3390/molecules19055876
Submission received: 9 April 2014 / Revised: 26 April 2014 / Accepted: 28 April 2014 / Published: 6 May 2014
(This article belongs to the Special Issue Carbonylation Chemistry)

Abstract

:
A thorough mechanistic study on cobalt-catalysed direct methoxycarbonylation reactions of chlorobenzenes in the presence of methyl oxirane on a wide range of substrates, including poly- and monochloro derivatives with multiple substituents, is reported. The results demonstrate that the reaction is potentially useful as it proceeds under very mild conditions (t = 62 °C, PCO = 1 bar) and converts aryl chlorides to far more valuable products (especially ortho-substituted benzoic acids and esters) in high yields. This transformation also offers another opportunity for the utilization of environmentally harmful polychlorinated benzenes and biphenyls (PCBs). This study is the first to discover an unexpected universal positive ortho-effect: the proximity of any substituent (including Me, Ph, and MeO groups and halogen atoms) to the reaction centre accelerates the methoxycarbonylation in chlorobenzenes. The effect of the ortho-substituents is discussed in detail and explained in terms of a radical anion reaction mechanism. The advantages of the methoxycarbonylation as a model for the mechanistic study of radical anion reactions are also illustrated.

1. Introduction

In 1970 Bunnett and Kim [1] proposed a new mechanism for nucleophilic aromatic substitution in non-activated aromatic compounds, which they called radical anion substitution (“unimolecular radical nucleophilic substitution”, SRN1) after its key intermediate − a radical anion. In aromatic nucleophilic substitution, this reaction mechanism was the last discovered and still remains far less studied than the others [2]. At the same time, a growing number of examples have become known where reactions proceeding via such a mechanism play an important role in organic synthesis [3,4,5,6] and in the environment [7,8,9,10,11,12,13,14,15]. Therefore, the mechanistic study on radical anion substitution is very timely.
The reaction of aryl halide methoxycarbonylation catalysed with alkyl cobalt carbonyl complexes (Scheme 1) provides an interesting model to study the principles of the radical anion transformations in aryl halides [16,17,18,19,20,21,22,23].

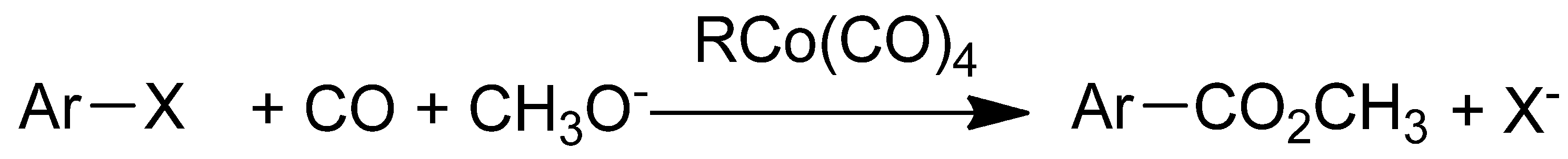

Scheme 1. Methoxycarbonylation of aryl halides catalysed with alkyl cobalt carbonyl complex in basic methanol.
Scheme 1. Methoxycarbonylation of aryl halides catalysed with alkyl cobalt carbonyl complex in basic methanol.
Molecules 19 05876 g003
Cobalt-catalysed hydroxy- and alkoxycarbonylation of iodo- and bromobenzenes in the system NaH—sodium alcoholate—cobalt acetate (CoCRACO) has been known since 1979 [24,25]. The authors proposed the radical anion mechanism for this reaction. Later it was shown that photochemical initiation can be used in the carbonylation of bromobenzenes instead of a one-electron reducing agent (NaH) [20,26,27,28].
Photochemical carbonylation of substituted chlorobenzenes using cobalt catalysts under low pressure of CO (2 atm) was described in 1986 [29,30,31,32], where the maximum reactivity was noted for substituted chlorobenzoic acids. Unfortunately, photochemical processes have a number of features that make them difficult for preparative use and do not allow them to serve as a full-fledged model for studying the radical anion nucleophilic substitution of aryl halides under dark conditions. Therefore, as a model to study radical anion substitution in aryl chlorides, we have chosen the carbonylation reaction catalysed by anionic alkyl cobalt carbonyl complex (Scheme 1), which occurs under atmospheric pressure and does not require photochemical activation [16,17,18,19,20,21,22,23].
Such catalytic systems were first used for the carbonylation of substituted bromobenzenes in 1985 [16]. Originally they were prepared in situ from cobalt carbonyl and alkyl halides or dimethyl sulphate [16,17,18,19,20,21]. The main drawback of these systems was a low catalytic activity in carbonylation of substituted chlorobenzenes. Activation of these inert aryl halides was achieved only after the catalyst systems based on cobalt carbonyl and oxirane (or monoalkyl oxiranes) were developed [22,23]. When Co2(CO)8 is used in presence of methyl oxirane as a catalyst in basic methanol, the methoxycarbonylation proceeds through the formation of an anionic cobalt lactone (Scheme 2) [23,33,34]. It was shown [23,34], that the key step of the process is the radical anion activation of the aryl halide with the anionic cobalt complex. In addition to aryl bromides, some aryl chlorides take part in this reaction, particularly the ones that we discovered in our previous studies: chloronaphthalene [22], PCBs (polychlorinated benzenes) [35], and heteroaryl chlorides [36].
Scheme 2. The catalytic cycle of the methoxycarbonylation in presence of methyl oxirane.
Scheme 2. The catalytic cycle of the methoxycarbonylation in presence of methyl oxirane.
Molecules 19 05876 g004
The methoxycarbonylation of only a few dichlorobenzenes has been described under these conditions [37]. At the same time, cobalt-catalysed methoxycarbonylation gives a good opportunity to study the principles of the radical anion processes in chloroarenes. The advantages of this reaction as a model for a mechanistic study in comparison to other radical anion transformations of aryl chlorides are: (i) irreversibility of the methoxycarbonylation process; (ii) simplicity of conversion control; and (iii) the relative ease of the resulting reaction products’ isolation and interpretation of their structures.
Therefore our task was to determine the reactivity of substituted chlorobenzenes in the methoxycarbonylation reaction catalysed by cobalt carbonyl complexes. It has simultaneously pursued two goals: to clarify the reaction’s synthetic possibilities and to use this reaction as a model to study the radical anion substitution in chloroarenes.

2. Results and Discussion

First, it was necessary to determine whether chlorobenzene and its derivatives can be carbonylated under the conditions used for the substituted bromobenzenes [22] (in methanol solution at atmospheric pressure of CO and temperature 60–63 °C). Our study showed that unsubstituted chlorobenzene does not react under these conditions. However, the ortho- and meta-dichlorobenzenes react readily to give the methyl esters of the corresponding chlorobenzoic acids. Therefore diverse substituted dichlorobenzenes were chosen as substrates to study the principles of the methoxycarbonylation reaction.

2.1. The Relative Reactivity of Substituted Dichlorobenzenes

We have studied the relative reactivity of several substituted dichlorobenzenes and their derivatives (compounds 113, Figure 1) by the competitive reactions method.

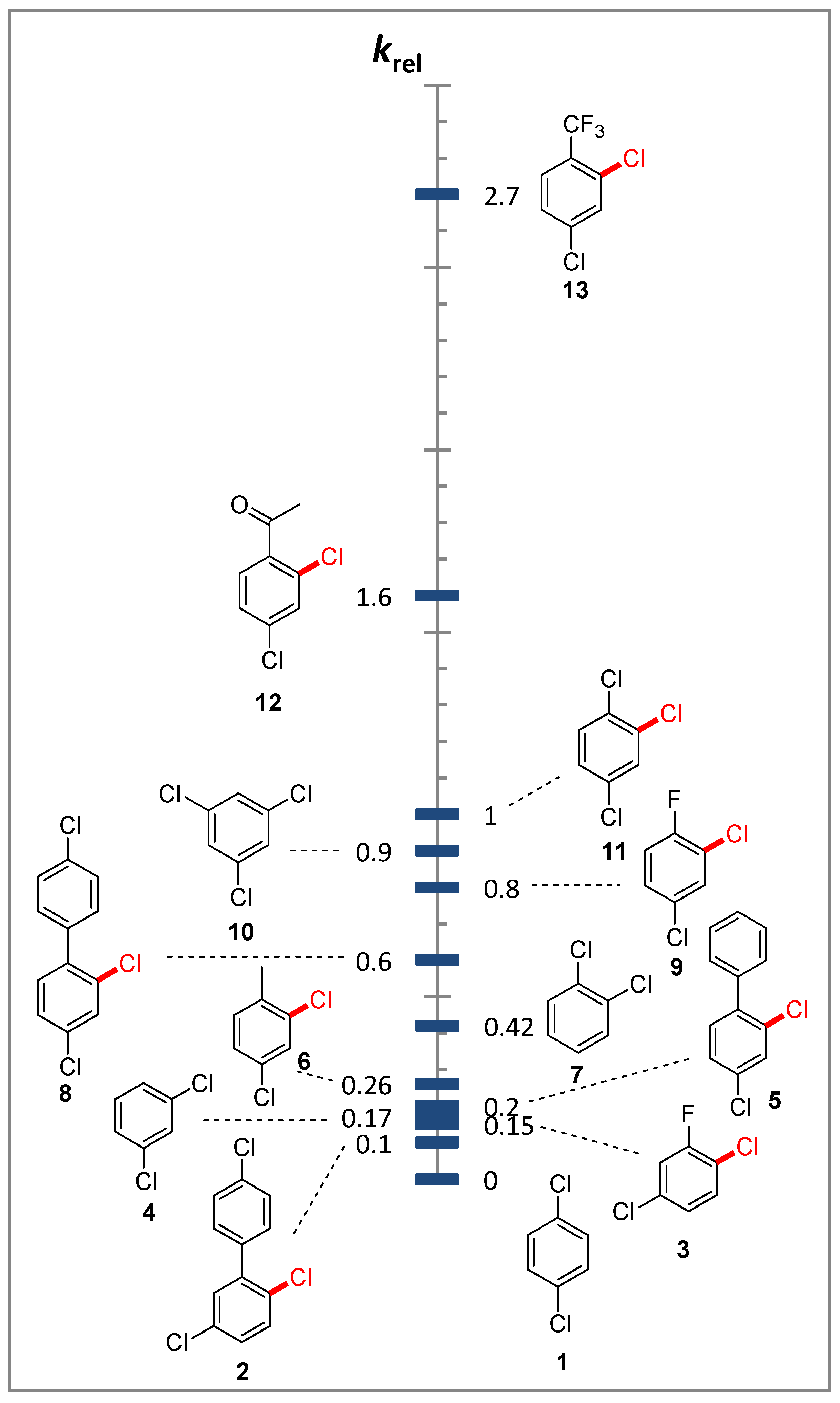

Figure 1. The relative reactivity of substituted dichlorobenzenes (C6H3Cl2X) in the cobalt-catalysed methoxycarbonylation. The C–Cl bond which is preferentially cleaved is marked in red.
Figure 1. The relative reactivity of substituted dichlorobenzenes (C6H3Cl2X) in the cobalt-catalysed methoxycarbonylation. The C–Cl bond which is preferentially cleaved is marked in red.
Molecules 19 05876 g001
The determination of the relative reaction rates (krel) was carried out via measurements of the decreases in the initial substrate concentrations. GC analysis of reaction mixtures before and after methoxycarbonylation was used as an analytical method. Control experiments showed that these aryl halides are consumed in the system only as a result of the methoxycarbonylation reaction. Following data were obtained on the relative reactivity of substituted dichlorobenzenes (Figure 1).
It is evident that the electron-withdrawing substituents X in meta-dichlorobenzenes (2,4-Cl2-C6H3-X) accelerate the methoxycarbonylation reaction: the reaction rate increases in the order H < F < Cl < COCH3 < CF3. It is not surprising given the nature of the nucleophilic substitution in aryl halides. In addition, it is consistent with our earlier data on the electronic effects of substituents in the methoxycarbonylation of substituted bromobenzenes [23].
At the same time, the presented results (Figure 1) indicate a complex effect of substituents on the reaction rate. For example, the transition from meta-dichlorobenzene (4) to 2,4-dichlorotoluene (6) also accelerates the methoxycarbonylation process, despite the electron-donating nature of the methyl substituent. This indicates the presence of a special substituent effect, which cannot be described only within the concept of the electronic influence. Greater reactivity of ortho-dichlorobenzene (7) in comparison with meta-dichlorobenzene (4) (Figure 1) is another fact, which cannot be explained into the frames of the substituents’ electronic influence on the aromatic substrate reactivity in the reaction.
These two contradictions suggest that the determining factor in the radical anion nucleophilic substitution of aryl chlorides is not the nature of the substituents but rather their relative positions. In this regard, the study of the effect of substituents position has become of great importance for the determination of the nature of the substituents’ influence on the aryl chloride reactivity in the anion radical nucleophilic substitution reactions.

2.2. Regioselectivity in the Methoxycarbonylation of Substituted Dichlorobenzenes

The data presented above shows only the overall substrate reactivity (without consideration of the substituent position). In order to study the steric effects of substituents, we measured the regioselectivity of the first stage for the methoxycarbonylation of the substituted dichlorobenzenes. The essence of such an approach is to make difference between the chlorine atoms via the introduction of a substituent into the dichlorobenzene molecule. For example, compound 9 has chlorine atom in the ortho-position relative to the fluorine atom and the other one in the para-position. Determination of the methoxycarbonylation regioselectivity for compound 9 allows us to determine where the influence of fluorine atom is stronger, in the ortho-position or in the para-position. This method has the advantage of comparing the intersubstrate selectivity definition, since it minimises the influence of extraneous factors that may manifest themselves in other stages of the multistage process.
The methoxycarbonylation of compounds 115 was carried out up to low conversion (usually 10%–40%) to define the regioselectivity of the first stage. The resulting monocarboxylic acids were isolated (generally as their methyl esters) and their structures were determined by NMR analysis. The only difficulty was to establish the structures of two isomeric products from the monocarbonylation of compound 12 probably formed during the reaction mixture treatment (compounds 12b and 12c, Scheme 3). The structure of unexpected product 12c was unambiguously determined by spectroscopic and spectrometric methods (see Supplementary Information for details). Thus, despite the fact that the reaction in this case yields a mixture of isomers, both obtained products showed a quantitative regioselectivity for the methoxycarbonylation of compound 12 in the position which is ortho to the acetyl substituent. Moreover, in all studied compounds 115, ortho-substituent directs reaction into position 2 exclusively regardless its own nature (see Figure 1, Scheme 3 and Table 1). The regioselectivity study indicates thus an unprecedented universal effect of ortho-substituents (including such ones as Me in compound 6 and MeO in compound 14) observed in reactivity studies.
Scheme 3. Monocarbonylation of compound 12.
Scheme 3. Monocarbonylation of compound 12.
Molecules 19 05876 g005

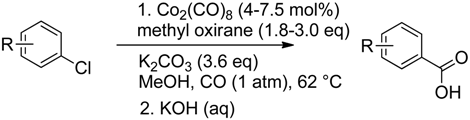

Table 1. The synthesis of the substituted benzoic acids a. Molecules 19 05876 i001
Table 1. The synthesis of the substituted benzoic acids a. Molecules 19 05876 i001
EntrySubstrateProductIsolated yield, %
1 Molecules 19 05876 i002 Molecules 19 05876 i00382
2 Molecules 19 05876 i004 Molecules 19 05876 i00573
3 Molecules 19 05876 i006 Molecules 19 05876 i00763
4 Molecules 19 05876 i008 Molecules 19 05876 i00980
a For the reaction conditions see the Experimental Section.
The ortho-effect, observed in methoxycarbonylation reaction, is fundamentally different from the effect of ortho-substitution described in the literature for reactions which proceed via the classical aromatic nucleophilic substitution mechanism. For example, when methanolysis of substituted chlorobenzene occurs via the SNAr mechanism, the reaction rate for the ortho-substituted aryl chlorides is lower than for the corresponding para-substituted chlorobenzenes [38,39]. Thus, in accelerating the methoxycarbonylation reaction with an ortho-substituent there is a fundamental difference between the steric effect of substituents in the reactions of the radical anion substitution and the same in aromatic nucleophilic substitution reactions (SNAr).
Positive ortho-effects in the radical anion substitution reactions have been observed previously by several researchers but only for substituents that have the mesomeric acceptor effect [40,41,42,43,44,45]. For example, there is a positive ortho-effect of the acetyl group for radical anion reactions of 2- and 4-chloroacetophenone, manifested in greater dehalogenation rate of 2-chloroacetophenone in comparison with 4-chloroacetophenone in irradiated aqueous solutions [40] and during the reduction with 1,3-dimethyl-2-phenylbenzimidazoline [41]. A similar accelerating effect is demonstrated by о-CN [42] and о-COPh [41] groups at dehalogenation and о-CO2Me group in reactions of methyl 2,5-dichlorobenzoate or methyl 3,6-dichloro-2-methoxybenzoate with tin-centred [43,44] and sulphur centred [45] nucleophiles.
Substituents in the ortho-position to the reaction center sometimes accelerate interactions of aryl halides with transition metal complexes [46], but these examples refer to substituents that can act as ligands: either heteroatoms with electron lone pairs or groups with multiple bonds. In these cases, the cause of the positive ortho-effect is the ability to chelate with the substituents. The attack preference in the ortho-position to methyl group observed in the studied methoxycarbonylation cannot thus be explained.

2.3. Possible Driving Forces of the Ortho-Effect

The background for the observed positive ortho-effect might be the peculiarities of the mechanism of cobalt-catalysed methoxycarbonylation. As noted earlier, this reaction proceeds via a radical anion mechanism. Carbon-halogen bond breaking can occur concertedly or stepwise [47,48]. If the excitation of the unpaired electron to low-lying vacant MOs and the following internal coordinates rearrangement gives a structure of other geometry than the initial one, π-radical anion → σ-radical anion transfer can be possible. In this case, both structures correspond to different local minima on the potential energy surface of the radical anion ground state. It was shown that the reaction coordinate π-radical anion → σ-radical anion transfer is associated with elongation of the C–X bond and displacement of the halogen atom from the plane of the aromatic ring [49]. That is, in general terms, the scheme of the C-X breaking is as follows (Scheme 4).
Scheme 4. The possible pathways of the C–X breaking for an aryl halide radical anion.
Scheme 4. The possible pathways of the C–X breaking for an aryl halide radical anion.
Molecules 19 05876 g006
Depending on the substrate structure, the process of radical anion activation of the aryl halide proceeds mainly via pathway I, II or III. Aryl chlorides with electron-withdrawing substituents (viz. Ac and CN) in the aromatic ring as well as condensed aromatic system contain low-lying π*-orbitals so the radical anion substitution for these substrates takes place mainly along pathway III [49]. Aryl bromides and aryl chlorides without acceptor substituents often react via the concerted mechanism I [48]. Therefore the influence of the substituent on the reactivity of the aryl halide can be fundamentally different, depending on which of these groups the aryl halide falls into.
A theoretical study on the electronic nature of radical anions for the family of halobenzonitrile and haloacetophenone compounds was carried out by Pierini and Duca [49]. The authors explained positive ortho-effect of the acetyl group on the fragmentation rate of haloacetophenone in terms of π* and σ* orbital isomeric radical anions, their energy difference and the probability of an intramolecular electron-transfer reaction from the π* to the σ* system. Santiago and coworkers [44,45] came to the same conclusions about the impact of a methoxycarbonyl group, performing calculations for substituted methyl benzoates. However, it should be noted that the main geometric, thermodynamic and kinetic parameters of radicals and radical anion intermediates were determined in gas phase. This increases the relative role of the radical anion of π-type.
One way to determine the reaction path is scanning of the radical anion potential energy surface (PES) along the coordinate of the breaking C–Cl bond. We calculated the cross sections of PES for anion radicals of substituted dichlorobenzenes 5, 12 and 13 at stretching coordinates of both C–Cl bonds in each compound. Scanning the potential energy surface of radical anion along the reaction coordinate was carried out with full optimization of other parameters at each scan step. The PES scan studies have been performed at the B3LYP/6-31+G* level of theory (effects of methanol solvent were accounted within PCM formalism).
The computational results for compound 12 are shown in Figure 2 (see Supplementary Information for the energy profiles with other substrates). The electron transfer to a neutral molecule leads initially to the formation of a radical anion RA of π-type. It is evident by the presence of a minimum in the potential energy curves. The fragmentation of the radical anion is stepwise and occurs with the activation barrier (Scheme 5). Therefore the reaction takes place along path III (Scheme 4). Stabilisation of the π-type radical anion compared to the σ-radical anion in this case is due to the conjugation of the phenyl ring and carbonyl group, leading to partial delocalisation of negative charge and unpaired electron density at the substituent.
Figure 2. Relaxed potential energy diagram (employing optimised geometry at each point) for the dissociation of chlorides anions from radical anion RA of compound 12. Structures of radical anion RA and transition states TSpara and TSortho with the C–Cl bond distances are shown.
Figure 2. Relaxed potential energy diagram (employing optimised geometry at each point) for the dissociation of chlorides anions from radical anion RA of compound 12. Structures of radical anion RA and transition states TSpara and TSortho with the C–Cl bond distances are shown.
Molecules 19 05876 g002
Scheme 5. Stepwise fragmentation of the radical anion of the dichlorobenzene 12.
Scheme 5. Stepwise fragmentation of the radical anion of the dichlorobenzene 12.
Molecules 19 05876 g007
The C–Cl bond breaking in ortho-position to the substituent has a lower activation barrier (18.6 kJ/mol) compared with C–Cl breaking in para-position (29.0 kJ/mol). This is in a full agreement with the experimentally observed regioselectivity of the methoxycarbonylation reaction (Scheme 3). Notably, the transition state TSpara which leads to the para C–Cl bond cleavage to give a radical Rpara is a late TS compared with TSortho (Figure 2). We obtained similar results by calculating the possible radical anions fragmentation pathways of PCBs, for which the reaction also proceeds by stepwise path III [50,51].
For all other computationally studied substrates the ground state of the radical anions formed at the stage of the intermolecular electron transfer are the radical/anion pair. Calculations of such systems are more complicated. All these radical anions do not correspond to minimum on PES. Therefore the decay of the radical anions is barrier-free (pathway I). The PE curves along the ortho- C–Cl bond coordinates are the lowest for these substrates (see Supplementary Information). It may influence the cleavage of the C–Cl bond at the ortho-position with respect to the substituent, which corresponds to the experimental data on the selectivity of the methoxycarbonylation reaction.
Thus, the calculations show that in both cases of the reaction mechanism in a concerted or stepwise process, the cleavage of the C–Cl bond in the ortho-position to the substituent is more energetically favourable, regardless electron donating/withdrawing ability of the substituent. This is in a full agreement with the experimentally observed ortho-effect of substitutions in the cobalt-catalysed methoxycarbonylation of aryl chlorides.

2.4. Synthetic Importance

The feature of cobalt-catalysed aryl chlorides activation was used for the synthesis of substituted chlorobenzoic acids from the corresponding dichlorobenzenes. Basic hydrolysis of the reaction mixture after carbonylation followed by acidification gave several acids in good isolated yields (Table 1). The carbonylation reaction can readily be scaled up to 100 mmol without serious loss of yield (69% vs. 73% in case of 14). For the success of the reaction the substrate must have a substituent in ortho-position to one of the chlorine atoms. At this position it has a strong orienting effect, which determines the regioselectivity. Electronic effects of substituents do not play a large role (see product 14a); although the acceptor substituent is preferable, as it increases the reaction rate and gives complete conversion of substrate after the shorter reaction time. The observed “positive ortho-effect” is of a great importance for the methoxycarbonylation reaction used in organic synthesis. It allows the methoxycarbonylation of even substituted chlorobenzenes, which have several alternate donors into the benzene ring, such as compound 16 (Table 1).
One should keep in mind in discussing of the synthetic role of the reaction that nitroaromatic compounds inhibit the cobalt-catalysed methoxycarbonylation (as we have shown previously for aryl bromides) [20,23,26,27,28]. Preparation of alkoxycarbonyl benzoic acids and benzene dicarboxylic acids using the proposed method is also challenging, since most of the esters are hydrolyzed during the process, and the resulting halogen carboxylate anions are inert in the methoxycarbonylation. At the same time, the acyl groups are stable under the reaction conditions and have a strong accelerating effect, which makes the proposed method useful in the synthesis of various substituted acyl benzoic acids.

3. Experimental

3.1. General Information

Reactions were carried out under argon using a standard manifold with vacuum and argon lines and with magnetic stirring in a jacketed glass reactor for thermostatic experiments equipped with septa or reflux condensers with bubble-counters. All NMR spectra were recorded at ambient temperature on a Bruker DPX 300 spectrometer at 300.13 (1H) and 75.03 (13C) MHz, respectively. The solvent was CDCl3. The NMR spectra are referenced to tetramethylsilane as an internal standard (δ = 0 ppm) using the signals of the residual protons of CHCl3 (7.26 ppm) in CDCl3. Multiplicities of signals are described as follows: s = singlet, br. s = broad singlet, d = doublet, t = triplet, q = quartet, quint = quintet, m = multiplet. Multiplicities in the 13C NMR spectra were determined by DEPT measurements. ESI-HRMS were obtained on TOF Micromass LCT spectrometer (Bruker). Elemental analyses were performed in the Organic Analytical Laboratory of St. Petersburg State University Chemistry Department with CHNS elemental analyser Euro EA 3028 – HT. GC system (Chrom-5): PID, the carrier gas—argon (20–30 mL/min). Glass column packed with SE-30 (10%) on Chromaton N-Super (80–100 mesh) as support was used for the analysis, diameter of 3 mm, length 2500 mm. Evaporator temperature 200 °C. The column temperature ranged from 130 °C to 200 °C depending on the studied pairs of substrates. Regular analytical TLC analyses were performed on MERCK ready-to-use plates with silica gel 60 (F254). Column chromatography: Merck silica gel, grade 60, 0.040–0.063 mm. Infrared spectra (4000–400 cm−1) were recorded on a Shimadzu FTIR-8400S instrument using KBr pellets. Commercially available organic and inorganic reagents (chemically pure grade) were used without further purification. Potassium carbonate (p.a.) was dried at 150 °C for 6 h. Cobalt carbonyl is a commercial reagent (Merck Millipore, Russia). 5-Chloro-4-methoxy-3-methylacetophenone and 2,5-dichloropropiophenone were granted for research by “Vekton Ltd”. (St. Petersburg, Russia). 2,4- and 2,5-Dichlorobiphenyls were synthesised via the Cadogan reaction with the standard procedure [52]. 2,4,4'- and 2,4',5-Trichlorobiphenyls were obtained by chlorination of the corresponding dichlorobiphenyls with the standard procedure [53].

3.2. Quantum Chemical Calculations

The quantum chemical calculations were performed using Gaussian 03 software [54] employing the Becke three parameter hybrid exchange in conjunction with the correlation functional developed by Lee, Yang and Parr (B3LYP). The 6-31+G(d) basis set was employed for the structural optimisation in methanol. The open shell model (unrestricted) was used for the anionic radicals and neutral molecules, respectively. The polarisable continuum model has been employed for the solvent. The relaxed based potential energy scanning (full energy optimization at each step) was performed for the radical anions as a function of the C–Cl bond distance in steps of 0.05 Å.

3.3. General Procedure for Blank Experiments

K2CO3 (2.5 g, 18 mmol) and methanol (10 mL) were placed in a jacketed glass reactor. The intensively stirred mixture was subjected to a flow of carbon monoxide, preliminary passed through methanol, at room temperature for 20 min followed by the insertion of Со2(СО)8 (0.050 g, 0.15 mmol) under a CO atmosphere. After the orange colour disappearance, the reaction mixture was heated to 62 °C, and methyl oxirane (0.35 g, 6 mmol) was added via syringe. The reaction mixture was stirred for 10 min and air was bubbled through the mixture for 5 min at 62 °C to destroy the catalytic complex. After that the flask was stopped with a septum again and a solution of an appropriate amount of the two studied substrates and the corresponding internal standard for GC in methanol (1 mL) was added to the reaction mixture (Solution A). The resulting mixture was stirred at 62 °C for 2 h. After that a sample of the reaction mixture (0.2–0.3 mL) was taken, diluted with 1 mL of water and extracted 2 times with hexane. The organic layer was analysed with GC and compared with the sample of solution A.

3.4. General Procedure I for Competitive Methoxycarbonylation

K2CO3 (2.5 g, 18 mmol), methanol (10 mL), an appropriate amount of the two studied substrates, and the corresponding internal standard for GC (see below) were placed in a jacketed glass reactor. A sample of the reaction mixture (0.2–0.3 mL) was taken for GC analysis. The intensively stirred mixture was subjected to flow of carbon monoxide, preliminary passed through methanol, at room temperature for 20 min followed by the insertion of Со2(СО)8 (0.050 g, 0.15 mmol) under CO atmosphere. The orange colour of the mixture disappeared after 5 min, indicating tetracarbonyl cobaltate salt formation according to reaction (1) [55]:
3Со2(СО)8 + 2K2СО3 → 4KСо(СО)4 + 2CoСО3 + 8CO
The reaction mixture was heated to 62 °C, and methyl oxirane (0.35 g, 6 mmol) was added via syringe. The conversion was controlled by measurement of the volume of absorbed carbon monoxide. The reaction was carried out until the combined conversions of the substrates had reached 30%–70%. After that a sample of the reaction mixture (0.2–0.3 mL) was taken. Both samples were diluted each with 1 mL of water and extracted two times with hexane. The organic layers were analysed by GC. The relative rate constants were determined from the ratio of unreacted substrates in the reaction mixture after the carbonylation. Blanks experiments showed that concentrations of the starting aryl halides did not diminished in the absence of methyl oxirane, which indicates the absence of side reactions of the substrates in the reaction mixture. Preservation of the material balance testified to the same.

3.4.1. Competitive Methoxycarbonylation of 1,2-Dichlorobenzene (7) and 1,3-Dichlorobenzene (4)

The reaction was carried out according to general procedure I with 7 (429 mg, 2.9 mmol), 4 (347 mg, 2.4 mmol) and tert-butylbenzene (internal standard, 45 mg, 0.34 mmol). The conversion of the starting compounds was 30% and 13% for 7 and 4, respectively.

3.4.2. Competitive Methoxycarbonylation of 1,2-Dichlorobenzene (7) and 1,4-Dichlorobenzene (1)

The reaction was carried out according to general procedure I with 7 (438 mg, 3.0 mmol), 1 (350 mg, 2.4 mmol) and tert-butylbenzene (internal standard, 45 mg, 0.34 mmol). The conversion of the starting compounds was 48% and <3% for 7 and 1, respectively.

3.4.3. Competitive Methoxycarbonylation of 1,2-Dichlorobenzene (7) and 1,2,4-Trichlorobenzene (11)

The reaction was carried out according to general procedure I with 7 (560 mg, 4.6 mmol), 11 (843 mg, 3.3 mmol) and 1,2,4,5-tetrametylbenzene (internal standard, 74 mg, 0.55 mmol). The conversion of the starting compounds was 28% and 53% for 7 and 11, respectively.

3.4.4. Competitive Methoxycarbonylation of 1,2,4-Trichlorobenzene (11) and 2,4-Dichloro-1-Fluoro-benzene (9)

The reaction was carried out according to general procedure I with 11 (259 mg, 1.43 mmol), 9 (128 mg, 0.78 mmol), and naphthalene (internal standard, 78 mg, 0.61 mmol). The conversion of the starting compounds was 33% and 28% for 11 and 9, respectively.

3.4.5. Competitive Methoxycarbonylation of 1,2,4-Trichlorobenzene (11) and 1,4-Dichloro-2-Fluoro-benzene (3)

The reaction was carried out according to general procedure I with 11 (275 mg, 1.5 mmol), 3 (176 mg, 1.1 mmol) and naphthalene (internal standard, 79 mg, 0.62 mmol). The conversion of the starting compounds was 69% and 26% for 11 and 3, respectively.

3.4.6. Competitive Methoxycarbonylation of 1,2,4-Trichlorobenzene (11) and 1,3,5-Trichlorobenzene (10)

The reaction was carried out according to general procedure I with of 11 (208 mg, 1.15 mmol), 10 (206 mg, 1.13 mmol) and naphthalene (internal standard, 54 mg, 0.42 mmol). The conversion of the starting compounds was 45% and 41% for 11 and 10, respectively.

3.4.7. Competitive Methoxycarbonylation of 1,2,4-Trichlorobenzene (11) and 2,4-Dichlorobiphenyl (5)

The reaction was carried out according to general procedure I with of 11 (53 mg, 0.3 mmol), 5 (390 mg, 1.75 mmol) and acenaphthene (internal standard, 32 mg, 0.21 mmol). The conversion of the starting compounds was 70% and 23% for 11 and 5, respectively.

3.4.8. Competitive Methoxycarbonylation of 2,4-Dichlorobiphenyl (5) and 2,4,4'-Trichlorobiphenyl (8)

The reaction was carried out according to general procedure I with 5 (242 mg, 1.09 mmol), 8 (260 mg, 1.00 mmol) and 1,2-diphenylethane (internal standard, 40 mg, 0.22 mmol). The conversion of the starting compounds was 27% and 61% for 5 and 8, respectively.

3.4.9. Competitive Methoxycarbonylation of 2,4-Dichlorobiphenyl (5) and 2,4',5-Trichlorobiphenyl (2)

The reaction was carried out according to general procedure I with of 5 (183 mg, 0.82 mmol), 2 (150 mg, 0.58 mmol) and 1,2-diphenylethane (internal standard, 42 mg, 0.23 mmol). The conversion of the starting compounds was 43% and 25% for 5 and 2, respectively.

3.4.10. Competitive Methoxycarbonylation of 1,2,4-Trichlorobenzene (11) and 2,4-Dichloroaceto-phenone (12)

The reaction was carried out according to general procedure I with of 11 (121 mg (0.66 mmol), 12 (401 mg, 2.1 mmol) and naphthalene (internal standard, 49 mg, 0.38 mmol). The conversion of the starting compounds was 25% and 34% for 11 and 12, respectively.

3.4.11. Competitive methoxycarbonylation of 2,4-Dichlorobiphenyl (5) and 2,4-Dichloroaceto-phenone (12)

The reaction was carried out according to general procedure I with 5 (497 mg, (2.2 mmol), 12 (142 mg, 0.75 mmol) and acenaphthene (internal standard, 39 mg, 0.25 mmol). The conversion of the starting compounds was 11% and 64% for 5 and 12, respectively.

3.4.12. Competitive Methoxycarbonylation of 1,3-Dichlorobenzene (4) and 2,4-Dichlorotoluene (6)

The reaction was carried out according to general procedure I with 4 (308 mg, 2.09 mmol), 6 (434 mg, 2.69 mmol) and tert-butylbenzene (internal standard, 42 mg, 0.31 mmol). The conversion of the starting compounds was 44% and 59% for 4 and 6, respectively.

3.4.13. Competitive Methoxycarbonylation of 1,2,4-Trichlorobenzene (11) and 2,4-Dichlorotoluene (6)

The reaction was carried out according to general procedure I with 11 (489 mg, 2.69 mmol), 6 (277 mg, 1.68 mmol) and naphthalene (internal standard, 43 mg, 0.34 mmol). The conversion of the starting compounds was 75% and 30% for 11 and 6, respectively.

3.4.14. Competitive Methoxycarbonylation of 1,2,4-Trichlorobenzene (11) and 2,4-Dichloro-1-(trifluoromethyl)benzene (13)

The reaction was carried out according to general procedure I with 11(310 mg, 1.71 mmol), 13 (234 mg, 0.96 mmol) and naphthalene (internal standard, 116 mg, 0.91 mmol). The conversion of the starting compounds was 54% and 87% for 11 and 13, respectively.

3.5. General Procedure II for Determination of Methoxycarbonylation Regioselectivity

K2CO3 (2.5 g, 18 mmol), methanol (10 mL), and appropriate amount of substrate (see below) were placed in a jacketed glass reactor. The intensively stirred mixture was subjected to flow of carbon monoxide, preliminary passed through methanol, at room temperature for 20 min followed by the insertion of Со2(СО)8 (0.050 g, 0.15 mmol) under CO atmosphere. The orange colour of the mixture disappeared after 5 min. The reaction mixture was heated to 62 °C, and methyl oxirane (0.35 g, 6 mmol) was added by a syringe. The conversion was controlled by measurement of the absorbed carbon monoxide volume. After reaching of the desired conversion (see below) the reaction mixture was cooled to room temperature and an excess of thionyl chloride (about 0.6 g, 5 mmol) was carefully added into the reaction mixture to pH < 2. The mixture was kept at room temperature for 24 h. A small sample was taken, dissolved with DCM and H2O, and the organic layer was analysed by GC to check the conversion. Then the solvent and excess of thionyl chloride were removed from the reaction mixture under reduced pressure. The rest was dissolved with DCM and H2O, the organic layer was divided, washed with brine, and dried with Na2SO4. The solvent was removed under reduced pressure, the resulting mixture was analysed by TLC and 1H-NMR methods, and then the methoxycarbonylation products were isolated by column chromatography (eluent—ethyl acetate-hexane, 1:5). The regioselectivity of methoxycarbonylation for compounds 2, 3, 5, 8, 9 and 11 has been reported by us previously [36,38].

3.5.1. Methoxycarbonylation of 2,4-Dichlorotoluene (6)

The reaction was carried out according to general procedure II with 6 (1.5 g, 9.3 mmol) till a 27% conversion. Two liquid fractions were isolated from the reaction mixture in addition to the recovered starting substrate. The first was a mixture of methyl esters of two isomeric chlorotoluenic acids (according to 1H-NMR and MS data), total yield 400 mg (23%). The isomers was identified by 1H-NMR spectroscopy:
Methyl 5-chloro-2-methylbenzoate (6a) [56], Rf = 0.54 (ethyl acetate-hexane, 1:5), content in the mixture was 83%. 1H-NMR: δ = 7.91 (d, J = 2 Hz, 1Н), 7.38 (dd, J = 2 Hz, J = 8 Hz, 1Н), 7.20 (d, J = 8 Hz, 1Н), 3.91 (s, 3Н, OCH3), 2.58 (s, 3Н, СН3) ppm.
Methyl 3-chloro-4-methylbenzoate (6b) [57], Rf = 0.52 (ethyl acetate-hexane, 1:5), content in the mixture was 17%. 1H-NMR: δ = 8.02 (d, J = 2 Hz, 1Н), 7.83 (dd, J = 2 Hz, J = 8 Hz, 1Н), 7.31 (d, J = 8 Hz, 1Н), 3.93 (s, 3Н, OCH3), 2.44 (s, 3Н, СН3) ppm.
The second fraction was dimethyl 4-methylisophthalate (6c) [58], Rf = 0.42 (ethyl acetate-hexane, 1:5). The yield: 18 mg (1%). 1H-NMR: δ = 8.59 (d, J = 2 Hz, 1Н), 8.06 (dd, J = 2 Hz, J = 8 Hz, 1Н), 7.35 (d, J = 8 Hz, 1Н), 3.95 (s, 3Н, OCH3), 3.94 (s, 3Н, OCH3), 2.68 (s, 3Н, СН3) ppm; 13C NMR: δ = 167.58 (С, CO2CH3), 166.73 (C, CO2CH3), 145.97 (C), 133.03 (CH), 132.37 (CH), 132.29 (CH), 130.15 (C), 128.36 (C), 52.60 (СH3, CO2CH3), 52.44 (СH3, CO2CH3), 30.10 (C, СH3) ppm; MS (ESI): m/z (positive mode, %) = 209 (100) [M+H+], 231 (10) [M+Na+]; HRMS (C11H12O4) 209.0830 (found M+H), 209.0814 (calc.), 231.0633 (found M+Na), 231.0633 (calc.).

3.5.2. Methoxycarbonylation of 2,4-Dichloroacetophenone (12)

The reaction was carried out according to general procedure II with 12 (302 mg, 1.6 mmol) till a 45% conversion. Two methoxycarbonylation products were isolated from the reaction mixture. The first was 6-chloro-3-methoxy-3-methylisobenzofuran-1(3H)-one (12c), Rf = 0.52 (ethyl acetate-hexane, 1:5). Yield 40 mg (19%), isolated as a white crystals, m.p. 49–50 °C. 1H-NMR: δ = 7.86 (d, J = 2 Hz, 1Н), 7.70 (dd, J = 2 Hz, J = 8 Hz, 1Н), 7.45 (d, J = 8 Hz, 1Н), 3.10 (s, 3Н, ОСН3), 1.84 (s, 3Н, СН3) ppm; 13C-NMR: δ = 167.0 (C, C-1), 146.1 (C), 137.4 (CH, C-5), 135.3 (C), 129.5 (C), 125.9 (CH, C-7), 124.0 (CH, C-4), 109.1 (C, C-3), 51.8 (СН3, OCH3), 25.6 (CH3, C-8) ppm; IR (KBr): v = 1774 cm−1 (C=O); MS (ESI): m/z (positive mode, %)=213 (5) [M+H+], 235 (100) [M+Na+], 251 (15) [M+K+]; HRMS (ESI): m/z calcd for C10H9ClO3+H+: 213.0318 [M+H+]; found: 213.0312; calcd for C10H9ClO3+Na+: 235.0138 [M+Na+]; found: 235.0139; calcd for C10H9ClO3+K+: 250.9877 [M+K+]; found: 250.9877; elemental analysis calcd (%) for C10H9ClO3: C 56.49, H 4.27; found: C 56.66, H 4.15.
The second product was methyl 2-acetyl-5-chlorobenzoate (12b) [59], Rf = 0.40 (ethyl acetate-hexane, 1:5). Yield 40 mg (19%), isolated as an yellow oil. 1H-NMR: δ = 7.82 (br. s, 1Н), 7.54 (br. d, J = 8 Hz, 1Н), 7.41 (d, J = 8 Hz, 1Н), 3.92 (s, 3Н, ОСН3), 2.55 (s, 3Н, СН3) ppm; 13C-NMR: δ = 201.0 (СОСН3), 166. 1 (С, СО2СН3), 140.0 (С, С-5), 136.0 (С, С-2), 131.8 (СН, С-3), 131.5 (С, С-1), 130.5 (СН, С-4), 127.9 (СН, С-6), 52.5 (СН3, ОСН3), 29.3 (СН3) ppm; IR (KBr): v =1727 cm−1 (C=O in CO2Me), 1697 cm−1 (C=O); MS (ESI): m/z (positive mode, %) = 213 [M+H+] (82), 235 [M+Na+] (100), 251 [M+K+] (71); HRMS (ESI): m/z calcd for C10H9ClO3+H+: 213.0318 [M+H+]; found: 213.0313; calcd for C10H9ClO3+Na+: 235.0138 [M+Na+]; found: 235.0132; calcd for C10H9ClO3+K+: 250.9877 [M+K+]; found: 250.9881.
For additional identification 12b was saponified with boiling solution of КОН (0.4 g) in a methanol/water mixture (1:1, 20 mL) for 3 h. Methanol was removed, water (5 mL) was added and the reaction mixture was acidified by HCl till рН < 1. The precipitate of 2-acetyl-5-chlorobenzoic acid (12a) [60] (10 mg) was filtered off and dried; m.p. 121–122 °С; 1H-NMR: δ = 7.81 (d, J = 2 Hz 1H), 7.64 (br. d, J = 8 Hz, 1Н), 7.48 (d, J = 8 Hz, 1Н), 2.00 (s, 3Н, СН3) ppm.

3.5.3. Methoxycarbonylation of 2,4-Dichloro-1-(Trifluoromethyl)Benzene (13)

The reaction was carried out according to general procedure II with 13 (2.0 g, 9.3 mmol) till a 10% conversion. The methoxycarbonylation product was methyl 5-chloro-2-(trifluoromethyl)benzoate (13a) [61], Rf =0.52 (ethyl acetate-hexane, 1:5). Yield 200 mg (8.8%), isolated as a colorless oil. 1H-NMR: δ = 7.79 (d, J = 2 Hz, 1Н), 7.70 (d, J = 8 Hz, 1Н), 7.58 (dd, J = 2 Hz, J = 8 Hz, 1Н), 3.96 (s, 3Н, OCH3) ppm; 13C-NMR: δ = 166.2 (CO2CH3), 138.6 (C, С-5), 132.4 (q, J2С-F = 94 Гц, С, С-2), 131.6 (СН), 130.9 (СН), 128.6 (q, J3С-F = 5 Hz, СН, С-3), 127.5 (С), 123.4 (q, J1С-F = 273 Hz, С, СF3), 53.5 (ОСН3) ppm; MS (ESI): m/z (positive mode, %) = 239 (58) [M+H+], 261 (100) [M+Na+]; HRMS (C8H6F3ClO4) 239.0082 (found M+H), 239.0081 (calc.), 260.9890 (found M+Na), 260.9901 (calc.).

3.6. Preparation of Substituted Benzoic Acids

3.6.1. Methoxycarbonylation of 2,4-Dichloroacetophenone (12) to Acid 12a

The reaction was carried out according to general procedure II with 12 (680 mg, 3.6 mmol) for 2 h to reach the full conversion. After absorption of CO had finished, H2O (2 mL) was added to the reaction flask and the mixture was stirred at 62 °С for 3 h. Methanol was removed, water (5 mL) was added and the reaction mixture was acidified with HCl to a рН < 1. The precipitate of 2-acetyl-5-chlorobenzoic acid (12a) [60] (586 mg, 82%) was filtered off and dried; m.p. 120–121 °С.

3.6.2. Methoxycarbonylation of 2,4-Dichloroanisole (14)

The reaction was carried out according to general procedure II with 14 (350 mg, 2.0 mmol) for 4 h till an 80% conversion. After absorption of CO had finished, H2O (2 mL) was added to the reaction flask and the mixture was stirred at 62 °С for 3 h. The resulting mixture was cooled and dissolved with DCM (20 mL) and H2O (20 mL). The aqueous layer was divided, acidified with aq. HCl to pH = 3–4, and extracted with DCM. The white precipitate formed was filtered off and dried. The resulting product was 5-chloro-2-methoxybenzoic acid (14a) [62], isolated as a colorless oil, which solidified slowly. Yield 270 mg (73%). 1H-NMR: δ = 8.17 (d, J = 3 Hz, 1Н), 7.55 (dd, J = 3 Hz, J = 9 Hz, 1Н), 7.03 (d, J = 9 Hz, 1Н), 4.10 (s, 3Н, OСН3) ppm.

3.6.3. Methoxycarbonylation of 2,5-Dichloropropiophenone (15)

The reaction was carried out according to general procedure II with 15 (700 mg, 3.5 mmol) for 2 h to reach the full conversion. After absorption of CO had finished, H2O (2 mL) was added to the reaction flask and the mixture was stirred at 62 °С for 3 h. The resulting mixture was cooled and dissolved with DCM (20 mL) and H2O (20 mL). The aqueous layer was divided and acidified with aq. HCl to pH=3−4. The white precipitate formed was filtered off and dried. The resulting product was 5-chloro-3-ethyl-3-hydroxyisobenzofuran-1(3H)-one (15a). Yield 460 mg (63%), m.p. 107−108 °C. 1H-NMR: δ = 7.73 (d, J = 9 Hz, 1Н), 7.54–7.51 (m, 2Н), 5.54 (br. s, 1Н, ОН), 2.21–2.10 (m, 2Н, СН2), 0.89 (t, J = 8 Hz, 3Н, СН3) ppm; 13C-NMR: δ = 168.5 (С, С=О), 150.6 (С), 141.8 (С), 131.6 (СН), 127.1 (СН), 125.6 (С), 123.3 (СН), 108.3 (С), 32.3 (СН2), 8.1 (СН3) ppm; MS (ESI): m/z (positive mode, %) = 213 (26) [M+H+], 231 (77) [M+Na+], 251 (100) [M+K+]; HRMS (ESI): m/z calcd for C10H9ClO3+H+: 213.0318 [M+H+]; found: 213.0357; calcd for C10H9ClO3+Na+: 235.0138 [M+Na+]; found: 235.0171; calcd for C10H9ClO3+K+: 250.9877 [M+K+]; found: 250.9897; elemental analysis calcd (%) for C10H9ClO3: C 56.49, H 4.27; found: C 56.42, H 4.17.

3.6.4. Methoxycarbonylation of 5-Chloro-4-Methoxy-3-Methylacetophenone (16)

The reaction was carried out according to general procedure II with 16 (480 mg, 2.4 mmol) for 2 h to reach the full conversion. After absorption of CO had finished, H2O (2 mL) was added to the reaction flask and the mixture was stirred at 62 °С for 3 h. The resulting mixture was cooled and dissolved with DCM (20 mL) and H2O (20 mL). The aqueous layer was divided and acidified with aq. HCl to pH = 3–4. The white precipitate formed was filtered off and dried. The resulting product was5-acetyl-2-methoxy-3-methylbenzoic acid (16a). Yield 400 mg (80%), m.p. 122−123 °C. 1H-NMR: δ = 8.53 (d, J = 2 Hz, 1Н), 8.09 (d, J = 2 Hz, 1Н), 4.00 (s, 3Н, OСН3), 2.65 (s, 3Н, СН3), 2.45 (s, 3Н, СН3) ppm; 13C-NMR: δ = 197.0 (С, СО), 168.2 (C), 162.5 (C), 136.4 (С), 133.6 (СН), 133.4 (СН), 131.8 (С), 123.0 (С), 62.6 (СН3, СО2СН3), 27.0 (СН3, СОСН3), 16.7 (СН3) ppm; MS (ESI): m/z (positive mode, %) = 209 (100) [M+H+], 231 (13) [M+Na+], 247 (29) [M+K+]; HRMS (ESI): m/z calcd for C11H12O4+H+: 209.0814 [M+H+]; found: 209.0808; calcd for C11H12O4+Na+: 231.0633 [M+Na+]; found: 231.0628; calcd for C11H12O4+K+: 247.0373 [M+K+]; found: 247.0369; elemental analysis calcd (%) for C11H12O4: C 63.45, H 5.81; found: C 63.36, H 5.70.

3.6.5. Scaled Procedure for Preparative Reaction

K2CO3 (50 g, 0.36 mol), methanol (250 mL), and 14 (17.7 g, 0.10 mol) were placed in a three-neck round bottom flask equipped with an inner thermometer, a gas inlet, a rubber stopper, and a magnetic stirring bar. The intensively stirred mixture was subjected to a flow of carbon monoxide, first passed through methanol (the rubber stopper was changed to a bubble counter for this time), at room temperature for 20 min followed by the insertion of Со2(СО)8 (1.4 g, 0.004 mol) under CO atmosphere. The orange colour of the mixture disappeared after 5 min. The reaction mixture was heated to 62 °C (inner temperature), and methyl oxirane (8.0 g, 0.14 mol) was added via syringe. After several minutes the temperature increased to 63–64 °C, and the reaction proceeded at this temperature. The conversion was controlled by measurement of the absorbed carbon monoxide volume. After 2 h the reaction decelerated strongly, and an additional portion of methyl oxirane (4.0 g, 0.07 mol) was added via syringe. When the absorption of CO was stopped the reaction mixture was cooled to 50–55 °C and 15% aq. KOH (30 mL) was added to the reaction mixture. The mixture was refluxed until the formed ester was hydrolysed completely (TLC control, the rate is depended of the ester structure strongly). Then methanol was removed from the reaction mixture under reduced pressure. The rest was dissolved with H2O, filtered and acidified with aq. HCl. The precipitate of 14a was filtered off, washed with H2O, crystallised with aq. EtOH and dried. Yield 12.9 g (69%).

4. Conclusions

The cobalt-catalysed methoxycarbonylation of aryl chlorides is potentially very interesting from a synthetic point of view, as well as theoretically. It was found that a variety of polychlorinated benzenes and some substituted monochlorobenzenes with multiple subsituents undergo methoxycarbonylation reactions under very mild conditions (t = 62 °C, PCO = 1 atm). Experiments showed that any substituents in the ortho-position to the reactive chlorine atom strongly accelerate this reaction, which proceeds via the radical anion nucleophilic substitution mechanism. In accelerating of a reaction with an ortho-substituent there is a fundamental difference between the steric effect of substituents in the reactions of the radical anion substitution and the same in aromatic nucleophilic substitution reactions (SNAr). The quantum chemical calculation confirmed that the cleavage of the C-Cl bond in ortho-position to the substituent in the benzene ring is more energetically favourable in radical anion processes. This is one of the driving forces for the unusual universal ortho-effect of substitutions in the cobalt-catalysed methoxycarbonylation of aryl chlorides. This effect can be a background for a synthetically useful method for the preparation of ortho-substituted benzoic acids starting from easily available aryl chlorides.

Supplementary Materials

Supplementary materials can be accessed at: https://www.mdpi.com/1420-3049/19/5/5876/s1.

Acknowledgments

The authors thank Saint-Petersburg State University for a research grant (12.38.195.2014) and Russian Fund for Basic Research (Grant 14-03-00297-a).

Author Contributions

Author contributions are equal.

Conflicts of Interest

Authors declare no conflict of interest.

References

  1. Kim, J.K.; Bunnett, J.F. Evidence for a radical mechanism of aromatic “nucleophilic” substitution. J. Am. Chem. Soc. 1970, 92, 7463–7464. [Google Scholar] [CrossRef]
  2. Smith, M.B.; March, J. Advanced Organic Chemistry: Reactions, Mechanisms, and Structure, 6th ed.; John Wiley & Sons, Inc.: Hoboken, NJ, USA, 2007. [Google Scholar]
  3. Rossi, R.A.; Lukach, A.E. Some synthetic applications of the aromatic radical nucleophilic substitution reactions. In Electron Transfer Reactions in Organic Synthesis; Vanelle, P., Ed.; Research Signpost: Trivandrum, Kerala, India, 2002; pp. 43–61. [Google Scholar]
  4. Rossi, R.A.; Corsico, E.F. Reactions of Me3Sn- ions with aryl chlorides by the SRN1 mechanism followed by Pd(0)-catalyzed reactions. A novel approach in organic synthesis. Main Group Met. Chem. 2002, 25, 99–106. [Google Scholar]
  5. Sperotto, E.; van Klink, G.P.M.; van Koten, G.; de Vries, J.G. The mechanism of the modified Ullmann reaction. Dalton Trans. 2010, 39, 10338–10351. [Google Scholar] [CrossRef]
  6. Rossi, R.A. Recent advances in the synthesis of stannanes and the scope of their posterior chemical transformations. J. Organomet. Chem. 2014, 751, 201–212. [Google Scholar] [CrossRef]
  7. Tiedje, J.M.; Quesen, J.F.; Chee-Sanford, J. Microbial reductive dechlorination of PCBs. Biodegradation 1993, 4, 231–240. [Google Scholar]
  8. Dolfing, J. Reductive dechlorination of 3-chlorobenzoate is coupled to ATP production and growth in an anaerobic bacterium, strain DCB-1. Arch. Microbiol. 1990, 153, 264–266. [Google Scholar] [CrossRef]
  9. Mohn, W.W.; Tiedje, J.M. Evidence for chemiosmotic coupling of reductive dechlorination and ATP synthesis in Desulfomonile tiedjei. Arch. Microbiol. 1991, 157, 1–6. [Google Scholar]
  10. Costentin, C.; Robert, M.; Savéant, J.-M. Electron transfer and bond breaking: Recent advances. Chem. Phys. 2006, 324, 40–56. [Google Scholar] [CrossRef]
  11. Pop, S.M.; Gupta, N.; Raza, A.S.; Ragsdale, S.W. Transcriptional Activation of Dehalorespiration: Identification of Redox-Active Cysteines Regulating Dimerization and DNA Binding. J. Biol. Chem. 2006, 281, 26382–26390. [Google Scholar] [CrossRef]
  12. Bhatt, P.; Kumar, M.S.; Mudliar, S.; Chakrabarti, T. Biodegradation of chlorinated compounds—a review. Crit. Rev. Environ. Sci. Technol. 2007, 37, 165–198. [Google Scholar] [CrossRef]
  13. Field, J.A.; Sierra-Alvarez, R. Microbial transformation of chlorinated benzoates. Rev. Environ. Sci. Bio/Technol. 2008, 7, 191–210. [Google Scholar]
  14. Pieper, D.H.; Seeger, M. Bacterial Metabolism of Polychlorinated Biphenyls. J. Mol. Microbiol. Biotechnol. 2008, 15, 121–138. [Google Scholar] [CrossRef]
  15. Stenuit, B.; Lamblin, G.; Cornelis, P.; Agathos, S.N. Aerobic Denitration of 2,4,6-Trinitrotoluene in the Presence of Phenazine Compounds and Reduced Pyridine Nucleotides. Environ. Sci. Technol. 2012, 46, 10605–10613. [Google Scholar]
  16. Francalanci, F.; Foa, M.; Gardano, A.; Bencini, E. Cobalt-catalyzed carbonylation of aryl halides. J. Organomet. Chem. 1985, 285, 293–303. [Google Scholar] [CrossRef]
  17. Francalanci, F.; Foa, M. Recent developments in cobalt-catalyzed carbonylation. J. Mol. Catal. 1987, 41, 89–107. [Google Scholar] [CrossRef]
  18. Miura, M.; Akase, F.; Nomura, M.; Shinohara, M. Carbonylation of aryl halides and vinyl bromides mediated by tetracarbonylcobalt anion. J. Chem. Soc. Perkin Trans. 1 1987, 1021–1025. [Google Scholar]
  19. Zhesko, T.E.; Boyarskii, V.P.; Beletskaya, I.P. Carbonylation of aromatic halides in the Co2(CO)8-alkyl halide-base system. Metalloorganicheskaya Khim. 1989, 2, 385–387. [Google Scholar]
  20. Marchal, J.; Bodiguel, J.; Fort, Y.; Caubere, P. A New indirect application of aggregative activation: Synthesis of esters by cobalt-catalyzed carbonylation of aryl, heterocyclic, and vinyl Halides under atmospheric pressure. J. Org. Chem. 1995, 60, 8336–8340. [Google Scholar] [CrossRef]
  21. Zhesko, T.E.; Boyarskii, V.P.; Nikitina, A.G. Carbonylation of aryl halides catalyzed by modified cobalt carbonyls. Russ. J. Gen. Chem. 1998, 68, 78–82. [Google Scholar]
  22. Boyarskii, V.P.; Zhesko, T.E.; Lanina, S.A. Synthesis of Aromatic carboxylic acids by carbonylation of aryl halides in the presence of epoxide-modified cobalt carbonyls as Catalysts. Russ. J. Appl. Chem. 2005, 78, 1844–1848. [Google Scholar] [CrossRef]
  23. Boyarskii, V.P.; Larionov, E.V.; Polyakova, S.M.; Boyarskaya, I.A.; Zhesko, T.E. Mechanism of the catalytic carbonylation of aryl halides with a modified cobalt carbonyl. Russ. J. Gen. Chem. 2007, 77, 915–922. [Google Scholar] [CrossRef]
  24. Brunet, J.J.; Sidot, C.; Caubere, P.; Loubinoux, B. Activation of reducing agents. Sodium hydride containing complex reducing agents. 10. NaH-RONa-Co(OAc)2-CO, a new reagent for the carbonylation of aryl halides at atmospheric pressure. J. Org. Chem. 1979, 44, 2199–2202. [Google Scholar] [CrossRef]
  25. Brunet, J.J.; Sidot, C.; Caubere, P. Activation of reducing agents. Sodium hydride containing complex reducing agents: XIV. NaCoCO4 as an SRN1 nucleophile in the carbonylation of aryl halides by CoCRACO at atmospheric pressure. New preparation of NaCoCO4 by NaH reduction of dicobalt octacarbonyl. J. Organomet. Chem. 1980, 204, 229–241. [Google Scholar] [CrossRef]
  26. Brunet, J.J.; Sidot, C.; Caubere, P. Cobalt carbonyl catalyzed sRN1 carbonylation of aryl and vinyl halides by phase transfer catalysis. Tetrahedron Lett. 1981, 22, 1013–1016. [Google Scholar] [CrossRef]
  27. Brunet, J.J.; Sidot, C.; Caubere, P. Sunlamp-irradiated phase-transfer catalysis. 1. Cobalt carbonyl catalyzed SRN1 carbonylations of aryl and vinyl halides. J. Org. Chem. 1983, 48, 1166–1171. [Google Scholar] [CrossRef]
  28. Vanderesse, R.; Marchal, J.; Caubere, P. An efficient cobalt catalyzed alkoxycarbonylation of aryl and heteroaryl halides. Synth. Commun. 1993, 23, 1361–1370. [Google Scholar] [CrossRef]
  29. Kashimura, T.; Kudo, K.; Mori, S.; Sugita, N. Cobalt carbonyl catalyzed polycarbonylation of polyhalogenated aromatics under photostimulation. Chem. Lett. 1986, 15, 299–302. [Google Scholar] [CrossRef]
  30. Kashimura, T.; Kudo, K.; Mori, S.; Sugita, N. Cobalt carbonyl-catalyzed double-carbonylation of o-halogenated benzoic acids under photostimulation. Chem. Lett. 1986, 15, 483–486. [Google Scholar] [CrossRef]
  31. Kashimura, T.; Kudo, K.; Mori, S.; Sugita, N. Cobalt carbonyl-catalyzed polycarbonylation of aryl halides in sodium methoxide/methanol under photostimulation. Chem. Lett. 1986, 15, 851–854. [Google Scholar] [CrossRef]
  32. Kashimura, T.; Kudo, K.; Mori, S.; Sugita, N. Cobalt salt-catalyzed carbonylation of aromatic halides under photostimulation. Chem. Lett. 1987, 16, 577–580. [Google Scholar]
  33. Boyarskii, V.P.; Boyarskaya, I.A.; Duka, G.G. Calculation of the possibility of formation of a cyclic metallolactone anionic complex in the methyloxirane-potassium tetracarbonylcobaltate system. Russ. J. Gen. Chem. 2008, 78, 1380–1381. [Google Scholar] [CrossRef]
  34. Boyarskii, V.P.; Duka, G.G.; Boyarskaya, I.A. Participation of cyclic cobaltolactone anionic complex in the catalytic cycle of aryl halides carbonylation. Russ. J. Gen. Chem. 2009, 79, 2449–2451. [Google Scholar] [CrossRef]
  35. Lanina, S.A.; Boyarskii, V.P.; Zhesko, T.E.; Nikiforov, V.A.; Bart, T.Ya. Carbonylation of polychlorinated biphenyls over cobalt carbonyl catalyst modified with propylene oxide. Russ. J. Gen. Chem. 2008, 78, 127–132. [Google Scholar] [CrossRef]
  36. Boyarskii, V.P.; Zhesko, T.E.; Larionov, E.V.; Polukeev, V.A. Synthesis of heteroaromatic carboxylic acids by carbonylation of heteroaryl halides with catalysts based on cobalt carbonyl modified with epoxides. Russ. J. Appl. Chem. 2007, 80, 571–575. [Google Scholar] [CrossRef]
  37. Boyarskiy, V.P.; Fonari, M.S.; Khaybulova, T.S.; Gdaniec, M.; Simonov, Y.A. Chemoselectivity of cobalt-catalysed carbonylation—A reliable platform for the synthesis of fluorinated benzoic acids. J. Fluor. Chem. 2010, 131, 81–85. [Google Scholar] [CrossRef]
  38. Evstifeev, A.V.; Shein, S.M. Nucleophilic aromatic substitution. XXXIV Medium effect on the rate of reactions between ortho- and para-substituted chlorobenzenes and sodium alcoholates. Zh. Org. Khim. 1969, 5, 919–923. [Google Scholar]
  39. Evstifeev, A.V.; Shein, S.M. Mechanism of electrophilic and basic catalysis in reactions of o- and p-substituted halobenzenes with alkali metal alcoholates in an alcohol medium. Zh. Org. Khim. 1972, 8, 746–751. [Google Scholar]
  40. Behar, D.; Neta, P. Intramolecular electron transfer and dehalogenation of anion radicals. 4. Haloacetophenones and related compounds. J. Am. Chem. Soc. 1981, 103, 2280–2283. [Google Scholar] [CrossRef]
  41. Tanner, D.D.; Chen, J.J.; Chen, L.; Luelo, C. Fragmentation of substituted acetophenones and halobenzophenone ketyls. Calibration of a mechanistic probe. J. Am. Chem. Soc. 1991, 113, 8074–8081. [Google Scholar] [CrossRef]
  42. Neta, P.; Behar, D. Intramolecular electron transfer and dehalogenation of anion radicals. Calibration of a mechanistic probe. J. Am. Chem. Soc. 1981, 103, 103–106. [Google Scholar] [CrossRef]
  43. Basso, S.M.; Montañez, J.P.; Santiago, A.N. Synthesis and evaluation of phytotoxicity of disugran analogs. Lett. Org. Chem. 2008, 5, 633–639. [Google Scholar]
  44. Montañez, J.P.; Uranga, J.G.; Santiago, A.N. Regioselectivity of methyl chlorobenzoate analogues with trimethylstannyl anions by radical nucleophilic substitution: Theoretical and experimental study. New J. Chem. 2010, 34, 1170–1175. [Google Scholar] [CrossRef]
  45. Uranga, J.G.; Montañez, J.P.; Santiago, A.N. Theoretical and experimental study on the reactivity of methyl dichlorobenzoates with sulfur-centered nucleophiles by electron transfer reactions. Tetrahedron 2012, 68, 584–589. [Google Scholar] [CrossRef]
  46. Zhao, H.; Fu, H.; Qiao, R. Copper-Catalyzed Direct Amination of Ortho-Functionalized Haloarenes with Sodium Azide as the Amino Source. J. Org. Chem. 2010, 75, 3311–3316. [Google Scholar]
  47. Rossi, R.A.; Pierini, A.B.; Peñéñory, A.B. Nucleophilic Substitution Reactions by Electron Transfer. Chem. Rev. 2003, 103, 71–167. [Google Scholar] [CrossRef]
  48. Robert, M.; Costentin, C.; Savéant, J.-M. Fragmentation of Aryl Halide π Anion Radicals. Bending of the Cleaving Bond and Activation vs Driving Force Relationships. J. Am. Chem. Soc. 2004, 126, 16051–16057. [Google Scholar] [CrossRef]
  49. Pierini, A.B.; Duca, J.S. Theoretical study on haloaromatic radical anions and their intramolecular electron transfer reactions. J. Chem. Soc. Perkin Trans. 2 1995, 9, 1821–1828. [Google Scholar] [CrossRef]
  50. Muthukrishnan, A.; Sangaranarayanan, M.V.; Boyarskiy, V.P.; Boyarskaya, I.A. Regioselective electrochemical reduction of 2,4-dichlorobiphenyl – Distinct standard reduction potentials for carbon–chlorine bonds using convolution potential sweep voltammetry. Chem. Phys. Lett. 2010, 490, 148–153. [Google Scholar] [CrossRef]
  51. Muthukrishnan, A.; Boyarskiy, V.; Sangaranarayanan, M.V.; Boyarskaya, I. Mechanism and Regioselectivity of the Electrochemical Reduction in Polychlorobiphenyls (PCBs): Kinetic Analysis for the Successive Reduction of Chlorines from Dichlorobiphenyls. J. Phys. Chem. C 2012, 116, 655–664. [Google Scholar] [CrossRef]
  52. Mullins, M.D.; Pochini, C.M.; McCrindle, S.; Romkes, M.; Safe, S.H.; Safe, L.M. High-resolution PCB analysis: Synthesis and chromatographic properties of all 209 PCB congeners. Environ. Sci. Technol. 1984, 18, 468–476. [Google Scholar] [CrossRef]
  53. Nikiforov, V.; Wightman, R. Reaction of nitroarenes and arenesulfonylchlorides with hexachlorocyclopentadiene. Chimia 1997, 51, 452. [Google Scholar]
  54. Frisch, A.M.J.; Trucks, G.W.; Shelelgel, H.B.; Scuseria, G.E.; Robb, M.A.; Cheeseman, J.R.; Montgomery, J.A., Jr.; Vreven, T.; Kudin, K.N.; Burant, J.C.; et al. Gaussian 03; Revision C.02; Gaussian, Inc.: Wallingford, CT, USA, 2003. [Google Scholar]
  55. Hebrard, F.; Kalck, P. Cobalt-Catalyzed Hydroformylation of Alkenes: Generation and Recycling of the Carbonyl Species, and Catalytic Cycle. Chem. Rev. 2009, 109, 4272–4282. [Google Scholar] [CrossRef]
  56. Peltier, D.; Pichevin, A. The carboxyl group. Infrared absorption and ionization. Bull. Soc. Chim. France 1960, 1141–1147. [Google Scholar]
  57. Stempel, G.H., Jr.; Greene, C.; Rongone, R.; Sobel, B.; Odioso, R. Some Disubstituted α-Methylstyrenes and their Polymerization Characteristics and a Comparative Study of the Refractive Indexes of Substituted Styrenes and α-Methylstyrenes. J. Am. Chem. Soc. 1951, 73, 455–456. [Google Scholar] [CrossRef]
  58. Egbertson, M.S.; Vassallo, L.M.; Hartman, G.D.; Halczenko, W.; Whitman, D.B.; Perkins, J.J.; Krause, A.E.; Ihle, N.; Claremon, D.A.; Hoffman, W.; et al. Fibrinogen Receptor Antagonists. U.S. Patent 5648368 A1, 15 July 1997. [Google Scholar]
  59. Springfield, S.A.; Doubleday, W.W.; Buono, F.; Couturier, M.A.; Lear, Y.; Favreau, D.; Levesque, K.; Manchand, P.S.; Frieser, M.; Cocuzza, A.J.; et al. Process for preparation of 1,7-dichloro-4-methoxy-isoquinoline. PCT Int. Appl. WO 2010027889 A2; 20100311, 2010. [Google Scholar]
  60. Lukaćs, G.; Porcs-Makkay, M.; Simig, G. Lithiation of 2-(chloroaryl)-2-methyl-1,3-dioxolanes and application in synthesis of new ortho-functionalized acetophenone derivatives. Tetrahedron Lett. 2003, 44, 3211–3214. [Google Scholar] [CrossRef]
  61. Bhatt, R.; Gong, B.; Hong, F.; Jenkins, S.A.; Klein, J.P.; Kumar, A.M.; Tulinsky, J. Preparation of 6-phenyl-N-phenyl-[1,3,5]triazine-2,4-diamine derivatives and related compounds with lysophosphatidic acid acyltransferase β (LPAAT-β) inhibitory activity for use in the treatment of cancer. PCT Int. Appl WO 2003037346 A1; 20030508, 2003. [Google Scholar]
  62. Alessi, T.R.; Ellingboe, J.W. Preparation of novel substituted 3H-1,2,3,5-oxathiadiazole 2-oxides as hypoglycemics. U.S. Patent US 4895860 A, 23 January 1990. [Google Scholar]
  • Sample Availability: Not available.

Share and Cite

MDPI and ACS Style

Khaibulova, T.S.; Boyarskaya, I.A.; Larionov, E.; Boyarskiy, V.P. Cobalt-Catalyzed Methoxycarbonylation of Substituted Dichlorobenzenes as an Example of a Facile Radical Anion Nucleophilic Substitution in Chloroarenes. Molecules 2014, 19, 5876-5897. https://doi.org/10.3390/molecules19055876

AMA Style

Khaibulova TS, Boyarskaya IA, Larionov E, Boyarskiy VP. Cobalt-Catalyzed Methoxycarbonylation of Substituted Dichlorobenzenes as an Example of a Facile Radical Anion Nucleophilic Substitution in Chloroarenes. Molecules. 2014; 19(5):5876-5897. https://doi.org/10.3390/molecules19055876

Chicago/Turabian Style

Khaibulova, Tatyana S., Irina A. Boyarskaya, Evgeny Larionov, and Vadim P. Boyarskiy. 2014. "Cobalt-Catalyzed Methoxycarbonylation of Substituted Dichlorobenzenes as an Example of a Facile Radical Anion Nucleophilic Substitution in Chloroarenes" Molecules 19, no. 5: 5876-5897. https://doi.org/10.3390/molecules19055876

Article Metrics

Back to TopTop
