Article

Calculating Distortions of Short DNA Duplexes with Base Pairing Between an Oxidatively Damaged Guanine and a Guanine

Kagawa School of Pharmaceutical Sciences, Tokushima Bunri University, 1314-1, Shido, Sanuki, Kagawa 769-2193, Japan
*
Author to whom correspondence should be addressed.
Molecules 2014, 19(8), 11030-11044; https://doi.org/10.3390/molecules190811030
Submission received: 27 May 2014 / Revised: 17 July 2014 / Accepted: 21 July 2014 / Published: 28 July 2014
(This article belongs to the Special Issue ECSOC-17)

Abstract

:
DNA is constantly being oxidized, and oxidized DNA is prone to mutation; moreover, guanine is highly sensitive to several oxidative stressors. Several oxidatively damaged forms of guanine—including 2,2,4-triamino-5(2H)-oxazolone (Oz), iminoallantoin (Ia), and spiroiminodihydantoin (Sp)—can be paired with guanine, and cause G:C-C:G transversions. Previous findings indicate that guanine is incorporated more efficiently opposite Oz than opposite Ia or Sp, and that these differences in efficiency cannot be explained by differences in the stabilities of G:Oz, G:Ia, and G:Sp base pairs calculated ab initio. Here, to explain previous experimental result, we used a 3-base-pair model DNA duplex to calculate the difference in the stability and the distortion of DNA containing a G:Oz, G:Ia, or G:Sp base pair. We found that the stability of the structure containing 5' and 3' base pairs adjacent to G:Oz was more stable than that containing the respective base pairs adjacent to G:Ia or G:Sp. Moreover, the distortion of the structure in the DNA model duplex that contained a G:Oz was smaller than that containing a G:Ia or G:Sp. Therefore, our discussion can explain the previous results involving translesion synthesis past an oxidatively damaged guanine.

1. Introduction

Mutations of genomic information are commonly caused by oxidative stress, and oxidative stressors have been implicated in aging, carcinogenesis, and many other diseases. Guanine is particularly sensitive to several oxidative stressors because it has the lowest oxidation potential among the four bases. Several different oxidative stressors can cause G:C-T:A and G:C-C:G transversions [1]. In fact, G:C-T:A and G:C-C:G transversions caused by passive smoking are detected at high frequencies in codon 12 of the K-ras gene [2].
Under various oxidative conditions, guanine is oxidized and becomes 8-oxo-7,8-dihydroguanine (8-oxoG) (Scheme 1). Because 8-oxoG can be paired with adenine, but not guanine, 8-oxoG: A base pairs cause only G:C-T:A transversions [3]. Therefore, G:C-C:G transversions are presumably caused by oxidatively damaged guanine. Guanine and 8-oxoG can each be oxidized to 2,2,4-triamino-5(2H)-oxazolone (Oz) (Scheme 1) [4]. During DNA replication, DNA polymerase (Pol) α, β, γ, ε, η, I, or IV commonly incorporates guanine opposite Oz [5,6,7].

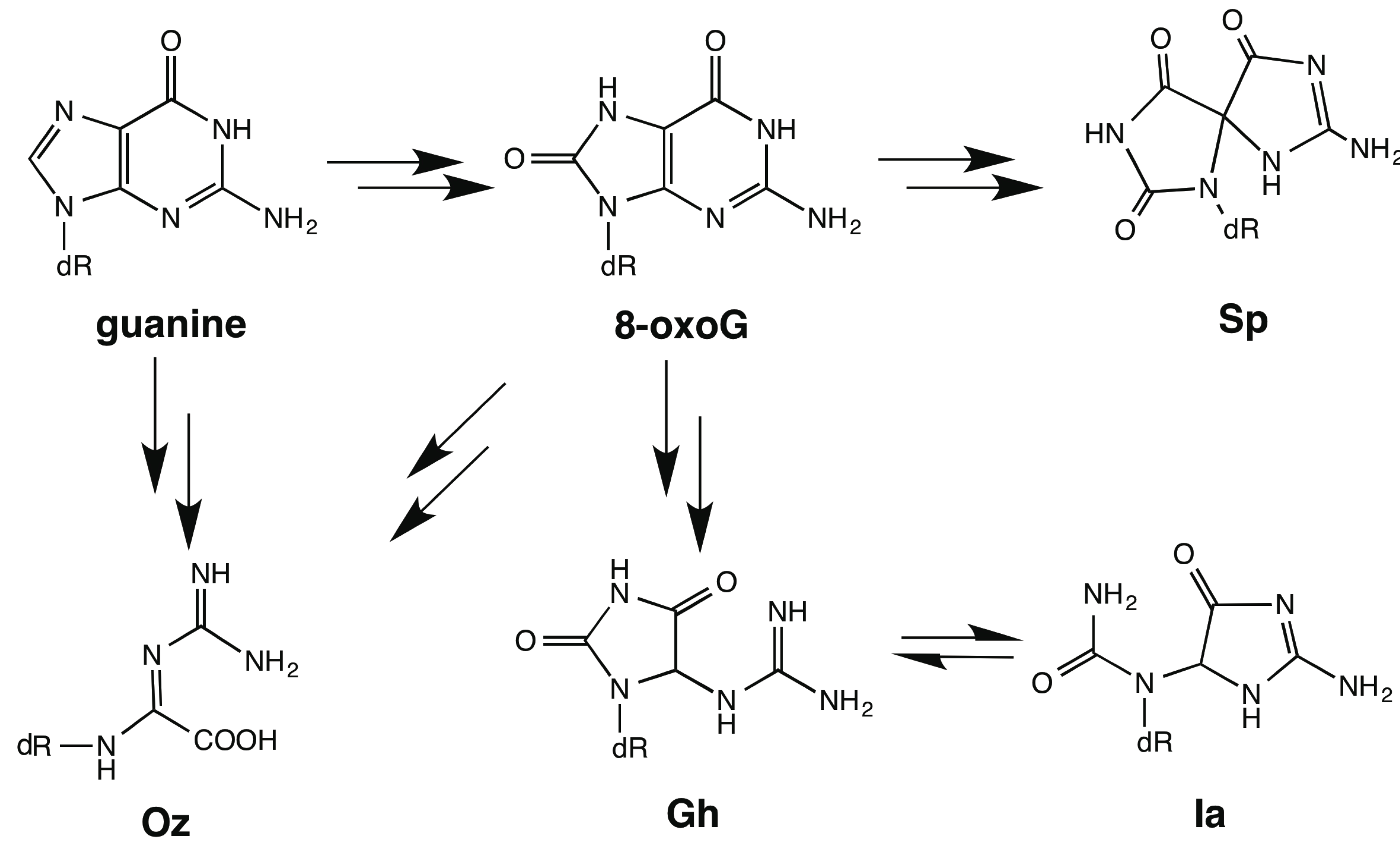

Scheme 1. Oxidation products of guanine and 8-oxoG.
Scheme 1. Oxidation products of guanine and 8-oxoG.
Molecules 19 11030 g006
Guanidinohydantoin (Gh) and spiroiminodihydantoin (Sp) can be formed via oxidation of 8-oxoG (Scheme 1). Gh is a principal product of 8-oxoG oxidation under acidic conditions, and Sp is a major product under basic conditions [8,9,10,11]. Gh isomerizes to iminoallantoin (Ia) [12], but whether the predominant isomer is Gh or Ia during DNA polymerization is unknown [12]. Based on our previously published calculations of the stability of G:Ia and G:Gh base pairs, Gh is predicted to tautamerize to Ia when guanine is inserted opposite Gh/Ia [13]. Hence, in this study, we consider only Ia. Incorporation of guanine opposite Oz is more efficient than that opposite Gh/Ia or Sp, and translesion synthesis past Oz is also more efficient than that past Gh/Ia or Sp [5,7,14]. However, depending on the number of hydrogen bonds, a G:Oz base pair was less stable than either a G:Ia or the G:Sp base pair in our calculated results (Figure 1) [13].

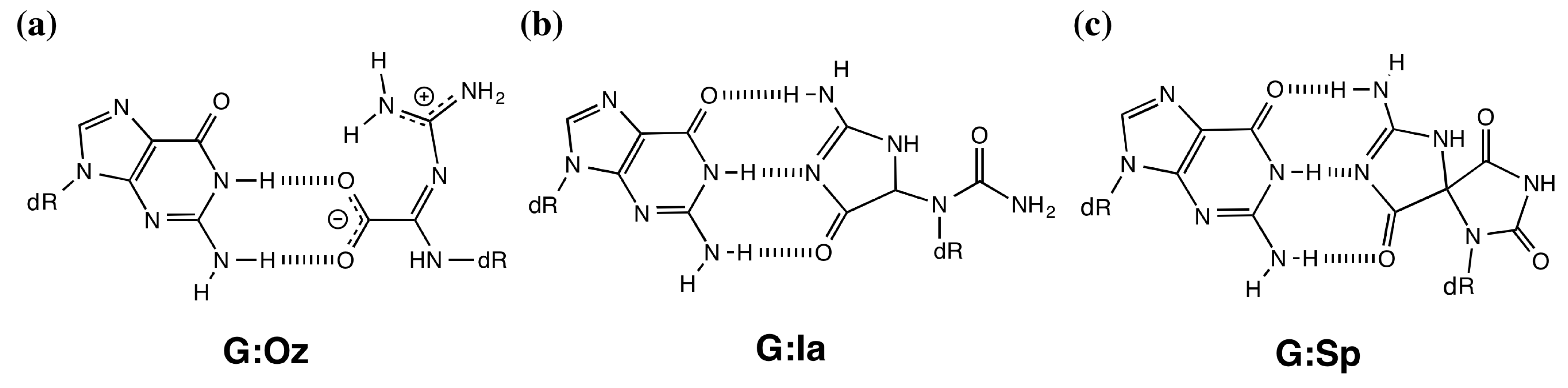

Figure 1. The proposed hydrogen bonding of G:Oz, G:Ia, and G:Sp base pairs.
Figure 1. The proposed hydrogen bonding of G:Oz, G:Ia, and G:Sp base pairs.
Molecules 19 11030 g001
Generally, since replicative DNA polymerases are highly susceptible to geometric distortions in DNA, they have difficulty synthesizing past distorting DNA damage [15]. The previous study showed that the geometry of DNA containing nonplanar DNA damage readily destabilizes and distorts relative to DNA that includes natural Watson-Crick base pairs [16]. Therefore, to resolve the discrepancy between experimental results and calculated results, we focused this study on differences among the distortion of DNA containing these lesions. As depicted in Figure 1, the G:Oz base pair has no sp3 carbon and is planar, while G:Ia and G:Sp base pair have a sp3 carbon and are nonplanar. Ia and Sp break the planarity of the adjacent base pairs due to a sp3 carbon, and as a result, DNA containing Ia or Sp is easily distorted compared to that containing Oz.
In this study, we tried to explain the experimental results by calculating the differences in the stabilities and distortions of DNA containing a G:Oz, G:Ia, or G:Sp base pair relative to DNA containing a G:C. We use 3-base-pair model DNA duplexes that each contained a central G:Oz, G:Ia, or G:Sp base pair as a way to calculate the differences in stability and distortion.

2. Results and Discussion

2.1. The Minimized Structures of DNA Duplex Containing an X:G Base Pair

We previously calculated stabilization energies of oxidatively guanine damage (Oz, Ia or Sp) paired with guanine [13]. Since Ia and Sp have a sp3 carbon, they have S and R stereoisomers. Our calculated results showed that the stabilization energies of the base pairs, “G:X (where X = Oz, S-Ia, R-Ia, S-Sp, or R-Sp)”, are ordered as follows: G:S-Ia > G:R-Ia >> G:R-Sp > G:S-Sp >> G:Oz [13]. Here, we investigated differences in stabilities of duplexes containing one G:X base pair in the active site of DNA polymerase; each Pol β-DNA complex containing a G:X base pair was built by modification of the Pol β ternary complex (PDB entry 1BPY) [17]. We used the structure of G:X base pair formed the most stable base pair with guanine based on our previous report [13].
Quantum mechanical (QM) calculations are more quantitative than molecular mechanics (MM) calculations. In this study, we used QM calculations only to optimize the most important part of each G:X base pair. However, the Pol β-DNA complex model had too many atoms to use QM calculations for minimizing the model in an experimentally acceptable amount of time. Therefore, we used MM calculations, which are quantitatively inferior to QM calculations, to minimize the Pol β-DNA model. Only the most important part of each G:X base pair was optimized by QM calculation, and the geometries of Pol β-DNA complex model were minimized via MM calculations. We focused on the G:X base pair and each of two adjacent base pairs, one 5' and one 3' to the central G:X base pair, in each minimized structure (Figure 2 and Figure 3). In Figure 2, the central G:X base pair was designated “G2X2”; the 5' A:T base pair was designated “A1T1”, and the 3' G:C base pair was designated “G3C3”. Minimized geometries of A1T1, G2X2 and G3C3 base pairs are depicted in Figure 3. We wanted to compare the impact of each X2 on the calculated energies of the duplexes. However, the X2 variants differ from one another in the number of atoms; therefore, the energies of the structures containing different X2 could not be compared directly. Therefore, we focused on the energies of the elements common to each duplex (i.e., A1T1 and G3C3) to compare among the energies of the duplexes. By calculating the energies of the common elements and excluding each “G2X2” base pair within each structure, we assessed the destabilization caused by the oxidatively damaged guanine.

2.2. The Destabilization Energies of the Base Pairs on 5'- and 3'-Side of X

In this section, in order to evaluate the destabilization of a DNA duplex caused by particular forms of oxidatively damaged guanine, we calculated the destabilization energies of elements common to each structure and excluded each “G2X2” base pair.
Figure 2. An overview of calculating the destabilization energies of DNA duplexes. Each Pol β-DNA complex containing a G:X (where X = C, Oz, S-Ia, R-Ia, S-Sp or R-Sp) base pair was minimized. G:X and each base pair adjacent to G:X is delineated in Figure 3. A:T base pair on the 5'-side of X was designated “A1T1”, G:X base pair was designated “G2X2”, and G:C base pair on the 3'-side of X was designated “G3C3”. The destabilization energies of “A1T1” (ΔE1), “G3C3” (ΔE3), and “A1T1 + G3C3” (ΔE1 + 3) were calculated ab initio as the parts common to each model duplex; each G2X2 base pair was excluded from the calculations.
Figure 2. An overview of calculating the destabilization energies of DNA duplexes. Each Pol β-DNA complex containing a G:X (where X = C, Oz, S-Ia, R-Ia, S-Sp or R-Sp) base pair was minimized. G:X and each base pair adjacent to G:X is delineated in Figure 3. A:T base pair on the 5'-side of X was designated “A1T1”, G:X base pair was designated “G2X2”, and G:C base pair on the 3'-side of X was designated “G3C3”. The destabilization energies of “A1T1” (ΔE1), “G3C3” (ΔE3), and “A1T1 + G3C3” (ΔE1 + 3) were calculated ab initio as the parts common to each model duplex; each G2X2 base pair was excluded from the calculations.
Molecules 19 11030 g002

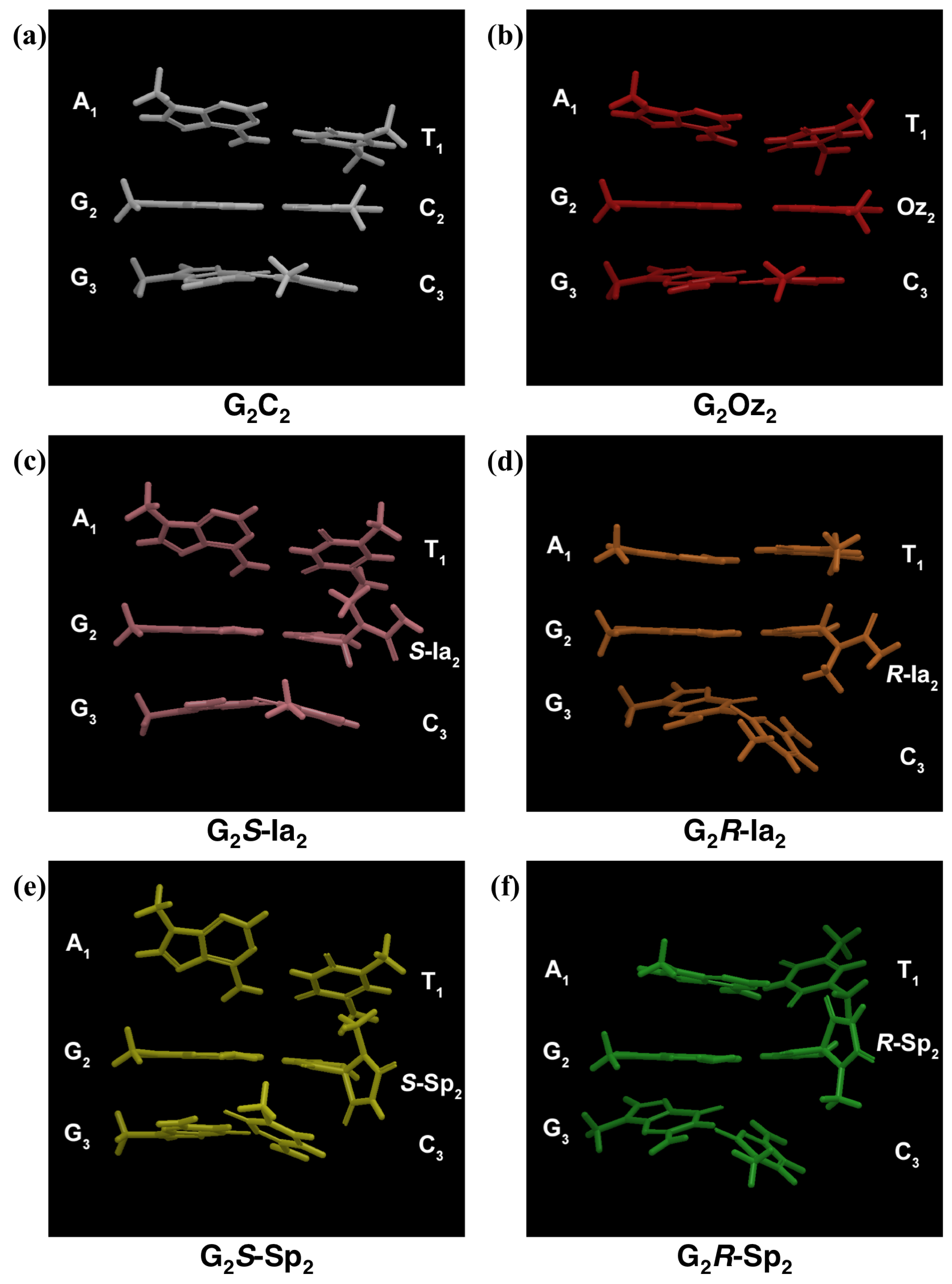

Figure 3. Minimized geometries of “A1T1, G2X2, G3C3” containing X2 = (a) C, (b) Oz, (c) S-Ia, (d) R-Ia, (e) S-Sp, or (f) R-Sp as viewed from the minor groove.
Figure 3. Minimized geometries of “A1T1, G2X2, G3C3” containing X2 = (a) C, (b) Oz, (c) S-Ia, (d) R-Ia, (e) S-Sp, or (f) R-Sp as viewed from the minor groove.
Molecules 19 11030 g003

2.2.1. The Destabilization Energies of the Base Pairs on 5'- Side of X

We calculated the destabilization energies of each “A1T1” (ΔE1) on the 5'-side of each X2. The calculated ΔE1 value associated with duplexes that contained Oz, S-Ia, R-Ia, S-Sp, or R-Sp were defined by Equation (1) (Experimental Section) and were calculated ab initio (Table 1). Values of ΔE1 in vacuo or in water were calculated, and were presented as ΔE1DFT and ΔE1SCRF, respectively. The values of ΔE1DFT were ordered as follows with respect to each X2: R-Sp > S-Sp > S-Ia > Oz > R-Ia. The order of ΔE1SCRF values in water was the same as the order of ΔE1DFT values in vacuo.
Table 1. Destabilization energies (kcal/mol) of “A1T1” (ΔE1), “G3C3” (ΔE3), and “A1T1 + G3C3” (ΔE1 + 3), each value was calculated with minimized geometries.
Table 1. Destabilization energies (kcal/mol) of “A1T1” (ΔE1), “G3C3” (ΔE3), and “A1T1 + G3C3” (ΔE1 + 3), each value was calculated with minimized geometries.
A1T1 G3C3 A1T1 + G3C3
X aΔE1DFTΔE1SCRFΔE3DFTΔE3SCRFΔE1 + 3DFTΔE1 + 3SCRF
Oz 1.31.1 −0.10.6 1.11.0
S-Ia 1.41.3 2.61.3 4.14.5
R-Ia 0.50.6 4.03.9 4.84.6
S-Sp 2.12.1 2.72.8 4.85.3
R-Sp 12.612.4 5.34.5 18.318.3
a X = the damage contained in the minimized structure.
Using kinetic parameters, Kornyushyna et al., demonstrated that incorporation of guanine opposite Gh/Ia is more efficient than that opposite Sp [14]. Our calculated data indicated that “A1T1” on the 5'-side of Ia was more stable than that of Sp regardless of the stereoisomer, and our data corresponded with these published results. However, our data indicated that “A1T1” on 5'-side of Oz was less stable than “A1T1” 5' to R-Ia, and this finding could not account for the previous experimental finding that translesion synthesis past Oz is more efficient than that past Ia [5]. Therefore, we calculated the destabilization energies for each G3C3 base pair on the 3'-side of each X2.

2.2.2. The Destabilization Energies of the Base Pairs on the 3'-Side of X

The destabilization energies (in vacuo; ΔE3DFT and in water; ΔE3SCRF) of “G3C3” were defined by Equation (2) (Experimental Section), and were calculated individually (Table 1). The values of ΔE3DFT and ΔE3SCRF were ordered as follows with regard to each X2: R-Sp > R-Ia > S-Sp > S-Ia > Oz. Surprisingly, the calculated values for ΔE3DFT and ΔE3SCRF of Oz were the lowest among the values for any X2, and “G3C3” on 3'-side of Oz was the most stable.
The stabilities of the “G3C3” base pairs on the 3'-side of X2 were consistent with previous experimental results indicating that translesion synthesis past Oz is more efficient than that past Ia or Sp [5,14]. The “G3C3” base pairs on 3'-side of S-Sp was more stable than that of R-Ia; consequently, it was not possible to fully explain the previous experimental results based on the stabilities of G3C3 base pairs on the 3'-side of X2. Consequently, we then considered the stability of the larger structure by examining the energies of the structure containing both base pairs (5' and 3') adjacent to each X2.

2.2.3. The Destabilization Energy of Each Model Duplex was Calculated by Including both Adjacent Base Pairs and Excluding the Central “G2X2” Base Pair

The destabilization energy of A1T1 + G3C3 (in vacuo; ΔE1 + 3DFT and in water; ΔE1 + 3SCRF) was calculated for each structure, including both adjacent base pairs and excluding the central “G2X2” base pair. These values were calculated with Equation (3) (Experimental Section) (Table 1). The lowest ΔE1 + 3DFT and ΔE1 + 3SCRF values among all values calculated for any X2 were the values for Oz. Values of ΔE1 + 3DFT and ΔE1 + 3SCRF for Ia were lower than those for Sp, and S configurations were more stable than R configurations for both Ia and Sp. Taken together, values of ΔE1 + 3DFT for the guanine oxidation products were ordered as follows for the X2 variants: R-Sp > S-Sp~R-Ia > S-Ia > Oz, and values of ΔE1 + 3SCRF were ordered as follows: R-Sp > S-Sp > R-Ia > S-Ia > Oz.
“A1T1 + G3C3” with Oz was more stable than that with any other X2; this finding indicated that a DNA structure containing G2Oz2 was more similar to DNA containing G2C2 than was that with any other G2:X2 base pair. As mentioned in the introduction; the geometry of DNA that includes nonplanar DNA damage is easy to destabilize and distort relative to that containing natural Watson-Crick base pairs [16]; and DNA polymerases have difficulty synthesizing through distorted DNA [15]. Therefore; our calculated values could account for the previous experimental findings that translesion synthesis across Oz is more efficient than that across Ia or Sp [5,14].
Notably, the calculated ΔE1 + 3DFT values for R-Ia and S-Sp were not consistent with previous results [14]. Actual experiments involving DNA polymerization have been performed in aqueous solution [5,14]; therefore, the stability of DNA duplex during DNA polymerization is attributed to the energy in water (ΔE1 + 3SCRF). ΔE1 + 3SCRF for R-Ia was lower than ΔE1 + 3SCRF for S-Sp, which can account for the previous result [14]. Furthermore, the calculated stabilities of “A1T1 + G3C3” with S-Sp or R-Sp could explain why bypass of S-Sp is more efficient than bypass of R-Sp in vivo [18].
In conclusion, although calculating either energies of “A1T1” on the 5'-side of X2 or energies of “G3C3” on the 3'-side of X2 was not sufficient, calculating energies of the structure while including both base pairs, “A1T1 + G3C3”, adjacent to “G2X2” was sufficient to evaluate the stability of the DNA duplex containing an G:Oz, G:Ia, or G:Sp base pair. In the next section, we used parameterized distortion of DNA to examine the effects of the non-planarity of Oz, S-Ia, R-Ia S-Sp, or R-Sp on A1T1 base pairs and G3C3 base pairs in DNA duplexes that each contain one central G:X base pair.

2.3. The Degree of Distortion from DNA Duplex Containing a G:C Base Pair

Based on the images in Figure 3, we received the visual impression that there were differences in the degree of distortion among the DNA duplexes that contained C, Oz, S-Ia, R-Ia S-Sp, or R-Sp. Because abstract visual impressions were insufficient for detailed comparisons among the structures, it was necessary to parameterize actual values for those visual impressions. In this section, we examined differences in the degree of distortion caused by each G:X base pair to parameterize the distortion of each DNA duplex.

2.3.1. The Degree of Distortion at the 5'-Side of X

In order to determine the degree of distortion at the 5'-side of each G2X2 base pair, we calculated the dihedral angles (θ) between G2 and A1 (θ (G2–A1)) or G2 and T1 (θ (G2–T1)) or A1 and T1 (θ (A1–T1)) (red arrows in Figure 4). Values for θ (G2–A1), θ (G2–T1), and θ (A1–T1) were each calculated individually via Equations (5)–(7), respectively (Experimental Section). The degree of distortion (δ1) on the 5'-side of G2X2 was defined as the sum of θ (G2–A1), θ (G2–T1), and θ (A1–T1) (Equation (11) in Experimental Section). In Table 2, the values of δ1 were ordered as follows with regard to X2 variants: S-Sp > R-Sp > S-Ia > Oz > C > R-Ia.
Figure 4. Calculated dihedral angle θ (G2–A1), θ (G2–T1) and θ (A1–T1) showed red arrows, and the calculated dihedral angle θ (G2–G3), θ (G2–C3) and θ (G3–C3) showed blue arrows.
Figure 4. Calculated dihedral angle θ (G2–A1), θ (G2–T1) and θ (A1–T1) showed red arrows, and the calculated dihedral angle θ (G2–G3), θ (G2–C3) and θ (G3–C3) showed blue arrows.
Molecules 19 11030 g004
Table 2. Dihedral angles θ (G2–A1), θ (G2–T1), and θ (A1–T1) (red arrows in Figure 4), and the degree of distortion δ1.
Table 2. Dihedral angles θ (G2–A1), θ (G2–T1), and θ (A1–T1) (red arrows in Figure 4), and the degree of distortion δ1.
X aθ (G2–A1) θ (G2–T1) θ (A1–T1) δ1
C25.2°12.5°13.3°51.0°
Oz19.4°18.2°18.0°55.6°
S-Ia38.3°28.2°11.3°77.8°
R-Ia3.3°4.0°4.0°11.3°
S-Sp56.1°29.9°26.4°112.4°
R-Sp10.9°32.4°43.2°86.5°
a X = the damage contained in the minimized structure.
Based on the values of δ1, the distortion of “A1T1” base pair adjacent to R-Ia is the smallest, and this structure was similar to the structure of the “A1T1” derived from DNA duplex containing a G2C2 (Table 1, Figure 3a,d). Consequently, the calculated ΔE1 for R-Ia was the lowest for all X2 variant. Furthermore, the order of calculated ΔE1 values with respect to X2 variants—S-Ia > Oz > R-Ia—coincided with the order of δ1. Thus, since a large δ1 indicates a prominent distortion of A1T1, we believe that the destabilization of A1T1 base pair could result from by the distortions caused by the X2 variants. However, ΔE1 values with R-Sp or S-Sp could not be explained by δ1 caused by R-Sp or S-Sp. Furthermore, δ1 values for S configurations were larger than those for R configurations both for Ia and for Sp. The C1' methyl of S-Ia or S-Sp was oriented in the direction of the “A1T1” base pair (Figure 3c,e); therefore, the effects of the S configurations on 5'-side of X2 were larger than those of the R configurations. In summary, δ1 values could not explain previous experimental results, nor could they completely account for ΔE1 values.

2.3.2. The Degree of Distortion at the 3'-Side of X

As with 5'-side of X2 (in Section 2.3.1), we calculated the dihedral angle θ between G2 and G3 (θ (G2–G3)), or G2 and C3 (θ (G2–C3)), or G3 and C3 (θ (G3–C3)) (blue arrows in Figure 4). Values for θ (G2–G3), θ (G2–C3), and θ (G3–C3) were each calculated individually via Equations (8)–(10), respectively (Experimental Section). The degree of distortion (δ3) at the 3'-side of X2 was defined as the sum of θ (G2–G3), θ (G2–C3), and θ (G3–C3) (Equation (12) in Experimental Section). All numeric values are listed in Table 3. For the X2 residues, the order of values for δ3 was as follows: R-Ia > R-Sp > S-Sp > S-Ia > C > Oz.
Table 3. Dihedral angles θ (G2–G3), θ (G2–C3), and θ (G3–C3) (blue arrows in Figure 4), and the degree of distortion δ3.
Table 3. Dihedral angles θ (G2–G3), θ (G2–C3), and θ (G3–C3) (blue arrows in Figure 4), and the degree of distortion δ3.
X aθ (G2–G3) θ (G2–C3) θ (G3–C3) δ3
C9.5° 8.0° 17.2° 34.6°
Oz11.1° 3.1° 11.9° 26.1°
S-Ia5.4° 13.9° 19.2° 38.5°
R-Ia17.9° 42.6° 49.2° 109.7°
S-Sp5.5° 25.7° 23.2° 54.4°
R-Sp22.9° 36.2° 43.3° 102.5°
a X = the damage contained in the minimized structure.
When comparing among the X2 variants, the “G3C3” adjacent to Oz was the least distorted based on the values of δ3, and the most similar in structure to the “G3C3 in a DNA duplex containing a G2C2 (Figure 3a,b). Additionally, the calculated ΔE3 with Oz was lowest, and the order of X2 variants with regard to calculated ΔE3 values—S-Sp > S-Ia > Oz (Table 1)—was consistent with the order of δ3 values. As was the case with δ1 (showed in Section 2.3.1), the destabilization of the G3C3 base pair could be accounted for by the distortion caused by the G2X2 base pair. In contrast to δ1 values, δ3 values associated with R configurations were larger than those associated with S configurations for both Ia and Sp; moreover, the C1' methyl of R-Ia or R-Sp was oriented in the direction of the “G3C3” base pair (Figure 3d,f). Consequently, the C3 base of R-Ia or R-Sp was particularly distorted by the C1' methyl of R-Ia or R-Sp, respectively. Taken together, δ3 values could not account for ΔE3 values or previous experimental results, as was the case for δ1 values.

2.3.3. The Total Degree of Distortion at the 5'-Side and 3'-Side of X

The total degree of distortion (“δ1 + δ3”) at the 5'- and 3'-side of X2 was defined as the sum of δ1 and δ3 (Table 4). The “δ1 + δ3” values were ordered as follows with regard to X2 variants: R-Sp > S-Sp > R-Ia > S-Ia > C > Oz. This order was consistent with the order of the calculated energies (ΔE1 + 3). Although the value of “δ1 + δ3” for Oz was smaller than that for C, the structure of “A1T1 + G3C3” adjacent to “G2Oz2” was less stable than that to“G2C2” according to ΔE1 + 3: The stabilities of the structure of “A1T1 + G3C3” were only partially explained by the degree of distortion.
Table 4. Total degree of distortion (“δ1 + δ3”).
Table 4. Total degree of distortion (“δ1 + δ3”).
X aδ1 + δ3
C85.6°
Oz81.7°
S-Ia116.3°
R-Ia121.1°
S-Sp166.8°
R-Sp189.0°
a X = the damage contained in the minimized structure.

2.3.4. The Difference Between the Degree of Distortion for Oxidatively Damaged Guanine and that for C

We tried to eliminate the discordance between the distortion and the stability in “G2Oz2” and “G2C2”. Instead of a simple comparison among the values of the degree of distortion for any X2, we calculated the difference between the value of δ1 + δ3 for C and that for Oz, S-Ia, R-Ia, S-Sp or R-Sp as well as the destabilization energy. We found that the values of δ1 + δ3 for S-Ia or R-Ia differed from that for C by 30.7° or 35.4°, respectively; in contrast, there was only slight difference of 4.0° between that for Oz and that for C. The distortion of the structure of “A1T1 + G3C3” adjacent to “G2Oz2” was smaller than that adjacent to “G2S-Ia2” or “G2R-Ia2”, which seemed consistent with visual impressions.Additionally, the values of δ1 + δ3 for S-Sp or R-Sp differed from that of C by 81.1° or 103.3°, respectively. These values indicated that the structures of “A1T1 + G3C3” adjacent to “G2S-Sp2” or “G2R-Sp2” were the most distorted from that adjacent to “G2C2”; these findings seemed consistent with the visual impression of the images in Figure 3. These discussions accounted for the differences among the calculated energies (ΔE1 + 3) of the structure of “A1T1 + G3C3” adjacent to “G2X2”.
In addition to the values of δ1 + δ3, the values of δ1 or δ3 for Oz, S-Ia, R-Ia, S-Sp, or R-Sp were compared with that for C. The distortions of each X2-containing structure compared to the value of δ1 for C was ordered as follows with regard to X2 variants: S-Sp > R-Ia > R-Sp > S-Ia > Oz: That of δ3 was ordered as follows: R-Ia > R-Sp > S-Sp > Oz > S-Ia. Therefore, the distortion for each X2 compared the value of δ1 or δ3 for C was not consistent with the visual impression, unlike the values of δ1 + δ3, which were consistent with the visual impressions.
In summary, the previous experimental results were only partially explained by either δ1 or δ3 (Section 2.3.1 and Sections 2.3.2); however, “δ1 + δ3” compensated for the weaknesses of each single measure by summing δ1 and δ3. Consequently, “δ1 + δ3” was able to account for the previous experimental results and ΔE1 + 3. According to our data, the structure of “A1T1 + G3C3” adjacent to “G2X2” was distorted by the effects of the non-planarity of each lesion; in other words, the instability of a DNA duplex containing oxidatively damaged guanine was determined by the non-planarity of each oxidatively damaged guanine. Thus, it seemed reasonable that the projected distortion of a DNA duplex containing a G:Oz base pair would be the smallest.

3. Experimental

3.1. Molecular Modeling

In this study, we constructed models of Pol β-DNA complexes containing a G:X (where X = C, Oz, S-Ia, R-Ia, S-Sp, or R-Sp) base pair using the structure (PDBID:1BPY) [17]. The details of method used to construct these models are presented below. In each model, the incoming nucleotide (dCTP) was replaced with dATP, and the template G for the incoming nucleotide was replaced with T. Each complex containing Pol β and a G:X base pair was built by replacing the G:C base pair at the 3' terminus of the template-primer with G:X base pair optimized previously [13]. The amino acid residues and other DNA base sequences were unchanged. The geometry of each atom was minimized at the OPLS2005/water level using Macromodel 9.0 (Schrödinger LLC, New York) with the fixed G:X base pair.

3.2. ab Initio Calculations

For each minimized structure, all atoms were removed from the Pol β-DNA model except for (1) constituents of the bases of each G:X base pair, (2) constituents of the bases of each base pair adjacent to the G:X base pair, (3) the 2-deoxyribose C1' carbon, and (4) the C1' H. Two H atoms were then attached to the C1' methine to complete the N-methylated nucleobases (Figure 2) [5]. As mentioned in Section 2.1, the designation “A1T1”, “G2X2”, and “G3C3” were used for the consecutive base pairs (Figure 2 and Figure 3).
Gaussian 03 (Gaussian Inc., Wallingford, CT, USA) [19] was used to calculate the destabilization energy of “A1T1” (ΔE1) of each G:X complex in vacuo at the B3LYP/6-31G** level. Moreover, to estimate the energy of each “A1T1” base pair in water, the Onsanger reaction field model and a dielectric constant of 78.39 were used to calculate the SCRF value of each of these base pairs. The destabilization energies of each “G3C3” (ΔE3) were calculated in vacuo and in water, just as ΔE1 values were calculated. The destabilization energies of “A1T1 + G3C3” (ΔE1 + 3) were calculated in vacuo and in water. The calculated destabilization energies (ΔE1, ΔE3, and ΔE1 + 3) are defined in Equations (1)–(3).
ΔE1 = E(“A1T1” of G:X complex (X = C))
E(“A1T1” of G:X complex (X = Oz, S-Ia, R-Ia, S-Sp or R-Sp))
ΔE3 = E(“G3C3” of G:X complex (X = C))
E(“G3C3” of G:X complex (X = Oz, S-Ia, R-Ia, S-Sp or R-Sp))
ΔE1 + 3 = E(“A1T1+G3C3” of G:X complex (X = C))
E(“A1T1+G3C3” of G:X complex (X = Oz, S-Ia, R-Ia, S-Sp or R-Sp))

3.3. Calculating the Degree of Distortion

We calculated values for the vectors C5N1 and C5N3 using the C5 (xC5, yC5, zC5), N1 (xN1, yN1, zN1), N3 (xN3, yN3, zN3) atoms for each of five bases A1, T1, G2, G3, and C3 (Figure 5a). The normal vector Pn was calculated from vectors C5N1 and C5N3 (Equation (4)) (Figure 5b), and n represented A1, T1, G2, G3, or C3:
Pn (xn, yn, zn) = C5N1 × C5N3
= (xN1– xC5, yN1 – yC5, zN1– zC5) × (xN3– xC5, yN3– yC5, zN3– zC5)
= ((yN1– yC5)•(zN3– zC5)−(zN1– zC5)•(yN3– yC5), (zN1– zC5)•(xN3– xC5) – (xN1–xC5)•(zN3– zC5),
(xN1– xC5)•(yN3– yC5) − (yN1– yC5)•(xN3– xC5))

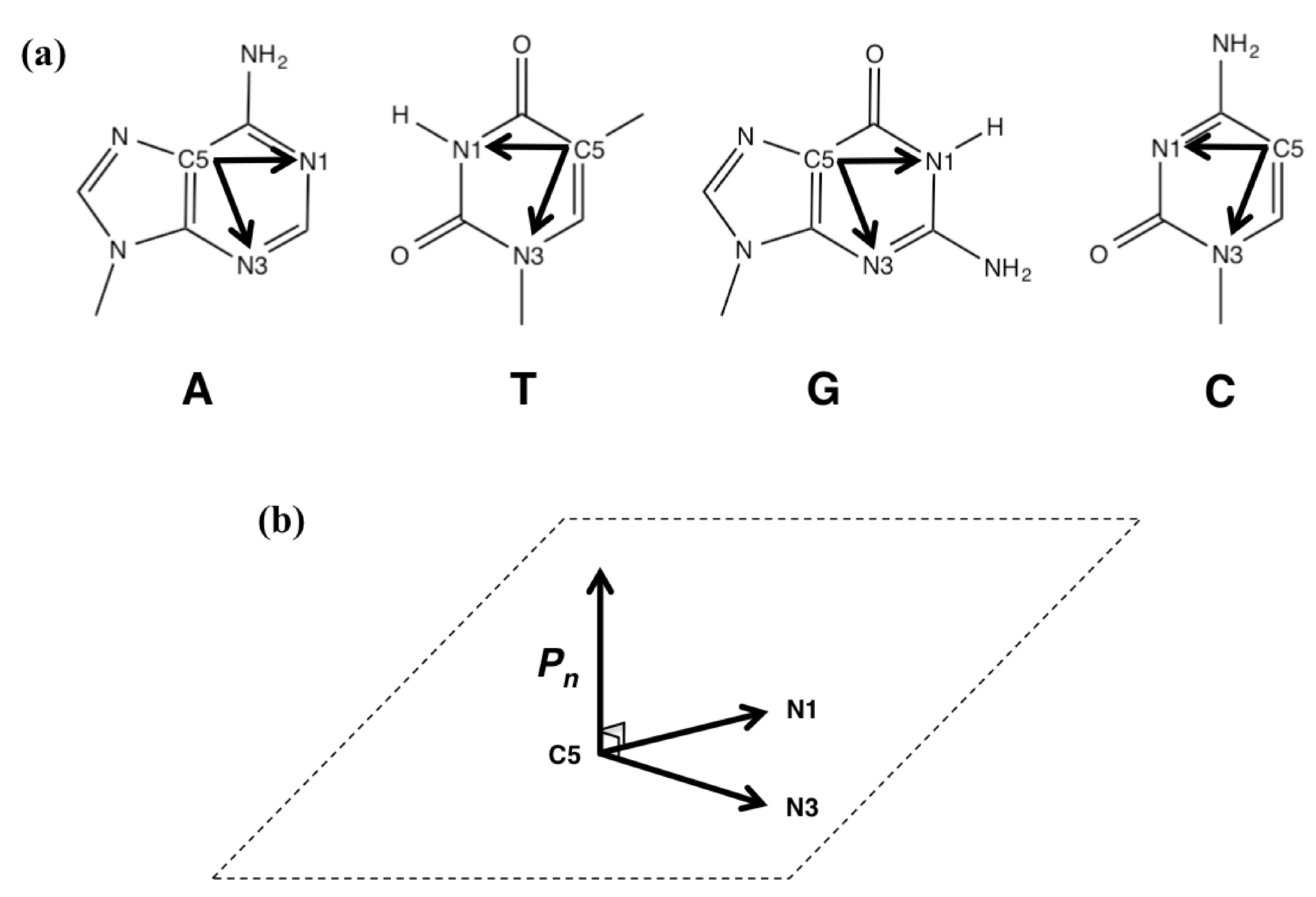

Figure 5. (a) Vector C5N1 and vector C5N3 in A, T, G, or C. (b) Normal vector Pn was calculated from C5N1 and vector C5N3 (Equation (4)).
Figure 5. (a) Vector C5N1 and vector C5N3 in A, T, G, or C. (b) Normal vector Pn was calculated from C5N1 and vector C5N3 (Equation (4)).
Molecules 19 11030 g005
Next, we calculated the dihedral angles between G2 and A1 (θ (G2–A1)), G2 and T1 (θ (G2–T1)), A1 and T1 (θ (A1–T1)), G2 and G3 (θ (G2–G3)), G2 and C3 (θ (G2–C3)), or G3 and C3 (θ (G3–C3)) (Figure 4) using the two respective normal vectors (Equations (5)–(10)):
θ (G2–A1) = arccos (PG2 PA1/|PG2| |PA1|)
θ (G2–T1) = arccos (PG2PT1/|PG2| |PT1|)
θ (A1–T1) = arccos (PA1PT1/|PA1| |PT1|)
θ (G2–G3) = arccos (PG2PG3/|PG2| |PG3|)
θ (G2–C3) = arccos (PG2PC3/|PG2| |PC3|)
θ (G3–C3) = arccos (PG3PC3/|PG3| |PC3|)
As an index of the distortion of the DNA duplex, we defined the degree of distortion (δ1 and δ3) (Equations (11) and (12)).
δ1 = θ (G2–A1) + θ (G2–T1) + θ (A1–T1)
δ3 = θ (G2–G3) + θ (G2–C3) + θ (G3–C3)

4. Conclusions

Previous experimental results show that incorporation of guanine is more efficient when the template base is Oz than when it is Ia or Sp; however, the difference between Oz and Ia or Sp is not explained by the stabilities of G:Oz, G:Ia, and G:Sp as calculated ab initio. Thus, we focused on differences among G:Oz, G:Ia, and G:Sp with regard to planarity of base pair, and tried to explain the previous experimental results based on differences in distortion of DNA containing these DNA lesion.
Using models of 3-base-pair DNA duplexes that each contained a variable central “G2X2” base pair, we calculated the destabilization energies of the parts common to each model relative to energy of the structure derived from DNA containing a central G2C2 base pair. For the five X2 variants, we found that the stabilities of the “A1T1” base pairs on the 5'-side of X2 were ordered as follows: R-Ia > Oz > S-Ia > S-Sp > R-Sp, and that the stabilities of the “G3C3” base pairs on the 3'-side of X2 were ordered as follows: Oz > S-Ia > S-Sp > R-Ia > R-Sp. These data could not explain the previous experimental results. We also calculated the stability of the structure including both adjacent base pairs and excluding the central “G2X2” (“A1T1 + G3C3”); we found that, for the five X2 variants, the stability of “A1T1 + G3C3” was ordered as follows: Oz > S-Ia > R-Ia > S-Sp > R-Sp. The previous experimental results could be explained by considering the stability of the structure when accounting for both the 5' and 3' sides of X2.
Additionally, we parameterized the distortion of DNA duplex in order to examine the effects of Oz, S-Ia, R-Ia S-Sp, or R-Sp. The degree of distortion at the 5'-side of X2 (δ1) or at the 3'-side of X2 (δ3) could not explain the stability of “A1T1” or “G3C3”, respectively, or the previous experimental results. However, compared with the structure of DNA containing a central G2C2 base pair, the total degree of distortion (“δ1 + δ3”) at the 5' and 3' sides of X2 were ordered as follows for the five X2 variants: R-Sp >> S-Sp >> R-Ia > S-Ia >> Oz. Values “δ1 + δ3” coincided with the stabilities of “A1T1 + G3C3”, and either calculation could account for the previous experimental results. Taken together, our discussions indicated that DNA containing a nonplanar lesion was susceptible to distortion and to destabilization, and consequently the bypass efficiency of DNA polymerase at the more nonplanar lesion was reduced relative to that at the more planar lesion. We showed that calculating energies of the structure accounting for both base pairs adjacent to G:Oz, G:Ia, or G:Sp was sufficient to evaluate the stability of the DNA duplex containing any of these base pairs. The distortion of the structure of DNA a duplex containing a central G:Oz was smaller than that of DNA containing a G:Ia or G:Sp; therefore, a G:Oz base pair was more easily bypassed by DNA polymerase than was a G:Ia or G:Sp base pair.
In this study, to minimize by MM calculation, we used the models contained not only the residues of protein and base pairs but also the sugar and phosphate components. There are not, however, the sugar and phosphate components in the DNA models used QM calculation of the stability, because models containing these components cannot calculate in a realistically acceptable amount of time due to many atoms. Therefore, to explain the more accurate effect of distortion caused these DNA damages, it will need to be considered how distortion within the bases can lead to changes in sugar conformation in the future.

Acknowledgments

This work was supported by K. Kino’s research grants from Japan Society for the Promotion of Science (JSPS), from Tokushima Bunri University, Japan Prize Foundation, from Radiation Effects Association. M. Suzuki and M. Morikawa were supported by a Research Fellowship from JSPS for Young Scientists.

Author Contributions

K. Kino and M. Suzuki conceived of this study and designed the calculations. M. Suzuki performed the calculations. M. Suzuki and K. Kino analyzed the data. All the authors discussed the results, in particular, K. Kino, M. Morikawa and T. Kobayashi contributed with valuable discussions about calculations and scientific input. M. Suzuki, K. Kino and H. Miyazawa wrote the paper. All the authors have read and approved the final manuscript.

Conflicts of Interest

The authors declare no conflict of interest.
