Review

Synthetic Procedures Leading towards Aminobisphosphonates

by
Ewa Chmielewska
* and
Paweł Kafarski
Department of Bioorganic Chemistry, Faculty of Chemistry, Wrocław University of Science and Technology, Wrocław 50-370, Poland
*
Author to whom correspondence should be addressed.
Molecules 2016, 21(11), 1474; https://doi.org/10.3390/molecules21111474
Submission received: 30 September 2016 / Revised: 28 October 2016 / Accepted: 2 November 2016 / Published: 4 November 2016
(This article belongs to the Special Issue Recent Advances in Organophosphorus Chemistry)
Browse Figures
Versions Notes

Abstract

:
Growing interest in the biological activity of aminobisphosphonates has stimulated the development of methods for their synthesis. Although several general procedures were previously elaborated to reach this goal, aminobisphosphonate chemistry is still developing quite substantially. Thus, innovative modifications of the existing commonly used reactions, as well as development of new procedures, are presented in this review, concentrating on recent achievements. Additionally, selected examples of aminobisphosphonate derivatization illustrate their usefulness for obtaining new diagnostic and therapeutic agents.

Graphical Abstract

1. Introduction

Bisphosphonates are a class of compounds that are currently receiving significant attention. Over 50 new papers are seen each week when searching the literature with the keyword “bisphosphonate” via Web of Science. More than 17,000 various bisphosphonate structures have been synthesized and described in the literature [1]. Most papers concern their important subclass, namely aminobisphosphonates. This strong interest results from these compounds acting as strong inhibitors of bone resorption, with several representatives of this class already commercialized as drugs of choice for the treatment of osteoporosis, skeletal complications of malignancy, Paget’s disease, multiple myeloma, hypercalcemia and fibrous dysplasia [2,3,4,5,6,7] Consequently, most of the papers are devoted to various clinical aspects of the anti-resorptive effects that bisphosphonates exert towards bone tissues; however, there is also a growing interest in their applications as anticancer and antibacterial agents [5,6,7]. Additionally, aminobisphosphonic acids have found important industrial applications, largely as inhibitors of scale formation and as corrosion inhibitors, actions which result from their ability to complex metal ions [8,9,10].
Thus, simple and effective procedures for their synthesis are becoming increasingly important. However, only a few general reactions leading to these compounds have been described to date and are only partially reviewed in the literature [11,12]. Novel reports are mostly concentrated on modifications and improvement of these procedures, and there are only a few papers aiming at new reactions, which results from the commonly applied procedures being simple, economical and effective.
In this paper, we comprehensively review the recent studies (supplemented by older papers if necessary) on reactions applied to synthesize the most important class of bisphosphonates—aminobisphosphonates—and discuss their scope and limitations.

2. Overview of Synthetic Procedures

There are contradictory reports of the origin of bisphosphonates [13]. Most likely, the first one was obtained in the 19th century by Nikolay Menschutkin and/or Theodor Saltzer as an impurity in reactions designed to obtain different compounds. It was further identified by Hans von Baeyer and Wilhelm Heideprim as 1-hydroxyethanebisphosphonic acid.
There are only a few general methods for the synthesis of aminobisphosphonates. However, there are many individual procedures described for their preparation [11,12]. In this review, the following general reactions are presented: (i) starting from carboxylic acids and (ii) their amides; (iii) reactions using nitriles and (iv) isonitriles as substrates; (v) syntheses based on addition of phosphites to oxophosphonates; (vi) three-component condensation of amines, trialkyl orthoformates and dialkyl phosphites; (vii) addition of amines to vinylidenebisphosphonates; and (viii) functionalization of simple bisphosphonates treated as building blocks for the preparation of more complex structures. Additionally, some specific and non-conventional procedures that have been elucidated will be presented in this review.

2.1. Synthesis from Carboxylic Acids

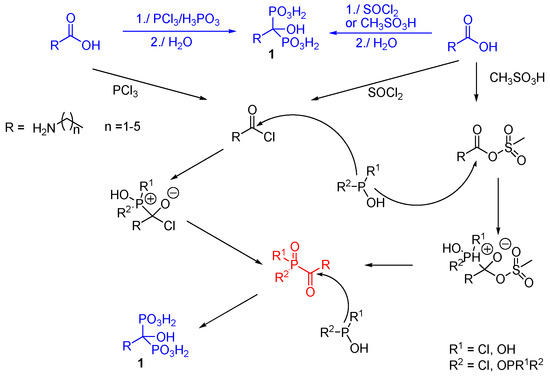

1-Hydroxyethylidene-1,1-bisphosphonic acids are perhaps the oldest group of bisphosphonates. They are standardly prepared by a large-scale, one-step reaction of carboxylic acids with phosphorus trichloride and phosphorous or phosphoric acids, followed by hydrolysis with water; the procedure was optimized by Kieczykowski et al. [14]. The reaction is carried out in selected solvents (phenylsulphonic acid, various phenols, chlorobenzene, diphenyl ether or ionic liquids) with sulfone and methanesulphonic acid being preferred choices [11,15,16,17,18,19,20]. Despite many theories [19,21,22,23], the exact mechanism of this reaction is not fully understood; however, the formation of acid chloride as a first intermediate has been undoubtedly demonstrated (Scheme 1). This intermediate may react with methanesulphonic acid (when used as a solvent), and the formed mixed anhydride is also considered a potential intermediate for the next step [24], which is an Arbuzov-like reaction of phosphorus acid or one of its several derivatives (including anhydrides of variable structure [17]) formed during the reaction. The formed derivative of ketophosphonate is a substrate for the addition reaction of trivalent P-OH species, and bisphosphonate is obtained (Scheme 1). It has also been documented that the use of phosphorous acid could be omitted if water was added to the reaction medium, and thus this compound was formed in situ.
This reaction was commonly used for the preparation of a wide variety of anti-osteoporotic bisphosphonic acids containing free amino groups (so called dronic acids, compound 1). In this case, free unblocked amino acids are used as substrates, and the final neutralization of reaction mixtures to a pH of approximately 4 causes precipitation of the desired products, which are formed in satisfactory yields and are of good purity [16,23,24,25,26]. Because of its technological importance, this reaction is still quite intensively studied and optimized; however, most of the studies are done in industrial laboratories, and their results are mostly disseminated as patents. Consequently, it is difficult, if not impossible, to determine which conditions are optimal for the synthesis of individual drugs. It is important because, as in the case of any multicomponent reaction, a synthetic course is strongly dependent on applied conditions and molar ratios of reagents. For example, one of the patents reports that the omission of phosphorus chloride in the reaction of 4-aminobutyric acid as the substrate in methanesulphonic acid provides mixtures of anhydrides as final products (compounds 2 and 3, Scheme 2) [11]. This corresponds well to the known tendency of phosphonic acids to cyclize.
Among modifications of this procedure are (i) replacement of phosphorus trichloride with thionyl chloride to generate acid chloride in the first reaction step [11]; (ii) replacement of acid by its chloride or anhydride [11] or (iii) t-butyl ester [27]; (iv) blocking the amino moiety in the case of α-amino acids [28]; and (v) application of microwave-assisted procedures [29].

2.2. Synthesis from Amides

Although studies on the biological activity of 1-amino-1,1-bisphosphonic acids are scarce, a significant number of procedures for their preparation have been described. They have recently been reviewed by Romanenko and Kukhar [12]. Amides, being highly stable and easily available compounds, are substrates of choice, and the most commonly applied procedures are simple modifications of those elaborated for carboxylic acids. The most straightforward are reactions of N-acylamines and N-formylamines with phosphorus trichloride and phosphorous acid [30,31,32], phosphorus tribromide [33], or triphosgene [34], which provide a wide structural variety of 1-amino-1,1-bisphosphonic acids (compound 4, Scheme 3). They are based on modification of the first procedure elaborated by Plöger et al. with formamide as a substrate [35].

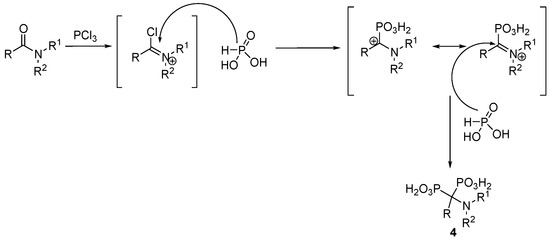

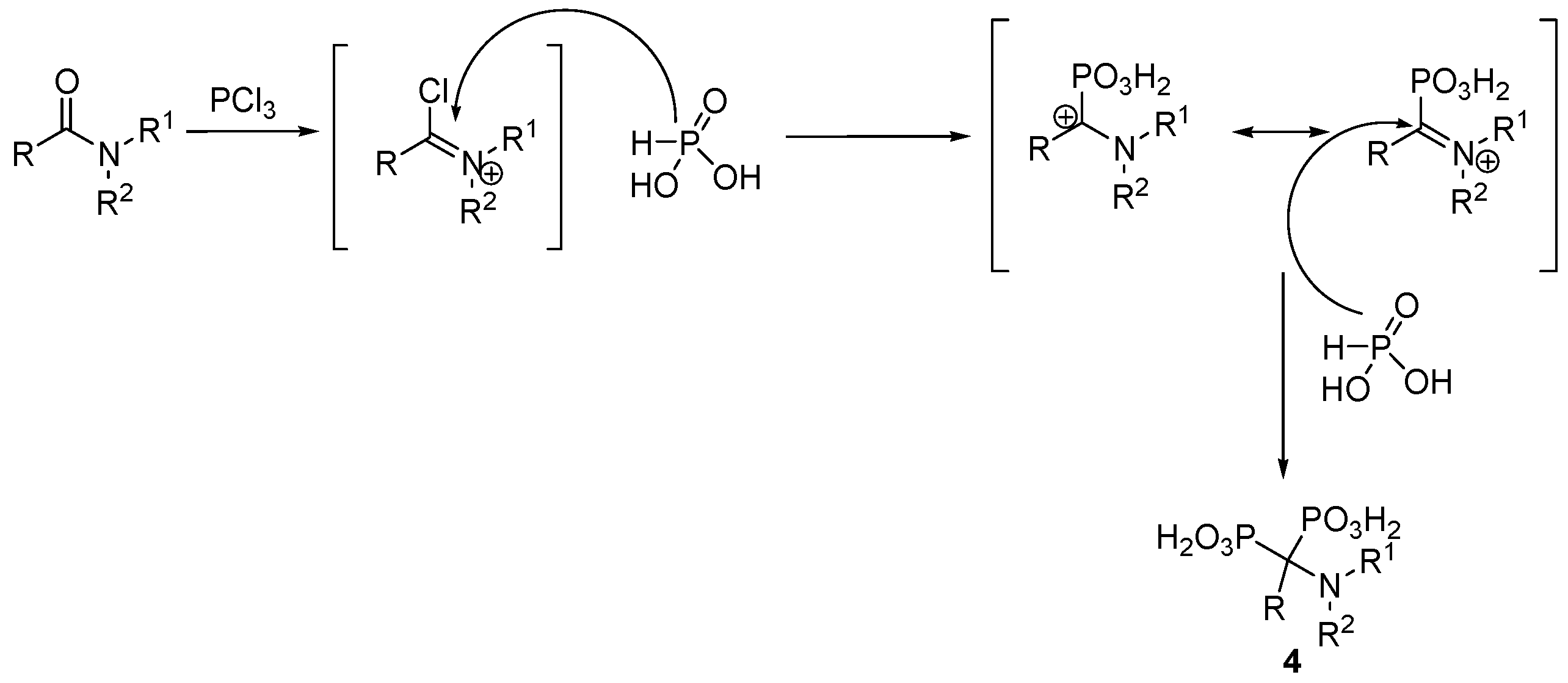

The exact reaction mechanism in this case is also not fully known; however, a Vilsmayer-Haack-like route via iminium ion is postulated here (Scheme 4).

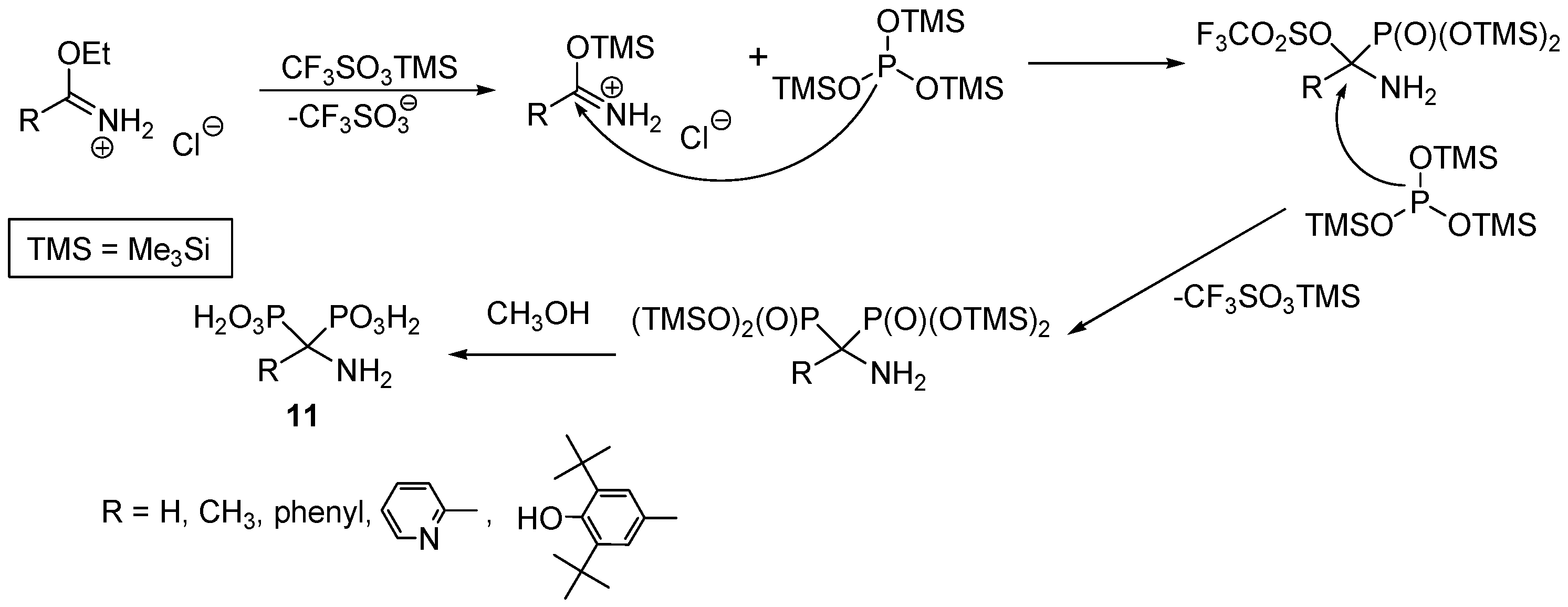

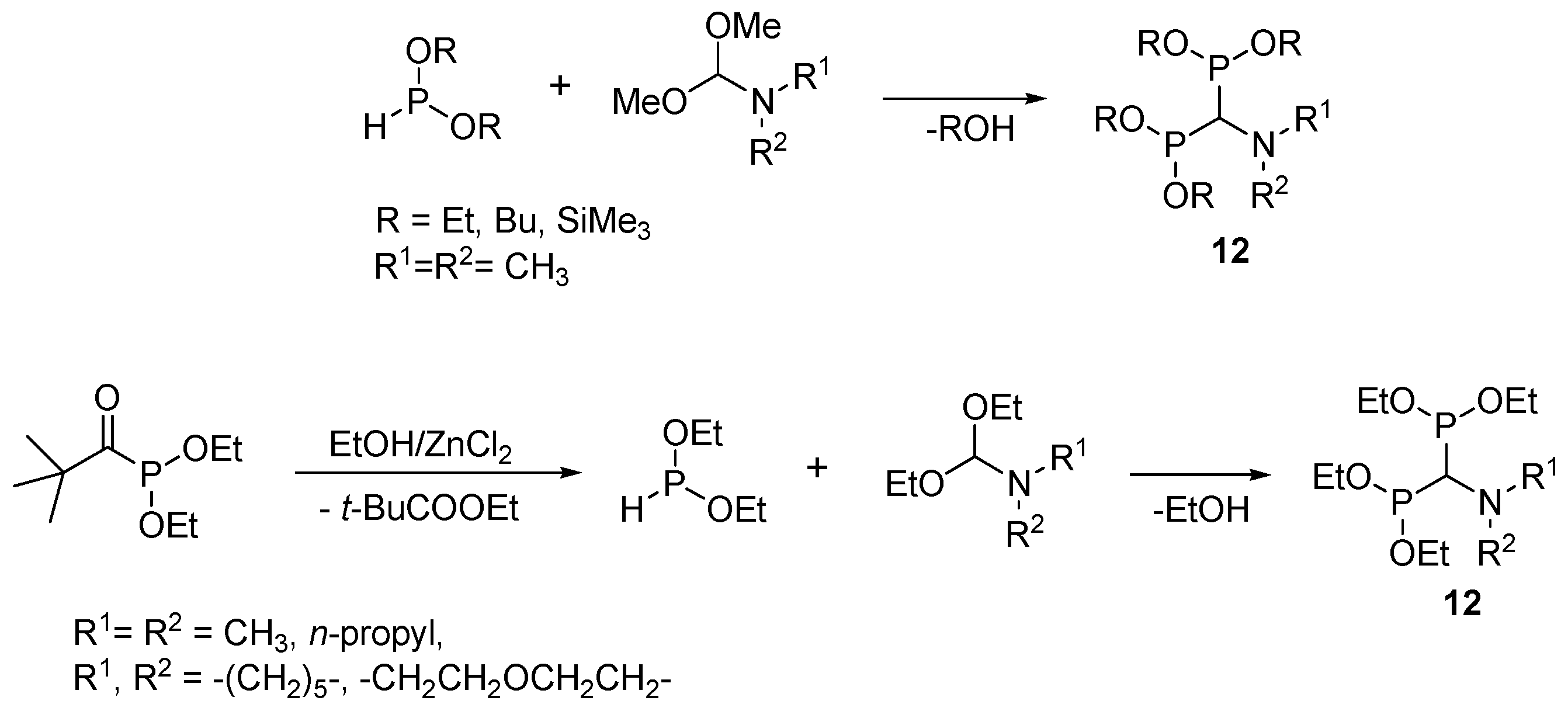

Another possibility is using trialkyl or trimethylsilyl phosphites in reactions prompted by phosphoryl chloride [36,37,38,39], trifluoromethanesulphonic anhydride (Tf2O) [40], zinc chloride [41] or trimethylsilyl trifluoromethanesulfonate [42,43]. Unfortunately, primary amides are not suitable substrates for this reaction [38]. The use of triethyl phosphite and phosphoryl chloride appeared to be especially useful when lactams were used as substrates, resulting in high yields of aminomethylene-gem-bisphosphonates (Scheme 5) [36,37,38,39]. They were readily hydrolyzed, yielding corresponding bisphosphonic acids (representative example compound 5). On the other hand, this reaction is not suitable for the conversion of benzoannulated lactams, and mixtures of the desired bisphosphonates and monophosphonates of variable structures were obtained (compounds 6, 7, 8 and 9, Scheme 5). In fact, monophosphonates are usually major products, and the reaction course is dependent on the size of the substrate aliphatic ring [44]. Additionally, these bisphosphonates and monophosphonates appeared to be unstable upon acid hydrolysis and upon storage, and undergo degradation with cleavage of the carbon-to-phosphorus bond (for example compound 10, Scheme 5). Thus, corresponding acids have not yet been obtained.
The formation of a Vilsmayer-Haack-like intermediate is also proposed in this case with the further addition of a nucleophilic phosphorus reagent. This assumption is additionally supported by studies on the use of structurally variable imine salts as substrates for synthesis of compounds 11 (Scheme 6) [41,42,43,44,45].
The reaction of dibutoxyphosphine or bis(trimethylsiloxy)phosphine with dimethylformamides in the presence of trimethylsilyl trifluoromethanesulfonate affords the corresponding aminomethylenebisphosphonites 12 in high yields (Scheme 7) [41,42,43]. Similar products were obtained by reacting diethyl pivaloylphosphonite with dialkylformamides in the presence of excess ethanol and catalytic amounts of zinc chloride (Scheme 7). Pivaloylphosphonite decomposes in these reaction conditions, yielding diethoxyphosphine, which is the real substrate of the reaction [41].

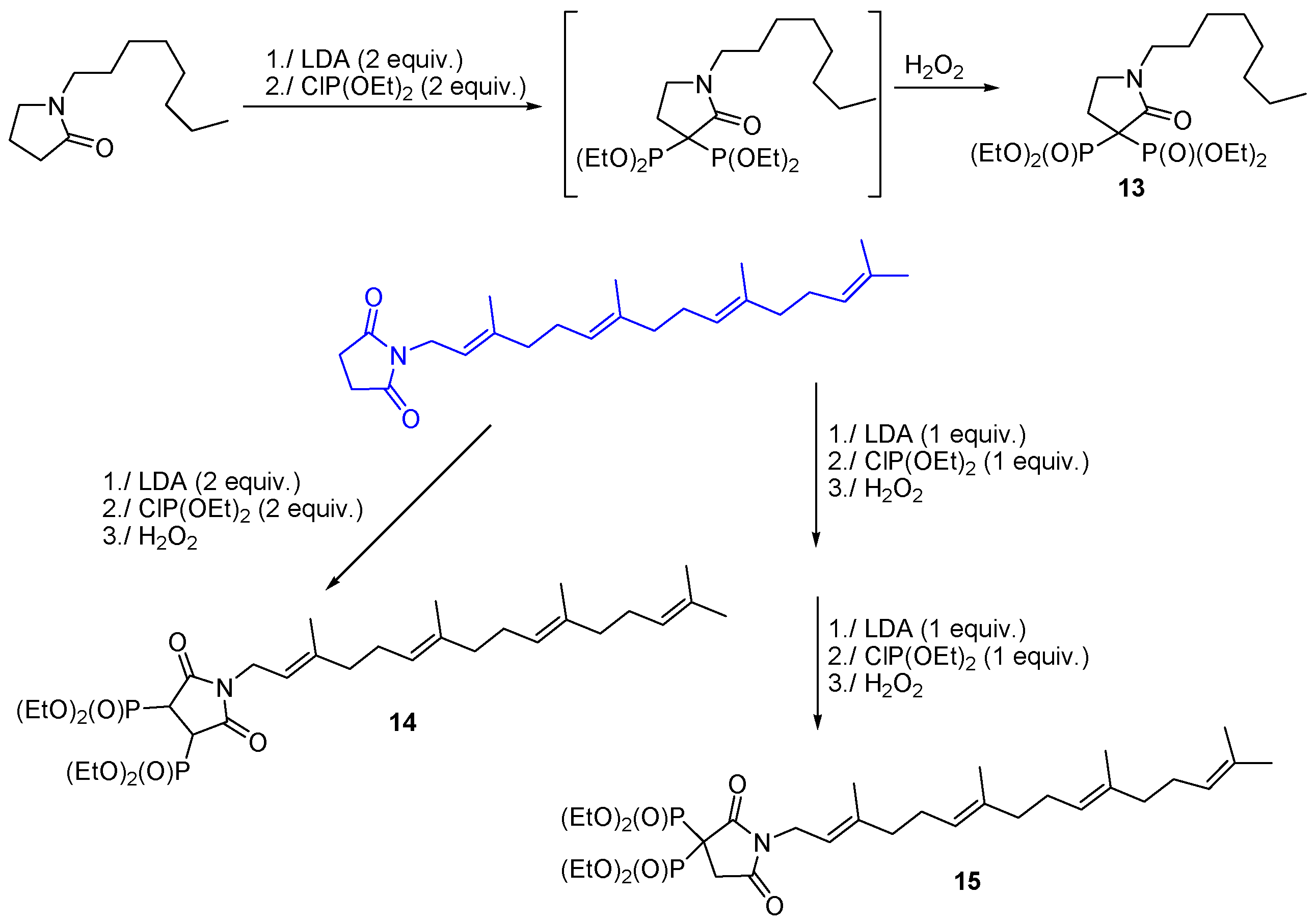

N-Octylpyrrolidinone treated with LDA, followed by the addition of diethyl phosphorochloridite and oxidation of the reaction mixture with 30% hydrogen peroxide resulted in bisphosphonylated lactam 13 with excellent yield (Scheme 8). This reaction was then applied for the synthesis of N-geranylated lactams 14 and 15 and linear amides, potential inhibitors of farnesyl:protein transferase [46]. In the case of cyclic imides, in which two equivalent positions for enolate formation are present on the imide rings, and thus two carbon atoms may be phosphonylated, the structure of the product was dependent on the mode of reaction. If phosphonylation was carried out in one step, two carbon atoms were phosphonylated and vicinal bisphosphonate was obtained. Step-by-step reaction resulted in the predomination of the phosphonylation of one carbon atom, and the desired gem-bisphophonate was the major product.

2.3. Synthesis from Nitriles

1-Aminoalkylidene-1,1-bisphosphonic acids could also be prepared from nitriles by applying the same procedures as in syntheses starting from amides. Despite being readily available substrates, there is limited literature on their use for that purpose. The most popular route is the reaction of nitriles with phosphorous acid, in some cases prompted by phosphorus trichloride and phenylsulphonic or methylsulphonic acids [12,31,47,48]. The conditions of this reaction are sufficiently delicate to use peptidyl nitriles as substrates, which was demonstrated using cyanoethyl derivatives of dipeptides (for example, peptide 16, Scheme 9) [49].

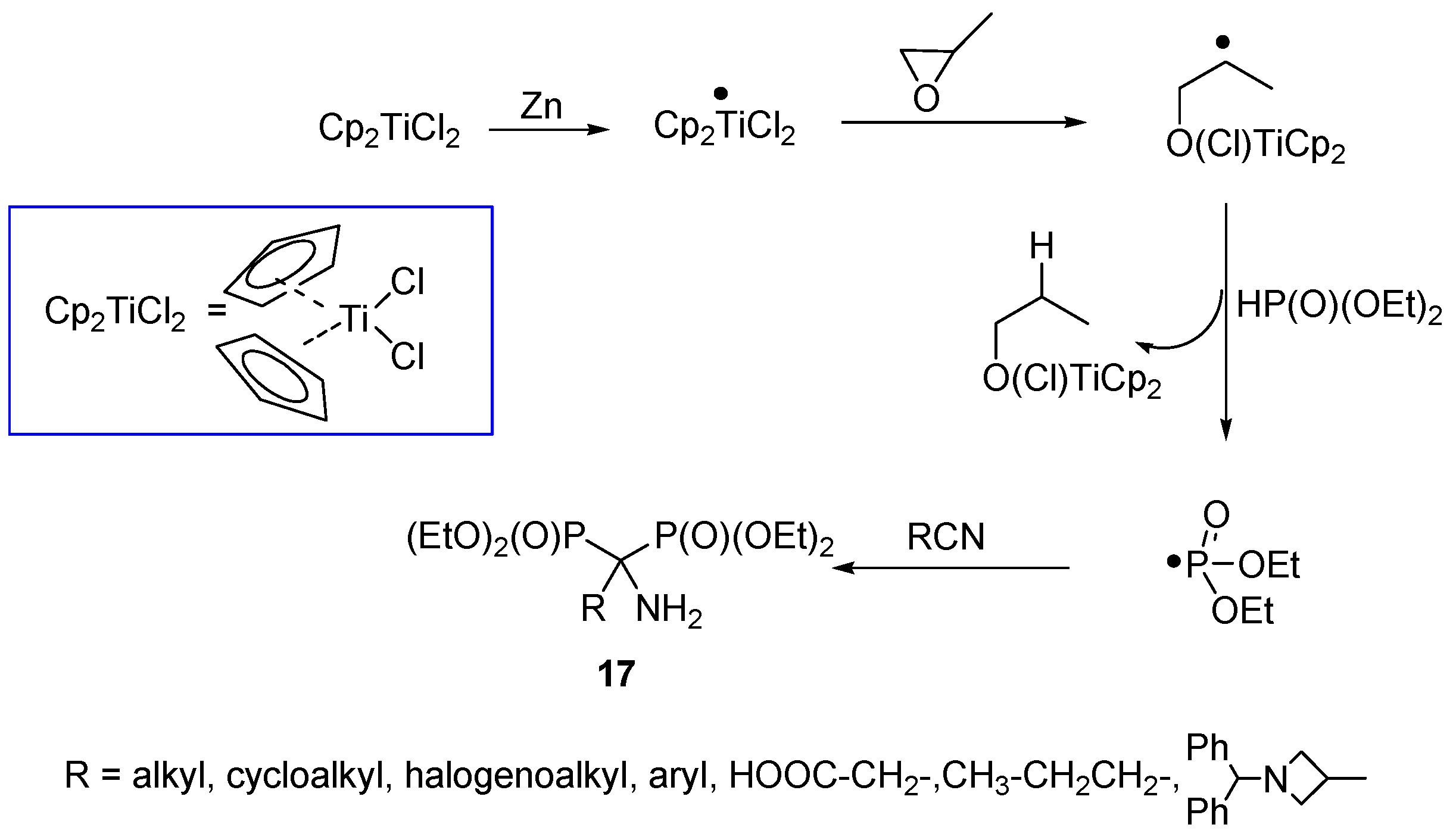

Recently, elegant, mild, and atom economical double phosphonylation of nitriles in the presence of titanocene has been described. This procedure used induced phosphorus-centered radicals mediated by titanocene dichloride (Cp2TiCl2) (Scheme 10) and provided a wide structural variety of aminobisphosphonates 17 [50]. This is a double radical transfer reaction initiated by the reaction of titanocene with zinc dust and the transfer of the obtained radical to epoxypropane by cleavage of its oxirane ring, followed by transfer of this radical to diethyl phosphite, which in turn reacts with nitrile (Scheme 10). The reaction carried out without epoxide, under microwave stimulation, also results in the desired bisphosphonates, although it is accompanied by formation of many side products.

2.4. Synthesis from Isonitriles

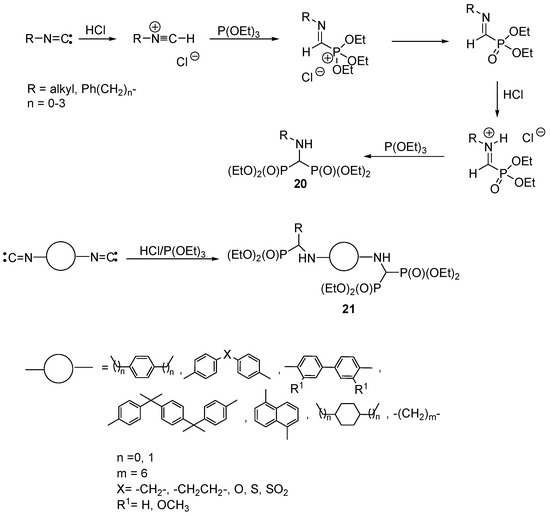

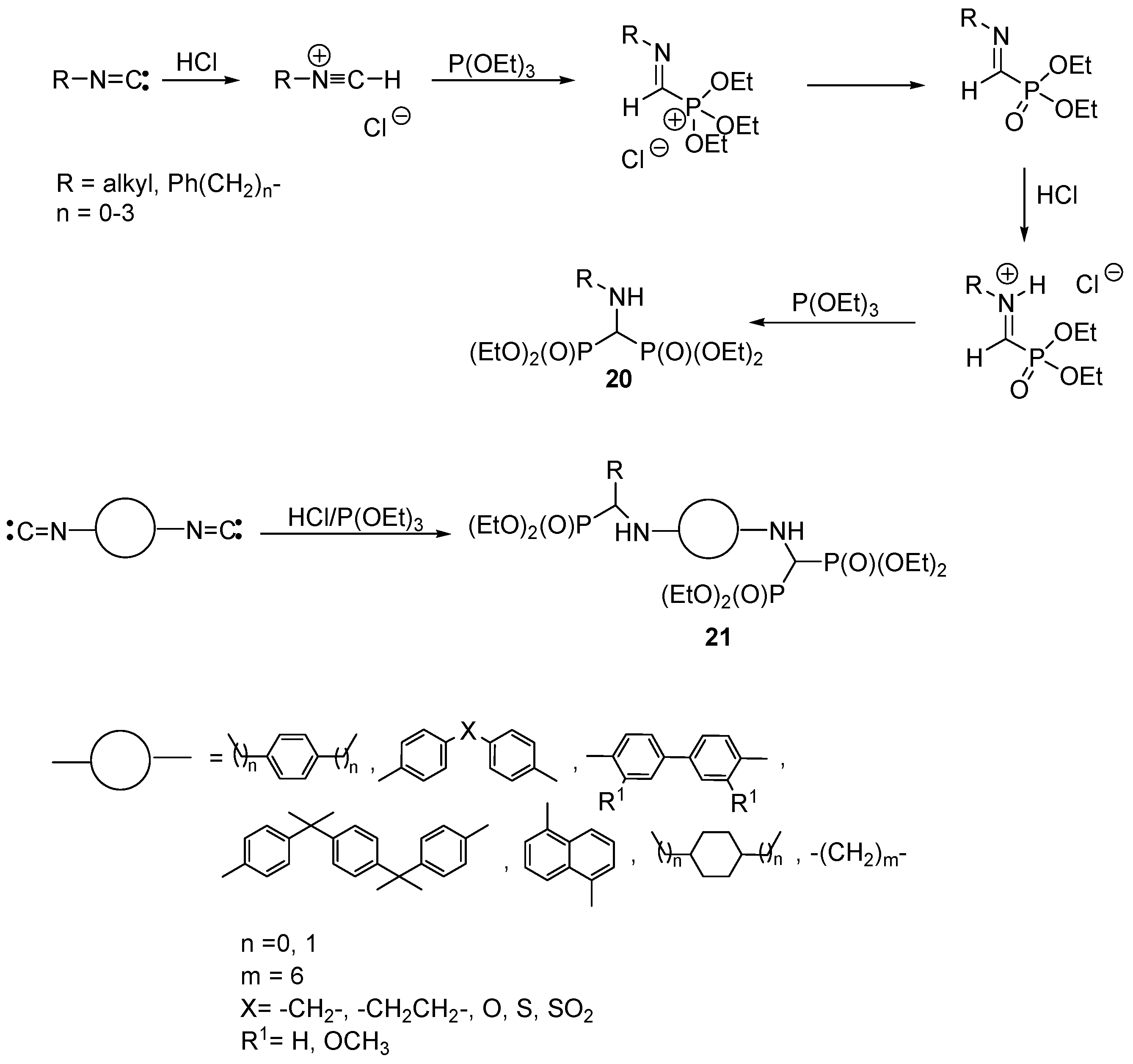

Isonitriles, which are quite common substrates, especially in multicomponent reactions [51], have been seldom used for the preparation of aminobisphosphonates 18. Their reactions with H-phosphine oxides carried out in the presence of typical palladium catalysts (Pd2dba3) afforded the product 19 of monophosphonylation, whereas the use of various rhodium catalysts afforded products of diphosphonylation (Scheme 11) [52].
Far simpler is the addition of diethyl phosphite to isonitriles. This reaction is carried out with an excess of hydrogen chloride in aprotic solvents. Under these conditions, nitrile is converted to an onium salt, and after addition of the first phosphite molecule, iminium salt is formed, a substrate for the addition of a second phosphite molecule (Scheme 12) [53]. Using this procedure, two distinct libraries of bisphosphonates 20 and 21 have been prepared [54,55,56].

2.5. Synthesis via Ketophosphonates

Presumably, the addition of phosphites to ketophosphonates was the first procedure for preparation of dialkyl 1-hydroxy-1,1-bisphosphonates [16,19,57]. Starting ketophosphonates are obtained by the Arbuzov reaction of acyl chlorides with trialkyl phosphites and used as substrates in the next step, namely, the addition of dialkyl phosphite to carbonyl double bonds (a representative example for preparation of tetramethyl pamidronate 22 is shown in Scheme 13). Since ketophosphonates are unstable species [58], the desired bisphosphonates are usually obtained via one-pot procedures applying mixtures of trialkyl- and dialkylphosphonates at elevated temperature [59]. Additionally, in situ generation of dialkyl- from trialkyl phosphites is possible by the addition of a protic solvent to the reaction mixture. A useful modification of this procedure is the application of tris(trimethylsilyl) phosphite, followed by the easy removal of ester groups by methanolysis [23,60,61]. This was used to prepare a wide variety of 1-hydroxy-1,1-bisphosphonates containing amino groups [19,23,61,62,63]. Additionally, the use of bis((trimethylsilyl)oxy)phosphine generated from ammonium hypophosphite was applied to prepare hydroxybisphosphinic acids (also presented in Scheme 13) [64]. Another modification was the use of acyl phosphonamidates readily prepared from phosphoramidite type reagents and a range of acid chlorides, followed by reaction with trimethyl phosphite in the presence of pyridinium perchlorate [65].
Recently, a one-pot synthesis was described reacting carboxylic acids with catecholborane, followed by the treatment of the formed acyloxy-benzodioxaborolane with tris(trimethylsilyl)phosphite (Scheme 13) [66]. The efficiency of that simple methodology was proved by the syntheses of alendronate and N-methyl pamidronate (compound 23) without additional steps for the protection/deprotection of their amine functions.

2.6. Three-Component Condensation of Amines with Triethyl Orthoformate and Diethylphosphite

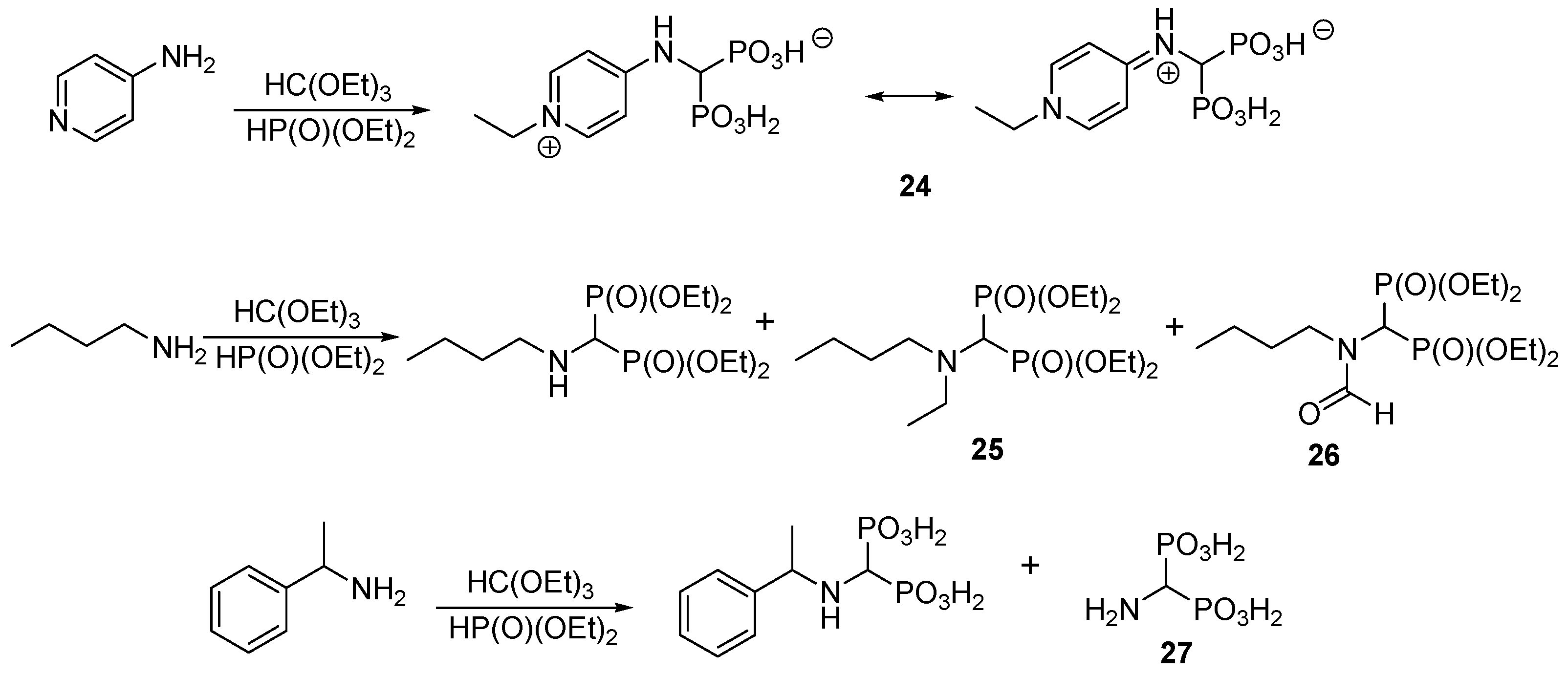

Simple three-component condensation of stoichiometric ratios of amines, diethyl phosphite and triethyl orthoformate, first reported in patent literature by Suzuki [67] and further extended by Maier [68], is perhaps the most common procedure for the preparation of a wide variety of aminomethylenebisphosphonic acids (Scheme 14). Since this reaction usually gives a complex mixture of products [56] that are difficult to separate, the resulting esters are not isolated but rather, the crude reaction mixtures are hydrolyzed, yielding bisphosphonic acids that are isolated after the hydrolytic step. Some modifications of this classic procedure have also been reported. They include the use of a solvent-free, microwave-assisted reaction [69,70,71] and reactions catalyzed by titanium dioxide [72] and by crown ethers (increasing the selectivity of the process by 10%–20%) [73]. Additionally, a reaction carried out in a micellar environment was described [74].
The three-component reaction was applied to synthesize a large series of physiologically active compounds, in some cases of very complex chemical structures, including bone antiresorptive drug candidates [75,76,77,78,79,80,81,82]; bone imaging [83,84], antiprotozoal [85,86,87,88], antibacterial [72,89,90,91,92], anti-HIV [93] and anti-inflammatory [94] agents; herbicides [95,96,97]; and complex ones for various metals [10,98].
In some cases, this reaction appears to be quite capricious and affords unexpected side-products along with the expected aminomethylenebisphosphonates (see representative examples in Scheme 15), the compositions of which are dependent on the applied conditions (molar ratio of substrates, temperature and reaction time). Most often, alkylation (for example, compounds 24 and 25) or formylation (compound 26) of amine moieties is observed [71,99], while in selected cases the formation of aminomethylenebisphosphonic acid (compound 27) is observed. Because this compound was previously prepared by acid hydrolysis of N-benzhydrylaminomethylenebisphosphonic acid [83,100], it may be that it is formed upon hydrolysis of N-aryl derivatives.

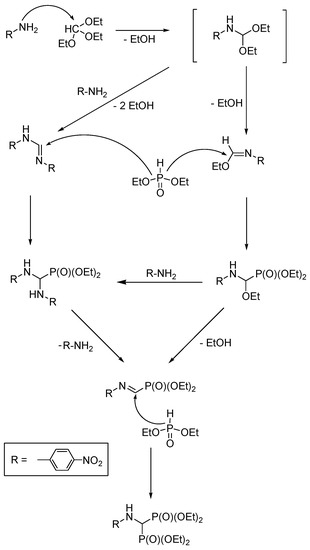

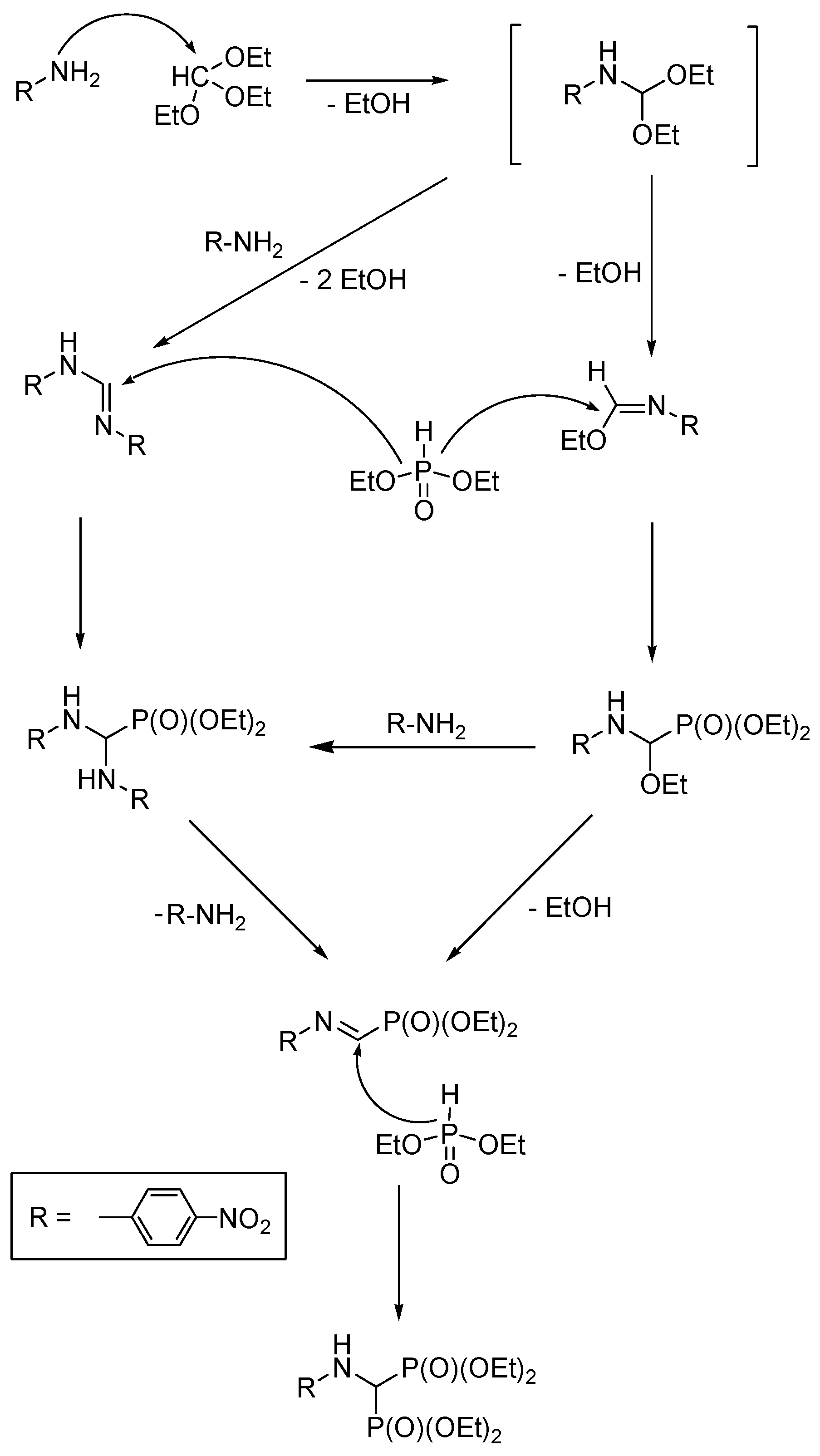

The mechanism of this useful reaction had been thoroughly studied by using 31P-NMR and by isolation of all intermediates [71,72,99] and identifying interrelations between them (Scheme 16) [99]. The mechanism appeared to be quite complex because the intermediates exist in thermodynamic equilibrium. Thus, its course is strongly dependent on the properties of the used amine and applied reaction conditions.

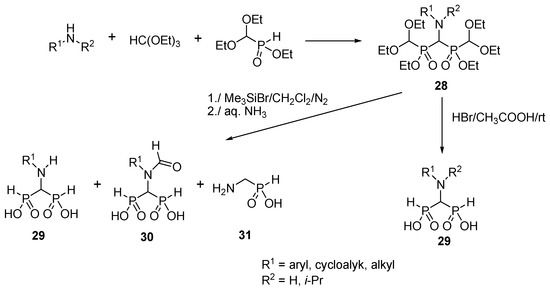

Modification of this procedure and the use of ethyl diethoxymethyl-H-phosphinate instead of diethyl phosphite allowed obtaining structurally variable bisphosphinates 28 (Scheme 17) [101]. Better results were obtained if the reaction was carried out under nitrogen (air oxidizes substrates and products). Notably, aromatic amines provided the desired bisphosphinates in high yields (78%–92%), whereas the reaction yields when using cyclic and aliphatic derivatives were lower. Interestingly, of many methods for the synthesis of corresponding acids 29, acidolysis of the obtained esters 28 appeared to be optimal. The use of other conditions, including mild transesterification with trimethylsilyl bromide followed by methanolysis, resulted in the formation of side products 30 and 31.

2.7. Addition of Amines to Vinylidenebisphosphonates

Tetraethyl vinylidenebisphosphonate 32 is a versatile synthon useful for preparation of a wide variety of bisphosphonates. Its usefulness is a subject of recent comprehensive review [102]. As an electron-deficient alkene, it can undergo conjugate addition of strong and mild nucleophiles, with amines belonging to the latter class. Primary amines undergo smooth Michael addition (Scheme 18), however, the obtained compounds 33 must be quickly purified and hydrolyzed since they tend to undergo a retro-Michael reaction [103,104]. Fortunately, free acids 34 are substantially more stable.
The reactivity of vinylidenebisphosphonates has been used for the synthesis of derivatives of various analogues of fluoroquinolone antibacterial agents [105,106], heteroaromatics with potential pharmaceutical applications [107,108], simple antiplasmodial agents [103,104], HIV reverse transcriptase inhibitors [59,93], potential anti-osteoporotic agents [109,110], and N-alkylated antitumor pyridines [111]. Some representatives of these compounds (35–39) are shown in Scheme 19.
Another example, albeit far less developed, is the addition of organometallic amines to vinylidenebisphosphonate 22 (Scheme 20) [112]. Huisgen copper-catalyzed 1,3-dipolar cycloaddition of this bisphosphonate to azides was used to obtain substrate 40 for a “click reaction”. This reaction yielded compounds that may be considered aza-analogues 41 of zoledronate (Scheme 20) [113]. Similar substrates could also be obtained by addition of propargylamine to the double bond of vinylidenebisphosphonate [114].

2.8. Miscellaneous Procedures

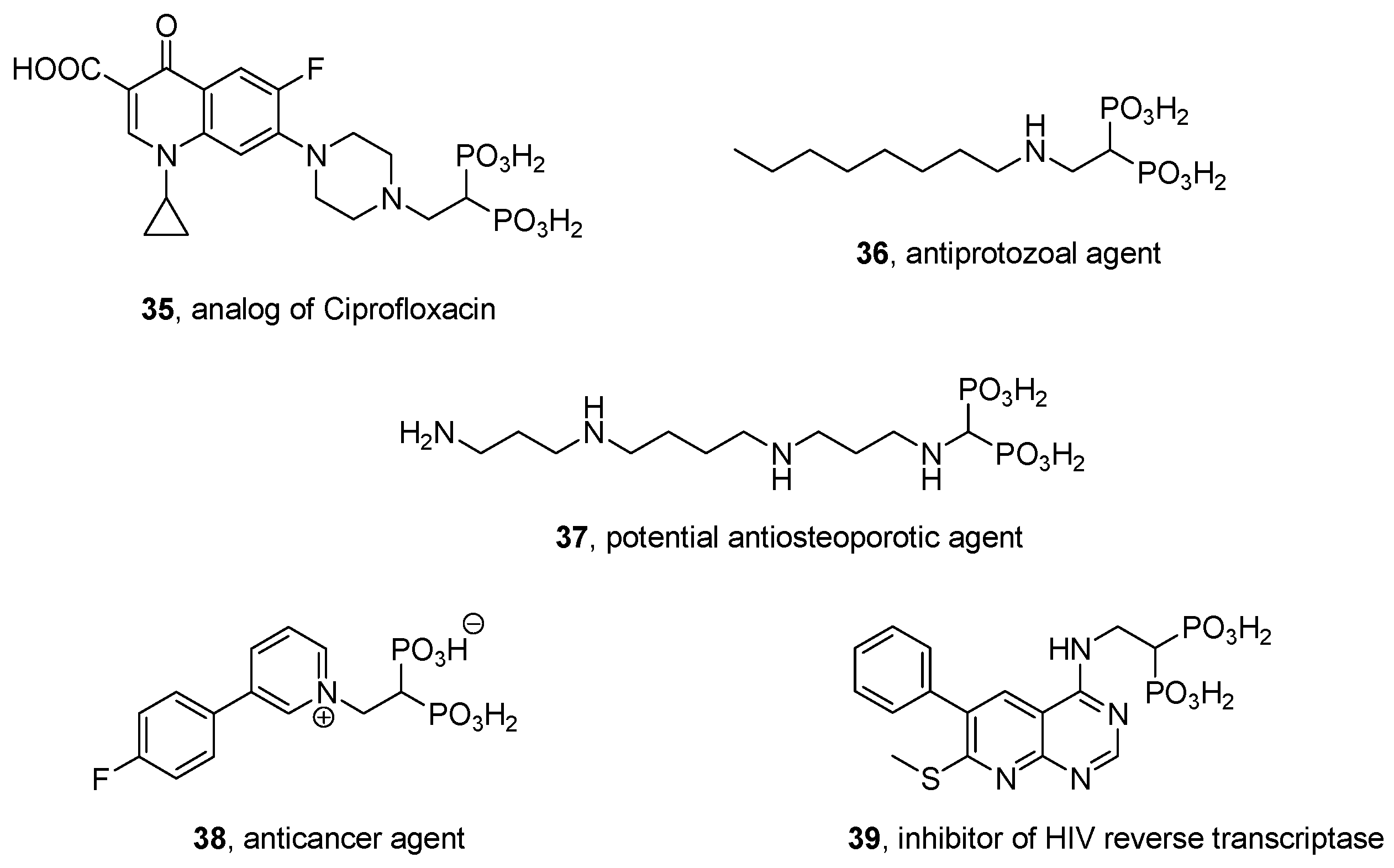

The desire to obtain new aminobisphosphonate scaffolds for biological studies has stimulated numerous studies on general methods of their synthesis. The methods discussed here are mostly designed to prepare specific scaffolds or are applicable only to specific, if not unusual, substrates. Only some of them may be considered as novel, general procedures.

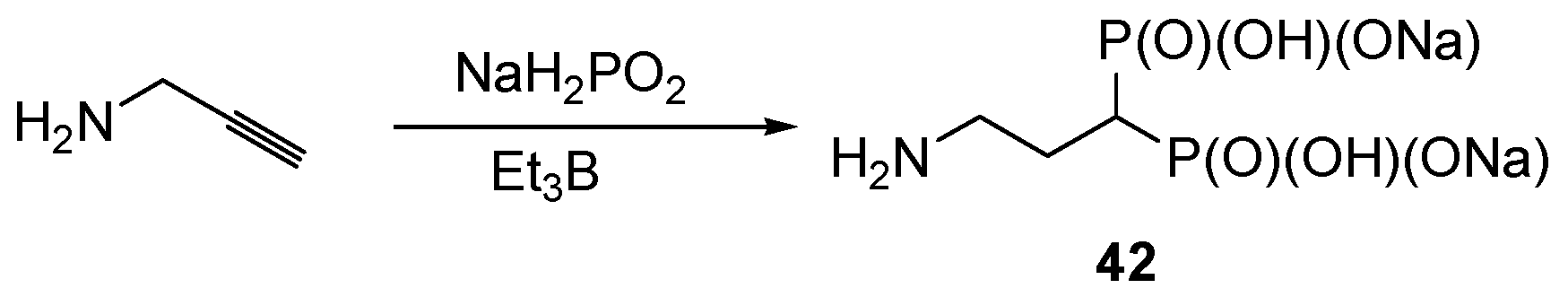

Radical addition of sodium hypophosphite to terminal alkynes in the presence of triethylborane, which produced 1-alkyl-1,1-bis-H-phosphinates in moderate yields, gives access to a wide structural variety of bisphosphonates [115]. When using propargylamino acids, the corresponding bisphosphinates were obtained in satisfactory yields (a representative example is given in Scheme 21 for analogue 42 of pamidronate). Bisphosphinates are easily converted to bisphosphonates by ozonolysis.

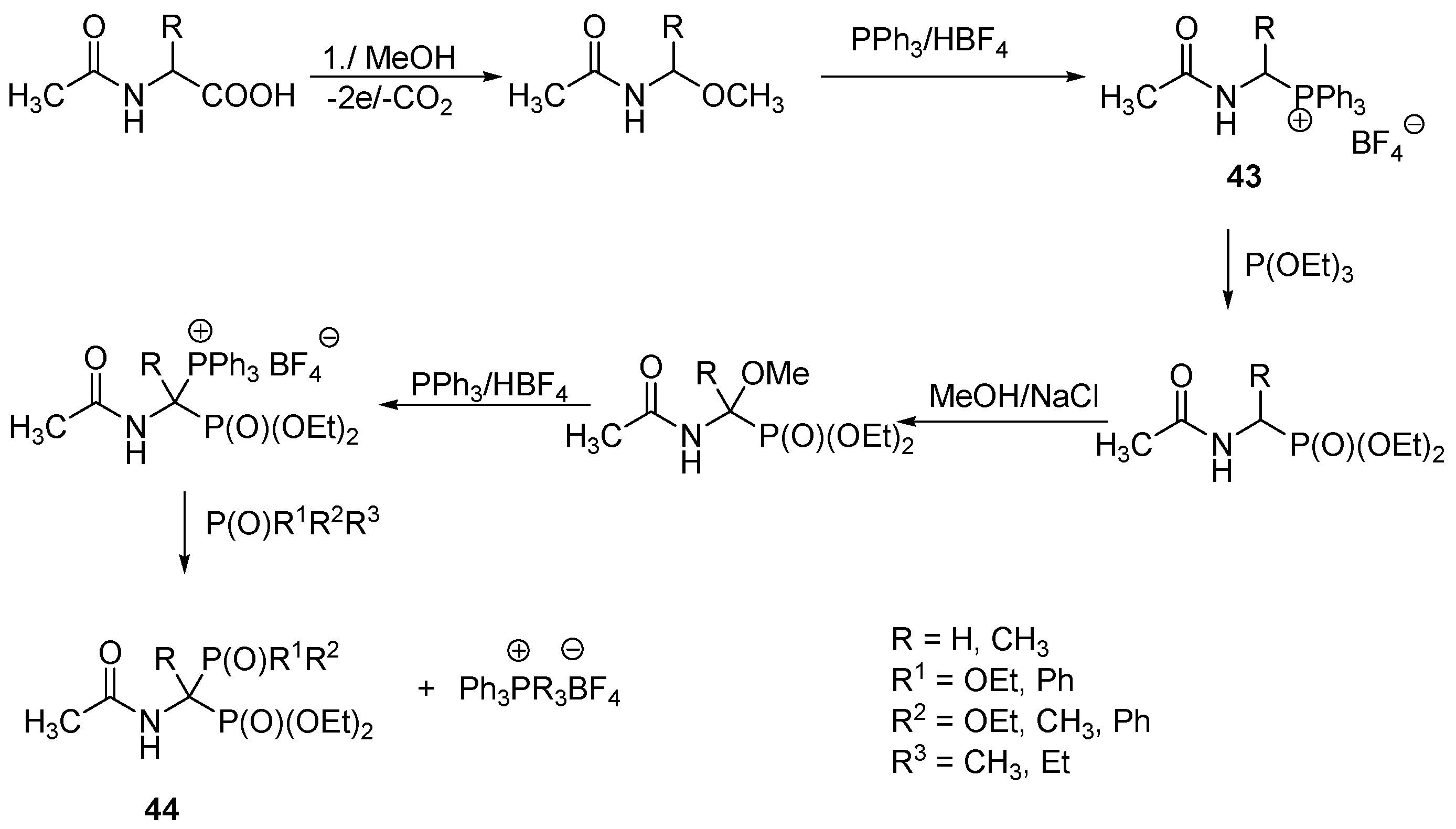

1-(N-acylamino)alkylphosphonates, easily accessible from N-acyl-α-amino acids using a two-step transformation, underwent electrophilic activation at the α-carbon by electrochemical α-methoxylation in methanol in a process mediated by NaCl. Attempts to carry out a Michaelis-Arbuzov-like reaction of the obtained diethyl 1-(N-acetylamino)-1-methoxy-alkylphosphonates with triethyl phosphite failed; however, they readily reacted with triphenylphosphine (Scheme 22) [116]. The resulting diethyl 1-(N-acetylamino)-1-triphenylphosphoniumalkylphosphonate tetrafluoroborates 43 reacted smoothly with trialkyl phosphites, dialkyl phosphonites or alkyl phosphinites in the presence of Hünig’s base and methyltriphenylphosphonium iodide as catalysts. This gave bisphosphonates 44, 1-phosphinylalkylphosphonates or 1-phosphinoylalkylphosphonates in good yields. This reaction has potential to become a general procedure.

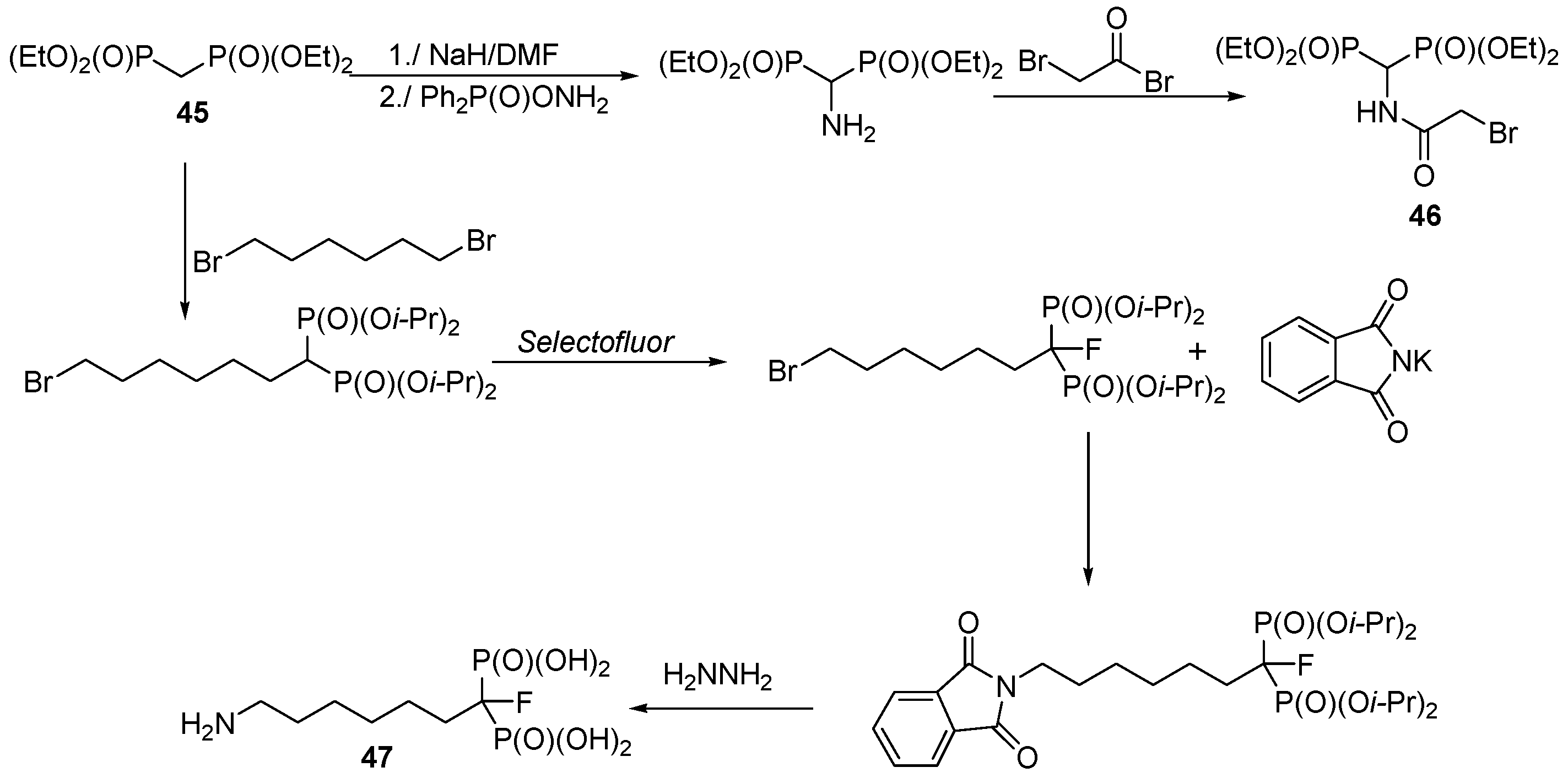

Alkylation of tetraalkyl methylenebisphosphonate 45, a classical method for synthesizing variable bisphosphonic acids, has been rarely used for the synthesis of amino derivatives. Thus, its direct amination with the hydroxylamine ester of diphenylphosphinic acid, followed by its bromoacetylation (Scheme 23), provided substrate 46 for functionalization into glycopeptide antibiotics, in the hope that they will find an application as medication for osteomyelitis [117]. Another classical example is the monoalkylation of tetraisopropyl methylenebisphosphonate with 1,6-dibromohexane, followed by fluorination with Selectofluor and conversion of the remaining bromide into amine, which resulted in compound 47 (Scheme 23) [118].
An unusual procedure is metallacarbenoid insertion of aromatic amines into tetraethyl diphosphonodiazomethane 48, which yields corresponding aminomethylenebisphosphonates 49 (Scheme 24) [119]. Among the tested catalysts, Rh2(NHCOCF3)4 was found to be the best.

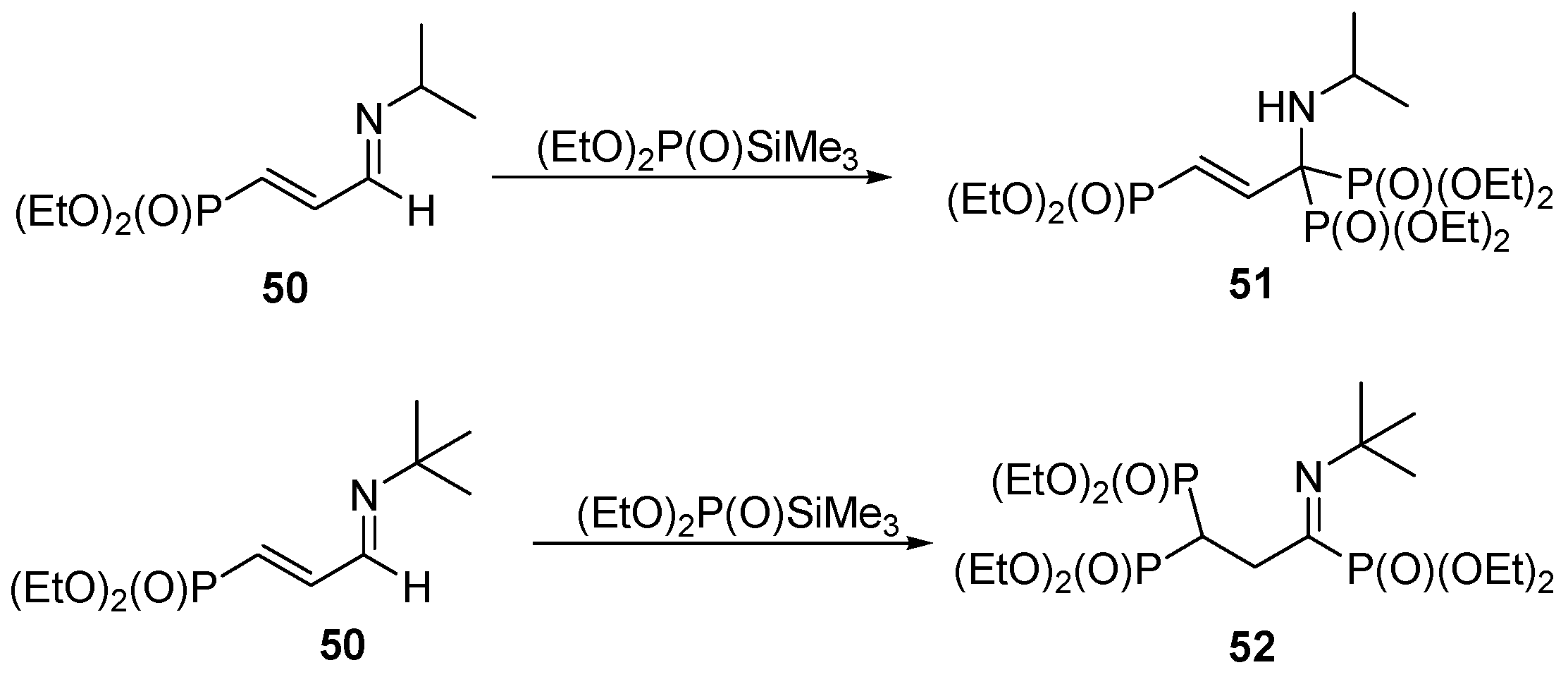

A specific and unexpected reaction was the addition of silylated dialkyl phosphites to 4-phosphono-1-aza-1,3-dienes 50, which resulted in γ-phosphono-α–aminobisphosphonates 51 (Scheme 25) [120]. This reaction is interesting in that, depending on the steric demand of the substituent present on nitrogen, double 1,2-addition or tandem 1,4-1,2-addition with formation of bisphosphonate 52 occurred (Scheme 25).

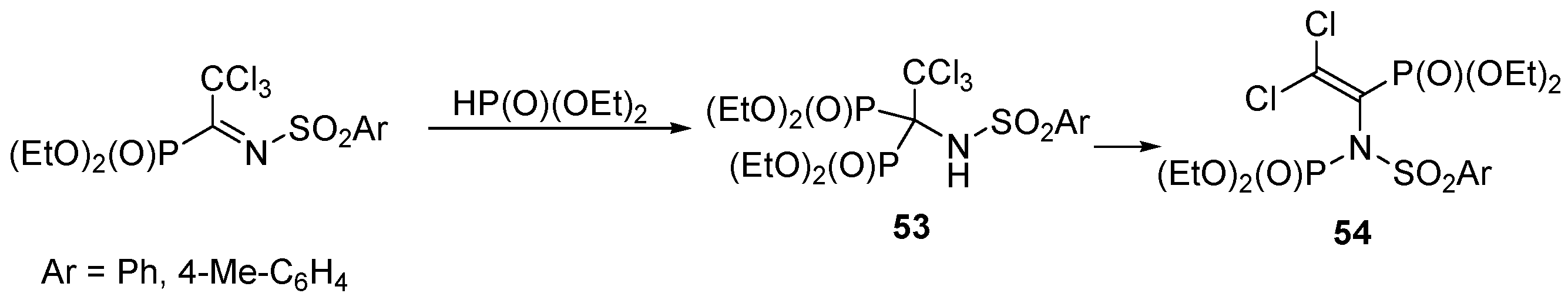

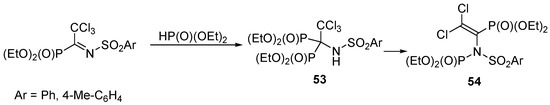

Additionally, the addition of phosphites to iminophosphonate esters has been studied. This reaction is limited to specific substrates, and usually the obtained bisphosphonates 53 are unstable, and phosphoryl C-N transfer to compounds 54 is observed (Scheme 26), which may be considered an example of an aza-Perkov reaction [121,122,123].
Finally, syntheses of rare aminomethyltrisphosphonates are presented in a recent review by Romanenko and Kukhar devoted to applications of methylidynetrisphosphonates [124]. Two procedures for the synthesis of bis- and trisphosphonates 55 and 56 taken from this review and described in patent literature are depicted in Scheme 27.

3. Functionalization of Aminobisphosphonates

Bisphosphonates are known for their affinity to bone tissue, and thus their conjugation to various drugs has been quite intensively studied; they are expected to serve as system-targeting drugs [6]. Because dronic acids are produced at industrial scale and are thus readily available and inexpensive, they are most frequently used for that purpose. However, their extreme hydrophilic character means that they are practically insoluble in most organic solvents, which limits the use of aqueous media or requires their conversion into phosphonate esters prior to functionalization. Unfortunately, the methods for direct esterification of phosphonate moieties are scarce and usually give unsatisfactory results; these esters must generally be synthesized independently.
Methods for functionalizing aminobisphosphonic acids with structurally variable molecules were recently reviewed [12]; therefore, in this review, the methods arbitrarily chosen as the most representative are reported.

3.1. Direct Acylation of Aminobisphosphonic Acids

Direct acylation of aminobisphosphonic acids is difficult because this reaction is accompanied by the possible competitive acylation of phosphonic groups [125,126] and hydroxylic groups when amino-1-hydroxy-1,1-bisphosphonic acids are substrates [126,127]. A representative example of this reaction is given in Scheme 28 for alendronic acid 57.

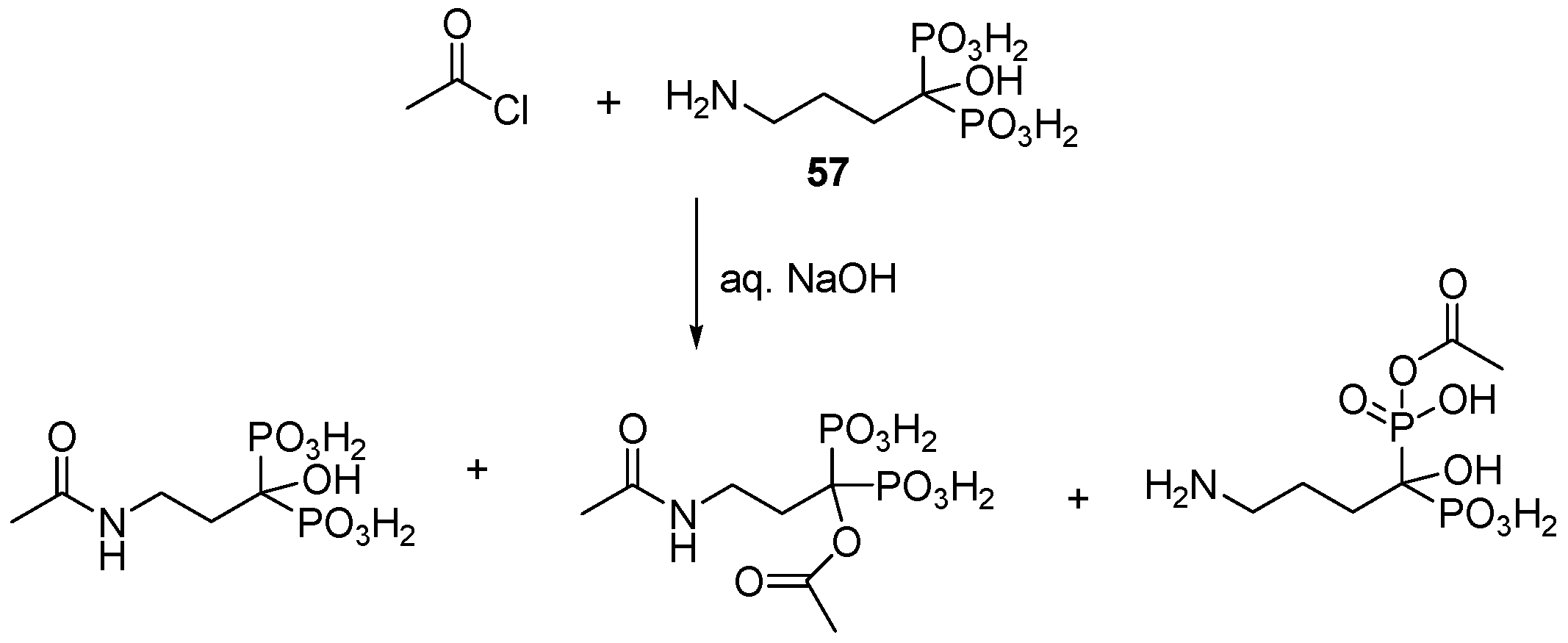

Acylation of dronic acid salts with acyl chlorides in sodium hydroxide in water or in water/propanol solutions is the simple Schotten-Baumann variant [127,128]. Acidification of the solution results in the precipitation of the desired acids or their monosodium salts. To conjugate aminobisphosphonic acids with molecules bearing carboxylic groups, classical coupling protocols used in peptide synthesis have also been used. These include the activation of carboxylic groups with N,N’-dicyclohexylcarbodiimide (DCC) [129,130]; the use of previously prepared succinimidate esters to obtain 21 extremely complex fluorescent imaging probes (representative examples of a green fluorescent dye 58 and a red fluorescent dye 59 are shown in Scheme 29) [131]; and N,N’-dicarbonylimidazole, which was used to conjugate pamidronate to pullan (polysaccharide composed of maltotriose units) [132] to obtain a system for bone regeneration.
Acylation of aminobisphosphonic acids with small acids, such as acrylic acid [133], chloroacetic acid [134] or succinic acid [135], provided useful substrates for further functionalization of larger molecules, such as macrocycles devised for lanthanide ion complexation, chitosan, and hyaluronan.

3.2. Direct Acylation of Tetraethyl Aminobisphosphonates

Esters are far more suitable substrates for acylation than free phosphonic acids, with tetraethyl aminomethylenebisphosphonate being the most popular substrate. It has been used to obtain structurally variable conjugates with estradiol (compounds 60, 61 and 62 in Scheme 30) using classical peptide synthesis coupling agents such as DCC and DPPA (diphenylphosphoryl azide) [136]. These conjugates were synthesized as bone-specific estrogens in the hope that they will protect elderly women from bone loss resulting from osteoporosis.

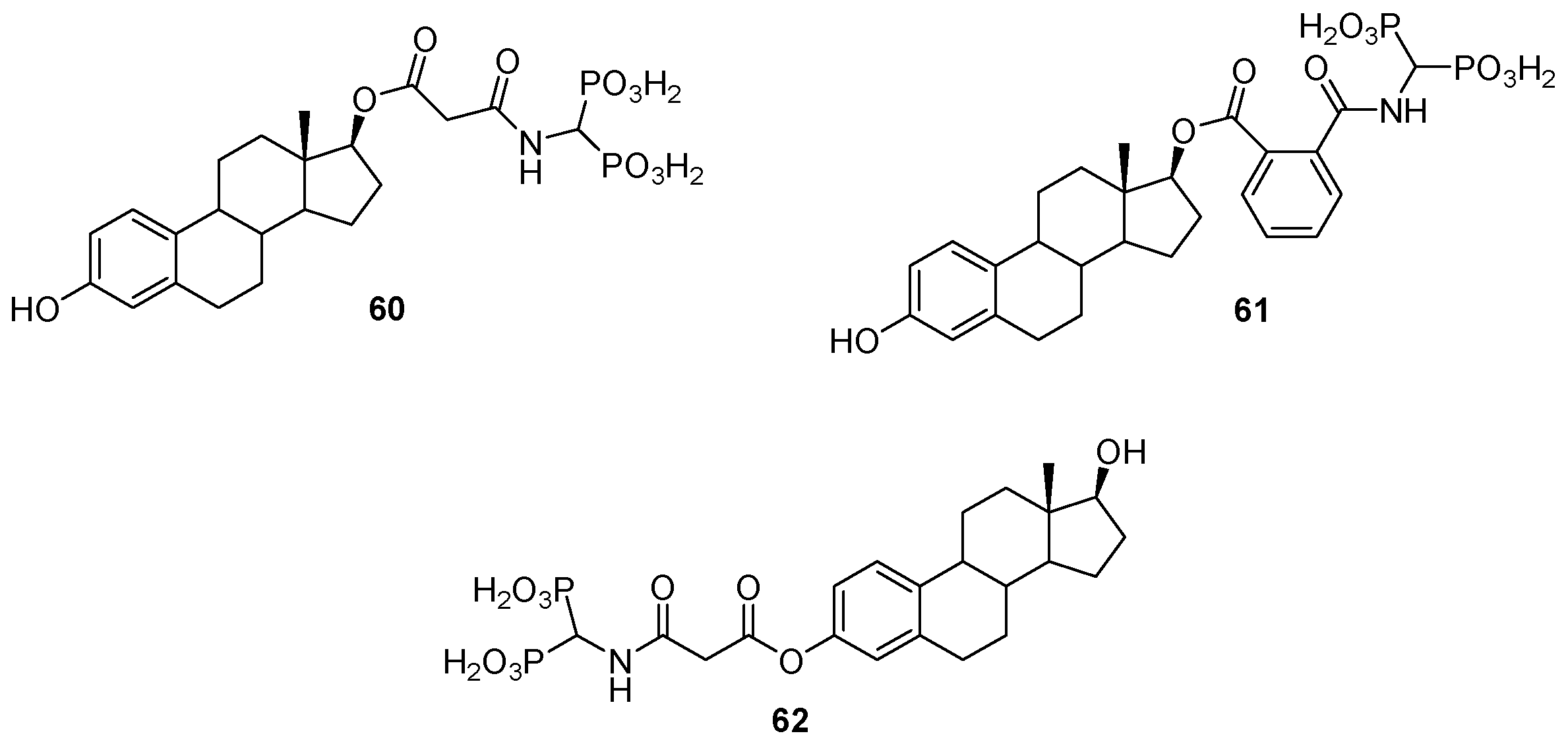

A derivative of raloxifene, a selective estrogen receptor or modulator, was obtained using a suitable acid chloride as substrate [137], whereas radioligands, which are selectively bound to bone tissue, have been synthesized by using DCC/HOBt (hydroxybenzotriazol) activation [138] and antibacterial bisphosphonated benzoxazinorifamycin prodrugs using EDCl (1-ethyl-3-(3-dimethylaminopropyl)carbodiimide) [139].
In this case, acylation of aminobisphosphonic acids with small acids was also applied as a starting step to produce antibacterial agents against osteomyelitis [88] and bone imaging macrocycles [81], using acid chlorides as acylating agents.
Using DCC as a coupling agent, diethyl 1-(2-aminoethylamino)-1,1-ethylbisphosphonate was acylated by structurally variable natural acids, such as folic acid [140,141], ursulonic and betulinic acids [142], and trolox [141,143].

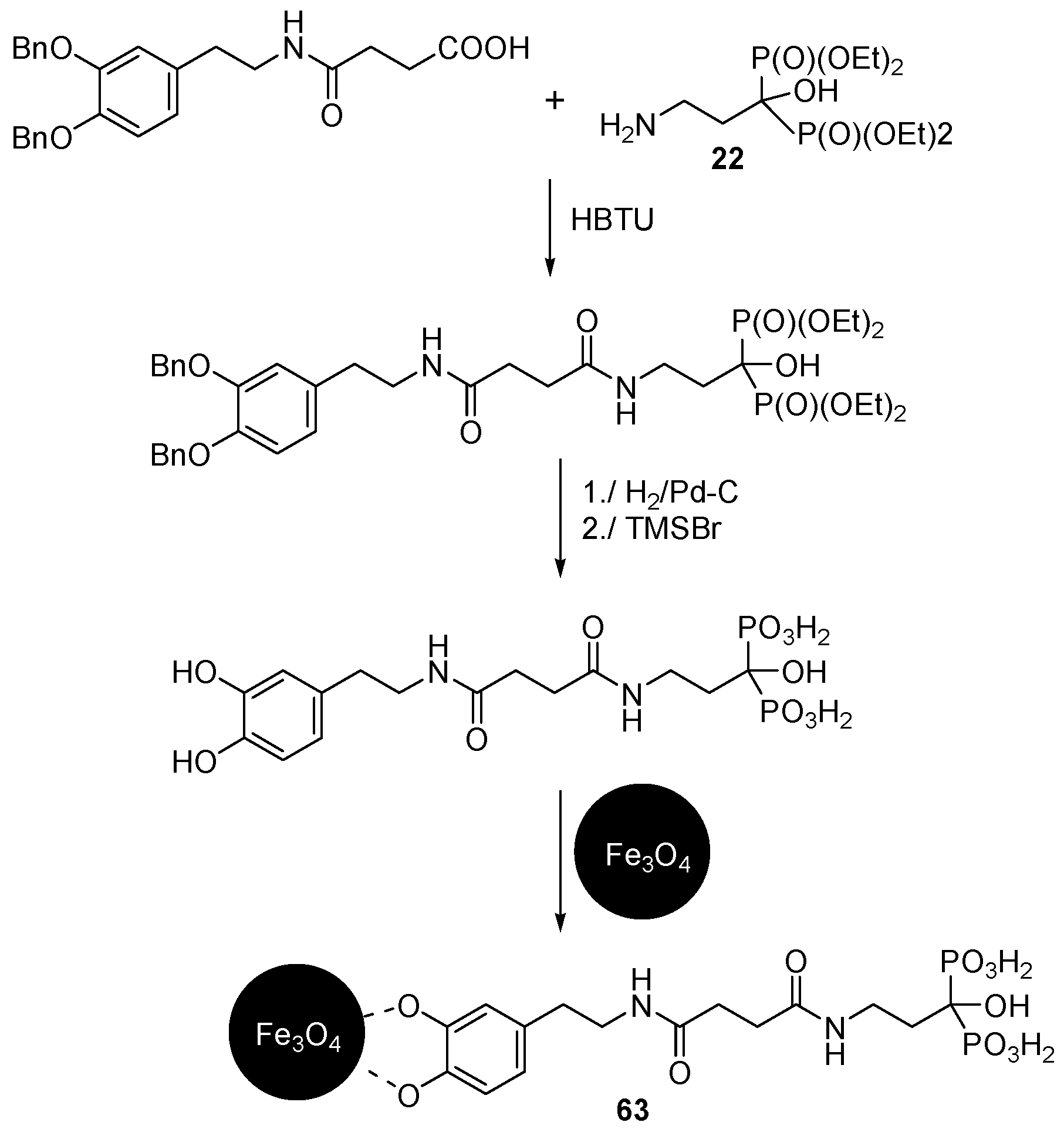

Acylation of pamidronic acid ester 22 by using HBTU (2-(1H-benzotriazol-1-yl)-1,1,3,3-tetramethyluronium hexafluorophosphate) was used to prepare a catecholic derivative, which was then bound to the surface of magnetic iron oxide nanoparticles (Scheme 31) [144]. The particle 63 has been designed to remove uranyl ions from blood.

3.3. Synthesis of Building Blocks for Polymer Chemistry

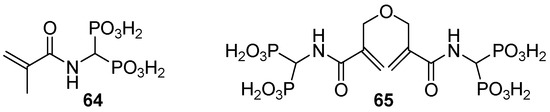

Self-etching adhesives are polymeric materials containing phosphonate groups that have become popular in restorative dentistry because they allow strong bonds between dental hard tissues (enamel and dentin). One possibility for their preparation is to obtain monomers containing phosphonic groups [145]. Such methacrylamide monomers 64 and 65 were synthesized by acylation with suitable acryloylchlorides (Scheme 32) [146]. Studies of their photopolymerization indicated that they may be suitable for potential use in dentistry.
A similar monomer, acryloylated pamidronate, has been used to obtain a hyaluronic acid derivative that is dually polymerized with cross-linkable hydrazide groups and bisphosphonate ligands. By mixing bisphosphonate polymer with calcium ions and aldehyde-derivatized hyaluronic acid, a hybrid hydrogel was obtained, which quickly mineralizes [147]. Such a system is of interest as a mediator for fast bone regeneration.

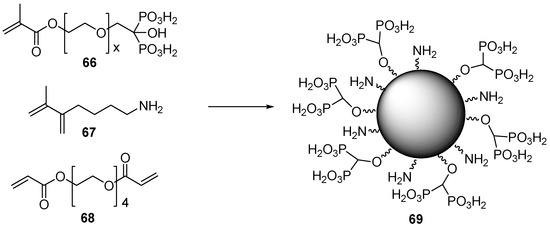

By dispersion copolymerization of three monomers (methacrylate bisphosphonate 66, N-(3-aminopropyl) methacrylamide 67, and tetra(ethylene glycol) diacrylate 68) (Scheme 33), polymeric nanoparticles 69 were obtained [148]. Their size distribution was controlled by changing various polymerization parameters. By covalent attachment of a drug and/or a dye to amino groups (such as a near IR fluorescent dye), a theranostic system may be obtained.
Macromolecular co-conjugates of bisphosphonate and ferrocene were synthesized by means of Michael addition copolymerization of methylenebisacrylamide (MBA) with primary amines-6-amino-1-hydroxyhexylidene-1,1-bisphosphonate and 4-ferrocenyl-butamidopropylamine [149]. The mass percentage incorporation of ferrocene analogues was found to be between 4%–5%, and 10%–12% for bisphosphonate. Such polymers could be selectively bound to bone tissue and slowly release anticancer ferrocene derivatives at this target site.

3.4. Miscellaneous

Other means to functionalize amino moieties are quite scarce and dispersed. Classical ones include the formation of Schiff bases, which are then alkylated [150] or reduced [126], and synthesis of thioureido derivatives as intermediates in the preparation of heterocyclic compounds [151,152,153].

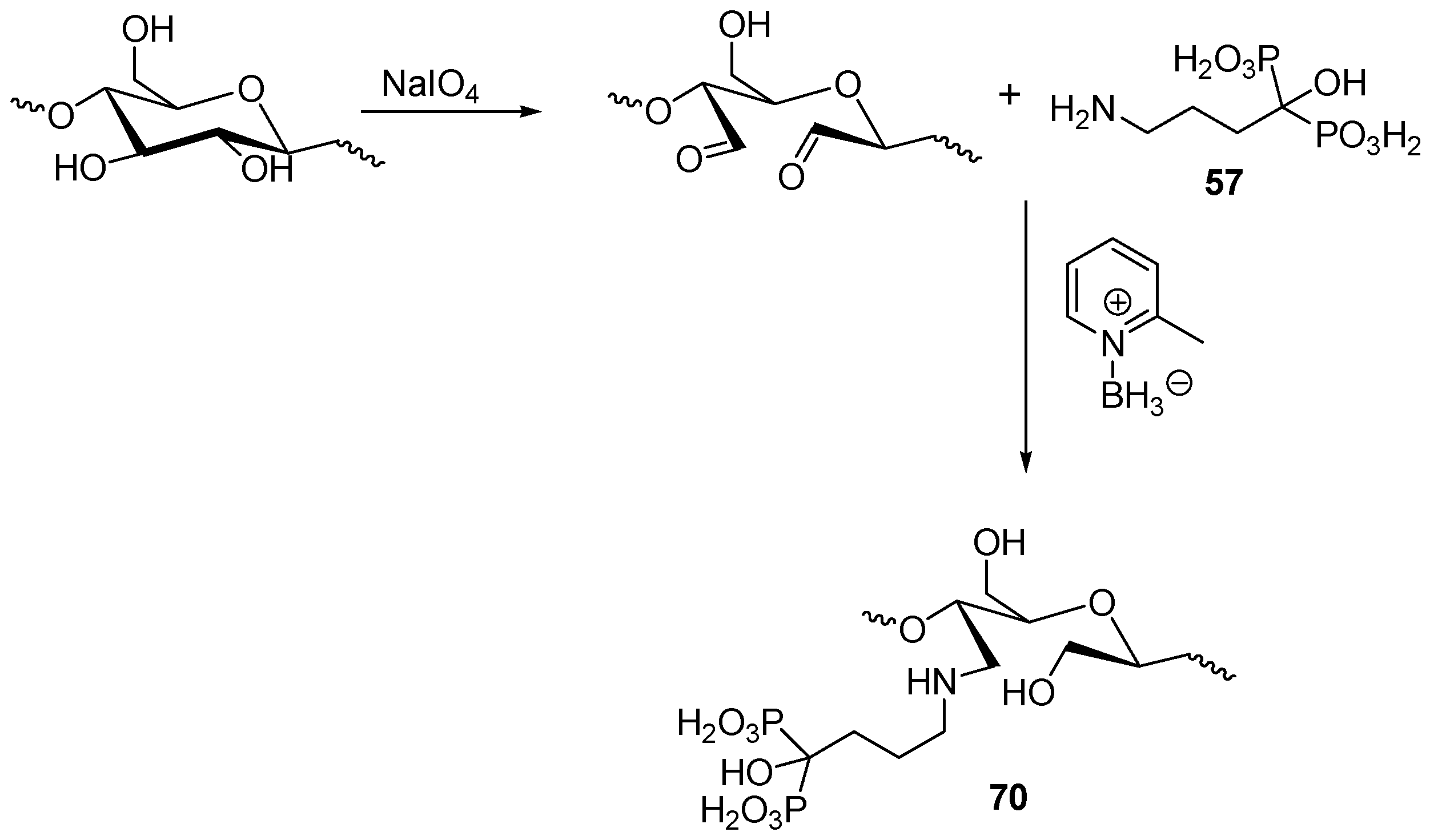

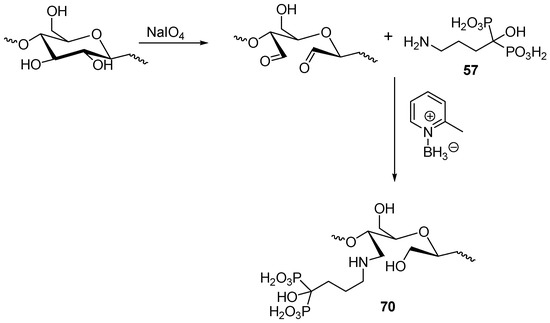

The functionalization of polysaccharides is the gateway of aminobisphosphonates into nanoscience. For example, phosphonated cellulose was utilized to obtain nanocellulose with good thermal stability and potential intumescent properties. It was synthesized from birch pulp via sequential periodate oxidation and reductive amination using alendronate 57 as a phosphonating reagent (Scheme 34) [154]. After high-pressure homogenization, bisphosphonate cellulose nanofibers or nanocrystals of the general formula 70 were obtained, depending on the initial oxidation degree.
Alendronate was also bound to conjugates of pullulan and paclitaxel, which were bound to the polysaccharide by a cathepsin K-sensitive tetrapeptide spacer. This should ensure release of paclitaxel in bones. Then, bisphosphonate was covalently conjugated to the sugar chain via a polyethyleneglycol chain, using a technique similar to that described above (identical to those shown in Scheme 34) [155]. This system exhibited strong antiproliferative action against several cancer cell lines.

4. Conclusions

Aminobisphosphonic acids are gaining significant interest as a class of compounds with promising physiologic activity, with some representatives already commercialized as bone resorption inhibitors, and therefore useful drugs against osteoporosis and related bone disorders. This leads to both the modification of existing and the elaboration of novel procedures for their preparation. There are several commonly used reactions for this purpose; however, they have also been modified in the last decade to be tailored to specific biological needs. A few novel procedures have also been developed. Functionalization of simple aminobisphosphonic acids is a difficult task because of their strongly polar character. However, successful examples of functionalization of the amino moieties of these compounds have provided promising diagnostics and novel therapeutic agents.

Acknowledgments

This work was supported by a statuary activity subsidy from the Polish Ministry of Science and Higher Education.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Turhanen, P.A. Synthesis of triple bond containing 1-hydroxy-1,1-bisphosphonic acid derivatives to be used as precursors in “click” chemistry: Two examples. J. Org. Chem. 2014, 79, 6330–6335. [Google Scholar] [CrossRef] [PubMed]
  2. Russell, R.G. Bisphosphonates: The first 40 years. Bone 2011, 49, 2–19. [Google Scholar] [CrossRef] [PubMed]
  3. Ebetino, F.H.; Hogan, A.M.; Sun, S.; Tsuompra, M.K.; Duan, X.; Triffitt, J.T.; Kwaasi, A.A.; Dunford, J.E.; Barnett, B.L.; Oppermann, U.; et al. The relationship between the chemistry and biological activity of the bisphosphonates. Bone 2011, 49, 20–33. [Google Scholar] [CrossRef] [PubMed]
  4. Maraka, S.; Kennel, K.A. Bisphosphonates for the prevention and treatment of osteoporosis. Br. Med. J. 2015, 351, h3783. [Google Scholar] [CrossRef] [PubMed]
  5. Shi, C.G.; Zhang, Y.; Yuan, W. Efficacy of bisphosphonates on bone mineral density and fracture Rate in patients with osteogenesis imperfecta: A systematic review and meta-analysis. Am. J. Ther. 2016, 3, e894–e904. [Google Scholar] [CrossRef] [PubMed]
  6. Chmielewska, E.; Kafarski, P. Physiologic Activity of Bisphosphonates—Recent Advances. Open Pharm. Sci. J. 2016, 3, 56–78. [Google Scholar] [CrossRef]
  7. Demkowicz, S.; Rachoń, J.; Daśko, M.; Kozak, W. Selected organophosphorus compounds with biological activity. Applications in medicine. RSC Adv. 2016, 6, 7101–7112. [Google Scholar] [CrossRef]
  8. Studnik, H.; Liebsch, S.; Forlani, G.; Wieczorek, D.; Kafarski, P.; Lipok, J. Amino polyphosphonates—Chemical features and practical uses, environmental durability and biodegradation. New Biotechnol. 2015, 32, 1–6. [Google Scholar] [CrossRef] [PubMed]
  9. Turhanen, P.A.; Vepsäläinen, J.J.; Peräniemi, S. Advanced material and approach for metal ions removal from aqueous solutions. Sci. Rep. 2015, 5. [Google Scholar] [CrossRef] [PubMed]
  10. Gałęzowska, J.; Gumienna-Kontecka, E. Phosphonates, their complexes and bio-applications: A spectrum of surprising diversity. Coord. Chem. Rev. 2012, 256, 105–124. [Google Scholar] [CrossRef]
  11. Abdou, W.M.; Shaddy, A.A. The development of bisphosphonates for therapeutic uses, and bisphosphonate structure-activity consideration. Arch. Org. Chem. 2008, 2009, 143–182. [Google Scholar]
  12. Romaneneko, V.D.; Kukhar, V.A. 1-Amino-1,1-bisphosphonates. Fundamental syntheses and new developments. Arch. Org. Chem. 2012, 2012, 127–166. [Google Scholar]
  13. Petroianu, G.A. Pharmacist Theodor Salzer (1833–1900) and the discovery of bisphosphonates. Pharmazie 2011, 66, 804–807. [Google Scholar] [PubMed]
  14. Kieczykowski, G.R.; Jobson, R.B.; Melillo, D.G.; Reinhold, D.F.; Grenda, V.J.; Shinkai, I. Preparation of (4-amino-1-hydroxybutylidene)bisphosphonic acid sodium salt, MK-217 (alendronate sodium). An improved procedure for the preparation of 1-hydroxy-1,1-bisphosphonic acids. J. Org. Chem. 1995, 60, 8310–8312. [Google Scholar] [CrossRef]
  15. Teixeira, F.C.; Antunes, I.F.; Curto, M.J.M.; Neves, M.; Teixeira, A.P.S. Novel 1-hydroxy-1,1-bisphosphonates derived from indazole: Synthesis and characterization. Arch. Org. Chem. 2009, 2009, 69–84. [Google Scholar]
  16. Yanvarev, D.V.; Koovina, A.N.; Usanov, N.N.; Kochetkov, S.N. Non-hydrolysable analogues of inorganic pyrophosphate as inhibitors of Hepatitis C virus RNA-dependent RNA polymerase. Russ. J. Bioorg. Chem. 2012, 38, 224–229. [Google Scholar] [CrossRef]
  17. Srinivasa Rao, D.V.N.; Dandala, R.; Narayan, G.K.A.S.S.; Lenin, R.; Sivakumaran, N.; Naidu, A. Novel procedure for the synthesis of 1-hydroxy-1,1-bisphosphonic acids using phenols as medium. Synth. Commun. 2007, 37, 4359–4365. [Google Scholar] [CrossRef]
  18. Grün, A.; Nagy, D.I.; Németh, O.; Mucsi, Z.; Garadnay, S.; Greiner, I.; Keglevich, G. The Synthesis of 3-Phenylpropidronate Applying Phosphorus Trichloride and Phosphorous Acid in Methanesulfonic Acid. Curr. Org. Chem. 2016, 20, 1745–1752. [Google Scholar] [CrossRef]
  19. Lecouvey, M.; Leroux, I. Synthesis of 1-hydroxy-1,1-bisphosphonates. Heteroat. Chem. 2000, 11, 556–561. [Google Scholar] [CrossRef]
  20. Keglevich, G.; Grün, A.; Kovács, R.; Garadnay, S.; Greiner, I. Green chemical synthesis of bisphosphonic/dronic derivatives. Phosphorus Sulfur Silicon Relat. Elem. 2015, 190, 664–667. [Google Scholar] [CrossRef]
  21. Troev, K.; Todorov, P.; Naydenova, E.; Mitova, V.; Vassiliev, N. A study of the reaction of phosphorus trichloride with paraformaldehyde in the presence of carboxylic acids. Phosphorus Sulfur Silicon Relat. Elem. 2013, 188, 1147–1155. [Google Scholar] [CrossRef]
  22. Nagy, D.I.; Grün, A.; Garadnay, S.; Greiner, I.; Keglevich, G. Synthesis of hydroxymethylenebisphosphonic acid derivatives in different solvents. Molecules 2016, 21, 1046. [Google Scholar] [CrossRef] [PubMed]
  23. Kachbi Khelfallah, S.; Monteil, M.; Deschamp, J.; Gager, O.; Migianu-Griffoni, E.; Lecouvey, M. Synthesis of novel polymerisable molecules bearing bisphosphonate. Org. Biomol. Chem. 2015, 13, 11382–11392. [Google Scholar] [CrossRef] [PubMed]
  24. Grün, A.; Kovács, R.; Nagy, D.L.; Garadnay, S.; Greiner, I.; Keglevich, G. Efficient synthesis of benzidronate applying of phosphorus trichloride and phosphorous acid. Lett. Drug Des. Discov. 2015, 12, 78–84. [Google Scholar] [CrossRef]
  25. Keglevich, G.; Grün, A.; Aradi, K.; Garadnay, S.; Greiner, I. Optimized synthesis of N-heterocyclic dronic acids; closing a black-box era. Tetrahedron Lett. 2011, 21, 2744–2746. [Google Scholar] [CrossRef]
  26. Keglevich, G.; Grün, A.; Garadnay, S.; Greiner, I. Rational synthesis of dronic acid derivatives. Phosphorus Sulfur Silicon Relat. Elem. 2015, 190, 2116–2124. [Google Scholar] [CrossRef]
  27. Ratrout, S.S.; Al Sarabi, A.L.; Sweidan, K.A. A one-pot and efficient synthesis of zolendronic acid starting from tert-butyl imodazol-1-yl acetate. Pharm. Chem. J. 2015, 48, 837–841. [Google Scholar] [CrossRef]
  28. Mizrahi, D.A.; Waner, T.; Segall, Y. α-Amino acid derived bisphosphonates: Synthesis and anti-resorptive activity. Phosphorus Sulfur Silicon Relat. Elem. 2001, 173, 1–25. [Google Scholar] [CrossRef]
  29. Lenin, R.; Raju, M.R.; Srinisava Rao, D.V.N.; Ray, U.K. Microvawe-assistant efficient synthesis of bisphosphonate libraries: A useful procedure for the preparation of bisphosphonates containing nitrogen and sulfur. Med. Chem. Res. 2013, 22, 1624–1629. [Google Scholar] [CrossRef]
  30. Roth, A.G.; Drescher, A.; Yang, Y.; Redmer, S.; Uhling, S.; Arenz, C. Potent and selective inhibition of acid sphingomyelinase by bisphosphonates. Angew. Chem. Int. Ed. 2009, 48, 7560–7563. [Google Scholar] [CrossRef] [PubMed]
  31. Szajnman, S.H.; Ravaschino, E.L.; Docampo, R.; Rodrigues, J.B. Synthesis and biological evaluation of 1-amino-1,1-bisphosphonates derived from fatty acids against Trypanosoma cruzi targeting farnesyl pyrophosphate synthase. Bioorg. Med. Chem. Lett. 2005, 15, 4685–4690. [Google Scholar] [CrossRef] [PubMed]
  32. Wu, M.; Chen, P.; Huang, Y. Convenient synthesis of analogs of aminomethylene gem-diphosphonic acid from amines without catalyst. Synth. Commun. 2004, 34, 1393–1398. [Google Scholar] [CrossRef]
  33. Fukuda, M.; Okamoto, Y.; Sakurai, H. Synthesis of dialkylaminomethylenediphosphonic acids. Bull. Chem. Soc. Jpn. 1975, 48, 1030–1031. [Google Scholar] [CrossRef]
  34. Yu, C.M.; Wang, B.; Chen, Z.W. A Novel synthesis of alkylamino substituted methylenediphosphonates using bis(trichloromethyl) carbonate and RCONR1R2. Chin. J. Chem. 2008, 26, 1899–1901. [Google Scholar] [CrossRef]
  35. Plöger, W.; Schindler, N.; Wollmann, K.; Worms, K.H. Herstellung von 1-Aminoalkan-1,1-diphosphonsäuren. Z. Anorg. Allg. Chem. 1972, 389, 119–128. [Google Scholar] [CrossRef]
  36. Olive, G.; le Moigne, F.; Mercier, A.; Rockenbauer, A.; Tordo, P. Synthesis of tetraalkyl (pyrrolidine-2,2-diyl)bisphosphonates and 2,2-bis(diethoxyphosphoryl)-3,4-dihydro-2H-pyrrole 1-oxide; ESR study of derived nitroxides. J. Org. Chem. 1998, 63, 9095–9099. [Google Scholar] [CrossRef]
  37. Olive, G.; Jacques, A. Tetraethyl(pyrrolidine-2,2-diyl)bisphosphonate. Molecules 2001, 6, M275. [Google Scholar] [CrossRef]
  38. Olive, G.; Jacques, A. Optimization, continuation and lack of the one-step diphosphorylation reaction assay of modification of the tetraethyl(pyrrolidine-2,2-diyl)bisphosphonate. Phosphorus Sulfur Silicon Relat. Elem. 2003, 178, 33–46. [Google Scholar] [CrossRef]
  39. Olive, G.; Rockenbauer, A.; Rozanska, X.; Jacques, A.; Peeters, D.; German, A. Synthesis of new tetraethyl(N-alkyl-1-aminoethan-1,1-diyl)bisphosphonates and ESR analysis of chemical exchange of derived nitroxides of acyclic aminobisphosphonates. Phosphorus Sulfur Silicon Relat. Elem. 2008, 182, 2359–2369. [Google Scholar] [CrossRef]
  40. Wang, A.-E.; Chang, Z.; Sun, W.-T.; Huang, P.-Q. General and chemoselective bisphosphonylation of secondary and tertiary amides. Org. Lett. 2015, 17, 732–735. [Google Scholar] [CrossRef] [PubMed]
  41. Prishchenko, A.A.; Livantsov, N.V.; Novikova, O.P.; Livantsova, L.I.; Petrosyan, V.S. Synthesis of the new types of N-substituted aminomethylenebisorganophosphorus acids and their derivatives. Heteroatom Chem. 2009, 20, 319–324. [Google Scholar] [CrossRef]
  42. Prishchenko, A.A.; Livantsov, N.V.; Novikova, O.P.; Livantsova, L.I.; Ershov, I.R.; Petrosyan, V.S. Synthesis and reactivity of the new trimethylsilyl esters of aminomethylenebisorganophosphorus acids. Heteroatom Chem. 2013, 24, 355–360. [Google Scholar] [CrossRef]
  43. Prishchenko, A.A.; Livantsov, N.V.; Novikova, O.P.; Livantsova, L.I.; Petrosyan, V.S. Synthesis of aminomethylenediphosphonates and their derivatives containing PCNH2 fragments. J. Gen. Chem. 2014, 83, 608–610. [Google Scholar] [CrossRef]
  44. Chmielewska, E.; Miszczyk, P.; Kozłowska, J.; Prokopowicz, M.; Młynarz, P.; Kafarski, P. Reaction of benzolactams with triethyl phosphite prompted by phosphoryl chloride affords benzoannulated monophosphonates instead of expected bisphosphonates. J. Organomet. Chem. 2015, 785, 84–91. [Google Scholar] [CrossRef]
  45. Prishchenko, A.A.; Livantsov, N.V.; Novikova, O.P.; Livantsova, L.I.; Ershov, I.R.; Petrosyan, V.S. Synthesis of new types of aminomethylenediphosphorus-containing acids and their derivatives. Russ. J. Gen. Chem. 2015, 85, 370–379. [Google Scholar] [CrossRef]
  46. Du, Y.; Jung, K.Y.; Wimer, D.F. A one-flask synthesis of α,α-bisphosphonates via enolate chemistry. Tetrahedron Lett. 2002, 43, 8665–8668. [Google Scholar] [CrossRef]
  47. Srinivasa Rao, D.V.N.; Dandala, R.; Lenin, R.; Sivakumaran, N.; Shivashankar, S.; Naidu, A. A facile one pot synthesis of bisphosphonic acids and their sodium salts from nitriles. Arch. Org. Chem. 2007, 2007, 34–38. [Google Scholar]
  48. Kaabak, L.V.; Kuz’mina, N.E.; Khudneko, A.V.; Tomilov, A.P. Improved synthesis of 1-aminoethylidenediphosphonic acid. Russ. J. Gen. Chem. 2006, 76, 1673–1674. [Google Scholar] [CrossRef]
  49. Bandurina, T.A.; Konyukhov, V.N.; Panomareva, O.A.; Barybin, O.S.; Pushkareva, Z.N. Synthesis and antitumor activity of aminophosphonic acids. Pharm. Chem. J. 1978, 12, 1428–1431. [Google Scholar] [CrossRef]
  50. Midier, C.; Lantsoght, M.; Volle, J.-N.; Pirat, J.L.; Virieux, D.; Stevens, C.V. Hydrophosphonylation of alkenes or nitriles by double radical transfer mediated by titanocene/propylene oxide. Tetrahedron Lett. 2011, 52, 6693–6696. [Google Scholar] [CrossRef]
  51. Váradi, A.; Palmer, T.C.; Notis Dardashti, R.; Majumdar, S. Isocyanide-based multicomponent reactions for the synthesis of heterocycles. Molecules 2016, 21, 19. [Google Scholar] [CrossRef] [PubMed]
  52. Hirai, T.; Han, L.-B. Palladium-catalyzed insertion of isocyanides into P(O)−H bonds: Selective formation of phosphinoyl imines and bisphosphinoylaminomethanes. J. Am. Chem. Soc. 2006, 128, 7422–7423. [Google Scholar] [CrossRef] [PubMed]
  53. Goldemen, W.; Kluczyński, A.; Soroka, M. The preparation of N-substituted aminomethylidenebisphosphonates and their tetraalkyl esters via reaction of isonitriles with trialkyl phosphites and hydrogen chloride. Part 1. Tetrahedron Lett. 2012, 53, 5290–5292. [Google Scholar]
  54. Goldeman, W.; Nasulewicz-Goldeman, A. Synthesis and antiproliferative activity of aromatic and aliphatic bis(aminomethylidene(bisphosphonic)) acids. Bioorg. Med. Chem. Lett. 2014, 24, 3475–3479. [Google Scholar] [CrossRef] [PubMed]
  55. Kurzak, B.; Goldeman, W.; Szpak, M.; Matczak-Jon, E.; Kamecka, E. Synthesis of N-methyl alkylaminomethane-1,1-diphosphonic acids and evaluation of their complex-formation abilities towards copper(II). Polyhedron 2015, 85, 675–684. [Google Scholar] [CrossRef]
  56. Goldeman, W.; Nasulewicz-Goldeman, A. Synthesis and biological evaluation of aminomethylidenebisphosphonic derivatives of β-arylethylamines. Tetrahedron 2015, 71, 3282–3289. [Google Scholar] [CrossRef]
  57. Bhushan, K.R.; Tanaka, E.; Frangioni, J.V. Synthesis of conjugatable bisphosphonates for molecular imaging of large animals. Angew. Chem. Int. Ed. 2007, 46, 7969–7971. [Google Scholar] [CrossRef] [PubMed]
  58. Ziora, Z.; Maly, A.; Lejczak, B.; Kafarski, P.; Holband, J.; Wójcik, G. Reactions of N-phthalylamino acid chlorides with trialkyl phosphites. Heteroatom Chem. 2000, 11, 232–239. [Google Scholar] [CrossRef]
  59. Yanvarev, D.V.; Korovina, A.N.; Usanov, N.N.; Khomich, O.A.; Vepsäläinen, J.; Puljula, E.; Kukhanova, M.K.; Kochetkov, S.N. Data on synthesis of methylene bisphosphonates and screening of their inhibitory activity towards HIV reverse transcriptase. Data Brief 2016, 8, 1157–1167. [Google Scholar] [CrossRef] [PubMed]
  60. Guenin, E.; Degache, E.; Liquier, J.; Lecouvey, M. Synthesis of 1-hydroxymethylene-1,1-bis(phosphonic acids) from acid anhydrides: Preparation of a new cyclic 1-acyloxymethylene-1,1-bis(phosphonic acid). Eur. J. Org. Chem. 2004, 2983–2987. [Google Scholar] [CrossRef]
  61. Kachbi-Khelfallah, S.; Monteil, M.; Cortes-Clerget, M.; Migianu-Griffoni, E.; Pirat, J.-L.; Gager, O.; Deschamp, J.; Lecouvey, M. Towards potential nanoparticle contrast agents: Synthesis of new functionalized PEG bisphosphonates. Beilstein J. Org. Chem. 2016, 12, 1366–1371. [Google Scholar] [CrossRef] [PubMed]
  62. Teixeira, F.C.; Rangel, C.M.; Teixeira, A.P.S. Synthesis of new azole phosphonate precursors for fuel cells proton exchange membranes. Heteroatom Chem. 2015, 26, 238–248. [Google Scholar] [CrossRef]
  63. Teixeira, F.C.; Lucas, C.; Curto, M.J.M.; Neves, M.; Duarte, M.T.; André, V.; Teixeira, A.P.S. New 1-Hydroxy-1,1-bisphosphonates derived from 1H-pyrazolo[3,4-b]pyridine: Synthesis and characterization. J. Braz. Chem. Soc. 2013, 24, 1295–1306. [Google Scholar] [CrossRef]
  64. Kaboudin, B.; Ezzati, A.; Faghihi, M.R.; Barati, A.; Kazemi, F.; Abdollahi, H.; Yokomatsu, T. Hydroxy‑bisphosphinic acids: Synthesis and complexation properties with transition metals and lanthanide ions in aqueous solution. J. Iran. Chem. Soc. 2016, 13, 747–752. [Google Scholar] [CrossRef]
  65. Crossey, K.; Migaud, M.E. Solventless synthesis of acyl phosphonamidates, precursors to masked bisphosphonates. Chem. Commun. 2015, 51, 11088–11091. [Google Scholar] [CrossRef] [PubMed]
  66. Egorov, M.; Aoun, S.; Padrines, M.; Redini, F.; Heymann, D.; Lebreton, J.; Mathé-Allainmat, M.A. One-pot synthesis of 1-hydroxy-1,1-bis(phosphonic acid)s starting from the corresponding carboxylic acids. Eur. J. Org. Chem. 2011, 7148–7154. [Google Scholar] [CrossRef]
  67. Suzuki, F.; Fujikawa, Y.; Yamamoto, S.; Mizutani, H.; Funabashi, C.; Ohya, T.; Ikai, T.; Oguchi, T. Pharmaceutical Compositions Containing Geminal Diphosphonates. US 5583122 A, 1 February 1979. [Google Scholar]
  68. Maier, L. Organishe phosphorverbindungen 75: Herstellung und Eigenschaften von Aminomethylendiphosphinaten und -diphosphonaten, RR1NCH[P(O)R2(OR3)]2 und Derivaten. Phosphorus Sulfur Silicon Relat. Elem. 1981, 11, 311–332. [Google Scholar] [CrossRef]
  69. Kaboudin, B.; Kalipour, S. A microwave-assisted solvent- and catalyst-free synthesis of aminomethylene bisphosphonates. Tetrahedron Lett. 2009, 50, 4243–4245. [Google Scholar] [CrossRef]
  70. Minaeva, L.; Patrikeeva, L.S.; Kabachnik, M.M.; Beletskaya, I.P.; Orlinson, B.S.; Novakov, I.A. Synthesis of novel aminomethylenebisphosphonates and bisphosphonic acids, containing adamantyl fragment. Heteroatom Chem. 2011, 22, 55–58. [Google Scholar] [CrossRef]
  71. Bálint, E.; Tajti, A.; Dziełak, A.; Hägele, G.; Keglevich, G. Microwave-assisted synthesis of (aminomethylene)bisphosphine oxides and (aminomethylene)bisphosphonates by a three-component condensation. Beilstein J. Org. Chem. 2016, 12, 1493–1502. [Google Scholar] [CrossRef] [PubMed]
  72. Reddy, N.B.; Sundar, C.S.; Krishna, B.S.; Reddy, K.M.K.; Reddy, C.S. Synthesis and in-vitro antimicrobial activity of aminomethylene bisphosphonates. Iran. J. Org. Chem. 2014, 6, 1227–1234. [Google Scholar]
  73. Krutikov, V.I.; Erkin, A.V.; Pautov, P.A.; Zolotukhina, M.M. Heteryl- and arylaminomethylenebisphosphonates: Synthesis and biologic activity. Russ. J. Gen. Chem. 2003, 73, 187–191. [Google Scholar] [CrossRef]
  74. Siva Prasad, S.; Jayaprakash, S.H.; Syamasundar, Ch.; Sreelakshmi, P.; Bhuvaneswar, C.; Vijaya Bhaskar, B.; Rajendra, W.; Nayak, S.K.; Suresh Reddy, C. Tween 20-/H2O promoted green synthesis, computational and antibacterial activity of amino acid substituted methylene bisphosphonates. Phosphorus Sulfur Silicon Relat. Elem. 2015, 190, 2040–2050. [Google Scholar] [CrossRef]
  75. Mimura, M.; Hayashida, M.; Nomiyama, K.; Ikegami, S.; Iida, Y.; Tamura, M.; Hiyama, Y.; Ohishi, Y. Synthesis and evaluation of (piperidinomethylene)bis(phosphonic acid) derivatives as anti-osteoporosis agents. Chem. Pharm. Bull. 1993, 41, 1973–1986. [Google Scholar] [CrossRef]
  76. De Schutter, J.W.; Shaw, J.; Lin, Y.-S.; Tsantrizos, Y.S. Design of potent bisphosphonate inhibitors of the human farnesyl pyrophosphate synthase via targeted interactions with the active site “capping” phenyls. Bioorg. Med. Chem. 2012, 20, 5583–5591. [Google Scholar] [CrossRef] [PubMed]
  77. Leung, C.Y.; Langille, A.M.; Mancuso, J.; Tsantrizos, Y.S. Discovery of thienopyrimidine-based inhibitors of the human farnesyl pyrophosphate synthase—Parallel synthesis of analogs via a trimethylsilyl ylidene intermediate. Bioorg. Med. Chem. 2013, 21, 2229–2240. [Google Scholar] [CrossRef] [PubMed]
  78. Leung, C.Y.; Park, J.; de Schutter, J.W.; Sebag, M.; Berghuis, A.M.; Tsantrizos, Y.S. Thienopyrimidine bisphosphonate (ThPBP) inhibitors of the human farnesyl pyrophosphate synthase: Optimization and characterization of the mode of inhibition. J. Med. Chem. 2013, 56, 7939–7950. [Google Scholar] [CrossRef] [PubMed]
  79. Rubino, M.T.; Agamennone, M.; Campestre, C.; Campiglia, P.; Cremasco, V.; Faccio, R.; Laghezza, A.; Loiodice, F.; Maggi, D.; Panza, E.; et al. Biphenyl sulfonylamino methyl bisphosphonic acids as inhibitors of matrix metalloproteinases and bone resorption. ChemMedChem 2011, 6, 1258–1268. [Google Scholar] [CrossRef] [PubMed]
  80. Tauro, M.; Lagezza, A.; Loiodice, F.; Agamennone, M.; Campestre, C.; Tortorella, P. Arylamino methylene bisphosphonate derivatives as bone seeking matrix metalloproteinase inhibitors. Bioorg. Med. Chem. 2013, 21, 6456–6465. [Google Scholar] [CrossRef] [PubMed]
  81. Chmielewska, E.; Mazur, Z.; Kempińska, K.; Wietrzyk, J.; Piątek, A.; Kuryszko, J.J.; Kiełbowicz, Z.; Kafarski, P. N-Arylaminomethylenebisphosphonates bearing fluorine atoms: Synthesis and antiosteoporotic activity. Phosphorus Sulfur Silicon Relat. Elem. 2016, 190. [Google Scholar] [CrossRef]
  82. Chmielewska, E.; Kempińska, K.; Wietrzyk, J.; Piątek, A.; Kuryszko, J.J.; Kiełbowicz, Z.; Kafarski, P. Novel Bisphosphonates and Their Use. WO2015159153 A1, 22 October 2015. [Google Scholar]
  83. Kubiček, V.; Rudovský, J.; Kotek, J.; Hermann, P.; Elst, L.V.; Muller, R.N.; Kolar, Z.I.; Wolterbeek, H.Th.; Peters, J.A.; Lukeš, I. A Bisphosphonate monoamide analogue of DOTA: A potential agent for bone targeting. J. Am. Chem. Soc. 2005, 127, 16477–16485. [Google Scholar] [CrossRef] [PubMed]
  84. Årstad, E.; Hoff, P.; Skattebøl, L.; Skretting, A.; Breistøl, K. Studies on the synthesis and biological properties of non-carrier-added [125I and 131I]-labeled arylalkylidenebisphosphonates: Potent bone-seekers for diagnosis and therapy of malignant osseous lesions. J. Med. Chem. 2003, 46, 3021–3032. [Google Scholar] [CrossRef] [PubMed]
  85. Martin, M.B.; Sanders, J.M.; Kendrick, H.; de Luca-Fradley, K.; Lewis, J.C.; Grimley, J.S.; van Brussel, E.M.; Olsen, J.R.; Meints, G.A.; Burzyńska, A.; et al. Activity of Bisphosphonates against Trypanosoma brucei rhodesiense. J. Med. Chem. 2002, 45, 2904–2914. [Google Scholar] [CrossRef] [PubMed]
  86. Sanders, J.M.; Gomez, A.O.; Mao, J.; Meints, G.A.; van Brussel, E.M.; Burzyńska, A.; Kafarski, P.; Gonzalez-Pacanowska, D.; Oldfield, E. 3-D QSAR investigations of the inhibition of Leishmania major farnesyl pyrophosphate synthase by bisphosphonates. J. Med. Chem. 2003, 46, 5171–5183. [Google Scholar] [CrossRef] [PubMed]
  87. Ghosh, S.; Chan, J.M.; Lea, C.R.; Meints, G.A.; Lewis, J.C.; Tovian, Z.S.; Flessner, R.M.; Loftus, T.C.; Bruchhaus, I.; Kendrick, H.; et al. Effects of bisphosphonates on the growth of Entamoeba histolytica and Plasmodium species in vitro and in vivo. J. Med. Chem. 2004, 47, 175–187. [Google Scholar] [CrossRef] [PubMed]
  88. Ling, Y.; Sahota, D.; Odeh, S.; Chan, J.M.; Araujo, F.G.; Moreno, S.N.; Oldfield, E. Bisphosphonate inhibitors of Toxoplasma gondi growth: In vitro, QSAR, and in vivo investigations. J. Med. Chem. 2005, 48, 3130–3140. [Google Scholar] [CrossRef] [PubMed]
  89. Tanaka, K.S.E.; Houghton, T.J.; Kang, T.; Dietrich, E.; Delorme, D.; Ferreira, S.S.; Caron, L.; Viens, F.; Arhin, S.S.; Sarmiento, I.; et al. Bisphosphonated fluoroquinolone esters as osteotropic prodrugs for the prevention of osteomyelitis. Bioorg. Med. Chem. 2008, 16, 9217–9229. [Google Scholar] [CrossRef] [PubMed]
  90. Forlani, G.; Petrolino, D.; Fusetti, M.; Romanini, L.; Nocek, B.; Joachimiak, A.; Berlicki, L.; Kafarski, P. δ1-Pyrroline-5-carboxylate reductase as a new target for therapeutics: Inhibition of the enzyme from Streptococcus pyogenes and effects in vivo. Amino Acids 2012, 42, 2283–2291. [Google Scholar] [CrossRef] [PubMed]
  91. Brel, V.K. Synthesis of gem-bisphosphonates with (3-aryl-4,5-dihydroxisoxazol-5-yl)methylamino moiety. Mendeleev Commun. 2015, 25, 234–235. [Google Scholar] [CrossRef]
  92. Kosikowska, P.; Bochno, M.; Macegoniuk, K.; Forlani, G.; Kafarski, P.; Berlicki, Ł. Bisphosphonic acids as effective inhibitors of Mycobacterium tuberculosis glutamine synthetase. J. Enzyme Inhib. Med. Chem. 2016, 31, 931–938. [Google Scholar] [CrossRef] [PubMed]
  93. Lacbay, C.M.; Mancuso, J.; Lin, Y.-S.; Bennett, N.; Götte, M.; Tsantrizos, Y.S. Modular assembly of purine-like bisphosphonates as inhibitors of HIV-1 reverse transcriptase. J. Med. Chem. 2014, 57, 7435–7449. [Google Scholar] [CrossRef] [PubMed]
  94. Shaddy, A.A.; Kamel, A.A.; Abdou, W.M. Synthesis, quantitative structure-activity relationship, and anti-inflammatory profiles of substituted 5- and 6-N-heterocycle bisphosphonate esters. Chem. Commun. 2013, 43, 236–252. [Google Scholar] [CrossRef]
  95. Kafarski, P.; Lejczak, B.; Forlani, G. Herbicidally active aminomethylenebisphosphonic acids. Heteroat. Chem. 2000, 11, 449–453. [Google Scholar] [CrossRef]
  96. Forlani, G.; Berlicki, Ł.; Duò, M.; Dziędzioła, G.; Giberti, S.; Bertazzini, M.; Kafarski, P. Synthesis and Evaluation of Effective Inhibitors of Plant δ1-Pyrroline-5-carboxylate Reductase. J. Agric. Food Chem. 2013, 61, 6792–6798. [Google Scholar] [CrossRef] [PubMed]
  97. Giberti, S.; Bertazzini, M.; Liboni, M.; Berlicki, Ł.; Kafarski, P.; Forlani, G. Phytotoxicity of aminobisphosphonates targeting both δ1-pyrroline-5-carboxylate reductase and glutamine synthetase. Pest Manag. Sci. 2016, in press. [Google Scholar] [CrossRef] [PubMed]
  98. Dobosz, A.; Spychała, J.; Ptak, T.; Chmielewska, E.; Maciejewska, G.; Kafarski, P.; Młynarz, P. Electrochemical and spectroscopic investigations of selected N-heteroalkylaminomethylene-bisphosphonic acids with Pb(II) ions. Coord. Chem. Rev. 2016, in press. [Google Scholar] [CrossRef]
  99. Dąbrowska, E.; Burzyńska, A.; Mucha, A.; Matczak-Jon, E.; Sawka-Dobrowolska, W.; Berlicki, Ł.; Kafarski, P. Insight into the mechanism of three component condensation leading to aminomethylenebisphosphonates. J. Organomet. Chem. 2009, 6943, 3806–3813. [Google Scholar] [CrossRef]
  100. Lejczak, B.; Boduszek, B.; Kafarski, P.; Forlani, G.; Wojtasek, H.; Wieczorek, P. Mode of action of herbicidal derivatives of aminomethylenebisphosphonic acid. I. Physiologic activity and inhibition of anthocyanin biosynthesis. J. Plant Growth Regul. 1996, 15, 109–113. [Google Scholar] [CrossRef]
  101. Bochno, M.; Berlicki, Ł. A three-component synthesis of aminomethylene bis-H-phosphinates. Tetrahedron Lett. 2014, 55, 219–223. [Google Scholar] [CrossRef]
  102. Rodriguez, J.B. Tetraethyl vinylidenebisphosphonate: A versatile synthon for the preparation of bisphosphonates. Synthesis 2014, 46, 1129–1142. [Google Scholar] [CrossRef]
  103. Rosso, V.S.; Szajman, S.H.; Malayil, L.; Galizzi, M.; Moreno, S.N.J.; Docampo, R.; Rodriguez, J.B. Synthesis and biological evaluation of new 2-alkylaminoethyl-1,1-bisphosphonic acids against Trypanosoma cruzi and Toxoplasma gondii targeting farnesyl diphosphate synthase. Bioorg. Med. Chem. 2011, 19, 2211–2217. [Google Scholar] [CrossRef] [PubMed]
  104. Szajnman, S.H.; Liñares, G.E.G.; Li, Z.-H.; Jiang, C.; Galizzi, M.; Bontempi, E.; Ferella, M.; Moreno, S.N.J.; Docampo, R.; Rodriguez, J.B. Synthesis and biological evaluation of 2-alkylaminoethyl-1,1-bisphosphonic acids against Trypanosoma cruzi and Toxoplasma gondii targeting farnesyl diphosphate synthase. Bioorg. Med. Chem. 2008, 15, 3283–3290. [Google Scholar] [CrossRef] [PubMed]
  105. Herczegh, P.; Buxton, T.B.; McPherson, J.C., III; Kovács-Kulyassa, A.; Brewer, P.D.; Sztaricskai, F.; Stroebel, G.C.; Plowman, K.M.; Farcasiu, D.; Hartmann, J.F. Osteoadsorptive bisphosphonate derivatives of fluoroquinolone antibacterials. J. Med. Chem. 2002, 45, 2338–2341. [Google Scholar] [CrossRef] [PubMed]
  106. Houghton, T.J.; Tanaka, K.S.E.; Kang, T.; Dietrich, E.; Lafontaine, Y.; Delorme, D.; Ferreira, S.S.; Viens, F.; Arhin, F.F.; Sarmiento, I.; et al. Linking bisphosphonates to the free amino groups in fluoroquinolones: Preparation of osteotropic prodrugs for the prevention of osteomyelitis. J. Med. Chem. 2008, 51, 6955–6969. [Google Scholar] [CrossRef] [PubMed]
  107. Dzięgielewski, M.; Hejmanowska, J.; Albrecht, Ł. A convenient approach to a novel group of quaternary amino acids containing a geminal bisphosphonate moiety. Synthesis 2014, 46, 3233–3239. [Google Scholar] [CrossRef]
  108. Simoni, D.; Gebbia, N.; Invidiata, M.P.; Eleopra, M.; Marchetti, P.; Rondanin, R.; Baruchello, R.; Provera, S.; Marchioro, C.; Tolomeo, M.; et al. Design, synthesis, and biological evaluation of novel aminobisphosphonates possessing an in vivo antitumor activity through a γδ-T lymphocytes-mediated activation mechanism. J. Med. Chem. 2008, 51, 6800–6807. [Google Scholar] [CrossRef] [PubMed]
  109. Sankala, E.; Weisell, J.M.; Huhtala, T.; Närvänen, A.T.O.; Vepsäläinen, J.J. Synthesis of novel bisphosphonate polyamine conjugates and their affinity to hydroxyapatite. Arch. Org. Chem. 2012, 2012, 233–241. [Google Scholar]
  110. Chen, K.M.C.; Hudock, M.P.; Zhang, Y.; Guo, R.T.; Cao, R.; No, J.H.; Liang, P.H.; Ko, T.-P.; Chang, T.H.; Chang, S.; et al. Inhibition of geranylgeranyl diphosphate synthase by bisphosphonates: A crystallographic and computational investigation. J. Med. Chem. 2008, 51, 5594–5607. [Google Scholar]
  111. Zhang, Y.; Leon, A.; Song, Y.; Studer, D.; Haase, C.; Kościelski, Ł.A.; Oldfield, E. Activity of nitrogen-containing and non-nitrogen-containing bisphosphonates on tumor cell lines. J. Med. Chem. 2006, 49, 5804–5814. [Google Scholar] [CrossRef] [PubMed]
  112. Makarov, M.V.; Rybalkina, E.Y.; Röschenthaler, G.-V. New 3,5-bis(arylidene)-4-piperidones with bisphosphonate moiety: Synthesis and antitumor activity. Russ. Chem. Bull. Int. Ed. 2014, 63, 1181–1186. [Google Scholar] [CrossRef]
  113. Skarpos, H.; Osipov, S.N.; Vororb’eva, D.V.; Odinets, I.L.; Lork, E.; Röschenthaler, G.-V. Synthesis of functionalized bisphosphonates via click chemistry. Org. Biomol. Chem. 2007, 5, 2361–2367. [Google Scholar] [CrossRef] [PubMed]
  114. Liu, S.; Bi, W.; Li, X.; Chen, X.; Qu, N.; Zhao, Y. A Practical method to synthesize 1,2,3-triazole-amino-bisphosphonate derivatives. Phosphorus Sulfur Relat. Elem. 2015, 190, 1735–1742. [Google Scholar] [CrossRef]
  115. Gouault-Bironneau, S.; Deprèle, S.; Sutor, A.; Montchamp, J.-L. Radical reaction of sodium hypophosphite with terminal alkynes: Synthesis of 1,1,-bis-H-phosphinates. Org. Lett. 2005, 7, 5909–5912. [Google Scholar] [CrossRef] [PubMed]
  116. Kuźnik, A.; Mazurkiewicz, R.; Grymel, M.; Zielińska, K.; Adamek, J.; Chmielewska, E.; Bochno, M.; Kubica, S. A new method for the synthesis of α-aminoalkylidenebisphosphonates and their asymmetric phosphonyl-phosphinyl and phosphonyl-phosphinoyl analogues. Beilstein J. Org. Chem. 2015, 11, 1418–1424. [Google Scholar] [CrossRef] [PubMed]
  117. Tanaka, K.S.; Dietrich, E.; Ciblat, S.; Métayer, C.; Arhin, F.F.; Sarmiento, I.; Moeck, G.; Parr, T.R., Jr.; Far, A.R. Synthesis and in vitro evaluation of bisphosphonate glycopeptide prodrugs for the treatment of osteomyelitis. Bioorg. Med. Chem. Lett. 2010, 20, 1355–1359. [Google Scholar] [CrossRef] [PubMed]
  118. Bala, J.L.F.; KAshemirov, B.A.; McKenna, C.E. Synthesis of novel bisphosphonic acid alkene monomer. Synth. Commun. 2010, 40, 3577–3584. [Google Scholar] [CrossRef]
  119. Lecerclé, D.; Gabillet, S.; Gomis, J.-M.; Taran, F. A facile synthesis of aminomethylene bisphosphonates through rhodium carbenoid mediated N-H insertion reaction. Application to the preparation of powerful uranyl ligands. Tetrahedron Lett. 2008, 49, 2083–2087. [Google Scholar] [CrossRef]
  120. Masschelein, K.G.R.; Stevens, C.V. Double nucleophilic 1,2-addition of silylated dialkyl phosphites to 4-phosphono-1-aza-1,3-dienes: Synthesis of γ-phosphono-α–aminobisphosphonates. J. Org. Chem. 2007, 72, 9248–9252. [Google Scholar] [CrossRef] [PubMed]
  121. Rassukana, Y.V.; Davydova, K.O.; Onys’ko, P.P.; Sinitsa, A.D. Synthesis and rearrangements of N-trichloroacetylfluoroacetimidolyl chloride and its phosphorylation products. J. Fluor. Chem. 2002, 117, 107–113. [Google Scholar] [CrossRef]
  122. Rassukana, Y.V.; Onys’ko, P.P.; Davydova, K.O.; Sinitsa, A.D. A new reaction of phosphorylated N-sulfonylimines with hydrophosphoryl agents involving C-N transfer of phosphoryl groups. Tetrahedron Lett. 2004, 45, 3899–3902. [Google Scholar] [CrossRef]
  123. Kolotilo, N.V.; Sinitsa, A.D.; Rassukanaya, Y.V.; Onys’ko, P.P. N-Sulfonyl- and N-phosphorylbenzimidoylphosphonates. Russ. J. Gen. Chem. 2006, 76, 1210–1218. [Google Scholar] [CrossRef]
  124. Romanenko, V.D.; Kukhar, V.P. Methylidynetrisphosphonates: Promising C1 building block for the design of phosphate mimetics. Beilstein J. Org. Chem. 2013, 9, 991–1001. [Google Scholar] [CrossRef] [PubMed]
  125. Kafarski, P.; Lejczak, B. A facile conversion of aminoalkanephosphonic acids into their diethyl esters. The use of unblocked aminophosphonic acids in phosphono peptide synthesis. Synthesis 1988, 4, 307–310. [Google Scholar] [CrossRef]
  126. Turhanen, P.A.; Weisell, J.; Vepsäläinen, J.J. Preparation of mixed trialkyl alkylcarbonate derivatives of etidronic acid via an unusual route. Beilstein J. Org. Chem. 2012, 8, 2019–2024. [Google Scholar] [CrossRef] [PubMed]
  127. Turhanen, P.A.; Vepsäläinen, J.J. Synthesis of novel (1-alkanoyloxy-4-alkanoylaminobutylidene)-1,1-bisphosphonic acid derivatives. Beilstein J. Org. Chem. 2006, 2, 2. [Google Scholar] [CrossRef] [PubMed]
  128. Xu, G.; Yang, C.; Bo, L.; Wu, X.; Xie, Y. Synthesis of new potential chelating agents: Catechol-bisphosphonate conjugates for metal intoxication therapy. Heteroatom Chem. 2004, 15, 251–257. [Google Scholar] [CrossRef]
  129. Agyin, J.K.; Santhamma, B.; Roy, S.S. Design, synthesis, and biological evaluation of bone-targeted proteasome inhibitors for multiple myeloma. Bioorg. Med. Chem. 2013, 23, 5455–6458. [Google Scholar] [CrossRef] [PubMed]
  130. Ezra, A.; Hoffman, A.; Breuer, E.; Alferiev, A.S.; Mönkkönen, J.; El Hanany-Rozen, N.; Weiss, G.; Stepensky, D.; Gati, I.; Cohen, H.; et al. A Peptide prodrug approach for improving bisphosphonate oral absorption. J. Med. Chem. 2000, 43, 3641–3652. [Google Scholar] [CrossRef] [PubMed]
  131. Sun, S.; Błażewska, K.; Kadina, A.P.; Kashemirov, B.A.; Duan, X.; Triffitt, J.T.; Dunford, J.E.; Russell, R.G.R.; Ebetino, F.H.; Roelofs, A.J.; et al. Fluorescent bisphosphonate and carboxyphosphonate probes: A versatile imaging toolkit for applications in bone biology and biomedicine. Bioconj. Chem. 2016, 27, 329–340. [Google Scholar] [CrossRef] [PubMed]
  132. Liu, J.; Jo, J.; Kawai, Y.; Aoki, I.; Tanaka, C.; Yamamoto, M.; Tabata, Y. Preparation of polymer-based multimodal imaging agent to visualize the process of bone regeneration. J. Control. Release 2012, 157, 398–405. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  133. Varghese, O.P.; Sun, W.; Hilborn, J.; Ossipov, D.A. In situ cross-linkable high molecular weight hyaluronan-bisphosphonate conjugate for localized delivery and cell-specific targeting: A hydrogel linked prodrug approach. J. Am. Chem. Soc. 2009, 131, 8781–8783. [Google Scholar] [CrossRef] [PubMed]
  134. Vitha, T.; Kubiček, V.; Hermann, P.; Elst, L.V.; Muller, R.N.; Kollar, Z.I.; Wolterbeek, H.T.; Breeman, W.A.P.; Lukeš, I.; Peters, J.A. Lanthanide(III) Complexes of Bis(phosphonate) Monoamide Analogues of DOTA: Bone-Seeking Agents for Imaging and Therapy. J. Med. Chem. 2008, 51, 677–683. [Google Scholar] [CrossRef] [PubMed]
  135. Shao, X.; Xu, Y.; Jiao, Y.; Zhou, C. Synthesis and characterization of an alendronate-chitosan conjugate. Appl. Mech. Mater. 2012, 140, 53–57. [Google Scholar] [CrossRef]
  136. Morioka, M.; Kamizono, A.; Takikawa, H.; Mori, A.; Ueno, H.; Kadowaki, S.; Nakano, Y.; Kato, K.; Umezawa, K. Design, synthesis, and biological evaluation of novel estradiol-bisphosphonate conjugates as bone-specific estrogens. Bioorg. Med. Chem. 2010, 18, 1143–1148. [Google Scholar] [CrossRef] [PubMed]
  137. Dadiboyena, S. Recent advances in the synthesis of raloxifene: A selective estrogen receptor modulator. Eur. J. Med. Chem. 2012, 51, 17–34. [Google Scholar] [CrossRef] [PubMed]
  138. Palma, E.; Oliveira, B.M.; Correira, J.D.G.; Gano, L.; Maria, L.; Santos, I.C.; Santos, I. A new bisphosphonate-containing 99mTc(I) tricarbonyl complex potentially useful as bone-seeking agent: Synthesis and biological evaluation. J. Biol. Inorg. Chem. 2007, 12, 667–679. [Google Scholar] [CrossRef] [PubMed]
  139. Reddy, R.; Dietrich, E.; Lafontaine, Y.; Houghton, T.J.; Belanger, O.; Dubois, A.; Arhin, F.F.; Sarmiento, I.; Fadhil, I.; Laquerre, K.; et al. Bisphosphonated benzoxazinorifamycin prodrugs for the prevention and treatment of osteomyelitis. ChemMedChem 2008, 3, 1863–1868. [Google Scholar] [CrossRef] [PubMed]
  140. Bekker, K.S.; Chukanov, N.V.; Grigor’ev, I.A. Synthesis of a bisphosphonate derivative of folic acid. Chem. Nat. Prod. 2013, 49, 495. [Google Scholar] [CrossRef]
  141. Bekker, K.S.; Chukanov, N.V.; Popov, S.A.; Grigor’ev, I.A. New Amino-Bisphosphonate Building Blocks in the Synthesis of Bisphosphonic Derivatives Based on Lead Compounds. Phosphorus Sulfur Silicon Relat. Elem. 2015, 190, 1209–1212. [Google Scholar] [CrossRef]
  142. Bekker, K.S.; Chukanov, N.V.; Popov, S.A.; Grigor’ev, I.A. Conjugates of bisphosphonates with derivatives of ursolic, betulonic, and betulinic acids. Chem. Nat. Prod. 2013, 49, 581–582. [Google Scholar] [CrossRef]
  143. Wang, L.; Yang, Z.; Gao, J.; Xu, K.; Gu, H.; Zhang, B.; Zhang, X.; Xu, B. A biocompatible method of decorporation: Bisphosphonate-modified magnetite nanoparticles to remove uranyl ions from blood. J. Am. Chem. Soc. 2006, 131, 13358–13359. [Google Scholar] [CrossRef] [PubMed]
  144. Bekker, K.S.; Chukanov, N.V.; Grigor’ev, I.A. Synthesis of a bis-phosphonic acid derivative of trolox, a new potential antioxidant. Chem. Nat. Prod. 2013, 49, 785–786. [Google Scholar] [CrossRef]
  145. Altin, A.; Akgun, B.; Bilgici, Z.S.; Turker, S.B.; Avci, D. Synthesis, photopolymerization, and adhesive properties of hydrolytically stable phosphonic acid-containing (meth)acrylamides. J. Polym. Sci. A Polym. Chem. 2014, 52, 512–522. [Google Scholar] [CrossRef]
  146. Akgun, B.; Avci, D. Synthesis and evaluations of bisphosphonate-containing monomers for dental materials. J. Polym. Sci. A Polym. Chem. 2012, 50, 4854–4863. [Google Scholar] [CrossRef]
  147. Yang, X.; Akhtar, X.; Rubino, S.; Leifer, K.; Hilborn, J.; Ossipov, D. Direct “click” synthesis of hybrid bisphosphonate—Hyaluronic acid hydrogel in aqueous solution for biomineralization. Chem. Mater. 2012, 24, 1690–1697. [Google Scholar] [CrossRef]
  148. Gluz, E.; Grinberg, I.; Corem-Salkmon, E.; Mizrahi, D.; Margel, S. Engineering of new crosslinked near-infrared fluorescent polyethylene glycol bisphosphonate nanoparticles for bone targeting. J. Polym. Sci. A Polym. Chem. 2013, 51, 4282–4291. [Google Scholar] [CrossRef]
  149. Mukaya, H.E.; Mbianda, X.Y. Macromolecular co-conjugate of ferrocene and bisphosphonate: Synthesis, characterization and kinetic drug release study. J. Inorg. Organomet. Polym. 2015, 25, 411–418. [Google Scholar] [CrossRef]
  150. Beck, J.; Gharbi, S.; Herteg-Fernea, A.; Vercheval, L.; Berbone, C.; Lassaux, P.; Zervosen, A.; Marchant-Bryanert, J. Aminophosphonic acids and aminobis(phosphonic acids) as potential inhibitors of penicillin-binding proteins. Eur. J. Org. Chem. 2009, 2009, 85–97. [Google Scholar] [CrossRef]
  151. Chuiko, A.L.; Filonenko, L.P.; Borisevich, A.M.; Lozinskii, M.O. pH-Dependent isomerism of (iso)thioureidomethylenebisphosphonates. Russ. J. Gen. Chem. 2009, 79, 72–77. [Google Scholar] [CrossRef]
  152. Chuiko, A.L.; Filonenko, L.P.; Lozinskii, M.O. Reaction of thioureidomethylenebisphosphonic acids with α-haloketones: II. Effect of pH on the reaction pathway. Russ. J. Gen. Chem. 2009, 79, 57–66. [Google Scholar] [CrossRef]
  153. Chuiko, A.L.; Filonenko, L.P.; Lozinskii, M.O. Synthesis of ((thiazol-2-ylamino)-methylene)bisphosphonic acids. Chem. Heterocycl. Compd. 2011, 47, 1137–1140. [Google Scholar] [CrossRef]
  154. Sirviö, J.A.; Hasa, T.; Ahola, J.; Liimatainen, H.; Niinimäki, J.; Hormi, O. Phosphonated nanocelluloses from sequential oxidative-reductive treatment—Physicochemical characteristics and thermal properties. Carbohydr. Polym. 2015, 133, 524–532. [Google Scholar] [CrossRef] [PubMed]
  155. Bonzi, G.; Salmaso, S.; Scomparin, A.; Edar-Boock, A.; Satchi-Fainaro, R.; Caliceti, P. Novel pullulan bioconjugate for selective breast cancer bone metastases treatment. Bioconj. Chem. 2015, 26, 489–501. [Google Scholar] [CrossRef] [PubMed]
Molecules 21 01474 sch001 550

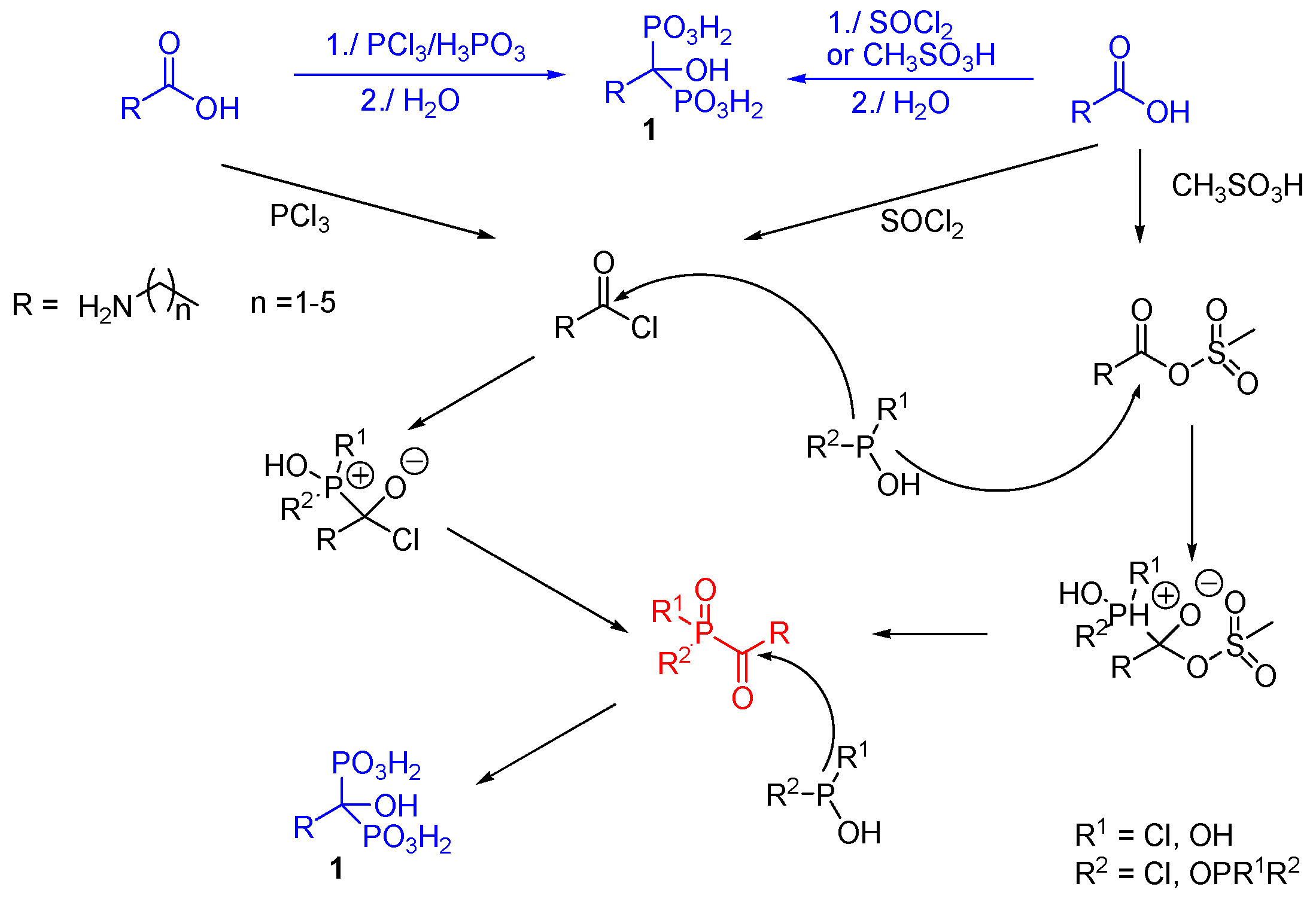

Scheme 1. Presumable mechanism of the synthesis of 1-hydroxy-1,1-bisphosphonic acids.
Scheme 1. Presumable mechanism of the synthesis of 1-hydroxy-1,1-bisphosphonic acids.
Molecules 21 01474 sch001
Molecules 21 01474 sch002 550

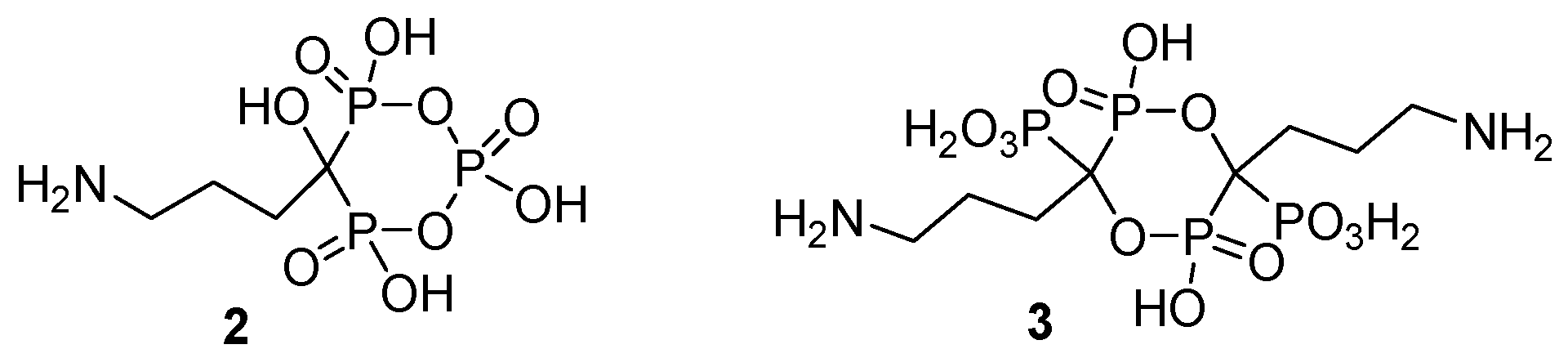

Scheme 2. Cyclic products of the reaction between carboxylic acids and phosphorous acid in methanesulphonic acid.
Scheme 2. Cyclic products of the reaction between carboxylic acids and phosphorous acid in methanesulphonic acid.
Molecules 21 01474 sch002
Molecules 21 01474 sch003 550

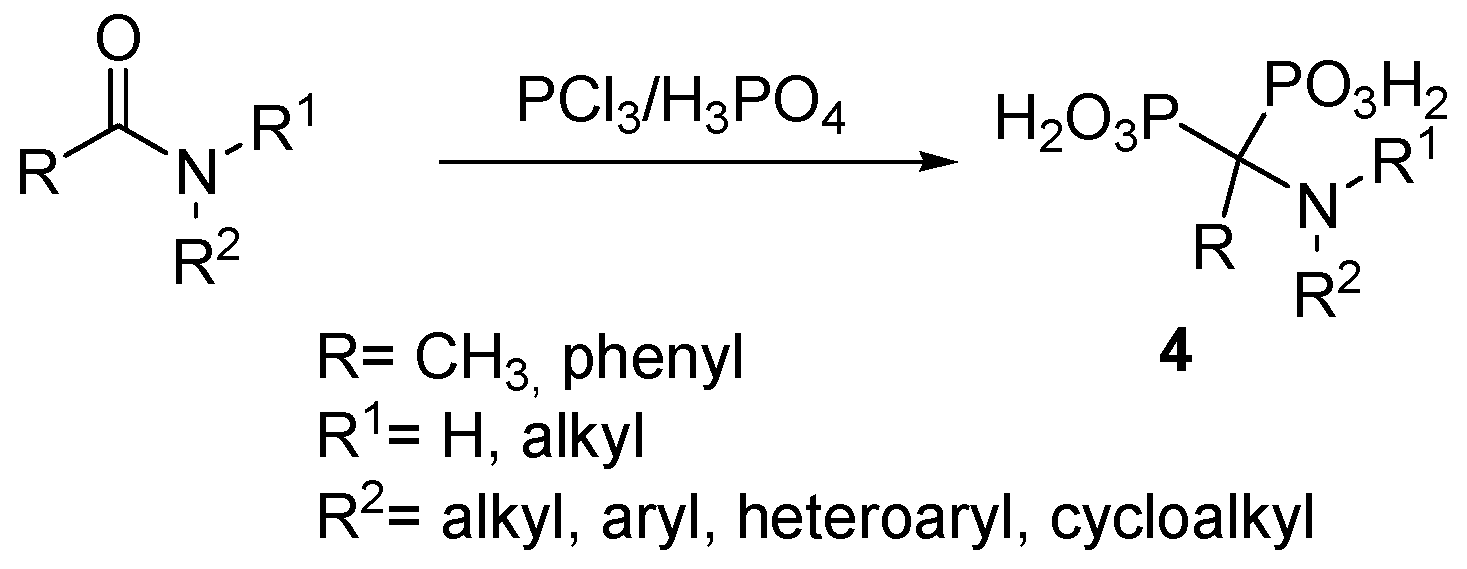

Scheme 3. Bisphosphonylation of amides.
Scheme 3. Bisphosphonylation of amides.
Molecules 21 01474 sch003
Molecules 21 01474 sch004 550
Scheme 4. Bisphosphonylation of amides and the presumable mechanism of this reaction.
Scheme 4. Bisphosphonylation of amides and the presumable mechanism of this reaction.
Molecules 21 01474 sch004
Molecules 21 01474 sch005 550

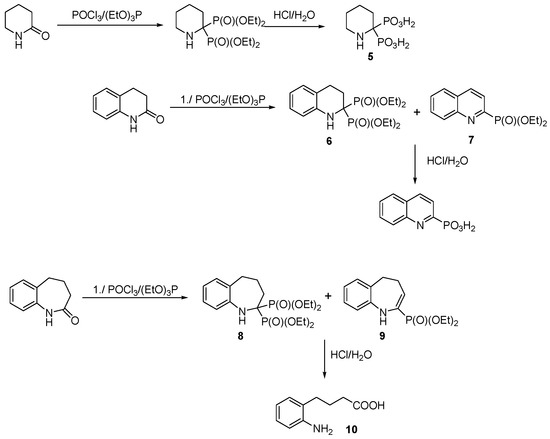

Scheme 5. Representative reactions of lactams with triethyl phosphite prompted by phosphoryl chloride.
Scheme 5. Representative reactions of lactams with triethyl phosphite prompted by phosphoryl chloride.
Molecules 21 01474 sch005
Molecules 21 01474 sch006 550
Scheme 6. Imine salts as substrates for preparation of bisphosphonic acids.
Scheme 6. Imine salts as substrates for preparation of bisphosphonic acids.
Molecules 21 01474 sch006
Molecules 21 01474 sch007 550
Scheme 7. Reaction of diethoxyphosphine with the acetal of dimethylformamide.
Scheme 7. Reaction of diethoxyphosphine with the acetal of dimethylformamide.
Molecules 21 01474 sch007
Molecules 21 01474 sch008 550
Scheme 8. Synthesis of bisphosphonate lactams.
Scheme 8. Synthesis of bisphosphonate lactams.
Molecules 21 01474 sch008
Molecules 21 01474 sch009 550
Scheme 9. Representative example of the synthesis of peptidylbisphosphonates from nitriles.
Scheme 9. Representative example of the synthesis of peptidylbisphosphonates from nitriles.
Molecules 21 01474 sch009
Molecules 21 01474 sch010 550

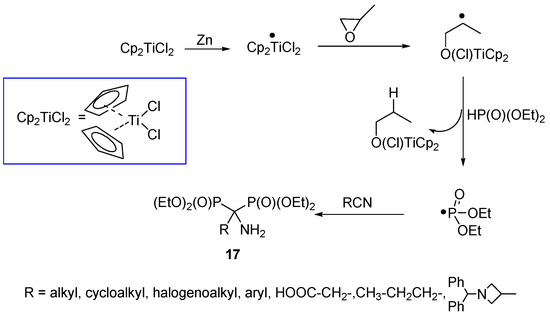

Scheme 10. Radical procedure for the synthesis of bisphosphonates from nitriles.
Scheme 10. Radical procedure for the synthesis of bisphosphonates from nitriles.
Molecules 21 01474 sch010
Molecules 21 01474 sch011 550

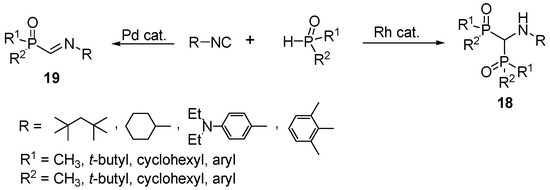

Scheme 11. Addition of H-phosphine oxides to isonitriles catalyzed by metallocatalysts.
Scheme 11. Addition of H-phosphine oxides to isonitriles catalyzed by metallocatalysts.
Molecules 21 01474 sch011
Molecules 21 01474 sch012 550
Scheme 12. Addition of phosphites to isonitriles.
Scheme 12. Addition of phosphites to isonitriles.
Molecules 21 01474 sch012
Molecules 21 01474 sch013 550

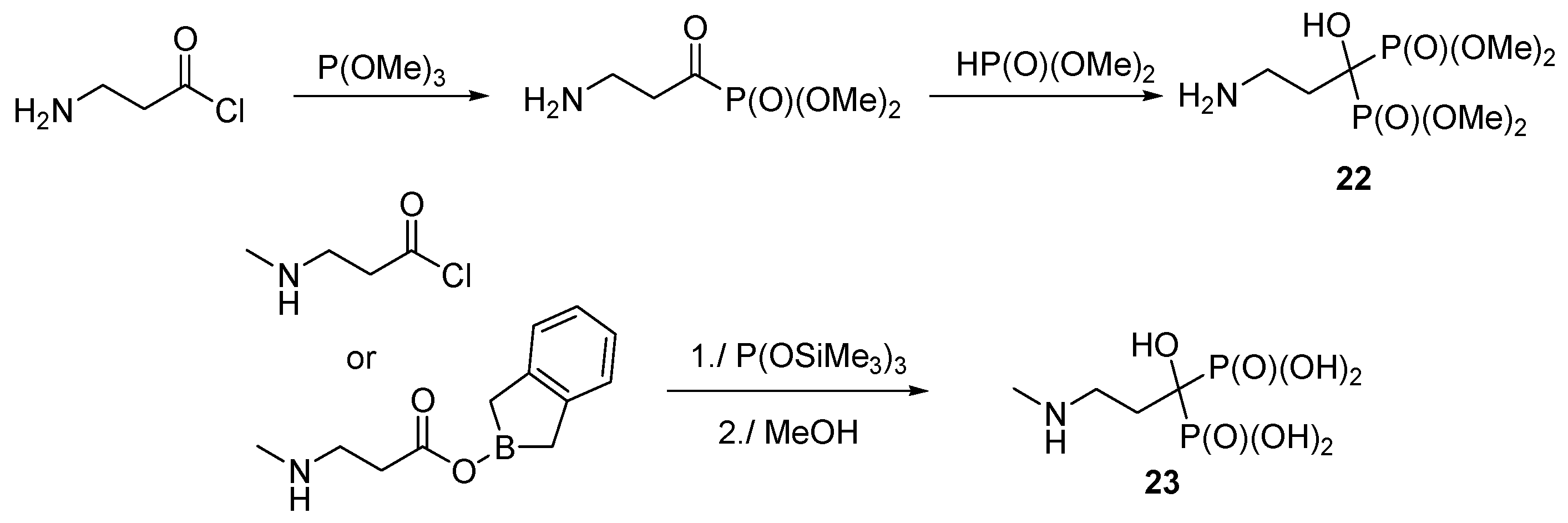

Scheme 13. Representative syntheses via ketophosphonates.
Scheme 13. Representative syntheses via ketophosphonates.
Molecules 21 01474 sch013
Molecules 21 01474 sch014 550
Scheme 14. Condensation of amines with triethyl orthoformate and diethyl phosphite.
Scheme 14. Condensation of amines with triethyl orthoformate and diethyl phosphite.
Molecules 21 01474 sch014
Molecules 21 01474 sch015 550
Scheme 15. Representative side products of the three-component procedure for the synthesis of aminomethylenebisphosphonic acids.
Scheme 15. Representative side products of the three-component procedure for the synthesis of aminomethylenebisphosphonic acids.
Molecules 21 01474 sch015
Molecules 21 01474 sch016 550
Scheme 16. Mechanism of the three-component reaction of amines with orthoformates and phosphites.
Scheme 16. Mechanism of the three-component reaction of amines with orthoformates and phosphites.
Molecules 21 01474 sch016
Molecules 21 01474 sch017 550
Scheme 17. Three-component synthesis of aminobisphosphonates.
Scheme 17. Three-component synthesis of aminobisphosphonates.
Molecules 21 01474 sch017
Molecules 21 01474 sch018 550
Scheme 18. Michael addition of amines to vinylidenebisphosphonate.
Scheme 18. Michael addition of amines to vinylidenebisphosphonate.
Molecules 21 01474 sch018
Molecules 21 01474 sch019 550
Scheme 19. Representatives of useful bisphosphonates obtained via addition of amines to vinylidenebisphosphonate.
Scheme 19. Representatives of useful bisphosphonates obtained via addition of amines to vinylidenebisphosphonate.
Molecules 21 01474 sch019
Molecules 21 01474 sch020 550

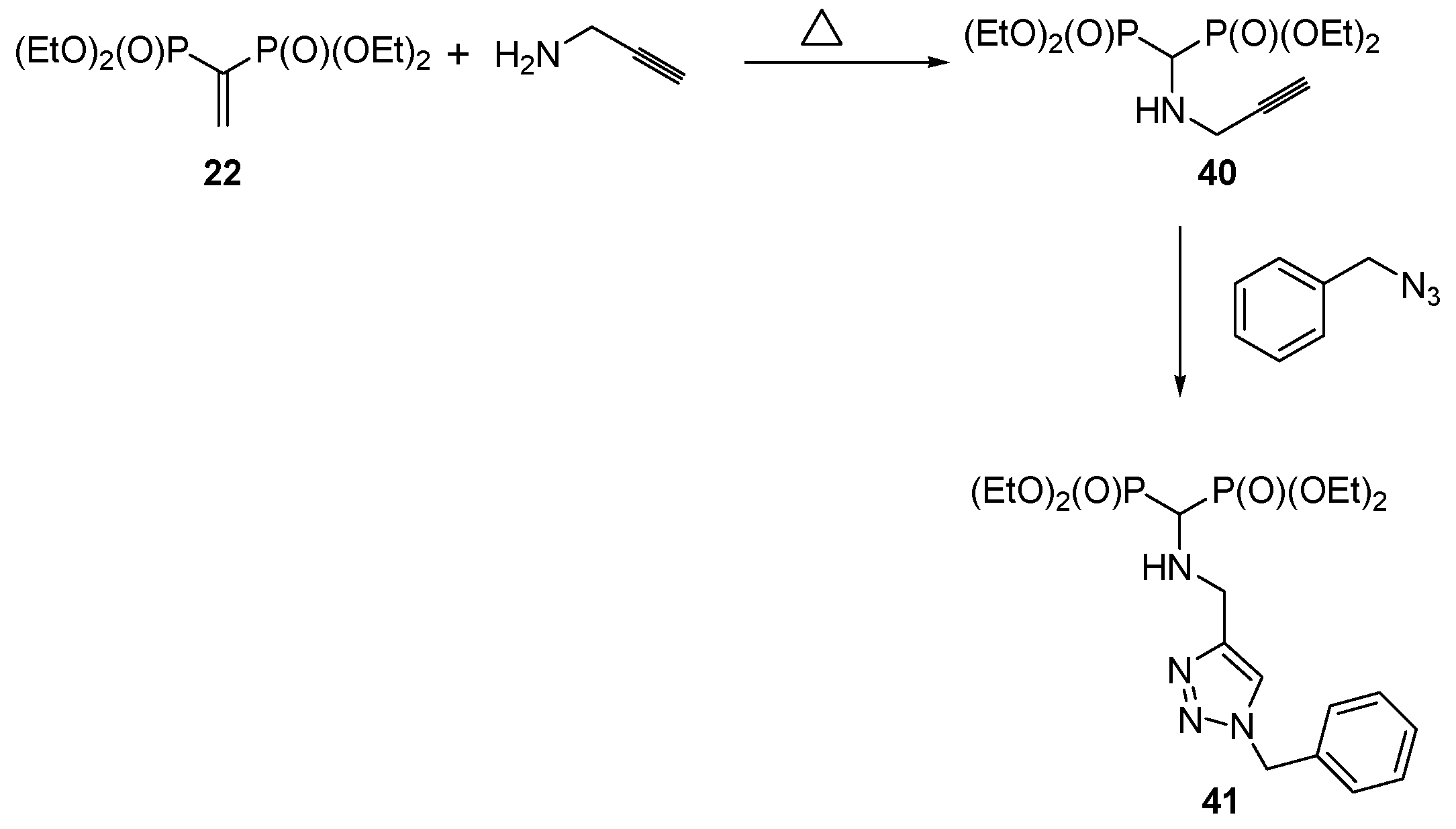

Scheme 20. An example of the synthesis of novel bisphosphonates via “click chemistry”.
Scheme 20. An example of the synthesis of novel bisphosphonates via “click chemistry”.
Molecules 21 01474 sch020
Molecules 21 01474 sch021 550
Scheme 21. Procedure for the synthesis of bisphosphinates and their conversion into bisphosphonates.
Scheme 21. Procedure for the synthesis of bisphosphinates and their conversion into bisphosphonates.
Molecules 21 01474 sch021
Molecules 21 01474 sch022 550
Scheme 22. Transformation of diethyl 1-(N-acetylamino)-1-alkylphosphonates into bisphosphoric acid esters via the corresponding phosphonium salts.
Scheme 22. Transformation of diethyl 1-(N-acetylamino)-1-alkylphosphonates into bisphosphoric acid esters via the corresponding phosphonium salts.
Molecules 21 01474 sch022
Molecules 21 01474 sch023 550
Scheme 23. Synthesis of aminobisphosphonates via alkylation of tetraalkyl methylenebisphosphonates.
Scheme 23. Synthesis of aminobisphosphonates via alkylation of tetraalkyl methylenebisphosphonates.
Molecules 21 01474 sch023
Molecules 21 01474 sch024 550

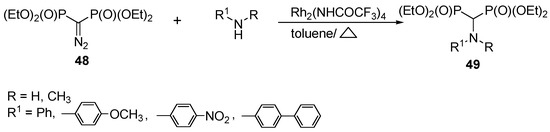

Scheme 24. N-H insertion of the reaction of aromatic amines.
Scheme 24. N-H insertion of the reaction of aromatic amines.
Molecules 21 01474 sch024
Molecules 21 01474 sch025 550
Scheme 25. Addition of phosphites to 4-phosphono-1-aza-1,3-dienes.
Scheme 25. Addition of phosphites to 4-phosphono-1-aza-1,3-dienes.
Molecules 21 01474 sch025
Molecules 21 01474 sch026 550
Scheme 26. Addition of phosphites to iminophosphonates.
Scheme 26. Addition of phosphites to iminophosphonates.
Molecules 21 01474 sch026
Molecules 21 01474 sch027 550

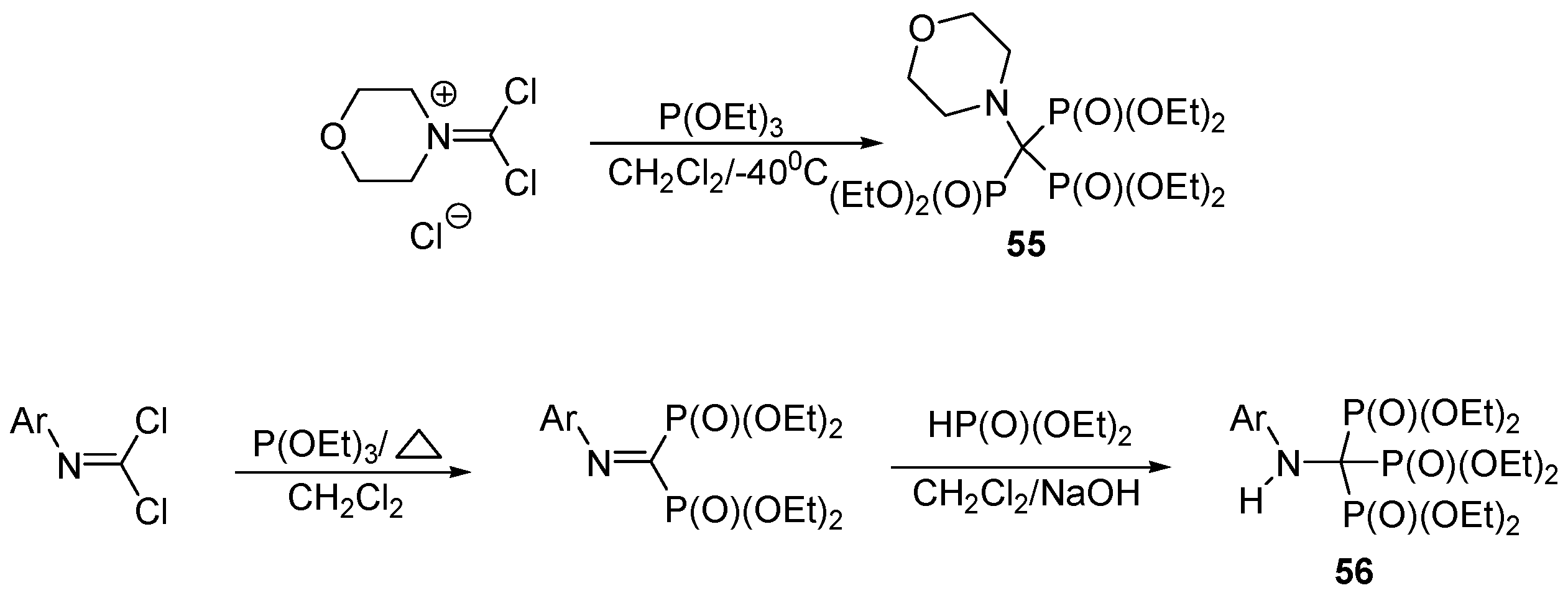

Scheme 27. Syntheses of aminomethyltrisphosphonates.
Scheme 27. Syntheses of aminomethyltrisphosphonates.
Molecules 21 01474 sch027
Molecules 21 01474 sch028 550
Scheme 28. Direct acylation of alendronic acid with indication of possible side-products.
Scheme 28. Direct acylation of alendronic acid with indication of possible side-products.
Molecules 21 01474 sch028
Molecules 21 01474 sch029 550

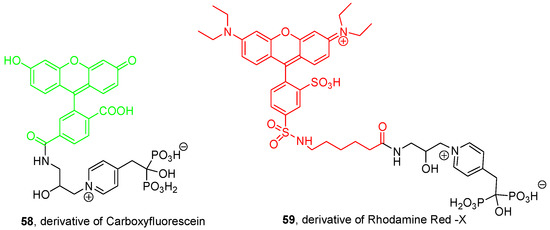

Scheme 29. Representative fluorescent imaging probes obtained via acylation of bisphosphonic acids (green—carboxyfluoresceine fragment, red—rhodamine Red-X fragment).
Scheme 29. Representative fluorescent imaging probes obtained via acylation of bisphosphonic acids (green—carboxyfluoresceine fragment, red—rhodamine Red-X fragment).
Molecules 21 01474 sch029
Molecules 21 01474 sch030 550
Scheme 30. Representative structures of bone-specific estrogens.
Scheme 30. Representative structures of bone-specific estrogens.
Molecules 21 01474 sch030
Molecules 21 01474 sch031 550
Scheme 31. Synthesis of bisphosphonate functionalized magnetic nanoparticles.
Scheme 31. Synthesis of bisphosphonate functionalized magnetic nanoparticles.
Molecules 21 01474 sch031
Molecules 21 01474 sch032 550

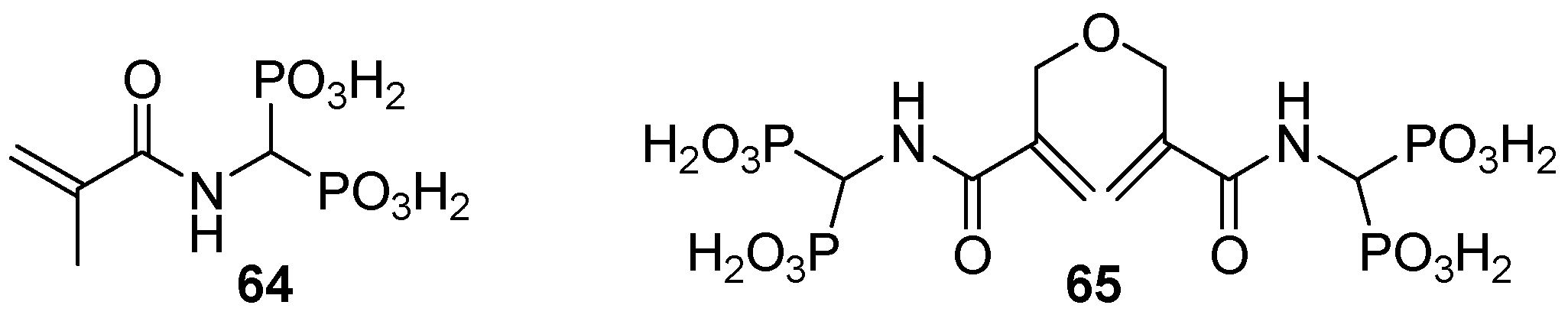

Scheme 32. Bisphosphonylated methacrylamide monomers.
Scheme 32. Bisphosphonylated methacrylamide monomers.
Molecules 21 01474 sch032
Molecules 21 01474 sch033 550

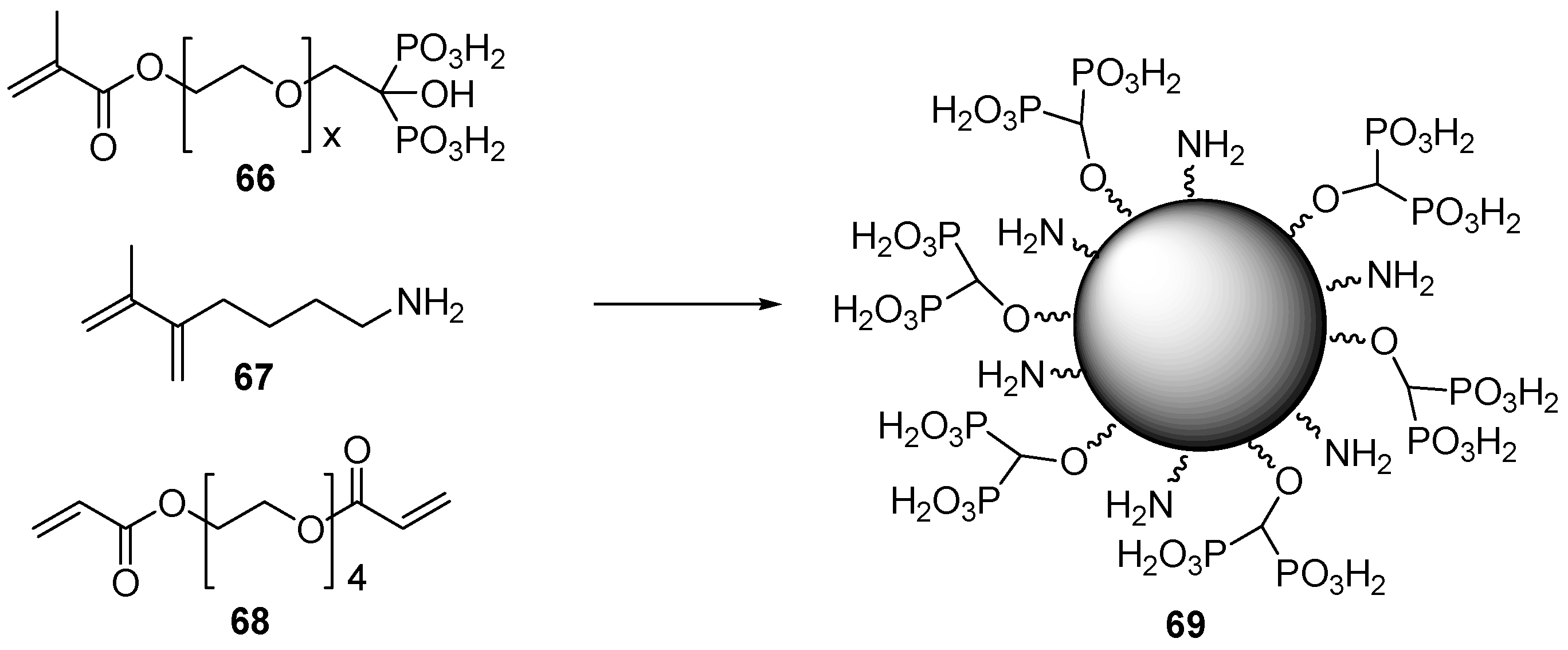

Scheme 33. Synthesis of polymeric nanoparticles as potential dye and drug carriers.
Scheme 33. Synthesis of polymeric nanoparticles as potential dye and drug carriers.
Molecules 21 01474 sch033
Molecules 21 01474 sch034 550
Scheme 34. Periodate oxidation of cellulose followed by reductive amination with sodium alendronate.
Scheme 34. Periodate oxidation of cellulose followed by reductive amination with sodium alendronate.
Molecules 21 01474 sch034

Share and Cite

MDPI and ACS Style

Chmielewska, E.; Kafarski, P. Synthetic Procedures Leading towards Aminobisphosphonates. Molecules 2016, 21, 1474. https://doi.org/10.3390/molecules21111474

AMA Style

Chmielewska E, Kafarski P. Synthetic Procedures Leading towards Aminobisphosphonates. Molecules. 2016; 21(11):1474. https://doi.org/10.3390/molecules21111474

Chicago/Turabian Style

Chmielewska, Ewa, and Paweł Kafarski. 2016. "Synthetic Procedures Leading towards Aminobisphosphonates" Molecules 21, no. 11: 1474. https://doi.org/10.3390/molecules21111474

Article Metrics

Back to TopTop
