Communication

Sugar-Annulated Oxazoline Ligands: A Novel Pd(II) Complex and Its Application in Allylic Substitution

Institute of Organic Chemistry, University of Tübingen, Auf der Morgenstelle 18, 72076 Tübingen, Germany
*
Author to whom correspondence should be addressed.
Molecules 2016, 21(12), 1704; https://doi.org/10.3390/molecules21121704
Submission received: 25 October 2016 / Revised: 1 December 2016 / Accepted: 7 December 2016 / Published: 10 December 2016
(This article belongs to the Special Issue Asymmetric Synthesis 2017)

Abstract

:
Two novel carbohydrate-derived pyridyl (PYOX)- and cyclopropyl (CYBOX)-substituted oxazoline ligands were prepared from d-glucosamine hydrochloride and 1,3,4,6-tetra-O-acetyl-2-amino-2-deoxy-β-d-glucopyranose hydrochloride in two steps, respectively. The sugar-annulated PYOX ligand formed a stable metal complex with Pd(II), which was fully characterized by NMR spectroscopy and X-ray crystallography. NMR and X-ray analysis revealed a change of the conformation in the sugar moiety upon complexation with the palladium(II) species. Both glycosylated ligands resulted in high asymmetric induction (up to 98% ee) upon application as chiral ligands in the Pd-catalyzed allylic alkylation of rac-1,3-diphenylallyl acetate with dimethyl malonate (Tsuji-Trost reaction). Both ligands provided mainly the (R)-enantiomer of the alkylation product.

Graphical Abstract

1. Introduction

During the past decades, the use of carbohydrates as chiral auxiliaries, chiral reagents, organocatalysts and, most notably, as chiral ligands for metal-catalyzed stereoselective reactions has become a powerful tool for organic chemists [1,2]. This is in part due to the fact that carbohydrates are one of the most abundant chiral natural products on earth and, therefore, in many cases are easily isolable from natural sources in high enantiomeric purity and large quantities. As a matter of fact, several highly efficient privileged ligands for asymmetric syntheses have been obtained from carbohydrates [3,4,5,6,7]. However, the enantioselective construction of C-C bonds, in particular the synthesis of tertiary carbon stereocenters, remains an ongoing challenge for organic chemists. Over the last years, however, transition metal–catalyzed allylic alkylation (Tsuji-Trost reaction) has evolved into one of the most potent methods for synthesizing such tertiary stereocenters [8,9].
In 1998, Kunz and Gläser introduced a glucoPHOX ligand (Figure 1A) derived from d-glucosamine, which was used in the Pd(II)-catalyzed allylic substitution of various symmetrically and non-symmetrically 1,3-disubstituted 2-propenyl acetates with dimethyl malonate [10]. The in situ generated Pd-catalyst showed a high asymmetric induction of up to 98% ee for the addition of dimethyl malonate to rac-1,3-diphenylallyl acetate.
Recently, Boysen et al. described the synthesis of several d-gluco– and d-allo–configurated bisoxazoline (BOX) ligands (Figure 1B) [11,12,13]. The ligands were applied in the Cu(I)-catalyzed cyclopropanation of olefins with azoesters and in the asymmetric alkynylation of imines with up to 99% ee. The authors observed that a cyclic 4,6-O-benzylidene acetal–protecting group at the carbohydrate scaffold has a positive influence on the stereo-discrimination properties of the ligands. Boysen et al. attributed this outcome to the 4H5 chair-like conformation of the carbohydrate moiety (Figure 2D) which is fixed by the 4,6-O-benzylidene acetal [12,13]. This conformation is in contrast to similar bisoxazoline glycosides lacking a cyclic protecting group, which adopt an OS2 twist-like conformation (Figure 2E).
As part of our ongoing research program towards the development of novel carbohydrate ligands for asymmetric syntheses, we previously described the preparation of a series of spiro-fused PYOX ligands (Figure 1C) and Pd(II) complexes thereof which were applied in Pd-catalyzed allylic alkylations [14,15]. X-ray crystallography of the Pd complexes revealed that the orientation of the OBn-protecting group at C-3 in these spiroPYOX ligands could have a major impact on the shielded side of the metal center and, thus, could result in a different stereo-discrimination in Pd-catalyzed asymmetric reactions. Indeed, we could further demonstrate that our d-fructose–based ligands mainly provided the (R)-enantiomer in the Pd-catalyzed allylic alkylation of 1,3-diphenylallyl acetate with dimethyl malonate whereas the d-psicose–derived ligands gave the (S)-enantiomer of the alkylation product instead [15].
These results on the spiro-fused carbohydrate-oxazoline ligands encouraged us to take a closer look into sugar-annulated oxazoline ligands and their metal complexes. Herein we report a straightforward synthesis of a novel d-glucosamine–derived PYOX ligand and its Pd(II) complex. Furthermore, we report on a new sugar-annulated cyclopropane-based CYBOX ligand as well as preliminary findings in the application of these ligands in the Tsuji-Trost reaction.

2. Results and Discussion

2.1. Synthesis of Oxazoline Ligands

Our synthesis route to the PYOX ligand (Scheme 1) proceeded via amide coupling of d-glucosamine hydrochloride with picolinic acid to afford the corresponding picolinamide 1. Subsequent cyclization of 1 under modified Lemieux conditions [11,16] gave 1,2-oxazoline 2 in 81% yield. The regioselective condensation of d-glucosamine with picolinic acid was best accomplished with the HBTU/HOBt reagent, followed by exhaustive acetylation with Ac2O in pyridine. Previously, glucose derivative 1 was prepared via a Pd-catalyzed aminocarbonylation of 2-pyridyl tosylate in 48% yield [17].
Although compound 1 was obtained as a 5:1 mixture of its anomers, favoring the α-anomer, the two anomers were not separated for the next synthetic step since treatment with HBr in the next step gave solely the corresponding α-glycosyl bromide intermediate from both anomers. Subsequent cyclization of the intermediate with Bu4NBr and NaHCO3 gave the annulated oxazoline ligand 2 in 81% yield.
For the synthesis of the cyclopropane-based CYBOX ligand 5 (Scheme 2) we started from readily available 1,3,4,6-tetra-O-acetyl-2-amino-2-deoxy-β-d-glucopyranose hydrochloride 3 [18] which was condensed with cyclopropane-1,1-dicarboxylic acid under mediation of HBTU/HOBt to afford the corresponding bis-amide 4. Cyclization to 5 was again achieved by sequential substitution of the anomeric acetate in 4 with HBr in AcOH, followed by treatment of the intermediate glycosyl bromide with Bu4NBr and NaHCO3 (Scheme 2). Yields for both steps were medium due to the formation of unidentified by-products which had to be removed by column chromatography.

2.2. Palladium(II) Complex of Ligand 2

The Pd(II) complex 6 was prepared by the reaction of a slight molar excess of the sugar-annulated ligand 2 with dichloro-(1,5-cyclooctadiene)palladium(II) in 1,2-dichloroethane (Scheme 3). Pd complex 6 was obtained as an orange, microcrystalline solid which was air- and moisture-stable in solution as well as in the solid state. Unfortunately, complexation of CYBOX ligand 5 with Pd(II) under identical conditions did not yield suitable crystals. Complex 6 was soluble in polar organic solvents such as MeCN, but insoluble in CH2Cl2, CHCl3 and non-polar organic solvents such as n-pentane, n-hexane and Et2O.
Crystals suitable for X-ray analysis of complex 6 were obtained by slow diffusion of Et2O into a saturated solution of 6 in MeCN. Crystal data and structure refinements of the X-ray analysis are given in the Supplementary Material. Figure 3 illustrates the molecular structure of 6 along with selected interatomic distances and bond angles. Pd complex 6 crystallizes in the orthorhombic space group P212121 and showed the expected square-planar molecular geometry of the d8-configurated palladium. The bite angle of 80.7°, which is formed by oxazoline-N (N1) and pyridine-N (N2), is in accordance with previously published similar PYOX-Pd complexes [14,19,20,21].
The carbohydrate scaffold in the palladium complex 6 adopts a slightly distorted 4H5 conformation in the solid state. This is contrary to the conformation of similar literature-known uncomplexed 1,2-annulated sugar-oxazolines such as compound 2 which adopt a OS2 conformation [22,23]. We therefore suggested a conformational change of the carbohydrate moiety upon complexation of 2 with the palladium salt. This assumption was supported by 1H-NMR analysis of ligand 2 and Pd complex 6 and a comparison of the relevant chemical shifts and vicinal coupling constants (Table 1). All NMR spectra were recorded in trideuteroacetonitrile in order to avoid possible solvent effects on the chemical shifts and the coupling constants.
The vicinal coupling constant J3,4 in ligand 2 changed upon complexation with PdCl2(cod) by 0.7 Hz, whereas J4,5 alternated by 2.0 Hz, respectively. This is in accordance with the present change of the vicinal-proton torsion angles from the modified skew (OS2) to the distorted half-chair (4H5) conformation.

2.3. Application of Ligands in Asymmetric Allylic Substitution

Next, PYOX ligand 2 and CYBOX ligand 5 were applied as pre-catalysts in an asymmetric Tsuji-Trost reaction [8,9]. As a model system, we chose the Pd-catalyzed allylic alkylation of rac-1,3-diphenylallyl acetate rac-7 with dimethyl malonate 8 (Scheme 4). This specific Tsuji-Trost reaction was often used as a benchmark for new carbohydrate-based ligands (Table 2, entry 1) and was investigated in great detail [10,24,25,26].
The alkylated product 9 was isolated after chromatographic purification and its enantiomeric excess was determined by chiral HPLC analysis. The absolute configuration of 9 was assigned by comparison of the optical rotation values with the literature data [27] which were based on the unambiguous configuration determination of the camphor-10-sulfonate of (R)-9, i.e., (R,E)-3,5-diphenylpent-4-enyl camphor-10-sulfonate [28]. Therefore, a positive optical rotation belongs to the (R)-enantiomer, whereas a negative optical rotation value refers to the (S)-enantiomer of 9. Both ligands tested here were active pre-catalysts in the allylic alkylation and resulted in an excess of the (R)-enantiomer of 9, as can be seen in Table 2.
The Tsuji-Trost reaction was carried out in the presence of 5 mol % [PdCl(C3H5)]2 and 11 mol % of the chiral ligand. The C1-symmetrical PYOX ligand 2 showed preparative yields for (R)-9 of up to 92% with an enantiomeric excess of 47% (Table 2, entry 2). Running the reaction in THF or acetonitrile, respectively, yielded (R)-9 in a somewhat lower yield (53%–71%) but increased the stereoselectivity of the reaction (56% ee, Table 2, entries 3 and 4). Changing the solvent to toluene inhibited the reaction nearly completely. In fact, only traces of the alkylated product could be obtained in toluene (Table 2, entry 5). Lowering the temperature of the reaction slightly increased the selectivity (66% ee) but yielded (R)-9 at only 9% (Table 2, entry 6). The use of preformed Pd(II) complex 6 and in situ dehalogenation with AgSbF6 showed no improvement in conversion (38%) and enantioselectivity (47% ee, Table 2, entry 7).
To our delight, C2-symmetrical CYBOX ligand 5 showed a high asymmetric induction of up to 98% ee when used as a pre-catalyst in the allylic alkylation of rac-7 (Table 2, entry 8). Unfortunately, by switching the solvent to THF or toluene, the reaction was found to be completely blocked (Table 2, entries 9 and 10). Running the reaction in acetonitrile slightly decreased the conversion (35%), although the enantioselectivity remained excellent (97% ee, Table 2, entry 11).
Encouraged by these results we decided to investigate the regioselectivity and enantioselectivity of the allylic substitution of non-symmetrical substituted cinnamyl acetate 10 with dimethyl malonate 8 (Scheme 5). This catalytic system was previously studied in great detail by Pfaltz and coworkers [29]. Generally, monosubstituted allylic substrates such as 10 react predominantly at the unsubstituted allyl terminus to give the achiral, linear product 11l rather than the chiral, branched regioisomer 11b [30].
As very low conversions (5%–7%) were found within 24 h of reaction time with 5 mol % of [PdCl(C3H5)]2 and 11 mol % of PYOX ligand 2, we decided to conduct further studies with CYBOX ligand 5. However, cyclopropane-based ligand 5 led to full conversions in 24 h and afforded nearly exclusively linear substituted product 11l (11l:11b ≥ 99:1).

2.4. Proposed Mechanism

The stereoselective outcome of the Tsuji-Trost reaction can be explained by a model for the proposed transition state (Scheme 6). Due to the C1-symmetry of PYOX ligand 2, exo (12x) and endo (12n) diastereomers of the intermediate allyl-palladium complexes can be distinguished. These exo/endo diastereomers exist in a dynamic equilibrium and can isomerize via a fast η3–η1–η3 mechanism. The exo/endo isomerization is approximately 10 to 100 times faster than the nucleophilic addition to the allyl-palladium complex. Thus, it is reasonable to assume that the exo/endo ratios have a major impact on the observed stereoselectivites [9,26]. The attack of the nucleophile is therefore possible in four different ways: at the allyl terminus which is cis or trans to the oxazoline ring in each of the exo or endo diastereomers, respectively. In accordance with previously published reports of PYOX ligands in allylic substitutions, we assume that the attack of the nucleophile occurs at the allyl terminus which is trans to the oxazoline [31,32]. If the nucleophile attacks trans to the oxazoline ring in the endo complex 12n, the formed η2 complex 14 must have the (S) configuration which, however, is contrary to our observed stereoselectivity. Hence, we suggest that the nucleophilic attack occurs predominantly to the exo isomer 12x, leading to the η2 complex 13 which exhibits the (R) configuration.
In the case of the C2-symmetrical CYBOX ligand 5, there is no distinction between exo and endo diastereomers in the allyl-palladium intermediate 15. Therefore, there are only two possible reaction pathways. The origin of the enantio-discrimination arises here from repulsive interactions between one of the carbohydrate moieties and a phenyl group in the allyl substrate [33]. If the nucleophilic attack occurs at the allyl terminus at which the repulsion between the carbohydrate scaffold and the phenylgroup is present, the steric strain in 15 will be reduced. The so-formed η2 complex 16 exhibits an (R) configuration, which is in accordance with our observed stereoselectivity.

3. Materials and Methods

3.1. General Remarks

All solvents were dried according to standard methods, distilled and stored over molecular sieves 3 Å under an atmosphere of nitrogen prior to their use. Petroleum ether (PE) refers to the fraction boiling in the 60–90 °C range. All non-aqueous reactions were performed in oven-dried glassware under an atmosphere of N2 unless stated otherwise. NMR spectra were recorded on a Bruker Avance 400 spectrometer (Bruker Biospin GmbH, Rheinstetten, Germany) and were calibrated for the solvent signal (1H-CDCl3: 7.26 ppm; 13C-CDCl3: 77.16 ppm. 1H-CD3CN: 1.94 ppm; 13C-CD3CN: 1.32 ppm). NMR signals were numbered in accordance with carbohydrate nomenclature. ESI-HRMS data were measured on a Bruker Daltonics MAXIS 4G spectrometer (Bruker Daltonics GmbH, Bremen, Germany). MALDI-TOF spectra were recorded on a Bruker Autoflex II (Bruker Daltonics GmbH) using trans-2-[3-(4-tert-butylphenyl)-2-methyl-2-propylidene]malonodinitril (DCTB) as the matrix. Elemental analyses were performed on a HEKAtech Euro 3000 CHN (HEKAtech GmbH, Wegberg, Germany) analyzer. Optical rotations were measured with a Perkin-Elmer Polarimeter 341 (Perkin Elmer Inc., Waltham, MA, USA) in a 10 cm cuvette at 20 °C. Melting points were determined with a Büchi Melting Point M-560 apparatus (BÜCHI Labortechnik GmbH, Essen, Germany). Reactions were monitored by TLC on Polygram Sil G/UV silica gel plates from Machery & Nagel (Macherey & Nagel GmbH & Co. KG, Düren, Germany). Detection of spots was effected by charring with H2SO4 (5% in EtOH), staining by spraying the plates with an alkaline aqueous solution of potassium permanganate or by inspection of the TLC plates under UV light. Preparative chromatography was performed on silica gel (0.032–0.063 mm) from Machery & Nagel (Macherey & Nagel GmbH & Co. KG) with different mixtures of solvents as eluent. Racemic samples of 9 and 11 were synthesized according to the general procedure described in Section 3.4. by using 4,5-Bis(diphenylphosphino)-9,9-dimethylxanthene (Xantphos) as ligand. The enantiomeric excess of compound 9 was determined by chiral HPLC analysis on a Sykam S 1121 chromatograph (SYKAM Chromatographie Vertriebs GmbH, Fürstenfeldbruck, Germany) equipped with a Reprosil Chiral-NR column (n-hexane:iPrOH, 90:10; flow 1.6 mL/min): tR = 6.8 min for (R)-9, tR = 8.6 min for (S)-9. All yields given below are isolated yields determined after purification of the product either by silica gel column chromatography or crystallization and were not optimized unless noted otherwise.

3.2. Synthesis of Compounds

1,3,4,6-Tetra-O-acetyl-2-deoxy-2-picolinamido-d-glucopyranose (1): To an ice cold solution of d-glucosamine hydrochloride (0.50 g, 2.32 mmol) and Hünig’s base (N,N-diisopropylamine) (1.20 mL, 6.96 mmol) in dry DMF (15 mL) was added in the following order: HOBt (1-hydroxybenzotriazole) (0.53 g, 3.48 mmol), picolinic acid (0.29 g, 2.32 mmol) and HBTU (2-(1H-benzotriazol-1-yl)-1,1,3,3-tetramethyluronium hexafluorophosphate) (1.32 g, 3.48 mmol). The resulting mixture was stirred for 1 h at 0 °C followed by rt until TLC (CHCl3:MeOH, 5:1) showed complete consumption of starting material (14 h). The solution was evaporated in vacuo, re-dissolved in pyridine (10 mL) and treated with Ac2O (1.75 mL, 18.6 mmol) at 0 °C. The resulting mixture was stirred at rt until TLC (eluent EtOAc) indicated complete O-acetylation (12 h). The solution was poured into ice/water mixture (50 mL) and extracted twice with CH2Cl2 (20 mL). The combined organic phases were washed with 0.5 M citric acid, sat. aqueous NaHCO3-sol., H2O and brine, dried over MgSO4, filtered and concentrated. Chromatography of the residue (PE:EtOAc, 1:1) afforded 1 (0.85 g, 81%) as an amorphous foam (anomeric mixture; α:β, 5:1). Spectroscopic data were in accordance with literature values [17].
2-(2-Pyridyl)-(3,4,6-tri-O-acetyl-1,2-dideoxy-α-d-glucopyranoso)-[2,1-d]-2-oxazoline (2): HBr (33% in AcOH, 4.80 mL, 27.4 mmol) was added dropwise to an icecold solution of 1 (0.73 g, 1.61 mmol) in CH2Cl2 (20 mL). After complete addition the mixture was allowed to warm to rt and stirring at this temperature was continued for 2 h until all starting material was consumed (TLC; PE:EtOAc, 1:1). The solution was hydrolyzed by addition of ice/water and the phases were separated. The organic layer was washed with sat. aqueous NaHCO3-sol., H2O and brine, dried over Na2SO4, filtered and concentrated. The residue was re-dissolved in MeCN (20 mL) and Bu4NBr (0.57 g, 1.77 mmol) and NaHCO3 (0.27 g, 3.23 mmol) were added. After stirring for additional 12 h at rt the suspension was evaporated in vacuo and the yellowish residue re-dissolved in EtOAc (15 mL), washed with H2O and brine, dried over Na2SO4, filtered and concentrated. Chromatography of the residue (PE:EtOAc, 1:3 +2.5% Et3N) afforded 2 (0.51 g, 81%) as a colorless foam. [ α ] D 20 +50.3 (c 1.00, CHCl3). Rf = 0.43 (PE-EtOAc, 1:3 +2.5% Et3N). 1H-NMR (400 MHz, CDCl3): δ = 8.72–8.71 (m, 1H, pyridine-H), 8.04 (d, J = 7.9 Hz, 1H, pyridine-H), 7.82–7.80 (td, J = 3.9 Hz, J = 1.8 Hz, 1H, pyridine-H), 7.44–7.41 (m, 1H, pyridine-H), 6.23 (d, J1,2 = 7.4 Hz, 1H, H-1), 5.41 (t, J = 2.5 Hz, 1H, H-3), 4.97–4.94 (m, 1H, H-4), 4.42–4.39 (m, 1H, H-2), 4.15–4.13 (m, 2H, H-6a, H-6b), 3.70–3.66 (m, 1H, H-5), 2.10, 2.03, 1.98 (3s, 9H, CH3). 13C-NMR (100 MHz, CDCl3): δ = 170.6, 169.6, 169.2 (C=O), 164.2 (OCN), 150.2, 145.4, 136.9, 126.4, 124.3 (pyridine-C), 100.4 (C-1), 70.3 (C-3), 68.4 (C-4), 67.8 (C-5), 65.4 (C-2), 63.2 (C-6), 21.0, 20.8, 20.8 (CH3). HRMS-ESI: m/z calcd for C18H20N2O8Na [M + Na]+: 415.111187; found: 415.111056. Anal. calcd for C18H20N2O8 (392.4): C, 55.10; H, 5.14; N, 7.14; found: C, 55.06; H, 5.45; N, 6.67.
N,N′-Bis(1,3,4,6-tetra-O-acetyl-2-deoxy-β-d-glucopyranos-2-yl)-cyclopropane-1,1-dicarboxamide (4): To an ice cold solution of 1,3,4,6-tetra-O-acetyl-2-amino-2-deoxy-β-d-glucopyranose hydrochloride (3) [18] (1.20 g, 3.12 mmol) and Hünig’s base (1.63 mL, 9.38 mmol) in dry DMF (15 mL) was added in the following order: HOBt (0.72 g, 4.69 mmol), cyclopropane-1,1-dicarboxylic acid (0.20 g, 1.56 mmol) and HBTU (1.78 g, 4.69 mmol). The resulting mixture was stirred for 1 h at 0 °C followed by rt for 14 h. The mixture was evaporated to dryness and the residue re-dissolved in EtOAc (15 mL). The organic solution was washed with 0.5 m citric acid, sat. aqueous NaHCO3-sol., H2O and brine, dried over MgSO4, filtered and concentrated. Chromatography of the residue (PE:EtOAc, 1:3 +1% Et3N) afforded 4 (0.93 g, 75%) as a colorless foam. [ α ] D 20 +38.8 (c 1.00, CHCl3). Rf = 0.29 (PE:EtOAc, 1:3 +1% Et3N). 1H-NMR (400 MHz, CDCl3): δ = 6.59 (d, J = 9.6 Hz, 2H, NH), 6.01 (d, J1,2 = 8.6 Hz, 2H, H-1), 5.39 (t, J = 9.8 Hz, 2H, H-3), 5.20 (t, J = 9.9 Hz, 2H, H-4), 4.37 (q, J2,3 = 9.5 Hz, 2H, H-2), 4.27 (dd, J6a,6b = 12.6 Hz, J6a,5 = 4.8 Hz, 2H, H-6a), 4.14 (dd, J6b,6a = 12.5 Hz, J6b,5 = 2.4 Hz, 2H, H-6b), 3.86 (ddd, J5,6a = 4.7 Hz, J5,6b = 2.2 Hz, J5,4 = 10.1 Hz, 2H, H-5), 2.10, 2.10, 2.08, 2.08 (4s, 24H, CH3), 1.54–1.49 (m, 2H, cyclopropane-CH2), 1.10–1.05 (m, 2H, cyclopropane-CH2). 13C-NMR (100 MHz, CDCl3): δ = 173.0, 170.9, 169.8, 169.3 (C=O), 168.9 (CONH), 92.5 (C-1), 74.0 (C-3), 72.9 (C-5), 67.6 (C-4), 61.8 (C-6), 53.8 (C-2), 30.3 (quar. cyclopropane-C), 21.0, 20.9, 20.8 (CH3), 17.5 (cyclopropane-CH2). HRMS-ESI: m/z calcd for C33H44N2O20Na [M + Na]+: 811.23796; found: 811.23806. Anal. calcd for C33H44N2O20 (788.7): C, 50.25; H, 5.62; N, 3.55; found: C, 50.28; H, 5.72; N, 3.37.
2,2′-Cyclopropylidenbis[(3,4,6-tri-O-acetyl-1,2-dideoxy-α-d-glucopyranoso)[2,1-d]-2-oxazoline] (5): HBr (33% in AcOH, 6.80 mL, 37.50 mmol) was added dropwise to an icecold solution of 4 (0.87 g, 1.10 mmol) in CH2Cl2 (15 mL). After complete addition the mixture was allowed to warm to rt and stirring at this temperature was continued for 2 h (TLC; PE:EtOAc, 1:1). The solution was hydrolyzed with ice/water mixture and the phases were separated. The organic layer was washed with sat. aqueous NaHCO3-sol., H2O and brine, dried over Na2SO4, filtered and concentrated. The residue was re-dissolved in MeCN (15 mL) and Bu4NBr (0.39 g, 1.21 mmol) and NaHCO3 (0.19 g, 2.21 mmol) were added. After stirring for additional 17 h at rt the suspension was evaporated in vacuo and the yellowish residue was re-dissolved in EtOAc (20 mL). The organic solution was then washed with H2O and brine, dried over Na2SO4, filtered and concentrated. Chromatography of the residue (PE:EtOAc, 1:3 +2.5% Et3N) afforded 5 (0.53 g, 72%) as a colorless foam. [ α ] D 20 +47.4 (c 1.00, CHCl3). Rf = 0.38 (PE:EtOAc, 1:3 +2.5% Et3N). 1H-NMR (400 MHz, CDCl3): δ = 6.01 (d, J1,2 = 7.3 Hz, 2H, H-1), 5.27–5.24 (m, 2H, H-3), 4.92 (dd, J = 0.8 Hz, J = 9.4 Hz, 2H, H-4), 4.21–4.12 (m, 6H, H-2, H-6a, H-6b), 3.92–3.87 (m, 2H, H-5), 2.09, 2.08, 2.07 (3s, 18H, CH3), 1.69–1.65 (m, 2H, cyclopropane-CH2), 1.42–1.37 (m, 2H, cyclopropane-CH2). 13C-NMR (100 MHz, CDCl3): δ = 170.8 (OCN), 169.7, 169.3, 167.1 (C=O), 100.1 (C-1), 70.4 (C-3), 68.5 (C-4), 67.8 (C-5), 64.9 (C-2), 63.2 (C-6), 21.0, 20.8 (CH3), 18.4 (quar. cyclopropane-C), 15.7 (cyclopropane-CH2). HRMS-ESI: m/z calcd for C29H36N2O16Na [M + Na]+: 691.19570; found: 691.19644. Anal. calcd for C29H36N2O16 (668.6): C, 52.10; H, 5.43; N, 4.19; found: C, 52.35; H, 5.66; N, 4.10.
Dichloro[2-(2-Pyridyl)-(3,4,6-tri-O-acetyl-1,2-dideoxy-α-d-glucopyranoso)-[2,1-d]-2-oxazoline]palladium(II) (6): PdCl2(cod) (dichloro-(1,5-cyclooctadiene)palladium(II)) (57 mg, 0.200 mmol, 98 mol %) was added to a solution of 2 (80 mg, 0.204 mmol) in 4 mL dry Cl(CH2)2Cl and stirred for 72 h at rt. Evaporation to dryness and re-crystallization of the residue from dry MeCN/Et2O afforded the palladium complex 6 (110 mg, 96%) as orange needles. M.p. > 209 °C (decomp, Et2O/MeCN). [ α ] D 20 −143.4 (c 1.00, MeCN). 1H-NMR (400 MHz, CD3CN): δ = 8.97–8.95 (m, 1H, pyridine-H), 8.24 (td, J = 3.9 Hz, J = 1.4 Hz, 1H, pyridine-H), 7.97 (dd, J = 7.8 Hz, J = 0.9 Hz, 1H, pyridine-H), 7.80–7.77 (m, 1H, pyridine-H), 6.71 (d, J1,2 = 7.6 Hz, 1H, H-1), 6.09 (t, J = 3.0 Hz, 1H, H-3), 4.95 (ddd, J = 7.1 Hz, J = 2.7 Hz, J = 1.3 Hz, 1H, H-4), 4.67 (ddd, J = 7.6 Hz, J = 3.3 Hz, J = 1.3 Hz, 1H, H-2), 4.26–4.17 (m, 2H, H-6a, H-6b), 3.94–3.90 (m, 1H, H-5), 2.16, 2.07, 2.02 (CH3). 13C-NMR (100 MHz, CD3CN): δ = 171.9, 171.3, 170.4, 169.8 (C=O, OCN), 151.7, 145.1, 142.1, 131.2, 128.0 (pyridine-C), 106.3 (C-1), 70.6 (C-5), 67.6 (C-4), 66.9 (C-3), 64.1 (C-6), 60.9 (C-2), 21.6, 21.2, 20.9 (CH3). MS (MALDI-TOF): m/z = 608.9 [M + K]+. Anal. calcd for C18H20Cl2N2O8Pd (569.7): C, 37.95; H, 3.54; N, 4.92; found: C, 37.66; H, 3.45; N, 4.93. Crystal Data for C18H20Cl2N2O8Pd (M = 569.66 g/mol): orthorombic, space group P212121 (no. 19), a = 8.6185(6) Å, b = 14.6441(10) Å, c = 16.5033(11) Å, α = β = γ = 90°, V = 2082.9(2) Å3, Z = 4, T = 100(2) K, μ(MoKα) = 1.197 mm−1, Dcalc = 1.817 g/cm3, 44885 reflections measured (2.666° ≤ 2θ ≤ 30.526°), 6370 unique (Rint = 0.0287) which were used in all calculations. The final R1 was 0.0144 (I > 2σ(I)) and wR2 was 0.0362 (all data).

3.3. Crystallography

Crystals of 6 for X-ray analysis were obtained by slow diffusion of Et2O into a sat. solution of 6 in MeCN. X-ray data were collected on a Bruker SMART APEX II DUO (Bruker AXS Advanced X-ray Solutions GmbH, Karlsruhe, Germany) diffractometer using a graphite-monochromated Mo Kα radiation (λ = 0.71073 Å). Corrections for absorption effects were applied using SADABS [34]. The structure was solved by direct methods using SHELXS and SHELXL for structure solution and refinement [35,36,37,38]. Further details of the refinement and crystallographic data are given in the supplementary material.

3.4. Asymmetric Allylic Alkylation (Tsuji-Trost Reaction)

General Procedure for the addition of dimethyl malonate (8) to allyl acetates (rac-7 or 10): A solution of chiral ligand 2 or 5 (0.011 mmol, 11 mol % in respect to the allyl acetate) and [PdCl(C3H5)]2 (1.8 mg, 0.005 mmol, 5 mol %) in dry CH2Cl2 (1 mL) were stirred for 30 min at rt. To this catalyst solution allyl acetate (0.1 mmol, 25 mg for rac-7; 17 µL for 10), dimethyl malonate (8) (34 µL, 0.3 mmol), N,O-bis(trimethylsilyl)acetamide (73 µL, 0.3 mmol) and KOAc (0.5 mg, 0.005 mmol) were added and stirring was continued for 12 h at rt. The reaction mixture was diluted with Et2O (3 mL) and NH4Cl (2 mL) and the aqueous layer was extracted with Et2O (3 × 5 mL). The combined organic phases were washed with water and brine, dried over Na2SO4 and concentrated. Chromatography of the residue (PE:EtOAc, 6:1) afforded the alkylated product 9 or 11, respectively, as a colorless oil. Spectroscopic data were in accordance with literature [39,40].

4. Conclusions

In summary, we have synthesized the novel sugar-annulated ligands PYOX (2) and CYBOX (5) from d-glucosamine hydrochloride and readily available 1,3,4,6-tetra-O-acetyl-2-amino-2-deoxy-β-d-glucopyranose hydrochloride in two steps, respectively. PYOX ligand 2 formed a stable Pd(II) complex upon reaction with PdCl2(cod) and was fully characterized by means of NMR, CHN, MS and crystal structure analysis. NMR and X-ray studies revealed a conformational change of the carbohydrate scaffold in ligand 2 upon complexation with Pd(II). Both ligands were used as pre-catalysts in the Pd-catalyzed allylic substitution of rac-1,3-diphenylallyl acetate with dimethyl malonate (Tsuji-Trost reaction). CYBOX ligand 5 provided the (R)-enantiomer of the alkylation product with high enantiomeric excess (up to 98% ee). Further ligand optimizations and substrate scope evaluations of allylic substitution are currently under investigation and will be published soon.

Supplementary Materials

The following are available online at https://www.mdpi.com/1420-3049/21/12/1704/s1.

Acknowledgments

Financial support of this work by the Deutsche Forschungsgemeinschaft (DFG) and the open access publishing fund of the University of Tübingen is gratefully acknowledged. We also would like to thank D. Wistuba and her team for recording the mass spectra, M. Kramer and his team for measuring the NMR spectra, C. Maichle-Mössmer for the crystal structure analysis, P. Krüger for the elemental analysis measurements and G. Lemanski and D. Schmollinger for helpful discussions on the topic.

Author Contributions

J.K. and T.Z. conceived and designed the experiments; J.K. and K.M. performed the experiments and analyzed the data; J.K. and T.Z. wrote the paper. T.Z. supervised the whole research.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Boysen, M.M.K. Carbohydrates—Tools for Stereoselective Synthesis; Wiley-VCH: Weinheim, Germany, 2013. [Google Scholar]
  2. Lehnert, T.; Özüduru, G.; Gruel, H.; Albrecht, F.; Telligmann, S.M.; Boysen, M.M.K. More than just sweet-sugar-derived stereo differentiating agents for asymmetric synthesis. Synthesis 2011, 17, 2685–2708. [Google Scholar]
  3. Benessere, V.; Del Litto, R.; De Roma, A.; Ruffo, F. Carbohydrates as building blocks of privileged ligands. Coord. Chem. Rev. 2010, 254, 390–401. [Google Scholar] [CrossRef]
  4. Diéguez, M.; Claver, C.; Pàmies, O. Recent progress in Asymmetric catalysis using chiral carbohydrate-based ligands. Eur. J. Org. Chem. 2007, 28, 4621–4634. [Google Scholar] [CrossRef]
  5. Castillón, S.; Claver, C.; Díaz, Y. C1 and C2-symmetric carbohydrate phosphorus ligands in asymmetric catalysis. Chem. Soc. Rev. 2005, 34, 702–713. [Google Scholar] [CrossRef] [PubMed]
  6. Diéguez, M.; Pàmies, O.; Claver, C. Ligands derived from carbohydrates for asymmetric catalysis. Chem. Rev. 2004, 104, 3189–3215. [Google Scholar] [CrossRef] [PubMed]
  7. Diéguez, M.; Pàmies, O.; Ruiz, A.; Díaz, Y.; Castillón, S.; Claver, C. Carbohydrate derivative ligands in asymmetric catalysis. Coord. Chem. Rev. 2004, 248, 2165–2192. [Google Scholar] [CrossRef]
  8. Trost, B.M.; Crawley, M.L. Asymmetric transition-metal-catalyzed allylic alkylations: Applications in total synthesis. Chem. Rev. 2003, 103, 2921–2943. [Google Scholar] [CrossRef] [PubMed]
  9. Trost, B.M.; Crawley, M.L. Asymmetric transition metal-catalyzed allylic alkylations. Chem. Rev. 1996, 96, 395–422. [Google Scholar] [CrossRef] [PubMed]
  10. Gläser, B.; Kunz, H. Enantioselective allylic substitution using a novel (Phosphino-α-d-glucopyrano-oxazoline)palladium catalyst. Synlett 1998, 53–54. [Google Scholar] [CrossRef]
  11. Irmak, M.; Groschner, A.; Boysen, M.M.K. glucoBox—A new carbohydrate-based bis(oxazoline) ligand. Synthesis and first application. Chem. Commun. 2007, 177–179. [Google Scholar] [CrossRef] [PubMed]
  12. Minuth, T.; Irmak, M.; Groschner, A.; Lehnert, T.; Boysen, M.M.K. Sweets for Catalysis-Facile Optimisation of Carbohydrate-Based Bis(oxazoline) Ligands. Eur. J. Org. Chem. 2009, 7, 997–1008. [Google Scholar] [CrossRef]
  13. Minuth, T.; Boysen, M.M.K. Bis(oxazolines) based on glycopyranosides-steric, configurational and conformational influences on stereoselectivity. Beilstein J. Org. Chem. 2010, 6. [Google Scholar] [CrossRef] [PubMed]
  14. Kraft, J.; Ziegler, T. Synthesis of spirofused carbohydrate-oxazoline based palladium(II) complexes. Carbohydr. Res. 2015, 411, 56–63. [Google Scholar] [CrossRef] [PubMed]
  15. Kraft, J.; Golkowski, M.; Ziegler, T. Spiro-fused carbohydrate oxazoline ligands: Synthesis and application as enantio-discrimination agents in asymmetric allylic alkylation. Beilstein J. Org. Chem. 2016, 12, 166–171. [Google Scholar] [CrossRef] [PubMed]
  16. Lemieux, R.U.; Hendriks, K.B.; Stick, R.V.; James, K. Halide Ion Catalyzed Glycosidation Reactions Syntheses of α-Linked Disaccharides. J. Am. Chem. Soc. 1975, 97, 4056–4062. [Google Scholar] [CrossRef]
  17. Hermange, P.; Lindhardt, A.T.; Taaning, R.H.; Bjerglund, K.; Lupp, D.; Skyrdstrup, T. Ex Situ Generation of Stoichiometric and Substoichiometric 12CO and 13CO and Its Efficient Incorporation in Palladium Catalyzed Aminocarbonylations. J. Am. Chem. Soc. 2011, 133, 6061–6071. [Google Scholar] [CrossRef] [PubMed]
  18. Kong, H.C.; Chen, W.; Lu, H.Z.; Yang, Q.; Dong, Y.H.; Wang, D.Q.; Zhang, J.J. Synthesis of NAG-thiazoline-derived inhibitors for β-N-acetyl-d-hexosaminidases. Carbohydr. Res. 2015, 413, 135–144. [Google Scholar] [CrossRef] [PubMed]
  19. Holder, J.C.; Zou, L.F.; Marziale, A.N.; Liu, P.; Lan, Y.; Gatti, M.; Kikushima, K.; Houk, K.N.; Stoltz, B.M. Mechanism and Enantioselectivity in Palladium-Catalyzed Conjugate Addition of Arylboronic Acids to β-Substituted Cyclic Enones: Insights from Computation and Experiment. J. Am. Chem. Soc. 2013, 135, 14996–15007. [Google Scholar] [CrossRef] [PubMed]
  20. Dodd, D.W.; Toews, H.E.; Carneiro, M.C.; Jennings, M.C.; Jones, N.D. Model intermolecular asymmetric Heck reactions catalyzed by chiral pyridyloxazoline palladium(II) complexes. Inorg. Chim. Acta 2006, 359, 2850–2858. [Google Scholar] [CrossRef]
  21. Svensson, M.; Bremberg, U.; Hallman, K.; Csoregh, I.; Moberg, C. (Hydroxyalkyl)pyridinooxazolines in palladium-catalyzed allylic substitutions. Conformational preferences of the ligand. Organometallics 1999, 18, 4900–4907. [Google Scholar] [CrossRef]
  22. Nashed, M.A.; Slife, C.W.; Kiso, M.; Anderson, L. O-Benzylated Oxazoline Derivatives of 2-Acetamido-2-Deoxy-d-Glucopyranose from 1-Propenyl Glycosides-Synthesis of the Propenyl Glycosides and Their Direct Cyclization. Carbohydr. Res. 1980, 82, 237–252. [Google Scholar] [CrossRef]
  23. Foces-Foces, C.; Cano, F.H.; Bernabe, M.; Penades, S.; Martin-Lomas, M. Conformation of 3,4,6-Tri-O-Acetyl-1,2-Dideoxy-α-d-Glucopyrano-[2,1-d]-2-Oxazolines. Carbohydr. Res. 1984, 135, 1–11. [Google Scholar] [CrossRef]
  24. Mata, Y.; Diéguez, M.; Pàmies, O.; Claver, C. New Carbohydrate-Based Phosphite-Oxazoline Ligands as Highly Versatile Ligands for Palladium-Catalyzed Allylic Substitution Reactions. Adv. Synth. Catal. 2005, 347, 1943–1947. [Google Scholar] [CrossRef]
  25. Khiar, N.; Navas, R.; Fernández, I. ‘ClickCarb’: Modular sugar based ligands via click chemistry. Tetrahedron Lett. 2012, 53, 395–398. [Google Scholar] [CrossRef]
  26. Helmchen, G. Enantioselective palladium-catalyzed allylic substitutions with asymmetric chiral ligands. J. Organomet. Chem. 1999, 576, 203–214. [Google Scholar] [CrossRef]
  27. Ramillien, M.; Vanthuyne, N.; Jean, M.; Gherase, D.; Giorgi, M.; Naubron, J.-V.; Piras, P.; Roussel, C. Enantiomers of dimethyl [(2E)-1,3-diphenylprop-2-en-1-yl]propanedioate resulting from allylic alkylation reaction: Elution order on major high-performance liquid chromatography chiral columns. J. Chromatogr. A 2012, 1269, 82–93. [Google Scholar] [CrossRef] [PubMed]
  28. Von Matt, P.; Lloyd-Jones, G.C.; Minidis, A.B.E.; Pfaltz, A.; Macko, L.; Neuburger, M.; Zehnder, M.; Rüegger, H.; Pregosin, P.S. Enantioselective Allylic Substitution Catalyzed by Chiral [Bis(Dihydrooxazole)]Palladium Complexes-Catalyst Structure and Possible Mechanism of Enantioselection. Helv. Chim. Acta 1995, 78, 265–284. [Google Scholar] [CrossRef]
  29. Prétôt, R.; Pfaltz, A. New Ligands for Regio- and Enantiocontrol in Pd-Catalyzed Allylic Alkylations. Angew. Chem. Int. Ed. 1998, 37, 323–325. [Google Scholar] [CrossRef]
  30. Sjögren, M.P.T.; Hansson, S.; Åkermark, B.; Vitagliano, A. Stereo- and Regiocontrol in Palladium-Catalyzed Allylic Alkylation Using 1,10-Phenanthrolines as Ligands. Organometallics 1994, 13, 1963–1971. [Google Scholar] [CrossRef]
  31. Chelucci, G.; Medici, S.; Saba, A. Chiral oxazolinylpyridines as ligands for enantioselective palladium catalysed allylic substitution. Tetrahedron: Asymmetry 1997, 8, 3183–3184. [Google Scholar] [CrossRef]
  32. Nordström, K.; Macedo, E.; Moberg, C. Enantioselective allylic substitutions catalyzed by [(hydroxyalkyl)pyridinooxazoline]- and [(alkoxyalkyl)pyridinooxazoline]palladium complexes. J. Org. Chem. 1997, 62, 1604–1609. [Google Scholar] [CrossRef]
  33. Pfaltz, A. Chiral Semicorrins and Related Nitrogen-Heterocycles as Ligands in Asymmetric Catalysis. Acc. Chem. Res. 1993, 26, 339–345. [Google Scholar] [CrossRef]
  34. Sheldrick, G.M. SADABS; University of Goettingen: Göttingen, Germany, 2008. [Google Scholar]
  35. Sheldrick, G.M. SHELXS 97, Program for the Solution of Crystal Structures; University of Göttingen: Göttingen, Germany, 1997. [Google Scholar]
  36. Sheldrick, G.M. Phase Annealing in SHELXL-90—Direct Methods for Larger Structures. Acta Crystallogr. Sect. A 1990, 46, 467–473. [Google Scholar] [CrossRef]
  37. Sheldrick, G.M. SHELXL, Bruker Analytical X-ray Division; Bruker: Madison, WI, USA, 2001. [Google Scholar]
  38. Hübschle, C.B.; Sheldrick, G.M.; Dittrich, B. ShelXle: A Qt graphical user interface for SHELXL. J. Appl. Crystallogr. 2011, 44, 1281–1284. [Google Scholar] [CrossRef] [PubMed]
  39. Leutenegger, U.; Umbricht, G.; Fahrni, C.; von Matt, P.; Pfaltz, A. 5-Aza-Semicorrins—A New Class of Bidentate Nitrogen Ligands for Enantioselective Catalysis. Tetrahedron 1992, 48, 2143–2156. [Google Scholar] [CrossRef]
  40. Co, T.T.; Paek, S.W.; Shim, S.C.; Cho, C.S.; Kim, T.-J.; Choi, D.W.; Kang, S.O.; Jeong, J.H. 1,2-Ferrocenediylazaphosphinines: An unusual coordination behavior and application to allylic alkylation. Organometallics 2003, 22, 1475–1482. [Google Scholar] [CrossRef]
  • Sample Availability: Samples of compounds are available from the authors.

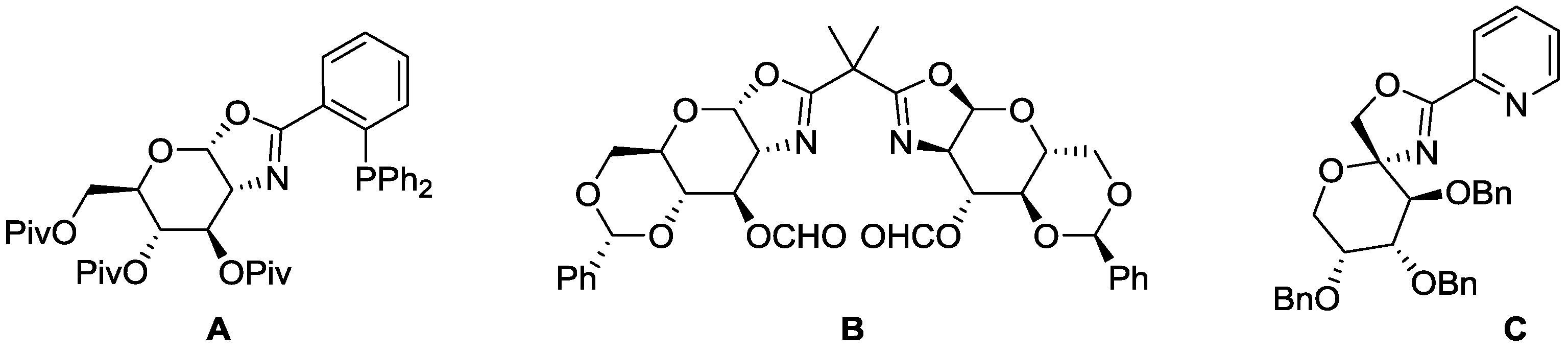

Figure 1. Examples of literature-known glucoPHOX (A); glucoBOX (B) and spiroPYOX (C) ligands.
Figure 1. Examples of literature-known glucoPHOX (A); glucoBOX (B) and spiroPYOX (C) ligands.
Molecules 21 01704 g001
Figure 2. Carbohydrate conformations of sugar-annulated 1,2-oxazoline ligands in the presence (D) and absence (E) of cyclic protecting groups.
Figure 2. Carbohydrate conformations of sugar-annulated 1,2-oxazoline ligands in the presence (D) and absence (E) of cyclic protecting groups.
Molecules 21 01704 g002

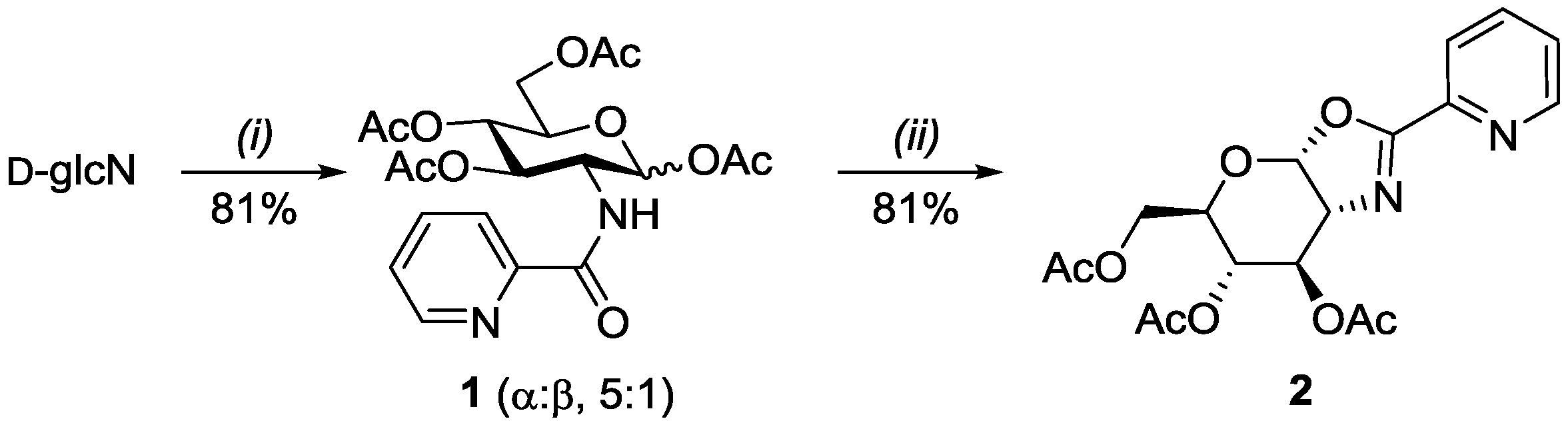

Scheme 1. Synthesis of sugar-annulated PYOX ligand 2. Reagents and conditions: (i) (a) HBTU/HOBt, picolinic acid, DIPEA, DMF, 0 °C-rt, 14 h; (b) Ac2O, pyridine, 0 °C-rt, 12 h, 81% (α:β, 5:1; determined by 1H-NMR); (ii) (a) HBr in AcOH, CH2Cl2, 0 °C-rt, 2 h; (b) Bu4NBr, NaHCO3, MeCN, rt, 12 h, 81%.
Scheme 1. Synthesis of sugar-annulated PYOX ligand 2. Reagents and conditions: (i) (a) HBTU/HOBt, picolinic acid, DIPEA, DMF, 0 °C-rt, 14 h; (b) Ac2O, pyridine, 0 °C-rt, 12 h, 81% (α:β, 5:1; determined by 1H-NMR); (ii) (a) HBr in AcOH, CH2Cl2, 0 °C-rt, 2 h; (b) Bu4NBr, NaHCO3, MeCN, rt, 12 h, 81%.
Molecules 21 01704 sch001

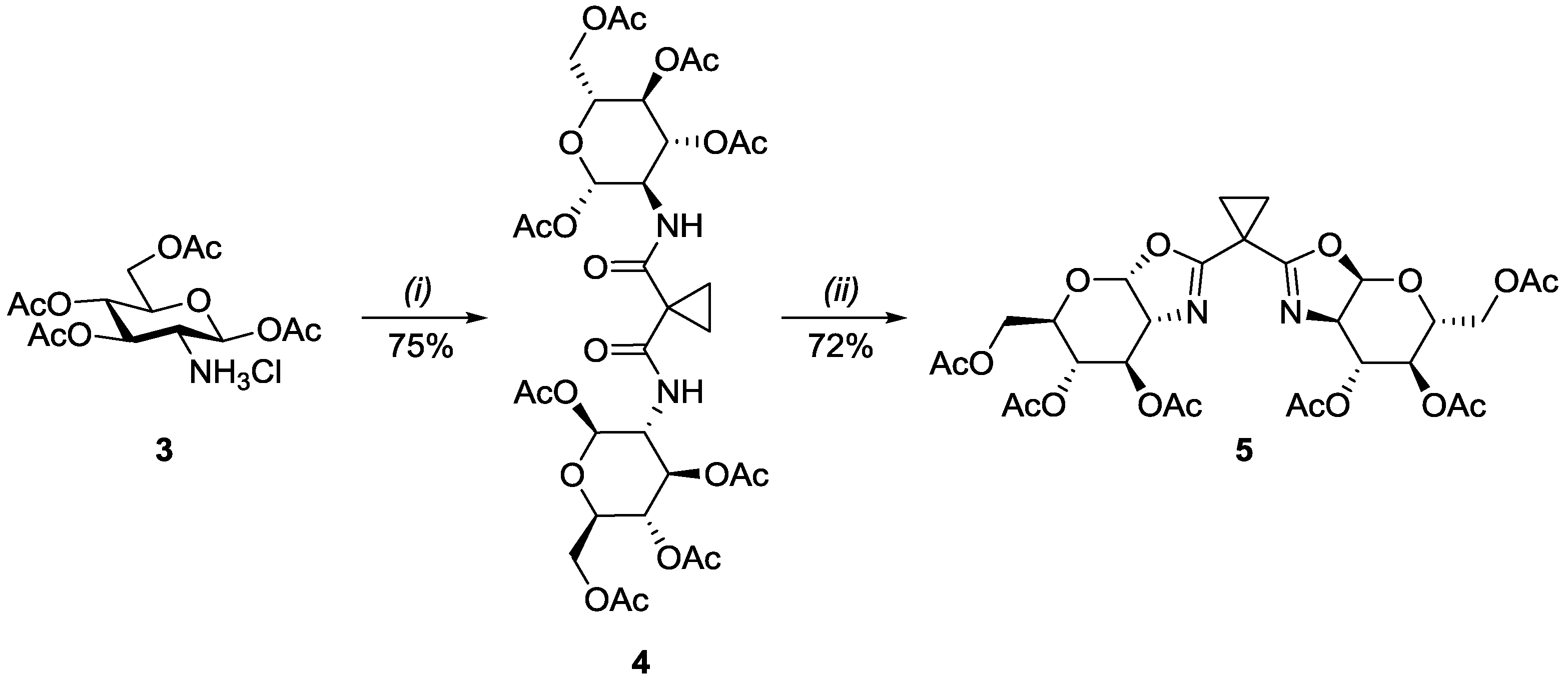

Scheme 2. Synthesis of sugar-annulated CYBOX ligand 5. Reagents and conditions: (i) HBTU/HOBt, cyclopropane-1,1-dicarboxylic acid, DIPEA, DMF 0 °C-rt, 15 h, 75%; (ii) (a) HBr in AcOH, CH2Cl2, 0 °C-rt, 2 h; (b) Bu4NBr, NaHCO3, MeCN rt, 17 h, 72%.
Scheme 2. Synthesis of sugar-annulated CYBOX ligand 5. Reagents and conditions: (i) HBTU/HOBt, cyclopropane-1,1-dicarboxylic acid, DIPEA, DMF 0 °C-rt, 15 h, 75%; (ii) (a) HBr in AcOH, CH2Cl2, 0 °C-rt, 2 h; (b) Bu4NBr, NaHCO3, MeCN rt, 17 h, 72%.
Molecules 21 01704 sch002
Scheme 3. Complexation of PYOX ligand 2 with Pd(II). Reagents and conditions: (i) PdCl2(cod), DCE, rt, 72 h, 96%. cod = 1,5-cyclooctadiene, DCE = 1,2-dichloroethane.
Scheme 3. Complexation of PYOX ligand 2 with Pd(II). Reagents and conditions: (i) PdCl2(cod), DCE, rt, 72 h, 96%. cod = 1,5-cyclooctadiene, DCE = 1,2-dichloroethane.
Molecules 21 01704 sch003

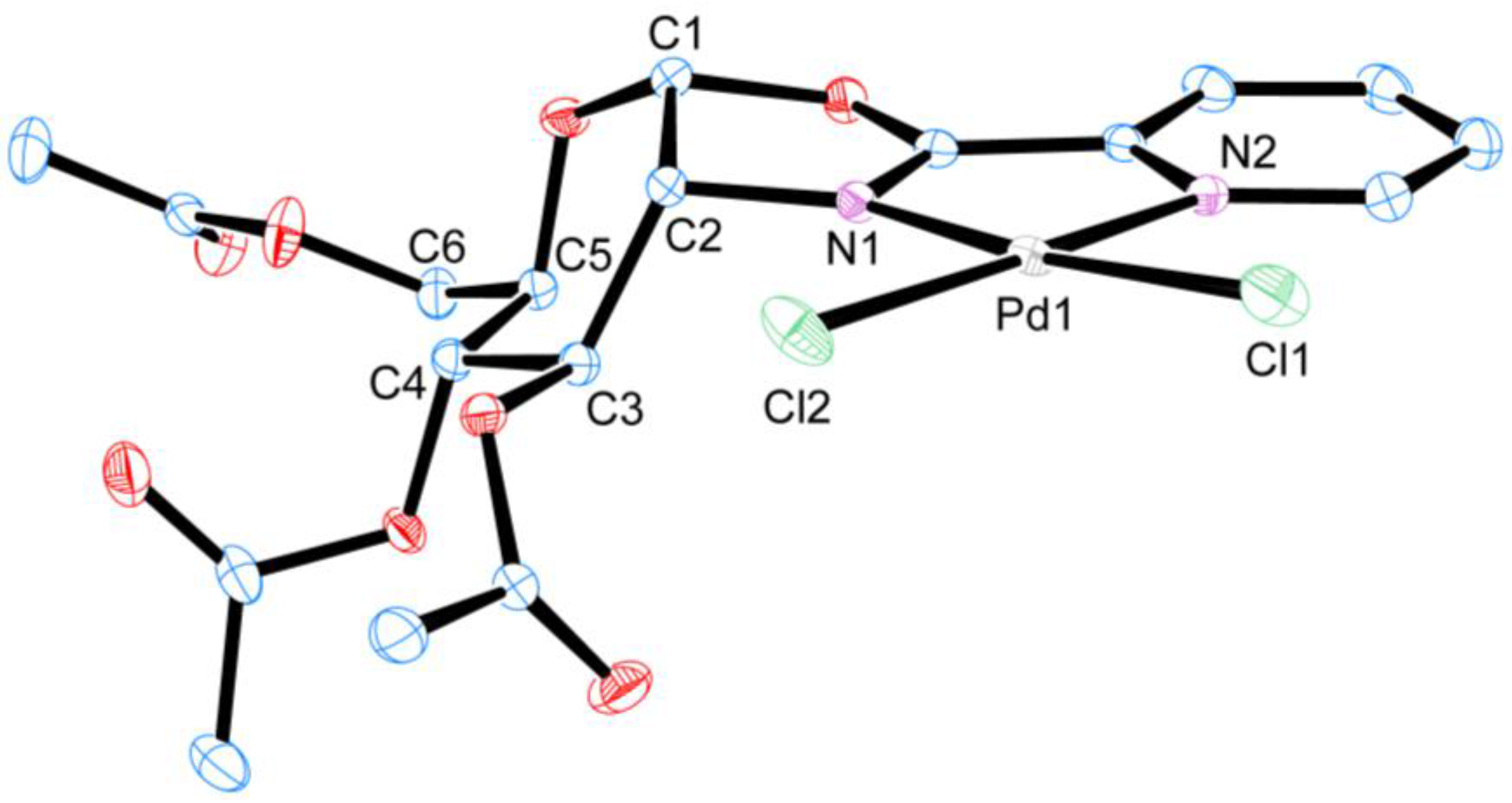

Figure 3. ORTEP plot of the molecular structure of the Pd complex 6. Hydrogen atoms have been omitted for clarity; ellipsoids are given at the 50% probability level. Blue = carbon; red = oxygen; pink = nitrogen; grey = palladium; green = chlorine. Selected bond-distances (Å) and -angles (°): Pd1-N1 2.0284(14), Pd1-N2 2.0439(15), Pd-Cl1 2.2779(5), Pd-Cl2 2.2692(5); N1-Pd-N2 80.70(6).
Figure 3. ORTEP plot of the molecular structure of the Pd complex 6. Hydrogen atoms have been omitted for clarity; ellipsoids are given at the 50% probability level. Blue = carbon; red = oxygen; pink = nitrogen; grey = palladium; green = chlorine. Selected bond-distances (Å) and -angles (°): Pd1-N1 2.0284(14), Pd1-N2 2.0439(15), Pd-Cl1 2.2779(5), Pd-Cl2 2.2692(5); N1-Pd-N2 80.70(6).
Molecules 21 01704 g003
Scheme 4. Palladium-catalyzed allylic alkylation of rac-1,3-diphenylallyl acetate (rac-7). Reagents and conditions: (i) Chiral ligand (2 or 5), [PdCl(C3H5)]2, KOAc/BSA, rt, 24 h. For yields and ee’s see Table 2. BSA = N,O-Bis(trimethylsilyl)acetamide.
Scheme 4. Palladium-catalyzed allylic alkylation of rac-1,3-diphenylallyl acetate (rac-7). Reagents and conditions: (i) Chiral ligand (2 or 5), [PdCl(C3H5)]2, KOAc/BSA, rt, 24 h. For yields and ee’s see Table 2. BSA = N,O-Bis(trimethylsilyl)acetamide.
Molecules 21 01704 sch004
Scheme 5. Palladium-catalyzed allylic alkylation of cinnamyl acetate (10). Reagents and conditions: (i) CYBOX ligand 5, [PdCl(C3H5)]2, KOAc/BSA, MeCN, rt, 24 h, 100% conv., 11l:11b ≥ 99:1. BSA = N,O-Bis(trimethylsilyl)acetamide.
Scheme 5. Palladium-catalyzed allylic alkylation of cinnamyl acetate (10). Reagents and conditions: (i) CYBOX ligand 5, [PdCl(C3H5)]2, KOAc/BSA, MeCN, rt, 24 h, 100% conv., 11l:11b ≥ 99:1. BSA = N,O-Bis(trimethylsilyl)acetamide.
Molecules 21 01704 sch005

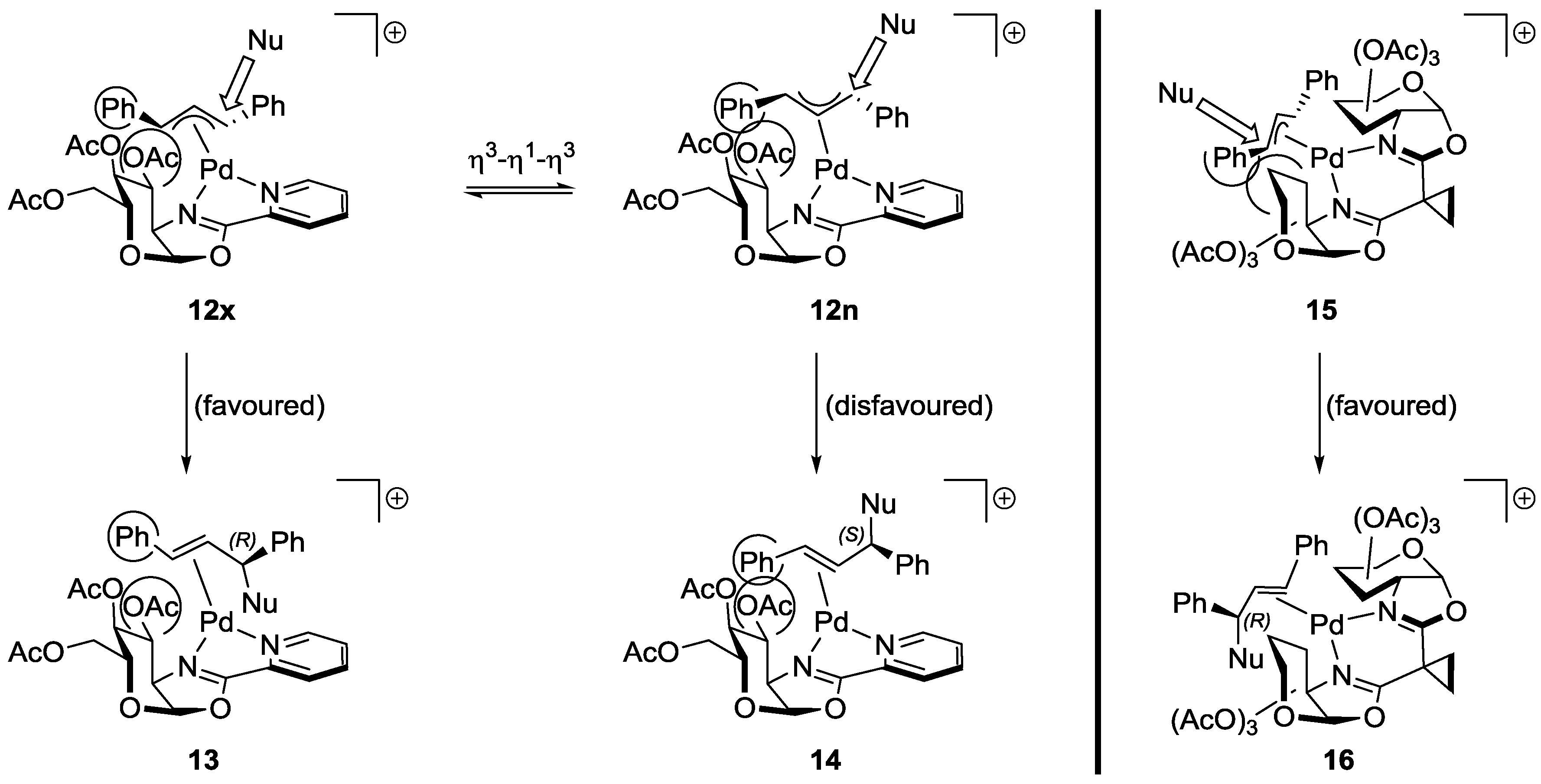

Scheme 6. Proposed transition state and origin of enantio-discrimination in allylic substitution. Nu = CH(CO2Me).
