Article

Anti-Neuroinflammatory ent-Kaurane Diterpenoids from Pteris multifida Roots

College of Pharmacy and Research Institute of Pharmaceutical Science, Seoul National University, Seoul 08826, Korea
*
Author to whom correspondence should be addressed.
Molecules 2017, 22(1), 27; https://doi.org/10.3390/molecules22010027
Submission received: 29 November 2016 / Revised: 21 December 2016 / Accepted: 22 December 2016 / Published: 26 December 2016
(This article belongs to the Special Issue Diterpene and Its Significance in Natural Medicine)

Abstract

:
Activated microglia are known to be a major source of cellular neuroinflammation which causes various neurodegenerative diseases, including Alzheimer’s disease. In our continuing efforts to search for new bioactive phytochemicals against neuroinflammatory diseases, the 80% methanolic extract of Pteris multifida (Pteridaceae) roots was found to exhibit significant NO inhibitory activity in lipopolysaccharide (LPS)-activated BV-2 microglia cells. Three new ent-kaurane diterpenoids, pterokaurane M1 2-O-β-d-glucopyranoside (4), 2β,16α-dihydroxy-ent-kaurane 2,16-di-O-β-d-glucopyranoside (10), and 2β,16α,17-trihydroxy-ent-kaurane 2-O-β-d-glucopyranoside (12), were isolated along with nine other known compounds from P. multifida roots. The chemical structures of the new compounds were determined by 1D- and 2D-NMR, HR-ESI-MS, and CD spectroscopic data analysis. Among the isolates, compounds 1 and 7 significantly inhibited NO production in LPS-stimulated BV-2 cells reducing the expression of the cyclooxygenase-2 (COX-2) protein and the level of pro-inflammatory mediators such as prostaglandin E2 (PGE2), tumor necrosis factor (TNF)-α, interleukin (IL)-1β, and IL-6. These results suggest that ent-kaurane diterpenes from P. multifida could be potential lead compounds that act as anti-neuroinflammatory agents.

Graphical Abstract

1. Introduction

Microglia are resident immune cells in the central nervous system [1]. In response to external stimuli such as lipopolysaccharides (LPS), they release various types of inflammatory molecules including nitric oxide (NO) [2]. In the brain, NO acts as a neuromodulator at synaptic junctions; however, high levels of NO produced by activated microglia induce oxidative stress and inflammation [3]. Neuroinflammation is associated with the pathogenesis and progression of neurodegenerative diseases such as Alzheimer’s disease, Parkinson’s disease and multiple sclerosis [4].
During our continuing search for bioactive substances from medicinal plants that act against neuroinflammation, an 80% methanol extract of Pteris multifida Poir. (Pteridaceae) roots was found to significantly inhibit lipopolysaccharide (LPS)-induced NO production (IC50 18.6 μg/mL). P. multifida is a perennial fern found in the southeast of China, Japan and South Korea [5,6]. As a folk medicine in China, the whole plant has been used to treat dysentery, cholecystitis, hepatitis, eczema, rheumatism, hematemesis, enteritis, and diarrhea [5,7]. Previous studies on the chemical constituents of P. multifida have revealed the presence of diterpenoids, sesquiterpenoids, flavonoids, coumarins, lignans, and sterols [5,6,7,8,9,10]. Recent studies have reported that the extract and constituents of P. multifida showed anti-tumor, anti-hyperlipidemic, and free radical-scavenging activities [11,12,13]. To the best of our knowledge, however, there have been no reports on any anti-neuroinflammatory activity of P. multifida. In the present study, we identified bioactive chemical constituents of P. multifida with NO inhibitory effects. We isolated 12 ent-kaurane diterpenoids 112 (Figure 1) including three new compounds, pterokaurane M1 2-O-β-d-glucopyranoside (4), 2β,16α-dihydroxy-ent-kaurane 2,16-di-O-β-d-glucopyranoside (10), and 2β,16α,17-trihydroxy-ent-kaurane 2-O-β-d-glucopyranoside (12), and evaluated the NO inhibitory activity of all the isolates on LPS-activated BV-2 microglia cells.

2. Results and Discussion

2.1. Isolation and Characterization of the Ent-Kaurane Diterpenoids

Compound 4 was isolated as a white amorphous powder, and the molecular formula, C26H42O8, was established by a HR-ESI-MS peak in the positive ion mode at m/z 483.2963 [M + H]+ (calcd. for C26H43O8, 483.2958) and by the NMR spectrum. Acid hydrolysis of 4 yielded glucose which had the same retention time as d-glucose in a HPLC experiment [14]. The 1H- and 13C-NMR spectrum of 4 showed resonances attributed to an olefinic group [δH 5.17 (1H, s), 5.06 (1H, s); δC 109.8], two tertiary methyl groups [δH 1.13 (3H, s), 0.79 (3H, s); δC 20.6, 19.5] and a β-glucopyranose group [δH 4.38 (1H, d, J = 7.8 Hz, H-1′); 103.3 (C-1′), 78.9 (C-5′), 78.6 (C-3′), 75.9 (C-2′), 72.5 (C-4′), 63.6 (C-6′)]. The 13C-NMR spectrum of 4 exhibited 20 carbon signals for an aglycone, which were resolved into two methyls (δC 20.6, 19.5), nine methylenes (δC 109.8, 72.7, 49.1, 43.0, 38.2, 36.8, 34.7, 20.7, 20.1), five methines (δC 84.6, 74.9, 56.6, 50.5, 44.5), and four quaternary carbons, suggesting that 4 contains an ent-kaurane diterpene skeleton. Comparisons of the 13C-NMR spectroscopic data of 4 with those reported for the ent-kaurane diterpene pterokaurane M1 (3) revealed extensive similarities, except for the additional signals of a glucose moiety [8]. The 1H–1H COSY and HMQC spectra of 4 showed the correlation signals of partial structural fragments of –CH2CHCH2– (C-1–C-2–C-3), –CHCH2CH2– (C-5–C-6–C-7), and –CH2CH2CHCH2– (C-11–C-12–C-13–C-14) (Figure 2a). The HMBC correlations from H-5 (δH 1.20, m) to C-1, C-4, C-9, C-10, CH3-19, and CH3-20 and from H-15 (δH 3.76, br s) to C-8, C-9, C-13, C-14, C-16, and C-17 support that 4 possesses an ent-kaurane skeleton (Figure 2a). Additionally, the correlations from H-17 [δH 5.07 (1H, s), 5.17 (1H, s)] to C-12, C-13, C-15, and C-16 reveal the presence of an exomethylene group on C-16, and the correlations from H-1′ (δH 4.38) to C-2 imply that the sugar moiety is attached to C-2. In the NOESY spectrum, the correlation signals from H-2 with CH3-19, 20 and from CH3-20 to H-14 reveal that the O-glucose group at C-2 is β-oriented, and the signals from H-17 to H-15a, H-15a to H-9, and H-9 to H-5 establish that the hydroxyl group at C-15 is α-oriented, respectively (Figure 3a) [15]. Moreover, the interatomic distances measured on the 3D structure of the aglycone of 4 in the ChemBio3D software support the above determination of the relative configurations (Figure 3a). The absolute configuration of 4 was elucidated from the CD spectra, which showed a negative cotton effect at 298 nm and a positive one at 325 nm, confirming that the stereochemistry of C-5 was a S-configuration (Figure S7) [15]. Based on the above data, compound 4 was determined to be pterokaurane M1 2-O-β-d-glucopyranoside.
Compound 10 was obtained as a white amorphous powder, and its molecular formula was assigned as C32H54O12 according to the HR-ESI-MS peak at m/z 653.3516 [M + Na]+ (calcd. for C32H54O12Na, 653. 3513). The 1H- and 13C-NMR spectrum data of 10 showed the presence of an ent-kaurane diterpene skeleton exhibiting characteristic signals including four tertiary methyl carbons (δC 35.1, 23.5, 22.2, 20.2) and two β-d-glucopyranose moieties [δH 4.36 (2H, d, J = 7.8 Hz, H-1′, H-1″); δC 103.4, 100.1, 79.1, 78.9, 78.6. 78.4, 76.0, 75.9, 72.6, 72.5, 63.6, 63.5]. Comparison of the 13C-NMR data for the aglycone of 10 with that of 4 revealed quite similar patterns, except for the fact that 10 had a methyl signal at C-18 (δC 35.1) instead of an oxymethylene and exhibited no olefinic group at C-16 and C-17 but instead an oxygenated quaternary carbon (δC 89.3, C-16) with a tertiary methyl carbon (δC 22.2, C-17). When comparing the 1D and 2D-NMR data of 10 with its aglycone, the known compound 2β,16α-dihydroxy-ent-kaurane (9) [16], the two glucose groups are suggested to be linked to C-2 and C-16 from the significant downfield shift of C-2 (δC 75.0) and C-16 (δC 89.3) (Table 1 and Tables S1 and S2). The HMBC cross-peak correlations from the anomeric proton (δH 4.36 (2H, d, J = 7.8 Hz, H-1′, H-1″)) to C-2 and C-16 support the assignment above. The β-orientation of the O-Glc group at C-2 and the α-orientation of another O-Glc group at C-16 were determined by the NOESY correlations from H-2 to H-1a, H-3a, CH3-19, and CH3-20 and from CH3-17 to H-11b and H-15a, H-15a to H-9, H-9 to H-5, and H-5 to CH3-18, respectively (Figure 3b). Additionally, the calculated interatomic distances from CH3-17 to H-11b and H-15a on the 3D structure of the aglycone of 10 are 2.182 Å and 2.563 Å, respectively (Figure 3a), whereas the distances would be over the detection limit of the NOESY correlation (5 Å) when assuming the O-glucose group at C-16 has a β-orientation [17]. Thus, from the observation of the NOESY correlation, the location of where the glucose is attached and its relative configuration for this molecule were confirmed. The CD spectral data of 10 have features similar to those of 4, which indicate that 10 has the same stereochemistry as 4 (Figure S14). Consequently, the structure of 10 was determined to be 2β,16α-dihydroxy-ent-kaurane 2,16-di-O-β-d-glucopyranoside.
Compound 12 was isolated as a white amorphous powder. The molecular formula of 12 was determined to be C26H44O8 based on the HR-ESI-MS signal at m/z 483.2931 [M − H] (calcd. for C26H43O8, 483.2958). Analysis of the 1H- and 13C-NMR data of 12 revealed similar patterns to those of compound 10 except for the presence of one glucose moiety (δC 103.4, 78.9, 78.6, 76.0, 72.5, 63.6) and an oxygenated methylene (δH 3.69 (1H, d, J = 11.4), 3.58 (1H, d, J = 11.4); δC 67.7). The HMBC correlations indicate that an oxymethylene is attached to the C-16 quaternary carbon (δC 83.6), and a glucose group is connected to C-2. The NOESY correlations from H-2 to H-1a, H-3a, CH3-19, and CH3-20 imply a β configuration for the 2-O-glucose, and the correlations from H2-17 to H-15a, H-15a to H-9, H-9 to H-5, and H-5 to CH3-18 establish an α configuration for the 16-OH. In addition, compound 12 had a similar CD spectra with that of 10 implying that they have the same absolute configurations (Figure S21). Based on the above data, 12 was determined to be 2β,16α,17-trihydroxy-ent-kaurane 2-O-β-d-glucopyranoside.
The nine known compounds were identified as 2β,15α-dihydroxy-ent-kaur-16-ene (1) [16], creticoside A (2) [16], pterokaurane M1 (3) [8], 2β,15α,19-trihydroxy-ent-kaur-16-ene 2-O-β-d-gluco-pyranoside (5) [18], 2β,6β,15α-trihydroxy-ent-kaur-16-ene (6) [18], pterokaurane P1 (7) [19], pterokaurane P1 2-O-β-d-glucopyranoside (8) [19], 2β,16α-dihydroxy-ent-kaurane (9) [16], and pterokaurane R (11) [20] by comparing their spectroscopic data with values reported in the literature.

2.2. NO Inhibitory Effects of Ent-kaurane Diterpenoids

Some studies have reported on the anti-inflammatory activities of diterpenes from various plant extracts [21,22,23,24,25]. However, there have been no reports yet on the effects of ent-kaurane diterpenoids isolated from P. multifida on neuroinflammation. The characteristic feature of the ent-kaurane diterpenes isolated from P. multifida is the presence of a hydroxyl group at C-2 in their chemical structures. In this study, therefore, we evaluated the anti-neuroinflammatory activities of the isolated compounds 112 with LPS-activated BV-2 cells as the screening tool (Table 2).
Among the isolates, 1 and 7 showed significant inhibition of NO production in the LPS-activated BV-2 cells with an IC50 value of 13.9 μM and 10.8 μM, respectively, without any cytotoxicity. Especially, 1 and 7 showed higher NO inhibitory activities than that of previously reported ent-kaurane diterpenoids in BV-2 microglia cells [24]. It was shown that the compounds with a hydroxyl group at C-2 have more potent NO inhibitory activities than their glycosides (1 > 2, 3 > 4, 7 > 8, and 9 > 10). In addition, the compounds with a hydroxyl group at C-6 exhibited decreased inhibitory activity against NO production (1 > 6). Therefore, the above data suggest that the NO inhibitory effect of the ent-kaurane diterpenoids is related to the degree of hydroxylation and substituted moieties.
Because LPS is known to induce the production of pro-inflammatory mediators by cyclooxygenase-2 (COX-2) which is a pro-inflammatory enzyme that has a central role in the inflammatory response by converting arachidonic acids into prostaglandins (PGs) [26], the effects of 1 and 7, which showed a significant NO inhibitory activity on LPS-induced COX-2 expression in activated BV-2 microglia cells, were evaluated by western blot analysis (Figure 4a). Our results show that the protein level of COX-2 increased by the LPS treatment was down-regulated by the treatments of 1 and 7. In further examination of the effect of 1 and 7 on pro-inflammatory mediators, the level of cytokines including tumor necrosis factor (TNF)-α, interleukin (IL)-1β, and IL-6, and PGE2 enzyme in LPS-activated BV-2 microglia cells were effectively decreased by pre-treatment with 1 and 7 in a dose-dependent manner (Figure 4b). These results suggest that 1 and 7 suppress NO production by inhibiting COX-2 protein expression and pro-inflammatory mediators. To the best of our knowledge, this is the first report for the anti-neuroinflammatory effects of ent-kaurane diterpenoids from P. multifida in BV-2 microglia.
In summary, 12 ent-kaurane diterpene compounds 112, including three new compounds 4, 10, and 12, were isolated from the roots of P. multifida. Among the isolates, compounds 1 and 7 inhibit the production of NO and the pro-inflammatory mediators TNF-α, IL-1β, IL-6, and PGE2 as well as the expression of COX-2 in LPS-stimulated BV-2 microglia cells. Although an in-depth in vivo study is needed to fully elucidate the anti-neuroinflammatory mechanisms by ent-kaurane diterpenoids, these findings could be helpful in discovering potential lead compounds for the treatment of neuroinflammatory diseases.

3. Materials and Methods

3.1. General Experimental Procedures

For the isolation of the compounds from P. multifida, organic solvents such as methanol (MeOH), n-hexane, methylene chloride (CH2Cl2), chloroform (CHCl3), ethyl acetate (EtOAc), acetonitrile (ACN) were used (Dae Jung Pure Chemicals, Siheung, Kyunggi, Korea). Silica gel 60 was purchased from Merck (Darmstadt, Germany). Sephadex LH-20 (bead size 25–100 μm) was purchased from Pharmacia (Uppsala, Sweden). Preparative high performance liquid chromatography (HPLC) was performed using a Gilson 321 pump with a Gilson UV/Vis-151 detector (Gilson Inc., Middleton, WI, USA). JEOL LA 300 (300 MHz, JEOL Ltd., Tokyo, Japan), Bruker AMX 500 (500 MHz, Bruker, Billerica, MA, USA), and Bruker Avance 600 (600 MHz) spectrometers were used to record the nuclear magnetic resonance (NMR) spectra. Optical rotations were recorded on a JASCO P-2000 polarimeter (JASCO, Easton, MD, USA). IR spectra were obtained on a JASCO FT/IR-4200 spectrometer, and CD spectra were acquired with a Chirascan CD spectrometer (Applied Photophysics, Surrey, UK). All HR-ESI-MS data were measured on a Waters Xevo G2 QTOF mass spectrometer (Waters Co., Milford, MA, USA).
For the cell culture, Dulbecco’s modified Eagle medium (DMEM) with high glucose, fetal bovine serum (FBS) and streptomycin–penicillin (PS) were purchased from HyClone (Logan, UT, USA). 3-(4,5-dimethyl-thiazol-2yl)-2,5-diphenyltetrazolium (MTT), dimethylsulfoxide (DMSO), and lipopolysaccharide (LPS) were obtained from Sigma-Aldrich (St. Louis, MO, USA). Antibodies against cyclooxygenase-2 (COX-2) and β-actin were obtained from Santa Cruz Biotechnology (Santa Cruz, CA, USA).

3.2. Plant Materials

Roots of P. multifida were collected at the Seoul National University Forest and Baegun Mountain, Gwangyang, Korea in July 2013 and air-dried. A voucher specimen (SNU-11204) was deposited in the Herbarium of the Medicinal Plant Garden of the College of Pharmacy, Seoul National University.

3.3. Extraction and Isolation

The dried roots of P. multifida (334.0 g) were extracted three times with 80% MeOH (12 L for 90 min) in an ultrasonic apparatus. Once the solvent was removed in vacuo, the extract (30.0 g) was suspended in water and partitioned into a CH2Cl2 (7.4 g), EtOAc (2.3 g), and aqueous residue (20.1 g). The CH2Cl2 layer was suspended in 90% MeOH and then partitioned with n-hexane yielding a solid residue of 2.1 g (n-hexane) and 5.3 g (90% MeOH). The 90% MeOH fraction was subjected to silica gel column chromatography (CC) eluted with mixtures of CHCl3–MeOH (from 100:1 to 0:100, v/v) to yield 25 fractions (MC1~MC25). Fraction MC-8 was purified by semi-preparative HPLC using a YMC Hydrosphere C18-column with an ACN–water (50:50) solvent to yield 7 (15.1 mg). Compound 6 (1.4 mg) was isolated from MC-11 by semi-preparative HPLC (YMC Hydrosphere C18, 250 × 10 mm, ACN–water, 50:50, 4 mL/min, UV 210 nm). Compound 1 (22.2 mg) was obtained from MC-17 by recrystallization. Compound 3 (3.0 mg) was isolated from MC-20 by semi-preparative HPLC (YMC Hydrosphere C18, 250 × 10 mm, ACN–water, 50:50, 4 mL/min, UV 210 nm). The EtOAc fraction was subjected to silica gel CC eluted with mixtures of CHCl3–MeOH (from 40:1 to 0:100, v/v) to yield 13 fractions (EA1~EA13). Fraction EA-2 was purified by semi-preparative HPLC using a YMC Hydrosphere C18 column with an ACN–water (80:20) solvent to yield 9 (15.1 mg). Compound 12 (4.4 mg) was isolated from EA-8 by semi-preparative HPLC (YMC Hydrosphere C18, 250 × 10 mm, ACN–water, 20:80→30:70, 4 mL/min, UV 210 nm). Compound 2 (11.2 mg) was obtained from EA-11 by semi-preparative HPLC (YMC Hydrosphere C18, 250 × 10 mm, ACN–Water, 48:52, 4 mL/min, UV 210 nm). The aqueous fraction was subjected to a HP-20 column eluted with water containing increasing amounts of methanol to obtain 5 subfractions (0M, 25M, 50M, 75M, and 100M) subfraction 50M was further separated into fifteen fractions (50M-1~50M-15) using silica gel CC eluted with mixtures of CHCl3–MeOH (from 20:1 to 0:100, v/v). Compound 8 (38.0 mg) was obtained from the 50M-11 fraction by CC on Sephadex LH-20 with MeOH. Compounds 4 (25.4 mg), 5 (6.5 mg), and 10 (6.1 mg) were isolated from 50M-14 by semi-preparative HPLC (YMC Hydrosphere C18, 250 × 10 mm, ACN–water, 48:52, 4 mL/min, UV 210 nm). Fraction 75 M was subjected to silica gel CC eluted with mixtures of CHCl3–MeOH (from 30:1 to 1:1, v/v) to yield 18 fractions (75M-1~75M-18). Compound 11 (4.1 mg) was obtained from 75 M-7 by recrystallization.

3.4. Acid Hydrolysis of 4, 10 and 12

Each compound (4, 1.0 mg; 10, 1.0 mg; 12, 1.0 mg) was refluxed in 1% HCl (1 mL) for 1 h to yield aglycone and sugar. The reaction mixture was extracted with EtOAc (5 mL) to yield an aqueous fraction containing the sugar and the EtOAc fraction containing the aglycone. The aqueous fraction was concentrated and loaded onto silica gel TLC plates with EtOAc–MeOH–H2O–AcOH (13:3:3:4), using 20% H2SO4. The sugars of 4, 10, and 12 were identified as glucose by co-TLC comparison with an authentic sample. The absolute configuration of the glucose moiety in compounds 4, 10 and 12 was determined by the method of Tanaka et al. [14] Each glucose was detected by reversed-phase HPLC using a XBridge C18-column (250 mm × 4.6 mm i.d., 5 μm, Waters) with a MeCN–H2O (25:75, v/v) solvent system containing 50 mM H3PO4 (flow rate 1 mL/min). The derivatives of d-glucose in 4, 10, and 12 were identified by comparison of their retention times with those of authentic samples treated in the same manner as described above (tR, d-glucose derivatives 12.62 min).

3.5. Cell Culture

The BV-2 mouse microglial cells were generously provided by Dr. Sun Yeou Kim at Kyunghee University (Suwon, Korea). The cells were maintained in DMEM containing 10% FBS with 1% PS at 37 °C in a humidified atmosphere of 95% air and 5% CO2. All tested fractions and samples were dissolved in DMSO (final concentration in cultures ≤0.1%).

3.6. NO Production Assay and Cell Viability Assay

To evaluate NO production, we seeded BV-2 cells in 96-well plates (4 × 105 cells/mL) for 24 h and then treated them with various concentrations of the samples for 1 h before exposure to 100 ng/mL of LPS. After the 24 h incubation, the nitrite in the culture media was measured to assess NO production in the BV-2 cells with the Griess reagent (1% sulfanilamide and 0.1% naphtylethylenediamine dihydrochloride in 2% phosphoric acid). In 96-well plates, 100 μL of sample aliquots were mixed with 100 μL of Griess reagent and incubated at room temperature for 15 min. The absorbance at 550 nm was measured on a microplate reader. The concentration was determined with a nitrite standard curve. Cell viability was assessed by the MTT assay. After exposing the cells to 2 mg/mL MTT for 2 h, the absorbance was measured by an ELISA plate reader at 562 nm.

3.7. PGE2, TNF-α, IL-1β, and IL-6 ELISA Assay

BV-2 microglial cells were cultured in 96-well plates, preincubated for 30 min. with different concentrations of compounds 1 and 7 and then stimulated for 24 h with LPS (Sigma-Aldrich Co.). Supernatant from the culture (100 μL) was collected to determine the concentration of PGE2, TNF-α, IL-1β, and IL-6, respectively, with ELISA kits (TNF-α, Abcam, Cambridge, MA, USA; PGE2, IL-1β, and IL-6, R&D Systems, Minneapolis, MN, USA).

3.8. Western Blot Analysis

Cells were harvested and lysed with radioimmunoprecipitation (RIPA) buffer (Bio-Rad, Hercules, CA USA). Cell lysates were centrifuged, and the supernatant was collected. The protein concentration was determined by protein assay reagents (Bio-Rad). The proteins were separated onto 10% SDS-polyacrylamide gel and transferred to polyvinylidene fluoride (PVDF) membrane. The membranes were blocked with 5% non-fat dry milk in Tris-buffered saline with 0.1% Tween-20 (TBS-T) buffer for 1 h at room temperature and then incubated with primary antibodies in TBS-T buffer containing 1% non-fat dry milk overnight at 4 °C. The membranes were washed with TBS-T buffer and incubated with goat anti-rabbit or anti-mouse horseradish peroxidase-conjugated IgG secondary antibodies from Santa Cruz Biotechnology (Santa Cruz, CA, USA) for 2 h. The membranes were washed with TBS-T buffer, and the antigen-antibody complex was detected with an enhanced chemiluminescence detection system (GE Healthcare, Milwaukee, MI, USA).

3.9. Statistical Analysis

Data were evaluated for statistical significance with one way ANOVA using the IBM SPSS Statistics 23 package. The data were considered statistically significant with * p < 0.05, ** p < 0.01, and *** p < 0.001.

Supplementary Materials

Supplementary materials can be accessed at: https://www.mdpi.com/1420-3049/22/1/27/s1.

Acknowledgments

We especially thank Gi Ho Ha and Hakgi Park at Seoul National University Forest and Sang il Han at Seoul National University Medicinal Herb Garden for providing and collecting the plant material, P. multifida. This research was supported by the Basic Science Research Program through the National Research Foundation of Korea (NRF), which was funded by the Ministry of Science, ICT and Future Planning (NRF-2015M3A9A5030733).

Author Contributions

J.W.K. and S.H.S. designed the experiments; J.W.K. performed the experiments; J.W.K., J.Y.S. and S.H.S. analyzed the data; W.K.O. and S.H.S. contributed reagents/materials/analysis tools; J.W.K. and S.H.S. wrote the paper. All authors read and approved the final manuscript.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Cuadros, M.A.; Navascués, J. The origin and differentiation of microglial cells during development. Prog. Neurobiol. 1998, 56, 173–189. [Google Scholar] [CrossRef]
  2. Bugnon, O.; Schaad, N.C.; Schorderet, M. Nitric oxide modulates endogenous dopamine release in bovine retina. Neuroreport 1994, 5, 401–404. [Google Scholar] [CrossRef] [PubMed]
  3. Dawson, V.; Brahmbhatt, H.; Mong, J.; Dawson, T. Expression of inducible nitric oxide synthase causes delayed neurotoxicity in primary mixed neuronal-glial cortical cultures. Neuropharmacology 1994, 33, 1425–1430. [Google Scholar] [CrossRef]
  4. Eikelenboom, P.; Veerhuis, R. The role of complement and activated microglia in the pathogenesis of Alzheimer’s disease. Neurobiol. Aging 1996, 17, 673–680. [Google Scholar] [CrossRef]
  5. Lu, H.; Hu, J.; Zhang, L.X.; Tan, R.X. Bioactive constituents from Pteris multifida. Planta Med. 1999, 65, 586–587. [Google Scholar] [CrossRef] [PubMed]
  6. Harinantenaina, L.; Matsunami, K.; Otsuka, H. Chemical and biologically active constituents of Pteris multifida. J. Nat. Med. 2008, 62, 452–455. [Google Scholar] [CrossRef] [PubMed]
  7. Hu, H.; Zheng, X.; Hu, H.; Cao, H. Three antibacterial compounds from the roots of Pteris multifida. Chem. Nat. Compd. 2009, 45, 45–48. [Google Scholar]
  8. Ge, X.; Ye, G.; Li, P.; Tang, W.J.; Gao, J.L.; Zhao, W.M. Cytotoxic diterpenoids and sesquiterpenoids from Pteris multifida. J. Nat. Prod. 2008, 71, 227–231. [Google Scholar] [CrossRef] [PubMed]
  9. Hu, H.; Zheng, X. Studies on the chemical compositions of Pteris Multifida Poir. Tianran Chanwu Yanjiu Yu Kaifa 2004, 16, 379–382. [Google Scholar]
  10. Ni, G.; Fu, N.J.; Zhang, D.; Yang, H.Z.; Chen, X.G.; Yu, D.Q. An unusual dihydrobenzofuroisocoumarin and ent-kaurane diterpenoids from Pteris multifida. J. Asian Nat. Prod. Res. 2015, 17, 423–429. [Google Scholar] [CrossRef] [PubMed]
  11. Yu, C.; Chen, J.; Huang, L. A study on the antitumour effect of total flavonoids from Pteris multifida Poir in H22 tumour-bearing mice. Afr. J. Tradit. Complement. Altern. Med. 2013, 10, 459–463. [Google Scholar] [CrossRef] [PubMed]
  12. Wang, T.C.; Lin, C.C.; Lee, H.I.; Yang, C.; Yang, C.C. Anti-hyperlipidemic activity of spider brake (Pteris multifida) with rats fed a high cholesterol diet. Pharm. Biol. 2010, 48, 221–226. [Google Scholar] [CrossRef] [PubMed]
  13. Wang, T.C.; Ti, M.C.; Lo, S.C.; Yang, C.C. Free radical-scavenging activity of aqueous extract of Pteris multifida Poiret. Fitoterapia 2007, 78, 248–249. [Google Scholar] [CrossRef] [PubMed]
  14. Tanaka, T.; Nakashima, T.; Ueda, T.; Tomii, K.; Kouno, I. Facile discrimination of aldose enantiomers by reversed-phase HPLC. Chem. Pharm. Bull. 2007, 55, 899–901. [Google Scholar] [CrossRef] [PubMed]
  15. Ding, G.; Fei, J.; Wang, J.; Xie, Y.; Li, R.; Gong, N.; Lv, Y.; Yu, C.; Zou, Z. Fimbriatols A–J, Highly Oxidized ent-Kaurane Diterpenoids from Traditional Chinese Plant Flickingeria fimbriata (B1.) Hawkes. Sci. Rep. 2016, 6, 30560. [Google Scholar] [CrossRef] [PubMed]
  16. Murakami, T.; Maehashi, H.; Tanaka, N.; Satake, T.; Kuraishi, T.; Komazawa, Y.; Saiki, Y.; Chen, C. Chemical and chemotaxonomical studies of Filices. 55. Constituents of several species of Pteris. Yakugaku Zasshi 1985, 105, 640–648. [Google Scholar]
  17. Wang, C.M.; Hsu, Y.M.; Jhan, Y.L.; Tsai, S.J.; Lin, S.X.; Su, C.H.; Chou, C.H. Structure Elucidation of Procyanidins Isolated from Rhododendron formosanum and Their Anti-Oxidative and Anti-Bacterial Activities. Molecules 2015, 20, 12787–12803. [Google Scholar] [CrossRef] [PubMed]
  18. Hakamatsuka, T.; Tanaka, D.; Namatame, Y.; Wada, H.; Tanaka, N. Four new ent-kaurane glycosides from Pteris cretica. Nat. Med. 1997, 51, 278–280. [Google Scholar]
  19. Tanaka, N.; Nakatani, K.; Murakami, T.; Saiki, Y.; Chen, C. Chemical and chemotaxonomical studies of the Pteris family and related families (Pteridaceae), XXI. Chemical studies of the contents of Pteris plumbaea Christ. Chem. Pharm. Bull. 1978, 26, 3260–3264. [Google Scholar] [CrossRef]
  20. Tanaka, N.; Kudo, M.; Taniguchi, T.; Murakami, T.; Saiki, Y.; Chen, C. Chemical and chemotaxonomical studies of the family Pteris and related families (Pteridaceae). XVIII. Chemical study of the constituents of Pteris ryukyuensis Tagawa and Pteris longipinna Hayata. Chem. Pharm. Bull. 1978, 26, 1339–1342. [Google Scholar] [CrossRef]
  21. Yeh, S.H.; Chang, F.R.; Wu, Y.C.; Yang, Y.L.; Zhuo, S.K.; Hwang, T.L. An anti-inflammatory ent-kaurane from the stems of Annona squamosa that inhibits various human neutrophil functions. Planta Med. 2005, 71, 904–909. [Google Scholar] [CrossRef] [PubMed]
  22. Aquila, S.; Weng, Z.Y.; Zeng, Y.Q.; Sun, H.D.; Ríos, J.L. Inhibition of NF-κB activation and iNOS induction by ent-kaurane diterpenoids in LPS-stimulated RAW264.7 murine macrophages. J. Nat. Prod. 2009, 72, 1269–1272. [Google Scholar] [CrossRef] [PubMed]
  23. Kuo, P.C.; Yang, M.L.; Hwang, T.L.; Lai, Y.Y.; Li, Y.C.; Thang, T.D.; Wu, T.S. Anti-inflammatory diterpenoids from Croton tonkinensis. J. Nat. Prod. 2013, 76, 230–236. [Google Scholar] [CrossRef] [PubMed]
  24. Lee, M.; Kim, S.H.; Lee, H.K.; Cho, Y.; Kang, J.; Sung, S.H. ent-kaurane and ent-pimarane diterpenes from Siegesbeckia pubescens inhibit lipopolysaccharide-induced nitric oxide production in BV2 microglia. Biol. Pharm. Bull. 2014, 37, 152–157. [Google Scholar] [CrossRef] [PubMed]
  25. Nhiem, N.X.; Hien, N.T.; Tai, B.H.; Anh, H.T.; Hang, D.T.; Quang, T.H.; Kiem, P.V.; Minh, C.V.; Ko, W.; Lee, S.; et al. New ent-kauranes from the fruits of Annona glabra and their inhibitory nitric oxide production in LPS-stimulated RAW264.7 macrophages. Bioorg. Med. Chem. Lett. 2015, 25, 254–258. [Google Scholar] [CrossRef] [PubMed]
  26. Wang, H.; Liu, Y.; Zhang, J.; Xu, J.; Cui, C.A.; Guo, Y.; Jin, D.Q. 15-O-Acetyl-3-O-benzoylcharaciol and helioscopinolide A, two diterpenes isolated from Euphorbia helioscopia suppress microglia activation. Neurosci. Lett. 2016, 612, 149–154. [Google Scholar] [CrossRef] [PubMed]
  • Sample Availability: Not available.

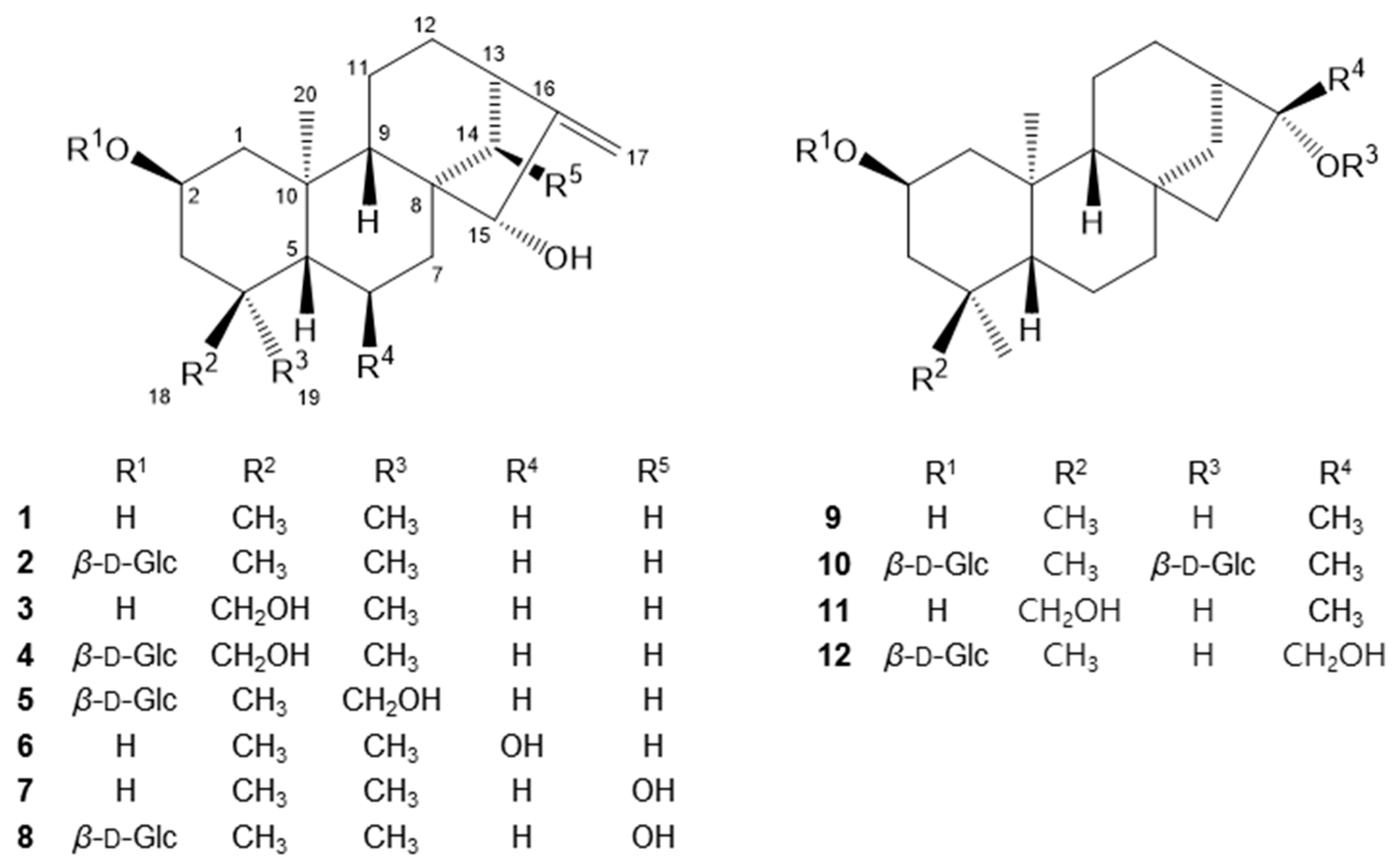

Figure 1. Chemical structures of the isolated compounds 112 from P. multifida.
Figure 1. Chemical structures of the isolated compounds 112 from P. multifida.
Molecules 22 00027 g001

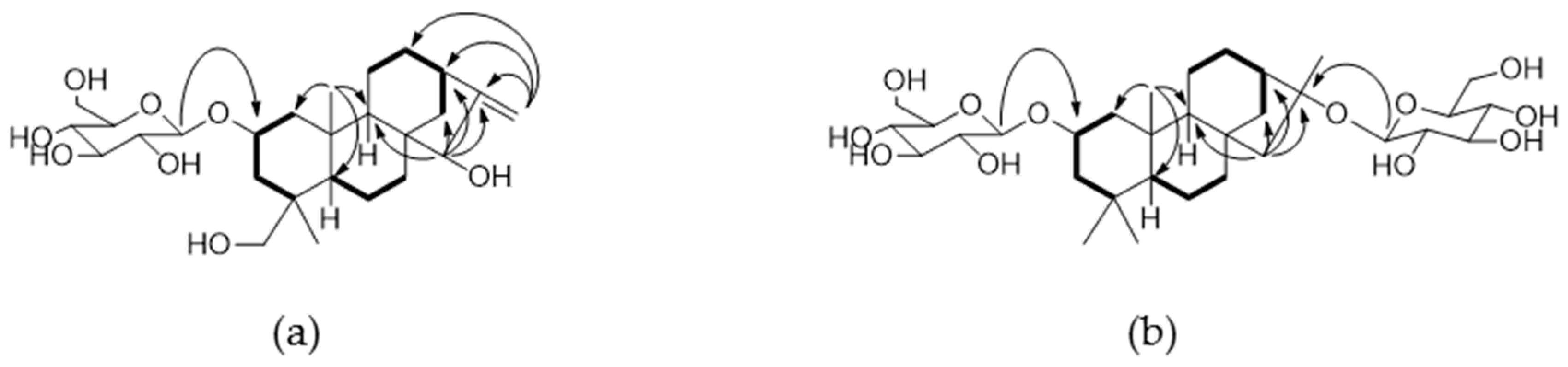

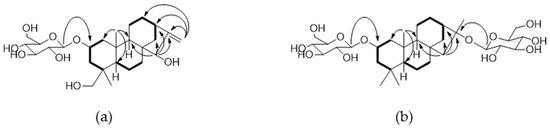

Figure 2. Key COSY (bold line) and HMBC (plain arrow) correlations of compounds 4 (a) and 10 (b).
Figure 2. Key COSY (bold line) and HMBC (plain arrow) correlations of compounds 4 (a) and 10 (b).
Molecules 22 00027 g002

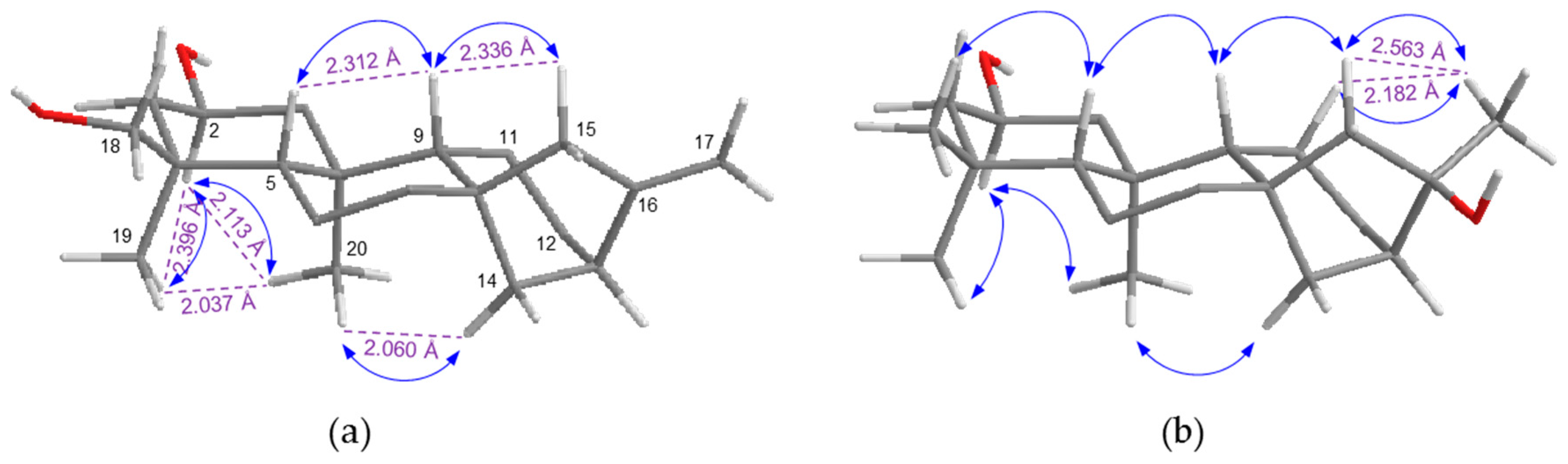

Figure 3. The NOESY correlations of each aglycone of compounds 4 (a) and 10 (b).
Figure 3. The NOESY correlations of each aglycone of compounds 4 (a) and 10 (b).
Molecules 22 00027 g003

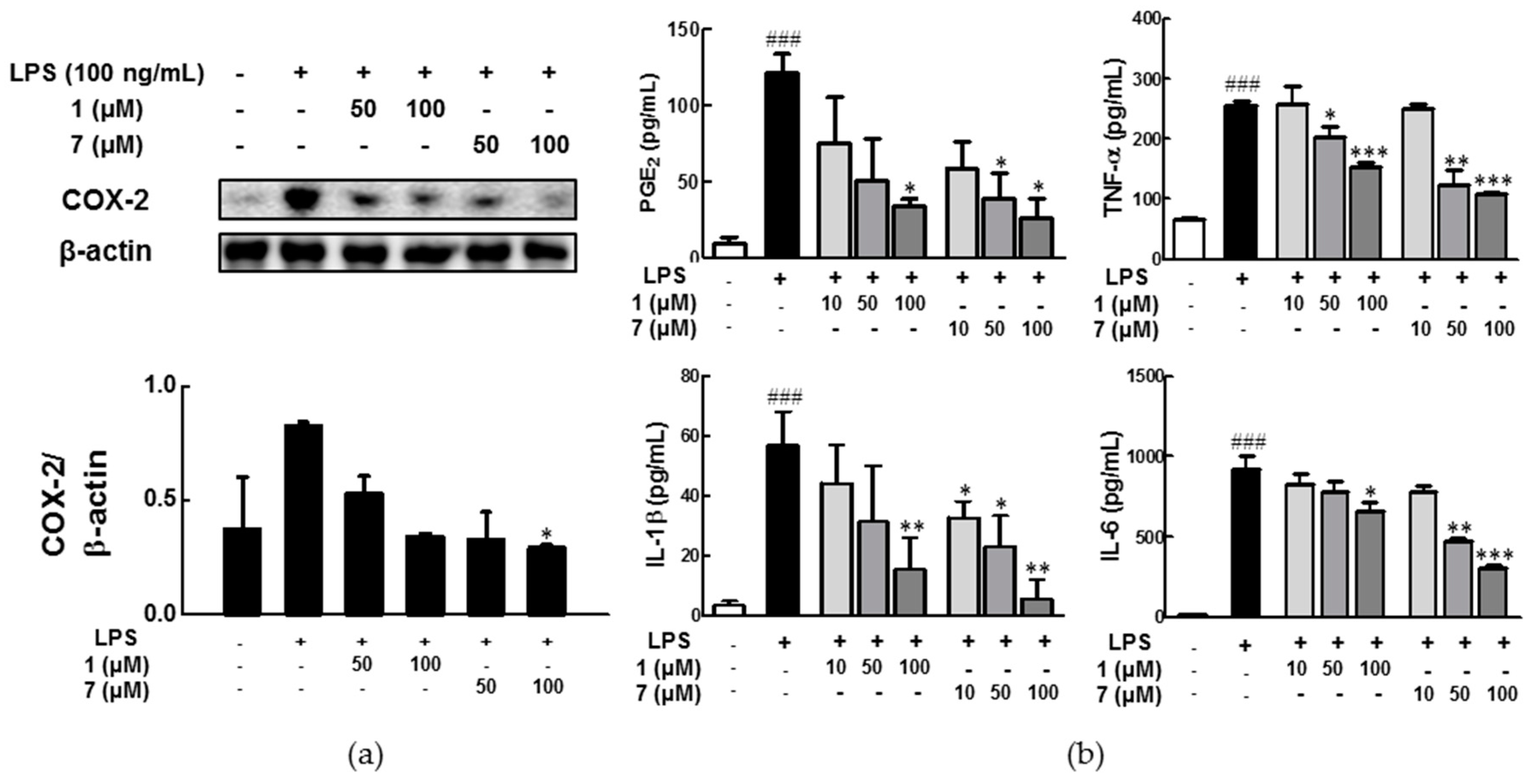

Figure 4. Anti-neuroinflammatory effects of compounds 1 and 7 in lipopolysaccharide (LPS)-activated BV-2 microglia. (a) The expression of cyclooxygenase (COX)-2 in LPS-activated BV-2 microglia in western blot. The data represent the mean ± SD. * p < 0.1 versus LPS-treated group (n = 2). Representatives of two independent experiments with similar results are shown; (b) The effects of compounds 1 and 7 on prostaglandin (PG)E2, tumor necrosis factor (TNF)-α, interlukin (IL)-1β, and IL-6 production in LPS-activated BV-2 microglia cells. ### p < 0.001, compared to vehicle, * p < 0.05, ** p < 0.01, and *** p < 0.001, compared to the LPS-treated group (n = 3).
Figure 4. Anti-neuroinflammatory effects of compounds 1 and 7 in lipopolysaccharide (LPS)-activated BV-2 microglia. (a) The expression of cyclooxygenase (COX)-2 in LPS-activated BV-2 microglia in western blot. The data represent the mean ± SD. * p < 0.1 versus LPS-treated group (n = 2). Representatives of two independent experiments with similar results are shown; (b) The effects of compounds 1 and 7 on prostaglandin (PG)E2, tumor necrosis factor (TNF)-α, interlukin (IL)-1β, and IL-6 production in LPS-activated BV-2 microglia cells. ### p < 0.001, compared to vehicle, * p < 0.05, ** p < 0.01, and *** p < 0.001, compared to the LPS-treated group (n = 3).
Molecules 22 00027 g004
Table 1. 1H- and 13C-NMR spectral data of 4, 10 and 12 in CD3OD (δ in ppm; J in Hz).
Table 1. 1H- and 13C-NMR spectral data of 4, 10 and 12 in CD3OD (δ in ppm; J in Hz).
Position4 a10 b12 a
δH (J in Hz)δCδH (J in Hz)δCδH (J in Hz)δC
1a, 1b2.30, m, 0.76, t (11.9)49.12.28, m, 0.77, t (11.9)49.42.28, m, 0.77, t (11.4)50.1
24.08, m74.94.02, m75.04.01, m74.9
3a, 3b1.72, m, 1.37, m43.01.88, m, 1.13, m49.11.87, m, 1.12, m49.6
4 40.7 36.4 36.4
51.20, m50.50.82, m58.00.85, m58.0
6a, 6b1.55, m, 1.31, m20.71.66, m, 1.38, m22.01.59, m, 1.35, m22.0
7a, 7b1.63, m, 1.52, m36.81.65, m, 1.46, m43.51.60, m, 1.50, m43.9
8 49.7 47.2 46.5
91.10, m56.61.04, m59.11.06, m59.0
10 42.9 42.9 42.9
11a, 11b1.65, m, 1.48, m20.11.66, m, 1.58, m20.21.68, m, 1.56, m20.3
12a, 12b1.68, m, 1.46, m34.71.58, m28.61.65, m, 1.55, m28.1
132.70, br s44.52.11, br s48.22.02, br s47.2
14a, 14b1.90, d (11.6), 1.38, m38.21.82, d (11.5), 1.73, dd (11.5, 4.1)39.01.90, m, 1.61, m39.1
15, 15b3.76, br s84.61.88, d (14.2), 1.41, d (14.2)57.41.53, m, 1.40, m54.8
16 161.3 89.3 83.6
17, 17b5.17, s, 5.06, s109.81.38, s22.23.69, d (11.4), 3.58, d (11.4)67.7
18, 18b3.37, d (11.0), 3.06, d (11.0)72.70.92, s35.10.93, s35.0
190.79, s19.50.86, s23.50.86, s23.5
201.13, s20.61.09, s20.21.09, s20.2
14.38, d (7.8)103.34.36, d (7.8)103.4 103.3
23.13, t (8.3)75.93.10, t (8.2)76.0 76.0
33.26, m78.63.26, m78.6 78.6
43.27, m72.53.27, m72.5 72.5
53.35, m78.93.34, m79.1 78.9
6a, 6b3.85, m, 3.66, dd (11.0, 3.8)63.63.85, m, 3.78, m63.6 63.6
1″ 4.36, d (7.8)100.1
2″ 3.12, t (8.3)75.9
3″ 3.20, m78.4
4″ 3.26, m72.6
5″ 3.35, m78.9
6″a, 6″b 3.66, m, 3.62, m63.5
a 1H-NMR data were measured at 500 MHz, and 13C-NMR data were measured at 125 MHz in CD3OD, respectively; b 1H-NMR data were measured at 600 MHz, and 13C-NMR data were measured at 150 MHz in CD3OD, respectively.
Table 2. Inhibitory activity of compounds 112 on NO production in LPS-activated BV-2 cells.
Table 2. Inhibitory activity of compounds 112 on NO production in LPS-activated BV-2 cells.
CompoundIC50 a (μM)Cell Viability b (%)CompoundIC50 a (μM)Cell Viability b (%)
113.990.7± 7.3710.888.7 ± 2.4
292.095.7 ± 4.08101.491.7 ± 3.7
384.087.7 ± 2.99121.797.5 ± 1.3
4148.190.5 ± 10.210182.288.2 ± 8.0
5147.973.6 ± 2.911171.383.2 ± 10.2
6137.185.9 ± 0.112113.793.6 ± 8.3
l-NAME c53.5100.3 ± 5.0
a IC50 value of each compound was defined as the concentration (μM) that caused 50% inhibition of NO production in LPS-stimulated BV-2 cells; b Cell viability was measured by the MTT assay after treatment with 100 μM of each compound for 24 h. Results are expressed as the mean ± SD. c Nω-nitro-l-arginine methyl ester (L-NAME) was used as a positive control.
