Article

Synthesis of Disaccharide Nucleosides Utilizing the Temporary Protection of the 2′,3′-cis-Diol of Ribonucleosides by a Boronic Ester

1
Faculty of Pharmaceutical Sciences, Tokyo University of Science, 2641 Yamazaki, Noda, Chiba 278-8510, Japan
2
Imaging Frontier Center, Tokyo University of Science, 2641 Yamazaki, Noda, Chiba 278-8510, Japan
*
Author to whom correspondence should be addressed.
Molecules 2017, 22(10), 1650; https://doi.org/10.3390/molecules22101650
Submission received: 8 September 2017 / Revised: 24 September 2017 / Accepted: 29 September 2017 / Published: 1 October 2017
(This article belongs to the Special Issue Nucleoside and Nucleotide Analogues)

Abstract

:
Disaccharide nucleosides are an important class of natural compounds that have a variety of biological activities. In this study, we report on the synthesis of disaccharide nucleosides utilizing the temporary protection of the 2′,3′-cis-diol of ribonucleosides, such as adenosine, guanosine, uridine, 5-metyluridine, 5-fluorouridine and cytidine, by a boronic ester. The temporary protection of the above ribonucleosides permits the regioselective O-glycosylation of the 5’-hydroxyl group with thioglycosides using a p-toluenesulfenyl chloride (p-TolSCl)/silver triflate (AgOTf) promoter system to afford the corresponding disaccharide nucleosides in fairly good chemical yields. The formation of a boronic ester prepared from uridine and 4-(trifluoromethyl)phenylboronic acid was examined by 1H, 11B and 19F NMR spectroscopy.

1. Introduction

Disaccharide nucleosides, which contain an external sugar moiety linked to one of the hydroxyl groups of the nucleoside via an O-glycoside bond, constitute an important class of natural compounds [1,2,3,4,5,6,7]. They are found in biopolymers, such as tRNA and poly(ADP-ribose), as well as antibiotics and other biologically-active compounds [5,6,8,9,10,11]. Adenophostins [12,13,14,15], HF-7 [16], amicetin analogs [6,17], ezomycin [18] and some candidates for inhibitors of chitin synthase [19] are typical examples of disaccharide nucleosides that contain adenine, guanine, cytosine and uracil moieties, respectively. Therefore, disaccharide nucleosides and their analogs would be expected to be good drug candidates.
Several strategies for the synthesis of disaccharide nucleosides such as enzymatic O-glycosylation [20,21], chemical N-glycosylation [5,9,16,22,23,24] and chemical O-glycosylation [7,9,14,16,18,19,24,25,26,27,28,29,30,31,32,33,34,35,36,37] have been reported to date. Chemical O-glycosylation is often useful for the large-scale synthesis of the desired disaccharide nucleosides in higher chemical yields compared to chemical N-glycosylation. However, the neutralization of promoters, which are generally Lewis or Brønsted acids, by the nucleobase moieties would be a possible drawback. Moreover, it is reported that an excess amount of the glycosyl donor is required for glycosylation at the hydroxyl site to be complete, because it is likely that glycosylation preferentially proceeds on the nucleobase or other Lewis basic site [18,32,34,36]. Side reactions such as depurination (cleavage of the anomeric C–N bond of nucleosides), anomerization reaction and trans-purinylation have also been reported [35,38,39].
We previously reported on the synthesis of disaccharide nucleosides 3 by the direct O-glycosylation of 2’-deoxyribonucleoside 2 with the thioglycosyl donor 1 (PG: protecting group) (Figure 1a) [40]. Among the glycosyl promoters tested, a combination of p-toluenesulfenyl chloride (p-TolSCl) and silver triflate (AgOTf) was found to give the corresponding products in moderate to high chemical yields. These results prompted us to investigate the synthesis of disaccharide nucleosides via the O-glycosylation of ribonucleosides. The synthesis of disaccharide nucleosides using protected ribonucleosides as glycosyl acceptors, which requires tedious protecting group manipulations, has been reported in previous studies [7,9,14,16,18,19,24,32,33,34,35,36,37]. The development of direct and regioselective O-glycosylation using unprotected or temporarily-protected ribonucleosides would afford a more convenient synthetic route to prepare various biologically-active derivatives.
In this manuscript, we report on the O-glycosylation of unprotected ribonucleosides 4 at the 5′-hydroxyl group via the temporary protection of the 2′,3′-cis-diol by a boronic ester 6. It has been reported that boronic and borinic acids are capable of forming the cyclic esters with carbohydrate derivatives [41,42], and such derivatives have been utilized for regio- and/or stereo-selective alkylation, acylation, silylation and glycosylation [43,44,45,46,47,48,49,50,51,52,53]. In our strategy, the ribonucleoside 4 is treated with the boronic acid 5 to temporarily protect the 2′,3′-cis-diol of 4 to prepare 6 in situ, which is then O-glycosylated at the 5‘-hydroxyl group with the glycosyl donor 7 to afford the disaccharide nucleosides 8 in a regioselective manner (Figure 1b) (in this manuscript, “disaccharide nucleosides” include the glycosylated deoxyribonucleosides and ribonucleosides, due to the generally-used terminology).

2. Results and Discussion

2.1. O-Glycosylation of Nucleosides with Thioglycosyl Donors

We first examined the O-glycosylation of uridine 10 with the thiomannoside 9 [54] using 3.0 equivalents of p-TolSCl and 6.0 equivalents of AgOTf [55,56] against 10 (i.e., 2.0 equivalents of p-TolSCl and 4.0 equivalents of AgOTf against 9 according to our previous paper [40]). Thioglycosides are one of the most popular glycosyl donor due to their ease of preparation and modification, high stability and the many available activation methods [25,26,27,28,29,57]. After the glycosylation and crude purification, the resulting compounds were acetylated to permit the desired products to be purified more easily.
The results for the glycosylation reactions are summarized in Table 1. In Entry 1, the glycosylation of 10 with 9 without boronic acid derivatives gave a complex mixture. In Entry 2, a mixture of 10 and phenylboronic acid 11a was co-evaporated with pyridine and 1,4-dioxane followed by stirring in 1,4-dioxane under reflux conditions [44] to prepare the temporary 2′,3′-cis-diol-protected intermediate 6 (in Figure 1), to which 9 (corresponding to 7 in Figure 1) was added. The glycosylation of 6 proceeded at its 5′-OH to afford 12 (corresponding to 8 in Figure 1) in 41% (α/β = 1.6/1) in a regioselective manner. The formation of a 1′′,5′-glycosidic linkage of 12 was confirmed by comparing its 1H NMR spectrum with that of the authentic sample prepared by another synthetic route, in which the chemical yield was 20% for four steps from 10 to 12 (excluding the steps required for the preparation of 9; see Scheme S1 in the Supplementary Materials). In Entry 3, a mixture of 9, 10 and 11a was co-evaporated with pyridine and 1,4-dioxane, and the resulting mixture was treated with promoters to give 12 in a yield nearly similar to that for Entry 2. In the following Entries 4–10, therefore, glycosylation reactions were conducted using a procedure similar to that used in Entry 3 for easy manipulation.
The electrostatic effect of the substituents of the boronic acid was studied in Entries 4–6. Glycosylations using 4-methoxyphenylboronic acid (4-MeOPhB(OH)2) 11b, 4-(trifluoromethyl)phenylboronic acid (4-CF3PhB(OH)2) 11c and 2,4-difluorophenylboronic acid (2,4-F2PhB(OH)2) 11d were conducted to give 12 in 39%, 51% and 46%, respectively, suggesting the positive effect of electron-withdrawing moieties such as -CF3 and -F on the aromatic ring of the boronic acid.
The solvent effect was also examined in Entries 7–9. It is well known that glycosylation in an ether-type solvent such as Et2O, THF and 1,4-dioxane enhances α-stereoselectivity [58,59]. As shown in Entry 7, 1,4-dioxane improved the α-stereoselectivity of the reaction, while the chemical yield was unsatisfactory. In Entry 8, CH2Cl2 gave a negligible amount of 12, due to the low solubility of the substrates. Glycosylation using EtCN gave 12 in higher chemical yield (Entry 9) than those for 1,4-dioxane (Entry 7) and MeCN (Entry 3), and the stereoselectivity was nearly the same as that in MeCN (Entry 3).
In Entry 10, glycosylation using lower equivalents of promoters (1.8 equivalents of p-TolSCl and 3.6 equivalents of AgOTf against 10) than those in Entry 9 gave similar results. Therefore, 3.0 equivalents and 6.0 equivalents of p-TolSCl and AgOTf were used in the following O-glycosylations to complete the reactions. In Entry 11, phenylboronic acid having a C6 alkyl chain 11e was used to improve the solubility of the boronic ester, albeit the chemical yield was not improved.
The O-glycosylation of adenosine 13 with 9 was examined next. As shown in Entry 1 of Table 2, O-glycosylation in the absence of boronic acid derivatives gave a complex mixture, as in the case of uridine (Entry 1 in Table 1). In Entries 2 and 3, in which PhB(OH)2 11a and 4-CF3PhB(OH)2 11c were used, 14 was produced, but the yields were lower (14% and 11%, respectively) than those of 10 in Entries 3 and 9 of Table 1, which can be attributed to the trans-purinylation of 13 and/or 14 (N-mannosyl adenine 15 was isolated in 6–27%) [36].
We attempted the O-glycosylations of various nucleosides 10, 13 and 1622 with the thiogalactoside 23, in which the hydroxyl groups were protected by benzoyl groups to achieve β-selective O-glycosylation by neighboring group participation at the O2 benzoyl group (Table 3). The formation of a β-1′′,5′-glycosidic linkage between the galactose moiety and ribonucleoside in the products 2432 was confirmed by NNR measurements (1H NMR, 13C NMR, 1H-1H COSY, HMQC and HMBC). As listed in Table 3, the reaction of the unprotected and N-protected adenosine, 13 and 16 [60], afforded the desired products β-24 and β-25 in 42% and 30%, respectively (Entries 1 and 2). Note that the use of unprotected adenosine 13 gave a better yield than that for the protected 16, phenomena similar to the O-glycosylation of 2’-deoxyadenosine reported by us in a previous study (Figure 1a) [40]. It should also be noted that the reaction of 13 with 23 (Entry 1) gave negligible amounts of N-galactosyl adenine as a byproduct unlike the use of the mannosyl donor 9 in an O-glycosylation reaction (Entries 2 and 3 in Table 2). In Entries 3 and 4, the reaction of the unprotected and N-protected guanosine, 17 and 18 [61], afforded the corresponding products β-26 and β-27 in 12% and 44%, respectively. The higher yield of β-27 is possibly due to better solubility of the boronic ester intermediate prepared from the N-protected 18 in EtCN than that from the unprotected 17. In Entry 5, the O-glycosylation of uridine 10 with 23 gave the desired product β-28 in 42% yield, and the electrophilic substitution reaction at the 5-position of the uracil moiety of 10 and/or β-28 with the p-toluenesulfenyl cation was observed (ca. 15%) [62]. In Entries 6 and 7, the O-glycosylation of 5-metyluridine 19 and 5-fluorouridine 20 afforded the corresponding products β-29 and β-30 in 53% and 61%, respectively. In Entries 8 and 9, the reaction of the unprotected and N-protected cytidine, 21 and 22 [63], afforded β-31 and β-32 in 55% and 40%, respectively. It should be noted that the use of the unprotected 21 gave β-31 in slightly higher yield than β-32 from the protected 22.
The O-glycosylation of 5-fluorouridine 20 with glucosyl, galactosyl and mannosyl donors was also examined. As summarized in Table 4, the glucosyl donor 33 [64] and the galactosyl donor 23 afforded the corresponding products β-35 and β-30 in reasonably acceptable yields, while the use of the mannosyl donor 34 [65] gave a mixture.

2.2. O-Glycosylation of Nucleosides with Thioglycosyl Donors Containing the Boronic Acid Moiety on the Leaving Group

Shen and co-workers recently reported on the 1,2-cis glycosylation of some simple alcohols using glucosyl donors containing a boronic acid moiety on the leaving group, which is referred to leaving group-based aglycon delivery [48]. These results prompted us to examine the use of the thioglycosyl donor 37 containing a boronic acid moiety on the leaving group, which was expected to form a boronic ester with the 2′,3′-cis-diol of ribonucleoside 38 to give the intermediate 39 (Figure 2). It was expected that the O-glycosylation of 39 would produce 40 in a pseudo-intramolecular manner.
In Table 5, the results for the O-glycosylation of uridine 10 and adenosine 13 with the glycosyl donors 41 and 42 (Schemes S2 and S3 in the Supplementary Materials) are summarized. In Entries 1 and 2, the reactions of 10 and 13 with 41 afforded the corresponding products 12 and 14 in 44% (α/β = 1.9/1) and 16% (α/β = 1.3/1), respectively. In Entries 3 and 4, 42 gave the almost the same chemical yields and stereoselectivities as those in Entries 1 and 2. These results are similar to Entry 3 in Table 1 and Entry 2 in Table 2, in which 10 or 13 was reacted with 9 and phenylboronic acid 11a under the same conditions in Table 5, indicating that the introduction of a boronic acid on the thiophenyl leaving group in our reactions has a negligible effect on the overall reaction.

2.3. Deprotection of the Glycosylation Products

The deprotection of the glycosylation product 12 (α/β = 1.6/1) involved a treatment with aqueous LiOH to afford α-43 and β-43, which were separated by silica gel column chromatography. The deprotection of the benzyl groups of α-43 and β-43 under traditional reaction conditions (10% Pd/C with H2 gas) gave α-44 and β-44, respectively (Scheme 1a) [66]. The deprotection of β-30 by treatment with MeNH2 [67] afforded β-45 [68] in 62% (Scheme 1b).

2.4. Interaction of Uridine and 4-(Trifluoromethyl)phenylboronic Acid Studied by 1H, 11B and 19F NMR Spectroscopy

The temporary protection of the 2’3’-cis-diol of ribonucleoside with a boronic acid was checked by NMR spectroscopy. The 1H, 11B and 19F NMR measurements of uridine 10, 4-(trifluoromethyl)phenylboronic acid 11c and a mixture of 10 and 11c were undertaken in CD3CN (Figure 3). For the preparation of the third sample, a mixture of 10 and 11c was azeotroped with pyridine and 1,4-dioxane, followed by stirring in 1,4-dioxane under the reflux conditions for 1 h. For comparison, 11c was azeotroped in a similar manner, and the 11B and 19F NMR spectra of the resulting mixture were obtained. As shown in Figure 3a,b, the peaks for the 2′ and 3′ hydroxyl groups disappeared, and the 2′ and 3′ proton signals were shifted considerably upfield upon the addition of 11c. In Figure 3c–e, it was assumed that the peaks at 21 ppm, 28 ppm and 32 ppm correspond to a 2,4,6-tris[4-(trifluorometyl)phenyl]boroxine pyridine complex, the proposed structure of which is 49 (some NMR spectra of boroxine pyridine complexes were reported [69,70,71]), 11c or 2,4,6-tris[4-(trifluorometyl)phenyl]boroxine and the desired boronic ester 47, respectively. In Figure 3f–h, we assumed that the peaks at −63.3 ppm, −63.2 ppm and −62.8 ppm correspond to 47, 11c or 2,4,6-tris[4-(trifluorometyl)phenyl]boroxine and 49, respectively.

3. Materials and Methods

3.1. General Information

Reagents and solvents were commercially purchased, were the highest commercial quality available and were used without further purification. Anhydrous CH2Cl2 was prepared by distillation from calcium hydride. Acetonitrile and propionitrile were prepared by distillation from calcium hydride and the successive distillation from phosphorus (V) oxide. Anhydrous 1,4-dioxane was prepared by distillation from sodium. All aqueous solutions were prepared using deionized water.
1H (300 and 400 MHz), 11B (128 MHz), 13C (75 and 100 MHz) and 19F (376 MHz) NMR spectra were recorded on a JEOL Always 300 (JEOL, Tokyo, Japan) and a JEOL Lamda 400 (JEOL, Tokyo, Japan) spectrometer. Tetramethylsilane (TMS) was used as an internal reference for 1H and 13C NMR measurements in CDCl3, CD3OD, CD3CN, acetone-d6 and DMSO-d6. 3-(Trimethylsilyl)propionic-2,2,3,3-d4 acid sodium (TSP) was used as an internal reference for 1H NMR measurements in D2O. 1,4-Dioxane was used as an internal reference for 13C NMR measurements in D2O. 11B and 19F NMR spectra were measured in a quartz NMR tube. The boron trifluoride-diethyl ether complex (BF3·OEt2) in CDCl3 was used as an external reference (0 ppm) for 11B NMR, and trifluoroacetic acid (TFA) in CDCl3 was used as an external reference (−76.5 ppm) for 19F NMR. IR spectra were recorded on a Perkin-Elmer FTIR Spectrum 100 (ATR) (PerkinElmer, Massachusetts, USA). MS measurements were performed on a JEOL JMS-700 (JEOL, Tokyo, Japan) and Varian 910-MS (Varian Medical Systems, California, USA) spectrometer. Elemental analyses were performed on a Perkin-Elmer CHN 2400 analyzer (PerkinElmer, Massachusetts, USA). Optical rotations were measured with a JASCO P-1030 digital polarimeter (JASCO, Tokyo, Japan) in 50-mm cells using the D line of sodium (589 nm). Thin-layer chromatography (TLC) and silica gel column chromatography were performed using Merck Silica gel 60 F254 plate (Merck KGaA, Darmstadt, Germany) and Fuji Silica Chemical FL-100D (Fuji Silysia Chemical, Aichi, Japan), respectively. HPLC experiments were carried out using a system consisting of a PU-2089 Plus intelligent HPLC pump (JASCO, Tokyo, Japan), a UV-2075 Plus intelligent UV-visible detector (JASCO, Tokyo, Japan), a Rheodine injector (Model No. 7125) and a Chromatopak C-R8A (Shimadzu, Kyōto, Japan). For preparative HPLC, a SenshuPak Pegasil ODS column (Senshu Scientific Co., Ltd., Tokyo, Japan) (20φ × 250 mm, No. 0509271H) was used. GPC experiments were carried out using a system consisting of a POMP P-50 (Japan Analytical Industry Co., Ltd., Tokyo, Japan), a UV/VIS DETECTOR S-3740 (Soma, Tokyo, Japan), a Manual Sample Injector 7725i (Rheodyne, Bensheim, Germany) and an MDL-101 1 PEN RECORDER (Japan Analyrical Industry Co., Ltd., Tokyo, Japan), equipped with two GPC columns, JAIGEL-1H and JAIGEL-2H (Japan Analyrical Industry Co., Ltd., Tokyo, Japan) (20φ × 600 mm, No. A605201 and A605204).

3.2. Synthesis of Compounds

2′,3′-Di-O-acetyl-5′-O-(6′′-O-acetyl-2′′,3′′,4′′-tri-O-benzyl-α/β-d-mannopyranosyl)uridine (12) (Entry 9 in Table 1): A mixture of 9 (28.4 mg, 48.6 µmol), 10 (7.9 mg, 32.4 µmol) and 11c (9.3 mg, 49.0 µmol) was co-evaporated with anhydrous pyridine (three times) and anhydrous 1,4-dioxane (three times) and dissolved in anhydrous 1,4-dioxane (320 µL). This reaction mixture was stirred under reflux conditions for 1 h and concentrated under reduced pressure. The resulting mixture was stirred with activated 4 Å molecular sieves (64 mg) in anhydrous EtCN (640 µL) at room temperature for 30 min and then cooled to −40 °C, to which p-TolSCl (12.8 µL, 96.8 µmol) and AgOTf (49.9 mg, 194 µmol) were added at the same temperature. After stirring for 1.5 h at −40 °C, the reaction mixture was quenched with saturated aqueous NaHCO3, diluted with CHCl3 and filtered through Celite. The organic layer was washed with saturated aqueous NaHCO3 and brine, dried over Na2SO4, filtered and concentrated under reduced pressure. The remaining residue was purified by silica gel column chromatography (CHCl3/MeOH = 1/0–50/1) to give 5′-O-(6′′-O-acetyl-2′′,3′′,4′′-tri-O-benzyl-α/β-d-mannopyranosyl)uridine including a small amount of byproducts as a colorless syrup (15.2 mg). To the resulting crude compound in anhydrous pyridine (200 µL), Ac2O (20.4 µL, 21.6 µmol, 10.0 equiv. based on the crude compound) and DMAP (catalytic amount) were added at 0 °C. The reaction mixture was stirred at the same temperature for 30 min and then allowed to warm to room temperature. After stirring overnight, the reaction mixture was diluted with CHCl3, washed with 1 M aqueous HCl, saturated aqueous NaHCO3 and brine, dried over Na2SO4, filtered and concentrated under reduced pressure. The residue was purified by silica gel column chromatography (CHCl3/MeOH = 1/0–90/1) to give 12 as a colorless amorphous solid (15.8 mg, 61% yield for 3 steps, α/β = 1.6/1): 1H NMR (300 MHz, CDCl3, TMS): δ = 8.56 (s, 0.6H), 8.29 (s, 0.4H), 7.89 (d, J = 8.1 Hz, 0.4H), 7.41–7.19 (m, 15.6H), 6.29 (d, J = 7.2 Hz, 0.4H), 6.15–6.05 (m, 0.6H), 5.55 (dd, J = 5.1, 1.2 Hz, 0.4H), 5.39 (dd, J = 8.1, 1.8 Hz, 0.6H), 5.33–5.23 (m, 2H), 5.01–4.86 (m, 2H), 4.80–4.55 (m, 4.6H), 4.46 (s, 0.4H), 4.39–4.21 (m, 3H), 4.13 (dd, J = 10.5, 1.8 Hz, 0.4H), 4.05 (d, J = 2.7 Hz, 0.4H), 3.99–3.84 (m, 2.2H), 3.84–3.68 (m, 1.6H), 3.68–3.57 (m, 1H), 3.44 (dt, J = 9.9, 6.9 Hz, 0.4H), 2.15 (s, 1.2H), 2.12 (s, 1.8H), 2.09 (s, 1.2H), 2.09 (s, 1.8H), 2.06 (s, 1.8H), 2.00 (s, 1.2H) ppm; 13C NMR (100 MHz, CDCl3, TMS): δ = 170.9, 170.8, 170.1, 169.8, 169.7, 169.6, 162.8, 162.6, 150.8, 150.4, 141.0, 138.8, 138.2, 137.9, 137.8, 137.7, 128.5, 128.5, 128.4, 128.4, 128.1, 128.1, 128.0, 127.9, 127.8, 127.7, 127.6, 103.3, 103.2, 100.0 (C1′′, 1JCH = 153.6 Hz, β form), 98.5 (C1′′, 1JCH = 171.0 Hz, α form), 86.3, 85.2, 82.8, 82.1, 81.4, 80.1, 77.3, 75.2, 75.2, 75.0, 74.8, 74.7, 74.3, 73.9, 73.7, 73.5, 72.9, 72.8, 72.5, 72.2, 71.9, 71.2, 71.0, 68.6, 66.8, 63.3, 63.2, 20.9, 20.9, 20.7, 20.6, 20.4 ppm; IR (ATR): ν = 3200, 3065, 3032, 2930, 2877, 1742, 1691, 1498, 1455, 1373, 1310, 1231, 1073, 1042, 1029, 925, 901, 811, 737, 697, 635, 597 cm−1; HRMS (FAB+): calcd. for [M + H]+, C42H47N2O14, 803.3027; found, 803.3028.
2′,3′-Di-O-acetyl-5′-O-(6′′-O-acetyl-2′′,3′′,4′′-tri-O-benzyl-α/β-d-mannopyranosyl)adenosine (14) and 7-N-(6′-O-acetyl-2′,3′,4′-tri-O-benzyl-α-d-mannopyranosyl)adenine (15) (Entry 2 in Table 2): A mixture of 9 (28.4 mg, 48.6 µmol), 13 (8.6 mg, 32.2 µmol) and 11a (5.9 mg, 48.4 µmol) was co-evaporated with anhydrous pyridine (three times) and anhydrous 1,4-dioxane (three times) and dissolved in anhydrous 1,4-dioxane (320 µL). This reaction mixture was stirred under reflux conditions for 1 h and concentrated under reduced pressure. The resulting mixture was stirred with activated 3 Å molecular sieves (64 mg) in anhydrous MeCN (640 µL) at room temperature for 30 min and then cooled to −20 °C, to which p-TolSCl (12.8 µL, 96.8 µmol) and AgOTf (49.9 mg, 194 µmol) were added at the same temperature. After stirring for 1.5 h at −20 °C, the reaction mixture was quenched with saturated aqueous NaHCO3, diluted with CHCl3 and filtered through Celite. The organic layer was washed with saturated aqueous NaHCO3 and brine, dried over Na2SO4, filtered and concentrated under reduced pressure. The resulting residue was purified by silica gel column chromatography (CHCl3/MeOH = 1/0–10/1) to give 5′-O-(6′′-O-acetyl-2′′,3′′,4′′-tri-O-benzyl-α/β-d-mannopyranosyl)adenosine including a small amount of byproducts as a colorless syrup (6.3 mg). To the resulting crude compound in anhydrous pyridine (200 µL), Ac2O (8.0 µL, 84.9 µmol, 10.0 equiv. based on the crude compound) and DMAP (catalytic amount) were added at 0 °C. The reaction mixture was stirred at the same temperature for 30 min and then allowed to warm to room temperature. After stirring overnight, the reaction mixture was diluted with CHCl3, washed with aqueous NaHCO3 and brine, dried over Na2SO4, filtered and concentrated under reduced pressure. The residue was purified by silica gel column chromatography (CHCl3/MeOH = 1/0–5/1) to give 14 as a colorless amorphous solid (3.8 mg, 14% yield for 3 steps, α/β = 1/1.0) and 15 as a colorless syrup (1.1 mg, 6% yield for 3 steps): 14 (α/β = 1/1.0); 1H NMR (300 MHz, CDCl3, TMS): δ = 8.36 (s, 1H), 8.35 (s, 0.5H), 7.93 (s, 0.5H), 7.42–7.27 (m, 13.5H), 7.16 (t, J = 2.7 Hz, 1.5H), 6.31 (d, J = 6.0 Hz, 0.5H), 6.20 (d, J = 5.7 Hz,0.5H), 5.92 (t, J = 5.7 Hz, 0.5H), 5.78–5.67 (m, 1H), 5.67–5.52 (m, 2.5H), 4.97–4.83 (m, 3H), 4.77–4.45 (m, 5H), 4.45–4.16 (m, 3H), 4.05–3.82 (m, 3H), 3.82–3.62 (m, 1H), 3.58–3.41 (m, 1H), 2.15 (s, 1.5H), 2.13 (s, 1.5H), 2.07 (s, 1.5H), 2.06 (s, 1.5H), 2.03 (s, 1.5H), 2.01 (s, 1.5H) ppm; 13C NMR (100 MHz, CDCl3, TMS): δ = 171.1, 170.9, 169.9, 169.6, 169.4, 169.3, 155.5, 155.4, 153.4, 153.1, 150.0, 150.0, 139.7, 138.7, 138.4, 138.2, 138.1, 138.0, 137.9, 128.4, 128.4, 128.4, 128.4, 128.4, 128.2, 128.1, 127.9, 127.9, 127.8, 127.7, 127.7, 127.6, 127.6, 127.3, 120.1, 119.8, 100.9 (C1′′, 1JCH = 156.9 Hz, β form), 98.6 (C1′′, 1JCH = 168.5 Hz, α form), 85.7, 85.2, 82.3, 82.2, 81.4, 80.2, 75.3, 75.1, 75.0, 74.5, 74.4, 74.3, 74.1, 73.9, 73.1, 73.0, 72.4, 71.7, 71.1, 70.7, 69.3, 66.6, 63.5, 63.4, 21.0, 20.9, 20.7, 20.6, 20.4, 20.4 ppm; IR (ATR): ν = 3332, 3171, 3066, 3032, 2927, 2875, 1742, 1635, 1595, 1498, 1473, 1455, 1424, 1366, 1332, 1293, 1234, 1213, 1071, 1042, 1027, 903, 825, 799, 736, 697, 667, 649, 602 cm−1; HRMS (FAB+): calcd. for [M + H]+, C43H48N5O12, 826.3299; found, 826.3294; 15; 1H NMR (300 MHz, CDCl3, TMS): δ = 8.44 (s, 1H), 7.90 (s, 1H), 7.41–7.28 (m, 10H), 7.23–7.19 (m, 1H), 7.18–7.08 (m, 2H), 6.86–6.74 (m, 2H), 5.88 (s, 2H), 5.61 (s, 1H), 4.97 (d, J = 10.8 Hz, 1H), 4.77 (s, 2H), 4.70 (d, J = 6.3 Hz, 1H), 4.66 (d, J = 6.6 Hz, 1H), 4.45 (dd, J = 12.0, 3.3 Hz, 1H), 4.26 (dd, J = 12.0, 2.4 Hz, 1H), 4.25 (d, J = 11.1 Hz, 1H), 4.11 (t, J = 9.6 Hz, 1H), 3.96 (s, 1H), 3.88 (dd, J = 9.3, 2.7 Hz, 1H), 3.76 (dt, J = 9.6, 3.0 Hz, 1H), 1.98 (s, 3H) ppm; 13C NMR (75 MHz, CDCl3, TMS): δ = 170.0, 160.7, 153.2, 151.6, 143.0, 137.3, 135.9, 128.7, 128.6, 128.5, 128.5, 128.4, 128.3, 128.3, 128.2, 127.7, 111.8, 85.7, 82.8, 76.7, 76.1, 75.4, 75.1, 73.0, 72.5, 62.2, 20.7 ppm; IR (ATR): ν = 3449, 3371, 3167, 3089, 3064, 3031, 2927, 2873, 1742, 1627, 1587, 1551, 1497, 1475, 1455, 1425, 1389, 1365, 1340, 1296, 1228, 1094, 1019, 966, 909, 887, 825, 736, 695, 602 cm−1; HRMS (FAB+): calcd. for [M + H]+, C34H36N5O6, 610.2666; found, 610.2668; [ α ] D 25 = −20.6 (c = 1.0, CHCl3).
5′-O-(2′′,3′′,4′′,6′′-Tetra-O-benzoyl-β-d-galactopyranosyl)adenosine (β-24) (Entry 1 in Table 3): A mixture of 23 (80.4 mg, 114 µmol), 13 (20.4 mg, 76.3 µmol) and 11c (21.7 mg, 114 µmol) was co-evaporated with anhydrous pyridine (three times) and anhydrous 1,4-dioxane (three times) and dissolved in anhydrous 1,4-dioxane (760 µL). This reaction mixture was stirred under reflux conditions for 1 h and concentrated under reduced pressure. The resulting mixture was stirred with activated 4 Å molecular sieves (150 mg) in anhydrous EtCN (1.50 mL) at room temperature for 30 min and then cooled to −40 °C, to which p-TolSCl (30.3 µL, 229 µmol) and AgOTf (117.6 mg, 458 µmol) were added at the same temperature. After stirring for 1.5 h at −40 °C, the reaction mixture was quenched with saturated aqueous NaHCO3, diluted with CHCl3 and filtered through Celite. The organic layer was washed with saturated aqueous NaHCO3 and brine, dried over Na2SO4, filtered and concentrated under reduced pressure. The resulting residue was purified by silica gel column chromatography (CHCl3/MeOH = 1/0–30/1) to give β-24 as a colorless solid (27.4 mg, 42% yield): 1H NMR (400 MHz, CDCl3, TMS): δ = 8.46 (s, 1H), 8.07 (dd, J = 7.6, 2.0 Hz, 2H), 8.02–7.98 (m, 3H), 7.97–7.93 (m, 2H), 7.83–7.79 (m, 2H), 7.57–7.51 (m, 1H), 7.49 (t, J = 7.6 Hz, 1H), 7.45–7.32 (m, 8H), 7.20 (t, J = 8.0 Hz, 2H), 6.47 (brs, 2H), 6.13 (d, J = 6.4 Hz, 1H), 6.04 (d, J = 3.2 Hz, 1H), 5.90 (dd, J = 10.4, 8.0 Hz, 1H), 5.73 (dd, J = 10.4, 3.2 Hz, 1H), 4.92 (d, J = 8.0 Hz, 1H), 4.70 (dd, J = 11.2, 6.4 Hz, 1H), 4.63 (t, J = 5.6 Hz, 1H), 4.47–4.33 (m, 4H), 4.20 (d, J = 4.8 Hz, 1H), 3.77 (d, J = 8.4 Hz, 1H) ppm; 13C NMR (100 MHz, CDCl3, TMS): δ = 166.1, 166.1, 165.6, 165.5, 155.3, 152.0, 148.8, 139.0, 133.8, 133.5, 133.4, 133.4, 130.0, 129.8, 129.8, 129.7, 129.3, 128.7, 128.7, 128.6, 128.5, 128.4, 119.0, 101.5, 88.3, 83.9, 76.3, 72.5, 71.6, 71.2, 70.1, 70.0, 68.0, 61.8 ppm; IR (ATR): ν = 3345, 3203, 3070, 2929, 1721, 1639, 1602, 1585, 1475, 1452, 1421, 1316, 1259, 1177, 1092, 1066, 1025, 1002, 938, 906, 857, 799, 753, 705, 685, 649, 617 cm−1; HRMS (FAB+): calcd. for [M + H]+, C44H40N5O13, 846.2623; found, 846.2626; Anal. Calcd. for C44H39N5O13·1.5H2O: C, 60.55; H, 4.85; N, 8.02; found: C, 60.47; H, 4.61; N, 7.98; [ α ] D 25 = +13.9 (c = 1.0, CHCl3).
6-N-Benzoyl-5′-O-(2′′,3′′,4′′,6′′-tetra-O-benzoyl-β-d-galactopyranosyl)adenosine (β-25) (Entry 2 in Table 3): O-Glycosylation using 23 (80.5 mg, 115 µmol), 16 (28.4 mg, 76.5 µmol), 11c (21.8 mg, 115 µmol), anhydrous 1,4-dioxane (760 µL), p-TolSCl (30.3 µL, 229 µmol), AgOTf (117.8 mg, 458 µmol), 4 Å molecular sieves (150 mg) and anhydrous EtCN (1.50 mL) was conducted according to the procedure used for the synthesis of β-24. The residue was purified by silica gel column chromatography (CHCl3/MeOH = 1/0–50/1) to give β-25 as a colorless solid (21.9 mg, 30% yield for 2 steps): 1H NMR (300 MHz, CDCl3, TMS): δ = 9.21 (brs, 1H), 8.66 (s, 1H), 8.57 (s, 1H), 8.17-8.08 (m, 2H), 7.90–7.81 (m, 4H), 7.90–7.81 (m, 2H), 7.76 (d, J = 7.5 Hz, 2H), 7.62–7.36 (m, 11H), 7.30 (t, J = 7.8 Hz, 2H), 7.22 (t, J = 7.8 Hz, 2H), 6.15 (d, J = 5.1 Hz, 1H), 6.01 (d, J = 3.0 Hz, 1H), 5.78 (dd, J = 10.2, 7.5 Hz, 1H), 5.65 (dd, J = 10.5, 3.3 Hz, 1H), 5.49 (brs, 1H), 4.88 (d, J = 7.8 Hz, 1H), 4.76–4.59 (m, 2H), 4.43 (dd, J = 11.1, 6.3 Hz, 1H), 4.38–4.21 (m, 4H), 3.81 (dd, J = 10.5, 2.7 Hz, 1H), 3.51 (s, 1H) ppm; 13C NMR (75 MHz, CDCl3, TMS): δ = 166.1, 165.5, 165.5, 164.6, 152.2, 151.0, 149.4, 141.7, 133.7, 133.5, 133.4, 132.8, 130.2, 129.8, 129.6, 129.3, 128.9, 128.8, 128.8, 128.7, 128.6, 128.5, 128.3, 127.9, 122.8, 101.5, 89.4, 84.2, 75.8, 71.8, 71.6, 71.2, 69.9, 69.3, 68.0, 61.9 ppm; IR (ATR): ν = 3336, 3066, 2938, 1721, 1612, 1603, 1584, 1510, 1489, 1452, 1406, 1316, 1250, 1177, 1092, 1066, 1025, 1002, 938, 901, 858, 824, 798, 755, 704, 685, 644, 616 cm−1; HRMS (FAB+): calcd. for [M + H]+, C51H44N5O14, 950.2885; found, 950.2885; Anal. Calcd. for C51H43N5O14·1.5H2O: C, 62.70; H, 4.75; N, 7.17; found: C, 62.80; H, 4.57; N, 7.22; [ α ] D 25 = +4.88 (c = 1.0, CHCl3).
5′-O-(2′′,3′′,4′′,6′′-Tetra-O-benzoyl-β-d-galactopyranosyl)guanosine (β-26) (Entry 3 in Table 3): O-Glycosylation using 23 (80.5 mg, 115 µmol), 17 (21.6 mg, 76.3 µmol), 11c (21.8 mg, 115 µmol), anhydrous 1,4-dioxane (760 µL), p-TolSCl (30.3 µL, 229 µmol), AgOTf (117.6 mg, 458 µmol), 4 Å molecular sieves (150 mg) and anhydrous EtCN (1.50 mL) was conducted according to the procedure used for the synthesis of β-24. The residue was purified by silica gel column chromatography (CHCl3/MeOH = 1/0–8/1) to give β-26 as a colorless solid (8.1 mg, 12% yield for 2 steps): 1H NMR (400 MHz, DMSO-d6, TMS): δ = 10.68 (s, 1H), 8.11-8.07 (m, 2H), 8.05 (s, 1H), 7.94 (d, J = 8.4 Hz, 2H), 7.85 (d, J = 8.4 Hz, 2H), 7.76–7.69 (m, 3H), 7.69–7.63 (m, 3H), 7.62–7.48 (m, 4H), 7.43 (t, J = 7.6 Hz, 2H), 7.35 (t, J = 7.6 Hz, 2H), 6.51 (s, 2H), 5.91 (d, J = 3.2 Hz, 1H), 5.86 (dd, J = 10.4, 3.2 Hz, 1H), 5.70 (d, J = 6.0 Hz, 1H), 5.60 (t, J = 10.0 Hz, 1H), 5.39 (d, J = 6.4 Hz, 1H), 5.22 (d, J = 7.6 Hz, 1H), 5.19 (d, J = 3.6 Hz, 1H), 4.69 (t, J = 6.4 Hz, 1H), 4.52 (dd, J = 11.2, 2.8 Hz, 1H), 4.42 (dd, J = 11.2, 6.8 Hz, 1H), 4.37 (dd, J = 11.2, 6.0 Hz, 1H), 4.10 (d, J = 8.8, 1H), 4.03 (d, J = 2.8 Hz, 1H), 3.92 (d, J = 2.8 Hz, 1H), 3.82 (dd, J = 10.8, 4.0 Hz, 1H) ppm; 13C NMR (100 MHz, DMSO-d6, TMS): δ = 165.1, 165.1, 165.1, 164.4, 156.8, 153.6, 151.4, 135.1, 133.8, 133.7, 133.5, 133.5, 129.4, 129.2, 129.1, 129.0, 129.0, 128.8, 128.7, 128.7, 128.7, 128.6, 128.6, 128.4, 116.6, 99.9, 86.4, 83.1, 73.8, 71.2, 70.7, 70.0, 69.6, 68.4, 61.7 ppm; IR (ATR): ν = 3332, 3128, 3065, 2935, 1724, 1673, 1638, 1602, 1584, 1572, 1538, 1491, 1452, 1350, 1316, 1261, 1177, 1092, 1067, 1025, 1002, 938, 904, 857, 801, 781, 755, 706, 686, 638, 617 cm−1; HRMS (FAB+): calcd. for [M + H]+, C44H40N5O14, 862.2572; found, 862.2573; Anal. Calcd. for C44H39N5O14·1.5H2O: C, 59.46; H, 4.76; N, 7.88; found: C, 59.52; H, 4.62; N, 7.87; [ α ] D 24 = +11.3 (c = 1.0, DMSO).
2-N-Isobutyryl-5′-O-(2′′,3′′,4′′,6′′-tetra-O-benzoyl-β-d-galactopyranosyl) guanosine (β-27) (Entry 4 in Table 3): Glycosylation using 23 (80.5 mg, 115 µmol), 18 (27.0 mg, 76.4 µmol), 11c (21.8 mg, 115 µmol), anhydrous 1,4-dioxane (760 µL), p-TolSCl (30.3 µL, 229 µmol), AgOTf (117.8 mg, 458 µmol), 4 Å molecular sieves (150 mg) and anhydrous EtCN (1.50 mL) was conducted according to the procedure used for the synthesis of β-24. The residue was purified by silica gel column chromatography (CHCl3/MeOH = 1/0–20/1) to give β-27 as a colorless solid (31.4 mg, 44% yield for 2 steps): 1H NMR (300 MHz, CDCl3, TMS): δ = 12.11 (s, 1H), 10.33 (s, 1H), 8.09–7.90 (m, 6H), 7.88 (s, 1H), 7.79–7.67 (m, 2H), 7.58–7.31 (m, 10H), 7.24 (t, J = 7.8 Hz, 2H), 6.20 (brs, 1H), 6.00 (d, J = 3.3 Hz, 1H), 5.79 (dd, J = 10.5, 7.5 Hz, 1H), 5.72–5.60 (m, 2H), 4.98 (d, J = 5.1 Hz, 1H), 4.84 (d, J = 8.1 Hz, 1H), 4.67 (dd, J = 10.5, 5.1 Hz, 1H), 4.42–4.24 (m, 3H), 4.16 (d, J = 2.7 Hz, 1H), 4.05 (brs, 2H), 3.72 (d, J = 8.1 Hz, 1H), 2.62–2.49 (m, 1H), 1.13 (d, J = 6.9 Hz, 3H), 0.94 (d, J = 6.6 Hz, 3H) ppm; 13C NMR (75 MHz, CDCl3, TMS): δ = 179.6, 166.5, 166.0, 165.5, 165.4, 155.6, 148.7, 147.8, 139.4, 133.8, 133.4, 129.9, 129.7, 129.6, 129.2, 128.8, 128.6, 128.5, 128.3, 120.6, 101.8, 89.4, 83.7, 72.5, 71.4, 71.2, 70.1, 69.4, 67.9, 61.6, 36.1, 18.8, 18.5 ppm; IR (ATR): ν = 3201, 3067, 2974, 2936, 1720, 1677, 1602, 1560, 1475, 1452, 1404, 1376, 1350, 1316, 1258, 1178, 1156, 1092, 1066, 1026, 1002, 949, 908, 856, 802, 784, 752, 706, 687, 642, 617 cm−1; HRMS (FAB+): calcd. for [M + H]+, C48H46N5O15, 932.2990; found, 932.2990; Anal. Calcd. for C48H45N5O15·1.5H2O: C, 60.12; H, 5.05; N, 7.30; found: C, 60.29; H, 4.86; N, 7.34; [ α ] D 25 = +25.9 (c = 1.0, CHCl3).
5′-O-(2′′,3′′,4′′,6′′-Tetra-O-benzoyl-β-d-galactopyranosyl)uridine (β-28) (Entry 5 in Table 3): O-Glycosylation using 23 (80.4 mg, 114 µmol), 10 (18.6 mg, 76.2 µmol), 11c (21.7 mg, 114 µmol), anhydrous 1,4-dioxane (760 µL), p-TolSCl (30.3 µL, 229 µmol), AgOTf (117.6 mg, 458 µmol), 4 Å molecular sieves (150 mg) and anhydrous EtCN (1.50 mL) was conducted according to the procedure used for the synthesis of β-24. The residue was purified by silica gel column chromatography (CHCl3/MeOH = 1/0–40/1) to give β-28 as a colorless solid (26.1 mg, 42% yield for 2 steps): 1H NMR (400 MHz, CDCl3, TMS): δ = 9.91 (s, 1H), 8.10–8.05 (m, 2H), 8.04–7.99 (m, 2H), 7.95–7.86 (m, 3H), 7.79–7.75 (m, 2H), 7.63 (t, J = 7.6 Hz, 1H), 7.59–7.49 (m, 3H), 7.50–7.38 (m, 4H), 7.33 (t, J = 7.6 Hz, 2H), 7.23 (t, J = 7.6 Hz, 2H), 6.02 (d, J = 2.8 Hz, 1H), 5.92–5.84 (m, 2H), 5.77 (dd, J = 10.4, 8.0 Hz, 1H), 5.67 (dd, J = 10.8, 3.6 Hz, 1H), 5.03 (d, J = 4.0 Hz, 1H), 4.91 (d, J = 7.6 Hz, 1H), 4.71 (dd, J = 10.8, 6.0 Hz, 1H), 4.49–4.39 (m, 3H), 4.23 (d, J = 4.4 Hz, 1H), 4.13–4.02 (m, 2H), 3.79 (d, J = 10.0 Hz, 1H), 3.39 (d, J = 5.6 Hz, 1H) ppm; 13C NMR (100 MHz, CDCl3, TMS): δ = 166.1, 165.5, 165.5, 165.5, 163.6, 151.3, 140.2, 133.9, 133.6, 133.4, 129.8, 129.8, 129.7, 129.3, 128.9, 128.7, 128.6, 128.6, 128.5, 128.4, 102.6, 101.5, 90.6, 83.4, 75.2, 71.7, 71.2, 70.0, 69.8, 68.2, 68.1, 61.9 ppm; IR (ATR): ν = 3356, 3069, 2972, 1720, 1687, 1602, 1585, 1492, 1452, 1383, 1316, 1261, 1178, 1093, 1067, 1027, 1002, 907, 858, 806, 763, 706, 686, 617 cm−1; HRMS (FAB+): calcd. for [M + H]+, C43H39N2O15, 823.2350; found, 823.2352; Anal. Calcd. for C43H38N2O15·H2O: C, 61.43; H, 4.80; N, 3.33; found: C, 61.45; H, 4.70; N, 3.38; [ α ] D 25 = +50.7 (c = 1.0, CHCl3).
5-Metyl-5′-O-(2′′,3′′,4′′,6′′-tetra-O-benzoyl-β-d-galactopyranosyl)uridine (β-29) (Entry 6 in Table 3): O-Glycosylation using 23 (80.5 mg, 115 µmol), 19 (19.7 mg, 76.3 µmol), 11c (21.8 mg, 115 µmol), anhydrous 1,4-dioxane (760 µL), p-TolSCl (30.3 µL, 229 µmol), AgOTf (117.6 mg, 458 µmol), 4 Å molecular sieves (150 mg) and anhydrous EtCN (1.50 mL) was conducted according to the procedure used for the synthesis of β-24. The residue was purified by silica gel column chromatography (CHCl3/MeOH = 1/0–40/1) to give β-29 as a colorless solid (33.8 mg, 53% yield for 2 steps): 1H NMR (400 MHz, CDCl3, TMS): δ = 10.04 (s, 1H), 8.09–8.05 (m, 2H), 8.04–8.00 (m, 2H), 7.97–7.93 (m, 2H), 7.79–7.74 (m, 2H), 7.67 (s, 1H), 7.61–7.52 (m, 2H), 7.50–7.37 (m, 6H), 7.34 (t, J = 7.6 Hz, 2H), 7.20 (t, J = 7.6 Hz, 2H), 6.03 (d, J = 3.6 Hz, 1H), 5.88 (d, J = 4.4 Hz, 1H), 5.81 (dd, J = 10.4, 7.6 Hz, 1H), 5.71 (dd, J = 10.4, 3.2 Hz, 1H), 5.08 (s, 1H), 4.90 (d, J = 7.6 Hz, 1H), 4.70 (dd, J = 11.2, 6.4 Hz, 1H), 4.50–4.37 (m, 3H), 4.21 (d, J = 4.4 Hz, 1H), 4.09 (dd, J = 10.0, 4.4 Hz, 1H), 4.01 (dd, J = 10.0, 4.8 Hz, 1H), 3.77 (d, J = 9.2 Hz, 1H), 3.41 (d, J = 4.8 Hz, 1H), 2.06 (s, 3H) ppm; 13C NMR (100 MHz, CDCl3, TMS): δ = 166.1, 165.6, 165.6, 165.5, 164.2, 151.3, 136.1, 133.8, 133.6, 133.4, 129.9, 129.8, 129.7, 129.7, 129.3, 128.9, 128.7, 128.6, 128.5, 128.5, 128.3, 111.3, 102.2, 89.8, 83.3, 74.6, 71.8, 71.2, 70.2, 69.8, 69.3, 68.1, 61.9, 12.8 ppm; IR (ATR): ν = 3385, 3067, 2930, 1720, 1686, 1602, 1585, 1492, 1468, 1452, 1386, 1349, 1316, 1259, 1177, 1092, 1066, 1025, 1002, 937, 909, 858, 802, 793, 755, 705, 685, 616 cm−1; HRMS (FAB+): calcd. for [M + H]+, C44H41N2O15, 837.2507; found, 837.2510; Anal. Calcd. for C44H40N2O15·H2O: C, 61.82; H, 4.95; N, 3.28; found: C, 61.70; H, 4.85; N, 3.30; [ α ] D 25 = +28.1 (c = 1.0, CHCl3).
5-Fluoro-5′-O-(2′′,3′′,4′′,6′′-tetra-O-benzoyl-β-d-galactopyranosyl)uridine (β-30) (Entry 7 in Table 3): O-Glycosylation using 23 (80.4 mg, 114 µmol), 20 (20.0 mg, 76.3 µmol), 11c (21.7 mg, 114 µmol), anhydrous 1,4-dioxane (760 µL), p-TolSCl (30.3 µL, 229 µmol), AgOTf (117.6 mg, 458 µmol), 4 Å molecular sieves (150 mg) and anhydrous EtCN (1.50 mL) was conducted according to the procedure used for the synthesis of β-24. The residue was purified by silica gel column chromatography (CHCl3 then AcOEt/CHCl3 = 1/1) to give β-30 as a colorless solid (38.8 mg, 61% yield for 2 steps): 1H NMR (300 MHz, CDCl3, TMS): δ = 9.81 (brs, 1H), 8.10 (t, J = 7.2 Hz, 3H), 8.04–7.99 (m, 2H), 7.94–7.89 (m, 2H), 7.78–7.73 (m, 2H), 7.64–7.48 (m, 4H), 7.47–7.37 (m, 4H), 7.33 (t, J = 7.5 Hz, 2H), 7.21 (t, J = 7.2 Hz, 2H), 6.03 (d, J = 3.0 Hz, 1H), 5.88 (d, J = 3.9 Hz, 1H), 5.78 (dd, J = 10.2, 7.5 Hz, 1H), 5.71 (dd, J = 10.2, 3.3 Hz, 1H), 4.86 (d, J = 7.2 Hz, 1H), 4.72 (dd, J = 11.1, 6.3 Hz, 1H), 4.51 (brs, 1H), 4.52–4.33 (m, 3H), 4.27 (d, J = 3.3 Hz, 1H), 4.19 (t, J = 4.8 Hz, 1H), 4.02 (s, 1H), 3.74 (d, J = 9.6 Hz, 1H), 3.32 (brs, 1H) ppm; 13C NMR (100 MHz, CDCl3, TMS): δ = 166.1, 165.8, 165.7, 165.5, 157.0 (d, 2JCF = 26.4 Hz), 149.9, 140.8 (d, 1JCF = 237.0 Hz), 133.9, 133.7, 133.4, 130.0, 129.8, 129.7, 129.3, 128.8, 128.7, 128.6, 128.5, 128.4, 124.9 (d, 2JCF = 35.5 Hz), 101.7, 90.5, 84.0, 75.3, 71.8, 71.0, 70.9, 69.9, 69.0, 67.9, 61.8 ppm; 19F NMR (376 MHz, CDCl3, TFA): δ = −164.57 (s) ppm; IR (ATR): ν = 3447, 3074, 2941, 1715, 1602, 1585, 1493,1452, 1351, 1317, 1258, 1178, 1092, 1066, 1026, 1002, 936, 894, 858, 800, 753, 706, 687, 617 cm−1; HRMS (FAB+): calcd. for [M + Na]+, C43H37FN2O15Na, 863.2076; found, 863.2072; Anal. Calcd. for C43H37FN2O15·H2O: C, 60.14; H, 4.58; N, 3.26; found: C, 60.02; H, 4.41; N, 3.32; [ α ] D 25 = +37.2 (c = 1.0, CHCl3).
5′-O-(2′′,3′′,4′′,6′′-Tetra-O-benzoyl-β-d-galactopyranosyl)cytidine (β-31) (Entry 8 in Table 3): O-Glycosylation using 23 (80.4 mg, 114 µmol), 21 (18.5 mg, 76.1 µmol), 11c (21.7 mg, 114 µmol), anhydrous 1,4-dioxane (760 µL), p-TolSCl (30.3 µL, 229 µmol), AgOTf (117.6 mg, 458 µmol), 4 Å molecular sieves (150 mg) and anhydrous EtCN (1.50 mL) was conducted according to the procedure used for the synthesis of β-24. The residue was purified by silica gel column chromatography (CHCl3/MeOH = 1/0–10/1) to give β-31 as a colorless solid (34.1 mg, 55% yield for 2 steps): 1H NMR (300 MHz, acetone-d6, TMS): δ = 8.13-8.08 (m, 2H), 8.06–8.01 (m, 2H), 7.97–7.92 (m, 2H), 7.88 (d, J = 7.5 Hz, 1H), 7.76 (dd, J = 8.4, 1.1 Hz, 2H), 7.73-7.65 (m, 1H), 7.65-7.56 (m, 3H), 7.56-7.44 (m, 4H), 7.39 (t, J = 7.2 Hz, 2H), 7.32 (t, J = 7.5 Hz, 2H), 6.90 (brs, 2H), 6.10 (dd, J = 3.0, 0.9 Hz, 1H), 5.97 (d, J = 7.8 Hz, 1H), 5.90 (d, J = 7.8 Hz, 1H), 5.87–5.77 (m, 2H), 5.33 (d, J = 7.8 Hz, 1H), 4.78 (t, J = 6.3 Hz, 1H), 4.70 (dd, J = 10.8, 6.0 Hz, 1H), 4.54 (dd, J = 10.8, 6.6 Hz, 1H), 4.38 (dd, J = 11.1, 1.8 Hz, 1H), 4.19–4.12 (m, 1H), 4.06 (t, J = 4.5 Hz, 1H), 4.02–3.93 (m, 2H) ppm; 13C NMR (100 MHz, acetone-d6, TMS): δ = 166.9, 166.4, 166.3, 166.2, 165.8, 157.0, 142.1, 134.6, 134.3, 134.3, 134.2, 130.7, 130.5, 130.4, 130.3, 130.2, 130.2, 130.1, 129.8, 129.5, 129.4, 129.3, 102.2, 95.4, 91.6, 84.0, 76.4, 72.8, 72.0, 71.1, 70.9, 69.8, 69.7, 62.8 ppm; IR (ATR): ν = 3350, 3208, 3072, 2935, 1723, 1642, 1602, 1529, 1486, 1452, 1349, 1316, 1259, 1178, 1092, 1065, 1025, 1002, 940, 909, 857, 788, 753, 705, 685, 616 cm−1; HRMS (FAB+): calcd. for [M + H]+, C43H40N3O14, 822.2510; found, 822.2507; Anal. Calcd. for C43H39N3O14·1.5H2O: C, 60.85; H, 4.99; N, 4.95; found: C, 60.87; H, 4.72; N, 4.97; [ α ] D 25 = +62.4 (c = 1.0, CHCl3).
4-N-Benzoyl-5′-O-(2′′,3′′,4′′,6′′-tetra-O-benzoyl-β-d-galactopyranosyl)cytidine (β-32) (Entry 9 in Table 3): O-glycosylation using 23 (80.6 mg, 115 µmol), 22 (26.6 mg, 76.6 µmol), 11c (21.8 mg, 115 µmol), anhydrous 1,4-dioxane (760 µL), p-TolSCl (30.3 µL, 229 µmol), AgOTf (117.8 mg, 458 µmol), 4 Å molecular sieves (150 mg) and anhydrous EtCN (1.50 mL) was conducted according to the procedure used for the synthesis of β-24. The residue was purified by silica gel column chromatography (CHCl3/MeOH = 1/0–50/1) to give β-32 as a colorless solid (28.0 mg, 40% yield for 2 steps): 1H NMR (400 MHz, CDCl3, TMS): δ = 8.93 (brs, 1H), 8.28 (d, J = 7.6 Hz, 1H), 8.06–8.01 (m, 4H), 7.91 (dd, J = 8.4, 1.6 Hz, 2H), 7.87 (d, J = 7.2 Hz, 2H), 7.73 (dd, J = 8.0, 1.6 Hz, 2H), 7.68 (brs, 1H), 7.60–7.53 (m, 2H), 7.53–7.37 (m, 9H), 7.32 (t, J = 8.0 Hz, 2H), 7.19 (t, J = 8.0 Hz, 2H), 6.03 (d, J = 3.2 Hz, 1H), 5.86 (d, J = 3.6 Hz, 1H), 5.76 (dd, J = 10.4, 8.0 Hz, 1H), 5.69 (dd, J = 10.4, 3.6 Hz, 1H), 5.54 (brs, 1H), 4.92 (d, J = 7.6 Hz, 1H), 4.78 (dd, J = 11.6, 6.4 Hz, 1H), 4.48 (dd, J = 11.2, 6.4 Hz, 1H), 4.43–4.35 (m, 3H), 4.14 (t, J = 4.4 Hz, 1H), 4.10 (d, J = 3.6 Hz, 1H), 3.81 (dd, J = 11.6, 2.4 Hz, 1H), 3.66 (brs, 1H) ppm; 13C NMR (100 MHz, CDCl3, TMS): δ = 166.1, 165.6, 165.5, 165.3, 162.6, 144.7, 133.6, 133.4, 133.4, 133.1, 132.9, 129.9, 129.8, 129.8, 129.7, 129.4, 128.9, 128.8, 128.6, 128.5, 128.4, 128.3, 127.7, 101.7, 97.1, 93.1, 84.8, 76.4, 71.8, 71.3, 71.2, 69.6, 68.7, 68.1, 61.9 ppm; IR (ATR): ν = 3320, 3066, 2930, 1724, 1645, 1603, 1556, 1481, 1452, 1379, 1315, 1248, 1177, 1092, 1066, 1025, 1002, 938, 899, 859, 802, 787, 756, 704, 685, 616 cm−1; HRMS (FAB+): calcd. for [M + H]+, C50H44N3O15, 926.2772; found, 926.2773; Anal. Calcd. for C50H43N3O15·H2O: C, 63.62; H, 4.81; N, 4.45; found: C, 63.34; H, 4.71; N, 4.56; [ α ] D 25 = +46.6 (c = 1.0, CHCl3).
5-Fluoro-5′-O-(2′′,3′′,4′′,6′′-tetra-O-benzoyl-β-d-glucopyranosyl)uridine (β-35) (Entry 1 in Table 4): O-Glycosylation using 33 (80.4 mg, 114 µmol), 20 (20.0 mg, 76.2 µmol), 11c (21.7 mg, 114 µmol), anhydrous 1,4-dioxane (760 µL), p-TolSCl (30.3 µL, 229 µmol), AgOTf (117.6 mg, 458 µmol), 4 Å molecular sieves (150 mg) and anhydrous EtCN (1.50 mL) was conducted according to the procedure used for the synthesis of β-24. The residue was purified by silica gel column chromatography (CHCl3/MeOH = 1/0–30/1) to give β-35 as a colorless solid (34.5 mg, 54% yield for 2 steps): 1H NMR (300 MHz, CDCl3, TMS): δ = 9.66 (brs, 1H), 8.09 (d, J = 6.6 Hz, 1H), 8.04-7.98 (m, 2H), 7.91 (d, J = 8.1 Hz, 4H), 7.87–7.82 (m, 2H), 7.56–7.24 (m, 12H), 5.97 (t, J = 9.9 Hz, 1H), 5.82 (d, J = 3.0 Hz, 1H), 5.69 (t, J = 9.9 Hz, 1H), 5.48 (dd, J = 10.2, 7.8 Hz, 1H), 4.90 (d, J = 8.1 Hz, 1H), 4.70 (dd, J = 12.0, 3.0 Hz, 1H), 4.55 (brs, 1H), 4.52 (dd, J = 12.0, 4.8 Hz, 1H), 4.33 (dd, J = 10.8, 2.1 Hz, 1H), 4.28–4.15 (m, 3H), 4.06 (s, 1H), 3.76 (d, J = 9.6 Hz, 1H), 3.31 (s, 1H) ppm; 13C NMR (100 MHz, CDCl3, TMS): δ = 166.2, 165.8, 165.5, 165.0, 157.1 (d, 2JCF = 26.4 Hz), 149.8, 140.7 (d, 1JCF = 236.2 Hz), 133.7, 133.5, 133.4, 133.3, 129.9, 129.8, 129.7, 129.4, 128.7, 128.6, 128.5, 128.4, 128.4, 124.8 (d, 2JCF = 34.6 Hz), 100.8, 90.6, 83.9, 75.4, 72.7, 72.3, 71.9, 70.6, 69.6, 68.0, 62.8 ppm; 19F NMR (376 MHz, CDCl3, TFA): δ = −165.00 (s) ppm; IR (ATR): ν = 3426, 3072, 2953, 1716, 1602, 1585, 1493,1452, 1369, 1317, 1260, 1178, 1091, 1068, 1027, 1003, 936, 895, 855, 800, 758, 708, 687, 618 cm−1; HRMS (FAB+): calcd. for [M + H]+, C43H38FN2O15, 841.2256; found, 841.2261; Anal. Calcd. for C43H37FN2O15·1.5H2O: C, 59.52; H, 4.65; N, 3.23; found: C, 59.51; H, 4.47; N, 3.26; [ α ] D 25 = +8.39 (c = 1.0, CHCl3).
O-Glycosylation using glycosyl donors containing boronic acid on leaving group (Entries 1–4 in Table 5): A mixture of 41 or 42 (30.2 mg, 48.0 µmol) and 10 (7.8 mg, 31.9 µmol) or 13 (8.6 mg, 32.2 µmol) was co-evaporated with anhydrous pyridine (three times) and anhydrous 1,4-dioxane (three times) and dissolved in anhydrous 1,4-dioxane (320 µL). This reaction mixture was stirred under reflux conditions for 1 h and concentrated under reduced pressure. O-glycosylation and acetylation were conducted according to the procedure used for the synthesis of 12 or 14 using p-TolSCl (12.7 µL, 96.1 µmol), AgOTf (49.5 mg, 193 µmol), 3 Å molecular sieves (64 mg), anhydrous MeCN (640 µL), anhydrous pyridine (200 µL), Ac2O (10.0 equiv. based on the crude compound) and DMAP (catalytic amount).
5′-O-(2′′,3′′,4′′-Tri-O-benzyl-α/β-d-mannopyranosyl)uridine (43) (Scheme 1a): To a solution of 12 (25.2 mg, 31.4 µmol, α/β = 1.6/1) in THF (400 µL), 1 M aqueous LiOH was added at room temperature. After stirring for 2 h, the reaction mixture was neutralized with 0.1 M aqueous HCl, extracted with CHCl3, washed with brine, dried over Na2SO4, filtered and concentrated under reduced pressure. The residue was purified by silica gel column chromatography (CHCl3/MeOH = 20/1) to give α-43 as a colorless solid (12.1 mg, 57% yield) and β-43 as a colorless solid (7.5 mg, 35% yield): α-43; 1H NMR (300 MHz, CDCl3, TMS): δ = 10.11 (s, 1H), 7.39 (d, J = 8.4 Hz, 1H), 7.36–7.17 (m, 15H), 5.74 (d, J = 2.1 Hz, 1H), 5.43 (d, J = 8.4 Hz, 1H), 4.91 (s, 1H), 4.87 (t, J = 6.3 Hz, 2H), 4.75 (d, J = 12.0 Hz, 1H), 4.67 (d, J = 9.0 Hz, 1H), 4.64–4.51 (m, 3H), 4.20 (s, 1H), 4.13 (s, 1H), 4.02 (s, 2H), 3.90–3.74 (m, 4H), 3.73–3.56 (m, 4H), 3.00 (s, 1H) ppm; 13C NMR (100 MHz, CDCl3, TMS): δ = 163.7, 151.1, 139.7, 138.0, 137.8, 128.5, 128.4, 128.4, 128.3, 127.9, 127.8, 127.7, 127.6, 102.3, 98.3 (C1”, 1JCH = 169.4 Hz), 90.1, 82.6, 79.7, 75.1, 75.0, 74.8, 74.7, 73.1, 73.0, 72.4, 69.9, 66.6, 62.3 ppm; IR (ATR): ν = 3384, 3064, 3032, 2924, 2879, 1683, 1497, 1455, 1389, 1364, 1321, 1269, 1210, 1068, 1027, 909, 864, 845, 810, 735, 697 cm−1; HRMS (FAB+): calcd. for [M + H]+, C36H41N2O11, 677.2710; found, 677.2709; Anal. Calcd. for C36H40N2O11·H2O: C, 62.24; H, 6.09; N, 4.03; found: C, 62.36; H, 6.01; N, 4.13; [ α ] D 25 = +42.7 (c = 0.2, CHCl3); β-43; 1H NMR (300 MHz, CD3OD, TMS): δ = 7.96 (d, J = 8.1 Hz, 1H), 7.41–7.20 (m, 15H), 5.96 (d, J = 5.4 Hz, 1H), 5.34 (d, J = 8.1 Hz, 1H), 4.92–4.84 (m, 2H), 4.75–4.55 (m, 5H), 4.28 (t, J = 5.7 Hz, 1H), 4.22 (dd, J = 5.1, 3.3 Hz, 1H), 4.18–4.10 (m, 2H), 4.08 (d, J = 2.1 Hz, 1H), 3.86–3.73 (m, 3H), 3.67 (dd, J = 9.6, 2.7 Hz, 1H), 3.60 (dd, J = 11.7, 6.3 Hz, 1H), 3.35–3.26 (m, 1H) ppm; 13C NMR (100 MHz, CD3OD, TMS): δ = 166.1, 152.6, 143.4, 139.8, 139.7, 129.7, 129.4, 129.3, 129.3, 128.9, 128.8, 128.7, 103.0, 101.8 (C1”, 1JCH = 156.1 Hz), 89.9, 85.2, 84.1, 77.9, 76.9, 76.2, 76.0, 75.8, 75.6, 73.0, 72.2, 70.0, 62.8 ppm; IR (ATR): ν = 3387, 3063, 3032, 2926, 2874, 1673, 1498, 1456, 1401, 1364, 1316, 1274, 1249, 1211, 1179, 1072, 1027, 906, 866, 811, 786, 736, 696 cm−1; HRMS (FAB+): calcd. for [M + H]+, C36H41N2O11, 677.2710; found, 677.2709; Anal. Calcd. for C36H40N2O11·H2O: C, 62.24; H, 6.09; N, 4.03; found: C, 62.29; H, 5.86; N, 4.20; [ α ] D 23 = −67.6 (c = 0.5, CH3OH).
5′-O-α/β-d-Mannopyranosyl)uridine (44) (Scheme 1a): A mixture of α-43 (19.2 mg, 28.4 µmol), 10% Pd/C (19.0 mg) in MeOH (540 µL) was vigorously stirred for 22 h at room temperature under a H2 atmosphere. The mixture was filtered through Celite with MeOH and H2O, and then, the filtrate was concentrated under reduced pressure to give α-44 as a colorless solid (11.4 mg, 99% yield): α-44; 1H NMR (300 MHz, D2O, TSP): δ = 7.89 (d, J = 8.1 Hz, 1H), 5.96–5.87 (m, 2H), 4.96 (s, 1H), 4.33 (s, 3H), 4.06–3.96 (m, 2H), 3.90 (t, J = 10.5 Hz, 2H), 3.57–3.84 (m, 4H) ppm; 13C NMR (75 MHz, D2O, 1,4-dioxane): δ = 166.8, 152.1, 142.0, 102.5, 100.3, 90.4, 82.9, 74.6, 73.6, 71.2, 70.6, 69.8, 67.2, 66.3, 61.5 ppm; IR (ATR): ν = 3289, 2935, 2502, 1666, 1466, 1397, 1273, 1199, 1129, 1104, 1050, 1025, 912, 868, 810, 801, 765, 720, 676, 622 cm−1; HRMS (FAB+): calcd. for [M + Na]+, C15H22N2O11Na, 429.1121; found, 429.1118; Anal. Calcd. for C15H22N2O11·2.75H2O: C, 39.52; H, 6.08; N, 6.14; found: C, 39.58; H, 5.93; N, 5.81; [ α ] D 24 = +29.3 (c = 0.8, H2O).
Cleavage of benzyl groups using β-43 (17.8 mg, 26.3 µmol), 10% Pd/C (18.0 mg) and MeOH (500 µL) was conducted according to the procedure for synthesis of α-44 to give the β-44 as a colorless solid (10.5 mg, 98% yield): β-44; 1H NMR (300 MHz, D2O, TSP): δ = 8.05 (d, J = 8.1 Hz, 1H), 5.96 (d, J = 4.2 Hz, 1H), 5.89 (d, J = 8.1 Hz, 1H), 4.74 (s, 1H), 4.49–4.12 (m, 4H), 4.05 (s, 1H), 3.95 (d, J = 12.3 Hz, 1H), 3.88 (d, J = 11.7 Hz, 1H), 3.75 (dd, J = 11.7, 6.6 Hz, 1H), 3.70–3.52 (m, 2H), 3.40 (t, J = 6.6 Hz, 1H) ppm; 13C NMR (75 MHz, D2O, 1,4-dioxane): δ = 167.8, 153.0, 142.7, 103.0, 100.9, 89.7, 83.6, 76.9, 74.4, 73.5, 70.9, 70.4, 69.0, 67.5, 61.7 ppm; IR (ATR): ν = 3288, 2933, 2503, 1670, 1510, 1465, 1390, 1266, 1133, 1053, 1023, 879, 815, 790, 764, 714, 632, 616 cm−1; HRMS (FAB+): calcd. for [M + Na]+, C15H22N2O11Na, 429.1121; found, 429.1119; Anal. Calcd. for C15H22N2O11·2.6H2O: C, 39.76; H, 6.05; N, 6.18; found: C, 40.15; H, 6.00; N, 5.80; [ α ] D 25 = −10.6 (c = 0.8, H2O).
5-Fluoro-5′-O-(β-d-galactopyranosyl)uridine (β-45) (Scheme 1b): A mixture of β-30 (25.2 mg, 30.0 µmol) and 10 M MeNH2 in MeOH was stirred at 0 °C for 2 h and then allowed to warm to room temperature. After stirring for 13 h, the reaction mixture was concentrated under reduced pressure. The residue was dissolved in H2O, and the N-methylbenzamide was removed by successive washing of the aqueous phase with CH2Cl2. The aqueous layer was concentrated under reduced pressure. The residue was purified by preparative HPLC (H2O (0.1%TFA)) to give β-45 as a colorless amorphous solid (7.9 mg, 62% yield): 1H NMR (300 MHz, D2O, TSP): δ = 8.18 (d, J = 6.6 Hz, 1H), 5.94 (d, J = 1.8 Hz, 1H), 4.51 (d, J = 7.2 Hz, 1H), 4.48–4.24 (m, 4H), 3.98–3.86 (m, 2H), 3.86–3.77 (m, 2H), 3.77–3.69 (m, 1H), 3.69–3.58 (m, 2H) ppm; 13C NMR (100 MHz, D2O, 1,4-dioxane): δ = 160.1 (d, 2JCF = 26.4 Hz), 150.8, 141.4 (d, 1JCF = 232.1 Hz), 126.3 (d, 2JCF = 38.1 Hz), 103.7, 89.9, 83.6, 75.9, 74.4, 73.4, 71.5, 69.9, 69.2, 68.9, 61.6 ppm; 19F NMR (376 MHz, D2O, TFA): δ = −166.73 (s) ppm; IR (ATR): ν = 3357, 3075, 2935, 2827, 1661, 1477, 1398, 1365, 1258, 1202, 1035, 952, 921, 890, 843, 793, 750, 722, 697 cm−1; HRMS (FAB+): calcd. for [M + Na]+, C15H21FN2O11Na, 447.1027; found, 447.1030; [ α ] D 25 = +17.6 (c = 0.3, H2O).
1H, 11B and 19F NMR measurements of mixtures of uridine (10) and boronic acid (11c) (Figure 3): A mixture of 10 (34.3 mg, 140 µmol) and 11c (40.0 mg, 211 µmol) was co-evaporated with anhydrous pyridine (three times) and anhydrous 1,4-dioxane (three times). The resulting residue was dissolved in anhydrous 1,4-dioxane (1.40 mL) and then stirred under reflux conditions for 1 h. The reaction mixture (140 µL) was separated and concentrated under reduced pressure. The residue 46 dissolved in CD3CN (640 µL) was measured by a 1H, 11B and 19F NMR spectrometers. 11c was treated under the same conditions as were used to prepare 48 for the 11B and 19F NMR measurements.

4. Conclusions

We report herein on the synthesis of disaccharide nucleosides utilizing the temporary protection of the 2′,3′-cis-diol of ribonucleosides by a boronic ester. The glycosylation of the uridine 10, which is temporarily protected by a boronic acid, with the thioglycoside 9 using a p-TolSCl/AgOTf promoter system followed by acetylation gave the disaccharide nucleoside 12 containing a 1′′,5′-glycosidic linkage in reasonable chemical yield. This synthetic method was applied to the glycosylation of protected or unprotected adenosine, guanosine, uridine or cytidine, 10, 13, 1622, with the galactosyl donor 23 to afford the desired products in moderate chemical yields. O-glycosylations of 5-fluorouridine 20 with the glucosyl donor 33, the galactosyl donor 23 and the mannosyl donor 34 were also conducted. The introduction of a boronic acid on the phenylthio leaving group had only a negligible effect on the reactivity and stereoselectivity of the system. The deprotection of compounds 12 and β-30 was also demonstrated to give the corresponding deprotected compounds α-44 and β-44 from 12 and β-45 from β-30. Because 5-fluorouridine and 5-fluorouracil have been reported to have anticancer, antivirus and antibacterial activities [24,68,72,73,74,75,76,77,78], β-45 and its analogs represent potentially new drug candidates.
Finally, 1H, 11B and 19F NMR measurements of a mixture of uridine 10 and 4-(trifluoromethyl)phenylboronic acid 11c suggest that the 2’ and 3’ hydroxyl groups of 10 react with 11c to form the cyclic boronic ester intermediate 47, as expected, resulting in selective O-glycosylation of the ribonucleoside acceptors at the 5’-position.
These results afford important and useful information regarding the concise and short-step synthesis of various biologically-active disaccharide nucleoside derivatives via the O-glycosylation of temporarily-protected nucleosides and related compounds.

Supplementary Materials

Supplementary Materials are available online.

Acknowledgments

This work was supported by grants-in-aid from the Ministry of Education, Culture, Sports, Science and Technology (MEXT) of Japan (Nos. 22390005, 245900425, 24659011, 24640156 and 15K00408 for S.A.) and a grant from the Tokyo Biochemical Research Foundation, Tokyo, Japan. We appreciate the assistance of Fukiko Hasegawa (Faculty of Pharmaceutical Sciences, Tokyo University of Science) for collecting and interpreting the mass spectral data, Noriko Sawabe for the NMR measurement and Tomoko Matsuo (Research Institute for Science and Technology, Tokyo University of Science) for the elemental analyses.

Author Contributions

Hidehisa Someya carried out the synthesis of the glycosyl donors and acceptors, O-glycosylation reactions, deprotection of 12 and 1H, 11B and 19F NMR measurements and prepared the manuscript. Taiki Itoh synthesized some glycosyl donors and carried out the deprotection of β-30. Shin Aoki supervised all experiments and the preparation of the manuscript. All of the authors have read and approved the final version of the manuscript.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Kobayashi, J.; Doi, Y.; Ishibashi, M. Shimofuridin A, a nucleoside derivative embracing an acylfucopyranoside unit isolated from the okinawan marine tunicate Aplidium multiplicatum. J. Org. Chem. 1994, 59, 255–257. [Google Scholar] [CrossRef]
  2. Takahashi, M.; Tanzawa, K.; Takahashi, S. Adenophostins, newly discovered metabolites of penicillium brevicompactum, act as potent agonists of the inositol 1,4,5-trisphosphate receptor. J. Biol. Chem. 1994, 269, 369–372. [Google Scholar] [PubMed]
  3. Haneda, K.; Shinose, M.; Seino, A.; Tabata, N.; Tomoda, H.; Iwai, Y.; Omura, S. Cytosaminomycins, new anticoccidial agents produced by Strevtomvces sp. KO-8119 I. taxonomy, production, isolation and physico-chemical and biological properties. J. Antibiot. 1994, 47, 774–781. [Google Scholar] [CrossRef] [PubMed]
  4. Shiomi, K.; Haneda, K.; Tomoda, H.; Iwai, Y.; Omura, S. Cytosaminomycins, new anticoccidial agents produced by Streptomyces sp. KO-8119 II. structure elucidation of cytosaminomycins A, B, C and D. J. Antibiot. 1994, 47, 782–786. [Google Scholar] [CrossRef] [PubMed]
  5. Knapp, S. Synthesis of complex nucleoside antibiotics. Chem. Rev. 1995, 95, 1859–1876. [Google Scholar] [CrossRef]
  6. Efimtseva, E.V.; Kulikova, I.V.; Mikhailov, S.N. Disaccharide nucleosides as an important group of natural compounds. Mol. Biol. 2009, 43, 301–312. [Google Scholar] [CrossRef]
  7. Huang, R.M.; Chen, Y.N.; Zeng, Z.; Gao, C.H.; Su, X.; Peng, Y. Marine nucleosides: Structure, bioactivity, synthesis and biosynthesis. Mar. Drugs 2014, 12, 5817–5838. [Google Scholar] [CrossRef] [PubMed]
  8. Efimtseva, E.V.; Mikhailov, S.N. Disaccharide nucleosides and oligonucleotides on their basis. New tools for the study of enzymes of nucleic acid metabolism. Biochemistry (Moscow) 2002, 67, 1136–1144. [Google Scholar] [CrossRef] [PubMed]
  9. Mikhailov, S.N.; Efimtseva, E.V. Disaccharide nucleosides. Russ. Chem. Rev. 2004, 73, 401–414. [Google Scholar]
  10. Kimura, K.; Bugg, T.D.H. Recent advances in antimicrobial nucleoside antibiotics targeting cell wall biosynthesis. Nat. Prod. Rep. 2003, 20, 252–273. [Google Scholar] [CrossRef] [PubMed]
  11. Winn, M.; Goss, R.J.M.; Kimura, K.; Bugg, T.D.H. Antimicrobial nucleoside antibiotics targeting cell wall assembly: Recent advances in structure-function studies and nucleoside biosynthesis. Nat. Prod. Rep. 2010, 27, 279–304. [Google Scholar] [CrossRef] [PubMed]
  12. Takahashi, M.; Kagasaki, T.; Hosoya, T.; Takahashi, S. Adenophostins A and B: Potent agonists of inositol-1,4,5-trisphosphate receptor produced by Penicillium brevicompactum. Taxonomy, fermentation, isolation, physico-chemical and biological properties. J. Antibiot. 1993, 46, 1643–1647. [Google Scholar] [CrossRef] [PubMed]
  13. Takahashi, S.; Kinoshita, T.; Takahashi, M. Adenophostins A and B: Potent agonists of inositol-1,4,5-trisphosphate receptor produced by penicillium brevicompactum. Structure elucidation. J. Antibiot. 1994, 47, 95–100. [Google Scholar] [CrossRef] [PubMed]
  14. Hotoda, H.; Takahashi, M.; Tanzawa, K.; Takahashi, S.; Kaneko, M. IP3 receptor-ligand. 1: Synthesis of adenophostin A. Tetrahedron Lett. 1995, 36, 5037–5040. [Google Scholar] [CrossRef]
  15. Hirota, J.; Michikawa, T.; Miyawaki, A.; Takahashi, M.; Tanzawa, K.; Okura, I.; Furuichi, T.; Mikoshiba, K. Adenophostin-medicated quantal Ca2+ release in the purified and reconstituted inositol 1,4,5-trisphosphate receptor type 1. FEBS Lett. 1995, 368, 248–252. [Google Scholar] [CrossRef]
  16. McCormick, J.; Li, Y.; McCormick, K.; Duynstee, H.I.; Van Engen, A.K.; Van der Marel, G.A.; Ganem, B.; Van Boom, J.H.; Meinwald, J. Structure and total synthesis of HF-7, a neuroactive glyconucleoside disulfate from the funnel-web spider Hololena curta. J. Am. Chem. Soc. 1999, 121, 5661–5665. [Google Scholar] [CrossRef]
  17. Bu, Y.Y.; Yamazaki, H.; Ukai, K.; Namikoshi, M. Anti-mycobacterial nucleoside antibiotics from a marine-derived Streptomyces sp. TPU1236A. Mar. Drugs 2014, 12, 6102–6112. [Google Scholar] [CrossRef] [PubMed]
  18. Knapp, S.; Gore, V.K. Synthesis of the ezomycin nucleoside disaccharide. Org. Lett. 2000, 2, 1391–1393. [Google Scholar] [CrossRef] [PubMed]
  19. Behr, J.B.; Gourlain, T.; Helimi, A.; Guillerm, G. Design, Synthesis and biological evaluation of hetaryl-nucleoside derivatives as inhibitors of chitin synthase. Bioorg. Med. Chem. Lett. 2003, 13, 1713–1716. [Google Scholar] [CrossRef]
  20. Binder, W.H.; Kӓhlig, H.; Schmid, W. Galactosylation by use of β-galactosidase: Enzymatic syntheses of disaccharide nucleosides. Tetrahedron: Asymmetry 1995, 6, 1703–1710. [Google Scholar] [CrossRef]
  21. Ye, M.; Yan, L.-Q.; Li, N.; Zong, M.-H. Facile and regioselective enzymatic 5-galactosylation of pyrimidine 2-deoxynucleosides catalyzed by β-glycosidase from bovine liver. J. Mol. Catal. B 2012, 79, 35–40. [Google Scholar] [CrossRef]
  22. Niedballa, U.; Vorbrüggen, H. A general synthesis of N-glycosides. III. Simple synthesis of pyrimidine disaccharide nucleosides. J. Org. Chem. 1974, 39, 3664–3667. [Google Scholar] [CrossRef] [PubMed]
  23. Abe, H.; Shuto, S.; Matsuda, A. Synthesis of the C-glycosidic analog of adenophostin A, a potent IP3 receptor agonist, using a temporary silicon-tethered radical coupling reaction as the key step. Tetrahedron Lett. 2000, 41, 2391–2394. [Google Scholar] [CrossRef]
  24. Watanabe, K.A.; Matsuda, A.; Halat, M.J.; Hollenberg, D.H.; Nisselbaum, J.S.; Fox, J.J. Nucleosides. 114. 5′-O-Glucuronides of 5-fluorouridine and 5-fluorocytidine. Masked precursors of anticancer nucleosides. J. Med. Chem. 1981, 24, 893–897. [Google Scholar] [CrossRef] [PubMed]
  25. Khan, S.H.; O’Neill, R.A. Modern Methods in Carbohydrate Synthesis; Harwood Academic Publishers: Amsterdam, The Netherlands, 1996. [Google Scholar]
  26. Lindhorst, T.K. Essentials of Carbohydrate Chemistry and Biochemistry; Wiley-VCH Verlag Gmb-H & Co. KGaA: Weinheim, Germany, 2007. [Google Scholar]
  27. Demchenko, A.V. Handbook of Chemical Glycosylation; Wiley-VCH Verlag Gmb-H & Co. KGaA: Weinheim, Germany, 2008. [Google Scholar]
  28. Chen, X.; Halcomb, R.L.; Wang, P.G. Chemical Glycobiology (ACS Symposium Series 990); American Chemical Society: Washington, WA, USA, 2008. [Google Scholar]
  29. Toshima, K.; Tatsuta, K. Recent progress in O-glycosylation methods and its application to natural products synthesis. Chem. Rev. 1993, 93, 1503–1531. [Google Scholar] [CrossRef]
  30. Ito, Y. My stroll in the backyard of carbohydrate chemistry. Trend. Glycosci. Glycotechnol. 2010, 22, 119–140. [Google Scholar] [CrossRef]
  31. Yasomanee, J.P.; Demchenko, A.V. From stereocontrolled glycosylation to expeditious oligosaccharide synthesis. Trend. Glycosci. Glycotechnol. 2013, 25, 13–41. [Google Scholar] [CrossRef]
  32. Nakamura, M.; Fujita, S.; Ogura, H. Synthesis of disaccharide nucleoside derivatives of 3-deoxy-d-glycero-d-galacto-2-nonulosonic acid (KDN). Chem. Pharm. Bull. 1993, 41, 21–25. [Google Scholar] [CrossRef]
  33. Mikhailov, S.N.; Rodionov, A.A.; Efimtseva, E.V.; Ermolinsky, B.S.; Fomitcheva, M.V.; Padyukova, N.S.; Rothenbacher, K.; Lescrinier, E.; Herdewijn, P. Studies on disaccharide nucleoside synthesis. Mechanism of the formation of trisaccharide purine nucleosides. Nucleosides Nucleotides 1999, 18, 691–692. [Google Scholar] [CrossRef] [PubMed]
  34. Lichtenthaler, F.W.; Sanemitsu, Y.; Nohara, T. Synthesis of 5′-O-glycosyl-ribo-nucleosides. Angew. Chem. Int. Ed. 1978, 17, 772–774. [Google Scholar] [CrossRef]
  35. Knapp, S.; Gore, V.K. Synthesis of the shimofuridin nucleoside disaccharide. J. Org. Chem. 1996, 61, 6744–6747. [Google Scholar] [CrossRef] [PubMed]
  36. Zhang, Y.; Knapp, S. Glycosylation of nucleosides. J. Org. Chem. 2016, 81, 2228–2242. [Google Scholar] [CrossRef] [PubMed]
  37. Xing, L.; Niu, Q.; Li, C. Practical glucosylations and mannosylations using anomeric benzoyloxy as a leaving group activated by sulfonium ion. ACS Omega 2017, 2, 3698–3709. [Google Scholar] [CrossRef]
  38. Septak, M. Kinetic studies on depurination and detritylation of CPG-bound intermediates during oligonucleotide synthesis. Nucl. Acids Res. 1996, 24, 3053–3058. [Google Scholar] [CrossRef] [PubMed]
  39. Gulyaeva, I.V.; Neuvonen, K.; Lönnberg, H.; Rodionov, A.A.; Shcheveleva, E.V.; Bobkov, G.V.; Efimtseva, E.V.; Mikhailov, S.N. Effective anomerisation of 2′-deoxyadenosine derivatives during disaccharide nucleoside synthesis. Nucleosides Nucleotides Nucleic Acids 2004, 23, 1849–1864. [Google Scholar] [CrossRef] [PubMed]
  40. Aoki, S.; Fukumoto, T.; Itoh, T.; Kurihara, M.; Saito, S.; Komabiki, S. Synthesis of disaccharide nucleosides by the O-glycosylation of natural nucleosides with thioglycoside donors. Chem. Asian J. 2015, 10, 740–751. [Google Scholar] [CrossRef] [PubMed]
  41. Ferrier, R.J. 450. The interaction of phenylboronic acid with hexosides. J. Chem. Soc. (Resumed) 1961, 2325–2330. [Google Scholar] [CrossRef]
  42. Ferrier, R.J. Carbohydrate boronates. Adv. Carbohyd. Chem. Biochem. 1978, 35, 31–80. [Google Scholar]
  43. Duggan, P.J.; Tyndall, E.M. Boron acids as protective agents and catalysts in synthesis. J. Chem. Soc. Perkin Trans. 1 2002, 1325–1339. [Google Scholar] [CrossRef]
  44. Yamada, K.; Hayakawa, H.; Wada, T. Method for preparation of 2′-O-alkylribonucleosides by regioselective alkylation of 2′,3′-O-(arylboronylidene) ribonucleosides. JPN. Patent JP 2009/256335A, 5 November 2009. [Google Scholar]
  45. Lee, D.; Taylor, M.S. Borinic acid-catalyzed regioselective acylation of carbohydrate derivatives. J. Am. Chem. Soc. 2011, 133, 3724–3727. [Google Scholar] [CrossRef] [PubMed]
  46. Gouliaras, C.; Lee, D.; Chan, L.; Taylor, M.S. Regioselective activation of glycosyl acceptors by a diarylborinic acid-derived catalyst. J. Am. Chem. Soc. 2011, 133, 13926–13929. [Google Scholar] [CrossRef] [PubMed]
  47. Satoh, H.; Manabe, S. Design of chemical glycosyl donors: Does changing ring conformation influence selectivity/reactivity? Chem. Soc. Rev. 2013, 42, 4297–4309. [Google Scholar] [CrossRef] [PubMed]
  48. Liu, X.; Zhang, B.; Gu, X.; Chen, G.; Chen, L.; Wang, X.; Xiong, B.; You, Q.-D.; Chen, Y.-L.; Shen, J. 1,2-trans-1-Dihydroxyboryl benzyl S-glycoside as glycosyl donor. Carbohydr. Res. 2014, 398, 45–49. [Google Scholar] [CrossRef] [PubMed]
  49. Nakagawa, A.; Tanaka, M.; Hanamura, S.; Takahashi, D.; Toshima, K. Regioselective and 1,2-cis-α-stereoselective glycosylation utilizing glycosyl-acceptor-derived boronic ester catalyst. Angew. Chem. Int. Ed. 2015, 127, 11085–11089. [Google Scholar] [CrossRef]
  50. Tanaka, M.; Nashida, J.; Takahashi, D.; Toshima, K. Glycosyl-acceptor-derived borinic ester-promoted direct and β-stereoselective mannosylation with a 1,2-anhydromannose donor. Org. Lett. 2016, 18, 2288–2291. [Google Scholar] [CrossRef] [PubMed]
  51. Nishi, N.; Nashida, J.; Kaji, E.; Takahashi, D.; Toshima, K. Regio- and stereoselective β-mannosylation using a boronic acid catalyst and its application in the synthesis of a tetrasaccharide repeating unit of lipopolysaccharide derived from E. Coli O75. Chem. Commun. 2017, 53, 3018–3021. [Google Scholar] [CrossRef] [PubMed]
  52. Mancini, R.S.; Leea, J.B.; Taylor, M.S. Boronic esters as protective groups in carbohydrate chemistry: Processes for acylation, silylation and alkylation of glycoside-derived boronates. Org. Biomol. Chem. 2017, 15, 132–143. [Google Scholar] [CrossRef] [PubMed]
  53. Mancini, R.S.; Lee, J.B.; Taylor, M.S. Sequential functionalizations of carbohydrates enabled by boronic esters as switchable protective/activating groups. J. Org. Chem. 2017, 82, 8777–8791. [Google Scholar] [CrossRef] [PubMed]
  54. Lemanski, G.; Ziegler, T. Synthesis of 4-O-d-mannopyranosyl-α-d-glucopyranosides by intramolecular glycosylation of 6-O-tethered mannosyl donors. Tetrahedron 2000, 56, 563–579. [Google Scholar] [CrossRef]
  55. Huang, X.; Huang, L.; Wang, H.; Ye, X.-S. Iterative one-pot synthesis of oligosaccharides. Angew. Chem. Int. Ed. 2004, 43, 5221–5224. [Google Scholar] [CrossRef] [PubMed]
  56. Verma, V.P.; Wang, C.-C. Highly stereoselective glycosyl-chloride-mediated synthesis of 2-deoxyglucosides. Chem. Eur. J. 2013, 19, 846–851. [Google Scholar] [CrossRef] [PubMed]
  57. Lian, G.; Zhang, X.; Yu, B. Thioglycosides in carbohydrate research. Carbohydr. Res. 2015, 403, 13–22. [Google Scholar] [CrossRef] [PubMed]
  58. Wulff, G.; Röhle, G. Results and problems of O-glycoside synthesis. Angew. Chem. Int. Ed. 1974, 13, 157–170. [Google Scholar] [CrossRef] [PubMed]
  59. Demchenko, A.; Stauch, T.; Boons, G.-J. Solvent and other effects on the stereoselectivity of thioglycoside glycosidations. Synlett 1997, 818–820. [Google Scholar] [CrossRef]
  60. Zhu, X.-F.; Williams, H.J., Jr.; Scott, A.I. An improved transient method for the synthesis of N-benzoylated nucleosides. Synth. Commun. 2003, 33, 1233–1243. [Google Scholar] [CrossRef]
  61. Eisenführ, A.; Arora, P.S.; Sengle, G.; Takaoka, L.R.; Nowickb, J.S.; Famuloka, M. A ribozyme with michaelase activity: Synthesis of the substrate precursors. Bioorg. Med. Chem. 2003, 11, 235–249. [Google Scholar] [CrossRef]
  62. Welch, C.J.; Bazin, H.; Heikkilä, J.; Chattopadhyaya, J. Synthesis of C-5 and N-3 arenesulfenyl uridines. Preparation and properties of a new class of uracil protecting group. Acta Chem. Scand. 1985, B 39, 203–212. [Google Scholar] [CrossRef]
  63. Samuels, E.R.; McNary, J.; Aguilar, M.; Awad, A.M. Effective synthesis of 3′-deoxy-3′-azido nucleosides for antiviral and antisense ribonucleic guanidine (RNG) applications. Nucleosides Nucleotides Nucleic Acids 2013, 32, 109–123. [Google Scholar] [CrossRef] [PubMed]
  64. France, R.R.; Rees, N.V.; Wadhawan, J.D.; Fairbanks, A.J.; Compton, R.G. Selective activation of glycosyl donors utilising electrochemical techniques: a study of the thermodynamic oxidation potentials of a range of chalcoglycosides. Org. Biomol. Chem. 2004, 2, 2188–2194. [Google Scholar] [CrossRef] [PubMed]
  65. Tam, P.-H.; Lowary, T.L. Synthesis of deoxy and methoxy analogs of octyl α-d-mannopyranosyl-(1→6)-α-d-mannopyranoside as probes for mycobacterial lipoarabinomannan biosynthesis. Carbohydr. Res. 2007, 342, 1741–1772. [Google Scholar] [CrossRef] [PubMed]
  66. Shuto, S.; Horne, G.; Marwood, R.D.; Potter, B.V.L. Total synthesis of nucleobase-modified adenophostin A mimics. Chem. Eur. J. 2001, 7, 4937–4946. [Google Scholar] [CrossRef]
  67. Wunderlich, C.H.; Spitzer, R.; Santner, T.; Fauster, K.; Tollinger, M.; Kreutz, C. Synthesis of (6-13C)pyrimidine nucleotides as spin-labels for RNA dynamics. J. Am. Chem. Soc. 2012, 134, 7558–7569. [Google Scholar] [CrossRef] [PubMed]
  68. Abraham, R.C.; Aman, N.; Borstel, R.V.; Darsley, M.; Kamireddy, B.; Kenten, J.; Morris, G.; Titmas, R. Conjugates of COL-1 monoclonal antibody and β-d-galactosidase can specifically kill tumor cells by generation of 5-fluorouridine from the prodrug β-d-galactosyl-5-fluorouridine. Cell Biophys. 1994, 24/25, 127–133. [Google Scholar] [CrossRef]
  69. Yalpani, M.; Boeseb, R. The structure of amine adducts of triorganylboroxines. Chem. Ber. 1983, 116, 3347–3358. [Google Scholar] [CrossRef]
  70. McKinley, N.F.; O’Shea, D.F. Efficient synthesis of aryl vinyl ethers exploiting 2,4,6-trivinylcyclotriboroxane as a vinylboronic acid equivalent. J. Org. Chem. 2004, 69, 5087–5092. [Google Scholar] [CrossRef] [PubMed]
  71. Iovine, P.M.; Fletcher, M.N.; Lin, S. Condensation of arylboroxine structures on Lewis basic copolymers as a noncovalent strategy toward polymer functionalization. Macromolecules 2006, 39, 6324–6326. [Google Scholar] [CrossRef]
  72. Chen, T.-B.; Huzak, M.; Macura, S.; Vuk-Pavlović, S. Somatostatin analogue octreotide modulates metabolism and effects of 5-fluorouracil and 5-fluorouridine in human colon cancer spheroids. Cancer Lett. 1994, 86, 41–51. [Google Scholar] [CrossRef]
  73. Agudo, R.; Arias, A.; Pariente, N.; Perales, C.; Escarmís, C.; Jorge, A.; Marina, A.; Domingo, E. Molecular characterization of a dual inhibitory and mutagenic activity of 5-fluorouridine triphosphate on viral RNA synthesis. Implications for lethal mutagenesis. J. Mol. Biol. 2008, 382, 652–666. [Google Scholar] [CrossRef] [PubMed]
  74. Kirienko, D.R.; Revtovich, A.V.; Kirienko, N.V. A high-content, phenotypic screen identifies fluorouridine as an inhibitor of pyoverdine biosynthesis and Pseudomonas aeruginosa virulence. mSphre 2016, 1, e00217-16. [Google Scholar]
  75. Wu, Q.; Xia, A.; Lin, X. Synthesis of monosaccharide derivatives and polymeric prodrugs of 5-fluorouridine via two-step enzymatic or chemo-enzymatic highly regioselective strategy. J. Mol. Catal. B: Enzymatic 2008, 54, 76–82. [Google Scholar] [CrossRef]
  76. Brusa, P.; Dosio, F.; Coppo, S.; Pacchioni, D.; Arpicco, S.; Crosasso, P.; Cattel, L. In vitro and in vivo antitumor activity of immunoconjugates prepared by linking 5-fluorouridine to antiadenocarcinoma monoclonal antibody. Farmaco 1997, 52, 71–81. [Google Scholar] [PubMed]
  77. Ozaki, S.; Akiyama, T.; Morita, T.; Kumegawa, M.; Nagase, T.; Uehara, N.; Hoshi, A. 5-Fluorouracil derivatives XX.: Synthesis and antitumor activity of 5′-O-unsaturated acyl-5-fluorouridines. Chem. Pharm. Bull. 1990, 38, 3164–3166. [Google Scholar] [CrossRef] [PubMed]
  78. Martino, M.M.; Jolimaitre, P.; Martino, R. The prodrugs of 5-fluorouracil. Curr. Med. Chem. Anti-Cancer Agents 2002, 2, 267–310. [Google Scholar] [CrossRef]
Sample Availability: Sample of the compounds are not available from the authors.

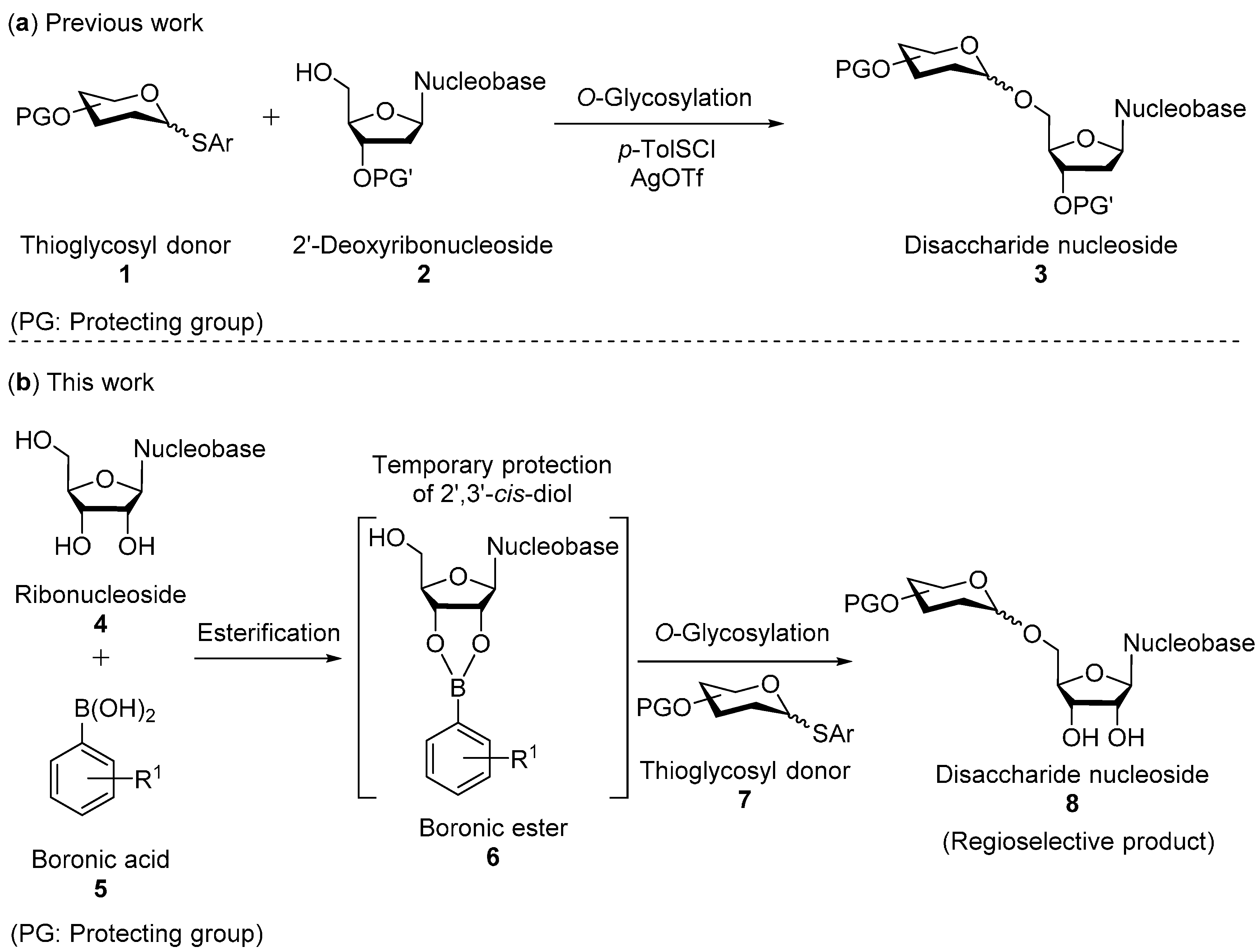

Figure 1. (a) O-glycosylation of 2′-deoxyribonucleoside with a thioglycosyl donor using the p-toluenesulfenyl chloride (p-TolSCl)/silver triflate (AgOTf) promoter system; (b) regioselective O-glycosylation of ribonucleoside at the 5′-OH position via temporary protection of 2′,3′-cis-diol.
Figure 1. (a) O-glycosylation of 2′-deoxyribonucleoside with a thioglycosyl donor using the p-toluenesulfenyl chloride (p-TolSCl)/silver triflate (AgOTf) promoter system; (b) regioselective O-glycosylation of ribonucleoside at the 5′-OH position via temporary protection of 2′,3′-cis-diol.
Molecules 22 01650 g001

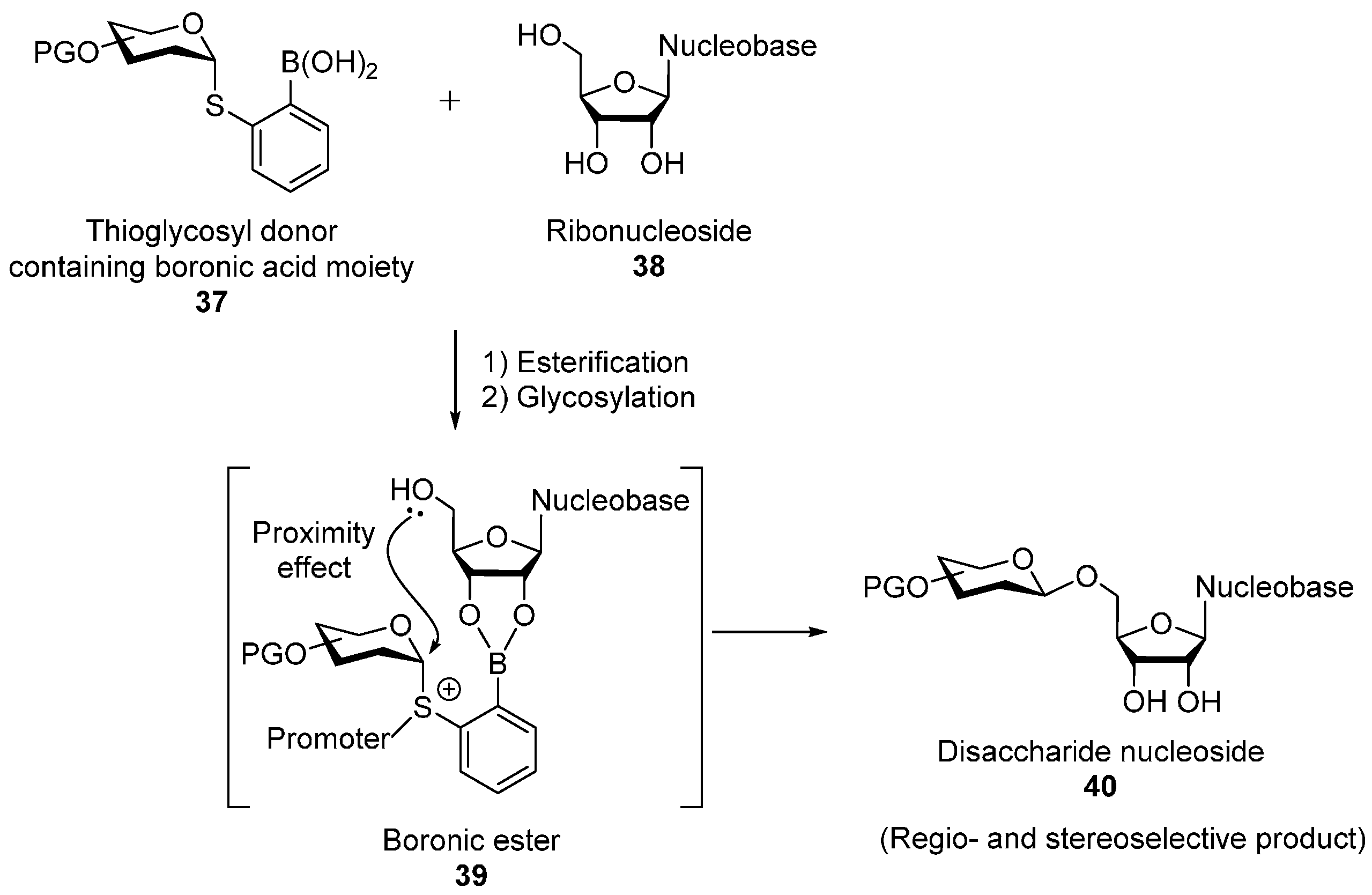

Figure 2. Regio- and stereo-selective O-glycosylation of the ribonucleoside utilizing the glycosyl donor containing a boronic acid moiety.
Figure 2. Regio- and stereo-selective O-glycosylation of the ribonucleoside utilizing the glycosyl donor containing a boronic acid moiety.
Molecules 22 01650 g002

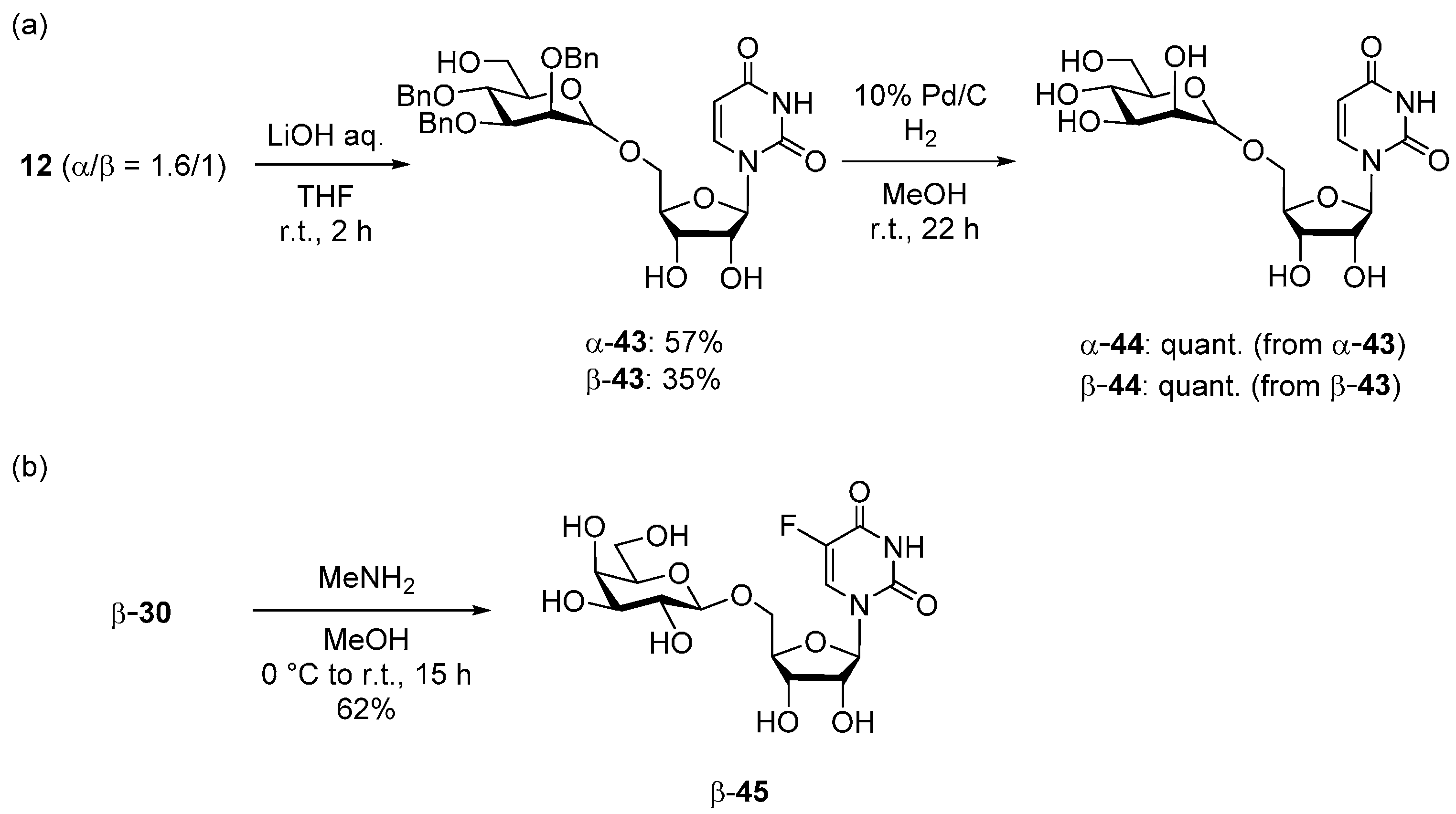

Scheme 1. Deprotection of 12 (a) and β-30 (b).
Scheme 1. Deprotection of 12 (a) and β-30 (b).
Molecules 22 01650 sch001

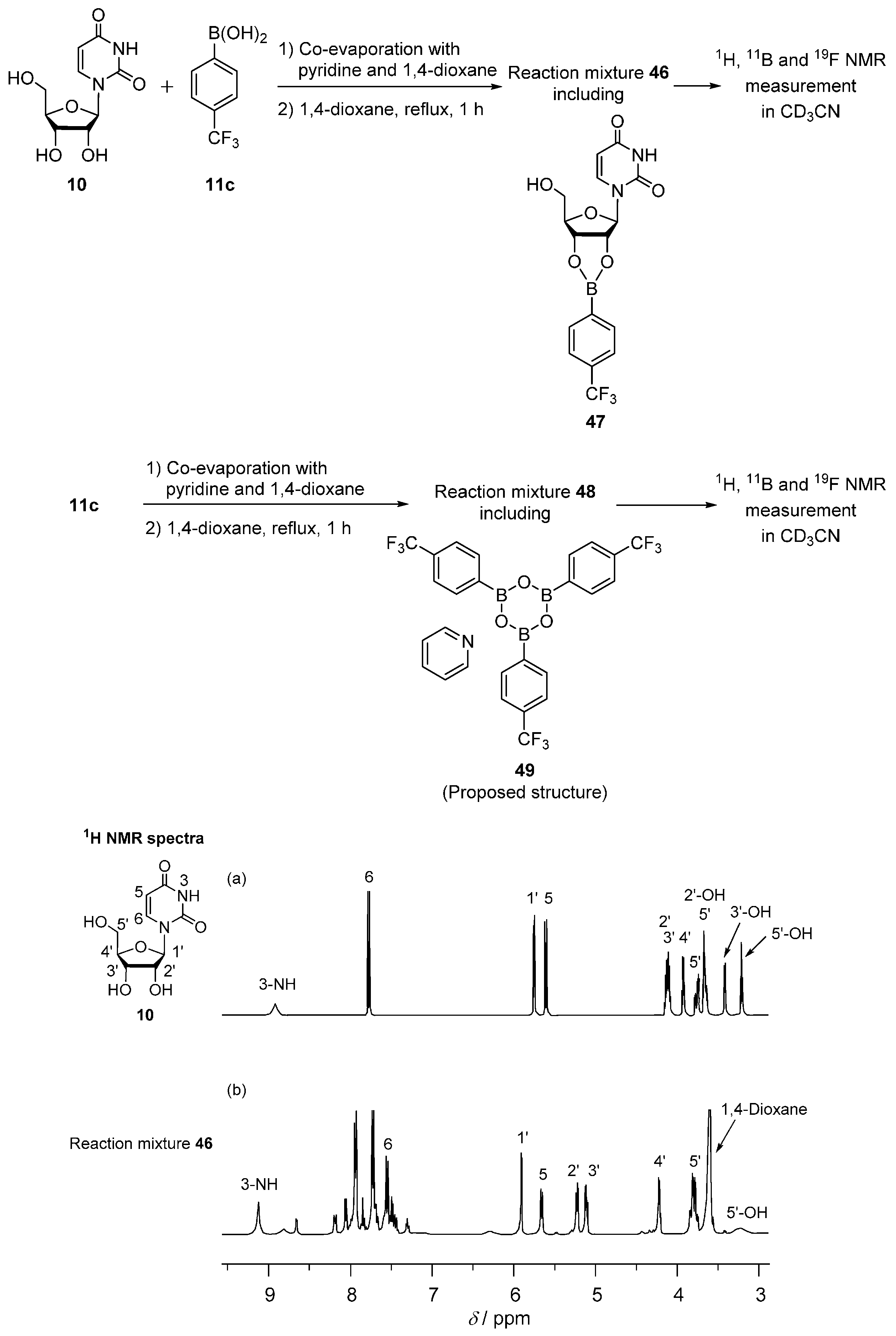

Figure 3. Possible assignment of intermediates from the reaction of uridine 10 and 4-CF3PhB(OH)2 11c in 1H, 11B and 19F NMR spectra (in CD3CN at 25 °C). (a) 1H NMR of 10; (b) 1H NMR of a mixture 46; (c) 11B NMR of 11c; (d) 11B NMR of a mixture 48; (e) 11B NMR of a mixture 46; (f) 19F NMR of 11c; (g) 19F NMR of a mixture 48; (h) 19F NMR of a mixture 46.
Figure 3. Possible assignment of intermediates from the reaction of uridine 10 and 4-CF3PhB(OH)2 11c in 1H, 11B and 19F NMR spectra (in CD3CN at 25 °C). (a) 1H NMR of 10; (b) 1H NMR of a mixture 46; (c) 11B NMR of 11c; (d) 11B NMR of a mixture 48; (e) 11B NMR of a mixture 46; (f) 19F NMR of 11c; (g) 19F NMR of a mixture 48; (h) 19F NMR of a mixture 46.
Molecules 22 01650 g003aMolecules 22 01650 g003b
Table 1. O-glycosylation of uridine 10 with the thiomannoside 9 in the absence and presence of boronic acid.
Table 1. O-glycosylation of uridine 10 with the thiomannoside 9 in the absence and presence of boronic acid.
Molecules 22 01650 i001
EntryBoronic Acid bSolventConditionYield (for 3 Steps) c
1 a-MeCN−20 °C, 1.5 h<16% (complex mixture)
  2 a,dPhB(OH)2 (11a)MeCN−20 °C, 1.5 h41% (α/β = 1.6/1)
  3 a,e11aMeCN−20 °C, 1.5 h45% (α/β = 1.6/1)
  4 a,e4-MeOPhB(OH)2 (11b)MeCN−20 °C, 1.5 h39% (α/β = 1.8/1)
  5 a,e4-CF3PhB(OH)2 (11c)MeCN−20 °C, 1.5 h51% (α/β = 1.8/1)
  6 a,e2,4-F2PhB(OH)2 (11d)MeCN−20 °C, 1.5 h46% (α/β = 1.8/1)
  7 a,e11c1,4-Dioxaner.t., 1.5 h27% (α/β = 3.3/1)
  8 a,e11cCH2Cl2−40 °C, 1.5 htrace
  9 a,e11cEtCN−40 °C, 1.5 h61% (α/β = 1.6/1)
  10 e,f11cEtCN−40 °C, 1.5 h57% (α/β = 1.5/1)
  11 a,e4-CH3(CH2)5PhB(OH)2 (11e)EtCN−40 °C, 1.5 h30% (α/β = 1.6/1)
a Glycosylation reactions were carried out in the presence of 1.5 equivalents of 9, 3.0 equivalents of p-TolSCl and 6.0 equivalents of AgOTf against 10. Acetylation reactions were carried out in the presence of ca. 10 equivalents of Ac2O (acetic anhydride) and catalytic amount of DMAP. b Stoichiometry of 11 was 1.5 equivalents against 10. c The α/β ratio was determined by 1H NMR. d A mixture of 10 and 11a was co-evaporated with pyridine and 1,4-dioxane, and then, a solution of 9 in MeCN was added. e A mixture of 9, 10 and 11 was co-evaporated with pyridine and 1,4-dioxane and treated with promoters. f Glycosylation reactions were carried out in the presence of 1.5 equivalents of 9, 1.8 equivalents of p-TolSCl and 3.6 equivalents of AgOTf against 10 as followed by acetylation with Ac2O (ca. 10 equivalents) and DMAP (catalytic amount).
Table 2. O-glycosylation of adenosine 13 with thiomannoside 9 in the absence and presence of boronic acid.
Table 2. O-glycosylation of adenosine 13 with thiomannoside 9 in the absence and presence of boronic acid.
Molecules 22 01650 i002
Entry aBoronic Acid bSolventConditionYield of 14 (for 3 Steps) cYield of 15 (for 3 Steps)
1-MeCN−20 °C, 1.5 h<10% (complex mixture)not isolated
  2 dPhB(OH)2 (11a)MeCN−20 °C, 1.5 h14% (α/β = 1/1.0)6%
  3 d4-CF3PhB(OH)2 (11c)EtCN−40 °C, 1.5 h11% (α/β = 1/1.2)27%
a Glycosylation reactions were carried out in the presence of 1.5 equivalents of 9, 3.0 equivalents of p-TolSCl and 6.0 equivalents of AgOTf against 13. Acetylation reactions were carried out in the presence of ca. 10 equivalents of Ac2O and the catalytic amount of DMAP. b Stoichiometry of 11 was 1.5 equivalents against 13. c The α/β ratio was determined by 1H NMR. d A mixture of 9, 13 and 11 was co-evaporated with pyridine and 1,4-dioxane and treated with promoters.
Table 3. O-glycosylation of nucleosides 10, 13 and 1622 with the thiogalactoside 23.
Table 3. O-glycosylation of nucleosides 10, 13 and 1622 with the thiogalactoside 23.
Molecules 22 01650 i003
Entry aAcceptorProductYield (for 2 Steps)
113 (Ade)β-2442%
216 (AdeBz)β-2530%
317 (Gua)β-2612%
418 (GuaiBu)β-2744%
510 (Uri)β-2842% (ca. 15%: nucleobase = 5-STol-Uri)
619 (5-Me-Uri)β-2953%
720 (5-F-Uri)β-3061%
821 (Cyt)β-3155%
922 (CytBz)β-3240%
a Glycosylation reactions were carried out in the presence of 1.5 equivalents of 23, 3.0 equivalents of p-TolSCl and 6.0 equivalents of AgOTf against the acceptor (10, 13 or 1622). Stoichiometry of 11c was 1.5 equivalents against acceptor (10, 13 or 1622). A mixture of 23, acceptor (10, 13, or 1622) and 11c was co-evaporated with pyridine and 1,4-dioxane and treated with promoters.
Table 4. O-Glycosylation of 5-fluorouridine 20 with thioglycosides 23, 33 and 34.
Table 4. O-Glycosylation of 5-fluorouridine 20 with thioglycosides 23, 33 and 34.
Molecules 22 01650 i004
Entry aDonorProductYield (for 2 Steps)
133 (β-Glc)β-3554%
2 b23 (β-Gal)β-3061%
334 (α-Man)α-36<39% (mixture)
a Glycosylation reactions were carried out in the presence of 1.5 equivalents of donor (23, 33 or 34), 3.0 equivalents of p-TolSCl and 6.0 equivalents of AgOTf against 20. Stoichiometry of 11c was 1.5 equivalents against 20. A mixture of donor (23, 33 or 34), 20 and 11c was co-evaporated with pyridine and 1,4-dioxane and treated with promoters. b Taken from Entry 7 of Table 3 in this manuscript.
Table 5. O-glycosylation of uridine 10 and adenosine 13 with thioglycosides 41 and 42.
Table 5. O-glycosylation of uridine 10 and adenosine 13 with thioglycosides 41 and 42.
Molecules 22 01650 i005
Entry aDonorAcceptorProductYield (for 3 Steps) b
141 (Ar = 2-PhB(OH)2) (α form)10 (Nucleobase = Uri)1244% (α/β = 1.9/1)
241 (Ar = 2-PhB(OH)2) (α form)13 (Nucleobase = Ade)1416% (α/β = 1.3/1)
342 (Ar = 4-PhB(OH)2) (α/β = 1/1.0)10 (Nucleobase = Uri)1236% (α/β = 2.1/1)
442 (Ar = 4-PhB(OH)2) (α/β = 1/1.0)13 (Nucleobase = Ade)1414% (α/β = 1.1/1)
a Glycosylation reactions were carried out in the presence of 1.5 equivalents of donor (41 or 42), 3.0 equivalents of p-TolSCl and 6.0 equivalents of AgOTf against the acceptor (10 or 13). A mixture of donor (41 or 42) and acceptor (10 or 13) was co-evaporated with pyridine and 1,4-dioxane and treated with promoters. Acetylation reactions were carried out in the presence of ca. 10 equivalents of Ac2O and a catalytic amount of DMAP. b The α/β ratio was determined by 1H NMR.

Share and Cite

MDPI and ACS Style

Someya, H.; Itoh, T.; Aoki, S. Synthesis of Disaccharide Nucleosides Utilizing the Temporary Protection of the 2′,3′-cis-Diol of Ribonucleosides by a Boronic Ester. Molecules 2017, 22, 1650. https://doi.org/10.3390/molecules22101650

AMA Style

Someya H, Itoh T, Aoki S. Synthesis of Disaccharide Nucleosides Utilizing the Temporary Protection of the 2′,3′-cis-Diol of Ribonucleosides by a Boronic Ester. Molecules. 2017; 22(10):1650. https://doi.org/10.3390/molecules22101650

Chicago/Turabian Style

Someya, Hidehisa, Taiki Itoh, and Shin Aoki. 2017. "Synthesis of Disaccharide Nucleosides Utilizing the Temporary Protection of the 2′,3′-cis-Diol of Ribonucleosides by a Boronic Ester" Molecules 22, no. 10: 1650. https://doi.org/10.3390/molecules22101650

Article Metrics

Back to TopTop
