Article

Evaluation of Inulin Replacing Chitosan in a Polyurethane/Polysaccharide Material for Pb2+ Removal

1
Centro de Física Aplicada y Tecnología Avanzada (CFATA), Universidad Nacional Autónoma de México, Blvd. Juriquilla 3000, Querétaro C.P. 76230, Mexico
2
Posgrado en Ciencia e Ingeniería de Materiales (PCeIM), Centro de Física Aplicada y Tecnología Avanzada (CFATA), Universidad Nacional Autónoma de México, Blvd. Juriquilla 3000, Querétaro C.P. 76230, Mexico
3
Licenciatura en Tecnología, Centro de Física Aplicada y Tecnología Avanzada (CFATA), Universidad Nacional Autónoma de México, Blvd. Juriquilla 3000, Querétaro C.P. 76230, Mexico
*
Author to whom correspondence should be addressed.
Molecules 2017, 22(12), 2093; https://doi.org/10.3390/molecules22122093
Submission received: 26 October 2017 / Revised: 26 November 2017 / Accepted: 27 November 2017 / Published: 29 November 2017
(This article belongs to the Special Issue Polysaccharide-based Materials)

Abstract

:
Downstream waste from industry and other industrial processes could increase concentration of heavy metals in water. These pollutants are commonly removed by adsorption because it is an effective and economical method. Previously, we reported adsorption capacity of a chitosan/polyurethane/titanium dioxide (TiO2) composite for three ions in a dynamic wastewater system. There, increasing the chitosan concentration in composite increased the cation removal as well; however, for ratios higher than 50% of chitosan/TiO2, the manufacturing cost increased significantly. In this work, we address the manufacturing cost problem by proposing a new formulation of the composite. Our hypothesis is that inulin could replace chitosan in the composite formulation, either wholly or in part. In this exploratory research, three blends were prepared with a polyurethane matrix using inulin or/and chitosan. Adsorption was evaluated using a colorimetric method and the Langmuir and Freundlich models. Fourier-transform infrared spectroscopy (FTIR) spectra, scanning electron microscopy (SEM) micrographs, differential scanning calorimetry and thermogravimetric analysis curves were obtained to characterize blends. Results indicate that blends are suitable for toxic materials removal (specifically lead II, Pb2+). Material characterization indicates that polysaccharides were distributed in polyurethane’s external part, thus improving adsorption. Thermal degradation of materials was found above 200 °C. Comparing the blends data, inulin could replace chitosan in part and thereby improve the cost efficiency and scalability of the production process of the polyurethane based-adsorbent. Further research with different inulin/chitosan ratios in the adsorbent and experiments with a dynamic system are justified.

Graphical Abstract

1. Introduction

Heavy metals are harmful for living beings due to their long-term environmental persistence, i.e., they cannot be decomposed by microorganisms and their toxicity persists in plants, animals and humans [1,2]. The downstream industry wastes could lead to increased concentration of heavy metals in water, air and soil. For example, mining, painting, fertilizer, textile, paper, and petroleum refining industries discharge metals into water streams [3]. The regulations adopted in several countries established the maximum levels of heavy metals discharge or emissions [4]; nevertheless, there is still a high concentration of these pollutants in the environment [3,5]. Several techniques had been proposed to remove heavy metals like chemical precipitation, membrane filtration, ion exchange, coagulation-flocculation, adsorption and electrochemical methods and additionally, modelling techniques have recently been developed which, together with the aforementioned techniques, can help improve the results obtained up to today [6,7,8,9,10,11].
In wastewater treatment, the methods most frequently used are ion-exchange, adsorption and membrane filtration [12]. The development and cost of these methods are important variables if they are used at industry scale [13,14,15]. Adsorption is an effective, economic and widely used method; it has great perspectives to pilot plant scale because its process is flexible in design and operation; additionally, the adsorbent could be regenerated [12]. Among adsorbents proposed, chitosan is a common choice; this compound is a linear polysaccharide composed of β-(1,4)-linked d-glucosamine (deacetylated unit) and N-acetyl-d-glucosamine (acetylated unit). The chitosan is obtained from chitin, a structural element in the exoskeleton of crustaceans, and its adsorption capacity is affected by the pH of the medium; in consequence, chitosan chemical modifications had been made [14,16,17]. Composites containing chitosan also had been widely studied, and they had proved to be efficient in heavy metals removal [18,19,20,21,22].
In a previous study, we reported the adsorption capacity of a novel composite of chitosan/polyurethane/TiO2 for removing Pb (II), Cd (II) and Al (III) ions in a dynamic wastewater system [18]. In that report, it was shown that a higher concentration of chitosan provides higher percentages of cation removal, but ratios higher than 50% of chitosan in relation to TiO2 could increase composite manufacturing costs. In this article, we address manufacturing cost problem by proposing a new formulation of the composite. Our hypothesis is that a polysaccharide of lower commercial cost like inulin food grade, could replace the chitosan in the composite formulation, either wholly or in part. Currently, inulin and its derivatives had been used for effluent treatment as flocculant, but not as part of a composite or blend for wastewater treatment [23,24].
Inulin is a fructose polymer and could be produced by a host of microorganisms. It is a broadly found in nature as a storage carbohydrate and is a Generally Recognized as Safe (GRAS) substance. Commercially, inulin is produced from chicory and where is it moderately dissolved in water, which enables its addition in aqueous medium without any precipitation [25,26,27]. Therefore, we prepared three blends: polyurethane/inulin (PI), polyurethane/chitosan (PC), and polyurethane/chitosan/inulin (PCI) and we evaluated adsorption.
For eliminating competition and selectivity between cations, we decided to use lead (II) because in Argüello’s report [12] it had the highest removal percentage in most of the analyses and it is considered one of the most toxic heavy metals because it could cause damage to the central nervous system and repercussions on liver, kidney and reproductive system [12,28,29]. In other words, our aim in this article is to provide an alternative preparation of blends with the same lead removal rates than our first effort but maintaining a relatively low production cost [18,29].

2. Results and Discussion

2.1. Blend Characterization

The morphology of prepared materials is shown in the SEM micrographs presented in Figure 1; for PI material (matrix/inulin), an average pore size of 85.70 ± 30.57 µm is seen with well-defined pores interconnected—allowing metal solution to flow throughout the pores—with an average pore size of 127.92 ± 65 µm for PC material (matrix/chitosan). In this case pores are bigger than in the PI material and also are interconnected but with a different pore structure. PCI (matrix/inulin-chitosan) was observed to have an average pore size of 95.36 ± 35.91 µm and its structure is similar to PI because the presence of inulin generates more and smaller pores. This could be explained by the interaction between the OH groups (from polysaccharides) and carbon dioxide (CO2) forming the polyurethane reticulation, which is generated faster in the presence of inulin (because of the hydroxyl groups in the molecule) than with chitosan. Then, more CO2 is present in a shorter time forming bubbles and growth sites, resulting in more and smaller pores.
As mentioned earlier, during the mash-forming process there was a reticulation process of polyurethane due to the presence of OH– groups in the environment; the process starts a chemical reaction with the malonate-blocked polyisocyanate producing CO2 as a byproduct. This last compound provides volume for bubble expansion forming rigid open or closed cells (as seen Scheme 1).
Mechanical properties are important to indicate if the material can withstand against filtration stresses; therefore, a test under a modification of ASTM D-2042 norm was conducted. Results are shown in Figure 1d, where the minimum weight loss was 10.04% for PC material; but PI and PCI materials had similar weight losses of 21.56% and 20.59% respectively. The weight loss is higher in composites with inulin than in composites with chitosan. This is explained by the electrostatic interaction between the functional groups of adsorbent components and matrix, if the electrostatic interaction is higher, the weight loss decreases. The amine group (from chitosan) has a higher electrostatic interaction than the hydroxyl group (from inulin) with the carbonyl group (polyurethane). The weight loss recorded in each sample was solid material (fine powder), which precipitated after 52 h and was recovered by decantation. The test was performed repeated twice and samples weight remained constant, none material detachment was detected. Weight loss in the first experiment was not due to washing process, because was more than 10%, but, blends are suitable to use in wastewater treatment because their weight loss was less than 60% under agitation processes, which is very similar to normal adsorption conditions.
Figure 2a shows the FTIR spectra of pure components used for manufacturing the materials. The characteristic absorption bands for polyurethane were located at 3290 cm−1 (N–H symmetric stretching), 2910 and 2852 cm−1 (CH2 symmetric stretching), 1700 and 1607 cm−1 (C=O polyurethane group), 1548 and 1227 cm−1 (C–N symmetric stretch & N–H deformation vibration of C–N–H), 1505 and 1409 cm−1 (C–H bending vibration of CH2) and 1073 cm−1 (C–O). Additionally, characteristic absorption bands of inulin were found at 3267 cm−1 (O–H polymeric stretch), 2928 and 2879 cm−1 (CH2 symmetric vibration), 1625 cm−1 (C=O stretching from carbonyl band indicating possible acetylation), 1086 cm−1 (C–O stretching of ring ether), 1010 cm−1 (OH bending vibration), 924 cm−1 (CH2 twisting vibration). Finally, absorption bands of chitosan were shown at 3384 cm−1 (O–H stretching vibration), 2863 cm−1 (CH2 symmetric vibration), 1642 cm−1 (C=O stretching in secondary amide), 1574 cm−1 (N–H bending vibration of NH2 groups), 1372 cm−1 (C–H bending vibration of CH2), 1124 cm−1 (C–O stretching of ring ether), 1041 and 1024 cm−1 (O–H bending vibration), 887 cm−1 (CH2 twisting vibration).
In Figure 2b, five different zones were identified; it could be seen that from zone 2 to 4, the characteristic absorption peaks of polyurethane could be clearly identified—this is because the synthesis method is only based on electrostatic interaction between the polysaccharide and the polyurethane. In region 1, it was identified a change in intensity of absorption peak corresponding to O–H. The highest peaks are shown in samples containing inulin while the ones with chitosan were reduced, but in region 5 the O–H peaks overlap with the C–O–C peak indicating, in all samples, that the polysaccharide is distributed in the most external part of the polyurethane resin which is extremely favorable for adsorption (suggested because through ATR-FTIR we obtained blends surface data), also these peaks are similar to the corresponding polysaccharide used. In the case of the PCI material, inulin is more exposed to the surface than chitosan.
Figure 3 exhibits the curves obtained by the thermogravimetric analyzer; on the right, the thermal degradation values (TG) are plotted and on the left the derivated data (DTG) are plotted. These data corresponds to thermal degradation of blends in air at 10 °C heating rates. It can be seen that the TG curve has three weight-loss steps and the DTG curve (Figure 3; on the left) also has three inflections. It is observed that no significant degradation occurred before 200 °C for all blends; between 80 and 150 °C the weight loss was 5%, which could be attributed to moisture within the material. At temperatures above 200 °C, it was observed the beginning of oxidative degradation of the materials; for example the blend with inulin had a weight loss of 10% around 260 °C; and the same weight loss was around 280 °C and 260 °C for blends with chitosan and chitosan/inulin respectively (see Tg curves, Figure 3—right side).Hence, this behavior on the thermal degradation of the blends is due to the incorporation of inulin in the blends in this way, for the material without inulin its thermal degradation behavior (weight loss around 280 °C) is totally attributable to the chitosan, and the thermal degradation behavior (weight loss around 260 °C) of the two other materials is explained by the thermal decomposition of the inulin incorporated in each one.
The polysaccharide decomposition in the blend could cause the weight loss in the first stage. From the DTG curve, the inulin degradation was completed in a single stage within temperature range between 180 °C and 240 °C; similarly, chitosan and chitosan/inulin degradations were completed between 170 °C and 230 °C, these results are consistent with data reported previously [31,32,33]. Between 420 and 430 °C, the materials lose 50% of their initial weight and in the DTG curve maximum degradation was found at around 310 °C.
Typical thermal behavior for rigid polyurethanes reported by other authors [34,35,36,37] was observed around this temperature and up to the last degradation temperature of the blends. As mentioned in the methods section, the TG analysis was simultaneously obtained with differential scanning calorimetry; in this way it was possible to corroborate that the stages of weight loss corresponded to an oxidative degradation because exothermic processes were observed.

2.2. Removal Experiments

First, it was necessary to determine the characteristic maximum absorption, calibration curve and equilibrium time, which were determined as shown in Figure 4. Here it could be seen that results followed the Beer–Lambert law and were reliable (r2 = 0.9909) at λ = 249 nm, also were within Pb2+ concentrations between 1 and 10 mg L−1. Additionally, Figure 4 clearly shows that for 720 min (12 h), the amount of Pb2+ cations removed by 192 mg of dried materials into 10 mL of the Pb2+ solution remains constant.
Therefore, all further removal experiments were conducted for 12 h as absorption time, with 192 mg of dried blends into 10 mL of the Pb2+ solution at initial concentration of 10 mg/L; with approximately initial pH = 8.0.
Figure 5 shows the adsorption capacity (q) versus time and variable initial concentration of Pb2+. In all cases the conditions are those described in the previous section, unless otherwise indicated.
The capacity of Pb2+ uptake by all materials at different contact time is shown on Figure 5a. For all samples, lead is completely adsorbed at 12 h, but lead uptake increased rapidly in the first 3 h with inulin adsorbents due to a larger amount of the OH group present in it. This is an effective factor in a batch process. Lead has high tendency to form oxygen and nitrogen groups according to the hard and soft acids and bases theory, in that sense it is possible to explain the lead adsorption by complexation between oxygen atoms (vacant active) from matrix/inulin with lead ions) [37,38,39]. The vacant active sites at the beginning of the adsorption process increase lead uptake, then with more contact time, the rate of lead uptake decreases because of active sites occupation. As a consequence, the active sites of inulin were occupied in less time than the active sites of chitosan (as seen Scheme 2).
On Figure 5b, results varying adsorbate dosage (lead cations) are shown; here, the amount of Pb2+ adsorption increased with an increase in the adsorbate dosage from 1 to 10 mg/L for all adsorbents. This is because with high adsorbate concentrations, the number of cations increases in the system; hence, more metal ions are available for reacting with active sites, increasing adsorption. It was expected a slower increment at the end of experiments because blends pores were close to saturation values, making the ions transportation more difficult.

2.3. Kinetic Models

The constant rate parameters (k1 and k2) could be calculated from the linear plots of log(qe − qt) against t and t/qt against t; and their values are shown in Table 1. Also, the initial adsorption rate constant k2i (mg·g−1 min−1) could be determined using the relationship k2i = k2qe2 according to the pseudosecond-order kinetic adsorption [40,41,42].
In the pseudofirst-order kinetic model, the linear correlation coefficient (R2 = 0.9463) indicates that this model applies for PC material and qe value (qe,cal) from it, is consistent with the experimental results. On the other hand, the pseudosecond-order kinetic model has been calculated and experimental qe values for PI and PCI blends are consistent, with a correlation coefficient above 0.999. These results indicate that PC blend adsorption is controlled by mass transfer and PI and PCI processes are controlled by chemical reactions.
Additionally, the Langmuir and Freundlich parameters obtained from the plots of Ce/qe against Ce and log (qe) against log (Ce) were listed in Table 1. From here, it could be seen that the correlation coefficients (R2) of the Langmuir isotherm model for PI is really close to 1 and the maximum adsorption capacity is in accordance with the experimental value. This means that for this specific sample, the model is suitable for evaluating the adsorption isotherm. From the Freundlich isotherm model for PC the coefficient is closer to 1—a value that is suitable for this specific sample. The PCI sample is better described by Langmuir model, the value of qm is not far from the experimental value; this indicates that for this sample and PI, there is a monolayer coverage of Pb2+ on the surface of the blends. For the Freundlich isotherm model, it can be seen that the PC sample is not entirely heterogeneous (values of n are not close to 0) and the n value below to 1 indicates the preference for a chemical process of adsorption.
The regeneration of sorbents is one of the crucial aspects in water treatments and toxic substances removal, as it is closely related to the economy of treatment technology.
Figure 6 shows that the adsorption capacity ratio of Pb2+ from the initial solution (10 mg/L) decreases with increasing the adsorption–desorption cycles, whereas the values are 37.50% (PI), 28.91% (PC) and 59.86% (PCI) for the first adsorption cycle (1A number cycle) and 27.29% (PI), 18.41% (PC) and 29.64% (PCI).Also, there is a recovery ratio of Pb2+ from the initial solution reached 74.04% (PI), 85.28% (PC) and 89.38% (PCI) for the first desorption cycle (2D cycle number), and 72.70% (PI), 82.29% (PC) and 81.44% (PCI) for the third desorption (4D cycle number). These indicate that the blend containing chitosan has a better recovery capacity for Pb2+ compared to inulin, suggesting a higher preference for this specific ion to be attached to inulin. It was also noted that all the blends maintain almost the same recovery ratio with increasing cycles with a slightly loss that indicates that the metals adsorbed since the first cycle remain constant in the material and this is proved in the adsorption capacity that decreases and almost maintained a similar value resect recovery. Also, is seen that chitosan controls the recovery ratio in the blend PCI and inulin controls the adsorption ratio seeing and synergic effect of both of the polysaccharides.

3. Materials and Methods

3.1. Chemical Compounds

Chitosan (low molecular weight, 0.75–0.85 of deacetylation) (PubChem CID:21896651), lead (II) nitrate (>99%) (PubChem CID:24924), nitric acid (70%) (PubChem CID:944), citric acid (99%) (PubChem CID:311), NaOH (>99.9%) (PubChem CID:14798), and 1,2-Diaminocyclohexane-N,N,N,N-tetraacetic acid monohydrate (DACT) (PubChem CID:2723844) (for complexometry, >98%).
All chemical compounds were provided from Sigma Aldrich Co. Mexico; the monocomponent polyurethane polymer (E21) was provided from Bayern Material Science, Germany; inulin polysaccharide (food grade) was purchased from commercial source as prebiotic from e-nature, Mexico. All experiments were carried out using deionized water (dH2O) and materials were used as received.

3.2. Blends Manufacturing Process

Three blends were prepared (as seen in Table 2) using polyurethane as the polymer matrix or polymeric structure of them; polyurethane with chitosan (PC, mass relationship 1:1); polyurethane with inulin (PI, mass relationship 1:1), and polyurethane with a chitosan-inulin blend (PCI, mass relationship 2:1:1). The chitosan, inulin and their blend were mixed and dispersed in the polyurethane until it was saturated; then, the mix was molded into rods of 4 mm diameter (as seen Scheme 3). Relative humidity was monitored using a 4040 traceable humidity monitor (Control Company) and it was maintained in 48% for all the experiments. As temperature affects the pore size composition of polyurethane [12,43], all blends were subjected to a thermal treatment at 80 °C to obtain a large number of small pores [18].

3.3. Characterization and Methods

The surface morphology was obtained using a scanning electron microscope (SEM) Jeol JSM-6060LV operated at 20 kV in secondary electron mode with different magnifications; samples were covered with a gold film prior to observation. The pore sizes distribution data was obtained by analysis of SEM images using ImageJ software (open source).
Mechanical properties were analyzed with mechanical stirring in sealed glasses (full with water); this was performed with a modification of ASTM D-2042 norm. Blends samples were stored in water for one day, and then they were stirred at 6000 rpm in two 15 min periods with 5 min rest in between. Afterwards, samples were removed from water, dried and weighed (to determine weight lost).
The FTIR spectroscopy characterization of blends was obtained by a Spectrum Two FTIR Spectrophotometer (Perkin Elmer). Dried samples with minimal moisture content were measured using ATR technique and spectra were collected from a wavenumber range of 400 to 4000 cm−1. A Thermogravimetric Analyzer (TG) with differential scanning calorimetric (DSC) capability (TGA/DSC-1) from Mettler-Toledo Inc. were used to perform simultaneous thermal analysis while heating the samples from 20 to 850 °C at the rate of 10 °C·min−1 in the air.

3.4. Removal Test

The determination of Pb2+ ions removed was performed by the UV spectrophotometric method developed by [44,45,46] using an UV-Vis spectrophotometer VWR-1600PC. In the concentration range between 10 mg·L−1 and 1 mg·L−1, where calibration curves obtained showed linearity, the Beer–Lambert law was obeyed. According it; an initial Pb2+ solution was prepared by dissolving nitric acid and lead (II) nitrate in 500 mL of dH2O for a 100 mg·L−1 concentration; then, 10 mL of this solution were diluted up to 100 mL for an initial concentration (C0) of 10 mg·L−1; under this condition, the initial pH was 7.8.
Subsequently, in fifteen different vials; 10 mL of this solution were put into with 192 mg of dried blends in each one; later at scheduled times the blends were removed, pH was adjusted to 8 by dropping a concentrated solution of NaOH to avoid Pb2+ ions precipitation and an equimolar amount of (DACT) was added to proceed to make the measurements at UV spectrophotometer. Under these conditions, all removal tests were first conducted at room temperature (297.15 K) and then at different temperatures from 293.15 to 353.15 K in 20 degree increments. The fractional removal and adsorption capacity of the blend samples for the lead ion at given time t or equilibrium were calculated by the following equations respectively:
r = C C 0
q = V * ( C 0 C ) m
where r is the retention rate of Pb2+ considering total concentration as 1, q is the adsorption of Pb2+ (mg/g) at a given time or equilibrium (qt or qe), V is the volume of Pb2+ solution used (mL), C0 and C are the initial and final concentrations (mg·L−1) and m is the mass of the blend used (mg). In all cases, three parallel measurements were performed to obtain a maximum standard deviation of 10%.
Finally for the regeneration study; Pb(II)-adsorbed on the blends was eluted with 0.1 M HCl solution, under magnetic stirring for 24 h, then the blends were regenerated using an 0.1 M NaOH solution and washed with dH2O to remove adsorbed alkali and finally dried at 70 °C in order to be reused. The concentration of Pb(II) desorbed into the solution was analyzed using the same UV spectrophotometric method described before using the complex DACT-Pb2+.

3.5. Theoretical Considerations

A pseudo first- and second-order kinetic model equations are used to evaluate experimental data from batch Pb2+ removal [47]. The pseudo first-order kinetic model was suggested by Lagergren for adsorption of solid/liquid systems and it has been widely used to describe metal adsorption kinetics and could be expressed by the following linear expression spectrophotometric method developed by [48]:
log ( q e q t ) = log ( q e ) k 1 t 2.303
The pseudo second-order model was suggested by Ho and McKay [48,49,50]:
t q t = 1 k 2 q e 2 + t q e
where qe and qt (mg·g−1) are the adsorption capacities of the blends for Pb2+ removal at equilibrium and time t, respectively. k1 (min−1) is the constant rate of the pseudo first-order adsorption and k2 (g·mg−1·min−1) is the constant rate of the pseudo second-order adsorption kinetic [47,48,49,50,51].
The isotherm data is used to describe the interaction of adsorbent molecules with surface of blend, the correlation of equilibrium and accurately representation of results using either a theoretical or empirical equation is essential in evaluating adsorption by interpretation, prediction and mechanism for the specific application design. In order to do this, the Langmuir and Freundlich isotherm models had been used.
Langmuir Model: A straightforward non-linear isotherm model, it is based on the assumption of a structurally homogeneous adsorbent, where adsorption sites are identically and energetically equivalents, with no interactions between the adsorbed molecules. At low surface coverage, the isotherm model reduces to a linear relationship which can be expressed in its linear form as:
C e q e = 1 q m a x b + C e q m a x
where qe is the amount of Pb2+ adsorbed at equilibrium (mg·g−1), Ce is the liquid-phase Pb2+ concentration at equilibrium (mg·L−1), qmax is the maximum adsorption capacity or saturation capacity of the adsorbent (mg·g−1), and b is the Langmuir adsorption constant (L·mg−1) [47,48,49,50].
Freundlich Model: An empirical equation and a widely used nonlinear adsorption equilibrium model, this model is used for adsorption on heterogeneous surfaces with a uniform energy distribution, and reversible adsorption and is not restricted to the formation of the monolayer. In other words, the adsorbent capacity could be improved increasing the concentration of the adsorbate in the medium. The equation is usually presented in the following logarithmic form:
log ( q e ) = n log ( C e ) + log K
where K (mg·g−1) is the Freundlich constant related to adsorption capacity and n is the heterogeneity factor related to adsorption intensity; both empirical constants depend on several environmental factors. The value of n is from 0 to 1 and indicates the non-linearity degree within solution concentration and the adsorption, if the n value is below 1, the adsorption is a chemical process and if it is above 1 adsorption is a physical process. The more heterogeneous the surface, the closer to 0 is the value of n [48,49,50,51,52].

4. Conclusions

Three blends were prepared for the lead (II) adsorption—PI, PC and PCI—in order to investigate the possibility to replace chitosan for inulin in a composite formulation for wastewater treatment. Their weight losses indicate that all blends prepared could be used for that treatment. Results indicate that the initial concentration of lead (II) cation influences directly the adsorption capacity. The kinetic experimental data were fitted by pseudo first- and second-order models. These results indicate that inulin improved chitosan adsorption capacity, but it did not show good results alone with the polymeric matrix. In conclusion, inulin could replace chitosan in part in the composite formulation to reduce manufacturing costs; also, the PCI (polyurethane/chitosan/inulin) blend is promising for testing other toxic elements removal. Further research must study the adsorption performance of this composite in dynamic conditions.

Acknowledgments

Authors are grateful to engineer Bernardino Rodriguez-Morales, M.C. Francisco Fernandez, Jose Antonio Perez-Guzman, Guillermo Vazquez-Sanchez and Angel L. Rodríguez for his technical support to carry out the project; to Nancy Retiz for her assistance in retrieval and search of information; and finally, to B.S. Ana L. Ramos-Jacques for her writing assistance and editing the manuscript.

Author Contributions

M.E. is the leader of the research group and conceived and designed the experiments and wrote the paper; A.R.H.-M. is the researcher responsible for supervising the experiments as well as contributing ideas in the conceive and designee of the experiments and wrote the paper; F.J.-H., G.F. and A.H.O. performed the experiments; and finally G.A.M. and J.H.-O. analyzed the data.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Cataldo, S.; Gianguzza, A.; Milea, D.; Muratore, N.; Pettignano, A. Pb (II) adsorption by a novel activated carbon—Alginate composite material. A kinetic and equilibrium study. Int. J. Biol. Macromol. 2016, 92, 769–778. [Google Scholar] [CrossRef] [PubMed]
  2. Ahmed, J.K.; Ahmaruzzaman, M. A review on potential usage of industrial waste materials for binding heavy metal ions from aqueous solutions. J. Water Process Eng. 2016, 10, 39–47. [Google Scholar] [CrossRef]
  3. Werkenthin, M.; Kluge, B.; Wessolek, G. Metals in European roadside soils and soil solution—A review. Environ. Pollut. 2014, 189, 98–110. [Google Scholar] [CrossRef] [PubMed]
  4. Wismer, T.; Dabvt, D.V.M. Lead. In Small Animal Toxicology, 3rd ed.; Elsevier Inc.: Amsterdam, The Netherlands, 2013. [Google Scholar] [CrossRef]
  5. Yoshinaga, J.; Yamasaki, K.; Yonemura, A.; Ishibashi, Y.; Kaido, T.; Mizuno, K.; Tanaka, A. Lead and other elements in house dust of Japanese residences e Source of lead and health risks due to metal exposure. Environ. Pollut. 2014, 189, 223–228. [Google Scholar] [CrossRef] [PubMed]
  6. Nabavi-Pelesaraei, A.B.; Bayat, R.; Hosseinzadeh-Bandbafha, H.; Afrasyabi, H.; Berrada, A. Prognostication of energy use and environmental impacts for recycle system of municipal solid waste management. J. Clean. Prod. 2017, 154, 602–613. [Google Scholar] [CrossRef]
  7. Zhang, C.X.; You, X.-Y. Application of EFDC model to grading the eutrophic state of reservoir: Case study in Tianjin Erwangzhuang Reservoir, China. Eng. Appl. Comput. Fluid Mech. 2017, 11, 111–126. [Google Scholar] [CrossRef]
  8. Chen, X.Y.; Chau, K.W. A hybrid double feedforward neural network for suspended sediment load estimation. Water Resour. Manag. 2016, 30, 2179–2194. [Google Scholar] [CrossRef]
  9. Kamath, A.; AlaganChella, M.A.; Bihs, H.; Arntsen, O.A. Energy transfer due to shoaling and decomposition of breaking and non-breaking waves over a submerged bar. Eng. Appl. Comput. Fluid Mech. 2017, 11, 450–466. [Google Scholar] [CrossRef]
  10. Wang, W.C.; Xu, D.M.; Chau, K.W.; Lei, G.J. Assessment of river water quality based on theory of variable fuzzy sets and fuzzy binary comparison method. Water Resour. Manag. 2014, 28, 4183–4200. [Google Scholar] [CrossRef]
  11. Wu, C.L.; Chau, K.W.; Fan, C. Prediction of rainfall time series using modular artificial neural networks coupled with data-preprocessing techniques. J. Hydrol. 2010, 389, 146–167. [Google Scholar] [CrossRef]
  12. Fu, F.; Wang, Q. Removal of heavy metal ions from wastewaters: A review. J. Environ. Manag. 2011, 92, 407–418. [Google Scholar] [CrossRef] [PubMed]
  13. Abo-Farha, S.A.; Abdel-Aal, A.Y.; Ashour, I.A.; Garamon, S.E. Removal of some heavy metal cations by synthetic resin purolite C100. J. Hazard. Mater. 2009, 169, 190–194. [Google Scholar] [CrossRef] [PubMed]
  14. Mousa, N.E.; Simonescu, C.M.; Onose, C.; Tardei, C.; Culit, D.C.; Lavric, V.; Simonescu, C.M. Pb2+ removal from aqueous synthetic solutions by calcium alginate and chitosan coated calcium alginate. React. Funct. Polym. 2016, 109, 137–150. [Google Scholar] [CrossRef]
  15. Özverdi, A.; Erdem, M. Cu2+, Cd2+ and Pb2+ adsorption from aqueous solutions by pyrite and synthetic iron sulphide. J. Hazard. Mater. 2006, 137, 626–632. [Google Scholar] [CrossRef] [PubMed]
  16. Azalea, Z.; Marsin, M.; Juhanni, K.; Karim, A.; Aini, W.; Ibrahim, W. Preparation of methacrylamide-functionalized crosslinked chitosan by free radical polymerization for the removal of lead ions. Carbohydr. Polym. 2016, 151, 1091–1099. [Google Scholar] [CrossRef]
  17. Mallakpour, S.; Madani, M. Adsorbent for the removal of lead ions. Carbohydr. Polym. 2016, 147, 53–59. [Google Scholar] [CrossRef] [PubMed]
  18. Argüello, L.; Hernandez-martínez, A.R.; Rodríguez, A.; Gustavo, A.; Esparza, R.; Estevez, M. Novel chitosan/polyurethane/anatasetitaniaporoushybridcompositeforremoval of metal ionswaste. J. Chem. Technol. Biotechnol. 2016, 91, 2185–2197. [Google Scholar] [CrossRef]
  19. Cho, D.; Jeon, B.; Jeong, Y.; Nam, I.; Choi, U. Synthesis of hydrous zirconium oxide-impregnated chitosan beads and their application for removal of fluoride and lead. Appl. Surf. Sci. 2016, 372, 13–19. [Google Scholar] [CrossRef]
  20. Gupta, A.; Yunus, M.; Sankararamakrishnan, N. Equilibrium and dynamic studies of the removal of As (III) and As (V) from contaminated aqueous systems using a functionalized biopolymer. J. Chem. Technol. Biotechnol. 2012, 87, 546–552. [Google Scholar] [CrossRef]
  21. Mohamed, M.; Zulkali, D.; Ahmad, A.L.; Norulakmal, N.H. Comparative studies of Oryza sativa L. husk and chitosan as lead adsorbent. J. Chem. Technol. Biotechnol. 2006, 81, 1324–1327. [Google Scholar] [CrossRef]
  22. Suc, N.; van Thi, H.; Ly, Y. Lead (II) removal from aqueous solution by chitosan flake modified with citric acid via crosslinking with glutaraldehyde. J. Chem. Technol. Biotechnol. 2013, 88, 1641–1649. [Google Scholar] [CrossRef]
  23. Rahul, R.; Jha, U.; Sen, G.; Mishra, S. Carboxymethyl inulin: A novel flocculant for wastewater treatment. Int. J. Biol. Macromol. 2014, 63, 1–7. [Google Scholar] [CrossRef] [PubMed]
  24. Rahul, R.; Jha, U.; Sen, G.; Mishra, S. A novel polymeric flocculant based on polyacrylamide grafted inulin: Aqueous microwave assisted synthesis. Carbohydr. Polym. 2014, 99, 11–21. [Google Scholar] [CrossRef] [PubMed]
  25. Curcio, S.; Ricca, E.; Saraceno, A.; Iorio, G.; Calabrò, V. A mass transport/kinetic model for the description of inulin hydrolysis by immobilized inulinase. J. Chem. Technol. Biotechnol. 2015, 90, 1782–1792. [Google Scholar] [CrossRef]
  26. Georgina, A.; Pontes, O.; Lima, K.; Gonc, S.; Soares, A.A.; Pessoa, J.; Bandeira, M. Identification and determination of the inulin content in the roots of the Northeast Brazilian species Pombalia calceolaria L. Carbohydr. Polym. 2016, 149, 391–398. [Google Scholar] [CrossRef]
  27. Silva, M.F.; Golunski, M.; Rigo, D.; Luccio, D.; Mazutti, M.A.; Pergher, S.B.C.; Treichel, H. Liquefied petroleum gas as solvent medium for the treatment of immobilized inulinases. J. Chem. Technol. Biotechnol. 2013, 88, 280–286. [Google Scholar] [CrossRef]
  28. Zhang, W.; Yang, J.; Wu, X.; Hu, Y.; Yu, W.; Wang, J.; Kumar, R.V. A critical review on secondary lead recycling technology and its prospect. Renew. Sustain. Energy Rev. 2016, 61, 108–122. [Google Scholar] [CrossRef]
  29. Zhang, Y.; Huo, X.; Cao, J.; Yang, T.; Xu, L.; Xu, X. Elevated lead levels and adverse effects on natural killer cells in children from an electronic waste recycling area. Environ. Pollut. 2016, 213, 143–150. [Google Scholar] [CrossRef] [PubMed]
  30. Radice, S.; Turri, S.; Scicchitano, M. Fourier transform infrared studies on deblocking and crosslinking mechanisms of some fluorine containing monocomponent polyurethanes. Appl. Spectrosc. 2004, 58, 535–542. [Google Scholar] [CrossRef] [PubMed]
  31. Cardenas, G.; Miranda, S.P. FTIR and TGA studies of chitosan composite films. J. Chil. Chem. Soc. 2004, 49, 291–295. [Google Scholar] [CrossRef]
  32. Dan, A.; Ghosh, S.; Moulik, S.P. Physicochemical studies on the biopolymer inulin: A critical evaluation of its self-aggregation, aggregate-morphology, interaction with water, and thermal stability. Biopolymers 2009, 91, 687–699. [Google Scholar] [CrossRef] [PubMed]
  33. Hong, P.Z.; Li, S.D.; Ou, C.Y.; Li, C.P.; Yang, L.; Zhang, C.H. Thermogravimetric analysis of chitosan. J. Appl. Polym. Sci. 2007, 105, 547–551. [Google Scholar] [CrossRef]
  34. Jin, J.F.; Chen, Y.L.; Wang, D.N.; Hu, C.P.; Zhu, S.; Vanoverloop, L.; Randall, D. Structures and physical properties of rigid polyurethane foam prepared with rosin-based polyol. J. Appl. Polym. Sci. 2002, 84, 598–604. [Google Scholar] [CrossRef]
  35. Zhang, Y.; Shang, S.; Zhang, X.; Wang, D.; Hourston, D.J. Influence of the composition of rosin-based rigid polyurethane foams on their thermal stability. J. Appl. Polym. Sci. 1996, 59, 1167–1171. [Google Scholar] [CrossRef]
  36. Lewicki, J.P.; Pielichowski, K.; De La Croix, P.T.; Janowski, B.; Todd, D.; Liggat, J.J. Thermal degradation studies of polyurethane/POSS nanohybrid elastomers. Polym. Degrad. Stab. 2010, 95, 1099–1105. [Google Scholar] [CrossRef]
  37. Trovati, G.; Sanches, E.A.; Neto, S.C.; Mascarenhas, Y.P.; Chierice, G.O. Characterization of polyurethane resins by FTIR, TGA, and XRD. J. Appl. Polym. Sci. 2010, 115, 263–268. [Google Scholar] [CrossRef]
  38. Liu, W.; Tian, J.; Chen, L.; Guo, Y. Temporal and spatial characteristics of lead emissions from the lead-acid battery manufacturing industry in China. Environ. Pollut. 2017, 220, 696–703. [Google Scholar] [CrossRef] [PubMed]
  39. Karthik, R.; Meenakshi, S. Chemical modification of chitin with polypyrrole for the uptake of Pb(II) and Cd(II) ions. Int. J. Biol. Macromol. 2015, 78, 157–164. [Google Scholar] [CrossRef] [PubMed]
  40. Karthik, R.; Meenakshi, S. Removal of Pb(II) and Cd(II) ions from aqueous solution using polyaniline grafted chitosan. Chem. Eng. J. 2015, 263, 168–177. [Google Scholar] [CrossRef]
  41. Tian, G.; Wang, W.; Zong, L.; Wang, A. MgO/palygorskite adsorbent derived from natural Mg-rich brine and palygorskite for high-efficient removal of Cd(II) and Zn(II) ions. J. Environ. Chem. Eng. 2017, 5, 1027–1036. [Google Scholar] [CrossRef]
  42. Wang, W.; Zong, L.; Wang, A. A nanoporous hydrogel based on vinyl-functionalized alginate for efficient absorption and removal of Pb2+ ions. Int. J. Biol. Macromol. 2013, 62, 225–231. [Google Scholar] [CrossRef] [PubMed]
  43. Oppon, C.; Hackney, P.M.; Shyha, I.; Birkett, M. Effect of Varying Mixing Ratios and Pre-Heat Temperature on the Mechanical Properties of Polyurethane (PU) Foam. Procedia Eng. 2015, 132, 701–708. [Google Scholar] [CrossRef]
  44. Krzek, J.A.N.; Apola, A.; Stolarczyk, M.; Rzeszutko, W.O. Analysis spectrophotometric determination of Pb (II), Fe (Iii) and Bi (III) in complexes with 1, 2-Diaminocyclohexane-N,N,Ní,-Tetraacetic Acid (Dact). Acta Pol. Pharm. 2007, 64, 3–8. [Google Scholar] [PubMed]
  45. Beauchemin, D. Inductively coupled plasma mass spectrometry. Anal. Chem. 2008, 80, 4455–4486. [Google Scholar] [CrossRef] [PubMed]
  46. Yan, J.; Indra, E.M. Colorimetric Method for Determining Pb2+ Ions in Water Enhanced with Non-Precious-Metal Nanoparticles. Anal. Chem. 2012, 84, 6122–6127. [Google Scholar] [CrossRef] [PubMed]
  47. Largitte, L.; Pasquier, R. A review of the kinetics adsorption models and their application to the adsorption of lead by an activated carbon. Chem. Eng. Res. Des. 2016, 109, 495–504. [Google Scholar] [CrossRef]
  48. Ho, Y.S.; McKay, G. Pseudo-second order model for sorption processes. Process Biochem. 1999, 34, 451–465. [Google Scholar] [CrossRef]
  49. Plazinski, Z.; Dziuba, J.; Rudzinski, W. Modeling of sorption kinetics: The pseudo-second order equation and the sorbateintraparticle diffusivity. Adsorption 2013, 19, 1055–1064. [Google Scholar] [CrossRef]
  50. Olu-Owolabi, B.; Diagboya, P.; Adebowale, K. Evaluation of pyrene sorption-desorption on tropical soils. J. Environ. Manag. 2014, 137, 1–9. [Google Scholar] [CrossRef] [PubMed]
  51. Kant, A.; Gaijon, P.; Nadeem, U. Adsorption equilibrium and kinetics of crystal violet dye from aqueous media onto waste material. Chem. Sci. Rev. Lett. 2014, 3, 1–13. [Google Scholar]
  52. Azizian, S. Kinetic models of sorption: A theoretical analysis. J. Colloid Interface Sci. 2004, 276, 47–52. [Google Scholar] [CrossRef] [PubMed]
Sample Availability: Samples of the compounds described in the text are available from the authors.

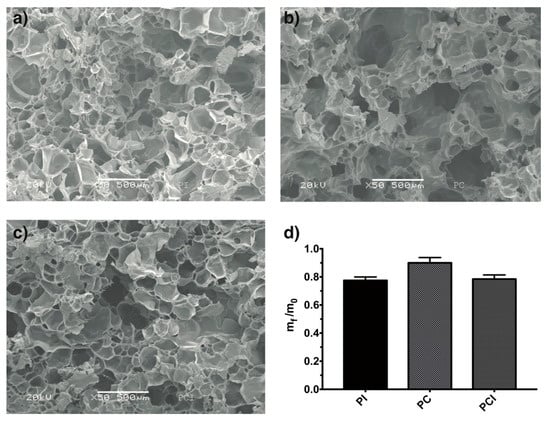

Figure 1. Scanning Electron Microscopy SEM images at 50× for blends materials; (a) blend with inulin; (b) blend with chitosan and (c) blend inulin/chitosan, all samples were synthesized at 353.15 K; and (d) weight loss on mechanical stirring testaccording ASTM D-2042 norm.
Figure 1. Scanning Electron Microscopy SEM images at 50× for blends materials; (a) blend with inulin; (b) blend with chitosan and (c) blend inulin/chitosan, all samples were synthesized at 353.15 K; and (d) weight loss on mechanical stirring testaccording ASTM D-2042 norm.
Molecules 22 02093 g001

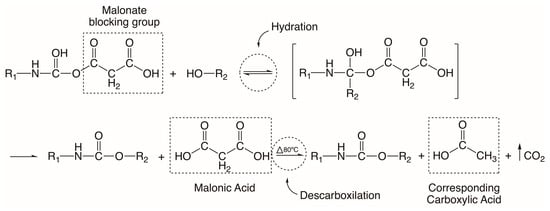

Scheme 1. Reaction scheme for the polyurethane reaction. This schematic is based on reaction mechanisms descriptions for blocked mono-component polyurethane reported by Radice, et al. [30].
Scheme 1. Reaction scheme for the polyurethane reaction. This schematic is based on reaction mechanisms descriptions for blocked mono-component polyurethane reported by Radice, et al. [30].
Molecules 22 02093 sch001

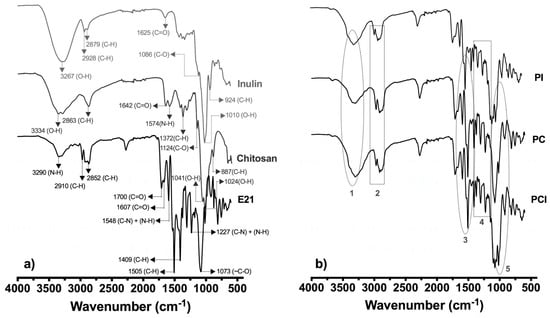

Figure 2. (a) Fourier Transform Infrared Spectroscopy (FTIR) spectra of the pure components used for manufacturing the materials; (b) FTIR spectra of blends components. PI = polyurethane/inulin, PC = polyurethane/chitosan, and PCI = polyurethane/chitosan/inulin.
Figure 2. (a) Fourier Transform Infrared Spectroscopy (FTIR) spectra of the pure components used for manufacturing the materials; (b) FTIR spectra of blends components. PI = polyurethane/inulin, PC = polyurethane/chitosan, and PCI = polyurethane/chitosan/inulin.
Molecules 22 02093 g002

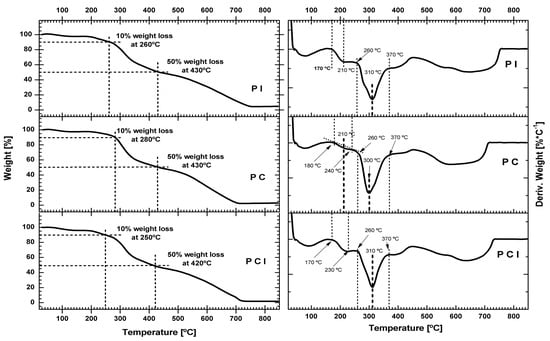

Figure 3. On the right; TG curves of the thermal degradation and on the left; DTG curves of the thermal degradation of blends.
Figure 3. On the right; TG curves of the thermal degradation and on the left; DTG curves of the thermal degradation of blends.
Molecules 22 02093 g003

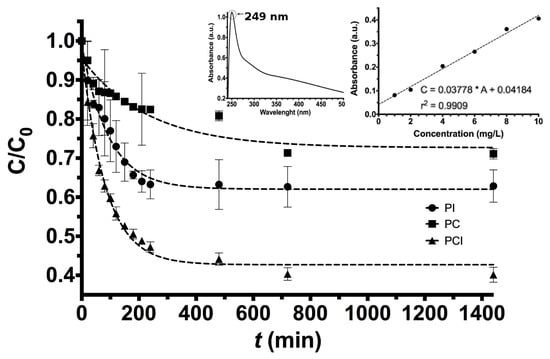

Figure 4. Removal conditions of Pb(II) ions by 192 mg of PC, PI or PCI material using λ = 249 nm as maximum absorbance at pH = 7.8 and 25 °C. C = ion Lead concentration; C0 = Pb2+ initial concentration, 10 mg/L; C/C0 = Pb2+ fractional removal; t = contact time between material and lead solution.
Figure 4. Removal conditions of Pb(II) ions by 192 mg of PC, PI or PCI material using λ = 249 nm as maximum absorbance at pH = 7.8 and 25 °C. C = ion Lead concentration; C0 = Pb2+ initial concentration, 10 mg/L; C/C0 = Pb2+ fractional removal; t = contact time between material and lead solution.
Molecules 22 02093 g004

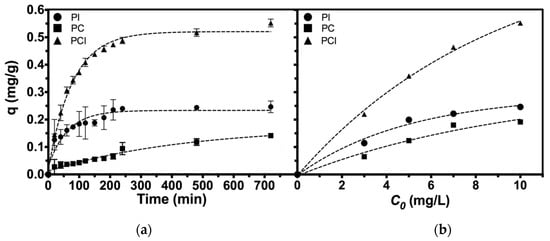

Figure 5. (a) Time-dependent adsorption capacity at 25 °C; (b) Adsorption capacity, varying initial concentration of lead II(Pb2+).
Figure 5. (a) Time-dependent adsorption capacity at 25 °C; (b) Adsorption capacity, varying initial concentration of lead II(Pb2+).
Molecules 22 02093 g005

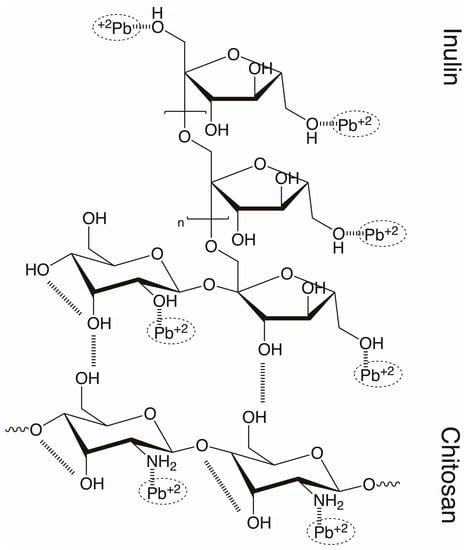

Scheme 2. Possible interaction between inulin-chitosan and Pb(II).
Scheme 2. Possible interaction between inulin-chitosan and Pb(II).
Molecules 22 02093 sch002

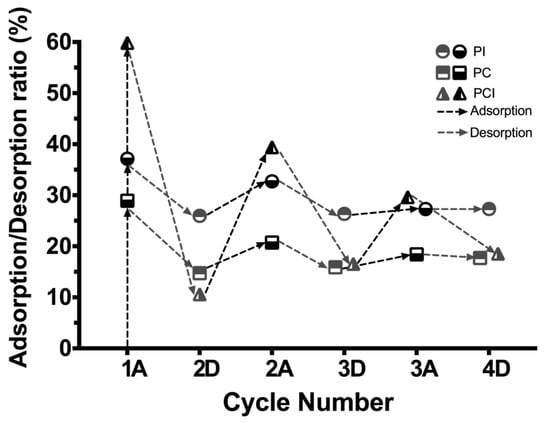

Figure 6. Recycling of blends; adsorption/desorption capacity for four cycles at 25 °C.
Figure 6. Recycling of blends; adsorption/desorption capacity for four cycles at 25 °C.
Molecules 22 02093 g006

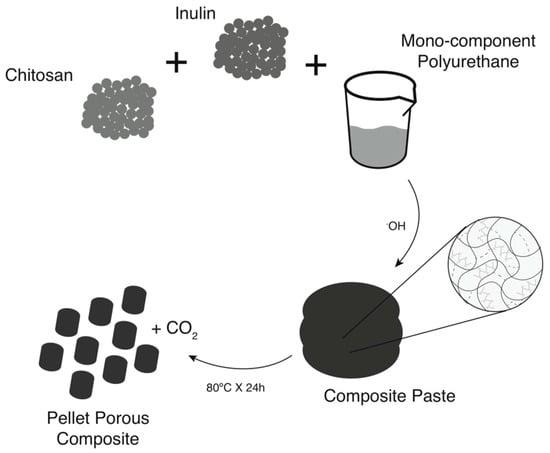

Scheme 3. Process schematic of polyurethane-based composites manufacturing.
Scheme 3. Process schematic of polyurethane-based composites manufacturing.
Molecules 22 02093 sch003
Table 1. Kinetic calculations results for pseudo-first; second-order models; Langmuir and Freundlichmodels by materials.
Table 1. Kinetic calculations results for pseudo-first; second-order models; Langmuir and Freundlichmodels by materials.
Kinetic ModelsMaterial
PIPCPCI
Pseudofirst-order modelqe,exp (mg·g−1)0.24630.19150.5523
qe,cal (mg·g−1)0.16110.17720.3482
k1 (min−1)0.009570.001800.00579
R20.89130.94630.8757
Pseudosecond-order modelqe,cal (mg·g−1)0.26030.25520.5938
K2 (g·mg−1·min−1)0.104000.009060.02914
K2i (mgg−1·min−1)0.007050.000590.01027
R20.99960.65450.9992
Langmuir modelqm (mg·g−1)0.26690..44370.7402
b (L·mg−1)1.74120.13930.1768
R20.99990.98210.9665
Freundlich modelK (mg·g−1)0.16820.05890.1505
n0.21770.71410.4882
R20.93850.99390.8441
Table 2. Components ratios for each blend prepared.
Table 2. Components ratios for each blend prepared.
SampleInulin (g)Chitosan (g)Polyurethane (g)
PC033
PI303
PCI1.51.53
