Article

Pt-Au/MOx-CeO2 (M = Mn, Fe, Ti) Catalysts for the Co-Oxidation of CO and H2 at Room Temperature

1
School of Space and Environment, Beihang University, Beijing 100191, China
2
State Key Laboratory of Chemical Resource Engineering, Beijing University of Chemical Technology, Beijing 100029, China
*
Authors to whom correspondence should be addressed.
Molecules 2017, 22(3), 351; https://doi.org/10.3390/molecules22030351
Submission received: 9 January 2017 / Revised: 17 February 2017 / Accepted: 21 February 2017 / Published: 27 February 2017
(This article belongs to the Special Issue Bimetallic Catalysis)

Abstract

:
A series of nanostructured Pt-Au/MOx-CeO2 (M = Mn, Fe, Ti) catalysts were prepared and their catalytic performance for the co-oxidation of carbon monoxide (CO) and hydrogen (H2) were evaluated at room temperature. The results showed that MOx promoted the CO oxidation of Pt-Au/CeO2, but only the TiO2 could enhance co-oxidation of CO and H2 over Pt-Au/CeO2. Related characterizations were conducted to clarify the promoting effect of MOx. Temperature-programmed reduction of hydrogen (H2-TPR) and X-ray photoelectron spectroscopy (XPS) results suggested that MOx could improve the charge transfer from Au sites to CeO2, resulting in a high concentration of Ce3+ and cationic Au species which benefits for the CO oxidation. In-situ diffuse reflectance infrared Fourier transform spectroscopy (In-situ DRIFTS) results indicated that TiO2 could facilitate the oxidation of H2 over the Pt-Au/TiO2-CeO2 catalyst.

1. Introduction

Both H2 and CO co-exist in space capsule. H2 mainly originates from the charge–discharge process of battery and CO is released from processes of human metabolism. H2 and CO, as the typical inflammable and explosive gaseous contaminants, seriously threaten the safety of human and airtight cabin. In addition, long-term exposure to CO causes adverse effects on human health [1]. Therefore, more and more attention has been paid on the simultaneous removal of CO and H2. Catalytic oxidation has been regarded as an effective and green technology to eliminate CO and H2 [2].
Noble metal catalysts for the oxidation of H2 and CO have been extensively studied recently [3,4,5,6,7,8]. Pt catalysts were considered as the most active catalysts for H2 oxidation at room temperature [9]. Previous studies showed that Pt-Ru/C [10] and Pt-Sn/C [11] electrocatalysts exhibited high catalytic performance for the H2 oxidation, and metallic Pt species were more active than the oxidized Pt species [12,13]. Au catalysts have been reported to be more active than Pt catalysts for CO oxidation [8,14]. CO could be removed at room temperature over Au/CeO2 [15], Au/TiO2 [16], Au/MnOx [17], and Au/Fe2O3 [18] catalysts. Moreover, cationic Au species were more active than the metallic Au species [18,19].
In order to remove CO and H2 in space capsule, developing novel catalysts with excellent activity for the co-oxidation of CO and H2 is desirable. Recently, a few studies related to the co-oxidation of H2 and CO have been reported [5,6,20,21,22]. Zhang et al. [21] reported that Pt-Au/CeO2 bimetallic catalysts with ordered macro-porous and meso-porous structure showed superior catalytic performance for CO oxidation but not for H2 oxidation. Ru-Pt bimetallic core-shell nanoparticle catalyst has been developed by Eichhorn et al. [23], however, it could not afford the simultaneous removal of CO and H2. Au-Pd/Fe(OH)x catalyst with separate Au active sites and Pd active sites was excellent for the complete co-oxidization of H2 and CO at low temperature [5], but the gas hourly space velocity (GHSV) (20,000 h−1) was relatively low. At high GHSV, the oxidation of H2 was strongly inhibited by the presence of CO [6]. Therefore, the simultaneous removal of H2 and CO at room temperature at high GHSV still remains challenging. CeO2 enhanced the oxidation reactions due to its high oxygen storage capacity and redox property [24]. Corma et al. [15] pointed out that nanocrystalline CeO2 with Ce3+ ions could adsorb and activate O2, thus enhancing the catalyst reactivity. Ordered CeO2 support with higher surface area could lead to the better dispersion of active sites and also boost oxygen transfer to active platinum species [25]. For the CO and H2 oxidation, surface diffusion and spillover enhanced oxidation reaction on Pt/CeO2 [26,27,28] and Au/CeO2 catalysts [8,29]. Therefore, CeO2 nanospheres with meso-structure were promising supports for Au and Pt catalysts. Fe2O3 [30,31,32], TiO2 [33,34] and MnO2 [35,36,37,38] were proven to be excellent promoters because of their high oxygen storage capacity and redox property. In addition, preparation methods showed significant effect on the catalytic performance of catalysts [6]. Reduction treatment improved the catalytic activities of Pt catalysts [12] and urea was an excellent precipitant for Au catalysts [39].
According to the above-mentioned understanding, a series of nanostructured Pt-Au/MOx-CeO2 (M = Mn, Fe, Ti) bimetallic catalysts were prepared by the reduction-deposition precipitation method and their performance for the co-oxidation of CO and H2 under the GHSV of 500,000 h−1 at room temperature were evaluated. Physical and chemical properties of the Pt-Au/MOx-CeO2 (M = Mn, Fe, Ti) bimetallic catalysts were characterized. Based on the characterization, the relationship between the structure and the catalytic performance has been elucidated.

2. Results and Discussion

2.1. Catalytic Activities of the Pt-Au/MOx-CeO2 Catalysts

Figure 1 presents the activities of the Pt-Au/MOx-CeO2 catalysts for the catalytic co-oxidation of CO and H2. For Pt-Au/CeO2 catalyst, conversions of CO and H2 are 93% and 25%, respectively, and then gradually decrease. It is attributed to the CO accumulation on Au and Pt active sites. CO can be completely removed while the conversion of H2 is low over Pt-Au/MnO2-CeO2 and Pt-Au/Fe2O3-CeO2 catalysts. It is encouraging that 100% conversions of CO and H2 are obtained at room temperature over Pt-Au/TiO2-CeO2 catalyst. However, the conversion of H2 decreases over Pt-Au/TiO2-CeO2 catalyst due to H2O accumulation on the Pt and Au active sites [7]. The oxidation of CO is suppressed by H2O when the H2O content is over 200 ppm [40]. The inhibiting effect of H2O is due to the competitive adsorption between H2O and CO molecules on the surface twofold coordinated oxygen site [41]. On the other hand, a competitive adsorption between H2O and O2 molecules also exists due to the accumulation and occupation of H2O on the Pt and Au active sites [7].

2.2. Physicochemical Properties of Catalysts

Figure 2 presents the X-ray diffraction (XRD) patterns of the CeO2 support and Pt-Au/MOx-CeO2 catalysts. All these samples show typical cubic CeO2 diffraction peaks (JCPDS 43-1002). The diffraction peaks ascribed to MOx, Pt and Au species are absent, which indicates that MOx, Pt and Au species are highly dispersed on the support. Figure 3 shows the transmission electron microscope (TEM) images of the CeO2 support and Pt-Au/MOx-CeO2 catalysts. It can be found that CeO2 support presents nanosphere that is comprised of many small particles with a crystallite size of 5 nm. The contents of Pt and Au species in energy dispersive spectrometer (EDS) results of the Pt-Au/MOx-CeO2 catalysts are close to the theoretical values (1 wt %). Chemical composition and textural properties of Pt-Au/MOx-CeO2 catalysts are seen in Table 1. Compared with the X-ray photoelectron spectroscopy (XPS) results presented in Table 1, contents of Pt and Au species in EDS results are higher, indicating that parts of Pt and Au species are distributed on the surface of the CeO2 nanoparticles. Brunauer–Emmett–Teller (BET) surface areas of Pt-Au/MOx-CeO2 catalysts decrease due to the introduction of MOx. The dispersions of metal on Pt-Au/MOx-CeO2 catalysts are very close due to the same preparation method.
Figure 4 shows the H2-TPR profiles of Pt-Au/MOx-CeO2 catalysts. The reduction temperatures of Pt species are 70–100 °C [42]; Au species reduction temperatures are usually 100–200 °C [43]; and pure CeO2 reduction temperature is around 553 °C [44]. The peak at 350 °C is attributed to the reduction of CeO2 surface oxygen [45]. Evidently, no reduction peaks ascribed to Pt species are observed for Pt-Au/CeO2 and Pt-Au/TiO2-CeO2 catalysts, suggesting that all the Pt species are metallic Pt species. For Pt-Au/MnO2-CeO2 and Pt-Au/Fe2O3-CeO2 catalysts, the reduction peak at 75 °C is attributed to Pt2+ species. For Pt-Au/CeO2 catalyst, there are two reduction peaks at 160 and 553 °C, which are ascribed to the reduction peaks of Au species and CeO2, respectively [46]. Three reduction peaks at 146, 350 and 465 °C are observed for Pt-Au/TiO2-CeO2 catalyst. It can be observed that three reduction peaks are at 144, 341 and 450 °C for Pt-Au/MnO2-CeO2 catalyst. The reduction peaks are centered at 145, 350 and 464 °C for Pt-Au/Fe2O3-CeO2 catalyst. It is worth noting that the reduction temperature of CeO2 in Pt-Au/MOx-CeO2 is lower than that of Pt-Au/CeO2 nearly by 100 °C, which means that the oxidative performance of CeO2 in Pt-Au/MOx-CeO2 is higher than that of Pt-Au/CeO2. On the other hand, the introduction of MOx influences the reduction temperature of Au species. Lower reduction temperature of Au species indicates the active oxygen species formed on the Pt-Au/MOx-CeO2 catalysts are more active [43]. It is very interesting that, even though the Pt species should be metallic Pt due to the reduction of NaBH4 over the Pt-Au/MnO2-CeO2 and Pt-Au/Fe2O3-CeO2 catalysts, Pt2+ species is observed. The presence of Pt2+ species can be caused by the addition of MnO2 and Fe2O3, both of which improve the electron transfer from Pt sites to CeO2, thus leading to the oxidation of metallic Pt species to Pt2+ species. Metallic Pt species are more active than Pt2+ species for the oxidation reaction, which may clarify the poor activities of Pt-Au/MnO2-CeO2 catalyst and Pt-Au/Fe3O4-CeO2 catalyst for the H2 oxidation. H2 consumed amounts are 0.21, 0.31, 0.38 and 0.39 mmol−1 for the Pt-Au/CeO2, Pt-Au/TiO2-CeO2, Pt-Au/Fe2O3-CeO2, and Pt-Au/MnO2-CeO2 catalysts, respectively. It indicates that the addition of MOx can promote the redox property of Pt-Au/CeO2 catalyst.
XPS measurements are conducted on the Pt-Au/MOx-CeO2 samples and the results are listed in Table 2. The peaks at 83.3–83.6 eV and 84.2–84.5 eV can be assigned to Au0 species and Au+ species, respectively [46,47]. The peaks at 70.2–70.8 eV and 72.4–72.6 eV are attributed to Pt0 species and Pt2+ species [48]. Figure 5 and Figure 6 show that the addition of MOx influences the chemical states of Pt species and Au species due to the electron transfer from Au species and Pt species to CeO2 [49,50,51,52]. Cationic Au species possess higher activity than metallic Au species on the CO oxidation [42]. Compared with Pt-Au/CeO2 catalyst, the addition of MOx results in the presence of more cationic Au species over Pt-Au/MOx-CeO2 catalysts. The Ce 3d XPS peaks were fitted by searching for the optimum combination of Gaussian bands with the correlation coefficients (r2) above 0.99. In Figure 7, the Ce 3d core level spectra of the catalyst can be divided into eight components and the content of Ce3+ are listed in Table 2. The bands labeled u′ and v′ represent the 3d104f1 corresponding to Ce3+, and the bands labeled u, u′′, u′′′, v, v′′, and v′′′ represent the 3d104f0 corresponding to Ce4+ [53]. Among Pt-Au/MOx-CeO2 catalysts, the content of Ce3+ over Pt-Au/MnO2-CeO2 catalyst is the highest, indicating that more surface oxygen vacancies exist on Pt-Au/MnO2-CeO2 catalyst. Previous researches showed that the formation of Ce3+ over Au/CeO2 catalysts was due to the charge transfer between Au sites and CeO2 [49,50,51]. Therefore, the introduction of MOx enhances the charge transfer from Au species and Pt species to CeO2 and leads to high content of cationic Au species. O1s XPS spectra of Pt-Au/MOx-CeO2 catalysts are shown in Figure 8 and two peaks at 529.1–529.4 and 531.1–531.4 eV, respectively, appear. The former is ascribed to lattice oxygen (OI) and the latter is attributed to chemisorbed oxygen (OII) [47]. OII ratios [OII/(OII + OI)] over Pt-Au/MOx-CeO2 catalysts are higher than that over Pt-Au/CeO2 catalysts due to the presence of higher Ce3+ content.
To further understand the relationship between catalyst activity and catalyst physicochemical property, In-situ diffuse reflectance infrared Fourier transform spectroscopy (In-situ DRIFT) spectra of the Pt-Au/MOx-CeO2 catalysts obtained upon exposure to CO, H2 and synthetic air at 25 °C are shown in Figure 9. Seven distinct bands are observed in the in-situ DRIFT spectra. The bands at 3324–3395, 1640, 3691–3701, 2169, 2083–2084, 1568–1575, and 1282–1298 cm−1 are ascribed to isolated hydroxyl groups υ(OH) [29], adsorbed water δ(H-O-H) [43], another hydroxyl groups υ(OH) [54,55,56,57,58], the adsorption of CO on Au sites [59,60,61], the adsorption of CO on Pt sites [42,62,63], the carbonate species [29], and carbonate species [29], respectively. It has been proposed that isolated hydroxyl groups originated from the decomposition of the OOH species, which were generated from the reaction between the associatively adsorbed oxygen and dissociative adsorbed hydrogen, and the isolated hydroxyl groups further react with dissociative adsorbed hydrogen to generate H2O [7,29].
Intensity of reactant-related is due to reactant oxidation and reactant adsorption capability. To solve this problem, In-situ DRIFTS test results of Pt-Au/CeO2 catalyst upon 3000 ppm CO + N2 and 3000 ppm CO + 3000 pm H2 + synthetic air can be observed in the Figure 10. The results indicate that the CO accumulation amount does not reach the CO saturated adsorption capability over Pt-Au/CeO2 catalyst upon 3000 ppm CO + 3000 pm H2 + synthetic air. CO saturated adsorption capability of Pt-Au/MOx-CeO2 catalysts may be close to that of Pt-Au/CeO2 catalyst due to the close amount of Pt and Au species over Pt-Au/CeO2 catalyst and Pt-Au/MOx-CeO2 catalysts. Little CO accumulation on Pt-Au/MOx-CeO2 catalysts in Figure 9 is because of the enhanced CO oxidation instead of adsorption capability. For Pt-Au/CeO2 catalyst, the intensity of bands at 2169 and 2084 cm−1 increases, which means that much CO accumulates on the Au and Pt active sites. The intensity of other bands are almost unchanged, which suggests little H2 is oxidized because Pt active sites are occupied and poisoned by CO. Therefore, CO and H2 cannot be simultaneously removed over Pt-Au/CeO2 catalyst. For Pt-Au/MnO2-CeO2 catalyst, no peaks can be observed at 2169 and 2084 cm−1 with the reaction proceeding, which suggests that the introduction of MnO2 enhances the oxidation of CO. However, the intensity of bands at 3389 and 1640 cm−1 are seldom unchanged, which indicates that little H2 is oxidized. Therefore, the introduction of MnO2 improves the oxidation of CO but not the oxidation of H2. Over Pt-Au/Fe2O3-CeO2 catalyst, the intensity of the peak at 2084 cm−1 suggests that little CO accumulates and the Fe2O3 improves the activity of Pt-Au/CeO2 catalyst for CO oxidation. The intensity of bands at 3386 and 1640 cm−1 suggest that little H2 is oxidized to H2O. Consequently, Fe2O3 improves the activity of Pt-Au/CeO2 catalyst for the CO oxidation not for H2 oxidation. Some CO accumulates on the Pt-Au/TiO2-CeO2 catalyst, as confirmed by the presence of the band at 2084 cm−1. The intensity change of peaks at 3691, 3395 and 1640 cm−1 suggests that many isolated -OH species and H2O are produced, indicating that much H2 is oxidized into H2O. Based on the in-situ DRIFTS results of the Pt-Au/MOx-CeO2 catalysts, Pt-Au/TiO2-CeO2 catalyst presents the best catalytic activity for the co-oxidation of CO and H2.
Figure 11 shows the effect of CO concentration on the co-oxidation of CO and H2 through in-situ DRIFTS. The intensity of the bands at 3395 and 1640 cm−1 in Figure 11b are stronger than that shown in Figure 11a, indicating that more H2O are produced. Therefore, CO obviously hinders the oxidation of H2 in the co-oxidation of CO and H2, which is in accordance with previous reports [22].

3. Materials and Methods

3.1. Catalyst Preparation

The CeO2 nanospheres were prepared by hydrothermal method. Thirteen grams Ce(NO3)3·6H2O was dissolved in 13 mL ultra-pure water at room temperature. Then, 13 mL propionic acid and 390 mL ethylene glycol were added under stirring to form a uniform solution at room temperature. The uniform solution was transferred to a Teflon-sealed autoclave and heated at 180 °C for 7.5 h. After the hydrothermal treatment, the mixture was centrifuged and washed with ethanol for several times. The obtained solid was dried at 100 °C overnight, subsequently it was calcined in air at 400 °C for 4 h. Then CeO2 nanospheres were obtained.
MOx-CeO2 (M = Mn, Fe, Ti) supports, with a Ce/M molar ratio of 9, were obtained by precipitation method. CeO2 nanospheres were homogeneously dispersed in Mn(NO3)2 or Fe(NO3)3 aqueous solution, or tetra-n-butyl titanate ethanol solution, and the suspension was stirred for 2 h at room temperature. Then ammonia solution was added to the above solution under stirring until pH was 10 at room temperature. The suspension was filtered and washed with ultra-pure water. The obtained solid samples were first dried at 105 °C for 12 h and subsequently calcined in air at 400 °C for 4 h to obtain MOx-CeO2 (M = Mn, Fe, Ti) supports.
Pt-Au/MOx-CeO2 (M = Mn, Fe, Ti) catalysts were prepared by reduction-deposition precipitation method [49]. Four grams MOx-CeO2 was uniformly dispersed into the H2PtCl6 solution containing 0.04 g Pt at room temperature. After impregnation for 2 h, the pH value of suspension was adjusted to 10. NaBH4 solution was quickly added into the suspension (NaBH4/Pt = 10, molar ratio) while being stirred for 2 h at room temperature. The suspension was filtered and washed with ultra-pure water, then dried under vacuum at 120 °C for 12 h to obtain Pt/MOx-CeO2. Then 2 g Pt/MOx-CeO2 was uniformly dispersed into the HAuCl4 solution containing 0.02 g Au at room temperature. Subsequently, urea was added as the precipitant. The mixture was stirred at 80 °C for 8 h and then aged for 12 h at room temperature. Then, the mixture was filtered and washed with ultra-pure water. The resulting powder was dried under vacuum at room temperature for 12 h to yield Pt-Au/MOx-CeO2 catalysts.

3.2. Catalyst Characterization

XRD patterns were recorded with a Shimadzu (Tokyo, Japan) XRD-6000 diffractometer operated at 40 kV and 40 mA, using nickel-filtered Cu Kα (λ = 0.1542 nm) radiation. Surface areas of the catalysts were determined by the BET method by a Micromeritics ASAP 2000 instrument (Quantachrome, Boynton Beach, FL, USA). CO chemisorption measurements were measured an Autochem II 2920 (Micromeritics Instrument Corp, Atlanta, GA, USA) automated chemisorption analyzer. The surface chemical states of Pt-Au/MOx-CeO2 catalysts were tested by XPS (PHI Quantro SXM ULVAC-PHI, Tokyo, Japan) using an Al Kα X-ray source (1486.7 eV) at 15 kV and 25 W with the binding energy calibrated by C 1s at 284.8 eV. HRTEM micrographs were obtained with a JEM-2100F (Jeol, Tokyo, Japan) microscope at 200 kV.
H2-TPR measurements equipped with a quadrupole mass spectrometer (Omnistar, Atlanta, GA, USA, GSD-301-O2) were carried out in a fixed bed microreactor. The 0.2-g sample was pretreated under Ar at 120 °C for 1 h. After cooled to 25 °C, the catalyst was reduced under 5% H2/N2 gas flow (50 mL min−1) within the temperature of 30 to 700 °C at 10 °C min−1. In-situ DRIFTS were recorded in a Nicolet 6700 FTIR spectrometer (Nicolet, Atlanta, GA, USA). Before characterization, all the catalysts were pretreated under Ar at a flow rate of 100 mL min−1 at 120 °C for 0.5 h. After cooled to 25 °C, the reactant gas mixture, comprised of 1000 ppm H2, 1000 ppm CO and synthetic air (50% relative humidity), was introduced into the DRIFT cell at a flow rate of 100 mL min−1. All spectra were recorded by accumulating 32 scans with a resolution of 4 cm−1.

3.3. Catalytic Activity Measurement

The activity evaluation for the co-oxidation of CO and H2 was performed in a continuous flow fixed-bed quartz reactor (i.d. = 10 mm) by using 0.36 g catalyst at 25 °C. Before activity evaluation, the Pt-Au/MOx-CeO2 catalysts were pretreated under Ar at 120 °C for 0.5 h at a flow rate of 100 mL·min−1. The simultaneous reaction gas consisted of 100 ppm CO and 480 ppm H2, and air (50% relative humidity) as the balance gas, and the total flow rate was fixed at 3.6 L·min−1, corresponding to a GHSV of 500,000 h−1. H2, CO and CO2 were measured by gas chromatograph (GC) equipped with TCD and FID detectors. CO and CO2 were converted to CH4 by Ni catalytic converter before the measurement.

4. Conclusions

A series of nanostructured Pt-Au/MOx-CeO2 (M = Mn, Fe, Ti) catalysts were prepared and Pt-Au/TiO2-CeO2 catalyst presented the best catalytic performance for the total co-oxidation of CO and H2 at room temperature. The introduction of MOx into CeO2 can enhance the charge transfer from Pt and Au sites to CeO2, which improves CO oxidation. The introduction of TiO2 enhances the decomposition of OOH species into O species and OH species, while the introduction of MnO2 and Fe2O3 cannot. The addition of TiO2 mainly accounts for the high activity for the co-oxidation of CO and H2 over the Pt-Au/TiO2-CeO2 catalyst.

Acknowledgments

This work has been financially supported by the National Natural Science Foundation of China (21177006) and Special Foundation for Environmental Public Sector Research of Ministry of Environmental Protection of People’s Republic of China (No. 201409080).

Author Contributions

Tianle Zhu and Zhiming Liu conceived and designed the experiments; Xiaowei Hong and Ye Sun performed the experiments, analyzed the data and wrote the paper.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Seo, P.W.; Choi, H.J.; Hong, S.I.; Hong, S.C. A study on the characteristics of CO oxidation at room temperature by metallic Pt. J. Hazard. Mater. 2010, 178, 917–925. [Google Scholar] [CrossRef] [PubMed]
  2. Tang, X.F.; Chen, J.L.; Huang, X.M.; Xu, Y.; Shen, W.J. Pt/MnOx-CeO2 catalysts for the complete oxidation of formaldehyde at ambient temperature. Appl. Catal. B 2008, 81, 115–121. [Google Scholar] [CrossRef]
  3. Noei, H.; Qiu, H.; Wang, Y.; Muhler, M.; Wöll, C. Hydrogen loading of oxide powder particles: A transmission IR study for the case of zinc oxide. ChemPhysChem 2010, 11, 3604–3607. [Google Scholar] [CrossRef] [PubMed]
  4. Reina, T.R.; Moreno, A.A.; Ivanova, S.; Odriozola, J.A.; Centeno, M.A. Influence of Vanadium or Cobalt Oxides on the CO Oxidation Behavior of Au/MOx/CeO2-Al2O3 Systems. ChemCatChem 2012, 4, 512–520. [Google Scholar] [CrossRef]
  5. Qiao, B.; Wang, A.Q.; Takahashi, M.; Zhang, Y.J.; Wang, J.H.; Deng, Y.Q.; Zhang, T. A novel Au & Pd/Fe(OH)(x) catalyst for CO + H2 co-oxidations at low temperatures. J. Catal. 2011, 279, 361–365. [Google Scholar]
  6. Liu, P.; Logadottir, A.; Nørskov, J.K. Modeling the electro-oxidation of CO and H2/CO on Pt, Ru, PtRu and Pt3Sn. Electrochim. Acta 2003, 48, 3731–3742. [Google Scholar]
  7. Green, I.X.; Tang, W.; Neurock, M.; Yates, J.T. Low-Temperature Catalytic H2 oxidation over Au Nanoparticle/TiO2 Dual Perimeter Sites. Angew. Chem. Int. Ed. 2011, 50, 10186–10189. [Google Scholar] [CrossRef] [PubMed]
  8. Javier, G.; Silvio, C.; Fierro-Gonzalez, J.C.; Hao, Y.; Gates, B.C.; Avelino, C. CO oxidation catalyzed by supported gold: cooperation between gold and nanocrystalline rare-earth supports forms reactive surface superoxide and peroxide species. Angew. Chem. Int. Ed. 2005, 117, 4778–4781. [Google Scholar]
  9. Ramirez-Alvarez, E.; Rico-Martinez, R.; Krischer, K. Self-organized reactivity patterns during the oxidation of H2-CO mixtures on a rotating Pt ring-electrode. Electrochim. Acta 2013, 112, 894–898. [Google Scholar] [CrossRef]
  10. Giorgi, L.; Pozio, A.; Bracchini, C.; Giorgi, R.; Turtù, S. H2 and H2/CO oxidation mechanism on Pt/C, Ru/C and Pt–Ru/C electrocatalysts. J. Appl. Electrochem. 2001, 31, 325–334. [Google Scholar] [CrossRef]
  11. Arenz, M.; Stamenkovic, V.; Blizanac, B.B.; Mayrhofer, K.J.J.; Markovic, N.M.; Ross, P.N. Carbon-supported Pt-Sn electrocatalysts for the anodic oxidation of H2, CO, and H2/CO mixtures. Part II: The structure-activity relationship. J. Catal. 2005, 232, 402–410. [Google Scholar] [CrossRef]
  12. Li, Z.H.; Yang, K.; Liu, G.; Deng, G.F.; Li, J.Q.; Li, G.; Yue, R.L.; Yang, J.; Chen, Y.F. Effect of Reduction Treatment on Structural Properties of TiO2 Supported Pt Nanoparticles and Their Catalytic Activity for Benzene Oxidation. Catal. Lett. 2014, 144, 1080–1087. [Google Scholar] [CrossRef]
  13. Huang, H.; Leung, D.Y.C.; Ye, D. Effect of reduction treatment on structural properties of TiO2 supported Pt nanoparticles and their catalytic activity for formaldehyde oxidation. J. Mater. Chem. 2011, 21, 9647–9652. [Google Scholar] [CrossRef]
  14. Hutchings, G.J. Catalysis by gold. Catal. Today 2005, 100, 55–61. [Google Scholar] [CrossRef]
  15. Carrettin, S.; Concepcion, P.; Corma, A.; Lopez Nieto, J.M.; Puntes, V.F. Nanocrystalline CeO2 increases the activity of Au for CO oxidation by two orders of magnitude. Angew. Chem. Int. Ed. 2004, 43, 2538–2540. [Google Scholar] [CrossRef] [PubMed]
  16. Yu, J.; Wu, G.S.; Lu, G.Z.; Mao, D.S.; Guo, Y. Promoting effects of ceria on the catalytic performance of gold supported on TiO2 for low-temperature CO oxidation. RSC Adv. 2014, 4, 16985–16991. [Google Scholar] [CrossRef]
  17. Wang, L.C.; Huang, X.S.; Liu, Q.; Liu, Y.M.; Cao, Y.; He, H.Y.; Fan, K.N.; Zhuang, J.H. Gold nanoparticles deposited on manganese(III) oxide as novel efficient catalyst for low temperature CO oxidation. J. Catal. 2008, 259, 66–74. [Google Scholar] [CrossRef]
  18. Qiao, B.; Zhang, J.; Liu, L.; Deng, Y. Low-temperature prepared highly effective ferric hydroxide supported gold catalysts for carbon monoxide selective oxidation in the presence of hydrogen. Appl. Catal. A 2008, 340, 220–228. [Google Scholar] [CrossRef]
  19. Hutchings, G.; Hall, M.; Carley, A.; Landon, P.; Solsona, B.; Kiely, C.; Herzing, A.; Makkee, M.; Moulijn, J.; Overweg, A. Role of gold cations in the oxidation of carbon monoxide catalyzed by iron oxide-supported gold. J. Catal. 2006, 242, 71–81. [Google Scholar] [CrossRef]
  20. Avgouropoulos, G.; Ioannides, T. CO tolerance of Pt and Rh catalysts: effect of CO in the gas-phase oxidation of H-2 over Pt and Rh supported catalysts. Appl. Catal. B 2005, 56, 77–86. [Google Scholar] [CrossRef]
  21. Liu, Y.; Liu, B.; Liu, Y.; Wang, Q.; Hu, W.; Jing, P.; Liu, L.; Yu, S.; Zhang, J. Improvement of catalytic performance of preferential oxidation of CO in H2-rich gases on three-dimensionally ordered macro-and meso-porous Pt–Au/CeO2 catalysts. Appl. Catal. B 2013, 142, 615–625. [Google Scholar] [CrossRef]
  22. Liu, L.Q.; Qiao, B.T.; He, Y.D.; Zhou, F.; Yang, B.Q.; Deng, Y.Q. Catalytic co-oxidation of CO and H2 over FeOx-supported Pd catalyst at low temperatures. J. Catal. 2012, 294, 29–36. [Google Scholar] [CrossRef]
  23. Alayoglu, S.; Nilekar, A.U.; Mavrikakis, M.; Eichhorn, B. Ru–Pt core–shell nanoparticles for preferential oxidation of carbon monoxide in hydrogen. Nat. Mater. 2008, 7, 333–338. [Google Scholar] [CrossRef] [PubMed]
  24. Laguna, O.H.; Perez, A.; Centeno, M.A.; Odriozola, J.A. Synergy between gold and oxygen vacancies in gold supported on Zr-doped ceria catalysts for the CO oxidation. Appl. Catal. B 2015, 176, 385–395. [Google Scholar] [CrossRef]
  25. Vayssilov, G.N.; Lykhach, Y.; Migani, A.; Staudt, T.; Petrova, G.P.; Tsud, N.; Skála, T.; Bruix, A.; Illas, F.; Prince, K.C. Support nanostructure boosts oxygen transfer to catalytically active platinum nanoparticles. Nat. Mater. 2011, 10, 310–315. [Google Scholar] [CrossRef] [PubMed]
  26. Lykhach, Y.; Staudt, T.; Vorokhta, M.; Skála, T.; Johánek, V.; Prince, K.C.; Matolín, V.; Libuda, J. Hydrogen spillover monitored by resonant photoemission spectroscopy. J. Catal. 2012, 285, 6–9. [Google Scholar] [CrossRef]
  27. Teschner, D.; Wootsch, A.; Röder, T.; Matusek, K.; Paál, Z. Ceria as a new support of noble metal catalysts for hydrocarbon reactions: Chemisorption and catalytic studies. Solid State Ionics 2001, 141, 709–713. [Google Scholar] [CrossRef]
  28. Khetan, A.; Pitsch, H.; Han, B. Structure and Reactivity of Sub-Monolayer Pt on CeO2 Surface from First Principles Thermodynamics. ESC Meet. Abstr. 2014, 122, 153–164. [Google Scholar]
  29. Piccolo, L.; Daly, H.; Valcarcel, A.; Meunier, F.C. Promotional effect of H2 on CO oxidation over Au/TiO2 studied by operando infrared spectroscopy. Appl. Catal. B 2009, 86, 190–195. [Google Scholar] [CrossRef]
  30. Cao, J.L.; Wang, Y.; Yu, X.L.; Wang, S.R.; Wu, S.H.; Yuan, Z.Y. Mesoporous CuO–Fe2O3 composite catalysts for low-temperature carbon monoxide oxidation. Appl. Catal. B 2008, 79, 26–34. [Google Scholar] [CrossRef]
  31. Tabakova, T.; Avgouropoulos, G.; Papavasiliou, J.; Manzoli, M.; Boccuzzi, F.; Tenchev, K.; Vindigni, F.; Ioannides, T. CO-free hydrogen production over Au/CeO2–Fe2O3 catalysts: Part 1. Impact of the support composition on the performance for the preferential CO oxidation reaction. Appl. Catal. B 2011, 101, 256–265. [Google Scholar] [CrossRef]
  32. Zepeda, T.; Martinez-Hernández, A.; Guil-López, R.; Pawelec, B. Preferential CO oxidation in excess of hydrogen over Au/HMS catalysts modified by Ce, Fe and Ti oxides. Appl. Catal. B 2010, 100, 450–462. [Google Scholar] [CrossRef]
  33. Peza-Ledesma, C.L.; Escamilla-Perea, L.; Nava, R.; Pawelec, B.; Fierro, J.L.G. Supported gold catalysts in SBA-15 modified with TiO2 for oxidation of carbon monoxide. Appl. Catal. A 2010, 375, 37–48. [Google Scholar] [CrossRef]
  34. Parreira, L.A.; Bogdanchikova, N.; Pestryakov, A.; Zepeda, T.A.; Tuzovskaya, I.; Farías, M.H.; Gusevskaya, E.V. Nanocrystalline gold supported on Fe-, Ti- and Ce-modified hexagonal mesoporous silica as a catalyst for the aerobic oxidative esterification of benzyl alcohol. Appl. Catal. A 2011, 397, 145–152. [Google Scholar] [CrossRef]
  35. Ayastuy, J.L.; González-Marcos, M.P.; González-Velasco, J.R.; Gutiérrez-Ortiz, M.A. MnOx/Pt/Al2O3 catalysts for CO oxidation in H2-rich streams. Appl. Catal. B 2007, 70, 532–541. [Google Scholar] [CrossRef]
  36. Zhao, Z.; Lin, X.; Jin, R.; Wang, G.; Muhammad, T. MOx (M = Mn, Fe, Ni or Cr) improved supported Co3O4 catalysts on ceria–zirconia nanoparticulate for CO preferential oxidation in H2-rich gases. Appl. Catal. B 2012, 115–116, 53–62. [Google Scholar] [CrossRef]
  37. Binas, V.D.; Sambani, K.; Maggos, T.; Katsanaki, A.; Kiriakidis, G. Synthesis and photocatalytic activity of Mn-doped TiO2 nanostructured powders under UV and visible light. Appl. Catal. B 2012, 113–114, 79–86. [Google Scholar] [CrossRef]
  38. Chang, S.M.; Liu, W.S. The roles of surface-doped metal ions (V, Mn, Fe, Cu, Ce, and W) in the interfacial behavior of TiO2 photocatalysts. Appl. Catal. B 2014, 156–157, 466–475. [Google Scholar] [CrossRef]
  39. Zanella, R.; Giorgio, S.; Henry, C.R.; Louis, C. Alternative methods for the preparation of gold nanoparticles supported on TiO2. J. Phys. Chem. B 2002, 106, 7634–7642. [Google Scholar] [CrossRef]
  40. Daté, M.; Haruta, M. Moisture Effect on CO Oxidation over Au/TiO2 Catalyst. J. Catal. 2001, 201, 221–224. [Google Scholar]
  41. Xu, X.L.; Li, J.Q. DFT studies on H2O adsorption and its effect on CO oxidation over spinel Co3O4 (110) surface. Surf. Sci. 2011, 605, 1962–1967. [Google Scholar] [CrossRef]
  42. Na, H.; Zhu, T.; Liu, Z. Effect of preparation method on the performance of Pt–Au/TiO2 catalysts for the catalytic co-oxidation of HCHO and CO. Cata. Sci. Technol. 2014, 4, 2051–2057. [Google Scholar]
  43. Chen, B.B.; Shi, C.; Crocker, M.; Wang, Y.; Zhu, A.M. Catalytic removal of formaldehyde at room temperature over supported gold catalysts. Appl. Catal. B 2013, 132–133, 245–255. [Google Scholar] [CrossRef]
  44. Wang, Y.; Zhu, A.; Zhang, Y.; Au, C.T.; Yang, X.; Shi, C. Catalytic reduction of NO by CO over NiO/CeO2 catalyst in stoichiometric NO/CO and NO/CO/O2 reaction. Appl. Catal. B 2008, 81, 141–149. [Google Scholar] [CrossRef]
  45. Chen, Y.C.; Chen, K.B.; Lee, C.S.; Lin, M.C. Direct Synthesis of Zr-Doped Ceria Nanotubes. J. Phys. Chem. C 2009, 113, 5031–5034. [Google Scholar] [CrossRef]
  46. Li, H.F.; Zhang, N.; Chen, P.; Luo, M.F.; Lu, J.Q. High surface area Au/CeO2 catalysts for low temperature formaldehyde oxidation. Appl. Catal. B 2011, 110, 279–285. [Google Scholar] [CrossRef]
  47. Hong, X.; Sun, Y.; Zhu, T.; Liu, Z. Pt-Au/CeO2 catalysts for the simultaneous removal of carbon monoxide and formaldehyde. Cata. Sci. Technol. 2016, 6, 3606–3615. [Google Scholar] [CrossRef]
  48. An, N.; Yu, Q.; Gang, L.; Li, S.; Jia, M.; Zhang, W. Complete oxidation of formaldehyde at ambient temperature over supported Pt/Fe2O3 catalysts prepared by colloid-deposition method. J. Hazard. Mater. 2011, 186, 1392–1397. [Google Scholar] [CrossRef] [PubMed]
  49. Lawrence, N.J.; Brewer, J.R.; Wang, L.; Wu, T.S.; Wells-Kingsbury, J.; Ihrig, M.M.; Wang, G.; Soo, Y.L.; Mei, W.N.; Cheung, C.L. Defect engineering in cubic cerium oxide nanostructures for catalytic oxidation. Nano Lett. 2011, 11, 2666–2671. [Google Scholar] [CrossRef] [PubMed]
  50. Esch, F.; Fabris, S.; Zhou, L.; Montini, T.; Africh, C.; Fornasiero, P.; Comelli, G.; Rosei, R. Electron localization determines defect formation on ceria substrates. Science 2005, 309, 752–755. [Google Scholar] [CrossRef] [PubMed]
  51. Kim, H.Y.; Lee, H.M.; Henkelman, G. CO oxidation mechanism on CeO2-supported Au nanoparticles. J. Am. Chem. Soc. 2012, 134, 1560–1570. [Google Scholar] [CrossRef] [PubMed]
  52. Lykhach, Y.; Kozlov, S.M.; Skála, T.; Tovt, A.; Stetsovych, V.; Tsud, N.; Dvořák, F.; Johánek, V.; Neitzel, A.; Mysliveček, J. Counting electrons on supported nanoparticles. Nat. Mater. 2015, 15, 284–288. [Google Scholar] [CrossRef] [PubMed]
  53. Shan, W.P.; Liu, F.D.; He, H.; Shi, X.Y.; Zhang, C.B. A superior Ce-W-Ti mixed oxide catalyst for the selective catalytic reduction of NOx with NH3. Appl. Catal. B 2012, 115, 100–106. [Google Scholar] [CrossRef]
  54. Zhang, C.B.; Liu, F.D.; Zhai, Y.P.; Ariga, H.; Yi, N.; Liu, Y.C.; Asakura, K.; Flytzani-Stephanopoulos, M.; He, H. Alkali-Metal-Promoted Pt/TiO2 Opens a More Efficient Pathway to Formaldehyde Oxidation at Ambient Temperatures. Angew. Chem. Int. Ed. 2012, 51, 9628–9632. [Google Scholar] [CrossRef] [PubMed]
  55. Sun, S.; Ding, J.; Bao, J.; Gao, C.; Qi, Z.; Li, C. Photocatalytic oxidation of gaseous formaldehyde on TiO2: An in situ DRIFTS study. Catal. Lett. 2010, 137, 239–246. [Google Scholar] [CrossRef]
  56. Enevoldsen, G.H.; Pinto, H.P.; Foster, A.S.; Jensen, M.C.; Hofer, W.A.; Hammer, B.; Lauritsen, J.V.; Besenbacher, F. Imaging of the hydrogen subsurface site in rutile TiO2. Phys. Rev. Lett. 2009, 102, 136103. [Google Scholar] [CrossRef] [PubMed]
  57. Park, Y.K.; Aghalayam, P.; Vlachos, D.G. A generalized approach for predicting coverage-dependent reaction parameters of complex surface reactions: Application to H2 oxidation over platinum. J. Phys. Chem. A 1999, 103, 8101–8107. [Google Scholar] [CrossRef]
  58. Aloisio, S.; Francisco, J. Existence of a Hydroperoxy and Water (HO2·H2O) Radical Complex. J. Phys. Chem. A 1998, 102, 1899–1902. [Google Scholar] [CrossRef]
  59. Chiorino, A.; Manzoli, M.; Menegazzo, F.; Signoretto, M.; Vindigni, F.; Pinna, F.; Boccuzzi, F. New insight on the nature of catalytically active gold sites: Quantitative CO chemisorption data and analysis of FTIR spectra of adsorbed CO and of isotopic mixtures. J. Catal. 2009, 262, 169–176. [Google Scholar] [CrossRef]
  60. Comotti, M.; Li, W.C.; Spliethoff, B.; Schüth, F. Support Effect in High Activity Gold Catalysts for CO. J. Am. Chem. Soc. 2006, 128, 917–924. [Google Scholar] [CrossRef] [PubMed]
  61. Qi, L.; Tang, C.; Zhang, L.; Yao, X.; Cao, Y.; Liu, L.; Gao, F.; Dong, L.; Chen, Y. Influence of cerium modification methods on catalytic performance of Au/mordenite catalysts in CO oxidation. Appl. Catal. B 2012, 127, 234–245. [Google Scholar] [CrossRef]
  62. Haneda, M.; Suzuki, K.; Sasaki, M.; Hamada, H.; Ozawa, M. Catalytic performance of bimetallic PtPd/Al2O3 for diesel hydrocarbon oxidation and its implementation by acidic additives. Appl. Catal. A 2014, 475, 109–115. [Google Scholar] [CrossRef]
  63. Li, N.; Chen, Q.Y.; Luo, L.F.; Huang, W.X.; Luo, M.F.; Hu, G.S.; Lu, J.Q. Kinetic study and the effect of particle size on low temperature CO oxidation over Pt/TiO2 catalysts. Appl. Catal. B 2013, 142, 523–532. [Google Scholar] [CrossRef]
  • Sample Availability: Samples of the compounds are available from the authors.

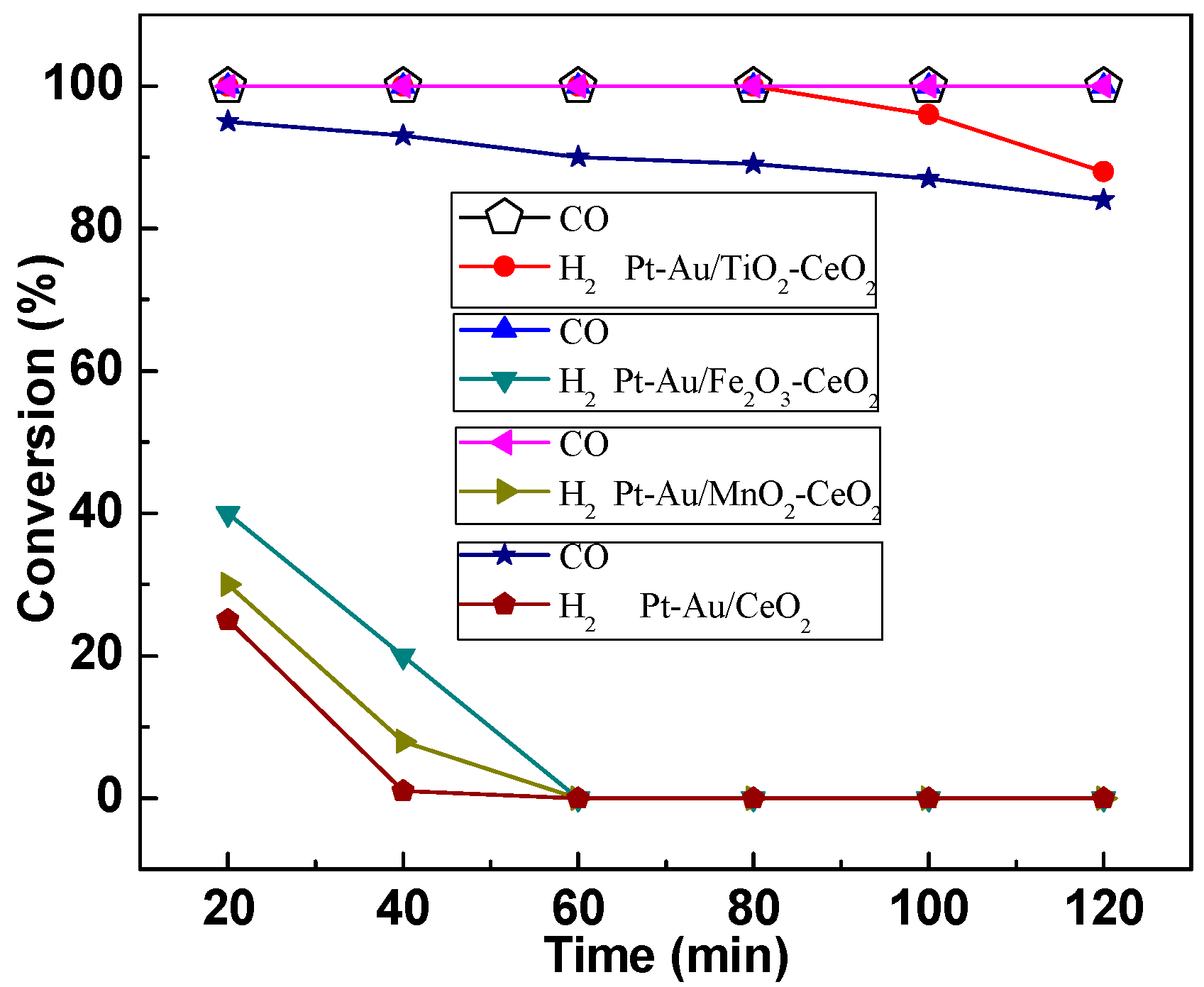

Figure 1. The activities of Pt-Au/MOx-CeO2 catalysts for the catalytic co-oxidations of H2 and CO. Reaction conditions: 100 ppm H2/100 ppm CO/room air; temperature: 25 °C; GHSV = 500,000 h−1.
Figure 1. The activities of Pt-Au/MOx-CeO2 catalysts for the catalytic co-oxidations of H2 and CO. Reaction conditions: 100 ppm H2/100 ppm CO/room air; temperature: 25 °C; GHSV = 500,000 h−1.
Molecules 22 00351 g001

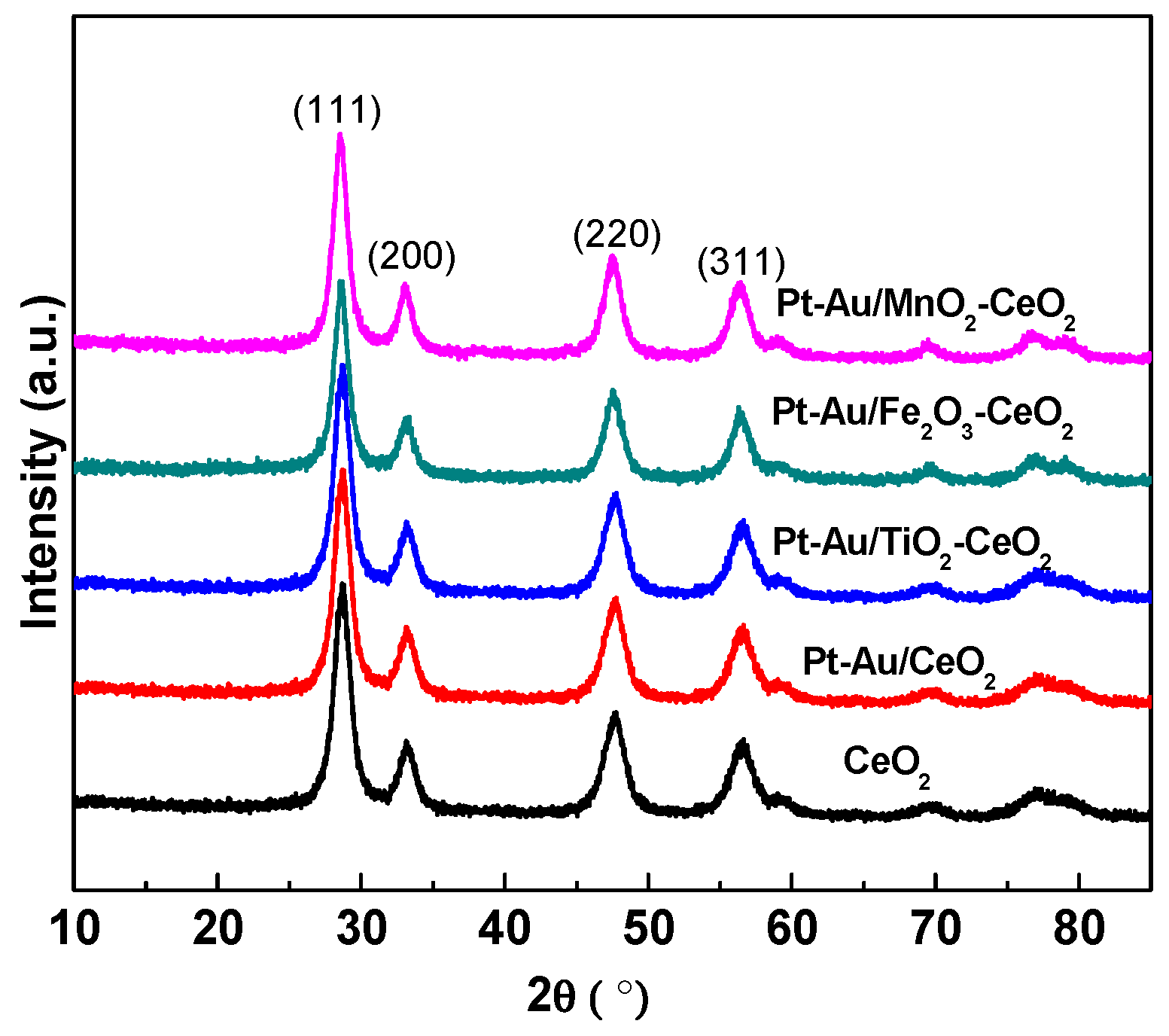

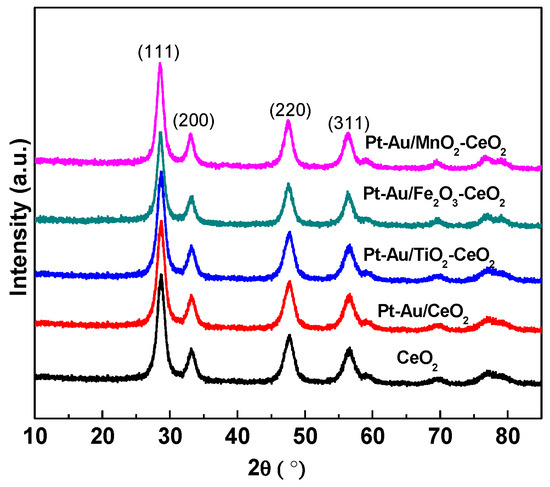

Figure 2. XRD patterns of CeO2 support and Pt-Au/MOx-CeO2 catalysts.
Figure 2. XRD patterns of CeO2 support and Pt-Au/MOx-CeO2 catalysts.
Molecules 22 00351 g002

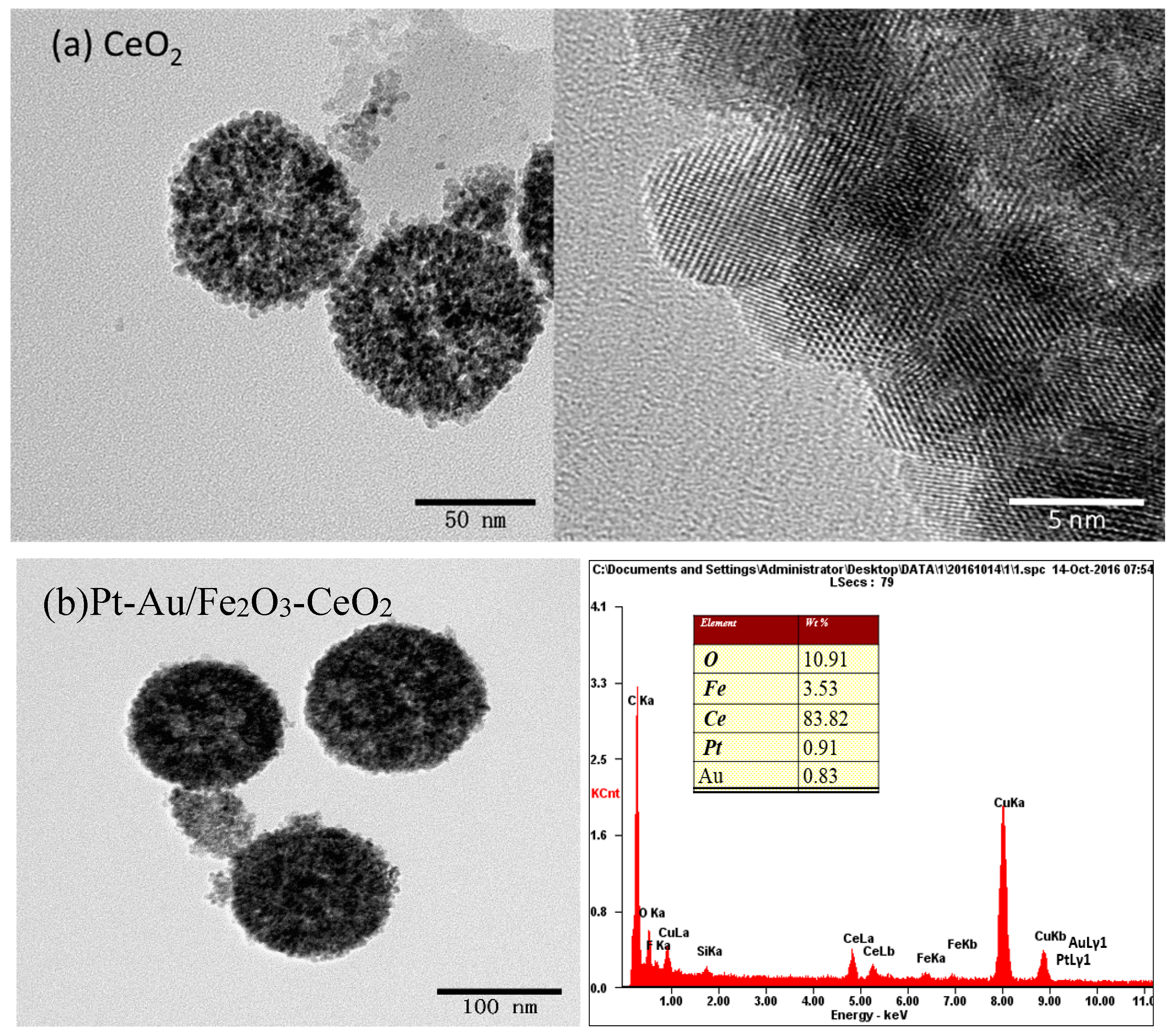

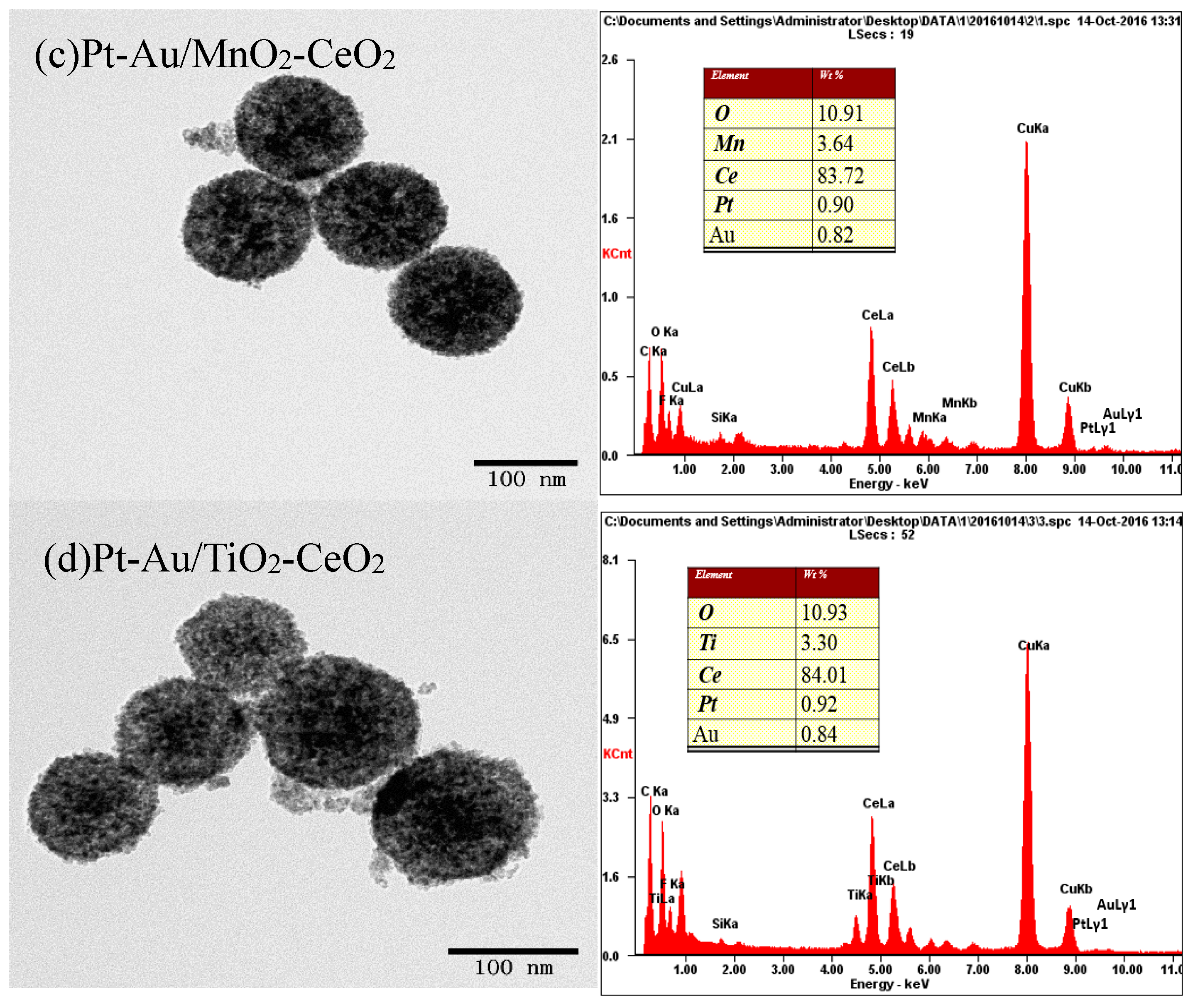

Figure 3. TEM image of the CeO2 support and EDS results of Pt-Au/MOx-CeO2 catalysts: (a) Pt-Au/CeO2; (b) Pt-Au/Fe2O3-CeO2; (c) Pt-Au/MnO2-CeO2; (d) Pt-Au/TiO2-CeO2.
Figure 3. TEM image of the CeO2 support and EDS results of Pt-Au/MOx-CeO2 catalysts: (a) Pt-Au/CeO2; (b) Pt-Au/Fe2O3-CeO2; (c) Pt-Au/MnO2-CeO2; (d) Pt-Au/TiO2-CeO2.
Molecules 22 00351 g003aMolecules 22 00351 g003b

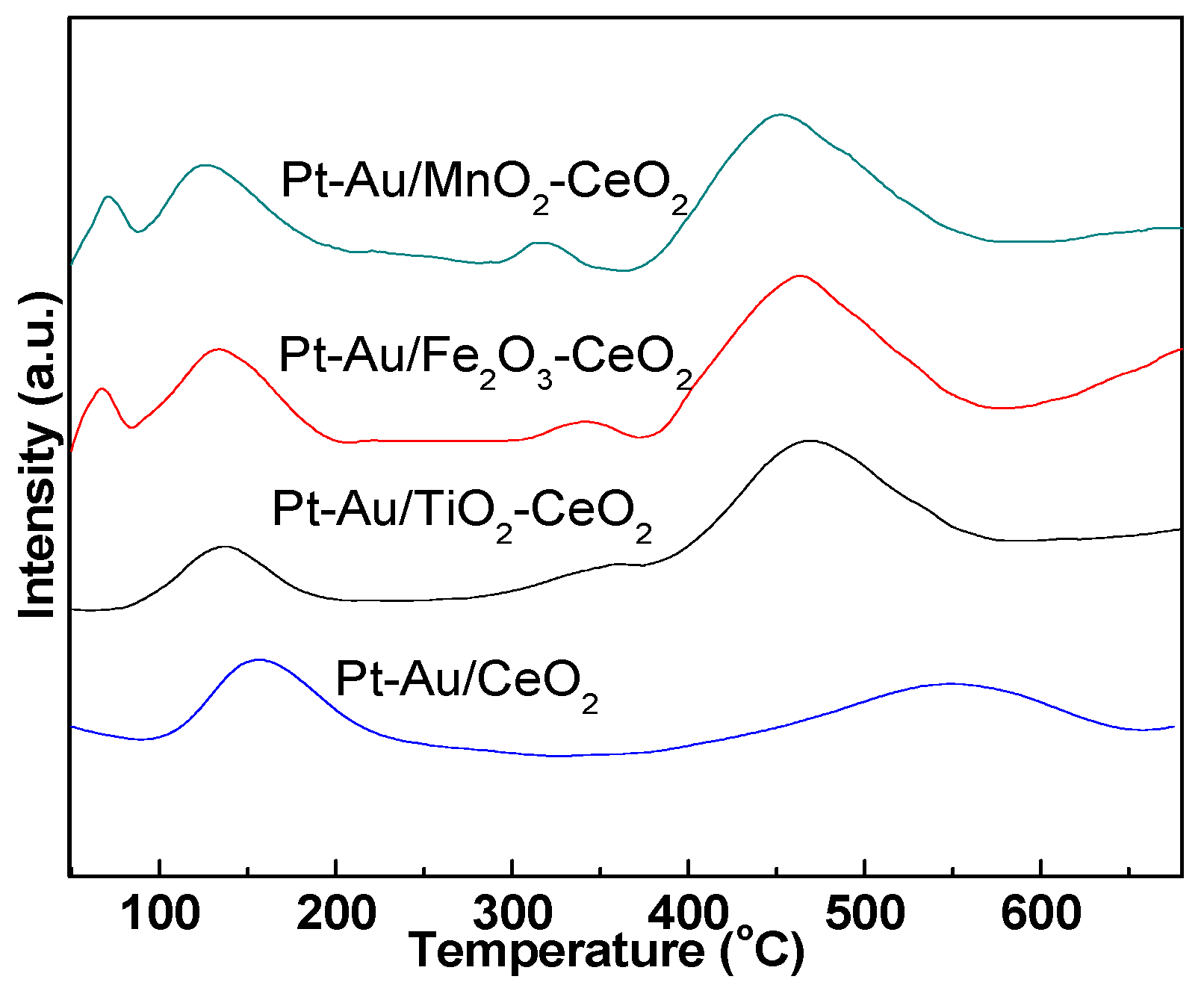

Figure 4. H2-TPR profiles of Pt-Au/MOx-CeO2 catalysts.
Figure 4. H2-TPR profiles of Pt-Au/MOx-CeO2 catalysts.
Molecules 22 00351 g004

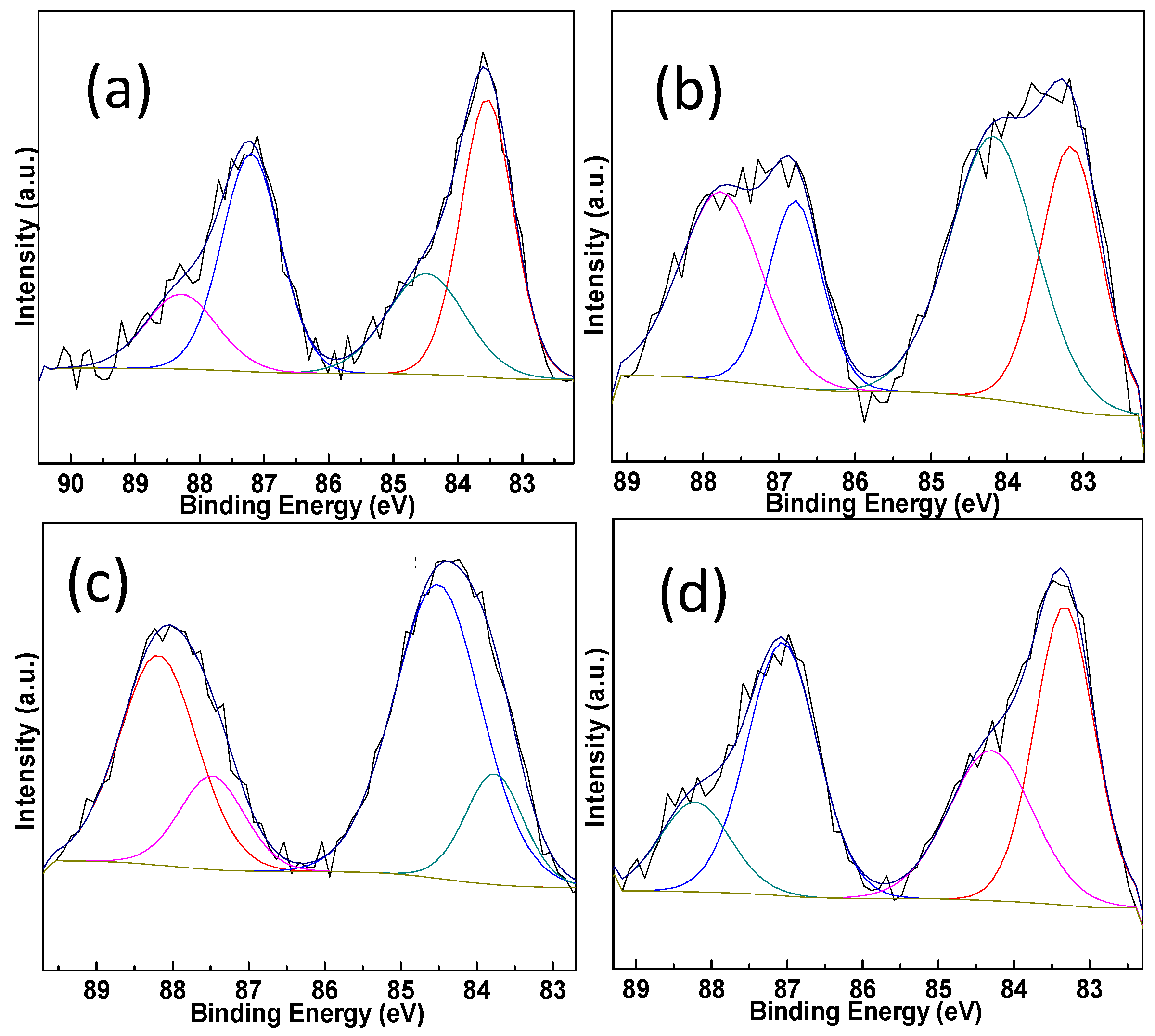

Figure 5. Au 4f XPS spectra of Pt-Au/MOx-CeO2 catalysts: (a) Pt-Au/CeO2; (b) Pt-Au/Fe2O3-CeO2; (c) Pt-Au/MnO2-CeO2; (d) Pt-Au/TiO2-CeO2.
Figure 5. Au 4f XPS spectra of Pt-Au/MOx-CeO2 catalysts: (a) Pt-Au/CeO2; (b) Pt-Au/Fe2O3-CeO2; (c) Pt-Au/MnO2-CeO2; (d) Pt-Au/TiO2-CeO2.
Molecules 22 00351 g005

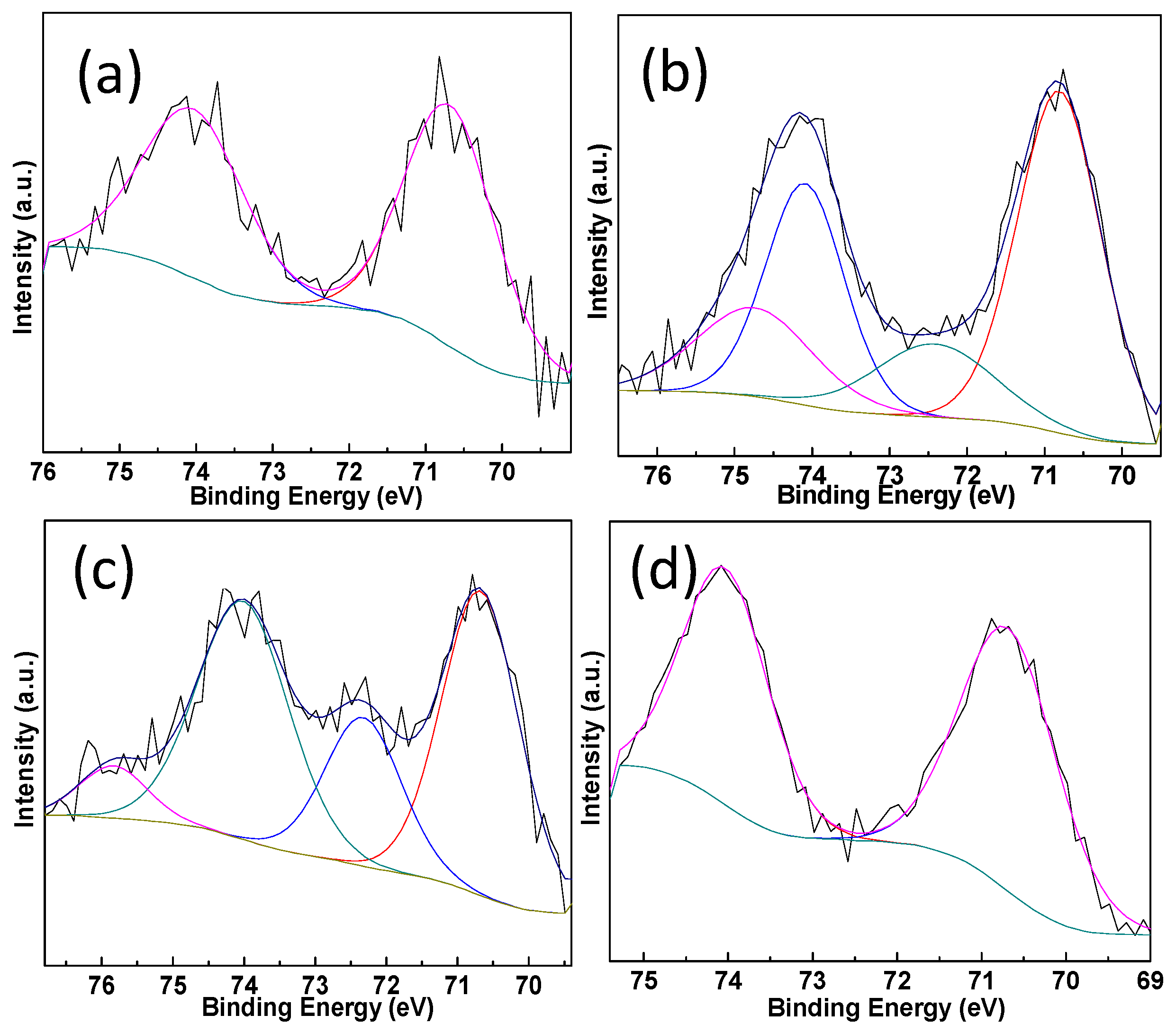

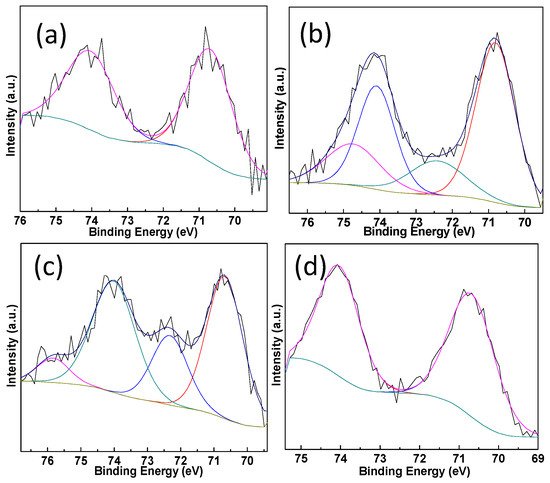

Figure 6. Pt 4f XPS spectra of Pt-Au/MOx-CeO2 catalysts: (a) Pt-Au/CeO2; (b) Pt-Au/Fe2O3-CeO2; (c) Pt-Au/MnO2-CeO2; (d) Pt-Au/TiO2-CeO2.
Figure 6. Pt 4f XPS spectra of Pt-Au/MOx-CeO2 catalysts: (a) Pt-Au/CeO2; (b) Pt-Au/Fe2O3-CeO2; (c) Pt-Au/MnO2-CeO2; (d) Pt-Au/TiO2-CeO2.
Molecules 22 00351 g006

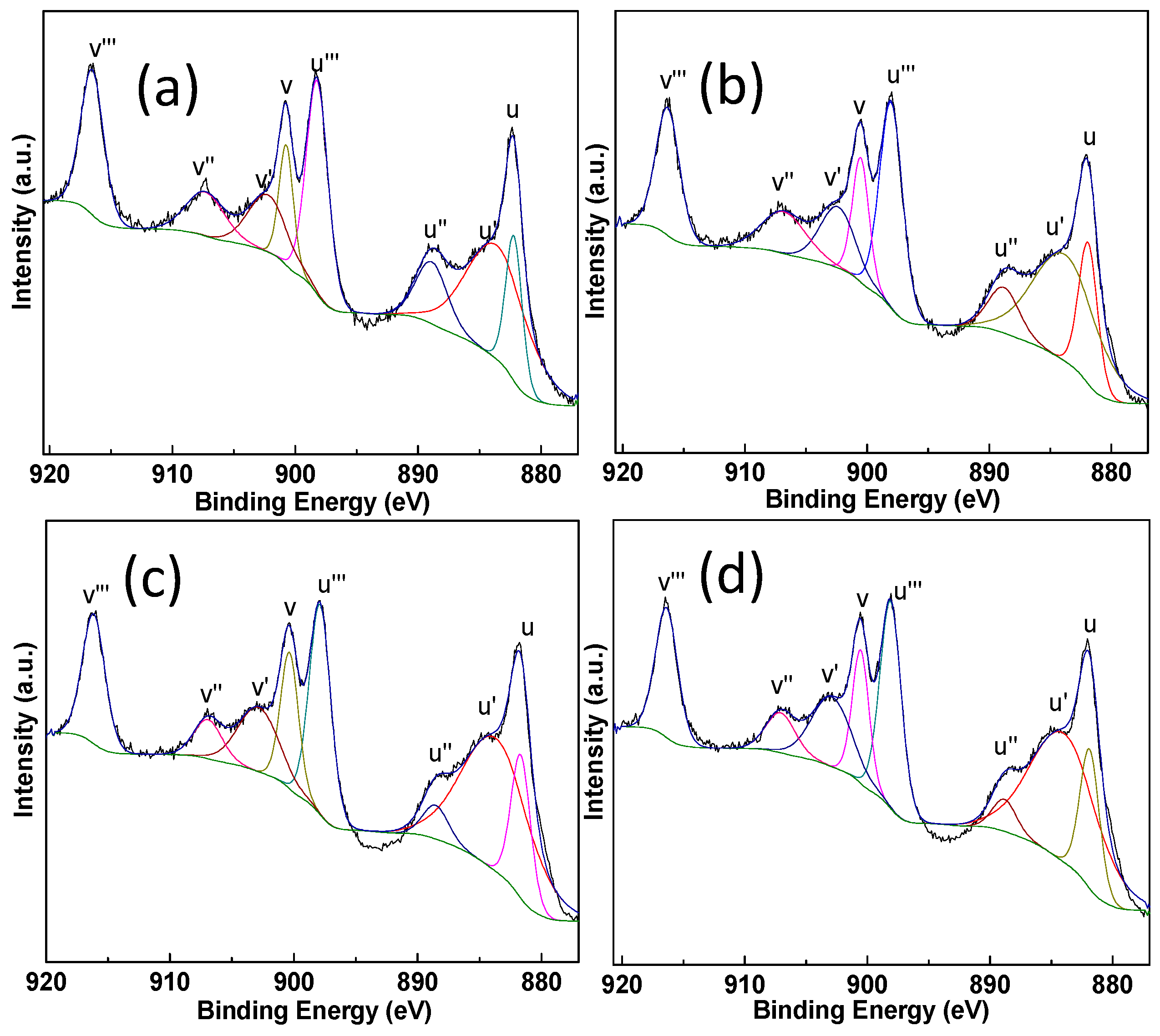

Figure 7. Ce 3d XPS spectra of Pt-Au/MOx-CeO2 catalysts: (a) Pt-Au/CeO2; (b) Pt-Au/TiO2-CeO2; (c) Pt-Au/Fe2O3-CeO2; (d) Pt-Au/MnO2-CeO2.
Figure 7. Ce 3d XPS spectra of Pt-Au/MOx-CeO2 catalysts: (a) Pt-Au/CeO2; (b) Pt-Au/TiO2-CeO2; (c) Pt-Au/Fe2O3-CeO2; (d) Pt-Au/MnO2-CeO2.
Molecules 22 00351 g007

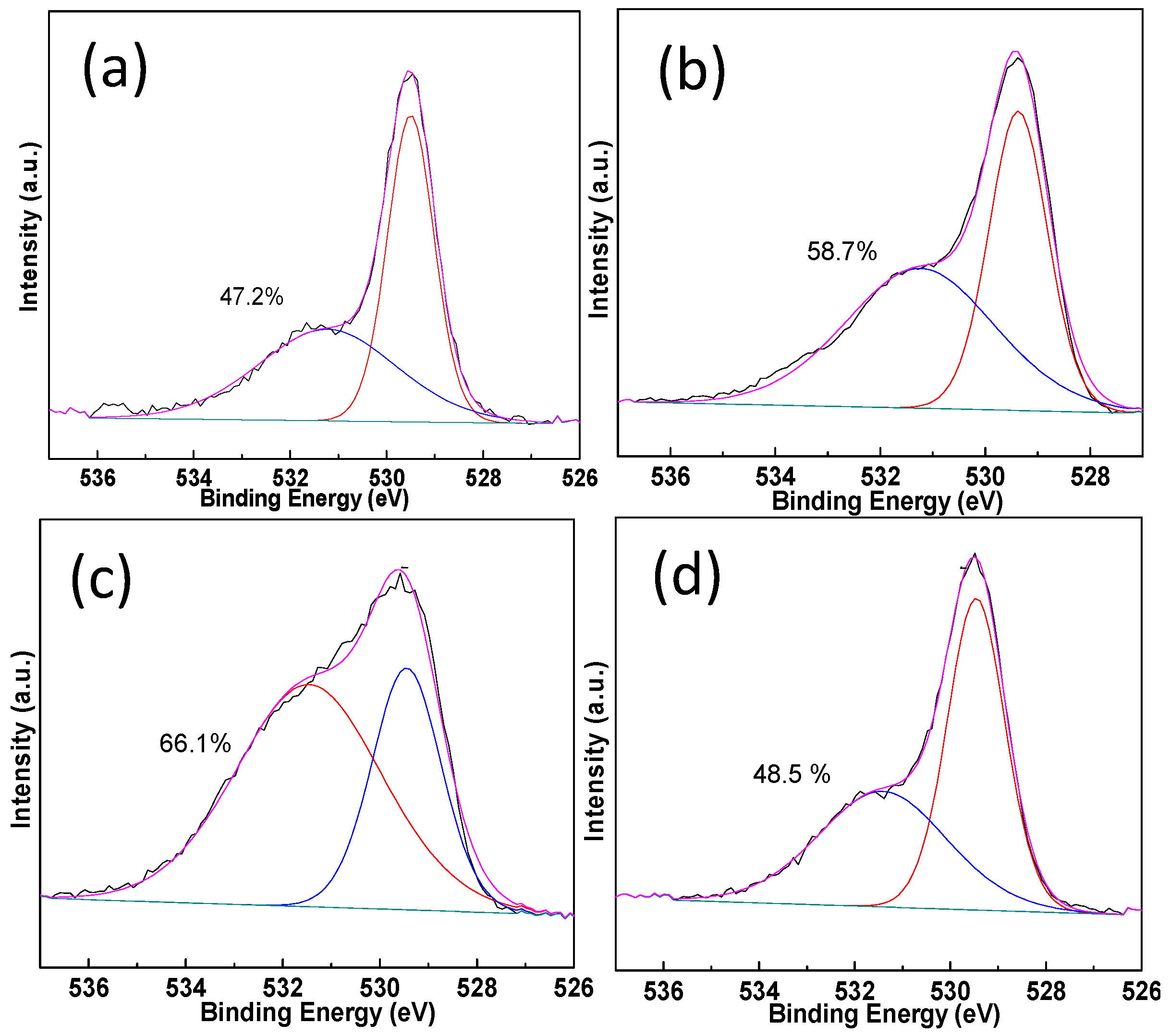

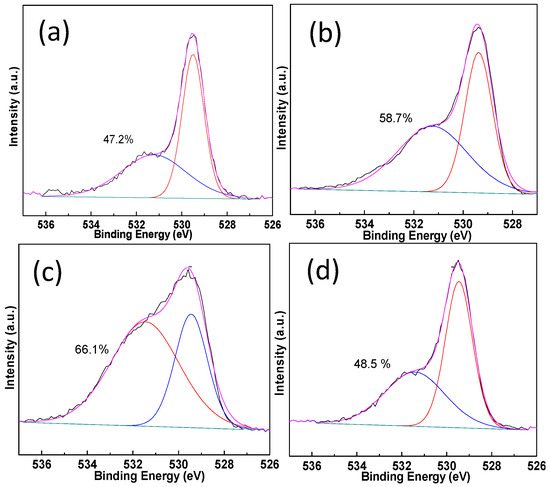

Figure 8. O1s XPS spectra and OII ratios of Pt-Au/MOx-CeO2 catalysts: (a) Pt-Au/CeO2; (b) Pt-Au/Fe2O3-CeO2; (c) Pt-Au/MnO2-CeO2; (d) Pt-Au/TiO2-CeO2.
Figure 8. O1s XPS spectra and OII ratios of Pt-Au/MOx-CeO2 catalysts: (a) Pt-Au/CeO2; (b) Pt-Au/Fe2O3-CeO2; (c) Pt-Au/MnO2-CeO2; (d) Pt-Au/TiO2-CeO2.
Molecules 22 00351 g008

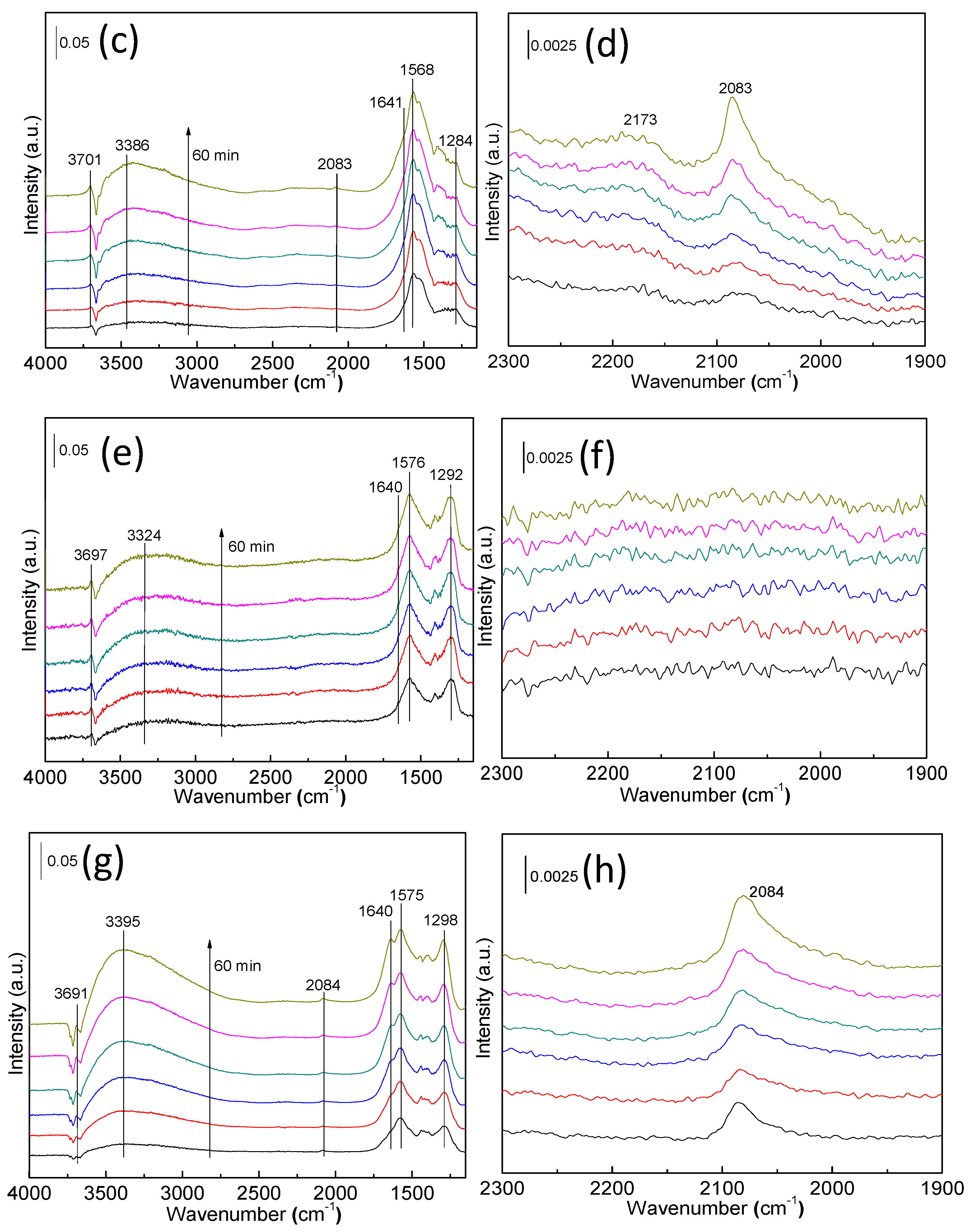

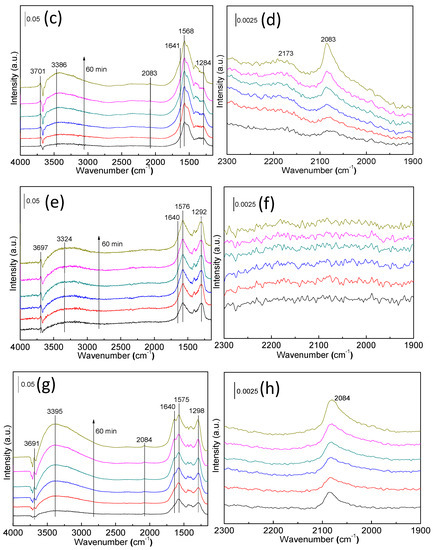

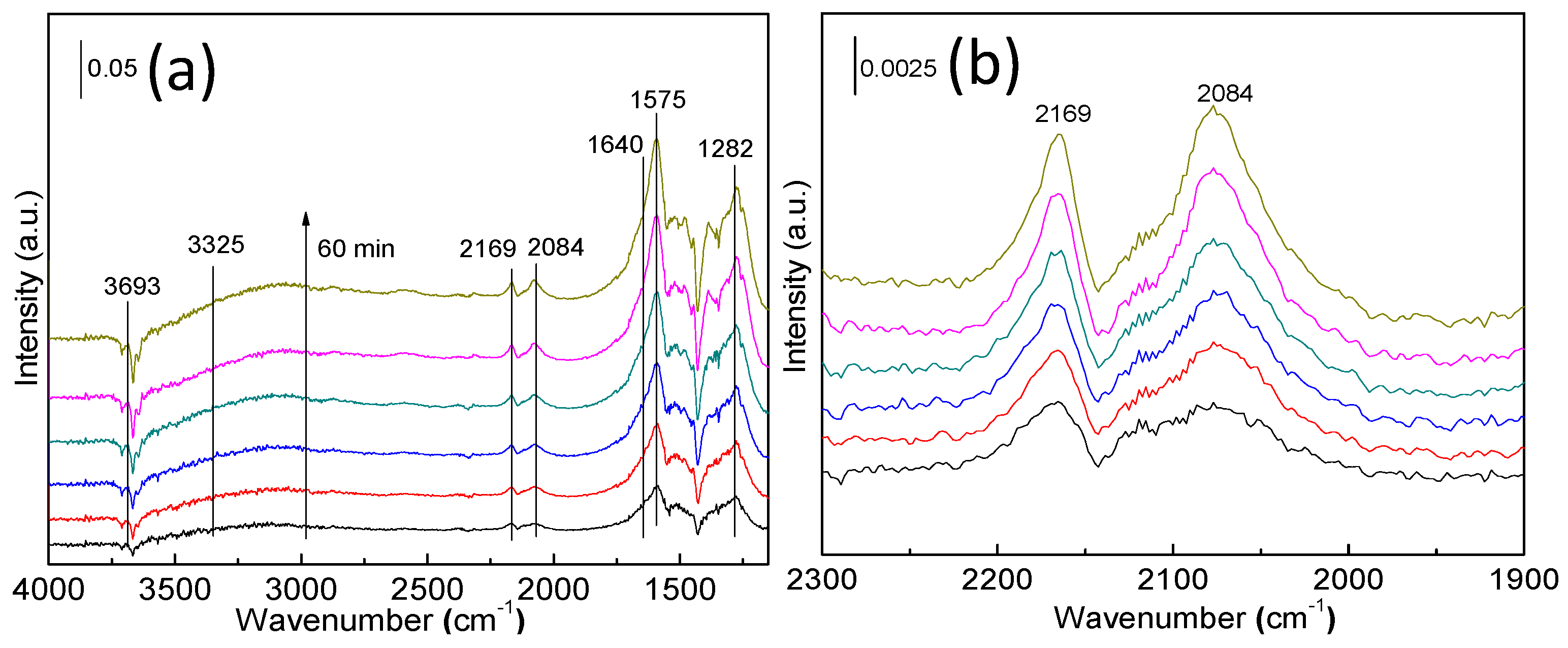

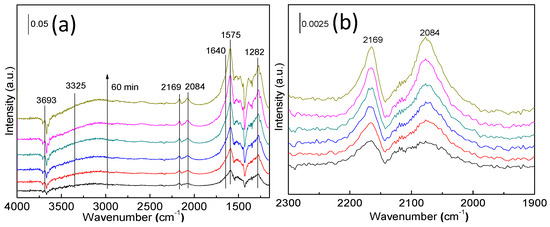

Figure 9. In-situ DRIFT spectra of the Pt-Au/MOx-CeO2 catalysts after exposed upon 3000 ppm CO + 3000 pm H2 + synthetic air for 60 min at 25 °C: (a,b) Pt-Au/CeO2; (c,d) Pt-Au/Fe2O3-CeO2; (e,f) Pt-Au/MnO2-CeO2; (g,h) Pt-Au/TiO2-CeO2.
Figure 9. In-situ DRIFT spectra of the Pt-Au/MOx-CeO2 catalysts after exposed upon 3000 ppm CO + 3000 pm H2 + synthetic air for 60 min at 25 °C: (a,b) Pt-Au/CeO2; (c,d) Pt-Au/Fe2O3-CeO2; (e,f) Pt-Au/MnO2-CeO2; (g,h) Pt-Au/TiO2-CeO2.
Molecules 22 00351 g009aMolecules 22 00351 g009b

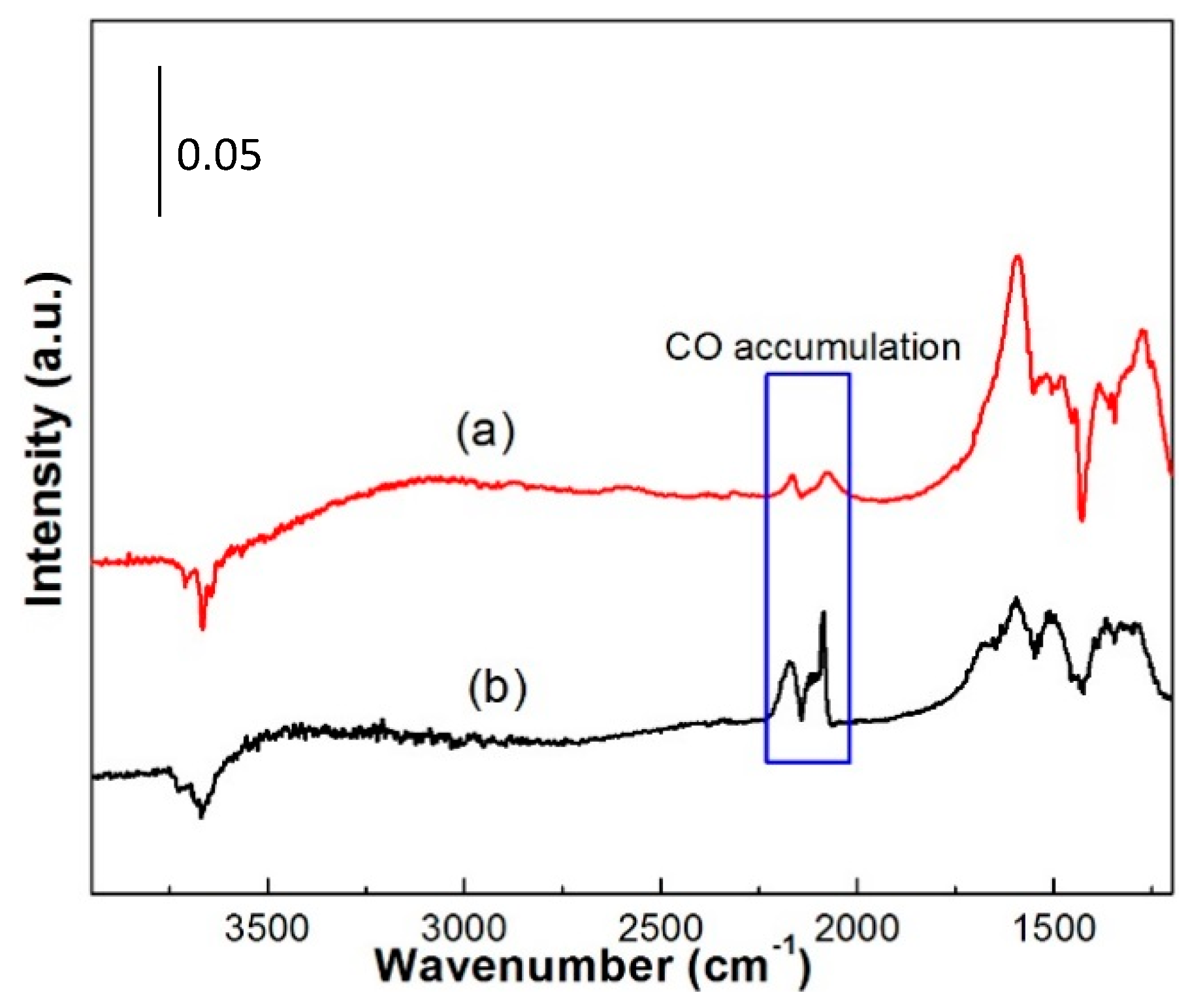

Figure 10. In-situ DRIFTS spectra of the Pt-Au/CeO2 catalysts after exposed upon: (a) 3000 ppm CO + 3000 ppm H2 + synthetic air; and (b) 3000 ppm CO + N2 for 60 min at 25 °C.
Figure 10. In-situ DRIFTS spectra of the Pt-Au/CeO2 catalysts after exposed upon: (a) 3000 ppm CO + 3000 ppm H2 + synthetic air; and (b) 3000 ppm CO + N2 for 60 min at 25 °C.
Molecules 22 00351 g010

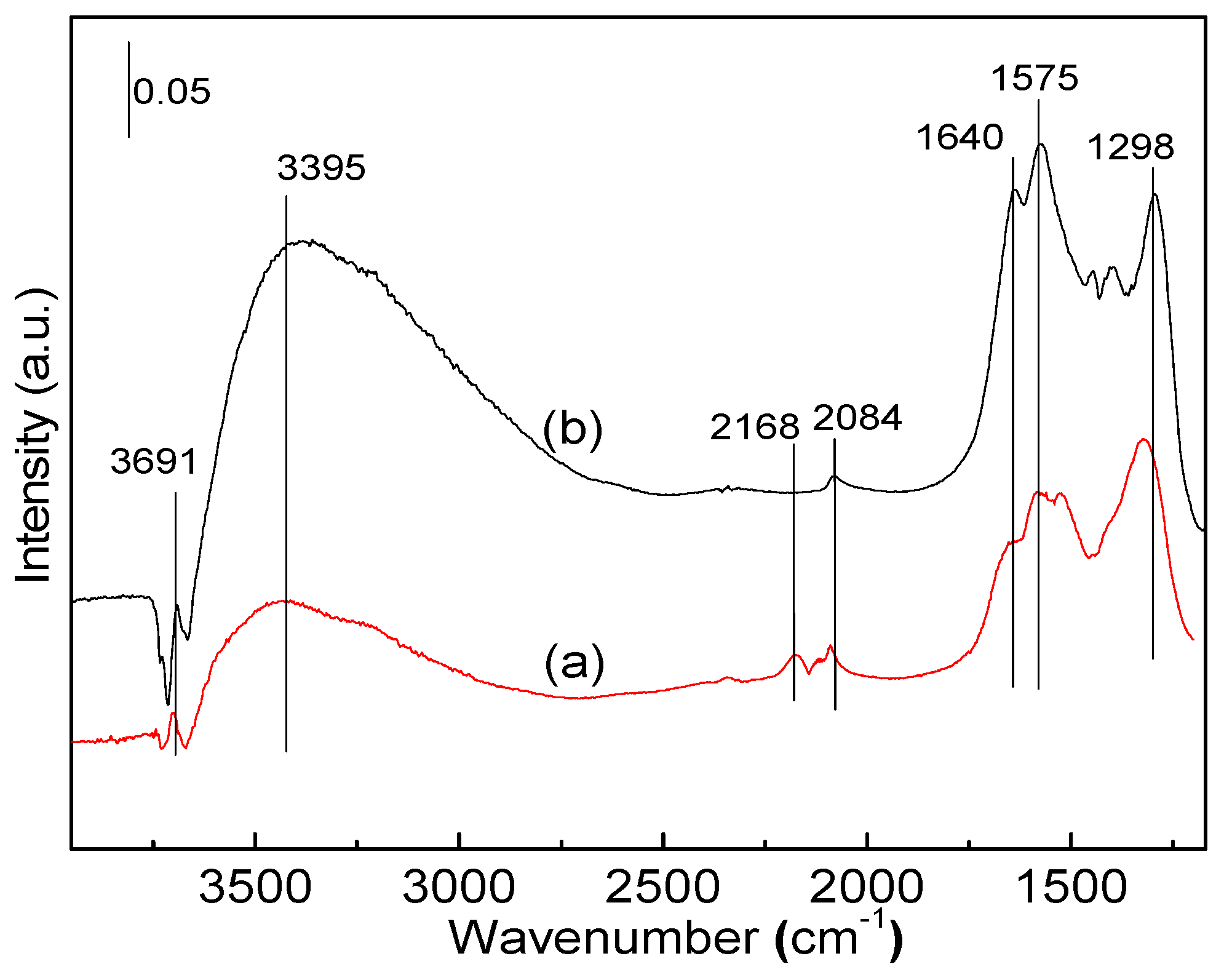

Figure 11. In-situ DRIFTS spectra over Pt-Au/TiO2-CeO2 catalysts after exposed upon: (a) 5000 ppm CO + 3000 ppm H2 + synthetic air; and (b) 3000 ppm CO + 3000 pm H2 + synthetic air for 60 min at 25 °C.
Figure 11. In-situ DRIFTS spectra over Pt-Au/TiO2-CeO2 catalysts after exposed upon: (a) 5000 ppm CO + 3000 ppm H2 + synthetic air; and (b) 3000 ppm CO + 3000 pm H2 + synthetic air for 60 min at 25 °C.
Molecules 22 00351 g011
Table 1. Chemical composition and textural properties of Pt-Au/MOx-CeO2 catalysts.
Table 1. Chemical composition and textural properties of Pt-Au/MOx-CeO2 catalysts.
CatalystBET Surface Area (m2/g)Dispersionof Noble MetalSurface Composition (wt %)
PtAu
Pt-Au/CeO2156.456.3%0.460.51
Pt-Au/Fe2O3-CeO2125.855.7%0.440.48
Pt-Au/MnO2-CeO2119.755.1%0.470.47
Pt-Au/TiO2-CeO2131.355.7%0.460.52
Table 2. XPS data analysis of Pt-Au/MOx-CeO2 catalysts.
Table 2. XPS data analysis of Pt-Au/MOx-CeO2 catalysts.
CatalystPt SpeciesContent (at. %)Au SpeciesContent (at. %)Ce3+ Species Content (at. %)
Pt-Au/CeO2Pt2+ (72.5 eV)0Au0 (83.7 eV)66.634.7
Pt0 (70.7 eV)100Au+ (84.5 eV)33.4
Pt-Au/Fe2O3-CeO2Pt0 (70.7 eV)77.7Au0 (83.6 eV)44.440.9
Pt2+ (72.5 eV)23.3Au+ (84.5 eV)55.6
Pt-Au/MnO2-CeO2Pt0(70.7 eV)67.5Au0 (83.6 eV)18.441.1
Pt2+ (72.5 eV)32.5Au+ (84.5 eV)81.6
Pt-Au/TiO2-CeO2Pt2+ (72.5 eV)0Au0 (83.4 eV)59.236.7
Pt0 (70.7 eV)100Au+ (84.5 eV)40.8
