Article

The Structure-Activity Relationship of Pterostilbene Against Candida albicans Biofilms

1
New Drug Research and Development Center, School of Pharmacy, Second Military Medical University, Shanghai 200433, China
2
School of Pharmaceutical Sciences, Sun Yat-sen University, Guangzhou 510006, China
3
School of Chemistry and Chemical Engineering, Yan’an University, Yan’an 716000, China
4
ZhongshanWanYuan New Drug R & D Co., Ltd., Zhongshan 528451, China
*
Authors to whom correspondence should be addressed.
Molecules 2017, 22(3), 360; https://doi.org/10.3390/molecules22030360
Submission received: 5 November 2016 / Revised: 12 February 2017 / Accepted: 22 February 2017 / Published: 27 February 2017
(This article belongs to the Special Issue Structure-Activity Relationship of Natural Products)

Abstract

:
Candida albicans biofilms contribute to invasive infections and dramatic drug resistance, and anti-biofilm agents are urgently needed in the clinic. Pterostilbene (PTE) is a natural plant product with potentials to be developed as an anti-biofilm agent. In this study, we evaluated the structure-activity relationship (SAR) of PTE analogues against C. albicans biofilms. XTT (Sodium 2,3-bis(2-methoxy-4-nitro-5-sulfophenyl)-2H-tetrazolium-5-carboxanilide inner salt) reduction assay was used to evaluate the activity of the analogues against C. albicans biofilms. Knowing that hyphal formation is essential for C. albicans biofilms, anti-hyphal assay was further carried out. By comparing a series of compounds tested in this study, we found that compounds with para-hydroxy (–OH) in partition A exhibited better activity than those with other substituents in the para position, and the double bond in partition B and meta-dimethoxy (–OCH3) in partition C both contributed to the best activity. Consistent results were obtained by anti-hyphal assay. Collectively, para-hydroxy (–OH), double bond and meta-dimethoxy (–OCH3) are all needed for the best activity of PTE against C. albicans biofilms.

1. Introduction

Candida albicans is one of the most common human fungal pathogens. It can cause superficial to life-threatening infections, especially in immune-compromised patients. Notably, C. albicans can develop biofilms on the surface of medical implant devices [1,2]. Biofilms are microbial communities with three-dimensional structure [3], and hyphae are essential for C. albicans biofilms [4]. The formation of biofilms increased resistance of C. albicans to antifungal agents, as well as host immune defenses [5,6]. Additionally, the biofilms on medical devices contribute to repeated infections and may lead to the failure of implant operations [7].
Antifungal drugs with anti-biofilm activity are very limited in the clinic, and anti-biofilm drugs are urgently needed [8]. In our previous study, we found that pterostilbene (PTE) had a strong bioactivity against C. albicans biofilms, and might serve as a lead compound to develop anti-biofilm drugs [9]. PTE (Figure 1) is a stilbene-derived phytoalexin that originates from several natural plant sources, such as Pterocarpusmarsupium (the Indian kino tree), Pterocarpus santalinus (red sandal wood), Vitis vinifera (common grape vine), and Vaccinium ashei (rabbiteye blueberry) [10]. In this study, we investigated the structure-activity relationship (SAR) of PTE against C. albicans biofims.

2. Results

2.1. In the Para Position of Partition A, Hydroxy (–OH) Takes Advantages over Other Substituents

To better understand the SAR of PTE, we investigated several partitions of PTE. Partition A contains 4-hydroxy benzene, partition B is a double bond, and partition C contains 3,5-dimethoxy benzene (Figure 1).
The structures of analogues C1–C5, B1 and B2 are similar with PTE, and differences only exist in partition A. In C4, a hydroxy is added to the 5’ position of partition A. In C1, C2, C3, B1, and B2, 4’-para-hydroxy is changed to 4’-para-methoxy, 4’-para-acetoxy, 4’-para-amino, 4’-para-disodium phosphate, and 4’-para-7-oxabicyclo[2.2.1]heptane-2-carboxylic acid-3-amido, respectively. In C5, a furan ring replaces partition A (Figure 2A).
RPMI 1640 (Gibco, Bethesda, MD, USA) medium is the most commonly used medium in C. albicans biofilm studies [11], and was used in this work. In RPMI 1640 medium, PTE exhibited good activity against C. albicans biofilm formation. At the concentration as low as 2 μg/mL, PTE significantly inhibited biofilm formation, and its SMIC80 was determined at 16 μg/mL (Table 1). C4 also exhibited activity against biofilm formation with the SMIC80 being 32–64 μg/mL. In contrast, without para-hydroxy, C1, C2, C3, B1, and B2 lost the activityin at all the concentrations tested in this study, from 0.5 μg/mL to 64 μg/mL. Similarly, C5 hardly repressed biofilm formation (Figure 2B). Consistently, PTE exhibited activity against pre-formed mature biofilms with SMIC80 being 128 μg/mL. C4 exhibited weaker activity with SMIC80 being 512 μg/mL. C1, C2, C3, B1, B2, and C5 had no inhibitory activity on mature biofilm (Table 1). Since only C4 and PTE have para-hydroxy, we inferred that para-hydroxy (–OH) in partition A took advantages over other substituents.
Knowing that hyphal formation is essential for C. albicans biofilms, anti-hyphal assay was used to confirm the effects of the compounds on biofilm formation. RPMI 1640 medium and Spider medium are used as hyphal-inducing media, and C. albicans can form hyphae in both media (Figure 3). In accordance with the biofilm results, PTE inhibited hyphal formation in both RPMI 1640 and Spider media, and the cells were all yeast-like with 16 μg/mL PTE treatment (Figure 3, Table S2). C4 inhibited hyphal formation in a concentration-dependent manner, and the cells were all yeast-like with 64 μg/mL C4 treatment. C1, C2, C3, B1, and B2 could not inhibit hyphal formation effectively (Figure 3, Table S2). More specifically, most C. albicans formed >40 μm hyphae even with 64 μg/mL C1, B1, or B2 in both media. With high concentrations of C2 or C3 (8–64 μg/mL) in Spider medium, most C. albicans cells formed pseudohyphae instead of hyphae. In RPMI 1640 medium, about 30%–40% cells formed long hyphae (≥40 μm) even with 64 μg/mL C2 or C3. The effect of C5 on hyphal formation was weak. More specifically, even with 64 μg/mL C5 in RPMI 1640 medium, about 83% cells formed long hyphae (≥40 μm). In Spider medium, the activity of C5 was also weak. Only at the highest concentration tested in this study, 64 μg/mL, C5 affected hyphal formation and most cells formed pseudohyphae (Figure 3, Table S2). Collectively, hyphal formation results were consistent with the findings in biofilm formation assay.

2.2. In Partition B, the Double Bond Contributes to the Best Activity

Analogues C6, B3, C7, and B4 are different from PTE in partition B. In C6, a single bond replaces the double bond of PTE. In B3 and C7, a furan ring and an unsaturated lactone replaces the double bond of PTE respectively. In B4, the double bond still exists, while partition A and partition B form a cyclic ester (Figure 4A). C6 maintained the activity against biofilm formation, while the activity was a little weaker than PTE. More specifically, 8 μg/mL C6 could inhibit biofilm formation significantly (Figure 4B; p < 0.05) and the SMIC80 of C6 was 64 μg/mL (Table 1). B3 showed inhibitory activity against biofilm formation almost as strong as PTE, with MIC80 being 32 μg/mL. C7 exhibited very weak activity against biofilm formation, and 60% biofilm maintained even at 64 μg/mL. No inhibitory activity was observed of B4 (Figure 4B). Consistent results were obtained in mature biofilm assay. C6 and B3 had a SMIC80 of 512 and 128–256 μg/mL, respectively. C7 and B4 showed no obvious inhibitory effect on mature biofiom (Table 1). It can be inferred that the double bond contributed to the best activity of PTE.
In the hyphal formation assay, C6 inhibited hyphal formation in a concentration-dependent manner in both media tested. With 32 μg/mL C6 treatment, 85% cells could not form long hyphae (≥40 μm) in RPMI 1640 medium, and all cells stayed as yeast in Spider medium. B3 was also effective and showed almost the same anti-hyphal activity as PTE. C7 and B4 hardly showed anti-hyphal activity (Figure 4C, Table S2). These results were consistent with the findings in biofilm formation assay.

2.3. In Partition C, Meta-Dimethoxy (–OCH3) Contributes to the Best Activity

The differences between analogue B6, B5, C8, C9, and PTE only exist in partition C. In B6, only 3-methoxy is reserved. In B5, 3-hydroxy-5-methoxy replaces meta-dimethoxy. In C8 and C9, 3,5-meta-dimethoxy is changed to 3,5-meta-dihydroxy and 3,4,5-trimethoxy, respectively (Figure 5A). B6 showed inhibitory activity against biofilm formation with SMIC80 being 64 μg/mL. B5 also showed inhibitory activity at high concentrations, but its activity is significantly weaker than PTE (p = 0.041). No obvious inhibitory activity was observed of C8 and C9 (Figure 5B). Consistent results were obtained in investigations on mature biofilms (Table 1). It can be inferred that the compound with meta-dimethoxy (–OCH3) contributes to the best inhibitory activity.
In accordance with the biofilm results, B6 and B5 obviously inhibited hyphal formation at high concentrations. With 32 μg/L B6 treatment, most C. albicans cells were yeast-like. With 64 μg/mL B5 treatment, few cells could form long hyphae (≥40 μm) in media tested in this study. C8 and C9 could not effectively inhibit hyphal formation even at 64 μg/mL (Figure 5C, Table S2). Both anti-biofilm assay and anti-hyphal assay results indicated that meta-dimethoxy was very important for the anti-biofilm formation activity.

3. Discussion and Conclusion

In this study, we evaluated the SAR of PTE analogues against C. albicans biofilms.The structure of PTE was divided into three partitions: partition A contains 4-hydroxy benzene, partition B is a double bond, and partition C contains 3,5-dimethoxy benzene. By comparing a series of compounds including PTE, we found that, in partition A, para-hydroxy (–OH) took advantage over other substituents, and the double bond in partition B and the meta-dimethoxy (–OCH3) in partition C contributed to the best activity.
Regarding partition A, once hydroxy (–OH) was replaced by other substituents, the activity against biofilms disappeared. It could be inferred that para-hydroxy (–OH) was important for the activity of PTE analogues. Regarding partition B, when the double bond was changed to a single bond (C6), the activity became weakened, indicating that the double bond contributed to the best activity. Interestingly, when the double bond became a part of a furan ring (B3), the compound showed almost the same inhibitory activity against biofilms as PTE. However, when the double bond became a part of an unsaturated lactone (C7), or partition A and partition B formed cyclic ester (B4), the activity was almost lost. We analyzed the structure of the compounds, and found that the double bond in PTE and B3 might help them to maintain the planarity. In contrast, in C7 and B4, although the double bond still existed, the formed ester might disrupt the planarity of the structure. Thereby, it could be inferred that the planarity in the center region of the compounds was helpful for their activities. Of note, we used E-type PTE to carry out all of the experiments because compounds in the Z-type are unstable. Moreover, Venera Cardilehad reported that E-stilbene was more active than its Z-isomer in most of the reported bioassays [12]. Regarding partition C, whether we added the number of methoxy (–OCH3) or changed methoxy (–OCH3) to hydroxy (–OH), the activity was weakened, suggesting that meta-dimethoxy (–OCH3) contributed to the best activity. Resveratrol (3,4’,5-trihydroxystilbene) is an analogue of PTE, and Francesco Carusohad tested the antifungal activity of resveratrol and its analogues against Botrytis cinerea, a facultative phytopathogenic fungus [13]. Notably, they also found that analogues with methoxy group (including PTE) exhibited better activity compared with resveratrol. Both our finding and Francesco Caruso’s suggested that the presence of methoxy groups might improve the antifungal activity of stilbene derivatives. However, previous findings also indicated that compounds with three methoxy groups were less active than the compounds with dimethoxy, because their demethoxylation was incomplete [13,14]. Methoxylation is an important molecular feature for membrane penetration, while subsequent demethoxylation may be necessary to make hydroxyls available for increasing antifungal activity [15]. Collectively, meta-dimethoxy (–OCH3) contributed to the best activity. In a word, SAR study in this work demonstrates that the activity of PTE analogues against biofilms is strongly associated with their structures.
We used XTT reduction assay to evaluate the anti-biofilm activity of the compounds, and anti-hyphal assay to confirm the results. Hyphae are widely known to be essential for maturely-developed biofilms [16]. The conclusion is supported by many findings. Firstly, hyphae are essential elements for providing the structural integrity and multilayered architecture characteristics of maturely developed biofilms [17]. Secondly, biofilms with a hyphal content of >50 % possessed significantly higher compressive strength and were more difficult to destroy by vortexing and sonication than biofilms with a lower hyphal content [18]. Thirdly, C. albicans deletion mutant with filamentation defect formed poor biofilms, lacking a three-dimensional structure and composed mainly of sparse monolayers of elongated cells [19]. In accordance, consistent results were obtained through biofilm experiments and hypha-inducing experiments. Moreover, the results obtained by anti-hyphal assay really confirmed the findings through anti-biofilm assays in this work.
Although the results obtained by anti-biofilm assay and anti-hyphal assay were consistent in general, compounds were easier to exhibit anti-hyphal activity in Spider medium compared with RPMI 1640 medium. In accordance, Karla J. Daniels found that biofilms formed in RPMI 1640 medium and Spider medium differed in cellular architecture, matrix deposition, penetrability by leukocytes, fluconazole susceptibility, and the facilitation of mating [20]. Moreover, RPMI 1640 and Spider media might activate different regulatory pathways [20,21]. From the findings in this study, the hyphal formation in RPMI 1640 medium was relatively more difficult to inhibit. Nevertheless, PTE, and its analogues C4, C6, B3, B5, and B6, inhibited hyphal formation in a concentration-dependent manner in all the media tested.
In conclusion, para-hydroxy (–OH) takes advantages over other substituents, double bonds, and meta-dimethoxy (–OCH3) contribute to the best activity of PTE against C. albicans biofilms. These findings may aid the development of drugs for biofilm treatment.

4. Materials and Methods

4.1. Strains, Culture, and Agents

C. albicans strain SC5314 is a most widely used clinical strain in the Candida research field [22,23] and was used in this study. SC5314 was routinely grown in YPD (1% yeast extract, 2% peptone, and 2% dextrose) liquid medium at 30 °C in a shaking incubator [24]. PTE and other analogues were synthesized by ZhongshanWanYuan New Drug R & D Co., Ltd. (Zhongshan, China) [25,26,27]. The level of purity of the synthesized analogues is ≥99% by HPLC (ZhongshanWanYuan New Drug R & D Co., Ltd., Zhongshan, China). For in vitro experiments, 6.4 mg/mL agents in DMSO were used as a stock and added to the culture suspensions to obtain the required concentrations. Other media included Spider and RPMI 1640 medium [28].

4.2. In vitro Biofilm Formation Assay

The assay was performed according to the method described previously [29] with slight modifications. Briefly, biofilm formation assay was performed in a 96-well tissue culture plate (Corning, cat. No. 3599) by seeding 100 μL cell suspension (1.0 × 106 cells/mL) in selected wells in RPMI 1640 medium (Gibco, Bethesda, MD, USA), and incubating them statically at 37 °C. After 90-min adhesion, the medium was discarded, non-adherent cells were removed, and fresh RPMI 1640 medium was added. To detect the effect of different analogues on the formation of biofilms, different concentrations of analogues were added to the fresh RPMI 1640 medium after 90-min adhesion, and incubated at 37 °C for 24 h. To detect the effect of PTE and analogues on mature biofilms, C. albicans biofilms were formed at 37 °C for 24 h as described above. The biofilm supernatant was then discarded and fresh RPMI 1640 medium containing different concentrations of PTE or analogues was added. The plate was incubated at 37 °C for additional 24 h to observe the anti-biofilm effect [30]. A semiquantitative measure of the formed biofilms was calculated using an XTT reduction assay [31]. Each analogue was tested in triplicate. SMIC80 were determined as the lowest concentration of the compound that inhibited biofilm formation by 80%.

4.3. Hyphal Formation Assay

Hyphal formation assay was carried out to determine the ability of different analogues to inhibit C. albicans yeast-to-hyphal transition [32]. Briefly, C. albicans cells were harvested and washed with PBS. Spider and RPMI 1640 liquid media were used seperately in the following hyphal-inducing experiment. 1 × 106 cells/mL C. albicans were suspended in hyphal-inducing medium. Cell suspensions with different concentrations of compounds were added to 12-well plates. The plates were incubated at 37 °C for 3 h, and photos were taken on the AMG EVOS x 1 (Amersham Pharmacia, Pittsburgh, PA, USA).

Supplementary Materials

Supplementary materials are available online.

Acknowledgments

This work was supported by National Natural Science Foundation of China (81273558), major project of National Natural Science Foundation of China (81330083), Shanghai Pujiang Program (14PJD001), the Key Project of Guangdong Natural Science Foundation (2016A030311033), the Science and Technology Programe of Guangzhou City (201505041557046), and the Innovative Scientific Research Team Introducing Project of Zhongshan City (2015-224).

Author Contributions

Designed the experiments: Yan Wang, Yuan-Ying Jiang; Obtained funding: Yan Wang, Yuan-Ying Jiang, Yong Zou; Performed the experiments: Dan-Dan Hu, Ri-Li Zhang, Hua Zhong, En-Sheng Zhang, Xiang Luo; Analyzed the data: Dan-Dan Hu; Provided reagents: En-ShengZhang, Yong Zou; Wrote the paper: Yan Wang, Dan-Dan Hu.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Chandra, J.; Kuhn, D.M.; Mukherjee, P.K.; Hoyer, L.L.; McCormick, T.; Ghannoum, M.A. Biofilm formation by the fungal pathogen Candida albicans: Development, architecture, and drug resistance. J. Bacteriol. 2001, 183, 5385–5394. [Google Scholar] [CrossRef] [PubMed]
  2. Sherry, L.; Rajendran, R.; Lappin, D.F.; Borghi, E.; Perdoni, F.; Falleni, M.; Tosi, D.; Smith, K.; Williams, C.; Jones, B.; et al. Biofilms formed by Candida albicans bloodstream isolates display phenotypic and transcriptional heterogeneity that are associated with resistance and pathogenicity. BMC Microbiol. 2014, 14. [Google Scholar] [CrossRef] [PubMed]
  3. Weerasekera, M.M.; Wijesinghe, G.K.; Jayarathna, T.A.; Gunasekara, C.P.; Fernando, N.; Kottegoda, N.; Samaranayake, L.P. Culture media profoundly affect Candida albicans and candida tropicalis growth, adhesion and biofilm development. Mem. Inst. Oswaldo Cruz. 2016, 111, 697–702. [Google Scholar] [CrossRef] [PubMed]
  4. Rajendran, R.; May, A.; Sherry, L.; Kean, R.; Williams, C.; Jones, B.L.; Burgess, K.V.; Heringa, J.; Abeln, S.; Brandt, B.W.; et al. Integrating Candida albicans metabolism with biofilm heterogeneity by transcriptome mapping. Sci. Rep. 2016, 6. [Google Scholar] [CrossRef] [PubMed]
  5. Alexander, B.D.; Perfect, J.R. Antifungal resistance trends towards the year 2000. Implications for therapy and new approaches. Drugs 1997, 54, 657–678. [Google Scholar] [CrossRef] [PubMed]
  6. Ramage, G.; Vandewalle, K.; Wickes, B.L.; Lopez-Ribot, J.L. Characteristics of biofilm formation by Candida albicans. Rev. Iberoam. Micol. 2001, 18, 163–170. [Google Scholar] [PubMed]
  7. Ramage, G.; Saville, S.P.; Thomas, D.P.; Lopez-Ribot, J.L. Candida biofilms: An update. Eukaryot. Cell 2005, 4, 633–638. [Google Scholar] [CrossRef] [PubMed]
  8. Tobudic, S.; Lassnigg, A.; Kratzer, C.; Graninger, W.; Presterl, E. Antifungal activity of amphotericin b, caspofungin and posaconazole on Candida albicans biofilms in intermediate and mature development phases. Mycoses 2010, 53, 208–214. [Google Scholar] [CrossRef] [PubMed]
  9. Li, D.D.; Zhao, L.X.; Mylonakis, E.; Hu, G.H.; Zou, Y.; Huang, T.K.; Yan, L.; Wang, Y.; Jiang, Y.Y. In vitro and in vivo activities of pterostilbene against Candida albicans biofilms. Antimicrob. Agents Chemother. 2014, 58, 2344–2355. [Google Scholar] [CrossRef] [PubMed]
  10. Remsberg, C.M.; Yanez, J.A.; Ohgami, Y.; Vega-Villa, K.R.; Rimando, A.M.; Davies, N.M. Pharmacometrics of pterostilbene: Preclinical pharmacokinetics and metabolism, anticancer, antiinflammatory, antioxidant and analgesic activity. Phytother. Res. 2008, 22, 169–179. [Google Scholar] [CrossRef] [PubMed]
  11. Sudbery, P.E. Growth of Candida albicans hyphae. Nat. Rev. Microbiol. 2011, 9, 737–748. [Google Scholar] [CrossRef] [PubMed]
  12. Cardile, V.; Chillemi, R.; Lombardo, L.; Sciuto, S.; Spatafora, C.; Tringali, C. Antiproliferative activity of methylated analogues of e- and z-resveratrol. Z. Naturforsch. C 2007, 62, 189–195. [Google Scholar] [CrossRef] [PubMed]
  13. Caruso, F.; Mendoza, L.; Castro, P.; Cotoras, M.; Aguirre, M.; Matsuhiro, B.; Isaacs, M.; Rossi, M.; Viglianti, A.; Antonioletti, R. Antifungal activity of resveratrol against botrytis cinerea is improved using 2-furyl derivatives. PLoS ONE 2011, 6, e25421. [Google Scholar] [CrossRef] [PubMed]
  14. Roberti, M.; Pizzirani, D.; Simoni, D.; Rondanin, R.; Baruchello, R.; Bonora, C.; Buscemi, F.; Grimaudo, S.; Tolomeo, M. Synthesis and biological evaluation of resveratrol and analogues as apoptosis-inducing agents. J. Med. Chem. 2003, 46, 3546–3554. [Google Scholar] [CrossRef] [PubMed]
  15. Voda, K.; Boh, B.; Vrtacnik, M. A quantitative structure-antifungal activity relationship study of oxygenated aromatic essential oil compounds using data structuring and pls regression analysis. J. Mol. Model. 2004, 10, 76–84. [Google Scholar] [CrossRef] [PubMed]
  16. An, D.; Wang, X.; Li, J.; Jiang, S.; Ma, X.; Zhang, H.; Shi, H.; Sun, H.; Ye, L. The activity of fungichromin against the formation of Candida albicans biofilm. Biol. Pharm. Bull. 2016, 39, 1948–1954. [Google Scholar] [CrossRef] [PubMed]
  17. Baillie, G.S.; Douglas, L.J. Role of dimorphism in the development of Candida albicans biofilms. J. Med. Microbiol. 1999, 48, 671–679. [Google Scholar] [CrossRef] [PubMed]
  18. Paramonova, E.; Krom, B.P.; van der Mei, H.C.; Busscher, H.J.; Sharma, P.K. Hyphal content determines the compression strength of Candida albicans biofilms. Microbiology 2009, 155, 1997–2003. [Google Scholar] [CrossRef] [PubMed]
  19. Lee, J.A.; Robbins, N.; Xie, J.L.; Ketela, T.; Cowen, L.E. Functional genomic analysis of Candida albicans adherence reveals a key role for the arp2/3 complex in cell wall remodelling and biofilm formation. PLoS Genet 2016, 12, e1006452. [Google Scholar] [CrossRef] [PubMed]
  20. Daniels, K.J.; Park, Y.N.; Srikantha, T.; Pujol, C.; Soll, D.R. Impact of environmental conditions on the form and function of Candida albicans biofilms. Eukaryot. Cell 2013, 12, 1389–1402. [Google Scholar] [CrossRef] [PubMed]
  21. Nobile, C.J.; Fox, E.P.; Nett, J.E.; Sorrells, T.R.; Mitrovich, Q.M.; Hernday, A.D.; Tuch, B.B.; Andes, D.R.; Johnson, A.D. A recently evolved transcriptional network controls biofilm development in Candida albicans. Cell 2012, 148, 126–138. [Google Scholar] [CrossRef] [PubMed]
  22. Bozo, A.; Doman, M.; Majoros, L.; Kardos, G.; Varga, I.; Kovacs, R. The in vitro and in vivo efficacy of fluconazole in combination with farnesol against Candida albicans isolates using a murine vulvovaginitis model. J. Microbiol. 2016, 54, 753–760. [Google Scholar] [CrossRef] [PubMed]
  23. Morici, P.; Fais, R.; Rizzato, C.; Tavanti, A.; Lupetti, A. Inhibition of Candida albicans biofilm formation by the synthetic lactoferricin derived peptide hlf1-11. PLoS ONE 2016, 11, e0167470. [Google Scholar] [CrossRef] [PubMed]
  24. Zhao, L.X.; Li, D.D.; Hu, D.D.; Hu, G.H.; Yan, L.; Wang, Y.; Jiang, Y.Y. Effect of tetrandrine against Candida albicans biofilms. PLoS ONE 2013, 8, e79671. [Google Scholar] [CrossRef] [PubMed]
  25. Nalli, M.; Ortar, G.; Moriello, A.S.; Morera, E.; Di Marzo, V.; De Petrocellis, L. Trpa1 channels as targets for resveratrol and related stilbenoids. Bioorg. Med. Chem. Lett. 2016, 26, 899–902. [Google Scholar] [CrossRef] [PubMed]
  26. Zou, Y.; Huang, Q.; Huang, T.K.; Ni, Q.C.; Zhang, E.S.; Xu, T.L.; Yuan, M.; Li, J. CuI/1,10-phen/PEG promoted decarboxylation of 2,3-diarylacrylic acids: Synthesis of stilbenes under neutral and microwave conditions with an in situ generated recyclable catalyst. Org. Biomol. Chem. 2013, 11, 6967–6974. [Google Scholar] [CrossRef] [PubMed]
  27. Xu, T.; Zhang, E.; Wang, D.; Wang, Y.; Zou, Y. Cu-catalyzed consecutive hydroxylation and aerobic oxidative cycloetherification under microwave conditions: Entry to 2-arylbenzofuran-3-carboxylic acids. J. Org. Chem. 2015, 80, 4313–4324. [Google Scholar] [CrossRef] [PubMed]
  28. Kuykendall, R.J.; Lockhart, S.R. Microbroth dilution susceptibility testing of candida species. Methods Mol. Biol. 2016, 1356, 173–181. [Google Scholar] [PubMed]
  29. Pierce, C.G.; Uppuluri, P.; Tristan, A.R.; WormLey, F.L., Jr.; Mowat, E.; Ramage, G.; Lopez-Ribot, J.L. A simple and reproducible 96-well plate-based method for the formation of fungal biofilms and its application to antifungal susceptibility testing. Nat. Protoc. 2008, 3, 1494–1500. [Google Scholar] [CrossRef] [PubMed]
  30. Ramage, G.; Vande Walle, K.; Wickes, B.L.; Lopez-Ribot, J.L. Standardized method for in vitro antifungal susceptibility testing of Candida albicans biofilms. Antimicrob. Agents Chemother. 2001, 45, 2475–2479. [Google Scholar] [CrossRef] [PubMed]
  31. Cao, Y.; Dai, B.; Wang, Y.; Huang, S.; Xu, Y.; Gao, P.; Zhu, Z.; Jiang, Y. In vitro activity of baicalein against Candida albicans biofilms. Int. J. Antimicrob. Agents 2008, 32, 73–77. [Google Scholar] [CrossRef] [PubMed]
  32. Maidan, M.M.; De Rop, L.; Serneels, J.; Exler, S.; Rupp, S.; Tournu, H.; Thevelein, J.M.; Van Dijck, P. The G protein-coupled receptor Gpr1 and the Gα protein Gpa2 act through the camp-protein kinase a pathway to induce morphogenesis in Candida albicans. Mol. Biol. Cell 2005, 16, 1971–1986. [Google Scholar] [CrossRef] [PubMed]
  • Sample Availability: Samples of the compounds C1C22 and B1B6 are available from the authors.

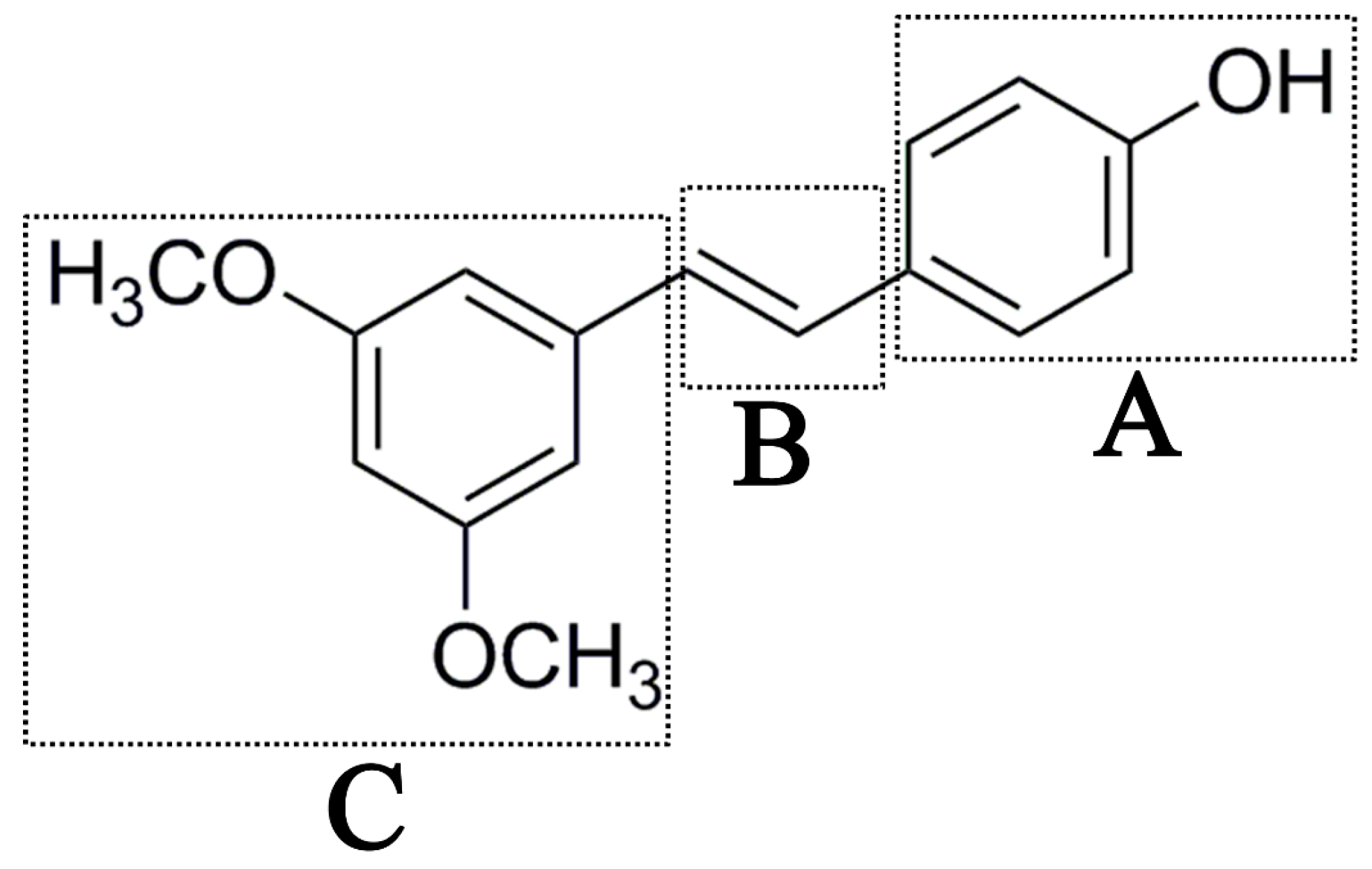

Figure 1. Chemical structures of PTE and three partitions of PTE.
Figure 1. Chemical structures of PTE and three partitions of PTE.
Molecules 22 00360 g001

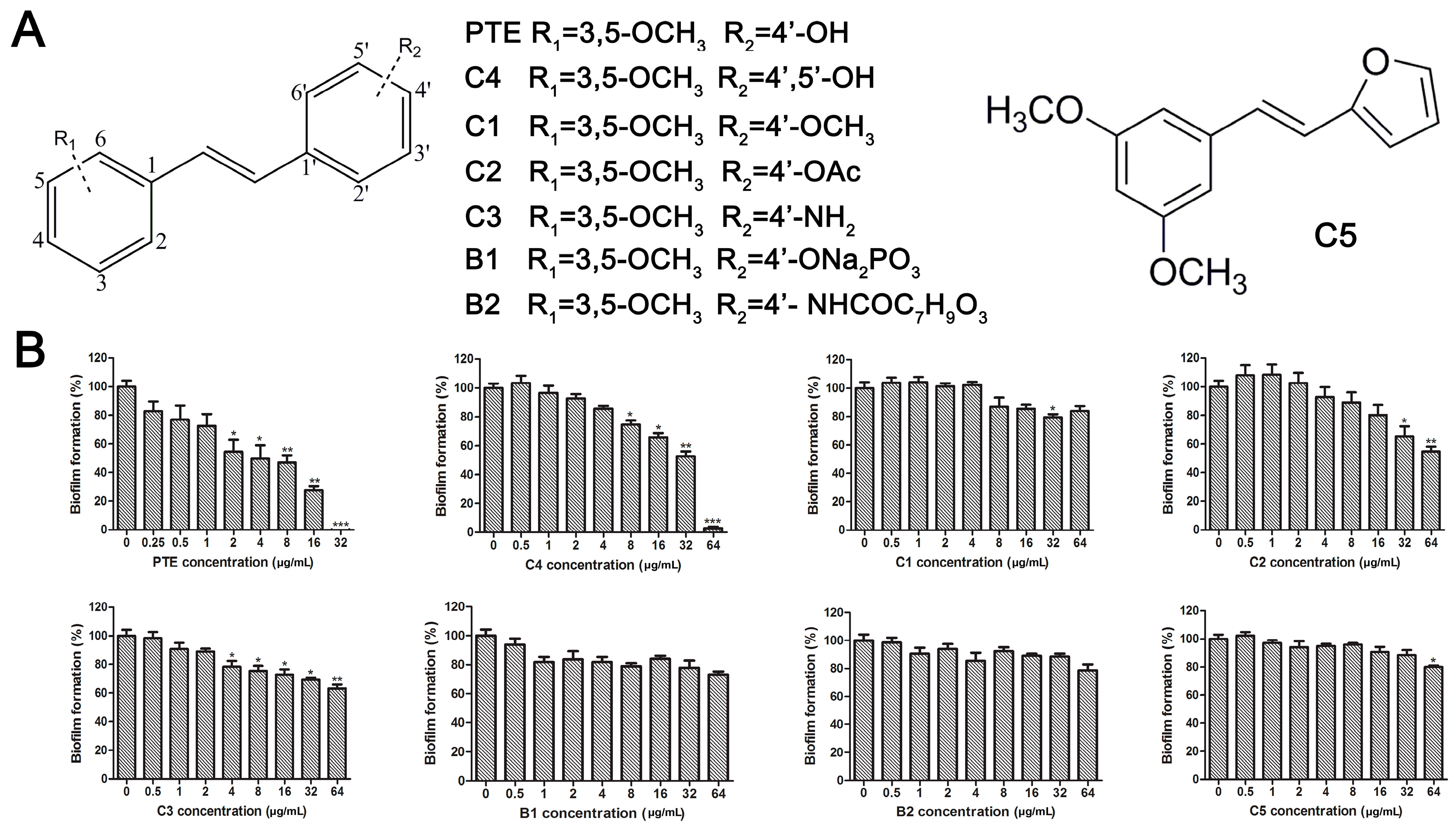

Figure 2. Effects of PTE and analogues C1–C5, B1, B2 on biofilm formation. (A) Chemical structures of PTE and analogues C1–C5, B1, and B2 are shown. The structures of analogue C1–C5, B1, and B2 are similar with PTE, and differences only exist in partition A; (B) Biofilm formation was evaluated by XTT reduction assay, and the results were presented as the percentage compared to the control biofilms formed without compound treatment. Biofilm formation results represent the mean ± standard deviation fromthree independent experiments. * p < 0.05 compared with the control biofilms, ** p < 0.01 compared with the control biofilms, *** p < 0.001 compared with the control biofilms. Statistical analysis was performed to compare the effects of various compounds, and significant difference was observed upon all the analogues compared with PTE. p = 0.035 (C4 vs. PTE), p < 0.001 (C1 vs. PTE), p < 0.001 (C2 vs. PTE), p = 0.0047 (C3 vs. PTE), p < 0.001 (B1 vs. PTE), p < 0.001 (B2 vs. PTE), and p < 0.001 (C5 vs. PTE).
Figure 2. Effects of PTE and analogues C1–C5, B1, B2 on biofilm formation. (A) Chemical structures of PTE and analogues C1–C5, B1, and B2 are shown. The structures of analogue C1–C5, B1, and B2 are similar with PTE, and differences only exist in partition A; (B) Biofilm formation was evaluated by XTT reduction assay, and the results were presented as the percentage compared to the control biofilms formed without compound treatment. Biofilm formation results represent the mean ± standard deviation fromthree independent experiments. * p < 0.05 compared with the control biofilms, ** p < 0.01 compared with the control biofilms, *** p < 0.001 compared with the control biofilms. Statistical analysis was performed to compare the effects of various compounds, and significant difference was observed upon all the analogues compared with PTE. p = 0.035 (C4 vs. PTE), p < 0.001 (C1 vs. PTE), p < 0.001 (C2 vs. PTE), p = 0.0047 (C3 vs. PTE), p < 0.001 (B1 vs. PTE), p < 0.001 (B2 vs. PTE), and p < 0.001 (C5 vs. PTE).
Molecules 22 00360 g002

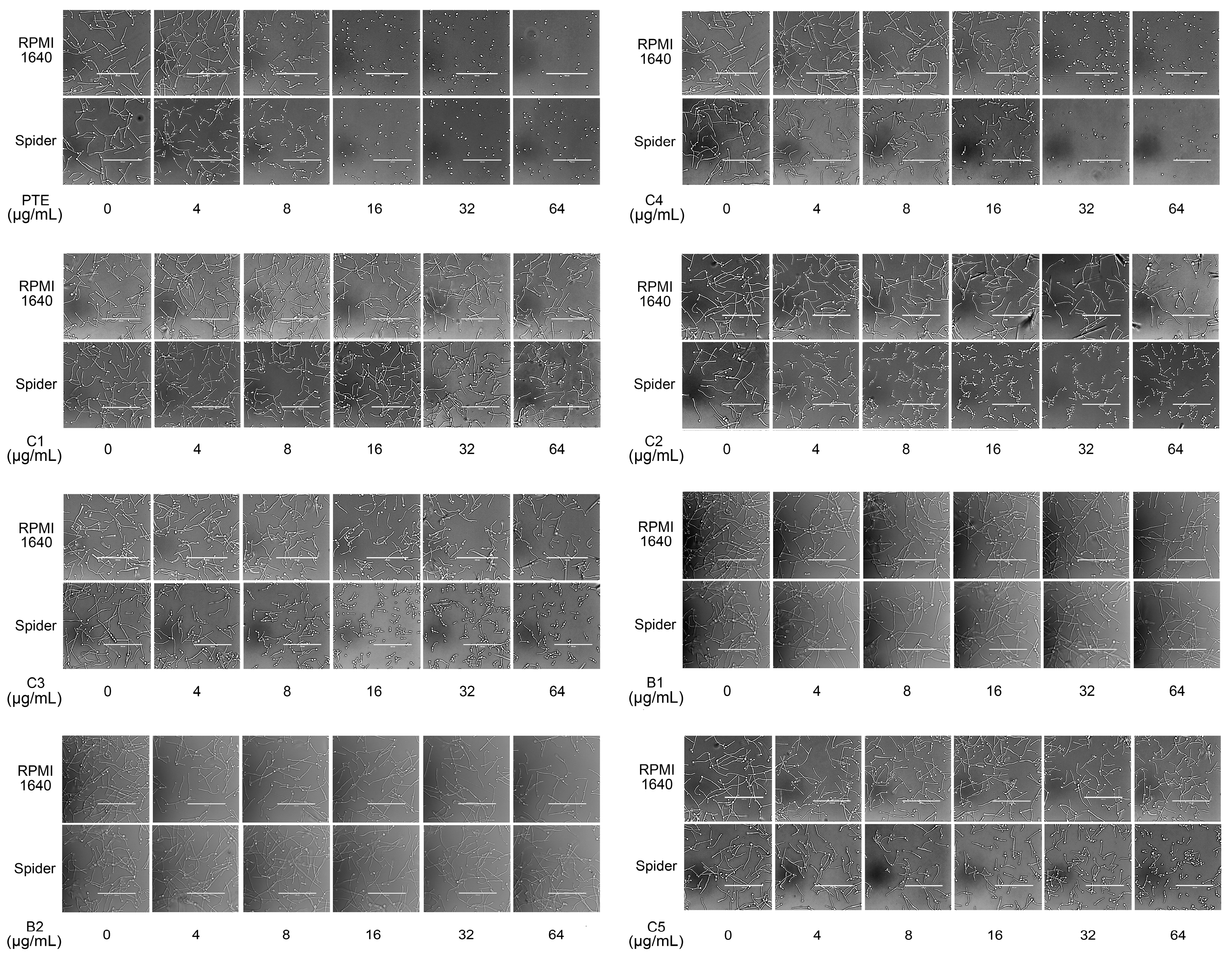

Figure 3. Effects of different concentrations of PTE and analogues C1–C5, B1, and B2 on hyphal formation. Exponentially-growing C. albicans SC5314 cells were transferred to hypha-inducing liquid media, including Spider and RPMI1640. The cellular morphology was photographed after incubation at 37 °C for 3 h. Scale bar = 100 μm.
Figure 3. Effects of different concentrations of PTE and analogues C1–C5, B1, and B2 on hyphal formation. Exponentially-growing C. albicans SC5314 cells were transferred to hypha-inducing liquid media, including Spider and RPMI1640. The cellular morphology was photographed after incubation at 37 °C for 3 h. Scale bar = 100 μm.
Molecules 22 00360 g003

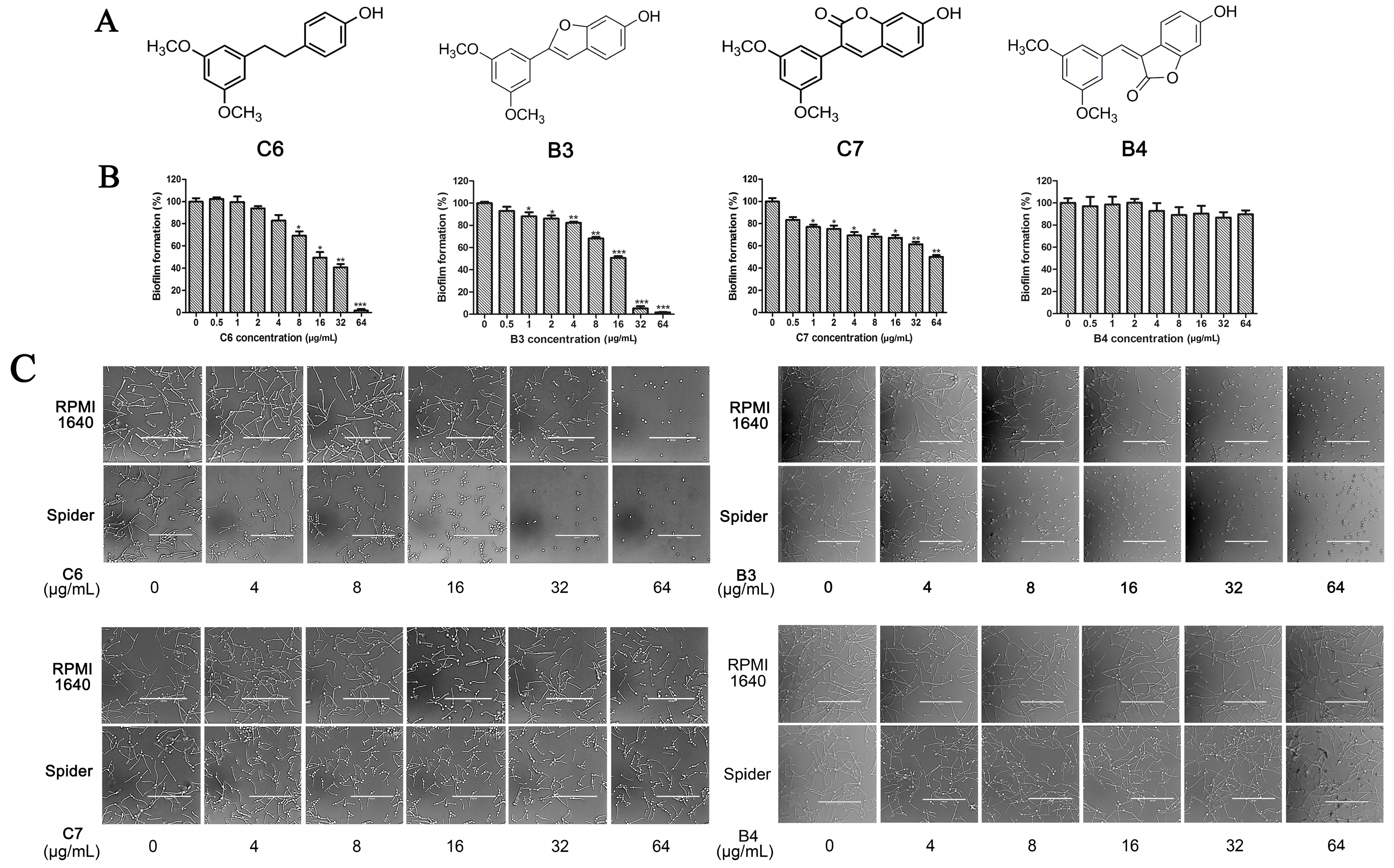

Figure 4. Effects of different concentrations of analogues C6, B3, C7, and B4 on biofilm formation and hyphal formation. (A) Chemical structures of analogues C6, B3, C7 and B4 are shown. C6, B3, C7, and B4 are both different from PTE in partition B; (B) Effects of different concentrations of analogues C6, B3, C7, and B4 on biofilm formation. Biofilm formation results represent the mean ± standard deviation for three independent experiments. * p < 0.05 compared with the control biofilms, ** p < 0.01 compared with the control biofilms, *** p < 0.001 compared with the control biofilms. Statistical analysis was performed to compare the effects of various compounds, and significant difference was observed upon C6, C7, and B4 compared with PTE. p = 0.037 (C6 vs. PTE), p = 0.175 (B3 vs. PTE), p = 0.0033 (C7 vs. PTE), and p < 0.001 (B4 vs. PTE); (C) Effects of different concentrations of analogues C6, B3, C7, and B4 on hyphal formation. Scale bar = 100 μm.
Figure 4. Effects of different concentrations of analogues C6, B3, C7, and B4 on biofilm formation and hyphal formation. (A) Chemical structures of analogues C6, B3, C7 and B4 are shown. C6, B3, C7, and B4 are both different from PTE in partition B; (B) Effects of different concentrations of analogues C6, B3, C7, and B4 on biofilm formation. Biofilm formation results represent the mean ± standard deviation for three independent experiments. * p < 0.05 compared with the control biofilms, ** p < 0.01 compared with the control biofilms, *** p < 0.001 compared with the control biofilms. Statistical analysis was performed to compare the effects of various compounds, and significant difference was observed upon C6, C7, and B4 compared with PTE. p = 0.037 (C6 vs. PTE), p = 0.175 (B3 vs. PTE), p = 0.0033 (C7 vs. PTE), and p < 0.001 (B4 vs. PTE); (C) Effects of different concentrations of analogues C6, B3, C7, and B4 on hyphal formation. Scale bar = 100 μm.
Molecules 22 00360 g004

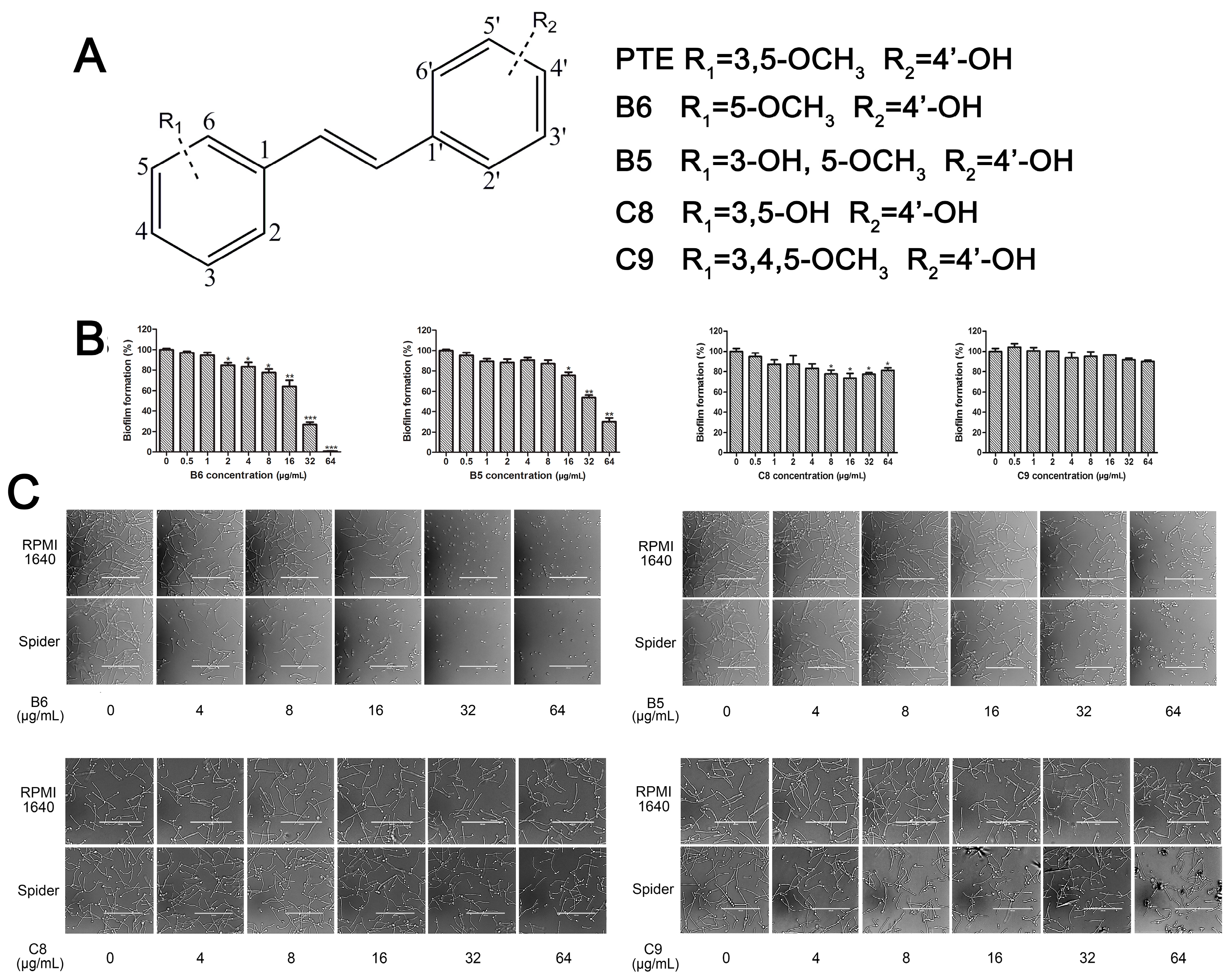

Figure 5. Effects of different concentrations of analogues B6, B5, C8. and C9 on biofilm formation and hyphal formation. (A) Chemical structures of analogues B6, B5, C8, and C9 are shown. B6, B5, C8, and C9 are different from PTE in partition C; (B) Effects of different concentrations of analogues B6, B5, C8, and C9 on biofilm formation. Biofilm formation results represent the mean ± standard deviation for three independent experiments. * p < 0.05 compared with the control biofilms, ** p < 0.01 compared with the control biofilms, *** p < 0.001 compared with the control biofilms. Statistical analysis was performed to compare the effects of various compounds, and significant difference was observed upon B5, C8, and C9 compared with PTE. p = 0.182 (B6 vs. PTE), p = 0.041 (B5 vs. PTE), p < 0.001 (C8 vs. PTE), and p < 0.001 (C9 vs. PTE); (C) Effects of different concentrations of analogues B6, B5, C8, and C9 on hyphal formation. Scale bar = 100 μm.
Figure 5. Effects of different concentrations of analogues B6, B5, C8. and C9 on biofilm formation and hyphal formation. (A) Chemical structures of analogues B6, B5, C8, and C9 are shown. B6, B5, C8, and C9 are different from PTE in partition C; (B) Effects of different concentrations of analogues B6, B5, C8, and C9 on biofilm formation. Biofilm formation results represent the mean ± standard deviation for three independent experiments. * p < 0.05 compared with the control biofilms, ** p < 0.01 compared with the control biofilms, *** p < 0.001 compared with the control biofilms. Statistical analysis was performed to compare the effects of various compounds, and significant difference was observed upon B5, C8, and C9 compared with PTE. p = 0.182 (B6 vs. PTE), p = 0.041 (B5 vs. PTE), p < 0.001 (C8 vs. PTE), and p < 0.001 (C9 vs. PTE); (C) Effects of different concentrations of analogues B6, B5, C8, and C9 on hyphal formation. Scale bar = 100 μm.
Molecules 22 00360 g005
Table 1. Structure and SMIC80 of PTE and its analogues.
Table 1. Structure and SMIC80 of PTE and its analogues.
NameStructureSMIC80 (μg/mL)
Biofilm FormationMature Biofilm
PTE Molecules 22 00360 i00116128
C4 Molecules 22 00360 i00232–64512
C1 Molecules 22 00360 i003>64>512
C2 Molecules 22 00360 i004>64>512
C3 Molecules 22 00360 i005>64>512
B1 Molecules 22 00360 i006>64>512
B2 Molecules 22 00360 i007>64>512
C5 Molecules 22 00360 i008>64>512
C6 Molecules 22 00360 i00932-64512
B3 Molecules 22 00360 i01032128–256
C7 Molecules 22 00360 i011>64>512
B4 Molecules 22 00360 i012>64>512
B6 Molecules 22 00360 i01364>512
B5 Molecules 22 00360 i014>64>512
C8 Molecules 22 00360 i015>64>512
C9 Molecules 22 00360 i016>64>512
