Article

Effect of 2,6-Bis-(1-hydroxy-1,1-diphenyl-methyl) Pyridine as Organic Additive in Sulfide NiMoP/γ-Al2O3 Catalyst for Hydrodesulfurization of Straight-Run Gas Oil

1
Departamento de Biociencias e Ingeniería, Centro Interdisciplinario de Investigaciones y Estudios sobre Medio Ambiente y Desarrollo (CIIEMAD), Instituto Politécnico Nacional, C.P. 07340 Ciudad de México, Mexico
2
Instituto de Investigaciones en Materiales, Universidad Nacional Autónoma de México, Circuito Exterior S/N, Ciudad Universitaria, Coyoacán, C.P. 04510 Ciudad de México, Mexico
3
Instituto de Química, Universidad Nacional Autónoma de México, Circuito Exterior S/N, Ciudad Universitaria, Coyoacán, C.P. 04510 Ciudad de México, Mexico
4
Departamento de Ingeniería Química Petrolera, ESIQIE, Instituto Politécnico Nacional, Zacatenco, C.P. 07738 Ciudad de México, Mexico
5
Instituto Mexicano del Petróleo, Eje Central Lázaro Cárdenas 152, San Bartolo Atepehuacan, Gustavo A. Madero, C.P. 07730 Ciudad de México, Mexico
*
Author to whom correspondence should be addressed.
Molecules 2017, 22(8), 1332; https://doi.org/10.3390/molecules22081332
Submission received: 13 July 2017 / Revised: 2 August 2017 / Accepted: 4 August 2017 / Published: 15 August 2017
(This article belongs to the Special Issue Bimetallic Catalysis)

Abstract

:
The effect of 2,6-bis-(1-hydroxy-1,1-diphenyl-methyl) pyridine (BDPHP) in the preparation of NiMoP/γ-Al2O3 catalysts have been investigated in the hydrodesulfurization (HDS) of straight-run gas oil. The γ-Al2O3 support was modified by surface impregnation of a solution of BDPHP to afford BDPHP/Ni molar ratios (0.5 and 1.0) in the final composition. The highest activity for NiMoP materials was found when the molar ratio of BDPHP/Ni was of 0.5. X-ray diffraction (XRD) results revealed that NiMoP (0.5) showed better dispersion of MoO3 than the NiMoP (1.0). Fourier transform infrared spectroscopy (FT-IR) results indicated that the organic additive interacts with the γ-Al2O3 surface and therefore discards the presence of Mo or Ni complexes. Raman spectroscopy suggested a high Raman ratio for the NiMoP (0.5) sample. The increment of the Mo=O species is related to a major availability of Mo species in the formation of MoS2. The temperature programmed reduction (TPR) results showed that the NiMoP (0.5) displayed moderate metal–support interaction. Likewise, X-ray photoelectron spectroscopy (XPS) exhibited higher sulfurization degree for NiMoP (0.5) compared with NiMoP (1.0). The increment of the MoO3 dispersion, the moderate metal–support interaction, the increase of sulfurization degree and the increment of Mo=O species provoked by the BDPHP incorporation resulted in a higher gas oil HDS activity.

1. Introduction

The pollution is a problem in the society today. In this sense, environmental legislations are more rigorous with contaminants in diesel fuel, and the sulfur content in diesel is about 10 ppm [1]. The production of ultra-low sulfur diesel is of paramount importance in the hydrotreatment process. Therefore, the hydrodesulfurization (HDS) catalysts have to be more efficient to satisfy the environmental requirements. Conventional catalysts consist of molybdenum supported over alumina with either cobalt or nickel as promoters [2]. These catalysts have shown interesting performance in HDS reactions of sulfur model molecules [3,4]. However, the Co (Ni) promotion and dispersion of MoS2 (WS2) have to improve for increasing the catalytic activities in HDS of straight-run gas oil [5,6,7].
An alternative to enhance the performance in HDS reactions is the use of organic additives [8,9]. The organic additives have been demonstrated to increase the catalytic activity on HDS reactions such as thiophene, dibenzothiophene and 4,6-dibenzotiophene [10,11,12,13]. The most common organic additives used in the synthesis of CoMo, NiMo and NiW catalysts are citric acid [11,13,14], ethylenediaminetetraacetic acid (EDTA) [8,12,15] or trans-1,2-cyclohexanediamine-N,N,N′,N′-tetraacetic acid (CyDTA) [10,16,17]. In these studies, the chelating agents form metal-organic species improved the metal-support interaction, MoS2 (WS2) dispersion, and sulfidation degree of Mo and Co species. In addition, the organic-metal species avoid the migration of the particles such as Co or Ni, and therefore, favor the promotion of Co(Ni) to form the most active species in HDS reaction “CoMoS (NiWS or NiMoS)”.
On the other hand, the role of the organic additive in the preparation stage takes relevance on the synthesis of HDS catalysts [18]. Some authors have demonstrated that the organic additive improves the formation of metal-organic species when co-impregnating the metals and the organic additives [10,11]. Moreover, the increment of the organic-metal species favored the formation of the active NiWS species. However, other authors suggest that the addition of organic agents in sequential impregnations leads to a better metal–support interaction, which enhances the dispersion of the MoS2 (WS2) [13,19].
Based on the above information, the use of the organic additive is an interesting topic in order to improve the activity of HDS catalysts. In this aspect, 2,6-bis-(1-hydroxy-1,1-diphenyl-methyl) pyridine (BDPHP) showed the ability to form penta coordinated complexes with Sn [20]. Moreover, the use of BDPHP as organic additive for the preparation of CoMo, NiMo or NiW HDS catalysts has not been reported. Therefore, the aim of this work was to study the Ni-Mo dispersion and the interaction with BDPHP, where the different BDPHP/Ni molar ratios were synthesized to elucidate the effect of the concentration of BDPHP on the catalytic surface with the HDS of straight-run gas oil.

2. Experimental

2.1. Catalyst Preparation

The γ-Al2O3 was modified by surface impregnation of a solution of BDPHP to afford BDPHP/Ni molar ratios (0.5 and 1.0) in the final composition. The dried support with BDPHP was co-impregnated using a solution of molybdenum oxide [MoO3], nickel carbonate hydroxide tetrahydrate [(2NiCO3·3Ni(OH)2·4H2O)] and phosphoric acid [H3PO4]. For all catalysts, the nominal metal contents were 12.0, 3.0 and 1.6 wt % for Mo, Ni and P, respectively. The calcination was avoided to evade the decomposition of the BDPHP. The catalysts are labeled NiMoP(x), where x is the molar ratio BDPHP/Ni at 0.5 and 1.0. Sample NiMoP/γ-Al2O3 was used as reference and it was prepared without organic additives and named NiMoP (0.0).

2.2. Characterization Techniques

Textural properties of various materials were determined by N2 physisorption (−196 °C), in an Autsorb-1 (Quantachrome, Boynton Beach, FL, USA) apparatus. Surface area and pore size distribution of prepared solids were determined by Brunauer-Emmett-Teller (BET) and Barret-Joyner-Halenda (BJH) (N2 adsorption branch data) protocols, respectively. The crystalline components of the materials were examined by X-ray diffraction (XRD) using Siemens D-500 kristalloflex (Munich, Germany), Cukα radiation, λ = 0.15406 nm, 35 kV, 25 mA. Phase identification based on XRD patterns was supported by the ICDD-PDF-2-database. The Fourier transform infrared spectra of the solids were recorded in the transmittance mode on a Perkin Elmer Spectrum One (Waltham, MA, USA) with a universal attenuated total reflectance (ATR) sampling accessory in the 1800–1300 cm−1 range. Spectra were measured at room temperature at a 4 cm−1 resolution and an average of 256 scans per sample was used. Raman spectra were obtained at room temperature on a T64000 triple monochromator (Jobin-Yvon-Horiba, Edison, NJ, USA) using the 514.5 nm line of an Ar+ laser (Lexel Laser, Fremont, CA, USA). All the spectra were obtained at a power of 10 mW at the laser head, in the range 10–1600 cm−1, using an Olympus microscope (Shinjuku, Tokio, Japan) with a 100× objective and 10 accumulations of 60 s each. The spectrum resolution was 1 cm−1.
Thermal analyses (from room temperature to 1000 °C) of freshly dried samples (ca. 15 mg) were carried out with a Netzch Thermische Analize, STA 409 EP apparatus (Selb, Germany) under a static air atmosphere, operating at 10 °C/min heating ramp. Temperature programmed reduction (TPR) of the catalysts were performed using Altamira Instruments AMI-90 equipped with a thermal conductivity detector (TCD). Approximately 0.1 g of catalyst sample was placed in a quartz sample cell (U-shaped) and then pretreated in situ at 393 K for 1 h under Ar flow. The reduction of catalysts was performed from room temperature to 1273 K, under a stream of 10% H2, employing a gas flow rate of 0.84 cm3/s and heating rate of 10 °C/min.
XPS spectra of the sulfided catalyst samples were measured at room temperature using a VG Escalab 200R spectrometer (Richardson, TX, USA) equipped with a hemispherical electron analyzer and a MG Kα (hν = 1253.6 eV) X-ray source. The details of the XPS measurements by this spectrometer are reported elsewhere [21].

2.3. Catalytic Activity

The solid catalysts (1.20 mL; 80–100 mesh) were sulfided in virgin straight run gas oil (2.05 wt % S) spiked with dimethyl disulfide (DMDS) to afford 2.5 wt % of sulfur in the feedstock and then fed to the reactor at a flow rate according to an liquid hourly space velocity (LHSV) of 2.5 h−1. The pressure was set to 56 kg/cm2 and the hydrogen rate was adjusted according to a H2/oil ratio of 500 m3 (STP)/m3. The temperature of the catalyst bed was increased to 290 °C and held for 15 h. These were tested in the HDS reaction of SRGO and H2 flow rates were adjusted to LHSV 1.5 h−1, 370 °C, H2/oil ratio equal to 500 m3 (STP)/m3 and 56 kg/cm2. The sulfur concentration in liquids was obtained with a Tanaka RX-360SH model sulfur analyzer according to the ASTM D4294 method. For each test, 10 mL of sample was fed to the equipment. The reported instrument sensitivity is ±0.001% of the measured value.
The apparent rate constant rates (khds(Sw%)−0.5 h−1) were estimated at steady state conditions (after 12 h), and they were calculated according to the following equation [22,23]:
k h d s = L H S V n 1 ( 1 S p n 1 1 S f n 1 ) ,
where:
  • khds: Pseudo 1.5 order HDS kinetic constant (Sw%−0.5 h−1);
  • Sp: Sulfur in product (wt %);
  • Sf: Sulfur in feedstock (wt %);
  • LHSV: Liquid Hourly Space Velocity (h−1).

3. Results

3.1. N2 Physisorption (N2-Phys)

Table 1 shows the textural properties for NiMoP (0.0), NiMoP (0.5) and NiMoP (1.0). The reference catalyst showed lower specific area, pore volume and pore size in comparison with the catalysts with the organic additive. The NiMoP (1.0) presented similar pore size and total volume to NiMoP (0.5). However, the specific area for NiMoP (0.5) slightly decreased (156 vs. 164 m2/g) in contrast with NiMoP (1.0). In addition, the catalysts with organic additive have more specific area than the NiMoP (0.0) suggesting that the BDPHP slightly modifies the textural properties.

3.2. X-ray Diffraction (XRD)

The X-ray diffractions pattern shown in Figure 1 reveals that the catalysts displayed peaks related to different crystal structure. The NiMoP/γ-Al2O3 at different molar ratios of BDPHP/Ni showed peaks at 66° and 46° corresponding to 400 and 440 planes, respectively, from the γ-Al2O3 pattern (Figure 1) [24,25]. The NiMoP (0.5) and NiMoP (1.0) catalysts exhibited a peak at 27° that can be associated with 020 planes of MoO3 [26]. In addition, NiMoP (1.0) presented peaks at 39° (030 planes) and 58 °C, which is related to MoO3, while the NiMoP (0.5) exhibited only a peak at 58° [26].
In contrast, the NiMoP (0.5) did not show the peak at 39° corresponding to MoO3 in comparison with NiMoP (1.0). This result suggests that the NiMoP (0.5) have more MoOx species with a lower size than the NiMoP (1.0). Therefore, NiMoP (0.5) has a higher dispersion of MoO3 than NiMoP (1.0) [27].

3.3. Fourier Transformed Infrared Spectroscopy (FT-IR)

The FT-IR spectroscopy allowed us to identify the vibrations of BDPHP on the catalyst NiMoP/γ-Al2O3 before the HDS reaction. Figure 2 and Figure 3 show the spectra for 2,6-Bis-(1-hydroxy-1,1-diphenyl-methyl) pyridine and NiMoP/γ-Al2O3 at different BDPHP/Ni molar ratio (0.5 and 1.0). The peaks in the 1800–1100 cm−1 frequency region are attributed to the carbon and nitrogen vibrations [28,29,30]. In this region, the spectra of BDPHP exhibited some vibrational frequencies corresponding to the ring vibration (1664 and 1589 cm−1), C=C (1570 cm−1), C=N (1490 cm−1), C-C (1444 and 1353 cm−1), C-NH2 (1334 cm−1), C-N (1261 cm−1) and C-H (1197 and 1163 cm−1) [28,29,30].
The NiMoP (0.5) and NiMoP (1.0) exhibited vibrational frequencies corresponding to C-C vibration at 1462, 1447 and 1384 cm−1 [28,29,30]. Moreover, the NiMoP (0.5) and NiMoP (1.0) exhibited a peak at 1632 cm−1 corresponding to Al-O-C vibration [29,30,31]. Furthermore, the CoMoP (0.5) and CoMoP (1.0) presented C=N vibration at 1494 cm−1 [28,29,30]. In contrast with BDPHP spectra (Figure 2), the catalysts presented the C=N vibration close to the wavenumber of BDPHP. This result discards the formation of Ni or Mo interaction with the free pair of electrons of C=N from the organic additive. In addition, this result is related to the low ability complex for some organic additives with a larger size and some metals [32]. However, the OH groups of the organic additive contribute to the formation of new Al-O-C [31]. In this line, the BDPHP covered the γ-Al2O3 prevented the strong metal-support interaction [31,33].

3.4. Raman Spectroscopy

Raman spectroscopy was used to determine the Mo species in NiMoP/γ-Al2O3 catalysts at different molar ratios of BDPHP/Ni. Figure 4 shows the Raman spectra for NiMoP (0.0), NiMoP (0.5) and NiMoP (1.0), which is supported by γ-Al2O3. The NiMoP (0.0) spectrum exhibiting bands at 176, 255, 376, 638, 714, 853, 975, and 993 cm−1. The bands at 993, 975, 376, 225, 376 and 176 cm−1 are assigned to Mo7O246− [34], while the intense 853 cm−1 signal is ascribed to large MoO3 aggregates [35]. The peaks at 638 and 714 cm−1 are associated with the γ-Al2O3 [36]. The NiMoP with BDPHP/Ni (0.5, 1.0) spectra showed bands at 220, 360, 565, 895, 950 and 1015 cm−1. The band at 895 cm−1 corresponds to MoO vibration of MoO42− while the bands at 220, 360, 565 and 950 cm−1 are associated with Mo7O246− species [34]. Additionally, the peak at 1015 cm−1 is associated with P-O vibrations [28,34]. Regarding the band located at 950 cm−1, it increases gradually conversely with the decrease of the BDPHP/Ni ratio, most probably due to the BDPHP, which promotes the polymerization of the polymeric Mo7O246− species. This, in fact, suggests changes in the Mo oxide dispersion with the addition of BDPHP.
The Mo species at 220 and 360 cm−1 is associated with the Mo-O-Mo [37]. In addition, the Mo species at 895 and 950 cm−1 is ascribed to the Mo=O vibrations [37]. To obtain information about the Mo oxide dispersion, the Raman spectra were deconvoluted with the Mo=O, Mo-O and Mo-O-Mo vibrations. Figure 5 shows the deconvolution for NiMoP (0.5). Figure 6 exhibits the Raman ratio Mo=O/(Mo=O + Mo-O + Mo-O-Mo) of NiMoP catalysts at different BDPHP/Ni ratios. Figure 6 showed that the Raman ratio increases until a maximum at BDPHP/Ni = 0.5, and then decreases at BDPHP/Ni = 1.0. This result suggests the re-dispersion of Mo oxide provoked by BDPHP with different BDPHP/Ni molar ratio. A similar behavior was seen by Diaz de Leon [38] in an analogous system with additives. Regarding this, Diaz de Leon suggested that the increase of the Raman band intensities ratio promoted better dispersion of the metal species and is responsible for the highest HDS activity.

3.5. Thermal Analysis (TGA/DTA)

To study the thermal stability of the catalysts with BDPHP, TGA analysis of NiMoP (0.5) and NiMoP (1.0) samples were carried out and the results are shown in Figure 7 and Figure 8. It can be seen that the TGA curves show a continuous weight loss of 87.3 and 85.8 wt % from 30 to 700 °C for CoMoP (0.5) and CoMoP (1.0), respectively. The weight loss for all catalysts around 12.0 wt % lower than 200 °C is associated with the removal of physisorbed H2O [39], and the further weight loss around 75.0 wt % is attributed to the loss of crystallization H2O and the stepwise loss of the organic additive [40].
The heat flow profiles for NiMoP (0.5) and NiMoP (1.0) samples (Figure 8) exhibited a broad endothermic peak of around 100–200 °C related with dehydration reactions [39]. The exothermic peaks centered in the 430–460 °C range on the heat flow profiles are associated with the decomposition of BDPHP (decarboxylation reactions) for NiMoP (0.5) and NiMoP (1.0) samples [40]. The exothermic peak maximum decreases in the order of NiMoP (0.5) > NiMoP (1.0). It is supposed that a higher decomposition temperature corresponds to major interaction between the support and the organic additive. In contrast, it is suggested that the NiMoP (0.5) catalyst presented higher interaction.

3.6. Temperature Programmed Reduction (TPR)

The influence of the organic additive on the nickel-molybdenum-support interaction was investigated by temperature-programmed reduction of NiMoP/γ-Al2O3. The TPR profiles of NiMoP (0.0), NiMoP (0.5) and NiMoP (1.0) are shown in Figure 9. From Figure 9, the NiMoP (0.0) sample displayed two reduction peaks at 540 °C and 725 °C, which is associated with the nickel-molybdenum and the molybdenum reduction, respectively. NiMoP (0.5) presents two reduction peaks at 400 °C and 555 °C, corresponding to the decomposition/reduction of nickel-molybdenum and molybdenum precursor in weak and strong interactions with the γ-Al2O3 support, respectively [41,42,43,44]. Additionally, a shoulder can be observed at 222 °C, which corresponds to the reduction of nickel in a weak interaction with γ-Al2O3 [43]. The reduction profiles of NiMoP (1.0) exhibit two peaks: one at 410 °C ascribed to the reduction of nickel-molybdenum species, and the second one at about 586 °C due to the reduction of molybdenum species [41,42,43,44]. This catalyst also displays a peak at 271 °C corresponding to the nickel reduction [43].
The increase in the Ni and Mo reduction temperature due to the presence of higher concentration of BDPHP on the NiMoP (1.0) catalyst suggests the interaction between BDPHP and Mo-Ni species in NiMoP/γ-Al2O3. This effect was observed previously for an analogous system synthesized in the presence of EDTA [8]. Moreover, the lower temperature reduction of Ni and Mo species for NiMoP (0.5) can be rationalized in terms of better interaction of metal-support in comparison with the NiMoP (1.0) and NiMoP (0.0), and, likewise, the easier reduction of the NiMoP (0.5), compared with the NiMoP (0.0) sample, which is attributed to the presence of the organic additive at lower concentration favoring the nucleation step. In this line, the easier reduction improves the sulfidation degree of Mo and Ni species [45].

3.7. X-ray Photoelectron Spectroscopy of Sulfided NiMoP/γ-Al2O3 Catalyst (XPS)

To monitor the evolution of the sulfide surface species, XPS was studied in the Mo 3d and Ni 2p levels. As an example, the XPS spectra of Mo 3d emission line and fit decomposition of NiMoP (0.5) and NiMoP (1.0) samples are presented in Figure 10. The Mo 3d core-level spectra of all catalysts were found to be rather complex, suggesting the presence of at least two species. They are fitted satisfactorily with two sets of doublets, each one containing the Mo 3d5/2 and Mo 3d3/2 components coming from the spin-orbit splitting. The observation of two doublets indicates that there are two different Mo-species. The Mo 3d5/2 peak for the first set, at 228.92 eV, is assigned to MoS2 (Mo4+) species, and the other at 232.88 eV is attributed to Mo6+ species [46,47,48,49] (Table 2). The NiMoP reference catalyst without organic additive exhibited 70% of MoS2 species. For the NiMoP (0.5) catalyst, 86% of Mo species was converted to MoS2 species while the NiMoP (1.0) showed 87%. The XPS results suggest that the organic additive increases the sulfidation degree in the NiMoP/γ-Al2O3 system.
The XPS spectra of the Ni 2p emission line for all fresh sulfided catalysts are presented in Figure 11. As can be seen from this figure, spectra show primary satellite peaks due to shake-up electrons. Since the line-shape of the Ni 2p3/2 peak, and especially its satellite, was unsymmetrical and broad, we applied an empirical method to roughly fit the curve using Gaussian/Lorentzian distributions. An example of the decomposition of Ni 2p3/2 profile made for the NiMoP sample is shown in the inlet of Figure 11. Each Ni 2p3/2 profile was resolved in three components at 863.8, 857.0 and 860.5 eV, corresponding to highly dispersed NiS, NiMoS and NiOx phases, respectively [46,47,48,49]. Apparently, the electronegativity of the organic additive has little effect on the binding energies separating satellite and main peaks of the Ni 2p3/2 spectra. The BE at 853.1 eV is close to the value reported in the literature for bulk NiS on unsupported MoS2 (852.9 eV) [38], whereas the BE at 854.4 eV is close to the value reported for NiMoS species formed after sulfidation of the NiMo/γ-Al2O3 catalysts at 673 K [46,47,48,49].
Considering the binding energy position and the relative area related to the three Ni species, the percentages of each species were determined. As seen in Table 2, the reference catalyst displayed 49% of NiMoS species [31]. For the catalysts with organic additives, the NiMoP (0.5) sample exhibited 45% of the NiMoS species, while the NiMoP (1.0) with a higher concentration of BDPHP showed increased percentages of this species to 46%. The Ni and Mo species surface exposure and the catalyst sulfidation degree could be deduced from Table 3 showing (Ni + Mo)/Al and S/(Ni + Mo) atomic ratios, respectively. The samples prepared with BDPHP/Ni = 0.5 exhibit a lower Mo and Ni species surface exposure than the BDPHP/Ni = 1.0, as inferred from the comparison of the (Ni + W)/Al atomic ratio (Table 3). However, the catalysts with BDPHP showed more metal species over the surface in comparison with the reference catalyst. Considering the TPR results (vide supra), this might indicate that catalyst sulfidation at 290 °C led to the migration of the metal species from the support surface to its inner porous structure. Finally, there is a significant variation in the sulfidation degree of the Mo species, as deduced from the comparison of the S/(Mo + Ni) atomic ratios (Table 3). The NiMoP (0.5) exhibited 30% more sulfidation degree than NiMoP (1.0) and NiMoP (0.0).

3.8. Fourier Transformed Infrared Spectroscopy of Sulfided NiMoP/γ-Al2O3 Catalysts

The FT-IR spectra for NiMoP/γ-Al2O3 after reaction at different molar ratios of BDPHP/Ni (0.5, 1.0) given in Figure 12. The NiMoP/γ-Al2O3 (0.5) and NiMoP/γ-Al2O3 (1.0) exhibited peaks at 3424, 2956, 2925 and 2854 cm−1 corresponding to CH3, CH2 and CH vibrations [50,51,52]. These vibrations are related to coke formation from the gas oil after the reaction. The catalysts also showed peaks at 1633, 1458 and 1377 cm−1 corresponding to coke formation after HDS of gas oil [50,51,52]. In addition, the coke vibration presented lower intensity for the NiMoP (0.5) in contrast with the NiMoP (1.0). This augment of coke affects the MoS2 species for HDS reaction, which is in agreement with the XPS results.

3.9. Catalytic Activity Measurements

The activity of the sulfided catalysts was evaluated in the HDS of straight-run gas oil and the reaction was carried out in a fixed bed reactor (T = 340 °C and 56 kg/cm2 of pressure). A conventional NiMoP/γ-Al2O3 catalyst with similar metal content (12.0, 3.0 and 1.6 wt % for Mo, Ni and P, respectively) was used as reference. The straight-run gas oil conversion and the reaction rate constants are listed in Table 4. The catalyst prepared with BDPHP at lower concentration (BDPHP/Ni = 0.5) exhibits a higher straight-run gas oil conversion than the NiMoP (0.0) and NiMoP (1.0). Thus, to clarify the effect of organic additive, the reaction rate constants (at steady state) should be compared with their Raman ratios where the HDS activity and the Raman ratio exhibits a relationship (Table 4). The most active catalyst NiMoP (0.5) exhibits the highest Raman ratio value. When BDPHP/Ni ratio increased at 1.0, the activity decreased. At the same time, the lowering of the Raman ratio occurs. Interestingly, the reaction rate constant of NiMoP (0.5) increased 40% compared with the NiMoP (0.0) and NiMoP (1.0) samples. It is clear that the variations in the catalytic activity are related to the presence of the Mo=O species. However, BDPHP/Ni ratio conditions should be controlled, since the best activity was achieved for the sample prepared at BDPHP/Ni = 0.5.

4. Discussion

The NiMoP (0.5) catalyst was more active in the HDS of straight-run gas oil than NiMoP (1.0) and NiMoP (0.0). It was demonstrated that the final characteristic of the dried and sulfided NiMoP/γ-Al2O3 samples depends strongly on the BDPHP/Ni molar ratio; with 0.5 being the optimal molar ratio. At this ratio, there is a chemical equilibrium between the BDPHP located in the interface region and -OH groups of the alumina support. The role of the interface region on the adsorption of an organic additive such as BDPHP is extensively discussed in the review by Bourikas et al. [53,54]; therefore, it will be not discussed in this work.
The N2-phys study showed that the NiMoP (1.0) presented more surface area than the NiMoP (0.5) and NiMoP (0.0). On the other hand, XRD showed peaks corresponding to Mo species. In addition, NiMoP (1.0) exhibited two additional peaks at 39 °C and 58 °C corresponding to Mo species, indicating that the NiMoP (1.0) presented more Mo species with higher size in comparison with NiMoP (0.5), which has more dispersion than NiMoP (1.0).
The FT-IR results displayed that the BDPHP did not interact with Mo or Ni species. However, we do not discard an interaction between BDPHP and superficial groups from γ-Al2O3. Furthermore, the increment of the coke signal was seen for NiMoP (1.0). In this sense, the coke affects the MoS2 species for HDS reaction. On the other hand, the Raman spectroscopy suggests an increment of the amount of superficial Mo=O for NiMoP (0.5) than NiMoP (1.0) and NiMoP (0.0). This result suggests that the NiMoP (0.5) displays higher oxide dispersion than its NiMoP (0.0) counterpart. This finding is in agreement with the XRD and XPS results. Likewise, this increment of MoS2 dispersion seen by XPS is related to the isolating effect proposed by Li [19]. Accordingly, during the sulfurization process (exothermic reaction [55]), the carbonaceous deposits may isolate the Mo species from the γ-Al2O3 and favored the formation of MoS2 on the surface.
The TPR profiles showed that the temperature reduction of Ni-Mo species for NiMoP (0.5) shifted to low temperature in contrast with NiMoP (1.0) and NiMoP (0.0). These results suggest a better interaction of metal–support and easier reduction for NiMoP (0.5). This fact could suggest that the addition of BDPHP has an effect on the Ni and Mo sulfidation. In this line, the XPS results displayed an increment of 30% in the sulfidation degree for NiMoP (0.5), in comparison with NiMoP (1.0) and NiMoP (0.0). Consequently, an increment of the Mo sulfidation improves the active phase formation (MoS2). Moreover, the content of coke was higher for NiMoP (1.0) in comparison with NiMoP (0.5). This result is in accordance with FT-IR measurement for NiMoP after HDS reaction.
From the TPR and XPS characterization, a relation was found between the S/(Mo + Ni) and Ni-Mo temperature reduction for NiMoP (0.0), NiMoP (0.5) and NiMoP0 (1.0) catalysts (Figure 13) in addition to the reaction rate constant and Raman ratio (Figure 14). The sulfidation degree increases with a decrease in the temperature reduction of Ni and Mo species. This effect is related to a decrease of the metal-support interaction [45]. On the other hand, the catalytic activity increases with the MoOx species as Mo=O. These results are in agreement with the fact that Mo=O species are more available for sulfidation process than the Mo-O and Mo-O-Mo species [38]. The latter species are close to the support; therefore, these are difficult to sulfide. Additionally, the highest activity of the NiMoP (0.5) catalyst with respect to NiMoP (1.0) and NiMoP (0.0) samples are linked to its moderate metal–support interaction, higher sulfidation degree, lower content of coke, and higher amount of Mo=O species.

5. Conclusions

In summary, a significant increase in the HDS activity of NiMoP/γ-Al2O3 catalysts was found when the support was impregnated with BDPHP organic additive at BDPHP/Ni = 0.5. The addition of BDPHP covered the Al2O3 surface in order to isolate the metals and the support. The increase of HDS activity of the catalysts with organic additive was associated with the formation of Mo=O species, enhancement of the MoO3 dispersion, moderate metal-support interaction and an increment of Ni and Mo sulfurization degree.

Acknowledgments

The authors acknowledge financial support from Instituto Politécnico Nacional (SIP 20172151). All authors thank Luis Lartundo Rojas for the XPS and Luis Alberto Moreno Ruiz for Raman Spectroscopy.

Author Contributions

V. Santes, C.E. Santolalla-Vargas conceived and designed the experiments; E. Meneses-Domínguez, A. Hernández-Gordillo, F. Sánchez-Minero, performed the experiments; E. Gómez, synthetized the organic additive; V. Escamilla, J. Escobar, Leonardo Díaz, Oscar Goiz, V. Santes, and C.E. Santolalla-Vargas discussed the results, V. Santes, C.E. Santolalla-Vargas wrote the paper. All authors discussed, edited, and approved the final version.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Diario Oficial de la Federación. Norma Oficial Mexicana nom-016-cre-2016. 2016; Vol. NOM-016-CRE-2016. Available online: http://www.dof.gob.mx/nota_detalle.php?codigo=5450011&fecha=29/08/2016 (accessed on 29 August 2016).
  2. Topsoe, H.; Clausen, B.S.; Massot, F.E. Hydrotreating Catalysis. In Catalysis—Catalysis-Science and Technology; Anderson, J.R., Boudart, M., Eds.; Springer: Berlin/Heidelberg, Germany, 1996; Volume 11. [Google Scholar]
  3. Bataille, F.; Lemberton, J.-L.; Michaud, P.; Pérot, G.; Vrinat, M.; Lemaire, M.; Schulz, E.; Breysse, M.; Kasztelan, S. Alkyldibenzothiophenes hydrodesulfurization-promoter effect, reactivity, and reaction mechanism. J. Catal. 2000, 191, 409–422. [Google Scholar] [CrossRef]
  4. Castillo-Villalón, P.; Ramírez, J.; Cuevas, R.; Vázquez, P.; Castañeda, R. Influence of the support on the catalytic performance of Mo, CoMo, and NiMo catalysts supported on Al2O3 and TiO2 during the HDS of thiophene, dibenzothiophene, or 4,6-dimethyldibenzothiophene. Catal. Today 2016, 259, 140–149. [Google Scholar] [CrossRef]
  5. Kallinikos, L.E.; Jess, A.; Papayannakos, N.G. Kinetic study and H2S effect on refractory DBTs desulfurization in a heavy gasoil. J. Catal. 2010, 269, 169–178. [Google Scholar] [CrossRef]
  6. Korányi, T.I.; Dobrovolszky, M.; Koltai, T.; Matusek, K.; Paál, Z.; Tétényi, P. Preparation and characterization of candidate catalysts for deep hydrodesulfurization of gasoils. Sulfidation and acidity characteristics of supported Ni/W and Ni/Mo catalysts. Fuel Process. Technol. 1999, 61, 55–71. [Google Scholar] [CrossRef]
  7. Santes, V.; Herbert, J.; Cortez, M.T.; Zárate, R.; Díaz, L.; Swamy, P.N.; Aouine, M.; Vrinat, M. Catalytic hydrotreating of heavy gasoil FCC feed on alumina-titania-supported NiMo catalysts. Appl. Catal. A Gen. 2005, 281, 121–128. [Google Scholar] [CrossRef]
  8. Al-Dalama, K.; Stanislaus, A. Temperature programmed reduction of SiO2-Al2O3 supported Ni, Mo and NiMo catalysts prepared with EDTA. Thermochim. Acta 2011, 520, 67–74. [Google Scholar] [CrossRef]
  9. Al-Dalama, K.; Stanislaus, A. A comparative study of the influence of chelating agents on the hydrodesulfurization (HDS) activity of alumina and silica-alumina-supported CoMo catalysts. Energy Fuels 2006, 20, 1777–1783. [Google Scholar] [CrossRef]
  10. Santolalla-Vargas, C.E.; Suárez Toriello, V.A.; de los Reyes, J.A.; Cromwell, D.K.; Pawelec, B.; Fierro, J.L.G. Effects of pH and chelating agent on the NiWS phase formation in NiW/γ-Al2O3 HDS catalysts. Mater. Chem. Phys. 2015, 166, 105–115. [Google Scholar] [CrossRef]
  11. Suárez-Toriello, V.A.; Santolalla-Vargas, C.E.; de los Reyes, J.A.; Vázquez-Zavala, A.; Vrinat, M.; Geantet, C. Influence of the solution pH in impregnation with citric acid and activity of Ni/W/Al2O3 catalysts. J. Mol. Catal. A Chem. 2015, 404–405, 36–46. [Google Scholar] [CrossRef]
  12. Escobar, J.; Barrera, M.C.; de los Reyes, J.A.; Toledo, J.A.; Santes, V.; Colín, J.A. Effect of chelating ligands on Ni-Mo impregnation over wide-pore ZrO2-TiO2. J. Mol. Catal. A Chem. 2008, 287, 33–40. [Google Scholar] [CrossRef]
  13. Chen, J.; Maugé, F.; El Fallah, J.; Oliviero, L. IR spectroscopy evidence of MoS2 morphology change by citric acid addition on MoS2/Al2O3 catalysts—A step forward to differentiate the reactivity of M-edge and S-edge. J. Catal. 2014, 320, 170–179. [Google Scholar] [CrossRef]
  14. Klimova, T.E.; Valencia, D.; Mendoza-Nieto, J.A.; Hernández-Hipólito, P. Behavior of NiMo/SBA-15 catalysts prepared with citric acid in simultaneous hydrodesulfurization of dibenzothiophene and 4,6-dimethyldibenzothiophene. J. Catal. 2013, 304, 29–46. [Google Scholar] [CrossRef]
  15. Sundaramurthy, V.; Dalai, A.K.; Adjaye, J. Effect of EDTA on hydrotreating activity of CoMo/γ-Al2O3 catalyst. Catal. Lett. 2005, 102, 299–306. [Google Scholar] [CrossRef]
  16. Kishan, G.; Coulier, L.; de Beer, V.H.J.; van Veen, J.A.R.; Niemantsverdriet, J.W. Sulfidation and thiophene hydrodesulfurization activity of nickel tungsten sulfide model catalysts, prepared without and with chelating agents. J. Catal. 2000, 196, 180–189. [Google Scholar] [CrossRef]
  17. Koizumi, N.; Hamabe, Y.; Yoshida, S.; Yamada, M. Simultaneous promotion of hydrogenation and direct desulfurization routes in hydrodesulfurization of 4,6-dimethyldibenzothiophene over NiW catalyst by use of SiO2-Al2O3 support in combination with trans-1,2-diaminocyclohexane-N,N,N′,N′-tetraacetic acid. Appl. Catal. A Gen. 2010, 383, 79–88. [Google Scholar] [CrossRef]
  18. Mazoyer, P.; Geantet, C.; Diehl, F.; Loridant, S.; Lacroix, M. Role of chelating agent on the oxidic state of hydrotreating catalysts. Catal. Today 2008, 130, 75–79. [Google Scholar] [CrossRef]
  19. Li, H.; Li, M.; Chu, Y.; Liu, F.; Nie, H. Essential role of citric acid in preparation of efficient NiW/Al2O3 HDS catalysts. Appl. Catal. A Gen. 2011, 403, 75–82. [Google Scholar] [CrossRef]
  20. Gómez, E.; Flores, R.; Huerta, G.; Alvarez-Toledano, C.; Toscano, R.A.; Santes, V.; Nava, N.; Sharma, P. Dimethyltin(IV) 2,6-disubstituted pyridine complexes. J. Organomet. Chem. 2003, 672, 115–122. [Google Scholar] [CrossRef]
  21. Navarro, R.; Pawelec, B.; Fierro, J.L.G.; Vasudevan, P.T.; Cambra, J.F.; Arias, P.L. Deep hydrodesulfurization of DBT and diesel fuel on supported Pt and Ir catalysts. Appl. Catal. A Gen. 1996, 137, 269–286. [Google Scholar] [CrossRef]
  22. Sie, S.T. Miniaturization of hydroprocessing catalyst testing systems: Theory and practice. AIChE J. 1996, 42, 3498–3507. [Google Scholar] [CrossRef]
  23. Ramírez, L.F.; Escobar, J.; Galván, E.; Vaca, H.; Murrieta, F.R.; Luna, M.R.S. Evaluation of diluted and undiluted trickle-bed hydrotreating reactor with different catalyst volume. Petrol. Sci. Technol. 2004, 22, 157–175. [Google Scholar] [CrossRef]
  24. Samain, L.; Jaworski, A.; Edén, M.; Ladd, D.M.; Seo, D.-K.; Javier Garcia-Garcia, F.; Häussermann, U. Structural analysis of highly porous γ-Al2O3. J. Solid State Chem. 2014, 217, 1–8. [Google Scholar] [CrossRef]
  25. Lian, J.; Ma, J.; Duan, X.; Kim, T.; Li, H.; Zheng, W. One-step ionothermal synthesis of γ-Al2O3 mesoporous nanoflakes at low temperature. Chem. Commun. 2010, 46, 2650–2652. [Google Scholar] [CrossRef] [PubMed]
  26. Rodríguez-Gattorno, G.; Martínez-Hernández, A.; Aleman-Vázquez, L.O.; Torres-García, E. Structural and thermal study of carbon-modified molybdenum sub-oxide catalysts. Appl. Catal. A Gen. 2007, 321, 117–124. [Google Scholar] [CrossRef]
  27. Baston, E.P.; França, A.B.; Neto, A.V.d.S.; Urquieta-González, E.A. Incorporation of the precursors of Mo and Ni oxides directly into the reaction mixture of sol-gel prepared γ-Al2O3-ZrO2 supports—Evaluation of the sulfided catalysts in the thiophene hydrodesulfurization. Catal. Today 2015, 246, 184–190. [Google Scholar] [CrossRef]
  28. Socrates, G. Infrared and Raman Characteristic Group Frequencies; John Wiley & Sons LTD: Hoboken, NJ, USA, 2001. [Google Scholar]
  29. Yale, H.L. Organometallic compounds of pyridine. In Chemistry of Heterocyclic Compounds; John Wiley & Sons, Inc.: Hoboken, NJ, USA, 2008; pp. 489–621. [Google Scholar]
  30. Mohan, S.; Ilangovan, V. Studied on 2-aminpyridine molecule by FTIR and laser Raman spectroscopy. Asian J. Chem. 1995, 7, 556–562. [Google Scholar]
  31. Escobar, J.; Barrera, M.C.; Toledo, J.A.; Cortés-Jácome, M.A.; Angeles-Chávez, C.; Núñez, S.; Santes, V.; Gómez, E.; Díaz, L.; Romero, E.; et al. Effect of ethyleneglycol addition on the properties of P-doped NiMo/Al2O3 HDS catalysts: Part I. Materials preparation and characterization. Appl. Catal. B Environ. 2009, 88, 564–575. [Google Scholar] [CrossRef]
  32. Radanović, D.J.; Ianelli, S.; Pelosi, G.; Matović, Z.D.; Tasić-Stojanović, S.; Douglas, B.E. Some hexadentate Ni(II)-edta-type complexes containing five-membered diamine rings. The molecular and crystal structure of the trans(O5) isomer of barium(ethylenediamine)-N,N′-diacetato-N,N′-di-3-propionato_)nicklate(II) hexahydrate, trans(O5)-Ba[Ni(eddadp)]·6H2O, and strain analysis of edta-type chelates in relation to their octahedral distortion. Inorg. Chim. Acta 1998, 278, 66–75. [Google Scholar]
  33. Ferwerda, R.; van der Maas, J.H.; van Duijneveldt, F.B. Pyridine adsorption onto metal oxides: An ab initio study of model systems. J. Mol. Catal. A Chem. 1996, 104, 319–328. [Google Scholar] [CrossRef]
  34. Hu, H.; Wachs, I.E.; Bare, S.R. Surface structures of supported molybdenum oxide catalysts: Characterization by raman and Mo L3-edge xanes. J. Phys. Chem. 1995, 99, 10897–10910. [Google Scholar] [CrossRef]
  35. Toledo-Antonio, J.A.; Cortes-Jacome, M.A.; Escobar-Aguilar, J.; Angeles-Chavez, C.; Navarrete-Bolaños, J.; López-Salinas, E. Upgrading HDS activity of MoS2 catalysts by chelating thioglycolic acid to MoOx supported on alumina. Appl. Catal. B Environ. 2017, 213, 106–117. [Google Scholar] [CrossRef]
  36. Yates, B.; Cooper, R.F.; Pojur, A.F. Thermal expansion at elevated temperatures. II. Aluminium oxide: Experimental data between 100 and 800 K and their analysis. J. Phys. C Solid State Phys. 1972, 5, 1046. [Google Scholar] [CrossRef]
  37. Williams, C.C.; Ekerdt, J.G.; Jehng, J.M.; Hardcastle, F.D.; Turek, A.M.; Wachs, I.E. A raman and ultraviolet diffuse reflectance spectroscopic investigation of silica-supported molybdenum oxide. J. Phys. Chem. 1991, 95, 8781–8791. [Google Scholar] [CrossRef]
  38. Díaz de León, J.N.; Picquart, M.; Villarroel, M.; Vrinat, M.; Gil Llambias, F.J.; Murrieta, F.; de los Reyes, J.A. Effect of gallium as an additive in hydrodesulfurization WS2/γ-Al2O3 catalysts. J. Mol. Catal. A Chem. 2010, 323, 1–6. [Google Scholar] [CrossRef]
  39. González-Cortés, S.L.; Xiao, T.-C.; Costa, P.M.F.J.; Fontal, B.; Green, M.L.H. Urea-organic matrix method: An alternative approach to prepare Co-MoS2/γ-Al2O3 HDS catalyst. Appl. Catal. A Gen. 2004, 270, 209–222. [Google Scholar] [CrossRef]
  40. González-Cortés, S.L.; Xiao, T.-C.; Green, M.L.H. Urea-matrix combustion method: A versatile tool for the preparation of HDS catalysts. Stud. Surf. Sci. Catal. 2006, 162, 817–824. [Google Scholar]
  41. Kaluža, L.; Zdražil, M. Preparation of zirconia-supported hydrodesulphurisation catalysts by water-assisted spreading. Appl. Catal. A Gen. 2007, 329, 58–67. [Google Scholar] [CrossRef]
  42. Garg, S.; Soni, K.; Kumaran, G.M.; Kumar, M.; Gupta, J.K.; Sharma, L.D.; Dhar, G.M. Effect of Zr-SBA-15 support on catalytic functionalities of Mo, CoMo, NiMo hydrotreating catalysts. Catal. Today 2008, 130, 302–308. [Google Scholar] [CrossRef]
  43. Barrientos, J.; Lualdi, M.; Boutonnet, M.; Järås, S. Deactivation of supported nickel catalysts during CO methanation. Appl. Catal. A Gen. 2014, 486, 143–149. [Google Scholar] [CrossRef]
  44. Wang, A.; Wang, Y.; Kabe, T.; Chen, Y.; Ishihara, A.; Qian, W.; Yao, P. Hydrodesulfurization of dibenzothiophene over siliceous MCM-41-supported catalysts: II. Sulfided Ni-Mo Catalysts. J. Catal. 2002, 210, 319–327. [Google Scholar] [CrossRef]
  45. Zepeda, T.A.; Halachev, T.; Pawelec, B.; Nava, R.; Klimova, T.; Fuentes, G.A.; Fierro, J.L.G. Hydrodesulfurization of dibenzothiophene over CoMo/HMS and CoMo/Ti-HMS catalysts. Catal. Commun. 2006, 7, 33–41. [Google Scholar] [CrossRef]
  46. Díaz-García, L.; Santes, V.; Viveros-García, T.; Sánchez-Trujillo, A.; Ramírez-Salgado, J.; Ornelas, C.; Rodríguez-Castellón, E. Electronic binding of sulfur sites into Al2O3-ZrO2 supports for NiMoS configuration and their application for hydrodesulfurization. Catal. Today 2017, 282, 230–239. [Google Scholar] [CrossRef]
  47. Scott, C.E.; Perez-Zurita, M.J.; Carbognani, L.A.; Molero, H.; Vitale, G.; Guzmán, H.J.; Pereira-Almao, P. Preparation of NiMoS nanoparticles for hydrotreating. Catal. Today 2015, 250, 21–27. [Google Scholar] [CrossRef]
  48. Zepeda, T.A.; Pawelec, B.; Obeso-Estrella, R.; Díaz de León, J.N.; Fuentes, S.; Alonso-Núñez, G.; Fierro, J.L.G. Competitive HDS and HDN reactions over NiMoS /HMS-Al catalysts: Diminishing of the inhibition of HDS reaction by support modification with P. Appl. Catal. B Environ. 2016, 180, 569–579. [Google Scholar] [CrossRef]
  49. Ninh, T.K.T.; Massin, L.; Laurenti, D.; Vrinat, M. A new approach in the evaluation of the support effect for NiMo hydrodesulfurization catalysts. Appl. Catal. A Gen. 2011, 407, 29–39. [Google Scholar] [CrossRef]
  50. Keliang, P.; Wenguo, X.; Changsui, Z. Investigation on pyrolysis characteristic of natural coke using thermogravimetric and fourier-transform infrared method. J. Anal. Appl. Pyrolysis 2007, 80, 77–84. [Google Scholar] [CrossRef]
  51. Sarbak, Z. Characterization and infrared study of the effect of Cr, Mo and W on carbon deposition on platinum/alumina. Appl. Catal. A Gen. 1999, 177, 85–97. [Google Scholar] [CrossRef]
  52. Datka, J.; Sarbak, Z.; Eischens, R.P. Infrared study of coke on alumina and zeolite. J. Catal. 1994, 145, 544–550. [Google Scholar] [CrossRef]
  53. Bourikas, K.; Kordulis, C.; Lycourghiotis, A. The role of the liquid-solid interface in the preparation of supported catalysts. Catal. Rev. 2006, 48, 363–444. [Google Scholar] [CrossRef]
  54. Ryczkowski, J. IR studies of EDTA alkaline salts interaction with the surface of inorganic oxides. Appl. Surf. Sci. 2005, 252, 813–822. [Google Scholar] [CrossRef]
  55. Sun, M.; Nelson, A.E.; Adjaye, J. Adsorption and dissociation of H2 and H2S on MoS2 and NiMoS catalysts. Catal. Today 2005, 105, 36–43. [Google Scholar] [CrossRef]
Sample Availability: Samples of the compounds CoMoP supported on alumina with the organic additive are not available from the authors.

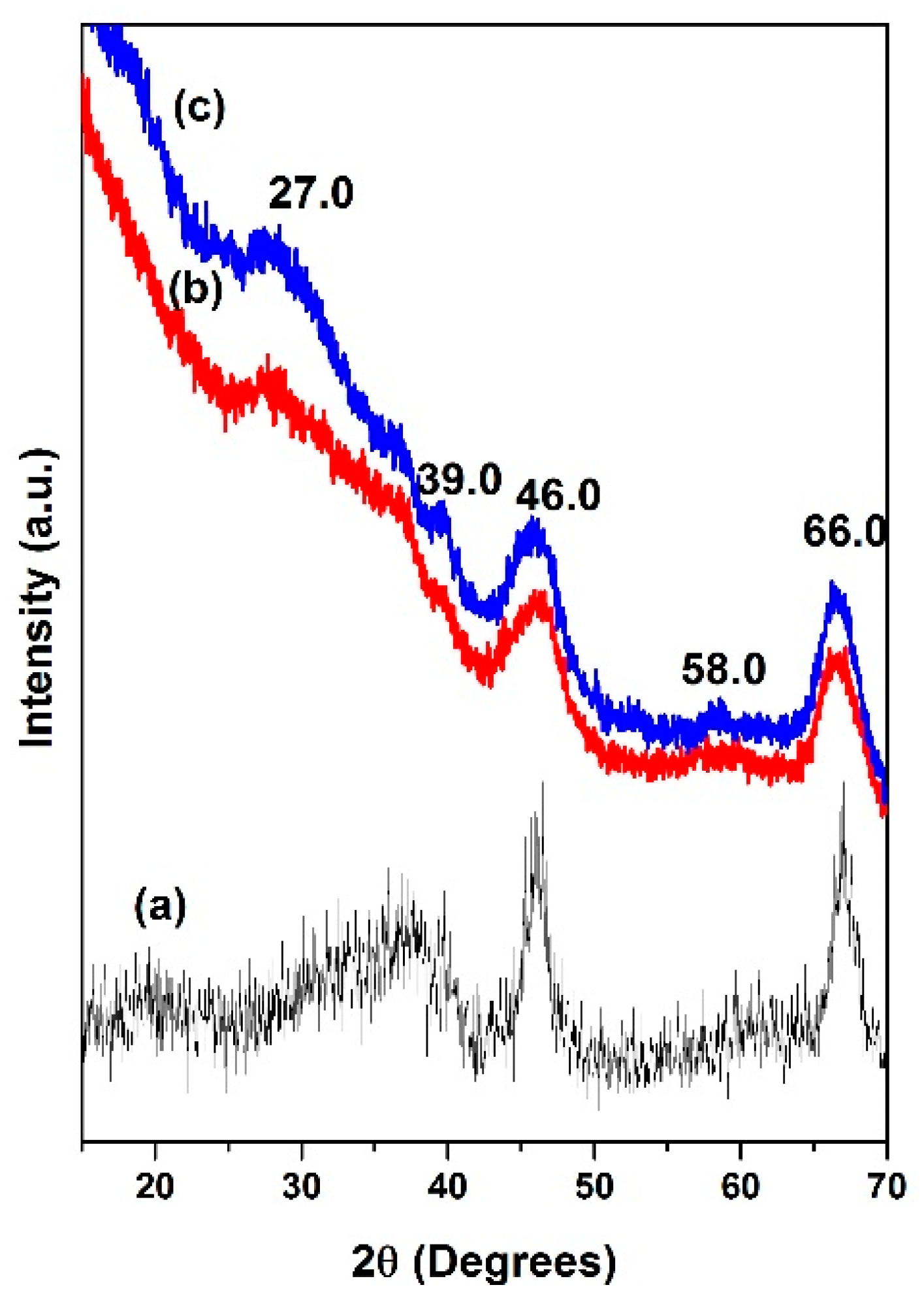

Figure 1. X-ray diffraction for NiMoP/γ-Al2O3 at different molar ratios of BDPHP/Ni: γ-Al2O3 (a); 0.5 (b); and 1.0 (c).
Figure 1. X-ray diffraction for NiMoP/γ-Al2O3 at different molar ratios of BDPHP/Ni: γ-Al2O3 (a); 0.5 (b); and 1.0 (c).
Molecules 22 01332 g001

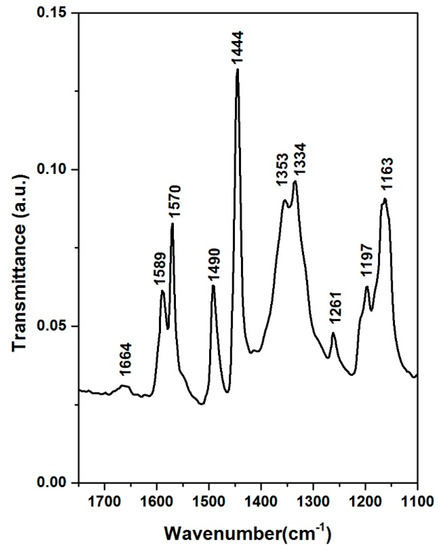

Figure 2. Fourier transform infrared spectra for 2,6-Bis-(1-hydroxy-1,1-diphenyl-methyl) pyridine.
Figure 2. Fourier transform infrared spectra for 2,6-Bis-(1-hydroxy-1,1-diphenyl-methyl) pyridine.
Molecules 22 01332 g002

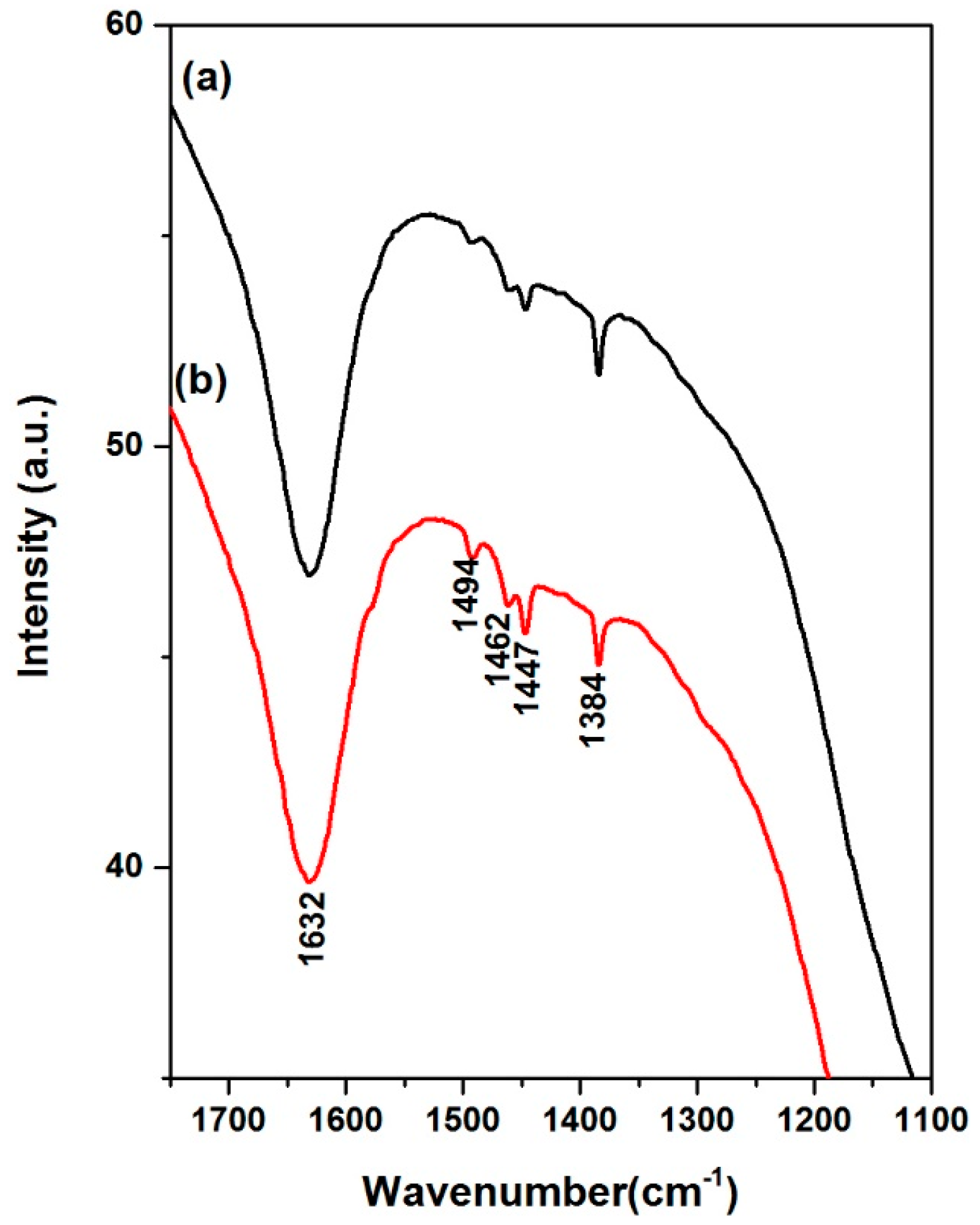

Figure 3. Fourier transform infrared spectra for NiMoP/γ-Al2O3 at different molar ratios of BDPHP/Ni: 0.5 (a) and 1.0 (b).
Figure 3. Fourier transform infrared spectra for NiMoP/γ-Al2O3 at different molar ratios of BDPHP/Ni: 0.5 (a) and 1.0 (b).
Molecules 22 01332 g003

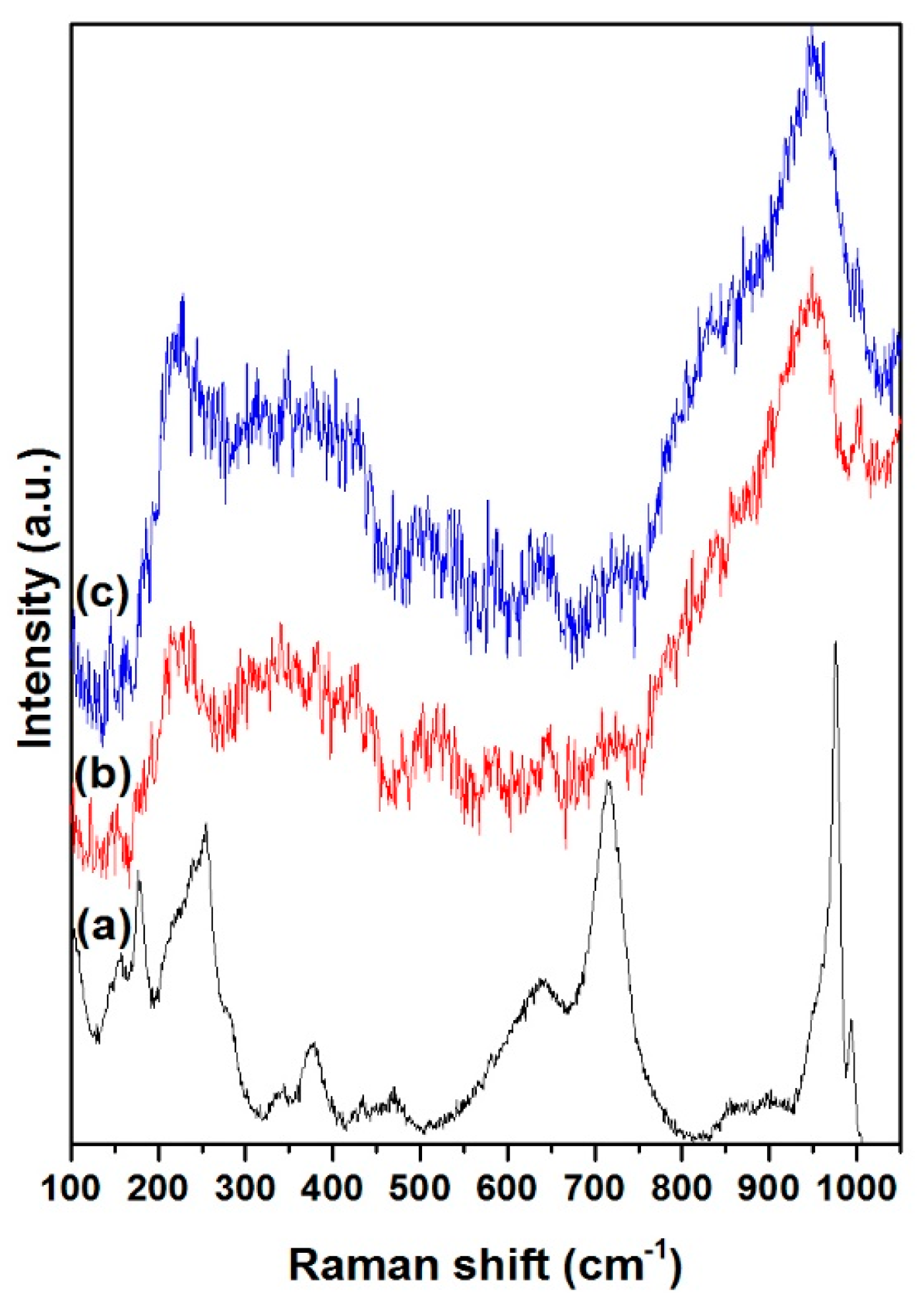

Figure 4. Raman spectra for NiMoP/γ-Al2O3 at different molar ratios of BDPHP/Ni: 0.0 (a); 0.5 (b); and 1.0 (c).
Figure 4. Raman spectra for NiMoP/γ-Al2O3 at different molar ratios of BDPHP/Ni: 0.0 (a); 0.5 (b); and 1.0 (c).
Molecules 22 01332 g004

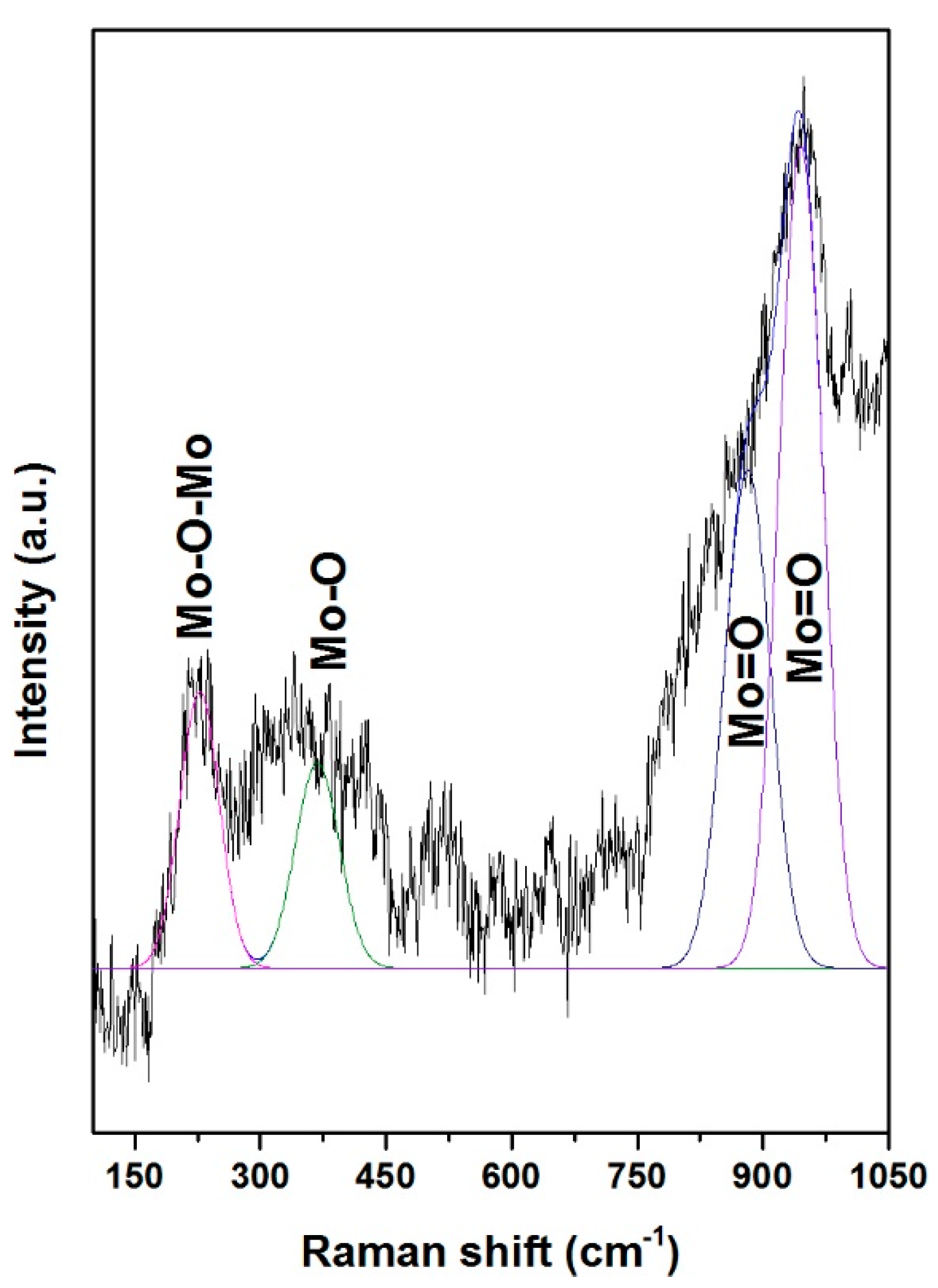

Figure 5. Gaussian deconvolution of NiMoP/γ-Al2O3 at BDPHP/Ni = 0.5.
Figure 5. Gaussian deconvolution of NiMoP/γ-Al2O3 at BDPHP/Ni = 0.5.
Molecules 22 01332 g005

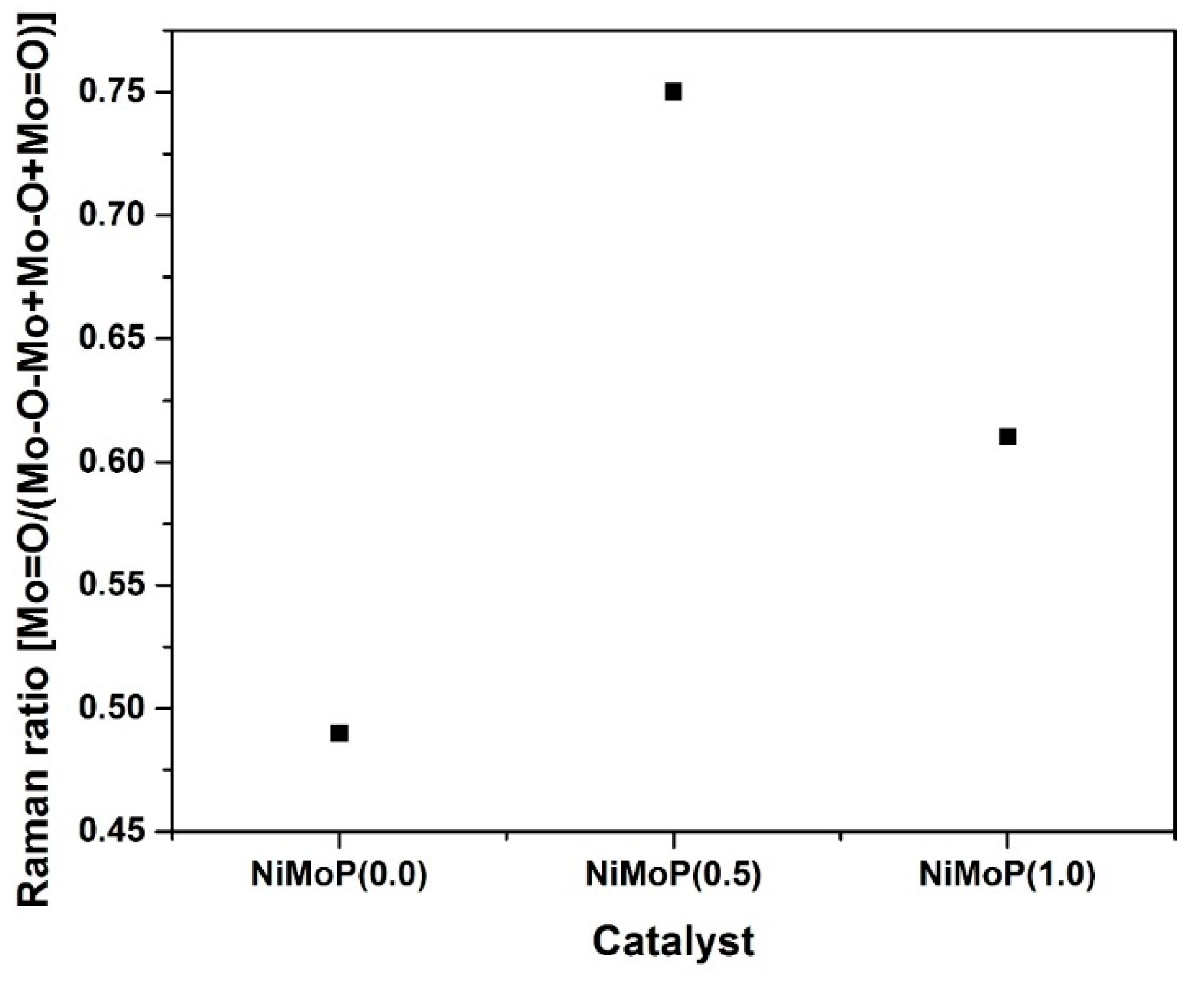

Figure 6. Raman Ratio as a function of the molar ratio BDPHP/Ni in the NiMoP catalysts.
Figure 6. Raman Ratio as a function of the molar ratio BDPHP/Ni in the NiMoP catalysts.
Molecules 22 01332 g006

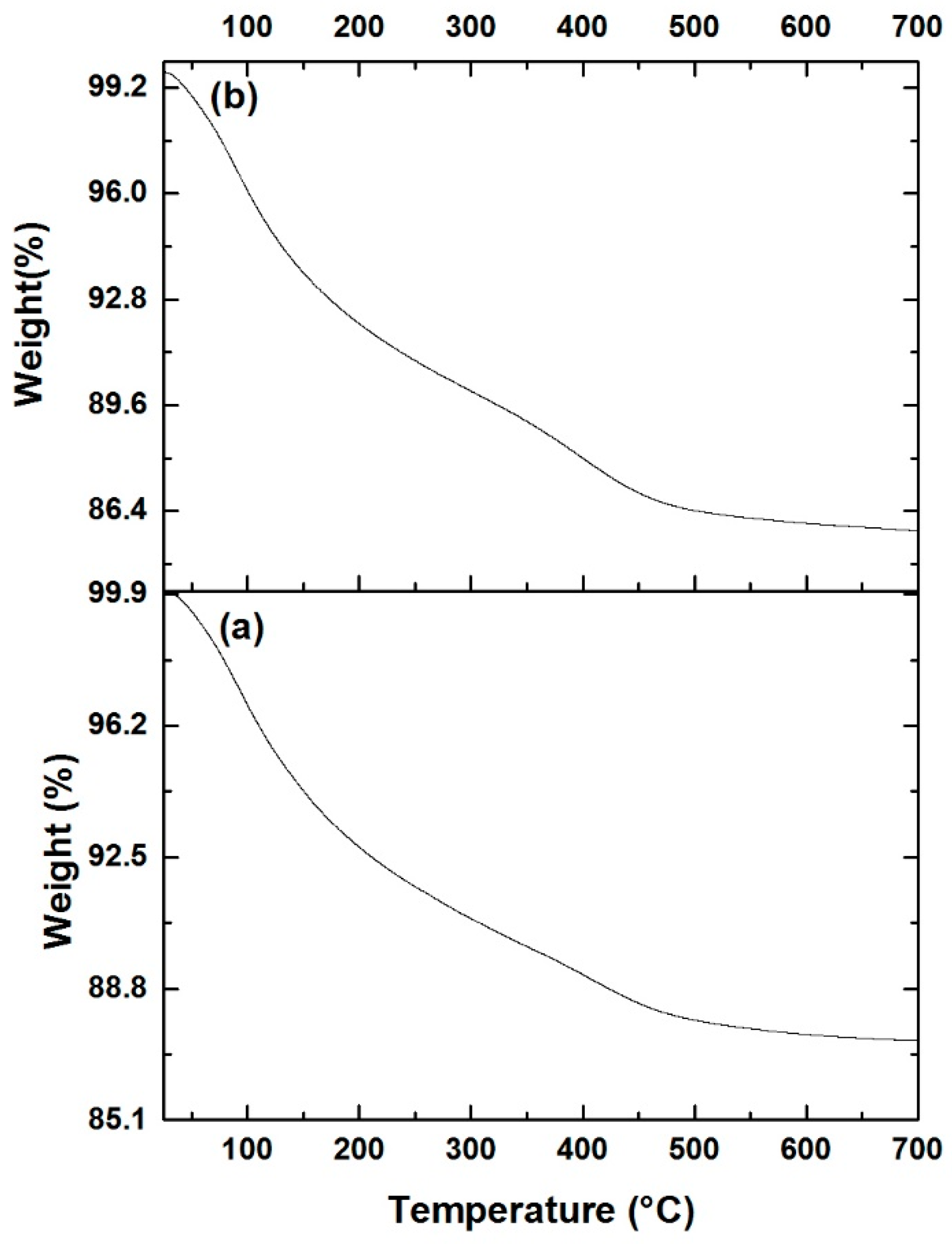

Figure 7. Thermogravimetric analysis for NiMoP/γ-Al2O3 at different molar ratios of BDPHP/Ni: 0.5 (a) and 1.0 (b).
Figure 7. Thermogravimetric analysis for NiMoP/γ-Al2O3 at different molar ratios of BDPHP/Ni: 0.5 (a) and 1.0 (b).
Molecules 22 01332 g007

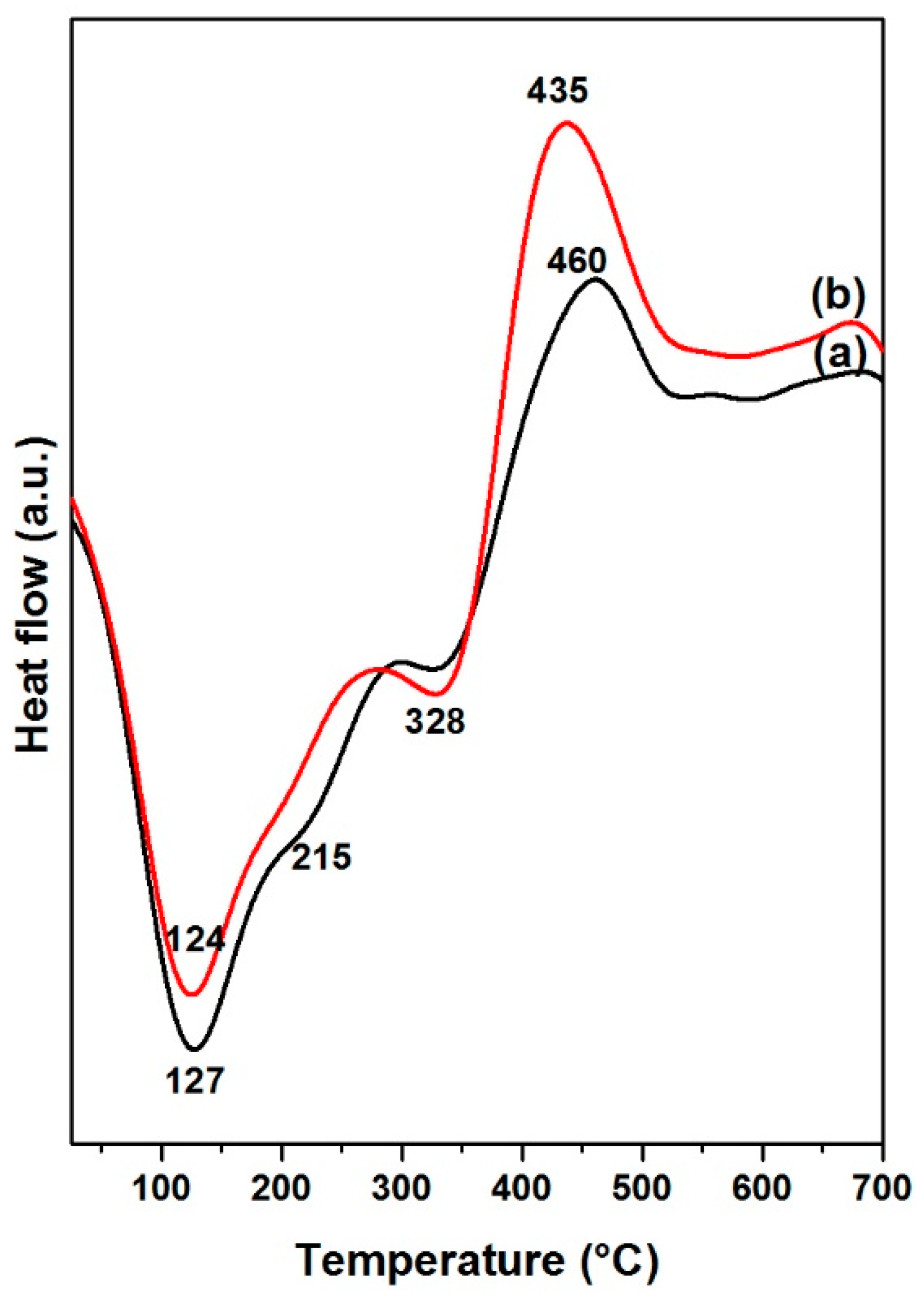

Figure 8. Heat flow profiles for NiMoP/γ-Al2O3 at different molar ratios of BDPHP/Ni: 0.5 (a) and 1.0 (b).
Figure 8. Heat flow profiles for NiMoP/γ-Al2O3 at different molar ratios of BDPHP/Ni: 0.5 (a) and 1.0 (b).
Molecules 22 01332 g008

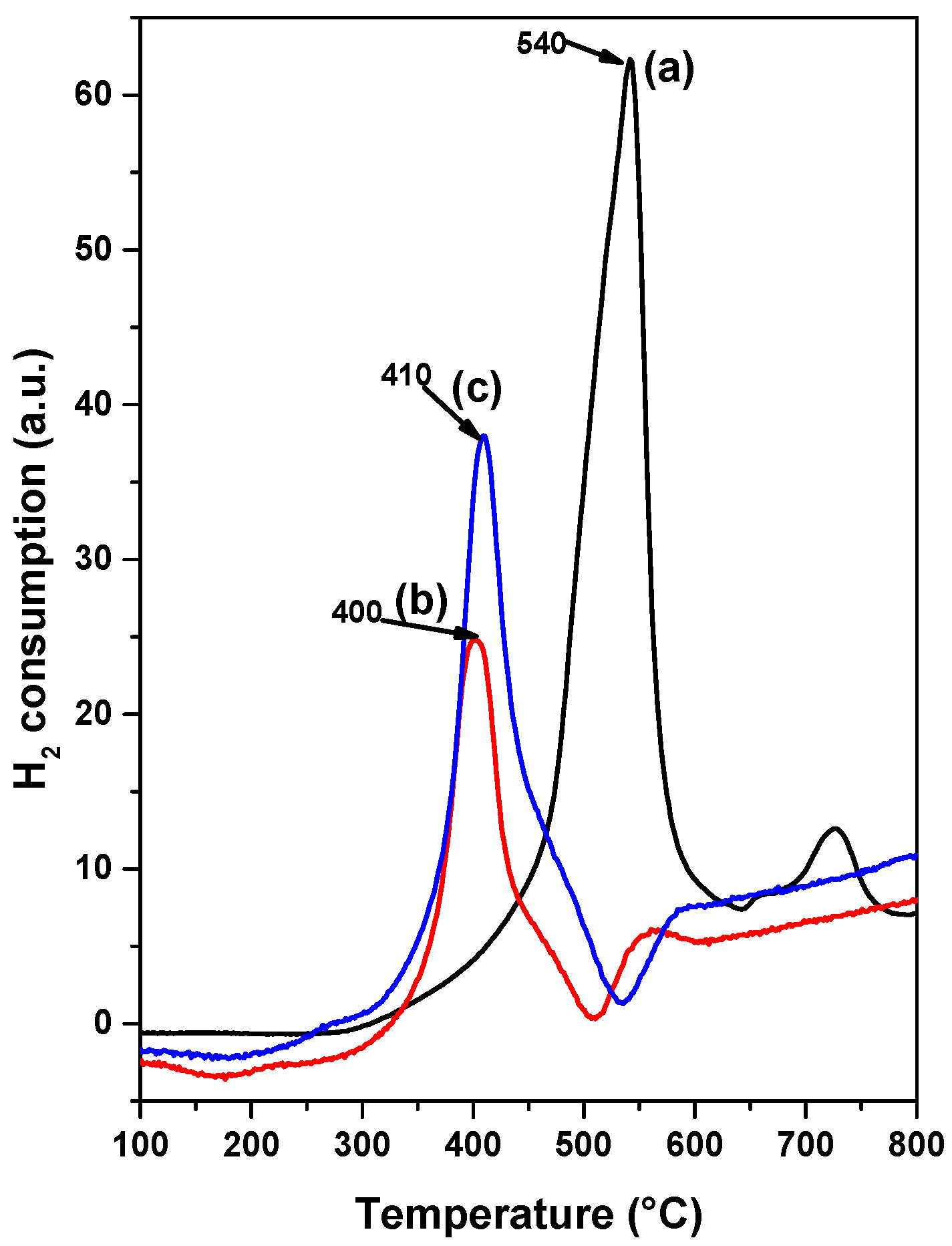

Figure 9. Temperature-programmed reduction profiles for NiMoP/γ-Al2O3 at different molar ratios of BDPHP/Ni: 0.0 (a); 0.5 (b); and 1.0 (c).
Figure 9. Temperature-programmed reduction profiles for NiMoP/γ-Al2O3 at different molar ratios of BDPHP/Ni: 0.0 (a); 0.5 (b); and 1.0 (c).
Molecules 22 01332 g009

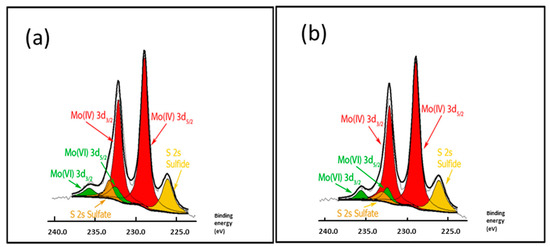

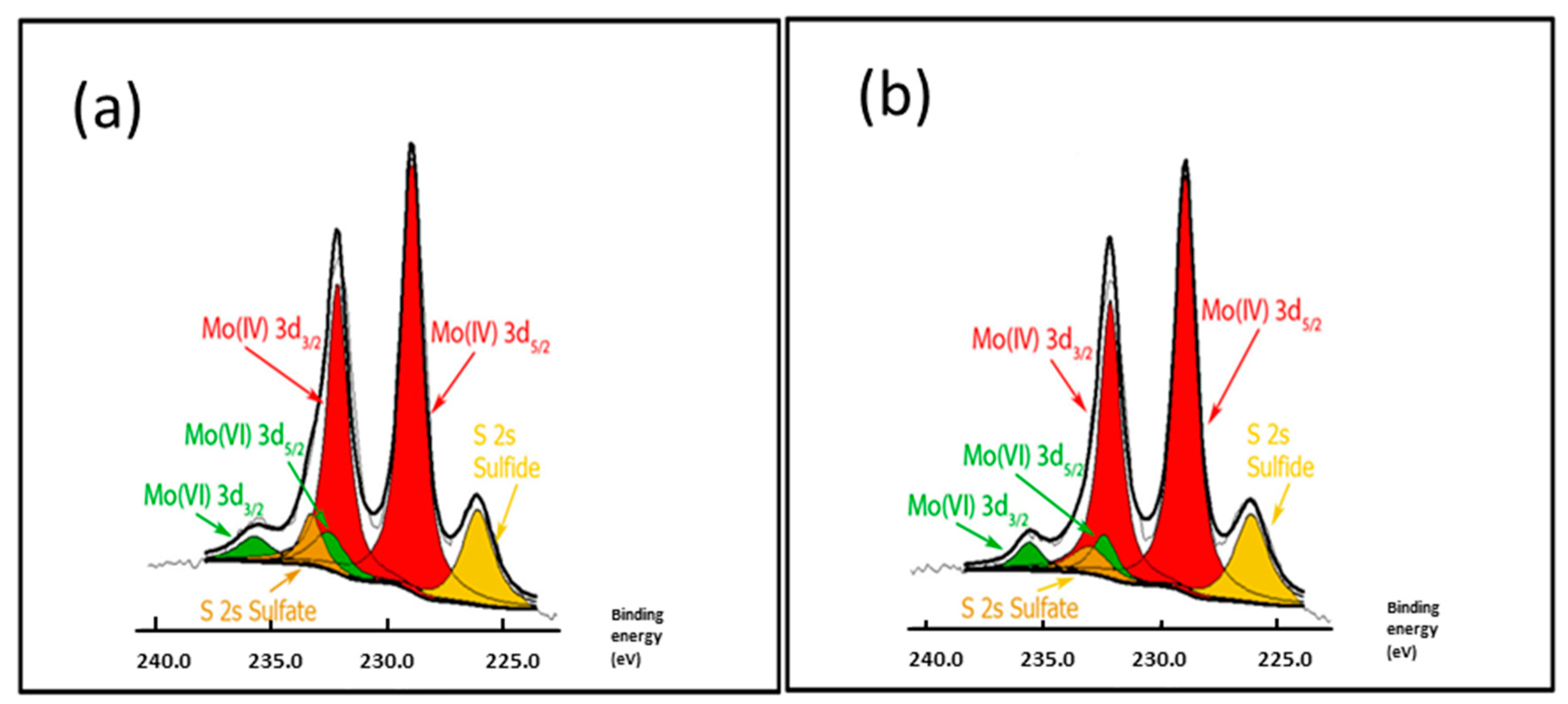

Figure 10. X-ray photoelectron spectra of sulfided NiMoP/γ-Al2O3 catalysts: For the NiMoP sample, deconvolution in Mo 3d emission line is shown in the inset of this figure: NiMoP (0.5) (a) and NiMoP (1.0) (b).
Figure 10. X-ray photoelectron spectra of sulfided NiMoP/γ-Al2O3 catalysts: For the NiMoP sample, deconvolution in Mo 3d emission line is shown in the inset of this figure: NiMoP (0.5) (a) and NiMoP (1.0) (b).
Molecules 22 01332 g010

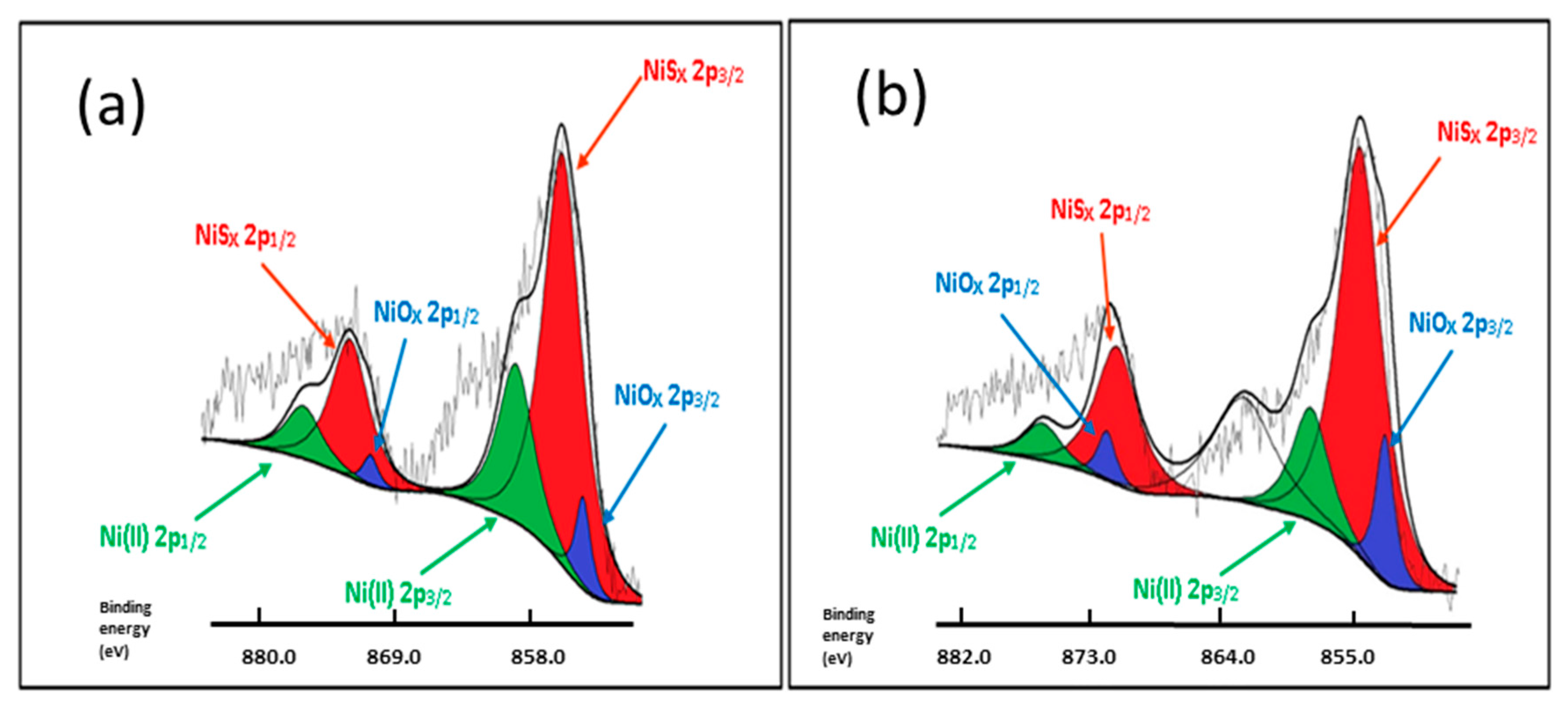

Figure 11. X-ray photoelectron spectra of sulfided NiMoP/γ-Al2O3 catalysts: For the NiMoP sample, deconvolution in Ni 2p emission line is shown in the inset of this figure: NiMoP (0.5) (a) and NiMoP (1.0) (b).
Figure 11. X-ray photoelectron spectra of sulfided NiMoP/γ-Al2O3 catalysts: For the NiMoP sample, deconvolution in Ni 2p emission line is shown in the inset of this figure: NiMoP (0.5) (a) and NiMoP (1.0) (b).
Molecules 22 01332 g011

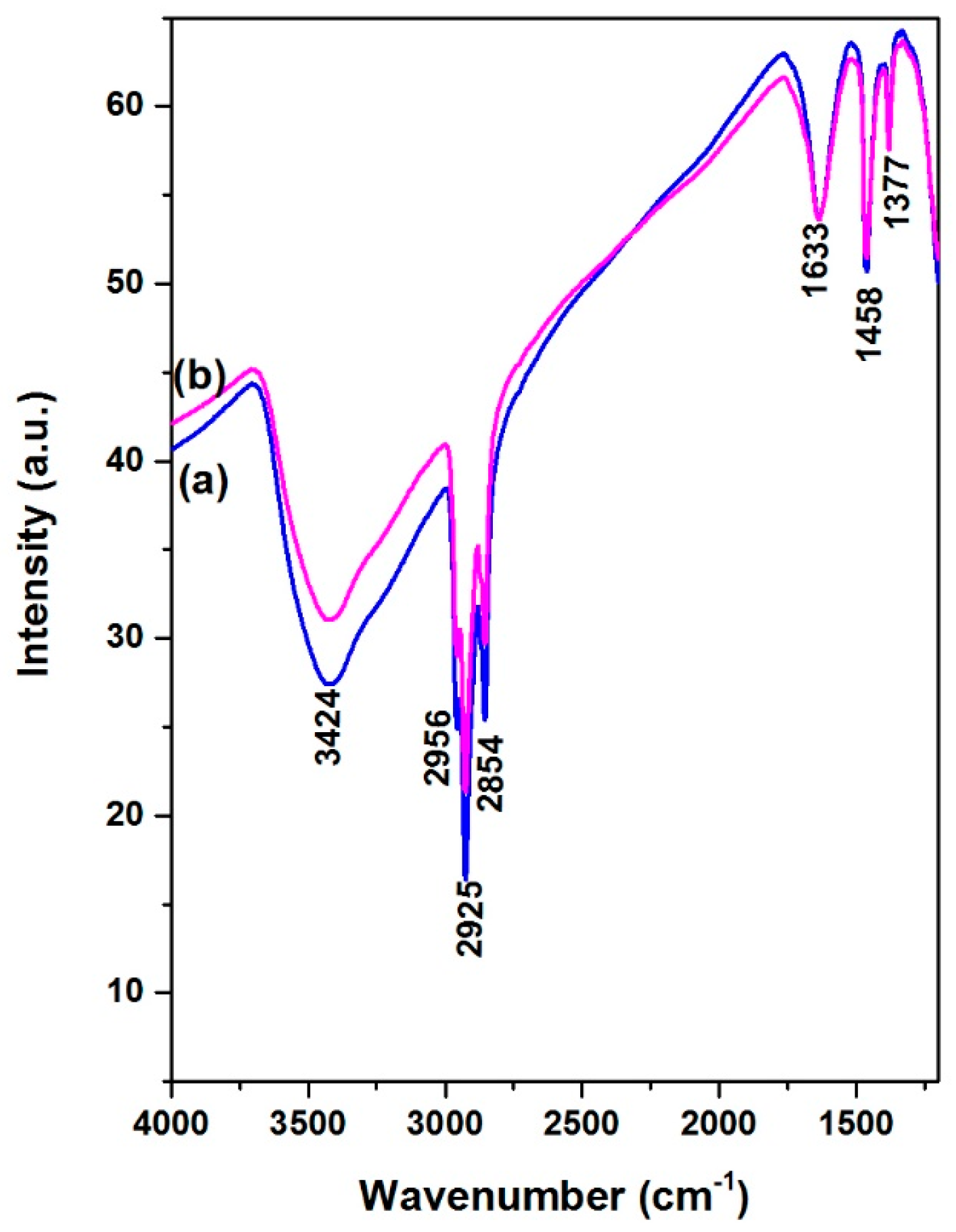

Figure 12. FT-IR spectra for NiMoP/γ-Al2O3 after reaction at different molar ratios of BDPHP/Ni: 0.5 (a) and 1.0 (b).
Figure 12. FT-IR spectra for NiMoP/γ-Al2O3 after reaction at different molar ratios of BDPHP/Ni: 0.5 (a) and 1.0 (b).
Molecules 22 01332 g012

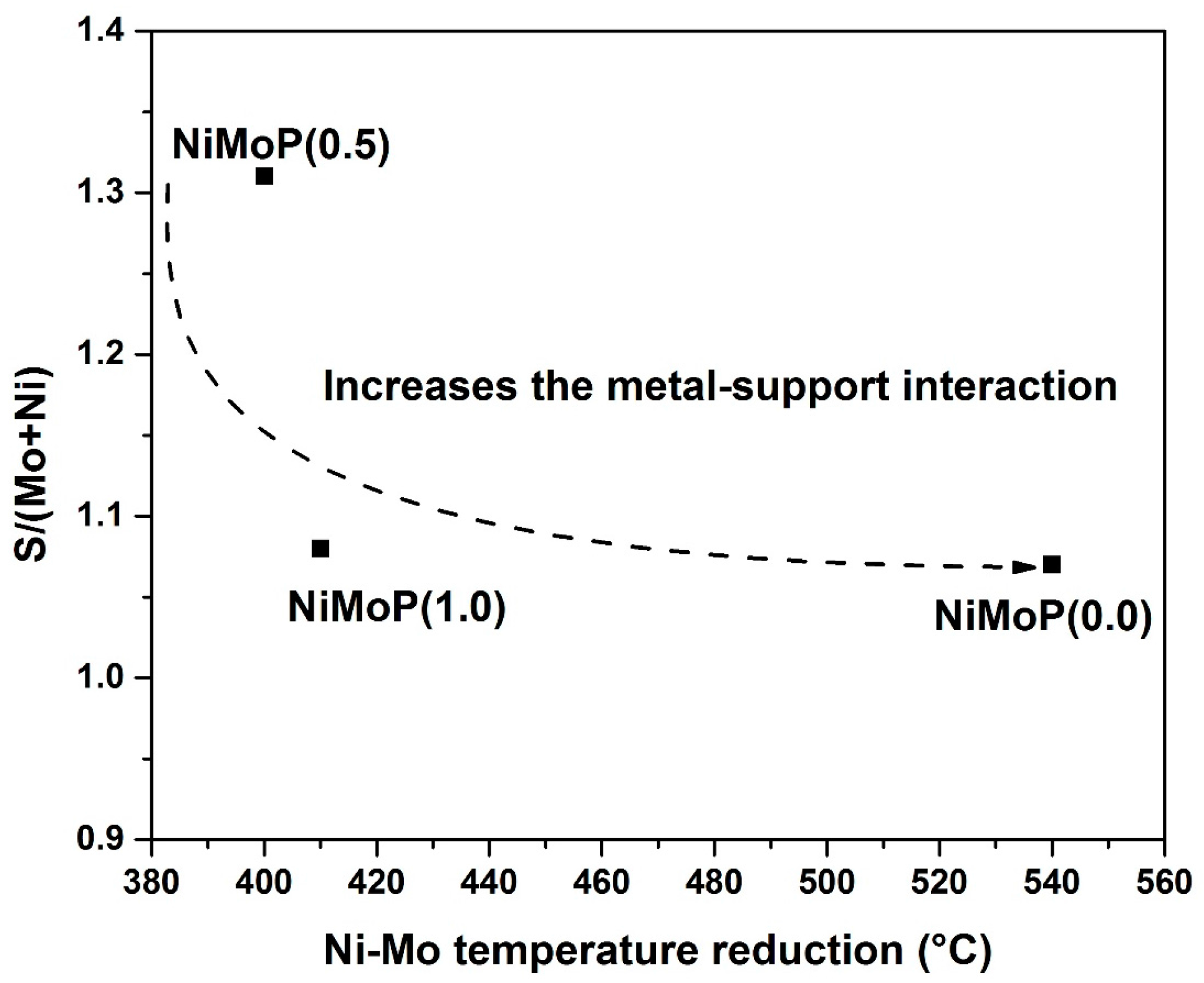

Figure 13. Relation between Ni-Mo temperature reduction with sulfurization degree of Ni and Mo.
Figure 13. Relation between Ni-Mo temperature reduction with sulfurization degree of Ni and Mo.
Molecules 22 01332 g013

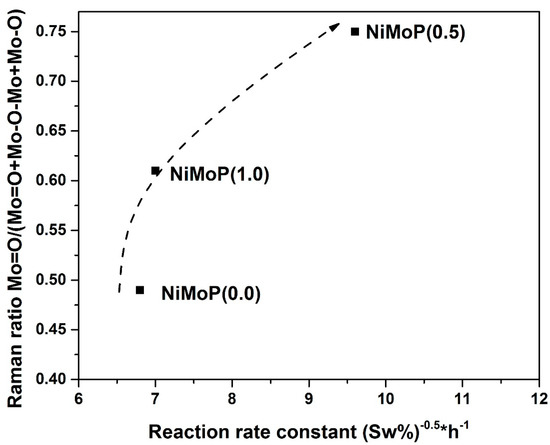

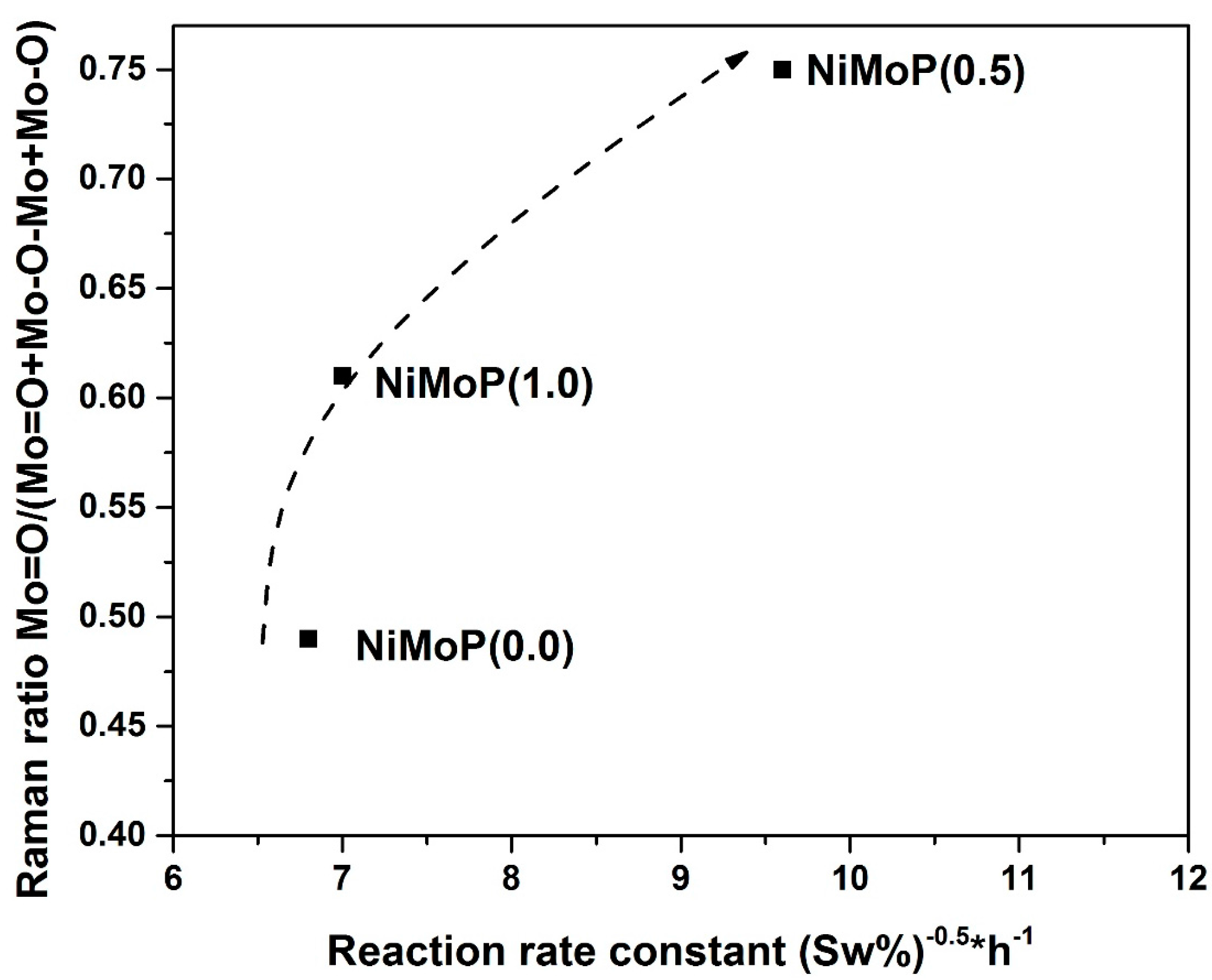

Figure 14. Relation between Raman ratio and reaction rate constant for NiMoP/γ-Al2O3 at different molar ratios of BDPHP/Ni: 0.0, 0.5 and 1.0.
Figure 14. Relation between Raman ratio and reaction rate constant for NiMoP/γ-Al2O3 at different molar ratios of BDPHP/Ni: 0.0, 0.5 and 1.0.
Molecules 22 01332 g014
Table 1. Textural properties for NiMoP/γ-Al2O3 at different molar ratios of BDPHP/Ni.
Table 1. Textural properties for NiMoP/γ-Al2O3 at different molar ratios of BDPHP/Ni.
CatalystNiMoP (0.0)NiMoP (0.5)NiMoP (1.0)
Specific area (m2/g)136156164
Pore size (nm)9.79.89.9
Total volume (cm3/g)0.330.370.40
Table 2. Percentage of the surface species of freshly sulfided NiMoP/γ-Al2O3 catalysts.
Table 2. Percentage of the surface species of freshly sulfided NiMoP/γ-Al2O3 catalysts.
CatalystSynthesis ConditionsNi 2p Core LevelMo 3d Core Level
NiSNiMoSNiOxMoS2(Mo4+)MoOx(Mo6+)
NiMoP (0.0)BDPHP/Ni = 0.01449377030
NiMoP (0.5)BDPHP/Ni = 0.53145248614
NiMoP (1.0)BDPHP/Ni = 1.02746278713
Table 3. Mo and Ni surface atomic ratios and sulfidation degree of NiMoP/γ-Al2O3 sulfide catalysts.
Table 3. Mo and Ni surface atomic ratios and sulfidation degree of NiMoP/γ-Al2O3 sulfide catalysts.
SampleC/AlMo/AlNi/AlS/AlS/(Mo + Ni)Ni + Mo/Al
NiMoP (0.0)-0.070.0760.081.070.07
NiMoP (0.5)0.630.070.0200.131.310.09
NiMoP (1.0)1.000.120.0200.151.080.13
Table 4. Conversion and reaction rate constant at steady state (12 h) in the hydrodesulfurization of straight-run gas oil over NiMoP/γ-Al2O3 sulfide catalysts.
Table 4. Conversion and reaction rate constant at steady state (12 h) in the hydrodesulfurization of straight-run gas oil over NiMoP/γ-Al2O3 sulfide catalysts.
CatalystRatio (BDPHP/Ni)Conversion (%)Raman Ratiokhds (Sw %)−0.5 h−1
NiMoP (0.0)0.094.10.496.8
NiMoP (0.5)0.596.70.759.6
NiMoP (1.0)1.094.50.617.0
Reaction conditions were T = 340 °C; P = 56 kg/cm2; reaction time 12 h; fixed bed reactor.

Share and Cite

MDPI and ACS Style

Santolalla-Vargas, C.E.; Santes, V.; Meneses-Domínguez, E.; Escamilla, V.; Hernández-Gordillo, A.; Gómez, E.; Sánchez-Minero, F.; Escobar, J.; Díaz, L.; Goiz, O. Effect of 2,6-Bis-(1-hydroxy-1,1-diphenyl-methyl) Pyridine as Organic Additive in Sulfide NiMoP/γ-Al2O3 Catalyst for Hydrodesulfurization of Straight-Run Gas Oil. Molecules 2017, 22, 1332. https://doi.org/10.3390/molecules22081332

AMA Style

Santolalla-Vargas CE, Santes V, Meneses-Domínguez E, Escamilla V, Hernández-Gordillo A, Gómez E, Sánchez-Minero F, Escobar J, Díaz L, Goiz O. Effect of 2,6-Bis-(1-hydroxy-1,1-diphenyl-methyl) Pyridine as Organic Additive in Sulfide NiMoP/γ-Al2O3 Catalyst for Hydrodesulfurization of Straight-Run Gas Oil. Molecules. 2017; 22(8):1332. https://doi.org/10.3390/molecules22081332

Chicago/Turabian Style

Santolalla-Vargas, Carlos Eduardo, Victor Santes, Erick Meneses-Domínguez, Vicente Escamilla, Agileo Hernández-Gordillo, Elizabeth Gómez, Felipe Sánchez-Minero, José Escobar, Leonardo Díaz, and Oscar Goiz. 2017. "Effect of 2,6-Bis-(1-hydroxy-1,1-diphenyl-methyl) Pyridine as Organic Additive in Sulfide NiMoP/γ-Al2O3 Catalyst for Hydrodesulfurization of Straight-Run Gas Oil" Molecules 22, no. 8: 1332. https://doi.org/10.3390/molecules22081332

Article Metrics

Back to TopTop
