Article

Bis(1-pyrenylmethyl)-2-benzyl-2-methyl-malonate as a Cu2+ Ion-Selective Fluoroionophore

by
Takayo Moriuchi-Kawakami
1,*,
Youji Hisada
1,
Akihisa Higashikado
1,
Tsubasa Inoue
1,
Keiichi Fujimori
1 and
Toshiyuki Moriuchi
2
1
Department of Applied Chemistry, Faculty of Engineering, Osaka Institute of Technology, 5-16-1 Omiya, Asahi, Osaka 535-8585, Japan
2
Department of Applied Chemistry, Graduate School of Engineering, Osaka University, 2-1 Yamada-oka, Suita, Osaka 565-0871, Japan
*
Author to whom correspondence should be addressed.
Molecules 2017, 22(9), 1415; https://doi.org/10.3390/molecules22091415
Submission received: 3 August 2017 / Revised: 22 August 2017 / Accepted: 23 August 2017 / Published: 25 August 2017
Browse Figures
Versions Notes

Abstract

:
A new malonate possessing two pyrene moieties was synthesized as a fluoroionophore, and its structure and fluorescence spectroscopic properties were investigated. When excited at 344 nm in acetonitrile/chloroform (9:1, v/v), the synthesized bispyrenyl malonate has the fluorescence of intramolecular excimer (λem = 467 nm) emissions and not a pyrene monomer emission (λem = 394 nm). A large absolute fluorescence quantum yield was obtained in the solid state (ΦPL = 0.65) rather than in solution (ΦPL = 0.13). X-ray crystallography analysis clarified the molecular structure and alignment of the bispyrenyl malonate in the crystal phase, elucidating its fluorescence spectroscopic properties. Such analysis also suggests there are intramolecular C–H···π interactions and intermolecular π···π interactions between the pyrenyl rings. Interestingly, the synthesized bispyrenyl malonate exhibits excellent fluorescence sensing for the Cu2+ ion. Remarkable fluorescence intensity enhancement was only observed with the addition of the Cu2+ ion.

Graphical Abstract

1. Introduction

In recent years, research on ion sensing by fluoroionophores has attracted considerable attention [1,2,3,4,5]. In fact, there have been many reports on ion sensing for the Cu2+ ion since it is not only a toxic environmental pollutant but also an essential trace element in biological systems [6,7,8,9]. The Cu2+ ion is a well-known paramagnetic ion with an unfilled d orbital and can strongly quench the fluorescence of a fluorophore in its proximity via electron or energy transfer [10]. Therefore, the quenching of the fluorescence emission derived from the Cu2+ ion has mostly been reported in literature on ion sensing for the Cu2+ ion by fluoroionophores [4,11,12,13,14,15,16]. Nevertheless, a few reports on fluorescent enhancement with the Cu2+ ion are available [17,18,19,20,21].
Most fluoroionophores for cation sensing can be constructed with the recognition site having a fluorescent moiety [9]. Pyrenes are used extensively as a fluorescent moiety due to their emission properties [22,23,24,25,26]. Interestingly, fluorescent molecules with more than one pyrene moiety not only have pyrene monomer emissions but also pyrene excimer emissions due to the strong π···π interactions between the two pyrene moieties [27,28]. Generally, the pyrene excimer emission is observed in the longer wavelength region and is stronger than the pyrene monomer emission. If an efficient excimer emission signal is utilized for ion sensing, it would provide a sensitive detection method for the Cu2+ ion. In fact, ion sensing accompanied by the pyrene excimer emission signal has been reported for various ions such as H+, Ca2+, Zn2+ , Zr4+, In3+, Pb2+, and I− ions [29,30,31,32,33,34,35,36,37]. There are some reports in which pyrene derivatives detect the Cu2+ ion by a ratiometric fluorescent response with both monomer and excimer emissions [38,39,40,41,42], and where pyrene derivatives selectively recognize Cu2+ via the excimer emission enhancement [43,44,45,46,47]. However, for more highly sensitive sensing, improvement of the fluorescence quantum yield is necessary. In our previous studies, it was demonstrated that sandwich-type ion recognition compounds indicate excellent ion selectivity and that malonate is an excellent spacer for such compounds [48,49,50]. The substituents introduced into the C2-position of the malonate spacers affect the dihedral angles between the two ion recognition moieties, although the introduced substituents are spatially distant from the moieties [48]. In this study, we have designed and synthesized a new malonate possessing two pyrene moieties as a fluoroionophore. The dihedral angles between the two pyrenyl rings of the fluorescent probe are controlled by the substituents introduced into the C2-position of the malonate spacers, thus leading to the improvement of the pyrene excimer emissions and fluorescence quantum yield. Here, we have reported the synthesis, fluorescence spectroscopic properties, and the structure of the bis (1-pyrenemethyl)-2-benzyl-2-methylmalonate 1.

2. Results and Discussion

2.1. Synthesis

The synthesis of bispyrenyl malonate 1 proceeded from the starting 2-benzyl-2-methyl-malonic acid diethyl ester obtained by the introduction of the benzyl group to commercially available methylmalonic acid diethyl ester. The synthetic route of bispyrenyl malonate 1 is depicted in Scheme 1. Disubstituted malonic acid dichloride was synthesized by the reaction of the corresponding disubstituted malonic acid with (COCl)2 in benzene [49]. Subsequently, the reaction of the disubstituted malonic acid dichloride with 1-pyrenylmetanol in benzene led to the desired bispyrenyl malonate 1 in a 66% isolated yield. The thus-obtained bispyrenyl malonate 1 (C45H32O4) was fully characterized by 1H-NMR, 13C-NMR, FTIR, and HRMS. Detailed data on bispyrenyl malonate 1 are described in the Experimental Section. For comparison, bispyrenyl malonate 2 was prepared from the corresponding 2-methyl-2-naphthalenylmethyl-malonic acid diethyl ester.

2.2. Absorption and Fluorescence Properties

The UV-absorption spectra and fluorescence emission spectra of bispyrenyl malonate 1 (1.0 × 10–5 M) measured using an acetonitrile/chloroform (9:1, v/v) solution are shown in Figure 1. The maximum absorption bands of bispyrenyl malonate 1 are located at 342 and 326 nm (Figure 1a). Bispyrenyl malonate 1 itself shows a broad fluorescence band at 467 nm (excitation wavelength: λex = 344 nm) (Figure 1b). It indicates that bispyrenyl malonate 1 has the fluorescence of intramolecular excimer (λem = 467 nm) emissions and not a pyrene monomer emission (λem = 394 nm) even when bispyrenyl malonate 1 is present in the solution. The absolute quantum yields of bispyrenyl malonate 1 at room temperature were also recorded on an absolute PL quantum yield (ΦPL) measurement system. The absolute fluorescence quantum yields of bispyrenyl malonate 1 were ΦPL = 0.13 in acetonitrile/chloroform (9:1, v/v) solution and ΦPL = 0.65 in solid (excitation wavelength: λex = 344 nm). Interestingly, the large absolute fluorescence quantum yield of bispyrenyl malonate 1 could be obtained in the solid phase rather than in solution.

2.3. X-ray Structural Studies

X-ray crystallography analysis clarified the molecular structure and alignment of bispyrenyl malonate 1 in the crystal phase, as shown in Figure 2 and Figure 3. The structure was determined in the orthorhombic space group P212121 (no. 19) and anisotropic displacement parameters were applied for the ordered non-H atoms in the structures. The X-ray crystallographic data are summarized in Table 1 and the selected bond lengths and angles are listed in Table 2.
Structural characterizations of bispyrenyl malonate 1 were carried out by single-crystal X-ray structure determination to elucidate the fluorescence spectroscopic properties. As shown in Figure 2b, the calculated positions of the hydrogen atoms on the pyrenyl C (32) and C (34) atoms are practically facing the π-electrons of the other pyrenyl ring. The interaction distances (d1 and d2) between the hydrogens and the pyrenyl moiety are 2.58 and 2.60 Å, suggesting intramolecular C–H···π interactions in the crystal structure (edge-to-face interactions). These distances associated with the C–H···π interactions are sufficiently close to form an excimer [51]. The dihedral angles between the two pyrenyl moieties resulting from the C–H···π interactions are 83.05(6)°. The results of this single crystal X-ray study on bispyrenyl malonate 1 support the present fluorescence spectroscopic properties. Bispyrenyl malonate 1 in solution exhibits the fluorescence of intramolecular pyrene excimer emission (λem = 467 nm) due to the structural influence from the intramolecular C–H···π interaction between the two pyrene moieties.
Furthermore, pyrenyl moieties also participate in intermolecular π···π interactions with each of their neighboring molecules. Figure 2c shows that the pyrenyl moiety is present in a face-to-face manner with an interplanar distance of ca. 3.5 Å between the two pyrenyl moieties. The distance is within the range of the typical distance for π···π interactions (3.5 Å) [52]. The molecular packing diagrams of bispyrenyl malonate 1 in Figure 3 indicate that the molecules are linked by the π·· π stacking formed between the pyrenyl moieties with adjacent molecules. As shown in Figure 3c, pyrenyl moieties arrange in a herringbone motif that combines edge-to-face contacts (interaction distance = ca. 2.6 Å), the face-to-face π···π stacking (interaction distance = ca. 3.5 Å), and the offset π ·· π stacking (center-center distance = 9.51 Å) [53]. The intramolecular C–H···π interaction and the intermolecular π·· π interaction stabilize the structure of bispyrenyl malonate 1. A large absolute fluorescence quantum yield of bispyrenyl malonate 1 was obtained in the solid state (ΦPL = 0.65) rather than in solution (ΦPL = 0.13) due to the influence of the intramolecular C–H···π interaction and the intermolecular π·· π interaction in the solid state.

2.4. Fluorescence Response

The fluorescence response to various cations (Li+, Na+, NH4+, Mg2+, Cr3+, Mn2+, Fe2+, Co2+, Ni2+, Cu2+, Zn2+, Ag+, and Cd2+) of bispyrenyl malonate 1 was examined. The fluorescence spectra were recorded in acetonitrile/chloroform (9:1, v/v) solutions at a concentration of 1.0 × 10–5 M (excitation wavelength: λex = 344 nm). Figure 4a shows the fluorescence spectra of bispyrenyl malonate 1 in the absence or presence of 1 equiv. of each respective cation. The maximal emission peaks of bispyrenyl malonate 1 are located at 467 nm. Only the addition of the Cu2+ ion to the solution of bispyrenyl malonate 1 led to an enhancement of the fluorescence intensity. The maximal emission peak of bispyrenyl malonate 1 at 467 nm slightly shifted (to 463 nm) in the presence of 1 equiv. of the Cu2+ ion. As shown in Figure 4b, the fluorescence intensity at 467 nm in the presence of 1 equiv. of the Cu2+ ion was stronger than that of bispyrenyl malonate 1 itself. In addition, no fluorescence intensities of the solutions of bispyrenyl malonate 1 and 1 equiv. of the Cu2+ ion were changed in the presence of 1 equiv. of other metal ions (Figure S1). These results demonstrate that bispyrenyl malonate 1 exhibits high Cu2+ ion-selectivity even if in the presence of competitive cations. Although the addition of Cu2+ ions (from 0 to 100 equiv.) to the solution of bispyrenyl malonate 1 led to an increase in the fluorescence intensities of bispyrenyl malonate 1, no quantitative relationship between the fluorescence intensities of bispyrenyl malonate 1 and the concentrations of the Cu2+ ions was observed.
Based on the solubility of bispyrenyl malonate 1, a mixed solution (acetonitrile/chloroform/methanol/water = 7:1:1:1, v/v) was applied as the aqueous solution for further investigations. Under this aqueous condition, the proposed bispyrenyl malonate 1 showed a large fluorescence of the pyrene monomer emission and a small fluorescence of the pyrene excimer emission. The addition of the Cu2+ ions decreased the fluorescence of the pyrene monomer emission and increased the fluorescence of the pyrene excimer emission (Figure 5). It is notable that specific fluorescence responses of bispyrenyl malonate 1 to the Cu2+ ions were exhibited even if in aqueous conditions.
In our previous studies, it was demonstrated that the malonate spacer possessing the methyl and naphthalenylmethyl groups as C2-position introduced substituents also increased the ion-selectivity of the sandwich-type ion recognition compounds [49]. Thus, bispyrenyl malonate 2 possessing the methyl and naphthalenylmethyl groups as substituents was also prepared by a similar method (Scheme 1) and, for comparison, the fluorescence spectra of bispyrenyl malonate 2 were measured in the absence and presence of 1 equiv. of each respective cation (Figure S2). Fluorescence spectra findings on bispyrenyl malonates 1 and 2 demonstrated that they exhibit similar Cu2+ ion-selectivity. However, the ion-selectivity against the examined cations of bispyrenyl malonate 1 was slightly superior to that of bispyrenyl malonate 2. This is assumed to be because the substituents introduced into the C2-position of the malonate spacers affect the dihedral angles between the two pyrenyl rings, although the introduced substituents are spatially distant from the pyrenyl rings.
Fluorescence intensity enhancement of the bispyrenyl malonates by the Cu2+ ions could be interpreted as follows: the binding of the Cu2+ ion to ester moieties of a bispyrenyl malonate is considered to shorten the distance between the intramolecular pyrenyl rings, resulting in fluorescence intensity enhancement of the pyrene excimer emissions. Such fluorescence intensity enhancement was also influenced by the counter anions, i.e., fluorescence intensity enhancement of bispyrenyl malonate 2 by the addition of the Cu2+ ions in the case of nitrate was markedly weaker than that in the case of perchlorate.

3. Experimental Section

3.1. Reagents and Chemicals

All reagents were commercially available in the highest grade and used for the syntheses of malonates as such unless otherwise specified. Ethyl alcohol and pyridine were dried over molecular sieve 4 Å. Benzene was dried over sodium and distilled. All reactions were carried out under dry nitrogen. Acetonitrile was supplied from Wako Pure Chemical Industries Ltd. (Chuo-ku, Osaka, Japan) in the spectrochemical analysis grade for the absorption and fluorescence spectrometries. Chloroform was supplied from Wako Pure Chemical Industries, Ltd. in high performance liquid chromatography grade. Metal cations were added to a solution of a malonate derivative as perchlorate salts for the absorption and fluorescence spectrometries.

3.2. Apparatus

The 1H- and 13C-NMR spectra were recorded at 300 or 400 and 75 or 100 MHz, respectively. Samples for NMR spectra were examined in CDCl3 solutions at 25.0 °C on a Varian 300 MHz (XL-300) (Agilent Technologies Inc., Santa Clara, CA, USA) or a JEOL 400 MHz (JMTC-400) (JEOL Ltd., Akishima, Tokyo, Japan) NMR spectrometers. Chemical shifts are given in δ (ppm) relative to deuterated solvents (13C-NMR) or to TMS (1H-NMR) as an internal standard. IR spectra were run in KBr discs on a Shimazu FTIR-8600 spectrometer (Shimazu Corporation, Nagagyo-ku, Kyoto, Japan). High-resolution mass (HRMS) spectra (positive mode of EI mass) were recorded on a JEOL JMS-DX-303 (JEOL Ltd., Akishima, Tokyo, Japan). UV-Vis spectra were recorded on a Shimazu MPS-2000 Spectrophotometer (Shimazu Corporation, Nagagyo-ku, Kyoto, Japan). Fluorescence emission spectra were recorded on a Shimazu RF-5300PC(S) Luminescence Spectrometer (Shimazu Corporation, Nagagyo-ku, Kyoto, Japan). Absolute fluorescence quantum yields were determined with a Hamamatsu Photonics Quantaurus-QY C11347-01 calibrated integrating sphere system (Hamamatsu Photonics K.K., Hamamatsu, Shizuoka, Japan).

3.3. Syntheses

Bispyrenyl malonate 1 was prepared by the synthetic routes depicted in Scheme 1. Disubstituted malonic acid dichloride (2-benzyl-2-methyl-malonyl dichloride) was prepared by the same method reported previously [49]. Subsequently, the reaction of the disubstituted malonic acid dichloride with 1-pyrenylmetanol in benzene gave a desired bispyrenyl malonate 1. Bispyrenyl malonate 2 was prepared by similar method.
1-Pyrenylmethanol (4.6 g) was dissolved in dry benzene (200 mL). Dry pyridine (3.0 mL) was added to the solution and stirred for 1 h. In a dark room, the dry benzene solution (35 mL) of 2-benzyl-2-methylmalonyl dichloride (2.4 g) was added dropwise to the solution. The reaction solution was stirred for 24 h at room temperature and refluxed for 72 h. 0.5 M hydrochloric acid aqueous solution (120 mL) was added to the reaction solution. The solution was extracted with chloroform (100 × 3 mL). The organic layer was dried over anhydrous magnesium sulfate, filtrated, and evaporated under reduced pressure. The residue was thoroughly washed with hexane and methanol. The purification was performed by liquid chromatography (CHEMCOSORB 5-ODS-H) with methanol–chloroform (8.5:3), to obtain bis(1-pyrenemethyl)-2-benzyl-2-methylmalonate 1 (4.4 g, 66% isolated yield); pale yellow crystal; IR (KBr): 1737.7, 1272.9 cm-1. 1H-NMR (300 MHz NMR, CDCl3): 1.39 (s, 3H), 3.25 (s, 2H), 5.62 (d, 2H, J = 12.90 Hz), 5.67 (d, 2H, J = 12.90 Hz), 6.92–6.99 (m, 2H), 7.02–7.14 (m, 3H), 7.67 (d, 2H, J = 7.80 Hz), 7.80–7.96 (m, 12H), 8.01 (dd, 4H, J = 7.80 and 1.80 Hz). 13C-NMR (75 MHz NMR, CDCl3): 19.7, 41.1, 55.2, 65.4, 122.3, 124.2, 124.3, 124.4, 125.2, 125.2, 125.7, 126.8, 126.9, 127.1, 127.5, 127.9, 128.1, 128.8, 130.1, 130.3, 130.9, 131.3, 135.8, 171.6. HRMS (EI+): m/z calcd. for C45H32O4 636.2301, found 636.2296.
1-Pyrenylmethanol (5.56 g) was dissolved in dry benzene (170 mL). Dry pyridine (5.5 mL) was added to the solution and stirred for 1 h. In a dark room, the dry benzene solution (30 mL) of 2-methyl-2-naphthalenylmethyl-malonyl dichloride (3.50 g) was added dropwise to the solution and stirred for 72 h at room temperature. The reaction solution was filtrated and evaporated under reduced pressure. 0.5 M hydrochloric acid aqueous solution (30 mL) was added to the residue. The solution was extracted with chloroform (100 × 3 mL) and washed with water (50 × 2 mL). The organic layer was dried over anhydrous magnesium sulfate, filtrated, and evaporated under reduced pressure. The residue was washed with hexane, ethyl acetate–hexane (1:1), and methanol to gain the crude yellow solid. The purification was performed by liquid chromatography (CHEMCOSORB 5-ODS-H) with ethyl acetate-hexane (1:20), to obtain bis(1-pyrenylmethyl)-2-methyl-2-naphthalenylmethyl-malonate 2 (0.17 g, 2% isolated yield); yellow crystal; IR(KBr): 1737.9, 1234.4 cm−1. 1H-NMR (400 MHz NMR, CDCl3): 1.45 (s, 3H), 3.43 (s, 2H), 5.67 (dd, 4H, J = 12.6 and 18.0 Hz), 7.04–7.70 (m, 7H), 7.77–8.05 (m, 18H). 13C-NMR (100 MHz NMR, CDCl3): 20.0, 41.4, 55.4, 65.6, 122.4, 124.3, 124.4, 124.5, 125.3, 125.3, 125.5, 125.8, 125.8, 127.1, 127.2, 127.4, 127.5, 127.6, 128.0, 128.3, 128.9, 129.0, 130.4, 131.0, 131.5, 132.3, 133.2, 133.4, 171.7. HRMS (FAB+): m/z calcd. for C49H34O4 686.2457, found 686.2452.

3.4. X-ray Crystallographic Analysis

The suitable single crystal of bispyrenyl malonate 1 was obtained on slow solvent evaporation of the mixed solutions of methanol and chloroform. A measurement for bispyrenyl malonate 1 was made on a Rigaku R-AXIS RAPID diffractometer (Rigaku Corporation, Akishima, Tokyo, Japan) using graphite monochromated Cu Kα radiation. The structure of bispyrenyl malonate 1 was solved by direct methods [54] and expanded using Fourier techniques. A calculation was performed using the Crystal Structure [55] crystallographic software package except for the refinement, which was performed using SHELXL Version 2014/7 (http://shelx.uni-ac.gwdg.de/SHELX/) [56]. The non-hydrogen atoms were refined anisotropically. The H atoms were refined using the riding model. Crystallographic data are summarized in Table 1. Crystallographic data for the structures reported in this paper have been deposited with the Cambridge Crystallographic Data Centre as supplementary publication no. CCDC–1570537 for 1. Copies of the data can be obtained free of charge on application to CCDC, 12 Union Road, Cambridge CB2 1EZ, UK [Fax: (internat.) +44-1223/336-033; E-mail: [email protected]].Suitable crystals for X-ray studies of derivative 2 and the corresponding complexes with the Cu2+ ions could not be obtained.

3.5. UV-Vis and Fluorescence Spectroscopy

UV-visible absorption spectra and fluorescence emission spectra were recorded at room temperature. A 1 × 1 cm quartz cuvette was used for the spectroscopic analysis. The stock solution (100 μM) of bispyrenyl malonate 1 in CH3CN/CHCl3 (9:1, v/v) was prepared for UV–visible and fluorescence spectroscopic analysis and diluted to a final concentration of 10 μM by mixing 10 μM stock solutions of inorganic perchlorates (LiClO4, NaClO4, NH4ClO4, Mg(ClO4)2, Cr(ClO4)3, Mn(ClO4)2, Fe(ClO4)2, Co(ClO4)2, Ni(ClO4)2, Cu(ClO4)2, Zn(ClO4)2, AgClO4, and Cd(ClO4)2). CH3CN/CHCl3 solutions of inorganic perchlorates were added to the solution of bispyrenyl malonate 1 that corresponded to 1 equiv. of metal ions. Although the maximal absorption peak of bispyrenyl malonate 1 is located at 342 nm, the excitation wavelengths at 344 nm was chosen for fluorescence spectroscopic analysis because the fluorescence intensity of the pyrene excimer emission at 467 nm became strongest. The emission spectra from ca. 350 to 770 nm were collected (every 1 nm). Excitation and emission slits width were 5 nm.

4. Conclusions

A novel bispyrenyl malonate compound 1 was successfully synthesized and its molecular structure confirmed by X-ray crystallographic analysis. Bispyrenyl malonate 1 crystallizes in the orthorhombic space group P212121 (no. 19). In the crystal structure of bispyrenyl malonate 1, there are intramolecular C–H···π interactions between the hydrogen atoms on the pyrenyl C(32) and C(34) atoms and π-electrons of the other pyrenyl ring. The interaction distances between the hydrogens and pyrenyl moiety were 2.58 and 2.60 Å, respectively. In the acetonitrile/chloroform (9:1, v/v) solution, bispyrenyl malonate 1 exhibits an intramolecular excimer emission (λem = 467 nm) arising from the non-covalent C–H···π interactions between the pyrenyl moieties. Furthermore, the two pyrenyl moieties also participate in intermolecular π···π interactions with each of their neighboring molecules. The interplanar distance of the two pyrenyl moieties in a face-to-face manner was ca. 3.5 Å. The absolute fluorescence quantum yields of bispyrenyl malonate 1 in solution and in the solid state were ΦPL = 0.13 and 0.65, respectively. The thus-obtained bispyrenyl malonate 1 acted as a highly selective fluoroionophore for the Cu2+ ion. Such enhancement of the fluorescence intensity of bispyrenyl malonate 1 was observed only in selective Cu2+ ion sensing.

Supplementary Materials

The following are available online, Figure S1: Fluorescence response of bispyrenyl malonate 1 to the Cu2+ ions in the presence of competitive cations. Figure S2: Fluorescence response of bispyrenyl malonate 2. Figure S3: 1H- and 13C-NMR, HRMS, and FTIR spectra of bispyrenyl malonate 1. Figure S4: 1H- and 13C-NMR, HRMS and FTIR spectra of bispyrenyl malonate 2.

Author Contributions

Conceived and designed the experiments: T.M.-K. and T.M.; Performed the experiments: Y.H., A.H., and T.M.; Analyzed the data: T.I.; Y.H., T.M.-K., and T.M.; Contributed reagents/materials/analysis tools: T.M.-K., K.F., and T.M.; Wrote the paper T.M.-K. and T.M. All authors read and approved the final manuscript.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Feng, X.; Hu, J.Y.; Redshaw, C.; Yamato, T. Functionalization of Pyrene To Prepare Luminescent Materials—Typical Examples of Synthetic Methodology. Chem. Eur. J. 2016, 22, 11898–11916. [Google Scholar] [CrossRef] [PubMed]
  2. Ding, Y.; Tang, Y.; Zhua, W.; Xie, Y. Fluorescent and colorimetric ion probes based onconjugated oligopyrroles. Chem. Soc. Rev. 2015, 44, 1101–1112. [Google Scholar] [CrossRef] [PubMed]
  3. Basabe-Desmonts, L.; Reinhoudt, D.N.; Crego-Calama, M. Design of fluorescent materials for chemical sensing. Chem. Soc. Rev. 2007, 36, 993–1017. [Google Scholar] [CrossRef] [PubMed]
  4. Callan, J.F.; de Silva, A.P.; Magri, D.C. Luminescent sensors and switches in the early 21st century. Tetrahedron 2005, 61, 8551–8588. [Google Scholar] [CrossRef]
  5. Kimura, E. Macrocyclic polyamines with intelligent functions. Tetrahedron 1992, 48, 6175–6217. [Google Scholar] [CrossRef]
  6. Jia, H.; Yang, M.; Meng, Q.; He, G.; Wang, Y.; Hu, Z.; Zhang, R.; Zhang, Z. Synthesis and Application of an Aldazine-Based Fluorescence Chemosensor for the Sequential Detection of Cu2+ and Biological Thiols in Aqueous Solution and Living Cells. Sensors 2016, 16, 79. [Google Scholar] [CrossRef] [PubMed]
  7. Meng, Q.; Shi, Y.; Wang, C.; Jia, H.; Gao, X.; Zhang, R.; Wanga, Y.; Zhang, Z. NBD-based fluorescent chemosensor for the selective quantification of copper and sulfide in an aqueous solution and living cells. Org. Biomol. Chem. 2015, 13, 2918–2926. [Google Scholar] [CrossRef] [PubMed]
  8. Templeton, D.M. Mechanisms of immunosensitization to metals. Pure Appl. Chem. 2004, 76, 1255–1268. [Google Scholar] [CrossRef]
  9. Rurack, K. Flipping the light switch ‘on’—The design of sensor molecules that show cation-induced fluorescence enhancement with heavy and transition metal ions. Spectrochim. Acta Part A Mol. Biomol. Spectrosc. 2001, 57, 2161–2195. [Google Scholar] [CrossRef]
  10. Varners, A.W.; Dodson, R.B.; Wehry, E.L. Interactions of transition-metal ions with photoexcited states of flavines. Fluorescence quenching studies. J. Am. Chem. Soc. 1972, 94, 946–950. [Google Scholar] [CrossRef]
  11. Cheng, D.; Liu, X.; Yang, H.; Zhang, T.; Han, A.; Zang, L. A Cu2+-Selective Probe Based on Phenanthro-Imidazole Derivative. Sensors 2017, 17, 35. [Google Scholar] [CrossRef] [PubMed]
  12. Li, Z.; Zhang, Y.; Xia, H.; Mu, Y.; Liu, X. A robust and luminescent covalent organic framework as a highly sensitive and selective sensor for the detection of Cu2+ ions. Chem. Commun. 2016, 52, 6613–6616. [Google Scholar] [CrossRef] [PubMed]
  13. Gao, M.; Han, S.; Hu, Y.; Zhang, L. Enhanced Fluorescence in Tetraylnitrilomethylidyne−Hexaphenyl Derivative-Functionalized Periodic Mesoporous Organosilicas for Sensitive Detection of Copper(II). J. Phys. Chem. C 2016, 120, 9299–9307. [Google Scholar] [CrossRef]
  14. Li, W.; Zhu, G.; Li, J.; Wang, Z.; Jin, Y. An Amidochlorin-Based Colorimetric Fluorescent Probe for Selective Cu2+ Detection. Molecules 2016, 21, 107. [Google Scholar] [CrossRef] [PubMed]
  15. Sarkar, S.; Chatti, M.; Adusumalli, V.N.K.B.; Mahalingam, V. Highly Selective and Sensitive Detection of Cu2+ Ions Using Ce(III)/Tb(III)-Doped SrF2 Nanocrystals as Fluorescent Probe. ACS Appl. Mater. Interfaces 2015, 7, 25702–25708. [Google Scholar] [CrossRef] [PubMed]
  16. Jeon, H.L.; Choi, M.G.; Choe, J.I.; Chang, S.K. Cu2+- and Hg2+-Selective Chemosensing by Dioxocyclams Having Two Appended Pyrenylacetamides. Bull. Korean Chem. Soc. 2009, 30, 1093–1096. [Google Scholar] [CrossRef]
  17. Zhang, J.; Wu, Q.; Yu, B.; Yu, C. A Pyridine-Containing Cu2+-Selective Probe Based on Naphthalimide Derivative. Sensors 2014, 14, 24146–24155. [Google Scholar] [CrossRef] [PubMed]
  18. Liu, J.; Lu, Y. A DNAzyme Catalytic Beacon Sensor for Paramagnetic Cu2+ Ions in Aqueous Solution with High Sensitivity and Selectivity. J. Am. Chem. Soc. 2007, 129, 9838–9893. [Google Scholar] [CrossRef] [PubMed]
  19. Oter, O.; Ertekin, K.; Kirilmis, C.; Koca, M. Spectral characterization of a newly synthesized fluorescent semicarbazone derivative and its usage as a selective fiber optic sensor for copper(II). Anal. Chim. Acta 2007, 584, 308–314. [Google Scholar] [CrossRef] [PubMed]
  20. Qi, X.; Jun, E.J.; Xu, L.; Kim, S.J.; Hong, J.S.J.; Yoon, Y.J.; Yoon, J. New BODIPY Derivatives as OFF-ON Fluorescent Chemosensor and Fluorescent Chemodosimeter for Cu2+: Cooperative Selectivity Enhancement toward Cu2+. J. Org. Chem. 2006, 71, 2881–2884. [Google Scholar] [CrossRef] [PubMed]
  21. Kaur, S.; Kumar, S. Photoactive chemosensors: A unique case of fluorescence enhancement with Cu(II). Chem. Commun. 2002, 23, 2840–2841. [Google Scholar] [CrossRef]
  22. Sun, X.; Wang, Y.; Lei, Y. Fluorescence based explosive detection: From mechanisms to sensory materials. Chem. Soc. Rev. 2015, 44, 8019–8061. [Google Scholar] [CrossRef] [PubMed]
  23. Bains, G.K.; Kim, S.H.; Sorin, E.J.; Narayanaswami, V. The Extent of Pyrene Excimer Fluorescence Emission Is a Reflector of Distance and Flexibility: Analysis of the Segment Linking the LDL Receptor-Binding and Tetramerization Domains of Apolipoprotein E3. Biochemistry 2012, 51, 6207–6219. [Google Scholar] [CrossRef] [PubMed]
  24. Duhamel, J. New Insights in the Study of Pyrene Excimer Fluorescence to Characterize Macromolecules and their Supramolecular Assemblies in Solution. Langmuir 2012, 28, 6527–6538. [Google Scholar] [CrossRef] [PubMed]
  25. Zhang, Y.; Yang, R.; Liu, F.; Li, K.A. Fluorescent Sensor for Imidazole Derivatives Based on Monomer-Dimer Equilibrium of a Zinc Porphyrin Complex in a Polymeric Film. Anal. Chem. 2004, 76, 7336–7345. [Google Scholar] [CrossRef] [PubMed]
  26. Yamauchi, A.; Hayashita, T.; Nishizawa, S.; Watanabe, M.; Teramae, N. Benzo-15-crown-5 Fluoroionophore/γ-Cyclodextrin Complex with Remarkably High Potassium Ion Sensitivity and Selectivity in Water. J. Am. Chem. Soc. 1999, 121, 2319–2320. [Google Scholar] [CrossRef]
  27. Sahoo, D.; Narayanaswami, V.; Kay, M.C.; Ryan, O.R. Pyrene Excimer Fluorescence: A Spatially Sensitive Probe to Monitor Lipid-Induced Helical Rearrangement of Apolipophorin III. Biochemistry 2000, 39, 6594–6601. [Google Scholar] [CrossRef] [PubMed]
  28. Bodenant, B.; Fages, F.; Delville, M.H. Metal-Induced Self-Assembly of a Pyrene-Tethered Hydroxamate Ligand for the Generation of Multichromophoric Supramolecular Systems. The Pyrene Excimer as Switch for Iron(III)-Driven Intramolecular Fluorescence Quenching. J. Am. Chem. Soc. 1998, 120, 7511–7519. [Google Scholar] [CrossRef]
  29. Sandhu, S.; Kumar, R.; Singh, P.; Walia, A.; Vanita, V.; Kumar, S. Ratiometric fluorophore for quantification of iodide under physiological conditions: Applications in urine analysis and live cell imaging. Org. Biomol. Chem. 2016, 14, 3536–3543. [Google Scholar] [CrossRef] [PubMed]
  30. Gao, C.; Zhu, H.; Zhang, M.; Tan, T.; Chen, J.; Qiu, H. A new highly Zn2+-selective and “off–on” fluorescent chemosensor based on the pyrene group. Anal. Methods 2015, 7, 8172–8176. [Google Scholar] [CrossRef]
  31. Hwang, J.; Choi, M.G.; Eor, S.; Chang, S.K. Fluorescence Signaling of Zr4+ by Hydrogen Peroxide Assisted Selective Desulfurization of Thioamide. Inorg. Chem. 2012, 51, 1634–1639. [Google Scholar] [CrossRef] [PubMed]
  32. Ma, L.J.; Yan, Y.; Chen, L.; Cao, W.; Li, H.; Yang, L.; Wu, Y. A fluorescence reagent for the highly selective recognition and separation of lead ion(II) from aqueous solutions. Anal. Chim. Acta 2012, 751, 135–139. [Google Scholar] [CrossRef] [PubMed]
  33. Zhu, L.; Gong, S.; Gong, S.; Yang, C.; Qin, J. Novel Pyrene-armed Calix[4]arenes through Triazole Connection: Ratiometric Fluorescent Chemosensor for Zn2+ and Promising Structure for Integrated Logic Gates. Chin. J. Chem. 2008, 26, 1424–1430. [Google Scholar] [CrossRef]
  34. Shiraishi, Y.; Tokitoh, Y.; Hirai, T. pH- and H2O-Driven Triple-Mode Pyrene Fluorescence. Org. Lett. 2006, 8, 3841–3844. [Google Scholar] [CrossRef] [PubMed]
  35. Choi, J.K.; Lee, A.; Kim, S.; Ham, S.; No, K.; Kim, J.S. Fluorescent Ratiometry of Tetrahomodioxacalix[4]arene Pyrenylamides upon Cation Complexation. Org. Lett. 2006, 8, 1601–1604. [Google Scholar] [CrossRef] [PubMed]
  36. Kim, S.K.; Kim, S.H.; Kim, H.J.; Lee, S.H.; Lee, S.W.; Ko, J.; Bartsch, R.A.; Kim, J.S. Indium(III)-Induced Fluorescent Excimer Formation and Extinction in Calix[4]arene-Fluoroionophores. Inorg. Chem. 2005, 44, 7866–7875. [Google Scholar] [CrossRef] [PubMed]
  37. Kim, S.K.; Lee, S.H.; Lee, J.Y.; Lee, J.Y.; Bartsch, R.A.; Kim, J.S. An Excimer-Based, Binuclear, On-Off Switchable Calix[4]crown Chemosensor. J. Am. Chem. Soc. 2004, 126, 16499–16506. [Google Scholar] [CrossRef] [PubMed]
  38. Ghosh, S.; Ganguly, A.; Uddin, M.R.; Mandal, S.; Alam, M.A.; Guchhait, N. Dual mode selective chemosensor for copper and fluoride ions: A fluorometric, colorimetric and theoretical investigation. Dalton Trans. 2016, 45, 11042–11051. [Google Scholar] [CrossRef] [PubMed]
  39. Wu, Y.S.; Li, C.Y.; Li, Y.F.; Li, D.; Li, Z. Development of a simple pyrene-based ratiometric fluorescentchemosensor for copper ion in living cells. Sens. Actuators B 2016, 222, 1226–1232. [Google Scholar] [CrossRef]
  40. Moriuchi-Kawakami, T.; Hisada, Y.; Shibutani, Y. A Cu2+ ion-selective fluoroionophore with dual off/on switches. Chem. Cent. J. 2010, 4, 7. [Google Scholar] [CrossRef] [PubMed]
  41. Yang, R.; Zhang, Y.; Li, K.; Liu, F.; Chan, W. Fluorescent ratioable recognition of Cu2+ in water using a pyrene-attached macrocycle/γ-cyclodextrin complex. Anal. Chim. Acta 2004, 525, 97–103. [Google Scholar] [CrossRef]
  42. Sasaki, D.Y.; Shnek, D.R.; Pack, D.W.; Arnold, F.H. Metal-Induced Dispersion of Lipid Aggregates: A Simple, Selective, and Sensitive Fluorescent Metal Ion Sensor. Angew. Chem. Int. Ed. Engl. 1995, 34, 905–907. [Google Scholar] [CrossRef]
  43. Sarkar, S.; Roy, S.; Sikdar, A.; Saha, R.N.; Panja, S.S. A pyrene-based simple but highly selective fluorescence sensor for Cu2+ ions via a static excimer mechanism. Analyst 2013, 138, 7119–7126. [Google Scholar] [CrossRef] [PubMed]
  44. Jun, E.J.; Won, H.N.; Kim, J.S.; Lee, K.H.; Yoon, J. Unique blue shift due to the formation of static pyrene excimer: Highly selective fluorescent chemosensor for Cu2+. Tetrahedron Lett. 2006, 47, 4577–4580. [Google Scholar] [CrossRef]
  45. Martínez, R.; Zapata, F.; Caballero, A.; Espinosa, A.; Tárraga, A.; Molina, P. 2-Aza-1,3-butadiene Derivatives Featuring an Anthracene or Pyrene Unit: Highly Selective Colorimetric and Fluorescent Signaling of Cu2+ Cation. Org. Lett. 2006, 8, 3235–3238. [Google Scholar] [CrossRef] [PubMed]
  46. Martínez, R.; Espinosa, A.; Tárraga, A.; Molina, P. New Hg2+ and Cu2+ Selective Chromoand Fluoroionophore Based on a Bichromophoric Azine. Org. Lett. 2005, 7, 5869–5872. [Google Scholar] [CrossRef] [PubMed]
  47. Yang, J.S.; Lin, C.S.; Hwang, C.Y. Cu2+-Induced Blue Shift of the Pyrene Excimer Emission: A New Signal Transduction Mode of Pyrene Probes. Org. Lett. 2001, 3, 889–892. [Google Scholar] [CrossRef] [PubMed]
  48. Moriuchi-Kawakami, T.; Kawata, K.; Nakamura, S.; Koyama, Y.; Shibutani, Y. Design of bisquinolinyl malonamides as Zn2+ ion-selective fluoroionophores based on the substituent effect. Tetrahedron 2014, 70, 9805–9813. [Google Scholar] [CrossRef]
  49. Moriuchi-Kawakami, T.; Aoki, R.; Morita, K.; Tsujioka, H.; Fujimori, K.; Shibutani, Y.; Shono, T. Conformational analysis of 12-crown-3 and sodium ion selectivity of electrodes based on bis(12-crown-3) derivatives with malonate spacers. Anal. Chim. Acta 2003, 480, 291–298. [Google Scholar] [CrossRef]
  50. Shibutani, Y.; Mino, S.; Shen, S.; Moriuchi-Kawakami, T.; Yakabe, K.; Shono, T. Chiral Bis(12-crown-4)-based Electrodes for Sodium Ion. Chem. Lett. 1997, 26, 49–50. [Google Scholar] [CrossRef]
  51. Shrestha, B.B.; Higashibayashi, S.; Sakurai, H. Columnar/herringbone dual crystal packing of pyrenylsumanene and its photophysical properties. Beilstein J. Org. Chem. 2014, 10, 841–847. [Google Scholar] [CrossRef] [PubMed]
  52. Yeşilot, S.; Çoşut, B.; Alidağı, H.A.; Hacıvelioğlu, F.; Özpınar, G.A.; Kılıç, A. Intramolecular excimer formation in hexakis-(pyrenyloxy)cyclotriphosphazene: Photophysical properties, crystal structure, and theoretical investigation. Dalton Trans. 2014, 43, 3428–3433. [Google Scholar] [CrossRef] [PubMed]
  53. Swift, J.A.; Pal, R.; McBride, J.M. Using Hydrogen-Bonds and Herringbone Packing to Design Interfaces of 4,4’-Disubstituted meso-Hydrobenzoin Crystals. The Importance of Recognizing Unfavorable Packing Motifs. J. Am. Chem. Soc. 1998, 120, 96–104. [Google Scholar] [CrossRef]
  54. Burla, M.C.; Caliandro, R.; Camalli, M.; Carrozzini, B.; Cascarano, G.L.; De Caro, L.; Giacovazzo, C.; Polidori, G.; Siliqi, D.; Spagna, R. IL MILIONE: A suite of computer programs for crystal structure solution of proteins. J. Appl. Cryst. 2007, 40, 609–613. [Google Scholar] [CrossRef]
  55. CrystalStructure 4.2.2: Crystal Structure Analysis Package; Rigaku Corporation: Tokyo, Japan, 2000–2016.
  56. Sheldrick, G.M. A short history of SHELX. Acta Cryst. 2008, A64, 112–122. [Google Scholar] [CrossRef] [PubMed]
Sample Availability: Samples of the compound 1 are available from the authors.
Molecules 22 01415 sch001 550

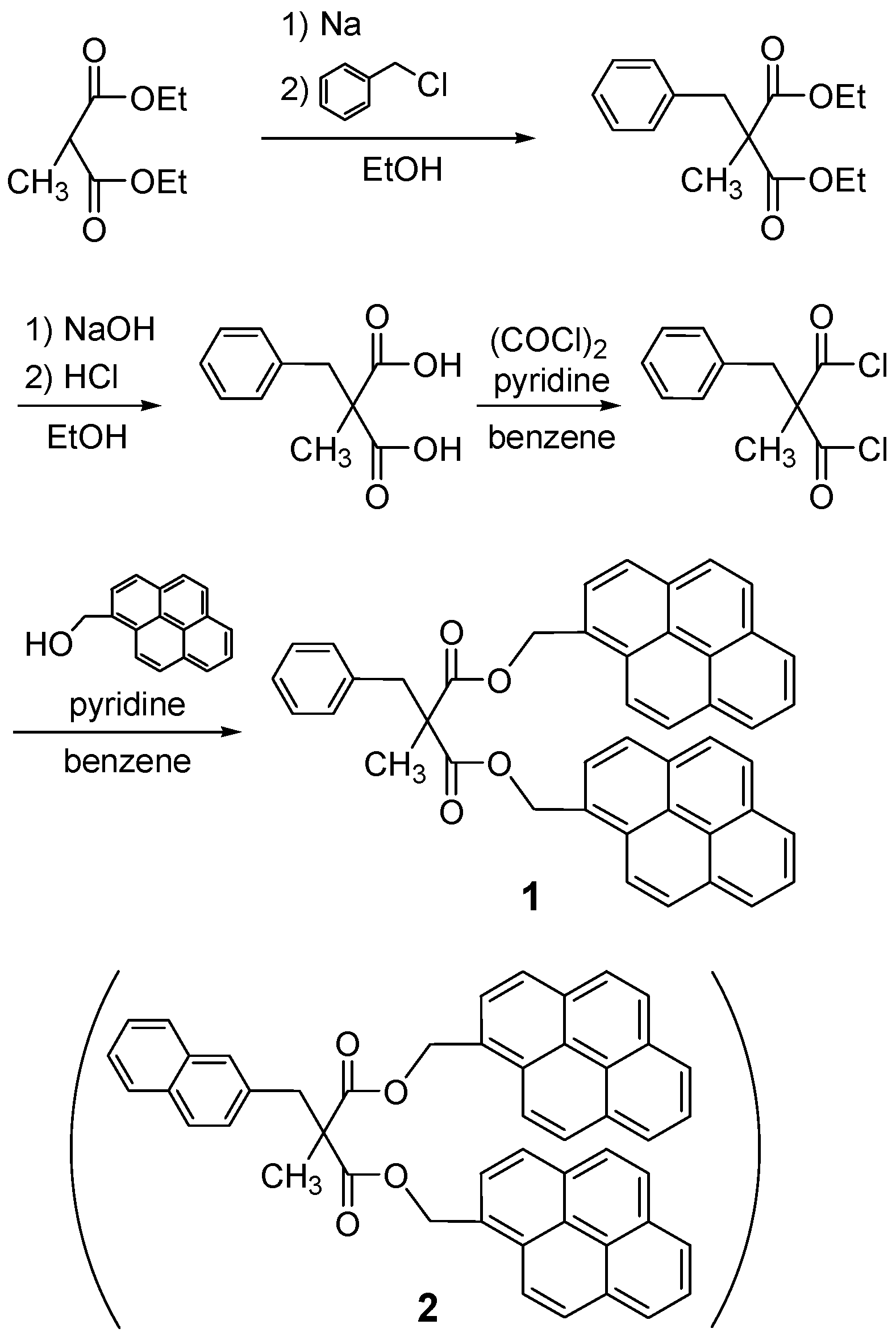

Scheme 1. Synthesized bispyrenyl malonates 1 and 2.
Scheme 1. Synthesized bispyrenyl malonates 1 and 2.
Molecules 22 01415 sch001
Molecules 22 01415 g001 550
Figure 1. (a) UV absorption (blue line) and (b) Fluorescence spectra (red line) of bispyrenyl malonate 1 (10 μM) in acetonitrile/chloroform (9:1, v/v) (excitation wavelength: λex = 344 nm).
Figure 1. (a) UV absorption (blue line) and (b) Fluorescence spectra (red line) of bispyrenyl malonate 1 (10 μM) in acetonitrile/chloroform (9:1, v/v) (excitation wavelength: λex = 344 nm).
Molecules 22 01415 g001
Molecules 22 01415 g002 550
Figure 2. (a) Molecular structure; (b) schematic representation of the intramolecular C–H···π interactions and (c) alignment of bispyrenyl malonate 1 determined by X-ray crystallographic analysis (40% probability of thermal ellipsoid plots).
Figure 2. (a) Molecular structure; (b) schematic representation of the intramolecular C–H···π interactions and (c) alignment of bispyrenyl malonate 1 determined by X-ray crystallographic analysis (40% probability of thermal ellipsoid plots).
Molecules 22 01415 g002
Molecules 22 01415 g003 550

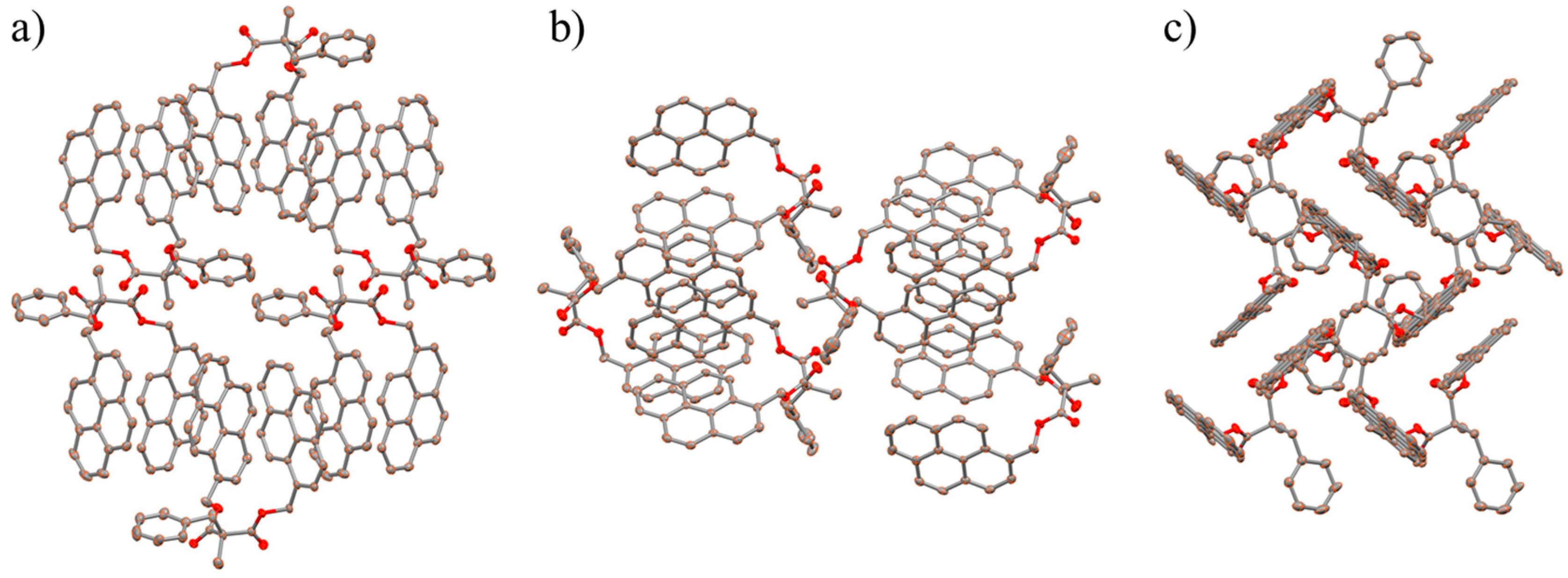

Figure 3. (a) Projection down the a axis; (b) projection down the b axis; and (c) projection down the c axis of the molecular packing of bispyrenyl malonate 1.
Figure 3. (a) Projection down the a axis; (b) projection down the b axis; and (c) projection down the c axis of the molecular packing of bispyrenyl malonate 1.
Molecules 22 01415 g003
Molecules 22 01415 g004 550

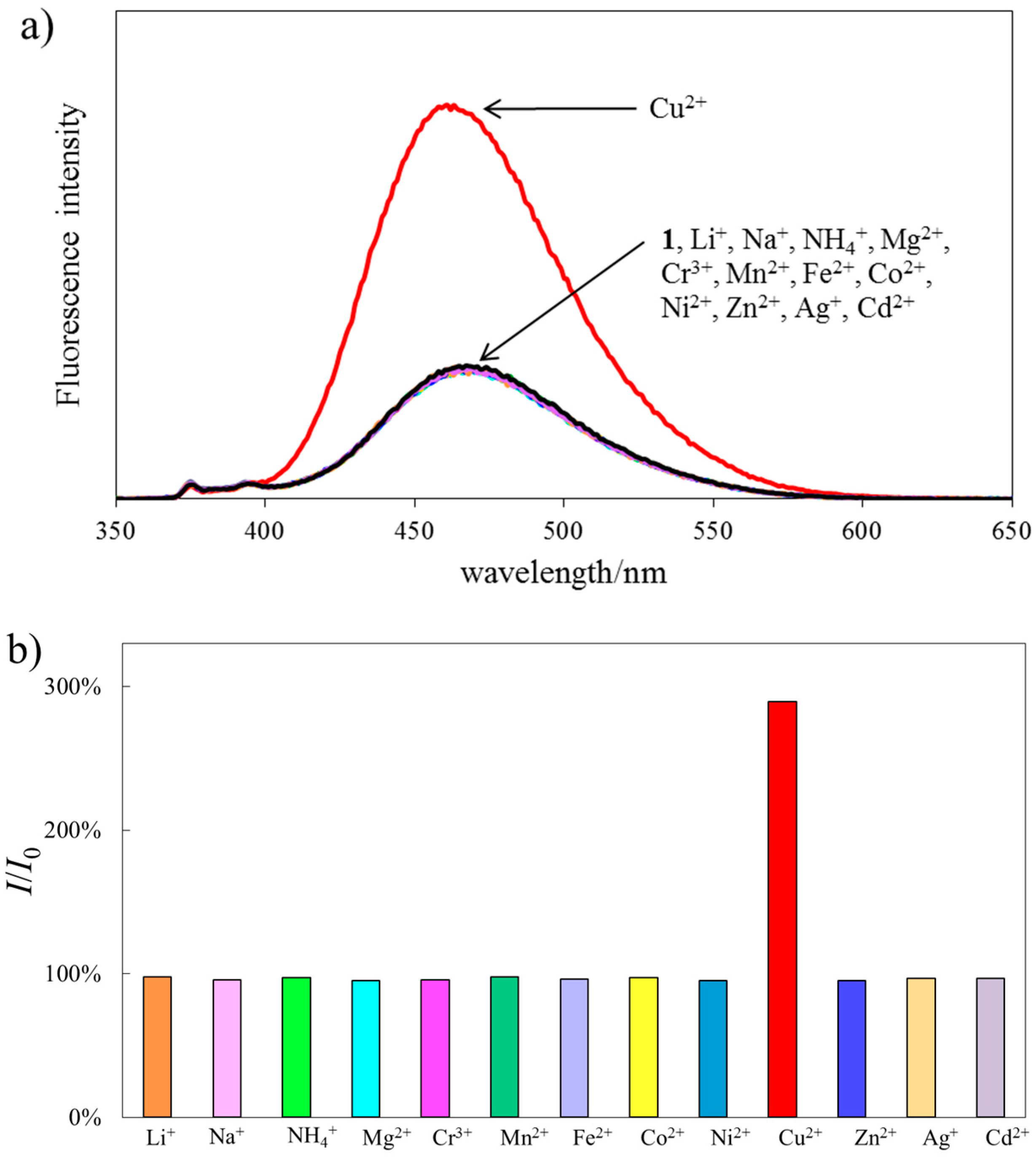

Figure 4. (a) Fluorescence spectra and (b) ratio of the fluorescence intensities monitored at 467 nm of bispyrenyl malonate 1 (10 μM) in the presence of 1 equiv. of Li+, Na+, NH4+, Mg2+, Cr3+, Mn2+, Fe2+, Co2+, Ni2+, Cu2+, Zn2+, Ag+, and Cd2+ in acetonitrile/chloroform (9:1, v/v) (excitation wavelength: λex = 344 nm).
