Communication

Modulation of Inducible Nitric Oxide Synthase Expression in LPS-Stimulated BV-2 Microglia by Prenylated Chalcones from Cullen corylifolium (L.) Medik. through Inhibition of I-κBα Degradation

1
Research Institute of Pharmaceutical Sciences, College of Pharmacy, Sookmyung Women’s University, Seoul 04310, Korea
2
Department of Natural Medicine Resources, Semyung University, Jecheon 27136, Korea
*
Authors to whom correspondence should be addressed.
Molecules 2018, 23(1), 109; https://doi.org/10.3390/molecules23010109
Submission received: 8 November 2017 / Revised: 22 December 2017 / Accepted: 28 December 2017 / Published: 4 January 2018
(This article belongs to the Collection Bioactive Compounds)

Abstract

:
The overproduction of nitric oxide (NO) and prostaglandin E2 (PGE2) by microglia may cause neurodegenerative diseases, such as Alzheimer’s disease and Parkinson’s disease. From the activity-guided purification of Cullen corylifolium (L.) Medik. (syn. Psoralea corylifolia L.), three prenylated chalcones were identified: isobavachalcone (1), bavachromene (2), and kanzonol B (3). These prenylated chalcones showed concentration-dependent inhibitory effects on NO and PGE2 production in lipopolysaccharide (LPS)-activated microglia. Western blotting and RT-PCR analysis demonstrated that these prenylchalcones reduced the expression of protein and mRNA of inducible nitric oxide synthase (iNOS) and cyclooxygenase-2 (COX-2) in LPS-activated microglia. Furthermore, three prenylated chalcones blocked the inhibitory-κBα (I-κBα) degradation and down-regulated nuclear factor κB (NF-κB) level of nucleus in LPS-stimulated BV-2 microglia. Therefore, these prenylated chalcones from Psoralea corylifolia may be beneficial for the treatment of neuro-inflammatory diseases by modulating iNOS and COX-2 expressions in activated microglial cells.

Graphical Abstract

1. Introduction

Microglia, an innate immune cell and resident phagocyte in the central nervous system (CNS), plays an active role in CNS homeostasis, infection and pathogen defense. Activated microglia produce pro-inflammatory and neuro-toxic materials such as nitric oxide (NO), prostaglandins (PGs) and superoxide anion [1]. These mediators are involved in the brain injuries and neurodegenerative diseases including Alzheimer’s disease, amyotrophic lateral sclerosis and Parkinson’s disease [2,3]. NO can be produced by three isoforms of nitric oxide synthase (NOS) such as neuronal NOS (nNOS), endothelial NOS (eNOS) and inducible NOS (iNOS) [4]. The nNOS and eNOS, constitutive NOS (cNOS), release small amounts of NO and maintain physiological functions, while iNOS, inducible form, by lipopolysaccharide (LPS) and various cytokines, produces micromolar levels of NO [5]. Many reports have shown that the iNOS and a large amount of NO produced by activated microglia contribute to the progress of neurodegenerative diseases [6]. PGE2, the other inflammatory mediator, is synthesized by a cyclooxygenase (COX)-dependent pathway [7]. COX enzyme consists of at least two isoforms, namely cyclooxygenase-1 (COX-1) and cyclooxygenase-2 (COX-2). The COX-2 form is induced by pro-inflammatory effectors such as cytokines and LPS and leads to an elevated production of PGE2, whereas COX-1 is constitutively expressed under normal conditions [8]. Therefore, inhibition of pro-inflammatory enzymes may have therapeutic effects for the treatment of diverse diseases [9,10]. The seeds of Cullen corylifolium (L.) Medik. (syn. Psoralea corylifolia L.) (Leguminosae) have been used traditionally for treatment of gynaecological bleeding, vitiligo and psoriasis. Its seeds were reported to contain coumarins, flavonoids and meroterpene phenols, and some of them exhibited anti-neuroinflammatory, anti-bacterial, anti-tumor, broadening coronary artery and estrogen-like activities [11,12,13,14,15,16,17]. The present study reports that prenylated chalcones from the extracts of C. corylifolium display inhibitory activities on NO and PGE2 production in LPS-activated microglia, and discloses the underlying mechanism for their biological activities.

2. Results and Discussion

The prenylated chalcones 13 were isolated from Cullen corylifolium by activity-guided purification. Their chemical structures were elucidated by the analysis of their mass and NMR spectral data (Supplementary Materials, Figures S1–S15). Isobavachalcone (1) [18,19], has been predominantly isolated from plants of Leguminosae and Moraceae families [20] and has a prenyl moiety, while bavachromene (2) [12,21] and kanzonol B (3) [22], have cyclized prenyl moieties that form a pyrano ring in the chalcone skeleton (Figure 1).
Isolated compounds showed concentration-dependent inhibitory activity on NO production in LPS-activated microglia (Figure 2a). Their IC50 values were 1.6 ± 0.11 μM (1), 2.4 ± 0.18 μM (2), and 2.2 ± 0.21 μM (3), respectively. Compounds 13 did not affect cell viability at the tested concentrations (data not shown). In particular, the chalcone 1 characterized by the presence of open chain prenyl group showed more potent inhibitory activity on NO production than chalcones 2 and 3 containing cyclic pyranoprenyl groups.
NO combines with superoxide anion and is transformed into peroxynitrite (ONOO), an inflammatory mediator with strong oxidizing properties [23]. Peroxynitrite is responsible for the pathogenesis of neuronal diseases such as neuronal ageing and Alzheimer’s disease [24]. To examine whether prenylated chalcones 13 could remove peroxynitrite, its scavenging was measured in a cell free assay system by observing the fluorescence of the oxidized substance of dihydrorhodamine 123 (DHR 123) by authentic peroxynitrite [25]. Compounds 13 showed potent ONOO scavenging activity (93.6%, 76.8% and 51.2% at 20 μM, Figure 2b), respectively, while penicillamine (20 μM), a positive control, displayed 74.9% scavenging activity. Prenylated chalcone 1 showed more efficient scavenging activity compared with cyclic pyranoprenyl group-containing chalcones 2 and 3. Taken together, these results show that active compounds 13 downregulate the overproduction of NO in activated microglial cells and also significantly eliminate the ONOO, which suggest that compounds 13 might prevent the neuro-inflammatory response.
Prostaglandin E2 (PGE2) is a critical inflammatory mediator, which is a major material produced by COX-2 [7]. To determine whether compounds 13 inhibit PGE2 production in LPS-induced BV-2 microglia, we examined the PGE2 accumulation using PGE2 enzyme immunoassay (EIA). Compounds 13 (5 μM) showed 90%, 78% and 54% inhibition of PGE2 production, respectively (Figure 2c). The results showed that LPS enhanced the production of PGE2 in BV-2 cells and prenylated chalcones 13 significantly suppressed the PGE2 synthesis. Furthermore, prenyl chalcone 1 treatment showed lower levels of PGE2 synthesis than 2 and 3 with cyclic pyranoprenyl chalcone groups.
To reveal the underlying mechanism of compounds for the inhibition of NO and PGE2 production in LPS-treated microglia, protein and mRNA levels of iNOS and COX-2 were investigated by western blot and RT-PCR analysis. As shown in Figure 3a, compounds 13 (5 μM) suppressed the iNOS protein expression in BV-2 microglia cells, whereas LPS markedly enhanced the protein levels of iNOS. Compounds 1 and 2 also downregulated COX-2 protein expression compared with LPS control, while compound 3 was not effective. Furthermore, compounds 13 attenuated the iNOS and COX-2 mRNA levels whereas LPS treatment distinctly up-regulated their mRNA levels (Figure 3b). The suppressive effects of compounds 13 on iNOS expression level were not exactly parallel with the COX-2 level. These results suggest that compounds 13 inhibit the transcriptional expression of LPS-induced iNOS and COX-2.
Next we examined the effect of compounds 13 on nuclear factor κB (NF-κB) that regulates the expression of pro-inflammatory enzymes such as iNOS and COX-2 [26]. NF-κB, a transcription factor complex of p50 and p65 subunits, is found in cytoplasm as an inactive p50/p65 dimer. Inhibitor κB (I-κB) physically combines with p50/p65 dimer to suppress the NF-κB activation in normal conditions [27]. In response to pro-inflammatory stimuli, I-κB is rapidly degraded to release p50/p65. Free p50/p65 moves to the nucleus and induces the expression of pro-inflammatory genes [28]. To disclose the molecular mechanism for their inhibitory effect on pro-inflammatory enzyme expressions, we investigated whether compounds 13 affect the LPS-induced I-κBα degradation and nuclear level of p65 subunit of NF-κB. As shown in Figure 3c, compounds 13 suppressed the LPS-induced degradation of I-κBα and decreased the level of nuclear p65 by the treatment of 13 (at 5 μM). In addition, compound 1 with presence of non-cyclic prenyl moiety most potently suppressed degradation of I-κBα and nuclear level of NF-κB than those of cyclic pyranoprenyl chalcones 2 and 3. Moreover, the results of isobavachalcone (1) showed concurrence with previous reports that showed its potentials for anti-inflammatory drug and therapeutic candidate against Parkinson’s disease by suppressing the TLR agonist induced-iNOS expression in RAW 264.7 macrophages and inhibiting the NF-κB activation in BV-2 microglia [29,30].
Taken together, these results demonstrate that prenyated chalcones 13 reduce the degradation of I-κBα and nuclear level of NF-κB in LPS-stimulated BV-2 microglia.
In summary, we isolated three prenylated chalcone derivatives from Cullen corylifolium— isobavachalcone (1), bavachromene (2) and kanzonol B (3)—as potent NO inhibitors in LPS-activated microglia. They also suppress PGE2 production and down-regulate the expression of iNOS and COX-2 through suppressing I-κBα degradation in LPS-activated microglia. These results imply that prenylated chalcones from Cullen corylifolium could be used for the treatment of neuro-inflammatory diseases.

3. Materials and Methods

3.1. General Information

1D and 2D NMR spectra were obtained on a VARIAN UNITY INOVA 400 spectrometer (Varian, Palo Alto, CA, USA). Mass spectra were determined on a JEOL JMS-AX505WA mass spectrometer (Tokyo, Japan). Column chromatography was carried out over silica gel (40–60 μm, Merck, Kenilworth, NJ, USA) and LiChroprep RP-C18 (40–60 μm, Merck). HPLC (high performance liquid chromatography) was carried out on a Waters 1525 system (Miliford, MA, USA) using reverse-phase column (ODS-2, 5 μm, 4.6 × 15 cm, GL Science, Seoul, Korea). Fractions obtained from column chromatography were monitored by thin layer chromatography (TLC) (RP-C18 F254S and silica gel 60 F254, Merck).

3.2. Plant Material, Extraction and Isolation

The seeds of Cullen corylifolium (L.) Medik. (syn. Psoralea corylifolia L.) were purchased from the Kyungdong Hearbal Market in Seoul, Korea. Authentication of plant material was carried out by Prof. K.S. Yang at College of Pharmacy, Sookmyung Women’s University. A voucher specimen (No. SPH 13003) was deposited in the herbarium of Sookmyung Women’s University. The air-dried plant materials (8.8 kg) were washed with 10 L of n-hexane to remove fat. The remained materials were extracted with 10 L of methanol three times at room temperature for 24 h. The concentrated alcoholic extracts (1.6 kg) were suspended in water and successively partitioned with 20% hexane and EtOAc. The activity-guided chromatography for EtOAc soluble fraction was performed to purify the active principles. The EtOAc fraction (153.83 g) was subjected to silica gel column chromatography eluting with n-hexane:EtOAc gradient system (4:1 → 1:1) and 19 fractions were collected. Fraction 7 was further chromatographed on a RP-C18 column with a gradient elution of MeOH (50% → 100%) to afford 13 sub-fractions. Sub-fraction 7−13 was rechromatographed on silica gel with CH2Cl2:EtOAc isocratic system (100:1) to afford five sub-fractions. Each of subfraction 7-13-2 and 7-13-4 was further purified by a silica gel column with n-hexane:acetone gradient system (10:1 → 1:1) as eluents to yield compound 2 (17 mg) and compound 3 (6 mg). Fraction 12 was chromatographed on silica gel with n-hexane:EtOAc (contained 10% isopropanol) gradient system (20:1 → 1:3) to afford 14 subfractions. Subfraction 12-6 was rechromatographed on a silica gel column eluting with n-hexane:EtOAc (contained 10% isopropanol) gradient system (30:1 → 1:1) and then fraction 12-6-7 was further purified by a silica gel column with CHCl3:MeOH gradient system (100:1 → 20:1) to yield compound 1 (12 mg). The purity of compounds was confirmed by HPLC analysis and their 1H-NMR spectra. The structures of compounds were elucidated by the analysis of their corresponding mass and NMR spectroscopic data (Supplementary Materials, Figures S1–S15).
Isobavachalcone (1).1H-NMR (CD3OD, 400 MHz) δ: 7.82 (1H, d, J = 9.2, H-6′), 7.77 (1H, d, J = 15.6, H-β), 7.61 (1H, d, J = 15.6, H-α), 7.60 (2H, d, J = 8.4, H-2, H-6), 6.84 (2H, d, J = 8.4, H-3, H-5), 6.43 (1H, d, J = 9.2, H-5′), 5.23 (1H, m, H-2′′), 3.32 (1H, m, H-1′′), 1.78 (3H, s, H-4′′), 1.66 (3H, s, H-5′′). 13C-NMR (CD3OD, 100 MHz) δ: 193.7 (C=O), 165.2 (C-4′), 163.6 (C-2′), 161.5 (C-4), 145.3 (C-β), 131.9 (C-3′′), 131.7 (C-2), 131.7 (C-6), 130.4 (C-6′), 123.6 (C-2′′), 118.6 (C-α), 116.9 (C-3), 116.9 (C-5), 116.6 (C-3′), 114.5 (C-1), 114.5 (C-1′) 108.2 (C-5′), 26.0 (C-5′′), 22.5 (C-1′′), 17.9 (C-4′′). FABMS: m/z 325 [M + 1]+.
Bavachromene (2). 1H-NMR (CD3OD + CDCl3, 400 MHz) δ: 7.77 (1H, d, J = 15.2, H-β), 7.58 (1H, s, H-6′), 7.55 (2H, d, J = 8.8, H-2, H-6), 7.45 (1H, d, J = 15.2, H-α), 6.84 (2H, d, J = 8.8, H-3, H-5), 6.34 (1H, d, J = 10.0, H-10′), 6.28 (1H, s, H-3′), 5.59 (1H, d, J = 10.0, H-9′), 1.42 (6H, s, H-11′, H-12′). 13C-NMR (CD3OD + CDCl3, 100 MHz) δ: 192.8 (C=O), 166.4 (C-4′), 161.0 (C-2′), 160.7 (C-4), 145.6 (C-β), 131.3 (C-2, C-6), 129.3 (C-9′), 128.3 (C-6′), 127.0 (C-1), 121.6 (C-10′), 117.5 (C-α), 116.5 (C-3, C-5), 114.8 (C-1′), 114.3 (C-5′), 104.8 (C-3′), 78.6 (C-8′) 28.8 (C-11′, C-12′). FABMS: m/z 323 [M + 1]+.
Kanzonol B (3). 1H-NMR (CD3OD + CDCl3, 400 MHz) δ: 7.84 (1H, d, J = 8.8, H-6′), 7.73 (1H, d, J = 15.2, H-β), 7.48 (1H, d, J = 15.2, H-α), 7.43 (1H, dd, J = 2.0, 8.4, H-2), 7.31 (1H, d, J = 2.4, H-6), 6.77 (1H, d, J = 8.4, H-3), 6.41 (1H, dd, J = 2.4, 8.8, H-5′), 6.37 (1H, d, J = 9.6, H-10), 6.32 (1H, d, J = 2.4, H-3′), 5.69 (1H, d, J = 9.6, H-9), 1.43 (6H, s, H-11, H-12). 13C-NMR (CD3OD + CDCl3, 100 MHz) δ: 192.7 (C=O), 166.6 (C-2′), 165.5 (C-4′), 156.2 (C-4), 144.7 (C-β), 132.6 (C-6′), 132.0 (C-9), 130.7 (C-2), 128.3 (C-1), 127.2 (C-6), 122.2 (C-10), 122.1 (C-5), 118.4 (C-α), 117.5 (C-3), 114.1 (C-1′), 108.8 (C-5′), 103.6 (C-3′), 77.8 (C-8), 28.4 (C-11, C-12). FABMS: m/z 323 [M + 1]+.

3.3. Cell Culture

BV-2 microglial cells (ATCC, Rockville, MD, USA) were grown in DMEM supplemented with 10% FBS, 100 units/mL penicillin, and 100 μg/mL streptomycin (Life Technologies, Frederick, MD, USA). Cells were maintained at 37 °C with 5% CO2 in a humidified atmosphere. All test concentrations of compounds showed no significant toxicity. The cell viability was determined by MTT assay.

3.4. Measurement of Nitric Oxide Production

BV-2 microglial cells (1 × 105 cells/mL in 48-well plate) were treated with LPS (0.1 μg/mL) in the absence or presence of test compounds for 20 h. NO was measured by detecting the accumulated nitrite by Griess method. Briefly, samples (100 μL) of culture media were combined with 150 μL of Griess reagent (1% sulfanilamide, 0.1% naphthylethylene diamine in 2.5% phosphoric acid solution) and then incubated at room temperature for 10 min. Absorbance was detected at 540 nm by using a microplate reader (Molecular Devices, Sunnyvale, CA, USA). The concentration of NO was determined by the sodium nitrite standard curve.

3.5. Peroxynitrite (ONOO) Scavenging Assay

10 μL of test compounds were added to the reaction buffer containing 5 μM dihydrorhodamine 123 (DHR 123, Molecular Probes, Eugene, OR, USA) and 100 μM diethylenetriaminepentaacetic acid (DTPA). After the treatment with presence or absence (background) of native 10 μM ONOO (Cayman Chemical Co., Ann Arbor, MI, USA) for 5 min, the final and background fluorescent intensities were measured. Penicillamine was used as a positive control. The fluorescence was measured at room temperature by a microplate fluorescence spectrophotometer (Spectra Max Gemini XS, Molecular Devices, Sunnyvale, CA, USA) with excitation and emission wavelength of 500 and 530 nm, respectively. ONOO scavenging activity (%) of test compounds were expressed as the ratio of the decreased fluorescence to the control fluorescence. The concentration of ONOO solution was determined spectrophotometrically (ε302 = 1670 M−1 cm−1) using Ultraspec 2000 UV/visible spectrophotometer (Pharmacia-Biotech, Cambridge, UK).

3.6. Prostagandin E2 Assay

To examine the effects of compounds on COX-2, cells were attached with aspirin (500 μM) to inactivate the COX-1. After 2 h, cells were washed with fresh media three times and incubated with LPS (0.1 μg/mL) in presence of compounds for 20 h. The PGE2 levels in culture media were determined using enzyme immunoassay kit (Cayman Chemical) according to the manufacturer’s instruction. Briefly, 50 μL of supernatant of the culture medium and 50 μL PGE2 tracer were put into the PGE2 EIA plate and incubated for 18 h at room temperature. The wells were washed with 10 mM phosphate buffer (pH 7.4) containing 0.05% Tween 20. Then 200 μL of Ellman’s reagent was added to the well and incubated in the dark. Following the developing step, the absorbance was read at 405 nm by a microplate reader. A standard curve was prepared simultaneously with PGE2 standard ranging from 0.05 to 6 ng/mL.

3.7. Western Blot Analysis

BV-2 microglia (5 × 105 cells/60 mm dish) were treated with LPS (0.1 μg/mL) in the absence or presence of test compounds. After 20 h treatment, cells were lysed with cell lysis buffer (Cell Signaling Technologies, Beverly, MA, USA) and centrifuged at 4 °C. Supernatant were collected and protein concentrations were determined by the Bradford method. For preparation of cytosol and nuclear extracts, cells were treated with test compounds for 30 min prior to the stimulation with 0.1 μg/mL LPS. Following 15 min treatment of LPS, cells were collected by using NE-PER nuclear and cytoplasmic extraction reagents according to the manufacturer’s instructions (Pierce Biotechnology, Rockford, IL, USA). For immunoblot analysis, antibodies against iNOS, COX-2, I-κBα and p65 were obtained from BD Biosciences (Franklin Lakes, NJ, USA), Cayman Chemical Company and Santa Cruz Biotechnology (Rockford, IL, USA), respectively.

3.8. Reverse Transcription and Polymerase Chain Reaction (RT-PCR) Analysis

BV-2 microglia (5 × 105 cells/60 mm dish) were incubated with or without test compounds in presence of LPS (0.1 μg/mL). Total RNA was isolated from the cells by TRIzol (Life Technologies) in accordance with the manufacturer’s instructions, and then reverse transcribed into cDNA by using reverse transcriptase (Life Technologies). The cDNA amplification was carried out to detect the target genes (iNOS, COX-2, and β-actin) by using a recombinant Taq polymerase (Promega, Madison, WI, USA).

3.9. Statistical Anaylsis

The results were expressed as mean ± S.D. of three experiments, and statistical analysis was performed using one way analysis of variance (ANOVA) and Student’s t-test. A p value of <0.05 was regarded as significantly different.

Supplementary Materials

The supplementary materials are available online. 1H-NMR, 13C-NMR, COSY, HSQC and HMBC spectra of compounds 1, 2 and 3 are available as supporting information.

Acknowledgments

This study was supported by the National Research Foundation of Korea (NRF) grant funded by the Korea government (No. 2011-0030074 and No. 2010-0009582)

Author Contributions

Do Hee Kim, Hwa Li, Yeong Eun Han and Ji Hye Jeong performed the experiments; Hwa Jin Lee analyzed the data and contributed to manuscript preparation; Jae-Ha Ryu designed the whole experiments, analyzed the data and wrote the paper.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Dheen, S.T.; Kaur, C.; Ling, E.A. Microglial activation and its implications in the brain diseases. Curr. Med. Chem. 2007, 14, 1189–1197. [Google Scholar] [CrossRef] [PubMed]
  2. Calabrese, V.; Boyd-Kimball, D.; Scapagnini, G.; Butterfield, D.A. Nitric oxide and cellular stress response in brain aging and neurodegenerative disorders: The role of vitagenes. In Vivo 2004, 18, 245–267. [Google Scholar] [PubMed]
  3. Blaylock, R.L. Parkinson’s disease: Microglial/macrophage-induced immunoexcitotoxicity as a central mechanism of neurodegeneration. Surg. Neurol. Int. 2017, 8, 65. [Google Scholar] [CrossRef] [PubMed]
  4. Forstermann, U.; Schmidt, H.H.; Pollock, J.S.; Sheng, H.; Mitchell, J.A.; Warner, T.D.; Nakane, M.; Murad, F. Isoforms of nitric oxide synthase. Characterization and purification from different cell types. Biochem. Pharmacol. 1991, 42, 1849–1857. [Google Scholar] [CrossRef]
  5. Whittle, B.J. Nitric oxide in physiology and pathology. Histochem. J. 1995, 27, 727–737. [Google Scholar] [CrossRef] [PubMed]
  6. Gebicke-Haerter, P.J. Microglia in neurodegeneration: Molecular aspects. Microsc. Res. Tech. 2001, 54, 47–58. [Google Scholar] [CrossRef] [PubMed]
  7. Ivanov, A.I.; Romanovsky, A.A. Prostaglandin E2 as a mediator of fever: Synthesis and catabolism. Front. Biosci. 2004, 9, 1977–1993. [Google Scholar] [CrossRef] [PubMed]
  8. Sales, K.J.; Jabbour, H.N. Cyclooxygenase enzymes and prostaglandins in pathology of the endometrium. Reproduction 2003, 126, 559–567. [Google Scholar] [CrossRef] [PubMed]
  9. Johnson, R.W. Feeding the beast: Can microglia in the senesent brain be regulated by diet? Brain Behav. Immun. 2015, 43, 1–8. [Google Scholar] [CrossRef] [PubMed]
  10. Wang, Y.; Plastina, P.; Vincken, J.P.; Jansen, R.; Balvers, M.; Ten Klooster, J.P.; Gruppen, H.; Witkamp, R.; Meijerink, J. N-docosahexaenoyl dopamine, an endocannabinoid-like conjugate of dopamine and the n-3 fatty acid docosahexaenoic acid, attenuates lipopolysaccharide-induced activation of microglia and macrophages via COX-2. ACS Chem. Neurosci. 2017, 8, 548–557. [Google Scholar] [CrossRef] [PubMed]
  11. Chopra, B.; Dhingra, A.K.; Dhar, K.L. Psoralea corylifolia L. (Buguchi)—Folklore to modern evidence: Review. Fitoterapia 2013, 90, 44–56. [Google Scholar] [CrossRef] [PubMed]
  12. Lee, M.H.; Kim, J.Y.; Ryu, J.H. Prenylflavones from Psoralea corylifolia inhibit nitric oxide synthase expression through the inhibition of I-kappaB-alpha degradation in activated microglial cells. Biol. Pharm. Bull. 2005, 28, 2253–2257. [Google Scholar] [CrossRef] [PubMed]
  13. Bronikowska, J.; Szliszka, E.; Jaworska, D.; Czuba, Z.P.; Krol, W. The coumarin psoralidin enhances anticancer effect of tumor necrosis factor-related apoptosis-inducing ligand (TRAIL). Molecules 2012, 17, 6449–6464. [Google Scholar] [CrossRef] [PubMed]
  14. Srinivasan, S.; Sarada, D.V. Antifungal activity of phenyl derivative of pyranocoumarin from Psoralea corylifolia L. seeds by inhibition of acetylation activity of trichothecene 3-o-acetyltransferase (Tri101). J. Biomed. Biotechnol. 2012, 2012, 310850. [Google Scholar] [CrossRef] [PubMed]
  15. Wu, C.Z.; Hong, S.S.; Cai, X.F.; Dat, N.T.; Nan, J.X.; Hwang, B.Y.; Lee, J.J.; Lee, D. Hypoxia-inducible factor-1 and nuclear factor-kappaB inhibitory meroterpene analogues of bakuchiol, a constituent of the seeds of Psoralea corylifolia. Bioorg. Med. Chem. Lett. 2008, 18, 2619–2623. [Google Scholar] [CrossRef] [PubMed]
  16. Xin, D.; Wang, H.; Yang, J.; Su, Y.F.; Fan, G.W.; Wang, Y.F.; Zhu, Y.; Gao, X.M. Phytoestrogens from Psoralea corylifolia reveal estrogen receptor-subtype selectivity. Phytomedicine 2010, 17, 126–131. [Google Scholar] [CrossRef] [PubMed]
  17. Park, J.; Kim, D.H.; Ahn, H.N.; Song, Y.S.; Lee, Y.J.; Ryu, J.H. Activation of Estrogen Receptor by Bavachin from Psoralea corylifolia. Biomol. Ther. 2012, 20, 183–188. [Google Scholar] [CrossRef] [PubMed]
  18. Pistelli, L.; Spera, K.; Flamini, G.; Mele, S.; Morelli, I. Isoflavonoids and chalcones from Anthyllis hermanniae. Phytochemistry 1996, 42, 1455–1458. [Google Scholar] [CrossRef]
  19. Haraguchi, H.; Inoue, J.; Tamura, Y.; Mizutani, K. Antioxidative components of Psoralea corylifolia (Leguminosae). Phytother. Res. 2002, 16, 539–544. [Google Scholar] [CrossRef] [PubMed]
  20. Kuete, V.; Sandjo, L.P. Isobavachalcone: An overview. Chin. J. Integr. Med. 2012, 18, 543–547. [Google Scholar] [CrossRef] [PubMed]
  21. Gupta, B.K.; Gupta, G.K.; Dhar, K.L.; Atal, C.K. A C-formylated chalcone from Psoralea corylifolia. Phytochemistry 1980, 19, 2034–2035. [Google Scholar] [CrossRef]
  22. Thoshio, F.; Junko, N.; Taro, N. Five isoprenoid-substituted flavonoids from Glycyrrhiza eurycarpa. Phytochemistry 1993, 35, 515–519. [Google Scholar]
  23. Beckman, J.S.; Beckman, T.W.; Chen, J.; Marshall, P.A.; Freeman, B.A. Apparent hydroxyl radical production by peroxynitrite: Implications for endothelial injury from nitric oxide and superoxide. Proc. Natl. Acad. Sci. USA 1990, 87, 1620–1624. [Google Scholar] [CrossRef] [PubMed]
  24. Guix, F.X.; Wahle, T.; Vennekens, K.; Snellinx, A.; Chavez-Gutierrez, L.; Ill-Raga, G.; Ramos-Fernandez, E.; Guardia-Laguarta, C.; Lleo, A.; Arimon, M.; Berezovska, O.; et al. Modification of gamma-secretase by nitrosative stress links neuronal ageing to sporadic Alzheimer’s disease. EMBO Mol. Med. 2012, 4, 660–673. [Google Scholar] [CrossRef] [PubMed]
  25. Lee, M.H.; Kim, J.Y.; Yoon, J.H.; Lim, H.J.; Kim, T.H.; Jin, C.; Kwak, W.J.; Han, C.K.; Ryu, J.H. Inhibition of nitric oxide synthase expression in activated microglia and peroxynitrite scavenging activity by Opuntia ficus indica var. saboten. Phytother. Res. 2006, 20, 742–747. [Google Scholar] [CrossRef] [PubMed]
  26. Ahn, K.S.; Aggarwal, B.B. Transcription factor NF-kappaB: A sensor for smoke and stress signals. Ann. N. Y. Acad. Sci. 2005, 1056, 218–233. [Google Scholar] [CrossRef] [PubMed]
  27. Yamamoto, M.; Takeda, K. Role of nuclear IkappaB proteins in the regulation of host immune responses. J. Infect. Chemother. 2008, 14, 265–269. [Google Scholar] [CrossRef] [PubMed]
  28. Wan, F.; Lenardo, M.J. The nuclear signaling of NF-kappaB: Current knowledge, new insights, and future perspectives. Cell Res. 2010, 20, 24–33. [Google Scholar] [CrossRef] [PubMed]
  29. Jing, H.; Wang, S.; Wang, M.; Fu, W.; Zhang, C.; Xu, D. Isobavachalcone attenuates MPTP-induced Parkinson’s disease in mice by inhibition of microglial activation through NF-kB pathway. PLoS ONE 2017, 12, e0169560. [Google Scholar] [CrossRef] [PubMed]
  30. Shin, H.J.; Shon, D.H.; Youn, H.S. Isobavachalcone suppresses expression of inducible nitric oxide synthase induced by Toll-like receptor agonists. Int. Immunopharmacol. 2013, 15, 38–41. [Google Scholar] [CrossRef] [PubMed]
Sample Availability: Samples of the compounds are not available from the authors.

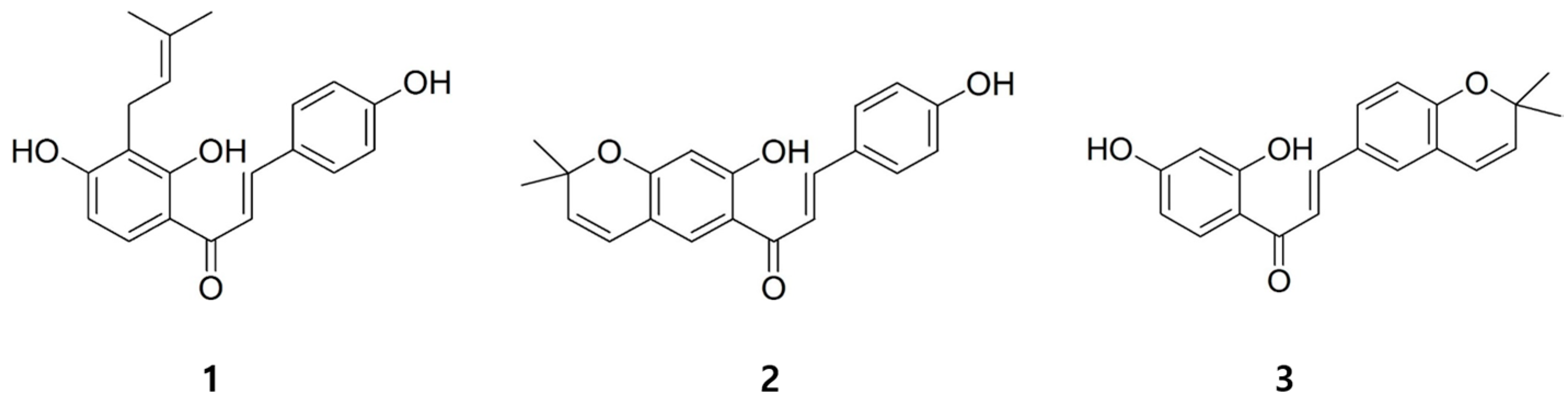

Figure 1. The chemical structures of compounds 13 from Cullen corylifolium.
Figure 1. The chemical structures of compounds 13 from Cullen corylifolium.
Molecules 23 00109 g001

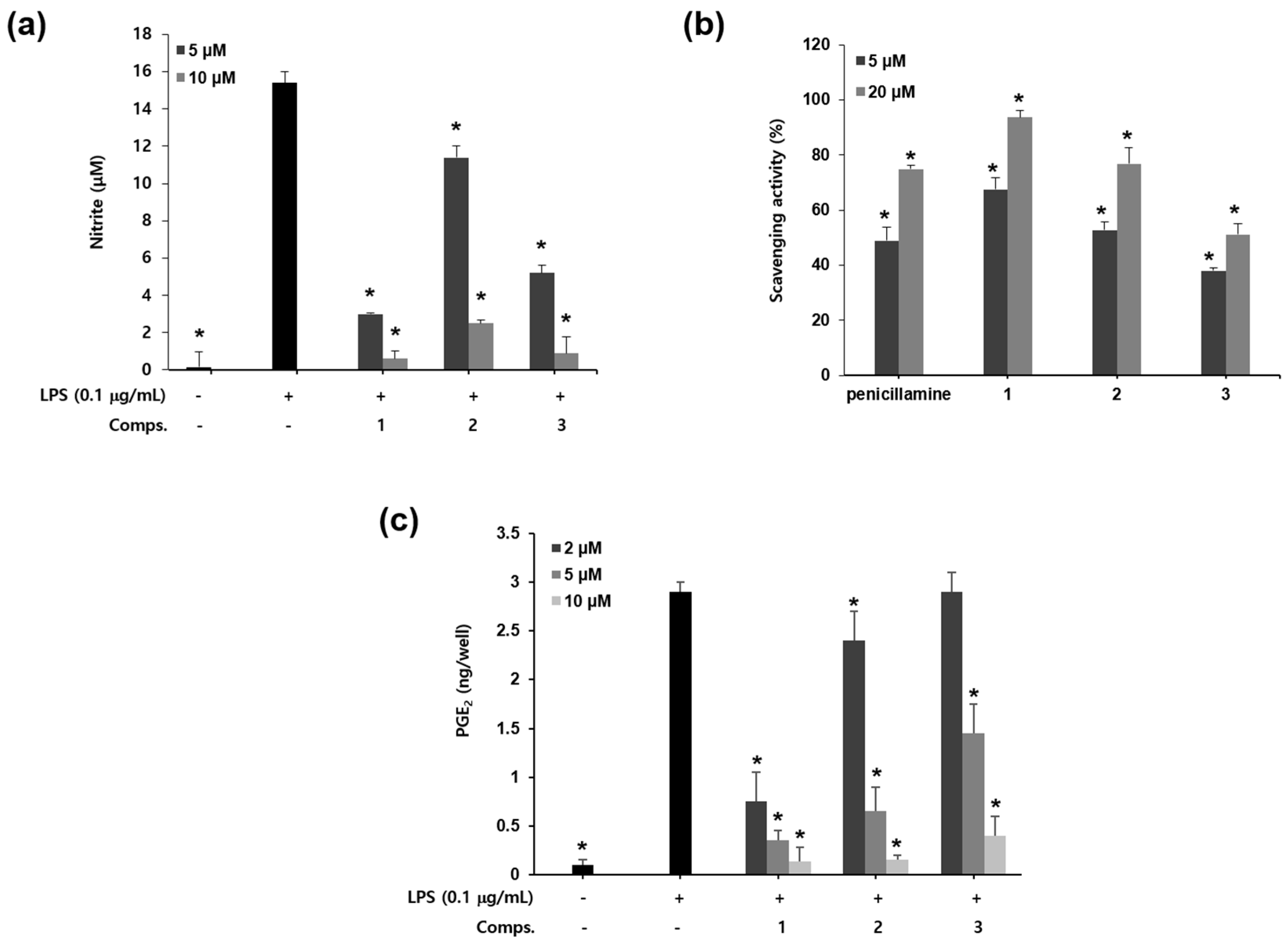

Figure 2. The effects of compounds 13 on pro-inflammatory and neuro-toxic mediators. (a) Inhibitory effects of compounds 13 on NO production in LPS-stimulated BV-2 microglia. The amount of NO in culture medium was measured using Griess reagents; (b) Peroxynitrite (ONOO) scavenging activity of compounds 13 in vitro cell free system. The level of ONOO was measured by detecting the oxidation of DHR123 as experimental section. Penicillamine was used as a positive control; (c) Inhibitory effects of compounds 13 on PGE2 production in LPS-stimulated BV-2 microglia. The levels of PGE2 were determined by the enzyme immunoassay. The values are expressed as the means ± S.D. of three experiments. * p < 0.05.
Figure 2. The effects of compounds 13 on pro-inflammatory and neuro-toxic mediators. (a) Inhibitory effects of compounds 13 on NO production in LPS-stimulated BV-2 microglia. The amount of NO in culture medium was measured using Griess reagents; (b) Peroxynitrite (ONOO) scavenging activity of compounds 13 in vitro cell free system. The level of ONOO was measured by detecting the oxidation of DHR123 as experimental section. Penicillamine was used as a positive control; (c) Inhibitory effects of compounds 13 on PGE2 production in LPS-stimulated BV-2 microglia. The levels of PGE2 were determined by the enzyme immunoassay. The values are expressed as the means ± S.D. of three experiments. * p < 0.05.
Molecules 23 00109 g002

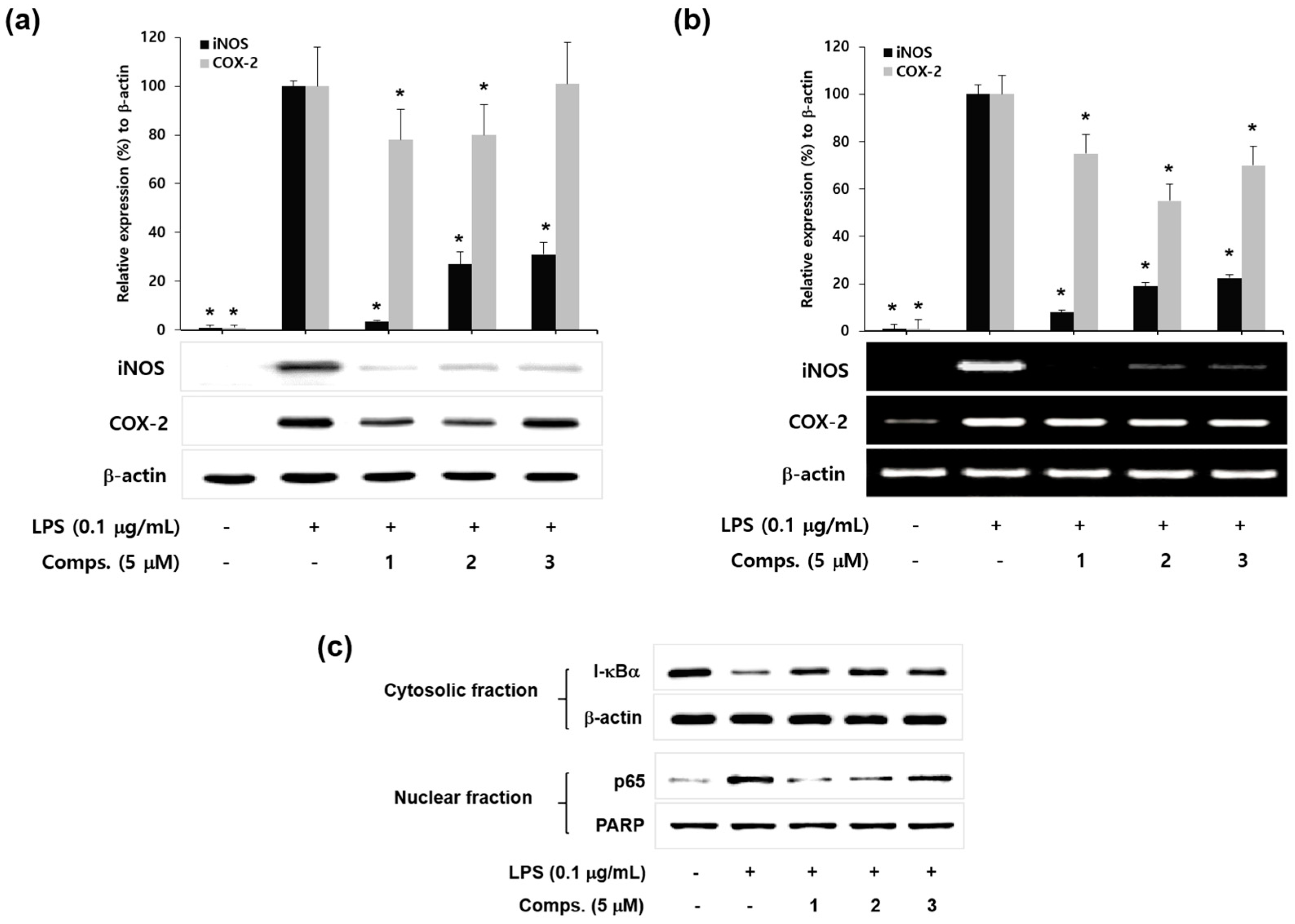

Figure 3. The effects of compounds 13 on LPS-induced iNOS/COX-2 expression and I-κBα degradation in BV-2 microglia. (a) The effects of compounds 13 on LPS-stimulated iNOS and COX-2 protein expression. The protein levels were determined by Western blot analysis. The relative intensity of iNOS/COX-2 to β-actin bands was measured by densitometry. The values represent the means ± S.D. of three experiments. * p < 0.05; (b) The effects of compounds 13 on LPS-stimulated iNOS and COX-2 mRNA expression. The mRNA levels were examined by RT-PCR analysis. The relative intensity of iNOS/COX-2 to β-actin bands was measured by densitometry. The values represent the means ± S.D. of three experiments. * p < 0.05; (c) The effects of compounds 13 on LPS-induced I-κBα degradation and p65 level in nucleus of BV-2 microglia. Cells were treated with compounds 13 for 30 min prior to activation of LPS (0.1 μg/mL). After 15 min treatment of LPS, cytosolic I-κBα and nuclear p65 were analyzed by western blot. Images are the representative of three independent experiments that show similar results.
Figure 3. The effects of compounds 13 on LPS-induced iNOS/COX-2 expression and I-κBα degradation in BV-2 microglia. (a) The effects of compounds 13 on LPS-stimulated iNOS and COX-2 protein expression. The protein levels were determined by Western blot analysis. The relative intensity of iNOS/COX-2 to β-actin bands was measured by densitometry. The values represent the means ± S.D. of three experiments. * p < 0.05; (b) The effects of compounds 13 on LPS-stimulated iNOS and COX-2 mRNA expression. The mRNA levels were examined by RT-PCR analysis. The relative intensity of iNOS/COX-2 to β-actin bands was measured by densitometry. The values represent the means ± S.D. of three experiments. * p < 0.05; (c) The effects of compounds 13 on LPS-induced I-κBα degradation and p65 level in nucleus of BV-2 microglia. Cells were treated with compounds 13 for 30 min prior to activation of LPS (0.1 μg/mL). After 15 min treatment of LPS, cytosolic I-κBα and nuclear p65 were analyzed by western blot. Images are the representative of three independent experiments that show similar results.
Molecules 23 00109 g003
