Screening of Genes Related to Early and Late Flowering in Tree Peony Based on Bulked Segregant RNA Sequencing and Verification by Quantitative Real-Time PCR

by
Xiaogai Hou
1,*,
Qi Guo
1,2,
Weiqiang Wei
1,
Lili Guo
1,
Dalong Guo
3 and
Lin Zhang
1,2
1
College of Agriculture, Henan University of Science & Technology, 263 Kaiyuan Avenue, Luoyang 471023, China
2
College of Biological Sciences and Technology, Beijing Forestry University, Beijing 100083, China
3
College of Forestry, Henan University of Science & Technology, 263 Kaiyuan Avenue, Luoyang 471023, China
*
Author to whom correspondence should be addressed.
Molecules 2018, 23(3), 689; https://doi.org/10.3390/molecules23030689
Submission received: 26 January 2018 / Revised: 10 March 2018 / Accepted: 12 March 2018 / Published: 19 March 2018
Browse Figures
Versions Notes

Abstract

:
Tree peony (Paeonia suffruticosa Andrews) is a perennial woody shrub bearing large and colorful flowers. However, the flowering period is short and relatively uniform, which to an important extent hinders the cultivation and exploitation of ornamental peonies. In this study, the segregation of an F1 population derived from P. ostti ‘Feng Dan’ (an early-flowering cultivar) × P. suffruticosa ‘Xin Riyuejin’ (a late-flowering cultivar) was used to screen and analyze candidate genes associated with flowering period of the two parents. Extreme early- and late-flowering genotypes of the F1 population at full-bloom stage were sampled to establish an early-flowering mixed pool (T03), a late-flowering mixed pool (T04), a late-flowering male pool (T01), and an early-flowering female pool (T02), using the Sequencing By Synthesis (SBS) technology on the Illumina HiSeq TM2500 platform. A total of 56.51 Gb of clean reads data, comprising at least 87.62% of Quality30 (Q30), was generated, which was then combined into 173,960 transcripts (N50 = 1781) and 78,645 (N50 = 1282) unigenes, with a mean length of 1106.76 and 732.27 base pairs (bp), respectively. Altogether, 58,084 genes were annotated by comparison with public databases, based on an E-value parameter of less than 10−5 and 10−10 for BLAST and HMMER, respectively. In total, 291 unigene sequences were finally screened out by BSR-seq (bulked segregant RNA-seq) association analysis. To validate these unigenes, we finally confirmed seven unigenes that were related to early and late flowering, which were then verified by quantitative real-time PCR (qRT-PCR). This is the first reported study to screen genes associated with early and late flowering of tree peony by the BSA (bulked sample analysis) method of transcriptome sequencing, and to construct a high-quality transcriptome database. A set of candidate functional genes related to flowering time was successfully obtained, providing an important genetic resource for further studies of flowering in peony and the mechanism of regulation of flowering time in tree peony.

Graphical Abstract

1. Introduction

Tree peony (Paeonia suffruticosa Andrews) is a deciduous shrub with large and colorful flowers that belongs to Sect. Moutan DC., genus Paeonia, family Paeoniaceae [1,2]. There are nine wild species in Sect. Moutan DC., all of which are unique to China [3]. Tree peonies therefore originated in China, and they have a long history of cultivation and use as ornamental plants. Over time, they have been introduced from China, either directly or indirectly, to many other countries throughout the world. Tree peonies possess abundant germplasm resources, and more than 1200 varieties may be recognized, following long-term natural and artificial selection [4,5]. Generally speaking, the individual flowers of any particular strain last for 10 days, but the flowering period from the first to the last flower is only 20 days, a very limited time period. Mid-season peonies predominate in the various different cultivation regions, with smaller numbers of early- and late-flowering varieties. Flowering characteristics and particular flowering period are key properties of the ornamental peony, and to an extent they have limited the commercial development of the plant [6]. Consequently, further studies of the molecular mechanisms that regulate flowering in peony are potentially of great significance for the manipulation and prolongation of the flowering period.
In recent years, with the rapid development and application of genetics and molecular biology, the functions of a large number of genes related to flowering have been extensively studied, especially in model plants with sequenced genomes. Results have shown that there are four pathways that regulate the mechanism of plant flowering at the molecular level. These comprise regulation by photoperiod, by vernalization, by gibberellins, and by an autonomous pathway; together, these control the timing of flowering in response to endogenous and environmental signals [7,8,9,10,11,12].
Arabidopsis possesses five phytochrome (PHY) genes (PHYA–PHYE) and two cryptochrome (CRY) genes (CRY1 and CRY2) that are presumably involved in phase-setting under white-light-and-dark cycles [13]. These photoreceptors determine the activity of the flowering gene CO, which encodes a zinc-finger protein. CO acts as a floral activator and as a mediator of the circadian clock [14] to regulate the expression of FT (FLOWERING LOCUS T) and hence control flowering. PHYA, CRY1, and CRY2 all promote flowering, whereas PHYD and PHYE inhibit flowering [15,16,17]. Vernalization causes suppression of expression of the central flowering repressor gene FLC (FLOWERING LOCUS C); the suppression is stable for the remainder of the life of the plant, but expression returns to a high level in the following generation. Since the level of gene expression does not change during the entire process, the suppression of FLC by vernalization is not genetic [18]. In the unisexual flowers of cucumber, the plant hormone gibberellic acid (GA) largely determines flower development, especially the regulation of sepal/petal development in female flowers [19]. The autonomous flowering pathway accelerates flowering independently of day length by inhibiting the expression of FLC [20], and several genes are known to be involved, such as LUMINIDEPENDENS (LD), FLOWERING LOCUS CA (FCA), FLOWERING LOCUS D (FLD), FLOWERING LOCUS Y (FY), FLOWERING LOCUS VE (FVE), FLOWERING LOCUS KH DOMAIN (FLK), and FLOWERING LOCUS PA (FPA) [21,22,23,24,25]. The photoperiod and vernalization pathways are mainly regulated by environmental factors such as light and a low-temperature signal, respectively. On the other hand, the gibberellin and autonomous pathways are mainly regulated by developmental factors [26]. The transcriptional regulation of two genes determining flowering time, SUPPRESSOR OF OVEREXPRESSION OF CONSTANS 1 (SOC1) and FT [27], and two floral meristem identity genes, APETALA1 (AP1) and LEAFY (LFY) [28,29] has been shown to integrate these four pathways responsible for the regulation of flowering. These genes may, under particular circumstances, act either in isolation or in concert to activate downstream flower meristem genes that then initiate plant flowering.
However, regulation of flowering in woody perennials and in herbaceous species is very different. In perennial plants, flowering occurs following a transition between vegetative and reproductive growth that occurs at sexual maturity, after a juvenile period. Thus, Hsu et al. [30] reported that in woody perennial poplar (Populus spp.), FLOWERING LOCUS T1 (FT1) and FLOWERING LOCUS T2 (FT2) coordinate the repeated cycles of vegetative and reproductive growth, revealing that in response to winter temperatures, FT1 determines reproductive onset, whereas FT2 responds to warm temperatures and long days in the growing season and promotes vegetative growth and inhibition of bud set. Li et al. [31] explored the differences of leaf and peel color change between red and green walnut by transcriptome analysis and identified 3083 differentially expressed genes (DEGs) between red and green walnut peel at the ripening stage. Ma et al. [32] investigated the effects of low-temperature treatment on stamen petaloidy in rose (Rosa hybrida) and revealed that low temperatures increase petal number, at least to some extent. In tree peony, PsTm6, belonging to the MADS-box gene family, was found to influence stamen petaloidy and flower shape formation [33]. Zhang et al. [34] isolated PsSOC1 from tree peony and determined its expression pattern during dormancy; furthermore, they investigated the regulatory mechanisms controlling flowering time in transgenic Arabidopsis. The results suggested that PsSOC1 may be an important target for the genetic manipulation of dormancy release and flowering time in tree peony. Using transcriptome sequencing technology and by comparison with the non-repeat-flowering tree peony cultivar (× P. suffruticosa ‘Luo Yang Hong’ (LYH)), Zhou et al. [35,36] revealed eight DEGs that were potential candidates for determining repeat flowering in the repeat-flowering cultivar [Paeonia × lemoinei ‘High Noon’ (HN)]. Four genes, PsFT, PsVIN3, PsCO, and PsGA20OX, were identified that likely play important roles in the regulation of the repeat-flowering process in tree peony. Furthermore, these researchers isolated PsFT, a close homolog of FT found in the cultivars HN and LYH, and identified its potential role in the regulation of flowering time in tree peony.
Bulked sample analysis (BSA) is a powerful tool for the rapid identification of genetic determinants underlying phenotypic variation. It is applicable to both selected and pooled individuals, and it has been used extensively in gene mapping through bulked segregant analysis with biparental populations, in the mapping of molecular markers, such as single nucleotide polymorphisms (SNPs), and in pooled genome-wide association studies (GWAS), using extreme variants in two groups with contrasting phenotypes [37,38]. In maize, pools were constructed of mutants and wild-type individuals for comparison by RNA sequencing (RNA-Seq) and, using this approach, the glossy 13 (gl13) gene [39], the roothairless5 (rth5) gene [40], and the Brown midrib2 (bm2) gene [41] were all successfully mapped and cloned. The three genes were related, respectively, to epicuticular waxes on the surfaces of seedling leaves, root hair initiation and elongation, and a reddish-brown coloration associated with reductions in lignin concentration and alterations in lignin composition. Ramirez-Gonzalez et al. [42] were able to identify putative SNPs across a major disease resistance gene for wheat yellow rust, the Yr15 locus, using BSA combined with RNA-Seq in an F2 population to generate high-density genetic maps across target loci in polyploid wheat; they finally mapped Yr15 to a 0.77-cM interval. In sunflower, in the absence of a reference genome, the putative locus PlARG conferring resistance to downy mildew was successfully verified by combining BSA with next-generation sequencing (NGS) and de novo assembly of the sunflower transcriptome, leading to SNP discovery through a sequence resource that combined reads that originated from two sunflower species [43].
For tree peony, resolution of the molecular mechanisms underlying the regulation of flowering, including time of flowering, is an important and complex problem and only limited progress has been made to date. In this study, we used bulked segregant RNA-seq (BSR-seq) technology for the first time to detect DEGs in 3 lines of early- and late-blooming flowers, selected from an F1 population derived from P. ostti ‘Feng Dan’ (an early-flowering cultivar) × P. suffruticosa ‘Xin Riyuejin’ (a late-flowering cultivar). We aimed to identify flowering-time-related candidate genes by comparing the transcriptomes of four different bulked pools of flowers, each selected at full-bloom stage: T01 (male bulk, ‘Xin Riyuejin’, late-flowering), T02 (female bulk, ‘Feng Dan’, early-flowering), T03 (20 early-blooming flowers), and T04 (20 late-blooming flowers). A set of candidate functional genes related to flowering time was successfully obtained, providing a rich genetic resource for further study of the molecular regulation of flowering initiation and timing in peony. In addition, the SSR and SNP molecular markers identified will be useful in the analysis of genetic evolution, genetic diversity, and population structure, and in genome-wide association studies (GWAS) of tree peony.

2. Results

2.1. Sequence Assembly and Annotation of Functional Genes

Four expression libraries of tree peony were sequenced, which generated 37,069,313 reads from T01, 33,883,337 reads from T02, 82,518,974 reads from T03, and 71,040,683 reads from T04, respectively. After data filtering, a total 56.51 Gb of clean data was obtained. The Q30 value was not less than 87.62%, and the GC content of each sample was between 40 mol % and 60 mol %. Furthermore, the ratio for T03 and T04 reached 85.60% and 85.18%, respectively (Table 1). A total of 173,960 transcripts and 78,645 unigenes were combined and assembled from scratch using Trinity software. The average length for a contig, a transcript, and a unigene was 59.211 bp, 1106.74 bp, and 732.27 bp, respectively. The N50 length for a transcript and a unigene was 1781 bp and 1282 bp, respectively (Table S1). The length distribution for all the combination unigenes is shown in Figure S1. A total of 58,084 genes were annotated by comparison with public databases; for the Nr database, the proportion annotated was 47.8%; for Swiss-Prot, it was 29.8%; for GO, 26.4%; for COG, 13.7%; for KOG, 27.4%; for KEGG, 16.5%; and for Pfam, 31.2%. The E-value parameter for BLAST and HMMER was <10−5 and <10−10, respectively.

2.2. Analysis of Differentially Expressed Genes (DEGs)

DEGs were identified by EBseq [44] using a False Discovery Rate (FDR) <0.01 and a Fold Change (FC) ≥2, where FC represents the ratio of expression between the two samples (groups). The total of 4789 DEGs that were identified from group T01- vs. -T02 was more than that from T04- vs. -T03; thus, for T01- vs -T02 there were 2309 up-regulated and 2480 down-regulated genes, whereas for T04- vs. -T03 there were 1879 up-regulated and 1094 down-regulated genes. Compared to T01 and T02, the total number of DEGs for T03 was more than 4000; analogously, compared to T01 and T02, the total number of DEGs for T04 was more than 3000 (Table 2). The volcano plot in Figure 1 shows that there were a large number of DEGs between T01 (late-flowering pool) and T02 (early-flowering pool), and between T04 (late-flowering pool) and T03 (early-flowering pool), and that the number of DEGs between the two parent groups was more than between the two mixed groups, whether up-regulated or down-regulated. DEGs with similar patterns of behavior were revealed through a hierarchical cluster analysis. Although the expression levels of DEGs were different between T01 and T02, as compared to between T03 and T04 (Figure 2), the differences between the two groups were similar, indicating that the DEGs identified from the two pairs of groups may be closely related to the mechanism of regulation of early and late flowering.
The DEGs were aligned to several public databases to obtain functional annotations (E-value ≤ 1 × 10−5). Consequently, among the six groups, almost all the unigenes were annotated to the Nr database; fewer were annotated to the Pfam and Swiss-Prot databases, and only a small proportion to the KEGG and COG databases (Table 3).
The GO (Gene Ontology) database is an internationally standardized database of gene functional classification. Overall, for the two pairwise comparisons T01- vs. -T02 and T04- vs. -T03, 1412 and 1780 DEG unigenes, respectively, were classified into 13 “cellular component”, 16 “molecular function”, and 20 “biological process” categories. With regard to cellular component, “organelle” (17.56% for T01- vs. -T02, 15.56% for T04- vs. -T03) and “cell part” (35.62%, 32.98%) were the most prevalent categories. For molecular function, the most prevalent were “transporter activity” (7.22%, 7.75%), “binding” (44.83%, 47.25%), and “catalytic activity” (57.08%, 62.36%); and for biological process, they were “cellular processes” (44.62%, 47.81%) and “metabolic processes” (55.52%, 58.26%). The GO annotations for the two pairwise comparisons are shown in Figure 3.
The COG (Clusters of Orthologous Groups (of proteins)) database is based on phylogenetic relationships of gene products across bacteria, algae, and eukaryotes. Following the GO classification of DEGs described above, categorization by COG revealed enrichment in 22 categories, of which the largest proportion (209 or 17.23% for T01- vs. -T02, 311 or 18.45% for T04- vs. -T03) were assigned to the “general function” prediction category. There were no DEGs represented in the categories “extracellular structures,” “cell motility,” and “nuclear structures.” Otherwise, the least-represented categories were “intracellular trafficking”, “secretion”, and “vesicular transport,” with six DEG unigenes (0.49%) in the T01- vs. -T02 group, and “chromatin structure and dynamics,” having four unigenes (0.24%) in the T04- vs. -T03 group (Figure 4).
The KEGG (Kyoto Encyclopedia of Genes and Genomes) database enables the systematic analysis of genes in relation to a range of biological functions, in principle from the molecular to the population level. A KEGG annotation of the DEGs of the T01- vs. -T02 pairwise comparison revealed that 512 DEGs were assigned to five top-level categories, including “cellular processes”, “environmental information processing”, “genetic information processing”, “metabolism”, and “organismal systems”. These DEGs were in turn mapped onto 118 pathway categories, of which the top three were “starch and sucrose metabolism” (47, 9.18%), “carbon metabolism” (33, 6.45%), “plant hormone signal transduction” (31, 6.05%), and “phenylpropanoid biosynthesis” (31, 6.05%) (Figure 5a). The T04- vs. -T03 pairwise comparison produced broadly similar results to the T01- vs. -T02 comparison, with 588 DEGs assigned to the same five top-level categories and then mapped on to 113 pathway categories; thus, 50 (8.50%), 49 (8.33%), and 44 (7.48%) of these DEGs mapped onto “plant hormone signal transduction”, “starch and sucrose metabolism”, and “carbon metabolism”, respectively (Figure 5). Taken together, the two sets of data clearly indicated the importance of metabolic changes in flower development and differentiation.

2.3. Verification of Candidate Genes through Quantitative Real-Time PCR (qRT-PCR)

From the pairwise comparisons, a total of 291 DEGs that showed a significantly enriched association with known genetic loci were selected (based on a False Discovery Rate (FDR) < 0.01) (Table S2). These candidate genes were annotated using public databases including GO (Figure S2) and KEGG (Figure S3). On the basis of this annotation analysis, the seven DEGs that displayed the highest number of SNPs and associated loci and that had a greater likelihood of being associated with phenotypic traits were selected (Table 4), and the relevant information is shown in Table S3 and Appendix 1 (see Supplementary Materials 1). Next, to corroborate the RNA-Seq results and to investigate the dynamics of expression of DEGs in tree peony flowers, these seven key DEGs, together with one reference gene showing identical expression, were selected for qRT-PCR analysis. Figure 6 shows the differential expression levels for these seven key DEGs for the pairwise comparisons T01- vs. -T02 and T04- vs. -T03. The unigenes c42942.graph_c0, c58332.graph_c0, c58361.graph_c0, and c57417.graph_c0 were expressed at a much higher level in T04 than in T03, yet they were expressed at comparable levels in the two parents. In contrast, c46352.graph_c0 and c53143.graph_c0 were expressed at a much higher level in T02 than in T01, but were expressed at comparable levels in both F1 pools. The unigene c58526.graph_c0 was expressed at comparable levels in both the parents and the F1 pools. Additionally, in T02- vs. -T01, the expression levels of four DEGs associated with “carbohydrate transport and metabolism”, “hothead-like”, “reduced wall acetylation 4-like”, and “PTI 1-like tyrosine-protein kinase” were all observed to be down-regulated, whereas the expression levels of three DEGs associated with “plant invertase/pectin methylesterase inhibitor”, “K+ transporter”, and “peptidyl-prolyl cis-trans isomerase activity” were up-regulated. On the other hand, five DEGs related to “carbohydrate transport and metabolism”, “plant invertase/pectin methylesterase inhibitor”, “K+ transporter”, “hothead-like”, and “reduced wall acetylation 4-like” were down-regulated in T01- vs. -T02. In the second pairwise comparison, T04- vs. -T03, two DEGs identified as “PTI 1-like tyrosine-protein kinase” and “peptidyl-prolyl cis-trans isomerase activity” were up-regulated. The sequencing of the seven key DEGs are listed in Appendix 1. The results obtained from the qRT-PCR analysis were completely consistent with those obtained by RNA-Seq, thereby demonstrating the reliability of the RNA-Seq data.

2.4. Simple Sequence Repeats (SSRs) and Single Nucleotide Polymorphisms (SNPs)

Structural analysis of unigenes (length > 1 kb) identified 6678 SSRs, which contained six types of SSR, as follows: mono-nucleotide (4347; 65.09%), di-nucleotide (1443; 21.61%), tri-nucleotide (833; 12.47%), tetranucleotide (35; 0.52%), penta-nucleotide (8; 0.12%), and hexanucleotide repeat (12; 0.18%) (Table 5). Furthermore, we also detected 219,291 SNPs, applying the following stringent screening criteria: (1) the continuous single-base mismatch was not more than 3, within a range of 35 bp; (2) SNP quality values were greater than 2, based on a sequence-depth normalization. SNPs could be classified as homozygous SNPs (with only one allele) and heterozygous SNPs (Heterozygosity: two or more digits) according to the number of alleles (Allele) of the SNPs, i.e., the number of different bases supported by sequencing reads. Table 6 shows the statistical results of SNP loci.

3. Discussion

Plant flowering results from a transition from vegetative growth to reproductive growth, and time of flowering is regulated by a series of gene–environment interactions. The molecular mechanism of flowering plays a crucial role in plant growth and development, and it has become a “hot topic” in plant science. A full understanding is, self-evidently, of great importance to the identification of genes involved in plant developmental regulation. To date, a large number of genes have been discovered based on the increasing amount of sequence data available and gene expression patterns in plant organs such as flowers, leaves, and fruits. Because transcriptome sequencing can be undertaken irrespective of whether the species of interest has a sequenced reference genome, transcriptome sequencing has been recognized to be the most effective way of mining functional genes.
In the present study, the BSR-Seq method was used, employing the Illumina HiSeq TM2500 platform to screen and identify genes involved in time of flowering in tree peony. Petals from early- and late-flowering samples of an F1 population derived from a cross between two cultivars with flowering times (P. ostti ‘Feng Dan’ (early flowering) × P. suffruticosa ‘Xin Riyuejin’ (late-flowering)) were used for transcriptome sequencing, and a large number of gene sequences were obtained within a short period of time. Thus, a total of 56.51 Gb of clean data was acquired by transcriptome sequencing of samples from four groups, viz. T01 (male bulk, ‘Xin Riyuejin’, late-flowering), T02 (female bulk, ‘Feng Dan’, early-flowering), T03 (20 early-blooming flowers), and T04 (20 late-blooming flowers). Ultimately, a total of 78,645 unigenes were identified by de novo assembly.
There has been rapid progress recently in the application of transcriptome sequencing to peony, with a range of different tissues having been selected for different purposes. For example, the different developmental stages of peony flower buds were used for transcriptome sequencing by Shu et al. [45], who constructed the first cDNA library of peony and obtained 2241 expressed sequence tags (ESTs). Gai et al. [46] used the 454 GS FLX platform to transcriptome-sequence the dormant buds of ‘Feng Dan’ and revealed the molecular mechanism of dormancy in tree peony. A total of 50,829 unigene sequences with an average length of 585 bp were obtained from the petals of ‘Luoyang Hong’ using the HiSeq TM2000 platform, and from this the mechanism of anthocyanin synthesis in peony cut flowers was clarified [47]. Li et al. [48] carried out transcriptome analysis of peony seeds at different developmental stages and identified 175,875 contigs; subsequently, 2182 differentially expressed unigenes were screened and a large number of DEGs involved in fatty acid metabolism were identified, providing a molecular basis for potential strategies to increase the yield of peony seed oil. In comparison with these results, it is gratifying that the number of unigenes in the present study was as high as 78,645, which is 35 times the number of EST sequences of the flower bud transcriptome, and more than the numbers reported by Zhang and Li et al. [47,48]. Therefore, the present study provides a comprehensive and high-quality genetic resource for research on peony and its mechanism of flowering.
Four peony transcriptome samples (T01–T04) were sequenced in this study and, following de novo assembly and alignment to publicly available databases, a total of 28,347 annotated unigenes, 36.04% of the total, were identified. The GO classification of T01- vs. -T02 was compared with that of T03 vs. T04, and both were found to be enriched in 49 functional categories, mainly “response to stimulus”, “biological regulation”, “cell part, “organelle”, “catalytic activity”, and “binding”. Subsequently, KEGG pathway analysis revealed that the principal enriched pathways comprised “plant hormone signal transduction”, “metabolic pathways”, and “secondary metabolic pathways”. The above analysis therefore indicated that genes related to plant hormone signaling, cell metabolism, and secondary metabolism play important roles in flower development in peony. In addition, comparing T04 (late-flowering mixed pool) vs. T01 (late-flowering pool), there were 3257 DEGs, of which 1398 were up-regulated and 1859 were down-regulated; comparing T03 (early-flowering mixed pool) vs. T02 (early-flowering pool), there were 4415 DEGs, of which 1398 were up-regulated and 1859 were down-regulated.
Following the BSR-seq association study, a total of seven genes involved in peony flowering were selected for functional annotation, notably c57417.graph_c0, encoding a “removing wall acetylation” (RWA) protein, an epigenetic gene. This gene plays an important role in acetylation processes in the plant cell, and has a direct impact on the formation of cell wall polysaccharides and on related cellular functions; it affects morphology, flowering, and other plant traits, depressing the expression of FLC and initiating flowering [24]. Interestingly, the expression level of the gene in the late-flowering pool was lower than in the early-flowering pool, indicating that the action of the gene might be unique. The gene encoding a K+-ion transporter protein (c58332.graph_c0) relates to one of the three principal mineral elements that are essential for plant growth and changes in its expression could therefore have important physiological and biochemical effects. The gene c58526.graph_c0 could regulate plant flowering via a signal transduction process.
These screened genes were verified via qRT-PCR, which showed that although the expression levels of the genes in the two pairwise comparisons (T01- vs. -T02 and T04- vs. -T03) were different, the trend was consistent. The quality of the peony petal transcriptome database constructed in this study was high, and the database provides an accurate and information-rich resource for future research related to peony flowering. However, because of the large apparent variation in flowering time phenotype in the F1 generation, which may reflect the large genetic variation between the two parental cultivars, P. ostti ‘Feng Dan’ (early-flowering) and P. suffruticosa ‘Xin Riyuejin’ (late-flowering), and heterosis and inbreeding depression may occur in the F1 generation. These factors could cause epistasis or genetic interaction, and this could affect the functioning of the genes identified [49,50]. All these functionally annotated genes should therefore be further validated in future studies.
In addition to the seven genes mentioned above, other genes related to the four genes PsFT, PsVIN3, PsCO, and PsGA20OX are known to play important roles in the regulation of the repeat-flowering process in tree peony [37,38], including the unigenes c23725.graph_c0 and c43875.graph_c0, which may be related to the MADS-box protein SOC1, c6585.graph_c0, which may be related to gibberellin 20 oxidase, and the c51656.graph_c0, c30761.graph_c0, and c30761.graph_c0 unigenes, which may be related to the VIN3 protein. Further attention needs to be paid to these particular unigenes in future work.
In this study, the identification of genes potentially associated with peony flowering has shed light on potential control mechanisms and their possible commercial application in peony. Further studies are needed to elucidate specific functions and possible interactions at the molecular level. In other respects, the SSR and SNP markers that have been identified will be useful for characterizing the genetic diversity of peony genetic germplasm resources and for genome-wide association studies (GWAS), thus providing a theoretical basis for the conservation of germplasm and for the molecular-assisted breeding of peony.

4. Materials and Methods

4.1. Plant Materials

P. ostti ‘Feng Dan’ (an early-flowering cultivar) × P. suffruticosa ‘Xin Riyuejin’ (a late-flowering cultivar) were hybridized, and the two parents and 20 early- and late-flowering individuals from the F1 population selected at the full-bloom stage were used to construct BSA segregation groups [51]. The flowering times of the F1 population and of the parent cultivars are given in Table S4 (Supplementary Materials 2). Flower petals from the parent cultivars and the 40 F1-population individuals were collected from a farm at the Henan University of Science and Technology Experimental Station, Luoyang, China (34°60 N, 112°42 E) in April 2015. All samples were frozen in liquid nitrogen immediately after collection in the field and were stored in a −80 °C freezer pending RNA extraction.

4.2. RNA Extraction and Illumina Sequencing

Total RNA was extracted from tree peony petals using a RNA prep Pure Plant Kit (Polysaccharides & Polyphenolics-rich) (Tiangen, Beijing, China). RNA quality and concentration were assessed by electrophoresis on a 1.2% agarose gel and using a NanoDrop 2000 UV-Vis Spectrophotometer (Thermo Fisher Scientific, Wilmington, DE, USA), respectively. RNA samples were taken from each of four groups: T01 (male bulk, ‘Xin Riyuejin’, late-flowering), T02 (female bulk, ‘Feng Dan’, early-flowering), T03 (20 early-blooming flowers), and T04 (20 late-blooming flowers). These were then analyzed by Biomarker Technologies Corporation (Beijing, China).
The bulked RNA was enriched for mRNA using Oligo (dT) Beads and then randomly-cleaved into short fragments. First-strand cDNA was synthesized from mRNA using random-hexamer primers. DNA polymerase I, RNase H, dNTPs, and buffer were used to synthesize the second-strand cDNA. The double-stranded cDNA was then purified using an AMPure XP beads kit and end-repaired, and then a single nucleotide A (adenine) addition was ligated to the sequencing adapters. The required fragments were selected using AMPure XP beads and enriched by PCR amplification to create the final cDNA library. Finally, the mRNA-seq library was constructed for paired-end sequencing (reads = 125 bp) on the Illumina HiSeq TM2500 sequencing platform (Biomarker Technologies Corporation Beijing, China). In addition, library concentration and insert size were assessed using Qubit 2.0 Fluorometer (Life Technologies, Carlsbad, CA, USA) and an Agilent 2100 Bioanalyzer (Agilent Technologies, Waldbronn, Germany), and Q-PCR (an Applied Biosystems Step One machine, Applied Biosystems, Foster City, CA, USA) was used to accurately quantify the effective concentration of the library and to ensure its quality.

4.3. De Novo Assembly and Quality Control

In order to obtain high-quality clean reads data for de novo assembly, the raw data reads were filtered to remove adaptor sequences and low-quality sequences containing unknown bases (reads with ‘N’ bases) > 10% and with a Q-value < 20. At the same time, the Q20, Q30, and GC content of the clean data were calculated. All the downstream analyses were based on high-quality clean data. After obtaining the clean data, reads assembly was accomplished using Trinity software (http://trinityrnaseq.sourceforge.net/) [52]; the diversiform clean reads were assembled with transcripts characterized by the same subcomponent being regarded as a gene and the longest transcript of each gene being selected and defined as the unigene.

4.4. Unigene Functional Annotation and Gene Structure Analysis

No genomic data is available for peony. The functional annotation of unigenes was achieved using BLAST software [53] to search for similarity in public databases, and then the functions of unknown genes were inferred from the homology of annotated genes in the databases. We searched against the following public databases: Nr database (NCBI non-redundant protein sequences) (ftp://ftp.ncbi.nih.gov/blast/db/) [54], Swiss-Prot protein database, (http://www.uniprot.org/) [55], GO (Gene Ontology) (http://www.geneontology.org/) [56], COG (Clusters of Orthologous Groups) (http://www.ncbi.nlm.nih.gov/COG/) [57], KOG (euKaryotic Orthologous Groups) (http://www.ncbi.nlm.nih.gov/COG/) [58], and KEGG (Kyoto Encyclopedia of Genes and Genomes) (http://www.genome.jp/kegg/) [59]. After prediction of the translated amino acid sequence of the unigene, annotation of the amino acid sequence was obtained by aligning HMMER [60] with the Pfam Protein family database (http://pfam.xfam.org/) [61].
The prediction of the unigene coding region sequence and its corresponding amino acid sequence was realized via TransDecoder software (http://sourceforge.net/projects/transdecoder/). In addition, the MISA (MIcroSAtellite identification tool) software (http://pgrc.ipk-gatersleben.de/misa/misa.html) was used to analyze unigene sequences.

4.5. Gene Expression Quantification

Reads of each sample sequenced were aligned with the unigene library using Bowtie [62], and then the level of expression was estimated based on the alignment results and RSEM [63]. Subsequently, the expression level of the unigene was expressed as FPKM (Fragments Per Kilobase of transcript per Million mapped reads) [64]. FPKM can eliminate the influence of the difference between gene length and the amount of sequencing on the calculation of gene expression, hence permitting gene expression differences to be compared among different samples.

4.6. Analysis of Genes with Differential Expression (DEGs)

The recognized effective Benjamini–Hochberg method was used to correct the significant p-value that was obtained from the original hypothesis test among the differentially expressed genes (DEGs) analysis. Finally, the corrected p-value, the False Discovery Rate (FDR), was used as a key indicator of DEGs screening and a false-positive test was performed to reduce the expression value of a large number of genes independently. The DEGs (FDR < 0.01 and Fold Change (FC) ≥ 2) were identified by EBseq [44], of which FC represents the ratio of expression between two samples (groups). In our study, four groups (T01, T02, T03, and T04) were compared with each other (T01- vs. -T02, T03 vs. T01, T03 vs. T02, T04 vs. T01, T04 vs. T02, and T04- vs. -T03) to screen out genes related to early and late flowering of peony. A volcano plot was created to intuitively show the significance of the DEGs, and a MA diagram was created to identify the distribution of gene expression abundance and differential multiples between pairs of groups. Furthermore, a hierarchical cluster analysis that clustered genes with the same or similar expression was performed to display the differential expression patterns of genes under different experimental conditions. Finally, the identified DEGs were subjected to functional annotation by databases including GO, COG, and KEGG.

4.7. BSR-Association Study and Candidate Genes Identification

The reads and unigene sequences were compared for each sample using STAR (http://code.google.com/p/rna-star/) [65] and the Single Nucleotide Polymorphism (SNP) site and then identified by GATK (https://www.broadinstitute.org/gatk/) [66]. In order to ensure the accuracy of subsequent analysis, loci for which the read support was <3 were first filtered out. To obtain high-quality reliable SNP sites and to identify through association analysis loci differing between T03 and T04, SNP discrepant-type loci were filtered out through T03 + T01 and T04 + T02, homoplastically, and then SNP consistent-type loci were filtered out through T03 + T04. The Euclidean Distance (ED) algorithm was used to calculate the region that related to the objective gene linkage. The arithmetic was based on the depth of the SNP discrepancy between T03 and T04 and the ED value was calculated according to the following formula (Equation (1)):
ED = A ( A T 03 − A T 04 ) 2 + ( C T 03 − C T 04 ) 2 + ( G T 03 − G T 04 ) 2 + ( T T 03 − T T 04 ) 2
The higher the ED value, the greater the difference between T03 and T04 in SNPs. In order to eliminate the difference in the ED results caused by differences in sequencing between the two mixed pools, we used the frequency of each base at each locus instead of the absolute value to calculate the ED value, and this was raised to a power of 5 (ED5) to eliminate the noise generated by small variations in the estimations in our study.
Because of the lack of genomic information for peony at the chromosome level, we used the following analysis strategy in order to determine a credible association area: (1) The ED values for all loci were calculated and ED = 0.74 was used as the associated threshold; (2) Loci that exceeded the association threshold were selected and served as candidate association loci; (3) Statistics of the number of SNPs and candidate loci for every unigene difference between T03 and T04 were recorded; (4) The probability of the accumulation of association sites in each unigene was calculated from the hypergeometric distribution, calculated as follows (Equation (2)):
P = 1 − ∑ x = 0 y − 1 ( K x ) ( M − K N − x ) ( M N )
In the above formula, M represents the total number of differences in SNPs between the T03 and T04 mixed pools, K represents the total number of all candidate association loci, and Y represents the number of candidate association loci in the unigenes; (5) The Benjamini–Hochber method was used to multiply and correct the test for the probability of each unigene enrichment-associated locus, and then calculate the FDR value; (6) Unigenes with significant enrichment-associated sites (FDR < 0.01) were screened. Thereafter, the identified SNP-associated genes were subjected to functional annotation by databases including GO, COG, and KEGG.

4.8. Quantitative Real-Time PCR (qRT-PCR) Verification of Candidate Genes

To study candidate gene expression profiles in the four samples (T01, T02, T03, and T04), we selected the relatively stably expressed peony Actin gene as a reference gene for qRT-PCR [67]. cDNA synthesis was performed as described earlier (Section 4.4). Quantitative real-time PCR was performed on a CFX ConnectTM Real-Time PCR System (Bio-Rad, Hercules, CA, USA). The primer information for Actin and the candidate genes is shown in Table A3. Each PCR reaction was repeated three times and the volume of the qPCR reaction was 20 μL. The cycling protocol consisted of 3 min at 94 °C, followed by 40 cycles of 15 s at 94 °C for denaturation, 15 s at 55 °C for annealing, and 20 s at 72 °C for extension. The specificity of the PCR reaction was assessed by the presence of a single peak in the dissociation curve after the amplification. Relative expressions of target genes were analyzed using the 2−ΔΔCt algorithm [68], in which CT values of reference genes are calculated with a geometrical.

5. Conclusions

Flowering period is an extremely important parameter in the cultivation and commercial production of peonies as ornamental subjects. Our study is the first to screen the genes of early- and late-flowering in tree peony by the BSA analysis method of transcriptome sequencing and to construct a high-quality transcriptome database. A set of candidate functional genes related to flowering time was successfully obtained, providing a rich genetic resource for studies of peony flowering and establishing a foundation for more detailed studies of flowering-period regulation in tree peony. The development of SSRs and SNPs as molecular markers will be useful in the analysis of gene evolution, genetic diversity, and population structure, and for genome-wide association studies (GWAS) of tree peony. The data will also greatly assist breeding programs, and the conservation of germplasm in tree peony.

Supplementary Materials

Supplementary materials are available online.

Acknowledgments

This work was supported by National Natural Science Foundation of China (31370697), Plan for Scientific Innovation Talent of Henan Province (164200510013), Natural Science Foundation of Henan Province (162300410079).

Author Contributions

X.H. conceived and designed the project. X.H. and Q.G. drafted the manuscript. W.W. collected samples and performed the molecular biological experiments. Q.G., W.W. and L.Z. performed the bioinformatics analysis. L.G. and D.G. modified the manuscript.

Conflicts of Interest

The authors declare that the research was conducted in the absence of any commercial or financial relationships that could be construed as a potential conflict of interest.

References

  1. Haw, S. Tree peonies: A review of their history and taxonomy. New Plantsman 2001, 8, 156–171. [Google Scholar]
  2. Hong, D.Y.; Pan, K.Y. Notes on taxonomy of Paeonia sect Moutan DC. (Paeoniaceae). Acta Phytotax. Sini. 2005, 43, 169–177. [Google Scholar] [CrossRef]
  3. Li, J.J.; Zhang, X.F.; Zhao, X.Q. Tree Peony of Chinese; Encyclopedia of China Publishing House: Beijing, China, 2011; p. 340. [Google Scholar]
  4. Rogers, A.; Engstrom, L. Peonies; Timber Press: Portland, OR, USA, 1995; p. 296. [Google Scholar]
  5. Wang, L.Y. Chinese Tree Peony; China Forestry Publishing House: Beijing, China, 1998; p. 212. [Google Scholar]
  6. Cheng, F.Y. Advances in the breeding of tree peonies and a cultivar system for the cultivar group. Int. J. Plant Breed. 2007, 2, 89–104. [Google Scholar]
  7. Koornneef, M.; Alonso-Blanco, C.; Peeters, A.J.M.; Soppe, W. Genetic control of flowering time in Arabiciopsis. Annu. Rev. Plant Biol. 1998, 49, 345–370. [Google Scholar] [CrossRef] [PubMed]
  8. Reeves, P.H.; Coupland, G. Analysis of flowering time control in Arabidopsis by comparison of double and triple mutants. Plant Physiol. 2001, 126, 1085–1091. [Google Scholar] [CrossRef] [PubMed]
  9. Sung, Z.R.; Chen, L.J.; Moon, Y.H.; Lertppiriyapong, K. Mechanisms of floral repression in Arabidopsis. Curr. Opin. Plant Biol. 2003, 6, 29–35. [Google Scholar] [CrossRef]
  10. Amasino, R.M.; Michaels, S.D. The timing of flowering. Plant Physiol. 2010, 154, 516–520. [Google Scholar] [CrossRef] [PubMed]
  11. Andrés, F.; Coupland, G. The genetic basis of flowering responses to seasonal cues. Nat. Rev. Genet. 2012, 13, 627–639. [Google Scholar] [CrossRef] [PubMed]
  12. Yamaguchi, N.; Winter, C.M.; Wu, M.F.; Kanno, Y.; Yamaguchi, A.; Seo, M.; Wagner, D. Gibberellin acts positively then negatively to control onset of flower formation in Arabidopsis. Science 2014, 344, 638–641. [Google Scholar] [CrossRef] [PubMed]
  13. Millar, A.J. A suite of photoreceptors entrains the plant circadian clock. J. Biol. Rhythms 2003, 18, 217–226. [Google Scholar] [CrossRef] [PubMed]
  14. Suárezlópez, P.; Wheatley, K.; Robson, F.; Onouchi, H.; Valverde, F.; Coupland, G. Constans mediates between the circadian clock and the control of flowering in Arabidopsis. Nature 2001, 410, 1116. [Google Scholar] [CrossRef] [PubMed]
  15. Aukeman, M.J.; Hirschfeld, M.; Weaver, L.; Weaver, T.; Clack, T.; Amasino, R.M.; Sharrock, R.A. A deletion in the PHYD gene of the Arabidopsis Wassilewskija Ecotype defines a role for phytochrome D in red/far-red light sensing. Plant Cell 1997, 9, 1317–1326. [Google Scholar] [CrossRef] [PubMed]
  16. Devlin, P.F.; Patel, S.R.; Whitelam, G.C. Phytochrome E influences internode elongation and flowering time in Arabidopsis. Plant Cell 1998, 10, 1479–1487. [Google Scholar] [CrossRef] [PubMed]
  17. Weller, J.L.; Beauchamp, N.; Kerckhoffs, L.H.J.; Damien Platten, J.; Reid, J.B. Interaction of phytochromes A and B in the control of de-etiolation and flower in pea. Plant J. 2001, 26, 283–294. [Google Scholar] [CrossRef] [PubMed]
  18. Dean, C.; Whittaker, C. The FLC Locus: A Platform for Discoveries in Epigenetics and Adaptation. Annu. Rev. Cell Dev. Biol. 2017, 33, 555–575. [Google Scholar] [CrossRef]
  19. Lange, M.J.P.; Lange, T. Ovary-derived precursor gibberellin A9 is essential for female flower development in cucumber. Development 2016, 143, 4425–4429. [Google Scholar] [CrossRef] [PubMed]
  20. Cheng, J.Z.; Zhou, Y.P.; Lv, T.X.; Xie, C.P.; Tian, C.E. Research progress on the autonomous flowering time pathway in Arabidopsis. Physiol. Mol. Biol. Plants 2017, 23, 477–485. [Google Scholar] [CrossRef] [PubMed]
  21. Simpson, G. The autonomous pathway: Epigenetic and posttranscriptional gene regulation in the control of Arabidopsis flowering time. Curr. Opin. Plant Biol. 2004, 7, 570–574. [Google Scholar] [CrossRef] [PubMed]
  22. Marquardt, S.; Boss, P.K.; Hadfield, J.; Dean, C. Additional targets of the Arabidopsis autonomous pathway members, FCA and FY. J. Exp. Bot. 2006, 57, 3379–3386. [Google Scholar] [CrossRef] [PubMed]
  23. Srikanth, A.; Schmid, M. Regulation of flowering time: All roads lead to Rome. Cell. Mol. Life Sci. 2011, 68, 2013–2037. [Google Scholar] [CrossRef] [PubMed]
  24. Bäurle, I.; Smith, L.; Baulcombe, D.C.; Dean, C. Widespread role for the flowering-time regulators FCA and FPA in RNA-mediated chromatin silencing. Science 2007, 318, 109–112. [Google Scholar] [CrossRef] [PubMed]
  25. Bäurle, I.; Dean, C. Differential interactions of the autonomous pathway RRM proteins and chromatin regulators in the silencing of Arabidopsis targete. PLoS ONE 2008, 3, e2733. [Google Scholar] [CrossRef] [PubMed]
  26. Putterill, J.; Laurie, R.; Macknight, R. It’s time to flower: The genetic control of flowering time. Bioessays 2004, 26, 363–373. [Google Scholar] [CrossRef] [PubMed]
  27. Kobayashi, Y.; Kaya, H.; Goto, K.; Iwabuchi, M.; Araki, T. A pair of related genes with antagonistic roles in mediating flowering signals. Science 1999, 286, 1960. [Google Scholar] [CrossRef] [PubMed]
  28. Blázquez, M.A.; Weigel, D. Integration of floral inductive signals in Arabidopsis. Nature 2000, 404, 889–892. [Google Scholar] [CrossRef] [PubMed]
  29. Yoo, S.K.; Chung, K.S.; Kim, J.; Lee, J.H.; Hong, S.M.; Yoo, S.J. CONSTANS Activates SUPPERSSOR OF OVEREXPRESSION OF CONSTAN 1 through FLOWERING LOCUS T to Promote Flowering in Arabidopsis. Plant Physiol. 2005, 139, 770–778. [Google Scholar] [CrossRef] [PubMed]
  30. Hsu, C.Y.; Adams, J.P.; Kim, H.J.; No, K.; Ma, C.; Strauss, S.H.; Drnevich, J.; Vandervelde, L.; Ellis, J.D.; Rice, B.M.; et al. FLOWERING LOCUS T duplication coordinates reproductive and vegetative growth in perennial poplar. Proc. Natl. Acad. Sci. USA 2011, 108, 10756–10761. [Google Scholar] [CrossRef] [PubMed]
  31. Li, Y.Z.; Luo, X.; Wu, C.Y.; Cao, S.Y.; Zhou, Y.F.; Jie, B.; Cao, Y.L.; Meng, H.J.; Wu, G.L. Comparative Transcriptome Analysis of Genes Involved in Anthocyanin Biosynthesis in Red and Green Walnut (Juglans regia L.). Molecules 2018, 23, 25. [Google Scholar] [CrossRef] [PubMed]
  32. Ma, N.; Chen, W.; Fan, T.G.; Tian, Y.R.; Zhang, S.; Zeng, D.X.; Li, Y.H. Low temperature-induced DNA hypermethylation attenuates expression of RhAG, an AGAMOUS homolog, and increases petal number in rose (Rosa hybrida). BMC Plant Biol. 2015, 15, 237. [Google Scholar] [CrossRef] [PubMed]
  33. Shu, Q.; Wang, L.; Wu, J.; Du, H.; Liu, Z.; Ren, H.; Zhang, J. Analysis of the formation of flower shapes in wild species and cultivars of tree peony using the MADS-box subfamily gene. Gene 2012, 493, 113–123. [Google Scholar] [CrossRef] [PubMed]
  34. Zhang, Y.X.; Li, Y.L.; Zhang, Y.; Guan, S.M.; Liu, C.Y.; Zheng, G.S.; Gai, S.P. Isolation and Characterization of a SOC1-Like Gene from Tree Peony (Paeonia suffruticosa). Plant Mol. Biol. Rep. 2015, 33, 855–866. [Google Scholar] [CrossRef]
  35. Zhou, H.; Cheng, F.Y.; Wang, R.; Zhong, Y.; He, C.Y. Transcriptome comparison reveals key candidate genes responsible for the unusual reblooming trait in tree peonies. PLoS ONE 2013, 8, e79996. [Google Scholar] [CrossRef] [PubMed]
  36. Zhou, H.; Cheng, F.Y.; Wu, J.; He, C.Y. Isolation and functional analysis of flowering locus T in Tree Peonies (PsFT). J. Am. Soc. Hortic. Sci. 2015, 140, 265–271. [Google Scholar]
  37. Liu, C.L.; Zhou, Q.; Dong, L.; Wang, H.; Liu, F.; Weng, J.F.; Li, X.H.; Xie, C.X. Genetic architecture of the maize kernel row number revealed by combining QTL mapping using a high-density genetic map and bulked segregant RNA sequencing. BMC Genom. 2016, 17, 915. [Google Scholar] [CrossRef] [PubMed]
  38. Zou, C.; Wang, P.X.; Xu, Y.B. Bulked sample analysis in genetics, genomics and crop improvement. Plant Biotechnol. J. 2016, 14, 1941–1955. [Google Scholar] [CrossRef] [PubMed]
  39. Li, L.; Li, D.L.; Liu, S.Z.; Ma, X.L.; Dietrich, C.R.; Hu, H.C.; Zhang, G.S.; Liu, Z.Y.; Zheng, J.; Wang, G.Y.; et al. The maize glossy13 gene, cloned via BSR-Seq and Seq-walking encodes a putative ABC transporter required for the normal accumulation of epicuticular waxes. PLoS ONE 2013, 8, e82333. [Google Scholar] [CrossRef] [PubMed]
  40. Nestler, J.; Liu, S.Z.; Wen, T.J.; Paschold, A.; Marcon, C.; Tang, H.M.; Li, D.L.; Li, L.; Meeley, R.B.; Sakai, H.J.; et al. Roothairless5, which ftznctions in maize (Zea mays L.) root hair initiation and elongation encodes a monocot-specific NADPH oxidase. Plant J. 2014, 79, 729–740. [Google Scholar] [CrossRef] [PubMed]
  41. Tang, H.M.; Liu, S.Z.; Hill-Skinner, S.; Wu, W.; Reed, D.; Yeh, C.T.; Nettleton, D.; Schnable, P.S. The maize Brown midrib2 (bm2) gene encodes a methylenetetrahydrofolate reductase that contributes to lignin accumulation. Plant J. 2014, 77, 380–392. [Google Scholar] [CrossRef] [PubMed]
  42. Ramirez-Gonzalez, R.H.; Segovia, V.; Bird, N.; Fenwick, P.; Holdgate, S.; Berry, S.; Jack, P.; Caccamo, M.; Uauy, C. RNA-Seq bulked segregant analysis enables the identification of high-resolution genetic markers for breeding in hexaploid wheat. Plant Biotechnol. J. 2015, 13, 613–624. [Google Scholar] [CrossRef] [PubMed]
  43. Livaja, M.; Wang, Y.; Wieckhorst, S.; Haseneyer, G.; Seidel, M.; Hshn, V.; Knapp, S.J.; Taudien, S.; Schön, C.C.; Bauer, E. BSTA: A targeted approach combines bulked segregant analysis with next-generation sequencing and de novo transcriptome assembly for SNP discovery in sunflower. BMC Genom. 2013, 14, 628–638. [Google Scholar] [CrossRef] [PubMed]
  44. Leng, N.; Dawson, J.A.; Thomson, J.A.; Ruotti, V.; Rissman, A.I.; Smits, B.M.G.; Haag, J.D.; Gould, M.N.; Stewart, R.M.; Kendziorski, C. EBSeq: An empirical Bayes hierarchical model for inference in RNA-seq experiments. Bioinformatics 2013, 29, 1035–1043. [Google Scholar] [CrossRef] [PubMed]
  45. Shu, Q.Y.; Wischnitzki, E.; Liu, Z.A.; Ren, H.X.; Han, X.Y.; Hao, Q.; Gao, F.F.; Xu, S.X.; Wang, L.S. Functional annotation of expressed sequence tags as a tool to understand the molecular mechanism controlling flower bud development in tree peony. Physiol. Plantarum 2009, 135, 436–449. [Google Scholar] [CrossRef] [PubMed]
  46. Gai, S.P.; Zhang, Y.X.; Mu, P.; Liu, C.Y.; Liu, S.; Dong, L.; Zheng, G.S. Transcriptome analysis of tree peony during chilling requirement fulfillment: Assembling, annotation and markers discovering. Gene 2012, 497, 256–262. [Google Scholar] [CrossRef] [PubMed]
  47. Zhang, C.; Wang, Y.J.; Fu, J.X.; Dong, L.; Gao, S.L.; Du, D.N. Transcriptomic analysis of cut tree peony with glucose supply using the RNA-Seq technique. Plant Cell Rep. 2014, 33, 111–129. [Google Scholar] [CrossRef] [PubMed]
  48. Li, S.S.; Wang, L.S.; Shu, Q.Y.; Wu, J.; Chen, L.G.; Shao, S.; Yin, D.D. Fatty acid composition of developing tree peony (Paeonia section Moutan DC.) seeds and transcriptome analysis during seed development. BMC Genom. 2015, 16, 208–210. [Google Scholar] [CrossRef] [PubMed]
  49. Phillips, P.C. Epistasis—The essential role of gene interactions in the structure and evolution of genetic systems. Nat. Rev. Genet. 2008, 9, 855. [Google Scholar] [CrossRef] [PubMed]
  50. Yang, Y.F.; Cao, W.Q.; Wu, S.H.; Qian, W.F. Genetic interaction network as an important determinant of gene order in genome evolution. Mol. Biol. Evol. 2017, 34, 3254–3266. [Google Scholar] [CrossRef] [PubMed]
  51. Guo, Q.; Guo, L.L.; Zhang, L.; Zhang, L.X.; Ma, H.L.; Guo, D.L.; Hou, X.G. Construction of a genetic linkage map in tree peony (Paeonia Sect Moutan) using simple sequence repeat (SSR) markers. Sci. Hortic. 2017, 219, 294–301. [Google Scholar] [CrossRef]
  52. Grabherr, M.G.; Haas, B.J.; Yassour, M.; Levin, J.Z.; Thompson, D.A.; Amit, I.D.; Adiconis, X.; Fan, L.; Raychowdhury, R.; Zeng, Q.D.; et al. Full-length transcriptome assembly from RNA-Seq data without a reference genome. Nat. Biotechnol. 2011, 29, 644–652. [Google Scholar] [CrossRef] [PubMed]
  53. Altschul, S.F.; Madden, T.L.; Schäffer, A.A.; Zhang, J.H.; Zhang, Z.; Miller, W.; Lipman, D.J. Gapped BLAST and PSI-BLAST: A new generation of protein database search programs. Nucl. Acids Res. 1997, 25, 3389–3402. [Google Scholar] [CrossRef] [PubMed]
  54. Deng, Y.Y.; Li, J.Q.; Wu, S.F.; Zhu, Y.P.; Chen, Y.W.; He, F.C. Integrated nr Database in Protein Annotation System and Its Localization. Comput. Eng. 2006, 32, 71–74. [Google Scholar]
  55. Apweiler, R.; Bairoch, A.; Wu, C.H.; Barker, W.C.; Boeckmann, B.; Ferro, S.; Gasteiger, E.; Huang, H.Z.; Lopez, R.; Martin, M.M.M.J.; et al. UniProt: The Universal Protein knowledgebase. Nucl. Acids Res. 2004, 32, D115–D119. [Google Scholar] [CrossRef] [PubMed]
  56. Ashburner, M.; Ball, C.A.; Blake, J.A.; Botstein, D.; Butler, H.; Cherry, J.M.; Davis, A.P.; Dolinski, K.; Dwight, S.S.; Eppig, J.T.; et al. Gene ontology: Tool for the unification of biology. Nat. Genet. 2000, 25, 25–29. [Google Scholar] [CrossRef] [PubMed]
  57. Tatusov, R.L.; Galperin, M.Y.; Natale, D.A. The COG database: A tool for genome scale analysis of protein functions and evolution. Nucl. Acids Res. 2000, 28, 33–36. [Google Scholar] [CrossRef] [PubMed]
  58. Koonin, E.V.; Fedorova, N.D.; Jackson, J.D.; Jacobs, A.R.; Krylov, D.M.; Makarova, K.S.; Mazumder, R.; Mekhedov, S.L.; Nikolskaya, A.N.; Rao, B.S.; et al. A comprehensive evolutionary classification of proteins encoded in complete eukaryotic genomes. Genome Biol. 2004, 5, R7. [Google Scholar] [CrossRef] [PubMed]
  59. Kanehisa, M.; Goto, S.; Kawashima, S.; Okuno, Y.; Hattori, M. The KEGG resource for deciphering the genome. Nucl. Acids Res. 2004, 32, D277–D280. [Google Scholar] [CrossRef] [PubMed]
  60. Eddy, S.R. Profile hidden Markov models. Bioinformatics 1998, 14, 755–763. [Google Scholar] [CrossRef] [PubMed]
  61. Finn, R.D.; Bateman, A.; Clements, J.; Coggill, P.; Eberhardt, R.Y.; Eddy, S.R.; Heger, A.; Hetherington, K.; Holm, L.; Sonnhammer, J.M.E.L.L.; et al. Pfam: The protein families database. Nucl. Acids Res. 2013, 42, D222–D230. [Google Scholar] [CrossRef] [PubMed]
  62. Langmead, B.; Trapnell, C.; Pop, M.; Salzberg, S.L. Ultrafast and memory-efficient alignment of short DNA sequences to the human genome. Genome Biol. 2009, 10, R25. [Google Scholar] [CrossRef] [PubMed]
  63. Li, B.; Colin, N.D. RSEM: Accurate transcript quantification from RNA Seq data with or without a reference genome. BMC Bioinform. 2011, 12, 323. [Google Scholar] [CrossRef] [PubMed]
  64. Trapnell, C.; Williams, B.A.; Pertea, G.; Mortazavi, A.; Kwan, G.; Baren, M.J.V.; Salzberg, S.L.; Wold, B.J.; Pachter, L. Transcript assembly and quantification by RNA Seq reveals unannotated transcripts and isoform switching during cell differentiation. Nat. Biotechnol. 2010, 28, 511–515. [Google Scholar] [CrossRef] [PubMed]
  65. Dobin, A.; Davis, C.A.; Schlesinger, F.; Drenkow, J.; Zaleski, C.; Jha, S.; Batut, P.; Chaisson, M.; Gingeras, T.R. STAR: Ultrafast universal RNA-seq aligner. Bioinformatics 2013, 29, 15–21. [Google Scholar] [CrossRef] [PubMed]
  66. McKenna, A.; Hanna, M.; Banks, E.; Sivachenko, A.; Cibulskis, K.; Kernytsky, A.; Garimella, K.; Altshuler, D.; Gabriel, S.; Daly, M.; et al. The Genome Analysis Toolkit: A MapReduce framework for analyzing next-generation DNA sequencing data. Genome Res. 2010, 20, 1297–1303. [Google Scholar] [CrossRef] [PubMed]
  67. Li, J.; Han, J.G.; Hu, Y.H.; Yang, J. Selection of Reference Genes for Quantitative Real-Time PCR during Flower Development in Tree Peony (Paeonia suffruticosa Andr.). Front. Plant Sci. 2016, 20, 521–528. [Google Scholar] [CrossRef] [PubMed]
  68. Livak, K.J.; Schmittgen, T.D. Analysis of relative gene expression data using real-time quantitative PCR and the 2−ΔΔCt method. Methods 2001, 25, 402–408. [Google Scholar] [CrossRef] [PubMed]
Sample Availability: Samples of the compounds are available from the authors.
Molecules 23 00689 g001 550

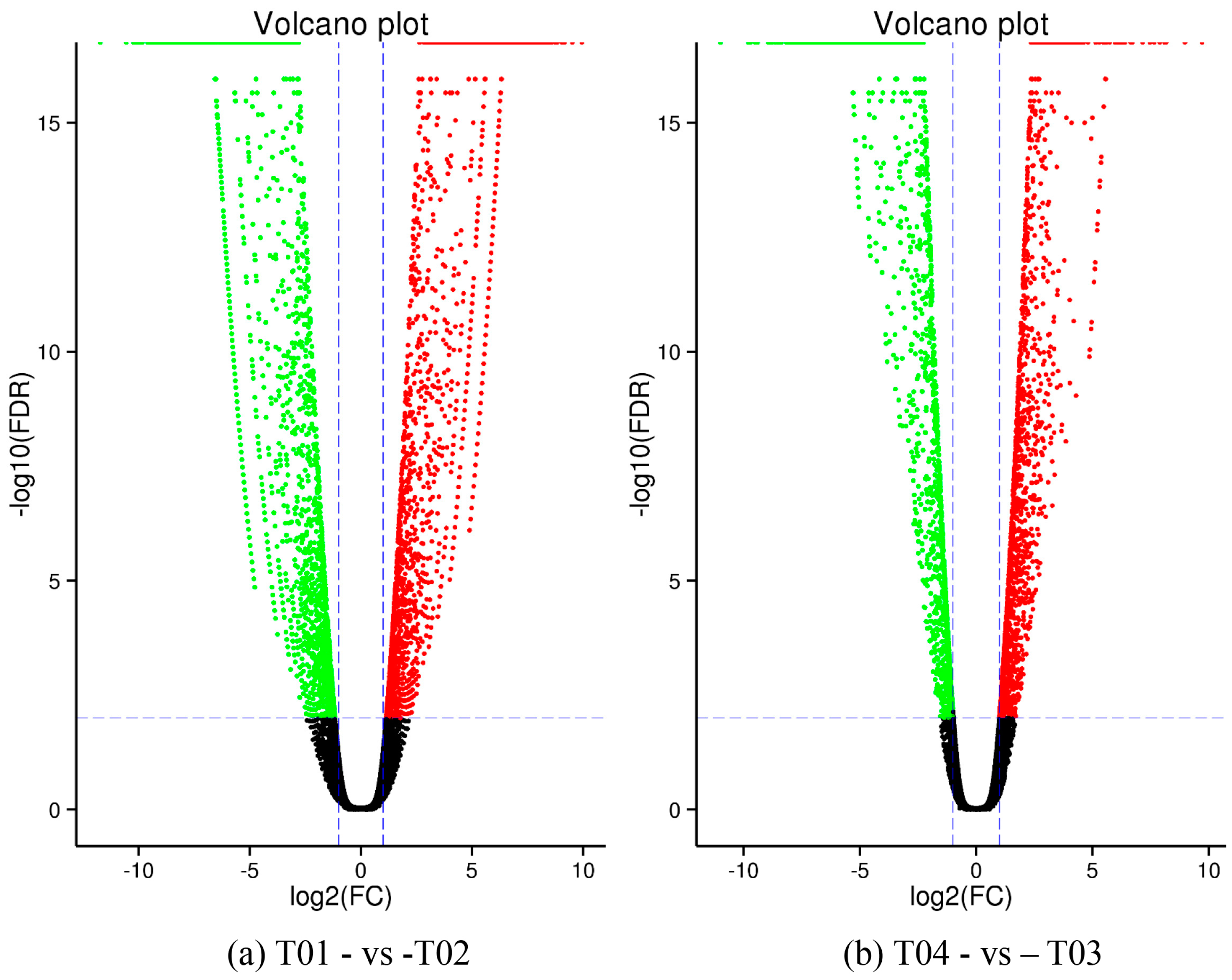

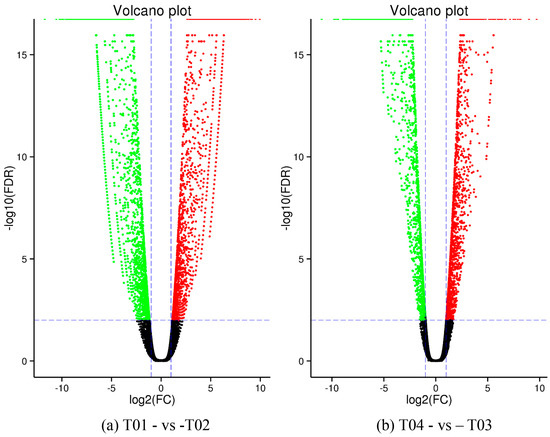

Figure 1. Volcano plot analysis of differentially expressed genes (DEGs) for the pairwise comparisons T01- vs. -T02 (a) and T04- vs. -T03 (b).
Figure 1. Volcano plot analysis of differentially expressed genes (DEGs) for the pairwise comparisons T01- vs. -T02 (a) and T04- vs. -T03 (b).
Molecules 23 00689 g001
Molecules 23 00689 g002 550

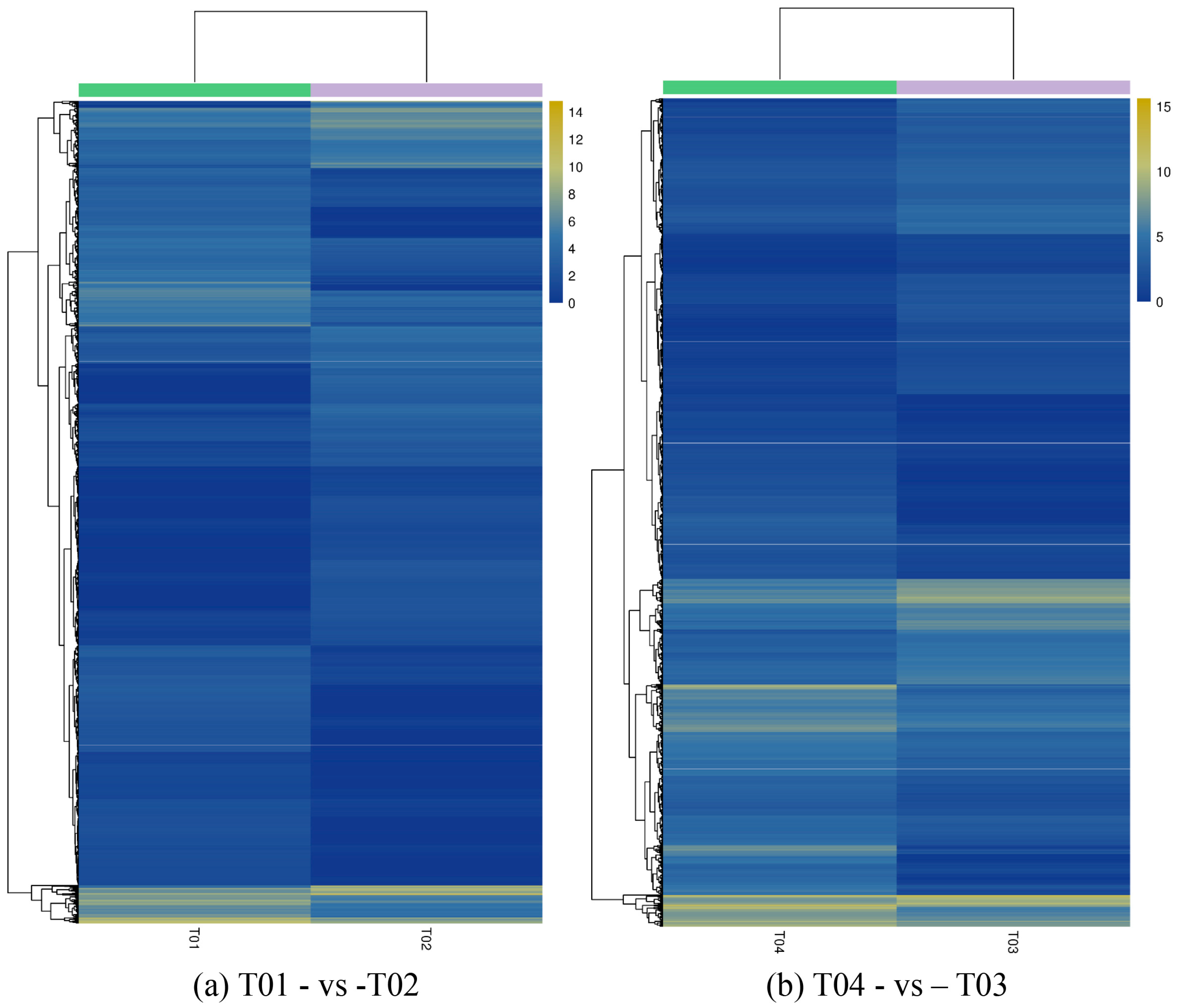

Figure 2. Hierarchical cluster analysis of differentially expressed genes (DEGs) for the pairwise comparisons T01- vs. -T02 (a) and T04- vs. -T03 (b). Note: Different columns represent different samples, different rows represent different genes, and different colors represent values of log2 (fragments per kilobase of transcript per million mapped reads (FPKM + 1)) to indicate different gene expression levels in the samples.
Figure 2. Hierarchical cluster analysis of differentially expressed genes (DEGs) for the pairwise comparisons T01- vs. -T02 (a) and T04- vs. -T03 (b). Note: Different columns represent different samples, different rows represent different genes, and different colors represent values of log2 (fragments per kilobase of transcript per million mapped reads (FPKM + 1)) to indicate different gene expression levels in the samples.
Molecules 23 00689 g002
Molecules 23 00689 g003 550

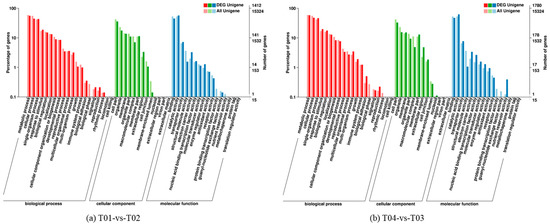

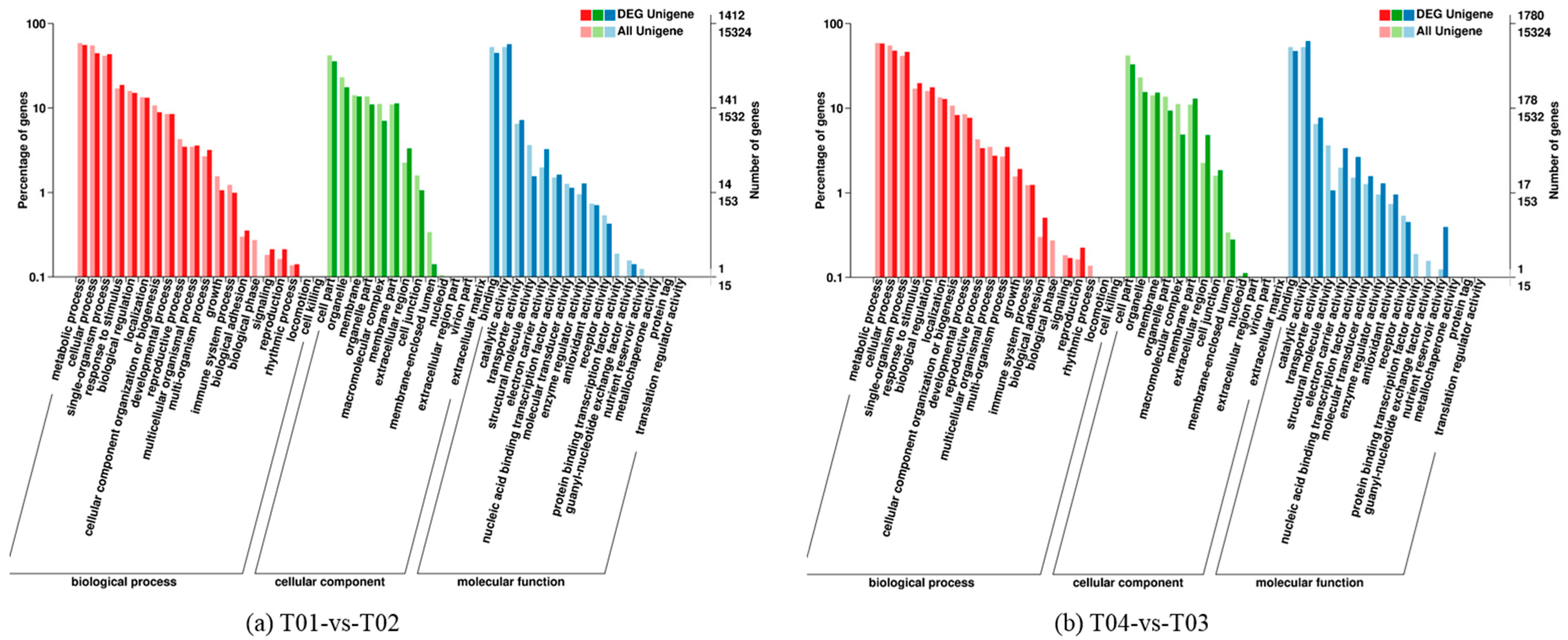

Figure 3. GO database annotation of differentially expressed genes (DEGs) for the pairwise comparisons T01- vs. -T02 (a) and T04- vs. -T03 (b).
Figure 3. GO database annotation of differentially expressed genes (DEGs) for the pairwise comparisons T01- vs. -T02 (a) and T04- vs. -T03 (b).
Molecules 23 00689 g003
Molecules 23 00689 g004 550

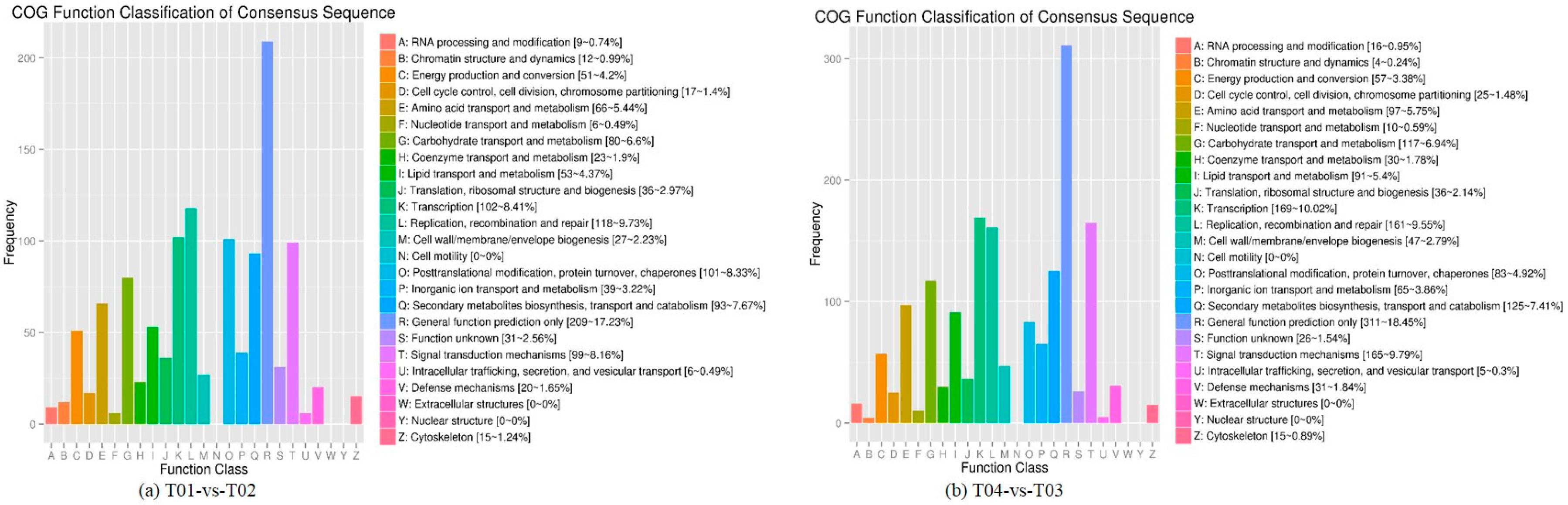

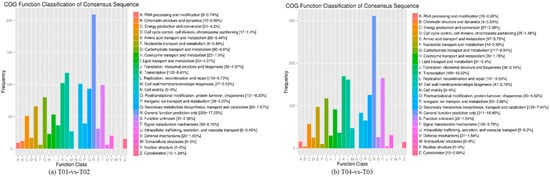

Figure 4. COG classification of differentially expressed genes (DEGs) for the pairwise comparisons T01- vs. -T02 (a) and T04- vs. -T03 (b). Note: The x-axis is the COG category; the y-axis is the number of genes.
Figure 4. COG classification of differentially expressed genes (DEGs) for the pairwise comparisons T01- vs. -T02 (a) and T04- vs. -T03 (b). Note: The x-axis is the COG category; the y-axis is the number of genes.
Molecules 23 00689 g004
Molecules 23 00689 g005 550

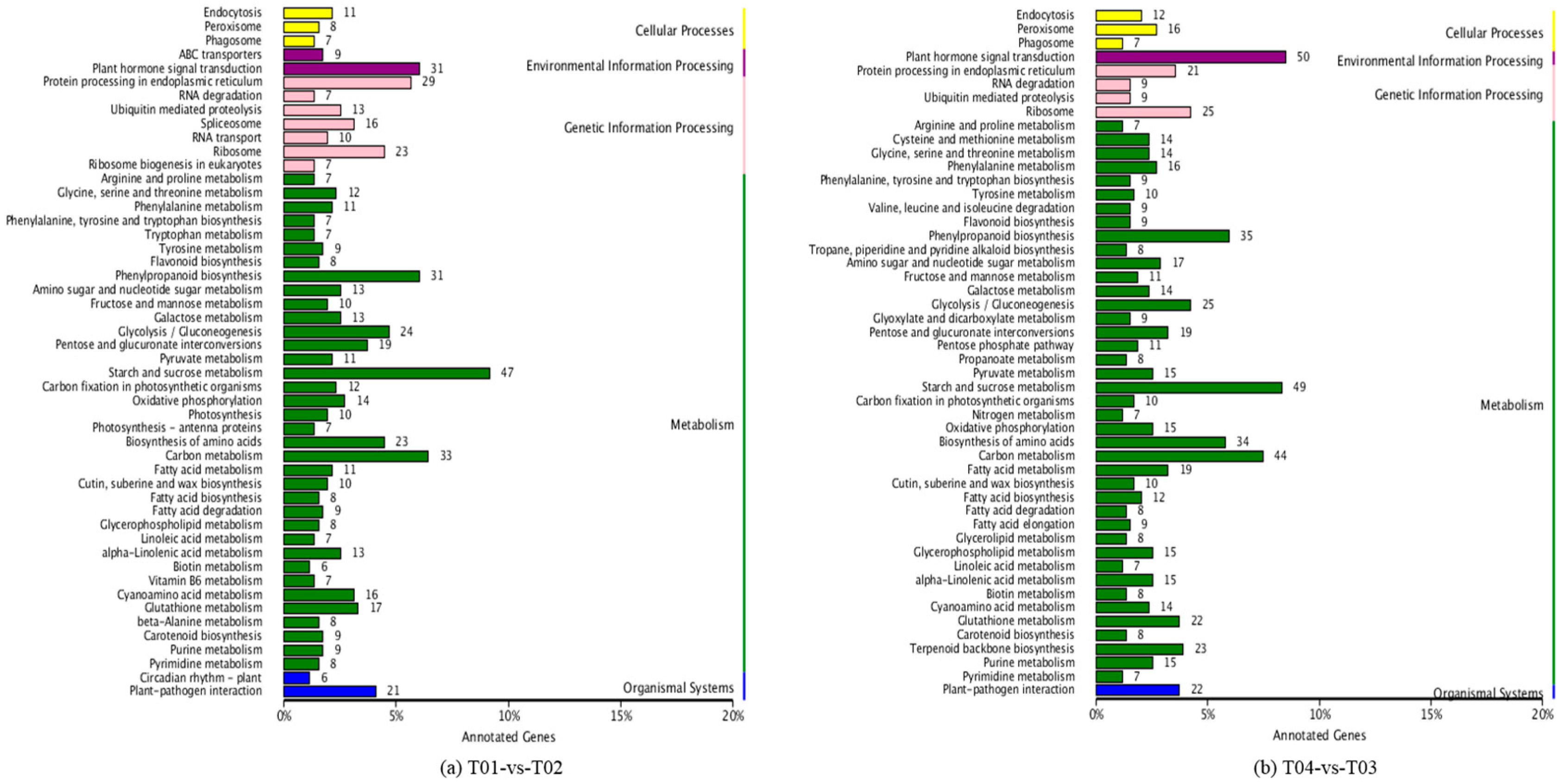

Figure 5. KEGG pathway classification of differentially expressed genes (DEGs) for the pairwise comparisons T01- vs. -T02 and T04- vs. -T03. Note: (a) The x-axis shows the number of annotated genes and the proportion of DEGs corresponding to each pathway category and the y-axis shows the 50 out of the 118 pathway categories that contain more than six DEGs; (b) As for (a), except that the y-axis shows the 50 out of 113 pathway that contain more than six DEGs.
Figure 5. KEGG pathway classification of differentially expressed genes (DEGs) for the pairwise comparisons T01- vs. -T02 and T04- vs. -T03. Note: (a) The x-axis shows the number of annotated genes and the proportion of DEGs corresponding to each pathway category and the y-axis shows the 50 out of the 118 pathway categories that contain more than six DEGs; (b) As for (a), except that the y-axis shows the 50 out of 113 pathway that contain more than six DEGs.
Molecules 23 00689 g005
Molecules 23 00689 g006 550

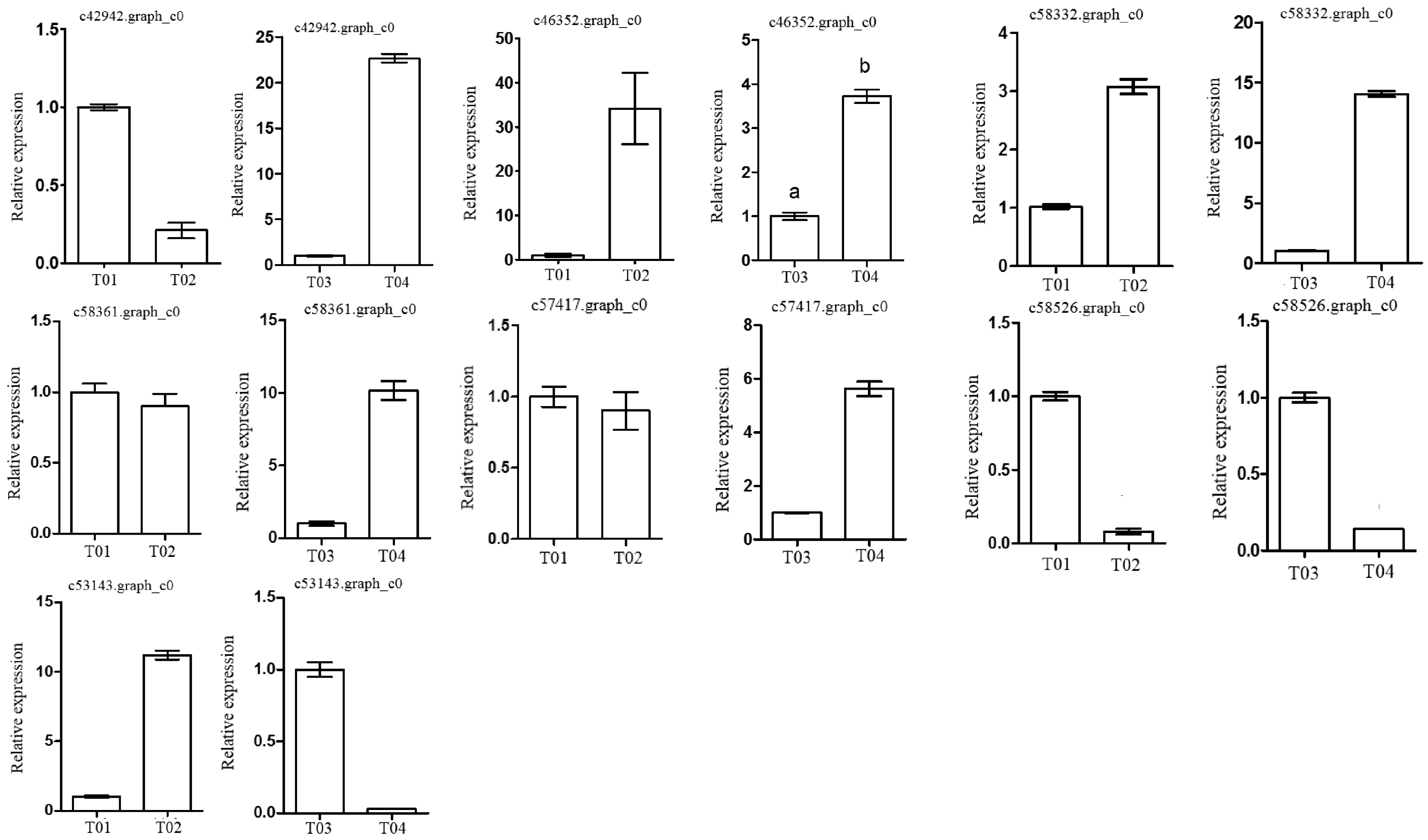

Figure 6. Validation by qRT-PCR of seven differentially expressed unigenes (DEGs) isolated from the four different pools (T01–T04) of flower petals of tree peony. Data from qRT-PCR were normalized relative to the Actin gene of P. suffruticosa (F: GGTCTATTCTTGCTTCCCTCAG; R: GAACTCACTATCAAACCCTCCAG). The x-axis denotes the four pools, T01, T02, T03, and T04, representing the late-flowering male pool, the early-flowering female pool, the early-flowering mixed pool, and the late-flowering mixed pool, respectively. The y-axis denotes relative levels of gene expression and the values are expressed as the means of three replicates ±SD.
Figure 6. Validation by qRT-PCR of seven differentially expressed unigenes (DEGs) isolated from the four different pools (T01–T04) of flower petals of tree peony. Data from qRT-PCR were normalized relative to the Actin gene of P. suffruticosa (F: GGTCTATTCTTGCTTCCCTCAG; R: GAACTCACTATCAAACCCTCCAG). The x-axis denotes the four pools, T01, T02, T03, and T04, representing the late-flowering male pool, the early-flowering female pool, the early-flowering mixed pool, and the late-flowering mixed pool, respectively. The y-axis denotes relative levels of gene expression and the values are expressed as the means of three replicates ±SD.
Molecules 23 00689 g006
Table
Table 1. Results statistics and comparison of peony petal transcriptome sequencing and assembly.
Table 1. Results statistics and comparison of peony petal transcriptome sequencing and assembly.
SamplesSamples-IDBase NumberRead NumberGC Content (%)%≥Q30Clean ReadsMapped ReadsMapped Ratio
male parent (♂)T-019,332,641,59637,069,31344.6987.82%37,069,31331,527,46885.05%
female parent (♀)T-028,531,057,76033,883,33744.8287.62%33,883,33728,497,70984.11%
Early flowering poolT-0320,778,247,71482,518,94744.6188.16%82,518,94770,633,85485.60%
Late flowering poolT-0417,887,013,87871,040,68344.6888.02%71,040,68360,509,44585.18%
Note: Base number: the total number of bases in Clean Data; Read Number: the total number of paired-end reads in Clean Data; GC Content: the GC content of Clean Data (G and C bases as a percentage of the total bases in Clean Data); %≥Q30: the percentage of bases in Clean Data for which the Quality Score is ≥30; Clean Reads & Mapped Reads: the number of clean reads and mapped reads (calculated as paired-ended); Mapped Ratio: the percentage of mapped reads in clean reads.
Table
Table 2. The number of differentially expressed genes was calculated in four samples.
Table 2. The number of differentially expressed genes was calculated in four samples.
DEG SetAll DEGUp-RegulatedDown-Regulated
T01- vs. -T02478923092480
T03- vs. -T01421119832228
T03- vs. -T02441519322483
T04- vs. -T01325713981859
T04- vs. -T02364414842160
T04- vs. -T03378318791094
Note: T01, male pool; T02, female pool; T03, the earliest-flowering individuals from the F1 population sampled at full-bloom stage to establish an early-flowering mixed pool; T04, the latest-flowering individuals from the F1 population sampled at full-bloom stage to establish a late-flowering mixed pool.
Table
Table 3. The number of differentially expressed genes (DEGs) calculated for the four samples T01–T04.
Table 3. The number of differentially expressed genes (DEGs) calculated for the four samples T01–T04.
DEG SetAnnotatedCOGGOKEGGKOGPfamSwiss-ProtNR
T01- vs. -T02260681514128431321195418162560
T03- vs. -T01291197816639201424232521182872
T03- vs. -T023004103517549601504245022452972
T04- vs. -T01214068711837141070167915172104
T04- vs. -T02217271011987441135170315532138
T04- vs. -T032993106317809631478250722942972
Table
Table 4. DEGs displaying the highest number of SNPs and associated loci.
Table 4. DEGs displaying the highest number of SNPs and associated loci.
UnigeneAnnotationAll CountAsso Countp-ValueFDRRegulated
T01- vs. -T02T04- vs. -T03
c42942.graph_c0Carbohydrate transport and metabolism4400downdown
c46352.graph_c0Plant invertase/pectin methylesterase inhibitor4400updown
c58332.graph_c0K+ potassium transporter9700updown
c58361.graph_c0Hothead-like131200downdown
c57417.graph_c0Reduced wall acetylation 4-like1651.23 × 10−91.41 × 10−6downdown
c58526.graph_c0PTI 1-like tyrosine-protein kinase1444.19 × 10−82.10 × 10−5downup
c53143.graph_c0peptidyl-prolyl cis-trans isomerase activity832.05 × 10−79.16 × 10−5upup
Table
Table 5. Types of simple sequence repeats (SSRs) identified in the transcriptome sequencing of tree peony.
Table 5. Types of simple sequence repeats (SSRs) identified in the transcriptome sequencing of tree peony.
Searching ItemNumber
Total number of sequences examined16,885
Total size of examined sequences (bp)33,407,765
Total number of identified SSRs6678
Number of SSR containing sequences5191
Number of sequences containing more than 1 SSR1170
Number of SSRs present in compound formation333
Mono nucleotide4347
Di nucleotide1443
Tri nucleotid833
Tetra nucleotide35
Penta nucleotide8
Hexa nucleotide12
Table
Table 6. SNP statistics for the transcriptome sequencing of the four tree peony pools (T01–T04).
Table 6. SNP statistics for the transcriptome sequencing of the four tree peony pools (T01–T04).
SamplesHomozygosityHeterozygositySNP Number
T01109,25281,140190,392
T02142,76043,169185,929
T0340,888166,550207,438
T0450,735155,675206,410

Share and Cite

MDPI and ACS Style

Hou, X.; Guo, Q.; Wei, W.; Guo, L.; Guo, D.; Zhang, L. Screening of Genes Related to Early and Late Flowering in Tree Peony Based on Bulked Segregant RNA Sequencing and Verification by Quantitative Real-Time PCR. Molecules 2018, 23, 689. https://doi.org/10.3390/molecules23030689

AMA Style

Hou X, Guo Q, Wei W, Guo L, Guo D, Zhang L. Screening of Genes Related to Early and Late Flowering in Tree Peony Based on Bulked Segregant RNA Sequencing and Verification by Quantitative Real-Time PCR. Molecules. 2018; 23(3):689. https://doi.org/10.3390/molecules23030689

Chicago/Turabian Style

Hou, Xiaogai, Qi Guo, Weiqiang Wei, Lili Guo, Dalong Guo, and Lin Zhang. 2018. "Screening of Genes Related to Early and Late Flowering in Tree Peony Based on Bulked Segregant RNA Sequencing and Verification by Quantitative Real-Time PCR" Molecules 23, no. 3: 689. https://doi.org/10.3390/molecules23030689

Article Metrics

Back to TopTop
