Density Functional Theory Applied to Excited State Intramolecular Proton Transfer in Imidazole-, Oxazole-, and Thiazole-Based Systems

by
Fabricio De Carvalho
,
Maurício D. Coutinho Neto
,
Fernando H. Bartoloni
* and
Paula Homem-de-Mello
*
Centro de Ciências Naturais e Humanas, Universidade Federal do ABC, Santo André, São Paulo 5001, Brazil
*
Authors to whom correspondence should be addressed.
Molecules 2018, 23(5), 1231; https://doi.org/10.3390/molecules23051231
Submission received: 16 April 2018 / Revised: 15 May 2018 / Accepted: 17 May 2018 / Published: 21 May 2018
(This article belongs to the Special Issue Theoretical Excited-State Chemistry: New Developments and Cutting-Edge Applications)
Browse Figures
Versions Notes

Abstract

:
Excited state intramolecular proton transfer (ESIPT) is a photoinduced process strongly associated to hydrogen bonding within a molecular framework. In this manuscript, we computed potential energy data using Time Dependent Density Functional Theory (TDDFT) for triphenyl-substituted heterocycles, which evidenced an energetically favorable proton transfer on the excited state (i.e., ESIPT) but not on the ground state. Moreover, we describe how changes on heterocyclic functionalities, based on imidazole, oxazole, and thiazole systems, affect the ESIPT process that converts an enolic species to a ketonic one through photon-induced proton transfer. Structural and photophysical data were obtained theoretically by means of density functional theory (DFT) calculations and contrasted for the three heterocyclics. Different functionals were used, but B3LYP was the one that adequately predicted absorption data. It was observed that the intramolecular hydrogen bond is strengthened in the excited state, supporting the occurrence of ESIPT. Finally, it was observed that, with the formation of the excited state, there is a decrease in electronic density at the oxygen atom that acts as proton donor, while there is a substantial increase in the corresponding density at the nitrogen atom that serves as proton acceptor, thus, indicating that proton transfer is indeed favored after photon absorption.

Graphical Abstract

1. Introduction

The dynamics of excited state intramolecular proton transfer (ESIPT) has been investigated both experimentally and theoretically by different research groups [1,2,3,4,5,6,7,8,9,10,11,12,13,14,15,16], since the first observation of this phenomenon by Weller et al. in 1956 [17,18]. A large number of applications are based on ESIPT, such as laser dyes [19,20,21,22,23,24], solar energy concentrators [25], chemosensors [26,27], electroluminescent materials [28], photostabilizers [29,30], molecular probes [31], and metallic ion sensors [32,33,34,35].
ESIPT is a photoinduced process observed in organic compounds containing at least one potential proton donor group (e.g., –OH, –NH2, and NHSO2R) and an equivalent proton acceptor group (–N, –C=O, etc.), separated by no more than 2.0 Å [36]. The presence of the intramolecular hydrogen bond can directly influence the geometry of the molecules [37,38,39,40,41,42,43]. Moreover, intramolecular hydrogen bonding in the excited state would affect non-adiabatic processes that occur after photon absorption, such as internal conversion, intersystem crossing, intramolecular charge transfer, and so on [43,44].
ESIPT is more efficient as the acidity and/or basicity of donor and acceptor groups increase after photoexcitation [45,46,47]. Basically, molecules that undergo ESIPT have the thermodynamically favored enolic form in the ground state (S0, Scheme 1) [48], which is stabilized by the intramolecular hydrogen bond. After photoexcitation, the donor group acidity and the basicity of the acceptor core must increase simultaneously due to redistribution of charge density on the chromophore. This process allows the migration of the proton from the acid to the basic center, generating the phototautomer [49].
ESIPT is a very fast process occurring on a time scale of picoseconds [2] and even femtoseconds [50], depending on the experimental conditions. Particularly, the employed solvent [50,51] and certain substituents introduced in the molecule [50] can shift the ESIPT time scale, since the transition state barrier is affected by all these factors. Generally, ESIPT chromophores show dual emission, a normal emission from the enolic form, at lower wavelengths, and a second emission with large Stokes shift (above 8,000 cm−1) due to the tautomer formed after proton transfer [35] (Scheme 1). The excited enolic form (E*) can undergo a radiative decay and return to the enolic fundamental state (E), or it may undergo ESIPT to generate the excited ketone species (K*), which decays emitting at lower energy than the E* form; the large Stokes shift is due to substantial geometry reorganization [52].
Purkayastha et al. studied the rotamerization and the ESIPT process for 2-(2’-hydroxyphenyl)benzoxazole (HBO), 2-(2’-hydroxyphenyl)benzimidazole (HBI), and 2-(2’-hydroxyphenyl)benzothiazole (HBT, Figure 1) [5]. Three signals in the fluorescence spectra were observed for HBO and HBI, whereas HBT presented only two emission signals. The authors attributed this phenomenon to the existence of two rotamers for HBO and HBI, while there is only one for HBT. Intramolecular proton transfer for these three compounds is unfavorable in the ground state, both thermodynamically and kinetically, and these factors contribute to the occurrence of ESIPT in the lowest singlet and triplet states [5].
Considering the various applications and importance of the ESIPT process for a wide class of molecules, this manuscript presents a theoretical study of the heterocyclic functionality effect in triphenylimidazole, triphenyloxazole, and triphenylthiazole systems (Figure 2). While experimental data only provides indirect information on the ESIPT mechanism and is often limited by the availability of synthesized compounds, computational methods are relevant tools to obtain structural and electronic properties, and also to give insight on these reactions mechanism. So, this work may shed light on the role of different heteroatoms on ESIPT processes.

2. Results and Discussion

The proton transfer mechanism and the role of the heteroatom for three proposed triphenyl-substituted compounds, 2-(4,5-diphenyl-1H-imidazol-2-yl)phenol (NE), 2-(4,5-diphenyl-1,3-oxazol-2-yl)phenol (OE), and 2-(4,5-diphenyl-1,3-thiazol-2-yl)phenol (SE), was investigated. Subscripts E and K are related to the enolic and ketonic species in the ground state; when these are accompanied by an * mark, they refer to the corresponding species in the excited state (i.e., E* and K*). Therefore, NE* refers to the enolic excited state of the triphenylimidazole system, while OK to the ketonic ground state of the triphenyloxazole one, and so on.
Table S1 presents and compares the calculated data for the SE species, with the data for HBT (Figure 1) from Purkayastha et al. [5] together with its corresponding crystallographic data [53]. It can be seen that the bond distances and angles of the heterocyclic functionality are very similar, although there are differences on the molecular framework on a larger scale for these triphenylthiazole and benzothiazole systems.
Table 1 shows the obtained values of free energy differences for the studied NE, OE, and SE triphenyl-substituted derivatives. The closed form (Figure 2) of the enolic species was considered as the reference for all cases (Table 1), and it can be verified that the open structure for the three heterocyclic systems is always less stable. Also for all derivatives, the rotamer is more stable than the open form, but less stable than the closed enolic species, indicating that intramolecular hydrogen bonding stabilizes the molecular framework, as expected, because a six-membered system is formed [54]. It is worth noting that OE rotamer is more stable than the other rotamers due the O-H∙∙∙O hydrogen bonding established, but still less stable than the closed form. NE and SE are less stable since no effective hydrogen bonding is expected (in NE, the nitrogen atom in position 5, Figure 2, is also connected to hydrogen). As mentioned before, the compounds studied by Purkayastha et al. [5] may present both OE and NE rotamers, with energy differences smaller than 0.6 kcal mol−1 associated to the closed forms, while for the compounds studied here the relative energies are about ten times greater. So, further computational and experimental studies should be performed to confirm the existence of rotamers for the triphenylic compounds.
The analysis of how the proton transfer coordinate advances is a crucial point for the construction of the potential energy curves in the ground and excited states. Initially, the geometries of the molecules in the enolic species, both in the ground state and in the excited state, were minimized without any geometric restriction. To obtain the ketone tautomer (K), it was necessary to constrain the N–H bond distance during geometry optimization. So, potential energy curves for the conversion from enolic to ketonic species, both in fundamental (S0) and in the first excited state (S1), were constructed based on a relaxed scan for the variation of the O–H bond, with a 0.06 Å step, and, for each step, vertical transitions were calculated with TD-DFT using the same basis set and functional as for the ground state calculation. For each step, we have evaluated the influence of the O–H bond distance over the O–H∙∙∙N angle and the distance between the oxygen and nitrogen atoms (O–N distance), for compounds NE, OE, and SE (Figure 3). At low O–H bond lengths the decrease in the distance between the oxygen and nitrogen atoms occurs gradually and then reaches a minimum at 1.24 Å for NE, 1.26 Å for OE, and 1.25 Å for SE, where the proton is transferred. After proton transfer, the distance between the phenolic oxygen atom and the nitrogen of the heterocyclic functionality increases again. The opposite occurs for the variation of the O–H∙∙∙N with O–H bond length: before proton transfer the angle increases, while a decrease is observed for larger O–H distances (Figure 3).
The potential energy curves obtained here for the three systems (Figure 4) indicate that in the ground state proton transfer is not allowed: at the distance of ca. 1.2 Å (the distance of proton transfer), the energy difference regarding the enolic minima increases to about 16 (NE), 22 (OE), and 17 (SE) kcal mol−1. However, in the excited state, there is an energy barrier for proton transfer of 0.97, 0.02, and 0.29 kcal mol−1 for NE*, OE*, and SE*, respectively. These processes could even be considered barrierless, if the average errors associated to the method employed are taken into account, meaning that the ESIPT process goes smoothly for all cases. Moreover, substitution of a nitrogen atom by oxygen or sulfur makes the proton transfer even more favored, as seen by the aforementioned energy barriers at the excited state.
Table 2 contains the main structural parameters for the compounds as the enolic species, both in the fundamental (E) and excited (E*) states (optimized structures for enolic species are in the Supporting Information, Figure S1). For the three systems, O–H bond length increases in the excited state, when compared to the ground state, about 0.017, 0.019, and 0.014 Å, for NE, OE, and SE, respectively. This increment in bond distance in the excited state indicates that there is a strengthening of intramolecular hydrogen bonding between the H and N atoms. As mentioned in the Introduction, donor (O–H) and acceptor (N) groups are separated by distances smaller than 2.0 Å, about 1.7 Å in the ground state. The strengthening of the hydrogen bond can be expressed also by the decrease of N∙∙∙H distance: about 0.058, 0.073, and 0.064 Å, for NE, OE, and SE, respectively, which facilitates proton transfer [44,55,56,57]. This phenomenon is especially relevant for the OE compound, for which there is the greatest variation in the distance and, consequently, the smallest barrier for proton transfer in the excited state. The δO–H∙∙∙N angle increases 0.9° for NE, 1.9° for OE, and 1.8° for SE, emphasizing that hydrogen bonding is stronger in the excited state, mainly for OE and SE.
Analyzing the C8–O bond distance (Table 2), for the three studied systems, there was a decrease in this bond length in the excited state, in comparison to the ground state, of 0.017, 0.018, and 0.012 Å, for NE, OE, and SE, respectively. This indicates an increment of double bond character in the excited state, which is a characteristic of compounds that undergo ESIPT [58,59,60]. The highest carbon-heteroatom bond distances were observed for the triphenylthiazole system, particularly, for C3–S5 and C4–S5 (Figure 2), in both ground and excited states. This increase in bond length was expected because the atomic radius of sulfur is higher than that of the other heteroatoms (i.e., N and O) and its electronegativity is smaller, leading to this increase in bond distance. Also, for this thiol derivative, a more expressive increment of the bond distances in the excited state, in comparison to the ground state, is overall observed (about 0.02 Å, Table 2 and Table S2). Contrarily, for the imidazolic system, there is no systematic increase or decrease in bond lengths when the excited state is generated from the fundamental one.
From the theoretically obtained IR vibrational spectra (Figures S2–S4), the vibrational stretching frequency of the O–H bond in the ground state appears in the following sequence: 3225 cm–1 for NE, 3350 cm−1 for OE, and 3290 cm−1 for SE, in agreement with O–H bond length and δO–H∙∙∙N angle increment order. In the excited state, this order in energy is maintained between functionalities, but the vibrational transitions appear at lower wavenumbers, with a decrease of 265 cm−1 for NE, 235 cm−1 for SE, and only 85 cm−1 for OE. So, for the three studied systems, there was a shift towards the bathochromic region (i.e., lower energy) of the O–H group stretching signal, thus indicating that the intramolecular hydrogen bonding in O–H∙∙∙N is strengthened, mainly for NE and SE.
Table 3 presents the experimentally determined pKaH values from the literature for 1H-imidazole [61], 1,3-oxazole and 1,3-thiazole [62], thus, for the heterocyclic functionality without phenyl substituents; while protonated oxazole is the more acidic species, the imidazolic heterocycle is more basic. We have, then, obtained the difference in free energies for protonated and deprotonated forms of these molecules (i.e., ΔΔG) by frequency calculations. Even though to obtain the pKaH theoretically further studies would be necessary, from the present data it can be already seen (Table 3), that the trend in ΔΔG values correspond to the one in pKaH, with a more negative free energy associated to an increased basicity.
By the data in Table 4, containing atomic charges derived from the electrostatic potential (calculated with the ChelpG scheme), it can be verified that both the enolic and ketonic species of the studied compounds present the oxygen atom of the phenolic group with a more negative charge than the basic nitrogen atom of the heterocyclic functionality. This contributes for a higher stability of the enol tautomer at the ground state (NE, OE, and SE) when compared to the corresponding ketonic species.
To deepen the study of the heteroatom influence over the electronic distribution both on ground and excited states, electronic transitions regarding absorption of light were simulated (Figures S5–S7). Experimentally, the triphenylimidazole compounds present two absorption signals, the first at 322 nm, attributed mainly to a HOMO → LUMO transition, and the second at 294 nm, corresponding mainly to a HOMO → LUMO + 1 transition [34]. Jayabharathi et al. obtained experimental absorption spectra with a well-defined band for some benzimidazole derivatives, which have a phenolic hydroxyl group hydrogen bonded intramolecularly with the nitrogen atom [63]. However, Wang et al. have obtained the absorption spectrum of a compound derived from benzothiazole which has two absorption bands, therefore, it can be seen that the features of the absorption spectrum may change according to the structure of the compound [64]. On the other hand, only one signal dominates the experimental emission spectra for two NE derivatives (see for example references [34,35]), associated to the K* tautomer deactivation. Emission of the E* species occurs at shorter wavelengths, and can be experimentally observed when ESIPT is prevented due to complexation with metallic species [34,35].
Particularly for the NE triphenylimidazole derivative, an excellent agreement between experimental and calculated absorption data has been observed using the B3LYP functional [35]. B3LYP has been applied successfully [58,65,66,67,68,69,70] in similar systems, when compared to available experimental data, although this functional has been shown to present limitations due to its generality (see for example reference [71]). Therefore, we have evaluated the NE absorption spectrum with different functionals (B3LYP, M06, wB97X-D3, and M06-2X, Table S2). Although there were no changes in molecular orbital contributions, B3LYP still was the best functional to adequately predict absorption data, followed by M06. For the compounds object of this study, the first transition (HOMO → LUMO character) occurs almost at the same region for OE and NE, around 338 nm, and at a less energetic region for SE (at 346 nm). However, when the same analysis is carried out with respect to the transition with HOMO → LUMO+1 character, this order is inverted: NE exhibits a maximum absorption wavelength of 311 nm, followed by OE at 305 nm and SE at 303 nm (Table 5). Figure 5 indicates that these differences correspond to the decrease in the HOMO-LUMO energy gap in the following order NE > OE > SE, with the decrease in the LUMO energy level contributing more to changes in the energy gap. On the other hand, LUMO + 1 is less affected by changing the heteroatom, so the second transition is mainly affected by the smaller changes in the HOMO energy level.
Aiming to shed light on formation of excited state, we have evaluated HOMO and LUMO electron densities of the enolic species for NE, SE, and OE (shown in Figure 6). It is verified that the HOMO of the three heterocyclic systems is distributed over the whole molecule. The HOMO → LUMO transition of the enolic species leads to a decrease in the electron density in the oxygen atom of the hydroxyl group. This trend must directly influence intramolecular hydrogen bonding, since, as previously seen, the interaction distance –H∙∙∙N= is decreased after photoexcitation to the S1 state, implying an increase in strength of the intramolecular hydrogen bond, corroborating the analysis of the infrared signals of S0 and S1 states [72]. However, SE and OE presented higher electron density on the hydroxyl oxygen atom than the electron density presented for NE, even though this density is smaller than in the respective HOMO orbitals.
It should be noted that the S1 state change in electron density in the hydroxyl group could directly influence intramolecular hydrogen bonding (Figure 6). The interaction between the electrons of the heterocyclic system and the non-bonding orbital of the OH group is the one mainly responsible for the transfer of proton from the oxygen atom to the nitrogen one [72]. Consequently, the excited state of the studied systems should favor the protonation of the nitrogen atom and, consequently, the deprotonation of the phenolic group (see Supporting Information for HOMO and LUMO of ketonic forms, Figures S8–S10).
Once the molecule reaches a stable conformation in the excited state, already as the ketonic species, emission of energy occurs, and a new barrier-free process happens, from ketone to enolic species in the ground state. Wang et al. studied the fluorescence of some 2-(2’-hydroxyphenyl)benzothiazole derivatives and showed that these compounds have dual fluorescence [64]. An emission that appears at low wavelengths and is related to the fluorescence of the enolic form, and another signal that appears at higher wavelengths and is associated to the emission of the ketonic form [64,73]. When using polar solvents, just a single emission was observed for imidazolic derivatives, related to the enolic species emission, however, when using non-polar solvents, the dual emission was observed [73].
The analysis of the emission data (Table 5) indicates that the NE compound emits in a lower energy region, which shows that the gap between the excited and ground states is the most stabilized among the three studied systems, corresponding to an emission at 523 nm. For SE and OE, the emission occurs at 490 and 452 nm, respectively, showing that the framework with the heterocyclic functionality containing the oxygen atom is the one with the highest energy difference between states.

3. Materials and Methods

We have employed the Density Functional Theory (DFT) and the Time-Dependent Density Functional Theory (TD-DFT) to study the ESIPT process for NE, OE and SE. These approaches have been widely used before to clarify fundamental aspects regarding the different structural and electronic states [13,59,65,73,74,75,76,77] as well as to study theoretically the intramolecular hydrogen bonding in the excited state for different compounds for whose ESIPT occurs [44,78,79,80,81,82,83].
As mentioned above, geometries of the enolic species (E and E*) were minimized without any geometric restriction, but to obtain the ketone tautomers (K and K*), it was necessary to constrain the N–H bond distance during geometry optimization. Vibrational frequencies of the enolic optimized structures were obtained to verify that these correspond to a minimum in the potential energy surface [84]. Besides that, frequency calculations were also used to obtain thermodynamic information for 1H-imidazole, 1,3-oxazole and 1,3-thiazole (protonated and deprotonated species), to calculate the free energy of protonation (based on the difference of the free energies of formation) aiming to give insight on experimental pKaH values presented by the different heterocycles. TD-DFT calculations were performed to obtain the absorption spectra for both conformations using 40 states of excitation. Atomic charges were derived from electrostatic potential using ChelpG scheme. All calculations were performed with B3LYP [85,86,87] functional and the basis set 6-31G(2d,2p) [88] as implemented in Orca software [89], using an energy convergence criteria of 10−8 Hartree.
The potential energy curves for the proton transfer (conversion from enolic to ketonic species, both in S0 and in S1), were constructed at B3LYP/6-31G(2d,2p) level: for the ground state a relaxed scan for the variation of the O–H bond, with a 0.06 Å step was performed and, for each step, vertical transitions were calculated with TD-DFT. This technique was used before to construct potential energy curves in the excited state and has provided good results when compared to experimental data [58,65,66,67,68,69,70]. Emission wavelength in Table 5 was calculated based on the energy difference between the minimum at the excited state of ketonic form and the same geometry at the ground state.

4. Conclusions

DFT and TD-DFT calculations were applied to describe the ongoing ESIPT process in triphenylimidazole, triphenyloxazole, and triphenylthiazole systems. Intramolecular proton transfer in the ground state does not occur because there is an energy barrier greater than 10 kcal mol–1 separating the conversion of the enolic tautomer to the ketonic one. This barrier decreases significantly (<1 kcal mol–1) after excitation to the first excited state, enabling intramolecular proton transfer. Among three different possible conformations, the one corresponding to a closed enolic form is the most stable, since intramolecular hydrogen bonding leads to an overall stabilization of the molecule. For the three systems, O–H bond distance increases in the excited state following H∙∙∙N length decrease, demonstrating that in the excited state the intramolecular hydrogen bond is strengthened; this was corroborated by simulated vibrational data. The HOMO → LUMO transition energy gap increases when the heteroatom changes from S, to O and N in the heterocyclic system, while emission energy decreases for the N, S, O sequence. Electronic densities in the phenolic oxygen atom are high in the HOMO for all three systems as their enolic species, but these densities decrease after photoexcitation, marking the proton transfer. Therefore, the identity of the heterocyclic functionality is absolutely relevant on the context of intramolecular proton transfer within these frameworks. The findings reported on this study may contribute to the design of new relevant ESIPT-operating systems, particularly with respect to the identity of the heterocyclic system that acts as proton acceptor group.

Supplementary Materials

The following are available online: Tables S1 and S2; Figures S1–S10.

Author Contributions

F.d.C., F.H.B. and P.H.-d.-M. conceived and designed the experiments; F.d.C. performed the calculations; F.C., M.D.C.N. and P.H.-d.-M. analyzed the data; M.D.C.N. and F.H.B. contributed to the interpretation of the results; F.d.C. and P.H.-d.-M. took the lead in writing the manuscript; all authors provided critical feedback and helped shape the research, analysis and final manuscript.

Acknowledgments

Authors thank Brazilian agencies for financial support: F.C. thanks CAPES, P.H.M. thanks FAPESP (Proc. # 17/23416-9) and CNPq (Proc. # 448125/2014-5 and 448125/2014-5), and F.H.B. thanks FAPESP (Proc. # 12/13807-7).

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Eisenberger, H.; Nickel, B.; Ruth, A.A.; Alsoufi, W.; Grellmann, K.H.; Novo, M. Keto-enol tautomerization of 2-(2’-hydroxyphenyl)benzoxazole and 2-(2’-hydroxy-4’-methylphenyl)benzoxazole in the triplet-state-hydrogen tunneling and isotope effects. 2. dual phosphorescence kinetics. J. Phys. Chem. 1991, 95, 10509–10518. [Google Scholar] [CrossRef]
  2. Arthenengeland, T.; Bultmann, T.; Ernsting, N.P.; Rodriguez, M.A.; Thiel, W. Singlet excited-state intramolecular proton-transfer in 2-(2’-hydroxyphenyl)benzoxazole—Spectroscopy at low temperatures, femtosecond transient absorption, and MNDO calculations. Chem. Phys. 1992, 163, 43–53. [Google Scholar] [CrossRef]
  3. Fernandez-Ramos, A.; Rodriguez-Otero, J.; Rios, M.A.; Soto, J. Intramolecular proton transfer in 2-(2’-hydroxyphenyl)benzoxazole: The reliability of ab initio calculations on simplified structures. J. Mol. Struct. 1999, 489, 255–262. [Google Scholar] [CrossRef]
  4. Iglesias, R.S.; Goncalves, P.F.B.; Livotto, P.R. Semi-empirical study of a set of 2-(2’-hydroxyphenyl)benzazoles using the polarizable continuum model. Chem. Phys. Lett. 2000, 327, 23–28. [Google Scholar] [CrossRef]
  5. Purkayastha, P.; Chattopadhyay, N. Role of rotamerisation and excited state intramolecular proton transfer in the photophysics of 2-(2’-hydroxyphenyl)benzoxazole, 2-(2’-hydroxyphenyl)benzimidazole and 2-(2’-hydroxyphenyl)benzothiazole: A theoretical study. Phys. Chem. Chem. Phys. 2000, 2, 203–210. [Google Scholar] [CrossRef]
  6. Purkayastha, P.; Chattopadhyay, N. Theoretical modelling for the ground state rotamerisation and excited state intramolecular proton transfer of 2-(2’-hydroxyphenyl)oxazole, 2-(2’-hydroxyphenyl)imidazole, 2-(2’-hydroxyphenyl)thiazole and their benzo analogues. Int. J. Mol. Sci. 2003, 4, 335–361. [Google Scholar] [CrossRef]
  7. Rodembusch, F.S.; Leusin, F.P.; Campo, L.F.; Stefani, V. Excited state intramolecular proton transfer in amino 2-(2’-hydroxyphenyl)benzazole derivatives: Effects of the solvent and the amino group position. J. Lumin. 2007, 126, 728–734. [Google Scholar] [CrossRef]
  8. Irgibaeva, I.S.; Birimzhanova, D.A.; Barashkov, N.N. Research of electronic absorption spectra of benzazols derivatives by Ab Initio calculations. Int. J. Quantum Chem. 2008, 108, 2700–2710. [Google Scholar] [CrossRef]
  9. Iijima, T.; Momotake, A.; Shinohara, Y.; Sato, T.; Nishimura, Y.; Arai, T. Excited-state intramolecular proton transfer of naphthalene-fused 2-(2’-Hydroxyaryl)benzazole Family. J. Phys. Chem. A 2010, 114, 1603–1609. [Google Scholar] [CrossRef] [PubMed]
  10. Chen, W.H.; Pang, Y. Excited-state intramolecular proton transfer in 2-(2’,6’-dihydroxyphenyl) benzoxazole: Effect of dual hydrogen bonding on the optical properties. Tetrahedron Lett. 2010, 51, 1914–1918. [Google Scholar] [CrossRef]
  11. Sepiol, J.; Grabowska, A.; Borowicz, P.; Kijak, M.; Broquier, M.; Jouvet, C.; Dedonder-Lardeux, C.; Zehnacker-Rentien, A. Excited-state intramolecular proton transfer reaction modulated by low-frequency vibrations: An effect of an electron-donating substituent on the dually fluorescent bis-benzoxazole. J. Chem. Phys. 2011, 135. [Google Scholar] [CrossRef] [PubMed]
  12. Jayabharathi, J.; Vimal, K.; Thanikachalam, V.; Kalaiarasi, V. Photophysical and excited-state intramolecular proton transfer of 2-(1-(3,5-dimethylphenyl)-1H-phenanthro [9,10-d] imidazol-2-yl)phenol: DFT analysis. Spectrochim. Acta A 2014, 125, 290–296. [Google Scholar] [CrossRef] [PubMed]
  13. Houari, Y.; Chibani, S.; Jacquemin, D.; Laurent, A.D. TD-DFT Assessment of the excited state intramolecular proton transfer in hydroxyphenylbenzimidazole (HBI) dyes. J. Phys. Chem. B 2015, 119, 2180–2192. [Google Scholar] [CrossRef] [PubMed]
  14. Rocha, E.P.; Ramalho, T.C. Probing the ESIPT process in 2-amino-1,4-naphthoquinone: Thermodynamics properties, solvent effect and chemometric analysis. Theor. Chem. Acc. 2016, 135, 39. [Google Scholar] [CrossRef]
  15. An, B.; Yuan, H.; Zhu, Q.; Li, Y.; Guo, X.; Zhang, J. Theoretical insight into the excited-state intramolecular proton transfer mechanisms of three amino-type hydrogen-bonding molecules. Spectrochim. Acta A 2017, 175, 36–42. [Google Scholar] [CrossRef] [PubMed]
  16. Manojai, N.; Daengngern, R.; Kerdpol, K.; Ngaojampa, C.; Kungwan, N. Heteroatom effect on photophysical properties of 2-(2’-hydroxyphenyl) benzimidazole and its derivatives as fluorescent dyes: A TD-DFT study. J. Lumin. 2017, 188, 275–282. [Google Scholar] [CrossRef]
  17. Weller, A. Innermolekularer protonenubergang im angeregten zustand. Zeits. Elek. 1956, 60, 1144–1147. [Google Scholar]
  18. Weler, A. Fast reactions of excited molecules. Prog. React. Kinet. Mech. 1961, 1, 187. [Google Scholar]
  19. Chou, P.; Mcmorrow, D.; Aartsma, T.J.; Kasha, M. The proton-transfer laser-gain spectrum and amplification of spontaneous emission of 3-hydroxyflavone. J. Phys. Chem. 1984, 88, 4596–4599. [Google Scholar] [CrossRef]
  20. Kasha, M. Proton-transfer spectroscopy-perturbation of the tautomerization potential. J. Chem. Soc. Trans. II 1986, 82, 2379–2392. [Google Scholar] [CrossRef]
  21. Tarkka, R.M.; Zhang, X.J.; Jenekhe, S.A. Electrically generated intramolecular proton transfer: Electroluminescence and stimulated emission from polymers. J. Am. Chem. Soc. 1996, 118, 9438–9439. [Google Scholar] [CrossRef]
  22. Gormin, D.; Sytnik, A.; Kasha, M. Spectroscopy of amplified spontaneous emission laser spikes in polyhydroxyflavones. J. Phys. Chem. A 1997, 101, 672–677. [Google Scholar] [CrossRef]
  23. Costela, A.; Garcia-Moreno, I.; Mallavia, R.; Amat-Guerri, F.; Barroso, J.; Sastre, R. Proton-transfer lasers based on solid copolymers of modified 2-(2’-hydroxyphenyl)benzimidazoles with methacrylate monomers. Opt. Commun. 1998, 152, 89–95. [Google Scholar] [CrossRef]
  24. Garcia, O.; Garrido, L.; Sastre, R.; Costela, A.; Garcia-Moreno, I. Synthetic strategies for hybrid materials to improve properties for optoelectronic applications. Adv. Funct. Mater. 2008, 18, 2017–2025. [Google Scholar] [CrossRef]
  25. Vollmer, F.; Rettig, W. Fluorescence loss mechanism due to large-amplitude motions in derivatives of 2,2’-bipyridyl exhibiting excited-state intramolecular proton transfer and perspectives of luminescence solar concentrators. J. Photochem. Photobiol. A Chem. 1996, 95, 143–155. [Google Scholar] [CrossRef]
  26. Shynkar, V.V.; Klymchenko, A.S.; Piemont, E.; Demchenko, A.P.; Mely, Y. Dynamics of intermolecular hydrogen bonds in the excited states of 4’-dialkylamino-3-hydroxyflavones. On the pathway to an ideal fluorescent hydrogen bonding sensor. J. Phys. Chem. A 2004, 108, 8151–8159. [Google Scholar] [CrossRef]
  27. Chen, K.-Y.; Hsieh, C.-C.; Cheng, Y.-M.; Lai, C.-H.; Chou, P.-T. Extensive spectral tuning of the proton transfer emission from 550 to 675 nm via a rational derivatization of 10-hydroxybenzo[h]quinoline. Chem. Commun. 2006, 42, 4395–4397. [Google Scholar] [CrossRef] [PubMed]
  28. Kwon, J.E.; Park, S.Y. Advanced organic optoelectronic materials: Harnessing excited-state intramolecular proton transfer (ESIPT) process. Adv. Mater. 2011, 23, 3615–3642. [Google Scholar] [CrossRef] [PubMed]
  29. Stueber, G.J.; Kieninger, M.; Schettler, H.; Busch, W.; Goeller, B.; Franke, J.; Kramer, H.E.A.; Hoier, H.; Henkel, S. Ultraviolet stabilizers of the 2-(2’-hydroxyphenyl)-1,3,5-triazine class-structural and spectroscopic characterization. J. Phys. Chem. 1995, 99, 10097–10109. [Google Scholar] [CrossRef]
  30. Keck, J.; Kramer, H.E.A.; Port, H.; Hirsch, T.; Fischer, P.; Rytz, G. Investigations on polymeric and monomeric intramolecularly hydrogen-bridged UV absorbers of the benzotriazole and triazine class. J. Phys. Chem. 1996, 100, 14468–14475. [Google Scholar] [CrossRef]
  31. Wu, J.; Liu, W.; Ge, J.; Zhang, H.; Wang, P. New sensing mechanisms for design of fluorescent chemosensors emerging in recent years. Chem. Soc. Rev. 2011, 40, 3483–3495. [Google Scholar] [CrossRef] [PubMed]
  32. Taki, M.; Wolford, J.L.; O’Halloran, T.V. Emission ratiometric imaging of intracellular zinc: Design of a benzoxazole fluorescent sensor and its application in two-photon microscopy. J. Am. Chem. Soc. 2004, 126, 712–713. [Google Scholar] [CrossRef] [PubMed]
  33. Rodembusch, F.S.; Brand, F.R.; Correa, D.S.; Pocos, J.C.; Martinelli, M.; Stefani, V. Transition metal complexes from 2-(2’-hydroxyphenyl)benzoxazole: A spectroscopic and thermogravimetric stability study. Mater. Chem. Phys. 2005, 92, 389–393. [Google Scholar] [CrossRef]
  34. Orfão, R.B., Jr.; Alves, J.; Bartoloni, F.H. Spectroscopic studies on the interaction of metallic ions with an imidazolyl-phenolic system. J. Fluoresc. 2016, 26, 1373–1380. [Google Scholar] [CrossRef] [PubMed]
  35. Orfão, R.B., Jr.; de Carvalho, F.; Homem-de-Mello, P.; Bartoloni, F.H. On the fluorescent, steric and electronic factors affecting the detection of metallic ions using an imidazolyl-phenolic derived fluorescent probe. J. Braz. Chem. Soc. 2017, 28, 1896–1904. [Google Scholar] [CrossRef]
  36. Das, K.; Sarkar, N.; Ghosh, A.K.; Majumdar, D.; Nath, D.N.; Bhattacharyya, K. Excited-state intramolecular proton-transfer in 2-(2’-hydroxyphenyl)benzimidazole and 2-(2’-hydroxyphenyl)-benzoxazole-effect of rotamerism and hydrogen-bonding. J. Phys. Chem. 1994, 98, 9126–9132. [Google Scholar] [CrossRef]
  37. Raymo, F.M.; Bartberger, M.D.; Houk, K.N.; Stoddart, J.F. The magnitude of [C-H∙∙∙O] hydrogen bonding in molecular and supramolecular assemblies. J. Am. Chem. Soc. 2001, 123, 9264–9267. [Google Scholar] [CrossRef] [PubMed]
  38. Tung, C.H.; Wu, L.Z.; Zhang, L.P.; Chen, B. Supramolecular systems as microreactors: Control of product selectivity in organic phototransformation. Acc. Chem. Res. 2003, 36, 39–47. [Google Scholar] [CrossRef] [PubMed]
  39. Glasbeek, M.; Zhang, H. Femtosecond studies of solvation and intramolecular configurational dynamics of fluorophores in liquid solution. Chem. Rev. 2004, 104, 1929–1954. [Google Scholar] [CrossRef] [PubMed]
  40. Olsen, S.; Smith, S.C. Bond selection in the photoisomerization reaction of anionic green fluorescent protein and kindling fluorescent protein chromophore models. J. Am. Chem. Soc. 2008, 130, 8677–8689. [Google Scholar] [CrossRef] [PubMed]
  41. Cramer, C.J.; Truhlar, D.G. A universal approach to solvation modeling. Acc. Chem. Res. 2008, 41, 760–768. [Google Scholar] [CrossRef] [PubMed]
  42. Zhang, X.; Chi, L.; Ji, S.; Wu, Y.; Song, P.; Han, K.; Guo, H.; James, T.D.; Zhao, J. Rational design of d-PeT phenylethynylated-carbazole monoboronic acid fluorescent sensors for the selective detection of alpha-hydroxyl carboxylic acids and monosaccharides. J. Am. Chem. Soc. 2009, 131, 17452–17463. [Google Scholar] [CrossRef] [PubMed]
  43. Zhao, G.-J.; Han, K.-L. Hydrogen bonding in the electronic excited state. Acc. Chem. Res. 2012, 45, 404–413. [Google Scholar] [CrossRef] [PubMed]
  44. Lan, X.; Yang, D.; Sui, X.; Wang, D. Time-dependent density functional theory (TD-DFT) study on the excited-state intramolecular proton transfer (ESIPT) in 2-hydroxybenzoyl compounds: Significance of the intramolecular hydrogen bonding. Spectrochim. Acta A 2013, 102, 281–285. [Google Scholar] [CrossRef] [PubMed]
  45. Becke, A.D.; Johnson, E.R. Exchange-hole dipole moment and the dispersion interaction revisited. J. Chem. Phys. 2007, 127. [Google Scholar] [CrossRef] [PubMed]
  46. Tsai, H.-H.G.; Sun, H.-L.S.; Tan, C.-J. TD-DFT study of the excited-state potential energy surfaces of 2-(2’-hydroxyphenyl)benzimidazole and its amino derivatives. J. Phys. Chem. A 2010, 114, 4065–4079. [Google Scholar] [CrossRef] [PubMed]
  47. Jayabharathi, J.; Kalaiarasi, V.; Thanikachalam, V.; Jayamoorthy, K. Dynamics of solvent controlled ESIPT of pi-expanded imidazole derivatives-pH Effect. J. Fluoresc. 2014, 24, 625–637. [Google Scholar] [CrossRef] [PubMed]
  48. Mahanta, S.; Paul, B.K.; Singh, R.B.; Guchhait, N. Inequivalence of substitution pairs in hydroxynaphthaldehyde: A theoretical measurement by intramolecular hydrogen bond strength, aromaticity, and excited-state intramolecular proton transfer reaction. J. Comput. Chem. 2011, 32, 1–14. [Google Scholar] [CrossRef] [PubMed]
  49. Roohi, H.; Hejazi, F.; Mohtamedifar, N.; Jahantab, M. Excited state intramolecular proton transfer (ESIPT) in 2-(2’-hydroxyphenyl)benzoxazole and its naphthalene-fused analogs: A TD-DFT quantum chemical study. Spectrochim. Acta A 2014, 118, 228–238. [Google Scholar] [CrossRef] [PubMed]
  50. Alarcos, N.; Gutierrez, M.; Liras, M.; Sanchez, F.; Moreno, M.; Douhal, A. Direct observation of breaking of the intramolecular H-bond, and slowing down of the proton motion and tuning its mechanism in an HBO derivative. Phys. Chem. Chem. Phys. 2015, 17, 14569–14581. [Google Scholar] [CrossRef] [PubMed]
  51. Hsieh, C.-C.; Cheng, Y.-M.; Hsu, C.-J.; Chen, K.-Y.; Chou, P.-T. Spectroscopy and femtosecond dynamics of excited-state proton transfer induced charge transfer reaction. J. Phys. Chem. A 2008, 112, 8323–8332. [Google Scholar] [CrossRef] [PubMed]
  52. Barboza, C.A.; Germino, J.C.; Santana, A.M.; Quites, F.J.; Muniz Vazquez, P.A.; Zambon Atvars, T.D. Structural correlations between luminescent properties and excited state internal proton transfer in some Zinc(II) N,N′-Bis(salicylidenes). J. Phys. Chem. C 2015, 119, 6152–6163. [Google Scholar] [CrossRef]
  53. Stenson, P. Crystal structure of 2-(ortho hydroxyphenyl) benzothiazole. Acta Chem. Scand. 1970, 24, 3729. [Google Scholar] [CrossRef]
  54. Catalan, J.; del Valle, J.C.; Palomar, J.; Diaz, C.; de Paz, J.L.G. The six-membered intramolecular hydrogen bond position as a switch for inducing an excited state intramolecular proton transfer (ESIPT) in esters of o-hydroxynaphthoic acids. J. Phys. Chem. A 1999, 103, 10921–10934. [Google Scholar] [CrossRef]
  55. Zhao, G.-J.; Liu, J.-Y.; Zhou, L.-C.; Han, K.-L. Site-selective photoinduced electron transfer from alcoholic solvents to the chromophore facilitated by hydrogen bonding: A new fluorescence quenching mechanism. J. Phys. Chem. B 2007, 111, 8940–8945. [Google Scholar] [CrossRef] [PubMed]
  56. Zhao, G.-J.; Han, K.-L. Early time hydrogen-bonding dynamics of photoexcited coumarin 102 in hydrogen-donating solvents: Theoretical study. J. Phys. Chem. A 2007, 111, 2469–2474. [Google Scholar] [CrossRef] [PubMed]
  57. Yang, D.; Zheng, R.; Wang, Y.; Lv, J. The ESIPT mechanism of dibenzimidazolo diimine sensor: A detailed TDDFT study. J. Phys. Org. Chem. 2016, 29, 161–165. [Google Scholar] [CrossRef]
  58. Beg, H.; Das, D.; Ash, S.; Misra, A. Computation of polarizability, hyper-polarizability and hardness as descriptor for enol-keto tautomerizations of 2-hydroxy pyridines. Comput. Theor. Chem. 2013, 1017, 200–207. [Google Scholar] [CrossRef]
  59. Roohi, H.; Mohtamedifar, N.; Hejazi, F. Intramolecular photoinduced proton transfer in 2-(2’-hydroxyphenyl)benzazole family: A TD-DFT quantum chemical study. Chem. Phys. 2014, 444, 66–76. [Google Scholar] [CrossRef]
  60. Li, C.; Yang, Y.; Ma, C.; Liu, Y. Effect of amino group on the excited-state intramolecular proton transfer (ESIPT) mechanisms of 2-(2’-hydroxyphenyl)benzoxazole and its amino derivatives. RSC Adv. 2016, 6, 5134–5140. [Google Scholar] [CrossRef]
  61. Crampton, M.R.; Robotham, I.A. Acidities of some substituted ammonium ions in dimethyl Sulfoxide[dagger]. J. Chem. Res. 1997, 22–23. [Google Scholar] [CrossRef]
  62. Zoltewicz, J.A.; Deady, L.W. Quaternization of heteroaromatic compounds: Quantitative aspects. Adv. Heterocyclic Chem. 1978, 22, 71–121. [Google Scholar] [CrossRef]
  63. Jayabharathi, J.; Thanikachalam, V.; Jayamoorthy, K.; Srinivasan, N. Synthesis, spectral studies and solvatochromism of some novel benzimidazole derivatives-ESIPT process. Spectrochim. Acta A 2013, 105, 223–228. [Google Scholar] [CrossRef] [PubMed]
  64. Wang, R.; Liu, D.; Xu, K.; Li, J. Substituent and solvent effects on excited state intramolecular proton transfer in novel 2-(2’-hydroxyphenyl)benzothiazole derivatives. J. Photochem. Photobiol. A 2009, 205, 61–69. [Google Scholar] [CrossRef]
  65. Latha, V.; Annaraj, B.; Neelakantan, M.A. ESIPT inspired dual fluorescent probe (Z)-3-((4-(4-aminobenzyl) phenyl) amino)-1,3-diphenylprop-2-en-1-one: Experimental and DFT based approach to photophysical properties. Spectrochim. Acta A 2014, 133, 44–53. [Google Scholar] [CrossRef] [PubMed]
  66. Sobolewski, A.L.; Domcke, W. Theoretical investigation of potential-energy surfaces relevant for excited-state hydrogen-transfer in o-hydroxybenzaldehyde. Chem. Phys. 1994, 184, 115–124. [Google Scholar] [CrossRef]
  67. Catalan, J.; Palomar, J.; DePaz, J.L.G. Intramolecular proton or hydrogen-atom transfer in the ground and excited states of 2-hydroxybenzoyl compounds. J. Phis. Chem. A 1997, 101, 7914–7921. [Google Scholar] [CrossRef]
  68. Maheshwari, S.; Chowdhury, A.; Sathyamurthy, N.; Mishra, H.; Tripathi, H.B.; Panda, M.; Chandrasekhar, J. Ground and excited state intramolecular proton transfer in salicylic acid: An ab initio electronic structure investigation. J. Phys. Chem. A 1999, 103, 6257–6262. [Google Scholar] [CrossRef]
  69. De Prasad, S.; Ash, S.; Dalai, S.; Misra, A. A DFT-based comparative study on the excited states intramolecular proton transfer in 1-hydroxy-2-naphthaldehyde and 2-hydroxy-3-naphthaldehyde. J. Mol. Struct. Theochem. 2007, 807, 33–41. [Google Scholar] [CrossRef]
  70. Beg, H.; De Prasad, S.; Ash, S.; Misra, A. Use of polarizability and chemical hardness to locate the transition state and the potential energy curve for double proton transfer reaction: A DFT based study. Comput. Theor. Chem. 2012, 984, 13–18. [Google Scholar] [CrossRef]
  71. Sousa, S.F.; Fernandes, P.A.; Ramos, M.J. General performance of density functionals. J. Phys. Chem. A 2007, 111, 10439–10452. [Google Scholar] [CrossRef] [PubMed]
  72. Zhou, M.; Zhao, J.; Cui, Y.; Wang, Q.; Dai, Y.; Song, P.; Xia, L. Theoretical study on the excited-state intramolecular proton-transfer reaction of 10-hydroxybenzo[h]quinoline in methanol and cyclohexane. J. Lumin. 2015, 161, 1–6. [Google Scholar] [CrossRef]
  73. Deshmukh, M.S.; Sekar, N. Photophysical properties of ESIPT inspired fluorescent 2-(2-hydroxyphenyl)-6-methylimidazo[4,5-f]isoindole-5,7(1H,6H)-dione and its derivative: Experimental and DFT based approach. Spectrochim. Acta A 2015, 135, 457–465. [Google Scholar] [CrossRef] [PubMed]
  74. Paul, B.K.; Guchhait, N. TD-DFT investigation of the potential energy surface for Excited-State Intramolecular Proton Transfer (ESIPT) reaction of 10-hydroxybenzo[h]quinoline: Topological (AIM) and population (NBO) analysis of the intramolecular hydrogen bonding interaction. J. Lumin. 2011, 131, 1918–1926. [Google Scholar] [CrossRef]
  75. Chai, S.; Cong, S.L. Excited state intramolecular proton transfer and substituent effect of 10-hydroxybenzo [h] quinoline: A time-dependent density functional theory study. Comput. Theor. Chem. 2014, 1034, 80–84. [Google Scholar] [CrossRef]
  76. Deshmukh, M.S.; Sekar, N. Chemiluminescence properties of luminol related o-hydroxybenzimidazole analogues: Experimental and DFT based approach to photophysical properties. Dyes Pigment. 2015, 113, 189–199. [Google Scholar] [CrossRef]
  77. Kataria, S.; Rhyman, L.; Ramasami, P.; Sekar, N. Comprehensive DFT and TD-DFT studies on the photophysical properties of 5,6-dichloro-1,3-Bis(2-Pyridylimino)-4,7-Dihydroxyisoindole: A new class of ESIPT fluorophore. J. Fluoresc. 2016, 26, 1805–1812. [Google Scholar] [CrossRef] [PubMed]
  78. Zhao, G.J.; Han, K.L. Novel infrared spectra for intermolecular dihydrogen bonding of the phenol-borane-trimethylamine complex in electronically excited state. J. Chem. Phys. 2007, 127, 024306. [Google Scholar] [CrossRef] [PubMed]
  79. Zhao, G.J.; Han, K.L. Effects of hydrogen bonding on tuning photochemistry: Concerted hydrogen-bond strengthening and weakening. Chem. Phys. Chem. 2008, 9, 1842–1846. [Google Scholar] [CrossRef] [PubMed]
  80. Zhao, G.J.; Han, K.L. Time-dependent density functional theory study on hydrogen-bonded intramolecular charge-transfer excited state of 4-dimethylamino-benzonitrile in methanol. J. Comput. Chem. 2008, 29, 2010–2017. [Google Scholar] [CrossRef] [PubMed]
  81. Zhao, G.J.; Northrop, B.H.; Han, K.L.; Stang, P.J. The effect of intermolecular hydrogen bonding on the fluorescence of a bimetallic platinum complex. J. Phys. Chem. A 2010, 114, 9007–9013. [Google Scholar] [CrossRef] [PubMed]
  82. Yu, F.; Li, P.; Li, G.; Zhao, G.; Chu, T.; Han, K. A Near-IR reversible fluorescent probe modulated by selenium for monitoring peroxynitrite and imaging in living cells. J. Am. Chem. Soc. 2011, 133, 11030–11033. [Google Scholar] [CrossRef] [PubMed]
  83. Zhao, G.J.; Chen, R.K.; Sun, M.T.; Liu, J.Y.; Li, G.Y.; Gao, Y.L.; Han, K.L.; Yang, X.C.; Sun, L. Photoinduced intramolecular charge transfer and S-2 fluorescence in thiophene-pi-conjugated donor-acceptor systems: Experimental and TDDFT studies. Chem. Eur. J. 2008, 14, 6935–6947. [Google Scholar] [CrossRef] [PubMed]
  84. Dickson, R.M.; Becke, A.D. Basis-set-free local density-functional calculations of geometries of polyatomic-molecules. J. Chem. Phys. 1993, 99, 3898–3905. [Google Scholar] [CrossRef]
  85. Lee, C.T.; Yang, W.T.; Parr, R.G. Development of the colle-salvetti correlation-energy formula into a functional of the electron density. Phys. Rev. B 1988, 37, 785–789. [Google Scholar] [CrossRef]
  86. Becke, A.D. Density-functional thermochemistry. III. The role of exact exchange. J. Phys. Chem. 1993, 98, 5648–5652. [Google Scholar] [CrossRef]
  87. Becke, A.D. Density-functional exchange-energy approximation with correct asymptotic-behavior. Phys. Rev. A 1988, 38, 3098–3100. [Google Scholar] [CrossRef]
  88. Feller, D.J. The role of databases in support of computational chemistry calculations. J. Comp. Chem 1996, 17, 1571–1586. [Google Scholar] [CrossRef]
  89. Neese, F. The ORCA program system. WIREs Comput. Mol. Sci. 2012, 2, 73–78. [Google Scholar] [CrossRef]
Sample Availability: not available.
Molecules 23 01231 sch001 550

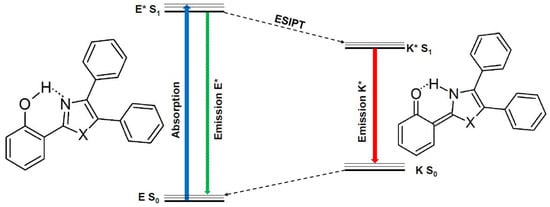

Scheme 1. Excited state intramolecular proton transfer (ESIPT) mechanism within a triphenilimidazolyc framework. Adapted from reference [34].
Scheme 1. Excited state intramolecular proton transfer (ESIPT) mechanism within a triphenilimidazolyc framework. Adapted from reference [34].
Molecules 23 01231 sch001
Molecules 23 01231 g001 550

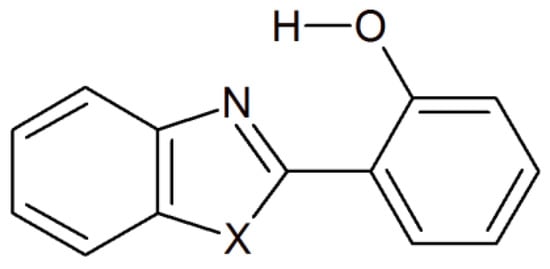

Figure 1. Enolic form for 2-(2’-hydroxyphenyl)benzoxazole (HBO) (X = O), 2-(2’-hydroxyphenyl)benzimidazole (HBI) (X = NH), and 2-(2’-hydroxyphenyl)benzothiazole (HBT) (X = S) [5].
Figure 1. Enolic form for 2-(2’-hydroxyphenyl)benzoxazole (HBO) (X = O), 2-(2’-hydroxyphenyl)benzimidazole (HBI) (X = NH), and 2-(2’-hydroxyphenyl)benzothiazole (HBT) (X = S) [5].
Molecules 23 01231 g001
Molecules 23 01231 g002 550

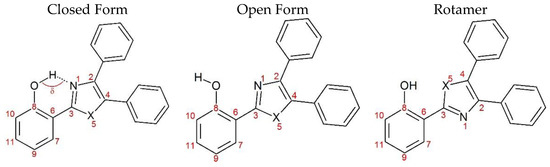

Figure 2. General structure for triphenylimidazole (NE, with X = NH), triphenyloxazole (OE, with X = O) and triphenylthiazole (SE, with X = S), and respective conformers.
Figure 2. General structure for triphenylimidazole (NE, with X = NH), triphenyloxazole (OE, with X = O) and triphenylthiazole (SE, with X = S), and respective conformers.
Molecules 23 01231 g002
Molecules 23 01231 g003 550

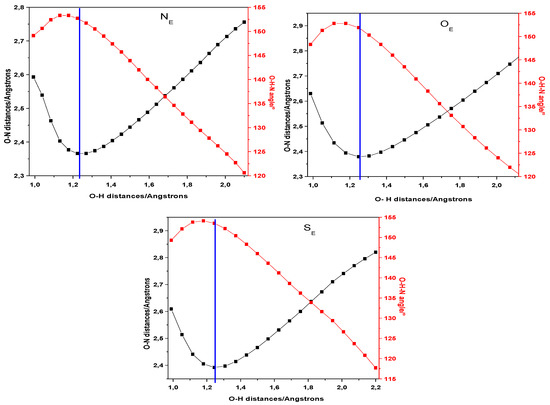

Figure 3. Variation of O–N distance (in black, left y-axis) and O–H∙∙∙N angle (in red, right y-axis) for NE, OE, and SE with changes on the O–H distance. The blue line indicates in which O–H distance the proton is transferred.
Figure 3. Variation of O–N distance (in black, left y-axis) and O–H∙∙∙N angle (in red, right y-axis) for NE, OE, and SE with changes on the O–H distance. The blue line indicates in which O–H distance the proton is transferred.
Molecules 23 01231 g003
Molecules 23 01231 g004 550

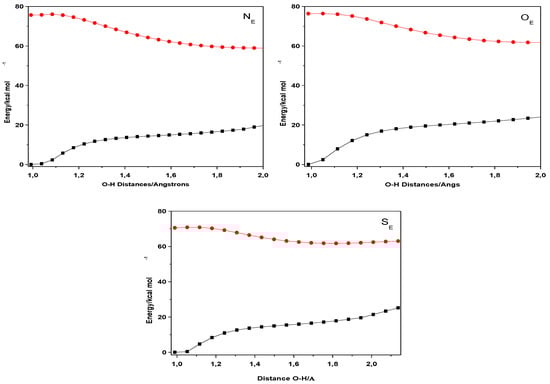

Figure 4. Calculated potential energy curves for the S0 (in black) and S1 (in red) states of NE, OE, and SE, respectively, along the proton transfer coordinate.
Figure 4. Calculated potential energy curves for the S0 (in black) and S1 (in red) states of NE, OE, and SE, respectively, along the proton transfer coordinate.
Molecules 23 01231 g004
Molecules 23 01231 g005 550

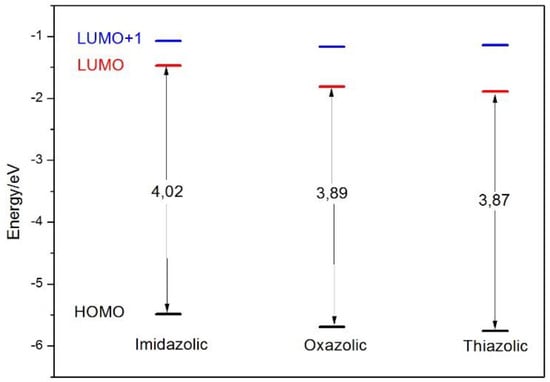

Figure 5. Representation of frontier orbital energy levels for NE, OE, and SE, respectively.
Figure 5. Representation of frontier orbital energy levels for NE, OE, and SE, respectively.
Molecules 23 01231 g005
Molecules 23 01231 g006 550

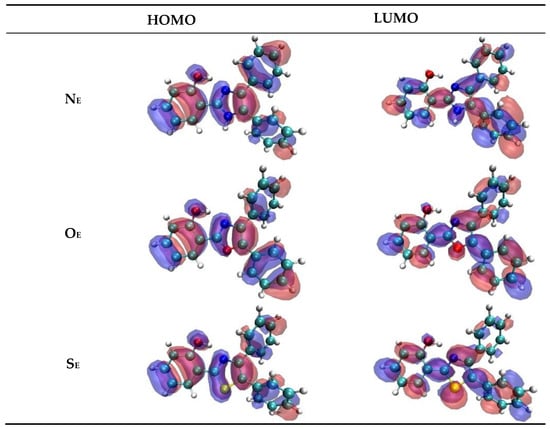

Figure 6. Molecular orbitals HOMO and LUMO for NE, OE, and SE, respectively.
Figure 6. Molecular orbitals HOMO and LUMO for NE, OE, and SE, respectively.
Molecules 23 01231 g006
Table
Table 1. Relative free energy, in kcal mol−1, for the NE, OE, and SE in the ground state, in the closed, open, and rotamer forms.
Table 1. Relative free energy, in kcal mol−1, for the NE, OE, and SE in the ground state, in the closed, open, and rotamer forms.
Closed Form (kcal mol−1)Open Form (kcal mol −1)Rotamer (kcal mol−1)
NE013.558.47
OE012.555.77
SE012.689.48
Table
Table 2. Bond length (Å) and angle formed by O-H∙∙∙N (δO–H∙∙∙N, o) for enolic form of NE, SE, and OE in ground state (S0 = E) and first excited singlet state (S1 = E*).
Table 2. Bond length (Å) and angle formed by O-H∙∙∙N (δO–H∙∙∙N, o) for enolic form of NE, SE, and OE in ground state (S0 = E) and first excited singlet state (S1 = E*).
NENE*OEOE*SESE*
O–H0.9921.0090.9861.0050.9891.003
H…N1.7111.6531.7651.6921.7421.678
X5–C31.3641.3821.3511.3601.7511.776
X5–C41.3881.3791.3851.3931.7471.767
δO–H∙∙∙N148.8149.7147.0148.9147.9149.7
Atom numbering from Figure 2.
Table
Table 3. Theoretically obtained free energy differences between protonated and deprotonated forms of heterocyclic compounds and their respective experimental pKaH values.
Table 3. Theoretically obtained free energy differences between protonated and deprotonated forms of heterocyclic compounds and their respective experimental pKaH values.
1H-Imidazole1,3-Oxazole1,3-Thiazole
ΔΔG (kcal mol−1)−230.61−213.79−219.25
pKaH6.9 a0.8 b2.5 b
Taken from references a [61] and b [62].
Table
Table 4. ChelpG charges in the ground state for the enolic and ketonic species of the imidazolic, oxazolic, and thiazolic heterocyclic systems, regarding the atoms involved in intramolecular hydrogen bonding.
Table 4. ChelpG charges in the ground state for the enolic and ketonic species of the imidazolic, oxazolic, and thiazolic heterocyclic systems, regarding the atoms involved in intramolecular hydrogen bonding.
AtomNENKSESKOEOK
N−0.4151−0.2140−0.4254−0.2456−0.3325−0.1723
O−0.5118−0.6061−0.4961−0.5698−0.4933−0.5735
H0.33090.30040.32800.31670.31770.2896
Table
Table 5. Theoretical absorption wavelength (λabs), Oscillator strength (f), contributions (CI), and theoretical emission wavelength (λemis) of NE, OE, and SE, respectively.
Table 5. Theoretical absorption wavelength (λabs), Oscillator strength (f), contributions (CI), and theoretical emission wavelength (λemis) of NE, OE, and SE, respectively.
Main Compositionλabs (nm)fCI (%)λemis (nm)
NEHOMO → LUMO
HOMO → LUMO+1		337.5
310.6		0.3850
0.4288		94.2
86.6		523
OEHOMO → LUMO
HOMO → LUMO+1		339.1
304.9		0.6724
0.2266		94.2
78.4		452
SEHOMO → LUMO
HOMO → LUMO+1		346.5
302.8		0.5478
0.1188		93.6
86.3		490

Share and Cite

MDPI and ACS Style

De Carvalho, F.; Coutinho Neto, M.D.; Bartoloni, F.H.; Homem-de-Mello, P. Density Functional Theory Applied to Excited State Intramolecular Proton Transfer in Imidazole-, Oxazole-, and Thiazole-Based Systems. Molecules 2018, 23, 1231. https://doi.org/10.3390/molecules23051231

AMA Style

De Carvalho F, Coutinho Neto MD, Bartoloni FH, Homem-de-Mello P. Density Functional Theory Applied to Excited State Intramolecular Proton Transfer in Imidazole-, Oxazole-, and Thiazole-Based Systems. Molecules. 2018; 23(5):1231. https://doi.org/10.3390/molecules23051231

Chicago/Turabian Style

De Carvalho, Fabricio, Maurício D. Coutinho Neto, Fernando H. Bartoloni, and Paula Homem-de-Mello. 2018. "Density Functional Theory Applied to Excited State Intramolecular Proton Transfer in Imidazole-, Oxazole-, and Thiazole-Based Systems" Molecules 23, no. 5: 1231. https://doi.org/10.3390/molecules23051231

Article Metrics

Back to TopTop
