Review

X-Ray Detected Magnetic Resonance: A Unique Probe of the Precession Dynamics of Orbital Magnetization Components

1
European Synchrotron Radiation Facility, B.P. 220, F-38043 Grenoble Cedex, France
2
Laboratoire de Magnétisme de Bretagne, CNRS FRE 2697, UFR Sciences et Techniques, F-29328 Brest Cedex, France
3
Institut de Chimie Mol´eculaire de l’Universit´e de Bourgogne, UMR CNRS 5260, Groupe LIMRES, 9 Avenue Alain Savary, BP 47870, F-21078 Dijon Cedex, France
*
Author to whom correspondence should be addressed.
Int. J. Mol. Sci. 2011, 12(12), 8797-8835; https://doi.org/10.3390/ijms12128797
Submission received: 11 October 2011 / Revised: 12 November 2011 / Accepted: 15 November 2011 / Published: 2 December 2011
(This article belongs to the Special Issue Applications of Circular Dichroism)

Abstract

:
X-ray Detected Magnetic Resonance (XDMR) is a novel spectroscopy in which X-ray Magnetic Circular Dichroism (XMCD) is used to probe the resonant precession of local magnetization components in a strong microwave pump field. We review the conceptual bases of XDMR and recast them in the general framework of the linear and nonlinear theories of ferromagnetic resonance (FMR). Emphasis is laid on the information content of XDMR spectra which offer a unique opportunity to disentangle the precession dynamics of spin and orbital magnetization components at given absorbing sites. For the sake of illustration, we focus on selected examples in which marked differences were found between FMR and XDMR spectra simultaneously recorded on ferrimagnetically ordered iron garnets. With pumping capabilities extended up to sub-THz frequencies, high-field XDMR should allow us to probe the precession of orbital magnetization components in paramagnetic organometallic complexes with large zero-field splitting. Even more challenging, we suggest that XDMR spectra might be recorded on selected antiferromagnetic crystals for which orbital magnetism is most often ignored in the absence of any supporting experimental evidence.

1. Introduction

Orbital magnetism refers to a subtle interplay among several effects: Coulomb and spin-orbit interactions, hybridization and crystal fields. No reliable simulation of these orbital effects can be envisaged without an independent determination of the spin and orbital components of the magnetization in magnetic materials. In the early nineties, X-ray Magnetic Circular Dichroism (XMCD) measurements made this possible within the limits of validity of the magneto-optical sum-rules [13]. This immediately boosted the development of sophisticated beamlines dedicated to static XMCD measurements in all synchrotron radiation facilities around the world, especially at the European Synchrotron Radiation Facility (ESRF) [4,5].
In 2005, X-ray Detected Magnetic Resonance (XDMR) emerged as a novel spectroscopy in which XMCD was used to probe the resonant precession of either spin or orbital magnetization components in a strong pump field typically oscillating at microwave frequencies. What stimulated our own interest in XDMR was the unique possibility to learn something new about dynamical aspects of orbital magnetism [610]. As a preamble, we like to show that much of the corresponding information is hidden in conventional electron magnetic resonance spectroscopies.
Let us start with the important remark made by Kittel [11] and others [12] that the torque equation = M× H, which correctly describes the precession of angular momenta of an isolated ion in the magnetic field H, does not hold true in a crystalline environment. If J denotes the total angular momentum per unit volume, then, magnetic dipole transitions are expected to induce a change Δ Jz = Δ Jzspin + Δ Jzorbit + Δ Jzlattice whereas the total magnetization a priori results from three contributions: M = Mspin +Morbit +Mlattice. As suggested by Kittel, a major simplification arises if Δ Jzorbit = −Δ Jzlattice, e.g., due to a fast orbital relaxation process. Given that the lattice magnetization Mlattice is usually negligible, the torque equation then reduces to
d J s p i n d t = ( M s p i n + M o r b i t ) × H
We are left here with an oversimplified picture in which essentially the spin part of the angular momentum is precessing. Van Vleck [13] went to a similar picture using a microscopic theory that started from the quantum mechanical equation of motion: 1ħ j = [ Ijms 12 08797f24, Sj ] in which the spin Hamiltonian Ijms 12 08797f24 was given the following form:
H S = g μ B H j S j z + k > j J j k S j · S k + k > j D j k [ S j · S k - 3 r j k - 2 ( r j k · S j ) ( r j k · S k ) ] + k > j E j k ( r j k · S j ) 2 ( r j k · S k ) 2
in which g and μB are standard notations for the spectroscopic splitting factor and the Bohr magneton, Jjk being the isotropic exchange coupling constant between sites j and k. Whereas the first and second right-hand members of Equation 2 can readily be identified with the Zeeman and the isotropic Heisenberg exchange interactions respectively, the last two terms are analog to dipole-dipole and quadrupole interactions except that Djk and Ejk can depart a lot from the expected values for dipolar/quadrupolar couplings between spins located at the j, k sites. This is precisely where spin-orbit interaction and orbital valence effects are taken into account to yield pseudo-dipolar (S = 1/2) or pseudo-quadrupolar (S > 1/2) couplings [14]. These terms which are the main ingredients of the anisotropic exchange coupling may substantially shift the resonance and alter the linewidth. Typically, the deviation of the g-factor from 2 is often taken as the signature of a pseudo-dipolar coupling since (g–2) ≃ λE where λ denotes the spin-orbit coupling factor and ΔE is the energy separation between the ground orbital level and higher levels. The distortion of the electronic cloud along the spin direction should scale like (g–2)2 for a pseudo-dipolar (superexchange) interaction and (g–2)4 for the pseudo-quadrupolar coupling [15].
Spin Hamiltonians have been extensively used for the analysis of electron magnetic resonance spectra [16,17]. For orbitally degenerate systems, the concept of fictitious angular momentum operator equivalents turned out to be most helpful. The strategy is to retain only a subset of low-lying electronic states [12,16]:
  • For crystal fields weak compared to spin-orbit coupling, J is a good quantum number and the crystal field simply splits the relevant manifold according to site symmetry. Ions with half-integral J’s always have a double Kramer’s degeneracy and fictitious spins take the following values: Ijms 12 08797f10 = 0, 1/2, 1 or 3/2.
  • If the crystal field is large compared to spin-orbit coupling, it splits the L-multiplet. If the lowest state is a singlet, the (quenched) orbital moment has no first order contribution. Recall that an orbitally threefold degenerate T-state mathematically is isomorphic to a P-state (L = 1): it can be described with a fictitious angular momentum Ijms 12 08797f11 which, in turn, couples to the spin angular momentum to yield a fictitious-spin Ijms 12 08797f10.
As noted by Blume et al. [12], a fictitious operator should be proportional to the expectation value of the true operator so-that one may write: ρ Ijms 12 08797f12 = 〈Sz〉 in which ρ ≠ 1 is a constant factor. Ultimately, a fictitious magnetization vector M can be defined which satisfies the equation of motion:
1 d M d t = [ M , H ] [ M , M · H ]
in which the Hamiltonian Ijms 12 08797f13 reduces to a Zeeman term for EPR spectra whereas a compact formulation of the fictitious magnetization can be given using commonly accepted tensor notations: Ijms 12 08797f14 = −gααμB Ijms 12 08797f15 with α = x, y, z. Concretely, the first or second order perturbations associated with orbital moments and spin-orbit interactions essentially affect the resonance through the spectroscopic splitting factor g which becomes a rank-2 tensor property. Recall that det [g] = gxxgyygzz determines the helicity of the precession in the resonance field H [18]. Equation 3, however, does not tell us anything clear about the precession of orbital magnetization components, in particular in excited states.
Orbital effects add much complexity in those systems where the ground state is orbitally degenerated while magnetism is dominated by exchange interactions. Indeed the standard Heisenberg–Dirac form of exchange is not anymore appropriate and additional terms should be considered [19] if one wishes to describe the collective excitation of spin waves or study the magnetoelastic coupling effects which drive the spin-lattice relaxation processes [20]. One should also bear in mind that superexchange interaction has a dynamic character since it is produced by virtual hoping of electrons [22]: this is why the admixture of upper electronic states is often referred to as orbital fluctuations [21]. These fluctuations become most critical in Jahn–Teller ions in which orbital ordering effects were predicted independently by Kugel and Khomskii [23] and by Cyrot and Lyon-Caen [24]. In these recent years, there has been a renewed interest for the corresponding (Jahn–Teller) dynamical processes in connection with the excitation of orbital ordering waves (orbitons) [25]. The reality of such collective excitation processes seems to be well established for several antiferromagnetic oxides (e.g., in rare earth titanates, manganites and cuprates). Clearly, similar effects should take place in ferrimagnetic crystals as well.
It is the aim of the present paper to discuss the information content of XDMR spectra, emphasis being laid on the forced precession of orbital magnetization components. In Section 2, we briefly review the conceptual bases of XDMR and recast them in the framework of the linear and nonlinear theories of spin waves developed for FMR. What makes the difference between XDMR and FMR is clearly the element, edge and, in favorable cases, site selectivity of the XMCD probe. In Section 3, we focus on a series of XDMR spectra recorded on ferrimagnetic iron garnet films or single crystals in order to unravel various aspects of the precession dynamics of orbital magnetization components at the tetrahedral iron sites. Finally, in Section 4, we discuss how far it may be possible to extend XDMR experiments to paramagnetic complexes or antiferromagnetically (AFM) ordered materials.

2. Resonant Precession of Spin and Orbital Magnetization Components in Excited States

2.1. Specificity of the XMCD Probe

In XDMR, not only the frequency of the microwave pump field has to be adjusted in order to satisfy the usual conditions of magnetic resonance, but also the energy of the monochromatic, circularly polarized X-ray photons has to be carefully tuned in order to maximize the XMCD probe signal. This can happen only in the close vicinity of one of the multiple absorption edges which characterizes the photoionization of the core shells for a given absorbing element. In this respect, XDMR can be seen as an unusual double resonance experiment since it combines microwave Zeeman spectroscopy with an atomic, core level spectroscopy that is inherently element-selective. Recall that the X-ray absorption K-edge refers to the photoionization of a 1s deep core level, L2,3-edges being similarly associated with the photoionization of the spin-orbit split 2p core levels.

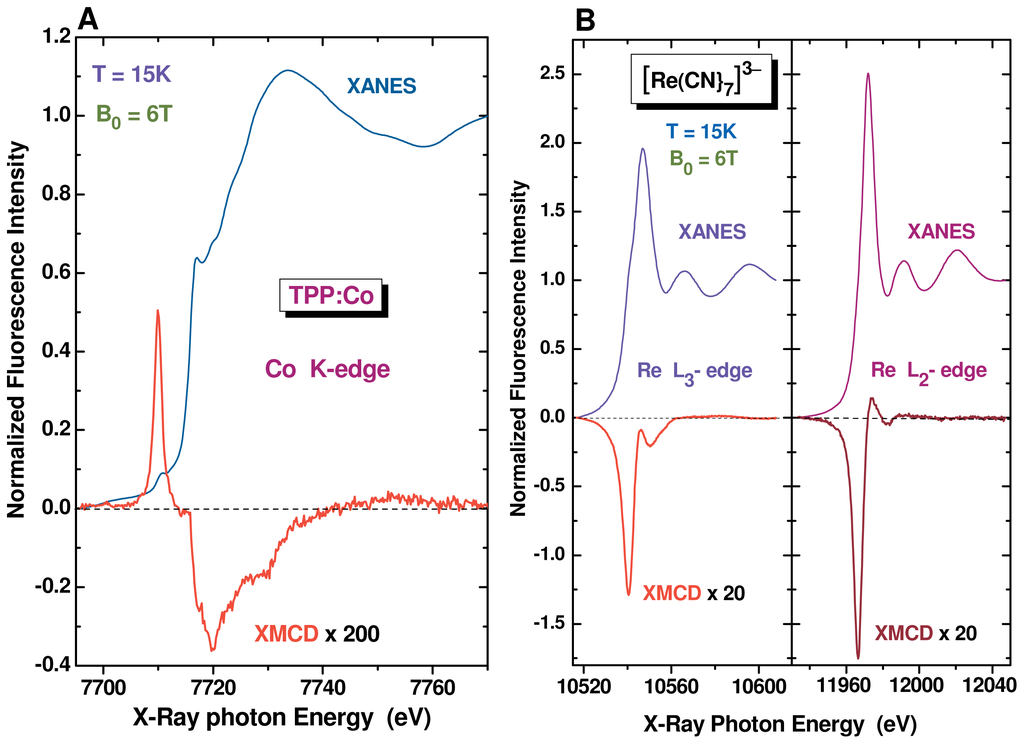

Edge-selectivity of XDMR measurements is a further advantage linked to the conservation of angular momentum in the photoionization process of deep atomic core levels, e.g., the 1s electrons of a K-shell or the 2p electrons of a L-shell. In the so-called two-step model [26], the angular momentum carried by a circularly polarized X-ray photon (+ħ for a right-handed circular polarization, −ħ for a left-handed circular polarization) is transferred to the excited photoelectron in a way that primarily depends on spin-orbit coupling in the excited core level. For L2,3 absorption edges that are split by spin-orbit, the Fano effect implies that part of the photon angular momentum is converted into spin via spin-orbit coupling ( + s at the L3 edge; ℓ – s at the L2 edge). No such conversion is possible at a K-edge (or L1-edge) due to the absence of spin-orbit coupling in the core states and the photon angular momentum is entirely converted into ±ħ orbital moments. The magnetic properties of the sample drive the second step: XMCD spectra simply reflect the difference in the density of final states that are allowed by the electric dipole (E1) or electric quadrupole (E2) selection rules owing to the symmetry of the initial core state. It immediately appears that an XMCD signal measured at a K-edge can only be assigned to the orbital polarization of the valence band. The interpretation of the XMCD spectra recorded at spin-orbit split edges is more complicated since one has to disentangle the respective contributions of spin and orbital polarizations. By summing up all integrated dichroisms of electrons originating from conjugated sub-levels, one would again measure the orbital polarization of the final states; in contrast the difference in the integrated dichroic intensities measured at the spin-orbit split L3 and L2 edges can only be caused by a spin imbalance in the empty states because the orbital momentum transferred to the photoelectron has implicitly the same sign at both edges. This is all the physical content of what is known as the magneto-optical sum rules for XMCD [1,2,26].
In XDMR, it is more appropriate to use a differential formulation of the XMCD sum rules as proposed by Strange [27] and others [28,29]. Ignoring first the contribution of electric quadrupole (E2) transitions, one may write for a K-edge [7,10] :
[ Δ σ ] K = 3 C p { d d E L z p } Δ E = 3 C p z p
in which [Δσ]K is the difference in the absorption cross-sections of left- and right-circularly polarized X-rays in the vicinity of the K-edge, Cp being a constant factor. Note that such a differential formulation refers to a fixed energy of the photoelectron: ΔE = ERX + E0 – EF in which ERX, E0 and EF respectively denote the energy of the X-ray photons, the binding energy and the reference Fermi level. Whereas 〈Lzp is the expectation value of the orbital angular momentum operator integrated over all excited states featuring p-type symmetry, 〈zp defines the orbital polarization of p-projected densities of states (DOS) at energy ΔE. Taking into account the weaker electric quadrupole (E2) transitions simply results in mixing final states associated with atomic orbitals of different symmetry [7,10]:
z = { z 4 p + ɛ z 3 d }
One could easily extend this result to molecular complexes where the final states are described with molecular orbitals, e.g., when the absorbing atom is in a tetrahedral ligand field. In all cases, however, K-edge XDMR experiments will refer to the forced precession of some energy-dependent orbital magnetization component proportional to 〈z〉. XMCD cross-sections at L2,3-edges can similarly be related to differential operators involving spin and orbital magnetization DOS [7]:
[ Δ σ ] L 3 = C d 3 N b d d Δ E { L z d + 2 3 S z d + 7 3 T z d } = C d 3 N b { z d + 2 3 s z d + 7 3 t z d }
[ Δ σ ] L 2 = C d 3 N b d d Δ E { L z d - 4 3 S z d - 14 3 T z d } = C d 3 N b { z d - 4 3 s z d - 14 3 t z d }
in which Nb 2 is the statistical branching ratio. Two distinct operators (sz, tz) are now needed to describe the spin dynamics. Recall that 〈Tz〉 and 〈tz〉 reflect (to the lowest order) the asphericity of the spin magnetization due either to spin-orbit interactions or anisotropic charge distributions [26,30,31]. Though Tz does not contribute to the Zeeman free energy, it contributes to the magnetocrystalline anisotropy free energy as pointed out by Van der Laan [31]. As long as the spin-orbit splitting remains small with respect to the crystal field splitting, T −2/7 Q · uS in which uS denotes the unit vector along the direction of the spin moment, whereas Q = L2 1/3L2 is the electric quadrupole operator which is a traceless spherical tensor of rank 2. In cubic crystals, Q vanishes so-that 〈Tz〉 can reliably be neglected, especially for 3d transition elements. Anyhow, since the magnetocrystalline anisotropy free energy of ferrimagnetic iron garnets is fairly small, one can hardly expect a large contribution of 〈Tz〉 and 〈tz〉 in these magnetic systems.
As opposed to electron magnetic resonance experiments which can be pumped with poorly energetic photons (E ≤ 10 cm−1), XMCD measurements require highly energetic photons with wave numbers in excess of 107 cm−1. Typically, the transition-time towards X-ray excited states is considerably shorter than the time-scale of spin-orbit interactions and of collective magnetic excitations involving exchange and dipole-dipole interactions. XMCD thus delivers a snapshot picture of the precession dynamics of spin and orbital magnetization components in excited states in the immediate surrounding of the X-ray absorbing atom.

2.2. Site-Selective Probe in Ferrimagnetic Iron Garnets

This has some interesting implications illustrated with Figure 1A in which we have reproduced ab initio simulations of the spin-polarized DOS of yttrium iron garnet (YIG) in the ferrimagnetic state. The latter simulations carried out with the PY-LMTO-LSDA code [32] show that the spin-polarized DOS have the opposite sign at the (24d) and (16a) crystal sites in which the iron ions have slightly distorted tetrahedral ( Ijms 12 08797f16) and octahedral ( Ijms 12 08797f17) coordination symmetry respectively. This is fully consistent with the antiferromagnetic coupling of the Fe ions in (24d) and (16a) sites [33]. Let us draw attention, however, onto the opposite sign of the spin polarized DOS in the filled states (ΔE < 0) and in the excited states (ΔE > 0) which belong to the same irreducible representation of groups Ijms 12 08797f16 or Ijms 12 08797f17: this implies that the corresponding magnetization components should precess with the opposite helicity in the ground and excited states.
We have also reproduced in Figure 1B the XMCD spectra that can be deduced from the spin-polarized DOS of Figure 1A for both electric dipole (E1) and quadrupole (E2) transitions. The site-resolved XMCD spectra confirm the existence of a quite significant orbital magnetization component 〈z〉 at the tetrahedral iron sites: this is because E1 transitions are allowed from the 1s core level to final states which belong to the same representations (b, e) of group Ijms 12 08797f16 as the 4p atomic orbitals. In contrast, transitions from the 1s core level to final states belonging to the ag or eg representations are allowed only by E2 transitions which have a much lower contribution to the XMCD cross-sections. In other terms, XDMR spectra recorded at the maximum intensity of the Fe K-edge XMCD spectrum will benefit from a strong site-selectivity favoring the Ijms 12 08797f16 Fe sites: this is a considerable advantage over FMR. Recall, however, that site-selectivity is lost if the XDMR spectra are collected at the L2,3 edges of iron since 2p → 3d transitions are dipole allowed at both sites.

2.3. Steady-State, Uniform Mode of Precession

Let us associate a fictitious, local magnetization component M(ℓ,s) to 〈z〉 and 〈sz〉 respectively. The precession of M(ℓ,s) can indeed be described either by Equation 3 or a classical torque equation. Regarding ferromagnetically ordered materials, the Landau–Lifshitz–Gilbert or the Bloch–Bloembergen torque equations are most appropriate even though they are purely phenomenological. The Landau–Lifshitz–Gilbert equation has a rather simple formulation for infinite thin films, i.e., slabs with vanishing aspect ratio. Defining the local magnetization vectorMby its polar and azimuthal angles (θ, φ) and its norm M, one obtains the coupled equations [7]:
( 1 + α G 2 ) d θ d t = - γ M s ( α G F θ + 1 sin θ F φ )
( 1 + α G 2 ) d φ d t = + γ M s ( 1 sin θ F θ - α G sin 2 θ F φ )
in which the magnetic free energy F encompasses the Zeeman term (FZ), the magnetocrystalline anisotropy (FA) as well as the demagnetizing (FD) free energy responsible for the shape anisotropy. In equations 8 and 9, αG classically denotes the Gilbert damping parameter, γ = B, whereas Ms is the length of the fictitious magnetization component at equilibrium. Since the norm of the magnetization vector is not invariant in the Bloch–Bloembergen model, a third equation is needed [7]:
M t = - ω r [ M s H e q F M - M ]
in which ωr refers to a longitudinal relaxation frequency traditionally related to the spin-lattice relaxation time T1. It will become clear later on that the transverse relaxation time T2 is affected by additional relaxation processes involving a redistribution of the absorbed energy among all degrees of freedom of the whole spin system.
As illustrated with Figure 2, XDMR spectra can be recorded in two distinct geometries:

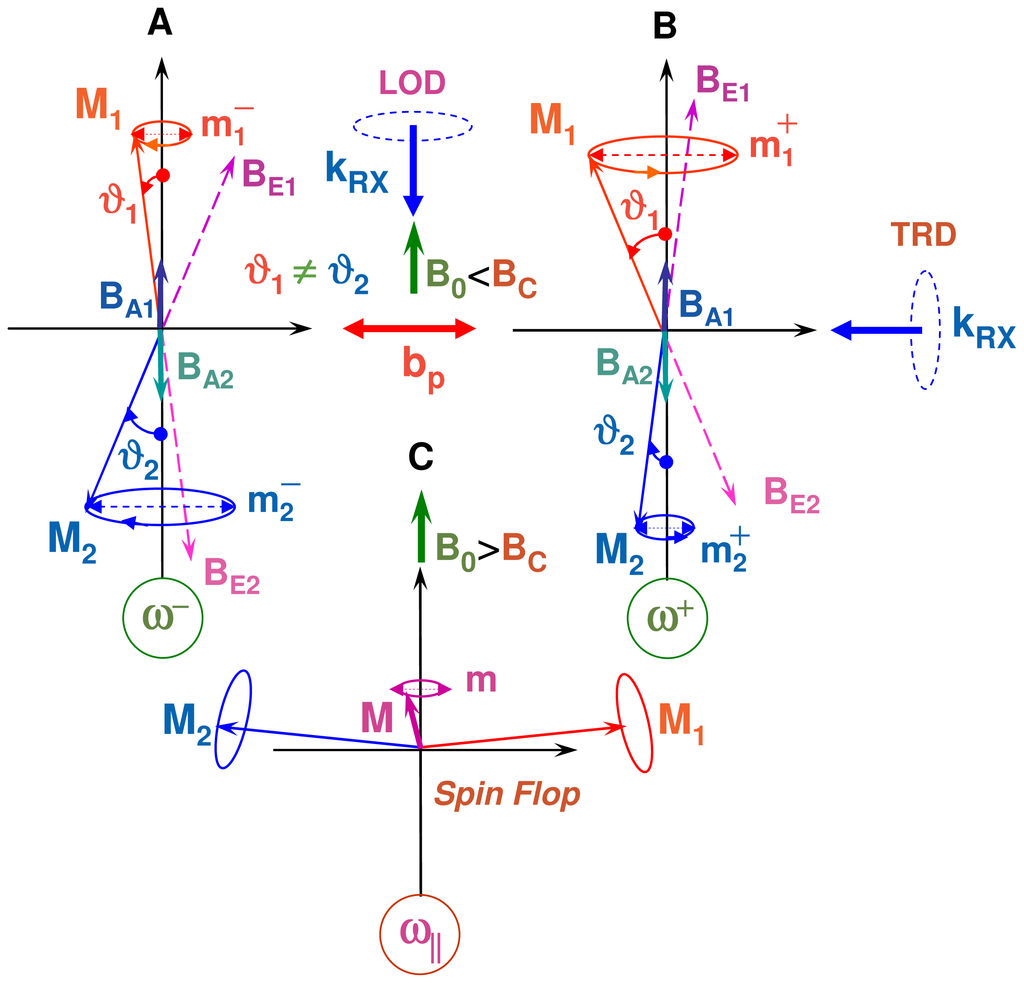

  • - In the transverse geometry (TRD), the wavevector kRX of the incident, circularly polarized X-rays is set perpendicular to both the static bias field B0 and the oscillating pump field bp: the XMCD probe is then proportional to the transverse magnetization m which oscillates at microwave frequency.
  • - In the longitudinal geometry (LOD), the X-ray wavevector kRX|| is set parallel to the static bias field B0. If one assumes that Ms = |Meq|, then there is a steady-state change mz of the projection of the magnetization along the Z axis and there should be a time-invariant XMCD signal ∝ mz. Unfortunately, mz is only a second order effect with respect to the opening angle of precession (θ0) and m. Moreover, any information regarding the phase or helicity of the precession gets lost.
For a ferromagnetic thin film with uniaxial anisotropy and perpendicular magnetization, the opening angle of precession θ0 is a constant of motion that characterizes the precession dynamics: it can be determined by combining together XDMR and static XMCD cross-sections [7,10]. For XDMR measurements in LOD geometry:
[ Δ σ X D M R ( k R X | | ) ] / [ Δ σ X M C D ( k R X | | ) ] - 1 / 2 tan 2 θ 0
whereas in the TRD geometry:
[ Δ σ X D M R ( k R X ) ] / [ Δ σ X M C D ( k R X | | ) ] tan θ 0 sin [ ω t + φ 0 ]
The Landau–Lifshitz–Gilbert equations lead to the following resonance equations for θ0:
tan 2 θ 0 = ( γ b c p ) 2 P 0 2 + ( Q 0 cos θ 0 ) 2
in which bcp denotes the circular component of the microwave pump field and :
P 0 = - ω p + γ B 0 + γ [ B u - 2 3 B A 1 ( 1 - 7 4 sin 2 θ 0 ) ] cos θ 0
where Bu and BA1 refer to the uniaxial demagnetizing field and the cylindrical component of the magnetocrystalline anisotropy respectively. On the other hand, Q0 = −αGωp in which the Gilbert’s damping factor αG is of the order of 6×10−6 for high quality YIG films. Similarly, one would show that:
tan φ 0 = Q 0 cos θ 0 P 0
In the low microwave power limit, i.e., when cos θ0 → 1, the resonance condition P0 = 0 will converge towards the usual Lorentzian lineshape whereas φ0π/2 if P0 → 0. However, for pumping fields in excess of 100 mG or higher, Equation 13 yields a biquadratic equation in cos θ0 with multivalued (unstable) solutions that characterizes the so-called foldover regime in which field-swept spectra exhibit a strongly hysteretic shape with a large foldover jump. This is very often the case in XDMR experiments carried out in LOD geometry because the pumping power has to be increased in order to get a chance to detect the weak XDMR signal which is only a second order effect.
Clearly, in TRD geometry, the oscillating signal ΔσXDMR(kRX ) varies linearly with the microwave pump field bp, whereas, in LOD geometry, the steady state signal ΔσXDMR(kRX ||) is proportional to the incident microwave power ∝ bp 2. At this stage, one should keep in mind that ΔσXDMR as well as ΔσXMCD are time-reversal odd observable properties which change their sign when the direction of B0 is inverted, independently of the oscillating pump field. Indeed, the normalized ratios (11)–(12) are time-reversal even: regarding the TRD geometry, this implies that, under time-reversal, the precession helicity (as well as B0) should be inverted in order to keep the product ωt invariant.

2.4. Precession Eigen Modes and Spin Waves

In magnetically ordered systems, the precession is driven by non-uniform, time-dependent fields h(r, t) which do not simply reduce to the external pump field. This causes a number of orthogonal eigen modes to be excited in which all spins precess with the same frequency (ω) but not with the same phase. In this respect, dipole-dipole interactions -which are responsible for the demagnetizing field- open a whole band of magnons and make the degeneration of the uniform mode possible [38]. Let us emphasize that orbital magnetization componentsM() directly experience dipole-dipole interactions.

2.4.1. Magnetostatic Walker’s Modes

In this regime, h(r, t) follows Maxwell’s equations in the magnetostatic limit which means that the time-dependence of the electric field can be neglected [34]: ▿ × h = 0 ; · [μ̄]h = 0. The first equation yields: h = −▿ψ(r, t) and the second: · μ̄ ▿ψ(r, t) = 0. These are Walker’s Equations. For a plane wave such as: ψ ∝ exp[ik · r], the Landau–Lifshitz–Gilbert and Walker’s Equations can be solved simultaneously only if a dispersion relation is satisfied [34]. For an infinite ferromagnetic medium:
ω | | ω k = [ ω H · ( ω H + ω M sin 2 θ k ) ] 1 / 2 ω
in which ωH = γ(B0 – NzMs + BA1) and ωM = 4πgμBMs; here, Nz denotes the axial component of Kittel’s demagnetizing tensor. Typically, ω|| and ω are the resonance frequencies (ω) obtained for θk = 0 or θk = π/2 respectively, i.e., when the wavevector k is either parallel or perpendicular to the direction of the bias field B0. Note that Equation 14 does not depend on the magnitude of k = |k| and thus, the group velocity vg = ∂ω/∂k is zero. This degeneracy is removed if one takes into account either exchange interactions as discussed in the next section, or the sample finite boundaries. This is crucial for thin films in which the film thickness is usually much smaller than the microwave wavelength. Typically, for YIG thin films, the uniform mode exhibits a large number of sharp, discrete satellite resonances mostly assigned to bulk magnetostatic standing waves commonly referred to as forward or backward magnetostatic spin waves (MSW) depending whether vg is positive or negative [10]. The theory predicts as well the propagation of surface magnetostatic waves, the existence of which has found major applications in microwave technology.
We like to draw attention onto a further point. In addition to circularly polarized precession modes, elliptically polarized modes can be excited as well for which vg ≠ 0. In such a case, magnetostatic spin waves associated with wavevectors +k and −k have opposite helicity, the precessing moments being associated with mk and m*k respectively. This is getting particularly important in magnetic materials featuring a large magnetic anisotropy [35]. Since the microwave pump field is most often linearly polarized, both Larmor and anti-Larmor precessions are co-excited, as confirmed by recent FMR experiments which made use of an ultra-sensitive mechanical detection [36].

2.4.2. Exchange Spin Waves

It is preferable to reformulate the Landau–Lifshitz–Gilbert equations as a system of canonical Hamiltonian equations for spin wave amplitudes (ck,c*k). Such a classical formulation strictly parallels the canonical transformations used by Holtstein and Primakoff in their quantum theory of spin-waves [3739]. The equation of motion for each spin-wave amplitude ck has the form [41]:
c k t = ω r k c k = - i δ H ( c k , c k * ) δ c k *
in which the relaxation frequency (ωrk ) for mode k can be easily converted into the spin-wave full linewidth (ΔHk) using the relationship: ωrk = γΔHk/2. Notice that the right-hand member of Equation 15 is expressed as a functional derivative of the Hamiltonian function Ijms 12 08797f13. Usually, spin-wave excitations in ferromagnets are sufficiently small that Ijms 12 08797f13 can be expanded in a Taylor series in powers of ck and ck*:
H ( c k , c k * ) = k ω k c k c k * + H p 1 + H p 2 + H i n t
The first term in the right-hand side of Equation 16 is often denoted Ijms 12 08797f25 but it corresponds to the linear theory of spin waves: it yields the energy of non-interacting modes with the dispersion law : ωk = [Ak2 – |Bk|2]1/2 in which:
A k = ω H + η e x ω M k 2 + | B k |
B k = 1 2 ω M sin 2 θ k e x p ( 2 i φ k )
where ηex is the exchange stiffness constant. Moreover, θk and φk refer to the polar and azimuthal angles of the wavevector k in spherical coordinates, taking the z axis parallel to the direction of the equilibrium magnetization Meq. Recall that a precession mode becomes elliptical as soon as |Bk| ≠ 0 [20].
The next terms refer to the perturbation induced by the microwave pump field. The first one ( Ijms 12 08797f26) arises from the Zeeman interaction with the transverse field component b:
H p 1 = ( γ b ) { M s V 2 g μ B } 1 / 2 ( c 0 e - i ω p t + h . c . )
which causes the resonant excitation of the uniform mode (k = 0) in FMR. The nonlinear term Ijms 12 08797f27 is responsible for the spin wave instability in parallel pumping [43]:
H p 2 ( γ b | | ) e - i ω p t k B k 4 ω k c k c - k + h . c .
It causes the parametric excitation of a pair of spin waves satisfying the conservation laws: ωp = ω1+ω2 and k1 = −k2 = k.
All information about the interaction of spin-waves between themselves is contained in the perturbation term Ijms 12 08797f28 = Ijms 12 08797f29 + Ijms 12 08797f30 with [39]:
H 3 = k 1 , k 2 , k 3 [ S k 2 , k 3 , k 1 c 1 c 2 * c 3 * + S k 2 , k 3 , k 1 * c 1 * c 2 c 3 ] × δ ( k 1 - k 2 - k 3 )
H 4 = k 1 , k 2 , k 3 , k 4 [ S k 3 , k 4 , k 1 , k 2 c 1 c 2 c 3 * c 4 * + h . c . ] × δ ( k 1 + k 2 - k 3 - k 4 )
In the quasi-particle language of second quantification, Ijms 12 08797f29 and Ijms 12 08797f30 describe three- and four-magnon interactions respectively. Three-magnon processes, in either the confluent or splitting modes, arise not only from long range dipole-dipole interactions as first recognized by Akhiezer [40], but also from short range pseudo-dipolar interactions [14]. Energy conservation implies that: ω1 = ω2 + ω3 for a 3-magnon splitting process, whereas (ω1 + ω2) = (ω3 + ω4) in a 4-magnon scattering process. Even though Ijms 12 08797f30 refers to a higher order perturbation, the 4-magnon scattering process is the corner stone of all nonlinear theories of spin waves [41] because exchange may largely dominate over dipole-dipole interactions in this term [39]. Given that the exchange part is α (k1 · k2)2, it immediately appears, however, that the exchange cross section is zero if either k1 or k2 is zero: in other terms, exchange cannot relax the uniform mode (k = 0). As pointed out by Keffer [39], this is consistent with the well known result (see for instance [42]) that the Heisenberg exchange Hamiltonian commutes with all vector components of the total spin operator: Ijms 12 08797f10 = ∑i Si so-that: [ Ijms 12 08797f31, Ijms 12 08797f18] = [ Ijms 12 08797f31, Ijms 12 08797f19] = [ Ijms 12 08797f31, Ijms 12 08797f20] = 0. In particular, this implies that the Heisenberg exchange Hamiltonian should also commute with the longitudinal (z) component of the magnetization: [ Ijms 12 08797f13, Ijms 12 08797f21] = 0.
There is no doubt that the local spin magnetization components M(s) probed by XDMR are directly affected by collective excitations of exchange spin waves. Even though exchange interactions should have no direct effect on orbital magnetization components M(), one should not forget that M() and M(s) are dynamically coupled by spin-orbit interactions at a time-scale much shorter than the time-scale of precession. Let us insist, however, that it cannot be taken yet as firmly established that M() couple to exchange spin waves.

2.4.3. Mode Conversion in Relaxation Processes

Recognizing that dipolar interactions open a band of degenerate magnons is the clue to understand the relaxation mechanisms in FMR [38], since a uniform magnon (k = 0) can be annihilated with the simultaneous creation of one or more nonuniform magnons (k ≠ 0): the latter scattering process was identified as the critical step controlling transverse relaxation processes, i.e., T2 in the Bloch–Bloembergen model.
Statistical thermodynamics led to a pair of important equations which proved to be very helpful in discussing the relevance of various relaxation processes:
M z = M s - g μ B V - 1 k n k
| M | M s - g μ B V - 1 k 0 n k
where nk is the number of magnons with wavevector k in volume V, including thermal magnons. Equation 23 implies that all types of magnons—including uniform ones—decrease Mz; Equation 24 states that all spin waves but the uniform mode decrease |M|. Equations 23 and 24 are valid either for exchange or magnetostatic spin waves [20,38,39]. Clearly, the excitation of spin waves redistributes much of the microwave pumped energy within all internal degrees of freedom of the whole spin system before this energy is ultimately transferred to the lattice phonons.

2.5. Pseudo-Spin and Orbital Ordering Waves

Let us make a distinction between two different processes: (i) spin-orbit and dipole-dipole interactions can be strong enough to let the local orbital magnetization components M() couple to spin waves; (ii) energy can be redistributed within additional degrees of freedoms involving orbital ordering (Oord) in orbitally degenerate systems. In the first case we shall speak of pseudo-spin waves or pseudo-magnons. In the second, we have to deal with true orbital ordering waves or orbitons which can be best described using a formalism that was recently reviewed by Khaliullin [25].
The starting consideration is that both spin exchange and charge motion strongly depend on the orbital state in chemical bonding. One may easily admit that the interaction energy can hardly be optimized simultaneously for all bonds: this leads to peculiar frustrations, oscillations and quantum resonances among orbital bonds. Let us consider first the superexchange term of the Hamiltonian of a magnetic system which would be orbitally degenerate:
H e x = i > j [ ( S i · S j + 1 4 ) J i j γ + 1 2 K i j γ ]
For simplicity, we deliberately neglected Hund’s coupling in Equation 25. Orbital ordering effects are described by the operators Jijγ andKijγ. Their formulation depends on the crystal structure and is different for doubly degenerate (E or Eg) or triply degenerate states (T2 or T2g). The effects are most spectacular in the case of Eg-states in a cubic crystal in which:
J i j γ = J ( τ i γ · τ j γ - 1 2 τ i γ - 1 2 τ j γ + 1 4 )
whereas: Kijγ = 0. In Equation 26,J = 4th2/U, th and U denoting respectively the hopping integral and the on-site Coulomb repulsion in the Hubbard model for two-fold degenerate states Eg. The index γ of the operators τγ specifies the orientation of the bond rij relative to the cubic axes a, b and c. Following Kugel and Khomskii [23]:
τ i a , b = 1 4 ( - σ i z ± 3 σ i x )
τ i c = 1 2 σ i z
where σx and σz are Pauli matrices. According to usual conventions, σz = 1 corresponds to orbital 3dx2–y2, whereas σz = −1 refers to orbital 3d3z2–r2. Equations 2528 therefore let us expect a strong interplay between spin and orbital degrees of freedom.
Regarding triply degenerate states (e.g., T2g) we shall again follow Kugel and Khomskii and replace the operators τi with linear combinations of quadratic terms: [(z)i2 2/3], [(x)i2 (y)i2] and [(xy)i + (yx)i], in which x, y and z are the components of a fictitious orbital angular momentum built up from the 3dxz, 3dyz and 3dxy transition metal orbitals. The superexchange Hamiltonian Ijms 12 08797f31 is modulated by an operator Ijms 12 08797f32 which looks like the orbital quadrupole-quadrupole interaction ( Ijms 12 08797f33) between sites i and j, i.e., the higher-order terms in the Van Vleck anisotropic exchange interaction. Note that Ijms 12 08797f33 also appears in the theory of the Jahn–Teller effect.
Collective excitations of the orbital ordering degrees of freedom were first envisaged by Cyrot and Lyon-Caen [24] who pointed out the marked similarity between the structure of Ijms 12 08797f32 and that of the spin wave Hamiltonian for antiferromagnetic interactions. In order to solve the superexchange problem of Equation 25, Khaliullin [25] proposed to split Ijms 12 08797f31 in three terms:
H s p i n = i > j J i j γ ( S i · S j + 1 4 )
H o r b = i > j ( S i · S j + 1 4 ) δ ( J i j γ )
H i n t = i > j δ ( S i · S j ) δ ( J i j γ )
in which δJ = J –〈J〉. Spin waves representations were systematically used for Si in Equation 29 and, similarly, orbital waves were introduced for τi in Equation 30. From a mathematical point of view, the easiest strategy to take into account the interaction Hamiltonian of Equation 31 is by exploiting diagram methods. Restricting ourselves here to three-bosons interactions, one may anticipate that an (excited) magnon could couple to an intermediate state containing one magnon plus one orbiton, whereas an orbital excitation (orbiton) could decay by a splitting into two magnons.
Regarding magnetic systems with orbitally degenerate ground states, Khaliullin went to the following conclusions: (i) fluctuations are enhanced in both spin and orbit subspaces; (ii) given the strong magnetic anisotropy of bonds, quasi 1-D orbital order is favored; (iii) joint spin-orbital fluctuations should significantly lower the ground state as first predicted by Cyrot and Lyon-Caen [24].

2.6. Spin Wave Instability Regime at High Pumping Power

2.6.1. Transverse Pumping Geometry (bp ⊥ B0)

Already in the late fifties, Suhl realized that a parametric amplification of spin-waves could cause a saturation of the precession cone angle (θ0) when the microwave pump field exceeded some critical threshold field bth [44,45]. He also pointed out that, under such conditions, the FMR lineshape would exhibit a foldover-like distortion [46]. Obviously, such effects should impact XDMR spectra as well.
There are two nonlinear processes by which the uniform precession mode can couple to degenerate spin waves. In the three-magnon process of Figure 3A, one uniform magnon splits into two magnons of lower energy but satisfying the conservation laws: ω2 = ω3 = ωp/2 and k2 = −k3 = k. In the four-wave scattering process of Figure 3B, two uniform magnons (k3 = k4 = 0) are destroyed whereas two degenerate magnons are created such that: ω1 = ω2 = ω3 = ω4 = ωp and k2 = −k1 = k. There is another difference between the first- and second-order processes: in the 3-magnon process, the pair of split magnons (+k,k) propagates at ca. 45° from the bias field B0, whereas the pair of degenerate magnons created in a 4-magnon scattering process propagates along the direction of B0, i.e., with θk 0. The three-magnon process was shown to explain the subsidiary microwave absorption discovered by Damon and Bloembergen [48] at ca. B0 = ωp/2γ. Such an off-resonance process, however, cannot affect the XDMR spectra recorded on perpendicularly magnetized thin films because it is forbidden by energy conservation. The second order process that involves four magnons at the pumping frequency is always allowed and causes the main resonance to saturate at high microwave pumping power [20].
Instability arises when the rate of creation of a pair of degenerate spin-waves (+k, −k) exceeds their damping rate. For the 4-magnon process, growth and decay rates are given by [49]:
[ n ˙ k ] g r o w t h = 16 π | S 0 , 0 , k , - k | 2 n 0 2 n k δ ( ɛ f - ɛ i )
[ n ˙ k ] d e c a y = - 2 × n k T 2 k = - n k ( γ Δ H k )
in which S0,0,k,–k is the scattering factor introduced in Equation 22,n0 and nk being the number of uniform and nonuniform magnons with wavevector 0 and k respectively. Recall that the δ-function arises from the integral over the time-dependence of the initial (i) and final (f) spin states so that [39]:
δ ( ɛ f - ɛ i ) = γ ( Δ H k ) / π [ ( 2 ω - 2 ω k ) 2 + ( γ Δ H k ) 2 ]
Thus, one may predict the number of degenerate magnon pairs to grow exponentially when:
[ n 0 ] 2 { 2 [ ( 2 ω - 2 ω k ) 2 + ( 2 ω r k ) 2 ] 16 | S 0 , 0 , k , - k | 2 } m i n
whereas:
n 0 = M V 2 γ ( γ b c p ) 2 ( ω - ω 0 ) 2 + ω r 0 2
Here ωr0 and ωrk denote the relaxation frequencies of the uniform and nonuniform modes respectively. Combining Equations 35 and 36 allows one to derive a threshold field (bcp)th–2 beyond which one should enter into the spin wave instability regime, provided that some useful expression of S0,0,k,–k is available. Restricting ourselves to the magnetic dipole-dipole (dd) part of Ijms 12 08797f30, one finally obtains for a perpendicularly magnetized thin film [20]:
[ b c p ] t h - 2 ω r k [ ( ω p - ω 0 ) 2 + ω r 0 2 ] γ 2 ξ k
in which ζk is defined as:
ξ k = ξ - k = ω k + A k 4 ω k [ ω M cos 2 θ k + η e x ω M k 2 ]
It immediately appears that S0,0,k,–kdd is maximum for θk = 0: spin waves propagating along the normal to the film have therefore the lowest saturation threshold [20,39]. Clearly, one would like to raise the Suhl’s instability thresholds in order to increase the precession cone angle θ0. In practice, there are tricks to suppress the subsidiary absorption, but there is no way to remove the second-order instability [39].

2.6.2. Parallel Pumping Geometry (bp || B0)

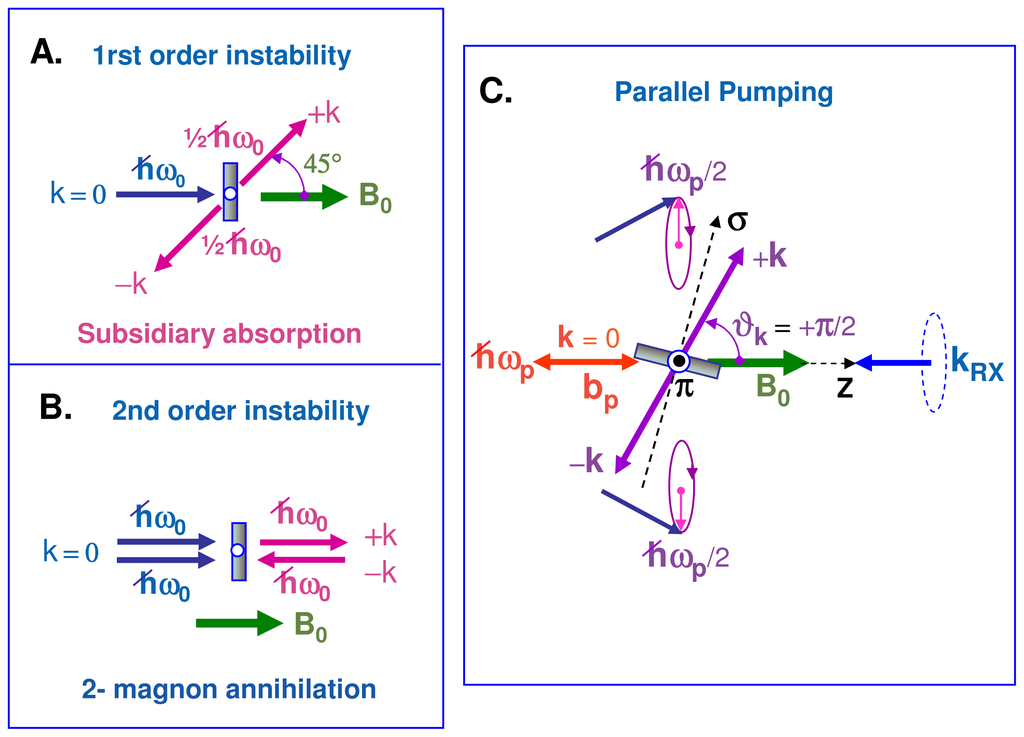

As pointed out by Schlömann [43], spin-waves can be directly excited in the parallel pumping geometry illustrated with Figure 3C if there is a non-vanishing contribution of Ijms 12 08797f27 defined in Equation 20. This requires spin waves with elliptic precession of the magnetization vector, as expected for tangentially magnetized films. The onset of this parametric process is obtained for a threshold field given by:
b z t h ω p Δ H k ω M sin 2 θ k
in which ΔHk = 2ωrk is the full linewidth of mode k. Measuring bzth is an elegant way to determine the relaxation frequency (ωrk ) of a selected mode [38]. Interestingly, nonuniform modes often exhibit much longer relaxation times than the uniform mode, i.e., ΔHk ΔH0. As far as ΔHk does not depend on k or θk, then bzth gets lower the closer θk is to π/2.
Let us emphasize that the two magnons that are simultaneously excited have the same energy (1/2ħωp) but opposite helicity. Unfortunately, the XMCD signals due to the magnetization components m(k) and m(−k) cancel out since they are out of phase: this precludes the detection of the relevant XDMR spectra in a transverse detection geometry (TRD). Nevertheless, as illustrated with Figure 3C, a weak XDMR signal may well be detected in the longitudinal detection geometry (LOD) as it will be confirmed in Section 3.5: this is because mz (like σXMCD) is a time-reversal odd observable but which remains unaffected by the helicity of the wavevectors ±k.

2.7. Instrumentation Constraints in XDMR Experiments

2.7.1. Soft-XMCD versus Hard-XMCD Probes

One has to be aware that a specific beamline design and a fairly different instrumentation are required to carry out XMCD measurements with “soft” X-rays (E < 2 keV) as opposed to “hard” X-rays (E ≥ 2 keV). Recall that soft-XMCD measurements are most often performed at the L-edges of 3d transition metals or at the M-edges of rare earths, and with some more difficulty, at the K-edge of oxygen. The wider energy range of hard X-rays (2–20 keV) makes it possible to record XMCD spectra at the K-edges of all transition metals, at the L-edges of rare-earths or 4d and 5d transition metals and at the M-edges of actinides. Unfortunately, the XMCD signal measured at K-edges of a 3d transitions metal is one or two orders of magnitude weaker than the XMCD signal measured at the corresponding L-edges with soft X-rays. This may well explain why many more attempts were made to record XDMR spectra in the soft X-ray range [5060] than in the hard X-ray range [610].
Other considerations also come into play. In magnetic materials that suffer from large conductive losses (e.g., intermetallics or metallic multilayers with large magnetoresistance), the penetration of the microwave pump field is restricted to the skin depth which hardly exceeds 1 μm. XDMR measurements will then suffer from a dramatic loss of sensitivity unless the penetration depth of the X-rays is made comparable with the skin depth. This is precisely the case with soft X-rays which are near-surface sensitive. Quite to the contrary, hard X-rays that are bulk sensitive, look more appropriate to probe insulators such as iron garnets and ferrites, or paramagnetic complexes.

2.7.2. Combining Time and Frequency Domain Signals

As a preamble, let us mention that, regarding XMCD experiments carried out with hard X-rays, we do not measure directly the absorption cross-section but rather the total X-ray fluorescence yield caused by the photoionization of the deep core level. Let us stress, however, that there is no X-ray fluorescence detector that can measure a small dichroic signal oscillating at microwave frequencies as expected in the transverse detection geometry (TRD). At the ESRF, high quality XDMR spectra were recorded in the TRD geometry using a novel heterodyne detection [8,10]. The underlying concept can be easily catched by converting into the frequency domain the time-structure of the synchrotron radiation. Typically, the excited X-ray fluorescence intensity (If (t)) consists of a series of discrete bunches, with a periodicity ΔT = 1/RF = 2.839 ns defined by the RF frequency (352.202 MHz) of the storage ring. Let us admit that all bunches have a gaussian shape with an average FWHM length of ca. 50 ps:
I f ( t ) = I f 0 n δ ( t - n Δ T ) 1 σ 2 π exp - t 2 2 σ 2
On Fourier-transforming If (t), one obtains in the frequency domain a Gaussian envelope of harmonics of the RF frequency:
H f ( F ) = I f 0 R F n δ ( F - n R F ) exp - 2 ( π σ F ) 2
One may easily check that the half-width at half maximum of the gaussian envelope: ΔF1/2 25 × RF = 8.79 GHz falls in the microwave X-band. Since the ESRF storage ring directly provides us with a microwave local oscillator at a frequency close to the XDMR pumping frequency, we found it attractive to detect their low-frequency beating signal. A further gain in sensitivity was obtained by using a super-heterodyne detection scheme which exploits a 180° bi-phase modulation technique (bpsk: “bi-phase shift keying”) [10]. Defining the XDMR pumping frequency as Fp = N × RF + IF, the superheterodyne detection consists in catching the modulation satellites at frequencies IF ± Fbpsk. Nearly all XDMR spectra recorded so far at the ESRF were measured in the X-band using as reference frequency FN = 24 × RF = 8452.856 MHz, but our equipment can still be operated with N ≤ 54 (i.e., FN = 19018.927 MHz).
The ESRF heterodyne (or superheterodyne) detection scheme falls in the group of time-average measurement methods. Arena, Bailey et al. [5055] preferred a time-resolved approach in which the pumping frequency is directly a low-order harmonics of the RF signal at the Advanced Photon Source at Argonne National Laboratory (USA). The XMCD signal is then sampled stroboscopically by the X-ray pulses. This method suits remarkably well to soft-XDMR experiments on metallic multilayers for which the pumping frequency (Fp < 4 GHz) is restricted by skin depth considerations.

3. XDMR in Ferrimagnetic Iron Garnets

3.1. Selected Samples

With excellent insulator properties and no detectable magnetic disorder, yttrium iron garnet (YIG) has played a historical role in the promotion and understanding of FMR. It has a cubic structure (space group:Ia3̄d; group N°230), each unit cell consisting of eight formula units Y3[Fe2](Fe3)O12 [61]. This formulation emphasizes the role of the tetrahedral ( Ijms 12 08797f16) and octahedral ( Ijms 12 08797f17) iron sites. Below the magnetic ordering temperature (Tc 550 K), the two Fe sublattices get magnetized antiparallel one to each other, with an unbalanced magnetization (ca. 5 μB) in favor of the tetrahedral sites. The ferrimagnetic order is caused by a strong superexchange interaction between the two iron sublattices, the rather large Fe(16a)OFe(24d) angles (126.6°) giving a clear indication that the wavefunctions of oxygen and iron have a substantial overlap. YIG is the generic term for a rich family of iron garnets in which yttrium can be substituted with rare earths in variable proportions.
In Section 3, we shall reproduce XDMR spectra collected essentially on two iron garnet films that were grown by liquid phase epitaxy on oriented gadolinium gallium garnet (GGG) substrates: 1 = Y3Fe5O12 (YIG # 520); 2 = [Y1.3La0.47Lu1.3]Fe4.84O12 (Y-La-LuIG). Note that in film 2, “diamagnetic” (1S0) rare earth cations (La3+, Lu3+) substitute for Y3+. In Section 3.4, we shall also briefly discuss XDMR spectra recorded with a thin, polished platelet of gadolinium iron garnet (GdIG) single crystal.

3.2. XDMR Spectra of a YIG Thin Film Recorded in Transverse Detection Geometry

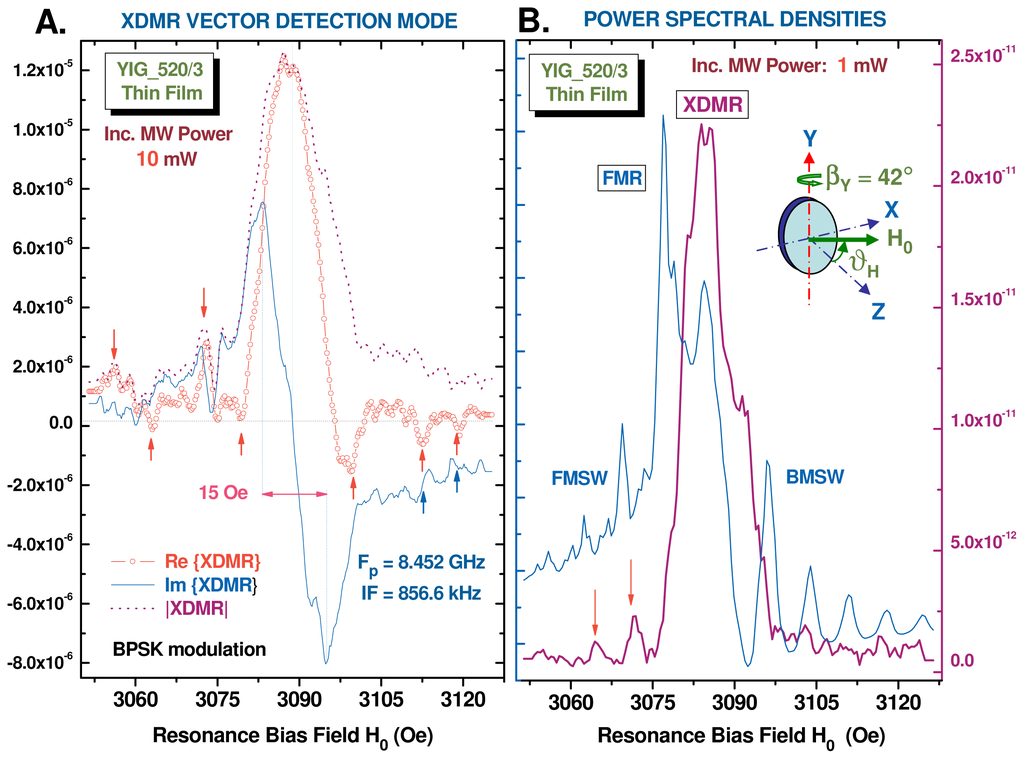

We like first to show that XDMR spectra of unprecedented quality can now be recorded in the transverse detection geometry (TRD) on YIG and related thin films, thanks to our superheterodyne detection scheme that relies on the powerful concepts of either bpsk or qpsk (bi- or quadrature phase shift keying) used in satellite telecommunications. A vector detection scheme also allows us to recover the phase information that is preserved in a TRD geometry. This is illustrated with Figure 4A in which the absorptive (χ″) and dispersive (χ′) XDMR components of film 1 can be identified with the real and imaginary parts of the vector detection scheme. A small (instrumentation dependent) phase-shift (ΔΦ 2°) was added in order to let χ′pass through zero when χ″is maximum as well as |XDMR|. In this experiment, the energy of the circularly polarized X-ray photons was tuned to the maximum of the Fe K-edge XMCD spectrum (E1 = 7113.91 eV) and the film was rotated by βY 420 in order to minimize the demagnetizing field anisotropy. We checked that the XDMR peak intensity varied linearly with the square root of the pumping power up to ca. 10 mW.
Arrows in Figure 4A point to weak satellite resonances assigned to either backward (BMSW) or forward (FMSW) magnetostatic spin waves [10]. This is a clear indication that, locally, the orbital magnetization components M() couple to non uniform magnetostatic spin waves through dipole-dipole interactions. Note that forward/backward MSW seem to have different phases. At this stage, one should realize that there is no chance to excite and detect standing waves resonances associated with magnetostatic modes unless there is a net transverse magnetization component interacting with both the microwave pump field and the circularly polarized X-rays: in the YIG thin film 1, this can be envisaged only for standing waves of rather low order and featuring an odd number of semiperiods [62]. In this respect, we already discussed elsewhere [10] the reasons which let us expect the relative amplitude of the forward/backward MSW satellites to be much weaker in XDMR than in conventional FMR spectra.
In Figure 4B, we compare the FMR and XDMR power spectral density (PSD) spectra that were recorded simultaneously under a pumping power of only 1 mW. It immediately appears that the two PSD spectra do not peak at the same resonance field whereas the intensity of the sharp BMSW modes are considerably more intense in the FMR spectrum. Also the XDMR linewidth is definitely broader. Unfortunately, by the time of these early experiments, the limited number of channels in our vector spectrum analyzer prevented us from simultaneously recording both the FMR and XDMR spectra in a fully coherent vector mode. This technical problem was recently solved but no beamtime was allocated as yet to further tests.

3.3. Element Resolved XDMR of the Y-La-LuIG Film in Longitudinal Detection Geometry

Long before we started the XDMR experiments reported below, a static XMCD study of film 2 had revealed the presence of large induced spin components 〈sz at the location of the “diamagnetic” trivalent cations La3+, Lu3+, Y3+ [33]. Technical arguments (e.g., circular polarization rates, X-ray fluorescence yields . . . ) convinced us that XDMR experiments carried out at the La L2,3-edges would be less beamtime-consuming than similar experiments at the low-energy Y L2,3-edges. Preliminary test experiments carried out on film 2 in longitudinal detection geometry (LOD) led to the rather unexpected result that, under perpendicular magnetization, the apparent precession cone angle of the orbital magnetization component M() measured at the Fe K-edge, i.e., θ0() [Fe] = 13 19°, was much larger than the apparent precession cone angle of the spin magnetization component M(s) measured at the La L2,3-edges, i.e., θ0(s) [La] = 4.7°. Even more puzzling was the large precession cone angle θ0() [Fe] measured for film 2, especially if we compare it to the opening angle (θ0() [Fe] = 7.2°) measured for the YIG film 1 under identical experimental conditions. In contrast, θ0(s) [La] was found to be slightly smaller than the cone angle measured at the Y L-edges in film 1 (i.e., θ0(s) [Y] = 5.9°).

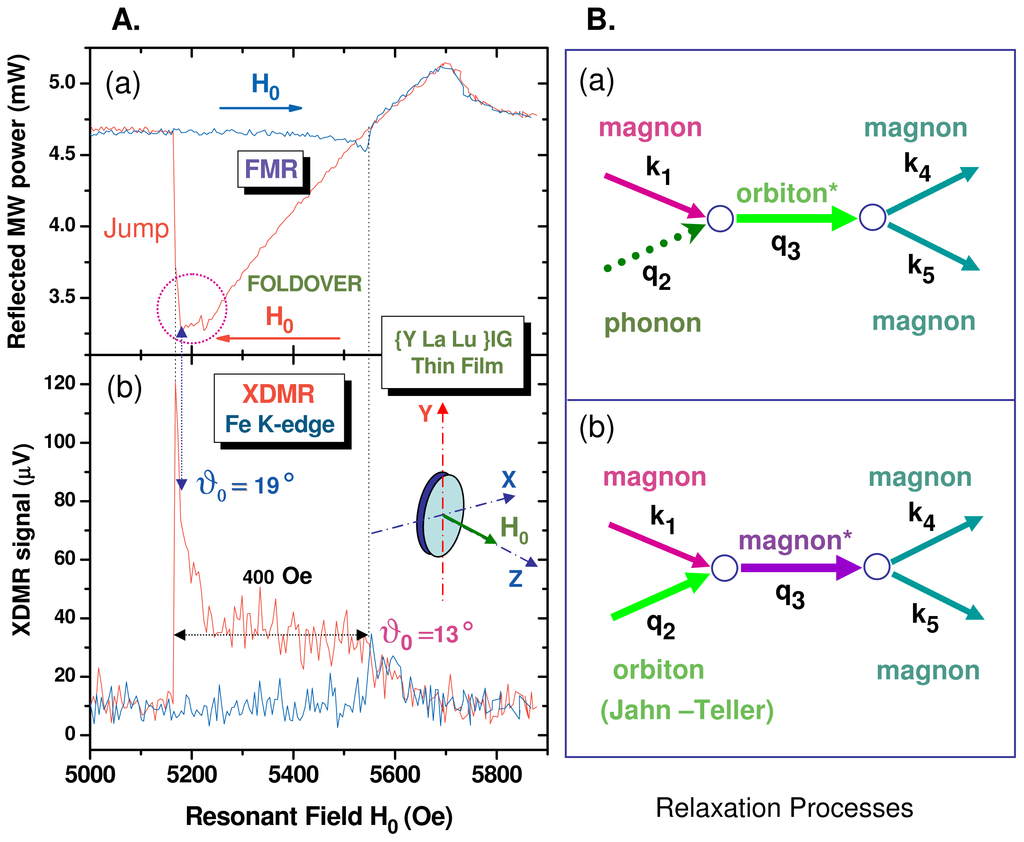

We compare in Figures 5A the XDMR and FMR PSD spectra recorded simultaneously with the Y-La-LuIG film 2 under high pumping power (630 mW). The XDMR spectrum was again recorded in the longitudinal detection geometry (kRX|| || B0). The FMR and XDMR spectra both exhibit strong foldover distortions resulting into broad lineshapes (ΔH0 400 Oe). Most intriguing to us was the very sharp increase of the XDMR signal just before the foldover jump in the downfield scan, in a range where the FMR absorption spectrum seems to saturate. Even far from the foldover jump, the precession cone angle (θ0() [Fe] 13°) is much too large to be realistic: this definitively ruled out the crude assumption that the length of the precessing moment (|M()|) was invariant and convinced us to envisage the parametric excitation of nonuniform modes.
From Equation 24, one would expect the annihilation of two uniform magnons and the creation of two degenerate magnons to shorten the length of the magnetization vector |M()| and to increase the transverse relaxation rate 1/T2. Regarding Equation 23, one would guess that the four-magnon scattering process of Figure 3B should leave Mz() unaffected since two uniform magnons are replaced by two degenerate magnons, so that the total number of magnons is left unchanged. This, however, does not hold true if the life-times of uniform and degenerate magnons are different. Schlömann [64] was the first to point out that, in the four-wave interaction process of Figure 3B, the damping rate of the spin waves (+k, −k) was artificially decreased. Typically, he introduced an effective damping rate:
ω ˜ r k = ( ω r k 2 - | S 0 , 0 , k , - k | 2 | b 0 | 4 ) 1 / 2
in which the amplitude of the uniform mode |b0|2 directly depends on the incident microwave power. Clearly, the higher the microwave power, the longer should be the lifetime of the pair of degenerate magnons. Equation 23 then predicts a rapid decrease of Mz(), i.e., a sharp raise of mz() exactly as observed in Figure 5A. We still need to understand why this effect is so spectacular with film 2 but does not show up with film 1, and why it does not affect in the same way the magnetization components probed at the iron or lanthanum sites. It is our interpretation that this has to do with a relaxation mechanism that selectively affect the orbital magnetization component 〈ℓz at the iron Ijms 12 08797f16 site in the Y-La-LuIG film. Owing to the fact that the orbital magnetization components 〈ℓz are heavily quenched at the rare earth sites [33], no significant relaxation anomaly can be detected at the La or Lu L-edges. This nicely illustrates the different nature of the relaxation mechanisms at different magnetic sites.
In the Kasuya–LeCraw process which is regarded as the dominant spin-lattice relaxation process in YIG [20,63], it is postulated that the confluent scattering of a small k degenerate magnon with a phonon q can produce an excited magnon of much higher energy: the latter may decay through a cascade of three-magnon splitting processes now allowed by energy conservation. Since the net result is an increase of the total number of magnons, Equation 23 let us expect Mz to decrease or mz to increase: of course, it would be totally erroneous to assign this effect to an (improbable) increase of the precession cone angle of the uniform mode in Figure 2. We have sketched in Figure 5B. two modified Kasuya–LeCraw mechanisms in which a cascade of two consecutive 3-boson processes may involve one orbiton either in a de-excitation process (a) or in the excitation process (b).
Mechanism (5B.b) deserves more attention in a context where valence or orbital fluctuations may cause a dynamical replacement of Fe3+ cations in either tetrahedral or octahedral sites with short living Jahn–Teller cations (Fe4+, Fe2+) that had unquenched orbital moments. Such valence fluctuations could be initiated or enhanced by the presence of small amounts of impurities (e.g., Pb2+) introduced during the growth of the film by liquid phase epitaxy. In other terms, the 6S5/2 configuration for iron may not be time-invariant. Recall that the effects induced by Fe4+, Fe2+ or other Jahn–Teller ions in doped YIG films have fed long debates that are not closed. In the case of film 2, strong perturbations stem from the large size of the La3+ cations and of the small size of the Lu3+ cations which allow lutetium to partly replace iron in the octahedral sites. The non-uniform distribution of the rare earth cations induces fluctuations in the lattice parameter, i.e., dynamical strains and stresses resulting in the excitation of magneto-elastic waves. This is supported by the much larger growth anisotropy of film 2 as compared to film 1. Nevertheless, it would be desirable to lay deeper foundations to the mechanisms of Figure 5B. In particular, we are interested in establishing the link between this mechanism and the slow longitudinal relaxation theory pioneered in the early sixties by Van Vleck and others [66,67].

3.4. Anomalous Saturation of the Fe K-Edge XDMR Spectra of GdIG

The replacement of all Y3+ ions with Gd3+ (8S7/2) in the dodecahedral (24c) sites results in a more severe perturbation than that caused by the pseudo-diamagnetic cations La3+ or Lu3+. Even though YIG and GdIG have identical crystal structures and nearly the same Curie temperatures (TC = 551–556 K), their magnetic properties are fairly different due to the contribution of the weakly coupled Gd sublattice, the Gd spins getting fully ordered only below a low ordering temperature (TB 67 K) [68]. Above TB, the Gd magnetization can be described as a temperature-dependent Brillouin function for spin 7/2 in a field proportional to the net magnetization of the strongly coupled ferric ions. The most spectacular consequence is the existence of a compensation point, i.e., a temperature (Tcp = 286 K) at which the spontaneous magnetization of GdIG passes through zero [61]. Considerable changes in the FMR spectra take place at the compensation point. One of them is the inversion of the Larmor precession helicity on passing through the compensation point [69]. This prompted us to check whether this could be seen in the Fe K-edge XDMR spectra of GdIG.

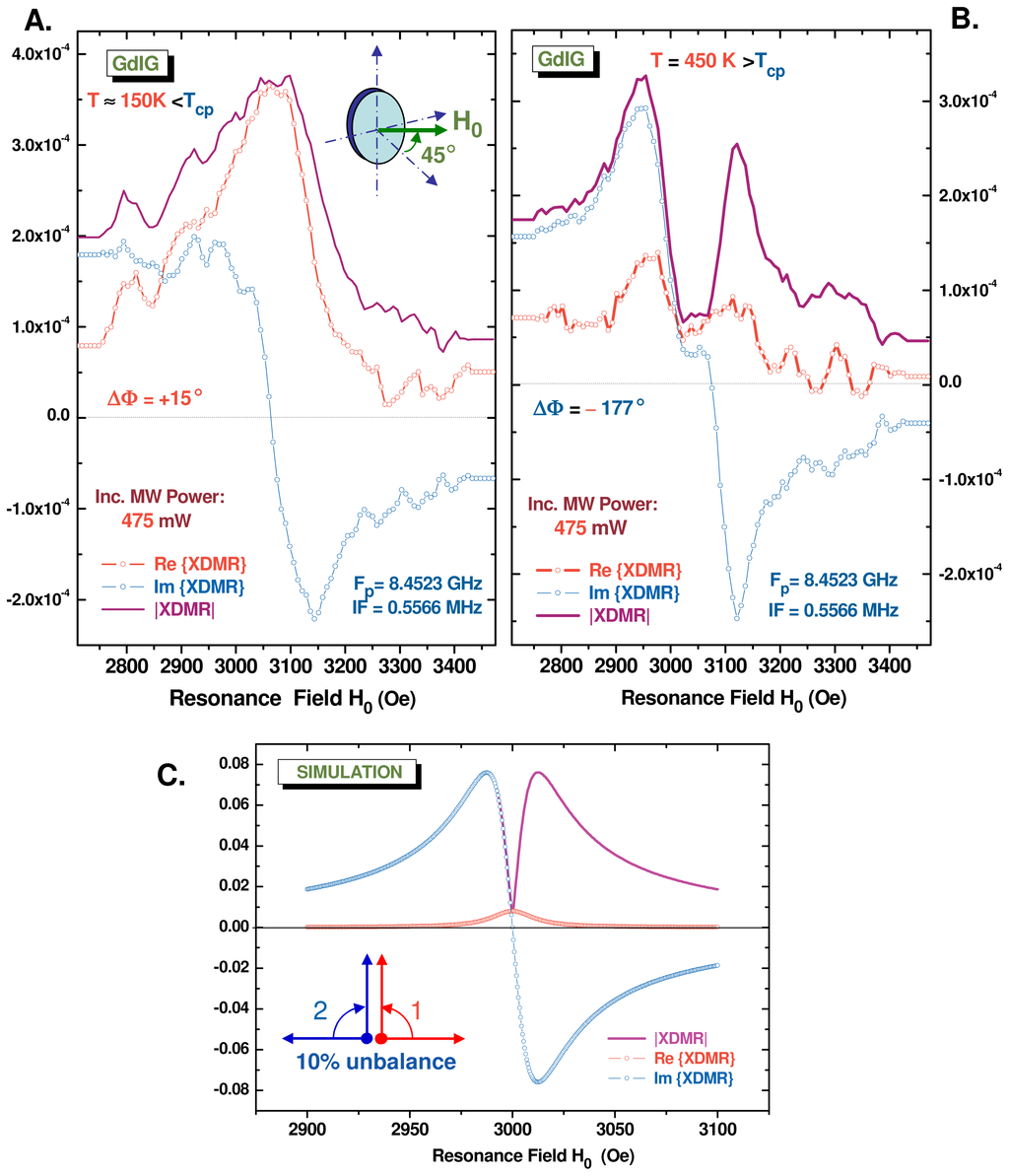

We have reproduced in Figure 6 complex vector XDMR spectra of a thin disk of GdIG cut parallel to the (110) planes. These Fe K-edge XDMR spectra were recorded in transverse detection geometry (TRD). Since the normal to the disk was rotated by 45° with respect to the direction of B0, the contribution of the uniaxial anisotropy was heavily reduced. In Figure 6A, we display the XDMR spectra measured at T ≃ 150 K, i.e., at an intermediate temperature well above the ordering temperature TB but below the compensation temperature Tcp; in Figure 6B, the XDMR spectra of the same sample were measured at T = 450 K, i.e., at a temperature now well above Tcp. We kept strictly the same microwave pumping power (475 mW) for both experiments whereas the X-ray photon energy (E1 7114 eV) was left unchanged. The phase-shifts (ΔΦ) were determined according to the same criteria: the dispersive part of XDMR spectrum had to pass through zero at resonance whereas the absorptive part had to be positive over the whole resonance spectral range. Whereas ΔΦ varies from +15° to −177°, it immediately appears that something unexpected did happen to the absorptive part which caused heavy distortions of the modulus (|XDMR|) and of the PSD spectra. In contrast, no anomaly did appear in the FMR PSD spectrum which was recorded simultaneously at T = 450 K.
For sure, the strong anomaly revealed by Figure 6B cannot be explained by a simple inversion in the precession helicity of M() at the Ijms 12 08797f16 iron sites (24d). It is our interpretation that this anomaly is typical of a destructive interference between two resonant modes precessing in opposite senses as illustrated (for example) with Figure 6C. In other terms, the polarization of the precession is getting strongly elliptical. Complementary experiments revealed that this anomaly strongly depended on the pumping power and decreased on increasing the temperature. This looks like a possible signature—in the transverse detection geometry—of a 4-magnon scattering process in which the two scattered magnons with wavevectors +k and −k had strictly opposite helicities. We suspect the destructive interference to be particularly spectacular because the linewidth of the non uniform modes (±k) should be (again) much shorter than the linewidth of the degenerate uniform mode.
As far as the proposed interpretation holds true, the clue to the present problem is in the scattering amplitude Ijms 12 08797f22 which depends mostly on dipole-dipole interactions. It is not totally clear as yet why no similar anomaly did show up below the compensation temperature, i.e., in Figure 6A. It is hard to anticipate what exact role the Gd spins play in the intermediate temperature range above the ordering temperature TB and below Tcp. Note that 57Fe spin-echo NMR spectra recorded well below TB have established that the Gd spins were coupled to the Fe spins in the tetrahedral (24d) sites, the exchange integral Jdc amounting to only 12% of the exchange integral Jad describing the strong ferrimagnetic coupling of the iron sites [70,71]. Further work is in progress in order to compare the saturation properties of low temperature XDMR spectra recorded at the Fe K-edge and at the Gd L-edges.

3.5. Non-Linear Effects Associated With Elliptical Precession

For iron garnets, the shape anisotropy is very often regarded as the main cause for elliptical precession in FMR: this is typically the case of YIG thin films when tangentially magnetized. Oblique magnetization at 45° or near the magic angle (54.74°) is a simple way to decrease the anisotropy fields and to minimize the foldover lineshape distortions at high pumping power. Nevertheless, the two experiments reported below unambiguously show that the precession still remains elliptical. It should be kept in mind, however, that the precession ellipicity is a time-reversal even observable property [7]: this implies that it can be measured only through very weak non-linear effects.

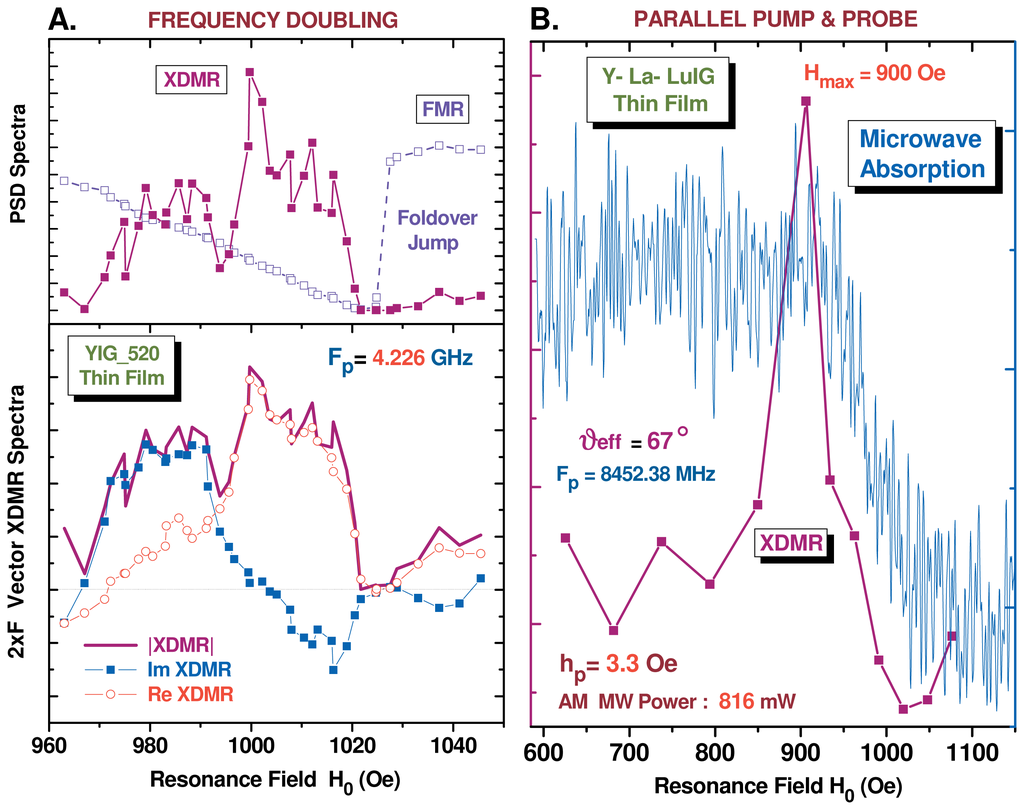

3.5.1. Second Harmonic XDMR Spectra in YIG Thin Films

Under the conditions of elliptical precession, the longitudinal component of the magnetization mz is not anymore time-invariant since there is a weak additional term that is oscillating at twice the microwave pumping frequency and which appears as a consequence of the nonlinear character of the Landau– Lifshitz–Gilbert or Bloch–Bloembergen torque Equations [20]:
m z = m z ( 0 ) + m z ( 2 ) cos ( 2 × ω p t + φ ( 2 ) )
Clearly, the detection of such a weak frequency-doubled XDMR signal was a critical test regarding the sensitivity of the superheterodyne detection scheme. It is noteworthy that some phase information can be recovered using a vector detection of the frequency doubled signal. It can be shown that mz (2) as well as mz(0) are time-reversal odd observables that can perfectly be detected by XMCD as long as the oscillating term preserves its time-even parity. This will obviously be the case if the precession helicity is inverted in order to keep 2ωt invariant.
The 2 × F vector spectra of film 1 which are reproduced in Figure 7A were recorded in pumping the sample in the microwave C-band (Fp = 4.226 GHz) and in detecting the weak XDMR signal at 2 × F = 8.452 GHz using the 24th harmonics of the RF signal of the storage ring as local oscillator reference. Superheterodyne detection turned out to be possible using a single side-band frequency translator as modulator.
With a pumping power as high as 1.25 W, the foldover lineshape of the FMR PSD spectrum was not unexpected. Rotating the film at the magic angle (θH 54.74°), however, considerably reduced the foldover linewidth (35 < ΔH < 50 Oe). Interestingly, the weak 2 × F XDMR PSD spectrum displayed in Figure 7A does not reproduce the foldover lineshape of the FMR PSD spectrum; moreover, it looks like it was peaking at a resonance field much lower than the foldover jump and closer to the resonance field found in FMR experiments carried at low pumping power. Actually, the 2 × F XDMR spectra shown in Figure 7A should not be compared with the PSD FMR spectrum but rather with the vector-type excitation spectrum obtained in measuring the radiated microwave intensity at frequency 2 × Fp. To the best of our knowledge, no such FMR excitation spectra had ever been reported. Thanks to the recent upgrade of our instrumentation, we should now be able to record simultaneously the 2 × F vector XDMR and excitation FMR spectra and to compare them.

3.5.2. XDMR under Parallel Pumping Excitation

We have reproduced in Figure 7B the XDMR PSD spectrum of film 2 recorded in the parallel pump and probe geometry (bp || B0 || kRX) illustrated with Figure 3C. In this geometry, some microwave power is absorbed due to the direct excitation of a pair of spin waves with opposite helicities +k and −k as predicted by Equation 20. Some more complication arose from the oblique pumping geometry with respect to the film. This is because the equilibrium magnetization Meq is not aligned anymore along the direction of the external bias field B0 but along the direction of some effective field Beff. A careful analysis of the angular dependence of the FMR spectra made it possible to determine the polar angle of Meq in the film coordinates: θeq 67 if θH0 = 54.74°. Thus, in addition to a large component (b||p) parallel to Beff, the microwave pump field bp contributes to a weak transverse component (bp) that simultaneously excites the uniform precession mode at frequency ωp. This explains why a standard FMR signal was systematically detected in this geometry [73].
We were primarily interested in the excitation of a pair of spin waves (±k) by the large component b||p. Equation 20 predicts a maximum intensity for spin waves propagating along a direction perpendicular to Beff. In the film coordinates, the wavevectors ±k have a component along the normal to the film (±kσ) as well as a component in-plane (±kπ). In an infinite thin film, the π-components refer to progressive waves, whereas resonant standing waves develop along the normal to the film. In favorable cases, e.g., for high quality YIG films, one may detect a rich pattern of discrete standing wave resonances at pumping levels that exceed the threshold field defined by Equation 38 of Section 2.5. Unfortunately, this was not the case for the Y-La-LuIG film 2 for which we observed at low resonance field only a fairly broad absorption band that is reproduced in Figure 7B. It is quite noteworthy that the XDMR PSD spectrum recorded in longitudinal detection geometry (LOD) does not reproduce such a broad band commonly assigned to exchange spin wave resonances: there is a significant signal only at the onset of what is given as the exchange magnon band, i.e., for k ≃ 0. In other terms, this experiment seems to indicate that, at the iron sites, the orbital magnetization component M() measured at the Fe K-edge does not couple to exchange spin waves, at least to those featuring a large wavevector k. Further work should tell us how far this conclusion can be granted as general, and whether there is any link between this observation and the well known property of the exchange Hamiltonian to commute with either Mz or mz.

4. New Challenges for XDMR

So-far, we discussed XDMR spectra recorded only on ferrimagnetic films or crystals. In collaboration with the research center for the development of the far infrared region (University of Fukui, Japan), we are presently testing at the ESRF the feasibility of high-field XDMR experiments at sub-THz pumping frequencies [74,75]. Our ultimate goal is to evaluate whether high-field X-ray detected Electron Paramagnetic Resonance (EPR) spectra could be successfully recorded in longitudinal detection geometry (LOD). On the other hand, it will be shown below that high-field XDMR could also become a unique tool to study orbital magnetism in AFM phases.

4.1. High-Field, X-Ray Detected Electron Paramagnetic Resonance

At the ESRF, quite a few proposals were concerned with static XMCD studies on paramagnetic organometallic complexes. In practice, such experiments require low temperatures (T ≤ 20 K) and a high magnetic field (B0 5 T). We have reproduced in Figure 8A the cobalt K-edge X-ray Absorption Near Edge (XANES) and XMCD spectra of a powdered pellet of the meso-(5,10,15,20)-tetraphenylporphyrinato-Co(II) complex 3 = TPP:Co; we have also reproduced in Figure 8B the rhenium L-edges XANES and XMCD spectra of a cyanometalate complex of Re(IV) (4 = [Re(CN)7](Bu4N)3). Recall that 4 is a building block for the chemical synthesis of heterobinuclear molecular magnets [76] or chemically switchable molecular magnet [77].
Interestingly, the XMCD spectra of complexes 3 and 4 are dominated by a strong contribution of the orbital magnetization component 〈z〉 in the X-ray excited final states. Since the integral of the XMCD signal reproduced in Figure 8A does not average out to zero, the magneto-optical sum rules let us anticipate the presence of a significant amount of unquenched orbital moment 〈Lz〉 located at the cobalt sites. This is consistent with the commonly admitted electronic structure of 3 in which there is a close lying (orbital) triplet 4T1 slightly above the Kramer’s ground state 4A2. The existence of a weak orbital moment is also supported by the rather large anisotropy of the EPR spectra: Δg2 = g||2g||2 −7.8 [78]. This is at variance with the case of vanadyl porphyrin complexes since the XMCD signals measured at the V K-edge were dramatically weak and close to the instrumental detection limit although the corresponding XANES spectra did show quite strong pre-edge structures [79]. This may look puzzling given that the EPR spectra of vanadyl complexes are known to be very intense and exhibit fairly narrow lines with well resolved hyperfine structures due to the 51V7/2 nuclei. Actually, the very weak anisotropy of the EPR spectra (Δg2 −0.098) provides us with a clear indication that the orbital moment are heavily quenched in these compounds. Moreover, the weakness of the XMCD signal at the V K-edge could also reflect a major delocalization of the unpaired electron far away from the vanadium site.
It immediately appears from Figure 8B that the XMCD signatures measurement at the Re L2,3 edges are considerably more intense than in the previous case. Moreover, the XMCD spectra displayed in Figure 8B are fairly unusual since the XMCD signal keeps the same sign at the L2,3-edges: according to the magneto-optical sum rules, this is a typical signature of a large orbital moment 〈Lz〉 = 0.11 μB. This is also fully consistent with the strong anisotropy of the EPR spectra (Δg2 11) [76]. Much more surprising was the very weak effective spin contribution with 〈Sz〉 − 7/2〈Tz≃ ±5.10−4 μB. Quite the opposite situation was found when we measured the gadolinium L-edges XMCD spectra of cofacial porphyrinato-Gd(III) complexes in which no significant orbital moment was detected [79].
Unfortunately, the XDMR spectra of the paramagnetic complexes 3 and 4 cannot be recorded in the microwave X-band because the sensitivity of the XMCD probe is very poor at low bias field. A better option would be to record high-field XDMR spectra pumped at sub-THz frequencies. Even under such conditions, the Co K-edge XDMR signal may still be very weak. Nevertheless, one should not regard such a challenging experiment as hopeless because much larger precession cone angles could a priori be achieved in EPR: recall that pulsed EPR spectrometers require the magnetization to be rotated by 90° or even 180° in the rotating frame [8083]. There is, unfortunately, a major difference with standard EPR which is that XDMR spectra will have to be recorded on pure or highly concentrated samples. Under such conditions, the X-ray detected electron paramagnetic resonance lines are expected to be very broad because the exchange narrowing effect should be considerably weaker than in FMR [84,85]. From a technical point of view, there is also the further handicap that the superheterodyne detection scheme discussed in Section 2.6 cannot be extended beyond Fp = 20 GHz: this implies that, as yet, X-ray detected EPR spectra could be recorded at sub-THz frequencies only in the longitudinal detection geometry (LOD) which suffers from a very poor sensitivity. This point justifies the need for a powerful pumping source such as a gyrotron [74,75].
What stimulates us to invest time and efforts in this challenging project is the hope that high-field X-ray detected EPR experiments should allow us to probe the precession dynamics of orbital magnetization components in paramagnetic species with a significant zero-field splitting (zfs), e.g., high spin complexes with integer spin that are EPR-silent at microwave pumping frequencies. Many examples can be found in a long list of Mn(III) complexes [86], e.g., porphyrinato-Mn(III) complexes for which preliminary XMCD measurements at the Mn K-edge already confirmed the existence of unquenched orbital moments. Keeping in mind that zfs is caused by spin-orbit interactions, there should be a correlation between a large zfs and the magnitude of M() in the X-ray excited final states. In other terms, spin-orbit is responsible for both the large zfs of Re(IV) complexes and the large contribution of 〈Lz〉 and 〈z〉 in XMCD. Complexes involving 5d transition metal elements would thus appear as excellent candidates to demonstrate the precession of orbital components in X-ray detected EPR.
The intriguing case of the Van Vleck paramagnetism still deserves a few comments here: it can be best observed when the angular momentum J vanishes whereas L, S ≠ 0. If the ground state is singlet, the first order perturbation due to the Zeeman interaction vanishes but the second order term yields the Van Vleck susceptibility that becomes temperature independent at low temperatures (T < 20 K):
χ V V = 2 μ B 2 ( N / V ) n 0 0 | L z + g S z | n n | L z + g S z | 0 E n - E 0
Whereas Curie’s paramagnetism reflects the alignment of permanent moments, Van Vleck’s paramagnetism refers to an electronic polarizability associated with induced moments. So far, van Vleck’s paramagnetism was observed mostly in crystals containing non-Kramers RE ions that (again) have an integer spin and a large zfs. What is required from the crystal field is to split the atomic ground multiplet so as to produce a singlet ground state. A typical example is Eu3+ with its ground state 7F0 separated from the first excited state by ca. 300–400 cm−1 and for which a slow longitudinal relaxation process was proposed by Van Vleck [67]. In NMR, there is also much interest in the Van Vleck paramagnetism of thulium crystals which had an exceptional potentiality regarding dynamic nuclear polarization (DNP-NMR) of 169Tm. One of the best characterized crystals is thulium ethylsulphate, i.e., TmES = Tm(C2H5SO4)3.9H20 for which high-field EPR spectra have been reported at 1.2 K [87]. For the latter experiments, TmES was diluted in a diamagnetic crystal (LaES), the pumping frequency being as high as 1–1.5 THz. Unfortunately, we have not yet the technical capability to manage XDMR experiments under high pumping power at 1 THz while maintaining the sample temperature below 10 K.

4.2. High-Field XDMR in the AFMR Regime

Since no static XMCD signal can be measured on AFM materials with antiparallel ground states, it is tempting to conclude that there is no hope to detect any XDMR signal as well. The situation may not be as desperate if one looks at what happens under the conditions of antiferromagnetic resonance (AFMR). For simplicity, let us consider a crystal with two AFM ordered sublattices and uniaxial magnetic anisotropy directed along the c axis. As long as the antiparallel ground state is preserved, the combined action of a parallel bias field (B0 || c) and a perpendicular pumping field (bpc) will excite two precession modes illustrated with Figures 9A,B and which satisfy the resonance condition:
ω ± γ [ 2 B E · B A + B A 2 ] 1 / 2 ± B 0 = B C 2 ± B 0
in which BE = |BE1 | = |BE2 | is the modulus of the exchange fields of the coupled sublattices (1, 2), whereas BA = |BA1 | = |BA2 | similarly refers to the length of the corresponding anisotropy fields. Recall that Equation 44 is correct only at low temperatures (T ≪ TN) and neglects all nonlinear terms. Further corrections taking into account the Van Vleck paramagnetism are possible when the temperature dependent susceptibility ratio χ|| is predetermined [88].
Anyhow, two distinct precession modes (ω+; ω ) are excited which have the opposite helicity. Moreover, due to the existence of the anisotropy field (BA = BA1,2 ), the precession cone angles θ1 and θ2 are no longer identical for the two magnetization components M1 and M2. In the transverse detection geometry (TRD) illustrated with Figure 9, one should then measure a difference XDMR signal proportional to Δm±= m1±+ m2± and which should oscillate at the resonant frequencies ω+ or ω with the following lineshape [20]:
Δ m ± = m 1 ± + m 2 ± 2 γ 2 B A ( ω + - ω ) ( ω - - ω ) + 21 α G ω B E b c p ( ± )
in which bcp(±) is the relevant circularly polarized component of the pump field, αG being again a dimensionless (Gilbert) damping parameter. There is, however, the considerable handicap that the zero-field resonance frequency, i.e., ωC = γBC2 is most often expected to be in the sub-THz, if not in the far-infrared range because the exchange fields (BE1, BE2) are much stronger than the external bias field. Recall that there is, as yet, no X-ray detector that can measure a signal oscillating at sub-THz frequencies, our superheterodyne detection scheme being restricted to Fp 20 GHz. This is where high-field XDMR could circumvent this difficulty, assuming that the external field B0 can be strong enough to shift the resonance frequency ω down to the microwave range. Notice that, at the ESRF, the static bias field applied at the sample location could now be increased up to 17 T.
When the external field B0 approaches the critical field BC1 = [2BEBABA2 ]1/2 < BC2, the magnetic system undergoes a first order transition (spin-flop) resulting in the new situation sketched in Figure 9C and which is characterized by a noncollinear ground state [88]. It is well documented that, in the spin-flop phase, a new resonance mode associated with the total magnetization M = M1 +M2 will be pumped:
ω | | γ [ 2 B E B E B | | 2 B 0 2 - 2 B E · B A ] 1 / 2
in which: BE||= 2BEBA and BE⊥= 2BE + BA, so-that BC1 = [BABE||]1/2 and BC2 = [BABE]1/2. For completeness, it should be mentioned that there exists also a soft mode (ω → 0) but the latter will be undetectable by XDMR since it cannot be excited by the external pump field [20].
Given that the precession cone angles θ1 and θ2 are different, one may question whether a (very weak) XDMR signal could be measured as well in the longitudinal detection geometry (LOD), i.e., in a regime where non-linear terms would no longer be neglected. Since no fast detector is needed in LOD geometry, this option could still be envisaged when BC2 is very large, i.e., when too large magnetic fields would be required to shift ω down into the microwave X-band. Unfortunately, one expects the XDMR signal measured in LOD geometry to be much smaller than in FMR because Δmz± [tan θ0]2 × (BC/BE)2, in which BC/BE does not exceed, at best, a few percents. This would bring us very close to (or below) the detection limit.
For XDMR experiments, it may be preferable to select AFM crystals in which the exchange field BE is not too strong, i.e crystals with a rather low Néel temperature (e.g., TN < 77 K). Regarding AFMR, MnF2 (TN = 68 K) is a good example given that a very narrow linewidth (ΔB = 5 G) was measured at T = 4 K for the uniform precession mode (ω ) excited by a microwave pump field (Fp = 23 GHz) in a bias field B0 8.5 T [89] so that magnetostatic satellite resonances could be perfectly resolved. Narrow AFMR lines (ΔB = 15 G) were also obtained with epitaxial films grown on MgF2 substrates [90]. Note that the AFMR linewidth rapidly increases in the sub-THz range since the damping term in Equation 45 is ∝ ωBE. Unfortunately, MnF2 may not be the ideal candidate for Mn K-edge XDMR experiments due to the vanishing orbital moment 〈Lz》 of Mn2+ ions in a high spin (6S) state. Recall, however, that 〈z〉 may still be finite in excited states even though 〈Lz〉 vanishes in the ground state. There is the further handicap that, in an octahedral crystal field with 6A1g ground term, only electric quadrupole (E2) transitions contribute to the pre-edge structures assigned to final states involving magnetic 3d orbitals.
The case of KCuF3 (TN = 39 K) looks more attractive owing to the fact that this crystal is the archetype of orbitally ordered systems [91]. In this crystal, the AFM spin order has an easy plane of anisotropy with its normal parallel to the c axis. On the other hand, careful studies of the angular dependence of the EPR spectra of KCuF3 in the paramagnetic phase revealed the existence of a strong contribution of the Dzyaloshinskii–Moriya antisymmetric exchange interaction:
k > j d j k · ( S j × S k )
with djkc [92]. Moriya established that such an antisymmetric exchange interaction could be identified with a second order perturbation which was bilinear in the spin-orbit coupling and exchange interaction [93]. Then, the coupling field djk could be expressed in terms of transition orbital moments:
d j k λ · J j Δ E j g j | L j | e j - λ · J k Δ E k g k | L k | e k
in which λ denotes the spin-orbit coupling factor, ΔEj(k) are the energy separations between the ground state orbital levels gj(k) and the relevant excited states ej(k), Jj(k) being the effective superexchange constants at sites j and k respectively. Clearly, the coupling field vanishes if the two sites transform into each other by inversion symmetry. It is well documented that a large antisymmetric exchange interaction can cause a small canting effect of the AFM-ordered magnetization vectors resulting in a weak ferromagnetism [39]. Typically, for B0c, KCuF3 should behave just like a weak ferromagnet satisfying the resonance condition [20]:
ω = γ B 0 [ 1 + B A / B E ] 1 / 2
Under such conditions, one may reasonably expect a (weak) XDMR signal to be detectable at low temperature in TRD geometry.
Among transition metal oxides for which the low frequency mode ω could be excited at microwave frequencies, single crystals of ilmenites ( Ijms 12 08797f23TiO3, with Ijms 12 08797f23 = Fe,Co) could also be good candidates for XDMR: they had rather low Néel temperatures [88,94] and significant orbital moments 〈Lz〉 at the sites of the Jahn–Teller cations [95]. With a much higher exchange field combined to a low anisotropy field [88,96], the case of Cr2O3 (TN = 308 K) looks less favorable even though we already produced definitive evidence of orbital magnetism in this crystal, at least in its magnetoelectric phase [97]. Although the spin-flop critical field of Cr2O3 is rather low (BC1 5.9 T), it cannot be taken yet for granted that Δm(±)will be large enough to yield a XDMR signal easily detectable at microwave pumping frequencies.
Still very little is known regarding AFMR in crystals involving 5d transition elements and for which much stronger XDMR signals could be expected at L-edges. Unfortunately, neither single crystals nor epitaxial films of K2ReBr6 (TN = 15 K [39]) or ReO2 are easily available.

5. Conclusions

XDMR is a novel spectroscopy which is still in an early stage of development often dominated by severe instrumentation problems. In this review, we tried to convince the reader that XDMR could develop as a unique tool to study dynamical aspects of orbital magnetism including collective excitations. For the first time, direct experimental evidence was produced of the forced, elliptical precession of orbital magnetization components M(). There is no doubt left that locally, M()can couple to magnetostatic spin waves through dipole-dipole interactions but there is no experimental result which would definitively prove that M()could similarly couple to exchange spin-waves. On the other hand, we pointed out strong anomalies in the XDMR spectra which support our view that orbitons may contribute to new relaxation mechanisms. Several important questions were left aside, e.g., the question to know whether, locally, the spin and orbital magnetization components M(s) and M()do precess in or out of phase and possibly around different effective axes. Also the whole problem of the magnetoelastic waves resulting from the modulation of the spin-orbit interactions by the lattice phonons will be discussed elsewhere. Nevertheless, in Section 4, we tried to anticipate over the emergence of XDMR as a parallel method to study orbital magnetism in paramagnetic as well as in antiferromagnetic phases.

Acknowledgements

The authors greatly acknowledge the valuable collaboration of Toshitaka Idehara and Isamu Ogawa (University of Fukui, Japan) in installing and operating a powerful gyroton source temporarily used at the ESRF for test XDMR experiments in the sub-THz frequency range.

References

  1. Thole, B.T.; Carra, P.; Sette, F.; van der Laan, G. X-ray circular dichroism as a probe of orbital magnetization. Phys. Rev. Lett 1992, 68, 1943–1946. [Google Scholar]
  2. Carra, P.; Thole, B.T.; Altarelli, M.; Wang, X. X-ray circular dichroism and local magnetic fields. Phys. Rev. Lett 1993, 70, 694–697. [Google Scholar]
  3. Carra, P.; König, H.; Thole, B.T.; Altarelli, M. Magnetic X-ray X-ray dichroism. Physica B 1993, 192, 182–190. [Google Scholar]
  4. Goulon, J.; Rogalev, A.; Gauthier, Ch.; Goulon-Ginet, Ch.; Pasté, S.; Signorato, R.; Neumann, R.; Varga, L.; Malgrange, C. Instrumentation developments for X-ray linear and circular dichroism at the ESRF beamline ID12A. J. Synchrotron Radiat. 1998, 5, 232–238. [Google Scholar]
  5. Rogalev, A.; Goulon, J.; Goulon-Ginet, Ch.; Malgrange, C. Instrumentation Developments for Polarization Dependent X-Ray Spectroscopies at The ESRF Beamline ID12. In Magnetism and Synchrotron Radiation Approach; Beaurepaire, E., Scheurer, F., Krill, G., Kappler, J.-P., Eds.; Springer-Verlag: Berlin, Heidelberg, Germany, 2001; Volume 565, pp. 60–86. [Google Scholar]
  6. Goulon, J.; Rogalev, A.; Wilhelm, F.; Jaouen, N.; Goulon-Ginet, Ch.; Goujon, G.; Ben Youssef, J.; Indenbom, M.V. X-ray detected magnetic resonance at the Fe K-edge in YIG: Forced precession of orbital magnetization components. JETP Lett. 2005, 82, 791–796. [Google Scholar]
  7. Goulon, J.; Rogalev, A.; Wilhelm, F.; Jaouen, N.; Goulon-Ginet, Ch.; Brouder, Ch. X-ray detected ferromagnetic resonance in thin films. Eur. Phys. J. B 2006, 53, 169–184. [Google Scholar]
  8. Goulon, J.; Rogalev, A.; Wilhelm, F.; Goulon-Ginet, Ch.; Goujon, G. Element-selective X-ray detected magnetic resonance: A novel application of synchrotron radiation. J. Synchrotron Radiat. 2007, 14, 257–271. [Google Scholar]
  9. Goulon, J.; Rogalev, A.; Wilhelm, F.; Goujon, G. X-Ray Detected Magnetic Resonance. In Magnetism and Synchrotron Radiation; Beaurepaire, E., Bulou, H., Scheurer, F., Kappler, J.-P., Eds.; Springer Verlag: Berlin, Heidelberg, Germany, 2010; pp. 191–222. [Google Scholar]
  10. Goulon, J.; Rogalev, A.; Wilhelm, F.; Goujon, G.; Brouder, Ch.; Yaresko, A.; Ben Youssef, J.; Indenbom, M.V. X-ray detected magnetic resonance of YIG thin films in the non-linear regime of spin waves. J. Magn. Magn. Mater. 2010, 322, 2308–2329. [Google Scholar]
  11. Kittel, C. On the gyromagnetic ratio and spectroscopic splitting factor of ferromagnetic substances. Phys. Rev 1949, 76, 743–748. [Google Scholar]
  12. Blume, M.; Geschwind, G.; Yafet, A. Generalized kittel-van vleck relation between g and g′: Validity for negative g factors. Phys. Rev 1969, 181, 478–487. [Google Scholar]
  13. Van Vleck, J.H. Concerning the theory of ferromagnetic resonance absorption. Phys. Rev 1950, 78, 266–330. [Google Scholar]
  14. Van Kranendonk, J.; Van Vleck, J.H. Spin waves. Rev. Mod. Phys 1958, 30, 1–23. [Google Scholar]
  15. Kanamori, J. Anisotropy and Magnetostriction of Ferromagnetic and Antiferromagnetic Materials. In Magnetism; Suhl, H., Rado, G.T., Eds.; Academic Press Inc: New York NY, USA, 1963; Volume 1, Chapter 4; pp. 127–203. [Google Scholar]
  16. Stevens, K.W.H. Spin Hamiltonians. In Magnetism; Suhl, H., Rado, G.T., Eds.; Academic Press Inc: New York NY, USA, 1963; Volume 1, Chapter 1; pp. 1–23. [Google Scholar]
  17. Abragam, A.; Bleaney, B. Electron Paramagnetic Resonance of Transition Ions; Oxford University Press: Oxford, UK, 1970. [Google Scholar]
  18. Pryce, M.H.L. Sign of g in magnetic resonance, and the sign of the quadrupole moment of 237Np. Phys. Rev. Lett 1959, 3, 375–376. [Google Scholar]
  19. Elliott, R.J.; Thorpe, M.F. Orbital effects on exchange interactions. J. Appl. Phys 1968, 39, 802–807. [Google Scholar]
  20. Gurevich, A.G.; Melkov, G.A. Magnetization Oscillations and Waves; CRC Press Inc: Boca Raton, FL USA, 1996. [Google Scholar]
  21. Mozhegorov, A.A.; Larin, A.V.; Nikiforov, A.E.; Gontchar, L.E.; Efremov, A.V. Theory of magnetic resonance as an orbital state probe. Phys. Rev. B 2009, 79, 054418:1–054418:8. [Google Scholar]
  22. Anderson, P.W. Exchange in Insulators: Superexchange, Direct Exchange and Double Exchange. In Magnetism; Suhl, H., Rado, G.T., Eds.; Academic Press Inc: New York NY, USA, 1963; Volume 1, Chapter 2; pp. 25–83. [Google Scholar]
  23. Kugel’, K.I.; Khomskii, D.I. The Jahn-Teller effect in magnetism: Transition metal compounds. Sov. Phys. Uspekhi 1982, 25, 231–256. [Google Scholar]
  24. Cyrot, M.; Lyon-Caen, C. Orbital superlattice in the degenerate Hubbard model. J. Phys 1975, 36, 253–266. [Google Scholar]
  25. Khaliullin, G. Quantum effects in Orbitally Degenerate Systems. In Physics of Transition Metal Oxides; Cardona, M., Fulde, P., von Klitzing, K., Merlin, R., Queisser, H.-J., Störmer, H., Eds.; Springer Verlag: Berlin, Heidelberg, Germany, 2004; Volume 144, Chapter 7; pp. 261–308. [Google Scholar]
  26. Rogalev, A.; Wilhelm, F.; Jaouen, N.; Goulon, J.; Kappler, J.-P. X-ray Magnetic Circular Dichroism: Historical Perspective and Recent Highlights. In Magnetism: A Synchrotron Radiation Approach; Beaurepaire, E., Bulou, H., Scheurer, F., Kappler, J.-P., Eds.; Springer-Verlag: Berlin, Heidelberg, Germany, 2006; pp. 71–94. [Google Scholar]
  27. Strange, P. Magnetic absorption and sumrules in itinerant magnets. J. Phys. Condens. Matter 1994, 6, L491–L495. [Google Scholar]
  28. Guo, G.Y. What does the K-edge X-ray magnetic circular dichroism spectrum tell us? J. Phys. Condens. Matter 1996, 8, L747–L752. [Google Scholar]
  29. Ebert, H.; Popescu, V.; Ahlers, D. Fully relativistic theory for magnetic EXAFS: Formalism and applications. Phys. Rev. B 1999, 60, 7156–7165. [Google Scholar]
  30. Stöhr, J.; König, H. Determination of spin- and orbital-moment anisotropies in transition metals by angle-dependent X-ray magnetic circular dichroism. Phys. Rev. Lett 1995, 75, 3748–3751. [Google Scholar]
  31. Van der Laan, G. Microscopic origin of magnetocrystalline anisotropy in transition metal thin films. J. Phys. Condens. Matter 1998, 10, 3239–3253. [Google Scholar]
  32. Yaresko, A.N.; Perlov, A.; Antonov, V.; Harmon, B. Band-Structure Theory of Dichroism. In Magnetism: A Synchrotron Radiation Approach; Beaurepaire, E., Bulou, H., Scheurer, F., Kappler, J.-P., Eds.; Springer-Verlag: Berlin, Heidelberg, Germany, 2006; Volume 697, pp. 121–141. [Google Scholar]
  33. Rogalev, A.; Goulon, J.; Wilhelm, F.; Brouder, Ch.; Yaresko, A.; Ben Youssef, J.; Indenbom, M.V. Element selective X-ray magnetic circular and linear dichroisms in ferrimagnetic yttrium iron garnet films. J. Magn. Magn. Mater. 2009, 321, 3945–3962. [Google Scholar]
  34. Stancil, D.D. Theory of Magnetostatic Waves; Springer-Verlag: Berlin, Heidelberg, Germany, 1993; pp. 1–173. [Google Scholar]
  35. Nazarov, A.V.; Patton, C.E.; Cox, R.G.; Chen, L.; Kabos, P. General spin wave instability theory for anisotropic ferromagnetic insulators at high microwave power levels. J. Magn. Magn. Mater 2002, 248, 164–180. [Google Scholar]
  36. Jander, A.; Moreland, J.; Kabos, P. Angular momentum and energy transferred through ferromagnetic resonance. Appl. Phys. Lett 2001, 78, 2348–2350. [Google Scholar]
  37. Holstein, T.; Primakoff, H. Field dependence of the intrinsic domain magnetization of a ferromagnet. Phys. Rev 1940, 58, 1098–1113. [Google Scholar]
  38. Sparks, M. Ferromagnetic Relaxation Theory; McGraw-Hill: New York NY, USA, 1964; pp. 1–227. [Google Scholar]
  39. Keffer, F. Spin Waves. In Handbuch der Physik; Springer-Verlag: Berlin, Heidelberg, Germany, 1966; Volume XVIII, pp. 1–268. [Google Scholar]
  40. Akhiezer, A.I.; Baryakthar, V.G.; Peletminskii, S.V. Doniach, S., Ed.; North Holland Publ. Co.: Amsterdam, The Netherlands, 1968; Volume 1, pp. 1–369.
  41. Cottam, M.G.; Slavin, A.N. Fundamentals of Linear and Nonlinear Spin Wave Processes in Bulk and Finite Magnetic Samples. In Linear and Nonlinear Spin Waves in Magnetic Films and Superlattices; Cottam, M.G., Ed.; World Scientific Publ. Co. Pte. Ltd.: Singapore, 1994; Volume Chapter 1, pp. 1–88. [Google Scholar]
  42. Timm, C. Theory of Magnetism; Lecture at the International Max Planck Research School for Dynamical Processes in Atoms, Molecules and Solids; April 2011; pp. 1–93. [Google Scholar]
  43. Schlömann, E. Longitudinal susceptibility of ferromagnets in strong rf fields. J. Appl. Phys 1962, 33, 527–537. [Google Scholar]
  44. Suhl, H. The theory of ferromagnetic resonance at high signal power. J. Phys. Chem. Solids 1957, 1, 209–227. [Google Scholar]
  45. Suhl, H. Note on the saturation of the main resonance in ferromagnetics. J. Appl. Phys 1959, 30, 1961–1964. [Google Scholar]
  46. Suhl, H. “Foldover” effects caused by spin wave interactions in ferromagnetic resonance. J. Appl. Phys 1960, 31, 935–936. [Google Scholar]
  47. Suhl, H. Restoration of stability in ferromagnetic resonance. Phys.Rev. Lett 1961, 6, 174–176. [Google Scholar]
  48. Damon, R.W. Ferromagnetic Resonance at High Power. In Magnetism; Suhl, H., Rado, G.T., Eds.; Academic Press Inc: New York, NY, USA, 1963; Volume 1, Chapter 11; pp. 551–620. [Google Scholar]
  49. Haas, C.W.; Callen, H.B. Ferromagnetic Relaxation and Resonance Line Widths. In Magnetism; Suhl, H., Rado, G.T., Eds.; Academic Press Inc: New York, NY, USA, 1963; Volume 1, Chapter 10; pp. 449–549. [Google Scholar]
  50. Bailey, W.E.; Cheng, L.; Keavney, D.J.; Kao, C.-C.; Vescovo, E.; Arena, D.A. Precessional dynamics of elemental moments in a ferromagnetic alloy. Phys. Rev. B 2004, 70, 172403:1–172403:4. [Google Scholar]
  51. Arena, D.A.; Vescovo, E.; Kao, C.-C.; Guan, Y.; Bailey, W.E. Weakly coupled motion of individual layers in ferromagnetic resonance. Phys. Rev. B 2006, 74, 064409:1–064409:7. [Google Scholar]
  52. Guan, Y.; Bailey, W.E.; Kao, C.-C.; Vescovo, E.; Arena, D.A. Comparison of time-resolved X-ray magnetic circular dichroism measurements in reflection and transmission for layer specific precessional dynamics measurements. J. Appl. Phys 2006, 99, 08J305:1–08J305:3. [Google Scholar]
  53. Arena, D.A.; Vescovo, E.; Kao, C.-C.; Guan, Y.; Bailey, W.E. Combined time-resolved X-ray magnetic circular dichroism and ferromagnetic resonance studies of magnetic alloys and multilayers. J. Appl. Phys 2007, 101, 09C109:1–09C109:6. [Google Scholar]
  54. Guan, Y.; Bailey, W.E.; Vescovo, E.; Kao, C.-C.; Arena, D.A. Phase and Amplitude of element-specific moment precession in Ni81Fe19. J. Mag. Magn. Mater 2007, 312, 374–378. [Google Scholar]
  55. Arena, D.A.; Ding, Y.; Vescovo, E.; Zohar, S.; Guan, Y.; Bailey, W.E. A compact apparatus for studies of element and phase-resolved ferromagnetic resonance. Rev. Sci. Instrum 2009, 80, 083903:1–083903:7. [Google Scholar]
  56. Boero, G.; Rusponi, S.; Bencock, P.; Popovic, R.S.; Brune, H.; Gambardella, P. X-ray ferromagnetic resonance spectroscopy. Appl. Phys. Lett 2005, 87, 152503:1–152503:3. [Google Scholar]
  57. Boero, G.; Mouaziz, S.; Rusponi, S.; Bencok, P.; Nolting, S.; Stepanow, S.; Gambardella, P. Element-resolved X-ray ferrimagnetic and ferromagnetic resonance spectroscopy. New J. Phys 2008, 10, 013011:1–013011:16. [Google Scholar]
  58. Boero, G.; Rusponi, S.; Bencok, P.; Meckenstock, R.; Thiele, J.-U.; Nolting, F.; Gambardella, P. Double-resonant X-ray and microwave absorption: Atomic spectroscopy and precessional orbital and spin dynamics. Phys. Rev. B 2009, 79, 224425:1–224425:8. [Google Scholar]
  59. Boero, G.; Rusponi, S.; Kavich, J.; Lodi Rizzini, A.; Piamonteze, C.; Nolting, F.; Tieg, C.; Thiele, J.-U.; Gambardella, P. Longitudinal detection of ferromagnetic resonance using X-ray transmission measurements. Rev. Sci. Instrum 2009, 80, 123902:1–123902:11. [Google Scholar]
  60. Marcham, M.K.; Keatley, P.S.; Neudert, A.; Hicken, R.J.; Cavill, S.A.; Shelford, L.R.; van der Laan, G.; Telling, N.D.; Childress, J.R.; Katine, J.A.; Shafer, P.; Arenholz, E. Phase resolved X-ray ferromagnetic resonance measurements in fluorescence yield. J. Appl. Phys 2011, 109, 07D353:1–07D353:3. [Google Scholar]
  61. Gilleo, M.A. Ferromagnetic Insulators: Garnets. In Ferromagnetic Materials; Wohlfarth, E.P., Ed.; North-Holland Publ. Co.: Amsterdam, The Netherlands, 1980; Volume 2, pp. 1–53. [Google Scholar]
  62. Phillips, T.G.; Rosenberg, H.M. Spin waves in ferromagnets. Rep. Prog. Phys 1966, 29, 285–332. [Google Scholar]
  63. Kasuya, T.; LeCraw, R.C. Relaxation mechanism in Ferromagnetic Resonance. Phys. Rev. Lett. 1961, 6, 223–225. [Google Scholar]
  64. Schlömann, E. Fine structure in the decline of the ferromagnetic resonance abasorption with increasing power level. Phys. Rev 1959, 116, 828–837. [Google Scholar]
  65. Hansen, P. Magnetic Anisotropy and Magnetostriction in Garnets. In Physics of Magnetic Garnets; Paoletti, A., Ed.; North-Holland: Amsterdam, The Netherlands; New York, NY, USA, 1978; Volume LXX, pp. 56–133. [Google Scholar]
  66. Van Vleck, J.H.; Orbach, R. Ferrimagnetic resonance of dilute rare-earth doped iron garnets. Phys. Rev. Lett 1963, 11, 65–67. [Google Scholar]
  67. Van Vleck, J.H. Ferrimagnetic resonance of rare-earth doped iron garnets. J. Appl. Phys 1964, 35, 882–888. [Google Scholar]
  68. Belov, K.P. Ferrimagnets with a “weak” magnetic sublattice. Physics-Uspekhi 1996, 39, 623–634. [Google Scholar]
  69. Geschwind, S.; Walker, L.R. Exchange resonance in gadolinium iron garnet near the magnetic compensation temperature. J. Appl. Phys 1959, 30, 163S–170S. [Google Scholar]
  70. Litster, J.D.; Benedek, G.B. NMR study of iron sublattice magnetization in YIG and GdIG. J. Appl. Phys 1966, 37, 1320–1322. [Google Scholar]
  71. Myers, S.M.; Gonano, R.; Meyer, H. Sublattice magnetization of several rare-earth iron garnets. Phys. Rev 1968, 170, 513–519. [Google Scholar]
  72. Schlömann, E. Fine structure in the decline of the ferromagnetic resonance absorption with increasing power level. Phys. Rev 1959, 116, 828–837. [Google Scholar]
  73. Goulon, J.; Rogalev, A.; Goujon, G.; Wilhelm, F.; Brouder, Ch. X-ray detected magnetic resonance of YIG thin films under tangential and oblique parallel pumping. J. Magn. Magn. Mater 2012. to be submitted.. [Google Scholar]
  74. Goulon, J.; Rogalev, A.; Wilhelm, F.; Goujon, G.; Idehara, T. Sub-THz gyrotron optimized for X-ray detected electron magnetic resonance. J. Plasma Fusion Res 2008, 84, 909–911. [Google Scholar]
  75. Rogalev, A.; Goulon, J.; Goujon, G.; Wilhelm, F.; Ogawa, I.; Idehara, T. X-ray Detected Magnetic Resonance at Sub-THz frequencies using a high power gyrotron source. J. Infrared Milli. Terahz. Waves 2012, in press. [Google Scholar]
  76. Benett, M.V.; Long, J.R. New cyanometalate building units: Synthesis and characterization of [Re(CN)7]3− and [Re(CN)8]3−. J. Am. Chem. Soc 2003, 125, 2394–2395. [Google Scholar]
  77. Freedman, D.E.; Jenkins, D.M.; Iavarone, A.T.; Long, J.R. A redox-switchable single-molecule magnet incorporating [Re(CN)7]3−. J. Am. Chem. Soc 2008, 130, 2884–2885. [Google Scholar]
  78. Walker, F.A.V. Proton NMR, EPR Spectroscopy of Paramagnetic Metalloporphyrins. In The Porphyrin Handbook; Kadish, K.M., Smith, K.M., Guilard, R., Eds.; Academic Press: New York, NY, USA, 2000; Volume 6, Chapter 36; pp. 82–175. [Google Scholar]
  79. Goulon, J.; Goulon-Ginet, Ch.; Gotte, V. X-ray Absorption Spectroscopy Applied to Porphyrin Chemistry. In The Porphyrin Handbook; Kadish, K.M., Smith, K.M., Guilard, R., Eds.; Academic Press: New York, NY, USA, 2000; Volume 7, Chapter 49; pp. 79–166. [Google Scholar]
  80. Bowman, M.K.; Fourier, Transform; Electron, Spin. Resonance. In Modern Pulsed and Continuous-Wave Electron Spin Resonance; Kevan, L., Bowman, M.K., Eds.; John Wiley & Sons Inc: New York, NY, USA, 1990; pp. 1–42. [Google Scholar]
  81. Smith, G.M.; Riedi, P.C. Progress in High Field EPR. In Electron Paramagnetic Resonance; RSC Publishing: Cambridge, UK, 2000; Volume 17, Chapter 6; pp. 164–204. [Google Scholar]
  82. Morley, G.W.; Brunel, L.-C.; van Tol, J. A multifrequency high field pulsed electron paramagnetic resonance/electron-nuclear double resonance spectrometer. Rev. Sci. Instrum 2008, 79, 064703:1–064703:5. [Google Scholar]
  83. Savitsky, A.; Moebius, K. High field EPR. Photosynth. Res 2009, 102, 311–333. [Google Scholar]
  84. Anderson, P.W.; Weiss, P.R. Exchange narrowing in paramagnetic resonance. Rev. Mod. Phys 1953, 25, 269–276. [Google Scholar]
  85. Cage, B.; Cevc, P.; Blinc, R.; Brunel, L.-C.; Dalal, N.S. 1–370 GHz EPR linewidths for K3CrO8: A comprehensive test for the anderson-weiss model. J. Magn. Reson 1998, 135, 178–184. [Google Scholar]
  86. Krzystek, J.; Ozarowski, A.; Telser, J. Multi-frequency, high-field EPR as a powerful tool to accurately determine zero-field splitting in high-spin transition metals coordination complexes. Coord. Chem. Rev 2006, 250, 2308–2324. [Google Scholar]
  87. Tagirov, M.S.; Tayurskii, D.A. Insulating Van Vleck paramagnets at high magnetic fields (Review). Low Temp. Phys 2002, 28, 147–164. [Google Scholar]
  88. Foner, S. Antiferromagnetic and Ferrimagnetic Resonance. In Magnetism; Suhl, H., Rado, G.T., Eds.; Academic Press Inc: New York, NY, USA, 1963; Volume 1, Chapter 9; pp. 383–447. [Google Scholar]
  89. Kotthaus, J.P.; Jaccarino, V. Antiferromagnetic-resonance linewidth in MnF2. Phys. Rev. Lett 1972, 28, 1649–1652. [Google Scholar]
  90. Lui, M.; King, A.R.; Kotthaus, J.P.; Hansma, P.K.; Jaccarino, V. Observation of antiferromagnetic resonance in epitaxial films of MnF2. Phys. Rev. B 1986, 33, 7720–7723. [Google Scholar]
  91. Pavarini, E.; Koch, E.; Lichtenstein, A.I. Mechanism for orbital ordering in KCuF3. Phys. Rev. Lett 2008, 101, 2666405:1–2666405:4. [Google Scholar]
  92. Kato, N.; Yamada, I. Multi-sublattice magnetic structure of KCuF3 caused by the antisymmetric exchange interaction: Antiferromagnetic resonance measurements. J. Phys. Soc. Jpn 1994, 63, 289–297. [Google Scholar]
  93. Moriya, T. Weak Ferromagnetism. In Magnetism; Suhl, H., Rado, G.T., Eds.; Academic Press Inc: New York, NY, USA, 1963; Volume 1, Chapter 3; pp. 85–125. [Google Scholar]
  94. Stickler, J.J.; Kern, S.; Wold, A.; Heller, G.S. Magnetic resonance and susceptibility of several ilmenite powders. Phys. Rev 1967, 164, 765–767. [Google Scholar]
  95. McDonald, P.F.; Parasiris, A.; Pandey, R.K.; Gries, B.L.; Kirk, W.P. Paramagnetic resonance and susceptibility of ilmenite FeTiO3 crystal. J. Appl. Phys 1991, 69, 1104–1106. [Google Scholar]
  96. Foner, S. High-field antiferromagnetic resonance in Cr2O3. Phys. Rev 1963, 130, 183–197. [Google Scholar]
  97. Goulon, J.; Rogalev, A.; Wilhelm, F.; Goulon-Ginet, C.; Carra, P.; Marri, I.; Brouder, C. X-ray optical activity: Applications of sum rules. J. Exp. Theor. Phys 2003, 97, 402–431. [Google Scholar]
Figure 1. (A) Ab initio simulations of the spin polarized DOS projected on the irreducible representations of groups Ijms 12 08797f16 and S6 at the Fe (24d) and Fe (16a) crystal sites in YIG: opposite signs were expected due to the antiferromagnetic coupling of the Fe cations in (24d) and (16a) sites; (B) Simulated XMCD spectra in the energy range of the Fe K-edge pre-peak. Note that the XMCD signal due to electric dipole transitions (E1) is much stronger at the tetrahedral ( Ijms 12 08797f16) than at the octahedral ( Ijms 12 08797f17) coordination sites. The contributions of electric quadrupole transitions (E2) are one order of magnitude weaker.
Figure 1. (A) Ab initio simulations of the spin polarized DOS projected on the irreducible representations of groups Ijms 12 08797f16 and S6 at the Fe (24d) and Fe (16a) crystal sites in YIG: opposite signs were expected due to the antiferromagnetic coupling of the Fe cations in (24d) and (16a) sites; (B) Simulated XMCD spectra in the energy range of the Fe K-edge pre-peak. Note that the XMCD signal due to electric dipole transitions (E1) is much stronger at the tetrahedral ( Ijms 12 08797f16) than at the octahedral ( Ijms 12 08797f17) coordination sites. The contributions of electric quadrupole transitions (E2) are one order of magnitude weaker.
Ijms 12 08797f1
Figure 2. XDMR in transverse pumping mode with either longitudinal or transverse detection geometries for near perpendicular magnetization. The precession cone angle θ0 never exceeds a few degrees and was exaggerated for clarity. As compared to m, mz is only a second order perturbation.
Figure 2. XDMR in transverse pumping mode with either longitudinal or transverse detection geometries for near perpendicular magnetization. The precession cone angle θ0 never exceeds a few degrees and was exaggerated for clarity. As compared to m, mz is only a second order perturbation.
Ijms 12 08797f2
Figure 3. (A) First- and (B) second-order instability processes resulting in a conversion of uniform magnons into degenerated non-uniform magnons in transverse pumping geometry; (C) Parallel pumping geometry: direct excitation of a pair of non-uniform magnons with opposite wavevectors (k,–k) and opposite helicities. This non-linear, 2nd order process may contribute to a non-vanishing XDMR signal only in the longitudinal detection geometry (LOD).
Figure 3. (A) First- and (B) second-order instability processes resulting in a conversion of uniform magnons into degenerated non-uniform magnons in transverse pumping geometry; (C) Parallel pumping geometry: direct excitation of a pair of non-uniform magnons with opposite wavevectors (k,–k) and opposite helicities. This non-linear, 2nd order process may contribute to a non-vanishing XDMR signal only in the longitudinal detection geometry (LOD).
Ijms 12 08797f3
Figure 4. (A) Complex vector XDMR spectrum of film 1 recorded in transverse detection geometry (TRD) with a pumping power of 10mW. Arrows point to weak satellite resonances assigned to magnetostatic modes; (B) Comparison of FMR and XDMR PSD spectra that were simultaneously recorded again in TRD geometry but with a pumping power of only 1 mW. Note the fairly different lineshapes of the main resonances assigned to the uniform mode. Moreover, there is only a very weak contribution of the magnetostatic modes (BMSW) satellites in XDMR.
Figure 4. (A) Complex vector XDMR spectrum of film 1 recorded in transverse detection geometry (TRD) with a pumping power of 10mW. Arrows point to weak satellite resonances assigned to magnetostatic modes; (B) Comparison of FMR and XDMR PSD spectra that were simultaneously recorded again in TRD geometry but with a pumping power of only 1 mW. Note the fairly different lineshapes of the main resonances assigned to the uniform mode. Moreover, there is only a very weak contribution of the magnetostatic modes (BMSW) satellites in XDMR.
Ijms 12 08797f4
Figure 5. (A) Foldover distorted XDMR and FMR spectra of film 2 showing hysteretic profiles when the bias field is scanned up and down; the XDMR spectrum was recorded in longitudinal detection geometry (LOD) under a pumping power of 630 mW. Note the very sharp increase of the XDMR signal just before the foldover jump whereas the FMR spectrum seems to saturate; (B) Modified Kasuya–LeCraw relaxation mechanisms involving an orbiton either in a 3-boson de-excitation (a) or excitation (b) process.
Figure 5. (A) Foldover distorted XDMR and FMR spectra of film 2 showing hysteretic profiles when the bias field is scanned up and down; the XDMR spectrum was recorded in longitudinal detection geometry (LOD) under a pumping power of 630 mW. Note the very sharp increase of the XDMR signal just before the foldover jump whereas the FMR spectrum seems to saturate; (B) Modified Kasuya–LeCraw relaxation mechanisms involving an orbiton either in a 3-boson de-excitation (a) or excitation (b) process.
Ijms 12 08797f5
Figure 6. Complex vector XDMR spectra recorded in transverse detection geometry (TRD) with a thin single crystal platelet of GdIG cut parallel to the (110) plane: (A) Below the compensation point, i.e., at T ≃ 150 K < Tcp = 286 K; (B) Above the compensation point, at T = 450 K > Tcp. Note the very weak intensity of the absorptive part (Re{XDMR}) and the heavily distorted lineshape of the modulus spectrum (|XDMR|); (C) Complex vector XDMR spectra typically expected for two magnetization components precessing in phase but with opposite helicity. Note that the absorptive part (Re{XDMR}) again tends to vanish whereas the modulus spectrum (|XDMR|) exhibits a characteristic “dip” at resonance as also observed in (B).
Figure 6. Complex vector XDMR spectra recorded in transverse detection geometry (TRD) with a thin single crystal platelet of GdIG cut parallel to the (110) plane: (A) Below the compensation point, i.e., at T ≃ 150 K < Tcp = 286 K; (B) Above the compensation point, at T = 450 K > Tcp. Note the very weak intensity of the absorptive part (Re{XDMR}) and the heavily distorted lineshape of the modulus spectrum (|XDMR|); (C) Complex vector XDMR spectra typically expected for two magnetization components precessing in phase but with opposite helicity. Note that the absorptive part (Re{XDMR}) again tends to vanish whereas the modulus spectrum (|XDMR|) exhibits a characteristic “dip” at resonance as also observed in (B).
Ijms 12 08797f6
Figure 7. (A) Vector Components and PSD XDMR spectra of the YIG film 1 recorded in the frequency doubling mode and longitudinal detection geometry (LOD); the pumping frequency was 4.226 GHz but the XDMR signal was oscillating at 8.452 GHz. Note that the 2 × F XDMR PSD spectrum does not reproduce the foldover lineshape of the FMR PSD spectrum. Regarding the vector 2 × F XDMR spectra, it seems that resonance may also take place at lower field; (B) Parallel pumping PSD XDMR spectrum of the Y-La-LuIG film 2 recorded in LOD geometry under high pumping power at 8.452 GHz. Whereas the microwave absorption spectrum due to the parametric excitation of exchange spin waves extends down to very low fields, this is not the case for the XDMR spectrum which exhibits only a sharp peak at Hmax.
Figure 7. (A) Vector Components and PSD XDMR spectra of the YIG film 1 recorded in the frequency doubling mode and longitudinal detection geometry (LOD); the pumping frequency was 4.226 GHz but the XDMR signal was oscillating at 8.452 GHz. Note that the 2 × F XDMR PSD spectrum does not reproduce the foldover lineshape of the FMR PSD spectrum. Regarding the vector 2 × F XDMR spectra, it seems that resonance may also take place at lower field; (B) Parallel pumping PSD XDMR spectrum of the Y-La-LuIG film 2 recorded in LOD geometry under high pumping power at 8.452 GHz. Whereas the microwave absorption spectrum due to the parametric excitation of exchange spin waves extends down to very low fields, this is not the case for the XDMR spectrum which exhibits only a sharp peak at Hmax.
Ijms 12 08797f7
Figure 8. (A) XANES and XMCD spectra recorded at the Co K-edge for a powdered pellet of 3 = TPP:Co; (B) XANES and XMCD spectra recorded at the Re L2,3-edges for a powdered pellet of 4 = [Re(CN)7](Bu4N)3. Note that the XMCD signal measured at the Re L-edges is much stronger than at the Co K-edge.
Figure 8. (A) XANES and XMCD spectra recorded at the Co K-edge for a powdered pellet of 3 = TPP:Co; (B) XANES and XMCD spectra recorded at the Re L2,3-edges for a powdered pellet of 4 = [Re(CN)7](Bu4N)3. Note that the XMCD signal measured at the Re L-edges is much stronger than at the Co K-edge.
Ijms 12 08797f8
Figure 9. Precession modes in an antiferromagnet with an easy axis of anisotropy: (A) and (B) refer to an antiparallel ground state; (C) is for a noncollinear ground state (spin-flop mode). Since the precession cone angles θ1 and θ2 are unequal in configurations (A) and (B), a weak XDMR signal may still be detectable in the transverse detection geometry (TRD).
Figure 9. Precession modes in an antiferromagnet with an easy axis of anisotropy: (A) and (B) refer to an antiparallel ground state; (C) is for a noncollinear ground state (spin-flop mode). Since the precession cone angles θ1 and θ2 are unequal in configurations (A) and (B), a weak XDMR signal may still be detectable in the transverse detection geometry (TRD).
Ijms 12 08797f9

Share and Cite

MDPI and ACS Style

Goulon, J.; Rogalev, A.; Goujon, G.; Wilhelm, F.; Youssef, J.B.; Gros, C.; Barbe, J.-M.; Guilard, R. X-Ray Detected Magnetic Resonance: A Unique Probe of the Precession Dynamics of Orbital Magnetization Components. Int. J. Mol. Sci. 2011, 12, 8797-8835. https://doi.org/10.3390/ijms12128797

AMA Style

Goulon J, Rogalev A, Goujon G, Wilhelm F, Youssef JB, Gros C, Barbe J-M, Guilard R. X-Ray Detected Magnetic Resonance: A Unique Probe of the Precession Dynamics of Orbital Magnetization Components. International Journal of Molecular Sciences. 2011; 12(12):8797-8835. https://doi.org/10.3390/ijms12128797

Chicago/Turabian Style

Goulon, José, Andrei Rogalev, Gérard Goujon, Fabrice Wilhelm, Jamal Ben Youssef, Claude Gros, Jean-Michel Barbe, and Roger Guilard. 2011. "X-Ray Detected Magnetic Resonance: A Unique Probe of the Precession Dynamics of Orbital Magnetization Components" International Journal of Molecular Sciences 12, no. 12: 8797-8835. https://doi.org/10.3390/ijms12128797

Article Metrics

Back to TopTop
