Use of a Reflectance Spectroscopy Accessory for Optical Characterization of ZnO-Bi2O3-TiO2 Ceramics

1
Department of Physics, Faculty of Science, Universiti Putra Malaysia, 43400 UPM Serdang, Selangor, Malaysia
2
Advanced Materials and Nanotechnology Laboratory, Institute of Advanced Technology, Universiti Putra Malaysia, 43400 UPM Serdang, Selangor, Malaysia
*
Author to whom correspondence should be addressed.
Int. J. Mol. Sci. 2011, 12(3), 1496-1504; https://doi.org/10.3390/ijms12031496
Submission received: 11 December 2010 / Accepted: 17 February 2011 / Published: 25 February 2011
(This article belongs to the Section Materials Science)

Abstract

:
The optical band-gap energy (Eg) is an important feature of semiconductors which determines their applications in optoelectronics. Therefore, it is necessary to investigate the electronic states of ceramic ZnO and the effect of doped impurities under different processing conditions. Eg of the ceramic ZnO + xBi2O3 + xTiO2, where x = 0.5 mol%, was determined using a UV-Vis spectrophotometer attached to a Reflectance Spectroscopy Accessory for powdered samples. The samples was prepared using the solid-state route and sintered at temperatures from 1140 to 1260 °C for 45 and 90 minutes. Eg was observed to decrease with an increase of sintering temperature. XRD analysis indicated hexagonal ZnO and few small peaks of intergranular layers of secondary phases. The relative density of the sintered ceramics decreased and the average grain size increased with the increase of sintering temperature.

1. Introduction

Polycrystalline zinc oxide (ZnO) is used extensively in rubber, paint, cosmetics and textile industries as well as in the electronic industry. The ZnO based varistor is widely used as an electronic component in automobile electronics and also in sophisticated semiconductor electronics. ZnO based varistors are fabricated with different type of additives which play an important role in its non-linear characteristics. Its unique grain boundary feature is responsible for non-linear current-voltage (IV) characteristics of the device [1,2] and thus is used to protect electrical equipment against unwanted electrical surges. Currently, ZnO based varistors are being used for low-voltage applications. ZnO based varistors are fabricated with small amounts of different metal oxides such as Bi2O3, CoO, MnO, Sb2O3, and TiO2 [38]. TiO2 also acts as an active photocatalyst and is discussed further by Linsebigler et al. [9]. IV studies have been extensively investigated for the ZnO based varistor by previous researchers [5,10] and it is necessary to investigate the electronic states of ceramic ZnO and the effect of doped impurities with different processing conditions.
The measurement of the absorption spectrum in semiconductors leads to the determination of the optical band-gap energy [11,12]. In solid state technique, powdered samples are usually produced instead of thick or thin films. Thus, commonly UV-Vis spectroscopy is carried out by dispersing the powdered samples in solutions like deionized water, acetone, ethanol or other alcohols. One of the major problems is that samples often precipitate due to the particle size not being small enough, making the absorption spectrum difficult to analyze. In order to avoid these consequences, it is preferable to use a Reflectance Spectroscopy Accessory (RSA), which reliably obtains the optical band gap of powder samples. In similar work, Morales et al. [13] used diffuse reflectance spectroscopy for powdered nanostructures for optical property measurements.
In this study, investigation regarding the optical properties of powdered of ZnO doped with Bi2O3 and TiO2 at different sintering temperatures and times are discussed by using a UV-Vis Spectrophotometer attached to a RSA.

2. Experimental

Oxide precursors of 99.9% purity (Alfa Aesar) were used. The composition consists of 99 mol% ZnO + 0.5 mol% Bi2O3 + 0.5 mol% TiO2 powder. The powder was ball milled for 24 hours in deionized water. The slurry was dried at 70 °C using a hot plate. It was continuously magnetically stirred to avoid sedimentation of the heavy particles and pre-sintered at 800 °C for two hours. The pre-sintered mixture was pulverized using an agate mortar/pestle and after addition of 1.75 wt% Polyvinyl Alcohol (PVA) binder, was granulated by sieving through a 75 micron mesh screen. The mixture then was pressed into discs of 10 mm in diameter and 1 mm in thickness, each at a pressure of 2 ton/m2. Finally, the discs were sintered at 1140, 1170, 1200, 1230 and 1260 °C with 45 and 90 minutes sintering duration at a heating and cooling rate of 2.66 °C min−1. The disk from each sample was ground for optical and XRD characterization.
The crystalline phases were identified by an XRD (PANalytical X’Pert Pro PW3040/60, Philips) with CuKα radiation and the data were analyzed using X’Pert High Score software. The density was measured by the geometrical method [14]. For the microstructure analysis, each disk sample was thermally etched at 150 °C in a tube furnace.
The microstructure was examined by Variable Pressure Scanning Electron Microscopy (VPSEM, Leo 1455). The average grain size (d) was determined by lineal intercept method [15], given by:
d = 1.56 L / MN
where L is the random line length on the micrograph, M is the magnification of the micrograph and N is the number of the grain boundaries intercepted by lines.
The UV-Vis Spectrophotometer (Lambda 35, Perkin Elmer) was used to measure the optical band-gap energy of the ceramics. The transmission signal was measured for the wavelength from 200 to 800 nm and then converted to absorption signal for further evaluation [16]. It was assumed that the fundamental absorption edge of the ceramics is due to the direct allowed transition. The optical band-gap energy is given by [17]:
( A h υ ) 2 = C ( h υ E g )
near the optical band-gap, where A is the optical absorption coefficient, C is the constant independent of photon energy (), and Eg is the direct allowed optical band-gap energy. From the plot of (Ahυ)2 versus hυ, the value of Eg is obtained by extrapolating the linear fitted regions to (Ahυ)2 = 0.

3. Results and Discussion

The XRD analysis, Figure 1, reveals diffraction peaks which belong to two phases, i.e., ZnO (ICSD code: 067454) and intergranular layers in the varistor ceramics. The intergranular layers are composed of Ti6O11 and appear as a very small peak in the XRD pattern for the sample sintered at 1140 °C for 45 minutes sintering time only due to removal of oxygen from TiO2 in a solid state reaction [9]. Many secondary phases with small peaks were detected in the ceramics, namely, Bi4Ti3O12 (ICSD code: 024735) and Zn2Ti3O8 (ICSD code: 022381) at all sintering temperatures. Sung and Kim [18] and Suzuki and Bradt [19] have suggested that below 1030 °C, TiO2 will dissolves in the Bi2O3-rich liquid phase, reacting with the Bi2O3 liquid and forming the compound Bi4Ti3O12, due to the following reaction, but with few modifications for suitable equilibrium reaction as followswith XRD pattern analysis,
2 Bi 2 O 3 ( l ) + 3 TiO 2 ( s ) Bi 4 Ti 3 O 12 ( s )
The solid Bi4Ti3O12 is then reported to decompose and react with the solid ZnO grains at about 1050 °C, according to the reaction [17,18],
Bi 4 Ti 3 O 12 ( s ) + 6 ZnO ( s ) 2 Bi 2 O 3 ( l ) + 3 Zn 2 TiO 4 ( s )
Due to the appearance of Zn2Ti3O8 at high temperatures, we suggest the following reaction may occur,
Bi 4 Ti 3 O 12 ( s ) + 2 ZnO ( s ) 2 Bi 2 O 3 ( l ) + Zn 2 Ti 3 O 8 ( s )
Both of the Bi4Ti3O12 and Zn2Ti3O8 phases are revealed to coexist in the sample sintered at all sintering temperatures except 1140 °C for a sintering time of 45 minutes that only presents the Bi4Ti3O12 phase as shown in Figure 1.
The relative density of sintered ceramics decreased from 93.70 to 87.16% of theoretical density (5.67 g/cm3) with the increase of sintering temperature, Figure 2. The average grain size increased from 26.2 to 38.4 micron with the increase of sintering temperature, Figure 2. The increase in average grain size, observed with both sintering durations, is due to the TiO2 which is a strong grain enhancer. It was observed under VPSEM that a few abnormal grains of irregular shape and size were distributed in the whole sample especially at high sintering temperature. The abnormal grain growth increased with increase of sintering temperature, Figure 3. This indicates that the pores increase with the increase of sintering temperature. The pores are trapped between the large grains in the ceramics at high sintering temperature [20].
From the raw data of T% against wavelength (Figure 4), Eg is obtained through Equation 2, (Ahυ)2 against , Figure 5. Eg values are 2.99, 2.98 eV, at the sintering temperatures 1140, 1230 °C, respectively, for 45 minutes sintering time, and slightly decrease with 90 minutes sintering, Figure 6. It is observed that the trend of Eg is constant with a 45 minute sintering time. The liquid phase of Bi2O3 generates the interface state which reduces the Eg of pure ZnO [21]. Doping TiO2 in ZnO-Bi2O3 system slightly reduces the Eg. Only at a sintering temperature of 1140 °C shows the limited substitution of Ti4+ ions in the ZnO lattice as the ionic radii of Ti4+ (0.68 Å) smaller than that of Zn2+ (0.74 Å). At other higher temperatures, additional interface states are generated that reduce the Eg. This reduction of Eg correlates with the structural disordering increment of Bi4Ti3O12 in the grain boundaries with the increase of sintering temperature. For 90 minutes sintering time, the Eg values slightly decrease from 1140 to 1260 °C, which might be due to growth of interface states at the surface of the particles and at the grain boundaries.

4. Conclusions

The UV-Vis spectrophotometer results of ZnO ceramic with variations in sintering temperature proved the decrease of Eg with an increase of sintering temperature and time, showing the segregation of Bi2O3 at grain boundaries and possible substitution of Ti ion with Zn ion, which creates interface states. These results are correlated with the analysis obtained by XRD which shows a structural disordering in the grain boundaries.

Acknowledgments

The authors gratefully acknowledge the financial support for this work from Research University Grant Scheme (RUGS) of Project No. 05-01-09-0754RU. The first authors are grateful to Department of Physical Sciences, Faculty of Science and Technology, Universiti Malaysia Terengganu and Ministry of Higher Education for supporting the studies.

References

  1. Clarke, DR. Varistor ceramics. J. Am. Ceram. Soc 1999, 82, 485–502. [Google Scholar]
  2. Souza, FL; Gomez, JW; Bueno, PR; Cassia-Santos, MR; Araujo, AL; Leiti, ER; Longo, E; Varela, AJ. Effect of the addition of ZnO seeds on the electrical properties of ZnO-based varistors. Mater. Chem. Phys 2003, 80, 512–516. [Google Scholar]
  3. Matsuoka, M. Nonohmic properties of zinc oxide ceramics. Jpn. J. Appl. Phys 1971, 10, 736–746. [Google Scholar]
  4. Snow, GS; White, SS; Cooper, RA; Armijo, JR. Characterization of high field varistors in the system ZnO-CoO-PbO-Bi2O3. Am. Ceram. Soc. Bulletin 1980, 59, 617–622. [Google Scholar]
  5. Eda, K. Zinc oxide varistor. IEEE Electr. Insul. Mag 1989, 5, 28–41. [Google Scholar]
  6. Bai, SN; Shieh, JS; Tseng, TY. Characteristic analysis of ZnO varistors made with spherical precipitation powders. Mater. Chem. Phys 1995, 41, 104–109. [Google Scholar]
  7. Toplan, O; Gunay, V; Ozkan, OT. Grain growth in the MnO added ZnO-6 wt% Sb2O3 ceramic system. Ceram. Int 1997, 23, 251–255. [Google Scholar]
  8. Fah, CP; Wang, J. Effect of high-energy mechanical activation on the microstructure and electrical properties of ZnO-based varistors. Solid State Ionics 2000, 132, 107–117. [Google Scholar]
  9. Linsebigler, AL; Lu, GQ; Yates, JT. Photocatalysis on TiO2 surfaces-principles, mechanisms, and selected results. Chem. Rev 1995, 95, 735–758. [Google Scholar]
  10. Nahm, C-W; Shin, B-C. Highly stable nonlinear properties of ZnO-Pr6O11-CoO-Cr2O3-Y2O3-based varistor ceramics. Mater. Lett 2003, 57, 1322–1326. [Google Scholar]
  11. Ghoosh, AK; Som, KK; Chatterjee, S; Chaudhuri, BK. Photoacoustic spectroscopic study of energy gap, optical absorption, and thermal diffusivity of polycrystalline ZnSexTe1−x (0 ≤ x ≤ 1) alloys. Phys. Rev. B 1995, 51, 4842–4848. [Google Scholar]
  12. Zelaya-Angel, O; Alvarado-Gil, JJ; Lozada-Morales, R. Band-gap shift in CdS semiconductor by photoacoustic spectroscopy: Evidence of a cubic to hexagonal lattice transition. Appl. Phys. Lett 1994, 64, 291–293. [Google Scholar]
  13. Escobedo Morales, A; Sànchez Mora, E; Pal, U. Use of diffuse reflectance spectroscopy for optical characterization of un-supported nanostructures. Revista Mexicana de Física S 2007, 53, 18–22. [Google Scholar]
  14. Wang, JF; Su, WB; Chen, HC; Wang, WX; Zang, GZ. (Pr, Co, Nb)-Doped SnO2 Varistor Ceramics. J. Am. Ceram. Soc 2005, 88, 331–334. [Google Scholar]
  15. Wurst, JC; Nelson, JA. Lineal intercept technique for measuring grain size in two-phase polycrystalline ceramics. J. Am. Ceram. Soc 1972, 55, 109–111. [Google Scholar]
  16. Gonzalez-Hernandez, J; Gorley, PM; Horley, PP; Vartsabyuk, OM; Vorobiev Yu, V. X-ray, kinetic and optical properties of thin CuInS2 films. Thin Solid Films 2002, 403–404, 471–475. [Google Scholar]
  17. Smith, RA. Semiconductors, 2nd ed; Cambridge University Press: Cambridge, UK, 1978. [Google Scholar]
  18. Sung, GY; Kim, CH. Anisotropic grain growth of ZnO grain in the varistor system ZnO-Bi2O3-MnO-TiO2. Adv. Ceram. Mater 1988, 3, 604–606. [Google Scholar]
  19. Suzuki, H; Bradt, RC. Grain growth of ZnO in ZnO-Bi2O3 ceramics with TiO2 additions. J. Am. Ceram. Soc 1995, 78, 1354–1360. [Google Scholar]
  20. Sabri, MGM; Azmi, BZ; Rizwan, Z; Halimah, MK; Hashim, M; Sidek, HAA. Application of direct current and temperature stresses of low-voltage ZnO based varistor ceramics. Am. J. Appl. Sci 2009, 6, 1591–1595. [Google Scholar]
  21. Toyoda, T; Shimamoto, S. Effect of Bi2O3 in ceramic ZnO on photoacoustic spectra and current voltage characteristics. Jpn. J. Appl. Phys 1998, 37, 2827–2831. [Google Scholar]

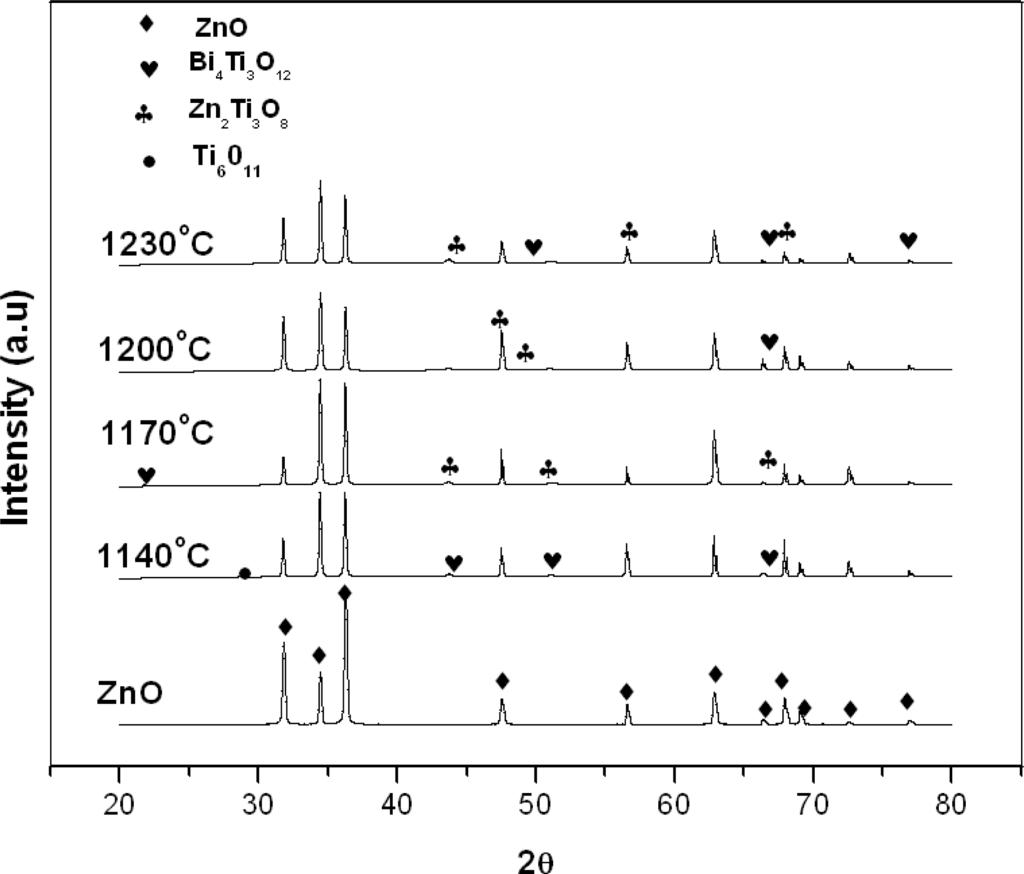

Figure 1. XRD patterns of ZnO based varistor at different sintering temperatures with a sintering time of 45 minutes.
Figure 1. XRD patterns of ZnO based varistor at different sintering temperatures with a sintering time of 45 minutes.
Ijms 12 01496f1

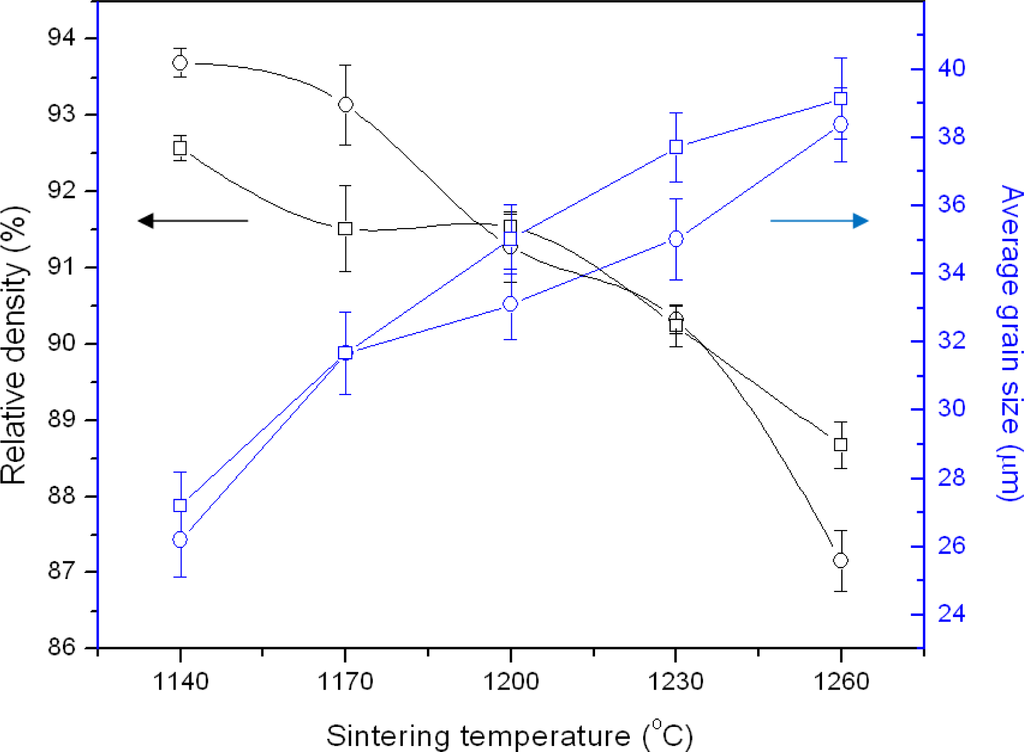

Figure 2. Relative density and average grain size of ZnO based varistor at different sintering temperatures for (□) 45 minutes and (○) 90 minutes sintering time.
Figure 2. Relative density and average grain size of ZnO based varistor at different sintering temperatures for (□) 45 minutes and (○) 90 minutes sintering time.
Ijms 12 01496f2
Figure 3. Scanning electron micrographs of ceramics after sintering at (a) 1170 °C and (b) 1260 °C.
Figure 3. Scanning electron micrographs of ceramics after sintering at (a) 1170 °C and (b) 1260 °C.
Ijms 12 01496f3

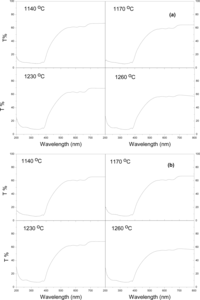

Figure 4. Transmission spectra of ZnO-Bi2O3-TiO2 ceramics after (a) 45 minutes and (b) 90 minutes sintering time.
Figure 4. Transmission spectra of ZnO-Bi2O3-TiO2 ceramics after (a) 45 minutes and (b) 90 minutes sintering time.
Ijms 12 01496f4

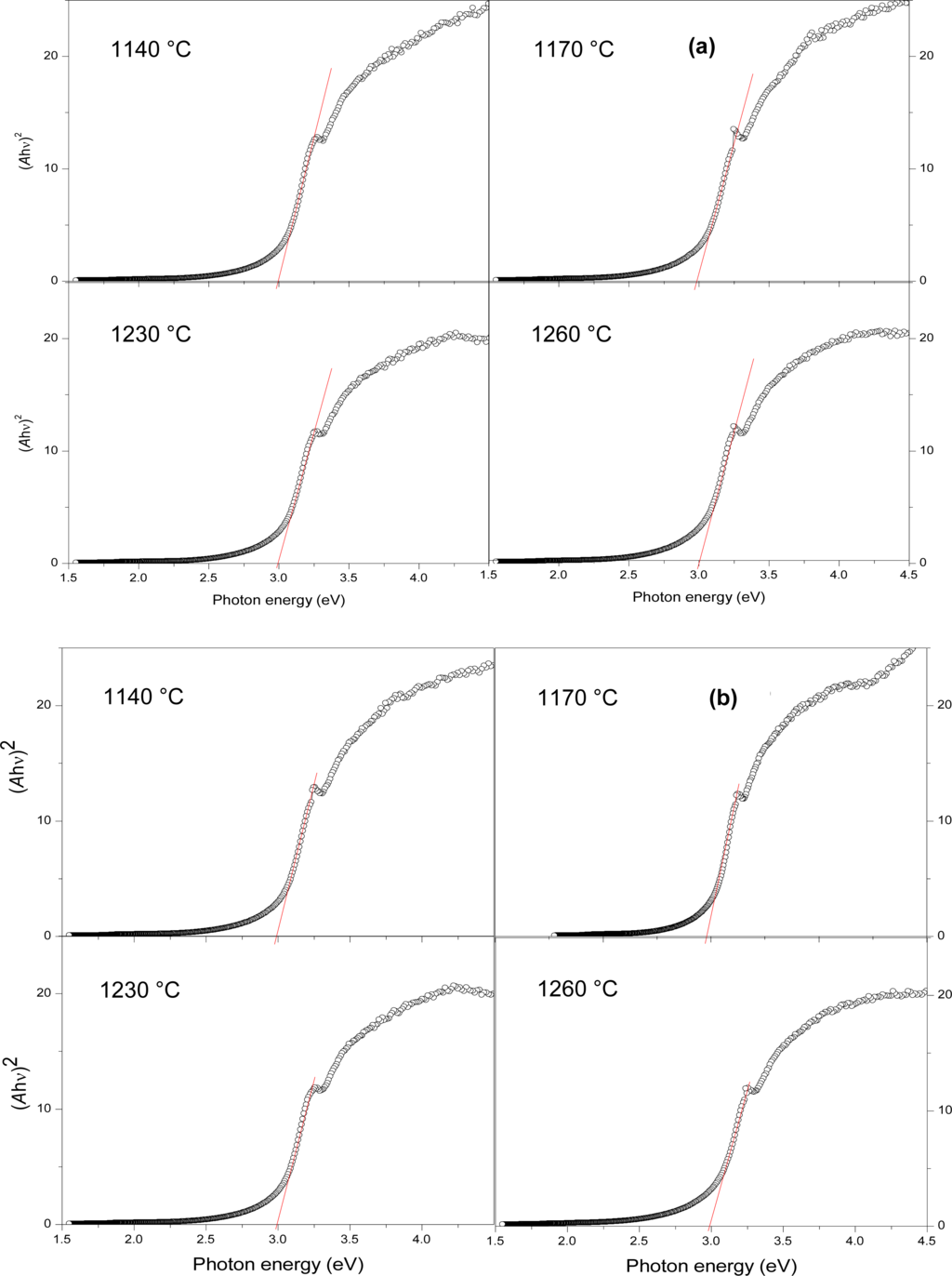

Figure 5. Transformed spectra of ceramics of (a) 45 minutes and (b) 90 minutes sintering time.
Figure 5. Transformed spectra of ceramics of (a) 45 minutes and (b) 90 minutes sintering time.
Ijms 12 01496f5
Figure 6. The Eg of ceramics of (□) 45 minutes and (○) 90 minutes sintering time at different sintering temperatures.
Figure 6. The Eg of ceramics of (□) 45 minutes and (○) 90 minutes sintering time at different sintering temperatures.
Ijms 12 01496f6
