Article

A Novel Cold-Active Lipase from Candida albicans: Cloning, Expression and Characterization of the Recombinant Enzyme

1
School of Bioscience and Bioengineering, South China University of Technology, Guangzhou 510006, China
2
Key Lab of Fermentation and Enzyme Engineering, College of Light Industry and Food Sciences, South China University of Technology, Guangzhou 510641, China
*
Authors to whom correspondence should be addressed.
These authors contributed equally to this work.
Int. J. Mol. Sci. 2011, 12(6), 3950-3965; https://doi.org/10.3390/ijms12063950
Submission received: 20 February 2011 / Revised: 24 May 2011 / Accepted: 25 May 2011 / Published: 14 June 2011
(This article belongs to the Section Biochemistry)

Abstract

:
A novel lipase gene lip5 from the yeast Candida albicans was cloned and sequenced. Alignment of amino acid sequences revealed that 86–34% identity exists with lipases from other Candida species. The lipase and its mutants were expressed in the yeast Pichia pastoris, where alternative codon usage caused the mistranslation of 154-Ser and 293-Ser as leucine. 154-Ser to leucine resulted in loss of expression of Lip5, and 293-Ser to leucine caused a marked reduction in the lipase activity. Lip5-DM, which has double mutations that revert 154 and 293 to serine residues, showed good lipase activity, and was overexpressed and purified by (NH4)2SO4 precipitation and ion-exchange chromatography. The pure Lip5-DM was stable at low temperatures ranging from 15–35 °C and pH 5–9, with the optimal conditions being 15–25 °C and pH 5–6. The activation energy of recombinant lipase was 8.5 Kcal/mol between 5 and 25 °C, suggesting that Lip5-DM was a cold–active lipase. Its activity was found to increase in the presence of Zn2+, but it was strongly inhibited by Fe2+, Fe3+, Hg2+ and some surfactants. In addition, the Lip5-DM could not tolerate water-miscible organic solvents. Lip5-DM exhibited a preference for the short-and medium-chain length p-nitrophenyl (C4 and C8 acyl group) esters rather than the long chain length p-nitrophenyl esters (C12, C16 and C18 acyl group) with highest activity observed with the C8 derivatives. The recombinant enzyme displayed activity toward triacylglycerols, such as olive oil and safflower oil.

1. Introduction

Lipases (EC 3.1.1.3) are industrially important lipolytic enzymes which are widely used as biocatalysts in biotechnological applications [1]. They are able to catalyze both the hydrolysis and synthesis of ester bonds of triacylglyceride. Lipases can be used to enrich polyunsaturated fatty acids from crude fish oil [2], modify chemical structures of oil and fats [3], and develop food flavors [4]. The special properties of lipases, such as high regional and stereo selectivity, stability in organic solvent, make them very valuable in the production of optically active compounds and esters [5]. In addition, the temperature stability of lipases is one of most important characteristics for use in industry. Recently, psychrophilic lipases have attracted more attention because of their potential in terms of lower energy costs, therapeutic and detergent applications and lower microbial contamination in industrial processes [6]. Until now, some psychrophilic microorganisms, including Pseudomonas sp., Aeromonas hydrophila, Pseudoalteromonas sp. and Candida antarctica have been found to produce cold-active lipases, most of which were produced by growth of the wild type stains [7]. However, low productivity and too many protein contaminants from culture medium were the major obstacles to obtain pure lipases for further research on their enzymatic characteristics. Recombinant expression of lipases is a good way to solve the problem. Ryu et al. expressed M37 lipase from a photobacterium strain in E. coli, and the recombinant lipase displayed maximum activity at 25 °C and maintained its activity at a low temperature range (5–25 °C) with an activation energy (Ea) of 2.07 kcal/mol [8]. EML1 lipase gene was isolated from deep-sea sediment metagenome, and the recombinant EML1 lipase was expressed in E. coli exhibited maximum activity at 25 °C and still maintained more than 50% activity at 5 °C [9]. Parra et al. have reported that a lipase from Psychrobacter sp showed highest enzymatic activity at 20 °C and pH 8.0, and the activation energy was 5.5 kcal/mol when the temperature was between 5 and 20 °C [10]. Some research has been performed to disclose the structural perpetrates of lipases in order to know its catalytic mechanism at low temperature. It has been reported that the possible features of cold-active lipases contain conformations such as a small hydrophobic core, a very small number of salt bridges and of aromatic-aromatic interactions, a reduced number of disulphide bridges and of prolines in loop structures, lower number of ion pairs and weakening of charge-dipole interactions in α-helices [11]. Cold-active lipases from different microorganisms have so far been found to be useful for industrial application; further discovery of new lipases with commercially useful properties still attracts a great deal of interest. Different kinds of lipases (Lip1-Lip10), which show high sequence identities in gene sequences, have been found in yeast Candida albicans (C. albicans) [12], but the characterization of most of the lipases has not been reported yet. In this study, a “novel” lipase (Lip5) from C. albicans was cloned and expressed in Pichia pastoris (P. pastoris). The mutants of lip5 which mutated CTG to TCT codon was also investigated because C. albicans has a special protein translation system. Tulte et al. reported that the yeast C. albicans encoded a unique seryl-tRNACAG that should decode the leucine codon CUG as serine instead of leucine [13]. The Lip5 and its mutant proteins were purified by ammonium sulfate precipitation followed by ion-exchange chromatography. The characterization, such as effect of pH, temperature, and ion on the enzymatic activity, was explored. Studies of enzyme kinetics and substance specificity on different fatty acids chains were also performed. This study firstly showed that the Lip5 was a cold-active lipase from yeast C. albicans, which contradicts the report that the cold-active enzyme is usually from the cold environment such as polar region or deep sea.

2. Results and Discussion

2.1. Cloning of lip5-wt Gene and Mutants from C. albicans

Sequence analysis of lip5-wt from C. albicans showed no introns in the lip5-wt gene sequence, and a putative N terminus signal sequence includes 14 amino acid residues, which exports the Lip5 outside the cells. lip5-wt gene with the deleted signal sequence was cloned from C. albicans genome DNA and sequenced. It was found that two non-universal Ser codons (CTG) exist in the lip5-wt gene, located in amino acid site 154 and 293 respectively. Triplet codon CTG was usually mistranslated into leucine in other organisms instead of serine [14]. To investigate the influence of codon CTG on the expression and characterization of lip5-wt, three mutants, which are lip5-m154, lip5-m293 and lip5-dm, were constructed. lip5-m154, lip5-m293 indicates that the corresponding gene codon of 154 and 293 amino acid were modified as TCT, respectively. lip5-dm was the double mutant at above two sites. The primers for gene mutation were listed in Table 1.

2.2. Amino Acid Sequence Analysis

A search of Genbank using the deduced Lip5 amino acid sequence (HM581681) as a query by Blastp program revealed that Lip5 shared significant sequence identity with those of lipases from other Candidas species. Lip5 has 87%, 84%, 81%, 58% and 34% amino acid sequence identity with those of lipases from Candida dubliniensis (CDLip), Candida albiacans (CALip8 and CALip4) [15,16], Candida parapsilosis (CPLip2) [17] and Candida Antarctica (CALA) [18], respectively. It was also found that Lip5 shows low sequence identity with those of known lipases from psychrophilic organisms, including Photobacterium sp. M37 [8], Pseudomonas sp. 7323 [19], Pseudomonas fragi [20] and Psychrobacter sp. 2–17 [21] (data not shown). In addition, sequence alignment showed that all the lipase sequences contained a highly conserved pentapeptide GYSGG (Figure 1), which is consistent with the GXSXG motif found in the active site of most of the lipolytic enzyme [22]. Based on the alignment results, the putative catalytic triad of Lip5 is composed of Ser-194, Asp-343 and His-376 (Figure 1).

2.3. Expression of lip5-wt and Mutants in P. pastoris

Lipases with different gene sequences, which included lip5-wt, lip5-m154, lip5-m293 and lip5-dm, have been expressed secretively in P. pastoris under the control of the glyceraldehydes-3-phosphate dehydrogenase (GAP) constitutive promoter, and their activities were investigated and the results were shown in Figure 2. Lip5-M154 and Lip5-DM was expressed at high level with a molecular weight of about 50 kDa (Figure 2A), however, no obvious expression was observed from Lip5-WT and Lip5-M293. It suggested that mistranslation of 154-Ser to leucine resulted in loss of expression of Lip5-WT, and that 154-Ser might either play an important role in the stability of the Lip5-WT, or have a negative effect on the expression of Lip5-WT. Roustan et al. have reported that a lipase from C. albicans (CaLip4) could be overproduced in Saccharomyces cerevisiae only after site mutation of its CUG codon (159-Ser) into a universal one [15]. Lip5-DM, which has double mutagenesis of 154 and 293 amino acids, showed better activity than Lip5-M154 (Figure 2B). The specific activity of pure Lip5-DM was also higher than that of Lip5-M154 (data not shown). It indicated that 293-Ser might be a critical amino acid which contributes to the enzymatic activity. Similar results were found for lipases from Candida rugosa, which required replacement of all the non-universal condons by universal serine codons with site-directed mutagenesis or whole gene synthesis methods to obtain functional lipase in universal host such as P. pastoris and E. coli [2327].

2.4. Purification of Recombinant Lip5-DM

The recombinant Lip5-DM was separated from the culture media by two purification steps according to the method described in the experimental section. The crude lipase protein was precipitated with the increment of mass fraction of (NH4)2SO4, and the maximum protein precipitation was obtained when the mass fraction of (NH4)2SO4 was more than 70%. The crude lipase, which was precipitated completely by 80% of (NH4)2SO4, was dissolved in Tris-HCl buffer (20 mM, pH 8.0), and was purified further by anion-exchange chromatography. The recombinant Lip5-DM could be eluted when the concentration of NaCl increased to 200 mM, and the fractionated eluant was analyzed by SDS-PAGE (Figure 3A). Zymogram analysis shows that the Lip5-DM was purified to homogeneity (Figure 3B). The pure lipase was collected for further analysis of enzymatic characterization.

2.5. Effect of Temperature on the Lipase Activity and Stability

To determine the optimal temperature of the recombinant lipase, lipolytic activity of Lip5-DM to p-NP-caprylate was measured under different temperatures (5–55 °C). The relative activities at various temperatures are shown in Figure 4A, taking the activity at 15 °C as 100%. It is interesting to observe that the recombinant lipase displayed the highest activity at 15 and 25 °C, and maintained more than 70% of the maximum activity at 35 °C. Even at a lower temperature of 5 °C, the recombinant lipase still retained more than 50% of the maximal activity (Figure 4A). The optimum temperatures for Lip5 was lower than those of lipase CALip4, CPLip2 and CALA, which were 50–60 °C [15], 50 °C [17] and 50–70 °C [28], respectively. The Lip5-DM exhibited high hydrolytic activity at low temperature, and this property was similar to that of cold active lipase from psychrophilic organisms with high activity in a temperature range of 0–30 °C [6,29]. The reactions catalyzed by the enzymes derived from cold-adapted organisms are usually lower than those catalyzed by the corresponding enzymes from their mesophilic counterparts [30]. Therefore, we further determined the activation energy for hydrolysis of p-NP-caprylate catalyzed by Lip5-DM. The value of activation energy was about 8.5 kcal/mol in the temperature range from 5 to 25 °C (Figure 4B). This value was lower than that of a cold-adapted lipase LipP from an Alaskan Psychrotroph, Pseudomonas sp. Strain B11-1, with an activation energy of 11.2 kcal/mol [31] and it was higher than that of cold active lipases from Psychrobacter sp. and a deep-sea sediment metagenome, with activation energy of 5.5 kcal/mol for MBP-lipase and 3.28 kcal/mol for rEML1, respectively [9,10]. Thermostability of Lip5-DM was also investigated by measuring the residual activities during incubation at various temperatures for 2 h at pH 6.0. The Lip5-DM showed good thermostability over a range of temperature from 15 °C to 45 °C, with more than 60% of maximal activity retained after 2 h incubation (Figure 5). However, the stability of recombinant lipase decreased at 55 °C, with 23.86% residual activity after incubation for 2 h. These thermal properties were similar to that displayed by a cold active lipase from Aspergillus nidulans, which sharply lost its activity when the temperature exceeded 40 °C [32].

2.6. Effect of pH on Lip5-DM Activity and Stability

To investigate the influence of pH on Lip5-DM, the activity of lipase was measured at various pHs. The recombinant lipase was active in a pH range of 5.0–7.0, with the maximal activity at pH 5.0 and 6.0 (Figure 6A). The pH stability of lipase was explored by pre-incubating Lip5-DM in buffer with different pH at 4 °C for 12 h. The results are shown in Figure 6B. The Lip5-DM activity exhibited stable within the pH range of 5–9, and it remained more than 60% of maximal activity. The recombinant lipase sharply lost its activity when incubated at pH 4.0, and only preserved 26% activity.

2.7. Effect of Metal Ions, Inhibitors, Detergents and Water-Miscible Solvent on the Activity of Lip5-DM

Effect of metal ions on the recombinant Lip5-DM hydrolysis activities was determined. The metal ion concentration was selected as 1 mM and 5 mM respectively. The results are shown in Table 2. Among the metals ions tested, Zn2+ increased the lipase activity at either low (1 mM) or high concentration (5 mM) with respect to the blank control, possibly by involving stabilizing the active conformation of the enzyme. The structural stabilizing role of Zn2+ on lipase from Geobacillus stearothermophilus has been observed by Choi et al. [33]. Fe2+, Fe3+ and Hg2+ strongly inhibit the lipase activity, and the residual activities of lipase were 20%, 35% and 13% respectively when their concentrations were 5 mM. A similar inhibitory effect of these ions on the activity of microbial lipases has been reported by other authors [3436]. The activity of lipase was inhibited by Hg2+, suggesting that the thiol-group harboring amino acids might be involved in activation of the lipase. Ethylenediaminetetraacetic acid (EDTA) inhibited the activity of lipase by about 38% (1 mM), which showed that certain metal ions might contribute to the catalysis mechanism of lipase. Moreover, Phenylmethanesulfonyl fluoride (PMSF) also decreased the recombinant lipase activity, indicating that the Ser residues played an important role in the biocatalysis function of the lipase. Surfactants such as Tween 20, Tween 80 and TritonX-100 showed inhibitory effect in the lipase activity (Table 3). Sodium dodecyl sulfate (SDS) sharply decreased the lipase activity by 85% with a low concentration of 0.1%. Methanol, ethanol, and acetone showed negative effect on the lipase activity, and the residual activities of Lip5-DM remained at 48%, 24% and 44% respectively after incubation for 1 h. Lipase activity was almost lost in the presence of isopropanol alcohol. These properties differ from those displayed by lipase from Fusarium heterosporum, which was activated by pre-incubation in organic solvent [37].

2.8. Substrate Specificity of Lip5-DM

A series of p-NP esters with a variety of carbon chain lengths was employed to determine the substrate specificity of recombinant Lip5-DM. It was observed that Lip5-DM exhibited a preference for the short and medium chain length p-NP (C4 and C8 acyl group) esters rather than the long chain length p-NP esters (C12, C16 and C18 acyl group), with relative activity of 100, 59, 39, 22 and 14% for the C8, C4, C16, C12 and C18 derivatives, respectively (Figure 7). Similar substrate preference property was found for CALip4, which displays maximum hydrolysis activity to the C6 and C8 p-NP derivatives [15]. The kinetic constant were determined and summarized in Table 4. The highest Kcat value was observed with p-NP-caprylate (C8), whereas p-NP-laurate (C12) showed the lowest Kcat value. Among the p-nitrophenyl esters tested, p-NP-caprylate (C8) was observed to have the highest specificity constant (Kcat/Km), and the Km and Kcat values were 0.27 mM and 55.12 S−1, respectively. Therefore, p-NP-caprylate (C8) was the most suitable substrate for the recombinant enzyme.
To determine the lipase activity of recombinant Lip5-DM, triacylglycerols such as olive oil and safflower oil were hydrolyzed by recombinant enzyme, and the hydrolysis activities were 3200 U/L and 3800 U/L, respectively. This showed that the Lip5-DM was a lipase and displayed lipolytic activity to lipid.

3. Experimental Section

3.1. Strains, Plasmids and Materials

Strain C. albicans ATCC 10231 was collected from Guangdong Microbial Culture Collection Center. E. coli DH5α, P. pastoris X33 (Invitrogen), plasmid pBluescript SK vector (Stratagene) and pGAPZαA (Invitrogen) were used for gene cloning and protein expression. The substrates (p-nitrophenyl (pNP) esters derivates) were purchased from Sigma. Other reagents and solvents were of analytical grade.

3.2. Cloning of lip5-wt and Sequence Analysis

C. albicans genomic DNA was prepared using a fungal genome extraction kit (Omega) according to the manufacturer’s instruction. PCR was performed to amplify the lip5-wt gene sequence (without the signal peptide) using C. albicans genome DNA as template. The primers were Lip5-FP and Lip5-RP (Table 1). The amplified fragments were inserted into pBluescript vector, resulting plasmid pBluescript-lip5-wt, and completely sequenced. The nucleotide sequence of lip5 reported in this work has been deposited in the GenBank under the accession number HM581681. Multiple alignments of amino acid sequences of lip5-wt with other lipases from other Candida species were performed by the program ClustalW2 ( http://www.ebi.ac.uk/Tools/clustalw2).

3.3. Construction of the Mutant lip5 Gene Variants

Triplet codon CTG in the lip5-wt gene sequence, which is translated into serine in C. albicans, was mutated into TCT by overlap extension PCR method. The primers are shown in Table 1. Three DNA fragments (lip5-A, lip5-B and lip5-C) were produced by PCR using pBluescript-lip5-wt as template. lip5-dm, which has double mutant, was produced using the mixture of the three purified DNA fragments of (lip5-A, lip5-B and lip5-C) as template with primer Lip5-FP and Lip5-RP. To obtain lip5-m154 gene containing only a single mutation in site 154 amino acid, PCR was performed with primer Lip5-CTG154-FP and Lip5-RP using pBluescript-Lip5-wt as template to yield DNA fragment lip5-BC. Then fusion of lip5-A and lip5-BC was performed to generate lip5-m154 with primers lip5-FP and lip5-RP. Similarly, lip5-AB was produced by PCR with primers lip5-FP and lip5-CTG293-RP. And then, lip5-m293 gene was obtained by fusion of DNA fragment lip5-AB and lip5-C. All resulting DNA fragments lip5-dm, lip5-m154 and lip5-m293 were inserted into pBluescript vector at the site of Kpn I and Xho I to produce pBluescript-lip5-dm, pBluescript-lip5-m154 and pBluescript-lip5-m293, respectively. The plasmids containing targeted genes were fully sequenced. And then, subcloning of these genes to the expression vector pGAPZαA was performed to generate vector pGAPZαA-lip5-dm, pGAPZαA-lip5-m154 and pGAPZαA-lip5-m293.

3.4. Expression of lip5-wt, lip5-m154, lip5-m293 and lip5-dm

Vectors pGAPZαA-lip5-dm, pGAPZαA-lip5-m154, pGAPZαA-lip5-m293 and pGAPZαA were linearized by AvrII digestion. The purified digestion products were transformed into P. pastoris X-33 by electroporation, and the transformants were screened on YPD plates (1% yeast extract, 2% peptone, 2% dextrose and 2% agar) containing 100 μg/mL Zeocin. The transformed strains were grown in YPD liquid medium for protein expression. The single transformed colony was picked into 3 mL YPD medium containing 100 μg/mL Zeocin in a tube and grown at 30 °C and 200 rpm until the OD600 reached 2–6. Then the seed culture was inoculated into 100 mL YPD and cultured at 30 °C for 72 h.

3.5. Purification of Recombinant Lip5-DM

All the purification steps were performed at 4 °C. The supernatant was clarified by centrifugation (12,000 × g, 4 min, 4 °C) to remove cells. The crude enzyme solution was concentrated by ammonium sulfate precipitation (50–80%) and the precipitated fractions were collected by centrifugation (12,000 × g, 30 min), and then the crude lipases precipitation was dissolved with dilution buffer (20 mM Tris-HCl, pH 8.0) for further purification by anion-exchange chromatography with a Q Sepharose™ Fast Flow column (0.8 × 15 cm, GE Healthcare). The samples were applied onto the column which was pre-equilibrated with 20 mM Tris-HCl (pH 8.0), and then washed with the buffer (20 mM Tris-HCl, pH 8.0) and the buffer (20 mM Tris-HCl, 100 mM NaCl, pH 8.0) respectively. The recombinant Lip5-DM was eluted with the buffer (20 mM Tris-HCl, 200 mM NaCl, pH 8.0) at a flow rate of 3 mL/min, and fractionated eluant from the column were analyzed by SDS-PAGE.

3.6. Lipase Activity and Protein Analysis

Esterase activity was measured by spectrophotometric method using p-nitrophenyl caprylate (p-NP-caprylate) as substrate. The reaction mixture consisted of 100 mM Na2HPO4-NaH2PO4 buffer (pH 6.0), 2 mM p-NP-caprylate and an appropriate amount of the lipase. The reaction was carried out at 25 °C for 5 min. The amount of released p-nitrophenol was quantified by its absorbance at 405 nm by a spectrophotometer. One unit of activity was defined as the amount of enzyme needed to release 1 μmol of p-nitrophenol per minute under the assay conditions.
Lipase activity was quantified at pH 6.0 by free fatty acid titration with 20 mM NaOH after incubated for 10 min at 25 °C in a vessel. The assay mixture consisted of 4 mL 100 mM Na2HPO4-NaH2PO4 buffer, 5 mL emulsified olive oil or sufflower oil and 1ml enzyme solution. One unit of lipase activity was defined as the amount of enzyme releasing 1μmol of free fatty acids per minute. Protein samples were mixed with loading buffer and heated to 95 °C for 5 min and loaded onto 12% SDS-PAGE gels. Proteins were stained by Coomassie blue as instructions. Protein concentration was determined using a BCA Protein Assay Kit (Sangon, Shanghai, China) according to the manufacturer’s instruction.

3.7. Zymogram Analysis

Zymogram analysis was done by running the purified lipase sample on a 12% native PAGE gel. After electrophoresis, the gel was incubated for 30 min in 50 mM phosphate buffer (pH 7.2) containing 1% β-naphthyl acetate at room temperature. After addition of 0.5% Fast Blue RR solution, enzyme activity could be detected by the appearance of brown colored bands in the gel.

3.8. Effect of Temperature on the Lip5-DM Activity and Stability

Effect of temperature on the lipase activity was determined by measuring the hydrolytic activity at different temperatures in 100 mM Na2HPO4-NaH2PO4 buffer (pH 6.0). The temperature was set as 5 °C, 15 °C, 25 °C, 35 °C, 45 °C and 55 °C. For investigation of the thermostability, the purified lipase was incubated at different temperature for 2 h, and activity measurements were performed every 30 min for each temperature.

3.9. Effect of pH on the Lip5-DM Activity and Stability

The optimum pH was investigated by measuring the hydrolytic activity of lipase at various pH value. The pH was set as 4, 5, 6, 7, 8, 9. The buffer was used as following: 100 mM sodium acetate (pH 4.0, pH 5.0), 0.1 M Na2HPO4-NaH2PO4 (pH 6.0, pH 7.0), 50 mM Tris-HCl (pH 8.0) and 50 mM Gly-NaOH (pH 9.0). The reaction was performed at 25 °C. To analyze pH stability of lipase, the pure Lip5-DM was pre-incubated in buffers within the different pH value at 4 °C for 12 h. Then the residual activity was analyzed.

3.10. Effect of Metal Ions, Inhibitor, Surfactants and Water-Miscible Solvent on the Lip5-DM Activity

The influence of various chemicals, surfactants, inhibitors and water-miscible solvent on the hydrolytic activity was determined by detecting the residual activity at 25 °C after incubating the pure Lip5-DM in 100 mM Na2HPO4-NaH2PO4 (pH 6.0) buffer containing each of various metal ions (1 mM and 5 mM), each of surfactants (0.1% v/v) and each of water-miscible solvents (30% v/v) at 4 °C for 1 h. The control was performed without metal ions, detergents and water-miscible solvents. The metal ions include ZnSO4, CuSO4, MgSO4, FeCl3, CaCl2, MnSO4, HgCl2, LiCl, FeSO4, NiCl2, BaCl2, CoCl2. Inhibitors include Ethylenediaminetetraacetic acid (EDTA) and phenylmethylsulfonyl fluoride (PMSF). The detergents include Tween 20, Tween 80, Triton X-100 and SDS. The water-miscible solvents include methanol, ethanol, acetone and isopropanol alcohol.

3.11. Substrate Specificity

The substrate specificity of Lip5-DM was investigated using p-nitrophenyl fatty acid esters with various acyl chain lengths. The substrates are as following: p-nitrophenyl butyrate (p-NP-butyrate, C4), p-nitrophenyl caprylate (p-NP-caprylate, C8), p-nitrophenyl laurate (p-NP-laurate, C12), p-nitrophenyl palmitate (p-NP-palmitate, C16) and p-nitrophenyl stearate (p-NP-stearate, C18) were used. Determination of kinetic constants and activation energy Kinetic constants of Lip5-DM were determined by using p-NP esters as substrate. The initial rate of p-NP esters hydrolysis was measured at various substrate concentrations over the range 0.125 mM to 5 mM. The reaction was performed at 5, 15 and 25 °C according to the procedure described above. The Vmax and Km values were determined by Lineweaver-Burk plots method. Kcat was calculated subsequently with enzyme concentration. The activation energy (Ea) was determined by using the slope of the Arrhenius plot and Arrhenius equation.

4. Conclusions

A new cold-active lipase from the yeast C. albicans showed low sequence identity with those of lipases from psychrophilic organisms. Codon CTG have been mistranslated into leucine instead of serine in the P. pastoris, and serine is an important amino acid residue for the lipase expression and activity. Pure Lip5-DM showed high activity at low temperatures (5–35 °C) and broad pH ranges (5.0–9.0), with an activation energy of 8.5 kcal/mol. The activity of lipase increased in the presence of Zn2+. Surfactants and water-miscible solvents decreased lipase activity. Lip5-DM exhibited a preference for the short and medium chain length p-NP esters rather than the long chain length p-NP, and high affinity to p-NP-caprylate was observed. Noteworthy is, only CALip4, which is one of ten lipases found in the C. albicans, has been reported on its enzymatic characterization [15]. CALip4 showed high temperature activity at 50–60 °C, and displayed a high alcoholysis activity with a range of alcohols (e.g., methanol, ethanol, propanol and isopropanol) as acyl acceptor. It is very interesting that CALip4 and Lip5 showed a huge difference in enzymatic characterization although they are both from C. albicans with high sequence identity. These above results indicated that this novel lipase is a new example of a cold-active lipase with different properties. In addition, this work will be of great value to overexpress the lipase from C. albicans efficiently with yeast P. pastoris as a host cell.

Acknowledgements

This work was supported by the National Natural Science Foundation of China (20706021), and the city Key Technologies R & D Program of Guangzhou (2009A1-E021).

References

  1. Jaeger, KE; Eggert, T. Lipases for biotechnology. Curr. Opin. Biotechnol 2002, 13, 390–397. [Google Scholar]
  2. Schmitt-Rozieres, M; Deyris, V; Comeau, LC. Enrichment of polyunsaturated fatty acids from sardine cannery effluents by enzymatic selective esterification. J. Am. Oil Chem. Soc 2000, 77, 329–332. [Google Scholar]
  3. Lumor, SE; Jones, KC; Ashby, R; Strahan, GD; Kim, BH; Lee, GC; Shaw, JF; Kays, SE; Chang, SW; Foglia, TA; Akoh, CC. Synthesis and characterization of canola oil-stearic acid-based trans-free structured lipids for possible margarine application. J. Agric. Food Chem 2007, 55, 10692–10702. [Google Scholar]
  4. Kheadr, EE; Vuillemard, JC; El-Deeb, SA. Impact of liposome-encapsulated enzyme cocktails on cheddar cheese ripening. Food Res. Int 2003, 36, 241–252. [Google Scholar]
  5. Jaeger, KE; Reetz, MT. Microbial lipases form versatile tools for biotechnology. Trends Biotechnol 1998, 16, 396–403. [Google Scholar]
  6. Marshall, CJ. Cold-adapted enzymes. Trends Biotechnol 1997, 15, 359–364. [Google Scholar]
  7. Joseph, B; Ramteke, PW; Thomas, G. Cold active microbial lipases: Some hot issues and recent developments. Biotechnol. Adv 2008, 26, 457–470. [Google Scholar]
  8. Ryu, HS; Kim, HK; Choi, WC; Kim, MH; Park, SY; Han, NS; Oh, TK; Lee, JK. New cold-adapted lipase from Photobacterium lipolyticum sp nov that is closely related to filamentous fungal lipases. Appl. Microbiol. Biotechnol 2006, 70, 321–326. [Google Scholar]
  9. Jeon, JH; Kim, JT; Kim, YJ; Kim, HK; Lee, HS; Kang, SG; Kim, SJ; Lee, JH. Cloning and characterization of a new cold-active lipase from a deep-sea sediment metagenome. Appl. Microbiol. Biotechnol 2009, 81, 865–874. [Google Scholar]
  10. Parra, LP; Reyes, F; Acevedo, JP; Salazar, O; Andrews, BA; Asenjo, JA. Cloning and fusion expression of a cold-active lipase from marine Antarctic origin. Enzym. Microb. Tech 2008, 42, 371–377. [Google Scholar]
  11. Arpigny, JL; Lamotte, J; Gerday, C. Molecular adaptation to cold of an Antarctic bacterial lipase. J. Mol. Catal. B: Enzym 1997, 3, 29–35. [Google Scholar]
  12. Hube, B; Stehr, F; Bossenz, M; Mazur, A; Kretschmar, M; Schafer, W. Secreted lipases of Candida albicans: cloning, characterisation and expression analysis of a new gene family with at least ten members. Arch. Microbiol 2000, 174, 362–374. [Google Scholar]
  13. Santos, MAS; Keith, G; Tuite, MF. Nonstandard Translational Events in Candida-Albicans Mediated by an Unusual Seryl-Transfer Rna with a 5′-Cag-3′ (Leucine) Anticodon. EMBO J 1993, 12, 607–616. [Google Scholar]
  14. Ohama, T; Suzuki, T; Mori, M; Osawa, S; Ueda, T; Watanabe, K; Nakase, T. Nonuniversal decoding of the leucine codon cug in several candida species. Nucleic Acids Res 1993, 21, 4039–4045. [Google Scholar]
  15. Roustan, JL; Chu, AR; Moulin, G; Bigey, F. A novel lipase/acyltransferase from the yeast Candida albicans: Expression and characterisation of the recombinant enzyme. Appl. Microbiol. Biotechnol 2005, 68, 203–212. [Google Scholar]
  16. Gacser, A; Stehr, F; Kroger, C; Kredics, L; Schafer, W; Nosanchuk, JD. Lipase 8 affects the pathogenesis of Candida albicans. Infect. Immun 2007, 75, 4710–4718. [Google Scholar]
  17. Neugnot, V; Moulin, G; Dubreucq, E; Bigey, F. The lipase/acyltransferase from Candida parapsilosis-Molecular cloning and characterization of purified recombinant enzymes. Eur. J. Biochem 2002, 269, 1734–1745. [Google Scholar]
  18. Hegh, I; Patkar, S; Halkier, T; Hansen, MT. Two lipases from Candida antarctica: Cloning and expression in Aspergillus oryzae. Can. J. Bot 1995, 73, 869–875. [Google Scholar]
  19. Zhang, JW; Zeng, RY. Molecular cloning and expression of a cold-adapted lipase gene from an Antarctic deep sea psychrotrophic bacterium Pseudomonas sp. 7323. Mar. Biotechnol 2008, 10, 612–621. [Google Scholar]
  20. Santarossa, G; Lafranconi, PG; Alquati, C; DeGioia, L; Alberghina, L; Fantucci, P; Lotti, M. Mutations in the “lid” region affect chain length specificity and thermostability of a Pseudomonas fragi lipase. FEBS Lett 2005, 579, 2383–2386. [Google Scholar]
  21. Zhang, J; Lin, S; Zeng, RY. Cloning, expression, and characterization of a cold-adapted lipase gene from an Antarctic deep-sea psychrotrophic bacterium, Psychrobacter sp. 7195. J. Microbiol. Biotechnol 2007, 17, 604–610. [Google Scholar]
  22. Brady, L; Brzozowski, AM; Derewenda, ZS; Dodson, E; Dodson, G; Tolley, S; Turkenburg, JP; Christiansen, L; Hugejensen, B; Norskov, L; Thim, L; Menge, U. A Serine protease triad forms the catalytic center of a triacylglycerol lipase. Nature 1990, 343, 767–770. [Google Scholar]
  23. Tang, SJ; Sun, KH; Sun, GH; Chang, TY; Wu, WL; Lee, GC. A transformation system for the nonuniversal CUG(Ser) codon usage species Candida rugosa. J. Microbiol. Methods 2003, 52, 231–238. [Google Scholar]
  24. Tang, SJ; Shaw, JF; Sun, KH; Sun, GH; Chang, TY; Lin, CK; Lo, YC; Lee, GC. Recombinant expression and characterization of the Candida rugosa lip4 lipase in Pichia pastoris: Comparison of glycosylation, activity, and stability. Arch. Biochem. Biophys 2001, 387, 93–98. [Google Scholar]
  25. Tang, SJ; Sun, KH; Sun, GH; Chang, TY; Lee, GC. Recombinant expression of the Candida rugosa lip4 lipase in Escherichia coli. Protein Expr. Purif 2000, 20, 308–313. [Google Scholar]
  26. Brocca, S; Schmidt-Dannert, C; Lotti, M; Alberghina, L; Schmid, RD. Design, total synthesis, and functional overexpression of the Candida rugosa lip1 gene coding for a major industrial lipase. Protein Sci 1998, 7, 1415–1422. [Google Scholar]
  27. Chang, SW; Lee, GC; Shaw, JF. Efficient production of active recombinant Candida rugosa LIP3 lipase in Pichia pastoris and biochemical characterization of the purified enzyme. J. Agric. Food Chem 2006, 54, 5831–5838. [Google Scholar]
  28. Pfeffer, J; Richter, S; Nieveler, J; Hansen, CE; Rhlid, RB; Schmid, RD; Rusnak, M. High yield expression of lipase a from Candida antarctica in the methylotrophic yeast Pichia pastoris and its purification and characterisation. Appl. Microbiol. Biotechnol 2006, 72, 931–938. [Google Scholar]
  29. Gerday, C; Aittaleb, M; Arpigny, JL; Baise, E; Chessa, JP; Garsoux, G; Petrescu, I; Feller, G. Psychrophilic enzymes: A thermodynamic challenge. Biochim. Biophys. Acta Protein Struct. Mol. Enzymol 1997, 1342, 119–131. [Google Scholar]
  30. Feller, G; Narinx, E; Arpigny, JL; Aittaleb, M; Baise, E; Genicot, S; Gerday, C. Enzymes from psychrophilic organisms. FEMS Microbiol. Rev 1996, 18, 189–202. [Google Scholar]
  31. Choo, DW; Kurihara, T; Suzuki, T; Soda, K; Esaki, N. A cold-adapted lipase of an Alaskan psychrotroph, Pseudomonas sp. strain B11-1: Gene cloning and enzyme purification and characterization. Appl. Environ. Microbiol 1998, 64, 486–491. [Google Scholar]
  32. Mayordomo, I; Randez-Gil, F; Prieto, JA. Isolation, purification, and characterization of a cold-active lipase from Aspergillus nidulans. J. Agric. Food Chem 2000, 48, 105–109. [Google Scholar]
  33. Choi, WC; Kim, MH; Ro, HS; Ryu, SR; Oh, TK; Lee, JK. Zinc in lipase L1 from Geobacillus stearothermophilus L1 and structural implications on thermal stability. FEBS Lett 2005, 579, 3461–3466. [Google Scholar]
  34. Kiran, GS; Shanmughapriya, S; Jayalakshmi, J; Selvin, J; Gandhimathi, R; Sivaramakrishnan, S; Arunkumar, M; Thangavelu, T; Natarajaseenivasan, K. Optimization of extracellular psychrophilic alkaline lipase produced by marine Pseudomonas sp. (MSI057). Bioprocess Biosystems Eng 2008, 31, 483–492. [Google Scholar]
  35. Dong, H; Gao, SJ; Han, SP; Cao, SG. Purification and characterization of a Pseudomonas sp. lipase and its properties in non-aqueous media. Biotechnol. Appl. Biochem 1999, 30, 251–256. [Google Scholar]
  36. Kojima, Y; Shimizu, S. Purification and characterization of the lipase from Pseudomonas fluorescens HU380. J. Biosci. Bioeng 2003, 96, 219–226. [Google Scholar]
  37. Shimada, Y; Koga, C; Sugihara, A; Nagao, T; Takada, N; Tsunasawa, S; Tominaga, Y. Purification and characterization of a novel solvent-tolerant lipase from Fusarium heterosporum. J. Ferment. Bioeng 1993, 75, 349–352. [Google Scholar]

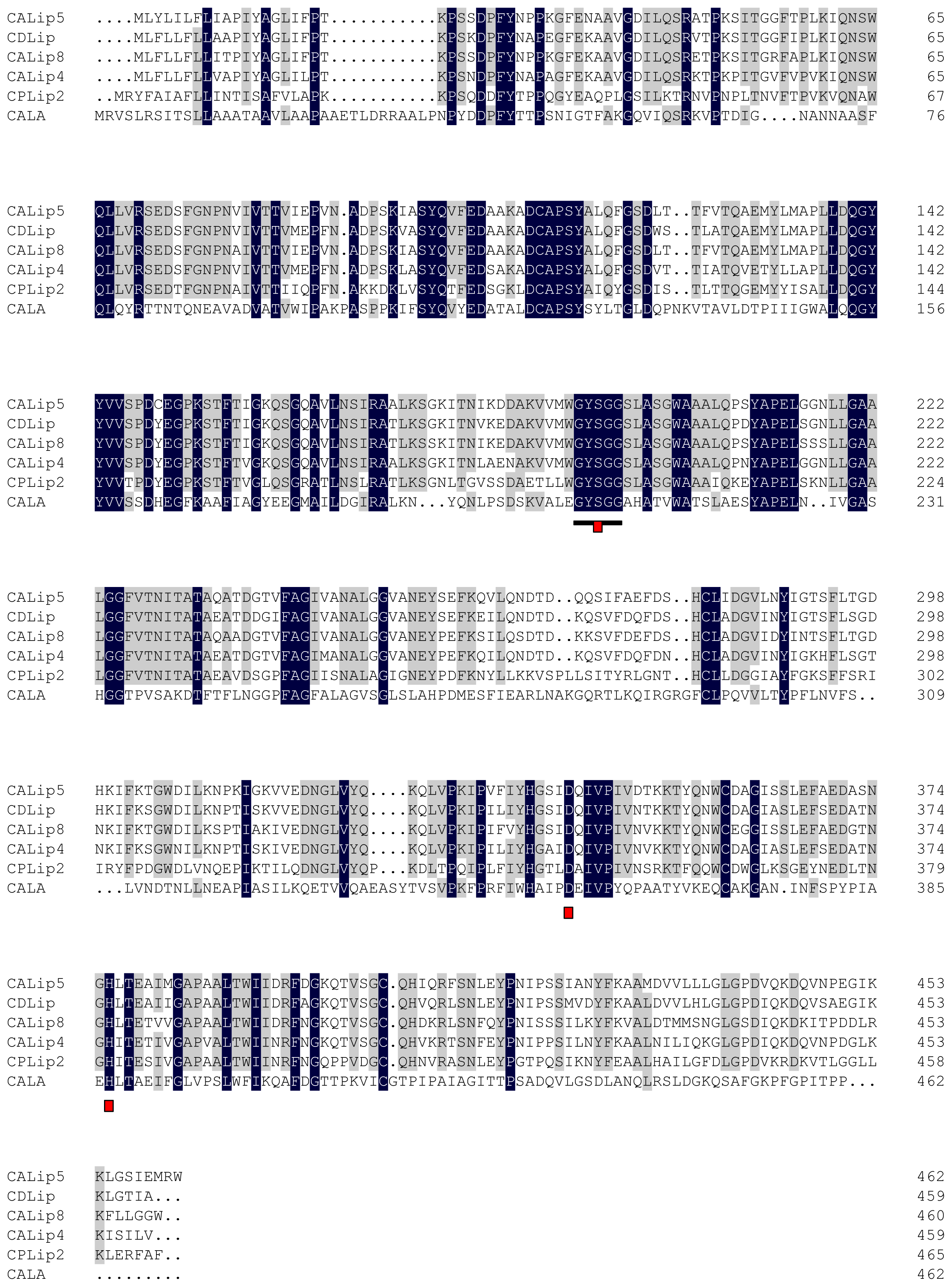

Figure 1. Multiple alignment of Lip5-DM (CALip5) amino acids sequence (HM581681) with those of lipases from other Candida species. The lipase sequence included CDLip (putative lipase from Candidas dubliniensis CD36, XP_002421466), CALip8 (lipase 8 from Candidas albican SC5314, AAF69523), CALip4 (lipase 4 from Candidas albican SC5314, AAF69521), CPLip2 (lipase 2 from Candida parapsilosis, CAC86400) and CALA (lipase A from Candida antarctica, 3GUU_A). Gray shading reflects the degree of sequence conservation. The conserved pentapeptide (Gly-Xaa-Ser-Xaa-Gly) is underlined. The putative active sites on Lip5 sequence are marked with red rectangles.
Figure 1. Multiple alignment of Lip5-DM (CALip5) amino acids sequence (HM581681) with those of lipases from other Candida species. The lipase sequence included CDLip (putative lipase from Candidas dubliniensis CD36, XP_002421466), CALip8 (lipase 8 from Candidas albican SC5314, AAF69523), CALip4 (lipase 4 from Candidas albican SC5314, AAF69521), CPLip2 (lipase 2 from Candida parapsilosis, CAC86400) and CALA (lipase A from Candida antarctica, 3GUU_A). Gray shading reflects the degree of sequence conservation. The conserved pentapeptide (Gly-Xaa-Ser-Xaa-Gly) is underlined. The putative active sites on Lip5 sequence are marked with red rectangles.
Ijms 12 03950f1
Figure 2. (A) Lane M: molecular weight marker; lane 1: Sample from wild type Lip5 expression medium; lane 2: Sample from Lip5-M154 expression medium; lane 3, sample from Lip5-M293 expression medium; lane 4: Sample Lip5-DM expression medium; lane 5: sample from transformant harboring pGAPZαA expression medium; (B) The activity of Lip5-WT and mutants in the culture supernatant were measured spectrophotometrically with p-NP-caprylate as substrate at 25 °C and pH 6.0. Activities are displayed as percentages of the maximum activity (Lip5-DM, 4000 U/L).
Figure 2. (A) Lane M: molecular weight marker; lane 1: Sample from wild type Lip5 expression medium; lane 2: Sample from Lip5-M154 expression medium; lane 3, sample from Lip5-M293 expression medium; lane 4: Sample Lip5-DM expression medium; lane 5: sample from transformant harboring pGAPZαA expression medium; (B) The activity of Lip5-WT and mutants in the culture supernatant were measured spectrophotometrically with p-NP-caprylate as substrate at 25 °C and pH 6.0. Activities are displayed as percentages of the maximum activity (Lip5-DM, 4000 U/L).
Ijms 12 03950f2
Figure 3. Purification of Lip5-DM from the culture supernatant (A) and activity staining (B) A Lane M: molecular weight marker; lane 1: Culture supernatant; lane 2: Concentrated supernatant after (NH4)2SO4 precipitation; lane 3: Fraction sample eluted from column by 100 mM NaCl; lane 4–6: Fraction samples eluted from Q Sepharose™ Fast Flow by 200 mM NaCl. B. Zymogram analysis of purified Lip5-DM (1.4 μg) was performed with β-naphtyl acetate as substrate. The gels were stained by Coomassie Brilliant Blue (left) and (right) Fast Blue RR.
Figure 3. Purification of Lip5-DM from the culture supernatant (A) and activity staining (B) A Lane M: molecular weight marker; lane 1: Culture supernatant; lane 2: Concentrated supernatant after (NH4)2SO4 precipitation; lane 3: Fraction sample eluted from column by 100 mM NaCl; lane 4–6: Fraction samples eluted from Q Sepharose™ Fast Flow by 200 mM NaCl. B. Zymogram analysis of purified Lip5-DM (1.4 μg) was performed with β-naphtyl acetate as substrate. The gels were stained by Coomassie Brilliant Blue (left) and (right) Fast Blue RR.
Ijms 12 03950f3
Figure 4. Effects of temperature on Lip5-DM activity: (A) The purified Lip5-DM was assayed at different temperatures. Activities are displayed as percentages of the maximum activity (31.27 U/mg). Values are means ± SD from three independent experiments; (B) To determine the activation energy, the logarithm of the Kcat values was plotted against the reciprocal of absolute temperature (T). The values shown are activation energy calculated from the Arrhenius plot.
Figure 4. Effects of temperature on Lip5-DM activity: (A) The purified Lip5-DM was assayed at different temperatures. Activities are displayed as percentages of the maximum activity (31.27 U/mg). Values are means ± SD from three independent experiments; (B) To determine the activation energy, the logarithm of the Kcat values was plotted against the reciprocal of absolute temperature (T). The values shown are activation energy calculated from the Arrhenius plot.
Ijms 12 03950f4
Figure 5. Effect of temperature on the recombinant lipase thermostability. The enzyme was assayed after incubation in a range of temperatures (15–55 °C) for 2 h. Activities are displayed as percentages of the initial activity (31.27 U/mg).
Figure 5. Effect of temperature on the recombinant lipase thermostability. The enzyme was assayed after incubation in a range of temperatures (15–55 °C) for 2 h. Activities are displayed as percentages of the initial activity (31.27 U/mg).
Ijms 12 03950f5
Figure 6. Influence of pH on Lip5-DM activity (A) and stability (B). The activity of purified Lip5-DM was measured at various pHs from 4.0 to 9.0. For the stability study, the lipase enzyme was investigated after incubation in a range of pH (4.0–9.0) for 12 h. Activities are shown as percentages of the maximum activity (32.17 U/mg). Values are means ± SD from three independent experiments.
Figure 6. Influence of pH on Lip5-DM activity (A) and stability (B). The activity of purified Lip5-DM was measured at various pHs from 4.0 to 9.0. For the stability study, the lipase enzyme was investigated after incubation in a range of pH (4.0–9.0) for 12 h. Activities are shown as percentages of the maximum activity (32.17 U/mg). Values are means ± SD from three independent experiments.
Ijms 12 03950f6

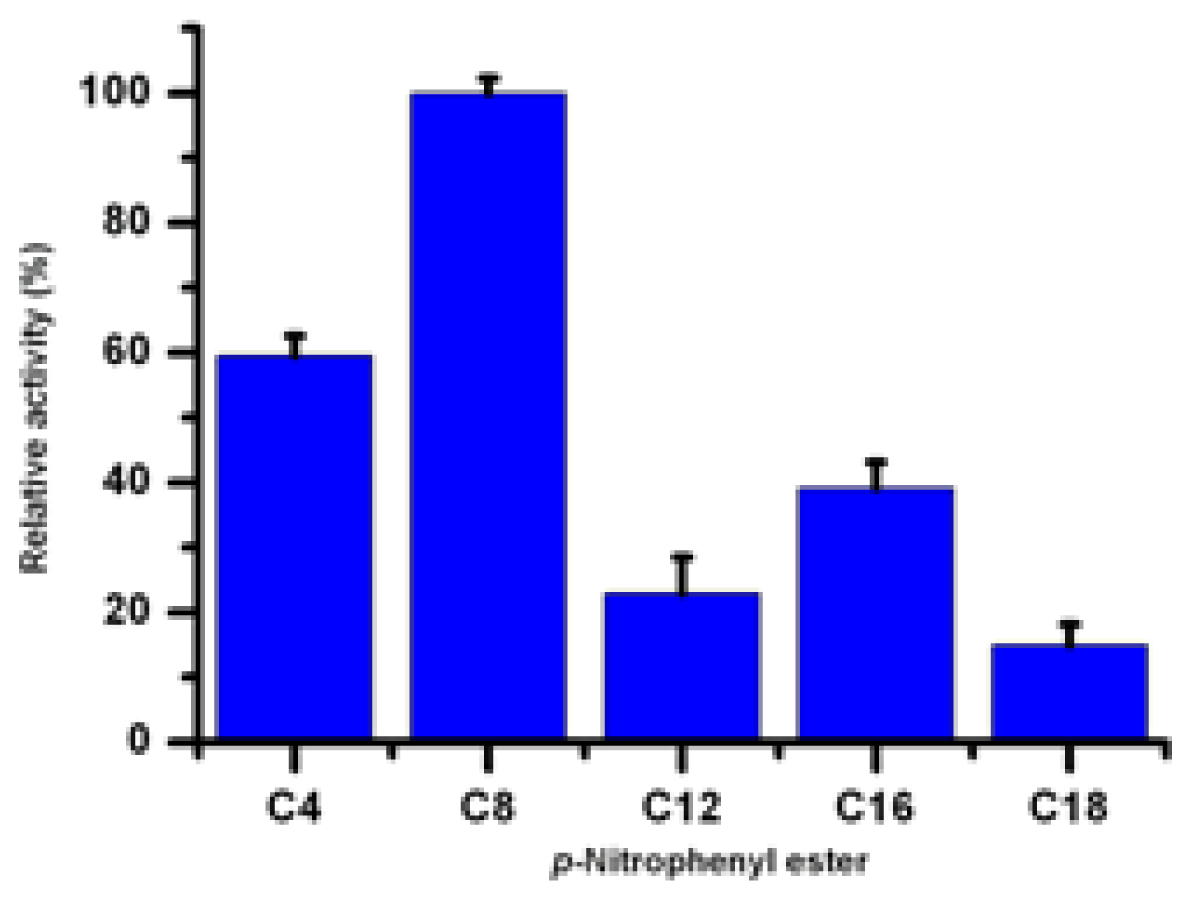

Figure 7. Relative activity of Lip5-DM on various p-nitrophenyl esters with different chain lengths. Activities on each substrate are expressed as the percentage of p-NP-caprylate (31.27 U/mg). Values are means ± SD from three independent experiments.
Figure 7. Relative activity of Lip5-DM on various p-nitrophenyl esters with different chain lengths. Activities on each substrate are expressed as the percentage of p-NP-caprylate (31.27 U/mg). Values are means ± SD from three independent experiments.
Ijms 12 03950f7
Table 1. Primers for lip5 gene cloning and mutation.
Table 1. Primers for lip5 gene cloning and mutation.
PrimersSequences a (5′-3′)
Lip5-FPGGGGTACCGGCCTTATTTTCCCTACCAA
Lip5-RPCCGCTCGAGTTATAACCACCTCATTTCAATTG
Lip5-CTG154-RPGTAGATTTAGGTCCTTCATAATCAG
Lip5-CTG154-FPGATTATGAAGGACCTAAATCTACATTCACTATTGGTAAACAATCAGG
Lip5-CTG293-RPCTTATGATCACCAGTTAAGAAAGAAGTACCGATATAGTTGAGCACAC
Lip5-CTG293-FPTCTTTCTTAACTGGTGATCATAAGA
aKpnI and XhoI restriction sites in Lip5-FP and Lip5-RP are underlined, respectively.
Nucleotides (TCT) encoding serine is in bold.
Table 2. Effect of various chemicals on the recombinant lipase activity a.
Table 2. Effect of various chemicals on the recombinant lipase activity a.
ReagentsRelative activity (%)
1 mM5 mM
Control100119.22 ± 6.61
ZnSO4100115.19 ± 7.44
CuSO495.02 ± 2.6178.35 ± 8.35
MgSO494.49 ± 7.8597.66 ± 9.64
FeCl364.01 ± 8.1835.11 ± 0.51
CaCl289.57 ± 8.3272.04 ± 1.85
MnSO4111.44 ± 5.8590.66 ± 2.38
LiCl96.56 ± 8.3192.24 ± 4.84
Fe SO472.99 ± 4.8920.27 ± 2.98
HgCl218.67 ± 3.0413.19 ± 6.60
BaCl280.36 ± 6.8477.22 ± 5.74
NiCl296.56 ± 8.3192.24 ± 4.84
CoCl2100.86 ± 9.7389.10 ± 3.67
EDTA71.86 ± 10.0965.41 ± 2.58
PMSF52.14 ± 2.6338.54 ± 2.15
aThe purified recombinant lipase was incubated in 100 mM Na2HPO4-NaH2PO4, pH 6.0 containing each chemicals at 4 °C for 1 h. Residual activities the lipase retained were measured using p-NP-caprylate as substrate under standard condition. Activities are shown as percentages of the control activity value (73.8 U/mg). Values are means ± SD from three independent experiments.
Table 3. Influence of detergents and organic solvents on the recombinant lipase activity a.
Table 3. Influence of detergents and organic solvents on the recombinant lipase activity a.
ReagentsRelative activity (%)
0.1% (w/v)30% (v/v)
Control100100
Tween 2082.52 ± 9.57
Triton X-10048.55 ± 1.57
SDS15.10 ± 4.72
Tween 8057.24 ± 4.17
Methanol48.23 ± 3.17
Ethanol24.32 ± 2.42
Acetone44.76 ± 3.59
Isopropanol4.59 ± 1.09
aThe purified recombinant lipase was incubated in 100 mM Na2HPO4-NaH2PO4, pH 6.0 containing each detergents (0.1% (w/v)) and solvents (30% (v/v)) at 4 °C for 1 hour. Residual activities were measured using p-NP-caprylate as substrate under standard condition. Activities are shown as percentages of the control activity value (73.8 U/mg). Values are means ± SD from three independent experiments.
Table 4. Kinetic parameter of Lip5 for hydrolysis of various p-nitrophenyl esters.
Table 4. Kinetic parameter of Lip5 for hydrolysis of various p-nitrophenyl esters.
SubstrateKm (mM)Vmax (mM/min)Kcat (s−1)Kcat/Km (s−1·mM−1)
p-NP-butyrate0.411.2054.18131.00
p-NP-caprylate0.271.2255.12203.41
p-NP-laurate0.500.209.4118.58
p-NP-palmitate0.360.7031.5986.86
