Review

Systematic Approaches towards the Development of Host-Directed Antiviral Therapeutics

1
Department of Chemistry, Emory University, Atlanta, GA 30322, USA
2
Emory Institute for Drug Discovery (EIDD), Emory University, Atlanta, GA 30322, USA
3
Department of Pediatrics, Emory University, Atlanta, GA 30322, USA
4
Children’s Healthcare of Atlanta, Atlanta, GA 30322, USA
*
Authors to whom correspondence should be addressed.
Int. J. Mol. Sci. 2011, 12(6), 4027-4052; https://doi.org/10.3390/ijms12064027
Submission received: 27 February 2011 / Revised: 3 June 2011 / Accepted: 3 June 2011 / Published: 15 June 2011
(This article belongs to the Special Issue A Systematic Development Method for Rational Drug Design)

Abstract

:
Since the onset of antiviral therapy, viral resistance has compromised the clinical value of small-molecule drugs targeting pathogen components. As intracellular parasites, viruses complete their life cycle by hijacking a multitude of host-factors. Aiming at the latter rather than the pathogen directly, host-directed antiviral therapy has emerged as a concept to counteract evolution of viral resistance and develop broad-spectrum drug classes. This approach is propelled by bioinformatics analysis of genome-wide screens that greatly enhance insights into the complex network of host-pathogen interactions and generate a shortlist of potential gene targets from a multitude of candidates, thus setting the stage for a new era of rational identification of drug targets for host-directed antiviral therapies. With particular emphasis on human immunodeficiency virus and influenza virus, two major human pathogens, we review screens employed to elucidate host-pathogen interactions and discuss the state of database ontology approaches applicable to defining a therapeutic endpoint. The value of this strategy for drug discovery is evaluated, and perspectives for bioinformatics-driven hit identification are outlined.

1. Introduction

With few exceptions, therapeutic approaches to combat infectious diseases have focused in the past decades on targeting unique components or enzymes of viral, bacterial and parasitic origin. It has now become perfectly evident that this traditional, pathogen-directed strategy, while highly successful in numerous cases [1], is inherently compromised by the rapid emergence of resistance or, increasingly, pre-existing pathogen resistance to individual drugs. For example, the efficacy of current neuraminidase inhibitors for the treatment of pandemic swine origin influenza H1N1 isolates is increasingly compromised by the appearance of viral strains with pre-existing resistance in the field [24]. Drug-resistant variants have likewise propelled the re-emergence of highly pathogenic bacteria strains such as Mycobacterium tuberculosis decades after they were considered contained [5,6].
Prompted largely by the onset of the global HIV epidemic, the development of combination therapies based on drugs with distinct individual resistance profiles has considerably heightened the barrier against the development of pathogen resistance and frequently boosted the effectiveness of pathogen-directed therapeutics through synergistic effects [7]. Despite these successes, however, combination therapies have not conceptually addressed the problem of pathogen resistance and multidrug resistant variants that emerge frequently in clinical settings and cohorts of highly therapy-experienced patients. Developing new generations of inhibitors that are inherently prohibitive of the rapid development of resistance will rather require a new and complementary paradigm for drug discovery.

1.1. Host-Directed Antivirals, a New Paradigm for Management of Viral Diseases

Of the strategies entertained towards this goal, targeting host factors that are essential for the pathogen life cycle, rather than pathogen components directly, has recently received increasing attention [810]. While all pathogenic microbes experience interactions with their host organisms, viruses as obligatory parasites are directly dependent upon their host cell environment for replication, protein expression and assembly of progeny particles. It is anticipated that blocking one or more of these critical host components or cellular pathways will be resilient to the rapid development of viral resistance, since individual point mutations in viral components are unlikely to compensate for the loss of an essential host factor.
Indeed, the currently available data for the experimental use of host cyclin-dependent kinase (CDK) inhibitors to block HSV-1 and HIV-1 replication, for instance, has revealed a remarkably reduced frequency of viral escape from inhibition in tissue culture settings [11,12]. In contrast, single point mutations in viral components are fully sufficient to abrogate high-affinity binding of pathogendirected antivirals as demonstrated by numerous studies investigating the molecular mechanism of viral drug resistance [1]. Given that replication of related viral pathogens frequently depends on overlapping host cell pathways, host-directed antiviral strategies have high potential to move beyond the one-bug one-drug paradigm by broadening the pathogen target range of a chemical agent.

1.2. Identification of Suitable Targets for Host-Directed Antivirals

From a therapeutic perspective, the intricate and complex network of virus-host interactions yields a multitude of potential cellular targets for host-directed antivirals. In addition to the aforementioned role of CDK host protein kinases in HSV-1 and HIV-1 replication [11,12], some examples include regulatory kinases of the Abl [13] and Src [14] tyrosine kinase families, inhibition of which blocks poxvirus motility and maturation of West Nile virus particles, respectively. The Raf/MEK/ERK kinases of the mitogen-activated protein kinase (MAPK) cascades [15], when inhibited, induce nuclear retention of the influenza virus ribonucleoprotein complexes [16], preventing their export and ultimately influenza virion assembly. A further example includes inhibition of COX-2, a component of the eicosanoid biosynthesis pathway, which reduces yields of human cytomegalovirus progeny virus [17].
Clearly, the most desirable host target is essential for completion of the pathogen life cycle under investigation but at least temporarily dispensable for host cell survival, thus supporting the prospect that successful inhibition will combine a potent antiviral effect with manageable toxicity. Nevertheless, targeting host factors carries an inherently higher potential for undesirable drug-induced side effects than pathogen-directed antiviral therapies, particularly when the latter is highly selective. While host-directed therapies are being explored for the treatment of some major chronic viral infections such as HSV-1 and HIV-1 [11,12], they appear predestined for the therapy of infections by pathogens predominantly associated with severe acute disease, since anticipated treatment times and concomitant host exposure to the drug remain limited. On the other hand, chronic infections are conceivably treatable by host-protein targets where more than one gene pathway regulates the condition. In some such cases, sequential application of host-gene modifiers could control disease progression without undue side effects associated with chronic application of an anti-viral drug.
Hit candidates for host-directed drug development programs have resulted from a diverse set of experimental approaches. These can be grouped largely into knowledge-driven direct identification of individual targets, automated screening of chemical diversity sets with protocols specifically designed for the discovery of host-directed hits, and systems-wide screens for host factors essential for pathogen replication.
The evolving understanding of critical host-pathogen interactions through molecular virology research of individual viral families has made possible the direct selection of candidate host targets. With an arsenal of approved and experimental therapeutics for inhibition of many cellular pathways at hand, identified candidate targets may in many cases be immediately testable through repurposing of known drugs or commercially available experimental compounds with known bioactivity. The demonstration that Gleevec (Imatinib mesylate), an Abl tyrosine kinase inhibitor licensed for the treatment of several cancer forms [18], is a poxvirus blocker [13] and the repurposing of the MEK kinase inhibitor U0126 to block the Raf/MEK/ERK cascade for influenza virus inhibition [16,19] serve as cases in point. While the former originated from the insight that efficient vaccinia virus spread requires phosphorylation of the viral A36R protein by Abl and Src family tyrosine kinases [20,21], the latter was triggered by the observation that influenza virus infection induces the activation of MAPK family members [16,21].
The availability of large robotic capacities in both corporate and academic settings combined with the rapid design and production of small-molecule compound libraries in the past two decades has accelerated the pace of discovery of novel drug candidates via high-throughput screening exercises. Applied to the identification of antiviral hits with a host-directed activity profile, for instance, it should be feasible to derive suitable screening protocols based on the hypothesis that host-directed candidates will likely show some cellular interference and return a broadened pathogen target range. While the former will translate into a lower primary screening score represented by the selectivity index (CC50/EC50), the latter should result in efficient inhibition not only of the screening agent but also of pathogens of related viral families when assessed in counter-screening assays. When we explored the general feasibility of this approach conceptually using a ~140,000-entry diversity set, several chemical compound classes were identified that efficiently blocked replication of a panel of distinct members of the myxovirus families [22]. Significantly, a subset of these revealed a host-directed activity profile in secondary assays and counter-screening exercises.
To determine the molecular target of host-directed compounds identified through screening of chemical libraries, a combination of traditional mechanism of action studies, genomics (i.e., gene microarrays), and/or proteomics (i.e., protein profiling) studies is conceivable. Target identification not only sets the stage for possible knowledge-based scaffold optimization through rationale design in conjunction with hit-to-lead chemistry or repurposing of known inhibitors with identical target profile, but also contributes to further elucidating critical pathogen host interactions and, thus, basic insight into pathogen biology.
A second unbiased approach for host-target identification centers on screens for host factors directly interacting with viral components or required for successful completion of the viral life cycle. Of these, avidity-based extracellular interaction screens (AVEXIS) of protein-protein contacts [23] and yeast two-hybrid screens [24,25] appear promising, although they remain inherently limited to specific pathogen factors selected as “baits”. In contrast, loss-of-function screens based on aptamers [26,27] or antisense RNA interference [2831] and gain-of-function approaches utilizing expression libraries [32,33] afford a systems-wide view of host-factors essential for pathogen replication or boosting pathogen success, respectively. In recent years, groundbreaking “loss-of-function” antisense screens were carried out for major viral pathogens including influenza virus [34,35], human immunodeficiency virus (HIV) [3639] West Nile virus [40] and hepatitis C virus [41]. These have transformed our understanding of the virus-host interplay.
Surprisingly, however, independent large-scale screens directed at influenza virus, for instance, returned very little redundancy for essential host factors identified. This suggests that the screening efforts still lack saturation, and that cross-study bioinformatics efforts for data mining would benefit significantly by commencing on a host cell pathway rather than at the individual protein level. When a set of identified pathways essential for virus replication emerges through bioinformatics selection, individual components can be subjected to secondary screens using known drugs or experimental inhibitors to short-list desirable individual targets. A proposed workflow for a bioinformatics lead-identification process is displayed in Figure 1. In the following, we will discuss in detail the current state of data mining approaches and how they have been, or could be, applied to screening results reported for HIV-1 and influenza A viruses.

2. Methods to Analyze and Process Viral Host Factors Identified as Hits

As with the output of chemical genomic screens, genome-wide association studies (GWAS) require bioinformatics support to analyze high density data points and highlight the important gene or gene sets responsible for the phenotype under investigation. False positives need attention beyond the high throughput experiment when choosing targets for further study. These data points often arise when certain genes have been incorrectly identified due to off-target effects associated with siRNA inhibition. In one case, a single siRNA reportedly perturbed the expression of over 300 genes [42]. The potential quantity of false positives generated from a single RNAi screening experiment becomes alarming, when a single RNAi can potentially affect a large subset of gene expressions. It has been hypothesized that clustering methods such as pathway analysis and gene functional analysis are a possible means to discard false positives and highlight true positives, since they readily generate a biological interpretation of a high throughput result. A number of reviews have summarized the state of genetic analysis [4351]. In this article, we outline the GWAS approach to antiviral identification and then highlight how such methods have been used to probe host-virus interactions.
Currently, several curated databases in the public domain detail known gene product associations (see Table 1 for examples). As will be illustrated in the following, different databases may return a diverse set of answers even when identical RNAi screening results are used as input.

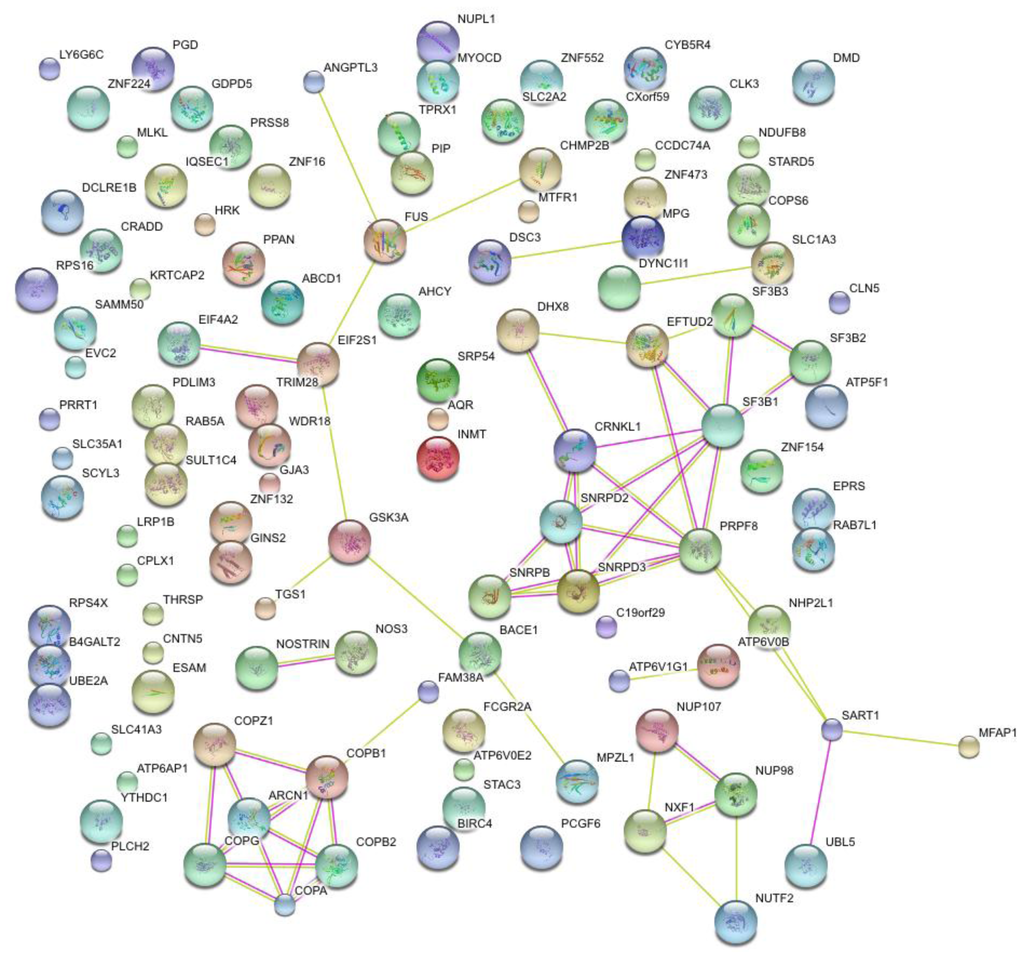

Application of GWAS frequently employs graphical networks displaying interconnected genes as exemplified in Figure 2. The ability to interconnect and cluster genes by known function forgoes the need to verify every target that is generated by an RNAi screen through a multitude of single biological experiments. Topological representations of biological function identify enriched regions of perturbed gene expression and their relevant cellular operations. Usefulness of gene enrichment analyses depends on the quality of the database used [80]. If accurate, gene enrichment separates genes from those that were randomly identified during the RNAi screening and offers the largest source of antiviral target candidates for drug development, based on the assumption that all members of an enriched region are required for efficient viral replication. The fundamentals of network theory and its usage in GWAS analysis are reviewed in [80]. Gene expression studies can utilize enhanced methods of pathway analysis which go beyond treating pathways as simple sets of genes and incorporate the complex gene interactions described by the pathway, such as measurement of total pathway perturbation [81]. Unfortunately such methods require quantitative differential expression data to be applicable, a component lacking in these RNAi screening studies. It is possible, however, that inclusion of RNAi viral inhibition data in a modified version of this enhanced method might lead to improvement in pathway enrichment, but this is yet to be exemplified in the literature.
Thus, pathway analysis and gene function annotation offer the drug screening community automated procedures for extracting meaning from a large array of differentially expressed genes. The identified genes can be grouped according to the relationships among protein products, while potential drug targets associated with enriched pathways can be perceived.

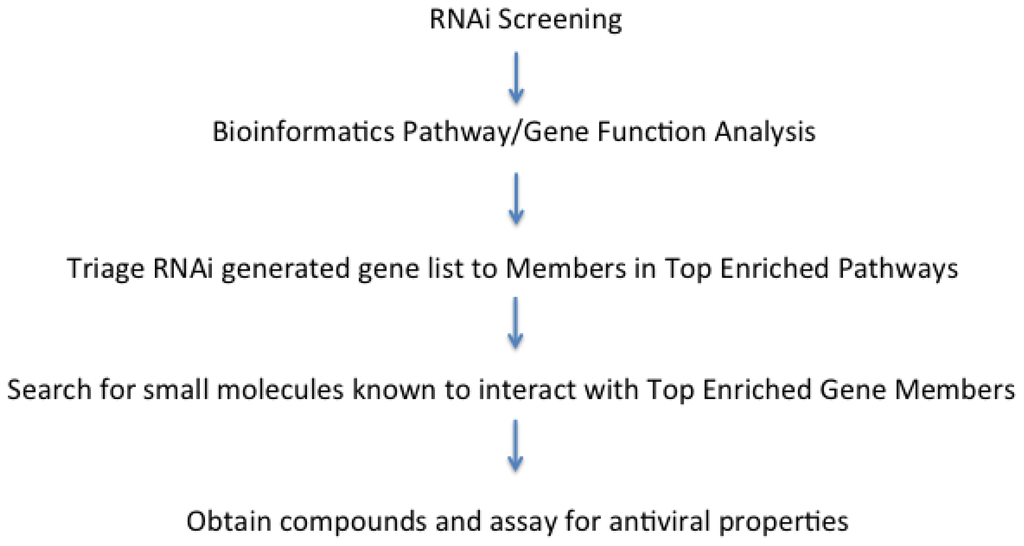

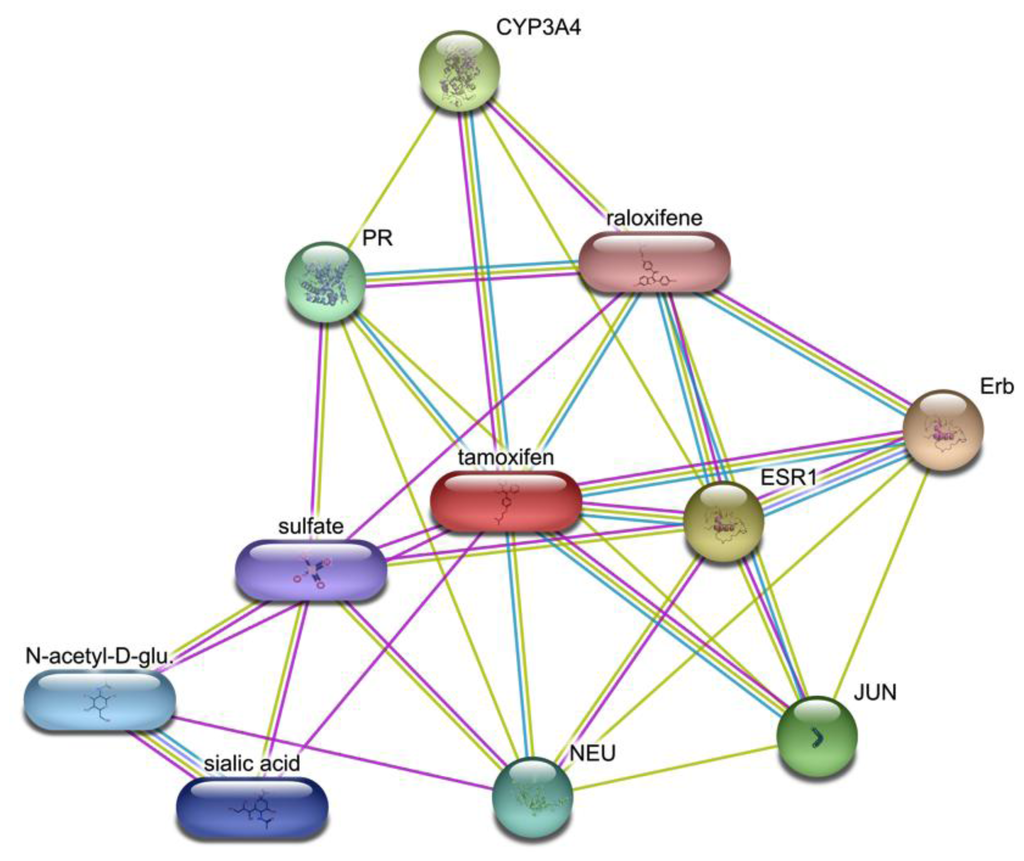

An illustration of the identification of therapeutic compounds by means of bioinformatics analysis is the use of a gene list to link Tamoxifen to the treatment of Systemic Lupus Erythematosus (SLE) [8284]. Investigators discovered that the estrogen receptor pathway is a significantly enriched gene category with respect to a list of SLE’s aberrantly expressed genes through the Disease-Drug Correlation Ontology (DDCO). Other databases that similarly infuse chemical knowledge into the pathway databases include KEGG, the Connectivity Map, Ingenuity IPA and the STITCH database (all of which are also included in Table 1). Figure 3 offers an example of a gene interaction map annotated with small molecules.
While the previously cited resources offer investigators utmost convenience in immediately accessing lists of available small molecule modulators related to a pathway of interest, other databases connect small molecule modulators with known protein targets. These require a separate pathway analysis to choose a particular set of gene products of interest. Suitable resources include DrugBank [85,86], PDB/sc-PDB [8789], PubChem [90], Sunset Molecular’s WOMBAT-PK 2010 [91,92] and the BRENDA database [93].
Following a bioinformatics selection of target candidates, individual targets must be selected for medicinal chemistry, for instance, based on the previous discovery of small-molecule blockers or the availability of crystal structures in the Protein Data Bank (PDB). [88,89]. Then, de novo drug discovery can be sustained through 3D virtual screening [94] and structure-based design. Application of these methods to the analysis of HIV and flu RNAi screens will be discussed in the next section.

3. Bioinformatics Approaches for Identifying Host-Factors Required for HIV Replication

Each of the systematic studies examined in the following sections employed a unique bioinformatics approach to pathway analysis. Similar to a chemoinformatics clustering analysis of a high-throughput screen to short-list a set of chemical leads for optimization, a goal of the RNAi screening studies is to identify, by means of gene pathway or functional analysis, potential host factor targets that are essential for viral replication. A key question is whether the resulting bioinformatics short list of host factors contains suitable candidates for drug development.

3.1. Bioinformatics Approaches to Identify Host-Factors Required for HIV Virus Replication

For HIV, three independent siRNA studies were published in 2008 by Brass et al. [36], Konig et al. [95] and Zhou et al. [37]. All three siRNA studies utilized the National Center for Biotechnology Information (NCBI) database of HIV-1 and human protein interactions (currently 1443 proteins identified) to evaluate the overlap of hit genes with the curated virus-host interactions available in the NCBI database [61]. Figure 4 illustrates the total number of genes found as well as the pairwise overlap between genes in each study. A meta-analysis of these genome-wide studies was subsequently performed by Bushman et al. in 2009 [96].

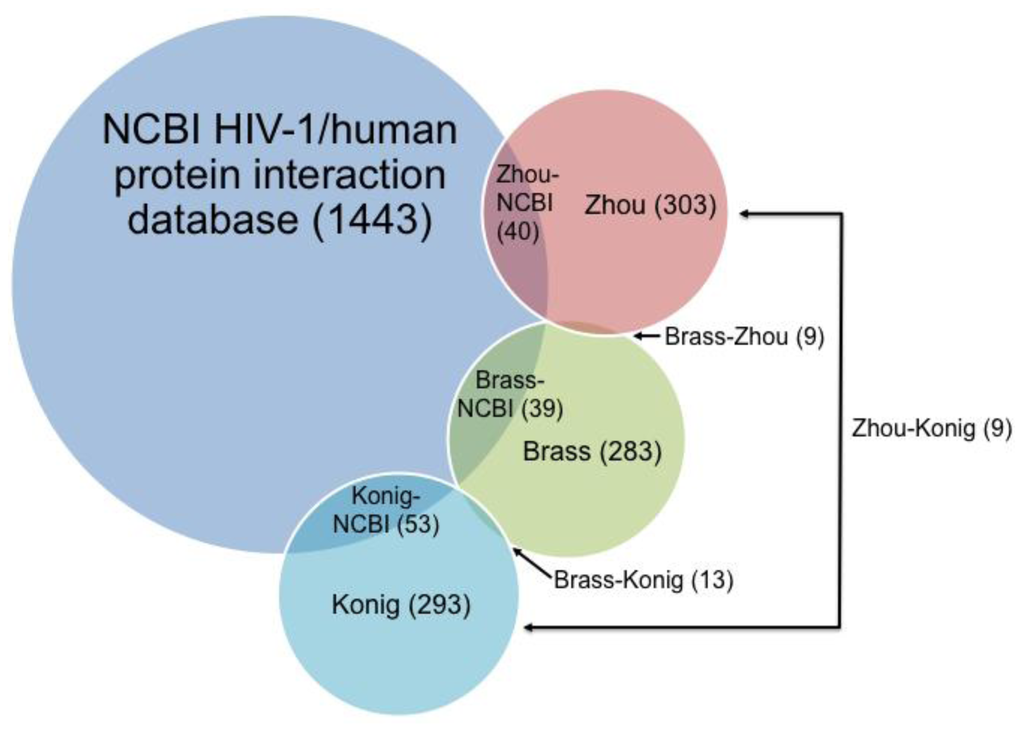

Bushman et al. performed an overlap analysis/random distribution comparison based on these data and found associations that were statistically significant (p-values < 0.001). While one may safely assume that the hit genes are enriched with respect to independently identified and confirmed host factors required for HIV-1 replication, pairwise overlaps between the studies are low, ranging only from 3 to 6%. While these were still judged statistically significant (p-values < 0.024 for all pairs) [96], the overall very low redundancy suggests considerable experimental variability associated with each siRNA screen.
Variation in individual host factors could be accounted for by a number of factors, including: (a) high experimental variance of siRNA transfection efficiencies [42]; (b) harvest of cells at different time points post-infection; (c) the use of different analysis methods and filtering thresholds; (d) an inherent bias of individual assays towards specific stages of the viral life cycle [96]; and (e) overall moderate reproducibility of siRNA-based screens[97]. Some of these variances might be readily controlled by additional replicates examined per screen. For instance, only the study by Konig et al. performed the screen in duplicate. As a case in point, the experimental data showed large variances between the replicates: 24% of hit siRNAs (141) exhibit standard deviations greater than 25% of their median values. Furthermore, Bushman et al. demonstrated that adjusting the filtering thresholds in this study strongly influences the nature of the identified genes (shown Figure 1D of Bushman et al.) [96]. Other parameters, such as non-uniform harvesting time points, are inherent to the design of each individual study and cannot be standardized retroactively. Although capturing different stages of the viral life cycle in separate studies may ultimately be necessary to fully appreciate the scope of the host-pathogen interaction network, different analysis times should be considered as a major contributor to the low level of congruity between the currently available data.
Independent of redundancy between studies, the question remains of whether the gene hits represent bona fide host factors required for HIV replication or false positives that may have arisen from experimental variability. Equally important for hit confirmation is the organization of the data sets into groups by gene function and cellular pathways to illuminate distinct parts of the intricate host-pathogen interaction network. Using terms from the Gene Ontology (GO) database Brass et al. noted that 103 of their hit genes were assigned with 136 statistically significant (p-value < 0.05) biological processes [36]. In brief, the GO database is a consortium established to relate genes to one another in a fixed file format within three categories: biological processes, cellular components and molecular functions [44,63,98,99]. To reduce redundancy, these categories were clustered and manually curated. GO analysis yielded 17 enriched cellular functions in the Brass HIV study. Alternatively, the Zhou study used Ingenuity Pathway Analysis to determine enriched molecular functions and biological pathways. Thirty-two molecular functions were identified, and twelve biological processes were found to be statistically significant (p-value < 0.05).

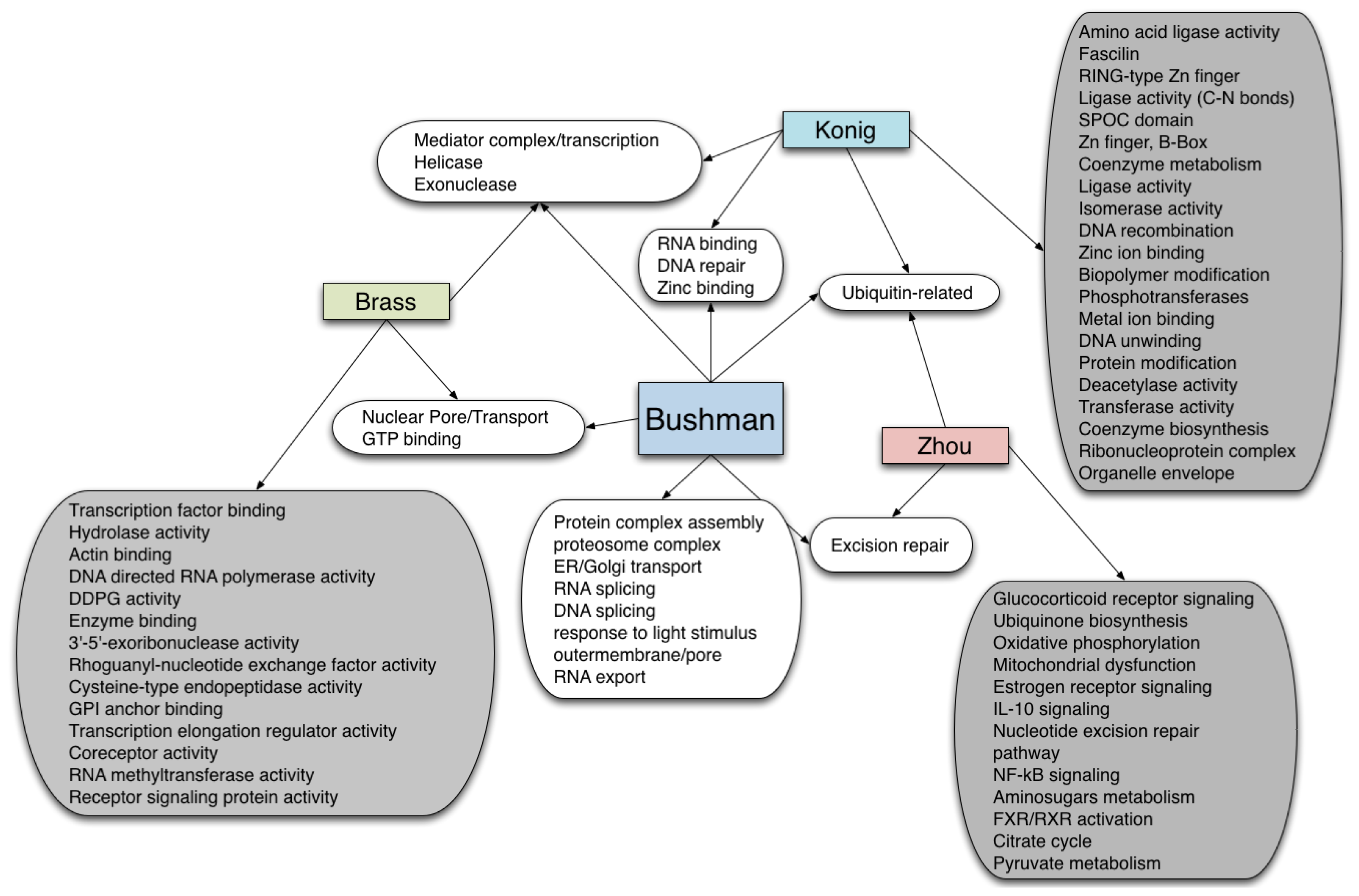

In contrast, Konig and colleagues employed a multi-tiered bioinformatics approach to identify the host factors most important to HIV replication through the use of the Prolexys HyNet database [95]. This resulted in networks of 2468, 4080, and 2850 genes in the HIV, MLV, AAV and toxicity assays, respectively. Using the Database for Annotation, Visualization, and Integrated Discovery (DAVID) [100], the Konig team extracted overrepresented functional clusters for all genes found in the three HIV siRNA studies. Filtering for significance (p-value < 0.06 based on a geometric mean for all the terms in a group), redundancy, biological relevance and specificity returned 24 functional groups (A listing of the overlapping pathways and those identified uniquely are presented in Figure 5), most of which contained genes that were identified in two or more studies. Although each study contains a significant number of genes that may be defined by molecular functions common to each of the three studies, consistent function identification across the siRNA screens is lacking due to the distinctions in each study’s bioinformatics methods. These functions may be defined differently between methods due to redundancies present in each database. Slightly different but biologically meaningless distinctions can arise thereby.
Although some well-documented host factors required for HIV replication (such as CD4, CXCR4, NFκB subunit RELA, activating kinases AKT1 and JAK1, TSG101, and various cofactors of Vpr, Vif, Tat, and Rev) [101105] were identified in at least one of the three siRNA studies, a variety of other host factors known to engage with HIV (HLA-B57, HLA-C, PSIP1/LEDBF/p75, Sp1, cyclophilin A, ITGB1, ITGB2, and ITGB3) were not discovered [96,106115]. Of these, the absence of the integration cofactor PSIP1/LEDBF/p75, HIV long terminal repeat transcription factor Sp1, HIV Gag binding protein cyclophilin A, and the three integrin proteins (ITBG1, ITBG2, ITBG3) is most noticeable. [108112,114117] These results suggest that even a combined host factor analysis is at risk of missing key host components required for viral replication. Furthermore, no single siRNA study thus far illuminates all relevant, and currently known, cellular factors associated with the pathogen.
The meta-analysis was extended by building an HIV-host factor interaction network of 1657 cellular proteins using an array of protein-protein interaction databases (BIND, HPRD, MINT, and Reactome) [96]. With MCODE’s graph theoretic clustering algorithm, clusters within this interactome map having different functions were identified. Of the 11 clusters found, 10 were associated with distinct cellular functions: the proteasome, transcription/RNA polymerase, the mediator complex, Tat activation/transcriptional elongation, RNA Binding/Splicing, BiP/GRP78/HSPA5 Chaperone, and CCT Chaperone. From a drug discovery perspective, however, small molecule testing or counter-screening with individual siRNAs against target candidates are required to validate individual pathways.
Lack of saturation in host genes identified through current siRNA screens, varying consistency and high overlap of genes in specific areas emerge as future challenges for application to system-wide drug discovery efforts.

3.2. Bioinformatics Approaches to Identify Host-Factors Required for Influenza Virus Replication

In addition to application of system-wide siRNA screens to the HIV system, the technology was applied to the influenza virus. Major siRNA studies were reported by Hao et al. [118], Brass et al. [119], Shapira et al. [120], Konig et al. [34] and Karlas et al. [35]. Other types of screens were performed by Josset et al. [121], which identified a gene list based on gene expression response to influenza; and Coombs et al. [122], which performed a quantitative analysis of protein level changes in infected cells. While Hao and colleagues employed a Drosophila cell-based host system for their siRNA screens, both Konig and Karlas relied on human lung cells (A549) and the influenza A/WSN (H1N1) strain or a recombinant variant thereof. Brass and colleagues used a human osteosarcoma cell system (U2OS) and the influenza A/PR/8 (H1N1) strain. The Shapira study is unique in that it combined results for yeast two- hybrid analyses, genome-wide transcriptional gene expression profiling and siRNA screening. Unfortunately, a single publically available resource similar to the NIH/NIAID HIV-1 interaction database does not exist for influenza virus, although many distinct virus-host interactions have been described in the literature (reviewed in [123]).
Watanabe et al. summarized five of the six systematic studies reported above and performed bioinformatics analysis on the 1,449 identified genes required for influenza replication [123]. Much like the Bushman et al. analysis of HIV host factors [96], 128 genes were found in multiple screens when pairwise comparisons were performed. The highest pairwise overlap (32 genes) is found in the Konig et al. and Karlas et al. studies, possibly due to the overlaps in host cell type (A549 cells) and influenza virus strain (A/WSN (H1N1)). This lack of overlap is also illustrated in the pairwise analysis given in Table S1. Unlike the meta-analysis for the HIV studies discussed above, this pairwise comparison lacked random distribution simulations, preventing the assessment of statistical significance. Nevertheless, the observed low overlap rate most likely results from factors similar to those discussed above for the HIV siRNA studies, i.e., different harvest times, detection thresholds and host cell lines, coupled with the additional complication of variability introduced through the use of different viral strains.
As described in the HIV siRNA analyses, each study examining influenza virus infections performed individual bioinformatics analyses on siRNA screening results. A summary of these bioinformatics data along with the methodology is reviewed by Min [124]. In unique congruence, three of the influenza virus studies explored the use of known small-molecule inhibitors to obtain independent proof-of-concept for the importance of cellular targets identified by bioinformatics for virus replication [34,35,121].
Konig reported six compounds with EC50 values ranging from 0.5 to 30 μM target FRAP1, HSP90AA1, TUBB, FGFR4, GSK3B, or ANPEP. Of these, FRAP1, TUBB, FGFR4 and GSK3B home to the same GO Term cluster, protein kinase activity, recommending it as a potentially rich source for influenza virus inhibitors. The cytosolic chaperone Hsp90AAP1 was identified in a separate GO Term cluster; interestingly, previous reports have already established a link to influenza virus [125] and HCV [126] replication. The Karlas study reported another efficacious small molecule inhibitor, TG003, which targets the CDC-like kinase 1 (CLK1). CLK1 was retrieved from the Spliceosome GO term cluster, where it ranked seventh in significance among the list of enriched cellular components.
While the above studies identified potential host factor targets through GO term enrichment and then followed up with small molecules available for viral testing, the Josset project searched Connectivity Map with 20 of the most perturbed genes from the 300 initially identified. Of the eight compounds available through commercial vendors, six attenuated influenza virus replication with EC50 values ranging from 5.8 to 30 μM. In-house analysis of the 20 genes used to identify these compounds revealed that they are significantly enriched in metabolic processes. Similar to previous studies, the Josset report does not explicitly identify a host pathway essential for viral replication based on the small molecule inhibition studies. To appreciate the full potential of this approach for antiviral drug development, it may be informative to collect all known inhibitors of a particular host pathway and determine the complete extent of virus inhibition.
Watanabe et al. performed a meta-analysis of the siRNA results using the set of 128 genes found in two or more studies [123]. The major gene categories were determined through PANTHER, a database that also utilizes GO terms to organize gene lists. Several molecular functions were found significant: nucleic acid-binding proteins, kinases, transcription factors, ribosomal proteins, hydrogen transporters and proteins related to mRNA splicing. Biological processes found to be consequential were protein metabolism and modification, signal transduction, protein phosphorylation, nucleoside, nucleotide and nucleic acid metabolism and intracellular transport. Reactome analysis tagged as significant eukaryotic translation initiation, regulation of gene expression, processing of capped intron-containing pre-mRNAs and Golgi-to-ER retrograde transport. This set of 128 genes was further integrated with the viral protein interaction partners determined by Konig and Shapira, resulting in a network of virus-host interactions. Based on this map, MCODE further identified translation initiation, mRNA processing and proton-transport as crucial. Accordingly, mining of the top MCODE cluster in Figure 6 predicts that compounds such as spectoinomycin, emetine and quercetin will interfere with influenza virus replication.
Successful outcomes for bioinformatics searches predominantly depend on the accuracy of tabulated database interactions. As detailed below, use of different databases may alter the profile of pathways that are enriched from the same gene list. In such cases, users are obligated to formulate a realistic biological interpretation of the relational data to ensure identification of meaningful candidate compounds for an antiviral drug program.

4. Pathway Database Comparisons: Same Source, Different Interpretation

As outlined above, it is a primary function of gene databases to extract biological meaning as well as potential therapeutic host factors from a high throughput RNAi screen by means of descriptive annotations of genes common to a particular biological pathway or gene function. In the realm of antiviral drug discovery, this approach aims at identifying host cell components critical for virus replication.
Crucial for the success of this strategy is the quality of the pathway database used, which is determined by the curation method of published experimental data of gene associations and the expertise of the curators involved. Soh et al. have demonstrated that inconsistencies emerge when gene association data are compared across different pathways databases [127]. This came as a surprise, since most databases share published literature as a data source, suggesting that methodology for curation and criteria for gene associations were not uniform (for this study, the Ingenuity IPA, KEGG, and Wikipathways databases were compared). Assuming curation is performed on available literature data, however, one expects similar genes and gene pairs to be found across the different databases. (Gene pairings are defined as gene product associations confirmed by the database curator).
The Wnt signaling pathway provides a tangible example illustrating the current challenges. This pathway has been implicated in therapeutic interference with cancer and viral entry. Two-way analyses revealed approximately 80% gene similarity when based on the KEGG and Wikipathways databases (Table 4 in [127]). However, only 43% similarity is found when Ingenuity and KEGG are examined (Table 3 in [127]), while comparison of Ingenuity and Wikipathways databases returns only 28% similarity (Table 5 in [127]). Inconsistencies across databases are even more disconcerting when gene pair overlaps are examined: KEGG/Wikipathways (18%), Ingenuity/KEGG (8%), Ingenuity/Wikipathways (0%). It is the quality of the gene pairing data in each database, however, that allows end users to triage the multiple RNAi screening results for pathway congruity.
Looking on a broader scale across 26 cellular pathways described in Soh et al., gene overlap similarity has a mean value of 66.5% when comparing the KEGG database and Wikipathways [127]. By contrast, the mean values of similarity for Ingenuity/KEGG and Ingenuity/Wikipathways were 53.8% (12 pathway categories) and 41% (11 pathway categories), respectively. Despite the higher gene overlap between KEGG and Wikipathways, the pairing overlap is still only approximately 50% for any listed pathway compared across any three of the databases. KEGG is curated by a single lab group, while Wikipathways is curated through a community effort. At the moment, it is not clear to what extent the curation procedures contribute to the highly variable data mismatches. However, there is little doubt that this and other variables would benefit from cross-consolidation between the various databases.
Soh et al. also analyzed the comprehensiveness of the databases, which was a measure for the total number of genes from all three databases [127]. This was followed by evaluation of gene members and pairings of each database against the pool, which consisted of 21,314 genes and 60,900 pairings. KEGG was shown to be the most comprehensive of the three databases, but this was influenced by the result of KEGG’s inclusion of metabolic pathways specifically not curated by either of the other databases.
Concentrating in particular on viral host factors, we performed an in-house analysis that compares host proteins involved in the influenza virus life cycle across various databases. Databases used in this example included Reactome, Ingenuity IPA and PANTHER. The Reactome database records six host factor genes for influenza in each the categories associated with NS1-mediated effects and virus-induced apoptosis. Databases such as Ingenuity IPA and PANTHER lack pathway categories dedicated to influenza virus. Keyword searches for influenza in the PANTHER database identified no host factor associated with influenza virus infection [58]. Conversely, keyword searching of the Ingenuity database generated a list of five signaling pathways (Lipids/Lipid Rafts, MAPK, PI3K/AKT, Wnt/GSK-3β, hypercytokinemia) involved in the pathogenesis of influenza virus, constituting a list of 38 genes [128]. Import of the latter into all other databases allows the genes to be categorized into signaling pathways such as Wnt, PI3K, and MAPK. However, database annotations suggest that Ingenuity is more likely to alert the user to the genes’ roles in influenza virus infection.

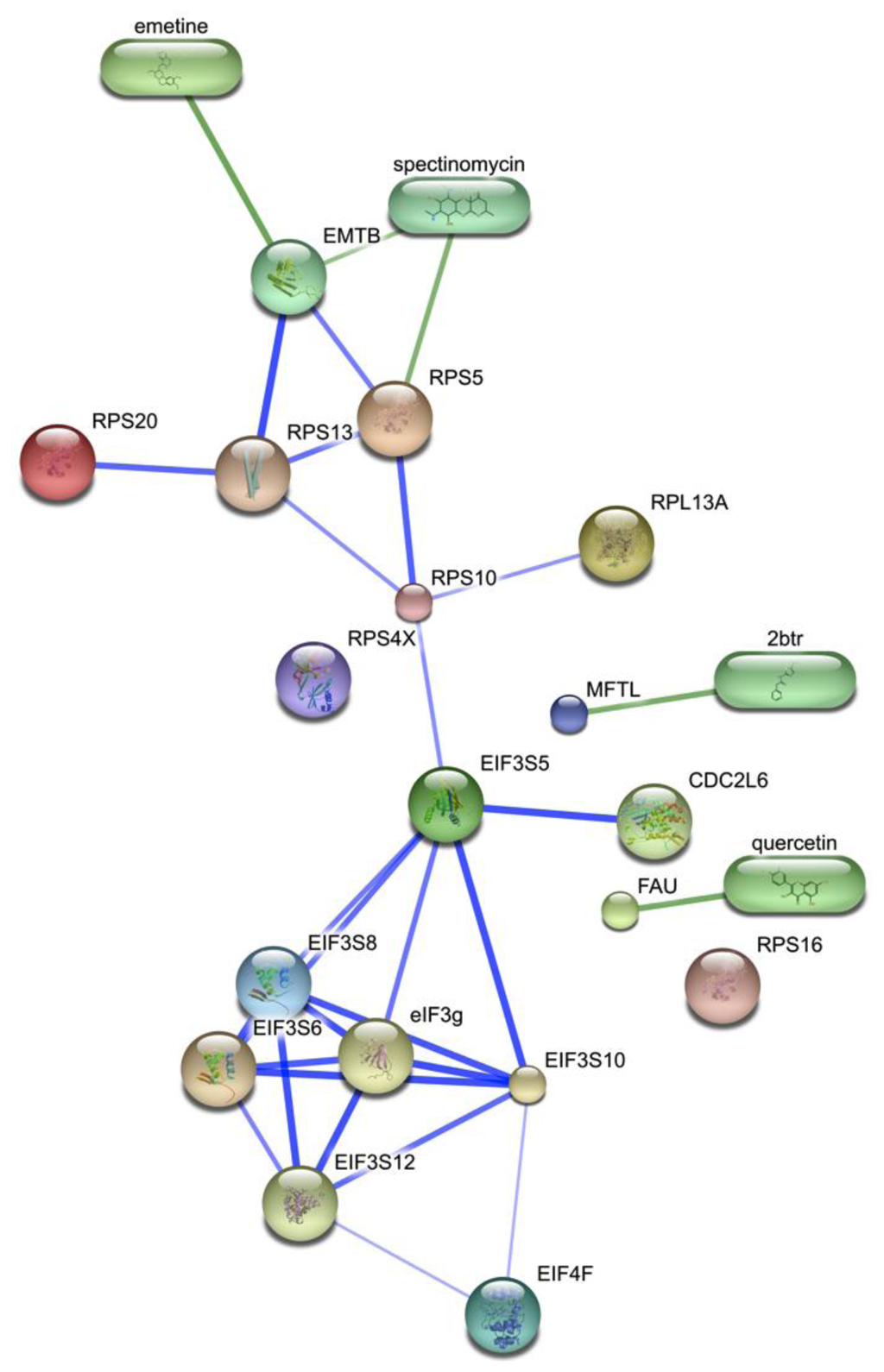

Applying this approach to the previously described influenza RNAi screens, we sought to address the question of how does target identification change when different pathway databases are applied to the same dataset? Databases used in this comparison were PANTHER, Reactome and STRING, and the data set analyzed was the commonly identified 128 gene list generated by Watanabe et al. [123]. Results are presented in Table 2 with reference to the Wanatabe analysis of the same genes.
It becomes immediately obvious when examining the most enriched pathways that only the STRING database seems to reproduce the results generated by Watanabe et al. using GeneGO/MCODE. In all other cases, the different databases returned remarkably different top pathways when the same gene expression set was analyzed. Closer examination reveals that that other top ranking pathways (i.e., translation initiation) rank lower on the Reactome enrichment analysis scale. Pathways associated with B-Cell metabolism are also identified by the Ingenuity IPA and Reactome enrichments, although slightly different naming schemes are used. Since discrete databases identify certain similar pathways at different rankings, a consensus scoring function applicable to available databases appears warranted. This would afford greater confidence in the identification of individual targets for follow-up through small molecule searching.

5. Conclusions

Previous GWAS experiments have attempted to capture the most relevant cellular host pathways utilized by pathogens such as HIV and influenza virus for virus replication [96,123]. As shown by reviewers such as Bushman et al. and Watanabe et al., gene lists and enriched pathways vary widely despite the pursuit of similar biological goals. Indeed, the likelihood to successfully identify novel host-directed antivirals would increase significantly if the reproducibility of individual RNAi screens were to be increased [97]. Further challenges emerge from differently curated pathway databases that return unrelated enriched pathways based on analysis of the same gene data set. Preliminary analysis of this situation using the Watanabe 128 pairwise genes suggests that a consensus scoring protocol applicable across different databases would be desirable to clarify this issue. Despite these hurdles associated with experimental false positives and the complexities inherent in interpreting pairwise gene interactions, several tangible examples (i.e., Konig et al., Karlas et al., and Josset et al.) demonstrate that RNAi screening coupled with bioinformatics-driven triaging is a viable method to identify small molecule inhibitors of virus replication.
Current databases that infuse chemical knowledge into schemes such as Ingenuity IPA and the Connectivity Map are limited to a small number of compounds, mostly FDA-approved drugs. This narrow focus limits their application to current translational medicine. The STITCH database makes an interesting leap by crosslinking its gene network with multiple chemical-genomic high throughput screening results archived in PubChem. These experimental chemicals along with compounds currently tested in vitro for various endpoints offer a rich source for hit candidates with optimization potential. As more databases are used to analyze potential host targets, validation methods employing siRNA are improved and small molecule knowledge is added to the genetic web, more drug discovery initiatives are likely to incorporate this approach in their portfolio of standard operations for the identification of antiviral therapeutics.

Supporting Information

Table S1. Pairwise comparison of influenza genome-wide studies.
Table S1. Pairwise comparison of influenza genome-wide studies.
Konig [129]Karlas [130]Brass [131]Shapira [132]Josset [133]Coombs [134]
Konig32916101
Karlas32121853
Brass9121062
Shapira1618102015
Josset1056203
Coombs132153

Acknowledgments

This work was supported, in part, by the Emory Institute for Drug Discovery (EIDD) (A.P., P.T., J.P.S.) and Public Health Service Grants AI071002 and AI085328 (to R.K.P.) from the NIH/NIAID.
