Article

Genetic Diversity and Population Structure: Implications for Conservation of Wild Soybean (Glycine soja Sieb. et Zucc) Based on Nuclear and Chloroplast Microsatellite Variation

1
China Southwest Germplasm Bank of Wild Species, The Key Laboratory of Biodiversity and Biogeography, Kunming Institute of Botany, Chinese Academy of Sciences, Kunming 650201, China
2
University of Chinese Academy of Sciences, Beijing 100049, China
3
College of Horticulture, South China Agricultural University, Guangzhou 510642, China
4
The Key Laboratory of Biodiversity and Biogeography, Kunming Institute of Botany, Chinese Academy of Sciences, Kunming 650201, China
*
Authors to whom correspondence should be addressed.
Int. J. Mol. Sci. 2012, 13(10), 12608-12628; https://doi.org/10.3390/ijms131012608
Submission received: 27 July 2012 / Revised: 24 August 2012 / Accepted: 12 September 2012 / Published: 3 October 2012
(This article belongs to the Special Issue Advances in Molecular Plant Biology)

Abstract

:
Wild soybean (Glycine soja Sieb. et Zucc) is the most important germplasm resource for soybean breeding, and is currently subject to habitat loss, fragmentation and population decline. In order to develop successful conservation strategies, a total of 604 wild soybean accessions from 43 locations sampled across its range in China, Japan and Korea were analyzed using 20 nuclear (nSSRs) and five chloroplast microsatellite markers (cpSSRs) to reveal its genetic diversity and population structure. Relatively high nSSR diversity was found in wild soybean compared with other self-pollinated species, and the region of middle and lower reaches of Yangtze River (MDRY) was revealed to have the highest genetic diversity. However, cpSSRs suggested that Korea is a center of diversity. High genetic differentiation and low gene flow among populations were detected, which is consistent with the predominant self-pollination of wild soybean. Two main clusters were revealed by MCMC structure reconstruction and phylogenetic dendrogram, one formed by a group of populations from northwestern China (NWC) and north China (NC), and the other including northeastern China (NEC), Japan, Korea, MDRY, south China (SC) and southwestern China (SWC). Contrib analyses showed that southwestern China makes the greatest contribution to the total diversity and allelic richness, and is worthy of being given conservation priority.

Graphical Abstract

1. Introduction

Soybean [Glycine max (L.) Merrill, Fabaceae], is the world’s most important grain legume crop for its protein and oil [1,2], and its genetic diversity has been declining during processes of domestication and artificial selection [2]. Wild soybean (Glycine soja Sieb. et Zucc), the ancestor of soybean, retains useful genetic variation for breeding improvement of yield, and resistance to pests, diseases, alkali and salt, and therefore is extremely important germplasm to enrich the soybean gene pool [3].
Wild soybean is mainly distributed in the Asiatic Floristic region including most of China (53°–24°N and 134°–97°E) [4], the Korean peninsula, the main islands of the Japanese archipelago and Far Eastern Russia [5] (Figure 1). Wild soybean resources have been severely depleted in China in the last 20 years due to habitat fragmentation [6]. Comparing with surveys in 1979 to 1983, the survey conducted by the Chinese Ministry of Agriculture in 2002 to 2004 revealed large range reductions of wild soybean [7]. For example, the most important populations of wild soybean in Jixian county of Heilongjiang province in China have disappeared following land conversion for agriculture; a large population of 0.02 km2 in the Keshan county of the same province has been almost completely destroyed, and the large population in the Zhangwu county of the Liaoning province in China has disappeared, leading to the permanent loss of the white-flowered soybean type [7]. Wild soybean has been listed as a national second-class protected plant in 1999 in China [8] and the species requires urgent conservation actions.
The genetic diversity and genetic structure of wild soybean have been studied using morphological traits [3,9], isozymes [10], RFLP [11,12], cytoplasmic DNA [11,13] and SSR markers [1418]. However, these studies were restricted to particular region(s) and most had a limited sample size [1922]. These studies produced conflicting results with regards to the diversification of wild soybean. For example, the Korean peninsula [14], northeastern China [3], the Yangtze River region [23], and Southern China [24,25] have all been considered as the center of the species’ diversity by different studies. In order to make appropriate conservation recommendations, a study of the level and geographical structure of the genetic variation across the whole species range is urgently needed. Widely distributed across all eukaryotic genomes, the simple sequence repeat (SSR) is a marker of choice for the analysis of genetic variation [26], with more than 1,000 SSRs markers available for wild soybean [27]. We employed 20 nSSRs and five cpSSRs to study: (i) the extent and structure of genetic variation in wild soybean sampled throughout most of its natural range; and (ii) the demographic history of wild soybean to infer historical changes in population sizes.

2. Results

2.1. Equilibrium Test and Genetic Diversity

MICROCHECKER found no evidence of scoring errors, but some samples were detected to have null alleles. We failed to amply these alleles despite two to three more genotyping attempts. Mutations in the flanking region may prevent the primer from annealing to template DNA during amplification of microsatellite loci by PCR [28], but we still kept these loci for further analyses because the frequency was relatively small (<5%). All populations deviated significantly from Hardy-Weinberg equilibrium (p < 0.05), with the observed heterozygosity being lower than expected (mean observed 0.031, range 0.000–0.205 vs. expected 0.426, range 0.018–0.797).
All nSSR loci were polymorphic in all populations. The mean allele richness (AR) and Shannon’s information index (I) were 1.9 (1–3.1) and 0.793 (0.034–1.744), respectively. The fixation index was high (mean 0.913, range 0.202–1). The outcrossing rate was low (mean 8.1%, range 0%–66.4%), but three populations (SY, J2, and K2) showed atypically high outcrossing rate (>48%). The region of MDRY had the highest genetic diversity (AR = 14.0, and I = 2.349). Observed heterozygosity (HO = 0.063) and expected heterozygosity (HE = 0.881) of this region were also higher than other regions (Table 1).
All cpSSR loci showed relatively low diversity, the mean allele richness (AR) and Shannon’s information index (I) for cpSSRs were 1.6 (1–3.2) and 0.793 (0–0.908). CpSSRs indicated that Korea has the highest allelic richness (AR = 4.6) and Shannon’s information index (I = 0.932) among all regions.
For nSSRs, CONTRIB revealed no difference in regional contribution to total diversity. However, for allelic richness, the highest contribution was made by the SWC region, followed by the regions MDRY and NEC, mainly due to their high own diversity. The lowest contributions came from regions NWC and Japan. For cpSSRs, the SWC region made the greatest contribution to total diversity and allelic richness due to both diversity and differentiation. Besides, the regions of NEC, Korea and Japan made high contributions to allelic richness due to differentiation (Figure 2).

2.2. Population Structure

MCMC structure reconstruction of nSSRs showed moderate genetic structure. When Evanno’s [29] ad hoc estimator of the actual number of clusters was used, ΔK indicated modes at K = 2 (Figure 3a). The average percentages of membership for eight geographical regions of individuals in each of the two clusters were calculated. Most samples (>66%) of the group SC, MDRY, SWC, NEC, Japan and Korea were assigned to cluster 1, and most individuals of group NEC (79.4%) and NC (86.5%) to cluster 2 (Table 2, Figure 3b). No geographic structure was detected for cpSSRs. The UPGMA dendrogram of both nSSRs and cpSSRs divided the eight regions into the same two geographical clusters (Figure 4).
Analysis of nSSRs by AMOVA revealed that 6.0% of genetic variation was due to the genetic distance between the two clusters, 46.7% among populations within clusters and 47.3% between individuals within populations. Similar results were obtained from cpSSRs (6.8%, 57.0% and 36.25%, respectively) (Table 3). A mantel test indicated a significant isolation by distance for cpSSRs (r2 = 0.021, p = 0.002), but not for nSSRs (r2 = 0.004, p = 0.074).
The allele size permutation test rendered non-significant differences between FST and RST estimates (p = 0.004 for nSSRs and p = 0.01 for cpSSRs; 10,000 iterations), indicating RST estimates were more appropriate than RST for our data. We found high population genetic differentiation (RST) (cpSSRs: 0.499 and nSSRs: 0.622). For cpSSRs, the overall level of inferred gene flow (Nm) was 0.502 individuals per generation among the populations; and for nSSRs, the gene flow (Nm) was 0.251.

2.3. Demographic History

Standardized differences test and Wilcoxon sign-rank test based on both SMM and TPM model showed recent reduction in seven populations: Chengkou (CK), Wuchang (WC), Tongbai (TB), Keshan (KS), Jizhou (JZ), Japan1 (J1) and Korea5 (K5). A recent bottleneck effect was also detected in three additional populations of Wuqing (WQ), Jiaohe (JH) and Japan 5 (J5) using TPM model by the Wilcoxon sign-rank test (Table 4). The mode-shift test in allele frequency attributed L-shaped distribution to all populations, which was consistent with normal frequency class distribution ranges (p > 0.05).

3. Discussion

3.1. Genetic Diversity in Wild Soybean

The genetic diversity of wild soybean was studied previously using SSRs [21,25,26,30,31]. However, this is the first time a study uses both nuclear and plastid SSRs to analyze the extent and structure of genetic variation across the whole species range. Wild soybean showed a relatively high population diversity (HE = 0.426), which is similar to the result from previous studies [31,32], Considering life form and breeding system have a highly significant influence on genetic diversity [33], we compared genetic diversity of wild soybean with other predominantly self-pollinated wild species, such as wild emmer (Triticum turgidum ssp. dicoccoides) (HE = 0.19) [34], wild barley (Hordeum spontaneum) (HE = 0.138) [35], and officinal wild rice (Oryza officinalis) (HE = 0.22) [36]. This may be caused by the special seed dispersion of the wild soybean, the pod dehiscence could discharge the mature seeds to a distance of 0–5 m (up to 6.5 m) [22]. High outcrossing rate for certain populations maybe another reason for high genetic diversity in wild soybean.
The nSSRs showed that MDRY region has the highest diversity, which is consistent with several previous studies. For example, Shimamoto et al. [13] reported the highest diversity in the Yangtze River region using RFLP markers. Southern China (including regions of MDRY, SWC and SC) was proposed as the wild soybean center of genetic diversity in a study by Wen et al. [37] using a combination of SSRs and morphological traits. The same region was also pointed as origin and center of diversity using SSR markers and nucleotide sequences in a study by Guo et al. [25]. Compared with previous results, our study applied more detailed regional division, and the center of diversity was similar, but not as obviously different than in previous studies.
Compared with nSSRs (AR = 1.9; I = 1.794), the cpSSRs showed less diversity (AR = 1.6; I = 0.932), which is congruent with Powell et al. [38], who used both nSSRs and cpSSRs of wild soybean samples from a germplasm bank. Similar results have been observed in other studies using both types of SSR markers in other species [3941]. This is consistent with low substitution rate of plant chloroplast cpDNA sequences compared with nDNA [42]. The cpSSRs could offer unique insights into ecological and evolutionary processes in wild plant species in some situation [43], Differing from that of nSSRs, cpSSRs revealed that Korea has the highest wild soybean genetic variation.

3.2. Genetic Structure of Wild Soybean

Breeding system, life form, effective population size, genetic drift and gene flow are the major evolutionary effects on population genetic structure, with the effect of breeding system being the predominant one [44,45]. Populations of self-fertilizing species are expected to have lower allelic diversity, lower levels of heterozygosity, and high differentiation among populations than populations from outbreeding species [45]. Here, both nSSRs and cpSSRs showed high inter-population genetic differentiation and low gene flow, as expected in the predominantly selfing wild soybean, combined with low seed and pollen dispersal ability. The seed dispersal distance of wild soybean is short, and 95%, 99%, and 99.9% of the produced seeds disperse within 3.5, 5.0, and 6.5 m, respectively after natural pod dehiscence [22], and nearly 81.4% of the loci were found to be positively correlated in the first two distance classes (0–10 m) [6]. Low pollen dispersal ability can be surmised from the estimates of outcrossing rate in wild soybean, which varied from 2.3% (range 2.4%–3.0%) [46] to 13% (range 9.3%–19%) [47] using allozymes and 3.4% (range 0%–37.4%) applying nSSRs [21]. We found a higher mean outcrossing rate (8.1%), with extremely high values in some populations (G5_YT: 21.1%; G6_SY: 66.4%; G7_J2:52.7%; G8_K2: 48.7%). Despite high selfing rates, occasional outcrossing rate can be subsequent. Occasional high outcrossing was detected in other predominant self-pollinated species such as wild barley (t = 25.1%) [48]. The high outcrossing rate in some populations of a predominantly selfing species can be a consequence of rare or sporadically occurring specific environmental conditions (temperature, humidity, wind, insect pollination, etc.) [48]. In this study, the populations with high outcrossing rate were found in different habitats from all eight eco-regions, and could not be ascribed to a particular abiotic environmental factor, which can suggest an importance of some biotic factor such as high pollinator visiting activity [6], more studies should be carried out to fully resolve this issue.
The UPGMA and Neighbor-joining dendrogram based on Nei’s genetic distance and assignment test revealed two clusters of wild soybean in both nSSRs and cpSSRs. One cluster was formed by the NC and NWC regions, and the other one was formed by six geographic regions including NEC, SWC, SC, MDRY, Korea and Japan. The absence of differentiation among East China, Southern Japan and the Korean Peninsula (CJK region) is surprising. Fluctuations in sea level among the CJK region throughout the Quaternary (or even in the mid-late Tertiary) provided abundant opportunities for population fragmentation and allopatric speciation at the CJK region. Applying nDNA and cpDNA sequences, the previous phylogeographic studies on Croomia japonica [49], Kirengeshoma palmata [50], and Platycrater arguta [51] suggested deep allopatric-vicariant differentiation of disjunct lineages in the CJK region [52]. Wild soybean might have seen a continuous distribution throughout the CJK region through the exposed East China Sea (ECS) basin when the sea level fell by 85-130/140 meters during Last Glacial Maximum (LGM; 24,000–18,000 years before present) [53,54], the disjunct distribution among this region formed following the submergence of ECS land bridge, and there may be insufficient time for lineage sorting and differentiation. Wild soybean has salt resistance [55], and could grow easily in the salty conditions of a sea shore hence they have more chance to migrate along the land bridge among the CJK regions during glacial periods. We could not totally exclude the possibility of exchange of wild soybean among the CJK region via long distance dispersal due to disappear of the ECS land bridge. However, it is just a speculation and will need further studies.

3.3. Conservation Implications

In this study, a bottleneck effect was detected in seven populations: Chengkou (CK), Wuchang (WC), Tongbai (TB), Keshan (KS), Jizhou (JZ), Japan 1 (J1) and Korea 5 (K5). The CK and JZ populations are from undisturbed habitats with very small population sizes, while another five populations are situated in disturbed habitats: populations WC, J1 and K5 are along roadsides; population AF is beside an abandoned railway; populations KS and TB are along the ridge of some fields. Population KS is a relic from a larger population predating farming reclamation, and only limited individuals are left. In brief, the five populations were significantly affected by anthropological activities. Wild soybean can adapt to a wide variety of habitats with adequate water. However population size of wild soybean will rapidly decrease in the habitat, with subsequent degradation of genetic diversity and allelic richness. Conversation of wild soybean is therefore a priority, and should focus on regions already affected genetically.
When selecting conservation sites one must also consider a population’s contribution to total diversity and allelic richness. The SWC region was inferred to have greatest contribution to total diversity and allelic richness with both nSSRs and cpSSRs. Wild soybean in this region shows an unusually small population size, combined with a fragmented distribution: several populations from Ninglang county of Yunnan province and Chayu county of Xizang province are separated from the main populations by as much as 400 km. Furthermore, both previous ex situ and in situ conservation initiatives have paid little attention to this region, and only dozens (from a total of 6172) of wild soybean seed accessions from this region have been collected and stored in the Chinese Crop Germplasm Resources databank ( http://icgr.caas.net.cn/cgrisintroduction.html). This region deserves high conservation priority.

4. Experimental Section

4.1. Samples Collection, DNA Extraction and Microsatellite Genotyping

A total of 604 wild soybean individual leaf samples were obtained from 43 populations across most of the species distribution (Figure 1). Five populations represented two countries, Korea and Japan, and 5 to 6 populations represented each of six regions of China (Table 5). Total genomic DNA was extracted from silica gel-dried leaves using the CTAB method of Doyle and Doyle [56]. The extracted DNA was resuspended in 0.1× TE buffer (10 mmol/L Tris-HCl, PH 8.0, 1 mmol/L EDTA) to a final concentration of 50–100 ng/μL.
Genotyping was performed using 20 nSSRs representing all 20 wild soybean linkage groups corresponding to the 20 chromosomes, and five cpSSRs from intergenic regions. All the 25 loci are polymorphic and have been used in previous studies [15,21,57] (Table 6). PCR reactions were performed in 15 μL reactions containing 30–50 ng genomic DNA, 0.6 μM of each primer, 7.5 μL 2× Taq PCR MasterMix (Tiangen Biotech, Beijing, China). PCR amplifications were conducted under the following conditions: 94 °C for 2 min; 35 cycles at 94 °C for 30 s, 50 °C for 40 s, and 72 °C for 1 min; followed by a final extension step at 72 °C for 7 min. Primers are shown in Table 6. All the SSR markers were polymorphic based on electrophoresis performed on an ABI 3730 DNA sequencer (Applied Biosystems, Foster City, CA, USA). Fragment length sizes were scored automatically using the program GeneMapper (Applied Biosystems).

4.2. Microsatellite Validation and Diversity

Microsatellite data from each population was tested for amplification errors and null alleles, large allele dropout or stuttering using 1000 randomizations in MICROCHECKER v.2.2.3 [58]. Genepop v. 3.4 online [59] was used to check for deviation from Hardy-Weinberg expectations and between loci in each population using exact tests with 10,000 dememorizations, 100 batches and 1000 iterations. Significance level was adjusted using the sequential Bonferroni correction for multiple comparisons [60]. For nSSRs, the number of alleles per locus (A), the numbers of different alleles (Na), the observed heterozygosities (HO), expected heterozygosities (HE), fixation index (FIS) and Shannon’s information index (I) were calculated using GenALEx v. 6.4 [61]; allelic richness (AR) was calculated by FSTAT 2.9.3.2 [62]; outcrossing rate (t) was calculated from the fixation index using the equation t = (1 − FIS)/(1 + FIS) [63]. For cpSSR, the number of alleles per locus (A), the numbers of different alleles (Na) and Shannon’s information index (I) were calculated using GenALEx v. 6.4 [61]. In each individual, genetic variants at all cpSSR and nSSR sites were combined into haplotypes. Then, each region was characterized for its plastid DNA diversity using the number of haplotypes detected and gene diversity estimated using the program CONTRIB [64]. Contribution of each region to total diversity (CT) and to total allelic richness (CTR) were calculated according to Petit et al. [65].

4.3. Population Spatial Structure

Genetic differentiation was investigated using the model based clustering method STRUCTURE 2.1 [66,67] for nSSRs. Burn-in time and replication number were set to 100,000 and 100,000 (further generation following the burn in) for each run, respectively. The number of populations (K) in the model was systematically varied from 1 to 10. In order to decrease the margin of error, the average value of 20 simulations performed for each K was used. We used the ΔK method [29] representing the highest median likelihood values to assign wild soybean accessions using the online tool Structure Harvester [68]. For the chosen K value, the run that had the highest likelihood estimate was adopted to assign individuals to clusters. The 10 runs with the lowest DI values for the selected K-value were retained, and their admixture estimates were averaged using CLUMPP v. 1.1.1 [69], applying the greedy algorithm with random input order and 1,000 permutations to align the runs and calculate G’ statistics. Results were visualized using DISTRUCT 1.1 [70].
Nei’s genetic distance (D) and Goldstein’s distance [(δμ)2] are commonly used for microsatellite. Considered Goldstein’s distance (δμ)2 showed bias at small sample sizes and the bias was directly related to the number of alleles and range in allele size [71], a dendrogram based on Nei’s (1978) [72] genetic distance (D) between groups was constructed using the UPGMA method implemented in the PHYLIP v. 3.68 [73]. In order to make sure the results of UPGMA method, a neighbor joining tree also was constructed using PHYLIP v. 3.68. A hierarchical analysis of molecular variance (AMOVA) [74] implemented in Arlequin v. 3.11 [75] was used to partition the observed genetic variation into among clusters, among populations within a cluster and among individuals within a population.
Two commonly estimators of population differentiation are FST, based on allele identity, and RST, which incorporates microsatellite-specific mutation models. We used the allele size permutation test in SPAGeDI [76] to test whether allele sizes were informative in wild soybean microsatellite data set, which would indicate that mutatioin has contributed to differentiation. Because RST was shown to be most appropriate for our data, (see results), the global RST across all samples was calculated in Arlequin v. 3.11 [75]. Gene flow were quantified using the approach of transform estimates of RST into indirect estimates of the average number of migrants exchanged per generation among populations (Nm) [77]. Gene differentiation (RST) was calculated using AMOVA analyses based on population levels, gene flow was estimated from RST (nSSRs: Nm = 0.25(1 − RST)/RST; cpSSRs: Nm = 0.5(1 − RST)/RST).

4.4. Demographic History

We assessed demographic history based on microsatellite data using different and complementary methods. Heterozygosity excess test [78] and mode-shift test [79] from BOTTLENECK 1.2.02 [80] were used to detect the recent population bottleneck. This program conducts tests for recent (within the past 2Ne to 4Ne generations) population bottlenecks that severely reduce effective population size (Ne) and produce an excess in heterozygosity. Heterozygosity excess test was performed under two mutation models: stepwise mutation model (SMM) and two-phase mutation model (TPM). The model of TPM include both 95% single-step mutations and 5% multiple-step mutations, as recommended by Piry [80]. Heterozygosity excess was detected using the one-tailed Wilcoxon sigh-rank test and standardized differences test on 20 nSSR loci [80]. Significance was determined also by the standardized differences and Wilcoxon tests. Mode-shift test detects allele frequency to investigate whether allele frequency distort from the expected L-shaped distribution. During a bottleneck, the loss of rare alleles occurs more rapidly than the associated decrease in expected heterozygosity, as rare alleles do not contribute to HE as much as common alleles, and thus distort the allele frequency distribution from its expected L-shaped distribution [78].

5. Conclusions

In summary, our results show a relatively high level of genetic diversity and genetic differentiation in wild soybean. Two major genetic clusters were revealed by both structure and phylogenetic reconstruction. The MDRY and Korea regions contain the highest genetic diversity, and SWC contributes the most to total diversity and allelic richness. Significant genetic bottlenecks have affected five populations with obvious human disturbance. Based on these results, conversation of wild soybean should reduce habitat loss by human interference, and the SWC region should be conserved with priority.

Acknowledgements

This study was supported by grants from National Natural Science Foundation of China (project No. is Y01C541211), and the grant of the Talent Project of Yunnan Province (grant No. 2011CI042). This study was conducted in the Key Laboratory of the Southwest China Germplasm Bank of Wild Species, Kunming Institute of Botany, Chinese Academy of Sciences.

References

  1. Smil, V. Magic beans. Nature 2000, 407, 567–567. [Google Scholar]
  2. Lam, H.M.; Xu, X.; Liu, X.; Chen, W.B.; Yang, G.H.; Wong, F.L.; Li, M.W.; He, W.M.; Qin, N.; Wang, B.; et al. Resequencing of 31 wild and cultivated soybean genomes identifies patterns of genetic diversity and selection. Nat. Genet 2010, 42, 1053–1061. [Google Scholar]
  3. Dong, Y.S.; Zhuang, B.C.; Zhao, L.M.; Sun, H.; He, M.Y. The genetic diversity of annual wild soybeans grown in China. Theor. Appl. Genet 2001, 103, 98–103. [Google Scholar]
  4. Li, F.S. Studies on the ecological and geographical distribution of the Chinese resources of wild soybean. Sci. Agric. Sin 1993, 26, 47–55. [Google Scholar]
  5. Lu, B.R. Conserving biodiversity of soybean gene pool in the biotechnology era. Plant. Species Biol 2004, 19, 115–125. [Google Scholar]
  6. Jin, Y.; He, T.H.; Lu, B.R. Fine scale genetic structure in a wild soybean (Glycine soja) population and the implications for conservation. New Phytol 2003, 159, 513–519. [Google Scholar]
  7. Dong, Y.S. Advances of research on wild soybean in China. J. Jilin Agric. Univers 2008, 30, 394–400. [Google Scholar]
  8. Yu, Y.F. China’s wild plants protection work milestone_National wild plants list for protection (I). Plant J 1999, 5, 3–11. [Google Scholar]
  9. Wang, K.J.; Li, X.H.; Li, F.S. Phenotypic diversity of the big seed type subcollection of wild soybean (Glycine soja Sieb. et Zucc.) in China. Genet. Resour. Crop Evol 2008, 55, 1335–1346. [Google Scholar]
  10. Sakamoto, S.I.; Abe, J.; Kanazawa, A.; Shimamoto, Y. Marker-assisted analysis for soybean hard seededness with isozyme and simple sequence repeat loci. Breed. Sci 2004, 54, 133–139. [Google Scholar]
  11. Abe, J.; Hasegawa, A.; Fukushi, H.; Mikami, T.; Ohara, M.; Shimamoto, Y. Introgression between wild and cultivated soybeans of Japan revealed by RFLP analysis for chloroplast DNAs. Econ. Bot 1999, 53, 285–291. [Google Scholar]
  12. Shimamoto, Y.; Tozuka, A.; Fukushi, H.; Hirata, T.; Ohara, M.; Kanazawa, A.; Mikami, T.; Abe, J. Composite and clinal distribution of Glycine soja in Japan revealed by RFLP analysis of mitochondrial DNA. Theor. Appl. Genet 1998, 96, 170–176. [Google Scholar]
  13. Shimamoto, Y.; Fukushi, H.; Abe, J.; Kanazawa, A.; Gai, J.Y.; Gao, Z.; Xu, D.H. RFLPs of chloroplast and mitochondrial DNA in wild soybean, Glycine soja, growing in China. Genet. Resour. Crop Evol 1998, 45, 433–439. [Google Scholar]
  14. Lee, J.D.; Yu, J.K.; Hwang, Y.H.; Blake, S.; So, Y.S.; Lee, G.J.; Nguyen, H.T.; Shannon, J.G. Genetic diversity of wild soybean (Glycine soja Sieb. and Zucc.) accessions from South Korea and other countries. Crop Sci 2008, 48, 606–616. [Google Scholar]
  15. Guan, R.X.; Chang, R.Z.; Li, Y.H.; Wang, L.X.; Liu, Z.X.; Qiu, L.J. Genetic diversity comparison between Chinese and Japanese soybeans (Glycine max (L.) Merr.) revealed by nuclear SSRs. Genet. Resour. Crop Evol 2010, 57, 229–242. [Google Scholar]
  16. Li, Y.H.; Li, W.; Zhang, C.; Yang, L.A.; Chang, R.Z.; Gaut, B.S.; Qiu, L.J. Genetic diversity in domesticated soybean (Glycine max) and its wild progenitor (Glycine soja) for simple sequence repeat and single-nucleotide polymorphism loci. New Phytol 2010, 188, 242–253. [Google Scholar]
  17. Wang, M.; Li, R.Z.; Yang, W.M.; Du, W.J. Assessing the genetic diversity of cultivars and wild soybeans using SSR markers. Afr. J. Biotechnol 2010, 9, 4857–4866. [Google Scholar]
  18. Li, X.H.; Wang, K.J.; Jia, J.Z. Genetic diversity and differentiation of Chinese wild soybean germplasm (G. soja Sieb. & Zucc.) in geographical scale revealed by SSR markers. Plant Breed 2009, 128, 658–664. [Google Scholar]
  19. Kuroda, Y.; Sato, Y.I.; Bounphanousay, C.; Kono, Y.; Tanaka, K. Genetic structure of three Oryza AA genome species (O. rufipogon, O. nivara and O. sativa) as assessed by SSR analysis on the Vientiane Plain of Laos. Conserv. Genet 2007, 8, 149–158. [Google Scholar]
  20. Kuroda, Y.; Kaga, A.; Tomooka, N.; Vaughan, D.A. Gene flow and genetic structure of wild soybean (Glycine soja) in Japan. Crop Sci 2008, 48, 1071–1079. [Google Scholar]
  21. Kuroda, Y.; Kaga, A.; Tomooka, N.; Vaughan, D.A. Population genetic structure of Japanese wild soybean (Glycine soja) based on microsatellite variation. Mol. Ecol 2006, 15, 959–974. [Google Scholar]
  22. Yoshimura, Y.; Mizuguti, A.; Matsuo, K. Analysis of the seed dispersal patterns of wild soybean as a reference for vegetation management around genetically modified soybean fields. Weed Biol. Manag 2011, 11, 210–216. [Google Scholar]
  23. Shimamoto, Y.; Abe, J.; Gao, Z.; Gai, J.Y.; Thseng, F.S. Characterizing the cytoplasmic diversity and phyletic relationship of Chinese landraces of soybean, Glycine max, based on RFLPs of chloroplast and mitochondrial DNA. Genet. Resour. Crop Evol 2000, 47, 611–617. [Google Scholar]
  24. Wen, Z.X.; Zhao, T.J.; Ding, Y.L.; Gai, J.Y. Genetic diversity, geographic differentiation and evolutionary relationship among ecotypes of Glycine max and G. soja in China. Chin. Sci. Bull 2009, 54, 4393–4403. [Google Scholar]
  25. Guo, J.; Wang, Y.S.; Song, C.; Zhou, J.F.; Qiu, L.J.; Huang, H.W.; Wang, Y. A single origin and moderate bottleneck during domestication of soybean (Glycine max): Implications from microsatellites and nucleotide sequences. Ann. Bot 2010, 106, 505–514. [Google Scholar]
  26. Maughan, P.J.; Maroof, M.A.S.; Buss, G.R. Microsatellite and amplified sequence length polymorphisms in cultivated and wild soybean. Genome 1995, 38, 715–723. [Google Scholar]
  27. Song, Q.J.; Marek, L.F.; Shoemaker, R.C.; Lark, K.G.; Concibido, V.C.; Delannay, X.; Specht, J.E.; Cregan, P.B. A new integrated genetic linkage map of the soybean. Theor. Appl. Genet 2004, 109, 122–128. [Google Scholar]
  28. Chapuis, M.P.; Estoup, A. Microsatellite null alleles and estimation of population differentiation. Mol. Biol. Evol 2007, 24, 621–631. [Google Scholar]
  29. Evanno, G.; Regnaut, S.; Goudet, J. Detecting the number of clusters of individuals using the software structure: A simulation study. Mol. Ecol 2005, 14, 2611–2620. [Google Scholar]
  30. Doyle, J.J.; Morgante, M.; Tingey, S.V.; Powell, W. Size homoplasy in chloroplast microsatellites of wild perennial relatives of soybean (Glycine subgenus Glycine). Mol. Biol. Evol 1998, 15, 215–218. [Google Scholar]
  31. Kuroda, Y.; Tomooka, N.; Kaga, A.; Wanigadeva, S.M.S.W.; Vaughan, D. Genetic diversity of wild soybean (Glycine soja Sieb. et Zucc.) and Japanese cultivated soybeans [G. max (L.) Merr.] based on microsatellite (SSR) analysis and the selection of a core collection. Genet. Resour. Crop Evol 2009, 56, 1045–1055. [Google Scholar]
  32. Zhao, R.; Xia, H.; Lu, B.R. Fine-scale genetic structure enhances biparental inbreeding by promoting mating events between more related individuals in wild soybean (Glycine soja; Fabaceae) populations. Am. J. Bot 2009, 96, 1138–1147. [Google Scholar]
  33. Hamrick, J.L.; Godt, M.J.W. Effects of life history traits on genetic diversity in plant species. Philos. T. Roy. Soc. B 1996, 351, 1291–1298. [Google Scholar]
  34. Luo, M.C.; Yang, Z.L.; You, F.M.; Kawahara, T.; Waines, J.G.; Dvorak, J. The structure of wild and domesticated emmer wheat populations, gene flow between them, and the site of emmer domestication. Theor. Appl. Genet 2007, 114, 947–959. [Google Scholar]
  35. Ozbek, O.; Millet, E.; Anikster, Y.; Arslan, O.; Feldman, M. Spatio-temporal genetic variation in populations of wild emmer wheat, Triticum turgidum ssp. dicoccoides, as revealed by AFLP analysis. Theor. Appl. Genet 2007, 115, 19–26. [Google Scholar]
  36. Gao, L.Z. Microsatellite variation within and among populations of Oryza officinalis (Poaceae), an endangered wild rice from China. Mol. Ecol 2005, 14, 4287–4297. [Google Scholar]
  37. Wen, Z.; Ding, Y.; Zhao, T.; Gai, J. Genetic diversity and peculiarity of annual wild soybean (G. soja Sieb. et Zucc.) from various eco-regions in China. Theor. Appl. Genet 2009, 119, 371–381. [Google Scholar]
  38. Powell, W.; Morgante, M.; Doyle, J.J.; McNicol, J.W.; Tingey, S.V.; Rafalski, A.J. Genepool variation in genus Glycine subgenus Soja revealed by polymorphic nuclear and chloroplast microsatellites. Genetics 1996, 144, 792–803. [Google Scholar]
  39. Pakkad, G.; Ueno, S.; Yoshimaru, H. Genetic diversity and differentiation of Quercus semiserrata Roxb. in northern Thailand revealed by nuclear and chloroplast microsatellite markers. Forest Ecol. Manag 2008, 255, 1067–1077. [Google Scholar]
  40. Robledo-Arnuncio, J.J.; Gil, L. Patterns of pollen dispersal in a small population of Pinus sylvestris L. revealed by total-exclusion paternity analysis. Heredity 2005, 94, 13–22. [Google Scholar]
  41. Setsuko, S.; Ishida, K.; Ueno, S.; Tsumura, Y.; Tomaru, N. Population differentiation and gene flow within a metapopulation of a threatened tree, Magnolia stellata (Magnoliaceae). Am. J. Bot 2007, 94, 128–136. [Google Scholar]
  42. Wolfe, K.H.; Li, W.H.; Sharp, P.M. Rates of nucleotide substitution vary greatly among plant mitochondrial, chloroplast, and nuclear DNAs. Proc. Natl. Acad. Sci. USA 1987, 84, 9054–9058. [Google Scholar]
  43. Ebert, D.; Peakall, R. Chloroplast simple sequence repeats (cpSSRs): Technical resources and recommendations for expanding cpSSR discovery and applications to a wide array of plant species. Mol. Ecol. Resour 2009, 9, 673–690. [Google Scholar]
  44. Holtsford, T.P.; Ellstrand, N.C. Variation in outcrossing rate and population genetic-structure of Clarkia tembloriensis (Onagraceae). Theor. Appl. Genet 1989, 78, 480–488. [Google Scholar]
  45. Wright, S. Systems of mating. II. The effects of inbreeding on the genetic composition of a population. Genetics 1921, 6, 124–143. [Google Scholar]
  46. Kiang, Y.T.; Chiang, Y.C.; Kaizuma, N. Genetic diversity in natural populations of wild soybean in Iwate prefecture, Japan. J. Hered 1992, 83, 325–329. [Google Scholar]
  47. Fujita, R.; Ohara, M.; Okazaki, K.; Shimamoto, Y. The extent of natural cross-pollination in wild soybean (Glycine soja). J. Hered 1997, 88, 124–128. [Google Scholar]
  48. Volis, S.; Zaretsky, M.; Shulgina, I. Fine-scale spatial genetic structure in a predominantly selfing plant: Role of seed and pollen dispersal. Heredity 2010, 105, 384–393. [Google Scholar]
  49. Li, E.X.; Qiu, Y.X.; Yi, S.; Guo, J.T.; Comes, H.P.; Fu, C.X. Phylogeography of two East Asian species in Croomia (Stemonaceae) inferred from chloroplast DNA and ISSR fingerprinting variation. Mol. Phylogen. Evol 2008, 49, 702–714. [Google Scholar]
  50. Qiu, Y.X.; Sun, Y.; Zhang, X.P.; Lee, J.; Fu, C.X.; Comes, H.P. Molecular phylogeography of East Asian Kirengeshoma (Hydrangeaceae) in relation to Quaternary climate change and landbridge configurations. New Phytol 2009, 183, 480–495. [Google Scholar]
  51. Qiu, Y.X.; Qi, X.S.; Jin, X.F.; Tao, X.Y.; Fu, C.X.; Naiki, A.; Comes, H.P. Population genetic structure, phylogeography, and demographic history of Platycrater arguta (Hydrangeaceae) endemic to East China and South Japan, inferred from chloroplast DNA sequence variation. Taxon 2009, 58, 1226–1241. [Google Scholar]
  52. Qiu, Y.X.; Fu, C.X.; Comes, H.P. Plant molecular phylogeography in China and adjacent regions: Tracing the genetic imprints of Quaternary climate and environmental change in the world’s most diverse temperate flora. Mol. Phylogen. Evol 2011, 59, 225–244. [Google Scholar]
  53. Takahara, H.; Sugita, S.; Harrison, S.P.; Miyoshi, N.; Morita, Y.; Uchiyama, T. Pollen-based reconstructions of Japanese biomes at 0, 6000 and 18,000 C-14 yr BP. J. Biogeogr 2000, 27, 665–683. [Google Scholar]
  54. Millien-Parra, V.; Jaeger, J.J. Island biogeography of the Japanese terrestrial mammal assemblages: An example of a relict fauna. J. Biogeogr. 1999, 26, 959–972. [Google Scholar]
  55. Lee, J.D.; Shannon, J.G.; Vuong, T.D.; Nguyen, H.T. Inheritance of Salt Tolerance in Wild Soybean (Glycine soja Sieb. and Zucc.). J. Hered 2009, 100, 798–801. [Google Scholar]
  56. Doyle, J.J.; Doyle, J.L. A rapid DNA isolation procedure for small quantities of fresh leaf tissue. Phytochem. Bull 1987, 19, 11–15. [Google Scholar]
  57. Xu, D.H.; Abe, J.; Gai, J.Y.; Shimamoto, Y. Diversity of chloroplast DNA SSRs in wild and cultivated soybeans: Evidence for multiple origins of cultivated soybean. Theor. Appl. Genet 2002, 105, 645–653. [Google Scholar]
  58. Oosterhout, C.V.; Hutchinson, W.F.; Wills, D.P.M.; Shipley, P. micro-checker: Software for identifying and correcting genotyping errors in microsatellite data. Mol. Ecol. Notes 2004, 4, 535–538. [Google Scholar]
  59. Rousset, F. GENEPOP’007: A complete re-implementation of the GENEPOP software for Windows and Linux. Mol. Ecol. Resour 2008, 8, 103–106. [Google Scholar]
  60. Rice, W.R. Analyzing tables of statistical tests. Evolution 1989, 43, 223–225. [Google Scholar]
  61. Peakall, R.; Smouse, P.E. GENALEX 6: Genetic analysis in Excel. Population genetic software for teaching and research. Mol. Ecol. Notes 2006, 6, 288–295. [Google Scholar]
  62. Goudet, J. FSTAT: A computer program to calculate F-statistics. J. Hered 2002, 86, 485–486. [Google Scholar]
  63. Weir, B.S. Genetic Data Analysis: Methods for Discrete Population Genetic Data; Sinauer Associates, Inc: Sunderland, MA, USA; p. 1990.
  64. Petit, R.J.; Excoffier, L. Gene flow and species delimitation. Trends Ecol. Evol 2009, 24, 386–393. [Google Scholar]
  65. Petit, R.J.; El Mousadik, A.; Pons, O. Identifying populations for conservation on the basis of genetic markers. Conserv. Biol 1998, 12, 844–855. [Google Scholar]
  66. Pritchard, J.K.; Stephens, M.; Donnelly, P. Inference of population structure using multilocus genotype data. Genetics 2000, 155, 945–959. [Google Scholar]
  67. Falush, D.; Stephens, M.; Pritchard, J.K. Inference of population structure using multilocus genotype data: Linked loci and correlated allele frequencies. Genetics 2003, 164, 1567–1587. [Google Scholar]
  68. Earl, D.A.; Vonholdt, B.M. STRUCTURE HARVESTER: A website and program for visualizing STRUCTURE output and implementing the Evanno method. Conserv. Genet. Resour 2012, 4, 359–361. [Google Scholar]
  69. Jakobsson, M.; Rosenberg, N.A. CLUMPP: A cluster matching and permutation program for dealing with label switching and multimodality in analysis of population structure. Bioinformatics 2007, 23, 1801–1806. [Google Scholar]
  70. Rosenberg, N.A. Distruct: A program for the graphical display of population structure. Mol. Ecol. Notes 2004, 4, 137–138. [Google Scholar]
  71. Ruzzante, D.E. A comparison of several measures of genetic distance and population structure with microsatellite data: Bias and sampling variance. Can. J. Fish. Aquat. Sci 1998, 55, 1–14. [Google Scholar]
  72. Nei, M. Estimation of average heterozygosity and genetic distance from a small number of individuals. Genetics 1978, 89, 583–590. [Google Scholar]
  73. Felsenstein, J. PHYLIP—phylogeny inference package (version 3.2). Cladistics 1989, 5, 164–166. [Google Scholar]
  74. Excoffier, L.; Smouse, P.E.; Quattro, J.M. Analysis of molecular variance inferred from metric distances among DNA haplotypes: Application to human mitochondrial DNA restriction data. Genetics 1992, 131, 479–491. [Google Scholar]
  75. Excoffier, L.; Laval, G.; Schneider, S. Arlequin (version 3.0): An integrated software package for population genetics data analysis. Evol. Bioinform. Online 2005, 1, 47–50. [Google Scholar]
  76. Hardy, O.J.; Vekemans, X. SPAGEDi: A versatile computer program to analyse spatial genetic structure at the individual or population levels. Mol. Ecol. Notes 2002, 2, 618–620. [Google Scholar]
  77. Slatkin, M. Rare alleles as indicators of gene flow. Evolution 1985, 39, 53–65. [Google Scholar]
  78. Cornuet, J.M.; Luikart, G. Description and power analysis of two tests for detecting recent population bottlenecks from allele frequency data. Genetics 1996, 144, 2001–2014. [Google Scholar]
  79. Luikart, G.; Allendorf, F.W.; Cornuet, J.M.; Sherwin, W.B. Distortion of allele frequency distributions provides a test for recent population bottlenecks. J. Hered 1998, 89, 238–247. [Google Scholar]
  80. Piry, S.; Luikart, G.; Cornuet, J.M. BOTTLENECK: A computer program for detecting recent reductions in the effective population size using allele frequency data. J. Hered 1999, 90, 502–503. [Google Scholar]
Figure 1. Sampling populations of wild soybean.
Figure 1. Sampling populations of wild soybean.
Ijms 13 12608f1

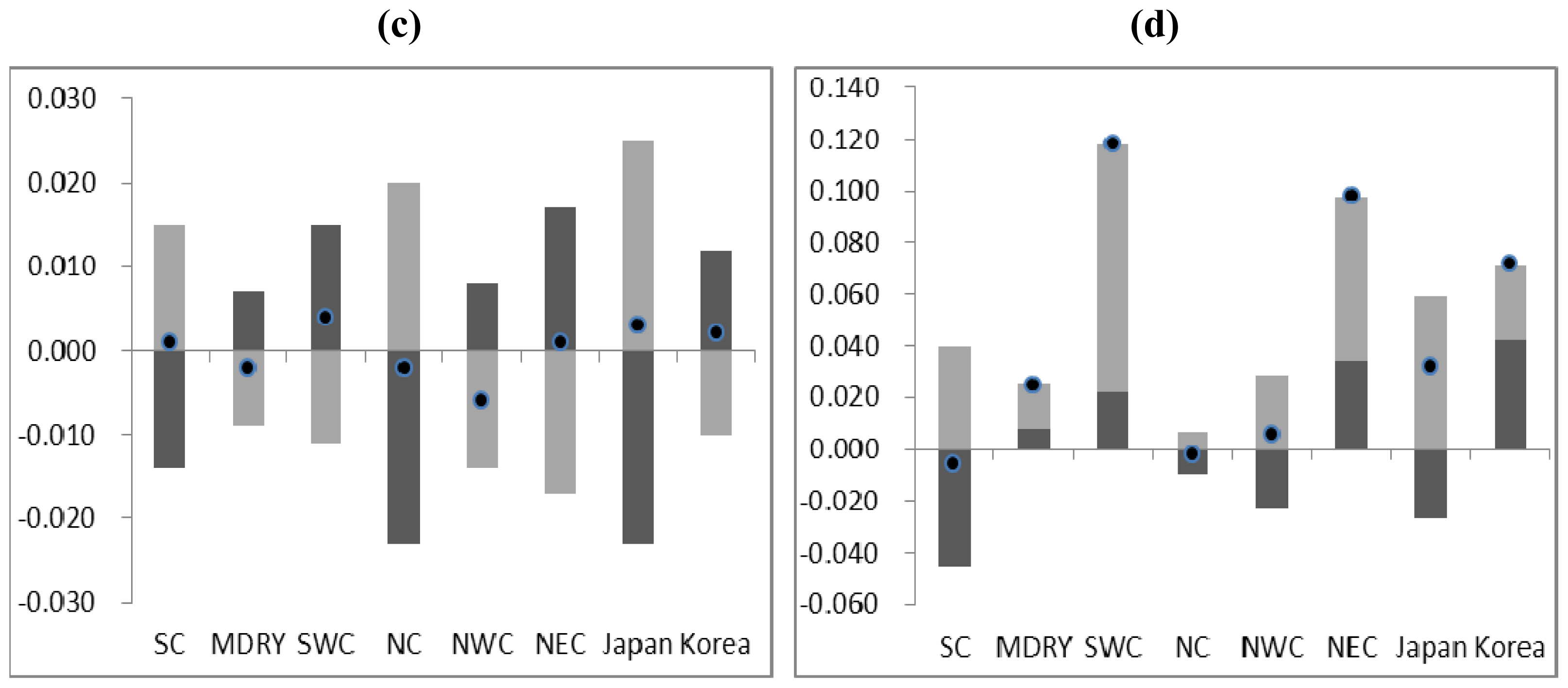

Figure 2. Region contribution to the total diversity and allelic richness, (a) and (b) for nSSRs; (c) and (d) for cpSSRs. (a) Contribution to total diversity (CT); (b) Contribution to allelic richness (CTR); (c) Contribution to total diversity (CT); (d) Contribution to allelic richness (CTR).
Figure 2. Region contribution to the total diversity and allelic richness, (a) and (b) for nSSRs; (c) and (d) for cpSSRs. (a) Contribution to total diversity (CT); (b) Contribution to allelic richness (CTR); (c) Contribution to total diversity (CT); (d) Contribution to allelic richness (CTR).
Ijms 13 12608f2aIjms 13 12608f2b

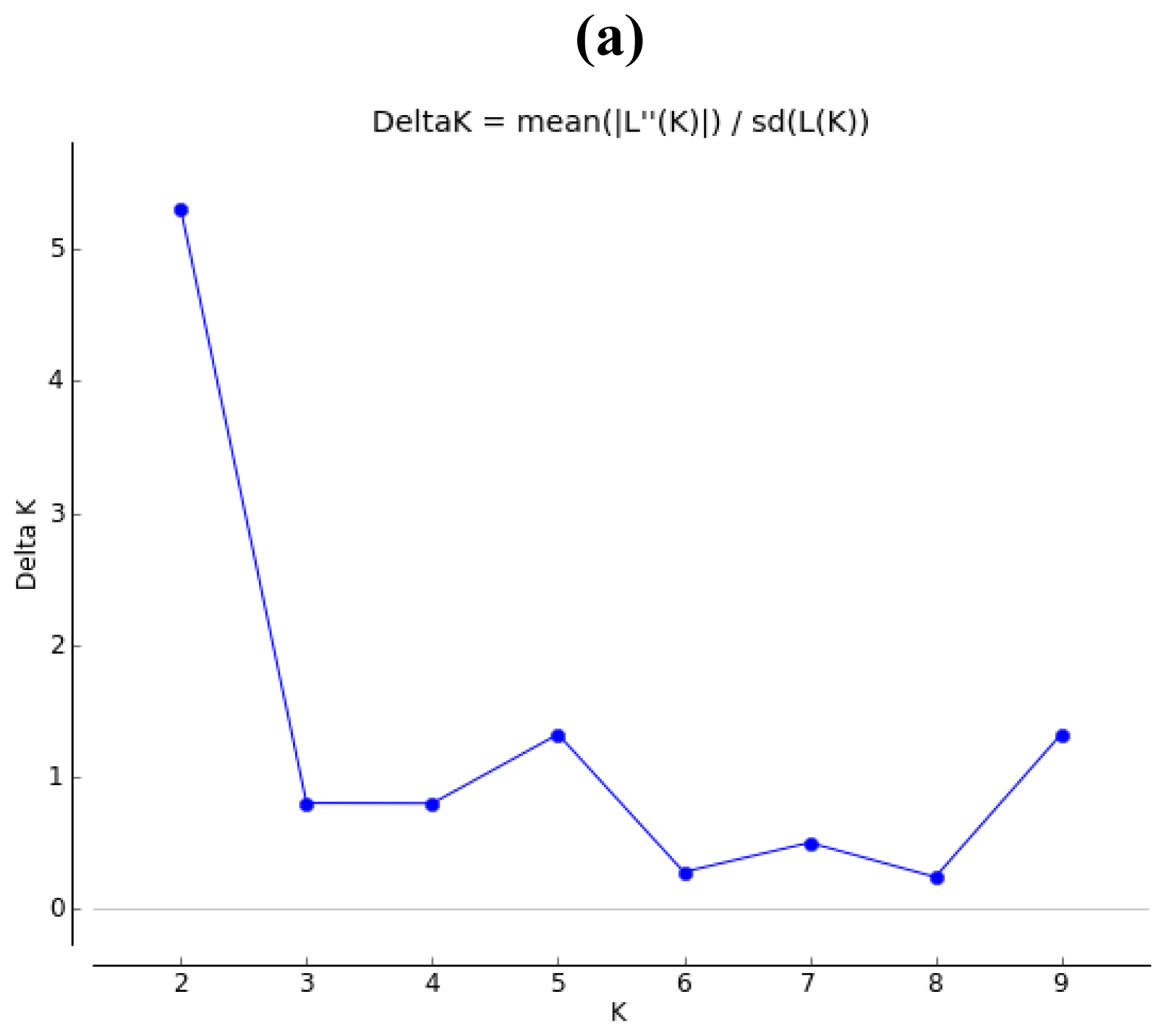

Figure 3. Inferred population structure based on 604 samples and 20 nSSRs. (a) DeltaK from STRUCTURE; (b) Genetic structure of wild soybean inferred from the admixture model.
Figure 3. Inferred population structure based on 604 samples and 20 nSSRs. (a) DeltaK from STRUCTURE; (b) Genetic structure of wild soybean inferred from the admixture model.
Ijms 13 12608f3aIjms 13 12608f3b

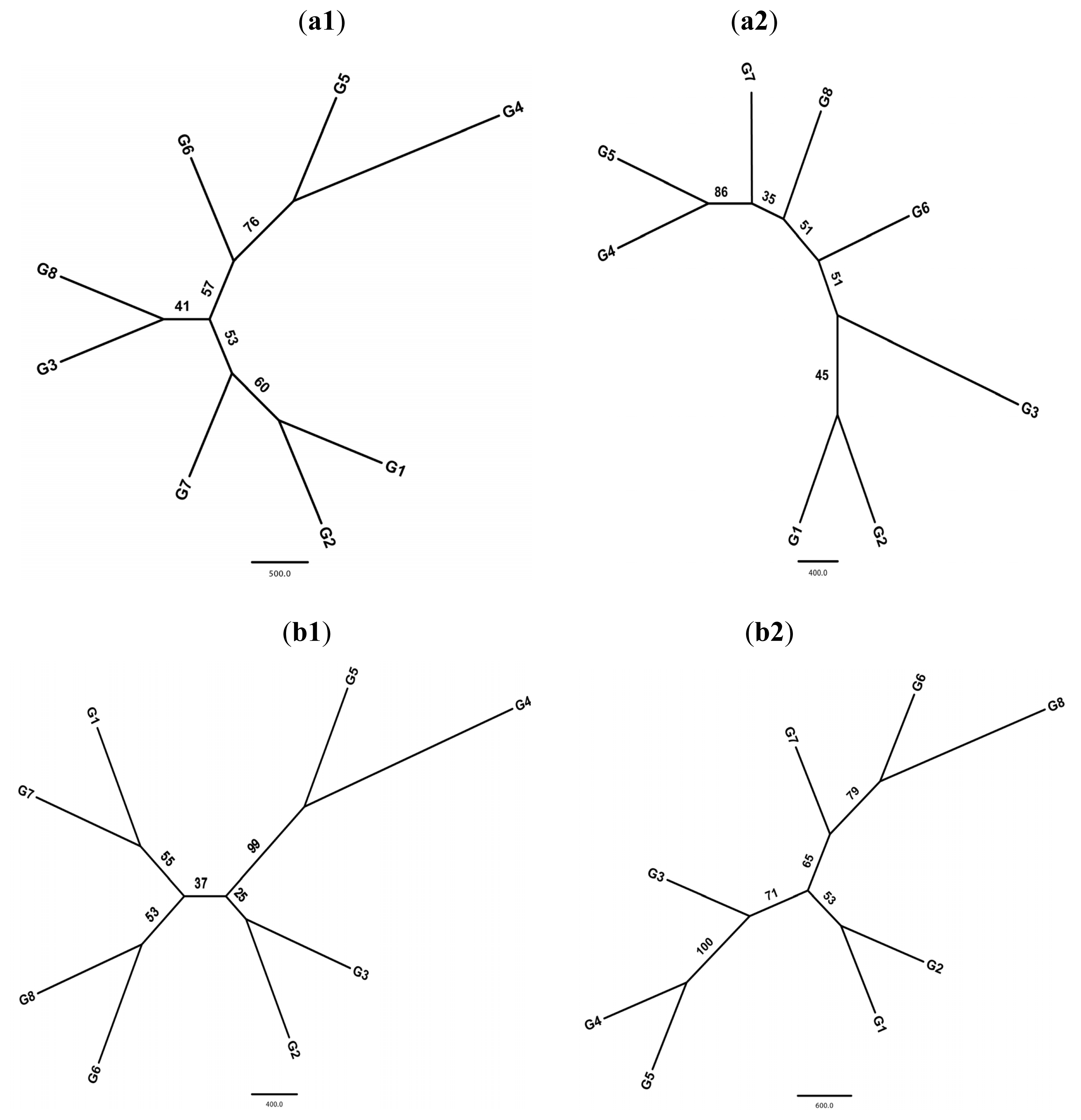

Figure 4. The UPGMA tree of wild soybeans from different regions. bootstrap values are indicated at each branch. (a) The cpSSR tree basing on eight groups. a1: UPGMA tree; a2: Neighbor-joining tree; (b) The nSSR tree basing on eight groups. b1: UPGMA tree; b2: Neighbor-joining tree.
Figure 4. The UPGMA tree of wild soybeans from different regions. bootstrap values are indicated at each branch. (a) The cpSSR tree basing on eight groups. a1: UPGMA tree; a2: Neighbor-joining tree; (b) The nSSR tree basing on eight groups. b1: UPGMA tree; b2: Neighbor-joining tree.
Ijms 13 12608f4
Table 1. Genetic diversity parameters estimated at 20 nSSRs and 5 cpSSRs in 43 populations of wild soybean.
Table 1. Genetic diversity parameters estimated at 20 nSSRs and 5 cpSSRs in 43 populations of wild soybean.
nSSRscpSSRs



PopsNANaARIHOHEFISt (%)ANaARI
G1:SC73199109.51.8860.0130.8090.9840.81122.20.421
G1_AF156431.90.7310.0140.3970.9731.4611.20.079
G1_HY158842.41.1770.0140.6050.9791.1921.80.493
G1_JO154521.60.5050.0070.3000.9273.8611.20.079
G1_QZ135631.90.7510.0150.4560.9691.6611.20.133
G1_RY153621.20.1900.0180.0940.73615.2711.30.098
G2:MDRY752921514.02.3490.0630.8810.9293.71633.10.742
G2_DQ145732.00.7920.0510.4680.9045.01022.00.502
G2_SC1511462.81.4930.0230.7220.9691.61021.90.369
G2_TB1513673.11.7440.0070.7970.9920.41432.70.809
G2_WC1412463.01.6160.0530.7620.9333.51122.10.578
G2_XU1511462.71.4360.2050.7080.71816.41021.90.402
G3:SWC83199109.31.8840.0350.8030.9562.21843.50.707
G3_CK155732.00.8270.0370.4910.9343.4711.30.149
G3_CY123821.40.3430.0130.2000.9572.2711.40.170
G3_GH146231.90.7610.0480.4260.75913.7711.40.217
G3_N1125931.80.6910.0270.3830.8985.41222.20.511
G3_N2115231.80.6470.0670.4070.76113.6921.80.375
G3_YJ145131.80.6630.0140.4140.9144.5611.20.130
G4:NWC752221110.31.7400.0260.7190.9641.81332.60.447
G4_BX159852.41.1620.0280.5700.9621.9622.00.487
G4_HX149752.51.1960.0710.5980.8359.01122.10.475
G4_LW154021.50.4280.0070.2650.9781.11111.00.000
G4_WS157642.20.9740.0170.5200.9681.6521.70.342
G4_YL154821.60.5170.0100.3020.9055.0921.60.284
G5:NC8616988.11.6330.0090.7300.9890.61122.20.598
G5_DY156832.20.9340.0180.5260.9731.4922.00.518
G5_JZ154421.90.6740.0180.4550.9303.61011.40.235
G5_QH154921.40.4030.0100.2120.9751.3711.40.157
G5_WQ158142.31.0720.0030.5550.9950.3721.80.500
G5_XH154821.70.6030.0000.3671.0000.0921.50.276
G5_YT112311.10.0590.0050.0370.65121.1811.00.000
G6:NEC892321210.71.9320.0350.8020.9562.21733.40.878
G6_HL1510152.61.3030.0370.6580.9462.8521.80.411
G6_JH1510852.71.4050.0820.6940.8826.3922.00.434
G6_KS156132.30.9790.0030.5820.9950.31121.80.474
G6_LX156832.20.9300.0280.5200.9582.2922.10.571
G6_QQ157842.10.9460.0030.5040.9950.31121.70.283
G6_SY142611.10.1180.0610.0760.20266.4911.20.120
G7:Japan7015787.61.6510.0230.7590.9691.61022.00.372
G7_J1156332.20.9780.0210.5630.9641.82321.60.343
G7_J2152311.00.0340.0070.0180.31052.7811.00.000
G7_J3152411.10.1000.0030.0640.9572.2511.00.000
G7_J4156432.00.8120.0340.4670.9363.3511.00.000
G7_J5105732.00.7730.0690.4500.8617.5511.20.065
G8:Korea532041010.01.7740.0390.7700.9492.62354.60.932
G8_K1103021.20.1630.0000.0901.0000.0511.00.000
G8_K2122511.00.0490.0130.0230.34548.7511.00.000
G8_K3103421.30.2590.0000.1531.0000.0511.00.000
G8_K41212562.81.5130.0920.7080.8726.81632.90.776
G8_K579052.81.3600.1000.7110.8607.51633.20.908
Mean146531.90.7930.0310.4260.9138.1921.60.297
N: number of samples; A: number of alleles; AR: allele richness; Na: number of different alleles; I: Shannon’s information index; HE: expected heterozygosity; HO: observed heterozygosity; FIS: fixation index; t: outcrossing rate.
Table 2. Inferred population structure based on 604 samples and 20 nSSRs.
Table 2. Inferred population structure based on 604 samples and 20 nSSRs.
RegionsNo. of sampleCluster 1Cluster 2
G1: SC730.7290.271
G2: MDRY750.7710.229
G3: SWC830.6690.331
G4: NWC750.2060.794
G5: NC860.1350.865
G6: NEC890.8120.188
G7: Japan700.6940.307
G8: Korea530.7720.228
Table 3. Analysis of molecular variance (AMOVA) for wild soybean.
Table 3. Analysis of molecular variance (AMOVA) for wild soybean.
LociSource of variationSSVCPV (%)Fixation indices
nSSRAmong two clusters393.040.5655.99FCT = 0.060
Among populations within clusters5106.234.40946.69FST = 0.527
Within populations5050.644.46947.32FSC = 0.497
cpSSRAmong two clusters68.5620.0956.77FCT = 0.068
Among populations within clusters935.8810.80256.98FST = 0.637
Within populations589.7530.51036.25FSC = 0.611
Table 4. Results from bottleneck tests of nSSRs: Significance of both tests is indicated in bold.
Table 4. Results from bottleneck tests of nSSRs: Significance of both tests is indicated in bold.
Populations.Standardized difference testWilcoxm sign test

TPMSMMTPMSMM

T2PT2PPP
G1_AF−2.6550.0040−3.0140.00130.99140.9959
G1_HY0.7130.23810.3070.37940.13870.3108
G1_JO−0.1210.4519−0.3030.38090.56990.6282
G1_QZ0.4340.33220.1250.45040.07150.2046
G1_RY−4.2230.0000−4.4570.00001.00001.0000
G2_DQ1.4980.06701.2880.09890.05210.0668
G2_SC0.9670.16680.4200.33740.10810.2729
G2_TB3.3600.00042.9910.00140.00040.0004
G2_WC2.6510.00402.2350.01270.00070.0018
G2_XU0.8540.19650.3080.37910.18410.4492
G3_CK2.7550.00292.5770.00500.00140.0027
G3_CY0.1460.4421−0.0180.49290.58980.5898
G3_GH−0.2110.4165−0.4510.32600.52350.6603
G3_N1−1.9450.0259−2.2360.01270.98930.9964
G3_N20.4350.33170.1220.45140.73870.2899
G3_YJ1.1640.12230.9230.17800.07700.0982
G4_BX−1.4390.0751−2.0670.01940.77930.8533
G4_HX−0.1090.4567−0.6240.26650.41590.6802
G4_LW−0.0690.4726−0.2010.42030.48160.4816
G4_WS−0.1940.4233−0.6430.26020.24500.2839
G4_YL−0.7400.2295−0.9650.16730.73780.7378
G5_DY0.9190.17900.5570.28860.08440.1127
G5_JZ4.7550.00004.6420.00000.00000.0000
G5_QH−5.2240.0000−5.5430.00001.00001.0000
G5_WQ1.4110.07911.0710.14210.04070.0649
G5_XH1.3710.08511.2060.11390.05230.0523
G5_YT−0.4850.3140−0.5120.30430.81250.8750
G6_HL−0.2300.4089−0.8440.19930.52180.8529
G6_JH1.4470.07390.9770.16420.01810.0570
G6_KS4.2130.00004.0540.00000.00000.0000
G6_LX0.9350.17490.6480.25840.09780.2090
G6_QQ−3.3570.0004−4.0320.00000.99760.9994
G6_SY−0.2270.4102−0.3780.35280.43750.4375
G7_J13.0890.00102.9030.00190.00010.0001
G7_J2−1.7200.0428−1.7680.03851.00001.0000
G7_J30.9790.16370.9100.18150.06250.0625
G7_J4−0.9240.1777−1.3360.09070.59380.7392
G7_J51.3560.08751.1100.13350.03270.0523
G8_K1−2.5120.0060−2.5790.00501.00001.0000
G8_K2−3.1610.0008−3.2820.00051.00001.0000
G8_K3−1.9690.0245−2.0580.01980.94800.9710
G8_K4−0.7550.2253−1.3730.08480.60790.7848
G8_K53.5110.00023.2990.00050.00040.0004
SS: sum of squares; VC: variance component; PV: percentage of variation;
*p < 0.001; FCT: genetic diversity between two clusters; FSC: differentiation among populations within clusters; FST: divergence among all populations. Significant for both tests are in bold.
Table 5. Locations and habitats of sampled wild soybean populations.
Table 5. Locations and habitats of sampled wild soybean populations.
Geographical regionPopulation nameLocation of samplingLongitudeLatitudeAltitude (m)Habitat
G1: SCPopulation AFAnfu county, Jiangxi province27.388114.60285Beside road
Population JOJianou county, Fujian province26.962112.153126Beside river
Population HYHengyang county, Hunan province27.024118.293123Beside river
Population RYRuyuan county, Guangdong province25.872110.862510Beside road
Population QZQuanzhou county, Guangxi province24.919113.136722Beside road

G2: MDYRPopulation WCWuchang district, Hubei province30.549119.97215Beside road
Population XUXuanwu district, Jiangsu province31.314117.128Waste land
Population DQDuqing county, Zhejiang province32.370113.40015Beside canal
Population SCShucha county, Anhui province30.521114.39545Beside road
Population TBTongbai county, Henan province32.045118.86133Beside road

G3: SWCPopulation CKChengkou county, Chongqing31.983108.667805Valley
Population YJYinjiang county, Guizhou province30.996104.349458Valley,
Population GHGuanghan city, Sichuan province28.000108.406458Beside river
Population CYChayu county, Xizang province28.60097.4001685Unknown
Population NL1Ninglang county, Yunnan province27.455100.7582600Beside filed
Population NL2Ninglang county, Yunnan province27.340100.9542550Beside filed

G4: NWCPopulation BXBingxian county, Shaanxi province35.040108.077835Valley,
Population HXHuixian county, Gansu province33.893105.8261126Canal
Population LWLingwu county, Ningxia province38.146106.3261103Canal
Population WSWenshui county, Shanxi province37.417112.017759Beside canal
Population YLYulin city, Shanxi province38.281109.7381051Along river

G5: NCPopulation JZJizhou county, Hebei province37.574118.52423Beside road
Population DYDongying city, Shandong province37.742115.6866Beside ditches
Population WQWuqing district, Tianjing39.808119.432−6Beside ditches
Population XHXuanhua county, Hebei province39.449117.249601Beside river
Population QHQinghuangdao city, Hebei province40.593115.02118Beside river
Population YTYantai city, Shandong province37.485121.45310Wasteland

G6: NECPopulation LXLanxi county, Heilongjiang province41.893123.411139Beside pond
Population JHJiaohe county, Jinlin province45.849132.762126Beside river
Population KSKeshan county, Heilongjaing province43.808127.237325Aside field
Population QQQiqihaer city, Heilongjiang province48.283125.498304Beside river
Population HLHulin city, Heilongjiang province46.218126.33873Beside filed
Population SYShenyang, Liaoning province47.341123.940wasteland

G7: JapanPopulation J1Kanagawa, Japan34.960137.16012Wet Land
Population J2Tokyo, Japan34.828135.77035Wet Land
Population J3Hirakata, Osaka, Japan34.810135.48011Wet Land
Population J4Okazaki, Japan34.959137.13937Wet Land
Population J5Kyushu University, Fukuoka, Japan33.597130.215Unknown
Population K1Gangwon-do, South Korea37.625128.492520Wet Land
Population K2Gangwon-do, South, Korea38.031128.639340Wet Land
Population K3Incheon, South Korea37.533126.49711Wet Land
Population K4Yeongcheon-si city, Korea36.113128.982102Along road
Population K5Moonkyeong-si city, Korea36.721128.35877Along road
G1: SC, south China; G2: MDYR, Middle and lower reaches of Yangtze River; G3: SWC, southwestern China; G4: NWC, northwestern China; G5: NC, north China; G6: NEC, northeastern China.
Table 6. Characteristics of the 25 microsatellite loci for wild soybean. Forward (F) and reverse (R) primer sequences, repeat motifs, size range and linkage group are given.
Table 6. Characteristics of the 25 microsatellite loci for wild soybean. Forward (F) and reverse (R) primer sequences, repeat motifs, size range and linkage group are given.
Primer namePrimer sequence (5′ to 3′)Repeat motifSize rangelinkage group
gmcp1F:TCGATTCTATGCCCCTACTT
R:AGACTCCCAAGTTTTCAGTCG
(T)12124–126TrnT/trnL
gmcp3F:GCTTCAGAATTGTCCTATTTA
R:ATCAAATAACGCCTCATCTA
(A)12CG(T)11103–113TrnT/trnL
gmcp4F:TATCACTGTCAAGATTAAGAG
R:CTTTTATATGTATGGCGCAAC
(A)11127–136atpB/rbcL
RD19F:CTAAATATTACAAAATGGAATTCT
R:ACCAATTCAAAAAATCGAATA
(A)14149–151rps19
SOYCPF:CATAGATAGGTACCATCCTTTTT
R:CGCCGTATGAAAGCAATAC
(T)13(G)1090–98trnM
Satt126F:ATAAAACAAATTCGCTGATAT
R:GCTTGGTAGCTGTAGGAA
(ATT)18109–172B2
Satt135F:TTCCAATACCTCCCAACTAAC
R:CACGGATTTTAAATCATTATTACAT
(ATT)19141–204D2
Satt215F:GCGCCTTCTTCTGCTAAATCA
R:CCCATTCAATTGAGATCCAAAATTAC
(ATT)11114–221J
Satt216F:TACCCTTAATCACCGGACAA
R:AGGGAACTAACACATTTAATCATCA
(ATT)20137–251D1b
Satt221F:GCGGCAAACCATTATCTTCATT
R:GCGATTGTACCACTAAAAACCATAG
(ATT)23109–224D1a
Satt231F:GGCACGAATCAACATCAAAACTTC
R:GCGTGTGCAAAATGTTCATCATCT
(ATT)32160–328E
Satt233F:AAGCATACTCGTCGTAAC
R:GCGGTGCAAAGATATTAGAAA
(ATT)16169–238A2
Satt270F:TGTGATGCCCCTTTTCT
R:GCGCAGTGCATGGTTTTCTCA
(ATT)16183–249I
satt277F:GGTGGTGGCGGGTTACTATTACT
R:CCACGCTTCAGTTGATTCTTACA
(ATT)40128–255C2
satt288F:GCGGGGTGATTTAGTGTTTGACACCT
R:GCGCTTATAATTAAGAGCAAAAGAAG
(ATT)17195–273G
Satt294F:GCGCTCAGTGTGAAAGTTGTTTCTAT
R:GCGGGTCAAATGCAAATTATTTTT
(ATT)23237–303C1
Satt373F:TCCGCGAGATAAATTCGTAAAAT
R:GGCCAGATACCCAAGTTGTACTTGT
(TAT)21210–279L
Satt423F:TTCGCTTGGGTTCAGTTACTT
R:GTTGGGGAATTAAAAAAATG
(ATT)19225–351F
Satt463F:CTGCAAATTTGATGCACATGTGTCTA
R:TTGGATCTCATATTCAAACTTTCAAG
(ATT)19100–214M
satt509F:GCGCAAGTGGCCAGCTCATCTATT
R:GCGCTACCGTGTGGTGGTGTGCTACCT
(ATT)30119–242B1
Satt530F:CCAAGCGGGTGAAGAGGTTTTT
R:CATGCATATTGACTTCATTATT
(ATT)12201–279N
satt555F:GCGGTTGGCTTTGATGATGT
R:TTACCGCATGTTCTTGGACTA
(ATT)13234–312K
Satt568F:CGGACACCGGTCTACTAGGAAAGTAA
R:GCGGAATAATCCAATTCAATTTA
(ATT)17212–275H
satt572F:GCGGAGCATGTAAATCCAGCCTATTGA
R:GCGGGCTAACTTATGTTACTAAACAAT
(ATT)14130–241A1
satt581F:CCAAAGCTGAGCAGCTGATAACT
R:CCCTCACTCCTAGATTATTTGTTGT
(ATT)11130–196O

Share and Cite

MDPI and ACS Style

He, S.; Wang, Y.; Volis, S.; Li, D.; Yi, T. Genetic Diversity and Population Structure: Implications for Conservation of Wild Soybean (Glycine soja Sieb. et Zucc) Based on Nuclear and Chloroplast Microsatellite Variation. Int. J. Mol. Sci. 2012, 13, 12608-12628. https://doi.org/10.3390/ijms131012608

AMA Style

He S, Wang Y, Volis S, Li D, Yi T. Genetic Diversity and Population Structure: Implications for Conservation of Wild Soybean (Glycine soja Sieb. et Zucc) Based on Nuclear and Chloroplast Microsatellite Variation. International Journal of Molecular Sciences. 2012; 13(10):12608-12628. https://doi.org/10.3390/ijms131012608

Chicago/Turabian Style

He, Shuilian, Yunsheng Wang, Sergei Volis, Dezhu Li, and Tingshuang Yi. 2012. "Genetic Diversity and Population Structure: Implications for Conservation of Wild Soybean (Glycine soja Sieb. et Zucc) Based on Nuclear and Chloroplast Microsatellite Variation" International Journal of Molecular Sciences 13, no. 10: 12608-12628. https://doi.org/10.3390/ijms131012608

Article Metrics

Back to TopTop
