Article

Profound Re-Organization of Cell Surface Proteome in Equine Retinal Pigment Epithelial Cells in Response to In Vitro Culturing

1
Institute of Animal Physiology, Department of Veterinary Sciences, Ludwig-Maximilians-University Munich, D-80539 Munich, Germany
2
Research Unit Protein Science, Helmholtz Center Munich, German Research Center for Environmental Health, D-85764 Neuherberg, Germany
3
Department of Ophthalmology, Ludwig-Maximilians-University, Mathildenstrasse 8, D-80336 Munich, Germany
4
Centre of Ophthalmology, Institute for Ophthalmic Research, University of Tübingen, Röntgenweg 11, D-72076 Tübingen, Germany
*
Author to whom correspondence should be addressed.
Int. J. Mol. Sci. 2012, 13(11), 14053-14072; https://doi.org/10.3390/ijms131114053
Submission received: 11 September 2012 / Revised: 23 October 2012 / Accepted: 25 October 2012 / Published: 31 October 2012
(This article belongs to the Special Issue Advances in Proteomic Research)

Abstract

:
The purpose of this study was to characterize the cell surface proteome of native compared to cultured equine retinal pigment epithelium (RPE) cells. The RPE plays an essential role in visual function and represents the outer blood-retinal barrier. We are investigating immunopathomechanisms of equine recurrent uveitis, an autoimmune inflammatory disease in horses leading to breakdown of the outer blood-retinal barrier and influx of autoreactive T-cells into affected horses’ vitrei. Cell surface proteins of native and cultured RPE cells from eye-healthy horses were captured by biotinylation, analyzed by high resolution mass spectrometry coupled to liquid chromatography (LC MS/MS), and the most interesting candidates were validated by PCR, immunoblotting and immunocytochemistry. A total of 112 proteins were identified, of which 84% were cell surface membrane proteins. Twenty-three of these proteins were concurrently expressed by both cell states, 28 proteins exclusively by native RPE cells. Among the latter were two RPE markers with highly specialized RPE functions: cellular retinaldehyde-binding protein (CRALBP) and retinal pigment epithelium-specific protein 65kDa (RPE65). Furthermore, 61 proteins were only expressed by cultured RPE cells and absent in native cells. As we believe that initiating events, leading to the breakdown of the outer blood-retinal barrier, take place at the cell surface of RPE cells as a particularly exposed barrier structure, this differential characterization of cell surface proteomes of native and cultured equine RPE cells is a prerequisite for future studies.

Graphical Abstract

1. Introduction

Protein expression analysis with mass spectrometry has become an important tool to understand participating proteins in physiological networks and on cellular levels [1]. The proteome is the set of expressed proteins in a given type of cell at a given time under defined conditions [2]. Analysis technologies continually improved in the field of proteomics in the last years, especially regarding sensitivity of mass spectrometric analysis [3]. This enables increasingly better investigations of complex and widely dynamic protein concentrations [3]. Two-dimensional polyacrylamide gel electrophoresis (2D-PAGE) allowed resolution of thousands of proteins [4], but it also has major disadvantages, mainly inadequate resolution of cell surface membrane proteins. Recently, several different approaches were applied to enhance cell surface membrane protein identification in tissues through variations in sample preparation [5,6]. Further, mass spectrometry is rapidly advancing, and liquid chromatography coupled to tandem mass spectrometry (LC-MS/MS) has emerged as a highly precise and sensitive high-throughput technique for protein identification and characterization and facilitates discovery of proteins [3,6].
We are interested in immunopathomechanisms of equine recurrent uveitis (ERU), a spontaneous, organ-specific autoimmune disease characterized through remitting-relapsing attacks of leukocytes to the retina [1]. Earlier examinations of immune and target tissue proteomes revealed several interesting findings in this model disease for human autoimmune uveitis, e.g., identification of a novel autoantigen with importance for ERU and correspondent human disease [7,8]. Another surprising finding was the involvement of regulated granulocytes in intraocular inflammation of this T-cell mediated disease [4]. Moreover, differential proteome analyses of changes in targeted retina revealed a decisive role for retinal Mueller glial cells in pathogenesis [1,9,10]. A key event of uveitis is migration of immune cells through the blood-retinal barrier, because the inner eye is physiologically devoid of leukocytes. There are two different structures of blood-retinal barriers in the eye. Inner blood-retinal barrier is formed by two beds of capillary endothelia [11]. Outer blood-retinal barrier lies on the outer surface of the photoreceptor layer and closely resembles the ventricular portion of the blood-brain barrier [11]. Horses possess a widely avascular retina [12], and activated cells pass outer blood-retinal barrier in ERU [13]. Outer blood-retinal barrier is formed and maintained by retinal pigment epithelium (RPE) cells [11]. RPE cells use different mechanisms to establish important barrier function, including membrane pumps, transporters and different channels [11]. Initiating events of blood-retinal barrier breakdown are expected to take place at the cell surface as a particularly exposed barrier structure. So far, there is only very limited knowledge about the cell surface membrane proteome of retinal pigment epithelium cells, and therefore, the goal of this study was the identification of physiological RPE cell surface protein expression. Since studies for RPE cell functions are mainly performed with RPE cell lines [14], we additionally examined changes in RPE cell surface protein expression induced through cultivation of cells to evaluate modifications of RPE cells after passaging.

2. Results

2.1. Cell Surface Protein Expression of Physiological RPE Cells

A total of 112 proteins were identified with two or more peptides on the cell surfaces of RPE cells derived from healthy eyes (Table 1). Of these identified proteins, 84% were membrane proteins according to GO terminology (Table 1, cellular localization and Figure 1). Major differences were seen in proteins with GO for transport dominated in native cells (Figure 1A, bright blue segment) whereas proteins assigned with cell adhesion (Figure 1, dark green) and cell communication (Figure 1, grey) were upregulated in P4 cells (Figure 1B) in comparison to native RPE cells (Figure 1A). The relation between the last two GO terms, cell adhesion and cell communication, to all GO for biological process remained the same (Figure 1A,B, dark green and grey segments). In detail, 23 proteins were equally detectable in both examined states, native and passage-4 cells (20.5% of all 112 identified proteins), (Table 1, proteins 1–23). Beta-actin was among these unchanged proteins under both conditions, as seen in PCR and Western blot analysis, indicating equal protein loading for mass spectrometry (Table 1, protein 3; Figures 2 and 3). Besides some keratins (Table 1; proteins 7–12), an integrin (Table 1; protein 4) and six ion channel proteins (Table 1; proteins 15–17, 21–23) were stably expressed in native and cultured RPE cells.

2.2. Cell Surface Proteomes of Native and Cultured RPE Cells Differ Considerably

Interestingly, 28 proteins were only expressed in native RPE cells (25% of all 112 identified proteins), (Table 1; proteins 24–51) and they were not detectable in cultured RPE cells (Table 1). Among these were cellular retinaldehyde-binding protein (CRALBP) (Table 1, protein 29), retinol dehydrogenase 5 (RDH5) (Table 1, protein 37) and retinal pigment epithelium-specific protein 65 kDa (RPE65) (Table 1, protein 38), all proteins known to be expressed in RPE cells [15,16]. RPE65 is a RPE cell specific protein, which is only expressed in original RPE cells [17]. In contrast, 61 proteins were exclusively expressed in RPE cells of passage-4 (54.5% of all 112 identified proteins), for example CD49c, fibronectin and thrombospondin 1 (Table 1, proteins 70, 85 and 108). We picked CRALBP, RPE65, fibronectin and CD49c and validated these differentially regulated proteins on transcriptomic level by PCR (Figure 2), on protein level by Western blot (Figure 3) and by immunocytochemistry (Figure 4). According to the results from LC MS/MS, CRALBP and RPE65 were expressed in native RPE cells but not in passage-4 cells (Figures 24).
By immunocytochemistry, a cytoplasmatic punctuate expression pattern could be shown for CRALBP, whereas RPE65 showed positive immunoreactivity throughout the cytoplasm and parts of the membrane in native RPE cells. Fibronectin and CD49c were present in passage-4 RPE cells and absent in native cells, which could be shown by immunoblotting and immunocytochemistry (Figures 3 and 4). Immunocytochemistry of passage-4 cells showed a perinuclear staining for fibronectin and a punctuate staining for CD49c. On mRNA level, a distinct signal in passage-4 RPE cells and only a faint signal in native cells for fibronectin and CD49c could be demonstrated. Beta-actin was abundant in both states, native and passage-4 (Figures 2 and 3).

3. Discussion

The RPE forms the outer blood-retinal barrier and plays an essential role in visual function [18]. Since it is located between the choroids and the neurosensory retina, it has to fulfill important functions, like absorption of light, reisomerization of all-trans retinal into 11-cis retinal, protection against photooxidation, epithelial transport of ions, nutrients and fluids, phagocytosis of photoreceptor outer segments, secretion of essential factors for the integrity of neighboring tissues and supporting the immune privilege of the inner eye [19]. As one characteristic of ERU is the breakdown of the outer blood-retinal barrier, our aim is to elucidate the pathomechanisms that are involved in this breakdown. Therefore, performing functional studies on equine RPE cells will be necessary to understand their role in ERU [20]. We set our focus on cell surface membrane proteins in this study, as we expect them to be targets for initiating events in the breakdown of the outer blood-retinal barrier in eyes of ERU diseased horses. In order to detect differentially regulated cell surface membrane proteins in the eyes of affected horses, it is a prerequisite to identify the cell surface membrane proteome of equine RPE cells in the physiological state. We compared native equine RPE cells with passage-4 cells to determine if there were any changes in this proteome due to cultivation and dedifferentiation. Changes in the whole proteome without specific focus on cell surface membrane proteins in cultured human RPE cells compared to native human RPE cells were described previously [14]. To our knowledge, we are the first to describe the cell surface membrane proteome of native and cultured equine RPE.
A total of 112 proteins were identified by LC MS/MS, of which 84% were cell membrane proteins (Table 1). Twenty-three proteins were concurrently expressed in both, native and passage-4 RPE cells which equals 20.5% of all 112 identified proteins (Table 1, proteins 1–23). Whereas 28 proteins (25% of all 112 identified proteins) were exclusively expressed in native cells (Table 1, proteins 24–51), 61 proteins (54.5% of all 112 identified proteins) were expressed only in passage-4 cells (Table 1, proteins 52–112), indicating a profound re-organization of the cell surface proteome in cultured equine RPE cells.
As expected, beta-actin, an ubiquitously expressed housekeeping protein [21], was equally expressed in both examined states (Table 1, protein 3). Among the equally expressed proteins, six cytokeratins were present, which are intermediate filament proteins (Table 1, proteins 7–12). Desmoplakin, a desmosomal protein which mediates intercellular adhesion in human RPE cells [22], was also equally expressed in both states of equine RPE cells (Table 1, protein 13), as well as basigin (Table 1, protein 2), which plays a key role in extracellular matrix (ECM), remodeling [23] and neuroplastin (Table 1, protein 18), which belongs to the same protein family [24]. Basigin was already described as being expressed by human RPE in situ and by a human RPE cell line, namely ARPE-19 [25]. Further, four different types of Na+/K+ ATPases were identified, which are usually localized apically in RPE cells [26]. Three of them were expressed in both states (Table 1, proteins 15–17), whereas one of them was only present in passage-4 RPE cells (Table 1, protein 98).
Among the 28 proteins exclusively expressed in native equine RPE cells, there were three cytokeratins (Table 1, proteins 31–33) and few ion-channel proteins, namely Kir7.1; solute carrier family 1, member 4; solute carrier family 12, member 2; solute carrier family 13, member 3; solute carrier family 16, member 1; solute carrier family 4, member 7; solute carrier family 6, members 6, 9, 13, 20; and solute carrier organic anion transporter family, member 1A2 and member 1B3 (Table 1, proteins 39–49). Further, we identified two RPE cell markers, CRALBP and RPE65 [16] (Table 1, proteins 29 and 38). CRALBP, RPE65 and also RDH5, which was exclusively expressed by native RPE cells (Table 1, protein 37), are proteins playing a key role in the visual cycle [2729]. CRALBP, RPE65 and RDH5 were abundant in native and absent in cultured RPE cells. Correlating with our results, former research observed that RPE65 and CRALBP, both proteins associated with highly specialized functions of the RPE, were absent in cultured RPE cells [14,30]. Regarding that CRALBP is not only expressed by RPE cells, but also, for instance, by Mueller glial cells [31], we believe that RPE65 is an excellent marker for the verification of native in comparison to cultured RPE, as it was found to be differentially expressed by Western blot analysis, immunocytochemistry and even PCR (Figure 24). Another reason for considering RPE65 an attractive protein for further research in ERU is the fact that immunoreactions against RPE65, next to CRALBP and S-Antigen, are known to induce experimental autoimmune uveitis in rats [7,32,33].
Besides cell surface proteins, which were only expressed by native equine RPE cells (Table 1, proteins 23–51), there were 61 proteins exclusively detected in cultured passage-4 RPE cells (Table 1, proteins 52–112). Interestingly, there was a notable increased expression of several clusters of differentiation (CD) molecules in passage-4 cells (Table 1, proteins 59–79) compared to the native state, whereas ion channel protein expression decreased (Table 1). An altered expression of ECM proteins could be observed as well, for instance of fibulin 1, fibulin 2, fibronectin and thrombospondin 1. (Table 1, proteins 85–87 and 108). Thrombospondin 1 is not only an ECM protein expressed by RPE cells, but it is also known to suppress activated T-cells [34], which additionally makes this protein very interesting for ERU research. It was found to be exclusively expressed in cultured equine RPE cells. Fibronectin was also absent in native equine RPE cells, but abundant in passage-4 cells (Table 1, protein 85; Figures 3 and 4). Immunocytochemically, fibronectin shows positive immunoreactivity with a perinuclear expression pattern in passage-4 cells, and no immunoreactivity was observed in native RPE cells (Figure 4). In vivo, the RPE basement membrane contains ECM proteins such as laminin, fibronectin, vitronectin and collagen type VI [35]. When RPE is dissociated from the eyecup, the RPE basement membrane remains in the eyecup, and there is no matrix for the RPE cells to attach to in vitro. In order to adhere and form a monolayer of epithelial cells in vitro, RPE cells begin to produce ECM proteins, such as fibronectin, themselves [36,37]. The perinuclear expression pattern in passage-4 indicates an augmented protein synthesis of the ECM protein fibronectin in passage-4 cells. Furthermore, there was an altered expression of proteins associated with cell adhesion, predominantly integrins (Table 1, proteins 69–72, 76 and 92–95), that are known to not only interact with ECM proteins [38], but also cadherins, catenin, cell adhesion molecule 1, dystroglycan 1, vitronectin and versican (Table 1, proteins 55, 56, 58, 73, 80, 81 and 112). CD49c, which is also known as integrin-alpha 3, belongs to a family of receptors for ECM and cell adhesion molecules [39]. Gullapalli et al. observed an increased expression of CD49c on transcriptomic and proteomic level in cultured human RPE cells [40], whereas uncultured human RPE cells did not express or only expressed low amounts of CD49c. These findings were consistent with their real-time PCR results [40]. We were able to demonstrate an altered expression in passage-4 cells as well, compared to native cells on mRNA and proteomic level (Table 1, protein 70; Figures 24). In Western blot analysis, no signal in the lane with native RPE cell lysate was detectable, whereas the lane with passage-4 cell lysate showed a distinct signal. Also, no staining for CD49c could be shown in native cells by immunocytochemistry, confirming CD49c expression on proteomic level to be specific for passaged RPE cells (Figures 24).
Interestingly, we showed that the cell surface proteome of equine RPE cells shifted from proteins with RPE specialized functions (CRALBP, RPE65 and RDH5) in native cells (Table 1, proteins 29, 37 and 38; Figures 24) to proteins that are associated with cell adhesion and ECM formation (integrins, cell adhesion molecule 1, catenin, thrombospondin 1, fibronectin) in cultured cells (Table 1, proteins 58, 80, 85, 108 and 93–95; Figures 24).
The altered expression of molecules that are associated with cell adhesion in passage-4 cells could be clearly demonstrated in Figure 1 (dark green segments). According to Figure 1A, in native equine RPE cells, only 2.29% of all respective proteins are associated with cell adhesion (dark green segment), whereas in passage-4 cells, 12.06% of the expressed proteins are capable of cell adhesion as their biological process (Figure 1B, dark green segment). These observations in equine cells correspond to the findings in cultured human cells where a shift to processes such as cell adhesion could be accordingly displayed [14]. Another notable increase in passage-4 RPE cells could be seen in cell communication (Figure 1A,B, grey segments). As the normal function of the RPE depends on the maintenance of tight adhesions between the cells [41], and cell-cell adhesion and intercellular communication are integrated [42], it is not surprising that this biological process alters concurrently in passage-4 RPE cells (Figure 1A,B, grey segments). Interestingly the relation between cell adhesion and communication remains equal in both states (Figure 1A,B, grey segments).
In contrast to alteration of proteins associated with cell adhesion and communication in passage-4 cells, Figure 1 demonstrates a noticeable decrease of proteins that are associated with transport as their biological process in passage-4 cells (6.74%) (Figure 1B, bright blue segment) compared to the native state (34.86%) (Figure 1A, bright blue segment), correlating with the observations in Table 1, where in passage-4 cells a strong decrease in ion transporting channels was noted.
Our results therefore clearly demonstrate that there is a profound re-organization of the cell surface membrane proteome in cultured equine RPE cells compared to native RPE cells. We believe that one reason for these differences is most probably the in vitro situation, which profoundly differs from the situation in vivo, where RPE is provided with environmental specific factors by surrounding tissue that are not included in standard cell culture media [43]. The lack of the choroid on the basal side and the retina on the apical side of the cells in culture could lead to a decrease of functions like transport, which is not needed in its entirety in vitro. Then again, other functions, as cell-adhesion, become more important. Since retinal tissue is destroyed and retinal architecture is widely disintegrated in ERU [13], we assume that the proteomic changes in diseased eyes are very similar to the changes observed in this study, as disintegrated and destroyed retinae could be compared to a missing retina in culture. In some ways, culture is like a disease state, where a degenerate neural retina no longer sends RPE the signals that modulate key functions [11]. Another reason for the differences in cell surface proteomes of native and cultured RPE cells is that RPE cells do not divide in vivo, in contrast to RPE cells in vitro[44]. All of this may lead to an altered expression of proteins, as the proteome is dynamic and changes with the physiological state of the cell [14]. In the past, changes in protein expression due to in vitro culturing and passaging, could be observed in cells other than RPE cells as well [45,46]. Our results clearly validated this and demonstrated that, by culturing equine RPE cells, changes in the cell surface proteome occur and that the passage-4 cells only to a limited extend show properties of native physiological RPE cells.
Regarding the short time post mortem until further processing of the equine eyes used in this study in comparison to eyes obtained from human donors, we were able to perform analyses on native RPE cells without loss of proteins due to degradation. By means of biotinylation and LC MS/MS in order to capture, enrich and identify cell surface membrane proteins, we were the first to characterize the cell surface proteome of RPE cells of two different states, native and passage-4. Detecting a total of 28 CD molecules, we contributed to a profile and repertoire of RPE CD antigens of which, to our knowledge, ten have not yet been described to be expressed in RPE cells of any species before (Table 1, proteins 25–27, 59, 60 and 64–67). We believe that a cell surface proteome of healthy equine RPE cells is essential and a necessity in order to compare RPE cells of healthy physiological and diseased pathological state in the future, and thus provides the basis for further research in this field. Furthermore, knowledge of the cell surface proteome of equine RPE cells is not only of great value for research of ERU, but also of major importance for research in the human field of other severe eye diseases with participation of the RPE as ocular tissue, namely Age Related Macular Degeneration (AMD), human autoimmune uveitis and Proliferative Vitreoretinopathy (PVR) [4749]. Since ERU is the only spontaneous model for human autoimmune uveitis [50], it is of great importance to investigate and understand the pathomechanisms leading to this severe disease. The lack of proteins with highly specialized RPE functions in cultured RPE compared to native cells requires the use of native cells in research. Therefore, we believe that primary cells should be used for experiments in which it is important to evaluate changes in these specialized proteins in healthy versus diseased RPE cells.
Since cultured cells show a great tendency to form intercellular adhesions, these cells could be used for functional studies where tight junctional formation is required, for example as transmigration assays on semi-permeable filter systems. In regard to availability, cultured cells have a significant advantage for the use in research compared to native cells. Further, they can be passaged, and thus multiplied, enabling functional studies to be performed with a much higher amount of cells and a higher diversity of experimental setups.
Nevertheless, future proteomic studies on diseased equine RPE cells have to be conducted to clarify if the shift of the cell surface proteome in cultured equine RPE cells to proteins, which were not detectable in native cells, could be similar to equine RPE cells in diseased state, as was already shown for protein expression profile of dedifferentiated human RPE cells and initial stages of PVR [14].
To summarize, we were the first to provide a characterization of the cell surface proteome of native and cultured equine RPE cells by means of cell surface protein biotinylation and high resolution mass spectrometry. Additionally, we showed that there is a considerable difference between native and cultured equine RPE cells regarding their cell surface protein expression by investigation of differentially expressed proteins. Additionally, we were the first to describe ten CD molecules in equine RPE cells, which, to our knowledge, have not yet been described in the context of RPE cells of any species (Table 1, proteins 25–27, 59, 60 and 64–67). Cultured RPE cells experience a profound re-organization of the cell surface proteome since only 20.5% of all 112 identified proteins were expressed equally in both cell states. An interesting question that arises is how quickly the proteome of equine RPE cells changes after preparation of native cells and subsequent cultivating. As we set our focus on the comparison between native RPE cells and cells of passage-4, future experiments need to be conducted to evaluate if and when this proteomic shift or a tendency is notable in passage-2 and -3 cells. Nevertheless we believe that we have set a great foundation with regard to future experimental studies on the function of RPE cells in physiological and pathological conditions.

4. Experimental Section

4.1. Preparation of Equine Retinal Pigment Epithelium Cells

No experimental animals were used in this study. Eyes providing healthy equine retinal pigment epithelium samples were obtained at a local abattoir. Eyes were considered normal based on the diagnosis of the veterinarian present at the abattoir, medical histories of the horses as provided by their owners and preliminary histological analysis. The collection and use of equine eyes from animals that were killed due to a research-unrelated cause, was approved for purposes of scientific research by the appropriate board of the veterinary inspection office Munich, Germany (Permit number: 8.175.10024.1319.3). RPE cells from eyes of eight different eye-healthy horses were used in this study, four biological replicates of native cells and four biological replicates of passage-4 cells. For each verification procedure, we had at least two technical replicates (two for PCR and immunocytology, four in Western blots).
RPE cells were prepared as follows: First, residual periocular tissue was carefully removed with forceps and scissors. Then, the intact eyes were rinsed in 70% Ethanol for 2 min followed by a short washing step in cold phosphate buffered saline (PBS). Afterwards, eyes were stored in sterile Dulbecco’s Modified Eagle Medium (DMEM) until further processing. All following preparation steps were performed under a laminar flow hood with sterile instruments. Eye globes were cut open circumferentially, and anterior parts of the eye, vitreous and neurosensory retina, were carefully removed. Posterior eyecups were rinsed twice with 37 °C pre-warmed PBS to wash clear of residual vitreous and retinal tissue without destroying the RPE layer. For complete removal of retinal tissue, especially the rod outer segments, eyecups were filled with pre-warmed 1mM PBS/EDTA pH 7.4 and incubated at room temperature (RT) for 15 min. The PBS/EDTA solution was discarded and, in order to enzymatically detach the RPE cell layer, eyecups were filled with pre-warmed dissociation buffer containing 1 μL papain (CellSystems, Troisdorf, Germany) per milliliter buffer (1 mM PBS/EDTA pH 7.4, 260 mM l-Cysteine, Sigma Aldrich, Deisenhofen, Germany, 1% BSA, AppliChem, Darmstadt, Germany). The eyecups were incubated at 37 °C and 5% CO2 atmosphere for 25 min. Then, the RPE cells were resuspended in dissociation buffer within the eyecup. The enzymatic activity of papain was blocked by transferring the suspension containing the RPE cells into DMEM supplemented with 10% heat-inactivated fetal calf serum (FCS) and 1% penicilline/streptomycine (P/S). The cell suspension was centrifuged at RT, 130× g for 5 min, and the resulting cell pellet was carefully washed twice with pre-warmed PBS. Finally, the RPE cells were either seeded into T25 cell culture flasks (Sarstedt, Nümbrecht, Germany), or biotinylated and processed for mass spectrometry. For passage-4 cells, RPE cells were cultured in DMEM supplemented with 10% heat-inactivated FCS and 1% P/S. The cells were maintained at 37 °C and 5% CO2 atmosphere until they reached confluence after 14 days of cultivation. For protein expression analysis by mass spectrometry, cells were harvested with Trypsin/EDTA (Biochrom, Berlin, Germany), washed twice with cold PBS and centrifuged in between washing steps at 4 °C, 500× g for 10 min. Prior to cell lysis, cell surface membrane proteins of 1.6 × 106 passage-4 RPE cells and 5.0 × 105 native RPE cells were labeled with 542 μg biotin and 50 μg biotin, respectively. After 30 min rotation at 4 °C and two centrifugation steps at 2800× g and 16,000× g for 10 min each at 4 °C, cells were lysed with 1% Nonidet P-40, 150 mM NaCl, 1 × Roche Complete Protease Inhibitor, EDTA-free; 5 mM 2-Iodacetamide in 10 mM Tris-HCl pH 7.6 and biotinylated cell surface proteins were captured using Streptavidin-beads (IBA, Goettingen, Germany). After extensive washing to remove non-specifically bound proteins, captured proteins were cleaved through digesting beads overnight with trypsin (Promega, Mannheim, Germany) followed by incubation with glycerol-free PNGase F (New England Biolabs, Frankfurt/Main, Germany) at 37 °C. Finally, peptides were analyzed by LC-MS/MS.

4.2. Mass Spectrometry

LC-MS/MS mass spectrometry was performed as previously described [1,5]. Briefly, cell lysates were subjected to on-membrane trypsin digest. Resulting peptides were separated on a reversed phase chromatography column (PepMap, 15 cm × 75 μm ID, 3 μm/100A pore size, LC Packings), which was operated on a nano-HPLC apparatus (Ultimate 3000, Dionex, Idstein, Germany) connected to a linear quadrupole ion-trap Orbitrap (LTQ Orbitrap XL, Thermo Fisher Scientific, Schwerte, Germany). The mass spectrometer was operated in the data-dependent mode to automatically switch between Orbitrap-MS and LTQ-MS/MS acquisition. Survey full scan MS spectra (from m/z 300 to 1500) were acquired in the Orbitrap resolution R = 60,000 at m/z 400. The method used allowed parallel selection of up to the ten most intense ions for fragmentation on the linear ion trap using collision induced dissociation at a target value of 100,000 ions and subsequent dynamic exclusion for 30 s. MS/MS spectra were exported from the Progenesis software as Mascot Generic file (mgf) and used for peptide identification with Mascot (version 2.3.02, Matrix Science: London, UK; available online: http://www.matrixscience.com, accessed on 26 June 2012) in the Ensembl database for horse (Equus caballus; EquCab2.56.pep, available online: ftp://ftp.ensembl.org/pub/current_fasta/equus_caballus/pep/, accessed on 26 June 2012) containing a total of 22641 protein sequences. A protein was considered as identified if the confidence score was higher than 30 at a significance threshold for the Mascot result of p ≤ 0.01.

4.3. Gene Ontology (GO)

Gene Ontology annotations were retrieved from Ensembl and EMBL-EBI QuickGO database. GO annotations were available for all identified proteins and were classified based on three organizing principles of GO, namely: biological process, cellular component and molecular function. GO annotations for each protein were hierarchically summarized using AmiGO. Based on these summarized GO annotations pie charts were made, illustrating differences in biological processes, cellular component and molecular function between native and passage-4 equine RPE cells. In this manuscript pie charts representing differences in biological processes of native and passage-4 RPE cells are presented. Biological processes, which are represented by 1.1% or less of all proteins, are summarized in the field “others” (Figure 1A,B).

4.4. Polymerase Chain Reaction (PCR)

RNA was isolated from freshly isolated equine RPE and cultured RPE of passage-4 using RNeasy Mini Kit (Qiagen, Hilden, Germany) according to the manufacturer’s protocol. Using RevertAid First Strand cDNA Synthesis Kit (Thermo Scientific, Schwerte, Germany), 2 μg of RNA were reverse transcribed in presence and absence of reverse transcriptase, according to the manufacturer’s protocol. PCR was then performed in a total volume of 50 μL using the cDNA as a template in the presence of specific primers for the respective proteins. Reaction buffer, dNTPs and Taq DNA Polymerase were obtained from Fermentas (St. Leon-Rot, Germany). The thermocycler, which was used for PCR, was a Tetrad PTC-225 Thermal Cycler (MJ research, St. Bruno (Quebec), Canada). PCR, which was performed on samples that were reverse transcribed to cDNA in the absence of reverse transcriptase, did not show any amplified product. Amplified products were separated by 2% agarose gel electrophoresis, stained with Serva DNA Stain G (Serva Electrophoresis GmbH, Heidelberg, Germany) and visualized with UV illumination (Herolab UVT-40M, Wiesloch, Germany) (Figure 2).

4.5. Western Blot Analysis

Retinal pigment epithelial cell pellets were solubilized in lysis buffer (9 M urea, 2 M thiourea, 1% DTT, 4% CHAPS, and 2.5 mM each of EGTA and EDTA), and protein content was quantified with Bradford assay (Sigma-Aldrich, Deisenhofen, Germany). Equal total protein amounts (5 μg) of RPE samples were resolved in 1D SDS gels and then blotted semidry onto polyvinyl-difluoride membranes (GE Healthcare, Freiburg, Germany). Unspecific binding was blocked with 5% non-fat dry milk in PBS with 0.05% Tween20 (PBS-T) and 5% goat serum. Blots were incubated with primary antibodies overnight at 4 °C. For verification, we used the following primary antibodies: mouse anti-human beta-actin (Sigma-Aldrich, Deisenhofen, Germany; dilution: 1:7000), rabbit anti-human RPE65 (Santa Cruz, Heidelberg, Germany; dilution: 1:800), anti-equine CRALBP antiserum (self-made; dilution: 1:1000) [7]), rat anti-human CD49c (Ascenion, München, Germany; reported cross-reactivity to horse, dilution: 1:500) and rabbit anti-human Fibronectin (Thermo Scientific, Schwerte, Germany; dilution: 1:1000). After washing, blots were incubated with respective peroxidase-coupled (POD) secondary antibodies (goat anti-rat IgG POD, Sigma-Aldrich, Deisenhofen, Germany; dilution: 1:3000; goat anti-rabbit IgG POD, Sigma-Aldrich, Deisenhofen, Germany; dilution: 1:3000; goat anti-mouse IgG POD, Sigma-Aldrich, Deisenhofen, Germany, dilution: 1:5000; and goat anti-horse IgG Fc-POD, Biozol, Eching, Germany; dilution: 1:10000). Signals were detected by enhanced chemoluminescence (ECL) on X-ray films (Christiansen, Planegg, Germany). Protein expression was quantified after imaging the signals on a transmission scanner using LabScan 5.0 software (GE Healthcare, Freiburg, Germany, 2003) and densitometric analysis with ImageQuantTL software (GE Healthcare, Freiburg, Germany, 2003). Signals were normalized to beta-actin content after staining of lanes with monoclonal mouse anti-beta-actin antibody (Sigma-Aldrich, Deisenhofen, Germany; dilution: 1:7000) prior to statistical analysis. As Kolmogorov-Smirnov test showed that data were not distributed normally (p ≤ 0.05). Mann-Whitney test was applied for calculation of statistical significance (p ≤ 0.05). Statistical analysis was performed using Paleontological Statistics software (PAST, available online: http://folk.uio.no/ohammer/past/index.html, accessed on 3 July 2012).

4.6. Immunocytochemistry

For immunocytochemistry, native equine RPE cells were set onto glass slides immediately after obtaining these cells from equine eye globes. Equine RPE cells of passage-4 were trypsinized in order to detach them from the cell culture flask and then set onto glass slides. Glass slides were then fixed in ice cold acetone for 10 min, followed by blocking with 1% BSA in PBS-T and 5% normal goat serum for 40 min at RT to prevent unspecific antibody binding. For fluorescence labeling, slides were incubated overnight at 4 °C with the following primary antibodies: mouse anti-human CRALBP (Santa Cruz, Heidelberg, Germany; dilution: 1:50), rabbit anti-human RPE65 (Santa Cruz, Heidelberg, Germany; dilution: 1:200), rabbit anti-human Fibronectin (Thermo Scientific, Schwerte, Germany; dilution: 1:500) and rat anti-human CD49c (Ascenion, München, Germany; reported cross-reactivity to horse; dilution: 1:200). Glass slides were then incubated with secondary antibodies for 30 min at RT (Alexa Fluor 546 goat anti-mouse, Alexa Fluor 546 goat anti-rabbit, Alexa Fluor 546 goat anti-rat; Invitrogen, Karlsruhe, Germany; dilution: 1:500). Cell nuclei were counter-stained with 4′,6 Diamidino-2-phenylindole (DAPI; Invitrogen, Karlsruhe, Germany; dilution: 1:1000). Finally, glass slides were mounted with glass cover slips using Dako fluorescent mounting medium (Dako, Hamburg, Germany). Fluorescent images were recorded using Axio Imager M1 or Z1 (Zeiss, Göttingen, Germany) and Axio Vision 4.6 software (Zeiss, Göttingen, Germany).

5. Conclusions

The results of this study indicate a profound re-organization of the cell surface proteome of passage-4 equine RPE cells compared to native cells. We provided the first proteome profile of cell surface proteins of native and cultured equine RPE cells by means of biotinylation and LC MS/MS. We believe that our findings are a prerequisite and of great value, not only in future ERU research, but also in research of other ocular diseases with participation of the RPE, for example AMD, human autoimmune uveitis or PVR. In our future studies, we will consider the differences in protein expression of native and cultured RPE cells, thus enhancing the transferability of in vitro studies to the actual pathomechanisms in vivo.

Acknowledgments

This project was financially supported by grants from Deutsche Forschungsgemeinschaft, PR 1248/2-1 and SFB 571 A5 Deeg. Further, we’d like to thank Margarete Swadzba for critical discussions and Barbara Amann for technical assistance.
  • Conflict of InterestThe authors declare no conflict of interest.

References

  1. Hauck, S.M.; Hofmaier, F.; Dietter, J.; Swadzba, M.E.; Blindert, M.; Amann, B.; Behler, J.; Kremmer, E.; Ueffing, M.; Deeg, C.A. Label-free lc-msms analysis of vitreous from autoimmune uveitis reveals a significant decrease in secreted wnt signalling inhibitors dkk3 and sfrp2. J. Proteomics 2012, 75, 4545–4554. [Google Scholar]
  2. Rotilio, D.; Della Corte, A.; D’Imperio, M.; Coletta, W.; Marcone, S.; Silvestri, C.; Giordano, L.; Di Michele, M.; Donati, M.B. Proteomics: Bases for protein complexity understanding. Thromb. Res 2012, 129, 257–262. [Google Scholar]
  3. Doherty, M.K.; Whitfield, P.D. Proteomics moves from expression to turnover: Update and future perspective. Expert Rev. Proteomics 2011, 8, 325–334. [Google Scholar]
  4. Degroote, R.L.; Hauck, S.M.; Kremmer, E.; Amann, B.; Ueffing, M.; Deeg, C.A. Altered expression of talin 1 in peripheral immune cells points to a significant role of the innate immune system in spontaneous autoimmune uveitis. J. Proteomics 2012, 75, 4536–4544. [Google Scholar]
  5. Hauck, S.M.; Dietter, J.; Kramer, R.L.; Hofmaier, F.; Zipplies, J.K.; Amann, B.; Feuchtinger, A.; Deeg, C.A.; Ueffing, M. Deciphering membrane-associated molecular processes in target tissue of autoimmune uveitis by label-free quantitative mass spectrometry. Mol. Cell. Proteomics 2010, 9, 2292–2305. [Google Scholar]
  6. Wu, C.C.; Yates, J.R., III. The application of mass spectrometry to membrane proteomics. Nat. Biotechol 2003, 21, 262–267. [Google Scholar]
  7. Deeg, C.A.; Pompetzki, D.; Raith, A.J.; Hauck, S.M.; Amann, B.; Suppmann, S.; Goebel, T.W.; Olazabal, U.; Gerhards, H.; Reese, S.; et al. Identification and functional validation of novel autoantigens in equine uveitis. Mol. Cell. Proteomics 2006, 5, 1462–1470. [Google Scholar]
  8. Deeg, C.A.; Raith, A.J.; Amann, B.; Crabb, J.W.; Thurau, S.R.; Hauck, S.M.; Ueffing, M.; Wildner, G.; Stangassinger, M. Cralbp is a highly prevalent autoantigen for human autoimmune uveitis. Clin. Dev. Immunol. 2007. [Google Scholar] [CrossRef]
  9. Eberhardt, C.; Amann, B.; Feuchtinger, A.; Hauck, S.M.; Deeg, C.A. Differential expression of inwardly rectifying K+ channels and aquaporins 4 and 5 in autoimmune uveitis indicates misbalance in muller glial cell-dependent ion and water homeostasis. Glia 2011, 59, 697–707. [Google Scholar]
  10. Hauck, S.M.; Schoeffmann, S.; Amann, B.; Stangassinger, M.; Gerhards, H.; Ueffing, M.; Deeg, C.A. Retinal mueller glial cells trigger the hallmark inflammatory process in autoimmune uveitis. J. Proteome Res 2007, 6, 2121–2131. [Google Scholar]
  11. Rizzolo, L.J.; Peng, S.; Luo, Y.; Xiao, W. Integration of tight junctions and claudins with the barrier functions of the retinal pigment epithelium. Prog. Retinal Eye Res 2011, 30, 296–323. [Google Scholar]
  12. Ehrenhofer, M.C.; Deeg, C.A.; Reese, S.; Liebich, H.G.; Stangassinger, M.; Kaspers, B. Normal structure and age-related changes of the equine retina. Vet. Ophthalmol 2002, 5, 39–47. [Google Scholar]
  13. Deeg, C.A.; Ehrenhofer, M.; Thurau, S.R.; Reese, S.; Wildner, G.; Kaspers, B. Immunopathology of recurrent uveitis in spontaneously diseased horses. Exp. Eye Res 2002, 75, 127–133. [Google Scholar]
  14. Alge, C.S.; Suppmann, S.; Priglinger, S.G.; Neubauer, A.S.; May, C.A.; Hauck, S.; Welge-Lussen, U.; Ueffing, M.; Kampik, A. Comparative proteome analysis of native differentiated and cultured dedifferentiated human rpe cells. Invest. Ophthalmol. Visual Sci 2003, 44, 3629–3641. [Google Scholar]
  15. Parker, R.O.; Crouch, R.K. Retinol dehydrogenases (rdhs) in the visual cycle. Exp. Eye Res 2010, 91, 788–792. [Google Scholar]
  16. Dunn, K.C.; Aotaki-Keen, A.E.; Putkey, F.R.; Hjelmeland, L.M. Arpe-19, a human retinal pigment epithelial cell line with differentiated properties. Exp. Eye Res 1996, 62, 155–169. [Google Scholar]
  17. Hamel, C.P.; Tsilou, E.; Pfeffer, B.A.; Hooks, J.J.; Detrick, B.; Redmond, T.M. Molecular cloning and expression of rpe65, a novel retinal pigment epithelium-specific microsomal protein that is post-transcriptionally regulated in vitro. J. Biol. Chem 1993, 268, 15751–15757. [Google Scholar]
  18. Strauss, O. The retinal pigment epithelium in visual function. Physiol. Rev 2005, 85, 845–881. [Google Scholar]
  19. Strauss, O. The Retinal Pigment Epithelium. The Organization of the Retina and Visual System; Kolb, H., Fernandez, E., Nelson, R., Eds.; University of Utah Health Sciences Center: Salt Lake City, UT, USA, 1995. Available online: http://www.ncbi.nlm.nih.gov/books/NBK54392/ accessed 30 October 2012.
  20. Deeg, C.A.; Altmann, F.; Hauck, S.M.; Schoeffmann, S.; Amann, B.; Stangassinger, M.; Ueffing, M. Down-regulation of pigment epithelium-derived factor in uveitic lesion associates with focal vascular endothelial growth factor expression and breakdown of the blood-retinal barrier. Proteomics 2007, 7, 1540–1548. [Google Scholar]
  21. Greer, S.; Honeywell, R.; Geletu, M.; Arulanandam, R.; Raptis, L. Housekeeping genes; expression levels may change with density of cultured cells. J. Immunol. Methods 2010, 355, 76–79. [Google Scholar]
  22. Burke, J.M.; Cao, F.; Irving, P.E.; Skumatz, C.M. Expression of e-cadherin by human retinal pigment epithelium: Delayed expression in vitro. Invest. Ophthalmol. Visual Sci 1999, 40, 2963–2970. [Google Scholar]
  23. Alcazar, O.; Hawkridge, A.M.; Collier, T.S.; Cousins, S.W.; Bhattacharya, S.K.; Muddiman, D.C.; Marin-Castano, M.E. Proteomics characterization of cell membrane blebs in human retinal pigment epithelium cells. Mol. Cell. Proteomics 2009, 8, 2201–2211. [Google Scholar]
  24. Muramatsu, T.; Miyauchi, T. Basigin (cd147): A multifunctional transmembrane protein involved in reproduction, neural function, inflammation and tumor invasion. Histol. Histopathol 2003, 18, 981–987. [Google Scholar]
  25. Philp, N.J.; Wang, D.; Yoon, H.; Hjelmeland, L.M. Polarized expression of monocarboxylate transporters in human retinal pigment epithelium and arpe-19 cells. Invest. Ophthalmol. Visual Sci 2003, 44, 1716–1721. [Google Scholar]
  26. Gundersen, D.; Orlowski, J.; Rodriguez-Boulan, E. Apical polarity of Na,K-ATPase in retinal pigment epithelium is linked to a reversal of the ankyrin-fodrin submembrane cytoskeleton. J. Cell Biol 1991, 112, 863–872. [Google Scholar]
  27. Wolf, G. Function of the protein RPE65 in the visual cycle. Nutr. Rev 2005, 63, 97–100. [Google Scholar]
  28. McBee, J.K.; Van Hooser, J.P.; Jang, G.F.; Palczewski, K. Isomerization of 11-cis-retinoids to all-trans-retinoids in vitro and in vivo. J. Biol. Chem 2001, 276, 48483–48493. [Google Scholar]
  29. Huang, J.; Possin, D.E.; Saari, J.C. Localizations of visual cycle components in retinal pigment epithelium. Mol. Vis 2009, 15, 223–234. [Google Scholar]
  30. Milyushina, L.A.; Verdiev, B.I.; Kuznetsova, A.V.; Aleksandrova, M.A. Expression of multipotent and retinal markers in pigment epithelium of adult human in vitro. Bull. Exp. Biol. Med 2012, 153, 157–162. [Google Scholar]
  31. Limb, G.A.; Salt, T.E.; Munro, P.M.; Moss, S.E.; Khaw, P.T. In vitro characterization of a spontaneously immortalized human muller cell line (mio-m1). Invest. Ophthalmol. Visual Sci 2002, 43, 864–869. [Google Scholar]
  32. Ham, D.I.; Gentleman, S.; Chan, C.C.; McDowell, J.H.; Redmond, T.M.; Gery, I. Rpe65 is highly uveitogenic in rats. Invest. Ophthalmol. Visual Sci 2002, 43, 2258–2263. [Google Scholar]
  33. Deeg, C.A.; Reese, S.; Gerhards, H.; Wildner, G.; Kaspers, B. The uveitogenic potential of retinal S-antigen in horses. Invest. Ophthalmol. Visual Sci 2004, 45, 2286–2292. [Google Scholar]
  34. Mochizuki, M. Regional immunity of the eye. Acta Ophthalmol 2010, 88, 292–299. [Google Scholar]
  35. Ho, T.C.; Del Priore, L.V. Reattachment of cultured human retinal pigment epithelium to extracellular matrix and human bruch’s membrane. Invest. Ophthalmol. Visual Sci 1997, 38, 1110–1118. [Google Scholar]
  36. Li, W.; Stramm, L.E.; Aguirre, G.D.; Rockey, J.H. Extracellular matrix production by cat retinal pigment epithelium in vitro: Characterization of type iv collagen synthesis. Exp. Eye Res 1984, 38, 291–304. [Google Scholar]
  37. Campochiaro, P.A.; Jerdon, J.A.; Glaser, B.M. The extracellular matrix of human retinal pigment epithelial cell in vivo and its synthesis in vitro. Invest. Ophthalmol. Visual Sci 1986, 27, 1615–1621. [Google Scholar]
  38. Aisenbrey, S.; Zhang, M.; Bacher, D.; Yee, J.; Brunken, W.J.; Hunter, D.D. Retinal pigment epithelial cells synthesize laminins, including laminin 5, and adhere to them through alpha3- and alpha6-containing integrins. Invest. Ophthalmol. Visual Sci 2006, 47, 5537–5544. [Google Scholar]
  39. Clegg, D.O.; Mullick, L.H.; Wingerd, K.L.; Lin, H.; Atienza, J.W.; Bradshaw, A.D.; Gervin, D.B.; Cann, G.M. Adhesive events in retinal development and function: The role of integrin receptors. Results Probl. Cell Differ 2000, 31, 141–156. [Google Scholar]
  40. Gullapalli, V.K.; Sugino, I.K.; Zarbin, M.A. Culture-induced increase in alpha integrin subunit expression in retinal pigment epithelium is important for improved resurfacing of aged human bruch’s membrane. Exp. Eye Res 2008, 86, 189–200. [Google Scholar]
  41. Chu, P.G.; Grunwald, G.B. Identification of an adhesion-associated protein of the retinal pigment epithelium. Invest. Ophthalmol. Visual Sci 1990, 31, 847–855. [Google Scholar]
  42. Singer, S.J. Intercellular communication and cell-cell adhesion. Science 1992, 255, 1671–1677. [Google Scholar]
  43. Karl, M.O.; Valtink, M.; Bednarz, J.; Engelmann, K. Cell culture conditions affect RPE phagocytic function. Graefe’s Arch. Clin. Exp. Ophthalmol 2007, 245, 981–991. [Google Scholar]
  44. Nagai, H.; Kalnins, V.I. Normally occurring loss of single cells and repair of resulting defects in retinal pigment epithelium in situ. Exp. Eye Res 1996, 62, 55–61. [Google Scholar]
  45. Vacanti, V.; Kong, E.; Suzuki, G.; Sato, K.; Canty, J.M.; Lee, T. Phenotypic changes of adult porcine mesenchymal stem cells induced by prolonged passaging in culture. J. Cell Physiol 2005, 205, 194–201. [Google Scholar]
  46. Hauck, S.M.; Suppmann, S.; Ueffing, M. Proteomic profiling of primary retinal muller glia cells reveals a shift in expression patterns upon adaptation to in vitro conditions. Glia 2003, 44, 251–263. [Google Scholar]
  47. Bhutto, I.; Lutty, G. Understanding age-related macular degeneration (AMD): Relationships between the photoreceptor/retinal pigment epithelium/bruch’s membrane/choriocapillaris complex. Mol. Aspects Med 2012, 33, 295–317. [Google Scholar]
  48. Machemer, R. Proliferative vitreoretinopathy (PVR): A personal account of its pathogenesis and treatment. Proctor lecture. Invest. Ophthalmol. Visual Sci 1988, 29, 1771–1783. [Google Scholar]
  49. Bodaghi, B.; Rao, N. Relevance of animal models to human uveitis. Ophthalmic Res 2008, 40, 200–202. [Google Scholar]
  50. Deeg, C.A.; Hauck, S.M.; Amann, B.; Pompetzki, D.; Altmann, F.; Raith, A.; Schmalzl, T.; Stangassinger, M.; Ueffing, M. Equine recurrent uveitis—A spontaneous horse model of uveitis. Ophthalmic Res 2008, 40, 151–153. [Google Scholar]

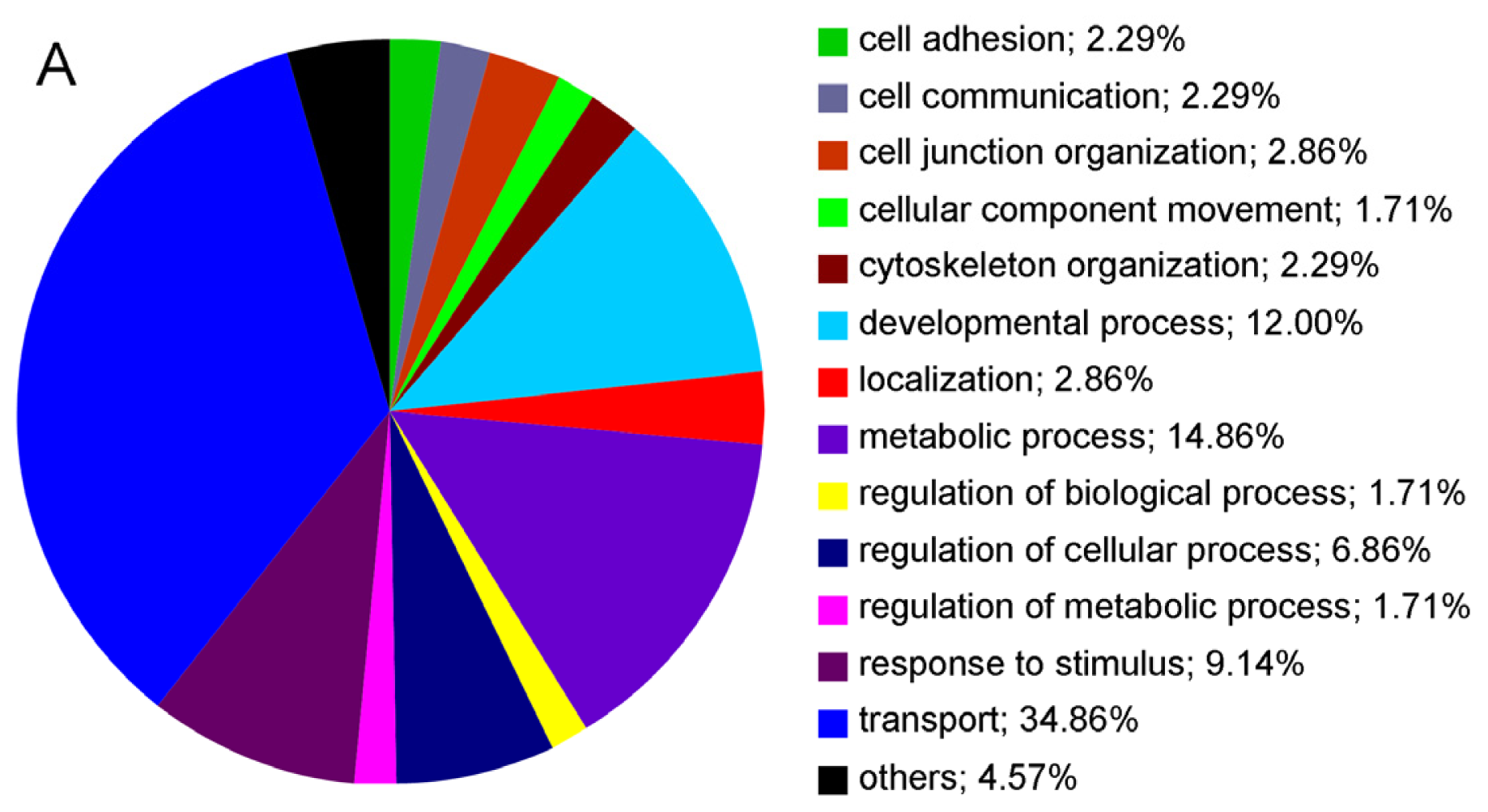

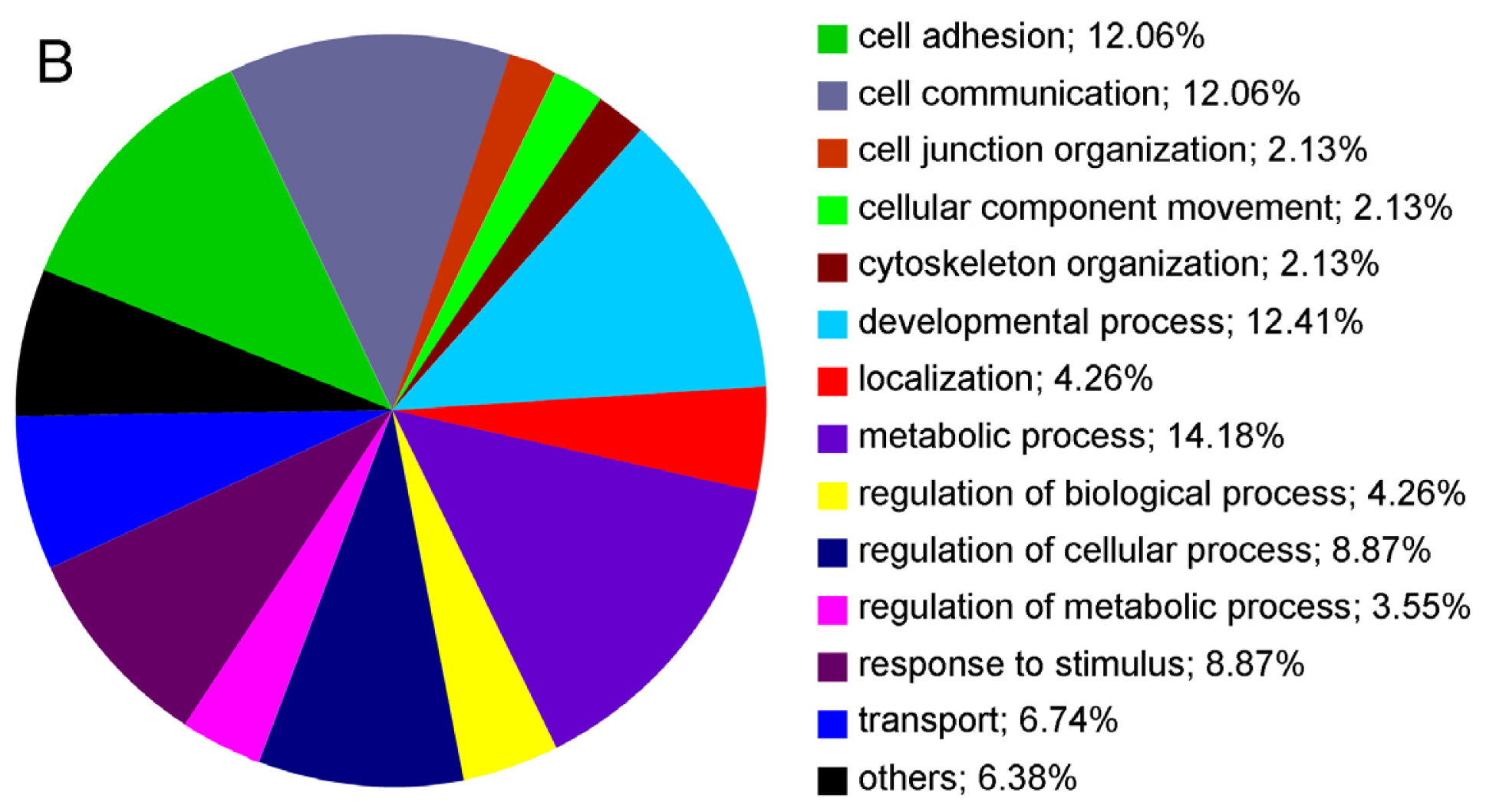

Figure 1. Classification of RPE cell surface proteins based on GO for biological process of native RPE cell proteins (A) and passage-4 RPE cell proteins (B). Numbers in percentages (%) correspond to the number of GO terms assigned for respective preparation. GO terms defined as others include those with an occurrence of <1.1%.
Figure 1. Classification of RPE cell surface proteins based on GO for biological process of native RPE cell proteins (A) and passage-4 RPE cell proteins (B). Numbers in percentages (%) correspond to the number of GO terms assigned for respective preparation. GO terms defined as others include those with an occurrence of <1.1%.
Ijms 13 14053f1aIjms 13 14053f1b

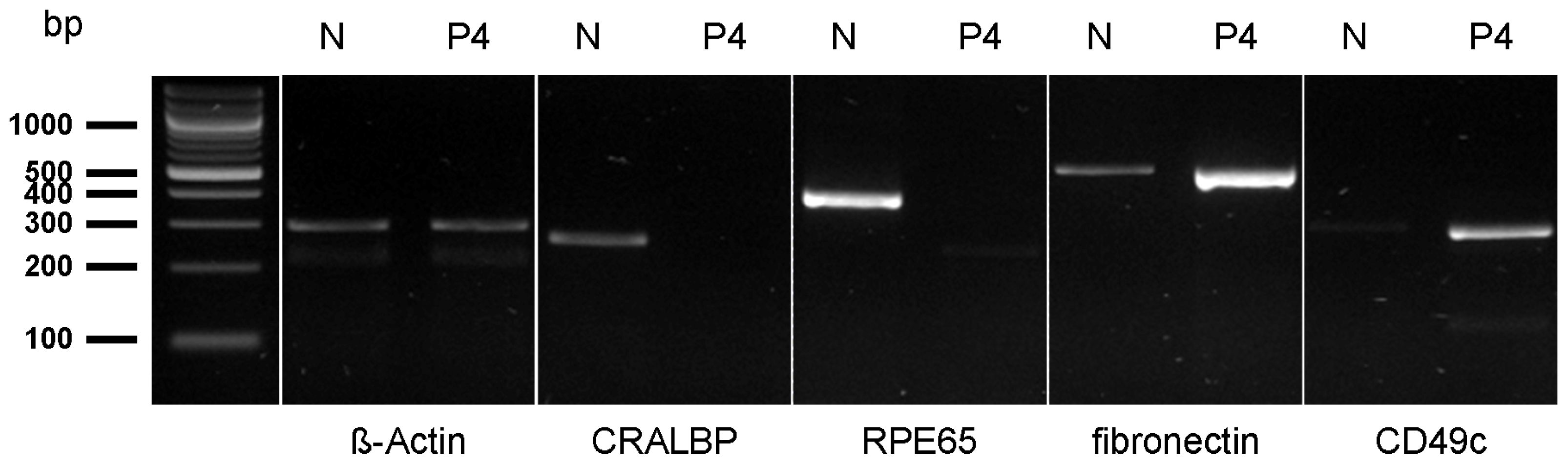

Figure 2. Gel electrophoresis of PCR products of native (N) and passage-4 (P4) equine RPE cell cDNA on a 2% agarose gel. Beta-actin is equally expressed by both cell states. Native RPE cells express CRALBP and RPE65, whereas no signal could be detected in passage-4 RPE. Fibronectin and CD49c are expressed distinctly by passage-4 RPE cells, while only a faint signal can be seen in native cells.
Figure 2. Gel electrophoresis of PCR products of native (N) and passage-4 (P4) equine RPE cell cDNA on a 2% agarose gel. Beta-actin is equally expressed by both cell states. Native RPE cells express CRALBP and RPE65, whereas no signal could be detected in passage-4 RPE. Fibronectin and CD49c are expressed distinctly by passage-4 RPE cells, while only a faint signal can be seen in native cells.
Ijms 13 14053f2

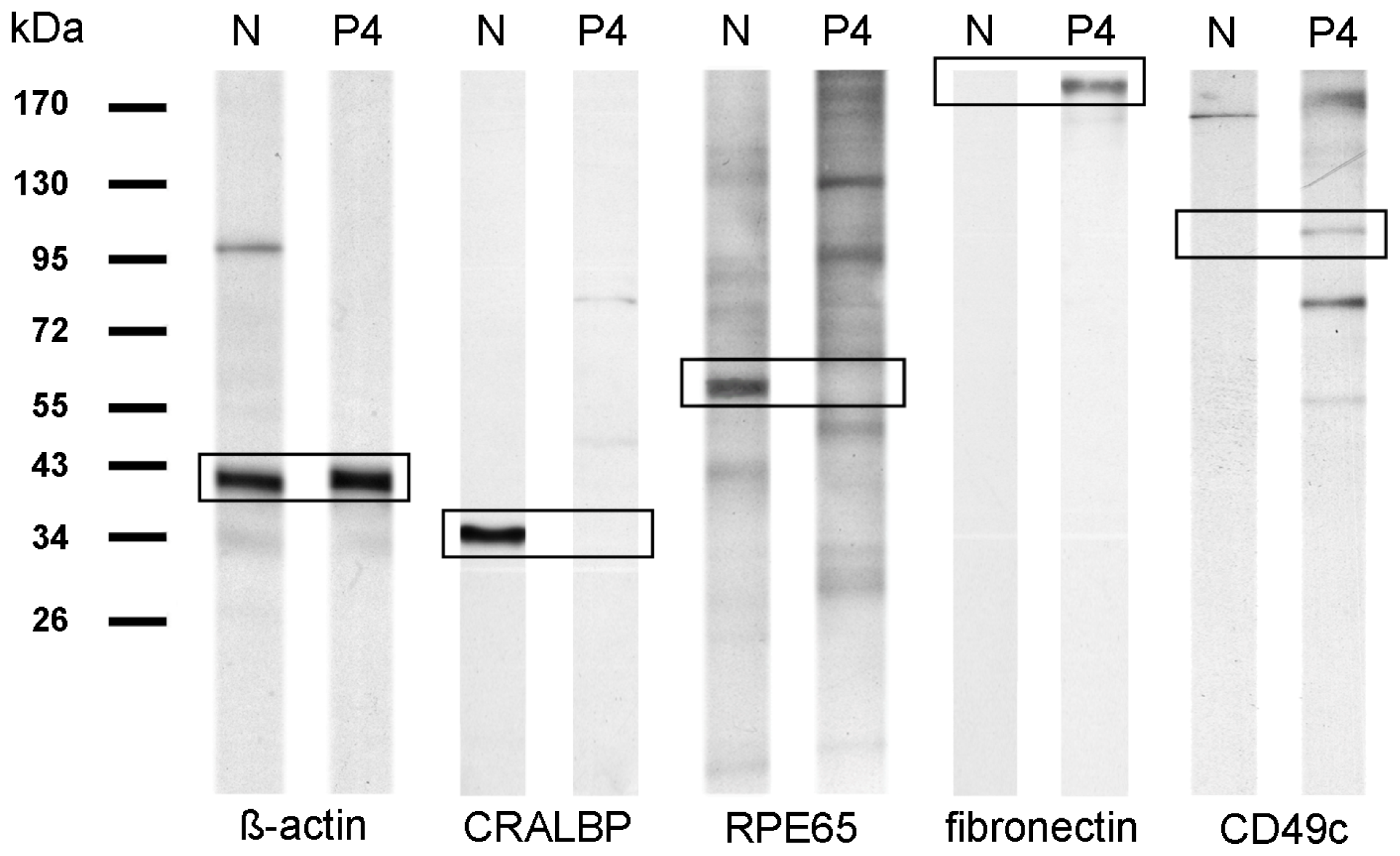

Figure 3. Western blot of a 10% 1D SDS-gel with lysates from native and cultured equine RPE passage-4 cells. N = native; P4 = passage-4. 5 μg protein of each lysate were loaded per lane. Boxes indicate the expected region for a signal regarding the molecular size of the respective protein.
Figure 3. Western blot of a 10% 1D SDS-gel with lysates from native and cultured equine RPE passage-4 cells. N = native; P4 = passage-4. 5 μg protein of each lysate were loaded per lane. Boxes indicate the expected region for a signal regarding the molecular size of the respective protein.
Ijms 13 14053f3
Figure 4. Immunocytochemistry of equine RPE cells. Upper panel (AE) shows native equine RPE cells. Lower panel (FJ) shows cultured equine RPE cells of passage-4. Native cells show positive immunoreactivity for CRALBP (B) and RPE65 (C). Native cells show no immunoreactivity for fibronectin (D) and CD49c (E). In passage-4 RPE cells, CRALBP (G) and RPE65 (H) do not show immunoreactivity, other than fibronectin (I) and CD49c (J), which is found positive in passage-4 cells. Nuclei were stained with 4′6-diamidino-2-phenylindole (DAPI). A and F show Nomarski imaging of the respective RPE cells, native (A) and passage-4 (F).
Figure 4. Immunocytochemistry of equine RPE cells. Upper panel (AE) shows native equine RPE cells. Lower panel (FJ) shows cultured equine RPE cells of passage-4. Native cells show positive immunoreactivity for CRALBP (B) and RPE65 (C). Native cells show no immunoreactivity for fibronectin (D) and CD49c (E). In passage-4 RPE cells, CRALBP (G) and RPE65 (H) do not show immunoreactivity, other than fibronectin (I) and CD49c (J), which is found positive in passage-4 cells. Nuclei were stained with 4′6-diamidino-2-phenylindole (DAPI). A and F show Nomarski imaging of the respective RPE cells, native (A) and passage-4 (F).
Ijms 13 14053f4
Table 1. Cell surface proteins expressed by RPE cells of horses. Proteins listed were identified by LC MS/MS with a probability score that is significant with p < 0.05 if the confidence score was >30 at a significance threshold for the Mascot result of p ≤ 0.01. N = native RPE cells; P4 = passage-4 RPE cells; C = cytoplasmatic; M = membrane associated; E = extracellular.
Table 1. Cell surface proteins expressed by RPE cells of horses. Proteins listed were identified by LC MS/MS with a probability score that is significant with p < 0.05 if the confidence score was >30 at a significance threshold for the Mascot result of p ≤ 0.01. N = native RPE cells; P4 = passage-4 RPE cells; C = cytoplasmatic; M = membrane associated; E = extracellular.
#Identified proteinAccession numberMW (kDa)OccurrenceUnique peptide countSequence coverage (%)Cellular localization




NP4NP4NP4CME
1ATP-binding cassette, sub-family C, member 1ENSECAP00000005390164xx917917x
2BasiginENSECAP0000001013024xx432828x
3Beta-actinENSECAP0000001363741xx23823x
4CD29ENSECAP0000002020188xx6211134x
5CD44ENSECAP0000000863677xx27414xx
6CD90ENSECAP0000000784118xx342430x
7Cytokeratin 1ENSECAP0000001993566xx3367xx
8Cytokeratin 2ENSECAP0000001538061xx3399x
9Cytokeratin 16ENSECAP0000000454451xx641913x
10Cytokeratin 10ENSECAP0000001800543xx14142830x
11Cytokeratin 5ENSECAP0000001801062xx1181714xx
12Cytokeratin 6CENSECAP0000001136360xx231213x
13DesmoplakinENSECAP00000012688168xx4445x
14Ectonucleotide pyrophosphatase/phosphodiesterase 1ENSECAP0000001114696xx5151028xx
15Na(+)/K(+) ATPase alpha-1 subunitENSECAP00000022397113xx231312x
16Na(+)/K(+) ATPase alpha-3 subunitENSECAP00000022127113xx105158x
17Na(+)/K(+) ATPase beta-1 subunitENSECAP0000001556635xx331414x
18NeuroplastinENSECAP0000000642842xx25616x
19Plexin B2ENSECAP00000017324183xx310311xx
20Pyruvate CarboxylaseENSECAP00000022492130xx513718x
21Solute carrier family 2, member 1ENSECAP0000000040454xx75129xx
22Solute carrier family 3, member 2ENSECAP0000000793962xx10102830xx
23Solute carrier family 44, member 2ENSECAP0000000916279xx2338x
24Carbonic anhydrase 14ENSECAP0000000235431x40250x
25CD107aENSECAP0000001539944x2184x
26CD107bENSECAP0000001621946x2152x
27CD156cENSECAP0000000641482x2060xx
28CD36L2ENSECAP0000002228350x2070x
29Cellular retinaldehyde-binding proteinENSECAP0000000227336x30120x
30Chondroitin sulfate proteoglycan 5ENSECAP0000002092354x2090x
31Cytokeratin 17ENSECAP0000001418648x31147xx
32Cytokeratin 75ENSECAP0000000823559x20127x
33Cytokeratin 77ENSECAP0000000678863x2185x
34Glycoprotein M6AENSECAP0000001450831x50180x
35Heat shock protein 90 kDa beta member 1ENSECAP0000000901292x2142xx
36Inward rectifier K(+) channel Kir7.1ENSECAP0000000585341x3090x
37Retinol dehydrogenase 5ENSECAP0000001723635x30150x
38RPE65ENSECAP0000000834760x30110x
39Solute carrier family 1, member 4ENSECAP0000000950655x3184xx
40Solute carrier family 12, member 2ENSECAP00000013091119x4152xx
41Solute carrier family 13, member 3ENSECAP0000000863163x3070x
42Solute carrier family 16, member 1ENSECAP0000001914954x3070x
43Solute carrier family 4, member 7ENSECAP00000004107137x2030x
44Solute carrier family 6, member 13ENSECAP0000001252568x4090x
45Solute carrier family 6, member 9ENSECAP0000000365971x3070x
46Solute carrier family 6, member 6ENSECAP0000001134170x2050x
47Solute carrier family 6, member 20ENSECAP0000001897266x3070x
48Solute carrier organic anion transporter family, member 1A2ENSECAP0000001547274x2030x
49Solute carrier organic anion transporter family, member 1B3ENSECAP0000001074976x4090x
50Thioredoxin domain containing 5ENSECAP0000000011436x20120x
51Transmembrane protein 27ENSECAP0000001705425x30180x
52Actin, alpha 1ENSECAP0000000012642x05018x
53AdlicanENSECAP00000015067313x0503x
54Anoctamin 6ENSECAP00000010736105x0307x
55Cadherin 13ENSECAP0000001858876x07015x
56Cadherin 2ENSECAP0000000826491x08021x
57Calcium channel, voltage-dependent, alpha 2/delta subunit 1ENSECAP00000008740104x0508x
58Catenin, gammaENSECAP0000001837482x1223xx
59CD105ENSECAP0000001804870x04011xx
60CD109ENSECAP00000020689159x0709x
61CD13ENSECAP00000007954110x0203x
62CD140bENSECAP00000022400121x111217x
63CD142ENSECAP0000002095532x12610xx
64CD280ENSECAP00000010799162x0909x
65CD315ENSECAP0000001482698x1325x
66CD318ENSECAP0000002271693x1224x
67CD362ENSECAP0000000643322x02012x
68CD46ENSECAP0000000780232x02010x
69CD49aENSECAP00000015387129x09013x
70CD49cENSECAP00000013928119x19112x
71CD49dENSECAP00000009001114x0507x
72CD49eENSECAP00000022617115x07011x
73CD51ENSECAP00000020829113x015021x
74CD54ENSECAP0000001199657x0200xx
75CD56ENSECAP0000001764893x0306x
76CD61ENSECAP0000001648584x0308x
77CD71ENSECAP0000002194786x0204xx
78CD73ENSECAP0000000757651x08028xx
79CD91ENSECAP00000010929504x044016x
80Cell adhesion molecule 1ENSECAP0000001303347x02012x
81Dystroglycan 1ENSECAP0000000758897x0306xx
82Endothelin converting enzyme 1ENSECAP0000001439286x0205xx
83EPH receptor A2ENSECAP00000006952108x0405x
84Fibroblast activation protein, alphaENSECAP0000001011188x0408x
85Fibronectin 1ENSECAP00000005228262x035026xx
86Fibulin 1ENSECAP0000001610475x06016xX
87Fibulin 2ENSECAP00000007213125x117324x
88Folate hydrolase 1ENSECAP0000002054485x0205xx
89Frizzled family receptor 1ENSECAP0000000090760x0204x
90Frizzled family receptor 2ENSECAP0000001520961x0204xx
91Immunoglobulin superfamily containing leucine-rich repeatENSECAP0000000246646x03011x
92Integrin alpha FG-GAP repeat containing 3ENSECAP0000002254360x05014x
93Integrin, alpha 11ENSECAP00000020852133x07012x
94Integrin, alpha 8ENSECAP00000011756117x08016x
95Integrin, beta 5ENSECAP0000000646185x111322x
96Latent transforming growth factor beta binding protein 2ENSECAP00000016809196x0202x
97MHC IENSECAP0000000851740x0207x
98Na, K-ATPase beta-3 polypeptideENSECAP0000001757527x02015xx
99Natriuretic peptide receptor CENSECAP0000001778260x04012x
100Neuropilin 1ENSECAP00000018748103x08015xx
101Neuropilin 2ENSECAP00000015439105x0204x
102NOTCH2ENSECAP00000013532245x0202x
103Plexin domain containing 2ENSECAP0000001526244x04013x
104Propionyl CoA carboxylase, alpha polypeptideENSECAP0000001651256x04013x
105Protein tyrosine kinase 7ENSECAP0000000955398x011021x
106Solute carrier family 1, member 5ENSECAP0000000959256x0306x
107Sushi domain containing 5ENSECAP0000000595167x04011x
108Thrombospondin 1ENSECAP00000007423130x027037xx
109Transmembrane protein 2ENSECAP00000019147154x0303x
110Tubulin, alpha 1cENSECAP0000000741950x0207x
111VasorinENSECAP0000000286472x0305x
112VersicanENSECAP0000001734794x0204x

Share and Cite

MDPI and ACS Style

Szober, C.M.; Hauck, S.M.; Euler, K.N.; Fröhlich, K.J.H.; Alge-Priglinger, C.; Ueffing, M.; Deeg, C.A. Profound Re-Organization of Cell Surface Proteome in Equine Retinal Pigment Epithelial Cells in Response to In Vitro Culturing. Int. J. Mol. Sci. 2012, 13, 14053-14072. https://doi.org/10.3390/ijms131114053

AMA Style

Szober CM, Hauck SM, Euler KN, Fröhlich KJH, Alge-Priglinger C, Ueffing M, Deeg CA. Profound Re-Organization of Cell Surface Proteome in Equine Retinal Pigment Epithelial Cells in Response to In Vitro Culturing. International Journal of Molecular Sciences. 2012; 13(11):14053-14072. https://doi.org/10.3390/ijms131114053

Chicago/Turabian Style

Szober, Christoph M., Stefanie M. Hauck, Kerstin N. Euler, Kristina J. H. Fröhlich, Claudia Alge-Priglinger, Marius Ueffing, and Cornelia A. Deeg. 2012. "Profound Re-Organization of Cell Surface Proteome in Equine Retinal Pigment Epithelial Cells in Response to In Vitro Culturing" International Journal of Molecular Sciences 13, no. 11: 14053-14072. https://doi.org/10.3390/ijms131114053

Article Metrics

Back to TopTop
