Article

Investigation of Spectroscopic Properties and Spin-Orbit Splitting in the X2Π and A2Π Electronic States of the SO+ Cation

College of Physics and Information Engineering, Henan Normal University, Xinxiang 453007, China
*
Author to whom correspondence should be addressed.
Int. J. Mol. Sci. 2012, 13(7), 8189-8209; https://doi.org/10.3390/ijms13078189
Submission received: 12 April 2012 / Revised: 6 June 2012 / Accepted: 7 June 2012 / Published: 3 July 2012
(This article belongs to the Section Physical Chemistry, Theoretical and Computational Chemistry)

Abstract

:
The potential energy curves (PECs) of the X2Π and A2Π electronic states of the SO+ ion are calculated using the complete active space self-consistent field method, which is followed by the internally contracted multireference configuration interaction (MRCI) approach for internuclear separations from 0.08 to 1.06 nm. The spin-orbit coupling effect on the spectroscopic parameters is included using the Breit-Pauli operator. To improve the quality of PECs and spin-orbit coupling constant (A0), core-valence correlation and scalar relativistic corrections are included. To obtain more reliable results, the PECs obtained by the MRCI calculations are corrected for size-extensivity errors by means of the Davidson modification (MRCI+Q). At the MRCI+Q/aug-cc-pV5Z+CV+DK level, the A0 values of the SO+(X2Π1/2, 3/2) and SO+(A2Π1/2, 3/2) are 362.13 and 58.16 cm−1 when the aug-cc-pCVTZ basis set is used to calculate the spin-orbit coupling splitting, and the A0 of the SO+(X2Π1/2, 3/2) and SO+(A2Π1/2, 3/2) are 344.36 and 52.90 cm−1 when the aug-cc-pVTZ basis set is used to calculate the spin-orbit coupling splitting. The conclusion is drawn that the core-valence correlations correction makes the A0 slightly larger. The spectroscopic results are obtained and compared with those reported in the literature. Excellent agreement exists between the present results and the measurements. The vibrational manifolds are calculated, and those of the first 30 vibrational states are reported for the J = 0 case. Comparison with the measurements shows that the present vibrational manifolds are both reliable and accurate.

1. Introduction

The SO+ ion is an important species of considerable physical, chemical and astrophysical interest. The ion is isovalent to O2+ and is one of the main constituents of plasmas containing sulfur and oxygen. In the past several decades, it has been detected in interstellar molecular clouds [13], the plasma torus of Jupiter [4], comet Halley [5] and the Io torus [68]. Its concentration may be a critical indicator of the chemistry of both the plasma torus surrounding Jupiter in the orbit of Io [4] and the interstellar clouds. Besides these, in the ion chemistry of the Earth atmosphere, the role of the cation is also very important. At the same time, its spectral information is of great significance in scientific experiments and material analyses [9]. Therefore, it is not surprising that a lot of attention has been paid to the spectroscopic and molecular properties of the ion not only by experimental methods, but also theoretically as well.
Laboratory spectroscopic studies of the SO+ cation have been undertaken for more than three decades. The first observations were made by Dyke et al. [10] in 1974, who characterized the SO+ ion by vacuum ultraviolet photoelectron spectroscopy (PES). Dyke et al. [10] determined the potential energy curves (PECs) of six electronic states, but failed to locate the origins of the A2Π and a4Π due to impurities. Next, Tsuji et al. [11] in 1980 observed the extensive bands from the helium afterglow reaction of SO2 in the 250–540 nm region and assigned these transitions to the SO+(X2Π-A2Π) band system. Shortly after in 1982 [12], they determined the absolute vibrational quantum numbers for the SO+(X2Π-A2Π) emission system by measurement of isotopic shifts between the S16O+ and the S18O+ bands. Cossart et al. [13] in 1983 made the rotational analysis for the first time for the X2Π-A2Π as well as b4-a4Π band systems of the SO+ cation, and determined some accurate spectroscopic parameters of the four electronic states, X2Π, A2Π, a4Π and b4. In a parallel study, Coxon and Foster [14] in 1984 recorded nine bands of the A2Π→X2Π band system. Hardwick et al. [15] in the same year recorded 0–5, 0–6, 1–5 and 1–6 bands of the A2Π-X2Π band at high resolution. The corresponding rotational analyses were also made in their work [14,15]. A number of spectroscopic parameters and molecular constants were determined for the two electronic states in these investigations [1015].
Subsequently, Milkman et al. [16] in 1986 recorded the A2Π-X2Π band system of the cation in a rotationally cold supersonic expansion at a resolution of 0.3 cm−1 and made some rotational analyses. The derived constants for this band system and reported for 60 bands involving υ″ = 0–10 and υ′ = 0–11. Then in 1988, they [17] observed rotationally cold emission for the A2Π-X2Π band of the SO+ cation at high resolution using a slot-shaped corona excited supersonic expansion. Bands with υ′ = 0–8 and υ″ = 3–11 have been assigned and analyzed at high resolution. The spectroscopic results they obtained are of high quality to this day. Norwood and Ng [18] in 1989 measured photoion-photoelectron coincidence (PIPECO) spectra in the wavelength range from 102.5 to 121.0 nm for the SO and S2O molecules by a pulsed PIPECO approach. Vibronic bands attributable to the formation of the SO+ (X2Π3/2, 1/2, υ = 0–11) were resolved in the SO+ PIPECO spectra. Amano et al. [19] in 1991 observed the rotational transitions in the 2Π3/2 electronic state, and obtained a more complete set of spectroscopic parameters, including the effective spin-rotation coupling constant. Dyke et al. [20] in 1997 reported their PES measured by the vacuum ultraviolet radiation from a synchrotron. Some spectroscopic parameters and molecular constants of the involved electronic states were determined. Recently, Li et al. [21] in 2008 recorded the absorption spectrum of the fundamental band of the SO+(X2Π) cation using a mid-infrared tunable diode laser spectrometer with the velocity modulation technique in an AC glow discharge of He/SO2, and identified forty-two lines of the SO+ cation in the spectral range from 1230 to 1330 cm−1. As seen in the experimental literature [1621], a number of spectroscopic parameters and molecular constants were also obtained.
In the past more than thirty years, a number of experiments [1015,17,18,20,22] have been made to determine the spin-orbit coupling constant (A0) of the SO+(X2Π1/2, 3/2) and SO+(A2Π1/2, 3/2). Of these experiments, the first one was made by Dyke et al. [10] in 1974, who measured the experimental A0 value, 340 ± 10 cm−1 for the SO+(X2Π1/2, 3/2) using photoelectron spectrometer. Then, Tsuji et al. obtained A0 values of 414 ± 5 in 1980 [11] and 412 ± 13 cm−1 in 1982 [12], respectively. As to the A0 result of the SO+(A2Π1/2, 3/2), the first one was reported by Cossart et al. [13], who determined the experimental A0 value of 72 cm−1 in 1983. Meanwhile, they [13] also reported the A0 value of 352 cm−1 for the SO+(X2Π1/2, 3/2). Among the theoretical values for A0, the following two are considered to be of the highest quality: one determined by Lam et al. [22] in 2011 and the other reported by Milkman et al. [17] in 1988. Lam et al. [22] obtained the A0 value of 365.26 cm−1 for the SO+(X2Π1/2, 3/2). Milkman et al. [17] determined the A0 values of 364.38 for the SO+(X2Π1/2, 3/2) and 53.880 cm−1 for the SO+(A2Π1/2, 3/2).
The first theoretical work on the SO+ cation could be traced back to that of Dyke et al. [10] in 1974. Dyke et al. calculated the spin-orbit splitting for the SO+(X2Π1/2, 3/2) using the wave functions obtained by the restricted complete neglect of differential overlap (CNDO) calculations. The first ab initio work on the SO+ cation was reported by Cossart et al. [13] in 1983. Cossart et al. [13] made the spectroscopic parameter calculations for the X2Π and A2Π electronic states employing the self-consistent field (SCF) method followed by the configuration interaction (CI). Klotz et al. [23] in the same year studied the zero-field splitting for the ground state of the cation using the standard multireference CI (MRD-CI) method, and calculated the A0 values using two groups of atomic orbit (AO) basis sets. Balaban et al. [24] in 1989 optimized the structures of 12 molecules. For the SO+(X2Π) cation, they determined its Re value of 0.1411 nm at the SCF/6-31G*(5d) level. Midda and Das [25] in 2003 studied the molecular properties of the SO+(X2Π) cation using the hybrid density functional HF/DF B3LYP method and four basis sets from 6-311++G(2df, 2pd) to aug-cc-pVTZ. They determined its Re value to be 0.1421 nm. More recently, Houria et al. [9] in 2006 made the spectroscopic and spin-orbit coupling calculations on the SO+ cation. Favorable agreement with the measurements has been found. Very recently, Lam et al. [22] in 2011 made high-level ab initio quantum chemical calculations at the coupled-cluster level up to full quadruple excitations. To obtain a more accurate A0 value of the SO+ (X2Π1/2, 3/2), the complete basis set extrapolation, the zero-point vibrational energy correction, the core-valence electronic correction and the spin-orbit coupling corrections were included at the same time. A very accurate A0 value of 359.0 cm−1 for the SO+(X2Π1/2, 3/2) was obtained in their calculations.
As we know, both the core-valence correlation and scalar relativistic corrections have important effects on the accurate prediction of the spectroscopic parameters and molecular constants. On the one hand, as seen in previous theoretical work [9,10,13,2225], only one [22] has included the core-valence correlation effect, and no results have taken into account the scalar relativistic correction. Therefore, to obtain more reliable spectroscopic and molecular properties, more work should be done so as to include the core-valence correlation and scalar relativistic corrections, in particular for the A0 calculations. On the other hand, the molecular properties of the SO+ ion have received little attention in the past several decades, whether in experiment or in theory. In addition, some vibrational levels in the ground state are missing and the vibrational levels for the A2Π electronic state are simply unknown in the past work. Therefore, there is room for improvement of the spectroscopic parameters by theory.
In the present work, the PECs of X2Π and A2Π electronic states of the SO+ molecular cation are calculated for internuclear separations from 0.08 to 1.06 nm. The calculations are performed using the complete active space SCF (CASSCF) method, which is followed by the internally contracted multi-reference CI (MRCI) approach [26,27] together with the correlation-consistent aug-cc-pV5Z (AV5Z) basis set [2830]. Then, the effects on the PECs by the core-valence correlation and scalar relativistic corrections are included. To obtain more reliable PECs, the Davidson modification [31,32] based on the MRCI calculations (MRCI+Q) is taken into account. The spectroscopic parameters are obtained by fitting the vibrational levels, which are calculated by solving the ro-vibrational Schrödinger equation. The spectroscopic parameters are compared with those reported in the literature. Using the Breit-Pauli operator, the spin-orbit coupling effect on the spectroscopic parameters is included in the present PEC calculations of the X2Π and A2Π electronic states by two basis sets, aug-cc-pCVTZ (ACVTZ) and aug-cc-pVTZ (AVTZ) [33,34]. And finally, with the PECs obtained by the MRCI+Q/AV5Z+DK+CV calculations, the vibrational manifolds are calculated for each vibrational state of each electronic state, and those of the first 30 vibrational states are reported for the 32S16O+ cation for the J = 0 case. Comparison with the measurements demonstrates that the present results are much more accurate and reliable than the ones obtained by previous theoretical calculations.

2. Computational Details

Here we calculate the PECs of X2Π and A2Π electronic states of the SO+ cation by the CASSCF method, which is followed by the MRCI approach [26,27] for internuclear separations from 0.08 to 1.06 nm. Therefore, the full valence CASSCF is used as the reference wavefunction for the MRCI calculations in the present work. For the PEC calculations, the MRCI theory has proven particularly successful. Especially in recent years, we have reported a number of high-quality spectroscopic results for a variety of diatomic molecules [3540]. Here, all the PEC calculations are performed using the MOLPRO 2008.1 program package [41].
MOLPRO only uses Abelian point group symmetry. For molecules with degenerate symmetry, an Abelian subgroup must be used. That is, for a diatomic cation such as SO+ with C∞v symmetry, it will be substituted by C2v symmetry with the order of irreducible representations being a1/b1/b2/a2. In the CASSCF and subsequent MRCI calculations, these four kinds of states would be evaluated. In detail, for the X2Π and A2Π electronic states of the SO+ cation, the eight valence MOs are put into the active space, including four a1, two b1 and two b2 symmetry MOs which correspond to the 3p shell of sulfur and 2p of oxygen atom. The rest of the electrons in the SO+ ion are put into six closed-shell orbitals, including four a1, one b1 and one b2 symmetry MOs. This results in a Complete Active Space (CAS) of 11 electrons in 8 orbitals, i.e., CASSCF [8,11]. When we use the 14 MOs (8a1, 3b1 and 3b2) to make the PEC calculations of the X2Π and A2Π electronic states of the SO+ ion, we find that the PECs are smooth over the present internuclear separation range. Here, the main electronic configurations of the cation are 1σ2222422241 for the X2Π and 1σ2222422232 for the A2Π electronic state. In addition, for the present calculations, the SO+(X2Π) cation dissociates into the S+(4Su) atomic cation and O(3Pg) atom, and the SO+(A2Π) cation dissociates into the S+(2Du) atomic cation and O(3Pg) atom.
To accurately determine the PECs of the two electronic states, the interval used here is 0.02 nm, except near the equilibrium internuclear separation where the spacing is 0.002 nm. Here, the smaller step size is adopted around the equilibrium separation of each electronic state so that the properties of each PEC can be displayed more clearly.
With the aid of module VIBROT in the MOLCAS 7.4 program package [42], the spectroscopic parameters (excitation energy term Te, equilibrium internuclear separation Re, harmonic frequency ωe, first- and second-order anharmonic constants ωexe and ωeye, rotational constant Be, rotation-vibration coupling constant αe and rigid rotational constant Drot) and vibrational manifolds are calculated for the two electronic states. Here, we use the module VIBROT to make the corresponding vibration-rotation spectrum calculations. In the module VIBROT, the potential is fitted to an analytical form by cubic splines. The ro-vibrational Schrödinger equation is then solved by Numerov’s method [43]. That is, the ro-vibrational constants are calculated in a direct forward manner from the analytic potential by solving the ro-vibrational Schrödinger equation, and the spectroscopic parameters are determined by fitting the vibrational levels. Here, we collect the spectroscopic results obtained by the MRCI/AV5Z calculations in Table 1. In addition, we also present the experimental spectroscopic parameters reported in the literature [17] in the table for convenient comparison.
To include the effect on the spectroscopic results by the core-valence correlation corrections, we perform the PEC calculations of the two electronic states over the present internuclear separations by both taking and not taking into account the core-valence correlation effect using the ACVTZ basis set [33,34]. That is, the ACVTZ basis set with all electrons correlated and the ACVTZ basis set within the frozen-core approximation are used for the present core-valence correlation contribution calculations. Here, it should be pointed out that “all electrons correlated” for the sulfur atom do not include the two 1s electrons. And “within the frozen-core approximation” means that the 1s, 2s and 2p electrons of the sulfur and the 1s electrons of the oxygen atom are not correlated. In detail, for a given electronic state, the difference between the two energies yields the core-valence correlation contributions. Adding the core-valence correlation correction results to the present AV5Z values (denoted as +CV), we determine the PECs corrected by the core-valence correlation effect. We calculate the spectroscopic parameters with the aid of module VIBROT [42], and include the corresponding spectroscopic results in Table 1 for comparison.
To evaluate the effect on the spectroscopic parameters by the scalar relativistic correction, we perform the PEC calculations over the present internuclear separations at the level of a cc-pV5Z basis set by both taking and not taking into account the relativistic effect. In this work, we employ the third-order Douglas-Kroll Hamiltonian (DKH3) approximation [4446] to make the present scalar relativistic correction calculations since the total energy at the DKH3 approximation can best yield the full 4-component scalar relativistic correction results. The cc-pV5Z-DK basis set [47] with the DKH3 approximation and the cc-pV5Z basis set with no scalar relativistic corrections are used for the scalar relativistic correction contribution calculations. In detail, for a given electronic state, the difference between the two energies yields the scalar relativistic correction results. Adding the scalar relativistic correction results to the present AV5Z values (denoted as +DK), we determine the PECs corrected by the relativistic effect. With the PECs obtained here, we calculate the spectroscopic results with the help of the module VIBROT [42]. Similar to those of the core-valence correlation correction, these spectroscopic parameters are also presented in Table 1 for comparison.
By simultaneously adding the core-valence correlation correction and scalar relativistic correction results determined above to the present AV5Z values, we obtain the PECs corrected by both effects. Using these PECs, the spectroscopic parameters are calculated with the aid of the module VIBROT [42]. The spectroscopic results are collected in Table 1 for comparison.
To obtain more reliable results, the PECs determined by the MRCI calculations are corrected for size-extensivity errors by means of the Davidson modification [31,32]. Similar to those in the MRCI calculations, we also include the additional core-valence correlation and/or scalar relativistic correction results in the present MRCI+Q/AV5Z values. It should be pointed out that the additional core-valence correlation and scalar relativistic corrections used here are calculated at the MRCI+Q level. With these PECs, we fit the spectroscopic parameters using the vibrational levels, which are obtained by solving the ro-vibrational Schrödinger equation with the aid of the module VIBROT [42]. The spectroscopic parameters determined here are collected in Table 1 for comparison.
To evaluate the effect on the A0 of the SO+(X2Π1/2, 3/2) and SO+(A2Π1/2, 3/2) by correlating core-valence electrons, we use two all-electron basis sets, ACVTZ and AVTZ, to investigate the spin-orbit coupling splitting of the two electronic states of the SO+ cation. The spin-orbit coupling calculations are performed by computing the Breit-Pauli spin-orbit matrix elements among the components of the interacting states using internally contracted MRCI wave functions [48], and the orbitals of involved Ω components are optimized by using the CASSCF approach. When we have obtained the PECs of the involved Ω components, the spectroscopic parameters are calculated with the aid of module VIBROT [42]. Adding the spin-orbit coupling corrections to the present AV5Z potential energies (denoted as +SO), we obtain the PECs corrected by the spin-orbit coupling effect. Adding the spin-orbit coupling corrections to the present AV5Z+CV+DK values (denoted as AV5Z+CV+DK+SO), we obtain the PECs corrected by the spin-orbit coupling, core-valence correlation and relativistic effects. With these PECs, the spectroscopic parameters of the involved Ω electronic states are evaluated with the aid of the same module VIBROT [42].

3. Results and Discussion

3.1. Spectroscopic Parameters of Λ-S States

The Davidson modification lowers the total energy by 26.084 and 29.531 mEh for the X2Π and A2Π electronic states near the internuclear equilibrium separations, respectively. Table 1 demonstrates the effects on the Te, Re, ωe and other spectroscopic parameters by the Davidson modification. As seen in Table 1, (1) the effect on the Te of the A2Π electronic state by the Davidson modification is very significant. The shift of the Te lowered by the modification is 756.53 cm−1; (2) the Davidson modification lengthens the Re only by 0.00019 and 0.00013 nm for the X2Π and A2Π electronic states, respectively; (3) the effects on the ωe by the Davidson modification are unequal for the two electronic states. It lowers the ωe by 5.29 cm−1 for the X2Π but raises the ωe by 4.601 cm−1 for the A2Π electronic state. On the whole, the effects on the Te by the Davidson modification are more pronounced than those on the Re and ωe.
With only the core-valence correlation correction included in the X2Π and A2Π electronic states, the total energies are lowered by about 353.454 and 350.428 mEh for the MRCI and 376.023 and 373.538 mEh for the MRCI+Q calculations near the internuclear equilibrium separation, respectively. From Table 1, one can see that (1) the core-valence correlation correction makes the Te of the A2Π electronic state increase for the MRCI and MRCI+Q calculations; (2) the correlation correction shortens the Re of the X2Π and A2Π electronic states. In detail, the Re is shortened by 0.00043 and 0.00047 nm for the MRCI and 0.00039 and 0.00045 nm for the MRCI+Q calculations; (3) for the X2Π and A2Π electronic states, the correlation correction raises the ωe by 10.64 and 2.201 cm−1 for the MRCI and 9.92 and 3.152 cm−1 for the MRCI+Q calculations. On the whole, the effects on the Re and ωe by the core-valence correlation correction are more pronounced than those by the Davidson modification.
With only the scalar relativistic correction added in the X2Π and A2Π electronic states, the total energy is lowered by about 1.135 Eh near the internuclear equilibrium position. Table 1 collects the spectroscopic results corrected by the relativistic effect. As shown in Table 1, (1) the scalar relativistic correction lowers the Te of the A2Π electronic state by 63.65 cm−1 for the MRCI and 60.57 cm−1 for the MRCI+Q calculations; (2) the scalar relativistic correction has a very small effect on the Re. The largest shifts of Re are only 0.00001 and 0.00012 nm for the X2Π and A2Π electronic states, respectively; (3) for the X2Π electronic state, the scalar relativistic correction lowers the ωe by 2.76 and 2.71 cm−1 for the MRCI and MRCI+Q calculations. And for the A2Π electronic state, the scalar relativistic correction lowers the ωe by 2.087 and 1.975 cm−1 for the MRCI and MRCI+Q calculations. Obviously, the effects on the Te, Re and ωe by the scalar relativistic correction are smaller than those by the core-valence correlation correction.
With the core-valence correlation and scalar relativistic corrections included synchronously, one can find that the spectroscopic parameters are in excellent agreement with the measurements, in particular at the MRCI+Q level. For this reason, we make a brief comparison between the present results obtained by the MRCI+Q/AV5Z+DK+CV calculations and the measurements. (1) The present Te of the A2Π electronic state is 31429.43 cm−1, which is smaller than the measurements [17] by only 55.05 cm−1; (2) Favorable agreement can be found between the present Re results and the measurements [17]. The deviations of the present Re from the measurements [17] are 0.00030 (0.21%) and 0.00021 nm (0.13%) for the X2Π and A2Π electronic states; (3) Excellent agreement is observed between the present ωe and measurements. The deviations of the present ωe from the measurements [17] are 0.43 cm−1 for the X2Π and 0.94 cm−1 for the A2Π electronic state. (4) As shown in Table 1, other spectroscopic parameters (ωexe, Be, αe and Drot) also agree favorably with the measurements [17]. The comparison demonstrates that the present calculations with the core-valence correlation and scalar relativistic corrections and Davidson modification can improve the quality of spectroscopic parameters. For convenient comparison, here we collect the spectroscopic results obtained by the MRCI+Q/AV5Z +CV+DK calculations together with the available experimental [1015,17,20] and other theoretical [9,24,25] results in Table 2.
For the X2Π electronic state, as shown in Table 2, no other theoretical spectroscopic parameters are superior to the present ones when compared with the measurements [17]. In this respect, we think that the spectroscopic parameters of the SO+(X2Π) cation collected in Table 2 are of high quality.
By the way, at the MRCI+Q/AV5Z+CV+DK level, we have determined the dissociation energies, 5.4010 and 3.3976 eV, for the X2Π and A2Π Λ-S states, respectively. The experimental dissociation energy of the X2Π Λ-S state reported in [49] is 5.43 ± 0.19 eV, and the experimental dissociation energy of the A2Π Λ-S state is 3.3756 ± 0.19 eV if we employ the Te reported in [17]. Obviously, excellent agreement exists between the present dissociation energies and the experimental ones.

3.2. Spin-Orbit Effects in X2Π and A2Π States

For detailed comparison with available experimental and theoretical results, we study the effect on the spectroscopic parameters of the X2Π electronic state by the spin-orbit coupling correction. Lam et al. [22] in 2011 used the MRCI/cc-pwCV5Z method to calculate the A0 for the SO+(X2Π1/2, 3/2). Their result, 359.0 cm−1, is closer to the measurements [22] than the one, 330 cm−1, obtained by their MRCI calculations without using core-valence basis sets and all electrons (except two 1 s2 electrons of sulfur atom) in the active space. According to their theoretical results, Lam et al. [22] thought that the quality of the A0 could be improved by the additional treatment of core electrons. In addition, Lam et al. [22] also thought that it was premature at this point to conclude that correlating core electrons (augmented with appropriate core-valence basis sets) in the active space was a necessity for increasing the accuracy of the spin-orbit coupling calculations. To check this standpoint, here, we use two all-electron basis sets, ACVTZ and AVTZ, to perform the present spin-orbit coupling calculations. For the X2Π1/2, X2Π3/2, A2Π1/2 and A2Π3/2 Ω states, we collect the spectroscopic parameters obtained by the MRCI+Q/AV5Z+SO calculations in Table 3, for which the AVTZ basis set is used to calculate the spin-orbit coupling corrections; and we tabulate the spectroscopic parameters obtained by the MRCI+Q/AV5Z +SO calculations in Table 4, for which the ACVTZ basis set is used to calculate the spin-orbit coupling corrections. For convenient comparison, for the X2Π and A2Π Λ-S states, we present the spectroscopic parameters calculated by the MRCI+Q method in combination with the AV5Z basis set in Tables 3 and 4, respectively, for which the spin-orbit coupling corrections are omitted.
When the AVTZ basis set is used to perform the spin-orbit coupling calculations at the MRCI+Q level, the total energy of the X2Π1/2 component is −472.493589 Eh, and the total energy of the X2Π3/2 component is −472.492020 Eh at the internuclear equilibrium position. The former is lower than and the latter is higher than the corresponding one, −472.492804 Eh, of the X2Π electronic state. With the spin-orbit coupling correction added in the present MRCI+Q/AV5Z calculations, the energy separation of the two splitting components (X2Π1/2 and X2Π3/2) is 344.36 cm−1. According to the potential energies given here, it is not difficult to determine that the ground-state energy is lowered by about 172.29 cm−1 due to the spin-orbit coupling effect. As shown in Table 3, the spin-orbit coupling correction has no effect on the Re and only produces a very small effect on the ωe.
When the ACVTZ basis set is used to make the spin-orbit coupling calculations at the MRCI+Q level, the total energy of the X2Π1/2 component is −472.829051 Eh, and the total energy of the X2Π3/2 component is −472.827401 Eh at the equilibrium position. At this time, the total energy of the SO+(X2Π) cation obtained by the MRCI+Q/ACVTZ calculations is −472.828226 Eh. From this data, it is not difficult to determine that the A0 value of the SO+(X2Π1/2, 3/2) is 361.91 cm−1, and the ground-state energy of the cation is lowered by about 181.07 cm−1 due to the spin-orbit coupling effect. As shown in Table 4, the spin-orbit coupling correction has no effect on the Re and produces a very small effect on the ωe. For the X2Π electronic state, by comparison, it can be concluded that the ACVTZ basis set makes the spin-orbit coupling constant A0 of the SO+(X2Π1/2, 3/2) slightly larger and closer to the measurements [22] when compared with the one, AVTZ, for the spin-orbit coupling calculations.
Now we study the effect on the spectroscopic parameters by the spin-orbit coupling splitting when the core-valence correlation and scalar relativistic corrections are added. At this time, for the X2Π1/2, X2Π3/2, A2Π1/2 and A2Π3/2 Ω states, the spectroscopic results obtained by using the AVTZ basis set for the spin-orbit coupling calculations are presented in Table 5. Similar to Tables 3 and 4, here we also tabulate the spectroscopic results obtained by the MRCI+Q/AV5Z+CV+DK calculations without the spin-orbit coupling in Table 5 as the X2Π and A2Π results for comparison. By comparison between Table 3 and 5, we find that the inclusion of core-valence correlation and scalar relativistic corrections does not bring about the effect on the A0, but makes the Re and ωe closer to the measurements [12,13].
Table 6 presents the spectroscopic parameters of the X2Π1/2 and X2Π3/2 components obtained by the MRCI+Q/AV5Z+CV+DK+SO calculations. Different from Table 5, it should be pointed out that the spin-orbit coupling calculations in Table 6 are performed with the core-valence correlation ACVTZ basis set. Here, we tabulate the spectroscopic parameters obtained by the MRCI+Q/AV5Z+CV+DK calculations without the spin-orbit coupling in Table 6 as the “X2Π” results, and we also collect some experimental [1013] and theoretical [10,13,23] results in Table 6 for convenient comparison. In order to avoid congestion in Table 6, other experimental [14,15,17,18,20,22] and theoretical [9,13,22] A0 values of the SO+(X2Π3/2, 1/2) are presented in Table 7. The PEC obtained by the MRCI+Q/AV5Z+CV+DK calculations of the SO+(X2Π) cation is depicted in Figure 1. In addition, the detailed PECs of the SO+(X2Π3/2, 1/2) components near the equilibrium position obtained by using the ACVTZ basis set for the spin-orbit coupling corrections are also shown in the same Figure 1.
As seen in Table 6, at the MRCI+Q/AV5Z+CV+DK+SO level, the A0 of the SO+(X2Π1/2, 3/2) obtained by using the ACVTZ basis set for the spin-orbit coupling calculations is 362.13 cm−1, which agrees well with the recent measurements, 365.36 cm−1 [22]. The result is obviously superior to the one obtained by using the AVTZ basis set for the spin-orbit coupling correction. As demonstrated in Table 7, the A0 difference between the ACVTZ and AVTZ basis set is 17.77 cm−1. The conclusion can also be drawn that the ACVTZ basis set makes the A0 of the SO+(X2Π1/2, 3/2) slightly larger and closer to the measurements [22] when compared with the one, AVTZ, for the spin-orbit coupling calculations.
From Tables 6 and 7, at the MRCI+Q/AV5Z+CV+DK+SO level, we can clearly see that the A0 of the SO+(X2Π1/2, 3/2) obtained by using the ACVTZ basis set for the spin-orbit coupling calculations is the closest to the recent measurements [22] among all the theoretical results [9,10,13,22]. Other spectroscopic results such as Re, ωe and ωexe also agree favorably with the experimental ones [12,13]. As a conclusion, we think that the spectroscopic parameters collected in Table 6 are of high quality.
As shown in Table 2, only Houria et al. [9] in 2006 have studied the spectroscopic parameters of the A2Π electronic state. Obviously, the present results are superior to those obtained by Houria et al. [9] when compared with the measurements [17].
At the equilibrium position, when the AVTZ basis set is used to calculate the spin-orbit coupling splitting, we find that the total energy of A2Π1/2 component is higher, but the total energy of A2Π3/2 is lower than that of the SO+(A2Π) cation. With the correction results added into the present MRCI+Q/AV5Z values, the obtained spectroscopic results are collected in Table 3. As shown in Table 3, the A0 for the SO+(A2Π3/2, 1/2) is 52.67 cm−1, which is in excellent agreement with the experimental one, 53.88 cm−1 [17]. At this time, the effects on the Re and ωe by the spin-orbit coupling are still very small, and the separations between the A2Π1/2 and A2Π3/2 components are only 0.00001 nm for the Re and 0.65 cm−1 for the ωe.
At the equilibrium position, when the ACVTZ basis set is used to calculate the spin-orbit coupling splitting, we also find that the total energy of the A2Π1/2 component is higher, and the total energy of A2Π3/2 is lower than that of the SO+(A2Π) cation. With these correction results added into the present MRCI+Q/AV5Z values, the obtained spectroscopic results are collected in Table 4. As shown in Table 4, the A0 for the SO+(A2Π3/2, 1/2) is 57.94 cm−1, which deviates more [22] than the one, 52.67 cm−1, obtained by using the AVTZ basis set for the spin-orbit coupling calculations. In addition, the effects on the Re and ωe by the spin-orbit coupling correction are very small, and the separations between the A2Π3/2, 1/2 components are only 0.00003 nm for the Re and 0.789 cm−1 for the ωe, respectively.
Table 5 also tabulates the spectroscopic results obtained by using the AVTZ basis set for the spin- orbit coupling calculations of the A2Π1/2 and A2Π3/2 components at the MRCI+Q/AV5Z+CV+DK level. As shown in Table 5, the inclusion of core-valence correlation and scalar relativistic corrections brings about no effect on the A0 for the SO+(A2Π3/2, 1/2), and still produces a very small effect on the Re and ωe.
Table 6 demonstrates the effect on the spectroscopic results of the A2Π1/2 and A2Π3/2 components by the core-valence correlation and scalar relativistic corrections when the ACVTZ basis set is used to make the spin-orbit coupling correction calculations. One can still find that the effects on the A0, Re and ωe by the spin-orbit coupling correction are very small. In addition, we depict the PEC obtained by the MRCI+Q/AV5Z+CV+DK calculations of the SO+(A2Π) cation in Figure 2. Similar to the X2Π Λ-S state, to clearly show the details of the spin-orbit coupling splitting, we also depict the PECs obtained by the MRCI+Q/AV5Z+CV+DK+SO calculations of SO+(A2Π3/2, 1/2) components using the ACVTZ basis set for the spin-orbit coupling correction in the same Figure 2.
As a conclusion, we think that (1) for the MRCI+Q/AV5Z+CV+DK+SO calculations, the A0 of the SO+(X2Π1/2, 3/2) obtained by the ACVTZ basis set is closest to the measurements [22]. The A0 of the SO+(A2Π1/2, 3/2) obtained by the ACVTZ basis set also agree well with the measurements [17], and the difference between such A0 result and the experimental one is only several cm−1; (2) the core-valence correlations make the A0 become large for the two electronic states but are not sure to increase the accuracy of the spin-orbit coupling constant A0; (3) the spectroscopic results determined by the MRCI+Q/AV5Z+CV+DK calculations for the X2Π and A2Π electronic states have achieved a high quality.

3.3. Vibrational Manifolds

Here, we only use the PECs obtained by the MRCI+Q/AV5Z+DK+CV calculations to determine the vibrational manifolds of X2Π and A2Π electronic states. The reason is that no spin-orbit coupling experimental G(υ), Bυ and Dυ values exist in the literature, whereas the corresponding results can be found for the X2Π and A2Π electronic states. The vibrational level G(υ), inertial rotation constant Bυ and centrifugal distortion constant Dυ are predicted for each vibrational state of each electronic state by solving the ro-vibrational Schrödinger equation of nuclear motion using Numerov’s method [43]. Due to length limitation, here we only tabulate the G(υ), Bυ and Dυ results of the first 30 vibrational states of SO+(X2Π) and SO+(A2Π) cation for the J = 0 case in Tables 8 and 9, respectively.
For the G(υ) of X2Π electronic state, only one group of RKR data can be found in the literature [49]. We collect the only group of RKR data in Table 8 for comparison. As seen in Table 8, excellent agreement exists between them. For example, the deviations of the present G(υ) results from the RKR data [49] is only 0.29, 3.67, 6.45 and 8.97 cm−1 for υ = 0, 6, 10 and 16, respectively.
At least four groups of Bυ experimental data exist in the literature [1517,21] for the SO+(X2Π) cation. In order to avoid congestion in Table 8, here we only tabulate the Bυ given by Hardwick et al. [15], Milkman et al. [16] and Dyke et al. [21] for comparison. As demonstrated in Table 8, the present Bυ are in excellent agreement with all the measurements [15,16,21] collected in Table 1. For example, the largest deviation of the present Bυ results from the measurements [15] is 0.34% (which corresponds to υ = 4). The largest deviation of the present Bυ results from the measurements [16] is 0.373% (which corresponds to υ = 4). And the largest deviation of the present Bυ results from the measurements [21] is 0.34%. When we compare the present Bυ with those [17] not collected in Table 8, good accord also exists between them. Therefore, we think, with reason, that the newly calculated Bυ results are of a very high quality.
Similar to the Bυ, there are also four groups of measurements [1517,21] and one group of RKR data [17] concerning the Dυ of the SO+(X2Π) cation. To avoid congestion in Table 8, we only tabulate three groups of measurements [15,16,21] and one group of RKR data in the table. It is not difficult to find that excellent agreement exists between the present results and the measurements [15,16] as well as RKR data [17]. For example, the present results are smaller than the measurements [15] only by 0.79% and 3.85% for υ = 4 and 5, and the present results are smaller than the experimental data [21] also only by 0.76% and 1.74% for υ = 0 and 1, respectively. Because the Dυ is a very small quantity, such deviation is acceptable. In addition, when we compare the experimental Dυ results [17] not collected in Table 8, excellent agreement can also be found between them.
Table 9 collects the present G(υ), Bυ and Dυ results of the 32S16O+(A2Π) cation until υ = 29 together with three groups of measurements [1517]. From Table 9, we can see that the difference between the G(0) and G(1) is equal to 792.2 cm−1, whereas the corresponding experimental difference obtained by Coxon and Foster [14] is 792.7 cm−1. Excellent agreement exists between the present result and the experimental one. As seen in Table 9, the present Bυ results agree favorably with the measurements [1517]. For example, the differences between the present Bυ results and the measurements [15] are only 0.17% and 0.19% for υ = 0 and 1, and the differences between the present Bυ and the measurements [16] are 0.12%, 0.30%, 0.04% and 0.49% for υ = 0, 4, 7 and 11, respectively. At the same time, the largest deviation of the present Bυ results from the measurements [17] is also only by 0.29% (which corresponds to υ = 5). All the comparisons demonstrate that the present Bυ results tabulated in Table 9 are accurate.
As for the Dυ results of the 32S16O+(A2Π) cation, three groups of experimental results [1517] and one group of RKR data [17] have been found in the literature to our knowledge. For convenient comparison with the present results and to avoid congestion, only some of these experimental data are collected in Table 9. As seen in Table 9, excellent agreement with the measurements [15,16] and the RKR data [17] still exists. For example, the largest deviation of the present Dυ from the measurements [15] is only by 0.60%, and the differences between the present Dυ and the RKR data [17] are also only 0.31%, 0.23%, 0.74% and 0.56% for υ = 0, 4, 7 and 11, respectively. As noted above, the Dυ is a very small quantity. Anyway, such deviation is still very small.
To the best of our knowledge, no G(υ) results can be found in the literature for the 32S16O+(A2Π) ion, either theoretically or experimentally. Therefore, we cannot make any direct comparison between them. On the one hand, as seen in Tables 2 and 6, the present spectroscopic parameters obtained by the MRCI+Q/AV5Z+CV+DK calculations agree well with the measurements for the two electronic states. On the other hand, the vibrational manifolds of the ground state and the Bυ and Dυ results of the A2Π electronic state are also in excellent agreement with the experimental data. Because all the results are calculated by the same approach and fitted by the same procedure, we believe that the G(υ) results of the A2Π electronic state collected in Table 9 and the vibrational manifolds for higher vibrational levels presented in Tables 8 and 9 are reliable and accurate. They should be of considerable value for future experimental or theoretical research.
Finally, we will discuss the effect on the vibrational manifolds by the spin-orbit coupling correction [5053]. On the whole, the spin-orbit coupling correction brings about only small change for lower G(υ), whereas it can produce the shift of more than ten cm−1 for higher G(υ). For example for the X2Π electronic state, the G(3) is 3,218.42 cm−1 for the X2Π1/2 and 4,476.08 cm−1 for the X2Π3/2, respectively, which deviate from the G(3) only by 1.35 cm−1. And the G(29) is 31,682.47 cm−1 for the X2Π1/2 and 31,644.37 cm−1 for the X2Π3/2, respectively, which deviate from the G(29) by 19.07 cm−1.

4. Conclusions

In this work, the PECs of the X2Π and A2Π electronic states of the SO+ cation have been studied employing the CASSCF method followed by the MRCI approach in combination with the correlation-consistent AV5Z basis set for internuclear separations from 0.08 to 1.06 nm. The effects on the PECs by the core-valence correlation and scalar relativistic corrections have been included. Scalar relativistic corrections are made using the DKH3 approximation at the level of a cc-pV5Z basis set. Core-valence correlation corrections are included with a cc-pCVTZ basis set. To obtain more reliable results, the PECs obtained by the MRCI calculations are corrected for size-extensivity errors by means of Davidson modification. The effects on the spectroscopic parameters by the spin-orbit coupling splitting are included using the Breit-Pauli operator with two all-electron basis sets, AVTZ and ACVTZ. With the PECs obtained here, the spectroscopic parameters of the two electronic states have been obtained by fitting the vibrational levels, which are calculated by solving the ro-vibrational Schrödinger equation with Numerov’s method. The spectroscopic parameters obtained by the MRCI+Q/AV5Z+CV+DK calculations have been found tob e in excellent agreement with the experimental results. At the MRCI+Q/AV5Z+CV+DK level, the A0 of the SO+(X2Π1/2, 3/2) and SO+(A2Π1/2, 3/2) are 362.13 and 58.16 cm−1 when the ACVTZ basis set is used for the spin-orbit coupling calculations, and the A0 of the SO+ (X2Π1/2, 3/2) and SO+(A2Π1/2, 3/2) are 344.36 and 52.90 cm−1 when the AVTZ basis set is used for the spin-orbit coupling calculations. We conclude that the core-valence correlation ACVTZ basis set makes the A0 slightly large when compared with the AVTZ set, which does not correlate core-valence electrons. With these PECs determined by the MRCI+Q/AV5Z+CV+DK calculations, the vibrational manifolds are calculated for each vibrational state of the two electronic states, and those of the first 30 vibrational states are reported for the 32S16O+ cation for the J = 0 case. Comparison with the experimental results demonstrates that the present vibrational manifolds are both reliable and accurate.

Acknowledgments

This work was sponsored by the National Natural Science Foundation of China under Grant Nos. 60777012, 61077073, 10874064, 61177092, 60977063 and 61127012, the Program for Science and Technology Innovation Talents in Universities of Henan Province in China under Grant No. 2008HA STIT008, the Natural Science Foundation of Education Bureau of Henan Province in China under Grant No. 2010B140013, Henan Innovation for University Prominent Research Talents in China under Grant No. 2006KYCX002 and the Innovation Scientists and Technicians Troop Construction Projects of Henan Province in China under Grant No. 08410050011.

References

  1. Turner, B.E. Detection of interstellar SO+: A diagnostic of dissociative shock chemistry. Astrophys. J 1992, 396, L107–L110. [Google Scholar]
  2. Turner, B.E. Interstellar SO+. Astrophys. J 1994, 430, 727–742. [Google Scholar]
  3. Turner, B.E. The physics and chemistry of small translucent molecular clouds. VII. SO+ and H2S. Astrophys. J 1996, 468, 694–721. [Google Scholar]
  4. Becker, K.; van Wijngaarden, W.; McConkey, J.W. Dissociative excitation of SO2 by controlled electron impact. Planet. Space Sci 1983, 31, 197–206. [Google Scholar]
  5. Marconi, M.L.; Mendis, D.A.; Mitchell, D.L.; Lin, R.P.; Korth, A.; Réme, H. Sulfur-bearing ions in the ionosphere of comet Halley. Astrophys. J 1991, 378, 756–762. [Google Scholar]
  6. Blanco-Cano, X.; Russell, C.T.; Strangeway, R.J.; Kivelson, M.G.; Khurana, K.K. Galileo observations of ion cyclotron waves in the Io torus. Adv. Space Res 2001, 28, 1469–1474. [Google Scholar]
  7. Kivelson, M.G.; Khurana, K.K.; Walker, R.J.; Warnecke, J.; Russell, C.T.; Linker, J.A.; Southwood, D.J.; Polanskey, C. Io’s interaction with the plasma torus: Galileo magnetometer report. Science 1996, 274, 396–398. [Google Scholar]
  8. Russell, C.T.; Kivelson, M.G. Detection of SO in Io’s exosphere. Science 2000, 287, 1998–1999. [Google Scholar]
  9. Ben, H.A.; Ben Lakhdar, Z.; Hochlaf, M. Spectroscopic and spin-orbit calculations on the SO+ radical cation. J. Chem. Phys 2006, 124. [Google Scholar] [CrossRef]
  10. Dyke, J.M.; Golob, L.; Jonathan, N.; Morris, A.; Okuda, M.; Smith, D.J. Vacuum ultraviolet photoelectron spectroscopy of transient species. Part 3. The SO(3) radical. J. Chem. Soc. Faraday Trans 1974, 270, 1818–1827. [Google Scholar]
  11. Tsuji, M.; Yamagiwa, C.; Endoh, M.; Nishimura, Y. SO+(A2Π-X2Πr) emission produced from a dissociative charge-transfer reaction of He+ With SO2 at thermal energy. Chem. Phys. Lett 1980, 73, 407–412. [Google Scholar]
  12. Murakami, I.; Tsuji, M.; Nishimura, Y. Vibrational analysis of the SO+(A2Π-2r) emission system by an isotopic study. Chem. Phys. Lett 1982, 92, 131–135. [Google Scholar]
  13. Cossart, D.; Lavendy, H.; Robbe, J.M. The first valence states of the SO+ ion. Rotational analysis of the A2Πi-X2Πr and b4-a4Πi transitions. Comparison of experimental and ab initio calculated molecular parameters. J. Mol. Spectrosc 1983, 99, 369–406. [Google Scholar]
  14. Coxon, J.A.; Foster, S.C. Rotational analysis of the A2Πi→X2Πr band system of the sulfur monoxide cation, SO+. J. Mol. Spectrosc 1984, 103, 281–294. [Google Scholar]
  15. Hardwick, J.L.; Luo, Y.; Winicur, D.H.; Coxon, J.A. High-resolution emission bands of the A2Π-X2Π system of SO+. Can. J. Phys 1984, 62, 1792–1800. [Google Scholar]
  16. Milkman, I.W.; Choi, J.C.; Hardwick, J.L.; Moseley, J.T. Observation of the A2IIi-X2IIr band system of SO+ in a rotationally cold supersonic expansion. J. Chem. Phys 1987, 86, 1679–1682. [Google Scholar]
  17. Milkman, I.W.; Choi, J.C.; Hardwick, J.L.; Moseley, J.T. High-resolution studies of the A2Π-X2Π system of rotationally cooled SO+. J. Mol. Spectrosc 1988, 130, 20–32. [Google Scholar]
  18. Norwood, K.; Ng, C.Y. Photoion-photoelectron coincidence spectroscopy of the transient molecules SO and S2O. Chem. Phys. Lett 1989, 156, 145–150. [Google Scholar]
  19. Amano, T.; Amano, T.; Warner, H.E. The microwave spectrum of SO+. J. Mol. Spectrosc 1991, 146, 519–523. [Google Scholar]
  20. Dyke, J.M.; Haggerston, D.; Morris, A.; Stranges, S.; West, J.B.; Wright, T.G.; Wright, A.E. A study of the SO molecule with photoelectron spectroscopy using synchrotron radiation. J. Chem. Phys 1997, 106, 821–830. [Google Scholar]
  21. Li, S.; Zheng, R.; Huang, G.M.; Duan, C.X. Mid-infrared diode laser spectroscopy of SO+. J. Mol. Spectrosc 2008, 252, 22–24. [Google Scholar]
  22. Lam, C.-S.; Wang, H.L.; Xu, Y.T.; Lau, K.C.; Ng, C.Y. A vacuum-ultraviolet laser pulsed field ionization-photoelectron study of sulfur monoxide (SO) and its cation (SO+). J. Chem. Phys 2011, 134. [Google Scholar] [CrossRef]
  23. Klotz, R.; Marian, C.M.; Peyerimhoff, S.D. Study of the dependence of spin-orbit matrix elements on AO basis set composition for inner and valence shells: Results for the multiplet splitting of X3 and C3Π of SO and X2Π in SO+. Chem. Phys 1983, 76, 367–383. [Google Scholar]
  24. Balaban, A.T.; De Maré, G.R.; Poirier, R.A. Ab initio study of neutral O2, SO, S2, C2H2 and their mono- and dications. J. Mol. Struct. (THEOCHEM) 1989, 183, 103–119. [Google Scholar]
  25. Midda, S.; Das, A.K. Molecular properties of selected diatomic molecules of astrophysical interest. Eur. Phys. J. D 2003, 27, 109–113. [Google Scholar]
  26. Werner, H.-J.; Knowles, P.J. An efficient internally contracted multiconfiguration-reference configuration interaction method. J. Chem. Phys 1988, 89, 5803–5814. [Google Scholar]
  27. Knowles, P.J.; Werner, H.-J. An efficient method for the evaluation of coupling coefficients in configuration interaction calculations. Chem. Phys. Lett 1988, 145, 514–522. [Google Scholar]
  28. Woon, D.E.; Dunning, T.H. Gaussian basis sets for use in correlated molecular calculations. III. The atoms aluminum through argon. J. Chem. Phys 1993, 98, 1358–1371. [Google Scholar]
  29. Dunning, T.H. Gaussian basis sets for use in correlated molecular calculations. I. The atoms boron through neon and hydrogen. J. Chem. Phys 1989, 90, 1007–1023. [Google Scholar]
  30. Mourik, T.V.; Wilson, A.K.; Dunning, T.H. Benchmark calculations with correlated molecular wavefunctions. VIII. Potential energy curves for He2, Ne2 and Ar2 using correlation consistent basis sets through augmented sextuple zeta. Mol. Phys 1999, 96, 529–547. [Google Scholar]
  31. Langhoff, S.R.; Davidson, E.R. Configuration interaction calculations on the nitrogen molecule. Int. J. Quantum Chem 1974, 8, 61–72. [Google Scholar]
  32. Richartz, A.; Buenker, R.J.; Peyerimhoff, S.D. Ab initio MRD-CI study of ethane: The 14–25 eV PES region and Rydberg states of positive ions. Chem. Phys 1978, 28, 305–312. [Google Scholar]
  33. Woon, D.E.; Dunning, T.H. Gaussian basis sets for use in correlated molecular calculations. V. Core-valence basis sets for boron through neon. J. Chem. Phys 1995, 103, 4572–4585. [Google Scholar]
  34. Peterson, K.A.; Dunning, T.H. Accurate correlation consistent basis sets for molecular core-valence correlation effects: The second row atoms Al-Ar, and the first row atoms B-Ne revisited. J. Chem. Phys 2002, 117, 10548–10560. [Google Scholar]
  35. Shi, D.H.; Zhang, X.N.; Sun, J.F.; Zhu, Z.L. MRCI study on spectroscopic and molecular properties of B1Δg, B1g+, C1Πg, D1u+, E1g+ and 11Δu electronic states of the C2 radical. Mol. Phys 2011, 109, 1453–1465. [Google Scholar]
  36. Zhang, X.N.; Shi, D.H.; Sun, J.F.; Zhu, Z.L. MRCI study on spectroscopic and molecular properties of X2Πg, a4Πu, A2Πu, b4g, D2Δg and B2g electronic states of O2+ ion. Mol. Phys 2011, 109, 1627–1638. [Google Scholar]
  37. Shi, D.H.; Liu, H.; Sun, J.F.; Liu, Y.F.; Zhu, Z.L. MRCI study on spectroscopic and molecular properties of four low-lying electronic states of the BO radical. J. Mol. Spectrosc 2010, 264, 55–60. [Google Scholar]
  38. Shi, D.H.; Li, W.T.; Zhang, X.N.; Sun, J.F.; Liu, Y.F.; Zhu, Z.L.; Wang, J.M. Effects on spectroscopic properties for several low-lying electronic states of CS molecule by core-valence correlation and relativistic corrections. J. Mol. Spectrosc 2011, 266, 27–36. [Google Scholar]
  39. Shi, D.H.; Liu, H.; Sun, J.F.; Zhu, Z.L.; Liu, Y.F. Effects on spectroscopic parameters of several low-lying electronic states of GeS by core-valence correlation and relativistic corrections. J. Mol. Spectrosc 2011, 269, 143–150. [Google Scholar]
  40. Shi, D.H.; Liu, H.; Sun, J.F.; Zhu, Z.L.; Liu, Y.F. Spectroscopic and molecular properties of 14 selected electronic states of Si2 molecule. J. Quant. Spectrosc. Radiat. Transf 2011, 112, 2567–2583. [Google Scholar]
  41. Werner, H.-J.; Knowles, P.J.; Lindh, R.; Manby, F.R.; Schütz, M.; Celani, P.; Korona, T.; Mitrushenkov, A.; Rauhut, G.; Adler, T.B.; Amos, R.D.; Bernhardsson, A.; Berning, A.; Cooper, D.L.; Deegan, M.J.O.; Dobbyn, A.J.; Eckert, F.; Goll, E.; Hampel, C.; Hetzer, G.; Hrenar, T.; Knizia, G.; Köppl, C.; Liu, Y.; Lloyd, A.W.; Mata, R.A.; May, A.J.; McNicholas, S.J.; Meyer, W.; Mura, M.E.; Nicklass, A.; Palmieri, P.; Pflüger, K.; Pitzer, R.; Reiher, M.; Schumann, U.; Stoll, H.; Stone, A.J.; Tarroni, R.; Thorsteinsson, T.; Wang, M.; Wolf, A. MOLPRO User’s Manual, Version 2008.1; University College Cardiff Consultants Limited: Cardiff, UK, 2008. [Google Scholar]
  42. Krogh, J.W.; Lindh, R.; Malmqvist, P.-Å.; Roos, B.O.; Veryazov, V.; Widmark, P.-O. Molcas Version 7.4; Lund University: Lund, Sweden, 2009. [Google Scholar]
  43. González, J.L.M.Q.; Thompson, D. Getting started with Numerov’s method. Comput. Phys 1997, 11, 514–515. [Google Scholar]
  44. Reiher, M.; Wolf, A. Exact decoupling of the Dirac Hamiltonian. I. General theory. J. Chem. Phys 2004, 121, 2037–2047. [Google Scholar]
  45. Wolf, A.; Reiher, M.; Hess, B.A. The generalized Douglas-Kroll transformation. J. Chem. Phys 2002, 117, 9215–9226. [Google Scholar]
  46. Reiher, M.; Wolf, A. Exact decoupling of the Dirac Hamiltonian. II. The generalized Douglas–Kroll–Hess transformation up to arbitrary order. J. Chem. Phys 2004, 121, 10945–10956. [Google Scholar]
  47. De Jong, W.A.; Harrison, R.J.; Dixon, D.A. Parallel Douglas-Kroll energy and gradients in NWChem: Estimating scalar relativistic effects using Douglas–Kroll contracted basis sets. J. Chem. Phys 2001, 114, 48–53. [Google Scholar]
  48. Berning, A.; Schweizer, M.; Werner, H.-J.; Knowles, P.J.; Palmieri, P. Spin-orbit matrix elements for internally contracted multireference configuration interaction wavefunctions. Mol. Phys 2000, 98, 1823–1833. [Google Scholar]
  49. Reddy, R.R.; Reddy, A.S.R.; Rao, T.V.R. Dissociation energies of SO+, SF and PBr. J. Quant. Spectrosc. Radiat. Transf 1986, 35, 167–170. [Google Scholar]
  50. Chattopadhyaya, S.; Nath, A.; Das, K.K. Configuration interaction study of the electronic states and spectroscopic properties of selenium monoxide. Spectrochim. Acta A 2012, 89, 160–167. [Google Scholar]
  51. Chakrabarti, S.; Samanta, P.N.; Das, K.K. MRDCI study of the low-lying electronic states of PbSi. J. Phys. Chem. A 2011, 115, 12331–12339. [Google Scholar]
  52. Ghalila, H.; Lahmar, S.; Ben Lakhdar, Z.; Hochlaf, M. Spectroscopy and metastability of BeO+. J. Phys. B 2008, 41. [Google Scholar] [CrossRef]
  53. Bytautas, L.; Matsunaga, N.; Nagata, T.; Gordon, M.S.; Ruedenberg, K. Accurate ab initio potential energy curve of F2. III. The vibration rotation spectrum. J. Chem. Phys 2007, 127, 204313:1–204313:19. [Google Scholar]

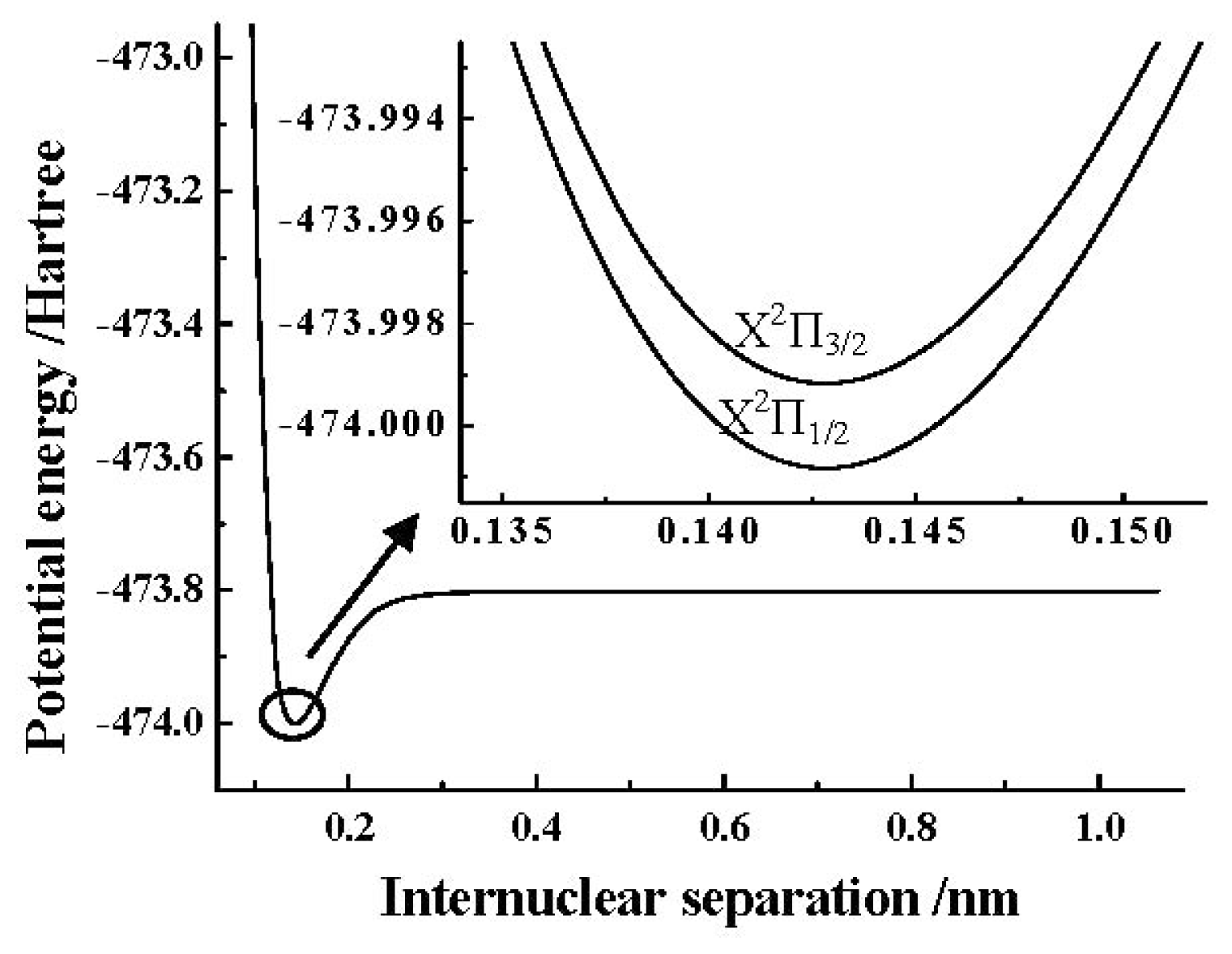

Figure 1. Potential energy curves (PECs) of the SO+(X2Π) and its two components near the equilibrium position.
Figure 1. Potential energy curves (PECs) of the SO+(X2Π) and its two components near the equilibrium position.
Ijms 13 08189f1

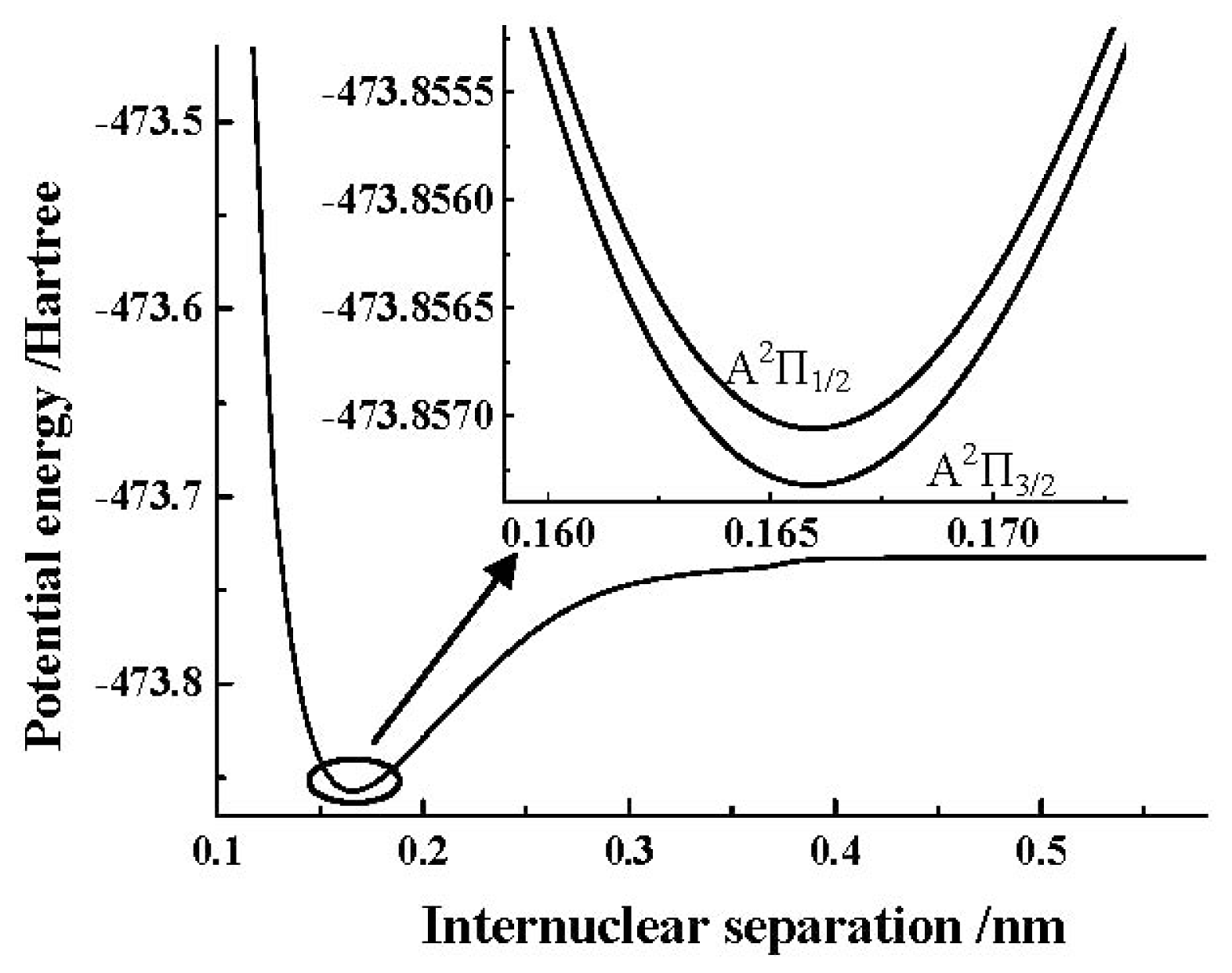

Figure 2. PECs of the SO+(A2Π) and its two components near the equilibrium position.
Figure 2. PECs of the SO+(A2Π) and its two components near the equilibrium position.
Ijms 13 08189f2
Table 1. Effect on the spectroscopic parameters of the 32S16O+ ion by the core-valence correlation and/or scalar relativistic corrections at the AV5Z basis set.
Table 1. Effect on the spectroscopic parameters of the 32S16O+ ion by the core-valence correlation and/or scalar relativistic corrections at the AV5Z basis set.
Te/cm−1Re/nmωe/cm−1ωexe/cm−1103ωeye/cm−1Be/cm−1αe/cm−1106Drot/cm−1
X2Π
MRCI00.142951,304.427.709701.384850.7737766.085851.08929
+DK00.142951,301.667.693881.768210.7737026.093911.09362
+CV00.142521,315.067.742441.940770.7784226.095171.09226
+DK+CV00.142531,312.317.727761.801500.7783666.103041.09133
MRCI+Q00.143141,299.137.712391.198100.7716526.087081.08677
+DK00.143151,296.427.705412.477000.7715826.095631.09251
+CV00.142751,309.057.750050.643380.7759726.100651.08836
+DK+CV00.142751,306.357.742831.246490.7759196.109571.09664
Exp. [17]00.142451,306.787.69751.900.7785926.2100
A2Π
MRCI31,640.560.16615798.9046.365110.380080.5731526.297071.09776
+DK31,576.910.16623796.8176.323710.613140.5725796.272471.10141
+CV32,304.690.16568801.1056.353704.370200.5765016.491541.09387
+DK+CV32,239.070.16576798.9696.310144.200880.5759246.464911.09793
MRCI+Q30,884.030.16628803.5056.459606.753930.5722996.181391.08717
+DK30,823.460.16636801.5306.428116.765010.5717586.161121.09064
+CV31,429.430.16583806.6576.525981.025960.5755186.372551.08261
+DK+CV31,366.440.16591804.6346.492550.981910.5749756.350741.08654
Exp. [17]31,421.490.16570805.5946.5073.10.575345.9137
Table 2. Comparison of the spectroscopic parameters obtained by the MRCI+Q/AV5Z+CV+DK calculations with measurements and other theoretical results.
Table 2. Comparison of the spectroscopic parameters obtained by the MRCI+Q/AV5Z+CV+DK calculations with measurements and other theoretical results.
Te/cm−1Re/nmωe/cm−1ωexe/cm−1103ωeye/cm−1Be/cm−1103αe/cm−1106Drot/cm−1
X2Π
This work00.142751,306.357.742831.246490.775996.109571.09664
Exp. [10]00.142(4) (a)1,360 ± 30
Exp. [14]00.142381,307.157.741---0.78006.311.04
Exp. [15]00.142501,311.448.365290.77876.2241.02
Exp. [17]00.142451,306.787.69751.900.778596.2100
Exp. [20]0---1,330 ± 308.0 ± 6.0
Cal. [9] (b)00.14341,305.59.021500.7697
Cal. [24] (c)00.1411
Cal. [25] (d)00.14211,359
A2Π
This work31,366.440.16591804.6346.492550.981910.5749756.350741.08654
Exp. [10]32,593
Exp. [11]32,943---805 ± 56.4 ± 0.5
Exp. [12]31,633 ± 10---804.4 ± 1.66.34 ± 0.18
Exp. [13] (e)---0.16638056.4
Exp. [14]31,422.750.16570805.366.34---0.57595.821.17
Exp. [15]31,4320.16578805.256.34---0.575365.881.17
Exp. [17]31,421.490.16570805.5946.5073.10.575345.9137
Cal. [9] (b)30,439.90.1670786.66.41−500.5675
(a)0.142 nm is of r0 value, not re;
(b)these results were calculated by the MRCI+Q/cc-pV5Z approach in Ref. [9];
(c)these results were calculated by the SCF/6-31G*(5d) approach in Ref. [24];
(d)these results were calculated by the HF/DF B3LYP/6-311++G(3df, 3pd) approach in Ref. [25];
(e)0.1663 nm is of r0 value, not re.
Table 3. Spectroscopic parameters obtained by the MRCI+Q/AV5Z+SO calculations using the AVTZ basis set for the spin-orbit coupling corrections.
Table 3. Spectroscopic parameters obtained by the MRCI+Q/AV5Z+SO calculations using the AVTZ basis set for the spin-orbit coupling corrections.
Te/cm−1Re/nmωe/cm−1ωexe/cm−1103ωeye/cm−1Be/cm−1103αe/cm−1106Drot/cm−1
X2Π172.290.143141299.137.712391.198100.7716526.087081.08677
X2Π1/200.143141299.457.700132.144360.7716516.082771.08397
X2Π3/2344.360.143141298.807.716432.054830.7716536.091351.09157
A2Π31,056.320.16628803.5056.459606.753930.5722996.181391.08717
A2Π3/231,028.010.16628803.8556.410966.637780.5723516.166171.08512
A2Π1/231,080.680.16629803.2056.502586.897820.5722576.195801.08847
The Te value of the 32S16O+(X2Π1/2) component is set to zero; All other Te results (in Tables 3–6) are relative to the Te of the 32S16O+(X2Π1/2) component.
Table 4. Spectroscopic parameters obtained by the MRCI+Q/AV5Z+SO calculations using the ACVTZ basis set for the spin-orbit coupling corrections.
Table 4. Spectroscopic parameters obtained by the MRCI+Q/AV5Z+SO calculations using the ACVTZ basis set for the spin-orbit coupling corrections.
Te/cm−1Re/nmωe/cm−1ωexe/cm−1103ωeye/cm−1Be/cm−1103αe/cm−1106Drot/cm−1
X2Π181.070.143141,299.137.712391.198100.7716526.087081.08677
X2Π1/200.143141,299.517.707382.125020.7716556.082721.08485
X2Π3/2361.910.143141,298.777.721591.901970.7716496.091841.09000
A2Π31,065.100.16628803.5056.459606.753930.5722996.181391.08717
A2Π3/231,033.930.16627803.9296.407036.648870.5723736.166941.08487
A2Π1/231,091.870.16630803.1406.505486.952490.5722346.195441.08870
Table 5. Spectroscopic results obtained by the MRCI+Q/AV5Z+CV+DK+SO calculations using the AVTZ basis set for the spin-orbit coupling corrections.
Table 5. Spectroscopic results obtained by the MRCI+Q/AV5Z+CV+DK+SO calculations using the AVTZ basis set for the spin-orbit coupling corrections.
Te/cm−1Re/nmωe/cm−1ωexe/cm−1103ωeye/cm−1Be/cm−1103αe/cm−1106Drot/cm−1
X2Π172.290.142751,306.357.742831.246490.7759196.109571.09664
X2Π1/200.142751,306.657.730611.584310.7759166.105111.09427
X2Π3/2344.360.142751,306.037.748041.632300.7759226.113561.09741
A2Π31,538.720.16591804.6346.492550.981910.5749756.350741.08654
A2Π3/231,510.190.16590804.9866.446340.827220.5750286.337071.08485
A2Π1/231,563.090.16591804.3326.533141.174970.5749326.363821.08810
Table 6. Spectroscopic results obtained by the MRCI+Q/AV5Z+CV+DK+SO calculations using the ACVTZ basis set for the spin-orbit coupling corrections.
Table 6. Spectroscopic results obtained by the MRCI+Q/AV5Z+CV+DK+SO calculations using the ACVTZ basis set for the spin-orbit coupling corrections.
Te/cm−1Re/nmωe/cm−1ωexe/cm−1103ωeye/cm−1Be/cm−1103αe/cm−1106Drot/cm−1
X2Π181.070.142751,306.357.742831.246490.7759196.109571.09664
X2Π1/200.142751,306.717.738201.592130.7759206.105241.09634
Exp. [11]0---1,323 ± 37.8 ± 0.3
Exp. [12]0---1,307.5 ± 1.97.84 ± 0.21
Exp. [13]00.14241,3077.75---0.7716.3
Cal. [13]00.14531,2708.0
X2Π3/2362.130.142751,306.007.752071.354610.7759196.114111.09714
Exp. [10]340 ± 25
Exp. [11]414 ± 5---1,323 ± 37.8 ± 0.3
Exp. [12]412 ± 13---1,307.5 ± 1.97.84 ± 0.21
Exp. [13]3520.14241,3077.75---0.7816.3
Cal. [10]360 a
Cal. [23]339.2 b, 328 c
A2Π31,547.500.16591804.6346.492550.981910.5749756.350741.08654
A2Π3/231,516.120.16589805.0626.442880.825560.5750506.336051.08463
Exp. [13]30,9100.1663 d8056.40.567 e
A2Π1/231,574.280.16592804.2656.535671.231830.549086.363171.08833
Exp. [13]30,9820.1663 d8056.40.575e
Cal. [13]30,6000.16859122.6
asuch Te value was obtained by the restricted CNDO calculations;
bsuch Te value was obtained by the MRD-CI/basis set 2;
csuch Te value was obtained by the MRD-CI/basis set 4;
dthese values are of r0, not re;
e:these values are of B0, not Be.
Table 7. Comparison of the present spin-orbit coupling constant with the experimental and other theoretical results.
Table 7. Comparison of the present spin-orbit coupling constant with the experimental and other theoretical results.
This work aThis work bExp. [14]Exp. [15]Exp. [17]Exp. [18]Exp. [20]Exp. [22]Cal. [9]Cal. [13]Cal. [22]
X2Π362.13344.36367.18363.8364.38371 ± 20355 ± 30365.36330.5 ± 20338359.0
A2Π58.1652.9053.2253.9153.880---------54.662
aSpin-orbit coupling splitting is calculated by using the MRCI+Q method and the ACVTZ basis set;
bSpin-orbit coupling splitting is calculated by using the MRCI+Q method and the AVTZ basis set.
Table 8. Comparison of the present G(υ), Bυ and Dυ results with the experimental ones for the 32S16O+(X2Π) cation for the J = 0 case.
Table 8. Comparison of the present G(υ), Bυ and Dυ results with the experimental ones for the 32S16O+(X2Π) cation for the J = 0 case.
υG(υ)/cm−1Bυ/cm−1106Dυ/cm−1

This workExp. [49]This workExp. [15]Exp. [16]This workExp. [15]Exp. [16]Exp. [17]
0651.27651.560.7728630.775508 [21]0.775481.097471.10591 [21]1.09411.1072
11,942.10---0.7667390.769312 [21]0.768151.101541.121 [21]---1.1107
23,217.483,219.060.760600---0.762191.10576------1.1146
34,477.42---0.754449---0.756741.11040------1.1189
45,721.895,724.560.7482830.750870.751091.115131.1241.391.1238
56,950.89---0.7421000.7444680.744461.120161.1651.131.1291
68,164.398,168.060.7358990.7382690.738261.125651.161.1350
79,362.35---0.7296770.732000.731711.131450.961.1414
810,544.7510,549.560.7234350.726180.726041.138021.261.1485
911,711.53---0.7171710.719590.719531.145561.181.1562
1012,862.6112,869.060.7108890.712811.15441
1113,997.890.7045891.16486
1215,119.2615,126.560.6982811.17806
1316,220.59---0.6919911.27147
1417,317.6817,322.060.6857581.22832
1518,378.15---0.6796341.27147
1619,446.5919,455.560.6737051.32470
1720,467.740.6680441.38496
1821,486.490.6626801.44558
1922,488.000.6575921.50143
2023,472.550.6526941.54575
2124,440.600.6479181.57178
2225,392.800.6432091.58726
2326,329.830.6385241.59627
2427,252.320.6338861.60812
2528,160.850.6293181.62867
2629,055.840.6248581.65654
2729,937.700.6205191.68893
2830,806.760.06162941.7182
2931,663.400.6121591.74116
Table 9. Comparison of the present G(υ), Bυ and Dυ results with the experimental ones for the 32S16O+(A2Π) cation for the J = 0 case.
Table 9. Comparison of the present G(υ), Bυ and Dυ results with the experimental ones for the 32S16O+(A2Π) cation for the J = 0 case.
υG(υ)/cm−1Bυ/cm−1106Dυ/cm−1


This workExp. [15]Exp. [16]Exp. [17]This workExp. [15]Exp. [16]Exp. [17]
0401.150.5714550.5724150.572410.5723981.174451.1771.1791.1781
11,193.370.5654570.5665320.566530.5664911.184821.1921.1961.1873
21,972.150.5594290.560540.5605801.19520---1.1970
32,737.530.5533790.554220.5543561.205290.7811.2071
43,489.610.5473170.548990.5487201.21449---1.2173
54,228.530.5412551.543130.5428211.222741.4581.2271
64,954.510.5352111.536651.229341.2361
75,667.800.5291980.52941.238391.2440
86,368.680.5232340.522561.5245871.238391.2503
97,057.500.5173530.521421.239801.2543
107,734.690.5115811.51571.242391.2555
118,400.640.5059420.503491.246401.2534
129,055.740.5004781.25584
139,700.310.4952101.27332
1410,334.630.4901821.30041
1510,958.890.4854071.34218
1611,573.160.4808901.39659
1712,177.420.4766131.45946
1812,771.620.4725571.52312
1913,355.790.4686421.58337
2013,929.900.4647831.62798
2114,494.060.4608981.66019
2215,048.360.4569191.68194
2315,592.900.4528441.70288
2416,127.750.4486891.73583
2516,652.900.4445021.77888
2617,168.380.4403441.81741
2717,674.400.4363611.83136
2818,171.590.4326281.83638
2918,660.610.4290751.84735

Share and Cite

MDPI and ACS Style

Xing, W.; Shi, D.; Sun, J.; Zhu, Z. Investigation of Spectroscopic Properties and Spin-Orbit Splitting in the X2Π and A2Π Electronic States of the SO+ Cation. Int. J. Mol. Sci. 2012, 13, 8189-8209. https://doi.org/10.3390/ijms13078189

AMA Style

Xing W, Shi D, Sun J, Zhu Z. Investigation of Spectroscopic Properties and Spin-Orbit Splitting in the X2Π and A2Π Electronic States of the SO+ Cation. International Journal of Molecular Sciences. 2012; 13(7):8189-8209. https://doi.org/10.3390/ijms13078189

Chicago/Turabian Style

Xing, Wei, Deheng Shi, Jinfeng Sun, and Zunlue Zhu. 2012. "Investigation of Spectroscopic Properties and Spin-Orbit Splitting in the X2Π and A2Π Electronic States of the SO+ Cation" International Journal of Molecular Sciences 13, no. 7: 8189-8209. https://doi.org/10.3390/ijms13078189

Article Metrics

Back to TopTop
