Article

Tissue Microarray-Based Evaluation of Chromatin Assembly Factor-1 (CAF-1)/p60 as Tumour Prognostic Marker

Department of Biomorphological and Functional Sciences, Pathology Section, University of Naples “Federico II”, Naples 80138, Italy
*
Author to whom correspondence should be addressed.
Int. J. Mol. Sci. 2012, 13(9), 11044-11062; https://doi.org/10.3390/ijms130911044
Submission received: 18 June 2012 / Revised: 22 August 2012 / Accepted: 23 August 2012 / Published: 5 September 2012
(This article belongs to the Special Issue Advances in Molecular Oncology (special issue))

Abstract

:
In this study we aimed to confirm the emerging role of Chromatin Assembly Factor 1 (CAF-1 p60) as a new proliferation and prognostic marker for cancer and to test the usefulness of the tissue microarray technique (TMA) for CAF-1 p60 rapid screening in several human malignancies. CAF-1 is a histone chaperone, regulating chromatin dynamics during DNA replication and repair in eukaryotics. TMA is a powerful high-throughput methodology in the study of cancer, allowing simultaneous assessment of different biomarkers within large numbers of tissue specimens. We generated TMA taking 3 mm diameter-core biopsies from oral squamous cell carcinoma, prostate cancer, salivary gland tumours and skin melanoma specimens, which had been previously tested for CAF-1 p60 on routine tissue sections. We also analysed, for the first time, 30 larynx and 30 skin squamous cell carcinomas. CAF-1 p60 resulted over-expressed in both the tissue sections and the TMA specimens, with the highest levels of expression in tumours which were more aggressive and metastasizing. Notably, a high degree of agreement was found between the CAF-1 p60 assessment on TMAs and on routine tissue sections. Our findings confirm the prognostic role of CAF-1 p60 and indicate TMA as a really advantageous method for CAF-1 p60 immunohistochemical screening, allowing savings on both tissue quantity and operator-time.

1. Introduction

Cancer, traditionally considered a genetic disease, is now thought to represent the result of a mixture of genetic and epigenetic events, which variously influence the degree of its biological aggressiveness and metastasizing ability [18]. The potentially reversible nature of the epigenetic changes has led to hypothesize the use of epigenetic modulators for the establishment of alternative anticancer therapies [911]. The epigenetic information includes DNA methylation, RNA-mediated silencing and histone modifications and, although DNA methylation and histone acetylation are among the most frequent epigenetic modifications observed both in normal and neoplastic cells, the disruption of any of these three distinct and mutually reinforcing epigenetic mechanisms might lead to an inappropriate gene expression, resulting in cancer development and other “epigenetic diseases” [9,12]. Epigenetic alterations, especially histone modifications, influence cellular metabolism mainly affecting the chromatin structure. Great attention has been recently focused on the role of chromatin dynamics as a critical determinant in many nuclear events and in pathological conditions such as tumour development and progression [1315]. Within the cell, the nuclear DNA is tightly packaged in the chromatin structure. The nucleosome is the fundamental unit of chromatin and its core particle is composed of an octamer of the four core histones (H3, H4, H2A, H2B), around which 147 base pairs of DNA are wrapped. DNA packaging follows several orders of wrapping and is fundamental for the maintenance of the genome stability regulating the DNA-based activities as DNA replication, transcription and repair. Histone chaperons play a critical role in maintaining and regulating chromatin structure by driving histones deposition. CAF-1 (Chromatin Assembly Factor-1) is a heterotrimeric histone chaperone formed by p48, p60 and p150 proteins that plays a pivotal role in the regulation of chromatin assembly coupled to DNA replication and repair [16]. During the S phase of the eukaryotic cell cycle, the newly replicated DNA is rapidly assembled into chromatin. CAF-1 mediates the deposition of newly synthesised histones H3.1 and H4 onto nascent DNA [17] and their assembly into nucleosomes, by association with PCNA [18]. In the same way, CAF-1 complex mediates the assembly of nucleosomes following DNA damage repair. Several reports have recently shown that a deregulated expression of CAF-1 p60 is linked to the neoplastic progression of most of the human solid malignancies [17,1922]. In particular, the CAF-1 p60 subunit has been found overexpressed in breast, oral, prostate, and salivary gland carcinomas, as well as in skin melanoma [2328]. Interestingly, CAF-1 p60 expression levels are significantly correlated with the biological aggressiveness of tumours, metastasizing behaviour and worse prognosis [2328]. This suggested CAF-1 p60 could have a promising role as a new sensible “transversal” prognostic marker for human tumours, apparently unrelated to their histogenesis. To date the on-site expression of CAF-1 p60 in human tumours has been mostly performed on routine sections of paraffinized tissues; in addition, fine needle aspirates have also been used in order to evaluate CAF-1 p60 expression at least in breast [27] and salivary gland tumours [23]. In the present study, we evaluated the immunohistochemical expression of CAF-1 p60 on tissue microarray (TMA) sections generated by taking core biopsies from the same tumour series previously evaluated for this protein. The aim of our study is to assess the degree of agreement in the extent and intensity of CAF-1 p60 immunoreactivity between the values observed in TMAs and routine sections. As is well known, TMA constitutes a powerful high-throughput methodology which has been increasingly used for validation of new cancer biomarkers, and hopefully it could represent a valuable tool for the rapid screening for CAF-1 p60 expression in malignant tumours, in the context of their prognostic evaluation.

2. Results

2.1. CAF-1 p60 in Normal Tissue

CAF-1 p60 immunostaining showed a focal, scattered, nuclear positivity in TMAs as in routine sections of normal tissue specimens. CAF-1 p60 positive cells were found almost always localized in the regenerative compartment: from 0 to <10% of cells from the basal layer of epidermis and oral mucosal epithelium keratinocytes, of melanocytes at the dermal-epidermal junction, or of secretory cells of prostate and salivary glands showing, in fact, CAF-1 p60 positivity at immunostaining.

2.2. CAF-1 p60 in Tumours

All the evaluated malignant tumours showed CAF-1 p60 overexpression (Figure 1, Tables 17). Representative images of CAF-1 p60 expression in normal tissues are shown in Figure 2. In detail, a moderate expression (++) of CAF-1 p60 was found in 13 Oral Squamous Cells Carcinoma (OSCC) (3 G1, 8 G2, 2 G3), 22 Prostate Cancer (PC) (1 with Gleason score <7, 15 with a Gleason score equal to 7, of which 5 with a primary pattern of 4 and 10 with a primary pattern of 3, and 6 with Gleason score >7), 14 Skin Melanoma (SM) (4 with Breslow vertical phase thickness <1.00 mm, 3 comprised between 1.01 and 2.00, 4 comprised between 2.01 and 4.00 and 3 > 4.00 mm), 22 Salivary Gland Tumour (SGT), of which 1 polymorphous low-grade carcinoma (PLGC), 3 acinic cell carcinomas (AC), 3 adenoid cystic carcinomas (ACC), 11 muco-epidermoid carcinomas (4 low grade, 3 intermediate-grade and 4 high-grade tumours), and 4 cases of carcinoma ex-PA (CXPA) 26 Laryngeal Squamous Cell Carcinoma (LSCC) (6 G1, 6 G2, 14 G3) and 28 Skin Squamous Cell Carcinoma (SSCC) (8 G1, 10 G2, 10 G3); as a high level of expression (+++) was observed in the remaining 17 OSCC (7 G1, 7 G2 and 3 G3), 8 PC (2 with Gleason score <7, 3 with a Gleason score equal to 7, with a primary pattern of 4, and 3 with Gleason score >7), 16 SM (2 with Breslow vertical phase thickness <1.00 mm, 5 comprised between 1.01 and 2.00, 6 comprised between 2.01 and 4.00 and 3 > 4.00 mm), 7 cases of malignant SGT, of which 1 adenoid cystic carcinomas (ACC), 5 muco-epidermoid carcinomas (1 low grade, 3 intermediate-grade and 1 high-grade tumours) and 1 case of CXPA, 4 LSCC (1 G1, 1 G2, 2 G3) and 2 SSCC (1 G2 and 1 G3). The values found on the whole sections of OSCC, PC, SGTs and SM were in agreement with those already reported in the literature [2326]. The evaluation of the immunohistochemical expression of CAF-1 p60 on TMA sections of the same tumour series gave rise to quite similar results, with an excellent level of agreement for both the intra- and inter-observer evaluation of the expression of CAF-1 p60 on the whole sections and TMAs (K-coefficient: 0.8018 for OSCC; 0.8148 for PC; 0.8018 for SM; 0.8529 for SGT; 0.8696 for LSCC, 0.8076 for SSCC) (Table 8, Figure 3). According to univariate statistical analysis, both on routine whole sections and on TMA, no statistical correlation was found between CAF-1 p60 expression, age and sex of patients (data not shown).
Irrespective of the tumour histogenesis, CAF-1 p60 showed high levels of expression in all evaluated tumours (OSCC, PC, SM, SGTs and LSCC and SSCC) with the highest values in cases showing adverse events during the follow up (relapse, lymph node and/or distant metastasis, death from disease). Correlation between CAF-1 p60 expression and adverse events at follow-up proved to be statistically significant, as shown by Kaplan-Meier curves in Figure 4.

3. Discussion

The high concordance in the evaluation of CAF-1 p60 expression between the TMAs and the whole section specimens, in agreement with data reported from similar comparative studies in literature [2933], supports the idea that the TMA technique is a very useful tool for novel diagnostic and/or prognostic marker screening in tumours. The TMA method, used in the majority of pathology laboratories, is a standardized technology based on the original technique proposed by Wan et al. and further modified by Kononen in 1998 [34,35]. Recently, many studies, comparing the data obtained from conventional and TMA sections, validated the use of TMAs as a useful tool for diagnostic and/or prognostic biomarkers screening in several tumours, such as oral and oesophageal squamous cell carcinomas [36,37], ovarian cancers [38], breast carcinomas [39], and peripheral nerve malignant sheath tumours [40]. This report constitutes the first study in which the TMA method was used to evaluate the immunohistochemical expression of CAF-1 p60 in different human malignancies and correlated with adverse clinical outcome. Our data obtained on sections of TMAs confirmed that CAF-1 p60 protein is increased in all the evaluated tumours, from those that have already been reported in the literature, such as MM, PC, OSCC and OSGT, to the newly investigated LSCC and SSCC. Recently, Polo and coll. published a study showing the overexpression of CAF/p60 in a series of different human malignancies [28]. In the present study, we have shown that in our selected series of patients, the higher expression of CAF-1 p60 was significantly associated to a more aggressive biological behaviour of tumours, confirming the idea that the increase of CAF-1 p60 expression is strictly correlated with the cancer progression and the metastasizing ability of transformed cells, irrespective of their histological type and differentiation. Notably, our data strongly suggest that the use of TMAs is a reliable technique for the immunohistochemical assessment of CAF-1 p60 expression, and it may be proposed as an efficient, time- and cost-effective, evaluation of this new promising biomarker of the aggressiveness of malignant tumours [4143]. Moreover, as multiple recent reports have indicated the immunohistochemical evaluation of CAF-1 p60 expression may add important information to the prognostic prevision of most human solid malignancies; the finding that this evaluation can be performed on TMAs with results quite similar to those derived from the immunostaining of routine whole tissue sections is extremely exciting, in terms of use of both pathologists’ time and resources. In addition, the TMA assembly procedure used for this study is easy to perform and cheaper than that obtained with the use of the expensive automated tissue array devices. For this reason, the manual TMA technique can be used even in small pathology laboratories with a limited budget, representing the ideal pre-requisite for a screening technology. Using 3 mm diameter tissue cores we can strongly reduce the bias due to the reduced amount of tissue, especially when compared to the TMA made of small cores obtained with automatized devices from hundreds of individual specimens. In addition, the time- and cost-efficient manual TMAs based on large 3 mm cores, allow a better evaluation of both the histological characteristics, as well as the extent and pattern of the immunostaining signal distribution. A single 3 mm-diameter tissue core provides, in fact, more than twice the total tumour area covered by the three small cores obtained with the automatized systems. TMA is a time- and cost-efficient method of evaluating the immunohistochemical expression of several proteins in a large number of tumours. The TMA technique leads, in fact, to great economy in time, reagents and tissue specimens and facilitates the rapid standardization and introduction of new antibodies into routine diagnostic immunohistochemistry, allowing pathologists to quickly evaluate hundreds of cores of selected tissue samples [44,45]. Moreover, the TMA technique provides a great opportunity to easily analyse, store and share IHC data on a large number of samples over a long period of time when combined, with the digital management of slides, offering a cost-efficient alternative to routine diagnostics.

4. Experimental Section

In the present study, we selected a total of 180 human tumours diagnosed at the Department of Biomorphological and Functional Sciences, Pathology Section, University “Federico II” of Naples, Italy, from 1 January 2000 to 31 December 2009. The selected cases encompassed 30 oral squamous cell carcinomas (OSCC), 30 prostate carcinomas (PC), 30 salivary gland tumours (SGT) and 30 skin melanomas (SM), all belonging to the same selected series of patients who had previously been screened for CAF-1 p60 by immunohistochemistry [2326] and 30 laryngeal squamous cell carcinomas (LSCC) and 30 skin squamous cell carcinomas (SSCC), that had never been evaluated for CAF-1 p60 expression. The clinic-pathological features of all patients are summarized in Table 1. For each patient, the tumour stage class was determined according to the American Joint Committee, AJCC [46]. The study was performed according to the Declaration of Helsinki and in agreement with Italian law that, due to the topics of this research, does not provide a specific Ethical Committee assent.

4.1. TMAs Construction and Immunohistochemistry

Two pathologists (SS and MM) reviewed the whole routine haematoxylin-eosin (H & E) sections to confirm the original diagnosis and to mark the most representative tumour areas useful for the TMA construction. From one paraffin block of each tumour, a 4-μm thick section was cut and mounted on a slide pre-treated for immunohistochemical evaluation of CAF-1 p60 expression. Then, for all selected cases, the tumour area for TMA construction was identified on the same paraffin donor blocks under the guidance of the corresponding previously marked H & E section and punched by a manual tissue-array instrument (Tissue-Tek Quick-Ray, Sakura Finetek, Torrance, CA, USA). The tissue cores (3 mm in diameter) were carefully transferred to the recipient paraffin blocks with 30 holes each. The filled recipient blocks were then placed on a metal base mould. The paraffin-embedding was then carried-out, by heating the blocks at 42 °C for 10 min, and flattening their surface by pressing a clean glass slide on them. As a result, a TMA was built for each cancer histotype (OSCC, LSCC, PC, SSCC, SGT and MM). In addition, cores of non-neoplastic oral and laryngeal mucosa, salivary glands, prostate tissue, and skin were included in a further tissue array block to pursue normal controls. After chilling the tissue arrays to −10 °C for 30 min, according to the technique described two 4-μm sections were cut from each TMA using an ordinary microtome [44]. The first section was stained with H&E to confirm the presence of tumour and the integrity of tissues. The second section was mounted on a super frost slide (Microm, Walldorf, Germany) for the immunohistochemical evaluation of CAF-1 p60 expression. The slides were de-waxed by heating at 55 °C for 30 min followed by 3 washes, 5 min each, with xylene, and rehydrated by 5-min washes with 100%, 95%, and 80% ethanol up to pure distilled water. The Antigen retrieval was obtained by heating the sections at 95 °C for 30 min in 10 mM sodium citrate (pH 6.0). Endogenous peroxidase activity was blocked by the incubation in 3% hydrogen peroxide for 30 min. The background reactivity was removed using the universal blocking serum (Dako Diagnostics, Glostrup, Denmark) for 30 min at room temperature. At this point, the slides were incubated overnight at 4 °C with anti-CAF-1 p60 antibody (SS53-ab8133, Abcam, Cambridge, MA, USA, diluted 1:300) [2326]. The incubation for 30 min with a biotin-labeled secondary antibody was then performed. The streptavidin-peroxidase (DAKO Diagnostics) was applied and developed using 3,3′-diaminobenzidine substrate (Vector Laboratories, Burlingame, CA, USA). After slight counterstaining with haematoxylin, the slides were dehydrated and mounted with cover slips for microscopic examination. Breast carcinoma sections were used as positive control. Negative controls were included incubating the sections with pre-immune serum instead of the antibody. The cells with a definite brown nuclear staining were judged positive for CAF-1 p60 antibody. The evaluation of nuclear CAF-1 p60 staining was blindly and independently examined in all TMA cores and in whole sections of the selected donor blocks. CAF-1 p60 expression was evaluated as the percentage of positive tumor cells among the total neoplastic cells present in at least 10 high power fields and graded semi-quantitatively according to an arbitrary scale, as follows: 0 (<10% of positive cells); + (10% to <20%); ++ (20% to <30%); +++ (≥30% of positive cells) [2326]. In case of discrepancy between the two pathologists, the immunostained slides were reviewed in a double viewing microscope to settle the discrepancy. Cores were considered lost if <10% of cells contained tumour (“sampling error”) or when <10% of tissue was present (“absent core”) [47]. Immunohistochemistry was performed with the same end-quality both on whole sections and on TMA, without losing tissue cores during all the steps of the procedure.

4.2. Statistical Analysis

Statistical analysis was performed with SPSS package for Windows (release 17.0). The χ2 test was used to compare the quantitative differences of CAF-1 p60 staining in various stages of different tumours progression. The Kaplan-Meier curves were used to evaluate the disease free survival of patients grouped by CAF-1 p60 expression. A two-sided Log-rank test was used to compare Kaplan-Meier curves and to assess statistical significance. The p-value was considered significant if <0.05. To determine the chance-corrected agreement between the immunohistochemical staining scores of TMA core and the whole sections, the Cohen’s weighted kappa statistic was calculated. Chance-corrected agreement was considered poor if K < 0.00, slight if K was between 0 and 0.20, fair if K was between 0.21 and 0.40, substantial if K was between 0.61 and 0.80, and almost perfect if K was >0.80. The overall agreement was defined as the percentage of correct concordance between the TMA and the donor blocks from the total number of cases [48].

5. Conclusions

There is an urgent need for new, reliable prognostic markers to identify human cancers with an aggressive behaviour, and CAF-1 p60 proved to be a very promising candidate, as we have previously shown. So far, CAF-1 p60 expression assessment has been carried out mainly on whole tissue sections. The 3 mm cores TMA is a powerful, cost-effective, high-throughput methodology in the study of cancer, allowing simultaneous, highly accurate, assessment of different biomarkers within large numbers of tissue specimens. In the present study a high concordance was found between CAF-1 p60 assessment on TMAs and on routine tissue sections.
We strongly believe that the manual construction procedure of TMA will facilitate its set-up, easily allowing an enlargement of the amount of data concerning the role of CAF-1 p60 expression in human tumours, favouring the diffusion of this biomarker into the clinical setting.

Acknowledgments

We thank Amanda Tedeschi for the editing of the English style.
  • Conflict of InterestThe authors declare no conflict of interest.

References

  1. Feinberg, A.P.; Ohlsson, R.; Henikoff, S. The epigenetic progenitor origin of human cancer. Nat. Rev. Genet 2006, 7, 21–33. [Google Scholar]
  2. Feinberg, A.P.; Tycko, B. The history of cancer epigenetics. Nat. Rev. Cancer 2004, 4, 143–153. [Google Scholar]
  3. Jones, P.A.; Baylin, S.B. The fundamental role of epigenetic events in cancer. Nat. Rev. Genet 2002, 3, 415–428. [Google Scholar]
  4. Jones, P.A.; Baylin, S.B. The epigenomics of cancer. Cell 2007, 128, 683–692. [Google Scholar]
  5. Ozanne, S.E.; Constancia, M. Mechanisms of disease: The developmental origins of disease and the role of the epigenotype. Nat. Clin. Pract. Endocrinol. Metab 2007, 3, 539–546. [Google Scholar]
  6. Schulz, W.A.; Hatina, J. Epigenetics of prostate cancer: Beyond DNA methylation. J. Cell. Mol. Med 2006, 10, 100–125. [Google Scholar]
  7. Li, L.C. Epigenetics of prostate cancer. Front. Biosci 2007, 12, 3377–3397. [Google Scholar]
  8. Liu, S.; Ren, S.; Howell, P.; Fodstad, O.; Riker, A.I. Identification of novel epigenetically modified genes in human melanoma via promoter methylation gene profiling. Pigment Cell Melanoma Res 2008, 21, 545–558. [Google Scholar]
  9. Egger, G.; Liang, G.; Aparicio, A.; Jones, P.A. Epigenetics in human disease and prospects for epigenetic therapy. Nature 2004, 429, 457–463. [Google Scholar]
  10. Heightman, T.D. Therapeutic prospects for epigenetic modulation. Expert Opin. Ther. Targets 2011, 15, 729–740. [Google Scholar]
  11. Sharma, S.K.; Wu, Y.; Steinbergs, N.; Crowley, M.L.; Hanson, A.S.; Casero, R.A.; Woster, P.M. (Bis)urea and (bis)thiourea inhibitors of lysine-specific demethylase 1 as epigenetic modulators. J. Med. Chem. 2010, 53, 5197–5212. [Google Scholar]
  12. Rountree, M.R.; Bachman, K.E.; Herman, J.G.; Baylin, S.B. DNA methylation, chromatin inheritance, and cancer. Oncogene 2001, 20, 3156–3165. [Google Scholar]
  13. Sandoval, J.; Esteller, M. Cancer epigenomics: Beyond genomics. Curr. Opin. Genet. Dev 2012, 22, 50–55. [Google Scholar]
  14. Kouzarides, T. Chromatin modifications and their function. Cell 2007, 128, 693–705. [Google Scholar]
  15. Ehrenhofer-Murray, A.E. Chromatin dynamics at DNA replication, transcription and repair. Eur. J. Biochem 2004, 271, 2335–2349. [Google Scholar]
  16. De Koning, L.; Corpet, A.; Haber, J.E.; Almouzni, G. Histone chaperones: An escort network regulating histone traffic. Nat. Struct. Mol. Biol 2007, 14, 997–1007. [Google Scholar]
  17. Tagami, H.; Ray-Gallet, D.; Almouzni, G.; Nakatani, Y. Histone H3.1 and H3.3 complexes mediate nucleosome assembly pathways dependent or independent of DNA synthesis. Cell 2004, 116, 51–61. [Google Scholar]
  18. Krude, T.; Keller, C. Chromatin assembly during S phase: Contributions from histone deposition, DNA replication and the cell division cycle. Cell. Mol. Life Sci 2001, 58, 665–672. [Google Scholar]
  19. Ramirez-Parra, E.; Gutierrez, C. The many faces of chromatin assembly factor 1. Trends Plant Sci 2007, 12, 570–576. [Google Scholar]
  20. Linger, J.G.; Tyler, J.K. Chromatin disassembly and reassembly during DNA repair. Mutat. Res 2007, 618, 52–64. [Google Scholar]
  21. Gaillard, P.H.; Martini, E.M.; Kaufman, P.D.; Stillman, B.; Moustacchi, E.; Almouzni, G. Chromatin assembly coupled to DNA repair: A new role for chromatin assembly factor 1. Cell 1996, 86, 887–896. [Google Scholar]
  22. Verger, A.; Crossley, M. Chromatin modifiers in transcription and DNA repair. Cell. Mol. Life Sci 2004, 61, 2154–2162. [Google Scholar]
  23. Staibano, S.; Mascolo, M.; Rocco, A.; Lo Muzio, L.; Ilardi, G.; Siano, M.; Pannone, G.; Vecchione, M.L.; Nugnes, L.; Califano, L.; et al. The proliferation marker Chromatin Assembly Factor-1 is of clinical value in predicting the biological behaviour of salivary gland tumours. Oncol. Rep 2011, 25, 13–22. [Google Scholar]
  24. Mascolo, M.; Vecchione, M.L.; Ilardi, G.; Scalvenzi, M.; Molea, G.; di Benedetto, M.; Nugnes, L.; Siano, M.; de Rosa, G.; Staibano, S. Overexpression of Chromatin Assembly Factor-1/p60 helps to predict the prognosis of melanoma patients. BMC Cancer 2010, 10, 63. [Google Scholar]
  25. Staibano, S.; Mascolo, M.; Mancini, F.P.; Kisslinger, A.; Salvatore, G.; di Benedetto, M.; Chieffi, P.; Altieri, V.; Prezioso, D.; Ilardi, G.; et al. Overexpression of chromatin assembly factor-1 (CAF-1) p60 is predictive of adverse behaviour of prostatic cancer. Histopathology 2009, 54, 580–589. [Google Scholar]
  26. Staibano, S.; Mignogna, C.; Lo Muzio, L.; Mascolo, M.; Salvatore, G.; di Benedetto, M.; Califano, L.; Rubini, C.; de Rosa, G. Chromatin assembly factor-1 (CAF-1)-mediated regulation of cell proliferation and DNA repair: A link with the biological behaviour of squamous cell carcinoma of the tongue? Histopathology 2007, 50, 911–919. [Google Scholar]
  27. Polo, S.E.; Theocharis, S.E.; Klijanienko, J.; Savignoni, A.; Asselain, B.; Vielh, P.; Almouzni, G. Chromatin assembly factor-1, a marker of clinical value to distinguish quiescent from proliferating cells. Cancer Res 2004, 64, 2371–2381. [Google Scholar]
  28. Polo, S.E.; Theocharis, S.E.; Grandin, L.; Gambotti, L.; Antoni, G.; Savignoni, A.; Asselain, B.; Patsouris, E.; Almouzni, G. Clinical significance and prognostic value of chromatin assembly factor-1 overexpression in human solid tumours. Histopathology 2010, 57, 716–724. [Google Scholar]
  29. Chen, Y.; Miller, C.; Mosher, R.; Zhao, X.; Deeds, J.; Morrissey, M.; Bryant, B.; Yang, D.; Meyer, R.; Cronin, F.; et al. Identification of cervical cancer markers by cDNA and tissue microarrays. Cancer Res 2003, 63, 1927–1935. [Google Scholar]
  30. Fons, G.; Burger, M.P.; Ten Kate, F.J.; van der Velden, J. Identification of potential prognostic markers for vulvar cancer using immunohistochemical staining of tissue microarrays. Int. J. Gynecol. Pathol 2007, 26, 188–193. [Google Scholar]
  31. Gomaa, W.; Ke, Y.; Fujii, H.; Helliwell, T. Tissue microarray of head and neck squamous carcinoma: Validation of the methodology for the study of cutaneous fatty acid-binding protein, vascular endothelial growth factor, involucrin and Ki-67. Virchows Archiv 2005, 447, 701–709. [Google Scholar]
  32. Su, Y. Immunohistochemical Expressions of Ki-67, Cyclin D1, -Catenin, Cyclooxygenase-2, and epidermal growth factor receptor in human colorectal adenoma: A validation study of tissue microarrays. Cancer Epidemiol. Biomark. Prev 2006, 15, 1719–1726. [Google Scholar]
  33. Van den Eynden, G.G.; van der Auwera, I.; van Laere, S.; Colpaert, C.G.; van Dam, P.; Merajver, S.; Kleer, C.G.; Harris, A.L.; van Marck, E.A.; Dirix, L.Y.; et al. Validation of a tissue microarray to study differential protein expression in inflammatory and non-inflammatory breast cancer. Breast Cancer Res. Treat 2004, 85, 13–22. [Google Scholar]
  34. Wan, W.H.; Fortuna, M.B.; Furmanski, P. A rapid and efficient method for testing immunohistochemical reactivity of monoclonal antibodies against multiple tissue samples simultaneously. J. Immunol. Methods 1987, 103, 121–129. [Google Scholar]
  35. Kononen, J.; Bubendorf, L.; Kallioniemi, A.; Barlund, M.; Schraml, P.; Leighton, S.; Torhorst, J.; Mihatsch, M.J.; Sauter, G.; Kallioniemi, O.P. Tissue microarrays for high-throughput molecular profiling of tumor specimens. Nat. Med 1998, 4, 844–847. [Google Scholar]
  36. Monteiro, L.S.; Diniz-Freitas, M.; Garcia-Caballero, T.; Forteza, J.; Fraga, M. EGFR and Ki-67 expression in oral squamous cell carcinoma using tissue microarray technology. J. Oral Pathol. Med 2010, 39, 571–578. [Google Scholar]
  37. Boone, J.; van Hillegersberg, R.; van Diest, P.J.; Offerhaus, G.J.; Rinkes, I.H.; Kate, F.J. Validation of tissue microarray technology in squamous cell carcinoma of the esophagus. Virchows Arch 2008, 452, 507–514. [Google Scholar]
  38. Hecht, J.L.; Kotsopoulos, J.; Gates, M.A.; Hankinson, S.E.; Tworoger, S.S. Validation of tissue microarray technology in ovarian cancer: Results from the Nurses’ Health Study. Cancer Epidemiol. Biomark. Prev 2008, 17, 3043–3050. [Google Scholar]
  39. Alkushi, A. Validation of tissue microarray biomarker expression of breast carcinomas in Saudi women. Hematol. Oncol. Stem Cell Ther 2009, 2, 394–398. [Google Scholar]
  40. Cunha, K.S.; Caruso, A.C.; Goncalves, A.S.; Bernardo, V.G.; Pires, A.R.; da Fonseca, E.C.; de Faria, P.A.; da Silva, L.E.; Geller, M.; de Moura-Neto, R.S.; et al. Validation of tissue microarray technology in malignant peripheral nerve sheath tumours. J. Clin. Pathol 2009, 62, 629–633. [Google Scholar]
  41. Camp, R.L.; Neumeister, V.; Rimm, D.L. A decade of tissue microarrays: Progress in the discovery and validation of cancer biomarkers. J. Clin. Oncol 2008, 26, 5630–5637. [Google Scholar]
  42. Sullivan, C.A.; Chung, G.G. Biomarker validation: In situ analysis of protein expression using semiquantitative immunohistochemistry-based techniques. Clin. Colorectal. Cancer 2008, 7, 172–177. [Google Scholar]
  43. Giltnane, J.M.; Rimm, D.L. Technology insight: Identification of biomarkers with tissue microarray technology. Nat. Clin. Pract. Oncol 2004, 1, 104–111. [Google Scholar]
  44. Wang, S.L.; Yang, C.H.; Chen, H.H.; Chai, C.Y. A simple and economical method for the manual construction of well-aligned tissue arrays. Pathol. Res. Pract 2006, 202, 485–486. [Google Scholar]
  45. Eguiluz, C.; Viguera, E.; Millan, L.; Perez, J. Multitissue array review: A chronological description of tissue array techniques, applications and procedures. Pathol. Res. Pract 2006, 202, 561–568. [Google Scholar]
  46. Edge, S.B.; Byrd, D.R.; Compton, C.C.; Fritz, A.G.; Greene, F.L.; Trotti, A. AJCC Cancer Staging Manual, 7th ed; Springer: New York, NY, USA, 2010; p. 130. [Google Scholar]
  47. Hoos, A.; Urist, M.J.; Stojadinovic, A.; Mastorides, S.; Dudas, M.E.; Leung, D.H.; Kuo, D.; Brennan, M.F.; Lewis, J.J.; Cordon-Cardo, C. Validation of tissue microarrays for immunohistochemical profiling of cancer specimens using the example of human fibroblastic tumors. Am. J. Pathol 2001, 158, 1245–1251. [Google Scholar]
  48. Kundel, H.L.; Polansky, M. Measurement of observer agreement. Radiology 2003, 228, 303–308. [Google Scholar]
Figure 1. Immunohistochemical staining for Chromatin Assembly Factor 1 (CAF-1 p60) (LSAB technique) (a) the design of tissue microarray technique (TMAs) (haematoxylin and eosin staining). Each slide contains 5 × 6 cores (30 cores) sampled from neoplastic tissues; (b,c) Oral Squamous Cell Carcinoma (OSCC), b: 25×, c: 250×; (d,e) Laryngeal Squamous Cell Carcinoma (LSCC), d: 25×, e: 250×; (f,g) Prostate Carcinoma (PC), f: 25×, g: 250×; (h,i) Skin Squamous Cell Carcinoma (SSCC), h: 25×, i: 250×; (l,m) Skin Melanoma (SM), l: 25×, m: 250×; (n,o) Salivary gland tumours (SGT), n: 25×; o: 250×. Ki67 immunohistochemical staining for Ki67 (LSAB technique) is shown in p (OSCC), q (LSCC), r (PC), s (SSCC), t (SM) and u (SGT).
Figure 1. Immunohistochemical staining for Chromatin Assembly Factor 1 (CAF-1 p60) (LSAB technique) (a) the design of tissue microarray technique (TMAs) (haematoxylin and eosin staining). Each slide contains 5 × 6 cores (30 cores) sampled from neoplastic tissues; (b,c) Oral Squamous Cell Carcinoma (OSCC), b: 25×, c: 250×; (d,e) Laryngeal Squamous Cell Carcinoma (LSCC), d: 25×, e: 250×; (f,g) Prostate Carcinoma (PC), f: 25×, g: 250×; (h,i) Skin Squamous Cell Carcinoma (SSCC), h: 25×, i: 250×; (l,m) Skin Melanoma (SM), l: 25×, m: 250×; (n,o) Salivary gland tumours (SGT), n: 25×; o: 250×. Ki67 immunohistochemical staining for Ki67 (LSAB technique) is shown in p (OSCC), q (LSCC), r (PC), s (SSCC), t (SM) and u (SGT).
Ijms 13 11044f1
Figure 2. Immunohistochemical staining for CAF-1 p60 (LSAB technique) on normal tissues (a) Lower lip, muco-cutaneous junction (left: oral mucosa; right: skin); (b) Larynx: normal-to hyperplastic, with underlying infiltrating squamous cell carcinoma; (c) Salivary gland; (d) Skin (arrow heads indicate normal melanocytes negative to p60 immunostaining); (e) Prostate glands, normal to hyperplastic. The insert shows magnification of the marked area (white square).
Figure 2. Immunohistochemical staining for CAF-1 p60 (LSAB technique) on normal tissues (a) Lower lip, muco-cutaneous junction (left: oral mucosa; right: skin); (b) Larynx: normal-to hyperplastic, with underlying infiltrating squamous cell carcinoma; (c) Salivary gland; (d) Skin (arrow heads indicate normal melanocytes negative to p60 immunostaining); (e) Prostate glands, normal to hyperplastic. The insert shows magnification of the marked area (white square).
Ijms 13 11044f2

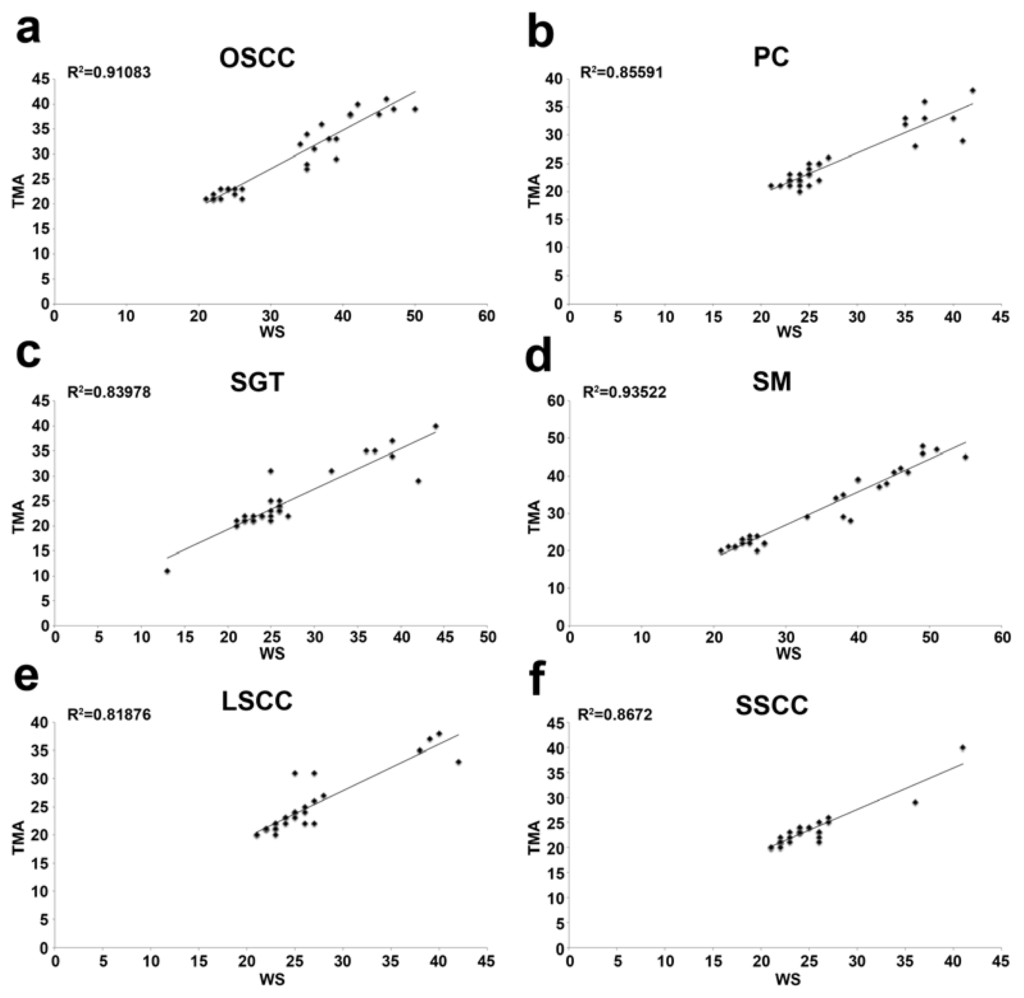

Figure 3. Comparison of the percentage of labelled cells on TMA sections and whole-tissue sections (WS) for the CAF-1 p60 antibody. Scatter plots show a tight grouping of points when the percentage of labelled cells on TMA sections is plotted against the WS for the CAF-1 p60 antibody. The added lines are the lines of best fit, R2 values of linear regressions are shown. (a) Oral squamous cell carcinoma (OSCC); (b) prostate cancer (PC); (c) salivary gland tumour (SGT); (d) skin melanoma (SM); (e) laryngeal squamous cell carcinoma (LSCC); (f) skin squamous cell carcinoma (SSCC).
Figure 3. Comparison of the percentage of labelled cells on TMA sections and whole-tissue sections (WS) for the CAF-1 p60 antibody. Scatter plots show a tight grouping of points when the percentage of labelled cells on TMA sections is plotted against the WS for the CAF-1 p60 antibody. The added lines are the lines of best fit, R2 values of linear regressions are shown. (a) Oral squamous cell carcinoma (OSCC); (b) prostate cancer (PC); (c) salivary gland tumour (SGT); (d) skin melanoma (SM); (e) laryngeal squamous cell carcinoma (LSCC); (f) skin squamous cell carcinoma (SSCC).
Ijms 13 11044f3

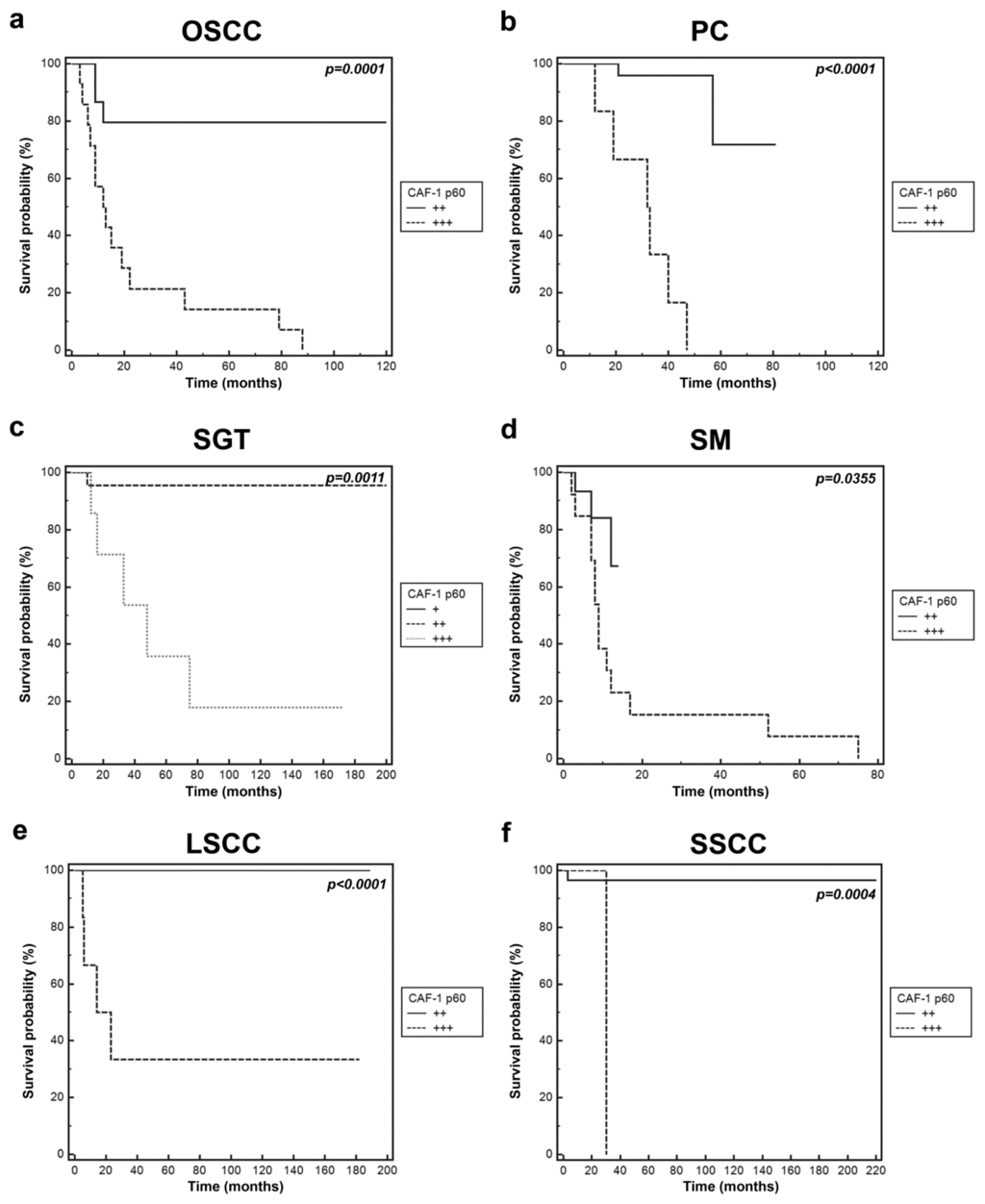

Figure 4. Kaplan-Meier plots showing disease free survival for OSCC, PC, SGT, SM, LSCC AND SSCC patients grouped by the level of expression of CAF-1 p60. Tumor samples were stratified in three categories (+, ++, and +++) based on intensity of CAF-1 p60 immunostaining. The comparison between survival curves and p value was determined by a two-sided log-rank test. (a) Oral squamous cell carcinoma (OSCC); (b) prostate cancer (PC); (c) salivary gland tumour (SGT); (d) skin melanoma (SM); (e) laryngeal squamous cell carcinoma (LSCC); (f) skin squamous cell carcinoma (SSCC).
Figure 4. Kaplan-Meier plots showing disease free survival for OSCC, PC, SGT, SM, LSCC AND SSCC patients grouped by the level of expression of CAF-1 p60. Tumor samples were stratified in three categories (+, ++, and +++) based on intensity of CAF-1 p60 immunostaining. The comparison between survival curves and p value was determined by a two-sided log-rank test. (a) Oral squamous cell carcinoma (OSCC); (b) prostate cancer (PC); (c) salivary gland tumour (SGT); (d) skin melanoma (SM); (e) laryngeal squamous cell carcinoma (LSCC); (f) skin squamous cell carcinoma (SSCC).
Ijms 13 11044f4
Table 1. Clinical and pathological features of all examined patients.
Table 1. Clinical and pathological features of all examined patients.
HistotypeN°mfAge Range (average)F-up Range (average)GradeOutcome
OSCC30181248–95 years (66.7)4–120 months (49.23)10 G1 (33%)3 NED, 2 M, 1 D, 1 M,D, 3 R,M,D
15 G2 (50%)8 NED, 3 M,D, 2 R,D, 2 R,M,D
5 G3 (17%)2 NED, 1 M,D, 1 R,D, 1 R,M,D

PC3030055–80 years (66.7)30–64 months (40)3 GS ≤ 6 (10%)1 NED, 1 M, 1 M,D
18 GS 7 (60%)15 NED, 2 M, 1 M,D
9 GS > 8 (30%)6 NED, 2 M, 1 M,D

SM30151521–81 years (46.2)1–22 years (8.67)6 BT < 1 (20%)4 NED, 1 R, 1 N
8BT 1.01–2 (27%)3 NED, 3 N, 1 R,N, 1 N,M,D
10 BT 2.01–4 (33%)4 NED, 1 M, 2 N, 1 N,M, 2 N,M,D
6 BT > (20%)3 NED, 2 N, 1 R,M,D

SGT30121818–80 years (48.77)12–200 months (67)1 PLGC (3%)1 NED
4 ACC (13%)3 NED, 1 M,R
16 MEC (54%)12 NED, 3 R, 1 M
3 AC (10%)3 NED
5 CXPA (17%)4 NED; 1 R,N
1 PA (3%)1 NED

LSCC3030038–76 years (63.3)38–189 months (130.33)7 G1 (23%)6 NED, 1 M
7 G2 (23%)6 NED, 1 M
16 G3 (54%)14 NED, 2 M

SSCC30171332–95 years (68.04)12–223 months (138.83)8 G1 (26%)8 NED
11 G2 (37%)10 NED, 1 R,N
11 G3 (37%)10 NED, 1 R
GS: Gleason score; BT: Breslow thickness; NED: not evidence of disease; R: relapse; M: distant metastasis; D: death for disease; N: nodes metastasis; OSCC: Oral Squamous Cell Carcinoma; PC: Prostate Carcinoma; SM: Skin Melanoma; SGT: Salivary Gland Tumour; LSCC: Laryngeal Squamous Cell Carcinoma; SSCC: Skin Squamous Cell Carcinoma.
Table 2. Clinical and pathological features of the study population of OSCC, ordered by grading. Correlation with CAF-1 p60 expression.
Table 2. Clinical and pathological features of the study population of OSCC, ordered by grading. Correlation with CAF-1 p60 expression.
SexAgeHistotypeGradingTNM StageWS CAF-1 p60WS CAF-1 p60 (%)TMA CAF-1 p60TMA CAF-1 p60 (%)F-up
m95SCC1I++25++2217 NED
m64SCC1I++22++2121 NED
f81SCC1I++23++214 NED
m49SCC1I+++34+++3243 D
m66SCC1III+++39+++33120 M
m49SCC1III+++41+++3879 M
m86SCC1III+++42+++4022 M,D
m75SCC1IV+++45+++3811 R,M,D
m56SCC1IV+++47+++3977 R,M,D
f68SCC1III+++46+++4188 R,M,D
m66SCC2II++23++23120 NED
m50SCC2I++22++21109 NED
m78SCC2III++25++2311 NED
m48SCC2I++21++2114 NED
m48SCC2I++24++2385 NED
f74SCC2I++26++2119 NED
f67SCC2I++22++2297 NED
f59SCC2II++24++2398 NED
m69SCC2III+++35+++3412 R,D
m58SCC2IV+++36+++318 R,D
f77SCC2I+++38+++33114 M,D
f75SCC2IV+++37+++3627 M,D
f73SCC2III+++41+++3810 M,D
m65SCC2III+++35++2720 R,M,D
m60SCC2IV+++50+++3924 R,M,D
f60SCC3I++26++23106 NED
m66SCC3I++22++2197 NED
f80SCC3II+++35++2823 R,D
m63SCC3III+++39++2917 M,D
m65SCC3II+++41+++3815 R,M,D
NED: not evidence of disease; R: relapse; M: distant metastasis; D: death for disease.
Table 3. Clinical and pathological features of the study population of PC, ordered by Gleason Score. Correlation with CAF-1 p60 expression.
Table 3. Clinical and pathological features of the study population of PC, ordered by Gleason Score. Correlation with CAF-1 p60 expression.
SexAgeHistotypeGleasonTNM StageWS CAF-1 p60WS CAF-1 p60 (%)TMA CAF-1 p60TMA CAF-1 p60 (%)F-up
m70AC5 (3 + 2)pT2bN0+++36++2857 M
m51AC5 (3 + 2)pT2bN0+++40+++3350 M,D
m72AC6 (3 + 3)pT2bN0++23++2281 NED
m68AC7 (3 + 4)pT3aN0++25++2549 NED
m67AC7 (4 + 3)pT3aNx++27++2633 NED
m58AC7 (3 + 4)pT2bN0++24++2132 NED
m45AC7 (3 + 4)pT2bN0++23++2330 NED
m53AC7 (3 + 4)pT2bN0++24++2275 NED
m65AC7 (4 + 3)pT4N1+++37+++3649 M
m63AC7 (4 + 3)pT3aN0++24++2332 NED
m68AC7 (4 + 3)pT3bN0++26++2533 NED
m73AC7 (3 + 4)pT3aN1++23++2256 NED
m71AC7 (4 + 3)pT3bN1++26++2530 NED
m80AC7 (4 + 3)pT3bN1++24++2040 NED
m57AC7 (3 + 4)pT2bN0++21++2133 NED
m70AC7 (3 + 4)pT2aN0++25++2332 NED
m56AC7 (3 + 4)pT2bN0++23++2233 NED
m61AC7 (3 + 4)pT2aN0++25++2432 NED
m65AC7 (4 + 3)pT3bN1+++41++2943 M,D
m60AC7 (3 + 4)pT2aN0++24++2233 NED
m62AC7 (4 + 3)pT3aNo+++35+++3364 M
m64AC8 (4 + 4)pT2bN0++23++2159 NED
m66AC8 (4 + 4)pT3bN1++26++2233 NED
m71AC8 (4 + 4)pT3bN1+++42+++3857 M,D
m60AC8 (4 + 4)PT3aN0++25++2133 NED
m70AC8 (4 + 4)pT3bN0++22++2132 NED
m74AC8 (4 + 4)pT3aN0++25++2332 NED
m64AC8 (4 + 4)pT3bN0+++37+++3348 M
m57AC8 (4 + 4)pT3aN0++24++2230 NED
m73AC8 (4 + 4)pT2bN1+++35+++3234 M
NED: not evidence of disease; R: relapse; M: distant metastasis; D: death for disease.
Table 4. Clinical and pathological features of the study population of SGT, ordered by histology subtype. Correlation with CAF-1 p60 expression.
Table 4. Clinical and pathological features of the study population of SGT, ordered by histology subtype. Correlation with CAF-1 p60 expression.
SexAgeHistotypeGradingTNM StageWS CAF-1 p60WS CAF-1 p60 (%)TMA CAF-1 p60TMA CAF-1 p60 (%)F-up
m49PLGC-pT1N0M0++24++2226 NED
f33AC-pT3N0M0++25++2167 NED
m45AC-pT2NxM0++26++2470 NED
f78AC-pT3NxM0++21++2044 NED
f39ACC-pT2N0M0++25+++3129 NED
f41ACC-pT3N0M0++26++2454 NED
m48ACC-pT4aNxM0+++39+++3771 M,R
f63ACC-pT2NxM0++25++2244 NED
f20LG-MEClowpT1N0M0++22++2149 NED
f57LG-MEClowpT3N0M0+++32+++31173 NED
f18LG-MEClowpT2N0M0++26++2392 NED
f40LG-MEClowpT4aN0M0++27++2269 NED
f62LG-MEClowpT3NxM0++23++22103 NED
m39IG-MECintermediatepT2N0M0+++37+++35140 R
f51IG-MECintermediatepT2N2bM0+++39+++34132 M
m57IG-MECintermediatepT1NxM0+++44+++4094 R
m72IG-MECintermediatepT1NxM0++25++2331 NED
f74IG-MECintermediatepT1NxM0++21++2195 NED
f80IG-MECintermediatepT3NxM0++26++2497 NED
m56HG-MEChighpT2N0M0+++36+++35131 R
f32HG-MEChighpT4NxM0++25++25200 NED
f33HG-MEChighpT1NxM0++22++2123 NED
m51HG-MEChighpT2N0M0++24++2272 NED
m60HG-MEChighpT3N0M0++26++2334 NED
f56CXPA-pT2NxM0++23++2123 NED
f24CXPA-pT2N0M0++26++2597 NED
m42CXPA-pT1N0M0+++42++2955 R,N
m43CXPA-pT3N0M0++23++2163 NED
m72CXPA-pT2NxM0++22++22166 NED
f28PA--+13+1112 NED
NED: not evidence of disease; R: relapse; M: distant metastasis; D: death for disease.
Table 5. Clinical and pathological features of the study population of SM, ordered by Breslow thickness. Correlation with CAF-1 p60 expression.
Table 5. Clinical and pathological features of the study population of SM, ordered by Breslow thickness. Correlation with CAF-1 p60 expression.
SexAgeHistotypeBreslowTNM StageWS CAF-1 p60WS CAF-1 p60 (%)TMA CAF-1 p60TMA CAF-1 p60 (%)F-up
m39MM≤/=1.00IA+++37+++346 R
f36MM≤/=1.00IB+++33++294 N
m56MM≤/=1.00IB++24++232 NED
m35MM≤/=1.00IB++23++217 NED
m41MM≤/=1.00IB++25++237 NED
f32MM≤/=1.00IA++27++226 NED
f66MM1.01–2.00IB+++38+++3512 N
f47MM1.01–2.00IIA+++55+++4512 N,M,D
f39MM1.01–2.00IB+++46+++429 N
f37MM1.01–2.00IIA+++51+++477 R,N
f43MM1.01–2.00IB++23++219 NED
m22MM1.01–2.00IA++24++224 NED
m37MM1.01–2.00IA++26++203 NED
m43MM1.01–2.00IB+++40+++397 N
m45MM2.01–4.00IIIC+++49+++4611 N,M,D
m47MM2.01–4.00IIB+++39++2810 N
f42MM2.01–4.00IIA+++43+++379 N,M,D
f46MM2.01–4.00IIB+++40+++393 N
f81MM2.01–4.00IIA+++45+++412 M
m32MM2.01–4.00IIB+++47+++413 N,M
f50MM2.01–4.00IIA++25++2211 NED
m38MM2.01–4.00IIA++25++243 NED
f56MM2.01–4.00IIA++24++2313 NED
m21MM2.01–4.00IIB++27++2214 NED
f55MM>4.00IIC++22++2114 NED
m54MM>4.00IIB++21++2012 NED
m35MM>4.00IIC++26++242 NED
f38MM>4.00IIC+++44+++381 N
f52MM>4.00IIC+++38++292 R,M,D
m44MM>4.00IIC+++49+++4812 N
NED: not evidence of disease; R: relapse; M: distant metastasis; D: death for disease.
Table 6. Clinical and pathological features of the study population of LSCC, ordered by grading. Correlation with CAF-1 p60 expression.
Table 6. Clinical and pathological features of the study population of LSCC, ordered by grading. Correlation with CAF-1 p60 expression.
SexAgeHistotypeGradingTNM StageWS CAF-1 p60WS CAF-1 p60 (%)TMA CAF-1 p60TMA CAF-1 p60 (%)F-up
m38SCCG1II++22++21187 NED
m66SCCG1IVA+++42+++33184 M
m53SCCG1IVA++27++22182 NED
m68SCCG1III++23++20181 NED
m70SCCG1II++22++21180 NED
m70SCCG1I++24++2382 NED
m53SCCG1I++25++24189 NED
m76SCCG2II++26++22188 NED
m65SCCG2I++21++20186 NED
m75SCCG2IVA++27+++31182 NED
m72SCCG2IVA++23++2158 NED
m52SCCG2I+++40+++3845 M
m61SCCG2II++22++2139 NED
m65SCCG2IVA++25+++3138 NED
m57SCCG3IVA++26++2569 NED
m73SCCG3III++25++2466 NED
m62SCCG3III++23++2245 NED
m63SCCG3IVA++23++22186 NED
m58SCCG3IVA++25++24185 NED
m60SCCG3I++24++23153 NED
m75SCCG3II++22++2165 NED
m52SCCG3IVB+++39+++37187 M
m66SCCG3IVA++23++21183 NED
m59SCCG3III++21++20181 NED
m75SCCG3IVA++25++23124 NED
m58SCCG3IVA++27++2669 NED
m71SCCG3IVA++24++2253 NED
m50SCCG3IVA++26++24119 NED
m72SCCG3III+++38+++35180 M
m65SCCG3IVA++28++27124 NED
NED: not evidence of disease; R: relapse; M: distant metastasis; D: death for disease.
Table 7. Clinical and pathological features of the study population of SSCC, ordered by grading. Correlation with CAF-1 p60 expression.
Table 7. Clinical and pathological features of the study population of SSCC, ordered by grading. Correlation with CAF-1 p60 expression.
SexAgeHistotypeGradingTNM StageWS CAF-1/p60WS CAF-1/p60 (%)TMA CAF-1 p60TMA CAF-1 p60 (%)F-up
m76SCCG1I++23++21223 NED
m73SCCG1I++24++23222 NED
f86SCCG1I++22++20221 NED
m72SCCG1II++26++22218 NED
m36SCCG1II++24++23209 NED
f95SCCG1II++22++21122 NED
m80SCCG1II++26++2369 NED
m55SCCG1I++24++2369 NED
f67SCCG2II++22++22210 NED
m49SCCG2II+++36++29207 R,M
f78SCCG2IV++25++24147 NED
f83SCCG2I++26++23127 NED
m80SCCG2I++24++24126 NED
f68SCCG2II++23++23125 NED
m79SCCG2II++22++2190 NED
f51SCCG2I++26++2124 NED
m63SCCG2I++24++2369 NED
m59SCCG2II++26++2570 NED
m85SCCG2I++21++2066 NED
m32SCCG3IV++22++21213 NED
m67SCCG3II+++41+++40212 R
f71SCCG3I++22++21209 NED
f76SCCG3I++27++25201 NED
f72SCCG3IV++23++22189 NED
m67SCCG3II++24++23155 NED
f73SCCG3II++22++2112 NED
f42SCCG3III++21++2012 NED
m74SCCG3II++27++2668 NED
f77SCCG3II++24++2464 NED
m66SCCG3II++25++24216 NED
NED: not evidence of disease; R: relapse; M: distant metastasis; D: death for disease.
Table 8. Whole tissue sections and TMA concordance, K-coefficients grouped by pathology. Cohen’s weighted kappa statistic, standard error and 95% confidence intervals are shown.
Table 8. Whole tissue sections and TMA concordance, K-coefficients grouped by pathology. Cohen’s weighted kappa statistic, standard error and 95% confidence intervals are shown.
OSCCPCSMSGTLSCCSSCC
K-coefficient0.80180.81480.80180.85290.86960.8076
S.E.0.073611110.086111110.073611110.076388890.088194440.14513889
95% CI0.593–10.571–10.593–10.627–10.620–10.374–1

Share and Cite

MDPI and ACS Style

Mascolo, M.; Ilardi, G.; Merolla, F.; Russo, D.; Vecchione, M.L.; De Rosa, G.; Staibano, S. Tissue Microarray-Based Evaluation of Chromatin Assembly Factor-1 (CAF-1)/p60 as Tumour Prognostic Marker. Int. J. Mol. Sci. 2012, 13, 11044-11062. https://doi.org/10.3390/ijms130911044

AMA Style

Mascolo M, Ilardi G, Merolla F, Russo D, Vecchione ML, De Rosa G, Staibano S. Tissue Microarray-Based Evaluation of Chromatin Assembly Factor-1 (CAF-1)/p60 as Tumour Prognostic Marker. International Journal of Molecular Sciences. 2012; 13(9):11044-11062. https://doi.org/10.3390/ijms130911044

Chicago/Turabian Style

Mascolo, Massimo, Gennaro Ilardi, Francesco Merolla, Daniela Russo, Maria Luisa Vecchione, Gaetano De Rosa, and Stefania Staibano. 2012. "Tissue Microarray-Based Evaluation of Chromatin Assembly Factor-1 (CAF-1)/p60 as Tumour Prognostic Marker" International Journal of Molecular Sciences 13, no. 9: 11044-11062. https://doi.org/10.3390/ijms130911044

Article Metrics

Back to TopTop
