Article

Synthesis and Antimicrobial Evaluation of Some Novel Bis-α,β-Unsaturated Ketones, Nicotinonitrile, 1,2-Dihydropyridine-3-carbonitrile, Fused Thieno[2,3-b]pyridine and Pyrazolo[3,4-b]pyridine Derivatives

Department of Measurements and Environmental Applications, National Institute of Laser Enhanced Sciences (NILES), Cairo University, Giza 12613, Egypt
Int. J. Mol. Sci. 2013, 14(2), 2967-2979; https://doi.org/10.3390/ijms14022967
Submission received: 27 November 2012 / Revised: 9 January 2013 / Accepted: 10 January 2013 / Published: 30 January 2013
(This article belongs to the Section Materials Science)

Abstract

:
The title compounds were prepared by reaction of 1,1′-(5-methyl-1-phenyl-1H-pyrazole-3,4-diyl)diethanone (1) with different aromatic aldehydes 2ac, namely Furfural (2a), 4-chlorobenzaldehyde (2b) and 4-methoxybenzaldhyde (2c) to yield the corresponding α,β-unsaturated ketones 3ac. Compound 3 was reacted with malononitrile, 2-cyanoacetamide or 2-cyanothioacetamide yielded the corresponding bis[2-amino-6-(aryl)nicotinonitrile] 4ac, bis[6-(2-aryl)-2-oxo-1,2-dihydropyridine-3-carbonitrile] 5ac or bis[6-(2-aryl)-2-thioxo-1,2-dihydropyridine-3-carbonitrile] 6a,b, respectively. The reaction of compound 6a with each of 2-chloro-N-(4-bromophenyl) acetamide (7a), chloroacetamide (7b) in ethanolic sodium ethoxide solution at room temperature to give the corresponding 4,4′-(5-methyl-1-phenyl-1H-pyrazole-3,4-diyl)bis-6-(2-furyl)thieno[2,3-b]pyridine-2-carboxamide] derivatives 9a,b. While compound 6a reacted with hydrazine hydrate yielded the 4,4′-(5-methyl-1-phenyl-1H-pyrazole-3,4-diyl)bis[6-(2-furyl)-1H-pyrazolo[3,4-b]pyridin-3-amine] 11. The structures of the products were elucidated based on their spectral properties, elemental analyses and, wherever possible, by alternate synthesis. Antimicrobial evaluation of the products was carried out.

1. Introduction

Recently, the synthesis of a wide variety of bis heterocyclic compounds of different ring sizes with one or several heteroatoms has received a great deal of attention, not only as model compounds for main chain polymers but also because many biologically active natural and synthetic products have molecular symmetry [18]. In addition, α,β-unsaturated ketones (Chalcones) derivatives have a variety of pharmacological activities such as antimalarial [9], anticancer [1013], anti-inflammatory [14], antibacterial [15], antifungal agents [16]. Some nicotinonitrile derivatives are used as non-linear optical (NLO) materials [17], electrical materials [18]. Others have found uses as anticancer agents and Antimicrobial activity [19]. In addition, dihydropyridine derivatives display a broad spectrum of medicinal activities, mainly as antihypertensive and antiarrhythmic drugs [2024]. Others have found uses as anticancer agents [2527].
On the other hand, many compounds with pyrazole ring are of interest due to their broad spectrum of biological activities against NOS inhibitor [28], monoamine oxidase inhibitor [29], and antibacterial [30], antiamoebic [31]. Moreover, N-phenylpyrazole derivatives play an important role in antitumor screening [32] as well as potent antimicrobial activity [33,34]. Furthermore, a pyrazolo[3,4-b]pyridines have Potential and selective inhibitors of glycogen synthase kinase-3 (GSK-3) [35]. Also 3-Cyano-2(1H)-pyridinethiones [36,37] and their related compounds were found to be very reactive substances for the synthesis of many different heterocyclic systems which exhibited biological activities such as antibacterial and antifungal [38]. In light of these findings, we report here the synthesis of some novel bis-heterocycles containing N-phenylpyrazole as a base unit. In addition, some of the newly synthesized compounds were screened for their antibacterial and antifungal activities.

2. Results and Discussion

α,β-Unsaturated ketons (chalcones) are active intermediates and excellent starting materials for the synthesis of several heterocyclic systems. Thus, a Claisen-Schimdt reaction of 1,1′-(5-methyl-1-phenyl-1H-pyrazole-3,4-diyl)diethanone (1), prepared following the previously reported methods [3941], with Furfural (2a), 4-chlorobenzaldehyde (2b) and 4-methoxybenzaldhyde (2c), in 10% ethanolic sodium hydroxide afforded the corresponding bis(α,β-unsaturated ketons) 3ac in 65, 95 and 50% yields, respectively (Scheme 1) [42].
The structure of the products 3ac was determined from spectroscopic as well as elemental analytical data. The IR spectra of 3ac showed the appearance of carbonyl function absorption bands in the region 1663–1658 cm−1. The 1H-NMR spectra of 3ac displayed the two signals of olefinic protons besides the aromatic protons [42], Thus, compound 3b, taken as a typical example of the prepared series, revealed absorption bands at 2923, 1663 and 1598 cm−1 corresponding to CH-aliphatic, two carbonyl groups and C=C functions, respectively. Its 1H-NMR spectrum showed signals at δ 2.38 due to CH3 protons, four duplet signals at δ 7.24 (J = 11.3 Hz), 7.38 (J = 10.5 Hz), 7.54 (J = 10.5 Hz), 7.62 (J = 11.3 Hz) due to 4 CH = protons, in addition to an aromatic multiplet protons in the region δ 7.66–7.84. Their mass spectra revealed in each case the respective molecular ion peak.
Next, condensation of compounds 3ac with malononitrile in the presence of ammonium acetate in n-butanol afforded the corresponding 4,4′-(5-methyl-1-phenyl-1H-pyrazole-3,4-diyl) bis[2-amino-6-(aryl)nicotinonitrile] 4ac were also prepared in fair yields by applying the aforementioned one pot reaction of the compound 1, the corresponding aldehyde and malononitrile in the presence of ammonium acetate (Scheme 2).
The structures of the newly synthesized compounds were confirmed on the basis of their elemental analysis and IR, 1HNMR and mass spectral data. The IR spectrum of compound 4b, taken as a typical example of the series prepared, reveled absorption bands at 2210 and 3438, 3350 cm−1 corresponding to nitrile and NH2 function, respectively. Its 1HNMR spectrum showed two singlet signals at δ 2.32 and 7.35 due to CH3 and 2NH2 protons in addition to an aromatic multiplet in the region δ 7.38–7.61. Their mass spectra revealed in each case the respective molecular ion peak.
But, 3ab was condensed with 2-cyanoacetamide and 2-cyanothioacetamide in the presence of pipridine in ethanol to yield the bis pyridine carbonitrile derivatives 5ac in 60%, 35% and 70% yields, respectively and bis pyridnethione derivatives 6a,b in 60% and 55% yields, respectively, as shown in Scheme 2. The structures of the newly synthesized compounds were confirmed based on their elemental analysis, IR, 1HNMR and mass spectral data (see experimental). Compound 6a was taken as an example reacted with each of 2-chloro-N-(4-bromophenyl) acetamide (7a), chloroacetamide (7b) by stirring in ethanolic sodium ethoxide solution at room temperature to give the corresponding 4,4′-(5-methyl-1-phenyl-1H-pyrazole-3,4-diyl)bis-6-(2-furyl)thieno[2,3-b]pyridine-2-carboxamide derivatives 9a,b. However, treatment of the compound 6a with hydrazine hydrate by refluxing in dioxane afforded the 4,4′-(5-methyl-1-phenyl-1H-pyrazole-3,4-diyl)bis[6-(2-furyl)-1H-pyrazolo[3,4-b]pyridin-3-amine] (11) as shown in Scheme 3. The structure of the products 9a,b and 11 was elucidated by considering the data of IR, 1HNMR, mass spectra and elemental analyses.

3. Experimental Section

3.1. General Experimental Procedures

All melting points were measured on an Electrothermal Gallenkamp apparatus (Weiss-Gallenkamp, London, UK). The infrared spectra were recorded in potassium bromide discs on a Pye Unicam SP3300 and Shimadzo FT IR 8101 PC infrared spectrophotometers (Pye Unicam Ltd. Cambridge, England and Shimadzu, Tokyo, Japan, respectively). The 1H-NMR spectra were recorded on a Varian Mercury VXR-300 spectrometer (300 MHz). The mass spectra were recorded on a GCMS-Q1000-EX Shimadzu and GCMS 5988-A HP spectrometers, the ionizing voltage was 70 eV. Elemental analyses were carried out at the Micro-analytical Center of Cairo University, Giza, Egypt. The biological evaluation of the products was carried out in the Microbiology Division of Micro-analytical Center of Cairo University. The starting material Pyrazole 1 was prepared as previously reported in the literature [39,41].

3.2. Synthetic Procedures

3.2.1. 1,1′-(5-Methyl-1-phenyl-1H-pyrazole-3,4-diyl)bis[3-Aryl prop-2-en-1-one] (3ac)

A mixture of 1,1′-(5-methyl-1-phenyl-1H-pyrazole-3,4-diyl)diethanone (1) (4.84 g, 20 mmol), the appropriate aldehyde 2ac (40 mmol) and 10% ethanolic sodium hydroxide solution (15 mL) in ethanol (30 mL) was stirred for 12 h. The reaction mixture was then warmed at 40 °C for 10 min. and the separated precipitate was filtered off and recrystallized from ethanol to afford the corresponding compounds 3ac.

3.2.2. 1,1′-(5-Methyl-1-phenyl-1H-pyrazole-3,4-diyl)bis[3-(2-furyl)prop-2-en-1-one] (3a)

Yield (65%), mp 180 °C (from EtOH); IR (KBr) νmax: 2916, 2852 (aliphatic CH), 1658 (C=O), 1595 (C=C) cm−1; 1H NMR (DMSO-d6): δ 2.35 (s, 3H, CH3), 6.60 (d, 1H, CH=, J = 10.06 Hz), 6.64 (d, 1H, CH=, J = 6.4 Hz), 7.05 (d, 1H, CH=, J = 10.06 Hz), 7.31 (d, 1H, CH=, J = 9.4 Hz), 7.26–7.89 (m, 11H, ArH). MS m/z (%): 398 (M+, 32.11), 277 (48.19), 265 (66.94), 230 (30.71), 213 (20.16), 154 (21.47). Anal. Calcd for C24H18N2O4 (398.41): C, 72.35; H, 4.55; N, 7.03. Found: C, 72.30; H, 4.52; N, 7.00%.

3.2.3. 1,1′-(5-Methyl-1-phenyl-1H-pyrazole-3,4-diyl)bis[3-(4-chlorophenyl) prop-2-en-1-one] (3b)

Yield (95%), mp 230 °C (from Dioxane); IR (KBr) νmax: 3061 (aromatic CH), 2923 (aliphatic CH), 1663 (C=O), 1598 (C=C) cm−1; 1H NMR (DMSO-d6): δ 2.38 (s, 3H, CH3), 7.24 (d, 1H, CH=, J = 11.3 Hz), 7.38 (d, 1H, CH=, J = 10.5 Hz), 7.54 (d, 1H, CH=, J = 10.5 Hz), 7.62 (d, 1H, CH=, J = 11.3 Hz), 7.66–7.84 (m, 13H, ArH). MS m/z (%): 490 (M+ + 3, 4.86), 489 (M+ + 2, 7.68), 488 (M+ + 1, 23.38), 487 (M+, 14.66), 375 (7.36), 394 (11.66), 264 (0.96), 221 (0.33), 156 (2.20). Anal. Calcd for C28H20Cl2N2O2 (487.37): C, 69.00; H, 4.14; N, 5.75; Cl, 14.55%. Found: C, 68.97; H, 4.12; N, 5.72; Cl, 14.53%.

3.2.4. 1,1′-(5-Methyl-1-phenyl-1H-pyrazole-3,4-diyl)bis[3-(4-methoxyphenyl)prop-2-en-1-one] (3c)

Yield (50%), mp 160 °C (from ethanol); IR (KBr) νmax: 3068 (aromatic CH), 2926, 2835 (aliphatic CH), 1661 (C=O), 1594 (C=C) cm−1; 1H NMR (DMSO-d6): δ 2.22 (s, 3H, CH3), 3.81 (s, 6H, 2OCH3), 6.96 (d, 1H, CH=, J = 9.8 Hz), 7.26 (d, 1H, CH=, J = 10.7 Hz), 7.40 (d, 1H, CH=, J = 10.7 Hz), 7.50 (d, 1H, CH=, J = 9.8 Hz), 7.52–7.79 (m, 13H, ArH). MS m/z (%): 479 (M+ + 1, 1.4), 478 (M+, 6.70), 371 (6.2), 345 (3.3), 317 (8.5), 264 (2.9), 212 (2.4), 156 (2.6). Anal. Calcd for C30H26N2O4 (478.53): C, 75.30; H, 5.48; N, 5.85%. Found: C, 75.28; H, 5.45; N, 5.84%.

3.2.5. 4,4′-(5-Methyl-1-phenyl-1H-pyrazole-3,4-diyl)bis[2-amino-6-(aryl)nicotinonitrile] (4ac)

Method A: A mixture of 1,1′-(5-methyl-1-phenyl-1H-pyrazole-3,4-diyl)diethanone (1) (4.84 g, 20 mmol), malononitrile (2.64 g, 40 mmol), the appropriate aldehyde 2ac (40 mmol) and ammonium acetate (6.0 g), was heated under reflux in n-butanol (40 mL) for 3 h. On cooling, the separated yellow solid was filtered, washed with water and crystallized.
Method B: A mixture of each of 1,1′-(5-methyl-1-phenyl-1H-pyrazole-3,4-diyl)bis[3-Aryl prop-2-en-1-one] 3ac (1 mmol), malononitrile (2 mmol), and 0.616 g ammonium acetate (8 mmol) in n-butanol (40 mL) was refluxed for 3 h. After cooling, the precipitate was filtered off, dried, and crystallized to give 4ac.

3.2.6. 4,4′-(5-Methyl-1-phenyl-1H-pyrazole-3,4-diyl)bis[2-amino-6-(2-furyl)nicotinonitrile] (4a)

Yield (50%), mp 230 °C (from ethanol); IR (KBr) νmax: 3438, 3376 (NH2), 2203 (C≡N) cm−1; 1H NMR (DMSO-d6): δ 2.39 (s, 3H, CH3), 6.72 (s, 4H, 2NH2), 7.11–7.96 (m, 13H, ArH). MS m/z (%): 526 (M+ + 2, 3.87), 525 (M+ + 1, 2.4214), 524 (M+, 100), 468 (45), 367 (7.51), 347 (2.48), 152 (3.05). Anal. Calcd for C30H20N8O2 (524.53): C, 68.69; H, 3.84; N, 21.36. Found: C, 68.67; H, 3.81; N, 21.35%.

3.2.7. 4,4′-(5-Methyl-1-phenyl-1H-pyrazole-3,4-diyl)bis[2-amino-6-(4-chlorophenyl)nicotinonitrile] (4b)

Yield (40%), mp 210 °C (from ethanol); IR (KBr) νmax: 3438, 3350 (NH2), 2210 (C≡N) cm−1; 1H NMR (DMSO-d6) δ: 2.32 (s, 3H, CH3), 7.35 (s, 4H, 2NH2), 7.38–7.61 (m, 15H, ArH). MS m/z (%): 615 (M+ + 2, 6.6), 614 (M+ + 1, 6.6), 613 (M+, 0.8), 456 (5.3), 384 (5.3), 153 (23.7), 118 (25). Anal. Calcd for C34H22Cl2N8 (613.49): C, 66.56; H, 3.61; N, 18.26; Cl, 11.56. Found: C, 66.54; H, 3.60; N, 18.25; Cl, 11.52%.

3.2.8. 4,4′-(5-Methyl-1-phenyl-1H-pyrazole-3,4-diyl)bis[2-amino-6-(4-methoxyphenyl)nicotinonitrile] (4c)

Yield (45%); mp 200 °C (from ethanol); IR (KBr) νmax: 3456–3347 (NH2), 2200 (C≡N) cm−1; 1H-NMR (DMSO-d6) (ppm): 2.47 (s, 3H, CH3), 3.83 (s, 6H, 2OCH3), 7.06 (s, 4H, 2NH2), 7.33–7.64 (m, 15H, ArH’s); 13C-NMR: δ 30.4, 55.3, 84.6, 88.4, 104.2, 108.6, 109.6, 113.9, 114.3, 117.5, 121.7, 125.2, 126.7, 127.2, 128.2, 129.4, 129.9, 130.5, 133.2, 135.6, 139.2, 145.6, 146.5, 153.3, 155.6, 160.4, 160.9, 163.8; MS m/z (%): 604 (M+, 14), 347 (33.3), 257 (37), 119 (22.2). Anal. Calcd for C36H28N8O2 (604.68): C, 71.51; H, 4.67; N, 18.53. Found: C, 71.50; H, 4.65; N, 18.50%.

3.2.9. 4,4′-(5-Methyl-1-phenyl-1H-pyrazole-3,4-diyl)bis[6-(2-aryl)-2-oxo-1,2-dihydropyridine-3-carbonitrile] (5ac)

Method A: A mixture of each of 1,1′-(5-methyl-1-phenyl-1H-pyrazole-3,4-diyl)bis[3-aryl prop-2-en-1-one] 3ac (1 mmol), cyanoacetamide (0.17 g, 2 mmol), and (1.21 g, 16 mmol) ammonium acetate in n-butanol (40 mL) was refluxed for 3 h. After cooling, the precipitate was filtered off, dried, and crystallized to give 5ac.
Method B: A mixture of 1,1′-(5-methyl-1-phenyl-1H-pyrazole-3,4-diyl)diethanone (1) (0.24 g, 1 mmol), appropriate aldehyde (2 mmol), cyanoacetamide (0.17 g, 2 mmol) and (1.21 g, 16 mmol) ammonium acetate in n-butanol (40 mL) was refluxed for 4 h. After cooling, the formed product was collected by filtration and crystallized to give 5ac.

3.2.10. 4,4′-(5-Methyl-1-phenyl-1H-pyrazole-3,4-diyl)bis[6-(2-furyl)-2-oxo-1,2-dihydropyridine-3-carbonitrile] (5a)

Yield (60%); mp 220 °C (from ethanol); IR (KBr) νmax: 3355 (NH), 2213 (C≡N), 1655 (C=O) cm−1; 1H NMR (DMSO-d6) (ppm): 2.35 (s, 3H, CH3), 8.40 (s, 2H, 2NH), 6.91–7.51 (m, 13H, ArH); 13C-NMR: δ 22.1, 90.4, 92.5, 95.0, 104.8, 110.4, 112.3, 114.1, 114.7, 115.6, 116.9, 123.1, 124.5, 129.5, 130.4, 137.8, 140.9, 142.0, 143.2, 143.9, 145.1, 146.7, 149.22, 152.3, 152.61, 153.2, 156.8; MS m/z (%): 527 (M+ + 1, 1.19), 526 (M+, 2.26), 458 (0.02), 391 (3.08), 370 (16.12), 156 (7.36), 118 (41.54), 67 (13.06); Anal. Calcd for C30H18N6O4 (526.52): C, 68.44; H, 3.45; N, 15.96. Found: C, 68.40; H, 3.41; N, 15.95.

3.2.11. 4,4′-(5-Methyl-1-phenyl-1H-pyrazole-3,4-diyl)bis[6-(4-chlorophenyl)-2-oxo-1,2-dihydropyridine-3-carbonitrile] (5b)

Yield (35%), mp 202 °C (from ethanol); IR (KBr) νmax: 3436 (NH), 2216 (C≡N), 1652 (C=O); 1H NMR (DMSO-d6): δ 2.37 (s, 3H, CH3), 7.71 (s, 2H, 2NH), 7.25–7.51 (m, 15H, ArH). MS m/z (%): 615 (M+, 5.40), 385 (10.9), 154 (8.7), 119 (15.2). Anal. Calcd for C34H20Cl2N6O2 (615.48): C, 66.35; H, 3.28; N, 13.65; Cl, 11.52. Found: C, 66.32; H, 3.25; N, 13.60; Cl, 11.50%.

3.2.12. 4,4′-(5-Methyl-1-phenyl-1H-pyrazole-3,4-diyl)bis[6-(4-methoxyphenyl)-2-oxo-1,2-dihydropyridine-3-carbonitrile] (5c)

Yield (70%), mp 190 °C (from ethanol); IR (KBr) νmax: 3437 (NH), 2216 (C≡N), 1664 (C=O) cm−1; 1H NMR (DMSO-d6): δ 2.36 (s, 3H, CH3), 3.83 (s, 6H, 2OCH3), 7.65 (s, 2H, 2NH), 7.10–7.61 (m, 15H, ArH). MS m/z (%): 606 (M+, 1.9), 224 (3.7), 156 (3.7), 119 (18.1), 106 (4.2). Anal. Calcd for C36H26N6O4 (606.65): C, 71.28; H, 4.32; N, 13.85. Found: C, 71.25; H, 4.30; N, 13.82%.

3.2.13. 4,4′-(5-Methyl-1-phenyl-1H-pyrazole-3,4-diyl)bis[6-(2-furyl)-2-thioxo-1,2-dihydropyridine-3-carbonitrile] (6a,b)

An equimolecular amount of 1,1′-(5-methyl-1-phenyl-1H-pyrazole-3,4-diyl)bis[3-(2-furyl)prop-2-en-1-one] (3a) (0.334 g, 1 mmol), 2-cyanoethanethioamide (0.2 g, 2 mmol) and few drops of piperidine in Ethanol (30 mL) was heated under reflux for 5 h. After cooling, the solid product was collected by filtration, washed with ethanol and then recrystallized from ethanol to give 6a,b.

3.2.14. 4,4′-(5-Methyl-1-phenyl-1H-pyrazole-3,4-diyl)bis[6-(2-furyl)-2-thioxo-1,2-dihydropyridine-3-carbonitrile] (6a)

Yield (60%), mp 260 °C (from ethanol); IR (KBr) νmax: 3425 (NH), 3053 (aromatic CH), 2924, 2853 (aliphatic CH), 2216 (C≡N) cm−1; 1H NMR (DMSO-d6): δ 2.37 (s, 3H, CH3), 7.98 (s, 2H, 2NH), 6.67–7.82 (m, 13H, ArH). MS m/z (%): 558 (M+, 1.2), 374 (81.8), 287 (22.7), 227 (50), 127 (22.7), 91 (59.1), 67 (22.7). Anal. Calcd for C30H18N6O2S2 (558.64): C, 64.50; H, 3.25; N, 15.04; S, 11.48. Found: C, 64.48; H, 3.24; N, 15.00; S, 11.46%.

3.2.15. 4,4′-(5-Methyl-1-phenyl-1H-pyrazole-3,4-diyl)bis[6-(4-chlorophenyl)-2-thioxo-1,2-dihydropyridine-3-carbonitrile] (6b)

Yield (55%); mp 250 °C (from ethanol); IR (KBr) νmax: 3416 (NH), 3048 (aromatic CH), 2847 (aliphatic CH), 2206 (C≡N); 1H NMR (DMSO-d6) (ppm): δ 2.40 (s, 3H, CH3), 8.00 (s, 2H, 2NH), 7.46–7.85 (m, 15H, ArH); 13C-NMR: δ 21.5, 43.7, 94.3, 98.4, 102.3, 115.2, 120.8, 121.7, 124.1, 125.0, 128.2, 129.4, 130.1, 130.8, 131.6, 132.4, 133.5, 136.7, 139.7, 140.1, 142.6, 151.86, 157.5, 160.2, 161.8, 184.3, 188.0; MS m/z (%): 649 (M+ + 2, 1.8), 648 (M+ + 1, 2.2), 647 (M+, 3.5), 528 (11.6), 354 (11.6), 313 (23.3), 114 (20.9), 64 (100); Anal. Calcd for C34H20Cl2N6S2 (647.61): C, 63.06; H, 3.11; N, 12.98; Cl, 10.95; S, 9.90. Found: C, 63.02; H, 3.10; N, 12.95; Cl, 10.93; S, 9.89%.

3.2.16. Synthesis of Compounds 9a,b

General Procedure: A solution of each of 6a (0.558 g, 1 mmol and 2-chloro-N-(4-bromophenyl)-acetamide (7a) (0.497 g, 2 mmol) or 2-chloroacetamide (7b) (0.187 g, 2 mmol) in sodium methoxide (prepared from 0.10 g of sodium and ethanol 25 mL) was stirred at room temperature for 15 min. The formed precipitate was collected by filtration, washed with water, ethanol and dried, to give 9a,b respectively.

3.2.17. 4,4′-(5-Methyl-1-phenyl-1H-pyrazole-3,4-diyl)bis[3-amino-N-(4-bromophenyl)-6-(2-furyl) thieno[2,3-b]pyridine-2-carboxamide] (9a)

Yield (50%); mp 180 °C (from ethanol); IR (KBr) νmax: 3475–3328, 3111 (NH and NH2), 1641 (C=O) cm−1; 1H-NMR (DMSO-d6) (ppm): δ 2.34 (s, 3H, CH3), 6.96 (s, 4H, 2NH2), 7.21–8.06 (m, 21H, ArH), 9.55 (s, 2H, 2NH); 13C-NMR: δ 23.7, 48.3, 105.1, 107.1, 109.2, 110.1, 111.2, 112.3, 112.5, 115.2, 120.9, 122.9, 125.2, 126.2, 127.3, 128.5, 129.3, 130.2, 131.1, 133.8, 137.3, 137.8, 138.2, 138.9, 139.6, 145.4, 147.4, 155.6, 157.4, 158.0, 159.0, 160.3, 161.5, 163.7, 165.2, 165.9; MS m/z (%): 984 (M+ + 2, 33), 983 (M+ + 1, 50), 982 (M+, 25), 953 (41), 783 (50), 588 (58), 156 (58); Anal. Calcd for C46H30Br2N8O4S2 (982.72): C, 56.22; H, 3.08; N, 11.40; S, 6.53; Br, 16.26. Found: C, 56.20; H, 3.00; N, 11.38; S, 6.50; Br, 16.23.

3.2.18. 4,4′-(5-Methyl-1-phenyl-1H-pyrazole-3,4-diyl)bis[3-amino-6-(2-furyl) thieno[2,3-b]pyridine-2-carboxamide] (9b)

Yield (30%), mp 194 °C (from ethanol); IR (KBr) νmax: 3434, 3115 (NH and NH2), 3062 (aromatic CH), 2953 (aliphatic CH), 1681 (C=O) cm−1; 1H NMR (DMSO-d6): δ 2.40 (s, 3H, CH3), 6.62–6.68 (s, 4H, 2NH2), 7.13–7.87 (m, 17H, 2NH2 and 13H ArH). MS m/z (%): 672 (M+, 34). Anal. Calcd for C34H24N8O4S2 (672.75): C, 60.70; H, 3.60; N, 16.66; S, 9.53%. Found: C, 60.66; H, 3.59; N, 16.60; S, 9.50%.

3.2.19. 4,4′-(5-Methyl-1-phenyl-1H-pyrazole-3,4-diyl)bis[6-(2-furyl)-1H-pyrazolo[3,4-b]pyridin-3-amine] (11)

A mixture of compound 6a (5.58 g, 0.01 mol) and hydrazine hydrate (20–25 mL) was heated under reflux for 7 h. The solid product was filtered off, washed with EtOH, dried and crystallized from ethanol. Yield (35%), mp 265 °C (from ethanol); IR (KBr) νmax: 3314, 3194 (NH and NH2), 2967 (aliphatic CH) cm−1; 1H NMR (DMSO-d6): δ 2.49 (s, 3H, CH3), 5.01 (s, 4H, 2NH2), 6.66–7.99 (m, 13H, ArH), 8.66 (s, 2H, 2NH). MS m/z (%): 554 (M+, 0.2), 545 (9.4), 489 (26), 199 (15), 155 (15), 77 (100), 67 (11). Anal. Calcd for C30H22N10O2 (554.58): C, 64.97; H, 4.00; N, 25.26%. Found: C, 64.92; H, 3.98; N, 25.20%.

3.3. Antimicrobial Evaluation

The antibacterial and antifungal activity assays were carried out at the Microbiology Division of Microanalytical Center of Cairo University using the diffusion plate method [4345]. A bottomless cylinder containing a measured quantity (1 mL, mg/mL) of the sample is placed on a plate (9 cm diameter) containing a solid bacterial medium (nutrient agar broth) or fungal medium, which has been heavily seeded with a spore suspension of the test organism. After incubation (24 h for bacteria and 5 days for fungi), the diameter of the clear zone of inhibition surrounding the sample is taken as measure of the inhibitory power of the sample against the particular test organism. The solvent used was DMSO and the concentration of the sample used is 100 μg/mL. The results of antimicrobial activity are summarized in Table 1. Most of the synthesized compounds were evaluated for their antibacterial against a Gram negative bacterium (Escherichia coli anaerobic (EC)), a Gram positive bacterium (Staphylococcus aureus (SA)) and for antifungal activity against Candida albicans (CA) and Aspergillus flavus (AF) by diffusion technique [4345]. As seen from the data present in Table 1, Escherichia coli anaerobic is sensitive to compounds 3a, 4c and 9a; furthermore, Staphylococcus aureus is sensitive to compounds 4b,c, 5a and 9a. Whereas, all tested compounds did not exhibit the antifungal activity against the two tested fungi species Candida albicans and Aspergillus flavus. The activity of 4c and 9a is attributed to the presence of pharmacological active 4-methoxyphenyl at position 6 of the nicotinonitrile and 4-bromophenyl at position N of carboxamide.

4. Conclusions

In conclusion, the reactivity of 1,1′-(5-methyl-1-phenyl-1H-pyrazole-3,4-diyl)diethanone (1) was investigated as a versatile and readily accessible building block for the synthesis of new bis-heterocycles incorporating 5-methyl-1-phenyl-1H-pyrazole moiety of biological and pharmaceutical importance.

Acknowledgments

Support from National Institute of Laser Enhanced Sciences (NILES), Cairo University is gratefully acknowledged.

Conflict of Interest

The authors declare no conflict of interest.

References

  1. Li, J.T.; Sun, M.X.; He, G.Y.; Xu, X.Y. Efficient and green synthesis of bis(indolyl)methanes catalyzed by ABS in aqueous media under ultrasound irradiation. Ultrason. Sonochem 2011, 18, 412–414. [Google Scholar]
  2. Wang, Z.; Zhao, C.; Zhao, D.; Li, C.; Ahang, J.; Wang, H. The preparation of substituted bithiophenyl aldehydes via the ring opening of dithieno[2,3-b:3′,2′-d]thiophene in the presence of n-BuLi. Tetrahedron 2010, 66, 2168–2174. [Google Scholar]
  3. Diana, P.; Carbone, A.; Barraja, P.; Kelter, G.; Fiebig, H.; Cirrincione, G. Synthesis and antitumor activity of 2,5-bis(3′-indolyl)-furans and 3,5-bis(3′-indolyl)-isoxazoles, nortopsentin analogues. Bioorg. Med. Chem 2010, 18, 4524–4529. [Google Scholar]
  4. Toyota, K.; Okada, K.; Katsuta, H.; Morita, N. Preparations of bis[2-(2-arylethynyl)-3-thienyl]arenes and bis[2-{2-(trimethylsilyl)ethynyl}-3-thienyl]arenes. Tetrahedron 2009, 65, 145–151. [Google Scholar]
  5. Todd, E.M.; Zimmerman, S.C. Bis-ureidodeazapterin (Bis-DeAP) as a general route to supra molecular star polymers. Tetrahedron 2008, 64, 8558–8570. [Google Scholar]
  6. Diana, P.; Carbone, A.; Barraja, P.; Montalbano, A.; Martorana, A.; Dattolo, G.; Gia, O.; Dalla Via, L.; Cirrincione, G. Synthesis and antitumor properties of 2,5-bis(3′-indolyl)thiophenes: Analogues of marine alkaloid nortopsentin. Bioorg. Med. Chem. Lett 2007, 17, 2342–2346. [Google Scholar]
  7. Blanco, G.; Quintela, J.M.; Peinador, C. Efficient one-pot preparation of bis(pyrazino-[2′,3′:4,5]thieno-[3,2-d]pyrimidin-4-yl)benzenes based on an aza—Wittig/mediated annulation strategy. Tetrahedron 2007, 63, 2034–2041. [Google Scholar]
  8. Promarak, V.; Punkvuang, A.; Jungsuttiwong, S.; Saengsuwan, S.; Sudyoadsuk, T.; Keawin, T. Synthesis, optical, electrochemical, and thermal properties of α,α′-bis(9,9-bis-n-hexylfluorenyl) substituted oligothiophenes. Tetrahedron Lett 2007, 48, 3661–3665. [Google Scholar]
  9. Awasthi, S.K.; Mishra, N.; Kumar, B.; Sharma, M.; Bhattacharya, A.; Mishra, L.C.; Bhasin, V.K. Potent antimalarial activity of newly synthesized substituted chalcone analogs in vitro. Med. Chem. Res 2009, 18, 407–420. [Google Scholar]
  10. Szliszka, E.; Czuba, Z.P.; Mazur, B.; Sedek, L.; Paradysz, A.; Krol, W. Chalcones enhance TRAIL-induced apoptosis in prostate cancer cells. Int. J. Mol. Sci 2010, 11, 1–13. [Google Scholar]
  11. Echeverria, C.; Santibanez, J.F.; Donoso-Tauda, O.; Escobar, C.A.; Tagle, R.R. Structural antitumoral activity relationships of synthetic chalcones. Int. J. Mol. Sci 2009, 10, 221–231. [Google Scholar]
  12. Ilango, K.; Valentina, P.; Saluja, G. Synthesis and in vitro anticancer activity of some substituted chalcones derivatives. Res. J. Pharm. Biol. Chem. Sci 2010, 1, 354–359. [Google Scholar]
  13. Neves, M.P.; Lima, R.T.; Choosang, K.; Pakkong, P.; Nascimento, M.S.J.; Vasconcelos, H.; Pinto, M.; Silva, A.M.S.; Cidade, H. Synthesis of a natural chalcone and its prenyl analogs-evaluation of tumor cell growth-inhibitory activities, and effects on cell cycle and apoptosis. Chem. Biodivers 2012, 9, 1133–1143. [Google Scholar]
  14. Zhang, X.W.; Zhao, D.H.; Quan, Y.C.; Sun, L.P.; Yin, X.M.; Guan, L.P. Synthesis and evaluation of anti-inflammatory activity of substituted chalcone derivatives. Med. Chem. Res 2010, 19, 403–412. [Google Scholar]
  15. Lunardi, F.; Guzela, M.; Rodrigues, A.T.; Corre, R.; Eger-Mangrich, I.; Steindel, M.; Grisard, E.C.; Assreuy, J.; Calixto, J.B.; Santos, A.R.S. Trypanocidal and leishmanicidal properties of substitution-containing chalcones. Antimicrob. Agents Chemother 2003, 47, 1449–1451. [Google Scholar]
  16. Bag, S.; Ramar, S.; Degani, M.S. Synthesis and biological evaluation of α,β-unsaturated ketone as potential antifungal agents. Med. Chem. Res 2009, 18, 309–316. [Google Scholar]
  17. Raghukumar, V.; Thirumalai, D.; Ramakrishnan, V.T.; Karunakarac, V.; Ramamurthy, P. Synthesis of nicotinonitrile derivatives as a new class of NLO materials. Tetrahedron 2003, 59, 3761–3768. [Google Scholar]
  18. Kanbara, T.; Koshida, K.; Sato, N.; Kuwajima, I.; Kubota, K.; Yamamoto, T. Preparation and properties of highly electron-accepting poly(pyrimidine-2,5-diyl). Chem. Lett 1992, 21, 583–586. [Google Scholar]
  19. Kotb, E.R.; El-Hashash, M.A.; Salama, M.A.; Kalf1, H.S.; Abdel Wahed, N.A.M. Synthesis and reactions of some novel nicotinonitrile derivatives for anticancer and antimicrobial evaluation. Acta Chim. Slov 2009, 56, 908–919. [Google Scholar]
  20. Saini, A.; Kumar, S.; Sandhu, J.S. Hantzsch reaction: Recent advances in Hantzch 1,4-dihyropyridines. J. Sci. Ind. Res 2008, 67, 95–111. [Google Scholar]
  21. Schramm, M.; Thomas, G.; Franckowiak, G. Novel dihydropyridines with positive iontropic action through of Ca2+ channels. Nature 1983, 303, 535–537. [Google Scholar]
  22. Nakayama, H.; Kasoaka, Y. Chemical identification of binding sites of calcium channel antagonists. Heterocycles 1996, 42, 901–909. [Google Scholar]
  23. Desai, B.; Sureja, D.; Naliapara, Y.; Shah, A.; Saxena, A.K. Synthesis and QSAR studies of 4-substituted phenyl-2,6-dihydropyridines as potential anti tubercular agents. Bioorg. Med. Chem 2001, 9, 1993–1998. [Google Scholar]
  24. Boer, R.; Gekeler, V. Chemsensitizers in tumor therapy: New compounds promise better efficacy. Drugs Fut 1995, 20, 499–509. [Google Scholar]
  25. Bashandy, M.S.; Al-Said, M.S.; Al-Qasoumi, S.I.; Ghorab, M.M. Design and synthesis of some novel hydrazide, 1,2-dihydropyridine, chromene derivatives carrying biologically active sulfone moieties with potential anticancer activity. Arzneimittelforschung 2011, 61, 521–526. [Google Scholar]
  26. Al-Said, M.S.; Bashandy, M.S.; Al-Qasoumi, S.I.; Ghorab, M.M. Anti-breast cancer activity of some novel 1,2-dihydropyridine, thiophene and thiazole derivatives. Eur. J. Med. Chem 2011, 46, 137–141. [Google Scholar]
  27. Abdel-Fattah, M.A.; El-Naggar, M.A.M.; Rashied, R.M.H.; Gary, B.D.; Piazza, G.A.; Abadi, A.H. Four-component synthesis of 1,2-dihydropyridine derivatives and their evaluation as anticancer agents. Med. Chem 2012, 8, 392–400. [Google Scholar]
  28. Carrión, M.D.; Lopez Cara, L.C.; Camacho, E.V.; Tapias, M.; Escames, G.; Acuña-Castroviejo, D.; Espinosa, A.; Gallo, M.A.; Entrena, A. Pyrazoles and pyrazolines as neural and inducible nitric oxide synthase (nNOS and iNOS) potential inhibitors (III). Eur. J. Med. Chem 2008, 43, 2579–2591. [Google Scholar]
  29. Gökhan-Kelekçi, N.; Koyunoğlu, S.; Yabanoğlu, S.; Yelekçi, K.; Özgen, Ö.; Uçar, G.; Erol, K.; Kendi, E.; Ye-ilada, A. New pyrazoline bearing 4(3H)-quinazolinone inhibitors of monoamine oxidase: Synthesis and biological evaluation and structural determinants of MAO-A and MAO-B selectivity. Bioorg. Med. Chem. 2009, 17, 675–689. [Google Scholar]
  30. Yang, J.F.; Cao, H.; Liu, H.; Li, B.Q.; Ma, Y.M. Synthesis and bioactivity of novel bis-heterocyclic compounds containing pyrazole and oxadiazoline. J. Chin. Chem. Soc 2011, 58, 369–375. [Google Scholar]
  31. Abid, M.; Bhat, A.R.; Athar, F.; Azam, A. Synthesis, spectral studies and antiamoebic activity of new 1-N-substituted thiocarbamoyl-3-phenyl-2-pyrazolines. Eur. J. Med. Chem 2009, 44, 417–425. [Google Scholar]
  32. Farag, A.M.; Mayhoub, A.S.; Barakat, S.E.; Bayomi, A.H. Regioselective synthesis and antitumor screening of some novel N-phenylpyrazole derivatives. Bioorg. Med. Chem 2008, 16, 881–889. [Google Scholar]
  33. Farag, A.M.; Mayhoub, A.S.; Barakat, S.E.; Bayomi, A.H. Synthesis of new N-phenylpyrazole derivatives with potent antimicrobial activity. Bioorg. Med. Chem 2008, 16, 4569–4578. [Google Scholar]
  34. Hui, Y.; Ptak, R.; Paulman, R.; Pallansch, M.; Changa, C.W.T. Synthesis of novel guanidine incorporated aminoglycosides, guanidinopyranmycins. Tetrahedron Lett 2002, 43, 9255–9257. [Google Scholar]
  35. Witherington, J.; Bordas, V.; Gaiba, A.; Naylor, A.; Rawlings, A.D.; Slingsby, B.P.; Smith, D.G.; Takle, A.K.; Ward, R.W. 6-Heteroaryl-pyrazolo[3,4-b]pyridines: Potent and selective inhibitors of glycogen synthase kinase-3 (GSK-3). Bioorg. Med. Chem. Lett 2003, 13, 3059–3062. [Google Scholar]
  36. Fahmy, S.M.; Mohareb, R.M. Cyanothioacetamide in heterocyclic synthesis: A novel synthesis of 2-pyridothione derivatives. Tetrahedron 1986, 42, 687–690. [Google Scholar]
  37. Schmidt, U.; Kubitzek, H. Comparative kinetic studies on the activation of the methyl group by oxygen and sulfur containing groups. Chem. Bericht 1960, 93, 1559–1571. [Google Scholar]
  38. Salem, M.A.; Thabet, H.K.; Ismail, M.A.; Ammar, Y.A. 2N-Aryl 2-cyanothioacetamide intermediates in heterocyclic synthesis: Synthesis and antimicrobial evaluation of 3-cyano-2(1H)-pyridinethione, chromene-3-carbothioamide and chromeno[3,4-c]pyridinethione derivatives. Chem. Sci. J 2011, 36, 1–11. [Google Scholar]
  39. Shawali, A.S.; Haboub, A.J.M. Bis-enaminones as precursors for synthesis of novel 3,4-bis(heteroaryl) pyrazoles and 3,6-bis-(heteroaryl)-pyrazolo[3,4-d]pyridazines. J. Chem. Res 2011, 35, 341–345. [Google Scholar]
  40. Fahmi, A.A. Synthesis of some 2H-pyrazolo[3,4-d]pyridazines. Int. J. Chem 1995, 6, 1–4. [Google Scholar]
  41. Tewari, R.S.; Parihar, P. Studies on nitrile imines: Synthesis of pyrazoles using active methylene compounds. Indian J. Chem 1980, 19, 217–218. [Google Scholar]
  42. Abdel-Aziz, H.A.; Al-Rashood, K.A.; ElTahirb, K.E.; Ibrahim, H.S. Microwave-assisted synthesis of novel 3,4-bis-chalcone-N-arylpyrazoles and their anti-inflammatory activity. J. Chin. Chem. Soc 2011, 58, 863–868. [Google Scholar]
  43. Esmail, R.; Kurzer, F. Heterocyclic compounds from urea derivatives. Part XXIII. Thiobenzoylated thiocarbonohydrazides and their cyclisation. J. Chem. Soc 1975, 18, 1787–1791. [Google Scholar]
  44. Muanz, D.N.; Kim, B.W.; Euler, K.L.; Williams, L. Antibacterial and antifungal activities of nine medicinal plants from Zaire. Int. J. Pharmacog 1994, 32, 337–345. [Google Scholar]
  45. Harborne, J.B.; Williams, C.A. A survey of antifungal compounds from higher plants, 1982–1993. Phytochemistry 1994, 37, 19–42. [Google Scholar]

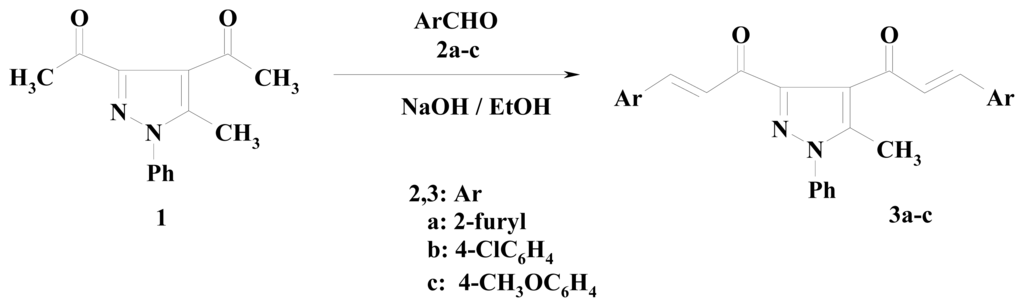

Scheme 1. Synthesis of α,β-unsaturated ketones 3ac.
Scheme 1. Synthesis of α,β-unsaturated ketones 3ac.
Ijms 14 02967f1

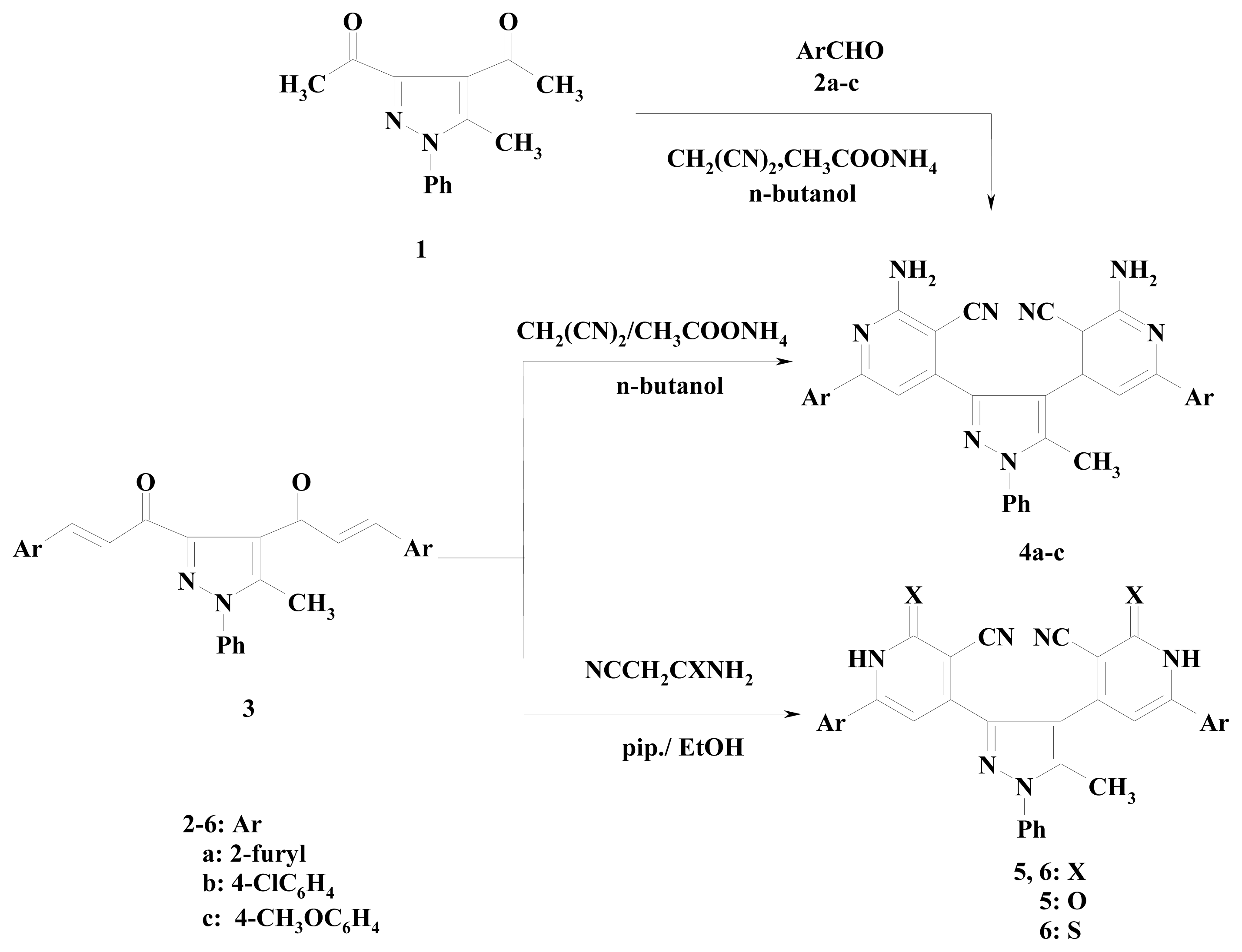

Scheme 2. Synthesis of bis[2-amino-6-(aryl)nicotinonitrile] 4ac, bis[6-(2-aryl)-2-oxo-1,2-dihydropyridine-3-carbonitrile] 5ac and bis[6-(2-aryl)-2-thioxo-1,2-dihydropyridine-3-carbonitrile] 6a,b.
Scheme 2. Synthesis of bis[2-amino-6-(aryl)nicotinonitrile] 4ac, bis[6-(2-aryl)-2-oxo-1,2-dihydropyridine-3-carbonitrile] 5ac and bis[6-(2-aryl)-2-thioxo-1,2-dihydropyridine-3-carbonitrile] 6a,b.
Ijms 14 02967f2

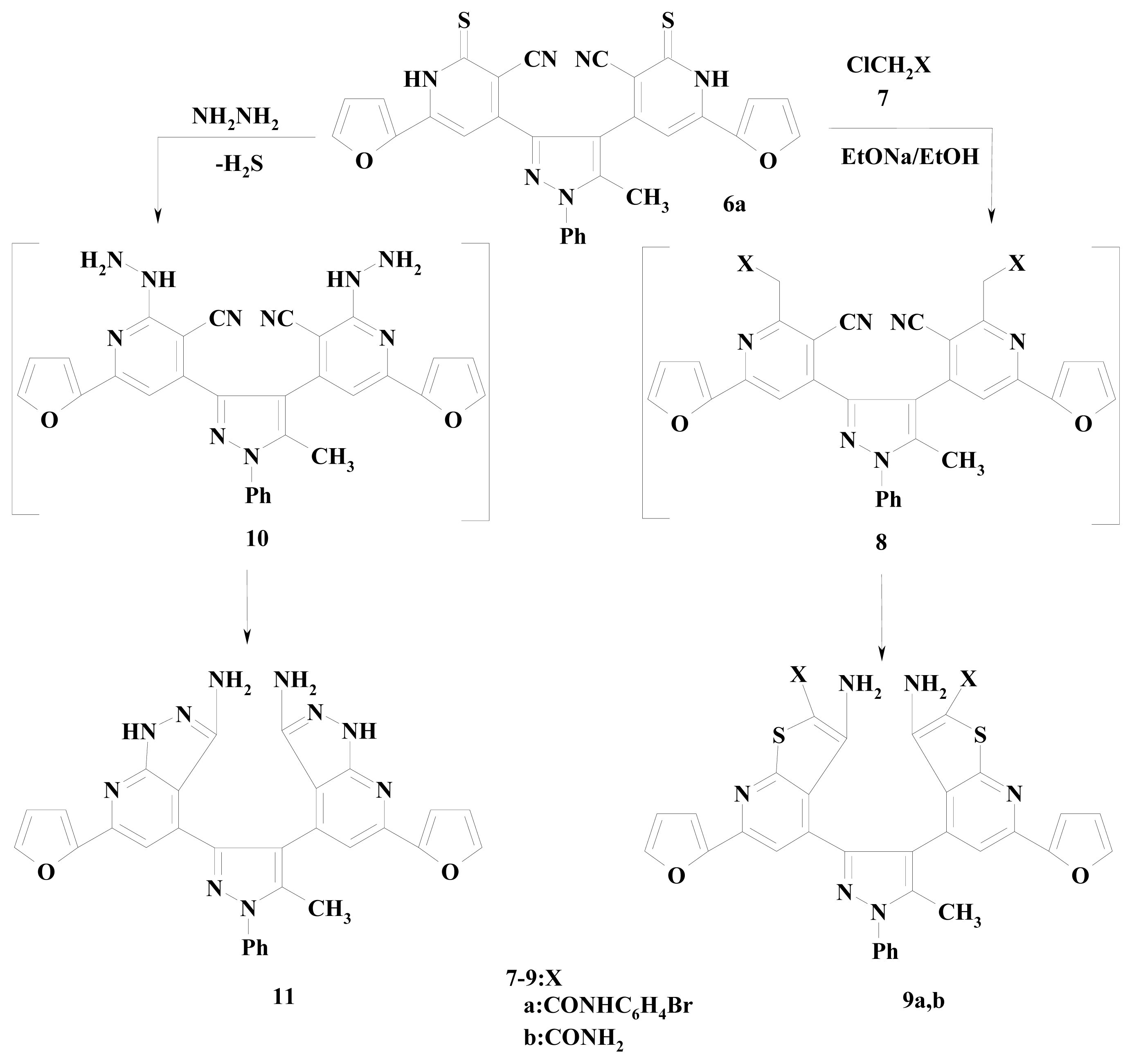

Scheme 3. 4,4′-(5-methyl-1-phenyl-1H-pyrazole-3,4-diyl)bis-6-(2-furyl)thieno[2,3-b]pyridine-2-carboxamide] derivatives 9a,b and 4,4′-(5-methyl-1-phenyl-1H-pyrazole-3,4-diyl)bis[6-(2-furyl)-1H-pyrazolo[3,4-b]pyridin-3-amine] 11.
Scheme 3. 4,4′-(5-methyl-1-phenyl-1H-pyrazole-3,4-diyl)bis-6-(2-furyl)thieno[2,3-b]pyridine-2-carboxamide] derivatives 9a,b and 4,4′-(5-methyl-1-phenyl-1H-pyrazole-3,4-diyl)bis[6-(2-furyl)-1H-pyrazolo[3,4-b]pyridin-3-amine] 11.
Ijms 14 02967f3
Table 1. Antibacterial and antifungal activities of the synthesized compounds (3ac, 4ac, 5a,c, 6a,b) and 9a.
Table 1. Antibacterial and antifungal activities of the synthesized compounds (3ac, 4ac, 5a,c, 6a,b) and 9a.
Compound No.Inhibition Zone Diameter (cm)

Gram (−)Gram (+)Fungi

(EC)(SA)(AF)(CA)
3a100.00.00.0
3b0.00.00.00.0
3c0.00.00.00.0
4a0.00.00.00.0
4b0.0120.00.0
4c16160.00.0
5a0.0100.00.0
5c0.00.00.00.0
6a0.00.00.00.0
6b0.00.00.00.0
9a13140.00.0
Tetracycline3029
Diflucan1821
ATCC for (EC, SA, SA and CA) are 11775, 12600 and 26555, respectively.
