Article

Genetic Diversity Revealed by Single Nucleotide Polymorphism Markers in a Worldwide Germplasm Collection of Durum Wheat

1
Key Laboratory of Plant Germplasm Enhancement and Specialty Agriculture, Chinese Academy of Sciences, Wuhan 430074, Hubei, China
2
Graduate University of Chinese Academy of Sciences, Beijing 100049, China
3
Department of Plant Sciences, University of California, Davis, CA 95616, USA
4
Cereal Research Centre, Agriculture and Agri-Food Canada, Winnipeg, MB R3T 2M9, Canada
5
Institute of Plant Protection, Sichuan Academy of Agricultural Sciences, Chengdu 610066, Sichuan, China
6
Institute of Evolution, University of Haifa, Mount Carmel, Haifa 31905, Israel
7
College of Plant Science & Technology, Huazhong Agricultural University, Wuhan 430071, Hubei, China
8
Department of Soil and Crop Sciences, Colorado State University, Fort Collins, CO 80523, USA
*
Authors to whom correspondence should be addressed.
These authors contributed equally to this work.
Int. J. Mol. Sci. 2013, 14(4), 7061-7088; https://doi.org/10.3390/ijms14047061
Submission received: 1 February 2013 / Revised: 23 February 2013 / Accepted: 1 March 2013 / Published: 28 March 2013
(This article belongs to the Section Biochemistry)

Abstract

:
Evaluation of genetic diversity and genetic structure in crops has important implications for plant breeding programs and the conservation of genetic resources. Newly developed single nucleotide polymorphism (SNP) markers are effective in detecting genetic diversity. In the present study, a worldwide durum wheat collection consisting of 150 accessions was used. Genetic diversity and genetic structure were investigated using 946 polymorphic SNP markers covering the whole genome of tetraploid wheat. Genetic structure was greatly impacted by multiple factors, such as environmental conditions, breeding methods reflected by release periods of varieties, and gene flows via human activities. A loss of genetic diversity was observed from landraces and old cultivars to the modern cultivars released during periods of the Early Green Revolution, but an increase in cultivars released during the Post Green Revolution. Furthermore, a comparative analysis of genetic diversity among the 10 mega ecogeographical regions indicated that South America, North America, and Europe possessed the richest genetic variability, while the Middle East showed moderate levels of genetic diversity.

1. Introduction

Modern wheat cultivars usually refer to two species: hexaploid bread wheat, Triticum aestivum (2n = 6X = 42, AABBDD), and tetraploid, hard or durum-type wheat, T. durum (2n = 4X = 28, AABB) [1]. Durum wheat is traditionally grown around the Mediterranean Sea and is the most common cultivated form of allotetraploid wheat. Currently, more than half of the durum wheat is still grown in the Mediterranean basin, mainly in Italy, Spain, France, Greece, West Asian, and North African countries [2].
Wheat domestication took place 12,000 years ago in the Near East, with the wild ancestor (T. dicoccoides) giving rise to the first domesticated form (emmer wheat, T. dicoccum) [3]. About 2000 years after this event, durum wheat, which is characterized by free threshing, appeared in the eastern Mediterranean and replaced its ancestor T. dicoccum to become the major cultivated form of allotetraploid wheat by the second millennium BC [35]. Durum was part of the initial crop package introduced into Europe and North Africa during the Neolithic period but was preferred in the western Mediterranean basin [6], whereas emmer was the staple crop in Ancient Egypt until the introduction of durum in the Hellenistic Period [7]. Durum wheat continued to spread throughout Europe at the end of the 15th century [8]. That is, when Europeans first touched the shores of the Americas across the Atlantic in 1492, the Columbian Exchange (artificial re-establishment of connections through the commingling of Old and New World plants, animals, and bacteria.) allowed durum wheat from the Old World to the New World [9,10]. Especially in the Spanish colonial periods during the 16–17th centuries, European agriculture had a profound effect on the Americas. The most recent history of durum wheat has been marked by modern genetic improvement, involving the replacement of landraces by inbred varieties and the introduction of dwarfing genes (second part of the 20th century) [3]. These historical events are likely to have altered the original genetic structure and genetic diversity pattern of wheat.
Molecular markers are particularly useful for the evaluation of genetic diversity in wheat and other crop species with a narrow genetic base [11]. To date, a variety of molecular marker techniques are available for genome analysis in wheat. Molecular markers that did not rely on genomic sequence information were designed first, including restriction fragment length polymorphisms (RFLPs) [1214], random amplified polymorphic DNA (RAPD) [1416], and amplified fragment length polymorphism (AFLP) [11,14,1720]. These markers have been used successfully for genetic mapping, phylogenetic relationships [17,18], comparative genomic studies [20], and diversity evaluation [18,19]. However, none of them have been used extensively in breeding programs because they do not meet the requirements for efficient application in marker-assisted-selection (MAS), i.e., adaptability to flexible and high-throughput detection methods, high efficiency with low-quantity and low-quality DNA, low-cost per assay, tight linkage to target loci, and the high level of polymorphism in breeding materials [21,22].
Until now, simple sequence repeat (SSR) markers relying on genomic sequences have been proven to be the most widely used DNA marker type in characterizing germplasm collections of crops, because of their easy use, relatively low cost, and high degree of polymorphism provided by the large number of alleles per locus [23,24]. In the past decade, thousands of SSR markers have been developed for wheat and more than 4000 have been mapped genetically (see GrainGenes: A Database for Triticeae and Avena.[25]). However, operationally, there have been problems in their use caused by challenges in accurately sizing SSR alleles due to PCR and electrophoresis artifacts [26].
More recently, single nucleotide polymorphism (SNP) markers gained significant attention because they are bi-allelic in nature and occur at a much higher frequency in the genome than SSRs and other markers. Furthermore, their genotyping can be easily automated [26]. In crops, the availability of SNP genotyping platforms would facilitate the genetic dissection of traits of economic importance and the application of marker-assisted and genomic selection [21,2729]. Moreover, SNPs are the most abundant class of sequence variability in the genome and thus have the potential to provide the highest map resolution [26,30]. Genome-wide maps comprised of large numbers of SNP markers have been reported in Arabidopsis[31], rice [32], soybean [33], and barley [34]. However, so far only a limited number of SNPs has been reported in wheat [3540], because large-scale SNP discovery in wheat is limited by both the polyploidy nature of the organism and the high sequence similarity found among the three homoeologous wheat genomes [38,41]. Also, none have been reported on genetic diversity and genetic structure detected by SNP markers in world-wide durum wheat germplasm resources.
Information about the genetic diversity and genetic structure in germplasm is of fundamental importance for crop improvement [24]. It is widely argued that the genetic diversity of major crops, especially self-pollinating cereals, has suffered an overall reduction with time, due to the pressure of pure-line selection applied in breeding programs [4244]. Genetic diversity in durum wheat germplasm were studied using several types of molecular markers. However, SNP-detected diversity pattern and genetic relationships in a worldwide germplasm collection of durum wheat have not been reported. Herein, the objectives of our study were to (a) evaluate the genetic diversity in a global durum wheat collection using SNP markers covering the whole genome; (b) unravel the genetic structure of durum wheat; and (c) assess genetic variation temporally and spatially by comparing the diversity among released periods of varieties and among different geographical origins, respectively.

2. Results

2.1. SNP Marker Quality and Genomic Distribution

A total of 230,400 data points were generated by genotyping of 150 durum wheat accessions with multiplexed 1536 Illumina Golden Gate SNP assay. Out of 1536 SNPs presented in our oligonucleotide pool assay (OPA), 1366 (89%) SNPs with high quality genotype calls were obtained, while the other 10% failing to generate clear genotype clustering were removed. Out of the 1366 scoreable SNP markers, 420 were monomorphic across all the 150 accessions and the overall polymorphism rate was 69.3%. Because SNP markers are mainly bi-allelic, therefore, all SNPs showed two alleles only. The 946 polymorphic SNPs markers were used for further analysis. Marker distribution, Nei’s gene diversity, and PIC values estimated for each chromosome and genome were listed in Table 1.
SNPs loci were not evenly distributed across the seven homoeologous groups, and coverage ranged from 108 in group 5 to 161 loci in group 6. Nei’s gene diversity and PIC values across groups ranged from 0.2004 to 0.2508 and from 0.1656 to 0.2006, respectively. The chromosome group 1 had higher genetic diversity and the group 3, 4 and 5 had lower genetic diversity than the genome-wide average (Table 1).
Of the polymorphic loci, 516 and 430 were located in A and B genomes of durum wheat, respectively. As shown in Table 1, a higher genetic diversity was detected in genome B with Nei’s gene diversity, and PIC values of 0.2384 and 0.1970, respectively, while 0.2193 and 0.1819 for genomes A, respectively. This difference between genome A and B was not statistically significant for both gene diversity (t = 1.459, p = 0.195, paired t test) and PIC (t = 1.488, p = 0.187, paired t test). In the A genome of durum wheat, chromosome 6A had higher genetic diversity (Nei’s gene diversity, 0.2526; PIC, 0.2072), and chromosome 4A had lower genetic diversity (Nei’s gene diversity, 0.1899; PIC, 0.1576) than the rest of chromosomes (Table 1). In the B genome, genetic diversity was lower in chromosome 4B and 5B than the genome-wide average, while genetic diversity was higher in chromosome 1B (Nei’s gene diversity, 0.2695; PIC, 0.225) than the genome-wide average (Table 1).

2.2. Genetic Structure

Genotyping data generated by the 946 polymorphic SNP markers were used for genetic structure analysis, using the Bayesian clustering model implemented in the Structure software. The estimated log probability of the data (LnP(D)) increased continuously with increasing K and there was no obvious K value clearly defining the number of populations (Figure 1a). However, the rate of change in the Napierian logarithm probability relative to standard deviation (ΔK) [45] suggested that the best structure was K = 2 (Figure 1b). Thus, the analyzed durum wheat germplasm can be divided into two genetically distinct groups. Similarly, the unrooted NJ tree based on shared-allele genetic distances also distinguished two major groups of accessions (Groups I, II), corresponding to the structure grouping (Figure 2). However, group II can be further divided into four subgroups: IIa, IIb, IIc, and IId. Ecogeographical origin, improvement status (landraces vs. cultivars), and pedigree information of accessions were analyzed to explain the inferred structure.
Group I contained 39 accessions, about half (20/39) of which were collected from the Americas (North America and South America). Further analysis of these accessions showed that this group is dominated by landraces (16) and cultivars released during the Post Green Revolution (PGR) (14) (Figure 2).
Group II contained 96 accessions, which can be further divided into four big subgroups: IIa, IIb, IIc, and IId. Although the grouping pattern is very ecogeographically heterogeneous in each subgroup, the grouping pattern of some accessions appeared to be associated, to some extent, with the release period of varieties (Figure 2). Group IIa is dominated by landraces and old cultivars (OC). Group IIc is dominated by landraces and cultivars released during the Post Green Revolution. Both group IIb and IId are dominated by cultivars released during the Early Green Revolution (EGR).

2.3. Genetic Diversity between Landraces and Cultivars

As shown in Table 2, difference between landrace and cultivar was significant for Nei’s gene diversity (t = 7.214, p < 0.001, paired t test) and PIC (t = 9.026, p < 0.001, paired t test). The higher genetic diversity was detected using SNP markers in the cultivars with Nei’s gene diversity and PIC values of 0.2310 and 0.1919, compared to 0.2192 and 0.1800 for the landrace, respectively. Furthermore, molecular variance component in cultivars and landraces was compared to serve as a complementary indicator for genetic diversity. Analysis of molecular variance (AMOVA) revealed that individuals within cultivars (65.54%) are highly genetically variation in relation to individuals within landraces (33.97%) (Table 3). Similarly, the higher polymorphic level obtained from the cultivars also reflect greater genetic variation compared to that in the landraces. Of the 946 polymorphic SNP markers over the panel of 150 accessions, 756 showed polymorphism (756/946 = 79.9%) among the 53 landraces, while 933 showed polymorphism (933/946 = 98.6%) among the 97 cultivars (Table 2). The panel of 53 landraces has a significant lower level of genetic diversity than the panel of 97 durum wheat cultivars. But previous research showed that landraces had wide genetic diversity, while the cultivars had narrow genetic diversity due to high selection pressure and genetic drift in breeding programs [20,46,47].
In order to explain the reasons why the higher level of genetic diversity exists within improved accessions, the 97 cultivars were further divided into three temporal groups: OC, EGR and PGR. As shown in Table 2, a loss of genetic diversity was observed from OC to EGR (Nei’s gene diversity, t = 6.484, p < 0.001, paired t test; PIC, t = 6.304, p < 0.001, paired t test), but an increase in PGR was observed (Nei’s gene diversity, t = 9.617, p < 0.001, paired t test; PIC, t = 9.885, p < 0.001, paired t test). That is, genetic diversity was narrowed down from 1930 to 1980, but enhanced from 1981 to 2009.
Noteworthy, plant height, as an extremely important target trait in modern wheat breeding, also showed significant variation/decrease. The “Green Revolution” in cereals was achieved by reducing plant height, thereby reducing lodging susceptibility and increasing grain yield [1,48]. As shown in Table 4, mean plant height of landrace and old cultivars were 132.46 and 130.72, respectively, while cultivars released during the periods of EGR and PGR had a significantly lower plant height (F = 19.02, p < 0.01, ANOVA), with an average of 119.13 and 101.91, respectively.

2.4. Divergence between Landraces and Cultivars

We conducted further analyses to identify candidate loci that are under positive selection between landraces and cultivars. An analysis of Fst on a locus-by-locus basis provided a cutoff for identifying loci that may be under positive selection [49]. Therefore, we used an outlier detection method implemented in the LOSITAN program [50]. Between landraces and cultivars, a total of 92 outlier loci under positive selection were identified. Chromosomal distributions of these loci were shown using wheat chromosome bin maps in Figure 3. A high portion of these loci (54.3%) was derived from chromosomes 2, 6, and 7. Among the 92 loci, P-EA (phosphoethanolamine methyltransferase), TsPAP1 (prolyl aminopeptidase 1), CPK10 (Calcium-dependent protein kinase), PI-PLC1 (phosphoinositide-specific phospholipase C1), RSZ38 (alternative splicing regulator), PDS (phytoenedesaturase), and LOX3 (lipoxygenase) gene, which play important roles in plant responses to biotic and abiotic stresses or in grain storage in wheat, were identified as under positive selection between landraces and cultivars. We inferred putative functions of these loci based on comparison to a protein sequence database (Table 5).

2.5. Genetic Diversity vs. Place of Origin

Knowledge of genetic diversity from different ecogeographic areas was expected to have a significant impact on the conservation and utilization programs of durum germplasm, allowing breeders to develop strategies to incorporate useful diversity in their breeding programs. A summary of the genetic diversity data of the 10 mega ecogeographical regions was shown in Table 6. Accessions in South America showed the highest values of both Nei’s gene diversity (0.2518) and PIC (0.2044), followed by North America (0.2351, 0.1937) and Western Europe (0.2299, 0.1902). On the contrary, the lowest level of Nei’s gene diversity and PIC were detected in South Asia (0.1575, 0.1258) and South Africa (0.1591, 0.1255). The remaining regions had a moderate level of Nei’s gene diversity and PIC value including the Middle East (0.1906, 0.1549), North Africa (0.2054, 0.1682), Oceania (0.2179, 0.1747), East Asia (0.2220, 0.1798), and East Europe (0.2183, 0.1792) (Table 6).

3. Discussion

3.1. SNP-Based Polymorphism and Genetic Diversity

Average Nei’s gene diversity and PIC values revealed by SNP markers in this study were 0.2280 and 0.1888, respectively (Table 1). Compared to the previous studies on durum wheat, this level of genetic diversity is not high. Moragues et al. [8] reported genetic diversity of 63 durum wheat landraces from the Mediterranean basin, and obtained PIC values of 0.24 and 0.70 for AFLP and SSR, respectively. Maccaferri et al. [2] studied genetic diversity of the elite durum wheat germplasm from Italy and other Mediterranean countries using SSR markers, and estimated a mean diversity index (DI) of 0.56. Relatively lower genetic variation revealed by SNP marker is an expected. Because SNP markers are mainly bi-allelic, the gene diversity and PIC thus cannot exceed 0.50, whereas the maximum can approach 1 for multi-allelic markers, such as SSRs.
Despite this fact, a sufficient level of genetic variation and similar variation trend can be detected using SNP markers. For example, our results are in agreement with previous studies that chromosomes 4A and 4B have relatively low genetic diversity due to the evolutionary translocation events involving chromosome 4A [14,51,52]. The greater genetic variation in the B genome than in the A genome was detected in this study (Table 1), which suggested a larger contribution of the B than A genome to durum genetic variation. The different contribution of A, B genomes to genetic variation was also demonstrated in previous studies by the use of SSRs [53], RFLPs [54] and AFLP [14] in common hexaploid wheat as well as in T. dicoccoides[1,55]. These results suggest that SNP can be used as an effective type of molecular markers for genetic evaluation in wheat.

3.2. Genetic Structure Raveled by SNP Markers

Genetic structure is similar among the 150 T. durum accessions, based on the Bayesian clustering model implemented in the Structure software and NJ algorithm implemented in POWERMARKER Ver. 3.25 and PHYLIP (Figures 1 and 2). Neither geographical nor ecological evidence for most accessions was detected in the grouping. This result suggested that the relationships we have found between countries are greatly affected by the within-countries variability. Consequently, countries that showed a large variability do not group easily (their grouping distance is large). AMOVA indicated that 90.81% of the genetic variation resided among accessions within the country (data not shown).
The reason might be that the gene flows via germplasm exchanges among different regions occurred frequently or that human transfer of genes in history made a very big admixture. This is consistent with the known history. Contact between the Old and New World after Columbus’ voyages allowed the exchange of many domesticated plants, including wheat. Especially, in the case of the Spanish colonies in Americas, it is well known that Spaniards not only tried by all possible means to introduce their own European culture, but also, with tenacity, to introduce many crops (including durum wheat landraces and cultivars) from Europe to the American territories [10]. Besides, emigration had a profound influence on the world in the 18th, 19th, and 20th centuries. Through trade routes and immigration, new varieties of wheat were sold or shared by people from different regions. Our ongoing experiment, including many more durum landraces collected from Spain and Mexico, will help us further understand germplasm exchanges between the Old and New World.
An alternative or complementary possibility may be found in breeding history. In this study, most of the accessions selected were cultivars (97/150 = 64.7%), and cultivars experienced primarily artificial selection, and only secondarily natural selection, for certain desirable characteristics. For example, breeding efforts focused on early maturity and yield increase before 1930, disease resistance from 1930 to 1970, and multiple disease resistance and quality improvement after 1970 [5658]. Such human activities must have played a great part in a genetic shift. That is also why the grouping pattern of durum wheat accessions appeared to be associated with the released period of varieties to some extent (Figure 2).
However, not all accessions released from the same period were clustered in the same group. In contrast, some of accessions from the same geographic region were clustered together though into different groups corresponding to their geographical regions of collection (Figure 2). For example, South America contained 12 accessions; most of which (7/12) were clustered together into Group I, and others were mainly distributed in Group IId. Most of the American accessions (7/13) were clustered together into Group I. These results indicate that many of the accessions were clustered into groups corresponding to their geographical regions of collection, which may be due to the same environmental conditions or to agronomical practices.
Above all, such genetic structures and grouping patterns of the 150 durum wheat accessions were obviously affected by environmental conditions, release period of varieties, and gene flows via germplasm exchanges or artificial transfer of genes.

3.3. Genetic Diversity

Measurements of genetic diversity in crops have important implications for plant breeding programs and the conservation of genetic resources. In the present study, temporal and spatial genetic variation was analyzed by comparing the diversity among released periods of varieties and among different geographical origins, respectively.

3.3.1. Temporally: Genetic Diversity vs. Year of Release

It has been argued that the level of genetic diversity in the modern durum wheat cultivar germplasm may have declined due to high-pure breeding selection pressure applied in breeding programs. This is also true for wild emmer wheat and wild barley due to global warming as discovered in a recent study by Nevo et al. [59]. However, our results demonstrated that there still existed a substantial level of genetic variation within a set of durum wheat cultivars as detected by SNP markers (Table 2).
We did find a significant reduction in the diversity of varieties released in the 1960s and 1970s, compared with the diversity levels in the landraces and old cultivars (1930–1964) (p < 0.001, paired t test). But the diversity was significantly increased in varieties released after the 1960s and 1970s (p < 0.001, paired t test) (Table 2). That is, genetic basis of durum wheat was narrowed down from 1930 to 1980, but was widened from 1981 to 2009 (Table 2). These results are in agreement with the previous reports by Soleimani et al. [11] and Maccaferri et al. [2]. Genetic diversity estimates in modern cultivars of durum wheat using AFLP and pedigree-based techniques showed that the level of genetic variation within the most recently developed cultivars is fairly substantial [11]. Likewise, microsatellite analysis also reveals a progressive widening of the genetic basis in the elite durum wheat germplasm [2]. However, we showed opposite results with Fu et al. who concluded genome-wide reduction of genetic diversity in Canadian wheat breeding programs [5658]. The reasons may be due to differences in materials used and regions of collection. A worldwide durum wheat collection consisting of 150 accessions was used to estimate the genetic diversity in this study, while 75 Canadian hard red spring wheat (T. aestivum L.) cultivars were used in Fu’s study.
The low diversity levels of varieties released in 1965–1980 might be due to the “Early Green Revolution”, which was characterized by breeding semi-dwarf varieties possessing a higher yielding potential [60,61]. Interestingly, this deduction of genetic diversity was in agreement with decrease of plant height in durum wheat (Tables 2 and 4). The increase in genetic diversity from the 1980s may be explained by a change in the breeding strategy of the International Maize and Wheat Improvement Center (CIMMYT) in the late 1970s. During the last 50 years, CIMMYT has played a great role in wheat improvement including durum. Out of 140 durum varieties released from the period 1966–1992, 90 varieties (64%) are from CIMMYT crosses [62]. When CIMMYT realized the danger of narrowing down their germplasm base in the late 1970s, they changed the breeding strategy, aiming at increasing productivity while ensuring genetic diversity. Our result showed that genetic diversity was narrowed down from 1930 to 1980 but was enhanced from 1981 to 2009 (Table 2), indicating that CIMMYT breeders successfully increased the genetic diversity. The increase in genetic diversity can be obtained mainly through the introgression of various novel wheat materials [63,64], which can be proved in this study. Many cultivars used in this study were obtained by crossing T. dicoccoides and durum wheat. The pedigree information of these accessions used can be obtained from the Germplasm Resources Information Network (GRIN) [65] based on accession identifier # (Table 7).
Above all, the reason why genetic diversity is larger in cultivars than in landraces may be due to breeding strategy and breeders’ efforts. Alternatively, imbalanced sample size in the two groups (53 landraces vs. 97 cultivars) was used.

3.3.2. Spatially: Genetic Diversity vs. Place of Origin

Generally speaking, great genetic variation should exist in the center of origin and domestication. Moreover, Vavilov reported that the Middle, Near East regions, and North Africa are considered the centers of origin and diversification of durum wheat [66]. However, in this present study, comparative analysis of genetic diversity among the 10 mega ecogeographical regions indicated that the greatest genetic diversity was found in South America, followed by North America and Western Europe, while Middle East showed moderate levels of genetic diversity (Table 6).
These results support the idea that the centers of diversity are not confined exclusively to their centers of origin [5,67]. Harlan [68,69] studied the distribution of variability in crops and concluded that there exist several centers of diversity in different crops which could not be regarded as centers of their origin. But it is worth pointing out that our results correspond to the centers of genetic diversity described by Vavilov [64]: North Africa should be considered as a microcenter of diversity for durum wheat in the southeastern Mediterranean (Table 6).
Higher genetic diversity in the New World than in the Old World where durum evolved was detected. The reason can be explained by a combination of the uneven distribution of landraces or cultivars among countries and different genetic diversity levels between landraces and cultivars used in this study. As shown in Table 2, the greatest genetic diversity was found in the cultivars released from PGR, followed by landraces, old cultivars, and EGR. In this study, a larger number of cultivars released during the period of 1981–2009 existed in ecogeographical regions having greater genetic diversity such as South America, North America, and Western Europe. For example, of the 33 accessions from North America, there are 24 cultivars released during the period of 1981–2009, accounting for 72.7%. To the contrary, Middle East has relatively lower genetic diversity based on 32 accessions, 18 of which are landraces, and 9 are old cultivars.

3.4. Divergence between Landraces and Cultivars Revealed by SNP Markers

Durum wheat had undergone intensive selection during domestication and the subsequent breeding process for certain desirable characteristics, such as high and stable yields. Such artificial selection activities may result in significant differentiation at some loci during domestication and the subsequent breeding process, since traits, e.g., grain yield, seed size, plant height, etc., are quantitatively inherited [1]. A Fst-outlier method was used to identify loci that may be under positive selection and therefore might be linked to genome regions conferring the phenotypic variation present in the analyzed germplasm.

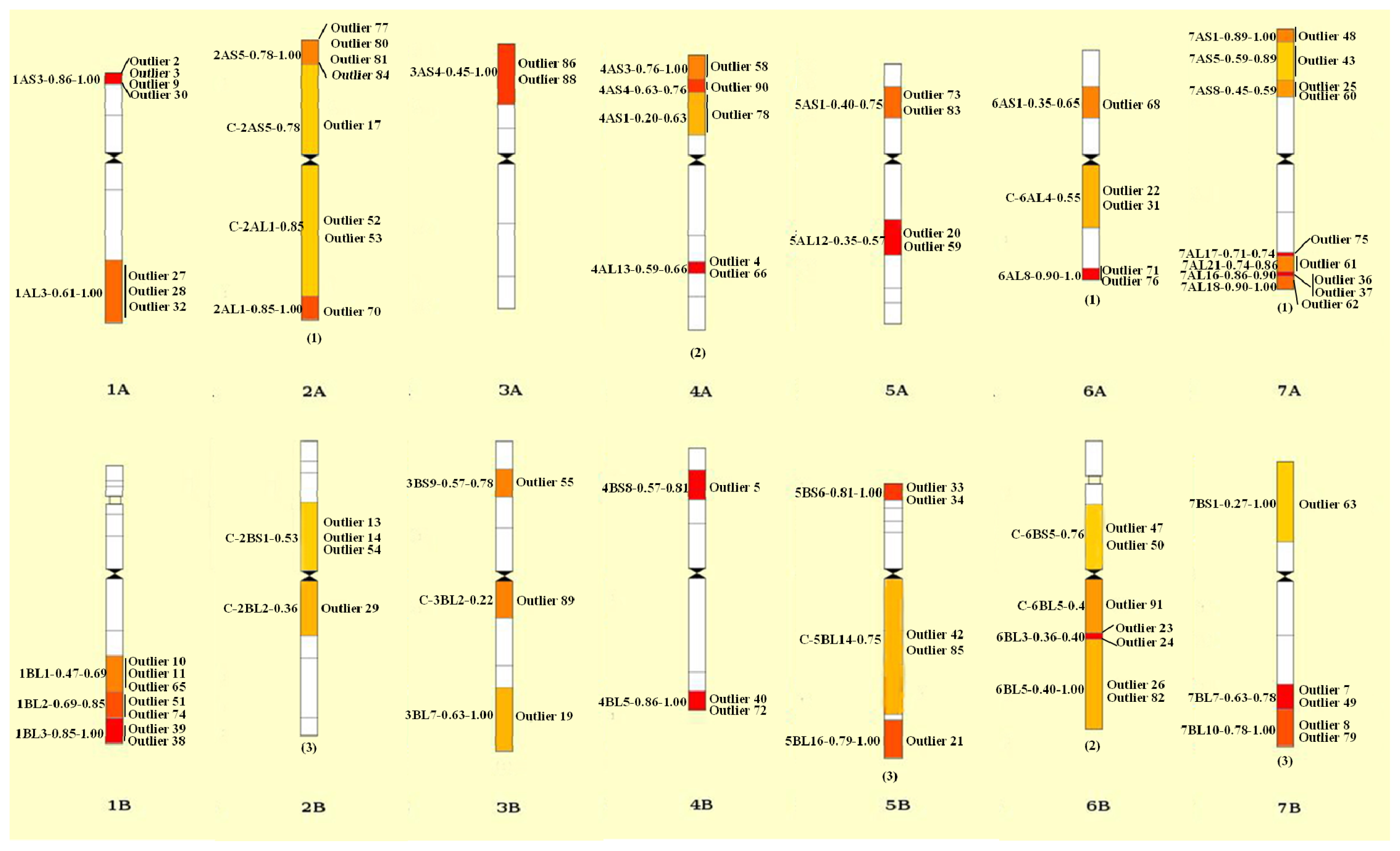

We identified 92 candidate loci under positive selection based on Fst values that fall outside of the 99% confidence interval established for the distribution. These loci may be directly under selection, but more likely mark regions of the genome that have been selected during evolution. The loci we identified have a disproportional bias with 54.3% mapping to chromosomes 2, 6 and 7 (Figure 3, Table 5). This observation suggests that there are “hot spots” for directional selection in durum wheat. In addition, seven genes including P-EA, TsPAP1, CPK10, PI-PLC1, RSZ38, PDS, and LOX3, which play important roles in plant responses to biotic and abiotic stresses or in grain storage in wheat, appear to be under selection when comparing landraces with cultivars (Table 5). These results suggest that the use of objective approaches to identify outliers will reveal portions of the genome that are under selection. Such objective assessment will provide a scalable means for comprehensive assessments of genetic variation within durum wheat as emerging sequence data and improved genotyping platforms lead to larger data sets [49].

4. Experimental Section

4.1. Plant Materials

A total of 150 durum wheat accessions consisting of 53 landraces and 97 cultivars were used in this study. Ninety-seven cultivars were further divided into three temporal groups according to their released period: group 1, 1930–1964 (old cultivars, OC); group 2, 1965–1980 (Early Green Revolution, EGR); group 3, 1981–2009 (Post Green Revolution, PGR) [62,63,70,71]. The “Early Green Revolution” was characterized by breeding semi-dwarf varieties. The first semi-dwarf durum variety was released in Mexico in 1965 [60,61]. These 150 accessions were collected from 10 mega ecogeographical regions: East Asia, South Asia, Middle East, North America, South America, Oceania, Western Europe, Eastern Europe, South Africa, and North Africa, covering 41 countries and spatially reflecting different genetic backgrounds (Figure 4). Detailed information about each accession is shown in Table 7.

4.2. Genomic DNA Extraction and SNP Genotyping

Young leaves from each accession were collected and frozen in liquid nitrogen. Genomic DNA was isolated using a modified SDS (Sodium dodecyl sulfate) method according to Peng et al. [72]. The extraction buffer (pH 7.8–8.0) consisting of 500 mM sodium chloride (NaCl), 100 mM tris (hydroxymethyl) aminomethane hydrochloride (Tris–HCl) pH 8.0, 50 mM ethylene diamine tetraacetic acid (EDTA) pH 8.0, 0.84% (w/v) Sodium dodecyl sulfate (SDS), and 0.38% (w/v) sodium bisulfate.
The 150 durum wheat accessions were genotyped with 1536 SNP markers. These SNPs, discovered in a panel of 32 lines of tetraploid and hexaploid wheat, were downloaded from the Wheat SNP Database [73]. SNP selection and assay design were performed according to previously described procedures [35,74]. The following criteria were applied for SNP selection: no more than 2 SNPs were selected per locus, with preference being given to SNPs present in at least two lines in the discovery panel. Additional SNPs were discovered by sequencing the transcriptomes of T. aestivum cv. Chinese Spring and Jagger [35,74].
A total of 150 ng of genomic DNA per genotype was used for Illumina SNP genotyping at the Genome Center of University of California in Davis using Illumina Bead Array platform and Golden Gate Assay following the manufacturer’s protocol [75]. Genotype scores were called using the Illumina’s Genome Studio V 2010.3. Each of the 1536 SNP clusters was manually examined to correct imperfect calling of automated clustering.

4.3. Genetic Diversity

Genetic diversity was evaluated using POWERMARKER Ver. 3.25 [76]. The genetic parameters including Nei’s gene diversity and polymorphism information content (PIC) were used. Nei’s gene diversity was defined as the probability that two randomly chosen alleles from the population are different [77]. PIC values provide an estimate of the probability of finding polymorphism between two random samples of the germplasm.

4.4. Genetic Structure and Population Differentiation

In order to have a better insight into the genetic structure of durum wheat, different methods were exploited. First, we applied the Bayesian model-based clustering algorithm implemented in STRUCTURE 2.2 [78]. Admixture and correlated allele frequency models were employed with a number of clusters (K) ranging from 1 to 12. For each K, five runs were carried out. Burn-in time and replication number were both set to 100,000 for each run. Accessions with probability of membership greater than 80% were assigned to a subgroup, while those with lower probabilities were assigned to the “mixed” subgroup. Dendrograms, based on the NJ algorithm according to shared-allele distance, were also used to analyze the genetic structure of the germplasm. A phylogenetic tree was implemented by POWERMARKER Ver. 3.25. Bootstrapping over loci with 1000 replications was carried out to assess the strength of the evidence for the branching patterns in the resulting NJ tree. A consensus tree with bootstrap values was reconstructed by the consensus program of PHYLIP [79] and displayed by FigTree Ver.1.3.1[80].
The population differentiation was assessed with the AMOVA implemented in the ARLEQUIN version 3.11software [81]. Significance levels for variance components were estimated using 16,000 permutations. We identified loci under positive selection between landrace and cultivars using a Fst-outlier detection method as implemented in the LOSITAN workbench [50]. The analysis was performed with 100,000 simulations using an infinite allele model. Based on Fst values that fall outside of the 99% confidence interval, candidate loci identified under positive selection were used for further analysis.

4.5. Statistical Tests

SPSS V.13.0 program was used for statistical analyses [82]. The significance of differences for Nei’s gene diversity and PIC among chromosomes was tested by estimating a 95% confidence interval (CI) of the genome mean, which was calculated using bootstrap analysis with 1000 replications. Chromosome means outside of the 95% CI were declared significantly different from the genome mean [36]. The Paired t test was used to test the significance of differences of genetic diversity between genomes using Nei’s gene diversity and PIC per chromosome as variables. The significance of differences for genetic diversity parameters between cultivars and landrace were also tested by paired t test. The plant height data were analyzed by analysis of variance (ANOVA) and the means among group were further tested by Duncan’s Multiple Range Test.

5. Conclusions

In this study, we used worldwide germplasm accessions and 946 SNP markers to estimate genetic structure and genetic diversity of durum wheat on the whole genome level. Genetic structure, based on a set 150 accessions from different places of origin, was greatly affected by many factors, such as environmental conditions, release period of varieties, and gene flows via germplasm exchanges or human activities. Genetic diversity indicated that there still existed a substantial level of genetic variation within modern cultivars of durum wheat as detected by SNP markers, despite rigorous selection pressure aimed at cultivar purity and associated breeding practices. Our results can be used to accelerate wheat improvement by addressing the patterns of genetic variation within durum wheat, conserving adequate type and number of germplasm accessions and helping breeders maximize the level of variation present in segregating populations by crossing cultivars with greater genetic distance.

Acknowledgments

This work was supported by the China National Science Foundation (NSFC) Grant Nos. 31030055 and 30870233, China National Special Program for Development of Transgenic Plant & Animal New Cultivars (Development of transgenic quality wheat germplasm with soft & weak gluten, and Development of transgenic wheat new cultivars with resistance against rust diseases and powdery mildew), Chinese Academy of Sciences under the Important Directional Program of Knowledge Innovation Project Grant No. KSCX2-YW-Z-0722, the CAS Strategic Priority Research Program Grant No.XDA05130403, the “973” National Key Basic Research Program Grant No. 2009CB118300, and the Ancell Teicher Research Foundation for Genetics and Molecular Evolution.

Conflict of Interest

The authors declare no conflict of interest.

References

  1. Peng, J.H.; Sun, D.; Nevo, E. Domestication evolution, genetics and genomics in wheat. Mol. Breed 2011, 28, 281–301. [Google Scholar]
  2. Maccaferri, M.; Sanguineti, M.C.; Donini, P.; Tuberosa, R. Microsatellite analysis reveals a progressive widening of the genetic basis in the elite durum wheat germplasm. Theor. Appl. Genet 2003, 107, 783–797. [Google Scholar]
  3. Thuillet, A.C.; Bataillon, T.; Poirier, S.; Santoni, S.; David, J.L. Estimation of long-term effective population sizes through the history of durum wheat using microsatellite data. Genetics 2005, 169, 1589–1599. [Google Scholar]
  4. Luo, M.C.; Yang, Z.L.; You, F.M.; Kawahara, T.; Waines, J.G.; Dvorak, J. The structure of wild and domesticated emmer wheat populations, gene flow between them, and the site of emmer domestication. Theor. Appl. Genet 2007, 114, 947–959. [Google Scholar]
  5. Dvorak, J.; Luo, M.Ch.; Akhunov, E.D. N.I. Vavilov’s theory of centers of diversity in the light of current understanding of wheat diversity, domestication and evolution. Czech J. Genet. Plant Breed. 2011, 47, S20–S27. [Google Scholar]
  6. Zapata, L.; Peña-Chocarro, L.; Pérez-Jordá, G.; Stika, H.P. Early Neolithic agriculture in the Iberian Peninsula. J. World Prehist 2004, 18, 283–325. [Google Scholar]
  7. Crawford, D. Food: Tradition and change in Hellenistic Egypt. World Archaeol 1979, 11, 136–146. [Google Scholar]
  8. Moragues, M.; Moralejo, M.; Sorrells, M.E.; Royo, C. Dispersal of durum wheat [Triticum turgidum L. ssp. turgidum convar. durum (Desf.) MacKey] landraces across the Mediterranean basin assessed by AFLPs and microsatellites. Genet. Resour. Crop Evol 2007, 54, 1133–1144. [Google Scholar]
  9. Crosby, A.W., Jr. The Columbian Exchange: Biological and Cultural Consequences of 1492; Greenwood Press: Westport, CT, USA, 1972. [Google Scholar]
  10. Capparelli, A.; Lema, V.; Giovannetti, M.; Raffino, R. The introduction of Old World crops (wheat, barley and peach) in Andean Argentina during the 16th century A.D.: Archaeobotanical and ethnohistorical evidence. Veget. Hist. Archaeobot 2005, 14, 472–484. [Google Scholar]
  11. Soleimani, V.D.; Baum, B.R.; Johnson, D.A. AFLP and pedigree-based genetic diversity estimates in modern cultivars of durum wheat [Triticum turgidum L. subsp. durum (Desf.) Husn.]. Theor. Appl. Genet 2002, 104, 350–357. [Google Scholar]
  12. Autrique, E.; Nachit, M.; Monneveux, P.; Tanksley, S.D.; Sorrells, M.E. Genetic diversity in durum wheat based on RFLP, morphophysiological traits and coefficient of parentage. Crop Sci 1996, 36, 735–742. [Google Scholar]
  13. Peng, J.; Fahima, T.; Röder, M.S.; Li, Y.C.; Dahan, A.; Grama, A.; Ronin, Y.I.; Korol, A.B.; Nevo, E. Microsatellite tagging of the stripe-rust resistance gene YrH52 derived from wild emmer wheat, Triticum dicoccoides, and suggestive negative crossover interference on chromosome 1B. Theor. Appl. Genet 1999, 98, 862–872. [Google Scholar]
  14. Peng, J.; Korol, A.B.; Fahima, T.; Röder, M.S.; Ronin, Y.I.; Li, Y.C.; Nevo, E. Molecular genetic maps in wild emmer wheat, Triticum dicoccoides: Genome-wide coverage, massive negative interference, and putative quasi-linkage. Genome Res 2000, 10, 1509–1531. [Google Scholar]
  15. Myburg, A.A.; Cawood, M.; Wingfield, B.D.; Botha, A.M. Development of RAPD and SCAR markers linked to the Russian wheat aphid resistance gene Dn2 in wheat. Theor. Appl. Genet 1998, 96, 1162–1169. [Google Scholar]
  16. Vierling, R.A.; Nguyen, H.T. Use of RAPD markers to determine the genetic diversity of diploid, wheat genotypes. Theor. Appl. Genet 1992, 84, 835–838. [Google Scholar]
  17. Incirli, A.; Akkaya, M.S. Assessment of genetic relationships in durum wheat cultivars using AFLP markers. Genet. Resour. Crop Evol 2001, 48, 233–238. [Google Scholar]
  18. Medini, M.; Hamza1, S.; Rebai, A.; Baum, M. Analysis of genetic diversity in Tunisian durum wheat cultivars and related wild species by SSR and AFLP markers. Genet. Resour. Crop Evol 2005, 52, 21–31. [Google Scholar]
  19. Shoaib, A.; Arabi, M.I.E. Genetic diversity among Syrian cultivated and landraces wheat revealed by AFLP markers. Genet. Resour. Crop Evol 2006, 53, 901–906. [Google Scholar]
  20. Altintas, S.; Toklu, F.; Kafkas, S.; Kilian, B.; Brandolini, A.; Ozkan, H. Estimating genetic diversity in durum and bread wheat cultivars from Turkey using AFLP and SAMPL markers. Plant Breed 2008, 127, 9–14. [Google Scholar]
  21. Collard, B.C.; Mackill, D.J. Marker-Assisted selection: an approach for precision plant breeding in the twenty-first century. Philos. Trans. R. Soc. Lond. B. Biol. Sci 2008, 363, 557–572. [Google Scholar]
  22. Paux, E.; Sourdille, P.; Mackay, I.; Feuillet, C. Sequence-Based marker development in wheat: Advances and applications to breeding. Biotechnol. Adv 2012, 30, 1071–1088. [Google Scholar]
  23. Noli, E.; Teriaca, M.S.; Sanguineti, M.C.; Conti, S. Utilization of SSR and AFLP markers for the assessment of distinctness in durum wheat. Mol. Breed 2008, 22, 301–313. [Google Scholar]
  24. Van Inghelandt, D.; Melchinger, A.E.; Lebreton, C.; Stich, B. Population structure and genetic diversity in a commercial maize breeding program assessed with SSR and SNP markers. Theor. Appl. Genet 2010, 120, 1289–1299. [Google Scholar]
  25. GrainGenes: A Database for Triticeae and Avena. Available online: http://wheat.pw.usda.gov/GG2/index.shtml (assessed on 15 January 2013).
  26. Jones, E.S.; Sullivan, H.; Bhattramakki, D.; Smith, J.S. A comparison of simple sequence repeat and single nucleotide polymorphism marker technologies for the genotypic analysis of maize (Zea mays L.). Theor. Appl. Genet 2007, 115, 361–371. [Google Scholar]
  27. Rafalski, J.A. Novel genetic mapping tools in plant: SNPs and LD-based approaches. Plant Sci 2002, 162, 329–333. [Google Scholar]
  28. Mackay, I.; Powell, W. Methods for linkage disequilibrium mapping in crops. Trends Plant Sci 2007, 12, 57–63. [Google Scholar]
  29. Jannink, J.L.; Lorenz, A.J. Iwata H: Genomic selection in plant breeding: From theory to practice. Brief Funct. Genomics 2010, 9, 166–177. [Google Scholar]
  30. Bhattramakki, D.; Dolan, M.; Hanafey, M.; Wineland, R.; Vaske, D.; Register, J.C.; Tingey, S.V.; Rafalski, A. Insertion-Deletion polymorphisms in 3′ regions of maize genes occur frequently and can be used as highly informative genetic markers. Plant Mol. Biol 2002, 48, 539–547. [Google Scholar]
  31. Cho, R.J.; Mindrinos, M.; Richards, D.R.; Sapolsky, R.J.; Anderson, M.; Drenkard, E.; Dewdney, J.; Reuber, T.L.; Stammers, M.; Federspiel, N.; et al. Genome-Wide mapping with biallelic markers in Arabidopsis thaliana. Nat. Genet 1999, 23, 203–207. [Google Scholar]
  32. Nasu, S.; Suzuki, J.; Ohta, R.; Hasegawa, K.; Yui, R.; Kitazawa, N.; Monna, L.; Minobe, Y. Search for and analysis of single nucleotide polymorphisms (SNPs) in rice (Oryza sativa, Oryza rufipogon) and establishment of SNP markers. DNA Res 2002, 9, 163–171. [Google Scholar]
  33. Choi, I.Y.; Hyten, D.L.; Matukumalli, L.K.; Song, Q.; Chaky, J.M.; Quigley, C.V.; Chase, K.; Lark, K.G.; Reiter, R.S.; Yoon, M.S.; et al. A soybean transcript map: Gene distribution, haplotype and single-nucleotide polymorphism analysis. Genetics 2007, 176, 685–696. [Google Scholar]
  34. Kota, R.; Varshney, R.K.; Prasad, M.; Zhang, H.; Stein, N.; Graner, A. EST-Derived single nucleotide polymorphism markers for assembling genetic and physical maps of the barley genome. Funct. Integr. Genomics 2007, 8, 223–233. [Google Scholar]
  35. Akhunov, E.; Nicolet, C.; Dvorak, J. Single nucleotide polymorphism genotyping in polyploid wheat with the illumine Golden Gate assay. Theor. Appl. Genet 2009, 119, 507–517. [Google Scholar]
  36. Akhunov, E.D.; Akhunova, A.R.; Anderson, O.D.; Anderson, J.A.; Blake, N.; Clegg, M.T.; Coleman-Derr, D.; Conley, E.J.; Crossman, C.C.; Deal, K.R.; et al. Nucleotide diversity maps reveal variation in diversity among wheat genomes and chromosomes. BMC Genomics 2010, 11, 702. [Google Scholar]
  37. Bérard, A.; Le Paslier, M.C.; Dardevet, M.; Exbrayat-Vinson, F.; Bonnin, I.; Cenci, A.; Haudry, A.; Brunel, D.; Ravel, C. High-Throughput single nucleotide polymorphism genotyping in wheat (Triticum spp.). Plant Biotechnol. J 2009, 7, 364–374. [Google Scholar]
  38. Chao, S.; Zhang, W.; Akhunov, E.; Sherman, J.; Ma, Y.; Luo, M.C.; Dubcovsky, J. Analysis of gene-derived SNP marker polymorphism in US wheat (Triticum aestivum L.) cultivars. Mol. Breed 2009, 23, 23–33. [Google Scholar]
  39. Edwards, K.J.; Reid, A.L.; Coghill, J.A.; Berry, S.T.; Barker, G.L. Multiplex single nucleotide polymorphism (SNP)-based genotyping in allohexaploid wheat using padlock probes. Plant Biotechnol. J 2009, 7, 375–390. [Google Scholar]
  40. Kozlova, S.A.; Khlestkina, E.K.; Salina, E.A. Specific features in using SNP markers developed for allopolyploid wheat. Russ. J. Genet 2009, 45, 81–84. [Google Scholar]
  41. Somers, D.J.; Kirkpatrick, R.; Moniwa, M.; Walsh, A. Mining single-nucleotide polymorphisms from hexaploid wheat ESTs. Genome 2003, 46, 431–437. [Google Scholar]
  42. Hoisington, D.; Khairallah, M.; Reeves, T.; Ribaut, J.M.; Skovmand, B.; Taba, S.; Warburton, M. Plant genetic resources: What can they contribute toward increased crop productivity? Proc. Natl. Acad. Sci. USA 1999, 96, 5937–5943. [Google Scholar]
  43. Donini, P.; Law, J.R.; Koebner, R.M.D.; Reeves, J.C.; Cooke, R.J. Temporal trends in the diversity of UK wheats. Theor. Appl. Genet 2000, 100, 912–917. [Google Scholar]
  44. Martos, V.; Royo, C.; Rharrabti, Y.; Garcia del Morala, L.F. Using AFLPs to determine phylogenetic relationships and genetic erosion in durum wheat cultivars released in Italy and Spain throughout the 20th century. Field Crop Res 2005, 91, 107–116. [Google Scholar]
  45. Evanno, G.; Regnaut, S.; Goudet, J. Detecting the number of clusters of individuals using the software structure: A simulation study. Mol. Ecol 2005, 14, 2611–2620. [Google Scholar]
  46. Karagöz, A.; Zencirci, N. Variation in wheat (Triticum spp.) landraces from different altitudes of three regions of Turkey. Genet. Resour. Crop Evol 2005, 52, 75–785. [Google Scholar]
  47. Zencirci, N.; Karagoz, A. Effect of developmental stages length on yield and some quality traits of Turkish durum wheat (Triticum turgidum L. convar. durum (Desf.) Mackey) landraces: Influence of developmental stages length on yield and quality of durum wheat. Genet. Resour. Crop Evol 2005, 52, 765–774. [Google Scholar]
  48. Hedden, P. The genes of the green revolution. Trends Genet 2003, 19, 5–9. [Google Scholar]
  49. Sim, S.C.; Robbins, M.D.; van Deynze, A.; Michel, A.P.; Francis, D.M. Population structure and genetic differentiation associated with breeding history and selection in tomato (Solanumly copersicum L.). Heredity 2011, 106, 927–935. [Google Scholar]
  50. Antao, T.; Lopes, A.; Lopes, R.; Beja-Pereira, A.; Luikart, G. LOSITAN: A workbench to detect molecular adaptation based on a Fst-outlier method. BMC Bioinforma 2008, 9, 323. [Google Scholar]
  51. Liu, C.J.; Atkinson, M.D.; Chinoy, C.N.; Devos, K.M.; Gale, M.D. Nonhomoeologous translocations between group 4, 5 and 7 chromosomes within wheat and rye. Theor. Appl. Genet 1992, 83, 305–312. [Google Scholar]
  52. Devos, K.M.; Dubcovsky, J.; Dvorak, J.; Chinoy, C.N. Structural evolution of wheat chromosomes 4A, 5A and 7B and on their recombination. Theor. Appl. Genet 1995, 91, 282–288. [Google Scholar]
  53. Röder, M.S.; Korzun, V.; Wendehake, K.; Plaschke, J.; Tixier, M.H.; Leroy, P.; Ganal, M.W. A microsatellite map of wheat. Genetics 1998, 149, 2007–2023. [Google Scholar]
  54. Liu, Y.G.; Tsunewaki, K. Restriction fragment length polymorphism analysis of wheat. II. Linkage maps of the RFLP sites in common wheat. Jpn. J. Genet 1991, 66, 617–633. [Google Scholar]
  55. Li, Y.; Fahima, T.; Korol, A.B.; Peng, J.; Röder, M.S.; Kirzhner, V.; Beiles, A.; Nevo, E. Microsatellite diversity correlated with ecological-edaphic and genetic factors in three microsites of wild emmer wheat in North Israel. Mol. Biol. Evol 2000, 17, 851–862. [Google Scholar]
  56. Fu, Y.B.; Peterson, G.W.; Richards, K.W.; Somers, D.; de Pauw, R.M.; Clarke, J.M. Allelic reduction and genetic shift in the Canadian hard red spring wheat germplasm released from 1845 to 2004. Theor. Appl. Genet 2005, 110, 1505–1516. [Google Scholar]
  57. Fu, Y.B.; Peterson, G.W.; Yu, J.K.; Gao, L.F.; Jia, J.Z.; Richards, K.W. Impact of plant breeding on genetic diversity of the Canadian hard red spring wheat germplasm as revealed by EST-derived SSR markers. Theor. Appl. Genet 2006, 112, 1239–1247. [Google Scholar]
  58. Fu, Y.B.; Somers, D.J. Genome-Wide reduction of genetic diversity in wheat breeding. Crop Sci 2009, 49, 161–168. [Google Scholar]
  59. Nevo, E.; Fu, Y.B.; Pavlicek, T.; Khalifa, S.; Tavasi, M.; Beiles, A. Evolution of wild cereals during 28 years of global warming in Israel. Proc. Natl. Acad. Sci. USA 2012, 109, 3412–3415. [Google Scholar]
  60. Evenson, R.E.; Gollin, D. Assessing the impact of the Green Revolution, 1960 to 2000. Science 2003, 300, 758. [Google Scholar]
  61. Reif, J.C.; Zhang, P.; Dreisigacker, S.; Warburton, M.L.; van Ginkel, M.; Hoisington, D.; Bohn, M.; Melchinger, A.E. Wheat genetic diversity trends during domestication and breeding. Theor. Appl. Genet 2005, 110, 859–864. [Google Scholar]
  62. Rajaram, S.; Saari, E.E.; Hettel, G.P. Durum Wheats: Challenges and Opportunities; Wheat Special Report No. 9; International Maize and Wheat Improvement Center (CIMMYT): Mexico City, Mexico, 1992. [Google Scholar]
  63. Rajaram, S.; van Ginkel, M. Mexico: 50 Years of International Wheat Breeding. In The World Wheat Book: A history of wheat breading; Bonjean, A.P., Angus, W.J., Eds.; Lavoisier: Paris, France, 2001; pp. 579–610. [Google Scholar]
  64. Reeves, T.; Rajaram, S.; van Ginkel, M.; Trethowan, R.; Braun, H.; Cassaday, K. New Wheats for a Secure, Sustainable Future; International Maize and Wheat Improvement Center (CIMMYT): Mexico City, Mexico, 1999. [Google Scholar]
  65. Germplasm Resources Information Network (GRIN). Available online: http://www.ars-grin.gov/npgs/acc/acc_queries.html (assessed on 15 January 2013).
  66. Vavilov, N.I. Phytogeographic basis of plant breeding: The origin, variation, immunity and breeding of cultivated plants. Chronica Bot 1951, 13, 1–366. [Google Scholar]
  67. Teklu, Y.; Hammer, K.; Röder, M.S. Simple sequence repeats marker polymorphism in emmer wheat (Triticum dicoccon Schrank): Analysis of genetic diversity and differentiation. Genet. Resour. Crop Evol 2007, 54, 543–554. [Google Scholar]
  68. Harlan, J.R. The great plains region (Part 4). Agric. Food Chem 1955, 3, 29–31. [Google Scholar]
  69. Harlan, J.R. Agricultural origins: Centers and noncenters. Science 1971, 174, 468–474. [Google Scholar]
  70. Byerlee, D.; Moya, P. Impacts of International Wheat Breeding Research in the Developing World: 1966–90; International Maize and Wheat Improvement Center (CIMMYT): Mexico City, Mexico, 1993. [Google Scholar]
  71. Rajaram, S. Wheat Breeding at CIMMYT: Commemorating 50 Years of Research in Mexico for Global Wheat Improvement; Wheat Special Report No 29; International Maize and Wheat Improvement Center (CIMMYT): Mexico City, Mexico, 1994. [Google Scholar]
  72. Peng, J.; Wang, H.; Haley, S.D.; Peairs, F.B.; Lapitan, N.L.V. Molecular mapping of the Russian wheat aphid resistance gene Dn2414 in wheat. Crop Sci 2007, 47, 2418–2429. [Google Scholar]
  73. Wheat SNP Database. Available online: http://probes.pw.usda.gov:8080/snpworld/Search (assessed on 15 January 2013).
  74. Chao, S.; Dubcovsky, J.; Dvorak, J.; Luo, M.C.; Baenziger, S.P.; Matnyazov, R.; Clark, D.R.; Talbert, L.E.; Anderson, J.A.; Dreisigacker, S.; et al. Population- and genome-specific patterns of linkage disequilibrium and SNP variation in spring and winter wheat (Triticum aestivum L.). BMC Genomics 2010, 11, 727. [Google Scholar]
  75. Luo, M.C.; Deal, K.R.; Akhunov, E.D.; Akhunova, A.R.; Anderson, O.D.; Anderson, J.A.; Blake, N.; Clegg, M.T.; Coleman-Derr, D.; Conley, E.J.; et al. Genome comparisons reveal a dominant mechanism of chromosome number reduction in grasses and accelerated genome evolution in Triticeae. Proc. Natl. Acad. Sci. USA 2009, 106, 15780–15785. [Google Scholar]
  76. Liu, K.; Muse, S.V. Powermarker: An integrated analysis environment for genetic marker analysis. Bioinformatics 2005, 21, 2128–2129. [Google Scholar]
  77. Weir, B.S. Genetic Data Analysis II; Sinauer Associates, Inc: Sunderland, MA, USA, 1996. [Google Scholar]
  78. Pritchard, J.K.; Stephens, M.; Donnelly, P. Inference of population structure using multilocus genotype data. Genetics 2000, 155, 945–959. [Google Scholar]
  79. Felsenstein, J. PHYLIP (Phylogeny Inference Package) Version 3.66; Department of Genome Sciences, University of Washington: Seattle, WA, USA, 2006. [Google Scholar]
  80. Rambaut, A. FigTree, version 1.3.1. Available online: http://tree.bio.ed.ac.uk/software/figtree/ (assessed on 15 January 2013).
  81. Excoffier, L.; Laval, G.; Schneider, S. Arlequin (version 3.0): An integrated software package for population genetics data analysis. Evol. Bioinform 2005, 1, 47–50. [Google Scholar]
  82. SPSS Web site. Available online: http://www.spss.com (assessed on 15 January 2013).

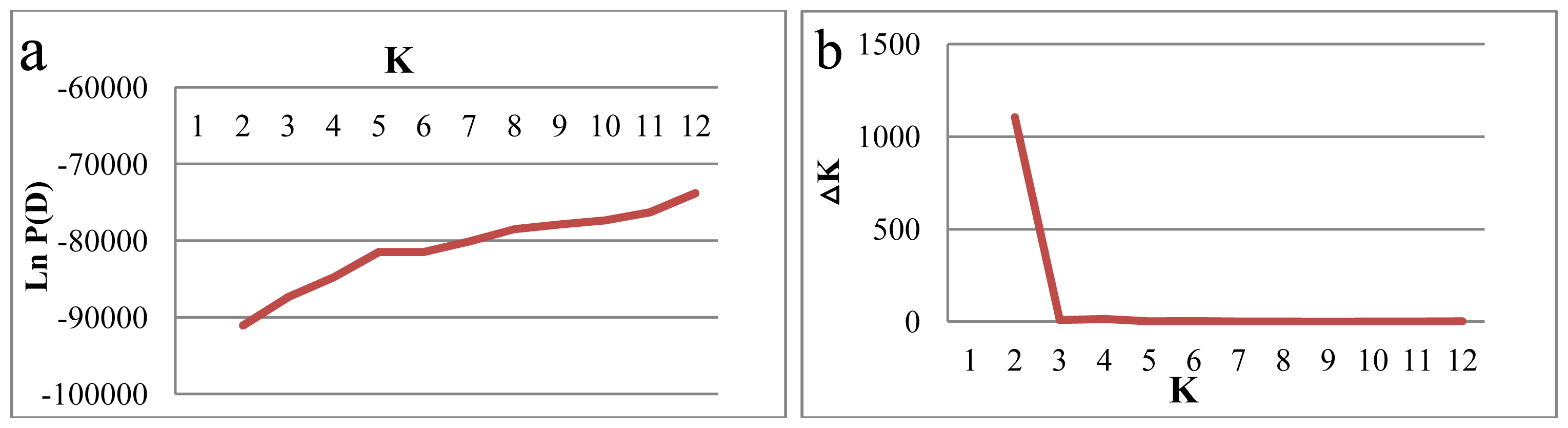

Figure 1. Estimation of the most probable number of clusters (K), based on five independent runs and K ranging from 1 to 12. (a) Evolution of the natural logarithm probability of the data against K; and (b) Magnitude of ΔK for each K value.
Figure 1. Estimation of the most probable number of clusters (K), based on five independent runs and K ranging from 1 to 12. (a) Evolution of the natural logarithm probability of the data against K; and (b) Magnitude of ΔK for each K value.
Ijms 14 07061f1

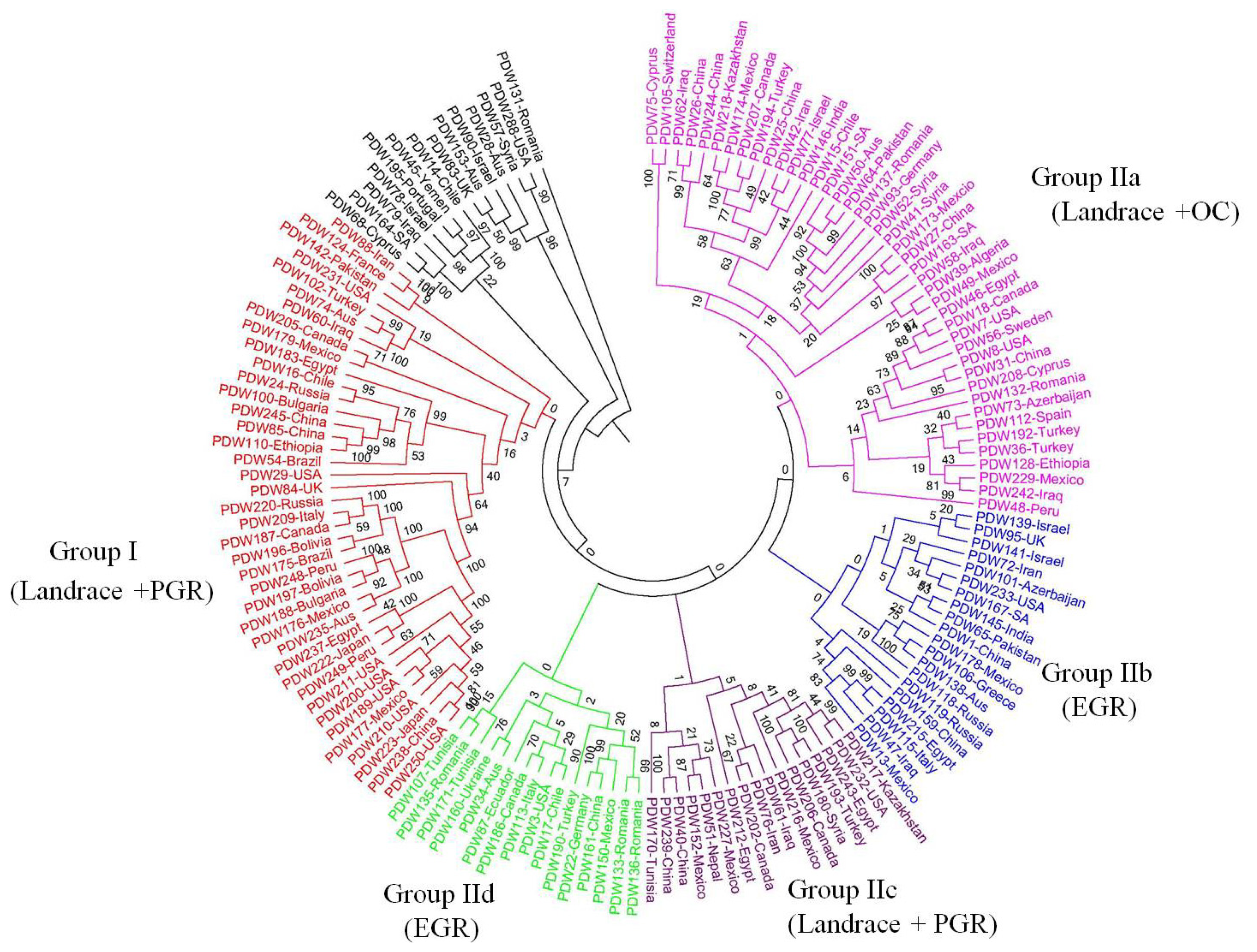

Figure 2. Dendrogram of 150 T. durum accessions based on the shared-allele genetic distance calculated from data of 946 SNP markers, using the NJ algorithm as the clustering method. Numbers on nodes are bootstrap probabilities estimated by permutation test with 1000 replications.
Figure 2. Dendrogram of 150 T. durum accessions based on the shared-allele genetic distance calculated from data of 946 SNP markers, using the NJ algorithm as the clustering method. Numbers on nodes are bootstrap probabilities estimated by permutation test with 1000 replications.
Ijms 14 07061f2
Figure 3. Chromosomal distribution of 92 outlier loci under positive selection. The codes of mapped loci are shown on the right of each chromosome and the intervals are indicated on the left. Details of codes are presented in Table 4. The number in parentheses at the bottom of each chromosome is the number of EST loci mapped in that chromosome without knowing the exact bin. Only those bins with mapped loci are indicated.
Figure 3. Chromosomal distribution of 92 outlier loci under positive selection. The codes of mapped loci are shown on the right of each chromosome and the intervals are indicated on the left. Details of codes are presented in Table 4. The number in parentheses at the bottom of each chromosome is the number of EST loci mapped in that chromosome without knowing the exact bin. Only those bins with mapped loci are indicated.
Ijms 14 07061f3
Figure 4. Geographical distribution of durum wheat accessions used in the present study. Only those countries with durum wheat sampling are indicated by green asterisks.
Figure 4. Geographical distribution of durum wheat accessions used in the present study. Only those countries with durum wheat sampling are indicated by green asterisks.
Ijms 14 07061f4
Table 1. Distribution and diversity index of 946 single nucleotide polymorphism (SNP) markers in a set of 150 T. durum accessions.
Table 1. Distribution and diversity index of 946 single nucleotide polymorphism (SNP) markers in a set of 150 T. durum accessions.
ChromosomeNo. of SNP MarkersNo. of Polymorphic MarkersGene DiversityPIC
A Genome
1A114750.23190.1905
2A96650.21800.1840
3A98670.20360.1697
4A124860.1899 *0.1576 *
5A85590.21790.1798
6A125780.2526 *0.2072 *
7A135880.22490.1884

Subtotal/Mean7675160.21930.1819

B Genome
1B99760.2695 *0.2225 *
2B87640.25530.2097
3B67490.2180 *0.1832
4B75460.2200 *0.1804 *
5B76490.2120 *0.1747 *
6B105830.2211 *0.1842
7B101700.24040.1982

Subtotal/Mean5994300.23840.1970

Hemoeologous
12131510.2508 *0.2066 *
21831290.23650.1967
31651160.2097 *0.1754 *
41991320.2004 *0.1656 *
51611080.2153 *0.1775 *
62301610.23640.1953
72361580.23180.1927

Total/Grand mean13669460.22800.1888
*Means outside of the 95% bootstrap confidence interval of the genome mean.
Table 2. Comparison of genetic diversity generated by 946 SNP markers between landraces and cultivars.
Table 2. Comparison of genetic diversity generated by 946 SNP markers between landraces and cultivars.
Sample SizeNo. of Polymorphic MarkerPolymorphic Rate (%)Gene Diversity *PIC *
Improvement status
Landrace5375679.9%0.2192 b0.1800 b
Cultivar9793398.6%0.2310 a0.1919 a

Time group
Landrace5375679.9%0.2192 b0.1800 b
OC3275780.0%0.2192 b0.1807 b
EGR3572877.0%0.2034 c0.1680 c
PGR3082587.2%0.2474 a0.2039 a
OC-old cultivars released before 1965; EGR, cultivars released during the period of early Green Revolution (1965–1980); PGR, cultivars released during the period of post Green Revolution (1981–2009).
*Significance was tested by the paired t test and means in each column followed by same letters was indicated by different letters at p ≤ 0.05.
Table 3. Analysis of molecular variance (AMOVA) between landraces and cultivars.
Table 3. Analysis of molecular variance (AMOVA) between landraces and cultivars.
Source of VariationSum of SquaresPercentage of Variation (%)
Among Populations321.840.50
Within Population (Cultivar)42,400.6565.54
Within Population (landrace)21,977.1133.97
Total64,699.60100.00
Table 4. Plant height of various group of durum wheat germplasm.
Table 4. Plant height of various group of durum wheat germplasm.
GroupSample SizeMean Plant Height, cm (SE)
Landrace53132.46 (1.91) a
OC32130.72 (2.48) a
EGR35119.13 (4.05) b
PGR30101.91 (4.27) c
Means in each column followed by same letters are not significantly different at p ≤ 0.05 as determined by Duncan’s Multiple Range Test; OC, old cultivars released before 1965; EGR, cultivars released during the period of early Green Revolution (1965–1980); PGR, cultivars released during the period of post Green Revolution (1981–2009).
Table 5. ESTs and the plausible functions in the homologous ESTs outlier loci between landrace and cultivar.
Table 5. ESTs and the plausible functions in the homologous ESTs outlier loci between landrace and cultivar.
SNP marker and the ESTGene function and the homologous EST


CodeSNP MarkerAccession No.Map position (Bin)FunctionAccession No.Identity (%)E-value
Outlier 1AY244508_5_B_Y_26AY2445085BG1777 MADS-box transcriptional factor (AP1) gene, T. monococcumAY244508.1
Outlier 2BE405518_1_A_95BE4055181AS3-0.86–1.00Alternative splicing regulator (RSZ38), T. aestivumDQ019628.193%0
Outlier 3BE405518_1_A_Y_106BE4055181AS3-0.86–1.00Alternative splicing regulator (RSZ38), T. aestivumDQ019628.193%0
Outlier 4BE442666_4_A_269BE4426664AL13-0.59–0.66Lipoxygenase 3 (LOX3), T. aestivumHQ913602.199%0
Outlier 5BE442666_4_B_Y_327BE4426664BS8-0.57–0.81Lipoxygenase 3 (LOX3), T. aestivumHQ913602.199%0
Outlier 6BE404341_5_B_Y_124BE4043415BPhytochelatin synthetase, T. aestivumAY442329.198%0
Outlier 7BE406148_7_B_Y_647BE4061487BL7-0.63–0.78Cyclophilin B-B gene, T. aestivumEU627095.1100%9 × 10−101
Outlier 8BE445506_7_B_Y_355BE4455067BL10-0.78–1.00Unknown
Outlier 9BE405834_1_A_N_641BE4058341AS3-0.86–1.00Soluble inorganic pyrophosphatase-like, B. distachyonXM_003568957.191%0
Outlier 10BE405834_1_B_Y_216BE4058341BL1-0.47–0.69Soluble inorganic pyrophosphatase-like, B. distachyonXM_003568957.191%0
Outlier 11BE446240_1_B_131BE4462401BL1-0.47–0.69Rab GDP dissociation inhibitor, B. distachyonXM_003568390.193%0
Outlier 12BE403177_2_B_409BE4031772BF-box protein 7-like, B. distachyonXM_003579715.190%3 × 10−136
Outlier 13BE404332_2_B_29BE404332C-2BS4-0.75 *Ribosomal protein S12 (rps12), H. vulgareAF067732.194%0
Outlier 14BE444144_2_B_92BE4441442BSUnknown
Outlier 15BE445278_2_B_143BE4452782BRuvB-like 2-like, B. distachyonXM_003562775.192%0
Outlier 16BE445278_2_B_243BE4452782BRuvB-like 3-like, B. distachyonXM_003562775.192%0
Outlier 17BE445242_2_A_362BE445242C-2AS5-0.78Unknown
Outlier 18BE444579_3_B_Y_375BE4445793BUnknown
Outlier 19BE444864_3_B_373BE4448643BL7-0.63–1.00C2 domain-containing protein C31G5.15-like, B. distachyonXR_138068.191%0
Outlier 20BE443187_5_A_511BE4431875AL12-0.35–0.5765-kDa microtubule-associated protein 7-like, B. distachyonXM_003578156.188%0
Outlier 21CD373602_5_B_Y_310CD3736025BL16-0.79–1.00Unknown
Outlier 22BE444256_6_A_N_1118BE444256C-6AL4-0.55Alcohol dehydrogenase-like 6-like, B. distachyonXM_003569903.193%0
Outlier 23CD452643_6_B_111CD4526436BL3Alcohol dehydrogenase-like 6-like, B. distachyonXM_003569903.192%1 × 10−117
Outlier 24CD452643_6_B_Y_113CD4526436BL3Alcohol dehydrogenase-like 6-like, B. distachyonXM_003569903.192%1 × 10−117
Outlier 25BE446380_7_A_577BE4463807AS8-0.45–0.59Putative phospholipid-transporting ATPase 9-like, B. distachyonXM_003563827.191%0
Outlier 26BE403950_6_B_Y_325BE4039506BL5-0.40–1.00ABC transporter F family member 3-like, B. distachyonXM_003570443.193%0
Outlier 27BE517729_1_A_116BE5177291AL3-0.61–1.00Putative prolyl aminopeptidase 1 (PAP1), T. durum × SecalecerealeJN808306.297%0
Outlier 28BE517729_1_A_Y_117BE5177291AL3-0.61–1.00Putative prolyl aminopeptidase 1 (PAP1), T. durum × SecalecerealeJN808306.297%0
Outlier 29BE517831_2_B_70BE517831C-2BL2-0.36Phosphoinositide-specific phospholipase C1, T. aestivumHM754654.195%0
Outlier 30BF200531_1_A_N_573BF2005311AS3-0.86–1.00Protein notum homolog, B. distachyonXM_003566643.194%4 × 10−169
Outlier 31BF474493_6_A_N_40BF474493C-6AL4-0.55Pescadillo homolog, B. distachyonXM_003560899.191%0
Outlier 32BF474139_1_A_144BF4741391AL3-0.61–1.006 phosphofructo kinase 3-like, B. distachyonXM_003568020.195%6 × 10−157
Outlier 33BF201102_5_B_444BF2011025BS6-0.81–1.00Methionine synthase 1 enzyme (ms1 gene), Hordeum vulgareAM039904.193%2 × 10−168
Outlier 34BF201102_5_B_Y_373BF2011025BS6-0.81–1.00Methionine synthase 1 enzyme (ms1 gene), Hordeum vulgareAM039904.193%2 × 10−168
Outlier 35CD453605_6_B_427CD4536056BPutative nitric oxide synthase-like, B. distachyonXM_003570728.189%2 × 10−179
Outlier 36BF474379_7_A_83BF4743797AL16-0.86–0.90Protein N-terminal asparagine amidohydrolase-like, B. distachyonXM_003563571.190%0
Outlier 37BF474379_7_A_Y_253BF4743797AL16-0.86–0.90Protein N-terminal asparagine amidohydrolase-like, B. distachyonXM_003563571.190%0
Outlier 38BE494527_1_B_77BE4945271BL2-0.0.69–0.85Phosphoethanolamine methyltransferase, T. aestivumAY065971.196%3 × 10−86
Outlier 39BE494527_1_B_Y_438BE4945271BL2-0.0.69–0.85Phosphoethanolamine methyltransferase, T. aestivumAY065971.196%3 × 10−86
Outlier 40BE494765_4_B_Y_426BE4947654BL5-0.86–1.00Unknown
Outlier 41BE636872_6_A_119BE6368726AUnknown
Outlier 42BE495277_5_B_336BE495277C-5BL14-0.75 *UPF0664 stress-induced protein C29B12.11c-like, B. distachyonXM_003578371.191%2 × 10−137
Outlier 43BE493868_7_A_Y_93BE4938687AS5-0.59–0.89Probable protein phosphatase 2C 54-like, B. distachyonXM_003564166.191%0
Outlier 44BE494482_7_B_Y_29BE4944827BZuxin response factor 21 (ARF21) gene, Zea maysHM004536.192%3 × 10−67
Outlier 45CD491758_6_A_Y_81CD4917586ACalcium-dependent protein kinase-like (CPK10), T. aestivumEU181189.192%0
Outlier 46BQ159615_6_B_Y_336BQ1596156BLeucine-rich repeat protein (LRR2), T. aestivumEF555120.198%0
Outlier 47BF291774_6_B_181BF2917746BScPutative vacuolar cation/proton exchanger 4-like, B. distachyonXM_003570864.183%0
Outlier 48BF292264_7_A_712BF2922647AS1-0.89–1.00Unknown
Outlier 49BF292193_7_B_N_78BF2921937BL7-0.63–0.78Cytochrome b5 (cb5-1 gene), Oryza sativaAJ429043.184%8 × 10−103
Outlier 50BF291774_6_B_519BF2917746BScPutative vacuolar cation/proton exchanger 4-like, B. distachyonXM_003570864.183%0
Outlier 51BG263233_1_B_825BG2632331BL2-0.0.69–0.85Flap endonuclease 1-A-like, B. distachyonXM_003567949.191%0
Outlier 52BG605368_2_A_156BG605368C-2AL1-0.85Exopolygalacturonase-like, B. distachyonXM_003571584.186%4 × 10−136
Outlier 53BG605368_2_A_Y_310BG605368C-2AL1-0.85Exopolygalacturonase-like, B. distachyonXM_003571584.186%4 × 10−136
Outlier 54BG263521_2_B_Y_261BG263521C-2BS1-0.53Mitogen activated protein kinase (MEK1), O, sativaAF080436.183%4 × 10−141
Outlier 55BF203070_3_B_Y_52BF2030703BS9-0.57–0.78Unknown
Outlier 56BE637808_4_A_Y_332BE6378084ADEAD-box ATP-dependent RNA helicase 16-like, B. distachyonXM_003559423.190%4 × 10−165
Outlier 57BF482950_4_A_Y_272BF4829504ALariat debranching enzyme-like, B. distachyonXM_003559432.190%7 × 10−117
Outlier 58BF483551_4_A_N_203BF4835514AS3-0.76–1.00Unknown
Outlier 59BE497820_5_A_Y_664BE497820C-5AL10-0.57 *Probable thylakoidal processing peptidase 2, chloroplastic-like, B. distachyonXM_003578166.189%0
Outlier 60BE498662_7_A_Y_513BE4986627AS8-0.45–0.59Unknown
Outlier 61BF482403_7_A_126BF4824037AL21-0.74–0.86Unknown
Outlier 62BQ169669_7_A_Y_378BQ1696697AL18Unknown
Outlier 63BE499248_7_B_Y_63BE4992487BS1-0.27–1.00Caffeoyl-CoA O-methyltransferase 2, B. distachyonXM_003564219.195%6 × 10−153
Outlier 64BF485380_7_B_Y_479BF4853807BUnknown
Outlier 65BM140362_1_B_432BM1403621BL1-0.47–0.69Glyoxysomal processing protease, glyoxysomal-like, B. distachyonXM_003568135.189%0
Outlier 66BG604678_4_A_Y_256BG6046784AL13-0.59–0.66Phytanoyl-CoA dioxygenase domain-containing protein 1-like, B. distachyonXM_003560712.192%0
Outlier 67CD453913_7_A_105CD4539137APhosphoserine phosphatase, chloroplastic-like, B. distachyonXM_003577403.189%2 × 10−179
Outlier 68BG262421_6_A_87BG2624216AS1-0.35–0.65Purple acid phosphatase 18-like, B. distachyonXM_003562305.191%0
Outlier 69BG262287_7_B_Y_175BG2622877BVacuolar proton-ATPase subunit A, T. aestivumDQ432014.199%0
Outlier 70BE490763_2_A_1462BE4907632AL1-0.85–1.00Endoplasmic reticulum metallopeptidase 1-like, B. distachyonXM_003580100.188%0
Outlier 71BE471213_6_A_N_28BE4712136AL8-0.90–1.00Metal tolerance protein C2-like, B. distachyonXM_003570688.192%6 × 10−178
Outlier 72BE591172_4_B_Y_148BE5911724BL5-0.86–1.00Phytoenedesaturase (PDS), T. aestivumFJ517553.198%0
Outlier 73BE591974_5_A_1534BE5919745AS1-0.40–0.75Unknown
Outlier 74BE591290_1_B_Y_289BE5912901BL2-0.0.69–0.85B73 WTF1 gene, Zea mays cultivarFJ264201.182%2 × 10−134
Outlier 75BE591002_7_A_244BE5910027AL17-0.71–0.74Probable alanyl-t RNA synthetase, chloroplastic-like, transcript variant 2, B. distachyonXM_003563964.185%2 × 10−108
Outlier 76BE591777_6_A_Y_394BE5917776AL8-0.90–1.00PAP-specific phosphatase HAL2-like, B. distachyonXM_003570307.189%1 × 10−128
Outlier 77BE497494_2_A_Y_475BE4974942AS5-0.78–1.00GLU gene for ferredoxin-dependent glutamate synthase precursor, O. sativaAB061357.196%0
Outlier 78BE497224_4_A_Y_41BE4972244AS1-0.20–0.63Unknown
Outlier 79BE605194_7_B_Y_583BE6051947BL10-0.78–1.00Serine/threonine-protein kinase At5g01020-like, B. distachyonXM_003563310.192%2 × 10−131
Outlier 80BG275030_2_A_96BG2750302AS5-0.78–1.00Symplekin-like, B. distachyonXM_003559695.191%4 × 10−144
Outlier 81BG275030_2_A_Y_103BG2750302AS5-0.78–1.00Symplekin-like, B. distachyonXM_003559695.191%4 × 10−144
Outlier 82BF475120_6_B_Y_75BF4751206BL5-0.40–1.00Unknown
Outlier 83BG313707_5_A_Y_547BG3137075AS1-0.40–0.752 oxoglutarate/malate translocator, chloroplastic-like, B. distachyonXM_003575906.193%3 × 10−160
Outlier 84BG314532_2_A_Y_446BG3145322AS5-0.78–1.00Unknown
Outlier 85BQ168780_5_B_995BQ168780C-5BL14–0.75 *Actin-related protein 2/3 complex subunit 5-like, B. distachyonXM_003577407.192%1 × 10−145
Outlier 86BG314551_3_A_Y_162BG3145513AS4-0.45–1.0066 kDa stress protein-like, B. distachyonXM_003567837.187%4 × 10−176
Outlier 87BQ168329_2_A_Y_198BQ1683292AProtoporphyrin IX Mg-chelatase subunit precursor (Xantha-f) gene, H. vulgareU26916.197%0
Outlier 88BE426222_3_A_68BE426222C-3AS2-0.23Topless-related protein 2-like, transcript variant 1, B. distachyonXM_003566383.191%0
Outlier 89BE489326_3_B_Y_300BE489326C-3BL2-0.22CTD-phosphatase-like protein, Zea maysNM_001155943.180%1 × 10−115
Outlier 90BE425301_4_A_Y_160BE4253014AS4-0.63–0.7640S ribosomal protein gene, T. aestivumAF479043.1995 × 10−175
Outlier 91BE426413_6_B_286BE426413C-6BL5-0.40 *Adenosine kinase 2-like, B. distachyonXM_003575347.194%0
Outlier 92BJ291318_5_B_Y_120BJ2913185B60S ribosomal protein L23a-like, B. distachyonXM_003557882.187%2 × 10−179
Table 6. SNP-based genetic diversity generated by 946 SNP markers in durum wheat from 10 mega ecogeographic origins.
Table 6. SNP-based genetic diversity generated by 946 SNP markers in durum wheat from 10 mega ecogeographic origins.
OriginSample SizeGene DiversityPIC
East-Asia150.22200.1798
Eastern-Europe150.21830.1792
Latin-America120.25180.2044
Middle-East320.19060.1549
North-Africa120.20540.1682
North-America330.23510.1937
Oceania70.21790.1747
South-Africa40.15910.1252
South-Asia60.15750.1258
Western-Europe140.22990.1902
Table 7. List of durum wheat accessions used in the study. Geographical region of origin, year of release, accession identifier #, geographical parameters, and improvement status are reported.
Table 7. List of durum wheat accessions used in the study. Geographical region of origin, year of release, accession identifier #, geographical parameters, and improvement status are reported.
Geographical Region of OriginCountryRegion within CountryCodeAccession Identifier#Collection YearLatitudeLongitudeElevation
East Asia (15)ChinaHeilongjiangPDW1CItr 11495193248.00N128.00E
HeilongjiangPDW238 *PI 70658192645.75N126.65E140
HeilongjiangPDW239 *PI 70662192645.76N126.66E140
HeilongjiangPDW245 *PI 799001929
XinjiangPDW161PI 4474211980
JiangsuPDW40 *PI 124292193731.75N120.25E
JiangsuPDW244 *PI 74830192733N120E
BeijingPDW27 *CItr 5094191639.93N116.40E62
SichuanPDW31 *CItr 8327192428.83N104.58E452
unknownPDW25 *CItr 50771916
unknownPDW26 *CItr 50831916
unknownPDW85PI 2838531962
unknownPDW159PI 4351001979
JapanHokkaidoPDW222 *PI 61351192440.71N142.50E
HokkaidoPDW223 *PI 61352192440.72N142.51E

Central Asia (2)KazakhstanKazakhstanPDW217 *PI 61112192450.47N80.22E220
KazakhstanPDW218 *PI 61123192450.48N80.23E220

South Asia (6)NepalSonseraPDW51 *PI 17622819492128
PakistanPunjabPDW64PI 210910195331.00N72.00E
PunjabPDW65PI 210911195331.01N72.01E
PunjabPDW142 *PI 388132197431.02N72.02E
IndiaMadhya Pradesh,PDW145 *PI 41015191522.00N79.00E
GujaratPDW146 *PI 41342191521.70N72.97E

Middle East (32)TurkeyAnkaraPDW36PI 109588193539.53N32.63E938
BitlisPDW192 *PI 560717198638.77N42.37E1770
BitlisPDW193 *PI 560718198638.78N42.38E1770
SiirtPDW190 *PI 560702198637.82N41.87E560
SiirtPDW194 *PI 560889198937.75N42.20E1070
unknownPDW102PI 3469851970
SyriaDimashqPDW52 *PI 182697194933.5N36.30E690
HalabPDW57 *PI 193391195136.2N37.17E410
UnknownPDW180PI 5204151987
UnknownPDW41 *PI 1345961939
IranKhuzestan,PDW42 *PI 140184194132.38N48.40E126
East AzerbaijanPDW72 *PI 222675195438.08N46.30E1399
TehranPDW76 *PI 243790195735.27N49.28E1866
FarsPDW88 *PI 289821196330.33N51.52E1130
IraqNinawaPDW79 *PI 253801195836.33N43.13E223
UnknownPDW47PI 1658461948
UnknownPDW58 *PI 2089031953
UnknownPDW60 *PI 2089071953
UnknownPDW61 *PI 2089081953
UnknownPDW62 *PI 2089101953
UnknownPDW242 *PI 707361926
IsraelUnknownPDW77PI 2498161958
UnknownPDW78PI 2498201958
UnknownPDW90PI 2920351963
UnknownPDW139PI 3840431973
UnknownPDW141PI 3880351974
CyprusUnknownPDW68 *PI 2109521953
UnknownPDW75PI 2376321957
UnknownPDW208PI 5919591994
YemenAdenPDW45PI 152567194512.77N45.01E79
AzerbaijanUnknownPDW73PI 2332131956
UnknownPDW101PI 3457071950

North America (33)USANorth DakotaPDW3Citr 120681940
North DakotaPDW7Citr 132461955
North DakotaPDW8Citr 133331957
North DakotaPDW288Ldn 16
ColoradoPDW29Citr 68811923
KansasPDW189PI 5603351992
ArizonaPDW200PI 5730051988
ArizonaPDW211PI 6012501985
CaliforniaPDW210PI 6009311982
CaliforniaPDW231PI 6567932009
CaliforniaPDW232PI 6567942009
CaliforniaPDW233PI 6567952009
ErevanPDW250PI 9872190340.18N44.50E1120
MexicoFederal DistrictPDW152PI 4284531978
Federal DistrictPDW173PI 5197511987
Federal DistrictPDW174PI 5197521987
Federal DistrictPDW176PI 5197611987
Federal DistrictPDW177PI 5198661987
Federal DistrictPDW178PI 5200531987
Federal DistrictPDW216PI 6107651999
Federal DistrictPDW227PI 6343152001
Federal DistrictPDW229PI 6343182001
UnknownPDW179PI 5201731987
UnknownPDW49PI 1687081948
UnknownPDW150PI 4222891978
UnknownPDW13Citr 158741972
CanadaSaskatchewanPDW18Citr 173371974
SaskatchewanPDW186PI 5460601990
SaskatchewanPDW187PI 5463621991
SaskatchewanPDW202PI 5837241994
SaskatchewanPDW205PI 5837311994
SaskatchewanPDW206PI 5837321994
SaskatchewanPDW207PI 5837331994

Latin America (12)ChileLa AraucaniaPDW14Citr 170571972
La AraucaniaPDW15Citr 170581972
La AraucaniaPDW16Citr 171571972
La AraucaniaPDW17Citr 171591972
PeruJuninPDW248PI 91956193112.03S75.28W3252
CajamarcaPDW249PI 9202419317.60S78.47W3050
UnknownPDW48PI 1686921948
BrazilSao PauloPDW54PI 191645195022.00S49.00W
UnknownPDW175PI 5197591987
BoliviaCochabambaPDW196 *PI 565259199117.40S66.23W3245
CochabambaPDW197 *PI 565266199117.57S65.83W2730
EcuadorPichinchaPDW87PI 2865461963

Oceania (7)AustraliaVictoriaPDW28 *Citr 5136191634.25S141.50E
Western AustraliaPDW50PI 1746451949
Western AustraliaPDW235PI 673411926
New South WalesPDW74PI 235159195633.00S146.00E
UnknownPDW34PI 1076061934
UnknownPDW138PI 3778821973
UnknownPDW153PI 4287011978

Western Europe (14)PortugalLisboaPDW195PI 562331923
FranceUnknownPDW124PI 3524501969
GreeceUnknownPDW106PI 3523891969
SwedenGotlandPDW56PI 1927111950
SwitzerlandSwitzerlandPDW105PI 3523771969
SpainUnknownPDW112PI 3524041969
GermanyUnknownPDW22 *Citr 24681904
GermanyLower SaxonyPDW93PI 3066641965
BulgariaUnknownPDW100PI 3447431969
BulgariaKhaskovoPDW188PI 5464621990
ItalyUnknownPDW113PI 3524081969
LatiumPDW115PI 3524151969
LatiumPDW209PI 5930051996
EnglandUnknownPDW83PI 2782231962
UnknownPDW84PI 278648196253.00N2.00W
UnknownPDW95PI 3217021967
RomaniaUnknownPDW131PI 3764981972
UnknownPDW132PI 3765001972
UnknownPDW133PI 3765011972
UnknownPDW135PI 3765091972
UnknownPDW136PI 3765111972
UnknownPDW137PI 3765121972

Eastern Europe (5)UkraineKharkivPDW160PI 4389731980
RussianAltayPDW24 *Citr 3267191152.68N83.21E152
Former SovietPDW118PI 3524361969
Union
Former SovietPDW119PI 3524371969
Union
KrasnoyarskPDW220 *PI 61189192458.45N92.17E79

South Africa (4)South AfricaUnknownPDW151 *PI 424251916
Free StatePDW163 *PI 45442191729.17S24.75E1123
Cape ProvincePDW164 *PI 45443191730.98S27.33E1703
Cape ProvincePDW167PI 46766191831.47S19.78E994

North Africa (12)AlgeriaMascaraPDW39 *PI 11715190435.74N0.55E104
TunisiaUnknownPDW107PI 3523901969
UnknownPDW170 *PI 51210192033.02N35.57E
UnknownPDW171PI 5193801987
EgyptGizaPDW46PI 153774194629.77N31.30E
MinufiyaPDW183PI 532119198830.47N30.93E12
UnknownPDW212 *PI 607121924
SinaiPDW215 *PI 60742192429.50N34.00E
AlexandriaPDW237 *PI 7016190131.17N29.87E
SawhajPDW243 *PI 7422190126.35N31.89E65
EthiopiaUnknownPDW110PI 3523951969
UnknownPDW128 *PI 3525511969
Note: Accessions marked by * are landraces.

Share and Cite

MDPI and ACS Style

Ren, J.; Sun, D.; Chen, L.; You, F.M.; Wang, J.; Peng, Y.; Nevo, E.; Sun, D.; Luo, M.-C.; Peng, J. Genetic Diversity Revealed by Single Nucleotide Polymorphism Markers in a Worldwide Germplasm Collection of Durum Wheat. Int. J. Mol. Sci. 2013, 14, 7061-7088. https://doi.org/10.3390/ijms14047061

AMA Style

Ren J, Sun D, Chen L, You FM, Wang J, Peng Y, Nevo E, Sun D, Luo M-C, Peng J. Genetic Diversity Revealed by Single Nucleotide Polymorphism Markers in a Worldwide Germplasm Collection of Durum Wheat. International Journal of Molecular Sciences. 2013; 14(4):7061-7088. https://doi.org/10.3390/ijms14047061

Chicago/Turabian Style

Ren, Jing, Daokun Sun, Liang Chen, Frank M. You, Jirui Wang, Yunliang Peng, Eviatar Nevo, Dongfa Sun, Ming-Cheng Luo, and Junhua Peng. 2013. "Genetic Diversity Revealed by Single Nucleotide Polymorphism Markers in a Worldwide Germplasm Collection of Durum Wheat" International Journal of Molecular Sciences 14, no. 4: 7061-7088. https://doi.org/10.3390/ijms14047061

Article Metrics

Back to TopTop
