Article

Development of a Multiplex and Cost-Effective Genotype Test toward More Personalized Medicine for the Antiplatelet Drug Clopidogrel

1
Department of Pharmacology and Pharmacogenomics Research Center, Inje University, Busan 614-812, Korea
2
Department of Microbiology, Pukyoung National University, Busan 608-737, Korea
3
Department of Clinical Pharmacology, Inje University College of Medicine, Inje University Busan Paik Hospital, Inje University, Busan 614-812, Korea
*
Author to whom correspondence should be addressed.
These authors contributed equally to this work.
Int. J. Mol. Sci. 2014, 15(5), 7699-7710; https://doi.org/10.3390/ijms15057699
Submission received: 17 March 2014 / Revised: 20 April 2014 / Accepted: 22 April 2014 / Published: 5 May 2014
(This article belongs to the Special Issue Human Single Nucleotide Polymorphisms and Disease Diagnostics)

Abstract

:
There has been a wide range of inter-individual variations in platelet responses to clopidogrel. The variations in response to clopidogrel can be driven by genetic polymorphisms involved in the pathway of absorption, distribution, metabolism, excretion, and the target receptor P2Y12. A set of genetic variants known for causing variations in clopidogrel responses was selected, which included CYP2C19*2, *3, *17, CYP2B6*4, *6, *9, CYP3A4*18, CYP3A5*3, MDR1 2677G > T/A, 3435C > T, and P2Y12 H2 (742T > C). The simultaneous detection of these 10 variants was developed by using a multiplex PCR and single-base extension (MSSE) methodology. The newly developed genotyping test was confirmed by direct DNA sequencing in the representative positive control samples and validated in an extended set of 100 healthy Korean subjects. Genotyping results from the developed MSSE exhibited a perfect concordance with the direct DNA sequencing data and all of variants tested in 100 healthy Korean subjects were in agreement with Hardy-Weinberg equilibrium (p > 0.05). The present molecular diagnostic studies provide an accurate, convenient, and fast genotyping method for the detection of multiple variants. This would be helpful for researchers, as well as clinicians, to use genetic information toward more personalized medicine of clopidogrel and other antiplatelet drugs in the future.

1. Introduction

Clopidogrel is a member of the thienopyridine class of adenosine diphosphate (ADP) receptor inhibitor, which inhibits platelet aggregation by irreversibly binding to P2Y12 receptor on platelet membrane [1]. The response to clopidogrel differs widely from subject to subject, and about 25% of patients treated with standard clopidogrel dose exhibit insufficient inhibition of ADP-induced platelet aggregation [2]. Although the U.S. food and drug administration (FDA), in March 2010, issued a black box warning that individuals with low levels of CYP2C19 expression may not get the full effect of clopidogrel, the underlying mechanism responsible for the clopidogrel non-responsiveness and/or adverse effects are complicated and unclear. Multiple studies have indicated that functional variants of cytochrome P450s were associated with different metabolism of clopidogrel, which include CYP3A4/5, 2C19, and 2B6 [24]. In addition, the efflux transporter P-glycoprotein 1, also known as ATP-binding cassette sub-family B1 (ABCB1), has been reported to affect clopidogrel bioavailability [5]. For example, individuals carrying ABCB1 3435 TT genotypes have exhibited reduced platelet inhibition with increased risk of recurrent ischemic events during anti-platelet drug treatment [4]. In patients with acute coronary syndromes who have undergone percutaneous intervention, nearly half of the individuals having major adverse cardiovascular events were found to carry a genotype associated with increased risk alleles of ABCB1 and CYP2C19 [5], suggesting that the improved prediction of cardiovascular events could be possible when combined with both ABCB1 and CYP2C19 genotypes than the application of individual gene alone. In addition, genetic polymorphisms in the P2Y12 gene have been suggested to contribute to inter-individual variations in clopidogrel response in patients [6]. Thus, genetic polymorphisms linked to functional variation in genes related to clopidogrel pharmacokinetics and pharmacodynamics are expected to alter active metabolite formation and its local concentration, which may lead to inter-individual variations in clopidogrel responses. The combined genotype analysis covering multiple genes could be helpful in understanding genetic influences on the drug response variations. For the development of genotyping assays, we there by selected 10 important SNPs from multiple genes based on their clinical implications and relatively high frequency in Asian population [710].
There are various genotyping methods available, such as High Resolution Melting (HRM), Pyrosequencing, and Taqman assay. All of three representative methods are convenient to use, however, they can detect only limited number of genetic markers, mostly up to 1–3 single nucleotide polymorphisms (SNPs), in a reaction. Therefore, the objective of our study was to develop a simultaneous detection method for a set of genetic markers by using a multiplex SNaPshot single-base extension (MSSE) in a single reaction.

2. Results and Discussion

2.1. Results

The goal of the present study was to develop an accurate, fast and cost-effective genotyping method using MSSE strategy for the detection of a set of multiple variants known for associated with variable clopidogrel responses. To obtain the expected high-throughput of the multiplex PCR for the multiple targets, the PCR was optimized by adjusting several different factors, which include primer specificity, primer annealing temperature, prevention from secondary-structure formation by primer itself, and primer—primer self-complementary structures. Bioinformatic software, PSQ assay design (Biotage-Qiagen, Valencia, CA, USA), was used to have the low probability of secondary structures of hairpin and dimer formation in all the ten pairs of primers. As expected, PCR conditions were optimized and exhibited the specific amplification of the target genes (Table 1).
Since there is high homology of DNA sequence among the same subfamily of genes, specificity of the all PCR products were verified by direct DNA sequencing. After the two multiplex PCRs, the detection of 10 variants in six genes was performed by single-base extension (SBE) and achieved a specific separation of all different alleles in a single reaction. In particular, SBE requires optimized concentration of each probe to avoid unspecific products and to produce similar levels of fluorescent intensities with the neighbors. Different amounts of SBE sequencing probes were determined as shown in Table 2 (0.01–0.12 nM).
The electrograms for CYP2B6*4, *6, *9, CYP2C19*2, *3, *17, CYP3A4*18, CYP3A5*3, MDR1 2677G>T/A, MDR1 3435C>T, and P2Y12 H2 are shown in Figure 1A.
The developed MSSE was applied to an extended set of 100 healthy Korean subjects. Frequencies of CYP2C19*2, CYP2C19*3, CYP2C19*17, CYP3A4*18, CYP3A5*3, CYP2B6*4, CYP2B6*6, CYP2B6*9, P2Y12 H2, MDR1 2677G>T/A, and MDR1 3435C>T are indicated in Table 3. To test inter-assay variations, MSSE genotyping of 100 different individuals was performed twice and no differences were found between two tests. Frequencies of variants were in agreement with Hardy–Weinberg equilibrium in study population (p > 0.05). Although the present study investigated the allele frequencies in healthy normal population for the validation of detection method, the frequencies in clinical patients may be different from the healthy control subjects. Direct sequencing results showed 100% concordance with those of the Multiplex Single-Base Extension methods (Table 3), indicating perfect specificity and sensitivity for the new MSSE method for the detection of 10 variants alleles.

2.2. Discussion

Polymorphisms leading to functional alterations in genes that modulate clopidogrel pharmacokinetics and pharmacodynamics are expected to alter active metabolite formation and anti-platelet effects, leading to poor clinical outcome or adverse drug reaction. Clopidogrel must be bio-transformed into its active metabolite to exert its antiplatelet effects, which is accomplished by hepatic cytochrome P450 isoenzymes, including CYP2C19, CYP2B6, CYP3A4, and CYP3A5 [17,18]. Particularly, CYP2C19 has received considerable attention due to its major role in the formation of active form of clopidogrel. For example, loss of CYP2C19 function by CYP2C19*2, *3 was reported to be associated with poor clinical outcomes after an acute coronary syndrome, particularly after percutaneous coronary intervention [2,3,10]. The efflux transporter P-glycoprotein C3435T has also been shown to affect clopidogrel absorption [19], exhibiting a correlation with platelet reactivity in acute coronary syndrome patients [20]. In multiple studies, P2Y12 is the pharmacological target of clopidogrel and P2Y12 T742C polymorphism has been suggested to be associated with clopidogrel outcome in patients with coronary artery disease after coronary stenting [3,2022].
Drug response is affected by genetic and environmental factors. Depending on the magnitude of severity of genetic mutation in the drug response pathway or variable environmental impacts, phenotypic consequences caused by single gene mutation could be masked or exaggerated. Therefore, genotyping method detecting multiple variations together rather than a single gene variant detection would be more robust for understanding the relationship between genotypes and phenotypes, in particular, in complex diseases, such as cardiovascular diseases. Two drugs, ticagrelor and prasugrel, are kinetically independent from CYP2C19 genotype and they may have an advantage over clopidogrel in this sense. Therefore, the present genotyping method for the clopidogrel responsiveness may be useful in decision making for drug selection, at least in part.
The translation of pharmacogenomics to the clinical practice has been a difficult task. Multiple reports for clinical practice guidelines to help clinicians in selecting the best management strategy for an individual patient have been presented and updated in several institutions, which include the Clinical Pharmacogenetics Implementation Consortium (CPIC) guidelines for CYP2C19 and clopidogrel therapy [23], the American College of Cardiology Foundation/American Heart Association (ACCF/AHA) guideline for the management of heart failure [24], and the Royal Dutch Association for the Advancement of Pharmacy (KNMP)—Pharmacogenetics Working Group (PWG) guidelines for the development of pharmacogenetics-based therapeutic dose recommendations [25].
One of the benefits of MSSE methodology, in addition to the detection of multiple variants simultaneously, is its cost-effectiveness. When the cost of genotyping using MSSE methodology was estimated by using the commercial source of reagents in our study, the genotyping cost for a set of 10 SNPs was estimated to be about $10. Cost-effectiveness of genotype-guided antiplatelet therapies was reported in acute coronary syndrome patients, suggesting that genotype-guided personalization may improve the cost-effectiveness of prasugrel and ticagrelor [26]. Comparative analysis of six genotype platforms including a MSSE is presented in Table 4 [2733].
MSSE method can also be used flexibly, since new alleles can be added to the pre-existent protocol. Flexibility of the SNP selection in the set of genotyping is important for researchers to study genetic effects of new alleles on phenotypic variations in humans. It is generally accepted that once fixed chip-based genotyping platforms is difficult to change with different variants in its system [34]. However, various genotyping approaches may eventually be superseded by the next-generation DNA sequencing with its falling cost of sequencing technologies that can potentially access all form of variations in the target genes. In summary, genetic variants involved in pharmacokinetics and pharmacodynamics of clopidogrel were selected, which include 10 variants from six genes. Genotyping method using MSSE for the detection of these 10 variants was successfully developed. The present molecular diagnostic method for the study of clopidogrel response would facilitate understanding of variations in clopidogrel response and this method may also be extended to the similar agents of drug response in the future.

3. Experimental Section

3.1. Subjects and DNA Samples

Genomic DNAs used in this study were obtained from 100 healthy volunteers whose genetic materials were deposited in the DNA repository bank at INJE Pharmacogenomics Research Center (Inje University College of Medicine, Busan, Korea). Written informed consent was obtained from all volunteers and the research protocol for the use of human DNA from blood samples was approved by the Institutional Review Board (IRB) of Busan Paik Hospital (Busan, Korea). Genomic DNA was extracted from peripheral blood cells using QIAamp DNA Blood Mini Kit (Qiagen, Chatsworth, CA, USA).

3.2. Multiplexing PCR and SNaPshot

For amplifications of the various genes (CYP2B6, CYP2C19, CYP3A4, CYP3A5, MDR1, P2Y12), two multiplexing PCR reactions were performed. One contained CYP2B6*9, CYP2C19*2, CYP2C19*3, CYP2C19*17, CYP3A4*18, CYP3A5*3, and MDR1 3435C>T at an annealing temperature of 57 °C. The other included CYP2B6*4, MDR1 2677G>T/A, and P2Y12 H2 at an annealing temperature of 63 °C. The amplification primers and PCR condition are described in Table 1. Briefly, PCR was performed using a 9700 Thermal Cycler (PE Applied Biosystems, Foster City, CA, USA) with the following conditions: initial denaturation at 94 °C for 5 min, followed by 35 cycles of 94 °C for 30 s, 57 or 63 °C for 30 s, 72 °C for 30 s, and a final elongation step at 72 °C for 5 min. The pooled PCR products were purified by ExoSAP-IT (USB-Affymetrix, Cleveland, OH, USA) and used as a template to detect 10 polymorphic positions of various genes (Table 2). The primer lengths were designed to avoid overlapping peak signals by spacing mostly five nucleotides (Table 2). Multiplex single-base extension was performed using SNaPshot in accordance with the manufacturer’s protocol (Applied Biosystems, Foster City, CA, USA). Briefly, prepared samples were denatured at 95 °C for 5 min and run on an ABI-Prism 3100 (Applied Biosystems, Foster City, CA, USA) genetic analyzer using a 36-cm capillary array and POP-7 polymer. Turnaround time for the detection of 10 variants was 4 h in the present method. Analyses were performed with GeneMapper software (Applied Biosystems version 3.7, Foster City, CA, USA). The presence of CYP2C19*2, *3, *17, CYP3A4*18, CYP3A5*3, CYP2B6*4, *6, and *9 alleles, and P2Y12 H2, MDR1 2677G>T/A, and MDR1 3435C>T was confirmed by direct DNA sequencing.

3.3. Statistical Analysis

Hardy–Weinberg equilibrium was tested for the genotyped SNPs by SNPAlyze software (version 4.1; Dynacom Co., Ltd., Yokohama, Japan) to see genotyping error and population stratification.

4. Conclusions

A ten of genetic variants known for causing variations in clopidogrel responses was selected and the simultaneous detection of these ten variants was developed by using a multiplex PCR and single-base extension (MSSE) methodology. The present genotyping method provides an accurate, fast, and cost-effective genotyping method for pharmacogenomic studies of clopidogrel. To the best of our knowledge, the present method is the first that can screen for multi-polymorphisms in multiple genes related to the clopidogrel responsiveness. Application of our method would be useful in estimating the genetic contribution to the variable responses of clopidogrel in Koreans, as well as ethnically related other Asian populations.

Acknowledgments

This work was supported by the National Research Foundation of Korea (NRF) grant funded by the Korea government (MSIP) (No. R13-2007-023-00000-0) and by a grant of the Korean Health Technology R&D Project, Ministry of Health & Welfare, Republic of Korea (HI14C0067).

Conflicts of Interest

The authors declare no conflict of interest.
  • Author ContributionsJae-Gook Shin supervised the study and provided administrative support. Hye-Eun Jeong and Su-Jun Lee performed data analysis and drafted the manuscript. Hye-Eun Jeong and Eun-Young Cha performed the experiments. Eun-Young Kim, Ho-Sook Kim, and Young Hwan Song made critical revisions to the paper.

References

  1. Savi, P.; Zachayus, J.L.; Delesque-Touchard, N.; Labouret, C.; Herve, C.; Uzabiaga, M.F.; Pereillo, J.M.; Culouscou, J.M.; Bono, F.; Ferrara, P.; et al. The active metabolite of Clopidogrel disrupts P2Y12 receptor oligomers and partitions them out of lipid rafts. Proc. Natl. Acad. Sci. USA 2006, 103, 11069–11074. [Google Scholar]
  2. Simon, T.; Verstuyft, C.; Mary-Krause, M.; Quteineh, L.; Drouet, E.; Meneveau, N.; Steg, P.G.; Ferrieres, J.; Danchin, N.; Becquemont, L. Genetic determinants of response to clopidogrel and cardiovascular events. N. Engl. J. Med 2009, 360, 363–375. [Google Scholar]
  3. Mega, J.L.; Close, S.L.; Wiviott, S.D.; Shen, L.; Walker, J.R.; Simon, T.; Antman, E.M.; Braunwald, E.; Sabatine, M.S. Genetic variants in ABCB1 and CYP2C19 and cardiovascular outcomes after treatment with clopidogrel and prasugrel in the TRITON-TIMI 38 trial: A pharmacogenetic analysis. Lancet 2010, 376, 1312–1319. [Google Scholar]
  4. Wallentin, L.; James, S.; Storey, R.F.; Armstrong, M.; Barratt, B.J.; Horrow, J.; Husted, S.; Katus, H.; Steg, P.G.; Shah, S.H.; et al. Effect of CYP2C19 and ABCB1 single nucleotide polymorphisms on outcomes of treatment with ticagrelor versus clopidogrel for acute coronary syndromes: A genetic substudy of the PLATO trial. Lancet 2010, 376, 1320–1328. [Google Scholar]
  5. Hwang, S.J.; Jeong, Y.H.; Kim, I.S.; Koh, J.S.; Kang, M.K.; Park, Y.; Kwak, C.H.; Hwang, J.Y. The cytochrome 2C19*2 and *3 alleles attenuate response to clopidogrel similarly in East Asian patients undergoing elective percutaneous coronary intervention. Thromb. Res 2011, 127, 23–28. [Google Scholar]
  6. Rudez, G.; Bouman, H.J.; van Werkum, J.W.; Leebeek, F.W.; Kruit, A.; Ruven, H.J.; ten Berg, J.M.; de Maat, M.P.; Hackeng, C.M. Common variation in the platelet receptor P2RY12 gene is associated with residual on-clopidogrel platelet reactivity in patients undergoing elective percutaneous coronary interventions. Circ. Cardiovasc. Genet 2009, 2, 515–521. [Google Scholar]
  7. Mizutani, T. PM frequencies of major CYPs in Asians and Caucasians. Drug Metab. Rev 2003, 35, 99–106. [Google Scholar]
  8. Lee, S.J.; Jung, I.S.; Jung, E.J.; Choi, J.Y.; Yeo, C.W.; Cho, D.Y.; Kim, Y.W.; Lee, S.S.; Shin, J.G. Identification of P2Y12 single-nucleotide polymorphisms and their influences on the variation in ADP-induced platelet aggregation. Thromb. Res 2011, 127, 220–227. [Google Scholar]
  9. Veiga, M.I.; Asimus, S.; Ferreira, P.E.; Martins, J.P.; Cavaco, I.; Ribeiro, V.; Hai, T.N.; Petzold, M.G.; Bjorkman, A.; Ashton, M.; et al. Pharmacogenomics of CYP2A6, CYP2B6, CYP2C19, CYP2D6, CYP3A4, CYP3A5 and MDR1 in Vietnam. Eur. J. Clin. Pharmacol 2009, 65, 355–363. [Google Scholar]
  10. Solus, J.F.; Arietta, B.J.; Harris, J.R.; Sexton, D.P.; Steward, J.Q.; McMunn, C.; Ihrie, P.; Mehall, J.M.; Edwards, T.L.; Dawson, E.P. Genetic variation in eleven phase I drug metabolism genes in an ethnically diverse population. Pharmacogenomics 2004, 5, 895–931. [Google Scholar]
  11. Rohrbacher, M.; Kirchhof, A.; Geisslinger, G.; Lotsch, J. Pyrosequencing-based screening for genetic polymorphisms in cytochrome P450 2B6 of potential clinical relevance. Pharmacogenomics 2006, 7, 995–1002. [Google Scholar]
  12. Lee, S.S.; Lee, S.J.; Gwak, J.; Jung, H.J.; Thi-Le, H.; Song, I.S.; Kim, E.Y.; Shin, J.G. Comparisons of CYP2C19 genetic polymorphisms between Korean and Vietnamese populations. Ther. Drug Monit 2007, 29, 455–459. [Google Scholar]
  13. Blaisdell, J.; Mohrenweiser, H.; Jackson, J.; Ferguson, S.; Coulter, S.; Chanas, B.; Xi, T.; Ghanayem, B.; Goldstein, J.A. Identification and functional characterization of new potentially defective alleles of human CYP2C19. Pharmacogenetics 2002, 12, 703–711. [Google Scholar]
  14. Dai, D.; Tang, J.; Rose, R.; Hodgson, E.; Bienstock, R.J.; Mohrenweiser, H.W.; Goldstein, J.A. Identification of variants of CYP3A4 and characterization of their abilities to metabolize testosterone and chlorpyrifos. J. Pharmacol. Exp. Ther 2001, 299, 825–831. [Google Scholar]
  15. Schaik, R.H.; Heiden, I.P.; Anker, J.N.; Lindemans, J. CYP3A5 variant allele frequencies in Dutch Caucasians. Clin. Chem 2002, 48, 1668–1671. [Google Scholar]
  16. Kafka, A.; Sauer, G.; Jaeger, C.; Grundmann, R.; Kreienberg, R.; Zeillinger, R.; Deissler, H. Polymorphism C3435T of the MDR-1 gene predicts response to preoperative chemotherapy in locally advanced breast cancer. Int. J. Oncol 2003, 22, 1117–1121. [Google Scholar]
  17. Kazui, M.; Nishiya, Y.; Ishizuka, T.; Hagihara, K.; Farid, N.A.; Okazaki, O.; Ikeda, T.; Kurihara, A. Identification of the human cytochrome P450 enzymes involved in the two oxidative steps in the bioactivation of clopidogrel to its pharmacologically active metabolite. Drug Metab. Dispos 2010, 38, 92–99. [Google Scholar]
  18. Bouman, H.J.; Schomig, E.; van Werkum, J.W.; Velder, J.; Hackeng, C.M.; Hirschhauser, C.; Waldmann, C.; Schmalz, H.G.; ten Berg, J.M.; Taubert, D. Paraoxonase-1 is a major determinant of clopidogrel efficacy. Nat. Med 2011, 17, 110–116. [Google Scholar]
  19. Taubert, D.; von Beckerath, N.; Grimberg, G.; Lazar, A.; Jung, N.; Goeser, T.; Kastrati, A.; Schomig, A.; Schomig, E. Impact of P-glycoprotein on clopidogrel absorption. Clin. Pharmacol. Ther 2006, 80, 486–501. [Google Scholar]
  20. Spiewak, M.; Malek, L.A.; Kostrzewa, G.; Kisiel, B.; Serafin, A.; Filipiak, K.J.; Ploski, R.; Opolski, G. Influence of C3435T multidrug resistance gene-1 (MDR-1) polymorphism on platelet reactivity and prognosis in patients with acute coronary syndromes. Kardiol. Pol 2009, 67, 827–834. [Google Scholar]
  21. Namazi, S.; Kojuri, J.; Khalili, A.; Azarpira, N. The impact of genetic polymorphisms of P2Y12, CYP3A5 and CYP2C19 on clopidogrel response variability in Iranian patients. Biochem. Pharmacol 2012, 83, 903–908. [Google Scholar]
  22. Zoheir, N.; Abd Elhamid, S.; Abulata, N.; el Sobky, M.; Khafagy, D.; Mostafa, A. P2Y12 receptor gene polymorphism and antiplatelet effect of clopidogrel in patients with coronary artery disease after coronary stenting. Blood Coagul. Fibrinolysis 2013, 24, 525–531. [Google Scholar]
  23. Scott, S.A.; Sangkuhl, K.; Stein, C.M.; Hulot, J.S.; Mega, J.L.; Roden, D.M.; Klein, T.E.; Sabatine, M.S.; Johnson, J.A.; Shuldiner, A.R. Clinical pharmacogenetics implementation consortium. Clinical pharmacogenetics implementation Consortium guidelines for CYP2C19 genotype and clopidogrel therapy: 2013 update. Clin. Pharmacol. Ther 2013, 94, 317–323. [Google Scholar]
  24. Yancy, C.W.; Jessup, M.; Bozkurt, B.; Butler, J.; Casey, D.E.; Drazner, M.H.; Fonarow, G.C.; Geraci, S.A.; Horwich, T.; Januzzi, J.L.; et al. ACCF/AHA guideline for the management of heart failure: Executive summary: A report of the American College of Cardiology Foundation/American Heart Association Task Force on practice guidelines. Circulation 128, 1810–1852.
  25. Swen, J.J.; Nijenhuis, M.; Boer, A.; Grandia, L.; Maitland, A.H.; Mulder, H.; Rongen, G.A.; Schaik, R.H.; Schalekamp, T.; Touw, D.J.; et al. Pharmacogenetics: From bench to byte—An update of guidelines. Clin. Pharmacol. Ther 2011, 89, 662–673. [Google Scholar]
  26. Kazi, D.S.; Garber, A.M.; Shah, R.U.; Dudley, R.A.; Mell, M.W.; Rhee, C.; Moshkevich, S.; Boothroyd, D.B.; Owens, D.K.; Hlatky, M.A. Cost-effectiveness of genotype-guided and dual antiplatelet therapies in acute coronary syndrome. Ann. Intern. Med 2014, 160, 221–232. [Google Scholar]
  27. Tobler, A.R.; Short, S.; Andersen, M.R.; Paner, T.M.; Briggs, J.C.; Lambert, S.M.; Wu, P.P.; Wang, Y.; Spoonde, A.Y.; Koehler, R.T.; et al. The SNPlex genotyping system: A flexible and scalable platform for SNP genotyping. J. Biomol. Tech 2005, 16, 398–406. [Google Scholar]
  28. Ong, D.C.; Yam, W.C.; Siu, G.K.; Lee, A.S. Rapid detection of rifampicin- and isoniazid-resistant Mycobacterium tuberculosis by high-resolution melting analysis. J. Clin. Microbiol 2010, 48, 1047–1054. [Google Scholar]
  29. Syrmis, M.W.; Moser, R.J.; Kidd, T.J.; Hunt, P.; Ramsay, K.A.; Bell, S.C.; Wainwright, C.E.; Grimwood, K.; Nissen, M.D.; Sloots, T.P.; et al. High-throughput single-nucleotide polymorphism-based typing of shared Pseudomonas aeruginosa strains in cystic fibrosis patients using the Sequenom iPLEX platform. J. Med. Microbiol 2013, 62, 734–740. [Google Scholar]
  30. Hurst, C.D.; Zuiverloon, T.C.; Hafner, C.; Zwarthoff, E.C.; Knowles, M.A.A. SNaPshot assay for the rapid and simple detection of four common hotspot codon mutations in the PIK3CA gene. BMC Res. Notes 2009, 2, 66. [Google Scholar]
  31. Livak, K.J. SNP genotyping by the 5′-nuclease reaction. Methods Mol. Biol 2003, 212, 129–147. [Google Scholar]
  32. Ronaghi, M. Pyrosequencing sheds light on DNA sequencing. Genome Res 2001, 11, 3–11. [Google Scholar]
  33. Zhou, Z.; Poe, A.C.; Limor, J.; Grady, K.K.; Goldman, I.; McCollum, A.M.; Escalante, A.A.; Barnwell, J.W.; Udhayakumar, V. Pyrosequencing, a high-throughput method for detecting single nucleotide polymorphisms in the dihydrofolate reductase and dihydropteroate synthetase genes of Plasmodium falciparum. J. Clin. Microbiol 2006, 44, 3900–3910. [Google Scholar]
  34. Ragoussis, J. Genotyping technologies for genetic research. Annu. Rev. Genomics Hum. Genet 2009, 10, 117–133. [Google Scholar]

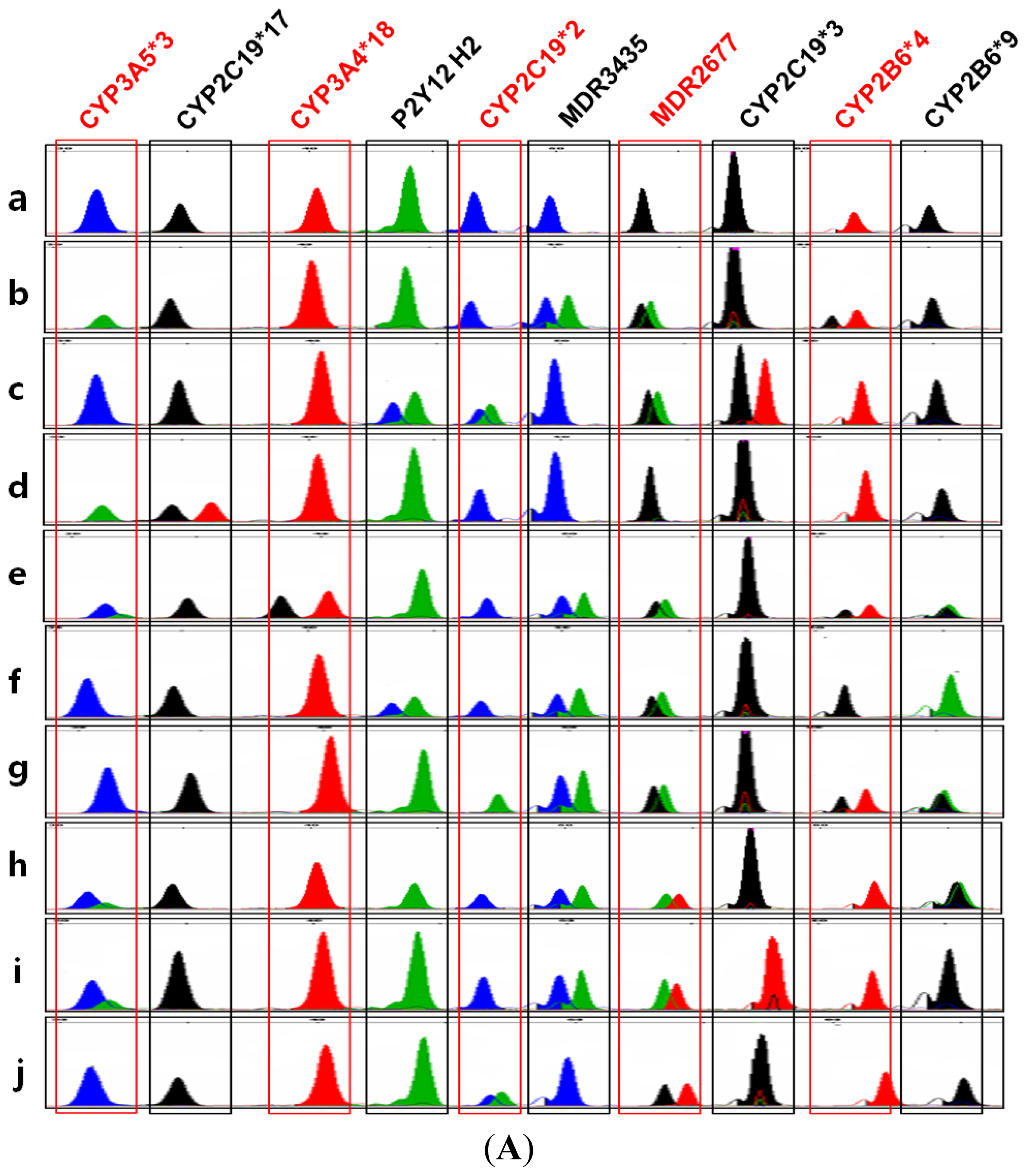

Figure 1. (A) Representatives of electropherograms obtained from multiplex single-base extension. The detected variant alleles are shown above the peaks (Green: A, Red: T, Blue: G, and Black: C). Genotypes of ten samples are illustrated as representative results. (a) CYP2B6 *1/*1, CYP2C19 *1/*1, CYP3A4 *1/*1, CYP3A5 *3/*3, MDR1 2677 G/G, MDR1 3435 C/C, and P2Y12 H1/H1; (b) CYP2B6 *1/*4, CYP2C19 *1/*1, CYP3A4 *1/*1, CYP3A5 *1/*1, MDR1 2677 G/T, MDR1 3435C/T, and P2Y12 H1/H1; (c) CYP2B6 *1/*1, CYP2C19 *2/*3, CYP3A4 *1/*1, CYP3A5 *3/*3, MDR1 2677G/T, MDR1 3435C/C, and P2Y12 H1/H2; (d) CYP2B6 *1/*1, CYP2C19 *1/*17, CYP3A4 *1/*1, CYP3A5 *1/*1, MDR1 2677 G/G, MDR1 3435 C/C, and P2Y12 H1/H1; (e) CYP2B6 *1/*6, CYP2C19 *1/*1, CYP3A4 *1/*18, CYP3A5 *1/*3, MDR1 2677 G/T, MDR1 3435 C/T, and P2Y12 H1/H1; (f) CYP2B6 *6/*6, CYP2C19 *1/*2, CYP3A4 *1/*1, CYP3A5 *3/*3, MDR1 2677 G/T, MDR1 3435 C/T, and P2Y12 H1/H2 (g) CYP2B6 *1/*6, CYP2C19 *2/*2, CYP3A4 *1/*1, CYP3A5 *3/*3, MDR1 2677 G/T, MDR1 3435 C/T, P2Y12 H1/H1; (h) CYP2B6 *1/*9, CYP2C19 *1/*1, CYP3A4 *1/*1, CYP3A5 *1/*3, MDR1 2677 A/T, MDR1 3435C/T, and P2Y12 H1/H1; (i) CYP2B6 *1/*1, CYP2C19 *3/*3, CYP3A4 *1/*1, CYP3A5 *1/*3, MDR1 2677 A/T, MDR1 3435 C/T, and P2Y12 H1/H1; (j) CYP2B6 *1/*1, CYP2C19 *1/*2, CYP3A4 *1/*1, CYP3A5 *3/*3, MDR1 2677 G/A, MDR1 3435 C/C, and P2Y12 H1/H1; (B) A Schematic of genotype calling for each variant allele and genotype.
Figure 1. (A) Representatives of electropherograms obtained from multiplex single-base extension. The detected variant alleles are shown above the peaks (Green: A, Red: T, Blue: G, and Black: C). Genotypes of ten samples are illustrated as representative results. (a) CYP2B6 *1/*1, CYP2C19 *1/*1, CYP3A4 *1/*1, CYP3A5 *3/*3, MDR1 2677 G/G, MDR1 3435 C/C, and P2Y12 H1/H1; (b) CYP2B6 *1/*4, CYP2C19 *1/*1, CYP3A4 *1/*1, CYP3A5 *1/*1, MDR1 2677 G/T, MDR1 3435C/T, and P2Y12 H1/H1; (c) CYP2B6 *1/*1, CYP2C19 *2/*3, CYP3A4 *1/*1, CYP3A5 *3/*3, MDR1 2677G/T, MDR1 3435C/C, and P2Y12 H1/H2; (d) CYP2B6 *1/*1, CYP2C19 *1/*17, CYP3A4 *1/*1, CYP3A5 *1/*1, MDR1 2677 G/G, MDR1 3435 C/C, and P2Y12 H1/H1; (e) CYP2B6 *1/*6, CYP2C19 *1/*1, CYP3A4 *1/*18, CYP3A5 *1/*3, MDR1 2677 G/T, MDR1 3435 C/T, and P2Y12 H1/H1; (f) CYP2B6 *6/*6, CYP2C19 *1/*2, CYP3A4 *1/*1, CYP3A5 *3/*3, MDR1 2677 G/T, MDR1 3435 C/T, and P2Y12 H1/H2 (g) CYP2B6 *1/*6, CYP2C19 *2/*2, CYP3A4 *1/*1, CYP3A5 *3/*3, MDR1 2677 G/T, MDR1 3435 C/T, P2Y12 H1/H1; (h) CYP2B6 *1/*9, CYP2C19 *1/*1, CYP3A4 *1/*1, CYP3A5 *1/*3, MDR1 2677 A/T, MDR1 3435C/T, and P2Y12 H1/H1; (i) CYP2B6 *1/*1, CYP2C19 *3/*3, CYP3A4 *1/*1, CYP3A5 *1/*3, MDR1 2677 A/T, MDR1 3435 C/T, and P2Y12 H1/H1; (j) CYP2B6 *1/*1, CYP2C19 *1/*2, CYP3A4 *1/*1, CYP3A5 *3/*3, MDR1 2677 G/A, MDR1 3435 C/C, and P2Y12 H1/H1; (B) A Schematic of genotype calling for each variant allele and genotype.
Ijms 15 07699f1aIjms 15 07699f1b
Table 1. List of primers used in multiplex PCR.
Table 1. List of primers used in multiplex PCR.
AllelesPrimer Sequence (5′–3′)Size (bp)Annealing Temperature (°C)References
CYP2B6*9F-GGTCTGCCCATCTATAAAC
R-CTGATTCTTCACATGTCTGCG
52657[11]
CYP2C19*2F-AATTACAACCAGAGCTTGGC
R-TATCACTTTCCATAAAAGAAG
16957[12]
CYP2C19*3F-CCAATCATTTAGCTTCACCC
R-ACTTCAGGGCTTGGTCAATA
26257[12]
CYP2C19*17F-GCCCTTAGCACCAAATTCTCT
R-CACCTTTACCATTTAACCCCC
48357[13]
CYP3A4*18F-CACATCAGAATGAAACCACC
R-AGAGCCTTCCTACATAGAGTCA
45057[14]
CYP3A5*3F-CATGACTTAGTAGACAGATGA
R-TATGTTATGTAATCCATACCCC
42357[15]
MDR3435F-GGGTGGTGTCACAGGAAGAG
R-CATGCTCCCAGGCTGTTTAT
11357[16]
CYP2B6*4F-GACAGAAGGATGAGGGAGGAAGATG
R-CTCCCTCTGTCTTTCATTCTGTCTTC
64063[11]
MDR2677F-TGTTGTCTGGACAAGCACTGA
R-GCATAGTAAGCAGTAGGGAGTAACAA
14163[16]
P2Y12 H2F-TGCTGAAAATTGAAGCCATACTGT
R-GCATCTACATCTTGGGAATTTGAA
27863-
Table 2. List of sequencing probe used in the single-base extension.
Table 2. List of sequencing probe used in the single-base extension.
AllelesLocationPrimer Sequence (5′–3′)Concentration (nM)
3A5*3 seqF (P21)intron03(T)3AGAGCTCTTTTGTCTTTCA0.12
CYP2C19*17 seqF (P30)promoter(T)0TTGTGTCTTCTGTTCTCAAAG0.04
3CYP3A4*18 SeqF (P19)exon10(T)8CTCCTTTCAGCTCTGTCCGATC0.02
P2Y12 H2 seqR (P38)intron02(T)12CTACATCTTGGGAATTTGAAATGAC0.02
CYP2C19*2 seqF (P55)exon05(T)20CACTATCATTGATTATTTCCC0.08
MDR1 3435 seqR (P39)exon26(T)24GCCTCCTTTGCTGCCCTCAC0.01
MDR1 2677 seqR (P45)exon21(T)26AGTTTGACTCACCTTCCCAG0.03
CYP2C19*3 seqR (P50)exon04(T)28CAAAAAACTTGGCCTTACCTGGAT0.04
CYP2B6*4 seqR (P60)exon05(T)35AGGTAGGTGTCGATGAGGTCC0.12
CYP2B6*9 seqR (P65)exon04(T)38GATGATGTTGGCGGTAATGGA0.12
Table 3. Frequency and concordance of detected variants with DNA sequencing in a Korean population (n = 100).
Table 3. Frequency and concordance of detected variants with DNA sequencing in a Korean population (n = 100).
SNPrs NumberEffectFrequency (%) (95% CI)Concordance (%)
CYP2C19*2rs4244285Splicing defect28.5 (19.6–37.3)100
CYP2C19*3rs4986893W212X9.5 (3.7–15.2)100
CYP2C19*17rs12248560−806C>T1 (0.0–2.95)100
CYP2B6*4rs2279343K262R7 (2.1–12.0)100
CYP2B6*6rs3745274, rs2279343Q172H, K262R15.5 (8.4–22.5)100
CYP2B6*9rs3745274Q172H0.5 (0.0–1.9)100
CYP3A4*18rs28371759L293P1.5 (0.0–3.89)100
CYP3A5*3rs776746Splicing defect76.5 (64.2–84.8)100
MDR1 2677G>Ars2032582A893ST17.5 (10.1–24.9)100
MDR1 2677G>Trs2032582A893ST38 (28.5–47.5)100
MDR1 3435 C>Trs1045642I1145I36.5 (27.1–45.9)100
P2Y12 H2rs2046934-17.5 (10.1–24.9)100
Table 4. Comparative analysis of commonly used genotype platforms.
Table 4. Comparative analysis of commonly used genotype platforms.
Assay NameAssay TypeCost per Genotype ($) aApplicationDetection Capacity bFlexibilityOpen Source ReferenceReference
SNPlexOLA/PCR0.24~48 SNP504Protocol No. (cms_042019) c[27]
HRMMelting TM0.31 SNP>13,800HRM protocol d[28]
SequenomPrimer Extension0.2–0.440–50 SNP1536+Sequenom protocol e[29]
SNaPshot (MSSE)Primer Extension1~12 SNP3840+SNaPshot protocol c[30]
Taqman5′-nuclease reaction2.391 SNP>30,000Protocol No. (cms_042998) c[31]
Pyrosequencingenzymatic reaction4–12~3 SNP>14,500Pyrosequencing protocol f[32,33]
OLA: Oligonucleotide Ligation Assay, HRM: High Resolution Melting.
aGenotyping cost was from the literatures and open source of company;
bThe detectable number of samples a day was estimated by the fulltime use of the corresponding machine;
