Int. J. Mol. Sci. 2014, 15(6), 10989-10998; doi:10.3390/ijms150610989
Abstract: Diarrhea and edematous disease are two major causes of mortality in postweaning piglets, and these conditions lead to huge economic losses in the swine industry. E. coli F18 is the primary causative agent of these two diseases. Bactericidal/permeability-increasing protein (BPI) plays an important role in the natural defense of the host. The aim of this study was to determine the correlation between BPI gene upstream CpG island methylation and mRNA expression. In this study, bisulfite sequencing PCR (BSP) was used to detect the methylation status of the BPI gene upstream CpG island and fluorescence quantitative PCR was used to detect BPI expression in the duodenum of piglets from birth to weaning age. BPI upstream CpG islands were shown to have many putative transcription factor binding sites, 10 CpG sites and every CpG site was methylated. The CpG island methylation level was lowest in 30-day piglets and was significantly lower than levels in 8-day piglets (p < 0.05). BPI mRNA expression was significantly higher in 30-day piglets than at any other age (p < 0.05). Pearson’s correlation analysis showed that the methylation status of the CpG island was negatively correlated with BPI mRNA expression. Statistical significances were found in CpG_1, CpG_3, CpG_4, CpG_7 and CpG_10 (p < 0.05). The data indicate that BPI expression is improved by demethylation of the BPI gene upstream CpG island. Furthermore, CpG_1, CpG_3, CpG_4, CpG_7 and CpG_10 may be critical sites in the regulation of BPI gene expression.
Bactericidal/permeability-increasing protein (BPI) is an endogenous cationic protein. In addition to killing Gram-negative bacteria and neutralizing endotoxin and lipopolysaccharide (LPS, also known as endotoxin), BPI has several biological functions, such as promoting complement activation and opsonization for increased phagocytosis, inhibiting angiogenesis and the release of inflammatory mediators, as well as protecting against infection by fungi and protozoan pathogens; thus, BPI plays an important role in the natural defense of the host . Schultz, et al.  have reported that human skin fibroblasts and mucosal cells can increase local BPI protein expression level, thus protecting the local tissue from systemic infection and inflammation. Furthermore, Mao, et al.  reported that high expression of BPI may contribute to host immune defense against Gram-negative bacterial infections in ark shell Scapharca broughtonii. In recent years, BPI was identified as a candidate gene for disease-resistance breeding in pig . Escherichia coli F18 (E. coli F18) is a Gram-negative bacteria, with the main component of the cell wall being LPS, which is the main bacterial pathogenic factor . E. coli F18 is the primary causative of diarrhea and edematous disease which are two major causes of mortality in postweaning piglets, and these disease lead to huge economic losses in the swine industry . Our preliminary study suggested that BPI expression is connected to resistance against E. coli F18 .
DNA methylation is one of the most common mechanisms of epigenetic regulation, whereby 5-cytosine in guanine and cytosine-rich region (CpG islands) is converted to 5-methylcytosine (5mC) by methyltransferases. DNA methylation occurs mainly in the CpG island-rich promoter region, where it can hinder binding of transcription factors to the promoter, thereby inhibiting gene transcription . In view of the importance of promoter in gene transcription regulation and the close relationship between BPI gene expression and E. coli F18-resistance, bisulfite sequencing PCR (BSP) was used to detect the methylation status of the BPI gene upstream CpG island and fluorescence quantitative PCR was used to detect BPI expression in the duodenum of piglets from birth to weaning age. Our objective was to investigate the correlation between BPI gene upstream CpG island methylation status and mRNA expression, to provide a theoretical basis for resistance to E. coli F18 infection in pig.
2. Results and Discussion
2.1. Bioinformatic Analysis

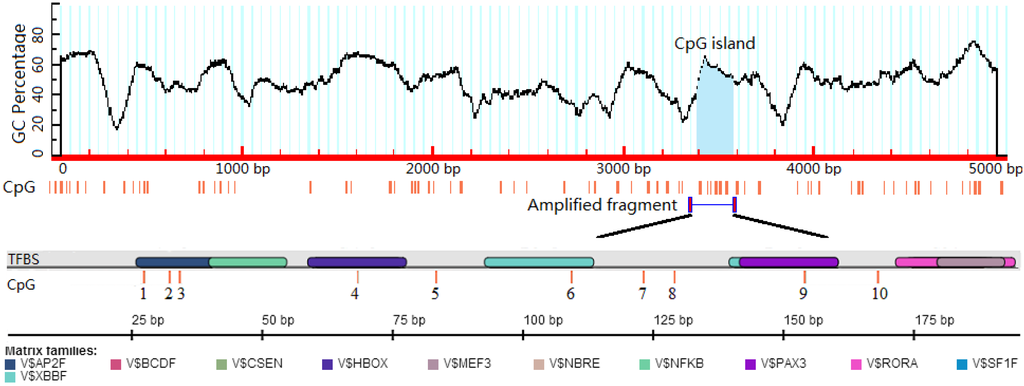

The results of MethPrimer analysis showed that the porcine BPI gene upstream-5 kb region contains only one CpG island, which contains 10 CpG sites (Figure 1). Therefore, primers were designed for amplification of a fragment containing the whole CpG island. MatInspector was used to identify putative transcription factor binding sites (TFBS) within the CpG island using the following conditions: Core similarity, set to 1.00, Matrix similarity, set to Optimized and greater than 0.90. Twelve putative TFBS were identified (Table 1), six of which contain CpG sites: Ap-2, Gsh-2, CRX-1, RFX-5, RFX-4 and Pax-3.
|Matrix Family||Detailed Matrix Information||Start Position||End Position||Matrix Similarity|
|V$AP2F||Transcription factor AP-2, beta||26||40||0.901|
|V$BCDF||Cone-rod homeobox-containing transcription factor/otx-like homeobox gene||60||76||0.976|
|V$HBOX||Homeodomain transcription factor Gsh-2||59||77||0.957|
|V$XBBF||Regulatory factor X, 5||93||113||0.946|
|V$XBBF||Regulatory factor X, 4||140||160||0.922|
|V$PAX3||Pax-3 paired domain protein||142||160||0.943|
|V$SF1F||SF1 steroidogenic factor 1||174||188||0.996|
|V$NBRE||Monomers of the nur subfamily of nuclear receptors (nur77, nurr1, nor-1)||175||189||0.941|
|V$RORA||RAR (Retinoic acid receptor)-related orphan receptor alpha1||172||194||0.932|
|V$CSEN||Downstream regulatory element-antagonist modulator, Ca2+-binding protein of the neuronal calcium sensors family that binds DRE (downstream regulatory element) sites as a tetramer||180||190||0.992|
|V$MEF3||MEF3 (Myocyte enhancer factor 3) binding site, present in skeletal muscle-specific transcriptional enhancers||180||192||0.912|
2.2. Validation of the CpG Island Fragment Amplification

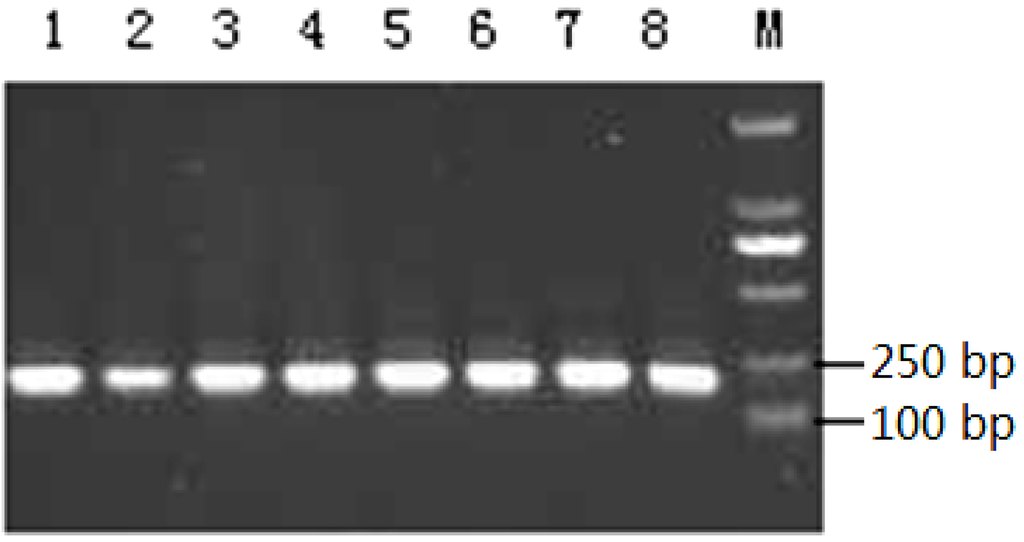

The products of BSP primer pair amplification from DNA extracted from the pig duodenum were examined by 1% agarose gel electrophoresis. The size of the amplified fragments corresponded with the expected PCR product sizes (195 bp) and each amplified a single specific product which could be directly cloned and sequenced (Figure 2).
2.3. Results and Analysis of Methylation Levels
A total of 237 correct clones of CpG island containing fragments were obtained and confirmed by sequencing; the average number of recombinant clones for each individual was 14.8 (range 12–18). All CpG sites were methylated (Table 2, Figure S1). Overall, the CpG island methylation levels at 8, 18, 30 and 35 days of age were 75.94% ± 26.75%, 61.41% ± 35.14%, 36.04% ± 10.28% and 61.48% ± 23.22%, respectively. A significant difference was found between the levels of methylation at days 8 and 30 (p < 0.05). Single CpG site analysis showed significant differences in the methylations levels of CpG_3, CpG_4 and CpG_10 site in the different age groups (p < 0.05).
|Methylation Level (%)||8-Day||18-Day||30-Day||35-Day|
|Overall||75.94 ± 26.75 a||61.41 ± 35.14 a,b||36.04 ± 10.28 b||61.48 ± 23.22 a,b|
|CpG_1||71.43 ± 28.09||69.73 ± 16.75||42.30 ± 10.44||60.13 ± 34.29|
|CpG_2||75.55 ± 36.80||62.98 ± 32.53||31.90 ± 14.15||49.58 ± 33.77|
|CpG_3||85.00 ± 19.15 a||67.93 ± 26.02 a,b||27.95 ± 18.85 b||58.85 ± 24.54 a,b|
|CpG_4||87.58 ± 11.36 a||79.00 ± 16.93 a||41.18 ± 15.92 b||73.70 ± 11.09 a|
|CpG_5||67.13 ± 35.41||60.00 ± 33.91||25.00 ± 15.23||55.30 ± 25.86|
|CpG_6||79.23 ± 26.22||57.80 ± 30.84||44.45 ± 18.99||67.85 ± 23.69|
|CpG_7||65.38 ± 14.05||61.10 ± 27.67||36.40 ± 22.31||63.93 ± 9.54|
|CpG_8||78.15 ± 25.64||55.33 ± 43.18||47.73 ± 14.08||74.60 ± 25.62|
|CpG_9||73.98 ± 33.66||57.85 ± 35.36||51.13 ± 5.11||62.03 ± 22.05|
|CpG_10||68.58 ± 27.33 a||44.58 ± 18.04 a||4.18 ± 8.35 b||50.18 ± 24.72 a|

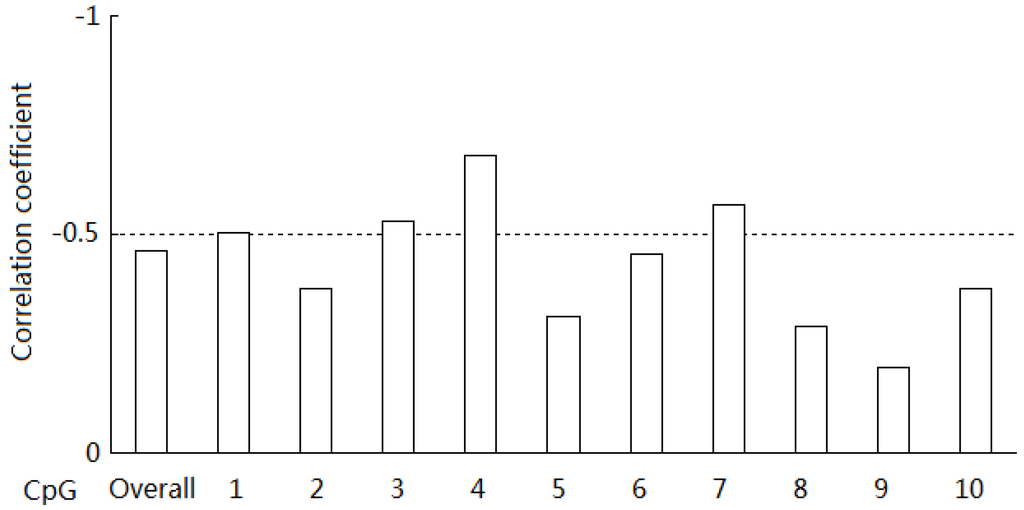

2.4. Correlation between the Methylation Levels and mRNA Expression
The mRNA expression levels at 8, 18, 30 and 35 days of age were 1.06 ± 0.38, 1.20 ± 0.52, 8.62 ± 6.49 and 1.48 ± 1.48, respectively. Significantly higher levels of BPI mRNA expression were detected only in 30-day old piglets compared with the other age groups (p < 0.05). Pearson correlation analysis showed that the methylation status of the CpG island was negatively correlated with BPI mRNA expression; with significant correlation coefficients for CpG_1, CpG_3, CpG_4 and CpG_7 (p < 0.05, Figure 3, Table S1).
Promoters are often located in the upstream of genes and methylation in this region is one of the most common epigenetic mechanisms underlying the suppression of gene expression. In general, DNA methylation occurs most commonly in CpG islands, which are located in the promoter or first exon . CpG island is a region with at least 200 bp, and a GC percentage that is greater than 50%, and with an observed-to-expected CpG ratio that is greater than 60% . DNA methylation regulates transcription factor (TF) activity by methylation or demethylation of TFBS located in GC-rich regions, resulting in specific inhibition or activation of gene expression [12,13,14]. The results of MethPrimer analysis showed that the porcine BPI gene upstream-5 kb region contains only one CpG island, which contains 12 putative TFBS. These observations indicate that the CpG island is a key region in the regulation of BPI gene expression, so this regulation is likely to be multi-factorial and more comprehensive investigations are required for complete elucidation.
Baker-Andresen et al.  reported that the highly dynamic process of promoter methylation is an important regulatory mechanism of normal developmental processes. Such dynamic methylation processes are particularly evident during embryonic development, and methylation plays a key role in the reprogramming of the genome in early mammalian embryogenesis [16,17,18]. Changes in DNA methylation with aging have also been reported in post-natal animals [19,20,21]. In the present study, we observed methylation of all the CpG sites in the CpG island of the BPI gene, and that the pattern of methylation altered dynamically with piglet age. RT-PCR analysis revealed that the methylation status of the CpG island was shown negatively correlated with BPI mRNA expression levels, indicating that BPI gene expression is suppressed by CpG island methylation. BPI is an endogenous cationic protein which can kill Gram-negative bacteria and neutralize LPS . Combined with the biological activity of BPI, BPI is directly and closely related to resistance to intestinal E. coli and other Gram-negative bacteria. When piglets are invaded by E. coli strains, the bactericidal effects of BPI are activated. Because it has a cytotoxic effect on Gram-negative bacteria and neutralizes endotoxin, it kills E. coli strains before they attach to the small intestine and release intestinal toxins, reducing the probability of diarrhea and edema in infected piglets. Bertschinger et al.  reported that newborn piglets were more susceptible to infection by E. coli F4, while at 30 days (the transition period for weaning), piglets were more susceptible to infection by E. coli F18. It can be speculated that at 30 days, BPI expression levels are increased in these piglets by CpG island methylation in the intestines leading to E. coli F18-resistance.
Barrera et al.  reported variation in CpG islands in different genome elements. Each CpG island has its own specific function, and only a few CpG sites within each CpG island may be critical for regulation, indicating that methylation of every site is not required for the regulation of gene expression . The BSP cloning sequencing method can be used for analysis of the methylation status of individual CpG sites. In the present study, averages of 15 bacterial colonies were selected for every individual; thus, allowing a high level of precision to be achieved in the analysis of individual CpG sites. Variance analysis showed that significant differences in the methylation status of CpG_3, CpG_4 and CpG_10 among the different age groups (p < 0.05). Furthermore, Pearson correlation analysis showed that the methylation status of the CpG island was negatively correlated with BPI mRNA expression; correlation coefficients were significant for CpG_1, CpG_ 3, CpG_4 and CpG_7 (p < 0.05). These results suggest that all of the CpG sites are involved in the regulation of BPI mRNA expression, with CpG_1, CpG_3, CpG_4, CpG_7 and CpG_10 representing critical sites involved in this process.
3. Experimental Section
3.1. Experimental Animals
The Sutai pig (Duroc (50%) × Meishan (50%) cross) is a new breed of high quality lean-meat type pig bred by the Sutai pig breeding center in Suzhou City (Suzhou, China). It was approved by the National Committee of Livestock and Poultry Species as a new variety in 1999. All pigs (Sutai pigs, 8-, 18-, 30- and 35-day old, n = 4 per age group) included in the study were healthy, raised in the same conditions, with similar birth weights, weaning weights, and body sizes. The pigs were purchased from Suzhou Sutai Pig Breeding Center (Suzhou, China) and this experiment was conducted in the Animal Hospital of Yangzhou University according to the regulations of the Administration of Affairs Concerning Experimental Animals (Ministry of Science and Technology, Beijing, China, revised in June 2012). This experiment was approved by the Institution Review Board of the Yangzhou University (permit No. SYXK (Su) 2012-0029).
3.2. Bioinformatic Analysis
3.3. Methylation Analysis
Genomic DNA was extracted from porcine duodenal tissues by standard phenol/chloroform extraction and subjected to bisulfite conversion using the EpiTect bisulfite kit (Qiagen, Valencia, CA, USA), according to the manufacturer’s instructions. Touchdown PCR was used to amplify the bisulfite-treated DNA (BST-DNA). The primer sequences were: F, 5'-TAAATCGACCCCATCAGCCTC-3' and R, 5'-ATTTAATCCCTAACCTTACTCAATAC-3', the amplified fragment length is 195 bp. The 50 µL reactions included 3 μL DNA template, 3 μL 10× PCR buffer, 2 μL Mg2+ (25 mmol/L), 1 μL forward primer (10 μM/L), 1 μL reverse primer (10 μM/L), 1 μL dNTPs (10 mmol/L), 0.8 μL Taq polymerase (5 U/μL) and 38.2 μL water. The following reaction conditions were used: 98 °C for 4 min, then 20 cycles of 94 °C for 45 s, 66 °C for 45 s (reduced by 0.5 °C with each cycle) and 72 °C for 1 min; 20 cycles of 94 °C for 45 s, 56 °C for 45 s and 72 °C for 1 min, with a final extension at 72 °C for 10 min. The PCR products were subjected to electrophoresis on agarose gels, excised, purified and inserted into the pMD18-T vector (TaKaRa, Dalian, China). The recombinant clones were used to transform E. coli TB1 cells. Positive recombinant clones were selected on LB agar plates containing 100 μg/mL ampicillin, and confirmed by PCR and DNA sequencing (20–30 positive recombinant clones were selected from each individual).
3.4. Real-Time PCR Analysis
RNA was isolated from the duodenal tissues of the Sutai pigs using TRIzol reagent (Invitrogen, Carlsbad, CA, USA), according to the manufacturer’s instructions. Single-stranded cDNA was generated using the PrimeScript RT-PCR Kit (TaKaRa) following the manufacturer’s instructions. Real-time quantitative PCR was performed using an ABI Prism 7500 sequence-detection system (Applied Biosystems, Foster City, CA, USA) with SYBR Green PCR Master Mix (TaKaRa), according to the manufacturer’s instructions. The BPI fragment was amplified using the primers listed in Table 3 and the GAPDH primers were used as internal control; the expression of BPI in each sample was normalized to that of GAPDH. Triplicate PCR amplifications were performed for each sample.
|Primer||Sequence of Primer||Length (bp)|
|BPI RT-PCR primer||5'-ATATCGAATCTGCGCTCCGA-3'||136|
|GAPDH RT-PCR primer||5'-ACATCATCCCTGCTTCTACTGG-3'||187|
3.5. Data Processing and Analysis
Methylation sequencing results were processed by QUMA software for analysis ; the real-time PCR results were processed using the 2−ΔΔCt method (ΔCt = mean BPI expression − mean GAPDH expression) . The average ΔCt of the 8-day age group was arbitrarily defined as 1.0 for relative quantification of the expression levels of this gene in the other age groups (ΔΔCt = ΔCt of each group − average ΔCt of the 8-day age group in each experiment). Statistical analyses were carried out using SPSS 17.0 software (SPSS Inc., Chicago, IL, USA). The LSD (Least Significant Difference) method was used to analyze the significance of differences in methylation level and mRNA expression among the four age groups. Methylation levels and mRNA expression were analyzed by Pearson’s correlation.
In this study, we identified 12 putative TFBS in the BPI gene CpG island, with CpG_1, CpG_3, CpG_4, CpG_7 and CpG_10 implicated as critical sites in the regulation of gene expression. The CpG island methylation status correlated negatively with BPI mRNA expression and the pattern of methylation altered dynamically with piglet age. Our data indicate that BPI expression is improved in piglets by the demethylation of the BPI gene upstream CpG island.
This research was supported by the National Natural Science Funds (31372285, 31172183), Genetically Modified Organisms Technology Major Project (2014ZX08006-001B), Science and Technology Supporting Project of Jiangsu Province (BE2012330, BY2012157, BE2013345), and the Priority Academic Program Development of Jiangsu Higher Education Institutions (PAPD).
J.W. performed the experimental work, analyzed the results and composed the manuscript. X.Y., L.S., S.S. and S.W. participated in the experiments. W.B. designed the study and participated in editing the manuscript. G.Z. and C.Z. helped with design and coordination of this study. All authors read and approved the final manuscript.
Conflicts of Interest
The authors declare no conflict of Interest.
