Article

Ruthenium Complexes Induce HepG2 Human Hepatocellular Carcinoma Cell Apoptosis and Inhibit Cell Migration and Invasion through Regulation of the Nrf2 Pathway

Department of Oncology, Nanhai Hospital of Southern Medical University, Foshan 528200, China
*
Author to whom correspondence should be addressed.
Int. J. Mol. Sci. 2016, 17(5), 775; https://doi.org/10.3390/ijms17050775
Submission received: 29 February 2016 / Revised: 28 April 2016 / Accepted: 5 May 2016 / Published: 19 May 2016
(This article belongs to the Special Issue Recent Advances in Metal Based Drugs)

Abstract

:
Ruthenium (Ru) complexes are currently the focus of substantial interest because of their potential application as chemotherapeutic agents with broad anticancer activities. This study investigated the in vitro and in vivo anticancer activities and mechanisms of two Ru complexes—2,3,7,8,12,13,17,18-Octaethyl-21H,23H-porphine Ru(II) carbonyl (Ru1) and 5,10,15,20-Tetraphenyl-21H,23H-porphine Ru(II) carbonyl (Ru2)—against human hepatocellular carcinoma (HCC) cells. These Ru complexes effectively inhibited the cellular growth of three human hepatocellular carcinoma (HCC) cells, with IC50 values ranging from 2.7–7.3 μM. In contrast, the complexes exhibited lower toxicity towards L02 human liver normal cells with IC50 values of 20.4 and 24.8 μM, respectively. Moreover, Ru2 significantly inhibited HepG2 cell migration and invasion, and these effects were dose-dependent. The mechanistic studies demonstrated that Ru2 induced HCC cell apoptosis, as evidenced by DNA fragmentation and nuclear condensation, which was predominately triggered via caspase family member activation. Furthermore, HCC cell treatment significantly decreased the expression levels of Nrf2 and its downstream effectors, NAD(P)H: quinone oxidoreductase 1 (NQO1) and heme oxygenase 1 (HO1). Ru2 also exhibited potent in vivo anticancer efficacy in a tumor-bearing nude mouse model, as demonstrated by a time- and dose-dependent inhibition on tumor growth. The results demonstrate the therapeutic potential of Ru complexes against HCC via Nrf2 pathway regulation.

Graphical Abstract

1. Introduction

The success of cisplatin in combating cancers has kindled substantial interest among scientists to identify additional, platinum (Pt)-based metal complexes with improved anticancer activities [1,2]. However, clinically serious side effects, such as nephrotoxicity, gastrointestinal toxicity, and drug resistance, have limited the clinical applications of Pt-based complexes [3]. Therefore, substantial efforts have been made in previous decades to identify non-platinum-based metal anticancer drugs [4,5,6,7]. Specifically, ruthenium (Ru)-based complexes comprise promising antitumor agents with broad anticancer effects. These Ru-based complexes may function as alternatives to cisplatin and platinum-based anticancer drugs because they exhibit favorable properties for the design of anticancer drugs, such as the higher coordination number for more diversified drug design and lower toxicity with respect to healthy tissues [8,9,10,11].
Human hepatocellular carcinoma (HCC), which accounts for approximately 700,000 yearly deaths worldwide, is the fifth and seventh most common cancer in men and women, respectively [12]. Currently, chemotherapy is one of the most important modalities for HCC treatment. Therefore, the rational design and synthesis of potent metal complexes, especially Ru complexes, may represent a potential strategy to identify novel anti-HCC drugs. Studies have demonstrated the application potentials of Ru complexes in the chemotherapy of HCC. For example, Chen and colleagues demonstrated that water-soluble Ru(II) complexes with chiral 4-(2,3-dihydroxypropyl)-formamide oxoaporphine functioned as G4-DNA binders to inhibit telomerase activity and subsequently induce HCC cell apoptosis [13]. Yuan et al. demonstrated that the Ru complex Λ-WH0402 induced HCC LM6 cell death by triggering Beclin-1-dependent autophagy pathways [14]. Wu et al. demonstrated that a structural change in the Ru(II) arene complex from a ferrocene unit to a carboxyl group led to highly selective antitumor activity aimed at cancerous cells and facilitated the inhibition of cancer cell proliferation [15]. Moreover, Huang et al. determined that mixed-ligand Ru(II) complexes could be used for photodynamic therapy of HCC cells [16]. Taken together, these findings indicate the therapeutic potential of Ru complexes for HCC treatment. However, the in vivo effects and mechanisms remain unclear.
The current study investigated the anti-HCC activities and mechanisms of Ru complexes in vitro and in vivo. The findings indicated that Ru complexes inhibited HCC cell growth, migration, and invasion via the induction of Nrf2-mediated cell apoptosis. Furthermore, Ru complex 2 (Ru2) demonstrated potent in vivo anti-HCC activity in an animal model. Taken together, the current findings support the therapeutic potential of Ru complexes against HCC via Nrf2 pathway regulation.

2. Results and Discussion

2.1. Ru Complexes Inhibit HCC Cell Growth, Migration, and Invasion

The in vitro anticancer activities of two Ru complexes (Figure 1a) were first screened using several HCC cells (HepG2, Bel7402, and SMMC7721) and a human normal liver cell line (L02). Following 72 h of Ru complex treatment, the cell viability was assessed via an MTT assay. The IC50 value indicated that both Ru1 and Ru2 complexes could effectively inhibit HCC cell growth, with higher anticancer efficacy observed in Ru2, which exhibited IC50 values at 2.7 ± 1.4, 3.2 ± 1.2, and 5.0 ± 1.8 μM for the tested HCC cells (Figure 1b). This cell line-specific anticancer efficacy could be due to the different biochemical characteristic of different cells. In contrast, Ru2 exhibited lower toxicity towards the L02 human normal liver cells (IC50 value = 24.8 ± 2.0 μM), which indicates a high selectivity between cancer and normal cells. As a result of the substantial metastatic potency of HCC, we investigated the effects of Ru2 on the metastatic potential of HepG2 cells in vitro. A scratch motility assay was subsequently performed to determine the anti-metastatic potential of Ru2, and the results showed that Ru2 at 2 and 4 μM effectively inhibited HepG2 cell migration following 24 h of treatment in a dose-dependent manner (Figure 2). Moreover, the effects of Ru complexes on the invasion of HepG2 cells were assessed using a Transwell Boyden chamber that was pre-coated with matrigel for 4 h at 37 °C. The results showed that Ru2 effectively inhibited HepG2 cell invasion following 24 h of treatment in a dose-dependent manner (Figure 3). Together, these findings support the wide-spectrum therapeutic potential of Ru complexes in HCC treatment.

2.2. Cell Apoptosis Activation by Ru Complexes

Dysregulation of cell apoptosis has been associated with chronic diseases, especially cancers, in humans [17]. The induction of cancer cell apoptosis (also referred to as programmed cell death) has been demonstrated as an effective approach for clinical cancer treatment [18]. The growth inhibitory activities of most anticancer drugs on cancer cells are achieved via the induction of apoptosis [19]. Substantial evidence has demonstrated that Ru complexes inhibited cancer cell growth via the induction of apoptosis [5,9,11,16]. Based on in vitro anticancer screening, Ru2 demonstrated an increased anticancer efficacy compared with Ru1. Thus, studies were conducted to investigate the anticancer mechanism through which Ru2 caused cancer cell death. First, propidium iodide (PI)-flow cytometric analysis was implemented to identify the mechanism of Ru-induced cell death. HepG2 cell exposure to different Ru2 concentrations led to an increased proportion of apoptotic cells (Figure 4); this effect was dose-dependent, as reflected by the increase in the sub-G1 populations from 2.3% (control) to 37.9% (4 μM) (Figure 4). Furthermore, the TUNEL-DAPI co-staining assay results indicated that HepG2 cell exposure to 2 and 4 μM of Ru2 for 24 h triggered significant and dose-dependent apoptosis (Figure 5). Representative fluorescent images indicated that HepG2 cells treated with Ru2 exhibited significant apoptotic DNA fragmentation and nuclear condensation. Overall, these findings indicate that apoptosis comprised the major mode of cell death induced by these Ru complexes.
Caspase family proteins function as important regulators in the induction of apoptosis via the enzymolysis of substrates [20]. Activated caspases induce proteolytic cleavage of PARP and ultimately result in cell apoptosis [20]. Cell apoptosis may be initiated by two mechanisms, including the death receptor-mediated extrinsic and mitochondria-mediated intrinsic apoptotic pathways. The current study investigated the intracellular caspase activities in cells following Ru2 exposure to determine the caspase requirement for the apoptotic cascade. As shown in Figure 6, HepG2 cell exposure to Ru2 significantly induced caspase-3, -8, and -9 activation. These findings indicate that Ru2 induced HCC cell apoptosis primarily through the activation of caspase-mediated apoptosis, as well as the involvement of mitochondria and death receptors.

2.3. Ru Complexes Induce Reactive Oxygen Species (ROS) Overproduction via Nrf2 Pathway Regulation

ROS, including superoxide anion, hydrogen peroxide, and hydroxyl radical, are involved in the mechanisms of numerous anticancer drugs via the initiation of apoptotic signaling pathways during chemotherapy [21]. Excess intracellular ROS may cause DNA damage and trigger the activation of nuclear factor-like 2 (Nrf2) and downstream signals, such as NAD(P)H: quinone oxidoreductase 1 (NQO1) and heme oxygenase 1 (HO1) [22,23,24,25]. Substantial evidence indicates that ROS played a critical role in the signaling pathways triggered by therapeutic cancer drugs and metal complexes [5,9,11,16,26,27,28,29,30]. Therefore, we determined the intracellular ROS generation levels in HepG2 cells following Ru2 exposure via the assessment of dihydroethidium (DHE) fluorescence intensity. The cells treated with Ru2 significantly triggered ROS generation in a time- and dose-dependent manner (Figure 7a). Furthermore, when cells were treated with 4 µM of Ru2, the ROS production increased to 150% of the control. Moreover, the ROS scavenger N-acetylcysteine (NAC) was also implemented to confirm the role of ROS in cell apoptosis. These findings indicate that NAC pretreatment (1 mM) suppressed Ru-induced cell death (Figure 7b). Taken together, these findings indicate that ROS play an important role in cell apoptosis induced by Ru complexes in HCC cells.The Keap1-Nrf2 pathway is a critical cytoprotective regulator in mammalian cells in response to both endogenous and exogenous stresses [31]. Thus, Western blotting was used to identify the effects of Ru2 on the Nrf2 expression level in HCC cells. Ru2 significantly inhibited the Nrf2 signaling pathway, as demonstrated by the decreased expression levels of Nrf2 and its downstream effectors NQO1 and HO1, especially HO1, in a dose-dependent manner (Figure 8). These results suggest that the Nrf2 pathway may be involved in Ru2-induced oxidative stress and cell apoptosis. To clarify the involvement of the Nrf2 pathway in Ru-induced ROS generation and cell apoptosis, the effects of the ROS scavenger NAC on Nrf2 expression were investigated in cells with or without Ru2 treatment. Ru2 significantly reduced the Nrf2 protein level in the HCC cells (Figure 8), which was increased by the addition of NAC. These findings indicate that Ru2 induces intracellular ROS generation to inhibit the Nrf2 signaling pathway to regulate cell fate.

2.4. In Vivo Anticancer Activities of Ru2

Furthermore, the in vivo anticancer activity of Ru2 against HCC was investigated in HepG2 xenografts using a nude mouse model. Following i.p. (2.5 and 5.0 mg/kg body weight on alternating days) administration for 20 days, the tumor weight significantly decreased from 2.5 to 1.6 and 1.1 g, respectively. The tumor volume dramatically decreased to 65% and 42%, respectively, of the control group (Figure 9). Moreover, the mice that received Ru2 treatment maintained normal body weight throughout the treatment process, and the mortality for the mice in different treatment groups was found at zero. These findings support the potent in vivo anticancer efficacy of Ru2 against HCC. Additional pre-clinical studies should be conducted to promote the development of this type of Ru-based anticancer metal medicine.

3. Materials and Methods

3.1. Reagents, Cell Lines, and Cell Cultures

Ru complexes, including 2,3,7,8,12,13,17,18-Octaethyl-21H,23H-porphine ruthenium(II) carbonyl and 5,10,15,20-Tetraphenyl-21H,23H-porphine ruthenium(II) carbonyl, and all other reagents were obtained from Sigma-Aldrich (St. Louis, MO, USA). Human HCC cells (HepG2, Bel7402, and SMMC7721) and a human normal liver cell line (L02) were purchased from American Type Culture Collection (ATCC, Manassas, VA, USA) and GuangZhou Jennio Biotech Co., Ltd. (Guangzhou, China). The cell lines were cultured and maintained in RPMI 1640 or DMEM culture media, which contained 10% fetal bovine serum, penicillin (100 units/mL), and streptomycin (50 units/mL) at 37 °C in a humid incubator with 5% CO2.

3.2. Cell Viability Assessment via MTT Assay

Ru complex effects on cell proliferation were determined via an MTT assay based on previous research with modifications [32]. The cell density seeded in the 96-well plates was 2 × 104 cells/mL. A microplate spectrophotometer (VERSA max, Molecular Devices, CA, USA) was used to measure the color intensity of the formazan solution stranding at 575 nm to determine the cell viability [6].

3.3. Cell Migration and Invasion

To assess cell migration, HepG2 cells (1 × 106 per well) were cultured in 6-well plates and allowed to form a confluent monolayer for 24 h. After the serum was starved for 4 h, the cells were scratched using pipette tips, washed with PBS, and photographed using a phase-contrast microscope (200×, Nikon TS100, Nikon, Tokyo, Japan). Fresh medium supplemented with 1% FBS was added to the wells with different Ru complex concentrations. Following incubation for 24 and 48 h, three random areas of cells were photographed. The migrated cells were subsequently quantified via manual counting, and the inhibition ratio was expressed as a percentage of the control.
The effects of Ru complexes on the invasion of HepG2 cells were assessed using a Transwell Boyden chamber (8 μm pore, Corning, Lowel, MA, USA), which was pre-coated with matrigel for 4 h at 37 °C. One hundred microliters of cell suspension (2.5 × 105 cells/mL) in serum-free medium was added to the upper chamber compartment. The bottom chambers were supplemented with 500 μL of complete medium (10% FBS) and contained the indicated Ru complex concentrations. Following incubation for 24 h, the non-migrant cells from the upper face were scraped using a cotton swab. The invaded cells on the lower face were fixed with methanol, stained with Giemsa staining solution, and photographed using a phase-contrast microscope (200×, Nikon TS100). The invaded cells were quantified via manual counting, and the inhibition ratio was expressed as a percentage of the control.

3.4. Flow Cytometric Analysis

Following exposure to different Ru complex concentrations, the cells were washed twice with PBS and subsequently fixed with 70% ethanol at −20 °C in the dark overnight. The fixed cells were stained with propidium iodide (PI, 50.1 μg/mL) for 2 h in the dark and subsequently subjected to a Coulter Epics XL flow cytometer (Miami, FL, USA). Apoptotic cells were quantified based on the sub-G1 peak in the cell cycle distribution histogram [33].

3.5. Apoptotic DNA Fragmentation Assessment via TUNEL Staining Assays

Following treatments with different Ru complex concentrations, the cells cultured in confocal dishes were fixed with formaldehyde for 10 min and permeabilized with 0.1% Triton X-100 in PBS for 2 min. The cells were incubated with a 100-μL/well TUNEL reaction mixture, which contained a nucleotide mixture and terminal deoxynucleotidyl transferase (TdT), for 1 h. The cells were then stained with DAPI (1 μg/mL) for 20 min. After washing with PBS, the cells were examined using a confocal fluorescence microscope (LSM 510 META, Carl Zeiss, Jena, Germany) [34].

3.6. Caspase Activation by Ru Complexes

The enzymatic activities of caspase-3, -8, and -9 in Ru complex-treated cells were determined using a fluorometric method with specific caspase substrates (Ac-DEVD-AMC for caspase-3, Ac-IETD-AMC for caspase-8, and Ac-LEHD-AMC for caspase-9 purchased from Enzo Life Sciences (Plymouth Meeting, PA, USA), and the excitation and emission wavelengths were set at 380 and 440 nm, respectively [35].

3.7. Western Blotting

Following Ru complex treatments, the cells were harvested, collected as cell pellets, and lysed in RIPA cell lysis buffer on ice for 1 h. The cell lysate protein concentrations were determined using a BCA assay kit (Sigma-Aldrich) as previously described [36]. Equal proteins from each treatment were separated on a 12% SDS denaturing polyacrylamide gel and electrophoretically transferred to PVDF membranes. After blocking with 5% non-fat milk, the membranes were incubated with primary antibodies (1:1000; Cell Signaling Technology, Inc. (Beverly, MA, USA)) at 4 °C overnight. After washing with TBS solution, the PVDF membranes were incubated with corresponding secondary antibodies and visualized using a Pierce ECL Western blotting substrate.

3.8. ROS Generation Assessment

Intracellular ROS generation following Ru complex exposure was determined via a 2′,7′-dichlorodihydrofluorescein diacetate (DCFH-DA) fluorometric assay [37]. Briefly, HepG2 cells were seeded in 96-well microplates at 6 × 104 cells/well for 24 h. The cells were subsequently incubated with different treatments for different lengths of exposure. Following incubation, the treated cells were incubated with 10 μM of DHE at 37 °C for 30 min. The medium was aspirated, and the cells were washed two times using PBS. Prior to ROS measurement, 100 μL of PBS was added to each well. The ROS in the samples were then immediately determined. ROS generation was assessed via fluorescence intensity with settings of 485 and 525 nm for the excitation and emission wavelengths, respectively. The change in intracellular ROS levels of each group was determined by calculating ΔF = (FF0)/F0, where F represents the fluorescence read at each time point and F0 represents the control fluorescence.

3.9. Immunofluorescence Analysis of Protein Expression in Cells

Immunofluorescence imaging of Nrf2 in the treated cells was analyzed via immunofluorescence. Following Ru complex treatments, the cells were washed with PBS and fixed with 3.7% formaldehyde in PBS. After several rinses with PBS, the cells were permeabilized with 0.2% Triton X-100 for 5 min. The permeabilized cells were subsequently blocked with 0.1% BSA and incubated overnight with p-p53 primary antibody at 4 °C. The cells were incubated with Alexa-488 labeled anti-rabbit IgG antibody (1:250) for 1 h at room temperature. The cell nuclei were stained with Hochst 33342 for 20 min. Finally, the slides were analyzed with a confocal fluorescence microscope (LSM 510 META).

3.10. Tumor Xenograft in Nude Mice

HepG2 cells (5 × 106) suspended in PBS were subcutaneously injected into the right lower hind flank of six-week-old male nude mice. The mice were then randomly assigned to three groups (n = 10 per group). After ten days, Ru complexes dissolved in solution (DMFv:Tween-80v:salinev = 10:2:88) were administered (2.5 and 5.0 mg/kg body weight on alternating days, intraperitoneal injection) for 20 days. The control group comprised mice administered an equal volume of the vehicle (saline). The body weights and tumor volumes were assessed every 2 days. At the study endpoint, the tumor xenografts were collected and weighed. The tumor dimensions were determined using calipers. The tumor volume was calculated as follows: volume = l × w2/2, where l represents the maximal length, and w represents the width. All animal studies were approved by the Animal Experimentation Ethics Committee of Southern Medical University.

3.11. Statistical Analysis

All experiments were performed at minimum in triplicate. The data are presented as means ± standard errors. Differences between two groups were analyzed via two-tailed Student’s tests, whereas differences among three or more groups were analyzed via one-way analysis of variance (ANOVA) multiple comparisons. * p < 0.05 and ** p < 0.01 were considered statistically significant.

4. Conclusions

In summary, the current study elucidated the in vitro and in vivo anticancer efficacy and mechanisms of two Ru complexes. These findings indicate that these potent Ru complexes suppress the cell growth of the tested HCC cells through the induction of cell apoptosis via Nrf2 signaling pathway regulation. The cell apoptosis was evidenced by DNA fragmentation and nuclear condensation, which was predominately triggered via caspase family member activation. Furthermore, Ru2 also demonstrated potent in vivo anticancer efficacy in a nude mouse model. Taken together, these findings illustrate the therapeutic potential of Ru complexes against HCC via Nrf2 pathway regulation.

Author Contributions

Yiyu Lu and Weiguang Gu conceived and designed the experiments; Yiyu Lu and Ting Shen performed the experiments and analyzed the data; Hua Yang contributed reagents/materials/analysis tools; Weiguang Gu wrote the paper.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Rosenberg, B.; van Camp, L.; Krigas, T. Inhibition of cell division in Escherichia coli by electrolysis products from a platinum electrode. Nature 1965, 205, 698–699. [Google Scholar] [CrossRef] [PubMed]
  2. Kelland, L. The resurgence of platinum-based cancer chemotherapy. Nat. Rev. Cancer 2007, 7, 573–584. [Google Scholar] [CrossRef] [PubMed]
  3. Markman, M. Toxicities of the platinum antineoplastic agents. Expert Opin. Drug Saf. 2003, 2, 597–607. [Google Scholar] [CrossRef] [PubMed]
  4. Wang, X.; Wang, X.; Guo, Z. Functionalization of platinum complexes for biomedical applications. Acc. Chem. Res. 2015, 48, 2622–2631. [Google Scholar] [CrossRef] [PubMed]
  5. Chen, T.; Wong, Y.S.; Zheng, W.J.; Liu, J. Caspase- and p53-dependent apoptosis in breast carcinoma cells induced by a synthetic selenadiazole derivative. Chem. Biol. Interact. 2009, 180, 54–60. [Google Scholar] [CrossRef] [PubMed]
  6. Chen, J.; Luo, Z.; Zhao, Z.; Xie, L.; Zheng, W.; Chen, T. Cellular localization of iron(II) polypyridyl complexes determines their anticancer action mechanisms. Biomaterials 2015, 71, 168–177. [Google Scholar] [CrossRef] [PubMed]
  7. Liu, Z.; Sadler, P.J. Organoiridium complexes: Anticancer agents and catalysts. Acc. Chem. Res. 2014, 47, 1174–1185. [Google Scholar] [CrossRef] [PubMed]
  8. Zhao, Z.; Luo, Z.; Wu, Q.; Zheng, W.; Feng, Y.; Chen, T. Mixed-ligand ruthenium polypyridyl complexes as apoptosis inducers in cancer cells, the cellular translocation and the important role of ROS-mediated signaling. Dalton Trans. 2014, 43, 17017–17028. [Google Scholar] [CrossRef] [PubMed]
  9. Luo, Z.; Yu, L.; Yang, F.; Zhao, Z.; Yu, B.; Lai, H.; Wong, K.H.; Ngai, S.M.; Zheng, W.; Chen, T. Ruthenium polypyridyl complexes as inducer of ROS-mediated apoptosis in cancer cells by targeting thioredoxin reductase. Metallomics 2014, 6, 1480–1490. [Google Scholar] [CrossRef] [PubMed]
  10. Chen, T.; Liu, Y.; Zheng, W.-J.; Liu, J.; Wong, Y.-S. Ruthenium polypyridyl complexes that induce mitochondria-mediated apoptosis in cancer cells. Inorg. Chem. 2010, 49, 6366–6368. [Google Scholar] [CrossRef] [PubMed]
  11. Cao, W.; Zheng, W.; Chen, T. Ruthenium polypyridyl complex inhibits growth and metastasis of breast cancer cells by suppressing FAK signaling with enhancement of TRAIL-induced apoptosis. Sci. Rep. 2015, 5. [Google Scholar] [CrossRef] [PubMed]
  12. Marquardt, J.U.; Andersen, J.B.; Thorgeirsson, S.S. Functional and genetic deconstruction of the cellular origin in liver cancer. Nat. Rev. Cancer 2015, 15, 653–667. [Google Scholar] [CrossRef] [PubMed]
  13. Chen, Z.F.; Qin, Q.P.; Qin, J.L.; Zhou, J.; Li, Y.L.; Li, N.; Liu, Y.C.; Liang, H. Water-soluble ruthenium(II) complexes with chiral 4-(2,3-dihydroxypropyl)-formamide oxoaporphine (FOA): In vitro and in vivo anticancer activity by stabilization of G-quadruplex DNA, inhibition of telomerase activity, and induction of tumor cell apoptosis. J. Med. Chem. 2015, 58, 4771–4789. [Google Scholar] [CrossRef] [PubMed]
  14. Yuan, J.; Lei, Z.; Wang, X.; Zhu, F.; Chen, D. Ruthenium complex ΛWH0402 induces hepatocellular carcinoma LM6 (HCCLM6) cell death by triggering the beclin-1-dependent autophagy pathway. Metallomics 2015, 7, 896–907. [Google Scholar] [CrossRef] [PubMed]
  15. Wu, C.H.; Wu, D.H.; Liu, X.; Guoyiqibayi, G.; Guo, D.D.; Lv, G.; Wang, X.M.; Yan, H.; Jiang, H.; Lu, Z.H. Ligand-based neutral ruthenium(II) arene complex: Selective anticancer action. Inorg. Chem. 2009, 48, 2352–2354. [Google Scholar] [CrossRef] [PubMed]
  16. Huang, H.; Zhang, P.; Yu, B.; Jin, C.; Ji, L.; Chao, H. Synthesis, characterization and biological evaluation of mixed-ligand ruthenium(II) complexes for photodynamic therapy. Dalton Trans. 2015, 44, 17335–17345. [Google Scholar] [CrossRef] [PubMed]
  17. Maiese, K.; Chong, Z.Z.; Shang, Y.C.; Wang, S. Targeting disease through novel pathways of apoptosis and autophagy. Expert Opin. Ther. Targets 2012, 16, 1203–1214. [Google Scholar] [CrossRef] [PubMed]
  18. Chen, T.; Wong, Y.S. Selenocystine induces apoptosis of a375 human melanoma cells by activating ROS-mediated mitochondrial pathway and p53 phosphorylation. Cell. Mol. Life Sci. 2008, 65, 2763–2775. [Google Scholar] [CrossRef] [PubMed]
  19. Chen, T.; Wong, Y.S. Selenocystine induces caspase-independent apoptosis in MCF-7 human breast carcinoma cells with involvement of p53 phosphorylation and reactive oxygen species generation. Int. J. Biochem. Cell Biol. 2009, 41, 666–676. [Google Scholar] [CrossRef] [PubMed]
  20. Riedl, S.J.; Shi, Y. Molecular mechanisms of caspase regulation during apoptosis. Nat. Rev. 2004, 5, 897–907. [Google Scholar] [CrossRef] [PubMed]
  21. Simon, H.-U.; Haj-Yehia, A.; Levi-Schaffer, F. Role of reactive oxygen species (ROS) in apoptosis induction. Apoptosis 2000, 5, 415–418. [Google Scholar] [CrossRef] [PubMed]
  22. Indran, I.R.; Hande, M.P.; Pervaiz, S. Htert overexpression alleviates intracellular ROS production, improves mitochondrial function, and inhibits ROS-mediated apoptosis in cancer cells. Cancer Res. 2011, 71, 266–276. [Google Scholar] [CrossRef] [PubMed]
  23. Park, S.; Son, Y.J.; Leong, K.W.; Yoo, H.S. Therapeutic nanorods with metallic multi-segments: Thermally inducible encapsulation of doxorubicin for anti-cancer therapy. Nano. Today 2012, 7, 76–84. [Google Scholar] [CrossRef]
  24. Piconi, L.; Quagliaro, L.; Assaloni, R.; Da Ros, R.; Maier, A.; Zuodar, G.; Ceriello, A. Constant and intermittent high glucose enhances endothelial cell apoptosis through mitochondrial superoxide overproduction. Diabetes Metab. Res. Rev. 2006, 22, 198–203. [Google Scholar] [CrossRef] [PubMed]
  25. Wong, C.H.; Iskandar, K.B.; Yadav, S.K.; Hirpara, J.L.; Loh, T.; Pervaiz, S. Simultaneous induction of non-canonical autophagy and apoptosis in cancer cells by ROS-dependent ERK and JNK activation. PLoS ONE 2010, 5, e9996. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  26. Arai, M.; Shibata, Y.; Pugdee, K.; Abiko, Y.; Ogata, Y. Effects of reactive oxygen species (ROS) on antioxidant system and osteoblastic differentiation in MC3T3-E1 cells. IUBMB Life 2007, 59, 27–33. [Google Scholar] [CrossRef] [PubMed]
  27. Yan, X.T.; Lee, S.H.; Li, W.; Sun, Y.N.; Yang, S.Y.; Jang, H.D.; Kim, Y.H. Evaluation of the antioxidant and anti-osteoporosis activities of chemical constituents of the fruits of prunus mume. Food Chem. 2014, 156, 408–415. [Google Scholar] [CrossRef] [PubMed]
  28. Zhang, J.K.; Yang, L.; Meng, G.L.; Fan, J.; Chen, J.Z.; He, Q.Z.; Chen, S.; Fan, J.Z.; Luo, Z.J.; Liu, J. Protective effect of tetrahydroxystilbene glucoside against hydrogen peroxide-induced dysfunction and oxidative stress in osteoblastic MC3T3-E1 cells. Eur. J. Pharmacol. 2012, 689, 31–37. [Google Scholar] [CrossRef] [PubMed]
  29. Choi, E.M.; Kim, G.H.; Lee, Y.S. Protective effects of dehydrocostus lactone against hydrogen peroxide-induced dysfunction and oxidative stress in osteoblastic MC3T3-E1 cells. Toxicol. In Vitro 2009, 23, 862–867. [Google Scholar] [CrossRef] [PubMed]
  30. Wang, Y.; Wang, W.L.; Xie, W.L.; Li, L.Z.; Sun, J.; Sun, W.J.; Gong, H.Y. Puerarin stimulates proliferation and differentiation and protects against cell death in human osteoblastic MG-63 cells via ER-dependent MEK/ERK and PI3K/Akt activation. Phytomedicine 2013, 20, 787–796. [Google Scholar] [CrossRef] [PubMed]
  31. Kansanen, E.; Kuosmanen, S.M.; Leinonen, H.; Levonen, A.L. The keap1-Nrf2 pathway: Mechanisms of activation and dysregulation in cancer. Redox Biol. 2013, 1, 45–49. [Google Scholar] [CrossRef] [PubMed]
  32. Huang, Y.; He, L.; Liu, W.; Fan, C.; Zheng, W.; Wong, Y.-S.; Chen, T. Selective cellular uptake and induction of apoptosis of cancer-targeted selenium nanoparticles. Biomaterials 2013, 34, 7106–7116. [Google Scholar] [CrossRef] [PubMed]
  33. Yang, F.; Tang, Q.; Zhong, X.; Bai, Y.; Chen, T.; Zhang, Y.; Li, Y.; Zheng, W. Surface decoration by spirulina polysaccharide enhances the cellular uptake and anticancer efficacy of selenium nanoparticles. Int. J. Nanomed. 2012, 7, 835–844. [Google Scholar]
  34. Yong, K.-T.; Wang, Y.; Roy, I.; Rui, H.; Swihart, M.T.; Law, W.-C.; Kwak, S.K.; Ye, L.; Liu, J.; Mahajan, S.D. Preparation of quantum dot/drug nanoparticle formulations for traceable targeted delivery and therapy. Theranostics 2012, 2, 681–694. [Google Scholar] [CrossRef] [PubMed]
  35. Wang, F.; Zhang, D.; Zhang, Q.; Chen, Y.; Zheng, D.; Hao, L.; Duan, C.; Jia, L.; Liu, G.; Liu, Y. Synergistic effect of folate-mediated targeting and verapamil-mediated P-gp inhibition with paclitaxel-polymer micelles to overcome multi-drug resistance. Biomaterials 2011, 32, 9444–9456. [Google Scholar] [CrossRef] [PubMed]
  36. Zhang, Y.; Li, X.; Huang, Z.; Zheng, W.; Fan, C.; Chen, T. Enhancement of cell permeabilization apoptosis-inducing activity of selenium nanoparticles by atp surface decoration. Nanomedicine 2013, 9, 74–84. [Google Scholar] [CrossRef] [PubMed]
  37. Fan, C.; Chen, J.; Wang, Y.; Wong, Y.S.; Zhang, Y.; Zheng, W.; Cao, W.; Chen, T. Selenocystine potentiates cancer cell apoptosis induced by 5-fluorouracil by triggering reactive oxygen species-mediated DNA damage and inactivation of the erk pathway. Free Radic. Biol. Med. 2013, 65, 305–316. [Google Scholar] [CrossRef] [PubMed]

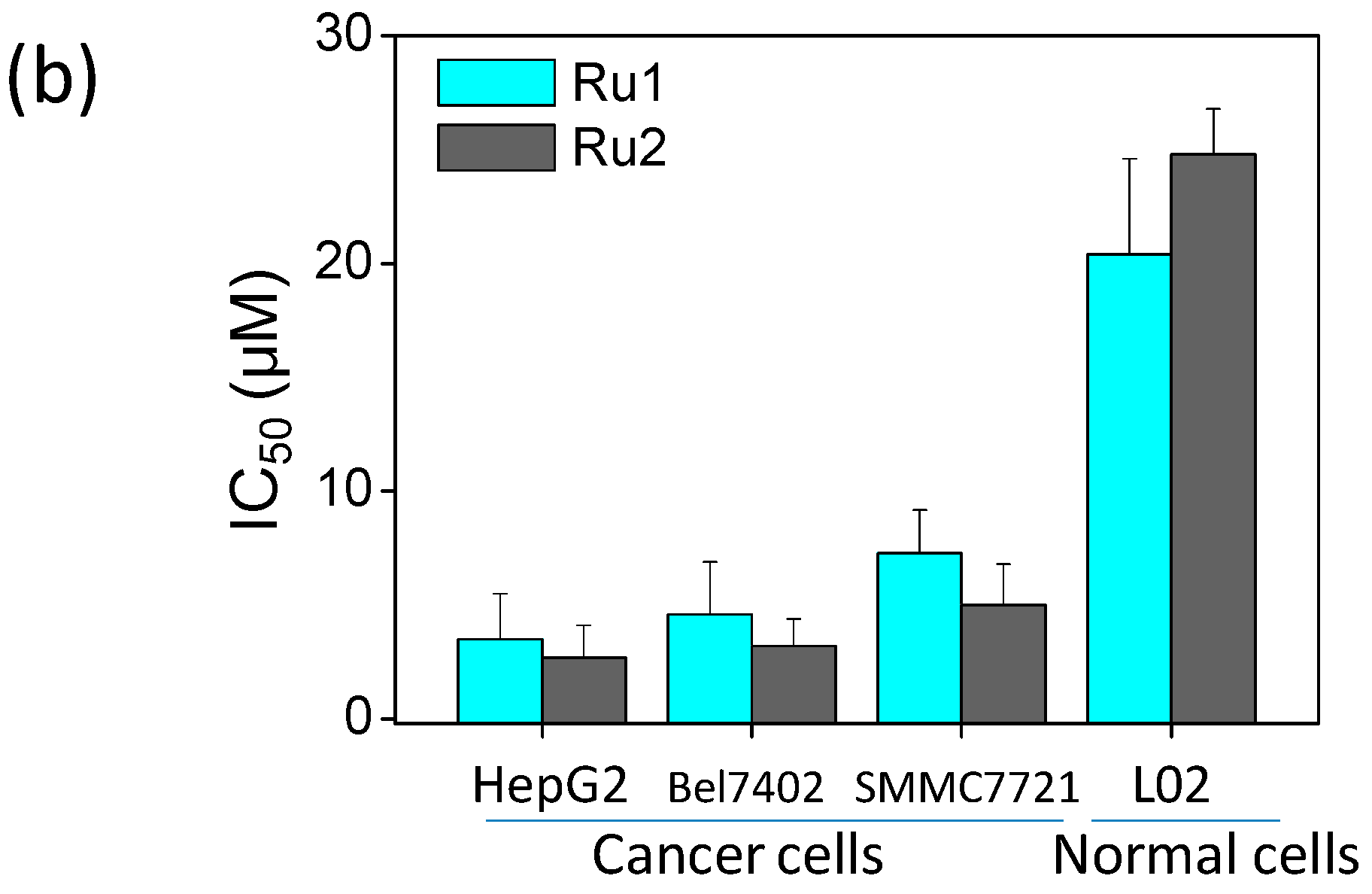

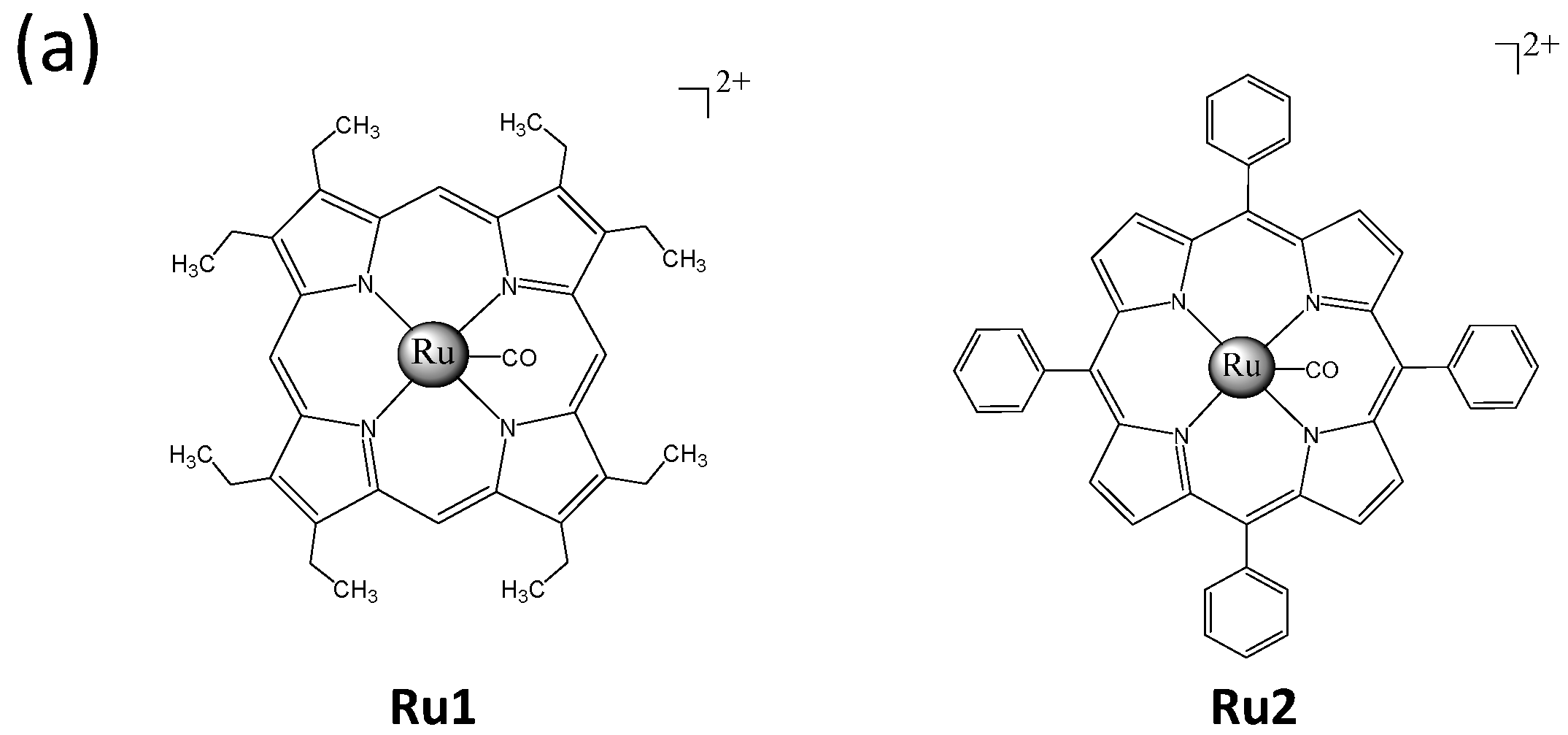

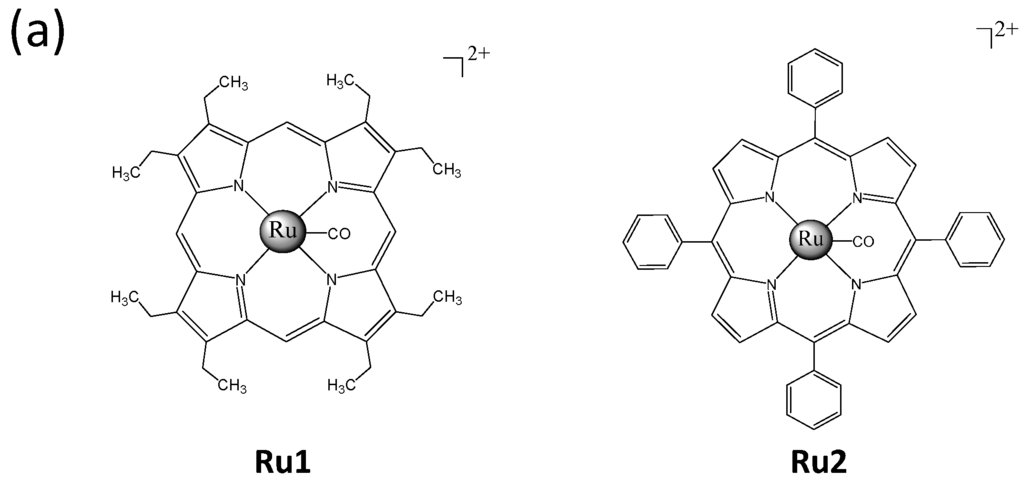

Figure 1. Ru complexes exert in vitro anticancer activities. (a) Chemical structure of Ru complexes; (b) Cytotoxicity of Ru complexes towards human cancer and normal cells. Human hepatocellular carcinoma (HCC) and L02 cells were treated with Ru complexes for 72 h. The cell viability was subsequently investigated via an MTT assay.
Figure 1. Ru complexes exert in vitro anticancer activities. (a) Chemical structure of Ru complexes; (b) Cytotoxicity of Ru complexes towards human cancer and normal cells. Human hepatocellular carcinoma (HCC) and L02 cells were treated with Ru complexes for 72 h. The cell viability was subsequently investigated via an MTT assay.
Ijms 17 00775 g001aIjms 17 00775 g001b
Figure 2. Effects of Ru2 on HepG2 cell migration. Cells were exposed to different Ru2 concentrations for 24 h and photographed using a phase-contrast microscope (200×, Nikon TS100, Nikon, Tokyo, Japan). Values in the images indicate the migration ability of the cells.
Figure 2. Effects of Ru2 on HepG2 cell migration. Cells were exposed to different Ru2 concentrations for 24 h and photographed using a phase-contrast microscope (200×, Nikon TS100, Nikon, Tokyo, Japan). Values in the images indicate the migration ability of the cells.
Ijms 17 00775 g002
Figure 3. Effects of Ru2 on HepG2 cell invasion by using Transwell Boyden assay. Cells were exposed to different Ru2 concentrations for 24 h, stained with Giemsa solution, and photographed using a phase-contrast microscope (200×, Nikon TS100). Values under the images indicate the invasion ability of the cells.
Figure 3. Effects of Ru2 on HepG2 cell invasion by using Transwell Boyden assay. Cells were exposed to different Ru2 concentrations for 24 h, stained with Giemsa solution, and photographed using a phase-contrast microscope (200×, Nikon TS100). Values under the images indicate the invasion ability of the cells.
Ijms 17 00775 g003

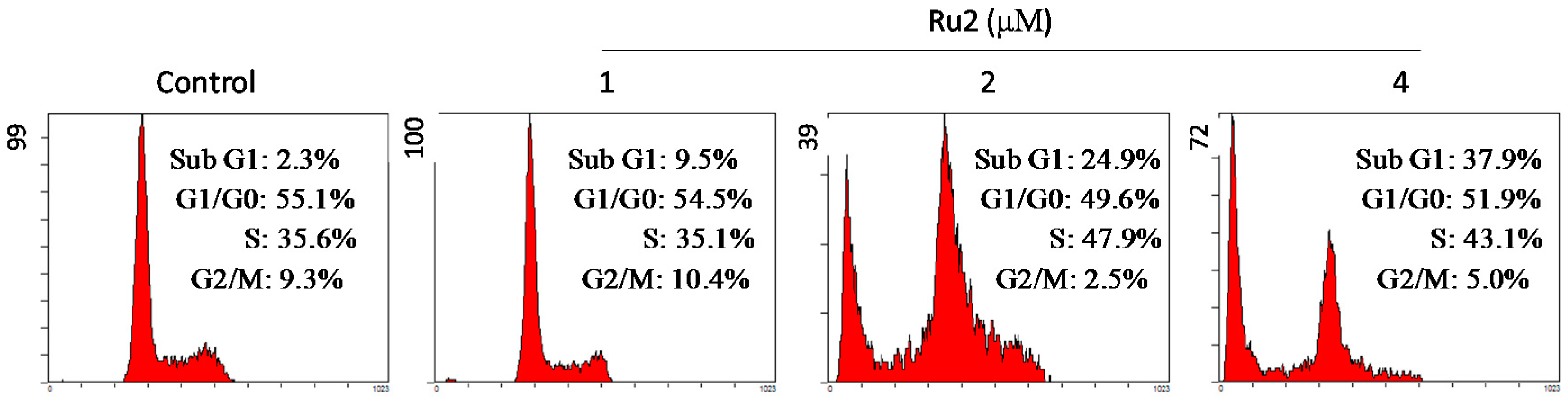

Figure 4. Quantitative analysis of the cell cycle distribution and apoptotic cell death as examined via flow cytometry. Cells were pretreated with or without Ru2 for 24 h.
Figure 4. Quantitative analysis of the cell cycle distribution and apoptotic cell death as examined via flow cytometry. Cells were pretreated with or without Ru2 for 24 h.
Ijms 17 00775 g004
Figure 5. Apoptotic DNA fragmentation and nuclear condensation induced by Ru2 as determined via a TUNEL-DAPI co-staining assay (magnification, 200×). Cells were treated with Ru2 for 24 h.
Figure 5. Apoptotic DNA fragmentation and nuclear condensation induced by Ru2 as determined via a TUNEL-DAPI co-staining assay (magnification, 200×). Cells were treated with Ru2 for 24 h.
Ijms 17 00775 g005

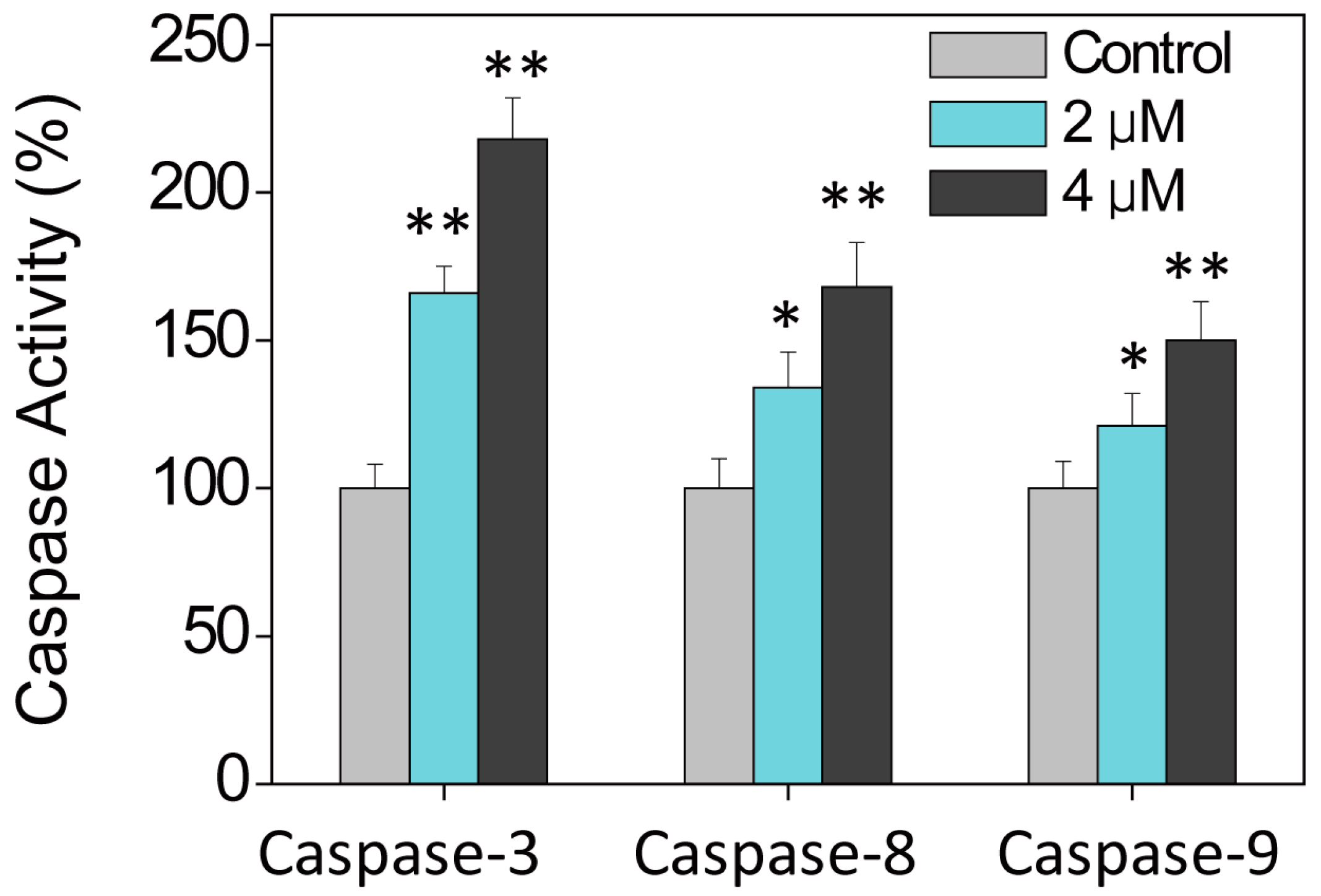

Figure 6. Caspase activities in HCC cells following Ru2 exposure as evaluated via a specific fluorogenic substrate. * p < 0.05 and ** p < 0.01 compared with the control. Cells were treated with Ru complexes for 24 h.
Figure 6. Caspase activities in HCC cells following Ru2 exposure as evaluated via a specific fluorogenic substrate. * p < 0.05 and ** p < 0.01 compared with the control. Cells were treated with Ru complexes for 24 h.
Ijms 17 00775 g006

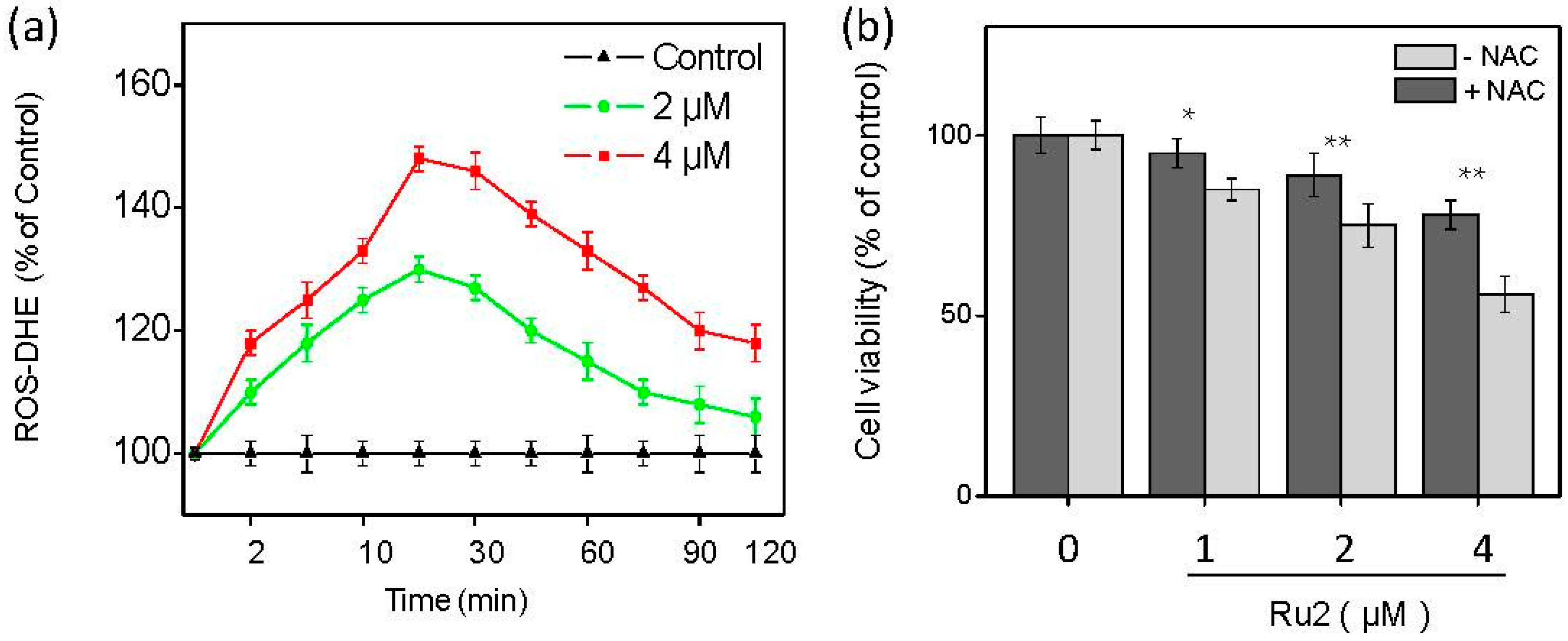

Figure 7. Important roles of ROS in cell apoptosis induced by Ru2. (a) Effects of concentration on intracellular ROS generation following Ru2 treatment in HepG2 cells. The cells were treated with 10 µM DHE probe for 30 min; (b) Protective effects of N-acetylcysteine (NAC) on Ru2-induced growth inhibition. Bars with different characters are statistically different at * p < 0.05 and ** p < 0.01 levels. The cells were pretreated with NAC (1 mM) for 2 h followed by co-incubation with different concentrations of Ru2.
Figure 7. Important roles of ROS in cell apoptosis induced by Ru2. (a) Effects of concentration on intracellular ROS generation following Ru2 treatment in HepG2 cells. The cells were treated with 10 µM DHE probe for 30 min; (b) Protective effects of N-acetylcysteine (NAC) on Ru2-induced growth inhibition. Bars with different characters are statistically different at * p < 0.05 and ** p < 0.01 levels. The cells were pretreated with NAC (1 mM) for 2 h followed by co-incubation with different concentrations of Ru2.
Ijms 17 00775 g007
Figure 8. Regulation of Nrf2 pathway by Ru2. (a) Effects of Ru2 on the expression levels of Nrf2, HO1, and NQO1 in HepG2 cells after treatments for 24 h; (b) Immuno-fluorescence of Nrf2 in cells treated with Ru2 for 24 h (magnification, 200×).
Figure 8. Regulation of Nrf2 pathway by Ru2. (a) Effects of Ru2 on the expression levels of Nrf2, HO1, and NQO1 in HepG2 cells after treatments for 24 h; (b) Immuno-fluorescence of Nrf2 in cells treated with Ru2 for 24 h (magnification, 200×).
Ijms 17 00775 g008

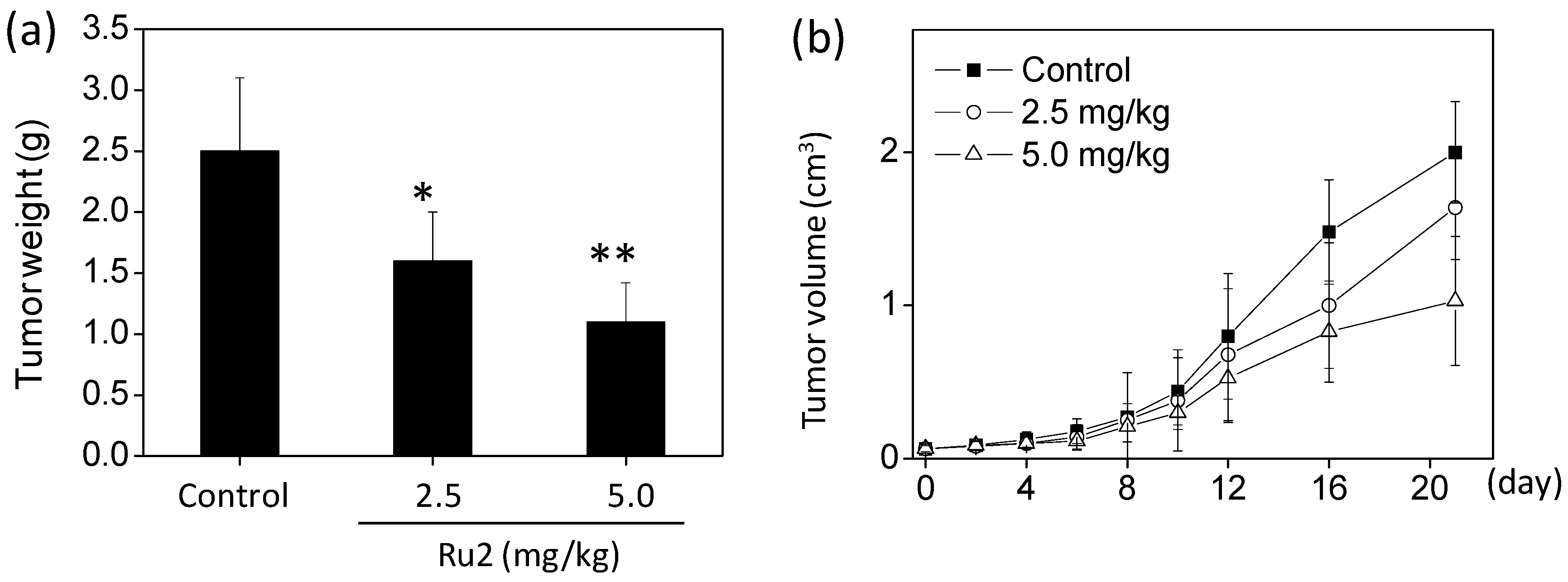

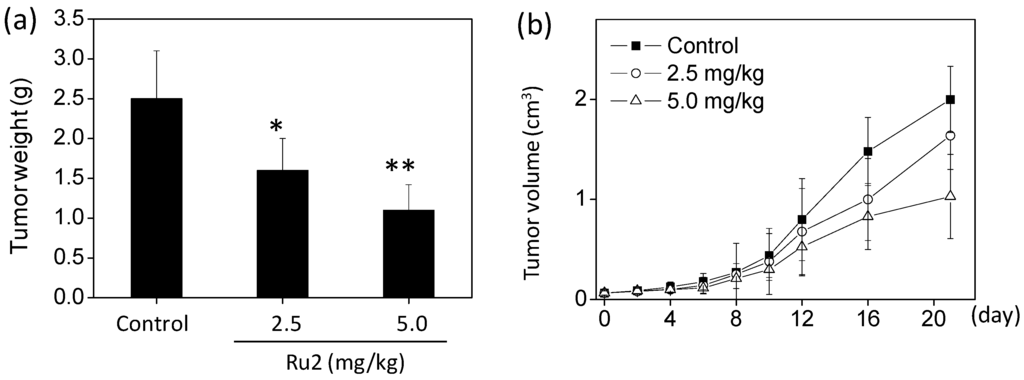

Figure 9. In vivo antitumor efficacy and action mechanisms of Ru2. Inhibition of HepG2 xenograft tumor weight (a) and tumor volume (b) by Ru2. BALB/c nude mice bearing HepG2 xenograft tumors were treated with the complex (2.5 and 5.0 mg/kg every other day) for 20 days. * p < 0.05 and ** p < 0.01 compared with the control.
Figure 9. In vivo antitumor efficacy and action mechanisms of Ru2. Inhibition of HepG2 xenograft tumor weight (a) and tumor volume (b) by Ru2. BALB/c nude mice bearing HepG2 xenograft tumors were treated with the complex (2.5 and 5.0 mg/kg every other day) for 20 days. * p < 0.05 and ** p < 0.01 compared with the control.
Ijms 17 00775 g009
