Protonation Sites, Tandem Mass Spectrometry and Computational Calculations of o-Carbonyl Carbazolequinone Derivatives

by
Maximiliano Martínez-Cifuentes
1,*,
Graciela Clavijo-Allancan
2,
Pamela Zuñiga-Hormazabal
2,
Braulio Aranda
2,
Andrés Barriga
3,
Boris Weiss-López
2 and
Ramiro Araya-Maturana
4,*
1
Programa Institucional de Fomento a la Investigación, Desarrollo e Innovación, Universidad Tecnológica Metropolitana, Las Palmeras 3360, Casilla 9845, Santiago 7800003, Chile
2
Departamento de Química, Facultad de Ciencias, Universidad de Chile, Las Palmeras 3425, Casilla 653, Santiago 7800003, Chile
3
Unidad de Espectrometría de Masas, Facultad de Ciencias Químicas y Farmacéuticas, Universidad de Chile, Santos Dumont 964, Casilla 233, Santiago 8380494, Chile
4
Instituto de Química de Recursos Naturales, Universidad de Talca, Av. Lircay s/n, Casilla 747, Talca 3460000, Chile
*
Authors to whom correspondence should be addressed.
Int. J. Mol. Sci. 2016, 17(7), 1071; https://doi.org/10.3390/ijms17071071
Submission received: 3 May 2016 / Revised: 10 June 2016 / Accepted: 28 June 2016 / Published: 5 July 2016
(This article belongs to the Special Issue Chemical Bond and Bonding 2016)
Browse Figures
Versions Notes

Abstract

:
A series of a new type of tetracyclic carbazolequinones incorporating a carbonyl group at the ortho position relative to the quinone moiety was synthesized and analyzed by tandem electrospray ionization mass spectrometry (ESI/MS-MS), using Collision-Induced Dissociation (CID) to dissociate the protonated species. Theoretical parameters such as molecular electrostatic potential (MEP), local Fukui functions and local Parr function for electrophilic attack as well as proton affinity (PA) and gas phase basicity (GB), were used to explain the preferred protonation sites. Transition states of some main fragmentation routes were obtained and the energies calculated at density functional theory (DFT) B3LYP level were compared with the obtained by ab initio quadratic configuration interaction with single and double excitation (QCISD). The results are in accordance with the observed distribution of ions. The nature of the substituents in the aromatic ring has a notable impact on the fragmentation routes of the molecules.

Graphical Abstract

1. Introduction

Quinones are a class of compounds with high structural diversity and widely present in nature [1,2,3]. Some of them perform essential roles in the respiratory chain of cells [4]. In addition, quinones are considered a privileged scaffold in medicinal chemistry as anticancer [5,6], antifungal [7,8], and antiparasitic drugs [9]. Moreover, it has been found that carcinogenic polyaromatic quinones are generated in air suspended particulate by oxidation of polycyclic aromatic hydrocarbons [10]. Interestingly, some quinones have also been found in interstellar dust particles [11]. Quinones also have relevance in industrial applications such as dyes [12], in biodegradation of priority pollutants [13] and more recently in energy storage applications [14].
In addition, the carbazole motif is present in several biologically active molecules [15,16]. For example, 1,4-Carbazolequinones have attracted interest as anticancer compounds [17,18]. The alkaloid murrayaquinone A, and a number of analogs that contain this moiety, have shown promising cytotoxicities [19]. Also calothrixin B shows a high in-vitro cytotoxicity against HeLa cancer cells, by interaction with human topoisomerase I [20] and by generation of reactive oxygen species [21].
On the other hand, mass spectrometry (MS) has been demonstrated to be a very valuable tool in chemistry and life science research [22]. The small amount of substance necessary for analysis, when compared with other techniques, confers MS a privileged site in structural analysis [23]. The fragmentation patterns of different types of molecules are one of the most useful data for structure elucidation of unknown compounds [24,25]. The analysis of quinones has been performed using diverse methodologies such as conventional gas chromatography-electron impact-mass spectrometry (GC/EI-MS) [26], matrix-assisted laser desorption/ionization time-of-flight (TOF) mass spectrometry [27], electrospray ionization mass spectrometry (ESI-MS) [28,29,30], atmospheric pressure chemical ionization mass spectrometry [31], two-step laser desorption/post-photoionization mass spectrometry (L2MS/PIMS) [32], infrared laser desorption/tunable synchrotron vacuum ultraviolet (VUV), photoionization TOF mass spectrometry [33], and, more recently, desorption electrospray ionization (DESI), developed almost twenty years after matrix-assisted laser desorption/ionization technique (MALDI) [34].
The fragmentation mechanisms of some quinones, especially substituted 1,4-naphthoquinones [35,36,37] and substituted anthraquinones [37,38] have been previously described.
MS/MS experiments commonly lead to different routes of fragmentation of the molecule, depending on the thermodynamic and kinetic phenomena associated with the intermediates species formed during the fragmentation process. The study of these gas-phase intermediaries is not an easy task and the assistance of computational chemistry is a very useful and powerful tool to achieve this goal [39,40]. Some MS studies of quinones have been assisted in this way. For example, the role of the chain of 2-(acylamino)-1,4-naphthoquinones in the fragmentation of the protonated species generated by electrospray ionization, and in the fragmentation analysis of lapachol [30,41]. Also, the atoms in molecules theory has been used in the mass spectra analysis of 1,4-naphthoquinone derivatives, and to explain the generation of anion radicals of these class of compounds by ESI-MS [42,43].
For many years, we have been interested in quinones and hydroquinones as antitumor and antifungal agents [8,44,45,46,47,48], and in their unequivocal structural characterization using nuclear magnetic resonance (NMR) [49,50,51] and MS [52] techniques. Particularly interesting is the presence of a o-carbonyl group attached to the quinone/hydroquinone ring [47,53,54], which can affect both, the electronic structure of the molecule as well as the possibility to form an intramolecular hydrogen bond (intraHB) [55].
In this work, we report four new compounds, as an example of a new structural type of o-carbonyl quinone derivatives, with different substituents on ring D (Figure 1). Their gas-phase dissociation by electrospray ionization technique is also presented. In order to assist with the interpretation of the experimental results, density functional theory (DFT) and ab-initio calculations, were performed.

2. Results and Discussion

2.1. Synthesis of Carbazolequinones

o-carbonylanilinoquinones 6–9 were synthesized following the previously reported on water green procedure [53]. These compounds were used as starting products in an oxidative coupling with palladium acetate, under nitrogen atmosphere, generating the corresponding new o-carbonyl carbazolequinones CQ1–CQ4 (Figure 2), following a procedure similar to one described before [56].
We observed that CQ1, unsubstituted in the aromatic ring, is obtained in 52% yield for the cyclization reaction. This yield increases to 77% with the 2-methyl substituted compound (CQ2) and decreased to 23% and 39% for compounds CQ3 and CQ4 (4–Br and 4–COOEt substituted, respectively), suggesting the importance of the substituent in the aromatic ring for the reactivity in this kind of cyclization reaction.

2.2. Determination of Most Favorable Protonation Site

These molecules present four to six possible protonation sites corresponding to oxygen and nitrogen atoms. Our initial approach to study the most favorable protonation site was to calculate the static properties in the neutral ground state of the molecules. The calculations of optimized structures were carried out at DFT B3LYP/6-31G(d,p) level (Cartesian coordinates for all optimized structures can be found in Tables S1–S82 (supplementary materials)). Then, molecular electrostatic potential (MEP) plots (Figure 3) were obtained, which allows a qualitative determination of the most favorable protonation site.
The MEPs plot for all CQs show a strong basic region (red color) on oxygen atoms 1 and 2, and a weak basic region on oxygen 3. Additionally, CQ3 shows a basic region on the carbonyl ester oxygen 5′. On the other hand, nitrogen 4 does not exhibit basic character, possibly due to an efficient delocalization of the non-bonded electrons through the rest of the aromatic ring. Judging by the color (blue), it is clearly an electron deficient region.
Another way to assess the most favorable site of protonation involves obtaining local Fukui functions for electrophilic attack (f−) [57] and the recently developed local Parr function for electrophilic attack (P−) [58]. The values of these parameters are displayed in Table 1. Both parameters are a quantitative measurement of the local nucleophilic reactivity and therefore, the most favorable protonation site. The new parameter P− has been invocated to be more suitable for polar reactions than local Fukui function. In this study, both parameters were compared.
In all CQs, both parameters, f− and P−, show that the most reactive site for an electrophilic attack, towards which a proton can diffuse and eventually attach, is oxygen 1. However, according to P−, nitrogen 4 is shown to be the second most favorable site to attach the proton, unlike f−, which indicates that O2 is the second most favorable site, in agreement with MEP plots. The electrostatic potential reflects the hard reactivity [59]. On the other hand, local descriptors from conceptual DFT, such as f− and P−, are representative of the soft reactivity, which have a greater orbital influence [59]. Since the intermolecular protonation reaction is mainly an electrostatically controlled phenomenon, it is reasonable to consider the results that agree with those given by MEPs plots. Additionally, these results show that DFT local descriptors should be carefully used for this kind of studies.
Thermodynamic parameters are key tools to study and accurately determine the most favorable protonation site. For instance, the protonation sites of 1,4-benzoquinone (1,4-Bq) have been studied through experimental work and theoretically determined by proton affinity (PA) [60]. The results showed that oxygen atoms were the most favorable sites for protonation, by around 50 kcal·mol−1 relative to the quinone ring carbons. Experimental PA of 1,4-benzoquinone was 191.4 kcal·mol−1 [60]. In our case, we calculated thermodynamic parameters such as proton affinity (PA) and gas-phase basicity (GB) [60,61,62], for the protonation of all oxygen and nitrogen atoms in the molecules. The results for all protonation sites are included in the supplementary materials (Tables S83–S88). Both PA and GB (Table 2) show that the protonation on O1 and O2 are energetically more favorable than other sites, giving both the same value in all cases. Comparison of PA from these CQs with PA from 1,4-Bq shows an increase of around 50 kcal·mol−1 for CQs, indicating that the effect of the fused carbazole moiety on BQ favors the protonation.
However, given that the above calculations were carried out without considering the activation of the ion, it is possible that additional proton migration, induced by collisions, can occur following the initial protonation step [63].

2.3. Fragmentation Pathways of Carbazolquinone Derivatives

The main fragment ions observed in the ESI-MS analysis of carbazolequinones CQ1–4 are listed in Table 3. A first overview shows some differences in the behavior of CQ1 and CQ2, both sodic and potassic adducts, were observed, beside the protonated species. For CQ3 the potassic specie was not observed, while for CQ4 only the protonated specie was observed. For CQ4 the presence of bromide was observed by a peak with m/z 370.
Protonated species were selected and dissociated to obtain fragmentation patterns for all compounds.
Table 4 lists the main fragments observed in the ESI-MSn analysis of carbazolequinones. Starting from the initial molecular ions, we found, as a common fragmentation pattern, the water and carbon monoxide losses. In Scheme 1, a plausible mechanism representative of this fragmentation is presented for CQ1. On the other hand, the spectrum shows two unusual fragments with m/z 144 (100%) and m/z 149 (40%) that will be analyzed later.
Theoretical calculations were performed in selected structures and mechanisms. Enthalpies and Gibbs free energies are relative to initial molecular ion in all schemes (Gibbs free energies are presented in parentheses in all cases). From the initial protonated molecular ion at m/z 292, we propose a dienone-phenol rearrangement to achieve the water loss, giving a m/z 274 ion. CO loss should occur via ring contraction, to give the m/z 264 ion. We consider the loss of CO in the carbonyl oxygen where the protonation is less probable, according to the results in Section 3.2. Whereas water loss requires two steps, CO loss occurs directly through one step. Enthalpy and free energy from DFT calculations show that CO loss is energetically more favored. This proposition is in agreement with the percentage observed for m/z 264 (100%) and m/z 274 (40%) in the spectrum, indicating that CO loss is more favored than water loss. Both ions m/z 274 and m/z 264 lead to formation of ion with m/z 264 by a CO and water losses respectively. We also propose a dienone-phenol rearrangement, previous to water loss from ion m/z 264 to give the ion m/z 246.
For the fragments with m/z 144 (100%) and m/z 149 (40%), a parallel mechanism is plausible, starting from the proton transfer equilibrium between O1 and O2 (Scheme 2). Both PA and GB have the same values for protonation on O1 and O2 (Table 2). The ion m/z 292e is 10.57 and 10.17 kcal·mol−1 lower than 292d in enthalpy and Gibbs free energy, respectively. Scheme 3 and Scheme 4 show the DFT calculated energy profile for the m/z 292e and 292d ion fragmentation route. The critical energy Ec, defined as the barrier energy for the transition state are 51.77 kcal·mol−1 (Gibbs critical energy 48.88 kcal mol−1) for TS_m/z 292g (Scheme 3) and 92.46 kcal·mol−1 (Gibbs critical energy 87.15 kcal·mol−1) for TS_m/z 292f (Scheme 4), respectively. In order to obtain a most accurate description, relative energy for the TSs at DFT Minnesota functional M06-2x/6-311++G(3df,3pd) (Erel1) and ab-initio quadratic configuration interaction, with single and double excitation at QCISD/6-31++G(d,p) (Erel2) level were obtained at the B3LYP optimized geometries. M06-2x energies underrate the energies of TSs compared with high level calculation at QCISD. For TS_m/z 292g the difference is 5.50 kcal·mol−1, while for TS_m/z 292f it is 3.72 kcal·mol−1. These results are in agreement with the differences in the observed relative populations for ions with m/z 144(100) and m/z 149(40).
A very similar fragmentation route was found for CQ2. Compared with CQ1, the only difference was an additional methyl radical loss from the m/z 278 ion, obtained initially by CO loss.

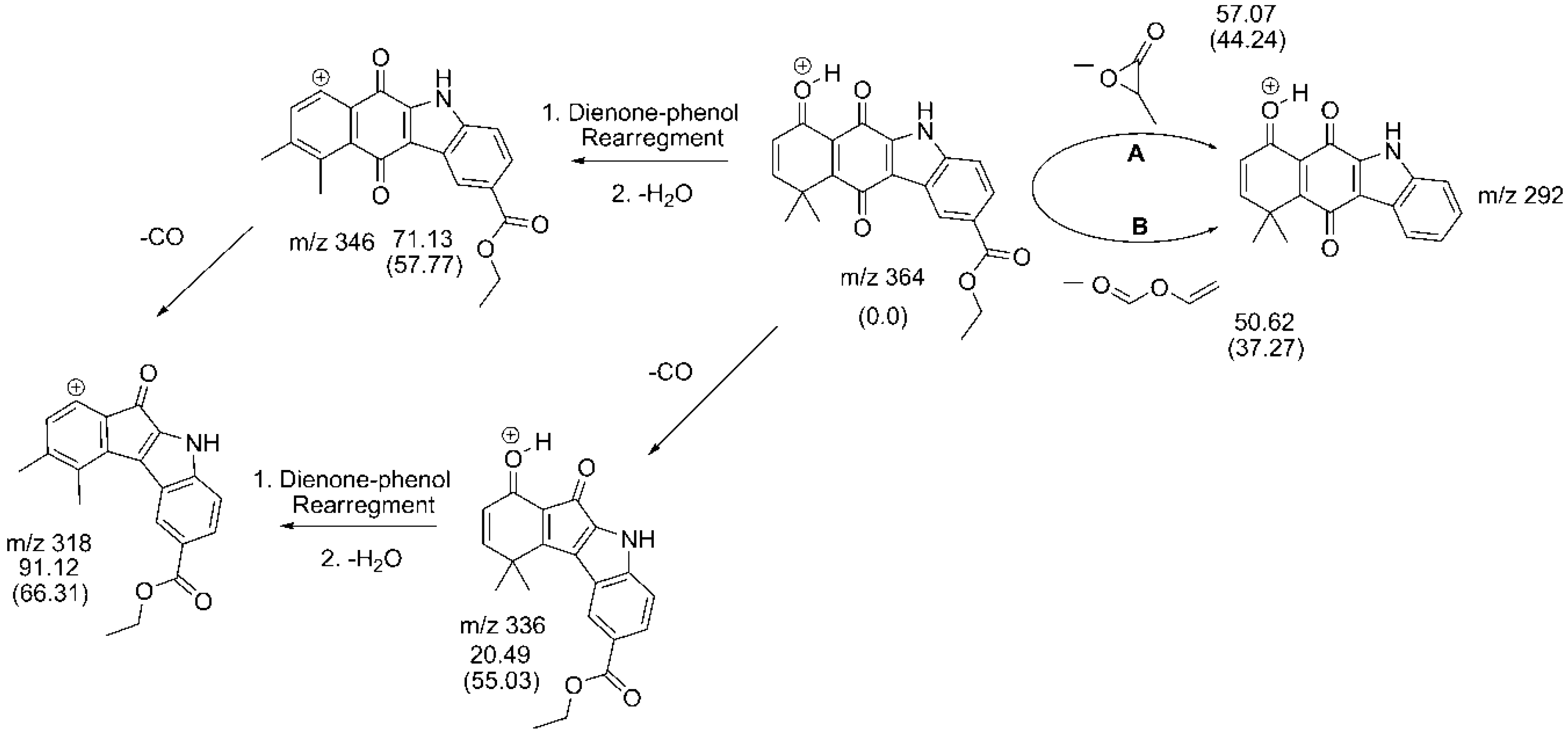

Moreover, CQ3 and CQ4 display a fragmentation similar to CQ1, but the substituent present in the aromatic ring leads to some different fragmentation steps. Table 3 shows that CO and water loss are present in CQ3. Additionally, the loss of –C3H4O2 fragment was also observed. Scheme 5 shows the fragmentation route proposed for CQ3; we propose that water loss goes in a similar way than CQ1 and CQ2, with a dienone-phenol rearrangement followed by water loss to give the fragment with m/z 346. Also, the CO loss proceeds in a similar way to CQ1 and CQ2, to give the fragment m/z 336 with the lower enthalpy and free energy, according to the higher percentages observed for this ion. Finally, both routes lead to the same molecular ion with m/z 318, by CO loss from ion with m/z 346 and by water loss from ion with m/z 336. For loss of fragment C3H4O2 we investigate two possibilities, loss of 3-methyloxiran-2-one (A) and loss of vinyl formate (B). The formation of linear specie vinyl formate is thermodynamically favorable, as reflects their lower enthalpy and free energy. Ion with m/z 292 has the same structure than the protonated molecular ion of CQ1 and experiences a similar subsequent fragmentation pathway (see Scheme 1).
Protonated molecular ion of CQ4 presents a Br loss to give the fragment with m/z 291 and a CO loss to give a fragment with m/z 342 (Scheme 6). Enthalpies and free energies indicate that a fragment with m/z 342 should be more easily formed, but the spectrum shows a greater ratio for m/z 291. This fragment also corresponds to the protonated radical cation of CQ1. Both ions with m/z 291 and m/z 342 can lead to a fragment with m/z 263 by CO and radical Br losses, respectively.

3. Experimental

3.1. Mass Spectrometry

Stock solutions for ESI-MS experiments were prepared by dissolving the compound of interest in 200 μL of acetonitrile. Working solutions were prepared in two different ways: (a) by mixing 20 μL of stock solution and 80 μL of acetonitrile or (b) by adding 60 μL of acetonitrile, 16 μL of water and 4 μL of formic acid 5% v/v, to 20 μL of stock solution. Spectra were acquired in an Esquire 4000 ESI-IT ion trap mass spectrometer (Bruker Daltonik GmbH, Bremen, Germany). Working solutions were analyzed by direct infusion (50 μL) at a flow rate of 3.0 μL/min using a syringe pump (Cole-Parmer, Vernon Hills, IL, USA). The ionization process was performed by electrospray at 4000 V, assisted by nitrogen as nebulizer gas at a temperature of 300 °C, pressure of 10 psi, and flow rate of 5 L/min.
Collision-induced dissociation (CID) was performed by collisions with helium background gas present in the trap. Fragmentation was set with Smart Frag between 30% and 200%, with an isolation width of 4.0 m/z; 1.0 V fragmentation amplitude; fragmentation time of 40 ms; fragmentation delay of 0 ms, and the average of 5 spectra were obtained in all cases. Spectra can be found in Figures S1–S4 (Supplementary Materials).

3.2. Synthetic Methodology

Melting points were determined on a hot-stage apparatus and are uncorrected. The IR spectra were recorded on a FT-IR Bruker IFS 55 spectrophotometer (Bruker Daltonik GmbH, Bremen, Germany) from KBr discs. 1H and 13C NMR spectra were acquired using a Bruker AVANCE 400 spectrometer (Bruker Daltonik GmbH, Bremen, Germany) operating at 400 MHz (1H) or 100 MHz (13C). All measurements were carried out at a probe temperature of 300 K, in CDCl3 or DMSO-d6 containing tetramethylsilane (TMS) as an internal standard.

Synthesis of Carbazolequinones: General Procedure

In a Schlenk tube under inert atmosphere, a mixture of one equivalent of the respective anilinoquinone and one equivalent of Pd(OAc)2 in glacial acetic acid, is heated under reflux by 4 h. and then filtered. The filtered is extracted 3 times with ethyl acetate and washed with a solution of sodium bicarbonate; the organic phase is dried with anhydrous sodium sulfate and then evaporated under vacuum. Column chromatography on silica gel with hexane:EtOAc 2:1 mixture as eluent allow to obtain pure carbazolequinones.
10,10-Dimethyl-5H-benzo[b]carbazole-6,7,11(10H)-trione (CQ1)
Seventy milligrams (0.24 mmol) of 3-anilino-8,8-dimethylnaphthalene-1,4,5(8H)-trione and Pd(OAc)2 54 mg (0.24 mmol) in glacial acetic acid (4 mL) yield 36 mg of CQ1 (52%). 1H NMR (400 MHz, CDCl3) δ: 1.71 (s, 6H), 6.36 (d, J = 10 Hz, 1H), 6.81 (d, J = 10 Hz, 1H), 7.39 (t, J = 8 Hz, 1H), 7.46 (t, J = 8 Hz, 1H), 7.59 (d, J = 8 Hz, 1H), 8.27 (d, J = 8 Hz, 1H), 9.57 (s, 1H). 13C NMR (101 MHz, CDCl3) δ: 184.87, 183.64, 179.00, 160.50, 159.17, 158.84, 138.42, 135.57, 128.58, 125.65, 125.12, 124.25, 123.98, 118.57, 114.19, 40.69, 30.67. IR(KBr): 3237, 1683, 741 cm−1. M.p.: 297–299 °C.
4,10,10-Trimethyl-5H-benzo[b]carbazole-6,7,11(10H)-trione (CQ2)
Sixty-eight milligrams (0.22 mmol) of 8,8-dimethyl-3-[(2-methylphenyl)amino]naphthalene-1,4,5(8H)-trione and Pd(OAc)2 49 mg (0.22 mmoles) yield 32 mg of carbazolequinone 7 (77%). 1H NMR (400 MHz, CDCl3) δ: 1.71 (s, 6H), 2.58 (s, 3H), 6.35 (d, J = 10 Hz, 1H), 6.80 (d, J = 10 Hz, 1H), 7.24 (d, J = 8 Hz, 1H), 7.30 (t, J = 8 Hz, 1H), 8.1 (d, J = 8 Hz, 1H), 9.43 (s, 1H); 13C NMR (101 MHz, CDCl3) δ 184.82, 183.73, 178.99, 160.60, 158.97, 138.12, 134.99, 130.96, 128.98, 128.27, 125.99, 124.79, 123.60, 121.63, 118.88, 40.68, 36.62, 27.72. IR: 3215, 1686, 811 cm−1. M.p.: 291–293 °C.
2-Bromo-10,10-dimethyl-5H-benzo[b]carbazole-6,7,11(10H)-trione (CQ3)
Forty-one milligrams of 3-[(4-bromophenyl)amino]-8,8-dimethylnaphthalene-1,4,5(8H)-trione (0.11 mmoles) and Pd(OAc)2 25 mg (0.11 mmoles) yield 17 mg of CQ3 (39%). 1H NMR (400 MHz, DMSO-d6) δ: 1.66 (s, 6H), 6.31 (d, J = 10 Hz, 1H), 7.06 (d, J = 10 Hz, 1H), 7.57 (d, J = 8 Hz, 1H), 7.62 (d, J = 8 Hz, 1H), 9.47 (s, 1H). 13C NMR (100 MHz, DMSO) δ 187.55, 181.64, 181.44, 178.41, 177.03, 159.62, 145.04, 144.27, 137.91, 130.74, 130.25, 128.01, 126.40, 118.03, 112.43, 31.24, 27.63. IR: 3220, 1690, 817 cm−1. M.p.: 272–274 °C.
Ethyl10,10-dimethyl-6,7,11-trioxo-6,7,10,11-tetrahydro-5H-benzo[b]carbazole-2 carboxylate (CQ4)
Ninety-three miligrams (0.25 mmol) of ethyl 4-[(5,5-dimethyl-1,4,8-trioxo-1,4,5,8-tetrahydronaphthalen-2-yl)amino]benzoate and Pd(OAc)2 57 mg (0.25 mmol) yield 21 mg of CQ4 (23%). 1H NMR (400 MHz, DMSO-d6) δ: 1.36 (t, J = 7 Hz, 3H), 1.61 (s, 6H), 4.35 (q, J = 7 Hz, 2H), 6.26 (d, J = 10 Hz, 1H), 7.02 (d, J = 10 Hz, 1H), 7.63 (d, J = 9 Hz, 1H), 7.98 (d, J = 9 Hz, 1H), 8.72 (s, 1H), 13.19 (s, 1H). 13C NMR (101 MHz, DMSO-d6) δ: 184.31, 183.88, 178.88, 174.23, 167.23, 159.83, 159.21, 141.58, 137.86, 131.20, 128.07, 127.00, 125.80, 124.46, 118.38, 115.20, 61.75, 30.52, 27.77, 15.46. IR: 3263, 1687, 1278. IR: 3263, 1687, 1278 cm−1. M.p.: 265–267 °C.

3.3. Computational Methodology

The calculations were carried out using the Gaussian 09 [64] program package, running in a Microsystem cluster of blades. No symmetry constraints were imposed on the optimizations, which were performed at DFT B3LYP/6-31G(d,p) level. No imaginary vibrational frequencies were found at the optimized geometries, indicating that they are true minima of the potential energy surface.
Protonation sites were obtained on the basis of molecular electrostatic potential (MEP) [65], local Fukui indexes [66], Parr functions [58], proton affinity (PA) and gas-phase basicities (GB) among several protonated forms. GB was calculated from the Gibbs free energies of the following reaction in gas phase: CQ + H+ → CQH+, where a Gibbs energy of 6.28 kcal·mol−1 was considered for the proton [67].
The energies for the products and the corresponding transition state (TS) were obtained relative to their respective precursors. Relative energies for TS were obtained at DFT M06-2x/6-311++G(3df,3pd)//B3LYP/6-31G(d,p) and ab-initio QCISD/6-31++G(d,p)//B3LYP/6-31G(d,p) levels. Only one imaginary vibrational frequency was found for the TS. Intrinsic reaction coordinate (IRC) calculations were carried out to verify the connections of the transition states with reactants and products [68]. Cartesian coordinates and energies of optimized structures can be found in Supplementary Materials (Tables S1–S82).

4. Conclusions

A series of four new o-carbonyl carbazolquinones were synthetized from anilinquinones previously prepared. The influence of the substituent in ring D on the fragmentation route obtained by ESI-MS/MS analysis was computationally assisted and allowed a detailed interpretation of the experimental results. The most favorable protonation site for all molecules was established through molecular electrostatic potential, local Fukui functions and local Parr function for electrophilic attack, as well as proton affinity and gas phase basicity. On the basis of this initial analysis, fragmentation routes were proposed and supported by theoretical calculations.
The unusual kind of fragmentations leading to m/z 144 and m/z 149 ions for CQ1 were studied in detail. The critical energies for the transition states for the proposed fragmentations were in agreement with the differences in the observed relative populations for both ions, supporting the proposed mechanism.
These results have importance in establishing a guide for future analysis of this kind of carbazolequinones and similar scaffolds, with possible applications in drug development and organic materials.

Supplementary Materials

Supplementary materials can be found at https://www.mdpi.com/1422-0067/17/7/1071/s1.

Acknowledgments

We are grateful to Fondo Nacional de Desarrollo Científico y Tecnológico (FONDECYT) grants 1140753 (Ramiro Araya-Maturana) and FONDECYT/POSTDOCTORADO 3140286 (Maximiliano Martínez-Cifuentes).

Authors Contributions

Maximiliano Martínez-Cifuentes and Ramiro Araya-Maturana designed research; Graciela Clavijo-Allancan, Pamela Zuñiga-Hormazabal and Braulio Aranda performed the synthesis of compounds; Andrés Barriga performed mass spectrometry experiments; Maximiliano Martínez-Cifuentes perform the computational calculations; Maximiliano Martínez-Cifuentes, Ramiro Araya-Maturana and Boris Weiss-López analyzed the data; Maximiliano Martínez-Cifuentes and Ramiro Araya-Maturana wrote the paper. All authors read and approved the final manuscript.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Hargreaves, R.H.J.; Hartley, J.A.; Butler, J. Mechanisms of action of quinone-containing alkylating agents: DNA alkylation by aziridinylquinones. Front. Biosci. 2000, 5, E172–E180. [Google Scholar] [CrossRef] [PubMed]
  2. Sissi, C.; Palumbo, M. Antitumor potential of aza-bioisosterism in anthracenedione-based drugs. Curr. Top. Med. Chem. 2004, 4, 219–230. [Google Scholar] [CrossRef] [PubMed]
  3. Garuti, L.; Roberti, M.; Pizzirani, D. Nitrogen-containing Heterocyclic quinones: A class of potential selective antitumor agents. Mini.-Rev. Med. Chem. 2007, 7, 481–489. [Google Scholar] [CrossRef] [PubMed]
  4. Nowicka, B.; Kruk, J. Occurrence, biosynthesis and function of isoprenoid quinones. Biochim. Biophys. Acta 2010, 1797, 1587–1605. [Google Scholar] [CrossRef] [PubMed]
  5. Dandawate, P.R.; Vyas, A.C.; Padhye, S.B.; Singh, M.W.; Baruah, J.B. Perspectives on medicinal properties of benzoquinone compounds. Mini.-Rev. Med. Chem. 2010, 10, 436–454. [Google Scholar] [CrossRef] [PubMed]
  6. Kumar, M.R.S.; Aithal, K.; Rao, B.N.; Udupa, N.; Rao, B.S.S. Cytotoxic, genotoxic and oxidative stress induced by 1,4-naphthoquinone in B16F1 melanoma tumor cells. Toxicol. In Vitro 2009, 23, 242–250. [Google Scholar] [CrossRef] [PubMed]
  7. Santos, M.M.M.; Faria, N.; Iley, J.; Coles, S.J.; Hursthouse, M.B.; Martins, M.L.; Moreira, R. Reaction of naphthoquinones with substituted nitromethanes. Facile synthesis and antifungal activity of naphtho 2,3-d isoxazole-4,9-diones. Bioorg. Med. Chem. Lett. 2010, 20, 193–195. [Google Scholar] [CrossRef] [PubMed]
  8. Mendoza, L.; Araya-Maturana, R.; Cardona, W.; Delgado-Castro, T.; Garcia, C.; Lagos, C.; Cotoras, M. In vitro sensitivity of Botrytis cinerea to anthraquinone and anthrahydroquinone derivatives. J. Agric. Food Chem. 2005, 53, 10080–10084. [Google Scholar] [CrossRef] [PubMed]
  9. Pinto, A.V.; de Castro, S.L. The trypanocidal activity of naphthoquinones: A review. Molecules 2009, 14, 4570–4590. [Google Scholar] [CrossRef] [PubMed]
  10. Pierce, R.C.; Katz, M. Chromatographic isolation and spectral analysis of polycyclic quinones. Application to air pollution analysis. Environ. Sci. Technol. 1976, 10, 45–51. [Google Scholar] [CrossRef]
  11. Krueger, F.R.; Werther, W.; Kissel, J.; Schmid, E.R. Assignment of quinone derivatives as the main compound class composing ‘interstellar’ grains based on both polarity ions detected by the ‘Cometary and Interstellar Dust Analyser’ (CIDA) onboard the spacecraft STARDUST. Rapid Commun. Mass Spectrom. 2004, 18, 103–111. [Google Scholar] [CrossRef] [PubMed]
  12. Ferreira, E.S.; Hulme, A.N.; McNab, H.; Quye, A. The natural constituents of historical textile dyes. Chem. Soc. Rev. 2004, 33, 329–336. [Google Scholar] [CrossRef] [PubMed]
  13. Cervantes, F.J.; Duong-Dac, T.; Roest, K.; Akkermans, A.D.; Lettinga, G.; Field, J.A. Enrichment and immobilization of quinone-respiring bacteria in anaerobic granular sludge. Water Sci. Technol. 2003, 48, 9–16. [Google Scholar] [PubMed]
  14. Er, S.; Suh, C.; Marshak, M.P.; Aspuru-Guzik, A. Computational design of molecules for an all-quinone redox flow battery. Chem. Sci. 2015, 6, 885–893. [Google Scholar] [CrossRef]
  15. Schmidt, A.W.; Reddy, K.R.; Knolker, H.J. Occurrence, biogenesis, and synthesis of biologically active carbazole alkaloids. Chem. Rev. 2012, 112, 3193–3328. [Google Scholar] [CrossRef] [PubMed]
  16. Knolker, H.J.; Reddy, K.R. Isolation and synthesis of biologically active carbazole alkaloids. Chem. Rev. 2002, 102, 4303–4427. [Google Scholar] [CrossRef] [PubMed]
  17. Aouacheria, A.; Neel, B.; Bouaziz, Z.; Dominique, R.; Walchshofer, N.; Paris, J.; Fillion, H.; Gillet, G. Carbazolequinone induction of caspase-dependent cell death in Src-overexpressing cells. Biochem. Pharmacol. 2002, 64, 1605–1616. [Google Scholar] [CrossRef]
  18. Sanchez, J.D.; Egris, R.; Perumal, S.; Villacampa, M.; Menendez, J.C. Aryl grignard reagents in chemodivergent N- and C-arylations: Concise access to two families of tetracyclic fused carbazoles from 6-nitroquinolines. Eur. J. Org. Chem. 2012, 2012, 2375–2385. [Google Scholar] [CrossRef]
  19. Itoigawa, M.; Kashiwada, Y.; Ito, C.; Furukawa, H.; Tachibana, Y.; Bastow, K.F.; Lee, K.H. Antitumor agents. 203. Carbazole alkaloid murrayaquinone A and related synthetic carbazolequinones as cytotoxic agents. J. Nat. Prod. 2000, 63, 893–897. [Google Scholar] [CrossRef] [PubMed]
  20. Khan, Q.A.; Lu, J.; Hecht, S.M. Calothrixins, a new class of human DNA topoisomerase I poisons. J. Nat. Prod. 2009, 72, 438–442. [Google Scholar] [CrossRef] [PubMed]
  21. Bernardo, P.H.; Chai, C.L.L.; Heath, G.A.; Mahon, P.J.; Smith, G.D.; Waring, P.; Wilkes, B.A. Synthesis, electrochemistry, and bioactivity of the cyanobacterial calothrixins and related quinones. J. Med. Chem. 2004, 47, 4958–4963. [Google Scholar] [CrossRef] [PubMed]
  22. Horai, H.; Arita, M.; Kanaya, S.; Nihei, Y.; Ikeda, T.; Suwa, K.; Ojima, Y.; Tanaka, K.; Tanaka, S.; Aoshima, K.; et al. MassBank: A public repository for sharing mass spectral data for life sciences. J. Mass Spectrom. 2010, 45, 703–714. [Google Scholar] [CrossRef] [PubMed]
  23. Von Bargen, C.; Hubner, F.; Cramer, B.; Rzeppa, S.; Humpf, H.U. Systematic approach for structure elucidation of polyphenolic compounds using a bottom-up approach combining ion trap experiments and accurate mass measurements. J. Agric. Food Chem. 2012, 60, 11274–11282. [Google Scholar] [CrossRef] [PubMed]
  24. Van der Hooft, J.J.J.; Vervoort, J.; Bino, R.J.; Beekwilder, J.; de Vos, R.C.H. Polyphenol identification based on systematic and robust high-resolution accurate mass spectrometry fragmentation. Anal. Chem. 2010, 83, 409–416. [Google Scholar] [CrossRef] [PubMed]
  25. Kerwin, J.L. Negative ion electrospray mass spectrometry of polyphenols, catecholamines and their oxidation products. J. Mass Spectrom. 1996, 31, 1429–1439. [Google Scholar] [CrossRef]
  26. Mosi, A.A.; Reimer, K.J.; Eigendorf, G.K. Analysis of polyaromatic quinones in a complex environmental matrix using gas chromatography ion trap tandem mass spectrometry. Talanta 1997, 44, 985–1001. [Google Scholar] [CrossRef]
  27. Lou, X.; Sinkeldam, R.W.; van Houts, W.; Nicolas, Y.; Janssen, P.G.; van Dongen, J.L.; Vekemans, J.A.; Meijer, E.W. Double cation adduction in matrix-assisted laser desorption/ionization time-of-flight mass spectrometry of electron deficient anthraquinone derivatives. J. Mass Spectrom. 2007, 42, 293–303. [Google Scholar] [CrossRef] [PubMed]
  28. Noji, N.; Nakamura, T.; Kitahata, N.; Taguchi, K.; Kudo, T.; Yoshida, S.; Tsujimoto, M.; Sugiyama, T.; Asami, T. Simple and sensitive method for pyrroloquinoline quinone (PQQ) analysis in various foods using liquid chromatography/electrospray-ionization tandem mass spectrometry. J. Agric. Food Chem. 2007, 55, 7258–7263. [Google Scholar] [CrossRef] [PubMed]
  29. Puchalska, M.; Orlinska, M.; Ackacha, M.A.; Polec-Pawlak, K.; Jarosz, M. Identification of anthraquinone coloring matters in natural red dyes by electrospray mass spectrometry coupled to capillary electrophoresis. J. Mass. Spectrom. 2003, 38, 1252–1258. [Google Scholar] [CrossRef] [PubMed]
  30. Vessecchi, R.; Nascimento, P.; Lopes, J.N.C.; Lopes, N.P. Fragmentation studies of synthetic 2-acylamino-1,4-naphthoquinones by electrospray ionization mass spectrometry. J. Mass Spectrom. 2006, 41, 1219–1225. [Google Scholar] [CrossRef] [PubMed]
  31. Geyer, R.; Peacock, A.D.; White, D.C.; Lytle, C.; van Berkel, G.J. Atmospheric pressure chemical ionization and atmospheric pressure photoionization for simultaneous mass spectrometric analysis of microbial respiratory ubiquinones and menaquinones. J. Mass Spectrom. 2004, 39, 922–929. [Google Scholar] [CrossRef] [PubMed]
  32. Dale, M.J.; Jones, A.C.; Langridge-Smith, P.R.R.; Costello, K.F.; Cummins, P.G. Laser desorption laser photoionization time-of-flight mass spectrometry of dyes. Anal. Chem. 1993, 65, 793–801. [Google Scholar] [CrossRef]
  33. Pan, Y.; Zhang, L.; Zhang, T.; Guo, H.; Hong, X.; Qi, F. Photoionization studies on various quinones by an infrared laser desorption/tunable VUV photoionization TOF mass spectrometry. J. Mass Spectrom. 2008, 43, 1701–1710. [Google Scholar] [CrossRef] [PubMed]
  34. Badu-Tawiah, A.K.; Eberlin, L.S.; Ouyang, Z.; Cooks, R.G. Chemical aspects of the extractive methods of ambient ionization mass spectrometry. Annu. Rev. Phys. Chem. 2013, 64, 481–505. [Google Scholar] [CrossRef] [PubMed]
  35. Becher, D.; Djerassi, C.; Moore, R.E.; Singh, H.; Scheuer, P.J. Mass spectrometry in structural and stereochemical problems. CXI. The mass spectrometric fragmentation of substituted naphthoquinones and its application to structural elucidation of echinoderm pigments. J. Org. Chem. 1966, 31, 11. [Google Scholar] [CrossRef]
  36. Di Mari, S.J.; Supple, J.H.; Rapoport, H. Mass spectra of naphthoquinones. Vitamin K1(20). J. Am. Chem. Soc. 1966, 88, 7. [Google Scholar] [CrossRef]
  37. Proctor, C.J.; Kralj, B.; Larka, E.A.; Porter, C.J.; Maquestiau, A.; Beynon, J.H. Studies of consecutive reactions of quinones in a reversed geometry mass spectrometer. Org. Mass Spectrom. 1981, 16, 312–322. [Google Scholar] [CrossRef]
  38. Beynon, J.H.; Williams, A.E. Mass spectra of various quinones and polycyclic ketones. Appl. Spectrosc. 1960, 14, 156–160. [Google Scholar] [CrossRef]
  39. Alcami, M.; Mo, O.; Yanez, M. Computational chemistry: A useful (sometimes mandatory) tool in mass spectrometry studies. Mass Spectrom. Rev. 2001, 20, 195–245. [Google Scholar] [CrossRef] [PubMed]
  40. Vessecchi, R.; Galembeck, S.E.; Lopes, N.P.; Nascimento, P.; Crotti, A.E.M. Application of computational quantum chemistry to chemical processes involved in mass spectrometry. Quim. Nova 2008, 31, 840–853. [Google Scholar] [CrossRef]
  41. Vessecchi, R.; Emery, F.S.; Galembeck, S.E.; Lopes, N.P. Fragmentation studies and electrospray ionization mass spectrometry of lapachol: protonated, deprotonated and cationized species. Rapid Commun. Mass Spectrom. 2010, 24, 2101–2108. [Google Scholar] [CrossRef] [PubMed]
  42. Vessecchi, R.; Naal, Z.; Lopes, J.N.C.; Galembeck, S.E.; Lopes, N.P. Generation of naphthoquinone radical anions by electrospray ionization: Solution, gas-phase, and computational chemistry studies. J. Phys. Chem. A 2011, 115, 5453–5460. [Google Scholar] [CrossRef] [PubMed]
  43. Vessecchi, R.; Lopes, J.N.C.; Lopes, N.P.; Galembeck, S.E. Application of the atoms in molecules theory and computational chemistry in mass spectrometry analysis of 1,4-naphthoquinone derivatives. J. Phys. Chem. A 2011, 115, 12780–12788. [Google Scholar] [CrossRef] [PubMed]
  44. Araya-Maturana, R.; Cardona, W.; Cassels, B.K.; Delgado-Castro, T.; Ferreira, J.; Miranda, D.; Pavani, M.; Pessoa-Mahana, H.; Soto-Delgado, J.; Weiss-Lopez, B. Effects of 9,10-dihydroxy-4,4-dimethyl-5,8-dihydro-1(4H)-anthracenone derivatives on tumor cell respiration. Bioorg. Med. Chem. 2006, 14, 4664–4669. [Google Scholar] [CrossRef] [PubMed]
  45. Araya-Maturana, R.; Delgado-Castro, T.; Garate, M.; Ferreira, J.; Pavani, M.; Pessoa-Mahana, H.; Cassels, B.K. Effects of 4,4-dimethyl-5,8-dihydroxynaphtalene-1-one and 4,4-dimethyl-5,8-dihydroxytetralone derivatives on tumor cell respiration. Bioorg. Med. Chem. 2002, 10, 3057–3060. [Google Scholar] [CrossRef]
  46. Rodriguez, J.; Olea-Azar, C.; Cavieres, C.; Norambuena, E.; Delgado-Castro, T.; Soto-Delgado, J.; Araya-Maturana, R. Antioxidant properties and free radical-scavenging reactivity of a family of hydroxynaphthalenones and dihydroxyanthracenones. Bioorg. Med. Chem. 2007, 15, 7058–7065. [Google Scholar] [CrossRef] [PubMed]
  47. Urra, F.A.; Martinez-Cifuentes, M.; Pavani, M.; Lapier, M.; Jana-Prado, F.; Parra, E.; Maya, J.D.; Pessoa-Mahana, H.; Ferreira, J.; Araya-Maturana, R. An ortho-carbonyl substituted hydroquinone derivative is an anticancer agent that acts by inhibiting mitochondrial bioenergetics and by inducing G(2)/M-phase arrest in mammary adenocarcinoma TA3. Toxicol. Appl. Pharm. 2013, 267, 218–227. [Google Scholar] [CrossRef] [PubMed]
  48. Urra, F.A.; Córdova-Delgado, M.; Lapier, M.; Orellana-Manzano, A.; Acevedo-Arévalo, L.; Pessoa-Mahana, H.; González-Vivanco, J.M.; Martínez-Cifuentes, M.; Ramírez-Rodróguez, O.; Millas-Vargas, J.P.; et al. Small structural changes on a hydroquinone scaffold determine the complex I inhibition or uncoupling of tumoral oxidative phosphorylation. Toxicol. Appl. Pharmacol. 2016, 291, 46–57. [Google Scholar] [CrossRef] [PubMed]
  49. Dobado, J.A.; Gomez-Tamayo, J.C.; Calvo-Flores, F.G.; Martinez-Garcia, H.; Cardona, W.; Weiss-Lopez, B.; Ramirez-Rodriguez, O.; Pessoa-Mahana, H.; Araya-Maturana, R. NMR assignment in regioisomeric hydroquinones. Magn. Reson. Chem. 2011, 49, 358–365. [Google Scholar] [CrossRef] [PubMed]
  50. Araya-Maturana, R.; Cardona, W.; Delgado-Castro, T.; Jullian, C. Complete assignment of the C-13 NMR spectra of 4,4-dimethylanthracene-1,9,10(4H)-trione and the regioisomeric monomethyl derivatives. Magn. Res. Chem. 2000, 38, 135–136. [Google Scholar] [CrossRef]
  51. Araya-Maturana, R.; Cassels, B.K.; Delgado-Castro, T.; Hurtado-Guzmán, C.; Jullian, C. Complete assignment of the 13C NMR spectra of a series of 5,8-disubstituted 4,4-dimethylanthracene-1,9,10(4h)-triones. Magn. Res. Chem. 1999, 37, 312–316. [Google Scholar] [CrossRef]
  52. Almodovar, I.; Ramirez-Rodriguez, O.; Barriga, A.; Rezende, M.C.; Araya-Maturana, R. Electrospray ionization mass spectrometric fragmentation of hydroquinone derivatives. Rapid Commun. Mass Spectrom. 2011, 25, 370–378. [Google Scholar] [CrossRef] [PubMed]
  53. Martínez-Cifuentes, M.; Clavijo-Allancan, G.; di Vaggio-Conejeros, C.; Weiss-López, B.; Araya-Maturana, R. On-water reactivity and regioselectivity of quinones in C–N coupling with amines: Experimental and theoretical study. Aust. J. Chem. 2014, 67, 217–224. [Google Scholar]
  54. Salazar, R.; Vidal, J.; Martínez-Cifuentes, M.; Araya-Maturana, R.; Ramírez-Rodríguez, O. Electrochemical characterization of hydroquinone derivatives with different substituents in acetonitrile. New J. Chem. 2015, 39, 1237–1246. [Google Scholar] [CrossRef]
  55. Martínez-Cifuentes, M.; Weiss-López, B.E.; Santos, L.S.; Araya-Maturana, R. Intramolecular hydrogen bond in biologically active o-carbonyl hydroquinones. Molecules 2014, 19, 9354–9368. [Google Scholar] [CrossRef] [PubMed]
  56. Sridharan, V.; Martin, M.A.; Menendez, J.C. Acid-free synthesis of carbazoles and carbazolequinones by intramolecular pd-catalyzed, microwave-assisted oxidative biaryl coupling reactions—Efficient syntheses of murrayafoline a, 2-methoxy-3-methylcarbazole, and glycozolidine. Eur. J. Org. Chem. 2009, 2009, 4614–4621. [Google Scholar] [CrossRef]
  57. Parr, R.G.; Yang, W. Density functional approach to the frontier-electron theory of chemical reactivity. J. Am. Chem. Soc. 1984, 106, 2. [Google Scholar] [CrossRef]
  58. Domingo, L.R.; Perez, P.; Saez, J.A. Understanding the local reactivity in polar organic reactions through electrophilic and nucleophilic Parr functions. RSC Adv. 2013, 3, 1486–1494. [Google Scholar] [CrossRef]
  59. Borgoo, A.; Tozer, D.J.; Geerlings, P.; de Proft, F. Confinement effects on excitation energies and regioselectivity as probed by the Fukui function and the molecular electrostatic potential. Phys. Chem. Chem. Phys. 2009, 11, 2862–2868. [Google Scholar] [CrossRef] [PubMed]
  60. Irikura, K.K.; MeotNer, M.; Sieck, L.W.; Fant, A.D.; Liebman, J.F. Protonated p-benzoquinone. J. Org. Chem. 1996, 61, 3167–3171. [Google Scholar] [CrossRef] [PubMed]
  61. Wang, L.M.; He, Y.L. Halogenated silanes, radicals, and cations: Theoretical predictions on ionization energies, structures and potential energy surfaces of cations, proton affinities, and enthalpies of formation. Int. J. Mass Spectrom. 2008, 276, 56–76. [Google Scholar] [CrossRef]
  62. Bouchoux, G. Gas-phase basicities of polyfunctional molecules. Part 4: Carbonyl groups as basic sites. Mass Spectrom. Rev. 2015, 34, 493–534. [Google Scholar] [CrossRef] [PubMed]
  63. Madeira, P.J.A.; Sitoe, A.R.F.; Goncalves, D.; Rodrigues, T.; Guedes, R.C.; Lopes, F.; Moreira, R.; Bronze, M.R. Antiplasmodial drugs in the gas phase: A CID and DFT study of quinolon-4(1H)-imine derivatives. J. Am. Soc. Mass Spectrom. 2014, 25, 1650–1661. [Google Scholar] [CrossRef] [PubMed]
  64. Frisch, M.J.; Trucks, G.W.; Schlegel, H.B.; Scuseria, G.E.; Robb, M.A.; Cheeseman, J.R.; Scalmani, G.; Barone, V.; Mennucci, B.; Petersson, G.A.; et al. Revision A.01, Gaussian 09; Gaussian, Inc.: Wallingford, CT, USA, 2009. [Google Scholar]
  65. Bonaccorsi, R.; Scrocco, E.; Tomasi, J. Molecular SCF calculations for the ground state of some three-membered ring molecules: (CH2)3, (CH2)2NH, (CH2)2NH2 +, (CH2)2O, (CH2)2S, (CH)2CH2, and N2CH2. J. Phys. Chem. 1970, 52, 5270–5284. [Google Scholar] [CrossRef]
  66. Yang, W.; Mortier, W.J. The use of global and local molecular parameters for the analysis of the gas-phase basicity of amines. J. Am. Chem. Soc. 1986, 108, 5708–5711. [Google Scholar] [CrossRef] [PubMed]
  67. Range, K.; Riccardi, D.; Cui, Q.; Elstner, M.; York, D.M. Benchmark calculations of proton affinities and gas-phase basicities of molecules important in the study of biological phosphoryl transfer. Phys. Chem. Chem. Phys. 2005, 7, 3070–3079. [Google Scholar] [CrossRef] [PubMed]
  68. Gonzalez, C.; Schlegel, H.B. Reaction-path following in mass-weighted internal coordinates. J. Phys. Chem. 1990, 94, 5523–5527. [Google Scholar] [CrossRef]
Ijms 17 01071 g001 1024

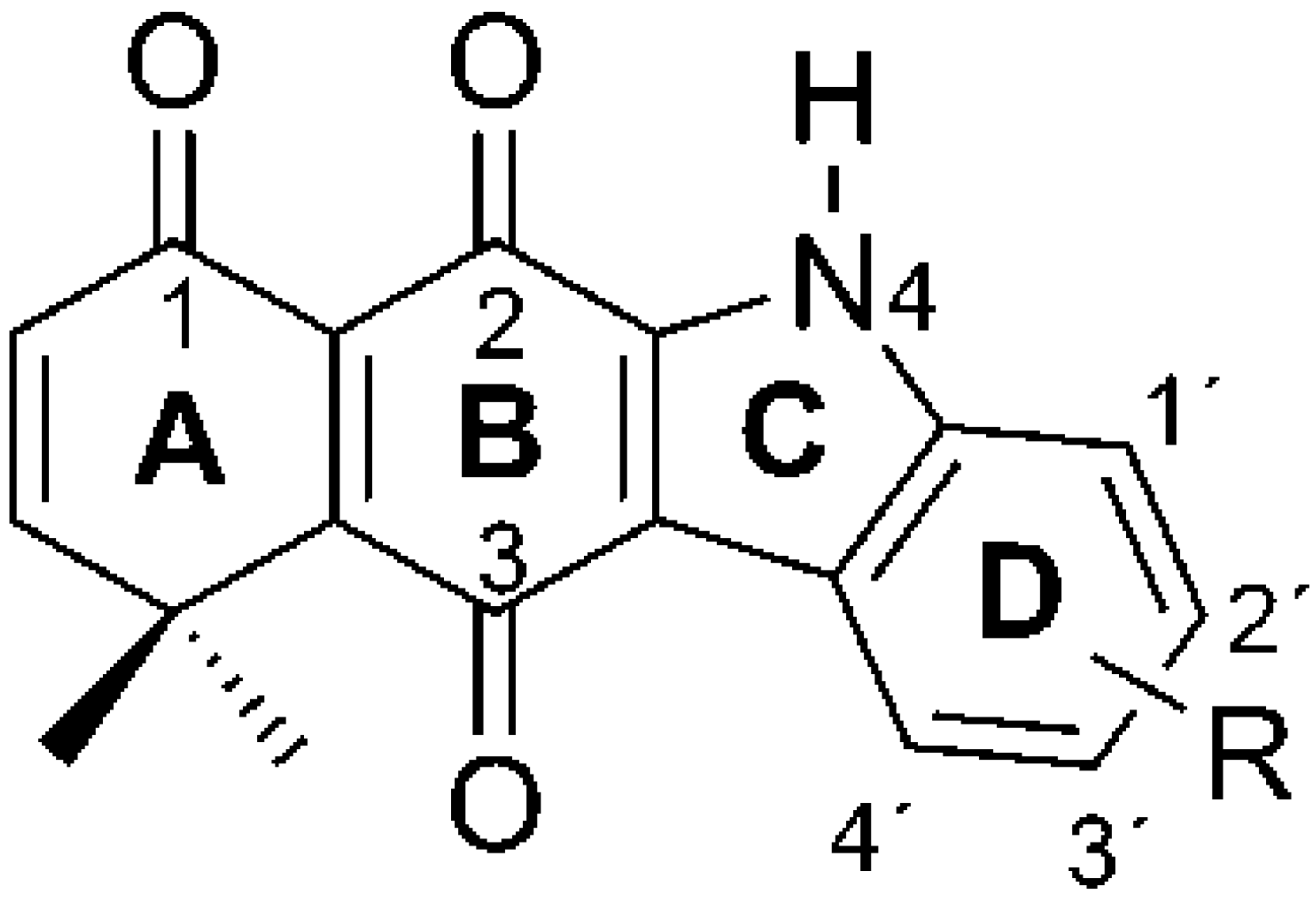

Figure 1. Structure of o-carbonyl carbazolequinones.
Figure 1. Structure of o-carbonyl carbazolequinones.
Ijms 17 01071 g001
Ijms 17 01071 g002 1024
Figure 2. Synthetic route to obtain o-carbonylcarbazolquinones CQ1 to CQ4.
Figure 2. Synthetic route to obtain o-carbonylcarbazolquinones CQ1 to CQ4.
Ijms 17 01071 g002
RCQYield (%)
–H152
1′–CH3277
3′–CO(5′)O(6′)Et323
3′–Br439
Ijms 17 01071 g003 1024
Figure 3. Molecular electrostatic potential maps (MEP) for o-carbonylcarbazolequinones CQ1 to CQ4. Red color indicates high electron density and blue color low electron density.
Figure 3. Molecular electrostatic potential maps (MEP) for o-carbonylcarbazolequinones CQ1 to CQ4. Red color indicates high electron density and blue color low electron density.
Ijms 17 01071 g003
Ijms 17 01071 sch001 1024

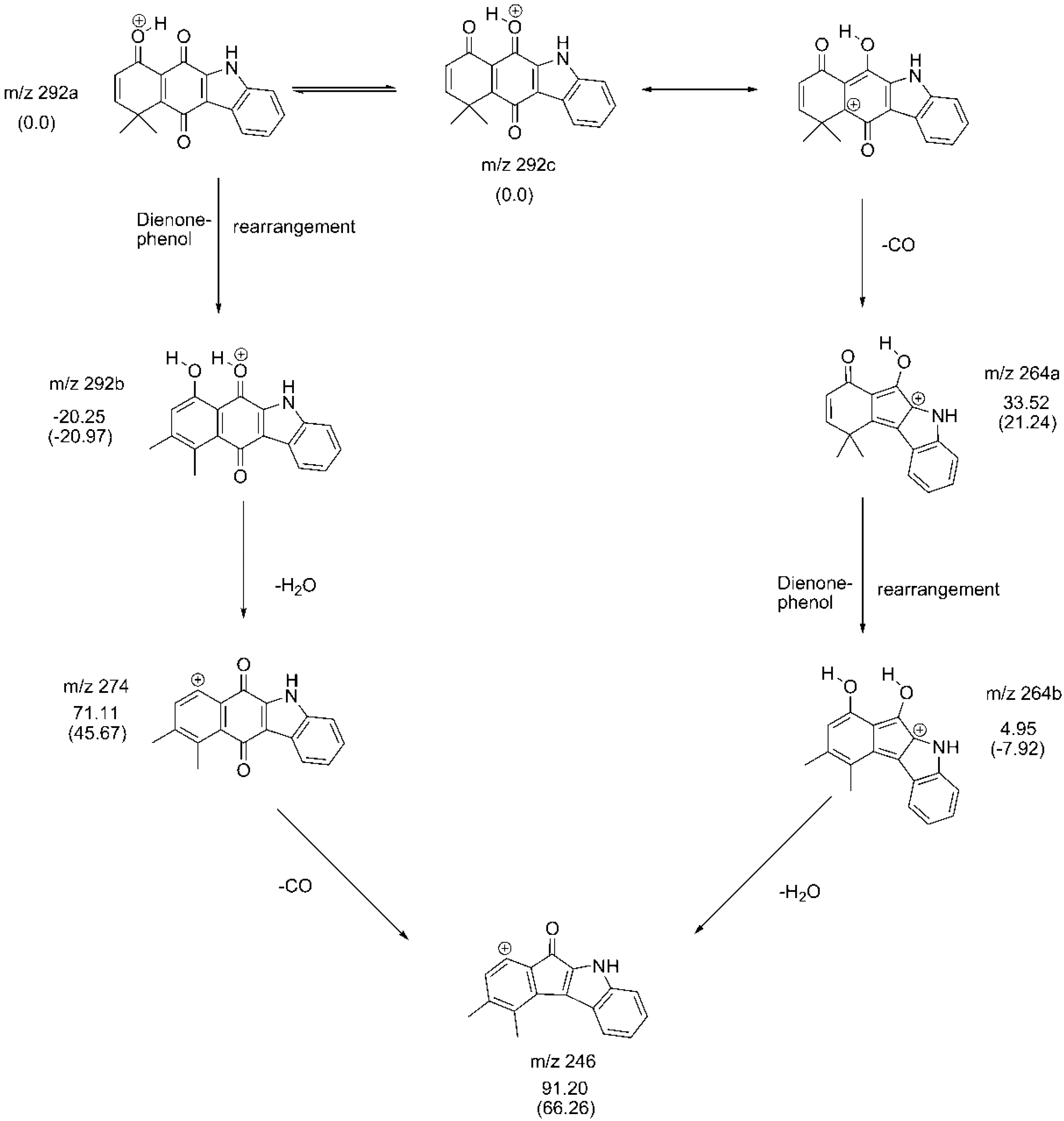

Scheme 1. Fragmentation patterns for water and CO losses from protonated CQ1.
Scheme 1. Fragmentation patterns for water and CO losses from protonated CQ1.
Ijms 17 01071 sch001
Ijms 17 01071 sch002 1024

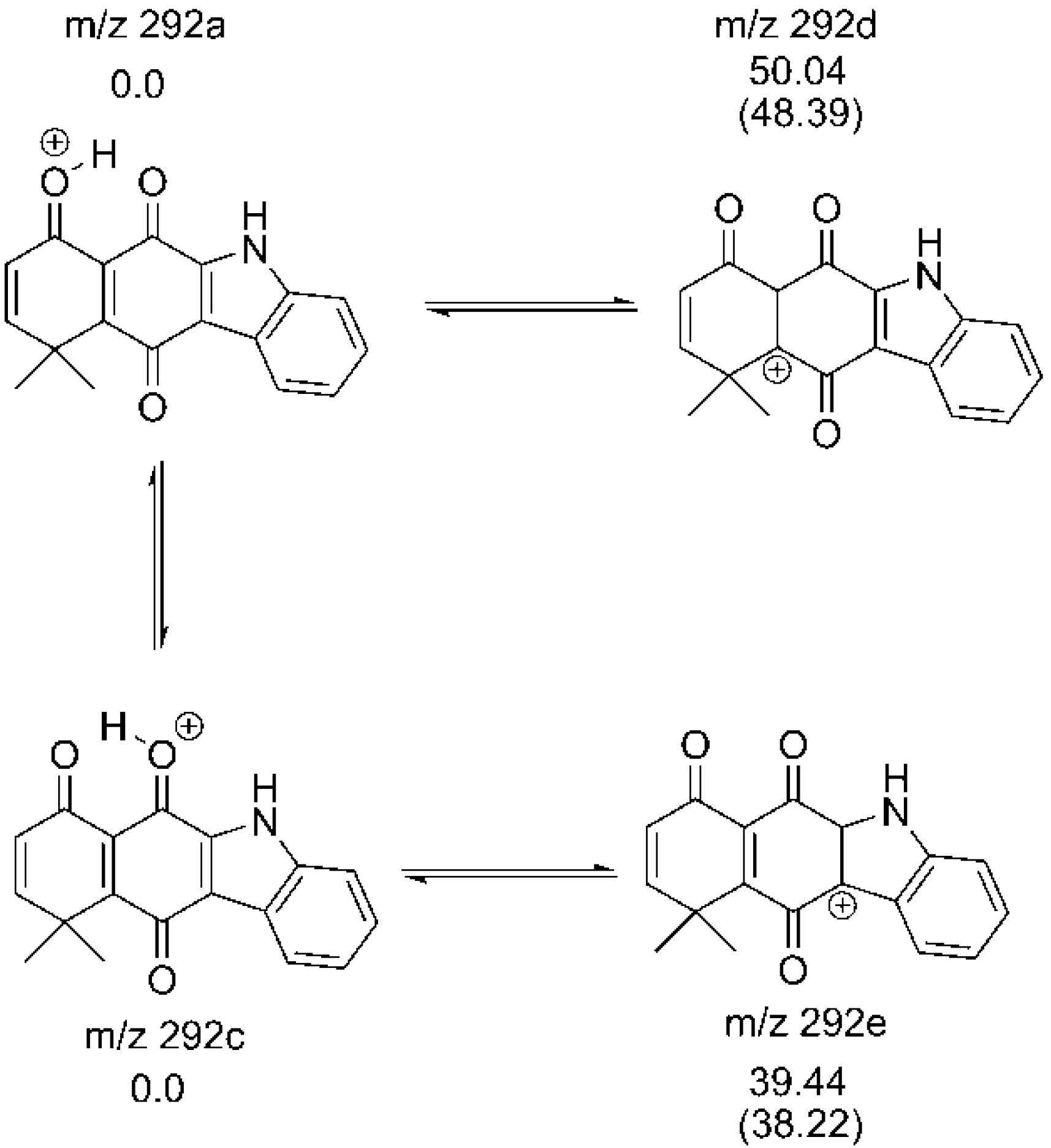

Scheme 2. Proton transfer equilibria between O1 and O2 for CQ1.
Scheme 2. Proton transfer equilibria between O1 and O2 for CQ1.
Ijms 17 01071 sch002
Ijms 17 01071 sch003 1024
Scheme 3. Energy profile of [CQ1 + H]+ fragmentation to give m/z 144. Energy relative 1 (Erel1) at M06-2x/6-311++G(3df,3pd) and Energy relative 2 (Erel2) at QCISD/6-31++G(d,p).
Scheme 3. Energy profile of [CQ1 + H]+ fragmentation to give m/z 144. Energy relative 1 (Erel1) at M06-2x/6-311++G(3df,3pd) and Energy relative 2 (Erel2) at QCISD/6-31++G(d,p).
Ijms 17 01071 sch003
Ijms 17 01071 sch004 1024
Scheme 4. Energy profile of [CQ1 + H]+ fragmentation to m/z 149. Energy relative 1 (Erel1) at M06-2x/6-311++G(3df,3pd) and Energy relative 2 (Erel2) at QCISD/6-31++G(d,p).
Scheme 4. Energy profile of [CQ1 + H]+ fragmentation to m/z 149. Energy relative 1 (Erel1) at M06-2x/6-311++G(3df,3pd) and Energy relative 2 (Erel2) at QCISD/6-31++G(d,p).
Ijms 17 01071 sch004
Ijms 17 01071 sch005 1024
Scheme 5. Fragmentation pattern for protonated CQ3.
Scheme 5. Fragmentation pattern for protonated CQ3.
Ijms 17 01071 sch005
Ijms 17 01071 sch006 1024
Scheme 6. Fragmentation pattern for protonated CQ4.
Scheme 6. Fragmentation pattern for protonated CQ4.
Ijms 17 01071 sch006
Table
Table 1. Fukui function (f−) and Parr function (P−) for electrophilic attack.
Table 1. Fukui function (f−) and Parr function (P−) for electrophilic attack.
AtomFukui Function for Electrophilic AttackParr Function for Electrophilic Attack
CQ1CQ2CQ3CQ4CQ1CQ2CQ3CQ4
O10.1490.1110.1480.1490.2620.2240.2700.282
O20.0910.0670.0890.0870.0610.0430.0660.080
O30.0540.0540.0520.0490.0540.0500.0530.038
N40.0080.012−0.0080.0060.1100.1220.1080.103
O5′ 0.026 −0.003
O6′ −0.001 0.009
Table
Table 2. Calculated Proton Affinities (PA) and Gas-Phase Basicity (GB), in kcal·mol−1, for the protonation of oxygens 1 and 2 (same value for both oxygens) for all CQs. Results for all protonation sites are in the Supplementary Materials.
Table 2. Calculated Proton Affinities (PA) and Gas-Phase Basicity (GB), in kcal·mol−1, for the protonation of oxygens 1 and 2 (same value for both oxygens) for all CQs. Results for all protonation sites are in the Supplementary Materials.
CompoundPAGB
CQ1240.0231.3
CQ2241.0232.4
CQ3238.4229.9
CQ4238.1229.5
Table
Table 3. Ionic species observed in the electrospray ionization mass spectrometry (ESI-MS) spectra of CQs.
Table 3. Ionic species observed in the electrospray ionization mass spectrometry (ESI-MS) spectra of CQs.
IonCQ1 m/zCQ2 m/zCQ3 m/zCQ4 m/z
[M + H]+292306364370
[M + Na]+314328386a
[M + K]+330344aa
a Not observed.
Table
Table 4. Molecular and main fragment ions observed by ESI-MSn analysis of CQ1 to CQ4.
Table 4. Molecular and main fragment ions observed by ESI-MSn analysis of CQ1 to CQ4.
Compound[M + H]+ m/z (%)MS2 m/z (%)MS3 m/z (%)
CQ1292274(40) –H2O246(100) –CO
264(100) –CO246(86) –H2O
149(40) –C9H5NO121(100) –CO
144(100) –C9H8O2116(100) –CO
CQ2306288(48) –H2O260(100) –CO
278(100) –CO263(100) –CH3
260(95) –H2O
158(61)130(100) –CO
149(13)121(100) –CO
CQ3364346(15) –H2O318(100) –CO
336(50) –CO318(35) –H2O
292(100) –C3H4O2264(100) –CO
149(35) –C9H9O2
144(100) –C9H6NO
CQ4370291(100) –Br263(100) –CO
342(10) –CO263(100) –Br

Share and Cite

MDPI and ACS Style

Martínez-Cifuentes, M.; Clavijo-Allancan, G.; Zuñiga-Hormazabal, P.; Aranda, B.; Barriga, A.; Weiss-López, B.; Araya-Maturana, R. Protonation Sites, Tandem Mass Spectrometry and Computational Calculations of o-Carbonyl Carbazolequinone Derivatives. Int. J. Mol. Sci. 2016, 17, 1071. https://doi.org/10.3390/ijms17071071

AMA Style

Martínez-Cifuentes M, Clavijo-Allancan G, Zuñiga-Hormazabal P, Aranda B, Barriga A, Weiss-López B, Araya-Maturana R. Protonation Sites, Tandem Mass Spectrometry and Computational Calculations of o-Carbonyl Carbazolequinone Derivatives. International Journal of Molecular Sciences. 2016; 17(7):1071. https://doi.org/10.3390/ijms17071071

Chicago/Turabian Style

Martínez-Cifuentes, Maximiliano, Graciela Clavijo-Allancan, Pamela Zuñiga-Hormazabal, Braulio Aranda, Andrés Barriga, Boris Weiss-López, and Ramiro Araya-Maturana. 2016. "Protonation Sites, Tandem Mass Spectrometry and Computational Calculations of o-Carbonyl Carbazolequinone Derivatives" International Journal of Molecular Sciences 17, no. 7: 1071. https://doi.org/10.3390/ijms17071071

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
