Article

Reg Gene Expression in Periosteum after Fracture and Its In Vitro Induction Triggered by IL-6

1
Department of Orthopedic Surgery, Nara City Hospital, 1-50-1 Higashikidera-cho, Nara, Nara 630-8305, Japan
2
Department of Orthopedic Surgery, Nara Medical University, 840 Shijo-cho, Kashihara, Nara 634-8522, Japan
3
Department of Biochemistry, Nara Medical University, 840 Shijo-cho, Kashihara, Nara 634-8521, Japan
4
Department of Diagnostic Pathology, Nara Medical University, 840 Shijo-cho, Kashihara, Nara 634-8522, Japan
5
Department of Laboratory Medicine and Pathology, National Hospital Organization Kinki-chuo Chest Medical Center, 1180 Nagasone-cho, Kita-ku, Sakai, Osaka 591-8025, Japan
6
Department of Orthopedic Surgery, Ookuma Hospital, 2-17-13 Kuise-honmachi, Amagasaki, Hyogo 660-0814, Japan
*
Author to whom correspondence should be addressed.
Int. J. Mol. Sci. 2017, 18(11), 2257; https://doi.org/10.3390/ijms18112257
Submission received: 12 September 2017 / Revised: 24 October 2017 / Accepted: 24 October 2017 / Published: 27 October 2017
(This article belongs to the Collection Programmed Cell Death and Apoptosis)

Abstract

:
The periosteum is a thin membrane that surrounds the outer surface of bones and participates in fracture healing. However, the molecular signals that trigger/initiate the periosteal reaction are not well established. We fractured the rat femoral bone at the diaphysis and fixed it with an intramedullary inserted wire, and the expression of regenerating gene (Reg) I, which encodes a tissue regeneration/growth factor, was analyzed. Neither bone/marrow nor muscle showed Reg I gene expression before or after the fracture. By contrast, the periosteum showed an elevated expression after the fracture, thereby confirming the localization of Reg I expression exclusively in the periosteum around the fractured areas. Expression of the Reg family increased after the fracture, followed by a decrease to basal levels by six weeks, when the fracture had almost healed. In vitro cultures of periosteal cells showed no Reg I expression, but the addition of IL-6 significantly induced Reg I gene expression. The addition of IL-6 also increased the cell number and reduced pro-apoptotic gene expression of Bim. The increased cell proliferation and reduction in Bim gene expression were abolished by transfection with Reg I siRNA, indicating that these IL-6-dependent effects require the Reg I gene expression. These results indicate the involvement of the IL-6/Reg pathway in the osteogenic response of the periosteum, which leads to fracture repair.

1. Introduction

Bone tissue can be regenerated through osteogenic differentiation of undifferentiated cells into bone-forming osteoblasts. This regeneration is frequently seen during fracture repair, which produces new bone without scarring. Two types of bone formation processes are known: (1) endochondral bone formation, in which a cartilaginous mass appears, followed by vascular invasion/new bone formation; and (2) intramembranous bone formation, in which new bone forms directly through cascades of osteogenic differentiation without cartilaginous mass formation [1].
Fractures often occur in the mid-shaft (diaphysis) regions of long bones. The diaphysis consists of cortical bone and marrow/fat tissues, and its outer surface is covered with a membrane called the periosteum [2]. Shapiro [1] effectively summarizes the fracture repair process. At the periphery of the fracture site (vascular rich areas), the periosteum, which is elevated from the cortex surface, lays down intramembranous woven bone against the surface. Closer to the fracture site, the tissue damage interrupts the blood supply and leads to the formation of cartilaginous masses both outside and within the cortices. These areas eventually show endochondral bone formation. The chondrocytes within the fracture areas are reported to derive predominantly from the periosteum [3]. When there is little motion around the fractured ends due to stable fracture fixation, woven bone is first produced by the periosteal tissue, followed by lamellar bone formation without the intervention of cartilage tissue formation. Thus, the periosteum is essential for new bone formation during the fracture repair in the cascades responsible for both endochondral and intramembranous bone formation. Many regulatory signals, such as Wnt, Indian hedgehog, bone morphogenetic proteins, Smads 1–8, transforming growth factor (TGF)-β superfamily, transcription factor Runt-related transcription factor 2 (Runx2), etc., reportedly affect bone formation [4,5]. However, little is known about the nature of the molecules that trigger the periosteal reaction that promotes fracture repair.
Many approaches have been reported for the investigation of various tissue regenerations, and we have conducted extensive research that focuses on pancreatic β cell regeneration [6,7,8]. We screened a cDNA library from regenerating islets to isolate a novel gene Reg (Regenerating Gene) expressed in the islets [9]. This gene was subsequently found in human tissues [9,10]. The Reg gene encodes a C-type lectin, and structurally related molecules (Reg family genes) have been identified. These genes are expressed in regenerating pancreatic β cells as well as in the other tissues, such as liver, stomach, intestine etc., and are thought to be involved in cell proliferation and differentiation in these tissues [7,8,9,10,11,12,13]. We also reported Reg gene expression in regenerating nerve and skeletal muscle tissues [14,15], and we found a positive relation between this gene expression and survival (regenerating capability) of vascular grafts [16]. Thus, Reg gene expression may be crucial for the regeneration of several tissues.
We demonstrated that Reg protein induces β cell replication during pancreatic regeneration via the Reg receptor. Administration of interleukin-6 (IL-6) together with dexamethasone (Dex) induced the formation of an active transcriptional complex for Reg and finally triggered the Reg gene expression in β cells. We recently found that IL-6 and Dex induced REG Iα and REG Iβ expression in human β cells [17]. These findings indicate that Reg gene expression clearly has an important role in tissue regeneration; however, there are no reports that study how Reg gene expression relates to bone tissue regeneration. Therefore, we investigated the Reg gene expression during the cascade of rat femoral bone fracture repair as well as the expression in periosteum-derived cell cultures. Here, we report a high level of Reg gene expression in periosteal areas after a fracture. We also show that Reg gene expression is drastically activated by the addition of IL-6 to the medium of periosteum-derived cell cultures. Furthermore, the IL-6 addition down-regulated Bim (Bcl-2-like protein 11) gene expression. This study is the first to show evidence for the involvement of Reg gene expression in fracture repair (i.e., bone tissue regeneration). The study also discusses the possible role of apoptosis/anti-apoptosis cascades in the regeneration.

2. Results

2.1. Regenerating Gene (Reg) I Gene Expression in the Periosteum of Fractured Bone

We made a fracture at the mid-shaft of a rat femoral bone and then stably fixed the fracture site with a wire inserted in the intramedullary region. Bone union was seen after about four weeks and was almost complete by six weeks after fixation (Figure 1a–e). We analyzed Reg I gene expression in tissues around the fracture areas by harvesting muscle surrounding the femoral bone, the thin layer of periosteum covering the femoral bone, and the remaining femoral bone that contained bone marrow. The periosteum was easily identified and harvested from the bone. As shown in Figure 1f, neither bone marrow nor muscle showed Reg I gene expression before or after the fracture. By contrast, the periosteum showed basal expression of the Reg I before the fracture and prominently elevated expression after the fracture. Thus, the Reg I gene expression was exclusively localized in the periosteum around the fractured areas.

2.2. Expression Profile of Reg Family Genes in the Periosteum of Fractured Bone

We also studied expression of all the rat Reg family genes (Reg I, Pap I/Reg II, Pap II/Reg III, Pap III, and Reg IV) in the periosteum at multiple time points (before and at 1, 2, 4, and 6 weeks after the fracture). As shown in Figure 2, Reg I gene expression gradually increased after the fracture and peaked at 4 weeks, when bone union was also detected. A comparison with this Reg I gene expression revealed that Reg IV gene expression appeared much earlier, with expression noticeable even one week after the fracture. Pap I/Reg II, Pap II/Reg III, and Pap III gene expressions showed similar patterns, with peaks around two weeks after the fracture.
The in vivo studies showed baseline expression of all the Reg family genes before the fracture and increased expressions following the fracture. The expression of the Reg family genes gradually increased and concomitantly decreased with the fracture repair.

2.3. The mRNA Levels of Reg I and Its Receptor (Extl3) in Cultured Periosteum-Derived Mesenchymal Stem Cells

We harvested the periosteum from the mid-shaft of intact rat femoral bones (Figure 3a), treated it with collagenase, and cultured the released cells in a basal culture medium. These periosteum-derived cells were well attached to the culture dish and assumed a fibroblastic cell morphology, and they became nearly confluent after two weeks [18]. The culture was followed by subculture in 12-well plates in the same medium with or without osteogenic supplements (Dex, ascorbic acid, and β-glycerophosphate). As shown in Figure 3b, high alkaline phosphatase (ALP) and mineral stain were detected in the subcultures with osteogenic media. Quantitative measurements of the ALP activity of the subculture with osteogenic medium was 0.66 ± 0.10 μmol/30 min/well after seven days and 1.67 ± 0.26 μmol/30 min/well after 14 days. Thus, the cultured periosteal cells were mesenchymal stem cell types that showed osteogenic differentiation capability, and these cells are referred to as periosteum-derived mesenchymal stem cells (PMSCs) in this paper.
We analyzed the Reg I gene expression using PMSCs cultured for nine days in the basal medium with or without IL-6 and Dex. We previously reported that the Reg gene is activated by IL-6 and Dex and that a combination of IL-6 and Dex synergistically activates this gene expression in pancreatic β cells [7,8,19,20]. As shown in Figure 3c, no Reg I expression was detected in the PMSCs, but the addition of IL-6 to the culture medium significantly induced Reg I gene expression. By contrast, Dex did not increase Reg I gene expression, but it inhibited the IL-6-induced Reg I expression (left panel). Transfection with Reg I small interfering RNA (siRNA), but not with scrambled siRNA, completely blocked IL-6-induced expression of Reg I (middle and right panels).
The Reg protein is a secretory protein and binds to the Reg protein receptor (Extl3) [21]. Therefore, we also analyzed Extl3 mRNA expression in PMSCs. The level of Extl3 mRNA in PMSCs was not changed by IL-6 treatment (Figure 3d), suggesting that the effect of IL-6 is due to the up-regulation of Reg I mRNA rather than the up-regulation of its receptor.
We also measured IL-6 protein in the PMSCs culture medium during osteogenic differentiation (one- and two-weeks subculture). As seen in Figure 3e, in contrast to in the non-osteogenic medium lacking Dex, the levels of IL-6 protein in the osteogenic culture medium containing Dex were extremely low, suggesting that Reg I mRNA is increased by IL-6 and that Dex decreased Reg I expression via the decreased expression of IL-6 in the culture medium.

2.4. Proliferation of Periosteum-Derived Mesenchymal Stem Cells PMSCs by Interleukin-6 (IL-6) via Reg I

We then examined the effect of IL-6 on cell proliferation using the 2-(2-methoxy-4-nitrophenyl)-3-(4-nitrophenyl)-5-(2,4-disulfophenyl)-2H-tetrazoliummonosodium salt (WST-8) assay. The addition of IL-6 to the culture medium of the PMSCs increased the cell numbers, and this effect was abolished by transfection of PMSCs with Reg I siRNA (Figure 4). In contrast, the addition of Dex, either singly or in combination with IL-6, had no effects on the proliferation of PMSCs. Relative cell numbers of IL-6+Dex was significantly reduced (p = 0.001 vs. IL-6 alone).

2.5. Down–Regulation of Bim, an Apoptosis-Related Gene, in PMSC by IL-6

We also investigated the intracellular mechanism underlying the enhancement of PMSC proliferation by the IL-6/Reg I pathway by analyzing the expression of cyclin-dependent kinase (CDK4) and E2F. IL-6 stimulation did not increase but rather decreased the mRNA levels of either of these two positive cell cycle regulators (Figure 5). Cell proliferation is a key process in regeneration of many tissues, and apoptotic stimuli affect the cell numbers. We previously reported that the Reg I protein has both trophic and anti-apoptotic effects [22,23,24]. We therefore examined the expression of several apoptosis/anti-apoptosis related genes: Bcl-2 (B cell lymphoma 2), Bcl-xL (B-cell lymphoma-extra large), Bmf (Bcl-2-modifying factor), and Bim. We found that Bcl-2, Bcl-xL, and Bmf mRNA expressions were unchanged following IL-6 stimulation (Bcl-2 and Bcl-xL showed decreased tendency by IL-6 stimulation although it was not statistically significant.). By contrast, IL-6-stimulated PMSCs showed down-regulation of Bim, which is an apoptosis-related gene required for apoptosis in a broad range of cell types [25] (Figure 5). This down-regulation of Bim was abolished by transfection with Reg I siRNA.

3. Discussion

Bone formation following heterotopic transplantation of the periosteum, with or without a scaffold, has been reported, supporting the inherent osteogenic capability of this tissue [26,27,28]. The fracture of a rat femoral bone in the present study was repaired after about 4–6 weeks by extensive new bone formation that united the fracture ends. This new bone formation was exclusively derived from the periosteal reaction (Figure 1); thus, this rat model is suitable for investigating the role of the periosteum in fracture repair.
We previously reported the importance of the Reg family gene expressions in regenerating tissues, especially during pancreatic tissue regeneration [6,7,8,12]. The Reg genes are not expressed under non-regenerating physiological conditions but are expressed during the regeneration of β cells. As was noted for pancreatic tissue regeneration, Reg gene expression was difficult to detect in normal (before fracture) periosteum tissue, but expression was clearly evident during the fracture repair process. No previous studies have reported Reg family expressions in bone tissue regeneration (fracture repair), but the findings presented here clearly show this expression after the fracture (Figure 1f and Figure 2). The earlier expression of Reg IV [29,30,31] compared with Reg I may indicate the primary role of Reg IV in bone tissue regeneration.
Based on these in vivo findings, we further focused on the study of Reg using in vitro culture of periosteum-derived cells. The osteogenic capability of cultured cells derived from the periosteum has been reported previously [32,33]. These cells also differentiate into multiple mesenchymal lineages [33]. Traditionally, mesenchymal stem cells (MSCs) reside in bone marrow and we have previously reported the in vitro osteogenic differentiation of the bone marrow-derived MSCs in osteogenic medium containing Dex, ascorbic acid, and β-glycerophosphate [34]. Periosteum-derived cells cultured under the same conditions showed clear osteogenic differentiation capability, as indicated by a high ALP activity and mineral deposition (Figure 3b). Our previous study indicated that these culture conditions generate cells positive for CD29 and CD90 cell surface antigens but negative for CD45 [18]. Based on these previous findings and the observed osteogenic differentiation capability of the cultured periosteum cells, we adopted the term PMSCs for the cultured cells described here.
In vivo experiments showed that the periosteum expressed the Reg I gene at a basal level before the fracture (Figure 1f). Likewise, PMSCs from intact bone did not show apparent Reg I expression (Figure 3c). By contrast, after the fracture, the periosteum showed prominent Reg I gene expression (Figure 1f and Figure 2) and the in vitro cultured PMSCs that were cultured in vitro showed a drastically increased gene expression following IL-6 stimulation (Figure 3c). Therefore, both fracturing and IL-6 can apparently trigger gene expression in periosteal cells, suggesting that IL-6 plays a role in fracture repair. In this regard, bone tissue harvested from IL-6 knockout mice showed reduced crystallinity, mineral/matrix ratio, tissue mineral density, and bone volume fraction when compared to wild-type mice [35]. Furthermore, the knockout mice showed impaired fracture healing [35].
Kidd et al., using a stress fracture model, reported that even 4 h after a fracture, a marked (220-fold) increase was observed in expression of the IL-6 gene. They proposed that the early up-regulation of IL-6 and IL-11 demonstrates the central role in initiating signaling events for fractures [36]. Others have also reported that sclerostin, VEGF, TGF-β, COX-2, and IL-6 are early signals that facilitate the formation of periosteal woven bone [37]. Glycoprotein 130 (gp130), a co-receptor subunit for transducing signals in response to IL-6 family cytokines, has also been suggested as a possible contributor to bone formation [38,39]. Overall, the available evidence suggests that IL-6 has an important role in the cascade leading to fracture healing. Furthermore, IL-6 is linked to osteoclastogenesis [35,40] and triggers Reg gene expression in the periosteal area. Therefore, activation of the IL-6/Reg pathway is a prerequisite for fracture healing.
In cultured pancreatic β cells, the Reg gene is synergistically activated by IL-6 and Dex [7,8,17,41,42]. However, as shown in Figure 3c, Dex did not stimulate the gene expression; instead, it inhibited the induction of Reg I gene expression by IL-6. Thus, PMSCs and pancreatic β cells exhibited different responses to Dex. Furthermore, in the PMSCs culture, Dex seems to suppress the IL-6 gene expression, as evidenced by the little amount of IL-6 protein in the osteogenic medium that contained Dex compared with the medium that lacked Dex (Figure 3e). As described above, Dex also induces osteogenic differentiation in PMSCs. The Dex-induced MSC differentiation into osteoblasts is reported to occur by activation of the Runx2 expression that is dependent on the four and a half LIM domains protein 2 (FHL2)/β-catenin signaling pathway, which is essential for osteogenic differentiation. FHL2 is upregulated in response to Dex, presumably because Dex binds to a glucocorticoid response element in the promoter of FHL2 [43]. The presence of Dex-dependent FHL2 upregulation may reflect a different response of Dex. We also reported that IL-6 significantly enhanced REG Iα promoter activity in human salivary ductal cells and that supplementation with Dex had no additional effect on this activity [44]. Thus, the synergistic effect of Dex on IL-6 induced Reg gene expression seems to be cell-type dependent.
IL-6 also increased the cell number of PMSCs in culture, and this effect was not seen following transfection with Reg I siRNA (Figure 4). A well-organized balance between cell proliferation and apoptosis is a key for normal tissue homeostasis and an inequitable induction of apoptosis may suppress cell growth. The Reg protein was reported to stimulate cell proliferation [12,22,41,45] and to inhibit apoptosis [23,24]. In the present study, we first analyzed the mRNA expression of two typical cell cycle regulators, CDK4 and E2F, but we found no increase in response to IL-6 stimulation (Figure 5), suggesting that the increased proliferation of PMSCs is not mediated by cell cycle progression. However, down-regulation of CDK4 mRNA in IL-6-stimulated PMSCs was canceled by the introduction of siReg I RNA (Figure 5). As down-regulation of CDK4 could work as an impediment in cell cycle progression, Reg I may remove such an impediment to proliferation. We also test the possibility of the inhibition of apoptosis through the stimulation of the IL-6-dependent Reg I expression.
Two pathways can lead to apoptosis: the extrinsic or death receptor pathway and the intrinsic, or mitochondrial, pathway. In the latter pathway, mitochondria release cytochrome c and activate a caspase cascade that results in programmed cell death [46]. The Bcl-2 family, consisting of Bcl-2 and its homologues, regulate this mitochondrial pathway. Many genes have been identified in the Bcl-2 family: some have anti-apoptotic and some have pro-apoptotic functions [47]. As seen in Figure 5, treatment of PMSC cultures with IL-6 did not affect the expressions of the anti-apoptotic family genes but reduced the pro-apoptotic Bim gene expression, which is known to induce cell death in multiple cell types [48]. Therefore, Reg I gene expression induced by IL-6 in PMSCs (Figure 3c) could be linked to the inhibition of Bim expression and the resulting increase in cell proliferation (Figure 4).
Bone formation is closely associated with blood vessel growth (i.e., new capillary formation due to proliferation and differentiation of the endothelial cells), and endothelial growth factor-A (VEGF-A) is known to regulate this differentiation. In this regard, Bim appears to be responsible for the apoptotic death of retinal endothelial cells during oxygen-induced ischemic retinopathy, and the lack of Bim leads to increased retinal vascular density [49]. Bim is also required for the apoptotic death of tumor endothelial cells and for inhibition of tumor growth by VEGF neutralization [50]. These findings may imply an additional role of Reg gene expression at fracture sites; namely, the expression may favor repair due to improvement of the proliferation/differentiation of endothelial cells around the fracture site. Further studies are needed to elucidate the function of Reg gene expression in fracture repair, especially regarding apoptosis and endothelial cell differentiation.
In conclusion, expression of Reg family genes in the rat periosteum was triggered by femoral fracture, and this expression decreased after 4–6 weeks, when the fracture union was complete. Therefore, the expression pattern coincided well with the process of fracture healing. Cultured PMSCs derived from intact femoral bone did not show Reg I expression, but this expression was induced by the addition of IL-6 to the culture medium. The addition of IL-6 also stimulated the proliferation of the PMSCs, together with a reduction in the expression of the pro-apoptotic Bim gene. These effects of IL-6 were abolished by transfection of PMSCs with Reg I siRNA. IL-6 is reported to act as an initial signal for bone fracture; these results may indicate an important role for the IL-6/Reg pathway in regulation of the osteogenic capability of the periosteum, which leads to fracture healing.

4. Materials and Methods

4.1. Animals

Fischer 344 (F344) rats were purchased from Japan SLC, Inc. (Hamamatsu, Japan). Nine-week-old male rats were used for the fracture model. Seven-week-old male rats were used as donors for the in vitro culture experiments. The experimental protocol using these rats was approved by the Animal Care and Use Committee of Nara Medical University (approval number 11936; 9 March 2017).

4.2. In Vivo Model of Bone Fracture

Twenty F344 male-specific pathogen-free rats were used in this study. Each cage housed two rats and was equipped with an automatic-water supply apparatus. The rats were anesthetized by intraperitoneal pentobarbital administration (3.5 mg/100 g body weight). A lateral skin incision was performed on the thigh area, and the vastus muscles were carefully divided to expose the femoral bone without injuring the periosteum. Massive injury to soft tissues around the fracture sites was avoided by making a small cut at the mid-shaft of the femoral bone with a mini electric circular saw. The cut did not completely traverse the bone but only scored the bone surface at right angles to the long axis of the bone. The fracture was then made manually. A Kirschner wire (K-wire) with a threaded tip (1.4 mm diameter; DePuy Synthes, Zuchwil, Switzerland) was inserted in an intramedullary position from the femoral condyle to the pelvis using a retrograde method. The distal edge of the wire was bent to prevent migration of the distal femoral fragment. Thus, the fracture was fixed with a K-wire from the knee joint (distal femur) to the pelvic bone. We made bilateral fractures in all rats.

4.3. Preparation of Tissue Samples for Gene Expression Analyses after Fracture

Muscle tissue was removed from the fracture area (the mid-shaft of the femoral bone). The bone with periosteum was then harvested from around the fracture. A 10-mm wide section of periosteum from the fracture site was detached using a surgical knife. A 5-mm wide bone fragment, without periosteum, was then harvested from the fracture site using a mini electric circular saw. The harvested bone sample contained marrow tissue. Similar tissue samples from the mid-shaft were harvested by the same methods from a control group without fractures.

4.4. In Vitro Culture of Periosteum-Derived Cells

Three F344 male rats were used for the in vitro culture assay. The periosteum was harvested from both mid-shafts of the intact femoral bones of each rat. The harvested periosteum was treated for 1 h with 10 mL phosphate-buffered saline (PBS) containing 3 mg/mL collagenase (collagenase type X filtered; Wako Pure Chemical Industries, Osaka, Japan) and then filtered through 40-μm cell strainers (Falcon® 40 μcell strainer Cell Strainer 40 μm; Corning, Durham, NC, USA). The filtrates were placed into T-75 culture flasks (Falcon® Flasks 250 mL, Corning) for primary culture for 10 days [18]. Cultures were maintained in a humidified atmosphere of 95% air and 5% CO2 at 37 °C. The culture medium was renewed three times per week. The medium was a minimal essential medium (MEM; Nacalai Tesque Inc., Kyoto, Japan) containing 15% fetal bovine serum (FBS; JRH Bioscience, Lenexa, KS, USA) and a mixture of antibiotics (100 U/mL penicillin, 100 μg/mL streptomycin, and 0.25 μg/mL amphotericin B; Nacalai Tesque). After 10 days of primary culture, adherent cells with fibroblastic morphology were released using 0.25% trypsin-ethylenediaminetetraacetic acid (Life Technologies, Inc., Burlington, ON, Canada), centrifuged at 900 rpm for 5 min at room temperature and the supernatant was discarded.
The residue of the primary cultured cells was subcultured in the same medium at 2.0 × 104 cells/well in 24-well plates (Falcon® Multiwell 24 well, Corning) for quantitative real-time RT-PCR and 3.0 × 103 cells/well in 96-well plates (Falcon® 96 well, Corning) for viable cell counting using WST-8 assay. The RT-PCR and WST-8 assay methods are described in Section 4.5 and Section 4.6, respectively. After two days of subculturing, the cells were transfected with siRNAs for rat Reg I or with scrambled siRNA, then 20 ng/mL IL-6 and/or 100 nM Dex were added into the medium, and the cells were incubated for another 24 h. The treated cells were then used for the real-time RT-PCR and WST-8 assays. The subculture was also done in 12-well plates in the same medium or in an osteogenic medium supplemented with 10 nM Dex, 0.28 mM ascorbic acid-2-phosphate, and 10 mM β-glycerophosphate. ALP activity measurements and mineral staining were done according to our reported methods [18,34]. The concentration of IL-6 in the medium was measured using a Rat IL-6 Platinum ELISA (enzyme-linked immunosorbent assay) kit (Bender MedSystems GmbH, Vienna, Austria) according to the supplier’s instructions.
The Silencer® Select predesigned siRNAs for rat Reg I and the scrambled siRNA were purchased from Life Technologies (Carlsbad, CA, USA). The sense sequence of siRNA for the rat Reg I was 5′-GAAAUGGAGAGAUAACAGUtt-3′. The cells were transfected with the siRNAs using Lipofectamine® RNAiMAX Reagent (Life Technologies), as previously described [19,20,21,51,52,53]. Cells were transfected with siRNAs at 5 pmol/well in 24-well plates for real-time PCR and 1 pmol/well in 96-well plates for WST-8 assays. IL-6 (Interleukin-6 Rat recombinant) was purchased from Wako Pure Chemical Industries, and Dex was purchased from Sigma (St. Louis, MO, USA).

4.5. Quantitative Real-Time RT-PCR

Total RNA from in vivo samples was isolated using the Isogen RNA Extraction Kit (Nippon Gene, Toyama, Japan), and total RNA from in vitro cultured PMSCs was isolated using the RNeasy® Plus Mini Kit (Qiagen, Hilden, Germany), as previously described [19,20,44,51,52,53]. The corresponding cDNA was synthesized using total RNA (2–5 μg) as a template and a High Capacity cDNA Reverse Transcription Kit (Applied Biosystems Inc., Foster City, CA, USA) was used to produce a template for real-time PCR. The real-time quantitative PCR was performed using a KAPA SYBR® Fast qPCR kit (KAPA Biosystems, Boston, MA, USA) or TaqMan® Fast Universal PCR Master Mix (Applied Biosystems) using a Thermal Cycler Dice Real Time System (Takara, Otsu, Japan), Applied Biosystems StepOneTM, or StepOnePlusTM Real-Time PCR System (Japan Applied Biosystems Inc., Tokyo, Japan) with the appropriate primers. The PCR primers were synthesized by Nippon Gene Research Laboratories (Sendai, Japan), and their sequences are listed in Table 1. The thermal cycling conditions were 3 min at 95 °C for activation of polymerase, followed by 40–45 cycles of 3–10 s at 95 °C for denaturation, 5 s at 60 °C for annealing, and 20 s at 60–72 °C for extension. Target cDNAs were cloned into pBluescript SK(-) plasmid (Stratagene, La Jolla, CA, USA), and sequential 10-fold dilutions from 102–107 copies/μL were prepared. The serial dilutions were run to verify the specificity and to test the sensitivity of the SYBR Green-based real-time RT-PCR. Differences in the efficiency of reverse transcription between the samples were adjusted by normalizing the level of target mRNA to the mRNA level of GAPDH or ribosomal protein S15 (Rps15).

4.6. Measurement of Viable Cell Numbers by Tetrazolium Salt Cleavage

The viable cell numbers were determined using a Cell Counting Kit-8 (WST-8; Dojindo, Mashiki-machi, Japan) according to the previously described method based on tetrazolium reductase activity [19,20,45,53]. Briefly, WST-8 solution was added to cells in 96-well plates (10 μL in 100 μL culture medium), and the cells were incubated for 2 h at 37 °C in a humidified atmosphere of 95% air and 5% CO2. After incubation, the optical density of each well was read at 450 nm (reference wave length at 650 nm) using a SpectraMax M2 instrument (Molecular Devices, Sunnyvale, CA, USA).

4.7. Data Analysis

Multiple comparisons regarding Reg gene expressions in the in vivo model were evaluated by one-way analysis of variance with post-hoc multiple comparisons using the Tukey test. A value of p < 0.05 was considered statistically significant. The WST-8 assay results were analyzed using the Mann-Whitney U-test. A comparison between the two groups was evaluated by a Student’s t test using GraphPad Prism (GraphPad Software, La Jolla, CA, USA).

Acknowledgments

The authors thank Fumika Kunda of the Department of Orthopedic Surgery at Nara Medical University for technical assistance and Manabu Akahane of the Department of Public Health, Health Management and Policy at Nara Medical University for encouragement. This work was supported in part by a Grants-in-Aid for Scientific Research from the Ministry of Education, Culture, Sports, Science and Technology (JSPS), Japan, and the Japan Science and Technology Agency (JST).

Author Contributions

Yasuaki Tohma, Yoshiko Dohi, Shin Takasawa, and Hajime Ohgushi contributed to the study design. Yasuaki Tohma, Yoshiko Dohi, Ryogo Shobatake. Tomoko Uchiyama, Maiko Takeda, Shin Takasawa, and Hajime Ohgushi contributed to data collection. Yasuaki Tohma, Yoshiko Dohi, Shin Takasawa, and Hajime Ohgushi contributed to data analysis. Yasuaki Tohma, Yoshiko Dohi, Shin Takasawa, Yasuhito Tanaka, and Hajime Ohgushi contributed to data interpretation. Yasuaki Tohma, Yoshiko Dohi, Shin Takasawa, and Hajime Ohgushi contributed to manuscript preparation. All the authors contributed to revising and approval of manuscript content.

Conflicts of Interest

The authors declare no conflict of interest.

Abbreviations

TGFTransforming growth factor
Runx2Runt-related transcription factor 2
RegRegenerating gene
DexDexamethasone
IL-6Interleukin-6
RT-PCRReverse transcription-polymerase chain reaction
Extl3Reg protein receptor
PMSCPeriosteum-derived mesenchymal stem cell
ALPAlkaline phosphatase
WST-82-(2-Methoxy-4-nitrophenyl)-3-(4-nitrophenyl)-5-(2,4-disulfophenyl)-2H-tetrazoliummonosodium salt
CDK4Cyclin-dependent kinase
Bcl-2B Cell lymphoma 2
Bcl-xLB-Cell lymphoma-extra large
BmfBcl-2-Modifying factor
BimBcl-2-Like protein 11
MSCMesenchymal stem cells
FHL2Four and a half LIM domains protein 2
VEGFEndothelial growth factor
siRNASmall interfering RNA

References

  1. Shapiro, F. Bone development and its relation to fracture repair. The role of mesenchymal osteoblasts and surface osteoblasts. Eur. Cells Mater. 2008, 15, 53–76. [Google Scholar] [CrossRef]
  2. Squier, C.A.; Ghoneim, S.; Kremenak, C.R. Ultrastructure of the periosteum from membrane bone. J. Anat. 1990, 171, 233–239. [Google Scholar] [PubMed]
  3. Colnot, C. Skeletal cell fate decisions within periosteum and bone marrow during bone regeneration. J. Bone Miner. Res. 2009, 24, 274–282. [Google Scholar] [CrossRef] [PubMed]
  4. Rahman, M.S.; Akhtar, N.; Jamil, H.M.; Banik, R.S.; Asaduzzaman, S.N. TGF-β/BMP signaling and other molecular events: Regulation of osteoblastogenesis and bone formation. Bone Res. 2015, 3, 15005. [Google Scholar] [CrossRef] [PubMed]
  5. Hayrapetyan, A.; Jansen, J.A.; van den Beucken, J.J. Signaling pathways involved in osteogenesis and their application for bone regenerative medicine. Tissue Eng. Part B Rev. 2015, 21, 75–87. [Google Scholar] [CrossRef] [PubMed]
  6. Yonemura, Y.; Takashima, T.; Miwa, K.; Miyazaki, I.; Yamamoto, H.; Okamoto, H. Amelioration of diabetes mellitus in partially depancreatized rats by poly(ADP-ribose) synthetase inhibitors. Evidence of islet B-cell regeneration. Diabetes 1984, 33, 401–404. [Google Scholar] [CrossRef] [PubMed]
  7. Takasawa, S.; Okamoto, H. Pancreatic β-cell death, regeneration and insulin secretion: Roles of poly(ADP-ribose) polymerase and cyclic ADP-ribose. Int. J. Exp. Diabetes Res. 2002, 3, 79–96. [Google Scholar] [CrossRef] [PubMed]
  8. Okamoto, H.; Takasawa, S. Recent advances in the Okamoto model: The CD38-cyclic ADP-ribose signal system and the regenerating gene protein (Reg)-Reg receptor system in β-cells. Diabetes 2002, 51, S462–S473. [Google Scholar] [CrossRef] [PubMed]
  9. Terazono, K.; Yamamoto, H.; Takasawa, S.; Shiga, K.; Yonemura, Y.; Tochino, Y.; Okamoto, H. A novel gene activated in regenerating islets. J. Biol. Chem. 1988, 263, 2111–2114. [Google Scholar] [PubMed]
  10. Watanabe, T.; Yonekura, H.; Terazono, K.; Yamamoto, H.; Okamoto, H. Complete nucleotide sequence of human reg gene and its expression in normal and tumoral tissues. The reg protein, pancreatic stone protein, and pancreatic thread protein are one and the same product of the gene. J. Biol. Chem. 1990, 265, 7432–7439. [Google Scholar] [PubMed]
  11. Zhang, Y.W.; Ding, L.S.; Lai, M.D. Reg gene family and human diseases. World J. Gastroenterol. 2003, 9, 2635–2641. [Google Scholar] [CrossRef] [PubMed]
  12. Takasawa, S. Regenerating gene (REG) product and its potential clinical usage. Expert Opin. Ther. Targets 2016, 20, 541–550. [Google Scholar] [CrossRef] [PubMed]
  13. Watanabe, T.; Yonemura, Y.; Yonekura, H.; Suzuki, Y.; Miyashita, H.; Sugiyama, K.; Moriizumi, S.; Unno, M.; Tanaka, O.; Kondo, H.; et al. Pancreatic beta-cell replication and amelioration of surgical diabetes by Reg protein. Proc. Natl. Acad. Sci. USA 1994, 91, 3589–3592. [Google Scholar] [CrossRef] [PubMed]
  14. Namikawa, K.; Fukushima, M.; Murakami, K.; Suzuki, A.; Takasawa, S.; Okamoto, H.; Kiyama, H. Expression of Reg/PAP family members during motor nerve regeneration in rat. Biochem. Biophys. Res. Commun. 2005, 332, 126–134. [Google Scholar] [CrossRef] [PubMed]
  15. Klasan, G.S.; Ivanac, D.; Erzen, D.J.; Picard, A.; Takasawa, S.; Peharec, S.; Arbanas, J.; Girotto, D.; Jerkovic, R. Reg 3γ gene expression in regenerating skeletal muscle and corresponding nerve. Muscle Nerve 2014, 49, 61–68. [Google Scholar] [CrossRef] [PubMed]
  16. Kiji, T.; Dohi, Y.; Nishizaki, K.; Takasawa, S.; Okamoto, H.; Nagasaka, S.; Naito, H.; Yonemasu, K.; Taniguchi, S. Enhancement of cell viability in cryopreserved rat vascular grafts by administration of regenerating gene (REG) inducers. J. Vasc. Res. 2003, 40, 132–139. [Google Scholar] [CrossRef] [PubMed]
  17. Yamauchi, A.; Itaya-Hironaka, A.; Sakuramoto-Tsuchida, S.; Takeda, M.; Yoshimoto, K.; Miyaoka, T.; Fujimura, T.; Tsujinaka, H.; Tsuchida, C.; Ota, H.; et al. Synergistic activations of REG Iα and REG Iβ promoters by IL-6 and glucocorticoids through JAK/STAT pathway in human pancreatic β cells. J. Diabetes Res. 2015, 2015, 173058. [Google Scholar] [CrossRef] [PubMed]
  18. Hayashi, O.; Katsube, Y.; Hirose, H.; Ohgushi, H.; Ito, H. Comparison of osteogenic ability of rat mesenchymal stem cells from bone marrow, periosteum, and adipose tissue. Calcif. Tissue Int. 2008, 82, 238–247. [Google Scholar] [CrossRef] [PubMed]
  19. Ota, H.; Itaya-Hironaka, A.; Yamauchi, A.; Sakuramoto-Tsuchida, S.; Miyaoka, T.; Fujimura, T.; Tsujinaka, H.; Yoshimoto, K.; Nakagawara, K.; Tamaki, S.; et al. Pancreatic β cell proliferation by intermittent hypoxia via up-regulation of Reg family genes and HGF gene. Life Sci. 2013, 93, 664–672. [Google Scholar] [CrossRef] [PubMed]
  20. Tsujinaka, H.; Itaya-Hironaka, A.; Yamauchi, A.; Sakuramoto-Tsuchida, S.; Ota, H.; Takeda, M.; Fujimura, T.; Takasawa, S.; Ogata, N. Human retinal pigment epithelial cell proliferation by the combined stimulation of hydroquinone and advanced glycation end-products via up-regulation of VEGF gene. Biochem. Biophys. Rep. 2015, 2, 123–131. [Google Scholar] [CrossRef]
  21. Kito, K.; Kagami, H.; Kobayashi, C.; Ueda, M.; Terasaki, H. Effects of cryopreservation on histology and viability of cultured corneal epithelial cell sheets in rabbit. Cornea 2005, 24, 735–741. [Google Scholar] [CrossRef] [PubMed]
  22. Kobayashi, S.; Akiyama, T.; Nata, K.; Abe, M.; Tajima, M.; Shervani, N.J.; Unno, M.; Matsuno, S.; Sasaki, H.; Takasawa, S.; et al. Identification of a receptor for Reg (regenerating gene) protein, a pancreatic β-cell regeneration factor. J. Biol. Chem. 2000, 275, 10723–10726. [Google Scholar] [CrossRef] [PubMed]
  23. Sekikawa, A.; Fukui, H.; Fujii, S.; Takeda, J.; Nanakin, A.; Hisatsune, H.; Seno, H.; Takasawa, S.; Okamoto, H.; Fujimori, T.; et al. REG Iα protein may function as a trophic and/or anti-apoptotic factor in the development of gastric cancer. Gastroenterology 2005, 128, 642–653. [Google Scholar] [CrossRef] [PubMed]
  24. Sekikawa, A.; Fukui, H.; Fujii, S.; Ichikawa, K.; Tomita, S.; Imura, J.; Chiba, T.; Fujimori, T. REG Iα protein mediates an anti-apoptotic effect of STAT3 signaling in gastric cancer cells. Carcinogenesis 2008, 29, 76–83. [Google Scholar] [CrossRef] [PubMed]
  25. Youle, R.J.; Strasser, A. The BCL-2 protein family: Opposing activities that mediate cell death. Nat. Rev. Mol. Cell Biol. 2008, 9, 47–59. [Google Scholar] [CrossRef] [PubMed]
  26. Uddströmer, L. The osteogenic capacity of tubular and membranous bone periosteum. A qualitative and quantitative experimental study in growing rabbits. Scand. J. Plast. Reconstr. Surg. 1978, 12, 195–205. [Google Scholar] [CrossRef] [PubMed]
  27. Ishida, H.; Tamai, S.; Yajima, H.; Inoue, K.; Ohgushi, H.; Dohi, Y. Histologic and biochemical analysis of osteogenic capacity of vascularized periosteum. Plast. Reconstr. Surg. 1996, 97, 512–518. [Google Scholar] [CrossRef] [PubMed]
  28. Wiese, K.G.; Merten, H.A. The role of the periosteum in osteointegration of hydroxyapatite granules. Int. J. Oral Maxillofac. Surg. 1993, 22, 306–308. [Google Scholar] [CrossRef]
  29. Hartupee, J.C.; Zhang, H.; Bonaldo, M.F.; Soares, M.B.; Dieckgraefe, B.K. Isolation and characterization of a cDNA encoding a novel member of the human regenerating protein family: Reg IV. Biochim. Biophys. Acta 2001, 1518, 287–293. [Google Scholar] [CrossRef]
  30. Kämäräinen, M.; Heiskala, K.; Knuutila, S.; Heiskala, M.; Winqvist, O.; Andersson, L.C. RELP, a novel human REG-like protein with up-regulated expression in inflammatory and metaplastic gastrointestinal mucosa. Am. J. Pathol. 2003, 163, 11–20. [Google Scholar] [CrossRef]
  31. Kaprio, T.; Hagström, J.; Mustonen, H.; Koskensalo, S.; Andersson, L.C.; Haglund, C. REG4 independently predicts better prognosis in non-mucinous colorectal cancer. PLoS ONE 2014, 9, e109600. [Google Scholar] [CrossRef] [PubMed]
  32. Nakahara, H.; Goldberg, V.M.; Caplan, A.I. Culture-expanded human periosteal-derived cells exhibit osteochondral potential in vivo. J. Orthop. Res. 1991, 9, 465–476. [Google Scholar] [CrossRef] [PubMed]
  33. Nakahara, H.; Dennis, J.E.; Bruder, S.P.; Haynesworth, S.E.; Lennon, D.P.; Caplan, A.I. In vitro differentiation of bone and hypertrophic cartilage from periosteal-derived cells. Exp. Cell Res. 1991, 195, 492–503. [Google Scholar] [CrossRef]
  34. Ohgushi, H.; Dohi, Y.; Katuda, T.; Tamai, S.; Tabata, S.; Suwa, Y. In vitro bone formation by rat marrow cell culture. J. Biomed. Mater. Res. 1996, 32, 333–340. [Google Scholar] [CrossRef]
  35. Wallace, A.; Cooney, T.E.; Englund, R.; Lubahn, J.D. Effects of interleukin-6 ablation on fracture healing in mice. J. Orthop. Res. 2011, 29, 1437–1442. [Google Scholar] [CrossRef] [PubMed]
  36. Kidd, L.J.; Stephens, A.S.; Kuliwaba, J.S.; Fazzalari, N.L.; Wu, A.C.; Forwood, M.R. Temporal pattern of gene expression and histology of stress fracture healing. Bone 2010, 46, 369–378. [Google Scholar] [CrossRef] [PubMed]
  37. Wu, A.C.; Kidd, L.J.; Cowling, N.R.; Kelly, W.L.; Forwood, M.R. Osteocyte expression of caspase-3, COX-2, IL-6 and sclerostin are spatially and temporally associated following stress fracture initiation. Bonekey Rep. 2014, 3, 571. [Google Scholar] [CrossRef] [PubMed]
  38. Johnson, R.W.; Brennan, H.J.; Vrahnas, C.; Poulton, I.J.; McGregor, N.E.; Standal, T.; Walker, E.C.; Koh, T.-T.; Nguyen, H.; Walsh, N.C.; et al. The primary function of gp130 signaling in osteoblasts is to maintain bone formation and strength, rather than promote osteoclast formation. J. Bone Miner. Res. 2014, 29, 1492–1505. [Google Scholar] [CrossRef] [PubMed]
  39. Johnson, R.W.; McGregor, N.E.; Brennan, H.J.; Crimeen-Irwin, B.; Poulton, I.J.; Martin, T.J.; Sims, N.A. 41Glycoprotein130 (Gp130)/interleukin-6 (IL-6) signalling in osteoclasts promotes bone formation in periosteal and trabecular bone. Bone 2015, 81, 343–351. [Google Scholar] [CrossRef] [PubMed]
  40. Yang, X.; Ricciardi, B.F.; Hernadez-Soria, A.; Shi, Y.; Pleshko Camacho, N.; Bostrom, M.P. Callus mineralization and maturation are delayed during fracture healing in interleukin-6 knockout mice. Bone 2007, 41, 928–936. [Google Scholar] [CrossRef] [PubMed]
  41. Akiyama, T.; Takasawa, S.; Nata, K.; Kobayashi, S.; Abe, M.; Shervani, N.J.; Ikeda, T.; Nakagawa, K.; Unno, M.; Matsuno, S.; et al. Activation of Reg gene, a gene for insulin-producing β-cell regeneration: Poly(ADP-ribose) polymerase binds Reg promoter and regulates the transcription by autopoly(ADP-ribosyl)ation. Proc. Natl. Acad. Sci. USA 2001, 98, 48–53. [Google Scholar] [CrossRef] [PubMed]
  42. Nakagawa, K.; Takasawa, S.; Nata, K.; Yamauchi, A.; Itaya-Hironaka, A.; Ota, H.; Yoshimoto, K.; Sakuramoto-Tsuchida, S.; Miyaoka, T.; Takeda, M.; et al. Prevention of Reg I-induced β-cell apoptosis by IL-6/dexamethasone through activation of HGF gene regulation. Biochim. Biophys. Acta 2013, 1833, 2988–2995. [Google Scholar] [CrossRef] [PubMed]
  43. Langenbach, F.; Handschel, J. Effects of dexamethasone, ascorbic acid and β-glycerophosphate on the osteogenic differentiation of stem cells in vitro. Stem Cell Res. Ther. 2013, 4, 117. [Google Scholar] [CrossRef] [PubMed]
  44. Fujimura, T.; Fujimoto, T.; Itaya-Hironaka, A.; Miyaoka, T.; Yoshimoto, K.; Yamauchi, A.; Sakuramoto-Tsuchida, S.; Kondo, S.; Takeda, M.; Tsujinaka, H.; et al. Interleukin-6/STAT pathway is responsible for the induction of gene expression of REG Iα, a new auto-antigen in Sjögren’s syndrome patients, in salivary duct epithelial cells. Biochem. Biophys. Rep. 2015, 2, 69–74. [Google Scholar] [CrossRef]
  45. Takasawa, S.; Ikeda, T.; Akiyama, T.; Nata, K.; Nakagawa, K.; Shervani, N.J.; Noguchi, N.; Murakami-Kawaguchi, S.; Yamauchi, A.; Takahashi, I.; et al. Cyclin D1 activation through ATF-2 in Reg-induced pancreatic β-cell regeneration. FEBS Lett. 2006, 580, 585–591. [Google Scholar] [CrossRef] [PubMed]
  46. Happo, L.; Strasser, A.; Cory, S. BH3-only proteins in apoptosis at a glance. J. Cell Sci. 2012, 125, 1081–1087. [Google Scholar] [CrossRef] [PubMed]
  47. Elmore, S. Apoptosis: A review of programmed cell death. Toxicol. Pathol. 2007, 35, 495–516. [Google Scholar] [CrossRef] [PubMed]
  48. Piñon, J.D.; Labi, V.; Egle, A.; Villunger, A. Bim and Bmf in tissue homeostasis and malignant disease. Oncogene 2008, 27, S41–S52. [Google Scholar] [CrossRef] [PubMed]
  49. Wang, S.; Park, S.; Fei, P.; Sorenson, C.M. Bim is responsible for the inherent sensitivity of the developing retinal vasculature to hyperoxia. Dev. Biol. 2011, 349, 296–309. [Google Scholar] [CrossRef] [PubMed]
  50. Naik, E.; O’Reilly, L.A.; Asselin-Labat, M.L.; Merino, D.; Lin, A.; Cook, M.; Coultas, L.; Bouillet, P.; Adams, J.M.; Strasser, A. Destruction of tumor vasculature and abated tumor growth upon VEGF blockade is driven by proapoptotic protein Bim in endothelial cells. J. Exp. Med. 2011, 208, 1351–1358. [Google Scholar] [CrossRef] [PubMed]
  51. Tsujinaka, H.; Itaya-Hironaka, A.; Yamauchi, A.; Sakuramoto-Tsuchida, S.; Shobatake, R.; Makino, M.; Masuda, N.; Hirai, H.; Takasawa, S.; Ogata, N. Statins decrease vascular epithelial growth factor expression via down-regulation of receptor for advanced glycation end-products. Heliyon 2017, 3, e00401. [Google Scholar] [CrossRef] [PubMed]
  52. Uchiyama, T.; Ota, H.; Itaya-Hironaka, A.; Shobatake, R.; Yamauchi, A.; Sakuramoto-Tsuchida, S.; Makino, M.; Kimura, H.; Takeda, M.; Obayashi, C.; et al. Up-regulation of selenoprotein P and HIP/PAP mRNAs in hepatocytes by intermittent hypoxia via down-regulation of miR-203. Biochem. Biophys. Rep. 2017, 11, 130–137. [Google Scholar] [CrossRef] [PubMed]
  53. Tsuchida, C.; Sakuramoto-Tsuchida, S.; Takeda, M.; Itaya-Hironaka, A.; Yamauchi, A.; Misu, M.; Shobatake, R.; Uchiyama, T.; Makino, M.; Pujol-Autonell, I.; et al. Expression of REG family genes in human inflammatory bowel diseases and its regulation. Biochem. Biophys. Rep. 2017, 12, 198–205. [Google Scholar] [CrossRef]
Figure 1. In vivo model of a rat bone fracture. (a) A fracture was created at the mid-shaft of the rat femoral bone (red circle). The figure shows fracture fixation with a Kirschner wire (K-wire). The distal edge of the wire is bent (arrow); (b) Image and direction of the wire insertion. The direction is from the distal femora bone to the pelvic bone; (c) After 4 weeks of fixation, good bone union (red circle) is evident; (d) The periosteum covering the fractured bone was removed/harvested. The red bar area indicates bare bone; (e) The upper figure shows the histological section of the mid-shaft of an intact rat femoral (no fracture) bone. A thin layer of the periosteum (arrows) is evident between the muscle layer and bone surface. The lower figure shows the fracture area after four weeks. A thick periosteal layer surrounds newly formed bone; (f) The expression of Reg I in the periosteum. The mRNA levels of rat Reg I in bone marrow, periosteum, and muscle tissues before (intact) and four weeks after fracture (n = 6). Reg I mRNA levels were measured by real-time reverse transcription-polymerase chain reaction (RT-PCR) using glyceraldehyde-3 phosphate dehydrogenase (GAPDH) as an endogenous control (fg/pg GAPDH). The data are indicated by mean ± SE. * p < 0.05.
Figure 1. In vivo model of a rat bone fracture. (a) A fracture was created at the mid-shaft of the rat femoral bone (red circle). The figure shows fracture fixation with a Kirschner wire (K-wire). The distal edge of the wire is bent (arrow); (b) Image and direction of the wire insertion. The direction is from the distal femora bone to the pelvic bone; (c) After 4 weeks of fixation, good bone union (red circle) is evident; (d) The periosteum covering the fractured bone was removed/harvested. The red bar area indicates bare bone; (e) The upper figure shows the histological section of the mid-shaft of an intact rat femoral (no fracture) bone. A thin layer of the periosteum (arrows) is evident between the muscle layer and bone surface. The lower figure shows the fracture area after four weeks. A thick periosteal layer surrounds newly formed bone; (f) The expression of Reg I in the periosteum. The mRNA levels of rat Reg I in bone marrow, periosteum, and muscle tissues before (intact) and four weeks after fracture (n = 6). Reg I mRNA levels were measured by real-time reverse transcription-polymerase chain reaction (RT-PCR) using glyceraldehyde-3 phosphate dehydrogenase (GAPDH) as an endogenous control (fg/pg GAPDH). The data are indicated by mean ± SE. * p < 0.05.
Ijms 18 02257 g001
Figure 2. The expression of Reg family genes in the periosteum. The mRNA levels of rat Reg family genes (Reg I, Reg IV, Pap I/Reg II, Pap II/Reg III, and Pap III) in the periosteum before (0) and 1, 2, 4, and 6 weeks after the fracture (N = 4 to 8). The data are indicated by mean ± SD. The mRNA levels before fracture (0 w) are set at 1. The level of Reg I mRNA at 4 weeks fracture was significantly increased (p = 0.042 vs. 0 week). The levels of Pap I/Reg II mRNA at 1, 2, 4, and 6 weeks after fracture were significantly increased (p = 0.0418, 0.0025, 0.0047, and 0.0254, respectively). The levels of Pap II/Reg III mRNA at 2, 4, and 6 weeks after fracture were significantly increased (p = 0.0080, 0.0063, and 0.0150, respectively). The Pap III mRNA levels at 2, 4, and 6 weeks after fracture were increased (p = 0.0113, 0.0005, and 0.0045, respectively). The Reg IV mRNA levels at 1, 2, and 4 weeks after fracture were increased (p = 0.0006, 0.0403, and 0.0267, respectively). w = week.
Figure 2. The expression of Reg family genes in the periosteum. The mRNA levels of rat Reg family genes (Reg I, Reg IV, Pap I/Reg II, Pap II/Reg III, and Pap III) in the periosteum before (0) and 1, 2, 4, and 6 weeks after the fracture (N = 4 to 8). The data are indicated by mean ± SD. The mRNA levels before fracture (0 w) are set at 1. The level of Reg I mRNA at 4 weeks fracture was significantly increased (p = 0.042 vs. 0 week). The levels of Pap I/Reg II mRNA at 1, 2, 4, and 6 weeks after fracture were significantly increased (p = 0.0418, 0.0025, 0.0047, and 0.0254, respectively). The levels of Pap II/Reg III mRNA at 2, 4, and 6 weeks after fracture were significantly increased (p = 0.0080, 0.0063, and 0.0150, respectively). The Pap III mRNA levels at 2, 4, and 6 weeks after fracture were increased (p = 0.0113, 0.0005, and 0.0045, respectively). The Reg IV mRNA levels at 1, 2, and 4 weeks after fracture were increased (p = 0.0006, 0.0403, and 0.0267, respectively). w = week.
Ijms 18 02257 g002
Figure 3. (a) Harvesting the periosteum from the femoral bone shaft. The periosteum is easily separated and peeled from the shaft. M: surrounding muscle tissue. F: shaft of the femoral bone. Arrows: periosteum; (b) Alkaline phosphatase (ALP) and Alizarin Red S staining of periosteum-derived mesenchymal stem cells (PMSCs) sub-cultured with (upper figures) or without (lower figures) osteogenic medium supplemented with dexamethasone (Dex), ascorbic acid, and β-glycerophosphate for two weeks; (c) The mRNA levels of Reg I in the culture of PMSCs. Rat PMSCs were transfected with siRNA for Reg I, scrambled RNA, or no addition (control). After siRNA introduction, IL-6 (20 ng/mL), Dex (100 nM), or IL-6+Dex was added to the PMSC culture medium and the cells were incubated for 24 h. Cells were harvested for real-time RT-PCR for Reg I mRNA; (d) The mRNA levels of Extl3 in the culture of rat PMSCs. RNA was prepared from rat PMSCs stimulated with or without IL-6 (20 ng/mL) for 24 h, and Reg receptor (Extl3) mRNA was measured by real-time RT-PCR. The data are relative values compared with the mRNA levels of “No addition” and are reported as mean ± SE (N = 4); (e) Concentration of IL-6 in the medium of the PMSCs sub-cultured with (Dex (+)) or without (Dex (-)) osteogenic supplements for one and two weeks.
Figure 3. (a) Harvesting the periosteum from the femoral bone shaft. The periosteum is easily separated and peeled from the shaft. M: surrounding muscle tissue. F: shaft of the femoral bone. Arrows: periosteum; (b) Alkaline phosphatase (ALP) and Alizarin Red S staining of periosteum-derived mesenchymal stem cells (PMSCs) sub-cultured with (upper figures) or without (lower figures) osteogenic medium supplemented with dexamethasone (Dex), ascorbic acid, and β-glycerophosphate for two weeks; (c) The mRNA levels of Reg I in the culture of PMSCs. Rat PMSCs were transfected with siRNA for Reg I, scrambled RNA, or no addition (control). After siRNA introduction, IL-6 (20 ng/mL), Dex (100 nM), or IL-6+Dex was added to the PMSC culture medium and the cells were incubated for 24 h. Cells were harvested for real-time RT-PCR for Reg I mRNA; (d) The mRNA levels of Extl3 in the culture of rat PMSCs. RNA was prepared from rat PMSCs stimulated with or without IL-6 (20 ng/mL) for 24 h, and Reg receptor (Extl3) mRNA was measured by real-time RT-PCR. The data are relative values compared with the mRNA levels of “No addition” and are reported as mean ± SE (N = 4); (e) Concentration of IL-6 in the medium of the PMSCs sub-cultured with (Dex (+)) or without (Dex (-)) osteogenic supplements for one and two weeks.
Ijms 18 02257 g003

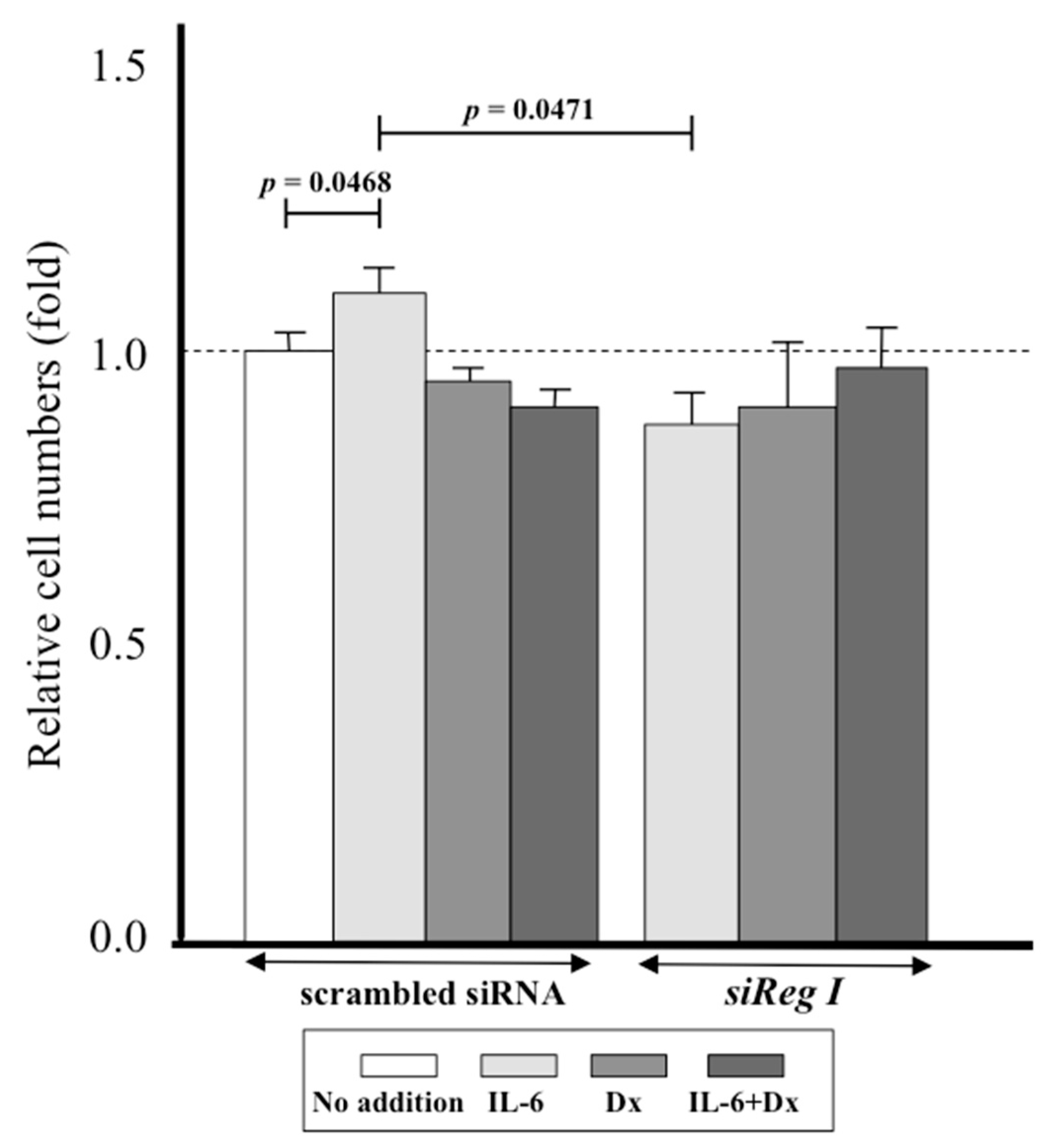

Figure 4. Effects of transfection with siRNA for Reg I on cell numbers of PMSCs. The WST-8 assay was performed using siRNA-transfected PMSCs (scrambled siRNA or siReg I). These PMSCs were stimulated with IL-6, Dex, and IL-6+Dex or without stimulants (No addition), and the relative cell numbers were measured by cleavage of WST-8. The data are relative values compared with the absorbance of cells with “No addition” and indicated by mean ± SE (n = 4).
Figure 4. Effects of transfection with siRNA for Reg I on cell numbers of PMSCs. The WST-8 assay was performed using siRNA-transfected PMSCs (scrambled siRNA or siReg I). These PMSCs were stimulated with IL-6, Dex, and IL-6+Dex or without stimulants (No addition), and the relative cell numbers were measured by cleavage of WST-8. The data are relative values compared with the absorbance of cells with “No addition” and indicated by mean ± SE (n = 4).
Ijms 18 02257 g004

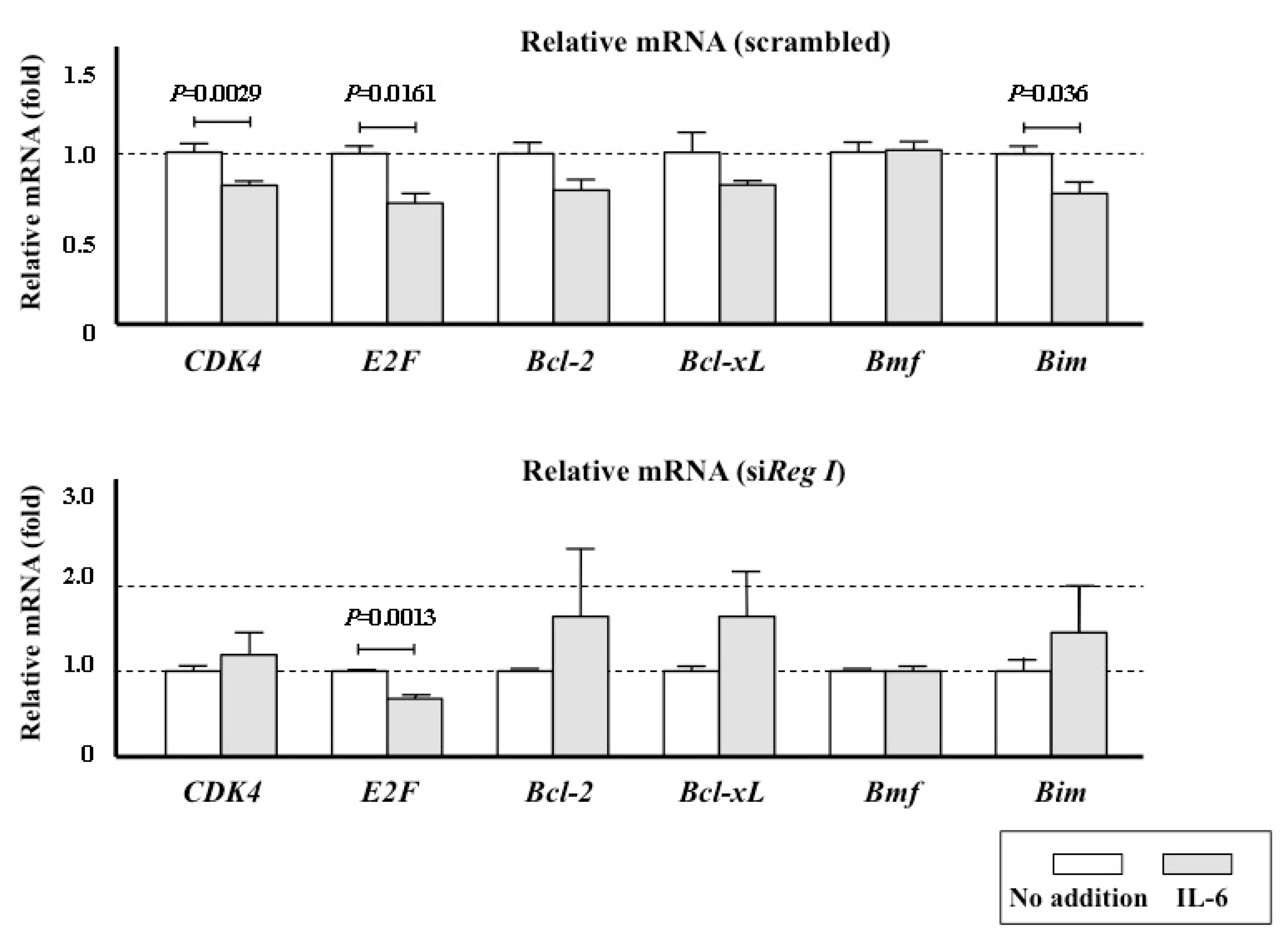

Figure 5. The expression of cell cycle-related (CDK4 and E2F), anti-apoptosis-related (Bcl-2 and Bcl-xL), and apoptosis-related (Bmf and Bim) genes in PMSCs. Scrambled RNA (upper panel) or siRNA for rat Reg I (lower panel) was introduced into the cells. The measurements were done without the addition of IL-6 to the medium (No addition) and with the addition of IL-6. The data are relative values compared with the mRNA levels from cells with “No addition” and are reported as mean ± SE (n = 4).
Figure 5. The expression of cell cycle-related (CDK4 and E2F), anti-apoptosis-related (Bcl-2 and Bcl-xL), and apoptosis-related (Bmf and Bim) genes in PMSCs. Scrambled RNA (upper panel) or siRNA for rat Reg I (lower panel) was introduced into the cells. The measurements were done without the addition of IL-6 to the medium (No addition) and with the addition of IL-6. The data are relative values compared with the mRNA levels from cells with “No addition” and are reported as mean ± SE (n = 4).
Ijms 18 02257 g005
Table 1. Primers used for real-time RT-PCR of rat mRNA(s).
Table 1. Primers used for real-time RT-PCR of rat mRNA(s).
PrimerSequence
Reg I Forward5′-GGACACTGGGTATCCTAACAATTCC-3′ (M18962)
Reg I Reverse5′-CTCTCCATTTCTTGTATCCTGAGTTTG-3′ (M18962)
Pap I/Reg II Forward5′-AAAATACCCTCTGCACGCATTAG-3′ (NM_053289)
Pap I/Reg II Reverse5′-GGGCATAGCAGTAGGAGCCATA-3′ (NM_053289)
Pap II/Reg III Forward5′-CCAGAAGGCAGTGCCCTCTA-3′ (L10229)
Pap II/Reg III Reverse5′-GCAGTAAGAACGATAAGCCTTGGA-3′ (L10229)
Pap III Forward5′-TGTGCCCACTTCACGTATCAG-3′ (L_20869)
Pap III Reverse5′-GGCATAGCAATAGGAGCCATAGG-3′ (L_20869)
Reg IV Forward5′-CTGCTGAGCTGGGTAGCTGGCCC-3′ (AB164049)
Reg IV Reverse5′-TTTATCCTTGGGGTTCATCTCAG-3′ (AB164049)
Extl3 Forward5′-CAATCGGTTCTTGCCCTGG-3′ (NM_020097)
Extl3 Reverse5′-GGAAGTTCATGGCGATATCC-3′ (NM_020097)
CDK4 Forward5′-TTTGATCTCATTGGATTGCC-3′ (NM_053593)
CDK4 Reverse5′-AGGTCAGCATTTCCAGCAG-3′ (NM_053593)
E2F Forward5′-TTCTTGGAGCTGCTGAGCC-3′ (NM_001100778)
E2F Reverse5′-TGGTGATGTCATAGATGCG-3′ (NM_001100778)
Bcl-2 Forward5′-CGGGAGAACAGGGTATGA-3′ (NM_016993)
Bcl-2 Reverse5′-CAGGCTGGAAGGAGAAGAT-3′ (NM_016993)
Bcl-xL Forward5′-TCTAACATCCCAGCTTCAT-3′ (NM_001033672)
Bcl-xL Reverse5′-GCAATCCGACTCACCAATA-3′ (NM_001033672)
Bmf Forward5′-GAGACGCTGTCCTGGAGTCA-3′ (NM_139258)
Bmf Reverse5′-GGCCTTGTCTTCCTGGCTTA-3′ (NM_139258)
Bim Forward5′-GCCAAGCAACCTTCTGATGTA-3′ (NM_171989)
Bim Reverse5′-CAGTGCCTTCTCCAGACCAG-3′ (NM_171989)
Rig/rpS15 Forward5′-ACGGCAAGACCTTCAACCAG-3′ (NM_001018)
Rig/rpS15 Reverse5′-ATGGAGAACTCGCCCAGGTAG-3′ (M_001018)
GAPDH Forward5′-AACGACCCCTTCATTGACCTC-3′ (NM_017008)
GAPDH Reverse5′-CCTTGACTGTGCCGTTGAACT-3′ (NM_017008)

Share and Cite

MDPI and ACS Style

Tohma, Y.; Dohi, Y.; Shobatake, R.; Uchiyama, T.; Takeda, M.; Takasawa, S.; Tanaka, Y.; Ohgushi, H. Reg Gene Expression in Periosteum after Fracture and Its In Vitro Induction Triggered by IL-6. Int. J. Mol. Sci. 2017, 18, 2257. https://doi.org/10.3390/ijms18112257

AMA Style

Tohma Y, Dohi Y, Shobatake R, Uchiyama T, Takeda M, Takasawa S, Tanaka Y, Ohgushi H. Reg Gene Expression in Periosteum after Fracture and Its In Vitro Induction Triggered by IL-6. International Journal of Molecular Sciences. 2017; 18(11):2257. https://doi.org/10.3390/ijms18112257

Chicago/Turabian Style

Tohma, Yasuaki, Yoshiko Dohi, Ryogo Shobatake, Tomoko Uchiyama, Maiko Takeda, Shin Takasawa, Yasuhito Tanaka, and Hajime Ohgushi. 2017. "Reg Gene Expression in Periosteum after Fracture and Its In Vitro Induction Triggered by IL-6" International Journal of Molecular Sciences 18, no. 11: 2257. https://doi.org/10.3390/ijms18112257

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
