Article

Simultaneous Determination and Investigation of Nine Fungicides in Fruits Using Diethylenetriamine-Functional Magnetic Core-Shell Polymer Modified Graphene Oxide as an Efficient Adsorbent Coupled to UPLC-HRMS

Department of Chemistry, Zhejiang University, Hangzhou 310028, China
*
Author to whom correspondence should be addressed.
Int. J. Mol. Sci. 2017, 18(11), 2333; https://doi.org/10.3390/ijms18112333
Submission received: 10 October 2017 / Revised: 28 October 2017 / Accepted: 2 November 2017 / Published: 5 November 2017
(This article belongs to the Section Biochemistry)

Abstract

:
In this study, diethylenetriamine-functional magnetic core-shell polymer modified graphene oxide (DETA-MPs-GO) was prepared via precipitation polymerization and amidation reaction, and it was characterized by transmission electron microscopy (TEM), Fourier-transformed infrared spectroscopy (FTIR), and X-ray diffractometer (XRD). Subsequently, a magnetic solid-phase extraction (MSPE) procedure was applied to the as-synthesized DETA-MPs-GO for the detection of nine fungicides in fruit samples, prior to ultra-performance liquid chromatography-high resolution mass spectrometry (UPLC-HRMS). The homogenized fruit samples, spiked with D-labelled internal standards, were firstly extracted by 5 mL of acetonitrile twice and then purified by DETA-MPs-GO adsorbents. The optimization of the adsorption and elution conditions of DETA-MPs-GO toward fungicides was carried out to attain a satisfactory adsorption performance and desorption efficiency. The adsorption mechanism was carefully investigated, and the results revealed that a synergistic adsorption mechanism, including hydrogen bond and a π–π stacking interaction, was confirmed. Moreover, the limits of quantitation (LOQs) of the proposed approach were in the range of 0.01 to 0.30 μg/kg under the optimum conditions. The average recoveries at three spiking levels were 84.9% to 105.2%, with relative standard deviations (RSDs) varying from 0.8% to 8.2% (n = 6). The developed method was successfully utilized for the screening and detection of fungicides in 81 fruit samples purchased from markets. A detailed survey was carried out about the concentration distribution, types of fungicides, and combined use of fungicides in different fruits.

Graphical Abstract

1. Introduction

Fungicides are among the most extensively exploited pesticides to destroy or prevent the growth of many plant pathogenic fungi in modern agriculture. Generally, due to their curative, protective, and eradicant functions, which are resistant to a large variety of crop fungal diseases [1,2], carbendazim, thiophanate-methyl, pyrimethanil, metalaxyl, prochloraz, procymidone, dimethomorph, triadimefon, and difenoconazole are widely applied in the cultivation of fruit, vegetables, and other crops. However, commonly used fungicides are highly toxic, and many of them have been proved to enervate the liver function, change the urinary bladder structure, and decrease kidney weight [3]. Considering their significant toxicity and potential mutagenicity, fungicides have received lots of attention all over the world [4]. Therefore, it is very important to develop an accurate and sensitive detection methodology for the simultaneous measurement of commonly used fungicides in fruits samples.
The traditional analytical methods to test the fungicides in different fruits are usually based on liquid chromatography (LC) [5,6,7] and gas chromatography (GC) [8,9,10]. Multiple techniques have been employed for the quantitation of fungicides. The coupling of efficient LC or GC with mass spectrometry detector (LC-MS or GC-MS) had become a powerful tool for the separation of the target analytes and accurate qualitative analysis. Compared with GC-MS, LC-MS is more user friendly and is commonly applied for substances with low volatility and thermal instability [11,12]. With the increasing qualitative and quantitative requirements, a general low resolution mass spectrometer could not confirm the exact structure of (semi) unknown compounds. The development of a high resolution mass spectrometer (HRMS) provides an effective approach to solve the above problems. It was often used in peptides sequencing [13,14]; hence there is an increasing focus on and interest in investigating the quantification of small molecules [15,16,17]. The Orbitrap-based high resolution mass spectrometer (HRMS) is a very recent technique based on an Orbitrap mass spectrometer coalescing with the high resolution performance of the Orbitrap and the selectivity of the quadrupole [18]. This combination is a promising way to screen emerging pollutants in environmental and biological samples, which is combined with the high energy collision (HCD) cell. High quality MS and MS2 spectra could be obtained, which is beneficial for further structural identification. However, matrix interference was universal during the LC-MS analysis; thus extraction and enrichment with high efficiency are increasingly indispensable prior to the instrumental detection. The research on highly efficient extraction materials has drawn much attention [19,20,21,22].
Graphene oxide (GO), a derivate of graphene (G), can help to improve the adsorption of target compounds, owing to its unique structure. A large number of epoxide, hydroxyl, and carboxyl groups were distributed on the surface of a GO sheet, and it had a large, delocalized, π-conjugated structure that can lead to high adsorption efficiency and a strong affinity for compounds with hydrophobic properties or aromatic ring structures. This work has focused on the novel application of GO with magnetic solid phase extraction (MSPE). The introduction of magnetic composites into a GO sheet could combine the high adsorption efficiency of the GO sheet with convenience and fast magnetic separation. Recently, the preparation of magnetic GO composites with a convenient co-precipitation method or electrostatic interaction has been commonly researched [23,24]. However, the magnetic GO composites prepared with these methods showed weak correlated driving force or physical force and showed unsatisfactorily acid-resistant natures.
Considering the above problems, this paper engaged with enwrapping a polymeric shell outside the magnetic microsphere so that it can availably protect the magnetic microsphere from damage in harsh conditions. Subsequently, the synthesized core-shell diethylenetriamine-functional magnetic polymers (DETA-MPs) were covalently assembled to the GO sheet. The as-prepared DETA-MPs-GO revealed high adsorption efficiency toward nine fungicides, and it was applied as a MSPE adsorbent in the simultaneous determination of nine fungicides in fruit samples combined with ultra-performance liquid chromatography-high resolution mass spectrometry (UPLC-HRMS).

2. Results and Discussion

2.1. Synthesis and Characterization of DETA-MPs-GO

Fe3O4 microspheres were prepared by solvothermal synthesis. It was observed that the synthesized Fe3O4 microspheres showed good spherical shape, with a coarse surface and narrow size distribution of around ~320 nm from the TEM photograph, as shown in Figure 1a. Then, well-defined core-shell Fe3O4@poly(GMA-co-DVB) was prepared via modified precipitation polymerization. In the polymerization process, DVB and GMA were chosen as two polymeric monomers since DVB showed a fast reaction rate, while GMA holds many epoxy groups. Furthermore, GMA was easy to locate outside the surface of the co-polymer microspheres in acetonitrile [25]. Hence, the amino groups were easily modified on the Fe3O4@poly(GMA-co-DVB) microspheres by a ring-opening reaction toward the outside reactive epoxy groups. As was observed in Figure 1b, the polymeric component was regularly coated outside the Fe3O4 core, and well-defined core-shell Fe3O4@poly(GMA-co-DVB) was achieved since the black core and gray shell could be clearly observed. Moreover, the Fe3O4@poly(GMA-co-DVB) also had a spherical shape but with a smooth surface. There is no significant difference between DETA-MPs and Fe3O4@poly(GMA-co-DVB) in terms of shape (Figure 1c). Figure 1d listed the last DETA-MPs-GO material, where DETA-MPs were immobilized on the GO sheet.
FTIR spectra were also conducted to further validate the success of grafting DETA-MPs onto the GO sheet. As could be observed in Figure 1e, the characteristic absorption of -NH2 groups occurred at ~3425 cm−1. Compared with DETA-MPs, a new characteristic absorption at ~1638 cm−1 arose after linking to the GO sheet, implying that DETA-MPs was covalently modified on the GO sheet through an amidation reaction. Finally, the XRD technique was also carried out to further demonstrate the structure and components of DETA-MPs-GO, and the as-synthesized Fe3O4, DETA-MPs and GO were tested, as exhibited in Figure 1f. It could be seen that the diffraction peaks at 2θ = 30.25°, 35.58°, 43.21°, 54.39°, 57.09°, and 62.92° could be owing to (220), (311), (400), (422), (511), and (440) reflections, respectively, confirming the cubic spinel crystal structure of Fe3O4. Figure 1f(ii) presents a sharp diffraction peak located at 2θ = 11.28°, which could be attributed to the (002) reflection of the GO sheet [26]. For DETA-MPs-GO (Figure 1f(iii)), the above six peaks of Fe3O4 could also been observed, but the (002) reflection absorption of the GO sheet could not be discovered. This was because the GO sheets can’t stack with each other anymore to form crystalline structures after being covered with magnetic polymer microspheres [27].

2.2. Optimization of UPLC-HRMS Conditions

The chromatographic conditions were carefully optimized to obtain the desired separation and retention on a column for the target analytes. Firstly, several experiments were carried out using different mobile phases, consisting of methanol or acetonitrile as the organic phase and water phase, respectively, with different proportions of formic acid in the range of 0.05% to 0.5%, as well as ammonium acetate and ammonium formic ranging from 1 mmol/L to 10 mmol/L. The results showed that methanol was more suitable since it was less polar and gave rather better chromatographic separation results than acetonitrile. Secondly, the addition of formic acid-ammonium acetate achieved much better results than that of formic acid-ammonium formic, since the ionization efficiency could be obviously improved. Finally, the optimal mobile phases were achieved using methanol as an organic solvent and water with 0.1% formic acid (v/v)-ammonium acetate (5 mmol/L).
Furthermore, we selected several UPLC columns (C8, C18, Waters High Strength Silica (HSS) T3) to optimize the chromatographic retention of the nine target fungicides. Carbendazim, which was the most polar among the nine fungicides, was selected as the representative fungicide. As shown in Figure 2 carbendazim showed poor retention on the C18 column (t = 0.56 min, Figure 2a) because the structure of carbendazim was strongly polar. Better retention was obtained on the C8 column at 1.07 min (Figure 2b). However, satisfactory retention could be observed when using the Waters HSS T3 column (t = 1.97 min, Figure 2c), which can analyze polar structures. Therefore, Waters HSS T3 was selected as the separation column for the analysis of the nine fungicides. The typical selected ion monitoring (SIM) chromatogram of the nine target fungicides was shown in Figure 3, and it could be observed that their peaks were symmetrical and well separated.
The optimization of the HRMS conditions for the qualitative and quantitative analysis of the nine fungicides and their IS was achieved by determining the analytes using flow injection analysis. The sensitivity of the nine fungicides was verified by recording the chromatogram peak areas in a full mass scan under the positive ionization mode. The optimal UPLC-HRMS conditions for the nine fungicides were listed in Table 1. In Full MS/dd-MS2 mode, a Full MS scan was firstly carried out, and then a dd-MS2 scan was triggered, wherein the ions designated in the inclusion list or ions strong enough under the Full MS mode were chosen by quadrupole. Further, 1.0 Da was selected as an isolation width for the quadrupole. Furthermore, N corresponds to the loop count (N = multiplex × loop count, multiplex was set as five). Hence, the dd-MS2 spectra of the analytes only in Top 5 were carried out in the inclusion list with a mass deviation of less than 5 ppm at a certain retention time and above the set threshold. As shown in Table 1, the mass deviations of the nine fungicides were all less than 3.0 ppm.

2.3. Selection of Extraction Solvent

The selection of the extraction solvent was the most important step for sample preparation. It usually affected the qualitative and quantitative results of target analytes. Based on the “like dissolves like” principle, acetone, methanol, and acetonitrile were chosen as extraction solvents. The impact of the extract solvent on the extraction efficiency was studied by spiking nine fungicides in blank fruit samples (apple was selected as an example) at 5.0 μg/kg. The extraction recoveries for these extract solvents were determined, and the results shown in Figure 4a indicated that poor extraction recoveries were obtained by applying methanol or acetone as the extraction solvent for most of the nine fungicides, while acetonitrile gave excellent efficiencies. The possible reason was that the polarity of acetonitrile is closer to that of the nine studied fungicides than to that of acetone and methanol. Therefore, acetonitrile was selected as the extraction solvent in this study. Subsequently, the MSPE procedure with DETA-MPs-GO as an adsorbent was processed for the following purification.

2.4. Optimization of the Magnetic Solid-Phase Extraction (MSPE) Procedure

2.4.1. Optimization of Adsorbent Amount Usage

The effect of usage amounts of DETA-MPs-GO on adsorption ability was measured using the blank sample extracts spiking with nine fungicides at 5.0 μg/kg. The spiking sample extracts were investigated by adding different usage amounts of DETA-MPs-GO, as shown in Figure 4b. It indicated that a significant influence could be seen on the adsorption efficiency of the fungicides due to the usage amount of DETA-MPs-GO adsorbent, and it was not difficult to observe a clear trend in the adsorption efficiency as the usage amount of DETA-MPs-GO ranged from 1 mg to 20 mg. When adding 1 mg or 2 mg of DETA-MPs-GO for the adsorption procedure, low recoveries of the nine fungicides were achieved, ranging from 31.2% to 82.3%. To increase DETA-MPs-GO, varying from 5 to 20 mg, the desired adsorption recoveries of the nine fungicides were achieved in the range of 85.5% to 101.4%. It could be easily discussed that the least usage amount (5 mg) of DETA-MPs-GO could availably concentrate the nine fungicides from fruit sample extracts.

2.4.2. Optimization of Solution pH and Adsorption Mechanism Investigation

In this study, the pH effect was measured by applying the fruit extracts spiked with nine fungicides at 5.0 μg·kg−1 over the pH region of 2.0 to 9.0. As shown in Figure 4c, it was easy to observe that the optimal adsorption efficiency for the nine fungicides was obtained under pH 6.0 to 8.0. To increase or decrease the solutions’ pH values, the adsorption efficiency of DETA-MPs-GO toward fungicides decreased. This phenomenon could be explained by a synergistic adsorption mechanism. Firstly, the structures of the nine fungicides all have a benzene ring; hence π–π stacking would occur between the fungicide molecule and the GO sheet of DETA-MPs-GO. The adsorption behavior could be observed all over the pH region (Figure 4c). Secondly, all the fungicide molecules have nitrogen or oxygen atoms, which easily form hydrogen bonds with -NH2 (-NH-) groups in DETA-MPs-GO (including -O···H-N- and -N···H-N-). However, when the solution’s pH is less than 6.0, the main formation of the amino groups in DETA-MPs-GO is positive -NH3+, while N and O atoms in fungicide molecules are also easy to protonate. Therefore, electrostatic repulsion easily occurs between positive adsorbents and fungicides, leading to poor adsorption recoveries toward target fungicides at pH is less than 6.0. When pH is greater than 8.0, alkaline conditions could easily destroy the formation of hydrogen bonds, also resulting in low adsorption recoveries. When 6.0 ≤ pH ≤ 8.0, the main formation of an amino group on DETA-MPs-GO adsorbent is -NH2, and it was beneficial for the adsorption of target fungicides via hydrogen bonds. In summary, a solution pH of 7.0 was chosen for subsequent tests.

2.4.3. Optimization of Elution Procedure

For the MSPE method, it was crucial to choose an effective desorption solvent for target compounds. Hence, in this study, the elution of nine fungicides was investigated carefully using several types of elution solvents, including pure acetonitrile and a series of acetonitrile solutions containing different proportions of ammonium hydroxide (v/v). The obtained results in Figure 4d indicated that pure acetonitrile was not very suitable for the desorption of nine fungicides, owing to the terrible desorption efficiency of the target fungicides (19.8% to 31.5%). It could be concluded that some other interactions took place, except a π–π interaction between fungicides and DETA-MPs-GO. The amino groups of DETA-MPs-GO were able to form stronger interactions with fungicides, for instance, hydrogen bonds. As shown in Figure 4d, alkaline acetonitrile performed better desorption recoveries than pure acetonitrile. This is because the hydrogen bond was easy to destroy under alkaline conditions. Considering the cost and convenience, acetonitrile containing 1% ammonium hydroxide showed the highest recovery; therefore it was chosen as the desorption solvent in subsequent tests.
The effects of the elution time and elution solution volume were also investigated. This revealed that 1.0 mL of acetonitrile containing 1% ammonium hydroxide was sufficient to desorb all nine fungicides, and 5 min was enough for the elution process to obtain the desired elution efficiency.

2.5. Matrix Effect

For food samples, matrix interference is a common phenomenon that may lead to either ion enhancement or the suppression of the target compound. For the purpose of decreasing the matrix effect, MSPE based cleanup was processed in a sample preparation combination of DETA-MPs-GO. The comparison between standards in neat solvent and spiked standards in three types of fruits (apple, orange, and grape) with a MSPE cleanup step showed a low matrix effect ranging from 86.4% to 99.0%, which is listed in Table 2. Therefore, it was necessary to process a MSPE cleanup with DETA-MPs-GO before UPLC-HRMS analysis, as described above. Nevertheless, little difference between the response standards in spiked fruits and in neat acetonitrile was still existent, 13C or D-labelled fungicides were applied as internal standards to reduce the matrix interference.

2.6. Method Validation

The concentrations used for the validation of the linear range were as follows: 0.1, 0.2, 0.5, 1.0, 5.0, 10.0, 20.0, and 100.0 μg/L for eight target fungicides, while 1.0, 2.0, 5.0, 10.0, 100.0, and 500.0 μg/L were used for for procymidone. 1.0 μg/L of nine internal standards, including d4-carbendazim, d6-thiophanate-methyl, d5-pyrimethanil, d6-metalaxyl, d7-prochloraz, d8-dimethomorph, d4-triadimefon, and d6-difenoconazole, were applied for quantification. Linear regression was performed on the ratios of the sample peak areas to the internal peak areas (Y) versus the mass concentration ratios (C, μg/L), with correlation coefficients (R2) above 0.9993 (Table 3).
The limits of detection (LODs) and limits of quantitation (LOQs) of the developed method for the nine target fungicides are shown in Table 3. The calculated LODs (S/N = 3) and LOQs (S/N = 10) were in the ranges of 0.01 to 0.30 μg·kg−1 and 0.03t o 0.90 μg·kg−1, respectively.
The tests of the precision and accuracy of the above method were carried out applying three blank typical fruit samples (apple, orange, and grape) spiked with nine fungicides at spiking concentrations of 1.0, 40.0, 80.0 μg/kg, respectively. The results are listed in Table 4. It was revealed that the mean recoveries of the nine fungicides ranged from 84.9% to 105.2%, with relative standard deviations (RSDs) in the range of 0.8% to 8.2%.

2.7. Application for Survey of Fungicides in Fruits Samples

The developed method was applied for the detection of fungicides in fruit samples bought from several supermarkets in China. A total of 81 fruit samples, including six types (grape, apple, pear, orange, yangtao, and watermelon), were detected, while 96.3% of them presented detectable levels of the target fungicides, the majority of which were carbendazim, with a positive frequency of 79.0% and a concentration region of 0.41 to 314.0 μg·kg−1 (Table 5). Figure 5 presented a positive grape sample that detected carbendazim at 20.4 μg/kg. It could be confirmed by dd-MS2 spectra, as shown in Figure 5b, that the main fragments were found to be m/z 160.05055, m/z 133.06488, and m/z 105.07025, owing to the fragments of [M+H-CH3OH]+, [M+H-CH3OH-CO]+, and [M+H-CH3OH-CO-C=N]+, respectively. Other fungicides such as thiophanate-methyl, pyrimethanil, metalaxyl, prochloraz, procymidone, dimethomorph, and difenoconazol were present in range of 3.7% to 49.4% of samples. The mean concentration of these varried from 1.2 μg·kg−1 to 287.7 μg·kg−1 (Table 5). Triadimefon could not be detected in all the analyzed fruits samples.
As shown in Figure 6, for different varieties of fruits, the application of fungicides in grapes should be concerned with both the high detection ratio and high concentration result. Furthermore, the mixed use of the target fungicides in grapes is a universal phenomenon. For example, high concentrations of three types of fungicides such as 1060 μg/kg of procymidone, 618 μg/kg of pyrimethanil, and 321 μg/kg of dimethomorph were simultaneously detected in one grape sample. The main fungicide in apple samples was found to be carbendazim, the detection ratio of which was up to 93.3%. However, it was gratifying that most of them were at a low level (<100 μg/kg). In addition, lower concentrations of pyrimethanil and dimethomorph could also be detected in apple samples. Very small doses of fungicides, which were under 10 μg/kg, could be detected in pear samples. The levels of fungicides in orange and yangtao are both low; only procymidone was detected in one yangtao sample above 100 μg/kg. The types and dosages of fungicides in watermelon were the most satisfactory because all of them were lower than 60 μg/kg.

3. Materials and Methods

3.1. Reagents and Materials

The certified standards of carbendazim, thiophanate-methyl, pyrimethanil, metalaxyl, prochloraz, procymidone, dimethomorph, triadimefon, difenoconazole, d4-carbendazim, d6-thiophanate-methyl, d5-pyrimethanil, d6-metalaxyl, d7-prochloraz, d8-dimethomorph, d4-triadimefon, and d6-difenoconazole were supplied by Dr. Ehrenstorfer GmbH (Augsburg, Germany) with a purity of more than 98.0%. Analytical grade divinylbenzene (DVB), glycidyl methacrylate (GMA), and 2, 2-azobis (2-methyl-propionitrile) (AIBN) were supplied by J&K Chemical (Beijing, China). Diethylenetriamine and hydrochloric acid were purchased from Sinopharm Chemical Reagent Co., Ltd. (Shanghai, China). Ammonium acetate, formic acid, and acetonitrile were purchased from Merck KGaA (Darmstadt, Germany). All other chemicals were of analytical grade, unless stated otherwise.

3.2. Preparation of Diethylenetriamine-Functional Magnetic Core-Shell Polymer Modified Graphene Oxide (DETA-MPs-GO) Microspheres

The preparation of DETA-MPs-GO microspheres includes the following four steps, as shown in Scheme 1: (1) Magnetic Fe3O4 preparation: Magnetic Fe3O4 was prepared via a solvothermal approach, with a small modification of the literature [28]. In this procedure, 3.0 g FeCl3 was weighed into 80 g ethylene glycol (EG), the mixture was vortexed to achieve a yellow solution, and then 3.5 g NaAc and 2.0 g polyethylene glycol were added. Subsequently, the above solution was vigorously stirred for 40 min at room temperature to dissolve the residual solid and then transferred to a 150-mL autoclave, which was then reacted at 200 °C for 6 h. The magnetic Fe3O4 particles were achieved and cleaned using methanol to remove the adsorbed EG. (2) The synthesis of Fe3O4@poly(GMA-co-DVB): Fe3O4@poly(GMA-co-DVB) was prepared as follows: 10 mL GMA and 5 mL DVB were added into 40 mL acetonitrile, then the solution was stirred for 20 min to prepare a preassembly solution. The Fe3O4 microspheres (0.5 g) were then dispersed in 20 mL acetonitrile in a 150-mL round-bottomed flask and dispersed for 0.5 h under sonication. Then the preassembly solution, including GMA and DVB, was sneaked into the Fe3O4 suspension. Then the polymerization was carried out with thxe addition of 0.04 g 2, 2-azobis (2-methyl-propionitrile) (AIBN) under stirring at 600 rpm. The reaction solution was heated to 70 °C and maintained at 70 °C for 3 h. (3) Synthesis of DETA-MPs: the DETA-functional magnetic core-shell polymers (DETA-MPs) were synthesized via a ring-opening reaction between diethylenetriamine (DETA) and epoxide-functional Fe3O4@poly(GMA-co-DVB). In the process, 0.5 g of the achieved Fe3O4@poly(GMA-co-DVB) was firstly added into 100 mL methanol with 10 mL of dissolve DETA, and the mixture was stirred at 80 °C for 8 h. The resulting DETA-MPs was washed three times with methanol and dried in a vacuum oven at room temperature overnight. (4) Preparation of DETA-MPs-GO: DETA-MPs-GO was prepared under ultrasound conditions by an amidation reaction. 100 mg GO power in 50 mL water (2.0 mg/mL) was firstly dispersed under ultrasound for 2 h, and then 160 mg N-hydroxysuccinimide (NHS) and 200 mg N-ethyl-N′-(3-(dimethylamino)propyl)carbodiimide (EDC) were weighed into the above GO dispersion. The achieved dispersion was reacted under stirring for 1 h in order to activate carboxyl groups (-COOH) on the GO sheet. Afterwards, 500 mg DETA-MPs was introduced and dispersed under ultrasound for 20 min. The following reaction was performed at 40 °C for 4 h under vigorous stirring. The final DETA-MPs-GO was obtained after washing with methanol several times and dried for 12 h at 50 °C to remove any residual solvent.

3.3. Characterization of DETA-MPs-GO

Transmission electron microscopy (TEM, Hitachi H-7650, Kyoto, Japan) was used to test the morphology and dimensions of the DETA-MPs-GO composites, while Fourier-transformed infrared spectroscopy (FTIR) was recorded to measure the structure and composites of DETA-MPs on a FTIR spectrometer (NEXUS-470, Thermo Nicolet, Massachusetts, MA, USA). Furthermore, X-ray diffraction (XRD, Bruker D8 Advance) patterns were also carried out to determine the composites of the as-prepared materials.

3.4. Sample Extraction and Cleanup Procedure

About 2.0 g of comminuted fruit samples were weighed and added into a 50 mL polypropylene centrifuge tube. Then 10.0 μL of 100 μg/L internal standards (IS) solution was added to the tube. Subsequently, 5.0 mL of acetonitrile as extraction solvent was employed, and the sample solution was vortexed for 10 min after adding 1.0 g of sodium chloride and 1.0 g of magnesium sulfate. The sample was then centrifuged at 8000 r/min for 2 min. Afterwards the supernatant was transferred to another polypropylene centrifuge tube. The residues were repeat extracted with 5.0 mL of acetonitrile again. Subsequently, the two sample extracts were merged, 10 mL pure water was sneaked into the extract, the sample solution was adjusted to pH 7.0, and then 5.0 mg DETA-MPs-GO adsorbent was added for purification. The above mixture was further vortexed for 10 min. The magnetic adsorbent could be quickly collected under a magnet, and the supernatant was discarded. Subsequently, 1.0 mL of elution solvent was added to the elute target analytes by shaking for 5 min. The elution solution was similarly isolated in a magnetic field. Furthermore, a hydrochloric acid solution was used to adjust the elution solution to neutral, and then it was transferred to a 2.0 mL vial and evaporated to dryness under a N2 stream at 40 °C. Finally, the residue was re-dissolved with 0.5 mL acetonitrile and measured on UPLC-HRMS.

3.5. Ultra-Performance Liquid Chromatography Parameters

An UltiMate 3000 system (Thermo Scientific, Massachusetts, MA, USA) was used for separation, applying an Acquity HSS T3 column (2.1 mm ID × 100 mm, 1.8 μm) maintained at 30 °C. The analytes were separated by applying an aqueous solution containing 0.1% formic acid (v/v)-ammonium acetate (5 mmol/L) as eluent (A) and methanol as eluent (B). Gradient elution was performed as follows: 0.00 min~2.00 min, 10.0~40.0% (B); 2.00 min~7.00 min, 40~95.0% (B); 7.00 min~7.01 min, 95~10% (B); 7.01 min to 10.00 min, 10% (B). The flow rate was set to 0.30 mL/min, while 5.0 μL of sample solution was injected.

3.6. High-Resolution Mass Spectrometry Parameters

The detection of the target fungicides was performed on a high-resolution mass spectrometer (HRMS, Thermo Scientific, USA). A heated electrospray ionization source (HESI-II) was applied for the ionization of the nine fungicides in positive mode. The HRMS conditions were listed as follows: the ionization voltage was +3.5 kV; the sheath gas flow was 40 Arb; the auxiliary gas flow was 10 Arb; the capillary temperature was 320 °C; and the vaporizer temperature was 300 °C.

4. Conclusions

A rapid, accurate, and sensitive DETA-MPs-GO based MSPE-UPLC-HRMS method was established for the simultaneous detection of nine fungicides in fruit samples. The optimized conditions under an acidic LC gradient were proved to be effective at increasing the MS signals of fungicides. The pretreatment method based on MSPE with DETA-MPs-GO as an adsorbent offered the advantages of less matrix interference, high recovery, and greater precision. The successful application of the proposed method can be used as an efficient extraction and pre-concentration method for the determination of the presence of nine fungicides in 81 fruit samples.

Author Contributions

Ming-Li Ye carried out the study design, the preparation of magnetic graphene oxide, and the development of nine fungicides determination. Moreover, Ming-Li Ye had carried out the data analysis and the manuscript writing. Yan Zhu mainly carried out the pretreatment of fruit samples and the characterization of DETA-MP-GO adsorbent. Moreover, Yan Zhu also carried out the revision of the manuscript, literature search, and figures drawing.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Cserhati, T.; Szogyi, M. Chromatographic determination of fungicides in biological and environmental matrices. New achievements. Biomed. Chromatogr. 2012, 26, 276–282. [Google Scholar] [CrossRef] [PubMed]
  2. Kahle, M.; Buerge, I.J.; Hauser, A.; Muller, M.D.; Poiger, T. Azole fungicides: Occurrence and fate in wastewater and surface waters. Environ. Sci. Technol. 2008, 42, 7193–7200. [Google Scholar] [CrossRef] [PubMed]
  3. Güdücü, H.E.; İnam, R.; Aboul-Enein, H.Y. Determination of organophosphorus and triazole pesticides by gas chromatography and application to vegetable and commercial samples. J. Liq. Chromatogr. Relat. Technol. 2011, 34, 2473–2483. [Google Scholar] [CrossRef]
  4. Silva, E.A.; Lopez-Avila, V.; Pawliszyn, J. Fast and robust direct immersion solid phase microextraction coupled with gas chromatography-time-of-flight mass spectrometry method employing a matrix compatible fiber for determination of triazole fungicides in fruits. J. Chromatogr. A 2013, 1313, 139–146. [Google Scholar] [CrossRef] [PubMed]
  5. Fontana, A.R.; Rodriguez, I.; Ramil, M.; Altamirano, J.C.; Cela, R. Solid-phase extraction followed by liquid chromatography quadrupole time-of-flight tandem mass spectrometry for the selective determination of fungicides in wine samples. J. Chromatogr. A 2011, 1218, 2165–2175. [Google Scholar] [CrossRef] [PubMed]
  6. Cabrera Lda, C.; Caldas, S.S.; Prestes, O.D.; Primel, E.G.; Zanella, R. Evaluation of alternative sorbents for dispersive solid-phase extraction clean-up in the QuEChERS method for the determination of pesticide residues in rice by liquid chromatography with tandem mass spectrometry. J. Sep. Sci. 2016, 39, 1945–1954. [Google Scholar] [CrossRef] [PubMed]
  7. Da Luz, S.R.; Pazdiora, P.C.; Dallagnol, L.J.; Dors, G.C.; Chaves, F.C. Mycotoxin and fungicide residues in wheat grains from fungicide-treated plants measured by a validated LC-MS method. Food Chem. 2017, 220, 510–516. [Google Scholar] [CrossRef] [PubMed]
  8. Celeiro, M.; Llompart, M.; Lamas, J.P.; Lores, M.; Garcia-Jares, C.; Dagnac, T. Determination of fungicides in white grape bagasse by pressurized liquid extraction and gas chromatography tandem mass spectrometry. J. Chromatogr. A 2014, 1343, 18–25. [Google Scholar] [CrossRef] [PubMed]
  9. Rodriguez-Cabo, T.; Rodriguez, I.; Ramil, M.; Cela, R. Dispersive liquid-liquid microextraction using non-chlorinated, lighter than water solvents for gas chromatography-mass spectrometry determination of fungicides in wine. J. Chromatogr. A 2011, 1218, 6603–6611. [Google Scholar] [CrossRef] [PubMed]
  10. Pan, H.-J.; Ho, W.-H. Determination of fungicides in water using liquid phase microextraction and gas chromatography with electron capture detection. Anal. Chim. Acta 2004, 527, 61–67. [Google Scholar] [CrossRef]
  11. Otero, R.R.; Ruiz, C.Y.; Grande, B.C.; Gándara, J.S. Solid-phase microextraction-gas chromatographic-mass spectrometric method for the determination of the fungicides cyprodinil and fludioxonil in white wines. J. Chromatogr. A 2002, 942, 41–52. [Google Scholar] [CrossRef]
  12. Lehotay, S.J.; Neil, M.O.; Tully, J.; Valerde, A.; Contreras, M.; Mol, H.G.J.; Heinke, V.; Anspach, T.; Lach, G.; Fussell, R.; et al. Determination of pesticide residues in foods by acetonitrile extraction and partitioning with magnesium sulfate: Collaborative study. J. AOAC Int. 2007, 90, 485–520. [Google Scholar] [PubMed]
  13. Eeltink, S.; Wouters, S.; Dores-Sousa, J.L.; Svec, F. Advances in organic polymer-based monolithic column technology for high-resolution liquid chromatography-mass spectrometry profiling of antibodies, intact proteins, oligonucleotides, and peptides. J. Chromatogr. A 2017, 1498, 8–21. [Google Scholar] [CrossRef] [PubMed]
  14. Gorshkov, V.; Hotta, S.Y.; Verano-Braga, T.; Kjeldsen, F. Peptide de novo sequencing of mixture tandem mass spectra. Proteomics 2016, 16, 2470–2479. [Google Scholar] [CrossRef] [PubMed] [Green Version]
  15. Gago-Ferrero, P.; Schymanski, E.L.; Hollender, J.; Thomaidis, N.S. Nontarget Analysis of Environmental Samples Based on Liquid Chromatography Coupled to High Resolution Mass Spectrometry (LC-HRMS). Compr. Anal. Chem. 2016, 71, 381–403. [Google Scholar]
  16. Yang, Z.L.; Li, H.; Wang, B.; Liu, S.Y. An optimized method for neurotransmitters and their metabolites analysis in mouse hypothalamus by high performance liquid chromatography-Q exactive hybrid quadrupole-orbitrap high-resolution accurate mass spectrometry. J. Chromatogr. B Anal. Technol. Biomed. Life Sci. 2016, 1012–1013, 79–88. [Google Scholar] [CrossRef] [PubMed]
  17. Solliec, M.; Roy-Lachapelle, A.; Sauve, S. Quantitative performance of liquid chromatography coupled to Q-Exactive high resolution mass spectrometry (HRMS) for the analysis of tetracyclines in a complex matrix. Anal. Chim. Acta 2015, 853, 415–424. [Google Scholar] [CrossRef] [PubMed]
  18. Jia, W.; Chu, X.; Ling, Y.; Huang, J.; Chang, J. Analysis of phthalates in milk and milk products by liquid chromatography coupled to quadrupole Orbitrap high-resolution mass spectrometry. J. Chromatogr. A 2014, 1362, 110–118. [Google Scholar] [CrossRef] [PubMed]
  19. Deng, X.; Guo, Q.; Chen, X.; Xue, T.; Wang, H.; Yao, P. Rapid and effective sample clean-up based on magnetic multiwalled carbon nanotubes for the determination of pesticide residues in tea by gas chromatography-mass spectrometry. Food Chem. 2014, 145, 853–858. [Google Scholar] [CrossRef] [PubMed]
  20. Peng, X.T.; Jiang, L.; Gong, Y.; Hu, X.Z.; Peng, L.J.; Feng, Y.Q. Preparation of mesoporous ZrO2-coated magnetic microsphere and its application in the multi-residue analysis of pesticides and PCBs in fish by GC-MS/MS. Talanta 2015, 132, 118–125. [Google Scholar] [CrossRef] [PubMed]
  21. Zhang, J.; Gan, N.; Chen, S.; Pan, M.; Wu, D.; Cao, Y. β-cyclodextrin functionalized meso-/macroporous magnetic titanium dioxide adsorbent as extraction material combined with gas chromatography-mass spectrometry for the detection of chlorobenzenes in soil samples. J. Chromatogr. A 2015, 1401, 24–32. [Google Scholar] [CrossRef] [PubMed]
  22. Luo, Y.B.; Li, X.; Jiang, X.Y.; Cai, B.D.; Zhu, F.P.; Zhang, H.F.; Chen, Z.G.; Pang, Y.Q.; Feng, Y.Q. Magnetic graphene as modified quick, easy, cheap, effective, rugged and safe adsorbent for the determination of organochlorine pesticide residues in tobacco. J. Chromatogr. A 2015, 1406, 1–9. [Google Scholar] [CrossRef] [PubMed]
  23. Pourjavadi, A.; Nazari, M.; Hosseini, S.H. Synthesis of magnetic graphene oxide-containing nanocomposite hydrogels for adsorption of crystal violet from aqueous solution. RSC Adv. 2015, 5, 32263–32271. [Google Scholar] [CrossRef]
  24. Bi, S.; Zhao, T.; Jia, X.; He, P. Magnetic graphene oxide-supported hemin as peroxidase probe for sensitive detection of thiols in extracts of cancer cells. Biosens. Bioelectron. 2014, 57, 110–116. [Google Scholar] [CrossRef] [PubMed]
  25. Jin, J.M.; Lee, J.M.; Ha, M.H.; Lee, K.; Choe, S. Highly crosslinked poly(glycidyl methacrylate-co-divinyl benzene) particles by precipitation polymerization. Polymer 2007, 48, 3107–3115. [Google Scholar] [CrossRef]
  26. Murugan, A.V.; Muraliganth, T.; Manthiram, A. Rapid, Facile microwave-solvothermal synthesis of graphene nanosheets and their polyaniline nanocomposites for energy strorage. Chem. Mater. 2009, 21, 5004–5006. [Google Scholar] [CrossRef]
  27. He, H.; Gao, C. Supraparamagnetic, conductive, and processable multifunctional graphene nanosheets coated with high-density Fe3O4 nanoparticles. ACS Appl. Mater. Interfaces 2010, 2, 3201–3210. [Google Scholar] [CrossRef] [PubMed]
  28. Deng, H.; Li, X.; Peng, Q.; Wang, X.; Chen, J.; Li, Y. Monodisperse Magnetic Single-Crystal Ferrite Microspheres. Angew. Chem. 2005, 117, 2842–2845. [Google Scholar] [CrossRef]

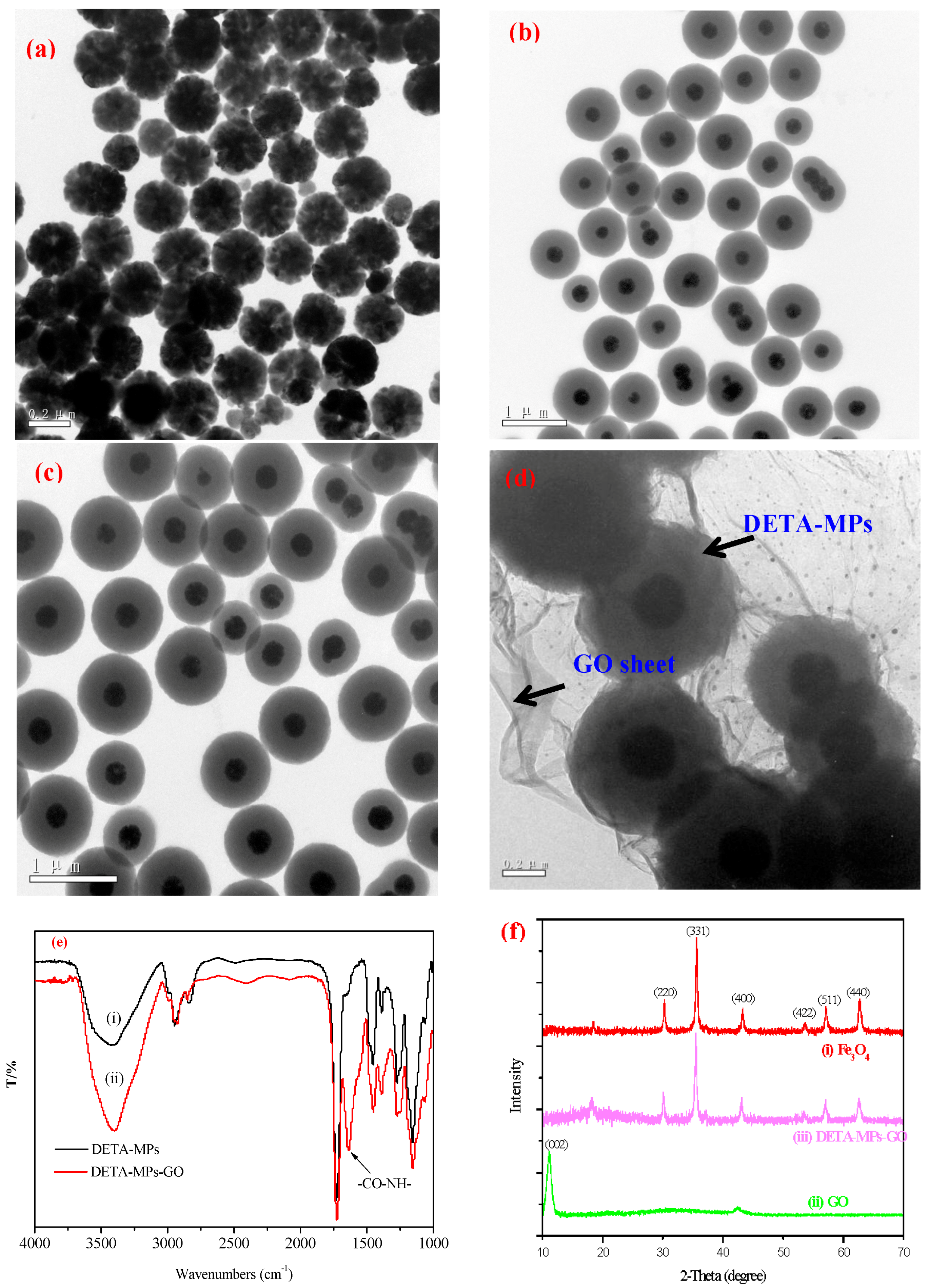

Figure 1. Transmission electron microscopy (TEM) images of: (a) magnetic Fe3O4 microspheres; (b) magnetic core-shell polymer (Fe3O4@poly(GMA-co-DVB)); (c) DETA-MPs; (d) DETA-MPs-GO; (e) Fourier-transformed infrared spectroscopy (FTIR); and (f) X-ray diffraction (XRD) spectra of synthesized materials. EDTA-MPs: diethylenetriamine-functional magnetic core-shell polymer, GO: graphene oxide.
Figure 1. Transmission electron microscopy (TEM) images of: (a) magnetic Fe3O4 microspheres; (b) magnetic core-shell polymer (Fe3O4@poly(GMA-co-DVB)); (c) DETA-MPs; (d) DETA-MPs-GO; (e) Fourier-transformed infrared spectroscopy (FTIR); and (f) X-ray diffraction (XRD) spectra of synthesized materials. EDTA-MPs: diethylenetriamine-functional magnetic core-shell polymer, GO: graphene oxide.
Ijms 18 02333 g001

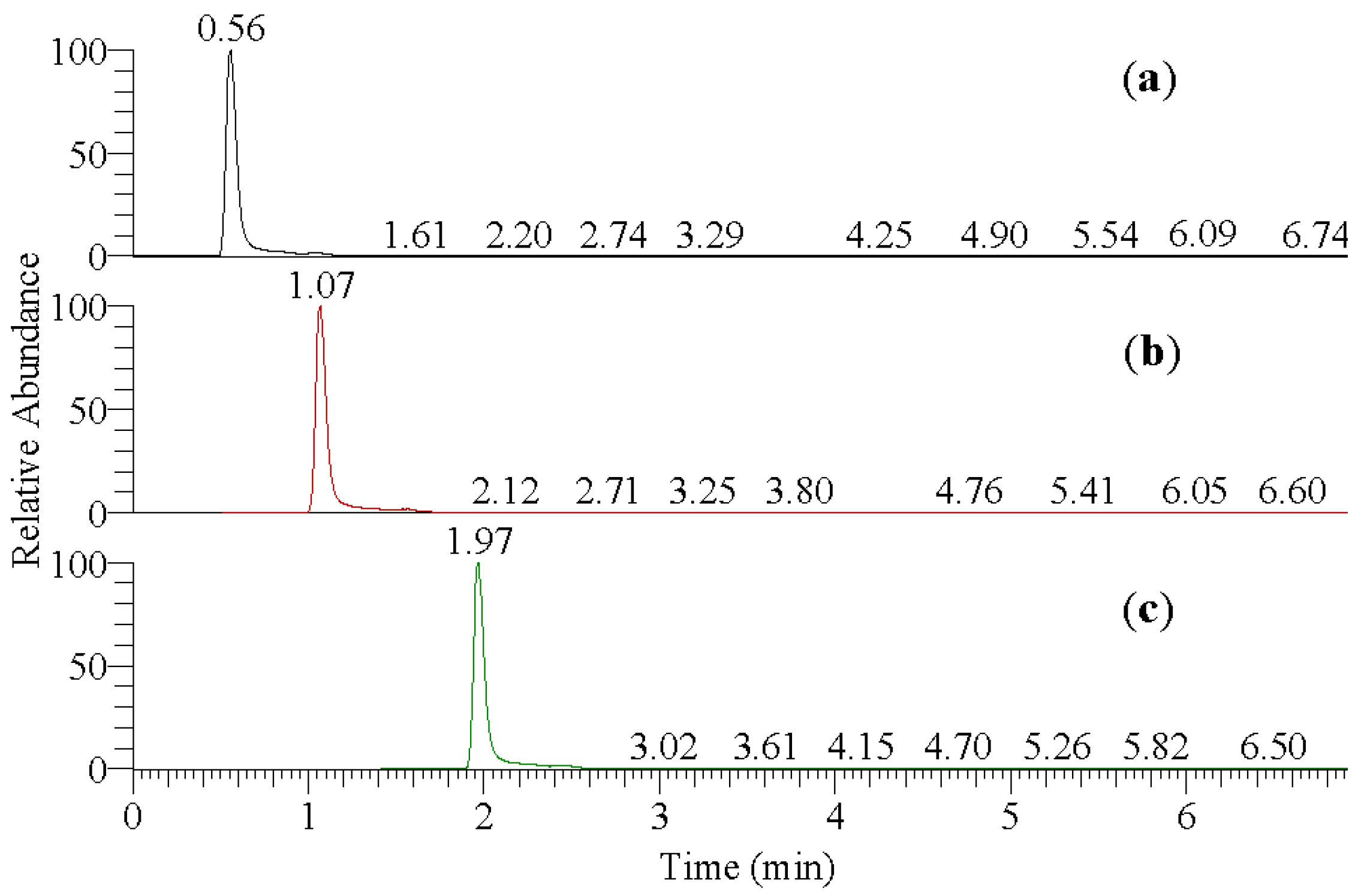

Figure 2. Selected ion monitor (SIM) chromatograms of carbendazim using different columns: (a) C18 column; (b) C8 column; and (c) Waters High Strength Silica (HSS) T3 column.
Figure 2. Selected ion monitor (SIM) chromatograms of carbendazim using different columns: (a) C18 column; (b) C8 column; and (c) Waters High Strength Silica (HSS) T3 column.
Ijms 18 02333 g002

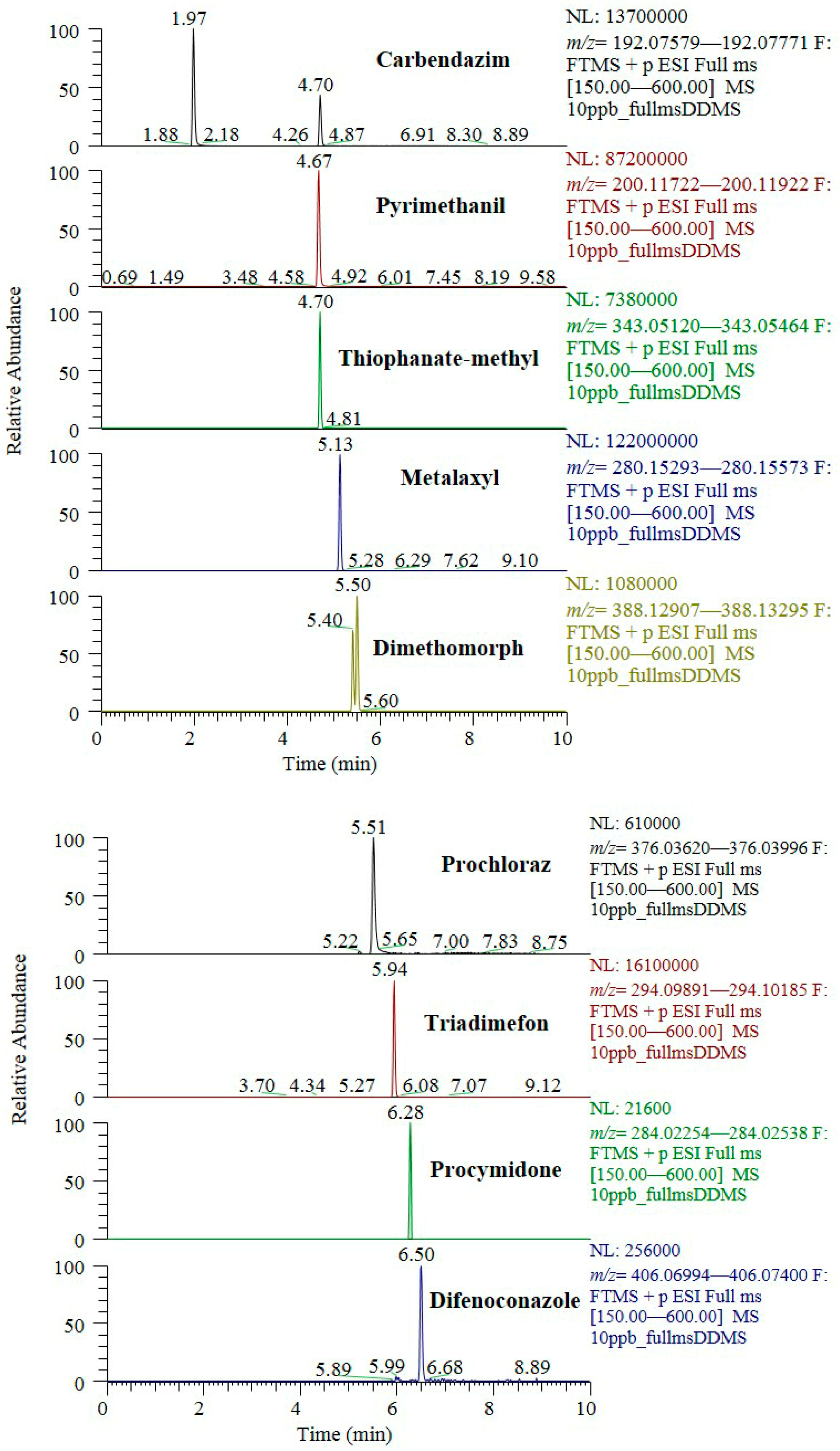

Figure 3. SIM chromatogram of nine target fungicides at 10.0 μg/L. NL: normalized level, FTMS: Fourier-transformed mass spectrometry, ESI: electrospray ionization, MS: mass spectrometry, DDMS: data-dependent mass spectrometry.
Figure 3. SIM chromatogram of nine target fungicides at 10.0 μg/L. NL: normalized level, FTMS: Fourier-transformed mass spectrometry, ESI: electrospray ionization, MS: mass spectrometry, DDMS: data-dependent mass spectrometry.
Ijms 18 02333 g003

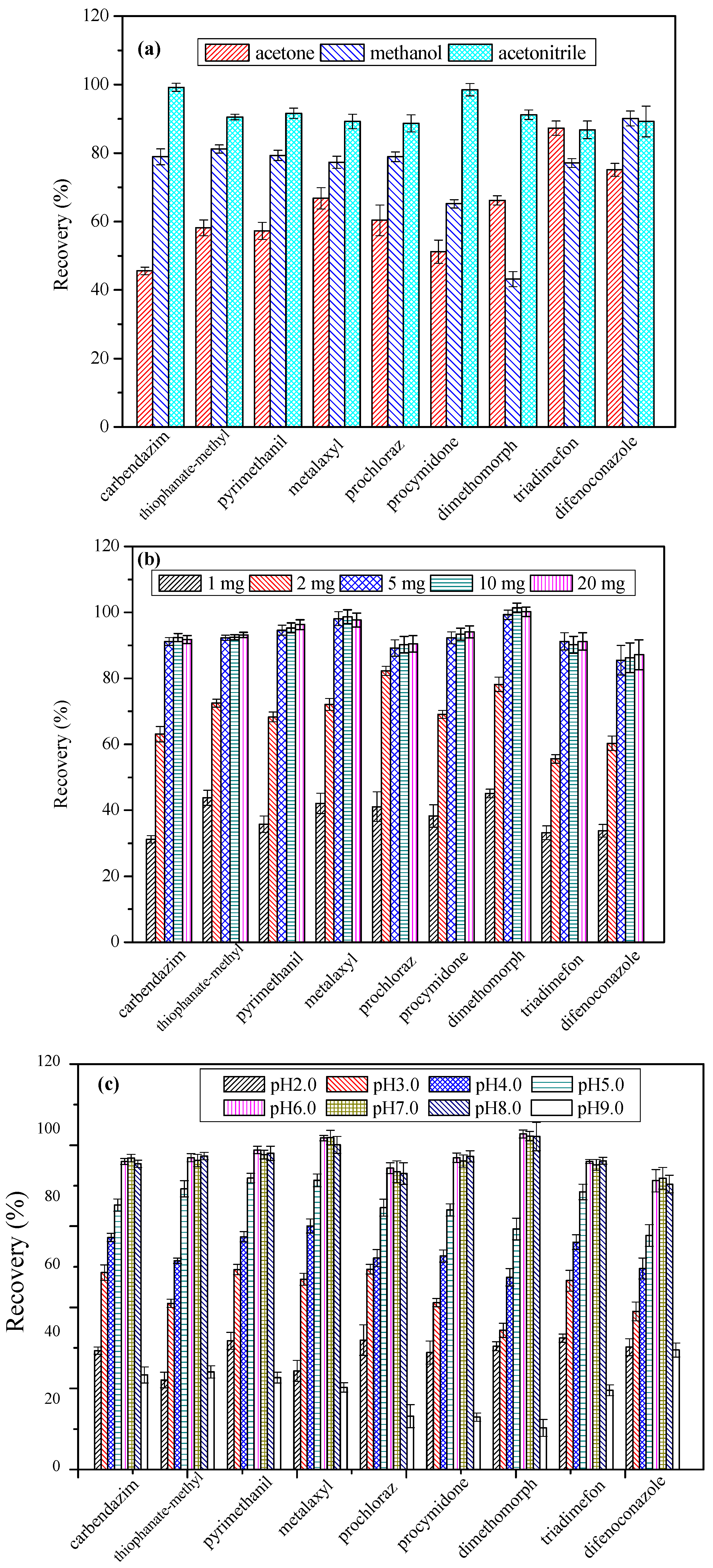

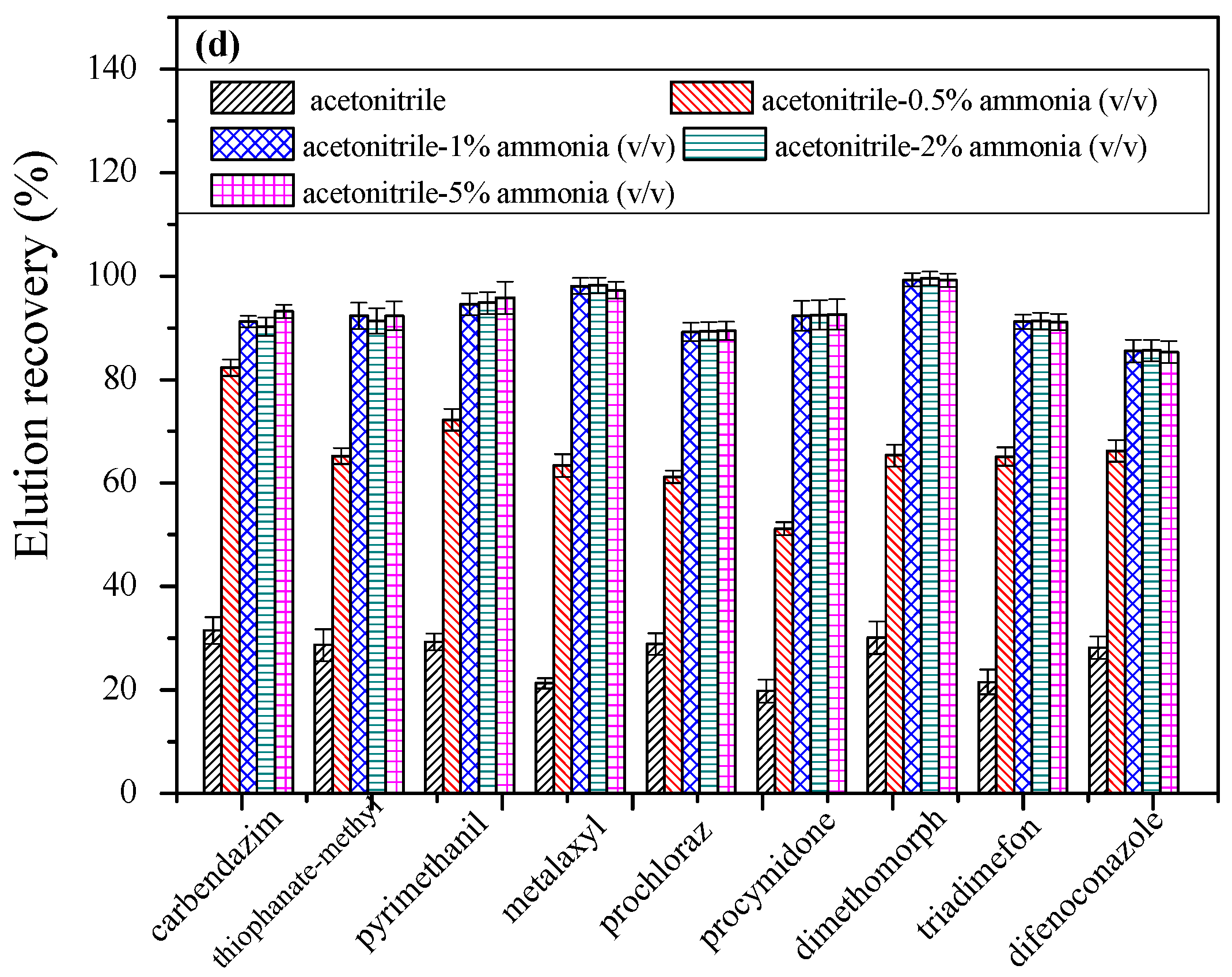

Figure 4. Extraction and desorption parameter optimization; each experiment was performed in sextuplicates: (a) extraction solvent; (b) adsorbent usage amount; (c) pH effect; (d) desorption solvent.
Figure 4. Extraction and desorption parameter optimization; each experiment was performed in sextuplicates: (a) extraction solvent; (b) adsorbent usage amount; (c) pH effect; (d) desorption solvent.
Ijms 18 02333 g004aIjms 18 02333 g004b

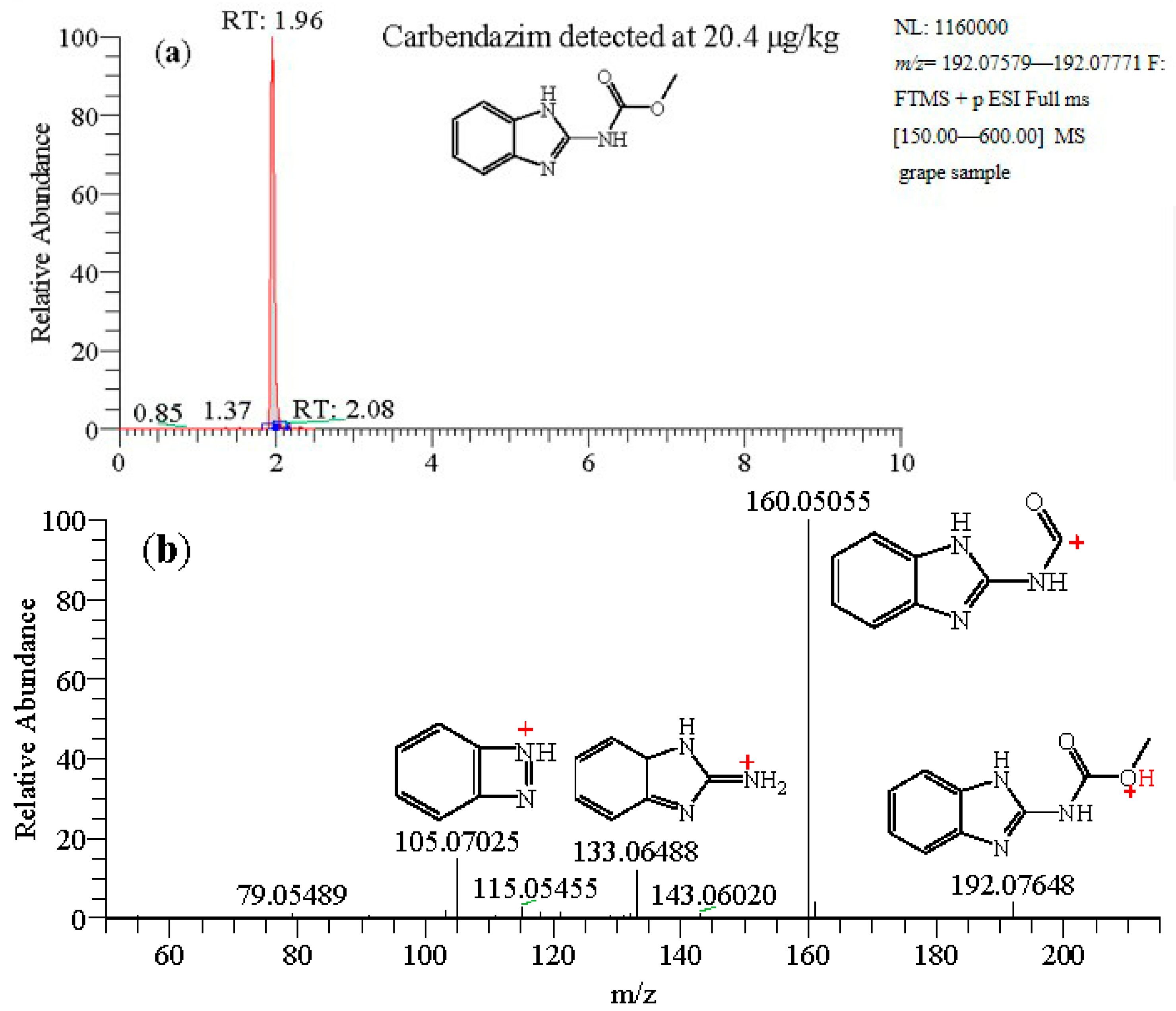

Figure 5. (a) Selected ion monitoring (SIM) chromatogram and (b) dd-MS2 spectra of a positive grape sample. RT: retention time.
Figure 5. (a) Selected ion monitoring (SIM) chromatogram and (b) dd-MS2 spectra of a positive grape sample. RT: retention time.
Ijms 18 02333 g005

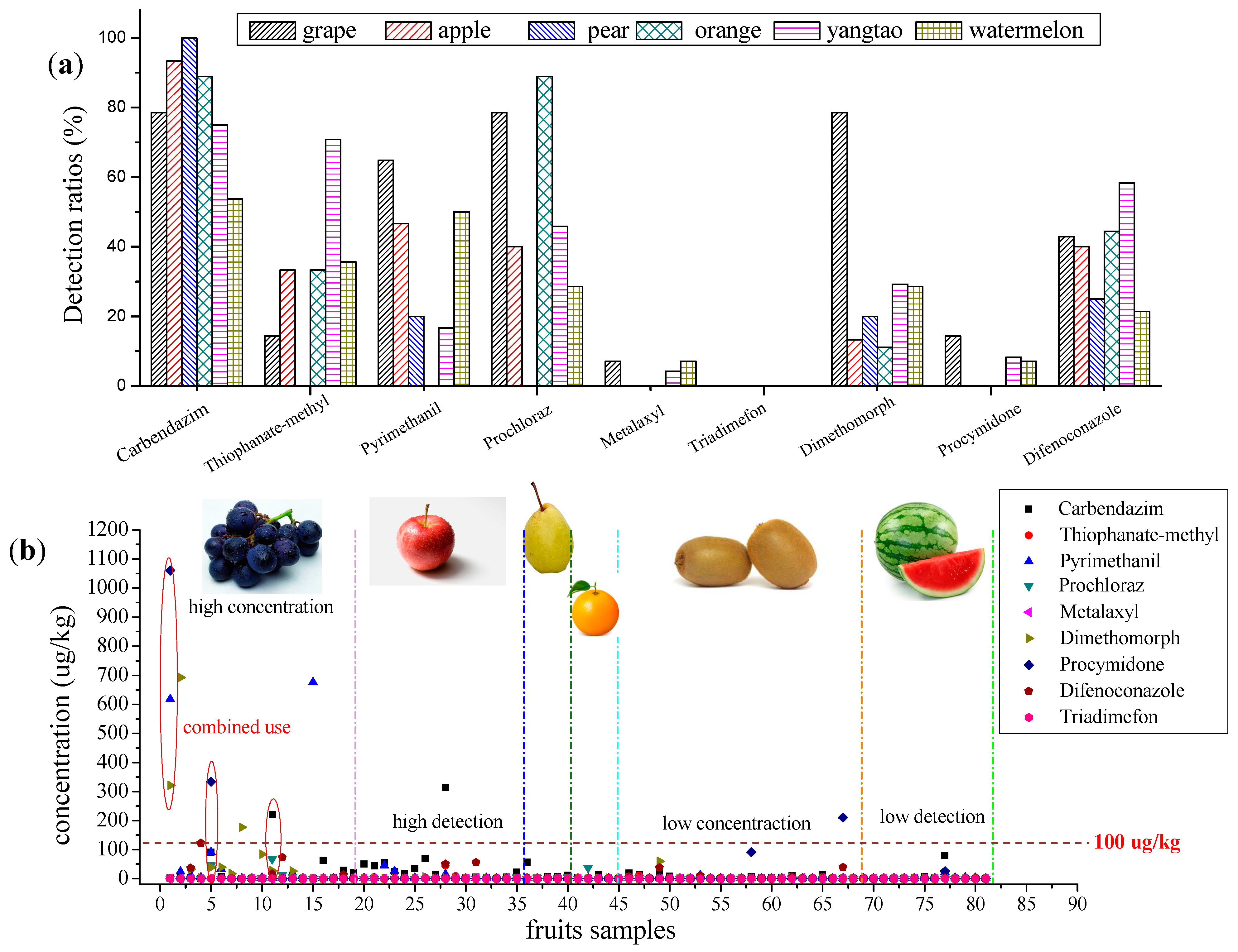

Figure 6. (a) Detection ratios of nine fungicides in 81 fruit samples; (b) detection concentrations of fungicides in 81 fruit samples.
Figure 6. (a) Detection ratios of nine fungicides in 81 fruit samples; (b) detection concentrations of fungicides in 81 fruit samples.
Ijms 18 02333 g006

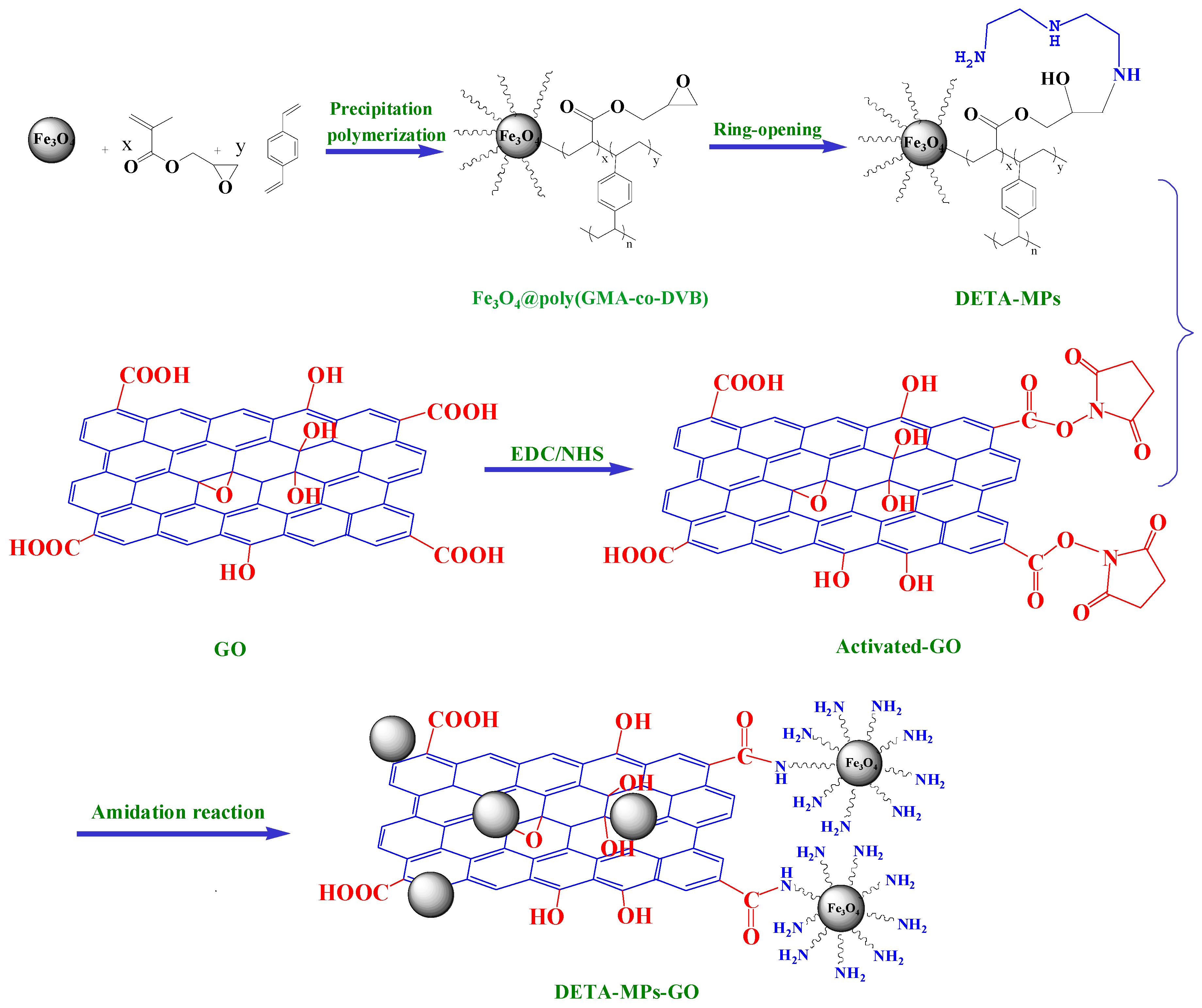

Scheme 1. Synthesis process of diethylenetriamine-functional magnetic core-shell polymer modified graphene oxide (DETA-MPs-GO). GMA: glycidyl methacrylate, DVB: divinylbenzene, EDC: N-ethyl-N-(3-(dimethylamino)propyl)carbodiimide, NHS: N-hydroxysuccinimide.
Scheme 1. Synthesis process of diethylenetriamine-functional magnetic core-shell polymer modified graphene oxide (DETA-MPs-GO). GMA: glycidyl methacrylate, DVB: divinylbenzene, EDC: N-ethyl-N-(3-(dimethylamino)propyl)carbodiimide, NHS: N-hydroxysuccinimide.
Ijms 18 02333 sch001
Table 1. The molecular formula, exact mass, mass deviation, and retention time of nine target fungicides.
Table 1. The molecular formula, exact mass, mass deviation, and retention time of nine target fungicides.
CompoundsRetention time (min)Molecular FormulaIonization ModeTheoretical Value of Exact Mass (Da)Experiment Value of Exact Mass (Da)Mass Deviation (ppm)
Carbendazim1.97C9H9N3O2[M + H]+192.07675192.07632−2.23
Pyrimethanil4.67C12H13N3[M + H]+200.11822200.11786−1.80
Thiophanate-methyl4.70C12H14N4O4S2[M + H]+343.05292343.05240−1.52
Metalaxyl5.13C15H21NO4[M + H]+280.15433280.15393−1.43
Dimethomorph5.50C21H22ClNO4[M + H]+388.13101388.13052−1.26
Prochloraz5.51C15H16Cl3N3O2[M + H]+376.03809376.03702−2.85
Triadimefon5.94C14H16ClN3O2[M + H]+294.10038294.09973−2.21
Procymidone6.28C13H11Cl2NO2[M + H]+284.02396284.02338−2.04
Difenoconazole6.50C19H17Cl2N3O3[M + H]+406.07197406.07132−1.60
Table 2. Absolute matrix effect, expressed as the ratio in percentage obtained with a spiked matrix versus neat solvent standards (1.0 μg/kg, n = 6).
Table 2. Absolute matrix effect, expressed as the ratio in percentage obtained with a spiked matrix versus neat solvent standards (1.0 μg/kg, n = 6).
CompoundMatrixAverage Peak AreaAbsolute Matrix Effect (B/A) (%)
Standard Solution (A)Post-Spiked (B)
Carbendazimapple3.14 × 1063.01 × 10695.9
orange3.11 × 10699.0
grape2.97 × 10694.6
Thiophanate-methylapple2.81 × 1052.61 × 10592.9
orange2.49 × 10588.6
grape2.53 × 10590.0
Pyrimethanilapple1.28 × 1061.19 × 10693.0
orange1.23 × 10696.1
grape1.18 × 10692.2
Metalaxylapple2.26 × 1062.01 × 10688.9
orange1.98 × 10687.6
grape2.08 × 10692.0
Prochlorazapple1.45 × 1061.37 × 10694.5
orange1.33× 10691.7
grape1.35 × 10693.1
Procymidoneapple1.29 × 1041.20 × 10493.0
orange1.18 × 10491.5
grape1.23 × 10495.3
Dimethomorphapple2.94 × 1052.83 × 10596.3
orange2.85 × 10596.9
grape2.78 × 10594.6
Triadimefonapple8.25 × 1057.14 × 10586.6
orange7.19 × 10587.2
grape7.13 × 10586.4
Difenoconazoleapple2.65 × 1062.42 × 10691.2
orange2.39 × 10690.3
grape2.44 × 10692.0
Table 3. Validation parameters obtained for the nine target fungicides in fruits.
Table 3. Validation parameters obtained for the nine target fungicides in fruits.
CompoundsLinear EquationLinearity Range (μg/L)R2LODs 1 (μg/kg)LOQs 2 (μg/kg)
CarbendazimY = 1.01 C + 0.0910.1–100.00.99960.030.09
Thiophanate-methylY = 1.12C + 0.0620.1–100.00.99940.060.18
PyrimethanilY = 0.94C + 0.0450.1–100.00.99980.010.09
MetalaxylY = 0.98C + 00130.1–100.00.99990.060.18
ProchlorazY = 0.85C + 0.1260.5–100.00.99960.100.30
ProcymidoneY = 1.05C + 0.3151.0–500.00.99950.300.90
DimethomorphY = 0.81C − 0.0940.1–100.00.99930.030.09
TriadimefonY = 0.99C − 0.0030.1–100.00.99950.010.03
DifenoconazoleY = 1.12C + 0.2110.5–100.00.99960.100.30
1 LODs: limits of detection, 2 LOQs: limits of quantitation.
Table 4. Accuracy and precision of nine fungicides in three blank representative fruit samples spiked at three different concentrations by the developed method (n = 6, x ¯ ± s).
Table 4. Accuracy and precision of nine fungicides in three blank representative fruit samples spiked at three different concentrations by the developed method (n = 6, x ¯ ± s).
CompoundsAverage Recovery, % (RSD 1, %)
AppleOrangeGrape
1.0 μg/kg40.0 μg/kg80.0 μg/kg1.0 μg/kg40.0 μg/kg80.0 μg/kg1.0 μg/kg40.0 μg/kg80.0 μg/kg
Carbendazim96.6 (8.2)105.2 (2.1)98.1 (1.4)90.1 (7.1)93.2 (4.2)96.4 (2.5)96.2 (5.3)102.3 (1.8)99.3 (1.8)
Thiophanate-methyl95.2 (5.3)103.2 (1.2)101.5 (0.9)89.4 (3.5)90.8 (2.3)90.2 (2.0)96.3 (3.2)98.9 (1.0)103.6 (0.8)
Pyrimethanil90.2 (6.2)94.5 (1.1)96.2 (1.0)87.1 (6.3)91.2 (2.5)94.7 (1.6)92.5 (4.8)96.2 (2.3)98.7 (1.6)
Metalaxyl95.3 (6.8)96.7 (3.1)97.5 (2.3)93.4 (6.8)95.3 (3.7)95.8 (2.4)94.2 (5.2)97.8 (2.9)99.1 (1.4)
Prochloraz90.8 (6.9)92.5 (2.6)92.6 (1.8)85.6 (6.2)88.3 (2.8)89.5 (1.9)92.5 (4.7)94.6 (3.2)97.8 (1.9)
Procymidone88.1 (7.2)92.2 (3.2)90.3 (2.1)85.6 (7.8)87.2 (4.2)89.6 (3.1)91.4 (6.2)93.6 (2.8)90.3 (1.6)
Dimethomorph93.1 (5.2)99.3 (4.2)98.2 (2.4)86.9 (6.4)92.4 (4.0)95.3 (3.5)93.4 (5.4)98.8 (3.6)105.2 (2.1)
Triadimefon86.3 (4.7)89.6 (2.8)90.2 (1.2)85.6 (5.6)89.5 (3.2)91.3 (2.3)86.5 (3.8)89.8 (2.1)92.6 (1.0)
Difenoconazole85.2 (7.5)88.1 (4.5)91.2 (3.2)84.9 (6.2)86.7 (5.1)93.5 (3.2)89.7 (6.4)89.5 (6.2)93.3 (3.1)
1 RSD: relative standard deviation.
Table 5. Frequency, mean, minimum (min.), and maximum (max.) levels of the nine target fungicides detected in the analyzed fruit samples.
Table 5. Frequency, mean, minimum (min.), and maximum (max.) levels of the nine target fungicides detected in the analyzed fruit samples.
CompoundFrequency (%)Concentration Detected (μg/kg)
Range (min.–max.)Mean
Carbendazim79.00.41–314.022.6
Thiophanate-methyl39.50.32–45.23.35
Pyrimethanil34.60.56–61857.1
Metalaxyl3.70.53–2.41.2
Prochloraz49.40.40–693.056.9
Procymidone6.26.17–1060287.7
Dimethomorph32.10.41–321.056.9
Triadimefon0--
Difenoconazole42.00.42–121.613.3
