RNA-Seq Analyses for Two Silkworm Strains Reveals Insight into Their Susceptibility and Resistance to Beauveria bassiana Infection

1
State Key Laboratory of Silkworm Genome Biology, Southwest University, Chongqing 400715, China
2
Sericulture and Agri-Food Research Institute, Guangdong Academy of Agricultural Sciences, Guangzhou 510610, China
*
Author to whom correspondence should be addressed.
Int. J. Mol. Sci. 2017, 18(2), 234; https://doi.org/10.3390/ijms18020234
Submission received: 30 November 2016 / Revised: 11 January 2017 / Accepted: 13 January 2017 / Published: 10 February 2017
(This article belongs to the Section Biochemistry)

Abstract

:
The silkworm Bombyx mori is an economically important species. White muscardine caused by Beauveria bassiana is the main fungal disease in sericulture, and understanding the silkworm responses to B. bassiana infection is of particular interest. Herein, we investigated the molecular mechanisms underlying these responses in two silkworm strains Haoyue (HY, sensitive to B. bassiana) and Kang 8 (K8, resistant to B. bassiana) using an RNA-seq approach. For each strain, three biological replicates for immersion treatment, two replicates for injection treatment and three untreated controls were collected to generate 16 libraries for sequencing. Differentially expressed genes (DEGs) between treated samples and untreated controls, and between the two silkworm strains, were identified. DEGs and the enriched Kyoto Encyclopedia of Genes and Genomes (KEGG) pathways of the two strains exhibited an obvious difference. Several genes encoding cuticle proteins, serine proteinase inhibitors (SPI) and antimicrobial peptides (AMP) and the drug metabolism pathway involved in toxin detoxification were considered to be related to the resistance of K8 to B. bassiana. These results revealed insight into the resistance and susceptibility of two silkworm strains against B. bassiana infection and provided a roadmap for silkworm molecular breeding to enhance its resistance to B. bassiana.

Graphical Abstract

1. Introduction

The silkworm, Bombyx mori, is an important economic insect for silk production in many developing countries [1]. It is also a lepidopteran model insect in the investigation of insect genetics and immunology [2,3,4]. Beauveria bassiana is a major pathogenic fungus in sericulture. White muscardine disease caused by B. bassiana tends to break out in moist climate and leads to enormous damage [5].
In the natural environment, the process of B. bassiana infecting silkworms can be separated into three different stages: surface adhesion, cuticle penetration, and replication and host killing [6]. After cuticle penetration, the fungus is attacked by the innate immune responses of the silkworm [7], but the molecular mechanism of host response to B. bassiana infection remains poorly understood. Investigating the silkworm response to B. bassiana infection is of particular interest since it provides a roadmap for silkworm molecular breeding to enhance its resistance against B. bassiana. In addition, it gives useful information for genetic modification of the fungus to enhance its efficiency in pest control [8]. Hou et al. (2011) identified 77 differentially expressed genes (DEGs) involved in the mechanism of infection of B. bassiana using the suppression subtractive hybridization method [9]. In 2014, Hou et al. used digital gene expression profiling to probe the overall transcriptome of the Dazao silkworm strain during the early response against B. bassiana infection, and identified 1430 DEGs [10]. The results suggest many biological processes are involved in the interaction between the silkworm and B. bassiana. However, these studies only focused on one silkworm strain without considering differences between resistant and susceptible strains.
Haoyue (HY) is a bivoltine silkworm strain originating from Japan [11] and has the virtue of high silk yielding. By cross-breeding with Chinese strain Jingsong, the silkworm variety named Jingsong × Haoyue was cultivated and has been widely used in sericulture for many years. HY is highly sensitive to B. bassiana infection, in contrast to the Kang 8 (K8) strain that is highly resistant. K8 is a valuable germplasm resource preserved in Guangdong Sericultural Germplasm Bank and is well known for good healthiness. The molecular mechanisms underlying their different responses to B. bassiana infection remain unknown at present, and investigating differences in gene expression during B. bassiana infection may help us to understand the genes responsible for resistance in K8.
RNA-Seq is a revolutionary technology [12,13] providing an opportunity to study the transcriptional responses of K8 and HY to B. bassiana infection. In this study, the molecular mechanisms underlying the different responses to B. bassiana infection in HY and K8 were investigated via transcriptome analysis with the Illumina HiSeq 2500 platform. DEGs and their associated pathways were identified, and the results provide insight into the genes responsible for B. bassiana resistance and susceptibility.

2. Results

2.1. K8 and HY Survival Curve Analysis

To verify the difference in resistance between the two silkworm strains, and choose the most critical time points for comparison, the survival rates of the two strains were monitored for 168 h after B. bassiana infection. As shown in Figure 1, the survival curves exhibited an obvious difference. When immersed in the conidial suspension (1 × 105 conidia/mL), almost all HY silkworms were dead (survival rate ~9.93% ± 1.44%) at 168 hpi, whereas nearly 70% of the K8 silkworms were alive and able to spin cocoons (Figure 1A). Treatment with conidial suspension (5 × 105 conidia/mL) showed similar result (Figure 1B). Generally, the survival time of K8 strain was much longer than HY strain. Most infected silkworms were able to spin cocoons, which effectively reduced the economic losses.
The sampling time for RNA-Seq was determined according to the survival curves. For HY, all the silkworms were alive at 72 hpi, but a significant decrease was apparent by 96 hpi, suggesting 72–96 hpi is the critical period for interaction with B. bassiana [14,15]. Meanwhile, K8 silkworms did not die in significant numbers until 96 hpi, and the overall survival rate was much higher, indicating clear differences in resistance strategies in response to B. bassiana. Thus, a time point of 96 hpi was chosen to investigate the transcriptional response of the silkworms.
Besides, the mortality rates of K8 and HY were also remarkably different following B. bassiana injection. The injection treatment was carried out at 86 h of fifth instar larvae. Thus, most of the silkworms did not die until spinning cocoons. The survival rates of K8 and HY were 75.56% and 42.22%, respectively, before cocooning, indicating resistance difference between the two strains.

2.2. Gene Expression in K8 and HY Strains

To compare differences between the transcriptomes of resistant and sensitive silkworm strains, cDNA libraries were generated from larvae of fifth instar, and then Illumina paired-end sequencing was performed. A total of ~12 M, 50-bp, single-ended RNA-Seq reads were generated from each sample. There were three biological replicates for control and immersion treatment respectively and two replicates for injection treatment each for K8 and HY. As shown in Table 1, the average clean read number was 14,586,874. Each of the reads was mapped to the silkworm genome sequence, which contains 18,510 predicted genes [16]. All of the samples showed similar match results, with ~89% of reads matching the predicted genes of the genome and ~57% being unique matches. Besides, pearson correlation among samples (Figure S1) and scatter plot of gene expression of biological repeats (Figure S2) all revealed that the samples selection is reasonable, with good correlations among biological replicates, and the sequencing data could be used for following analyses.

2.3. Analysis of DEGs in HY and K8 Strains

To explore differences in gene expression in HY and K8 silkworm strains in response to B. bassiana, immersion experiments were performed to identify DEGs between HY immersion samples and HY controls, and between K8 immersion samples and K8 controls. We then compared the differences between immersion response genes in HY and K8 strains. The same analyses were then performed for the injection experiment. As shown in Figure 2A and Table S3, in the immersion experiment, 68 DEGs were identified in K8, including 54 up-regulated genes and 14 down-regulated genes. For HY, 123 DEGs were detected, including 75 up-regulated genes and 48 down-regulated genes. The Venn plot revealed that 21 genes were differentially expressed in both K8 and HY (Figure 2B). In the injection experiment, 243 DEGs were detected in K8, including 123 up-regulated genes and 120 down-regulated genes. For HY, 295 DEGs were identified, including 115 up-regulated genes and 180 down-regulated genes. As shown in Figure 2C, 88 genes were differentially expressed in both K8 and HY.
We also compared DEGs identified in immersion and injection experiments. As shown in Figure 2D, 23 genes were consistently differentially expressed in K8 in both the immersion and injection experiments, whereas 55 genes were consistently differentially expressed in both the immersion and injection experiments in HY (Figure 2E).
To validate the gene expression data obtained using RNA-Seq, six DEGs were randomly selected for a quantitative real-time PCR (qPCR) analysis. The results (Figure 3) essentially confirmed that the qPCR data were consistent with the RNA-Seq data, indicating that the RNA-Seq approach was able to provide reliable differential gene expression data for this system.

2.4. Functional Classifications and Comparison of DEGs in K8 and HY Strains

To better understand the identified DEGs, we classified them according to their biological functions (Table S1). In the immersion experiment, a large number of serine protease inhibitors (SPI), as well as lepidopteran low molecular weight lipoprotein (30K protein) and insect pheromone/odorant binding protein (PBP/GOBP) were up-regulated in K8. Genes encoding storage proteins, cuticle proteins, and antimicrobial peptides (AMP) were also specifically up-regulated in K8, while major facilitator superfamily (MFS) genes were specifically up-regulated in HY (Figure 4A). A greater number of genes encoding cuticle proteins, SPI and AMP were down-regulated in HY (Figure 4B).
In the injection experiment, a greater number of genes encoding cuticle protein, AMP, lipoprotein (30K protein), and cytochrome P450 were up-regulated in K8, while more genes encoding peptidases and MFS proteins were up-regulated in HY (Figure 5A). A larger number of genes with the functions of coding PBP/GOBP were down-regulated in HY, and genes encoding cuticle proteins, peptidases, lipoprotein (30K protein), cytochrome P450, zinc finger, and lipase were specifically down-regulated in HY (Figure 5B).
Pathway enrichment analysis was performed on DEGs identified in each group (Table 2 and Table S4). For the immersion experiment, five and eight pathways were significantly enriched with DEGs in K8 and HY, respectively (p < 0.05), and no common pathway was detected in these two strains. For the injection experiment, 40 and 32 pathways were significantly enriched with DEGs in K8 and HY, respectively (p < 0.05), and 19 pathways were enriched with DEGs in both strains. In K8, the pancreatic secretion pathway, which was related to digestion and abortion of nutrition, was clearly enriched in both immersion and injection experiments. In HY, “phagosome”, “lysosome”, “glycerolipid metabolism” and “ECM-receptor interaction” pathways were enriched in both immersion and injection experiments.

2.5. Comparison of DEGs between HY and K8 Strains

The sensitivity to B. bassiana is distinct in the two silkworm strains, and the genes that are differentially expressed between HY and K8 strains may be responsible for the dissimilar responses to the fungal pathogen. We therefore compared DEGs between HY and K8 strains. HY and K8 samples consisted of three control samples, three immersion samples and two injection samples, respectively. A total of 260 DEGs were detected, including 116 up-regulated genes and 144 down-regulated genes in K8 (q < 0.05 and log2 (Fold change) ≥ 1, deSeq). As shown in Table 3, three pathways, including the RIG-I-like receptor signaling pathway, drug metabolism—other enzymes and retinol metabolism pathway were enriched with these DEGs. Among these DEGs, we further selected K8-specific genes with the following standards: RPKM ≥ 1 in each K8 sample; mean RPKM in HY < 0.1; log2 (Fold change) ≥ 3. Under the standards, six genes could be considered as K8-specific genes (Table 4), including three genes in the cytochrome P450 family, a heat shock protein, bmp-2, and a quinoprotein amine dehydrogenase. The qPCR analysis confirmed that the genes P450 6B5-like and P450 9e2-like were specifically expressed in K8 strain (Figure 6).

3. Discussion

In early stage, we identified two silkworm strains, K8 and HY; K8 was highly resistant to B. bassiana while HY was very sensitive. In this study, we carried out RNA-Seq on silkworm K8 and HY strains to investigate the reasons for their distinct susceptibility to B. bassiana using immersion and injection treatments. In the immersion experiment, 68 and 123 DEGs were identified in K8 and HY respectively, of which 21 genes were commonly differentially expressed. KEGG pathway enrichment analysis indicated that five and eight pathways are significantly enriched in K8 and HY respectively, and no common pathway is detected. In the injection experiment, 243 and 295 DEGs were identified in K8 and HY respectively and only 88 genes were common. Besides, 40 and 32 pathways were significantly enriched in K8 and HY respectively and only 19 pathways were common. The results above showed that the responses against B. bassiana infection were different in the two silkworm strains.
We classified DEGs according to their biological functions and compared the difference of response genes between HY and K8. The results showed that cuticle protein-encoding genes were significantly differentially expressed in K8 and HY strains. The cuticle serves as an effective physical barrier against potential pathogenic microorganisms and many toxic substances. After exposure to pesticides, the resistant strains of insects can increase the gene expression of cuticle proteins that stop pesticides from penetrating [17,18,19]. In the immersion experiment, the gene encoding cuticle protein was significantly up-regulated in K8, while a number of genes encoding cuticle proteins in the HY strain were down-regulated. This indicates that the synthesis of cuticle proteins may be inhibited in HY upon penetration by B. bassiana. Cuticle proteins have also been linked to wound healing in insects [20], possibly explaining the up-regulation of cuticle proteins in both K8 and HY strains in the injection experiment. Even accounting for this, the number of up-regulated genes was still twice as high in the K8 strain. We therefore concluded that K8 silkworms might synthesize more cuticle proteins that stop B. bassiana penetrating the hemocoel.
Studies have shown that serine protease inhibitors play important roles in insect immunity [21,22,23]. During the invasion process, the fungi can secrete abundant extracellular proteases to penetrate the host physical barriers [24]. To resist invasion by pathogens, some hosts produce a large amount of protease inhibitors in response to microbial proteases [25,26]. Zhao et al. found that at least 19 SPI genes were up- or down-regulated in silkworm following infection [27], indicating a role in resistance to pathogenic microorganisms. In the immersion experiment, a larger number of SPI genes such as BmSPI38 (BGIBMGA009094), protease inhibitor 4 (BGIBMGA008711) and kazal-type proteinase inhibitor (BGIBMGA011573) were up-regulated in K8 strain. BmSPI38 and BmSPI39 could inhibit the germination of B. bassiana conidia and markedly improve the survival rate of silkworm hosts [28,29]. The up-regulated SPIs in the K8 strain may help to inhibit the germination of B. bassiana conidia and thus delay or prevent invasion.
AMPs and 30K proteins were also related to insect immunity [10]. Due to lack of an adaptive immune system in insects, AMPs play a crucial role in the struggle against pathogens [30]. The genes cecropin A, cecropin B and enbocin1 have been shown to have high antifungal activity [31,32,33]. In the immersion experiment, six AMP genes such as cecropin A, cecropin D, gloverin-like protein 4, moricin I were specifically down-regulated in HY. The 30K proteins also play a role in protection of B. mori against invading fungi [34]. Compared to HY, a greater number of 30K proteins were up-regulated in K8. The up-regulated 30K lipoproteins 19G1 precursor may participate in the pathogen recognization of the silkworms by bounding to glucose and glucans [35]. However, as a major class of proteins involved in drug resistance [36], MFS genes were significantly up-regulated in HY. MFS transporters could pump the drugs into the extracellular and have been found to be the main mechanism of multidrug-resistance in bacteria and fungi [37,38]. Whether MFS transporters acted in the detoxification of B. bassiana toxin remains unstudied.
Furthermore, DEGs of eight HY samples and eight K8 samples were also compared. Six genes were specifically expressed in K8, including three encoding cytochrome P450 family proteins. Two of these (P450 6B5-like and P450 9e2-like) were selected for interrogation by qPCR, the results of which confirmed their specific expression in the K8 strain. Cytochrome P450 proteins function as a major class of detoxification enzymes [39], and most insecticide-resistant genes belong to the CYP4, CYP6 and CYP9 subfamilies [40,41,42]. Interestingly, two of the genes specifically expressed in K8 belong to the CYP6 and CYP9 classes, suggesting they may play roles in resistance to B. bassiana infection.
KEGG pathway analyses identified three pathways enriched with DEGs between K8 and HY, including drug metabolism-other enzymes, RIG-I-like receptor signaling pathway, and retinol metabolism. The genes of the drug metabolism pathway, including aldehyde oxidase (BGIBMGA008269), carboxylesterase (BGIBMGA012122), and UDP-glucuronosyltransferase (BGIBMGA010294, BGIBMGA013830), were all up-regulated in the K8 strain. Similar to cytochrome P450, these enzymes are essential components of insect toxin detoxification pathway [43]. We propose that the cytochrome P450, carboxylesterase, and UDP-glucuronosyltransferase function effectively in the detoxification of toxins such as cyclic peptide toxins secreted by B. bassiana, which delayed the death of the K8 strain. Besides, genes in the RIG-I-like receptor signaling pathway can initiate immune activation in a variety of cell types [44] and this pathway is related to host immune response [45,46]. A previous study showed that this pathway is enriched with positive selected genes in the silkworm, which might be a result of the selection against pathogens during silkworm domestication [47].
The insect-fungus interactions have been studied for several years. However, the mechanisms of resistance remain poorly understood, and many of the key genes and proteins involved have not been established. In the present study, we investigated host response to B. bassiana infection in highly susceptible (HY) and highly resistant (K8) strains using an RNA-seq approach. The results revealed that a larger number of genes encoding cuticle protein, SPI, AMP and 30K protein were up-regulated in the K8 strain and down-regulated in the HY strain. Moreover, a series of detoxification-related genes were specifically up-regulated in the K8 strain. It could be speculated further that K8 silkworms could increase level of cuticle protein and SPI, which thereby inhibited the germination and penetration of B. bassiana conidia, and then activate the drug metabolism pathway to remove the toxins secreted by B. bassiana, ultimately resulted in high resistance to B. bassiana. Further research on the exact mechanisms of these genes is needed.

4. Materials and Methods

4.1. Silkworm Strains and Fungal Strain

The trial was approved by the Experimental Animal Ethics Committee of Sericulture and Agri-Food Research Institute, Guangdong Academy of Agricultural Sciences (25 March 2015, approval number: B2015-02). The silkworm strains HY (sensitive to B. bassiana) and K8 (resistant to B. bassiana) were provided by the Guangdong Sericultural Germplasm Bank (Guangzhou, China). Larvae were reared on fresh mulberry leaves at 27 °C, and newly exuviated larvae of the fifth instar were used in all experiments.
The fungal strain B. bassiana (Genbank ID: KM205065), isolated from silkworm larvae, was preserved at 4 °C on slants of potato dextrose agar. Conidia, harvested from cultures grown for 7 days at 26 °C and 95% relative humidity, were suspended in sterile distilled water for experiments.

4.2. Survival Curves Assay of K8 and HY Strains

For each silkworm strain, newly exuviated larvae of fifth instar were immersed in the conidial suspension (1 × 105 and 5 × 105 conidia/mL) for 15 s, respectively [10]. Immersed silkworms were reared at 26 °C and 95% relative humidity, and the number of living silkworms was recorded daily until they started spinning cocoons. The dead silkworms were moved to another plastic box for incubation to confirm the infection by B. bassiana. For the control group, the silkworms were immersed in sterile distilled water for the same period. Each assay was repeated four times.

4.3. Preparation of Silkworm Samples for Sequencing

Newly exuviated larvae of the fifth instar were immersed in the conidial suspension (5 × 105 conidia/mL) as described above. At 96 h post infection (hpi), three independent larvae of each strain were collected respectively. For eliminating the effect of the body wall on B. bassiana defenses in K8 and HY strains, injection experiments were also performed. Since 10 h post injection has been shown as an appropriate time point for investigating the insect responses to B. bassiana conidia in previous reports [9,48], 2 µL of diluted conidial suspension (1 × 107 conidia/mL) were injected into the hemocoel of Bombyx mori fifth instar 86 h larvae, and 10 h later, two independent larvae of each strain were collected for subsequent sequencing experiments. Untreated fifth-instar larvae were used as the control group at 96 h. All silkworm samples were therefore collected at the same developmental stage (96 h post exuviation) to eliminate the influence of development on gene expression [14,15].
An independent larva was used as a sample. A total of 16 samples were subjected to sequencing, including three K8 control samples, three K8 immersion samples, two K8 injection samples, three HY control samples, three HY immersion samples and two HY injection samples.

4.4. RNA Extraction, Illumina Sequencing, and Data Processing

Total RNA from each sample was extracted using Trizol reagent (Life Technologies, Carlsbad, CA, USA) according to the manufacturer’s protocol. RNA purity was assessed by using an ND-1000 NanoDrop (Thermo Scientific, Wilmington, DE, USA). Each RNA sample had an A260:A280 ratio above 1.8 and an A260:A230 ratio above 2.0. RNA integrity was evaluated using the Agilent 2200 Tape Station (Agilent Technologies, Santa Clara, CA, USA), and all samples had an RNA integrity value above 7.0. Briefly, mRNAs were isolated from total RNA, fragmented to approximately 200 bp, and subjected to first strand and second strand cDNA synthesis followed by adaptor ligation and low-cycle enrichment according to the instructions of the TruSeq RNA LT/HT Sample Prep Kit (Illumina, San Diego, CA, USA).
Purified library products were evaluated using the Agilent 2200 Tape Station and Qubit 2.0 software (Life Technologies). RNA-Seq was performed at RiboBio Co., Ltd. (Guangzhou, China) using the HiSeq 2500 platform (Illumina, San Diego, CA, USA). Prior to sequencing, raw data were filtered to produce high-quality clean data, and all subsequent analyses were performed using clean data.

4.5. Annotation and Analysis of Sequence Data

For annotation, clean data were mapped to the silkworm transcriptome reference database using Soap2 [49]. Only reads with uniquely mapping to reference sequences were retained for subsequent analyses. Gene expression values were quantified as reads per kb of transcript per million mapped reads (RPKM) [50]. If two or more transcripts were detected for a gene, the longest transcript was retained to calculate its expression level. For each comparison group, DEGs were detected by DEGseq [51] with a false discovery rate <0.05 and an absolute log2 ratio ≥1. Pathways significantly enriched with DEGs were identified based on the Kyoto Encyclopedia of Genes and Genomes (KEGG) database and hypergeometric test (q < 0.05).

4.6. qPCR Analysis

To validate the results of DEG analysis, qPCR experiments were performed on a Roche LightCycler 480 system using SYBR-GREEN1 fluorescent reagents (TaKaRa, Otsu, Shiga, Japan). All designed primers were synthesized at Beijing Liuhe Huada Genomics Technology Co., Ltd. (Beijing, China) (Table S2). The BmactinA3 gene was used as the endogenous control [52]. qPCR reactions (25 μL) consisted of a denaturation step at 95 °C for 10 min, followed by 40 cycles of 95 °C for 15 s, 55 °C for 15 s, and 72 °C for 45 s. Three biological replicates were performed for each gene, and relative fold changes were determined using the 2−ΔΔCt method [53].

5. Conclusions

In this study, we carried out RNA-Seq on silkworm K8 (resistant to B. bassiana) and HY (sensitive to B. bassiana) strains to investigate the reasons for their distinct susceptibility to B. bassiana. Different responses against B. bassiana infection were observed. Several genes encoding cuticle proteins, SPI and AMP and the drug metabolism pathway involved in toxin detoxification were considered to be related to the resistance of K8 to B. bassiana. Further molecular mechanism-based studies of host resistance to fungus are still needed.

Supplementary Materials

Supplementary materials can be found at www.mdpi.com/1422-0067/18/2/234/s1.

Acknowledgments

This work was supported by grants from National Basic Research Program of China (2012CB114600), Presidential Foundation of Guangdong Academy of Agricultural Sciences (No. 201434), Science and Technology Project of Guangdong Province (2015A040404032) and Science and Technology Basic Condition Construction Project of Guangdong Province (No. 2015A030303010).

Author Contributions

Dongxu Xing and Liang Jiang conceived and designed the experiments; Dongxu Xing and Qiong Yang performed the experiments; Qingrong Li and Mingqiang Ye participated in bioinformatics analysis; Yang Xiao contributed the silkworm strains; and Qingyou Xia provided guidance in the experiment design and writing the paper. All authors read and approved the final manuscript.

Conflicts of Interest

The authors declare no conflict of interest.

References

  1. Jiang, L.; Xia, Q. The progress and future of enhancing antiviral capacity by transgenic technology in the silkworm Bombyx mori. Insect Biochem. Mol. Biol. 2014, 48, 1–7. [Google Scholar] [CrossRef] [PubMed]
  2. Li, M.; Shen, L.; Xu, A.; Miao, X.; Hou, C.; Sun, P.; Zhang, Y.; Huang, Y. Genetic diversity among silkworm (Bombyx mori L., Lep., Bombycidae) germplasms revealed by microsatellites. Genome 2005, 48, 802–810. [Google Scholar] [CrossRef] [PubMed]
  3. Goldsmith, M.R.; Shimada, T.; Abe, H. The genetics and genomics of the silkworm, Bombyx mori. Annu. Rev. Entomol. 2005, 50, 71–100. [Google Scholar] [CrossRef] [PubMed]
  4. Tanaka, H.; Sagisaka, A.; Fujita, K.; Kaneko, Y.; Imanishi, S.; Yamakawa, M. Lipopolysaccharide elicits expression of immune-related genes in the silkworm, Bombyx mori. Insect Mol. Biol. 2009, 18, 71–75. [Google Scholar] [CrossRef] [PubMed]
  5. Wan, Y.; Pan, M. Etiology and Pathology of the Silkworm. In Biology of Sericulture, 1st ed.; Xiang, Z., Ed.; China Forestry Publishing Press: Beijing, China, 2005; Volume 11, pp. 265–266. [Google Scholar]
  6. Kumer, V.; Singh, G.P.; Badu, A.; Datta, R.K. Germination, penetration, and invasion of Beauveria bassiana on silkworm, Bombyx mori, causing white muscardine. Ital. J. Zool. 1999, 66, 39–43. [Google Scholar] [CrossRef]
  7. Lavine, M.; Strand, M. Insect hemocytes and their role in immunity. Insect Biochem. Mol. Biol. 2002, 32, 1295–1309. [Google Scholar] [CrossRef]
  8. Farenhorst, M.; Mouatcho, J.C.; Kikankie, C.K.; Brooke, B.D.; Hunt, R.H.; Thomas, M.B.; Koekemoer, L.L.; Knols, G.J.; Coetzee, M. Fungal infection counters insecticide resistance in African malaria mosquitoes. Proc. Natl. Acad. Sci. USA 2009, 106, 17443–17447. [Google Scholar] [CrossRef] [PubMed]
  9. Hou, C.; Qin, G.; Liu, T.; Mei, X.; Li, B.; Shen, Z.; Guo, X. Differential gene expression in silkworm in response to Beauveria bassiana infection. J. Insect Sci. 2013, 484, 35–41. [Google Scholar]
  10. Hou, C.; Qin, G.; Liu, T.; Geng, T.; Gao, K.; Pan, Z.; Qian, H.; Guo, X. Transcriptome analysis of silkworm, Bombyx mori, during early response to Beauveria bassiana challenges. PLoS ONE 2014, 9, e91189. [Google Scholar] [CrossRef] [PubMed]
  11. Guo, T.; Wang, S.; Guo, X.; Lu, C. Productive infection of Autographa californica nucleopolyhedrovirus in silkworm Bombyx mori strain Haoyue due to the absence of a host antiviral factor. Virology 2005, 341, 231–237. [Google Scholar] [CrossRef] [PubMed]
  12. Marioni, J.C.; Mason, C.E.; Mane, S.M.; Stephens, M.; Gilad, Y. RNA-seq: An assessment of technical reproducibility and comparison with gene expression arrays. Genome Res. 2008, 18, 1509–1517. [Google Scholar] [CrossRef] [PubMed]
  13. Wang, Z.; Gerstein, M.; Snyder, M. RNA-Seq: A revolutionary tool for transcriptomics. Nat. Rev. Genet. 2009, 10, 57–63. [Google Scholar] [CrossRef] [PubMed]
  14. Chen, J.; Xie, C.; Tian, L.; Hong, L.; Wu, X.; Han, J. Participation of the p38 pathway in Drosophila host defense against pathogenic bacteria and fungi. Proc. Natl. Acad. Sci. USA 2010, 107, 20774–20779. [Google Scholar] [CrossRef] [PubMed]
  15. Irving, P.; Troxler, L.; Heuer, T.S.; Belvin, M.; Kopczynski, C.; Reichhart, J.M.; Hoffmann, J.A.; Hetru, C. A genomewide analysis of immune responses in Drosophila. Proc. Natl. Acad. Sci. USA 2001, 98, 15119–15124. [Google Scholar] [CrossRef] [PubMed]
  16. Xia, Q.; Zhou, Z.; Lu, C.; Cheng, D.; Dai, F.; Li, B.; Zhao, P.; Zha, X.; Cheng, T.; Pan, G.; et al. A draft sequence for the genome of the domesticated silkworm (Bombyx mori). Science 2004, 306, 137–1940. [Google Scholar]
  17. Reid, W.R.; Zhang, L.; Liu, F.; Liu, N. The transcriptome profile of the mosquito Culex quinquefasciatus following permethrin selection. PLoS ONE 2012, 7, e47163. [Google Scholar] [CrossRef] [PubMed]
  18. Awolola, T.S.; Oduola, O.A.; Strode, C.; Ranson, H. Evidence of multiple pyrethroid resistance mechanisms in the malaria vector Anopheles gambiae sensu stricto from Nigeria. Trans. R. Trop. Med. Hyg. 2008, 103, 1139–1145. [Google Scholar] [CrossRef] [PubMed]
  19. Wood, O.R.; Hanrahan, S.; Coetzee, M.; Koekemoer, L.L.; Brooke, B.D. Cuticle thickening associated with pyrethroid resistance in the major malaria vector Anopheles funestus. Parasit Vectors 2010, 3, 67. [Google Scholar] [CrossRef] [PubMed]
  20. He, N.; Botelho, J.M.; McNall, R.J.; Belozerov, V.; Dunn, W.A.; Mize, T.; Orlando, R.; Willis, J.H. Proteomic analysis of cast cuticles from Anopheles gambiae by tandem mass spectrometry. Insect Biochem. Mol. Biol. 2007, 37, 135–146. [Google Scholar] [CrossRef] [PubMed]
  21. Kanost, M.R. Serine proteinase inhibitors in arthropod immunity. Dev. Comp. Immunol. 1999, 23, 291–301. [Google Scholar] [CrossRef]
  22. Cerenius, L.; Kawabata, S.; Lee, B.L.; Nonaka, M.; Soderhall, K. Proteolytic cascades and their involvement in invertebrate immunity. Trends Biochem. Sci. 2010, 35, 575–583. [Google Scholar] [CrossRef] [PubMed]
  23. Fullaondo, A.; Garcia-Sanchez, S.; Sanz-Parra, A.; Recio, E.; Lee, S.Y.; Gubb, D. Spn1 regulates the GNBP3-dependent Toll signaling pathway in Drosophila melanogaster. Mol. Cell Biol. 2011, 31, 2960–2972. [Google Scholar] [CrossRef] [PubMed]
  24. Travis, J.; Potempa, J.; Maeda, H. Are bacterial proteinases pathogenic factors? Trends Microbiol. 1995, 3, 405–407. [Google Scholar] [CrossRef]
  25. Augustin, R.; Siebert, S.; Bosch, T.C. Identification of a kazal-type serine protease inhibitor with potent anti-staphylococcal activity as part of Hydra’s innate immune system. Dev. Comp. Immunol. 2009, 33, 830–837. [Google Scholar] [CrossRef] [PubMed]
  26. Dong, Z.M.; Zhao, P.; Wang, C.; Zhang, Y.; Chen, J.P.; Wang, X.; Lin, Y.; Xia, Q.Y. Comparative proteomics reveal diverse functions and dynamic changes of Bombyx mori silk proteins spun from different development stages. J. Proteome Res. 2013, 12, 5213–5222. [Google Scholar] [CrossRef] [PubMed]
  27. Zhao, P.; Dong, Z.; Duan, J.; Wang, G.; Wang, L.; Li, Y.; Xiang, Z.; Xia, Q. Genome-wide identification and immune response analysis of serine protease inhibitor genes in the silkworm, Bombyx mori. PLoS ONE 2012, 7, e31168. [Google Scholar] [CrossRef] [PubMed]
  28. Li, Y.S.; Zhao, P.; Liu, S.P.; Dong, Z.M.; Chen, J.P.; Xiang, Z.H.; Xia, Q.Y. A novel protease inhibitor in Bombyx mori is involved in defense against Beauveria bassiana. Insect Biochem. Mol. Biol. 2012, 42, 766–775. [Google Scholar] [CrossRef] [PubMed]
  29. Li, Y.S.; Zhao, P.; Liu, H.W.; Guo, X.M.; He, H.W.; Zhu, R.; Xiang, Z.H.; Xia, Q.Y. TIL-type protease inhibitors may be used as targeted resistance factors to enhance silkworm defenses against invasive fungi. Insect Biochem. Mol. Biol. 2015, 57, 11–19. [Google Scholar] [CrossRef] [PubMed]
  30. Miyoshi, N.; Saito, T.; Ohmura, T.; Isogai, E. Functional structure and antimicrobial activity of persulcatusin, an antimicrobial peptide from the hard tick Ixodes persulcatus. Parasit. Vector 2016, 9, 85. [Google Scholar] [CrossRef] [PubMed]
  31. Lu, D.; Geng, T.; Hou, C.; Huang, Y.; Qin, G.; Guo, X. Bombyx mori cecropin A has a high antifungal activity to entomopathogenic fungus Beauveria bassiana. Gene 2016, 583, 29–35. [Google Scholar] [CrossRef] [PubMed]
  32. Xia, L.; Liu, Z.; Ma, J.; Sun, S.; Yang, J.; Zhang, F. Expression, purification and characterization of cecropin antibacterial peptide from Bombyx mori in Saccharomyces cerevisiae. Protein Expr. Purif. 2013, 90, 47–54. [Google Scholar] [CrossRef] [PubMed]
  33. Huang, Y.; Geng, T.; Hou, C.; Lv, D.; Qin, G.; Gao, K.; Guo, X. Expression patterns of antimicrobial peptide gene enbocin1 in Bombyx mori induced by Beauveria bassiana and its antifungal activity. J. Sci. Seric. 2016, 42, 619–626. [Google Scholar]
  34. Ujita, M.; Kimura, A.; Nishino, D.; Hara, A. Specific binding of silkworm Bombyx mori 30-kDa lipoproteins to carbohydrates containing glucose. Biosci. Biotechnol. Biochem. 2002, 66, 2264–2266. [Google Scholar] [CrossRef] [PubMed]
  35. Ujita, M.; Katsuno, Y.; Kawachi, I.; Ueno, Y.; Banno, Y. Glucan-binding activity of silkworm 30-kDa apolipoprotein and its involvement in defense against fungal infection. Biosci. Biotechnol. Biochem. 2002, 69, 1178–1185. [Google Scholar] [CrossRef] [PubMed]
  36. Fluman, N.; Bibi, E. Bacterial multidrug transport through the lens of the major facilitator superfamily. Biochim. Biophys. Acta 2009, 1794, 738–747. [Google Scholar] [CrossRef] [PubMed]
  37. Heng, J.; Zhao, Y.; Liu, M.; Liu, Y.; Fan, J.; Wang, X.; Zhao, Y.; Zhang, X. Substrate-bound structure of the E. coli multidrug resistance transporter MdfA. Cell Res. 2015, 25, 1060–1073. [Google Scholar] [CrossRef] [PubMed]
  38. Calabrese, D.; Bille, J.; Sanglard, D. A novel multidrug efflux transporter gene of the major facilitator superfamily from Candida albicans (FLU1) conferring resistance to fluconazole. Microbiology 2000, 146, 2743–2754. [Google Scholar] [CrossRef] [PubMed]
  39. Noland, J.; Breitenbach, J.E.; Popham, H.J.; Hum-Musser, S.M.; Vogel, H.; Musser, R.O. Gut transcription in Helicoverpa zea is dynamically altered in response to Baculovirus infection. Insects 2013, 4, 506–520. [Google Scholar] [CrossRef] [PubMed]
  40. Scharf, M.E.; Parimi, S.; Meinke, L.J.; Siegfried, B.D. Expression and induction of three family 4 cytochrome P450 (CYP4) genes identified from insecticide-resistant and susceptible western corn rootworms, Diabrotica virgifera virgifera. Insect Mol. Biol. 2001, 10, 139–146. [Google Scholar] [CrossRef] [PubMed]
  41. Yang, Y.; Yue, L.; Chen, S.; Wu, Y. Functional expression of Helicoverpa armigera CYP9A12 and CYP9A14 in Saccharomyces cerevisiae. Pestic. Biochem. Physiol. 2008, 92, 101–105. [Google Scholar] [CrossRef]
  42. Yang, X.; Xie, W.; Wang, S.; Wu, Q.; Pan, H.; Li, R.; Yang, N.; Liu, B.; Xu, B.; Zhou, X.; Zhang, Y. Two cytochrome P450 genes are involved in imidacloprid resistance in field populations of the whitefly, Bemisia tabaci, in China. Pestic. Biochem. Physiol. 2013, 107, 343–350. [Google Scholar] [CrossRef] [PubMed]
  43. Serebrov, V.; Gerber, O.; Malyarchuk, A.; Martemyanov, V.; Alekseev, A.; Glupov, V.V. Effect of entomopathogenic fungi on detoxification enzyme activity in greater wax moth Galleria mellonella L. (Lepidoptera, Pyralidae) and role of detoxification enzymes in development of insect resistance to entomopathogenic fungi. Biol. Bull. 2006, 33, 581–586. [Google Scholar] [CrossRef]
  44. Loo, Y.M.; Gale, M., Jr. Immune signaling by RIG-I-like receptors. Immunity 2011, 34, 680–692. [Google Scholar] [CrossRef] [PubMed]
  45. Sugiura, N.; Ikeda, M.; Shioiri, T.; Yoshimura, M.; Kobayashi, M.; Watanabe, H. Chondroitinase from baculovirus Bombyx mori nucleopolyhedrovirus and chondroitin sulfate from silkworm Bombyx mori. Glycobiology 2013, 23, 1520–1530. [Google Scholar] [CrossRef] [PubMed]
  46. Nakhaei, P.; Genin, P.; Civas, A.; Hiscott, J. RIG-I-like receptors: Sensing and responding to RNA virus infection. Semin. Immunol. 2009, 21, 215–222. [Google Scholar] [CrossRef] [PubMed]
  47. Cheng, T.; Fu, B.; Wu, Y.; Long, R.; Liu, C.; Xia, Q. Transcriptome sequencing and positive selected genes analysis of Bombyx mandarina. PLoS ONE 2015, 10, e0122837. [Google Scholar] [CrossRef] [PubMed]
  48. Liu, Y.; Shen, D.; Zhou, F.; Wang, G.; An, C. Identification of immunity-related genes in Ostrinia furnacalis against entomopathogenic fungi by RNA-Seq. PLoS ONE 2014, 9, e86436. [Google Scholar]
  49. Li, R.; Yu, C.; Li, Y.; Lam, T.W.; Yiu, S.M.; Kristiansen, K.; Wang, J. SOAP2: An improved ultrafast tool for short read alignment. Bioinformatics 2009, 25, 1966–1967. [Google Scholar] [CrossRef] [PubMed]
  50. Mortazavi, A.; Williams, B.A.; McCue, K.; Schaeffer, L.; Wold, B. Mapping and quantifying mammalian transcriptomes by RNA-Seq. Nat. Methods 2008, 5, 621–628. [Google Scholar] [CrossRef] [PubMed]
  51. Wang, L.; Feng, Z.; Wang, X.; Wang, X.; Zhang, X.; Wang, X. DEGseq: An R package for identifying differentially expressed genes from RNA-seq data. Bioinformatics 2010, 26, 136–138. [Google Scholar] [CrossRef] [PubMed]
  52. Li, Q.; Xiao, Y.; Wu, F.; Ye, M.; Luo, G.; Xing, D.; Li, L.; Yang, Q. Analysis of midgut gene expression profiles from different silkworm varieties after exposure to high temperature. Gene 2014, 549, 85–96. [Google Scholar] [CrossRef] [PubMed]
  53. Franzetti, E.; Huang, Z.; Shi, Y.; Xie, K.; Deng, X.; Li, J.; Li, Q.; Yang, W.; Zeng, W.; Casartelli, M.; et al. Autophagy precedes apoptosis during the remodeling of silkworm larval midgut. Apoptosis 2012, 17, 305–324. [Google Scholar] [CrossRef] [PubMed]

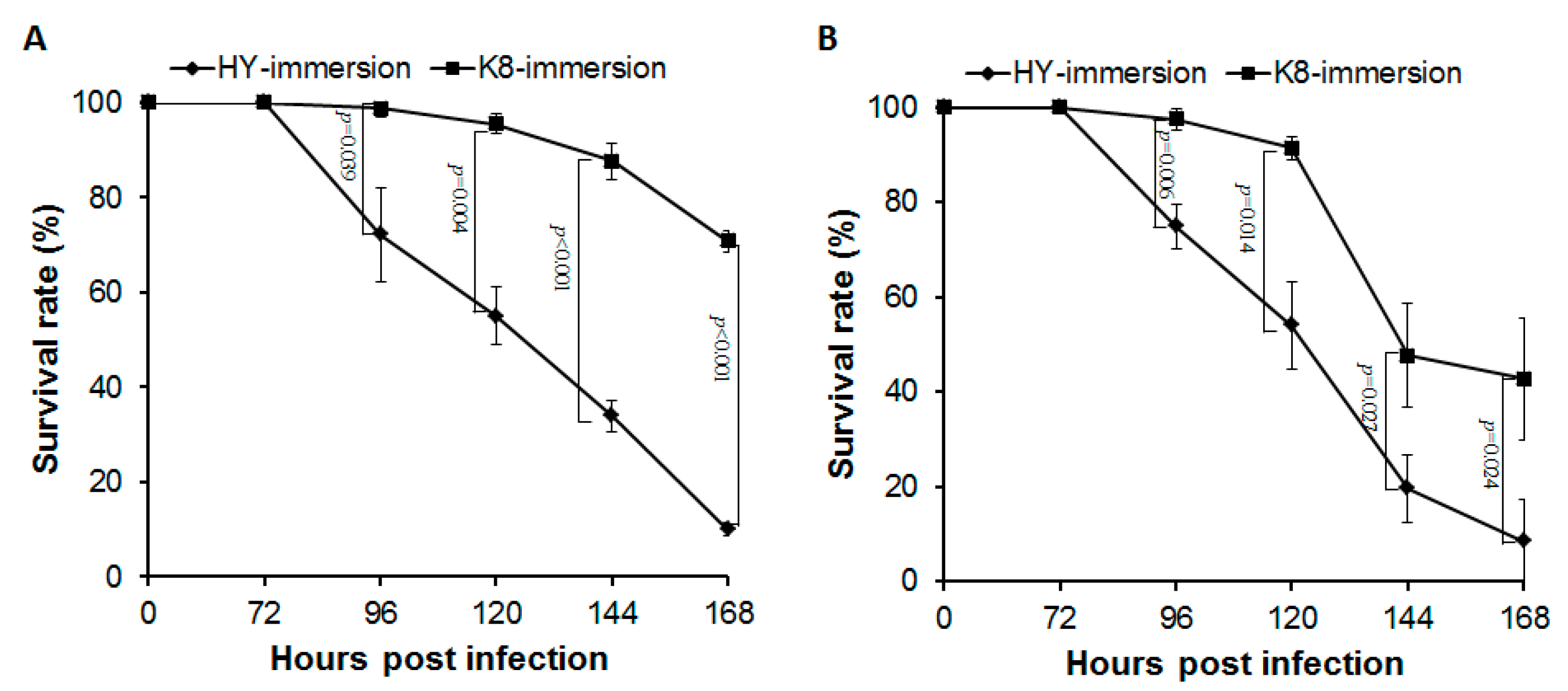

Figure 1. Survival curves of K8 and Haoyue (HY) strains infected by B. bassiana: (A) immersion treatment using a conidial suspension of 1 × 105 conidia/mL; and (B) immersion treatment using a conidial suspension of 5 × 105 conidia/mL. Error bars: SE of the mean. p represents the statistically significantly different value.
Figure 1. Survival curves of K8 and Haoyue (HY) strains infected by B. bassiana: (A) immersion treatment using a conidial suspension of 1 × 105 conidia/mL; and (B) immersion treatment using a conidial suspension of 5 × 105 conidia/mL. Error bars: SE of the mean. p represents the statistically significantly different value.
Ijms 18 00234 g001

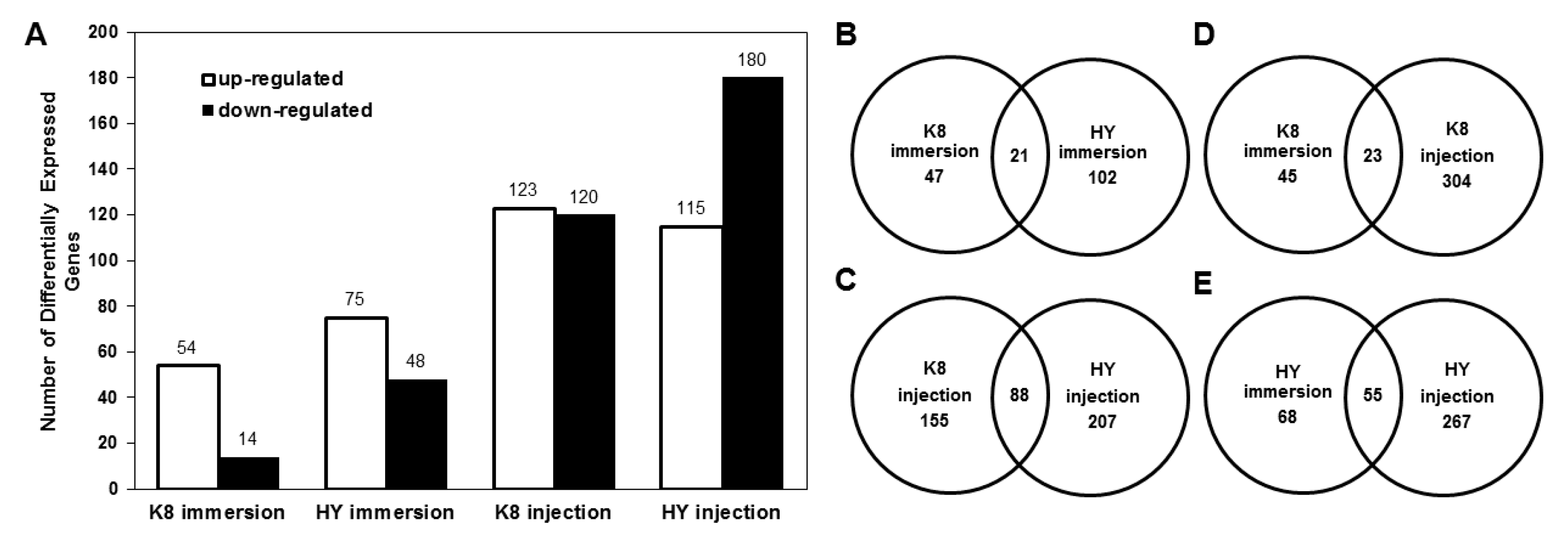

Figure 2. Statistics of differentially expressed genes (DEGs) in K8 and HY strains: (A) number of up-regulated and down-regulated DEGs; (B) Venn plot of DEGs in K8 and HY in the immersion experiment; (C) Venn plot of DEGs in K8 and HY in the injection experiment; (D) Venn plot of DEGs in K8 in immersion and injection experiments; and (E) Venn plot of DEGs in HY in immersion and injection experiments.
Figure 2. Statistics of differentially expressed genes (DEGs) in K8 and HY strains: (A) number of up-regulated and down-regulated DEGs; (B) Venn plot of DEGs in K8 and HY in the immersion experiment; (C) Venn plot of DEGs in K8 and HY in the injection experiment; (D) Venn plot of DEGs in K8 in immersion and injection experiments; and (E) Venn plot of DEGs in HY in immersion and injection experiments.
Ijms 18 00234 g002

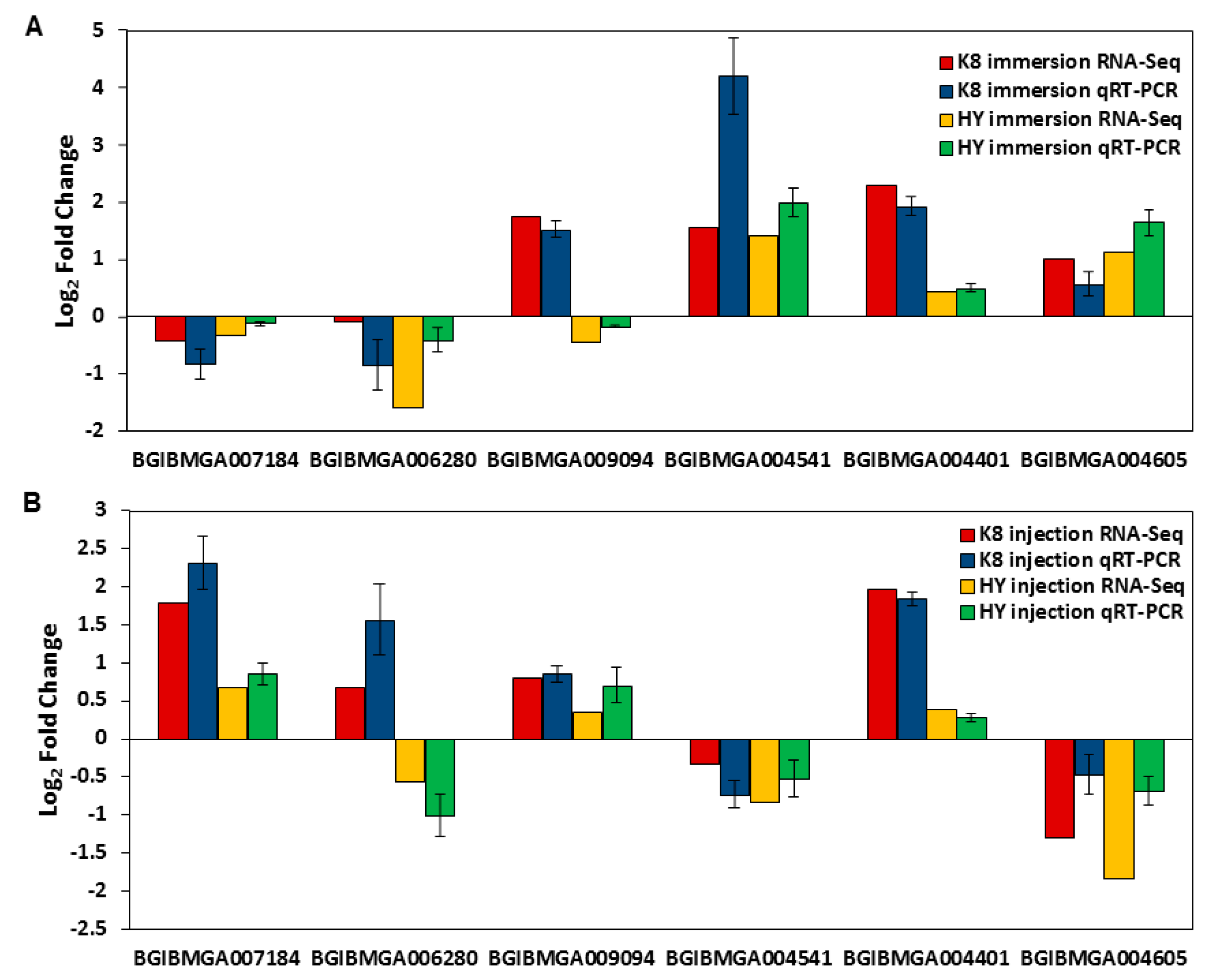

Figure 3. Verification of RNA-Seq results by qPCR: (A) expression patterns of six randomly selected DEGs identified in the immersion experiment; and (B) expression patterns of six randomly selected DEGs identified in the injection experiment. BGIBMGA007184: cytochrome P450 protein. BGIBMGA006280: cecropin A. BGIBMGA009094: BmSPI38. BGIBMGA004541: heat shock protein hsp20.4. BGIBMGA004401: 30K lipoprotein 19G1 precursor. BGIBMGA007184: heat shock protein hsp20.8.
Figure 3. Verification of RNA-Seq results by qPCR: (A) expression patterns of six randomly selected DEGs identified in the immersion experiment; and (B) expression patterns of six randomly selected DEGs identified in the injection experiment. BGIBMGA007184: cytochrome P450 protein. BGIBMGA006280: cecropin A. BGIBMGA009094: BmSPI38. BGIBMGA004541: heat shock protein hsp20.4. BGIBMGA004401: 30K lipoprotein 19G1 precursor. BGIBMGA007184: heat shock protein hsp20.8.
Ijms 18 00234 g003

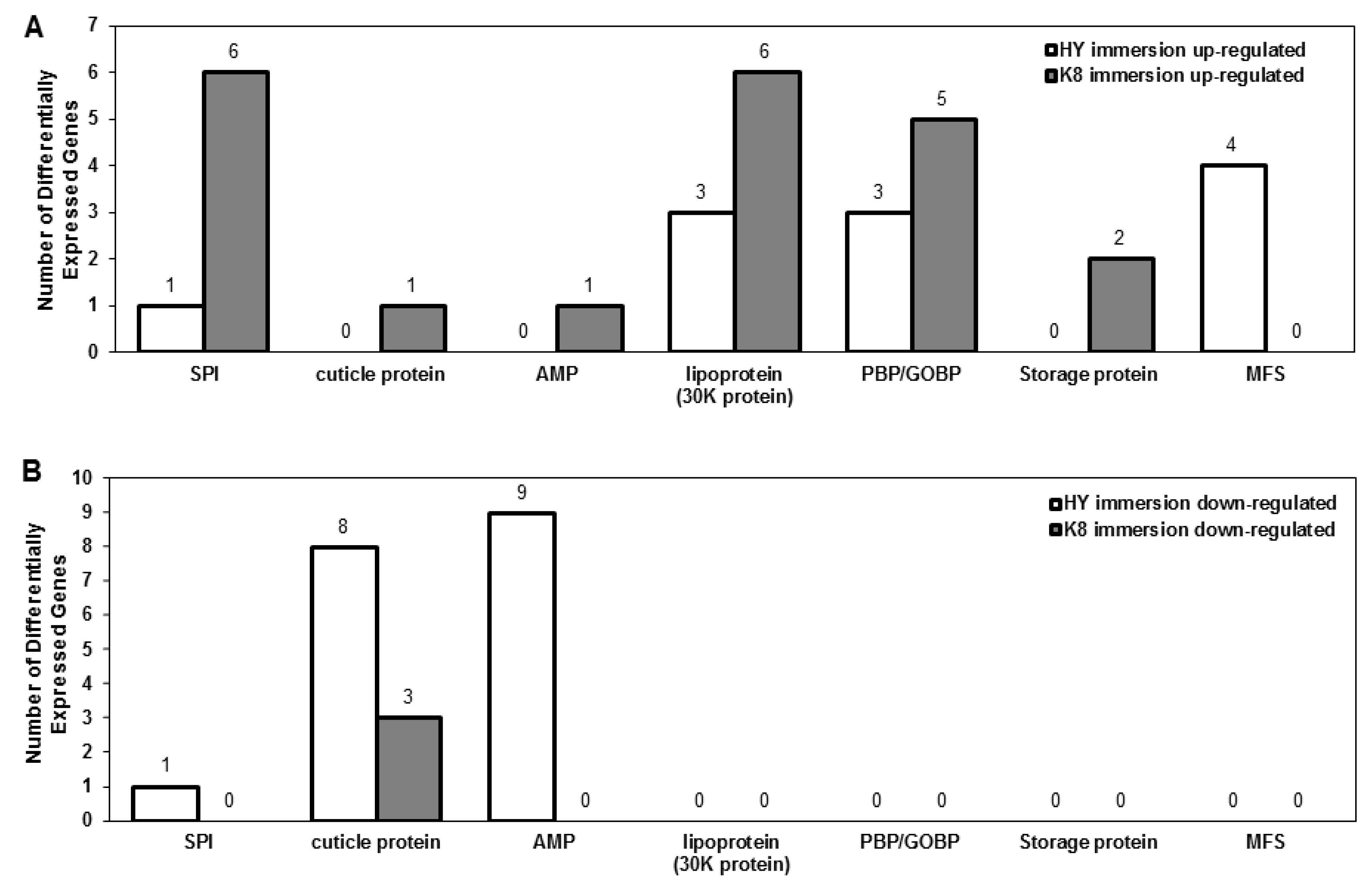

Figure 4. Functional classification of DEGs identified in the immersion experiment: (A) up-regulated genes; and (B) down-regulated genes. SPI, serine protease inhibitor; lipoprotein (30K protein), lepidopteran low molecular weight lipoprotein (30K protein); PBP/GOBP, insect pheromone/odorant binding protein; AMP, antimicrobial peptide; MFS, major facilitator superfamily; PGRP, peptidoglycan recognition protein; PBP/GOBP, pheromone binding protein/general odorant binding protein.
Figure 4. Functional classification of DEGs identified in the immersion experiment: (A) up-regulated genes; and (B) down-regulated genes. SPI, serine protease inhibitor; lipoprotein (30K protein), lepidopteran low molecular weight lipoprotein (30K protein); PBP/GOBP, insect pheromone/odorant binding protein; AMP, antimicrobial peptide; MFS, major facilitator superfamily; PGRP, peptidoglycan recognition protein; PBP/GOBP, pheromone binding protein/general odorant binding protein.
Ijms 18 00234 g004

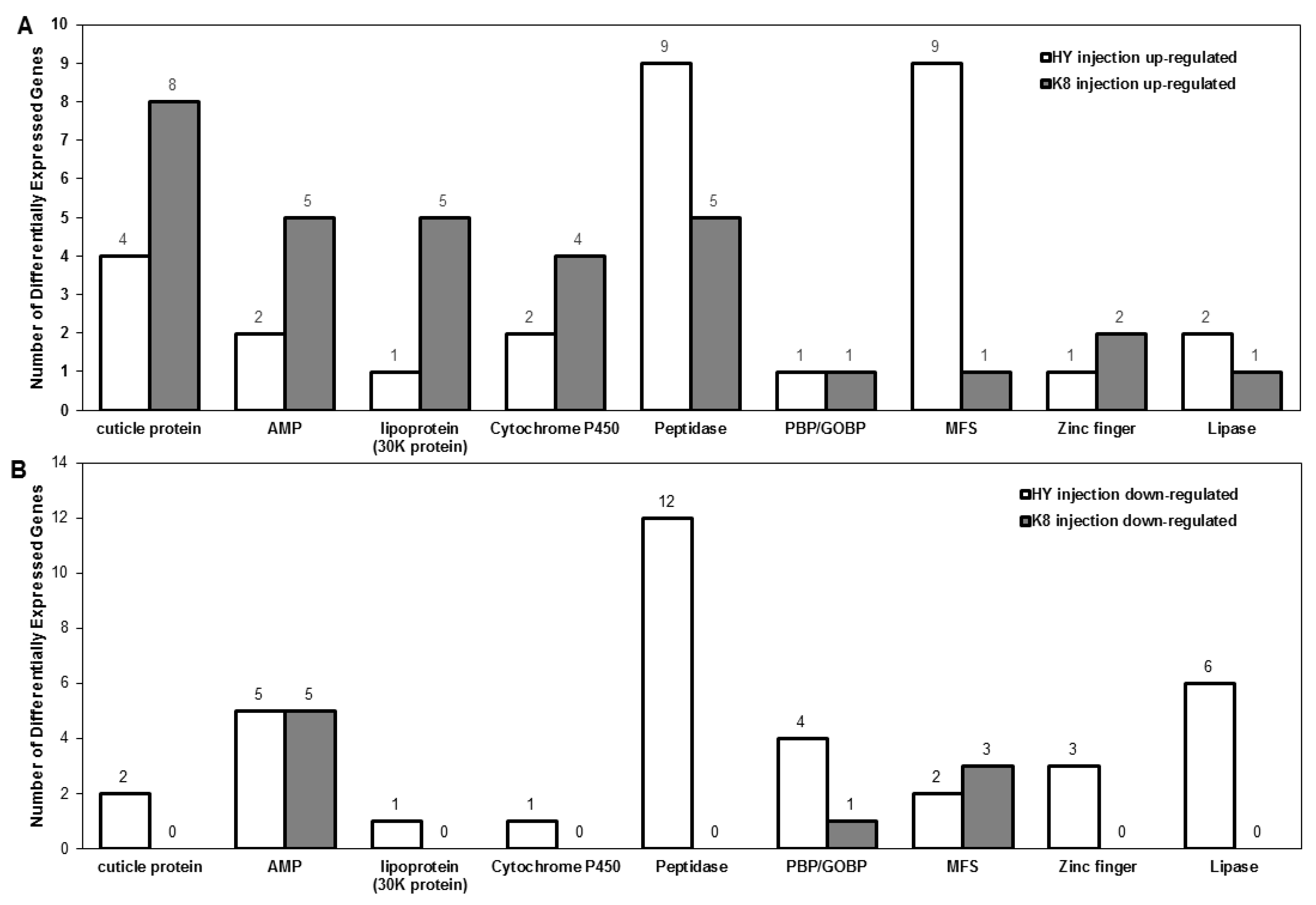

Figure 5. Functional classification of DEGs identified in the injection experiment: (A) up-regulated genes; and (B) down-regulated genes. Lipoprotein (30K protein), lepidopteran low molecular weight lipoprotein (30K protein); PBP/GOBP, insect pheromone/odorant binding protein; AMP, antimicrobial peptide; MFS, major facilitator superfamily.
Figure 5. Functional classification of DEGs identified in the injection experiment: (A) up-regulated genes; and (B) down-regulated genes. Lipoprotein (30K protein), lepidopteran low molecular weight lipoprotein (30K protein); PBP/GOBP, insect pheromone/odorant binding protein; AMP, antimicrobial peptide; MFS, major facilitator superfamily.
Ijms 18 00234 g005

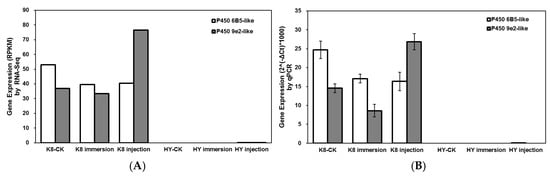

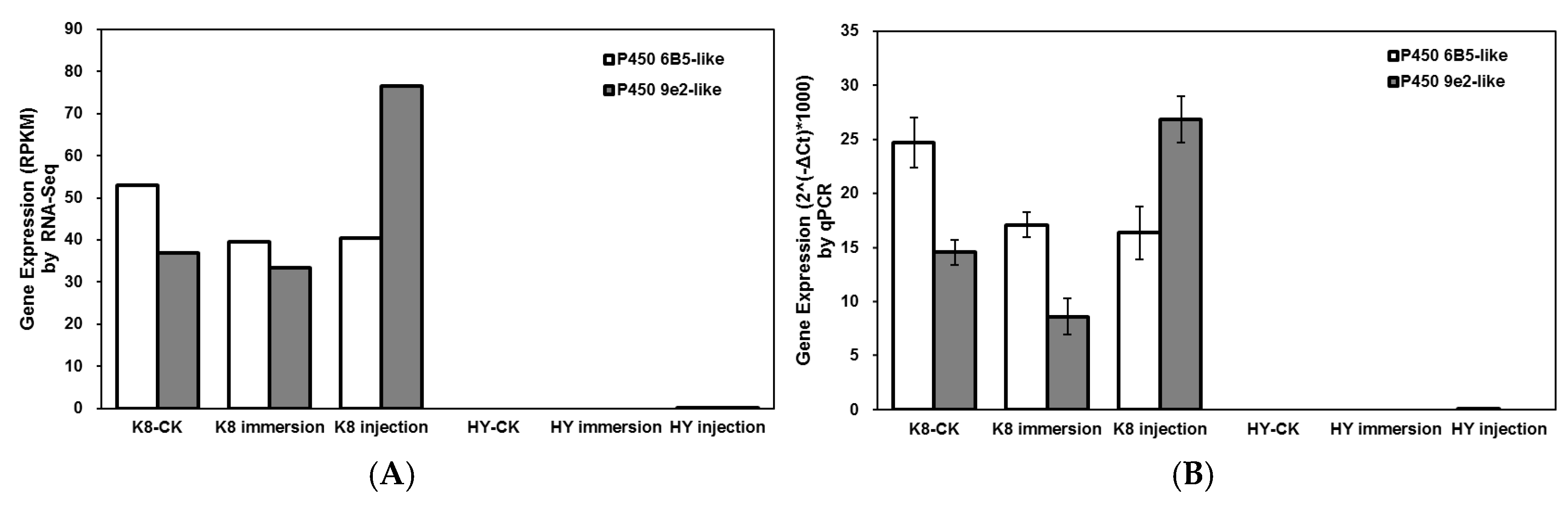

Figure 6. Validation of K8-specific expressed genes by qPCR: (A) RNA-Seq results of P450 6B5-like and P450 9e2-like; and (B) qPCR results of P450 6B5-like and P450 9e2-like.
Figure 6. Validation of K8-specific expressed genes by qPCR: (A) RNA-Seq results of P450 6B5-like and P450 9e2-like; and (B) qPCR results of P450 6B5-like and P450 9e2-like.
Ijms 18 00234 g006
Table 1. Summary of sequencing data.
Table 1. Summary of sequencing data.
SampleRaw ReadsClean ReadsClean BaseTotal MappedTotal Mapped RatioUnique Match
HY-control-114,538,84714,283,926714,196,30012,821,13689.76%48.20%
HY-control-213,093,16212,957,649647,882,45011,439,00988.28%53.63%
HY-control-314,750,89414,604,137730,206,85012,986,07288.92%62.05%
HY-immersion-118,735,78618,318,940915,947,00016,445,94189.78%52.31%
HY-immersion-214,899,36314,591,964729,598,20013,070,88089.58%51.16%
HY-immersion-312,500,10412,366,585618,329,25011,040,40289.28%54.10%
HY-injection-115,171,91114,914,968745,748,40013,195,86488.47%74.54%
HY-injection-215,078,47914,804,938740,246,90012,837,56286.71%72.23%
K8-control-117,655,18117,298,316864,915,80015,429,68589.20%45.02%
K8-control-212,458,91212,334,197616,709,85010,425,37484.52%57.16%
K8-control-313,424,03813,277,104663,855,20011,612,99887.47%53.37%
K8-immersion-115,981,46615,699,938784,996,90014,060,64989.56%40.49%
K8-immersion-217,412,12717,068,312853,415,60015,368,96690.04%50.74%
K8-immersion-312,750,86612,610,756630,537,80011,102,95188.04%47.15%
K8-injection-114,183,64913,929,356696,467,80012,446,50689.35%74.64%
K8-injection-214,573,11014,328,895716,444,75012,705,75088.67%74.15%
Average14,825,49314,586,874729,343,69112,936,85988.60%56.93%
Table 2. KEGG pathway enrichment analysis.
Table 2. KEGG pathway enrichment analysis.
Pathway IDDescriptionp Value
ImmersionInjection
K8HYK8HY
ko00232Caffeine metabolism0.0045
ko04974Protein digestion and absorption0.0266
ko00020Tricarboxylic acid (TCA) cycle0.03040.0340
ko04972Pancreatic secretion0.03530.0410
ko00720Carbon fixation pathways in prokaryotes0.0494
ko00052Galactose metabolism0.0011
ko04512ECM-receptor interaction0.01580.0214
ko00561Glycerolipid metabolism0.02210.0087
ko04145Phagosome0.04040.00063.9 × 10−5
ko04142Lysosome0.04520.0001
ko00603Glycosphingolipid biosynthesis—globo series0.0469
ko00531Glycosaminoglycan degradation0.0469
ko00604Glycosphingolipid biosynthesis—ganglio series0.0469
ko04711Circadian rhythm—fly0.00040.0294
ko05130Pathogenic Escherichia coli infection0.00070.0119
ko00511Other glycan degradation0.00240.0023
ko05215Prostate cancer0.00410.0381
ko04919Thyroid hormone signaling pathway0.00620.0496
ko04390Hippo signaling pathway0.0088
ko04975Fat digestion and absorption0.0105
ko05166Human T-cell lymphotropic virus I (HTLV-I) infection0.01050.0486
ko04612Antigen processing and presentation0.01150.0109
ko05200Pathways in cancer0.0118
ko05217Basal cell carcinoma0.0126
ko00010Glycolysis/Gluconeogenesis0.0130
ko05164Influenza A0.01380.0128
ko04151PI3K-Akt signaling pathway0.01550.0141
ko04391Hippo signaling pathway—fly0.0179
ko04621Nucleotide-binding oligomerization domain (NOD)-like receptor signaling pathway0.0179
ko00591Linoleic acid metabolism0.0186
ko00565Ether lipid metabolism0.0192
ko04141Protein processing in endoplasmic reticulum0.01990.0025
ko04510Focal adhesion0.0206
ko04662B cell receptor signaling pathway0.02260.0214
ko03320Peroxisome proliferator-activated receptor (PPAR) signaling pathway0.02550.0242
ko05131Shigellosis0.0270
ko00592α-Linolenic acid metabolism0.0270
ko00600Sphingolipid metabolism0.0278
ko05169Epstein-Barr virus infection0.02800.0260
ko05205Proteoglycans in cancer0.0284
ko05222Small cell lung cancer0.03010.0285
ko04014Ras signaling pathway0.0306
ko04540Gap junction0.03090.0293
ko05134Legionellosis0.0309
ko04146Peroxisome0.0325
ko04916Melanogenesis0.0333
ko04144Endocytosis0.0352
ko01040Biosynthesis of unsaturated fatty acids0.0419
ko05160Hepatitis C0.04560.0433
ko04660T cell receptor signaling pathway0.04650.0441
ko04910Insulin signaling pathway0.04840.0459
ko04931Insulin resistance0.0055
ko05145Toxoplasmosis0.0062
ko05162Measles0.0094
ko00310Lysine degradation0.0118
ko04623Cytosolic DNA-sensing pathway0.0170
ko00380Tryptophan metabolism0.0181
ko05110Vibrio cholerae infection0.0201
ko04920Adipocytokine signaling pathway0.0221
ko05323Rheumatoid arthritis0.0285
Table 3. KEGG pathways containing genes differentially expressed in K8 and HY strains.
Table 3. KEGG pathways containing genes differentially expressed in K8 and HY strains.
KEGG Termp-ValueCorrected p-Value
ko04622:RIG-I-like receptor signaling pathway0.00050.0459
ko00983:Drug metabolism—other enzymes0.00120.0459
ko00830:Retinol metabolism0.00120.0459
Table 4. Genes specifically expressed in the K8 strain.
Table 4. Genes specifically expressed in the K8 strain.
NameLengthKO NameKO IDDescription
BGIBMGA004606507--Heat shock protein hsp20.4 [Bombyx mori]
BGIBMGA004882759--bmp-2 [Bombyx mori]
BGIBMGA0132381347--P450 6B5-like|cytochrome P450 CYP6AE7 [Bombyx mori]
BGIBMGA003907402CYP3AK07424Cytochrome P450
BGIBMGA0039081044CYP9K15003P450 9e2-like|E-class P450, group II; Cytochrome P450
BGIBMGA010047810--Quinoprotein amine dehydrogenase, β chain-like

Share and Cite

MDPI and ACS Style

Xing, D.; Yang, Q.; Jiang, L.; Li, Q.; Xiao, Y.; Ye, M.; Xia, Q. RNA-Seq Analyses for Two Silkworm Strains Reveals Insight into Their Susceptibility and Resistance to Beauveria bassiana Infection. Int. J. Mol. Sci. 2017, 18, 234. https://doi.org/10.3390/ijms18020234

AMA Style

Xing D, Yang Q, Jiang L, Li Q, Xiao Y, Ye M, Xia Q. RNA-Seq Analyses for Two Silkworm Strains Reveals Insight into Their Susceptibility and Resistance to Beauveria bassiana Infection. International Journal of Molecular Sciences. 2017; 18(2):234. https://doi.org/10.3390/ijms18020234

Chicago/Turabian Style

Xing, Dongxu, Qiong Yang, Liang Jiang, Qingrong Li, Yang Xiao, Mingqiang Ye, and Qingyou Xia. 2017. "RNA-Seq Analyses for Two Silkworm Strains Reveals Insight into Their Susceptibility and Resistance to Beauveria bassiana Infection" International Journal of Molecular Sciences 18, no. 2: 234. https://doi.org/10.3390/ijms18020234

Note that from the first issue of 2016, this journal uses article numbers instead of page numbers. See further details here.

Article Metrics

Back to TopTop
