Article

Antimelanogenic Effect of an Oroxylum indicum Seed Extract by Suppression of MITF Expression through Activation of MAPK Signaling Protein

1
Department of Food Science and Biotechnology, Graduate School, Kyungpook National University, Daegu 41566, Korea
2
Food and Bio-Industry Research Institute, Kyungpook National University, Daegu 41566, Korea
3
MR Innovation Co., Ltd., KNU Technopark, Daegu 41566, Korea
*
Author to whom correspondence should be addressed.
These authors contributed equally to this work.
Int. J. Mol. Sci. 2018, 19(3), 760; https://doi.org/10.3390/ijms19030760
Submission received: 17 November 2017 / Revised: 13 February 2018 / Accepted: 14 February 2018 / Published: 7 March 2018
(This article belongs to the Special Issue Melanins and Melanogenesis: From Nature to Applications)

Abstract

:
In this study, the antimelanogenic effect of an ethyl acetate fraction of Oroxylum indicum Vent. seeds (OISEA) and its underlying mechanisms in melan-a cells were investigated. Antimelanogenesis activity was confirmed by assessing inhibition of tyrosinase activity and melanin content in the cells. Both transcriptional and translational expression of microphthalmia-associated transcription factor (MITF), tyrosinase, and tyrosinase related protein-1 and 2 (TYRP-1 and TYRP-2), were also examined. The results depicted that pretreatment of OISEA significantly inhibits not only tyrosinase activity, but melanin production and intracellular tyrosinase activity. By repressing the expression of tyrosinase, TYRP-1, TYRP-2, and MITF, OISEA interrupted melanin production. Additionally, OISEA interfered with the phosphorylation of p38, extracellular signal-regulated kinase 1/2 (ERK1/2), and c-Jun N-terminal kinase (JNK), with the reversal of OISEA-induced melanogenesis inhibition after treatment with the specific inhibitors SB239063, U0126, and SP600125. Overall, these results suggest that OISEA can stimulate p38, ERK1/2, JNK phosphorylation, and subsequent suppression of melanin, leading to the inhibition of melanogenic enzymes and melanin production, possibly owing to the presence of polyphenolic compounds.

1. Introduction

Melanin, a multifunctional biopolymer, is synthesized in melanocytes and transferred to keratinocytes [1]. It has many fundamental physiological functions, including contribution to the color of the skin and protection of the skin from ultraviolet radiation (UVR)-induced damage. However, abnormal hyperpigmentation in human skin, such as melasma, freckles, and chloasma, is a serious aesthetic problem [2]. Hence, the inhibitors of melanogenesis have gained substantial attention in clinical and cosmetic research. Currently, several cutaneous depigmentation agents, such as kojic acid, arbutin, and ellagic acid, isolated from natural resources, are used as cosmetic agents [3].
Tyrosinase (copper-containing enzyme) plays a pivotal role in melanogenesis. It catalyzes the two rate-limiting steps of melanin biosynthesis: first, production of 3,4-dihydroxyphenylalanine (DOPA) by hydroxylation of tyrosine, referred to as monophenolase activity, and second, formation of dopaquinone from oxidation of DOPA, which is known as diphenolase activity [4]. The inhibition of tyrosinase function is an efficient approach in the treatment of hyperpigmentary disorders. Melanogenesis is regulated by numerous physiological and pathological effectors, such as ultraviolet radiation, melanocortin, NO, sex steroids, and various growth factors [5]. Evidence indicates that the UV-induced generation of reactive oxygen species (ROS) and reactive nitrogen species (RNS) in melanocytes, and induction of melanogenesis, are perhaps through the upregulation of tyrosinase [6]. Melanogenesis is also modulated by various signal transduction pathways, such as the cyclic adenosine monophosphate (cAMP)/protein kinase A (PKA) pathway, which is viewed as being among the most important regulators of melanogenesis [7]. Furthermore, mitogen-activated protein kinase (MAPK) signaling through extracellular signal-regulated kinases (ERK), c-Jun N-terminal kinase (JNK), and p38 MAPK leads to microphthalmia-associated transcription factor (MITF) ubiquitination and degradation, and plays a crucial role in lessening melanin production [8].
Being safe and mostly free of side effects, natural products are considered suitable for the exploitation of effective and prophylactic skin depigmentation agents in cosmetic research and development. To exploit novel ingredients displaying tyrosinase-inhibitory activities as leading structures for inhibitors of melanin biosynthesis, many extracts/fractions of medicinal plants have been assessed using a tyrosinase inhibition assay. Among these plants and their extracts, the ethanol extract of the seeds of Oroxylum indicum Vent. (OIS) (Figure 1A) exhibited potent antioxidant and tyrosinase-inhibiting activities. O. indicum. (Bignoniaceae) is a tree commonly found in tropical countries, such as China, India, Japan, Sri Lanka, and Malaysia. Different parts of this plant are rich in polyphenolics, such as chrysin, apegenin, prunetin, baicalein and its glucosides, sitosterol, oroxindin, biochanin-A, ellagic acid, scutellarein, tetuin, antraquinone, and aloe-emodin [9,10,11,12]. In Ayurveda and folk medicine, various parts of the plant are practiced for the treatment of different ailments, such as cancer, diarrhea, fever, ulcer, and jaundice [13]. Recent studies disclosed that the plants had anti-inflammatory, antiulcer [14], antiproliferative, anticancer [10], antioxidant [12], and immunostimulant [15] properties. However, there is no scientific foundation for O. indicum-based folk cosmetics. In the present study, we investigated the inhibitory effect of an OIS extract on tyrosinase and melanogenesis, as well as its underlying molecular mechanism, in melan-a cells.

2. Results

2.1. High-Performance Liquid Chromatograms of the Ethyl Acetate Fraction of Oroxylum indicum Vent. Seeds (OISEA)

Recent research suggested that polyphenolics from the natural sources are viewed as the most promising therapeutic agents for the prevention of various skin disorders, such as hyperpigmentation, aging, and cancer. Various polyphenols, exhibiting antioxidant potential, are playing an important role in controlling skin balance that can be utilized as superlative natural compounds for a variety of skin troubles and whitening. Therefore, it is worthwhile to resolve the total phenolic and flavonoid content in the plant taken for the study (Figure 1B). In this study, total phenolic and flavonoids contents of OISEA were 399.92 ± 132.78 mg gallic acid equivalent (GAE)/g and 446.77 ± 116.87 mg caffeic acid equivalent (CAE)/g, respectively. Interestingly, the HPLC chromatogram (Figure 1C) showed that the OISEA extract possessed various polyphenolics compared with the same retention times as the following standard polyphenolics: gallic acid (8.17 min), caffeic acid (12.25 min), baicalein (22.15 min), chrysin (25.44 min), and oroxylin B (27.53 min). Using the peak areas of standards with known concentrations, the amounts of these polyphenolic compounds in OISEA were calculated. As shown in Figure 1C, the contents of gallic acid, caffeic acid, baicalein, chrysin, and oroxylin B were 2.565%, 1.059%, 22.654%, 2.445%, and 3.136%, respectively.

2.2. Inhibitory Effects of OISEA on Tyrosinase Activity

In our ongoing research to identify melanogenesis inhibitors from natural sources, the ethanol extract, along with its various organic fractions of OIS, were found to hinder mushroom tyrosinase activity (Figure 2A and Figure S1). To the best of our knowledge, as no kinetic study on this inhibitory effect has been conducted earlier, to evaluate the tyrosinase inhibitory effect of the ethyl acetate fraction of OIS (OISEA), we tested its effect on the monophenolase activity of the enzyme by fixing the kinetic parameters (Figure 2B). When tyrosinase initiated the enzymatic reaction through the action on l-tyrosine, a distinguished lag period, as a characteristic of monophenolase activity, was observed (Figure 2B).

2.3. Effects of the OISEA on Melanogenesis

Melanin levels in melan-a cells were essayed after exposure to OISEA at concentrations of 3–30 µg/mL, which did not exhibit any cytotoxic effect (Figure 3A). We observed that melanin levels were significantly remittent after exposure to OISEA in a dose-dependent manner (Figure 3B, 3–5 columns). Furthermore, to examine the inhibitory mechanisms of OISEA on melanogenesis more precisely, l-DOPA zymography was performed to accomplish the intracellular tyrosinase activity in melan-a cells. As shown in Figure 3C (3–5 columns), treatment with OISEA at indicated concentrations increased tyrosinase inhibition. These results suggest that OISEA inhibits melanogenesis in melan-a cells.

2.4. Effects of OISEA on the mRNA and Protein Expression of Melanogeneis-Related Genes

To elucidate the mechanics of OISEA on melanogenesis, we next examined the expression of tyrosinase, TYRP-1, TYRP-2, and MITF in melan-a cells after treatment with OISEA (3, 10, or 30 μg/mL) for 4 days. OISEA suppressed the mRNA expression of Mitf and its downstream genes tyrosinase, Tyrp-1, and Tyrp-2 (Figure 4A). In addition, 30 μg/mL OISEA importantly shortened tyrosinase, TYRP-1, TYRP-2, and MITF protein levels in a dose-dependent manner compared with the control (Figure 4B,C). These results evoke that OISEA ameliorated melanogenesis by conquering the expression of tyrosinase, TYRP-1, and TYRP-2 through the deactivation of MITF in melan-a cells.

2.5. Effects of OISEA on MAPK-Dependent Signaling in Melan-a Cells

Next, to identify the particular mechanisms inherent, the antimelanogenic activity of OISEA, Western blot analysis of p38, ERK, and JNK signaling proteins were studied in melan-a cells. OISEA at nontoxic concentrations efficaciously actuated the phosphorylation of p38, ERK, and JNK in a time-dependent manner (Figure 5A). Furthermore, co-treatment of OISEA with p38 inhibitor (SB239063), ERK1/2 inhibitor (U0126), and JNK inhibitor (SP600125) significantly reversed OISEA-induced decrease in melanin content (Figure 5B).

3. Discussion

For the purpose of applications of cosmetics and food industry of useful herbal and/or Oriental plants, it is important to carry out isolation, identification, characterization, and evaluation of functionality and mechanistic studies, in vitro and in vivo. Originally, O. indicum is a commonly used herbal medicine in Ayurveda. The roots, leaves, and stems of O. indicum have been used individually, or as components of other Ayurvedic drug preparations for the treatment of various disorders. A few scientific studies have been conducted on the possible cosmetic applications of the various parts of the plant, and hence, extensive investigations are required to exploit their therapeutic utility. In the present study, ethyl acetate fraction of Oroxylum indicum Vent. seeds (OISEA) was observed to cause significant inhibition of tyrosinase activity. Interestingly, OISEA acted as a tyrosinase inhibitor at its monophenolase phase. The lag period was dependent on enzyme and substrate concentrations in the reaction medium, and was minimized, or even abolished, owing to the presence of the catalytic amount of transition metal ions or o-diphenols [16]. However, the lag phase is known to be extended by some monophenolase inhibitors, such as glabrene and p-alkoxybenzoic acid. OISEA extended the lag phase by 20 min compared with the control, particularly when its concentration was 100 μg/mL. Our results lead us to hypothesize that OISEA were attached to a site different from the active site, and hindered the binding of substrate to the enzyme through steric hindrance or by changing the protein conformation [17].
Tyrosinase plays a central role in the melanin biosynthesis, as it converts l-tyrosinase to l-DOPA, which is then oxidized to from dopachrome. Hence, mushroom tyrosinase inhibition assay is a widely acceptable screening method to develop the potential inhibitors of melanogenesis [5]. Here, OISEA showed substantial inhibitory effects on mushroom tyrosinase activity (Figure 2A). Furthermore, OISEA treatment significantly attenuated the intracellular tyrosinase activity and eventually suppressed the melanin production in melan-a cells (Figure 2B,C). Tyrosinase inhibitory activities of OISEA are involved in its phenolic acids and antioxidant activities, which are close to that of an earlier study [18], where it was described that TYR inhibitory activity is related to the hydroxyl group of phenolic compounds. This group forms hydrogen bonds with enzyme active sites to enhance steric hindrance, conformation changes, and directly take enzymatic activity. Recent studies reported that gallic acid and caffeic acid are effective TYR inhibitors [2,19]. A potent suppressive impact on tyrosinase was also shown by a leaf extract from Morus alba, commonly used in traditional medicine, mainly due to the presence of phenolic compounds in the extract [20].
Noteworthy that MITF and its downregulation proteins, such as tyrosinase, TYRP-1, TYRP-2, MITF, ASIP (agouti signaling protein), and MGRN1 (mahogunin ring finger-1) [21], are viewed as the regulators of melanogenesis, and tyrosinase inhibitors may control melanin production by suppressing their mRNAs and protein levels in cells. In the present study, OISEA treatment significantly suppressed the mRNA level of MITF, and its downstream targets, such as tyrosinase, TYRP-1, and TYRP-2 (Figure 3), as well as their proteins levels. The current results indicate that OISEA deteriorated melanogenesis by controlling the expression of tyrosinase, TYRP-1, and TYRP-2 via a deactivation pathway of MITF in melan-a cells. A recent study revealed that the extract from the small shrub Arthrophytum scoparium presented tyrosinase and tyrosinase-regulated gene repression, predominantly due to the downregulation of microphthalmia-associated transcription factor (Mitf) and melanocortin 1 receptor (Mc1R) [22]. The MAP kinase family, including extracellular signal-regulated kinase (ERK)1/2, c-Jun N-terminal kinase (JNK), and p38 MAPK, plays a crucial role in melanogenesis. Investigations imply that p38 MAPK is an intracellular signaling molecule vital to pigment formation [23], and the ERK1/2 and JNK are also related to the downregulation of melanogenic processes [8]. We therefore analyzed the influence of OISEA treatment on the activation of ERK, JNK, and p38 MAPK, to further investigate the molecular mechanisms engaged in the melanogenesis in melan-a cells, by Western blot assay. In this study, OISEA treatment significantly enhanced the phosphorylation of p38, ERK, and JNK in a time-dependent manner. This finding proposed that OISEA-induced antimelanogenesis in melan-a cells through MAPKs mediated pathways. Furthermore, co-treatment with OISEA and specific inhibitors (SB239063 for p38, U0126 for ERK1/2, and SP600125 for JNK) significantly reversed OISEA-induced melanin content (Figure 4B).
Antioxidants are also well acknowledged to play a pivotal role in the antimelanogenesis [21]. In this study, OISEA had significant scavenging capacity of DPPH (a stable organic nitrogen radical) and ABTS•+ (a mixed electron and hydrogen atom transfer assay) in a dose-dependent manner (Figure S2). In addition, OISEA was found to have a strong electron donating capacity to reduce Cu and Fe metal, in cupric reducing antioxidant capacity (CUPRAC) and ferric reducing antioxidant power (FRAP) assay, respectively, and acted in a concentration-dependent fashion (Figure S3). This can be compared by Pearson’s correlation analysis between antioxidant and antimelanogenic potentials. It is noteworthy that OISEA is rich in polyphenolic compounds [9,10]. Recent studies have shown that polyphenolics with antioxidative potential showed repressive effects on melanogenesis in B16 cells [21,24]. In this study, HPLC analysis revealed that gallic acid, caffeic acid, baicalein, chrysin, and oroxylin A were present in OISEA. Interestingly, gallic acid, caffeic acid, baicalein, and chrysin have been accounted to have both antioxidative and antimelanogenic effects [19,25,26,27], whereas oroxylin B had no such reports. A literature review revealed that baichalein and chrysin inhibited melanin production 20% and 60%, at 50 μM and 100 μM, respectively. In the present study, OISEA suppressed melanin production by 58% at 30 μg/mL, suggesting that the cluster of polyphenolics in OISEA was providing the synergistic effects.

4. Materials and Methods

4.1. Plant Materials and Extraction

OIS (Figure 1A) were bought from a Chinese traditional herb store in Zhengzhou, China. The plant material was taxonomically identified, and the voucher specimen (#2016-Oi) was retained in our laboratory for future reference. The air-dried OIS (30 g) were pulverized and extracted with 100% ethanol for 24 h three times in a shaking incubator at 45 °C. Next, the supernatant was decanted through a filter paper (No. 1 Whatman Schleicher Schuell, Keene, NH, USA) and lyophilized with a freeze dryer (Ilsinbiobase, Goyang, Korea). The residue considered as ethanol extract (OISE). Approximately twenty grams of OISE was suspended in 200 mL of deionized H2O, followed by consecutive partitioning with chloroform and ethyl acetate using separatory funnels, in a stepwise manner. Then, vacuum filtration and concentration using a rotary vacuum evaporator (Tokyo Rikakikai Co. Ltd., Tokyo, Japan) were carried out, producing a chloroform fraction (OISC) (2.98 g), ethyl acetate fraction (OISEA) (4.52 g), and aqueous fraction (4.21 g). Finally, all extract/fractions had subjected to dissolution in deionized H2O at a concentration of 30 mg/mL.

4.2. Drugs and Chemicals

Arbutin, sodium hydroxide, O-tetradecanoyl phorbol-13-acetate (TPA), thiazolyl blue tetrazolium bromide (MTT), Tween-20, and l-tyrosine were purchased from Sigma-Aldrich Co. (St. Louis, MO, USA). Other chemicals were of special grade, and were commercially available.

4.3. Chemical Compound Analysis by High-Performance Liquid Chromatography

An Agilent 1200 chromatographic system equipped with a quaternary pump, an UV–vis diode-array detector, an automatic injector, and ChemStation software (Palo Alto, CA, USA) was operated for the high-performance liquid chromatography (HPLC) separation, identification, and quantification of polyphenol compounds. A 0.45-µm nylon filter (E0034, Análisis Vínicos, Tomelloso, Spain) was used to filter the sample before analysis. All analyses were performed in triplicate. The quantification of phytoconstituents in ethanol extracts was performed by the HPLC method on a base deactivated RP [28]. Complete separation of the phytoconstituents was achieved using a Zorbax C18 column (150 × 4.6 mm, 5 µm particle size; Agilent Technologies, Santa Clara, CA, USA) maintained at 30 °C. The mobile phase consisted of water/methanol/acetonitrile/ortho phosphoric acid (60:30:38:1, v/v/v/v). The flow rate was 1 mL/min, and the injection volume was 10 µL. The wavelengths of detection were 262 nm. The isocratic method was run for 35 min, and compounds were distinguished by comparing their retention time with those of the available pure standards. The external calibration method was used for quantification by comparing their areas with those of standards of gallic acid, caffeic acid, baicalein, chrysin, and oroxylin B.

4.4. Tyrosinase Inhibition Assay

The mushroom tyrosinase inhibitory activity of OISEA was determined by spectrophotometry as described previously, with minor modifications [29]. The reaction mixture containing 100 μL of 0.1 M phosphate buffer (pH 6.5) with or without sample, 50 μL of 1 mM l-tyrosine, and 50 μL of mushroom tyrosinase (200 units/mL) was added into a 96-well microplate (SPL, Pocheon, Korea). The linear increase in OD490 was measured at room temperature.

4.5. Cell Culture and Cell Viability Assay

Melan-a was obtained from Dorothy C. Bennett (St George’s, University of London, London, UK) and was cultured at 37 °C under 5% CO2 in RPMI 1640 supplemented with 10% fetal bovine serum (FBS, Hyclone, Utah, UT, USA), streptomycin–penicillin (100 µg/mL each), and 200 nM TPA (a potent tumor promoter) every 3 days, up to a maximum of 40 passages. The cytotoxicity of OISEA was measured by using the MTT assay based on the reduction of MTT to formazan. In brief, cells were seeded in 96-well plates (1 × 105 cells/well), incubated overnight, and exposed to various concentrations of OISEA for the next 24 h, followed by the addition of 10% MTT solution to each well, and incubated at 37 °C for 1 h. After removing the media, the plate was washed twice with phosphate-buffered saline (pH 7.4). Dimethyl sulfoxide (DMSO) was used to solubilize the formazan and measured at 570 nm by a plate reader (Victor3, Perkin Elmer, Waltham, MA, USA), and the cell viability was analyzed as a percentage.

4.6. Cellular Melanin Content in Melan-A Cells

Cells (1 × 105 cells/mL) were plated into a 24-well plate (BD Falcon, Bedford, MA, USA), and permitted to attach overnight. The old media was removed by suction, followed by the addition of fresh media containing predetermined concentrations of OISEA, and culture for 72 h. Thereafter, cells were rinsed twice with PBS, lysed in 1 N NaOH, and measured at 405 nm by a microplate reader (VICTOR3, Perkin Elmer) for melanin content. Arbutin was used as a positive control.

4.7. Analysis of Intracellular Tyrosinase Activity by Zymography

Tyrosinase zymography was executed as previously described [4]. Cells were pretreated with or without OISEA for 72 h. Cells were washed with PBS twice and lysed with RIPA buffer supplemented with phosphatase and protease cocktail inhibitors. A BCA protein assay kit (Pierce Biotechnology, Rockford, IL, USA) was used to measure total protein concentration. A 50 μg sample of total proteins were separated by 10% SDS-PAGE (sodium dodecyl sulfate-polyacrylamide gel electrophoresis) and the gels were incubated for 30 min using phosphate buffer (pH 6.8) with mild shaking. Finally, L-DOPA in phosphate buffer (pH 6.8) was used to stain the gel for 1 h.

4.8. Reverse Transcription-Polymerase Chain Reaction (RT-PCR)

Total RNA was pulled out using TRIzol (Invitrogen Co., Carlsbad, CA, USA), according to the manufacturer’s instructions. To prepare a cDNA pool from RNAs, RT-&GO Mastermix (MP Biomedicals, Seoul, Korea) protocol was adopted using 2 µg of total RNA, and the product was considered as the PCR template. RT-PCR was achieved using a PCR Thermal Cycler Dice TP600 (TAKARA Bio Inc., Otsu, Japan) using the primer sequences listed in Table 1. PCR products were separated on 2% agarose gel in Tris-Acetate-EDTA (TAE) buffer at 100 V for 30 min and visualized by ethidium bromide (Bio-Rad Laboratories, Hercules, CA, USA) staining.

4.9. Western Blotting Analysis

Melan-a cell lysates were mixed with sample buffer (250 mM Tris-HCl (pH 6.8), 0.5 M DTT, 10% SDS, 0.5% bromophenol blue, 50% glycerol, 5% 2-mercaptoethanol), and denatured at 100 °C for 5 min using a standard protocol. A 10% of SDS-PAGE was used to separate the sample proteins (50 µg). Following electrotransfer to nitrocellulose membranes (Whatman, Dassel, Germany), the membranes were immersed overnight in a mixture containing antibodies and 5% skim milk. Primary antibodies, such as anti-tyrosinase, anti-TRP-1, anti-TRP2, anti-MITF, p-CREB, and total CREB and β-actin, were from Bioworld Technology (St. Louis Park, MN, USA). Secondary antibodies (anti-goat IgG-horse radish peroxidase (HRP) and anti-mouse IgG-HRP) were purchased from Santa Cruz. The resulting reaction was exposed using an ECL solution system (Perkin Elmer).

4.10. Statistical Analysis

Results were measured using one-way ANOVA, and are denoted as means ± SD. The analysis was achieved using SPSS for Windows Ver. 10.07 (SPSS, Chicago, IL, USA), and statistical significance was set at p < 0.01 or <0.05.

5. Conclusions

The present study described, for the first time, the inhibitory effects of OISEA on melanogenesis in melan-a cells (Figure 6). The noteworthy aspects of the present study are as follows. (a) OISEA was found to repress melanogenesis powerfully and inhibit mushroom tyrosinase activity. (b) The mechanisms through which OISEA extenuated melanin production by downregulating MITF expression through the interference with ERK1/2, JNK, and p38 phosphorylation, besides decreasing tyrosinase, TYRP-1, and TYRP-2 levels. (c) Furthermore, our findings suggest that the observed suppressive effect of OISEA on melanin might be due to the presence of the cluster of polyphenolics which provide the synergistic effect. Therefore, it can be practiced for the exploitation of therapeutic or novel whitening agents in the cosmetic, nutraceutical, or food industry.

Supplementary Materials

Supplementary materials can be found at https://www.mdpi.com/1422-0067/19/3/760/s1.

Author Contributions

Peijun Zhao and Md Badrul Alam performed the research. Peijun Zhao, Md Badrul Alam, Hongyan An, Hee-Jeong Choi, Yeong Ho Cha, Chi-Yeol Yoo, Hyo-Hyun Kim and Sang-Han Lee designed the research study and analyzed the data. Peijun Zhao, Md Badrul Alam and Sang-Han Lee wrote the paper. Md Badrul Alam and Sang-Han Lee revised the paper.

Conflicts of Interest

The authors declare no conflicts of interest.

References

  1. Lin, J.Y.; Fisher, D.E. Melanocyte biology and skin pigmentation. Nature 2007, 445, 843–850. [Google Scholar] [CrossRef] [PubMed]
  2. Mitani, K.; Takano, F.; Kawabata, T.; Allam, A.E.; Ota, M.; Takahashi, T.; Yahagi, N.; Sakurada, C.; Fushiya, S.; Ohta, T. Suppression of melanin synthesis by the phenolic constituents of sappanwood (Caesalpinia sappan). Planta Med. 2013, 79, 37–44. [Google Scholar] [CrossRef] [PubMed]
  3. Kai, H.; Baba, M.; Okuyama, T. Inhibitory effect of Cucumis sativus on melanin production in melanoma b16 cells by downregulation of tyrosinase expression. Planta Med. 2008, 74, 1785–1788. [Google Scholar] [CrossRef] [PubMed]
  4. Alam, M.B.; Bajpai, V.K.; Lee, J.; Zhao, P.; Byeon, J.-H.; Ra, J.-S.; Majumder, R.; Lee, J.S.; Yoon, J.-I.; Rather, I.A. Inhibition of melanogenesis by jineol from Scolopendra subspinipes mutilans via MAP-kinase mediated MITF downregulation and the proteasomal degradation of tyrosinase. Sci. Rep. 2017, 7, 45858. [Google Scholar] [CrossRef] [PubMed]
  5. Park, H.Y.; Kosmadaki, M.; Yaar, M.; Gilchrest, B.A. Cellular mechanisms regulating human melanogenesis. Cell. Mol. Life Sci. CMLS 2009, 66, 1493–1506. [Google Scholar] [CrossRef] [PubMed]
  6. Dong, Y.; Cao, J.; Wang, H.; Zhang, J.; Zhu, Z.; Bai, R.; Hao, H.; He, X.; Fan, R.; Dong, C. Nitric oxide enhances the sensitivity of alpaca melanocytes to respond to α-melanocyte-stimulating hormone by up-regulating melanocortin-1 receptor. Biochem. Biophys. Res. Commun. 2010, 396, 849–853. [Google Scholar] [CrossRef] [PubMed]
  7. Hwang, E.; Lee, T.H.; Lee, W.J.; Shim, W.S.; Yeo, E.J.; Kim, S.; Kim, S.Y. A novel synthetic piper amide derivative NED-180 inhibits hyperpigmentation by activating the PI3K and erk pathways and by regulating Ca2+ influx via trpm1 channels. Pigment Cell Melanoma Res. 2016, 29, 81–91. [Google Scholar] [CrossRef] [PubMed]
  8. Kim, D.-S.; Hwang, E.-S.; Lee, J.-E.; Kim, S.-Y.; Kwon, S.-B.; Park, K.-C. Sphingosine-1-phosphate decreases melanin synthesis via sustained ERK activation and subsequent MITF degradation. J. Cell Sci. 2003, 116, 1699–1706. [Google Scholar] [CrossRef] [PubMed]
  9. Chen, L.J.; Games, D.E.; Jones, J. Isolation and identification of four flavonoid constituents from the seeds of Oroxylum indicum by high-speed counter-current chromatography. J. Chromatogr. A 2003, 988, 95–105. [Google Scholar] [CrossRef]
  10. Roy, M.K.; Nakahara, K.; Na, T.V.; Trakoontivakorn, G.; Takenaka, M.; Isobe, S.; Tsushida, T. Baicalein, a flavonoid extracted from a methanolic extract of Oroxylum indicum inhibits proliferation of a cancer cell line in vitro via induction of apoptosis. Die Pharm. 2007, 62, 149–153. [Google Scholar]
  11. Yuan, Y.; Luo, H.; Chen, L. Linear scale-up of the separation of active components from Oroxylum indicum using high-speed counter-current chromatography. Chin. J. Chromatogr. 2008, 26, 489–493. [Google Scholar] [CrossRef]
  12. Tran, T.V.A.; Malainer, C.; Schwaiger, S.; Hung, T.; Atanasov, A.G.; Heiss, E.H.; Dirsch, V.M.; Stuppner, H. Screening of vietnamese medicinal plants for NF-κB signaling inhibitors: Assessing the activity of flavonoids from the stem bark of Oroxylum indicum. J. Ethnopharmacol. 2015, 159, 36–42. [Google Scholar] [CrossRef] [PubMed]
  13. Harminder, V.S.; Chaudhary, A.K. A review on the taxonomy, ethnobotany, chemistry and pharmacology of Oroxylum indicum vent. Indian J. Pharm. Sci. 2011, 73, 483–490. [Google Scholar] [PubMed]
  14. Lalrinzuali, K.; Vabeiryureilai, M.; Jagetia, G.C. Investigation of the anti-inflammatory and analgesic activities of ethanol extract of stem bark of Sonapatha Oroxylum indicum in vivo. Int. J. Inflamm. 2016, 2016, 8247014. [Google Scholar] [CrossRef] [PubMed]
  15. Zaveri, M.; Gohil, P.; Jain, S. Immunostimulant activity of n-butanol fraction of root bark of Oroxylum indicum, vent. J. Immunotoxicol. 2006, 3, 83–99. [Google Scholar] [CrossRef] [PubMed]
  16. Cabanes, J.; Garcia-Canovas, F.; Lozano, J.A.; Garcia-Carmona, F. A kinetic study of the melanization pathway between l-tyrosine and dopachrome. Biochim. Biophys. Acta 1987, 923, 187–195. [Google Scholar] [CrossRef]
  17. Shi, Y.; Chen, Q.-X.; Wang, Q.; Song, K.-K.; Qiu, L. Inhibitory effects of cinnamic acid and its derivatives on the diphenolase activity of mushroom (Agaricus bisporus) tyrosinase. Food Chem. 2005, 92, 707–712. [Google Scholar] [CrossRef]
  18. Shukla, S.; Park, J.; Kim, D.-H.; Hong, S.-Y.; Lee, J.S.; Kim, M. Total phenolic content, antioxidant, tyrosinase and α-glucosidase inhibitory activities of water soluble extracts of noble starter culture Doenjang, a Korean fermented soybean sauce variety. Food Control 2016, 59, 854–861. [Google Scholar] [CrossRef]
  19. Su, T.-R.; Lin, J.-J.; Tsai, C.-C.; Huang, T.-K.; Yang, Z.-Y.; Wu, M.-O.; Zheng, Y.-Q.; Su, C.-C.; Wu, Y.-J. Inhibition of melanogenesis by gallic acid: Possible involvement of the PI3K/Akt, MEK/ERK and Wnt/β-catenin signaling pathways in B16F10 cells. Int. J. Mol. Sci. 2013, 14, 20443–20458. [Google Scholar] [CrossRef] [PubMed]
  20. Jeong, J.Y.; Liu, Q.; Kim, S.B.; Jo, Y.H.; Mo, E.J.; Yang, H.H.; Song, D.H.; Hwang, B.Y.; Lee, M.K. Characterization of melanogenesis inhibitory constituents of Morus alba leaves and optimization of extraction conditions using response surface methodology. Molecules 2015, 20, 8730–8741. [Google Scholar] [CrossRef] [PubMed]
  21. Kim, Y.J.; Kang, K.S.; Yokozawa, T. The anti-melanogenic effect of pycnogenol by its anti-oxidative actions. Food Chem. Toxicol. 2008, 46, 2466–2471. [Google Scholar] [CrossRef] [PubMed]
  22. Chao, H.C.; Najjaa, H.; Villareal, M.O.; Ksouri, R.; Han, J.; Neffati, M.; Isoda, H. Arthrophytum scoparium inhibits melanogenesis through the down-regulation of tyrosinase and melanogenic gene expressions in B16 melanoma cells. Exp. Dermatol. 2013, 22, 131–136. [Google Scholar] [CrossRef] [PubMed]
  23. Englaro, W.; Bertolotto, C.; Brunet, A.; Pagès, G.; Ortonne, J.-P.; Ballotti, R. Inhibition of the mitogen-activated protein kinase pathway triggers B16 melanoma cell differentiation. J. Biol. Chem. 1998, 273, 9966–9970. [Google Scholar] [CrossRef] [PubMed]
  24. Wang, B.-S.; Chang, L.-W.; Wu, H.-C.; Huang, S.-L.; Chu, H.-L.; Huang, M.-H. Antioxidant and antityrosinase activity of aqueous extracts of green asparagus. Food Chem. 2011, 127, 141–146. [Google Scholar] [CrossRef]
  25. Lee, J.Y.; Choi, H.J.; Chung, T.W.; Kim, C.H.; Jeong, H.S.; Ha, K.T. Caffeic acid phenethyl ester inhibits α-melanocyte stimulating hormone-induced melanin synthesis through suppressing transactivation activity of microphthalmia-associated transcription factor. J. Nat. Prod. 2013, 76, 1399–1405. [Google Scholar] [CrossRef] [PubMed]
  26. Li, X.; Guo, L.; Sun, Y.; Zhou, J.; Gu, Y.; Li, Y. Baicalein inhibits melanogenesis through activation of the ERK signaling pathway. Int. J. Mol. Med. 2010, 25, 923–927. [Google Scholar] [CrossRef] [PubMed]
  27. Kim, D.C.; Rho, S.H.; Shin, J.C.; Park, H.H.; Kim, D. Inhibition of melanogenesis by 5,7-dihydroxyflavone (chrysin) via blocking adenylyl cyclase activity. Biochem. Biophys. Res. Commun. 2011, 411, 121–125. [Google Scholar] [CrossRef] [PubMed]
  28. Zaveri, M.; Khandhar, A.; Jain, S. Quantification of baicalein, chrysin, Biochanin-A and ellagic acid in root bark of Oroxylum indicum by RP-HPLC with UV detection. Eurasian J. Anal. Chem. 2008, 3, 245–257. [Google Scholar]
  29. Ishihara, Y.; Oka, M.; Tsunakawa, M.; Tomita, K.; Hatori, M.; Yamamoto, H.; Kamei, H.; Miyaki, T.; Konishi, M.; Oki, T. Melanostatin, a new melanin synthesis inhibitor. Production, isolation, chemical properties, structure and biological activity. J. Antibiot. 1991, 44, 25–32. [Google Scholar] [CrossRef] [PubMed]

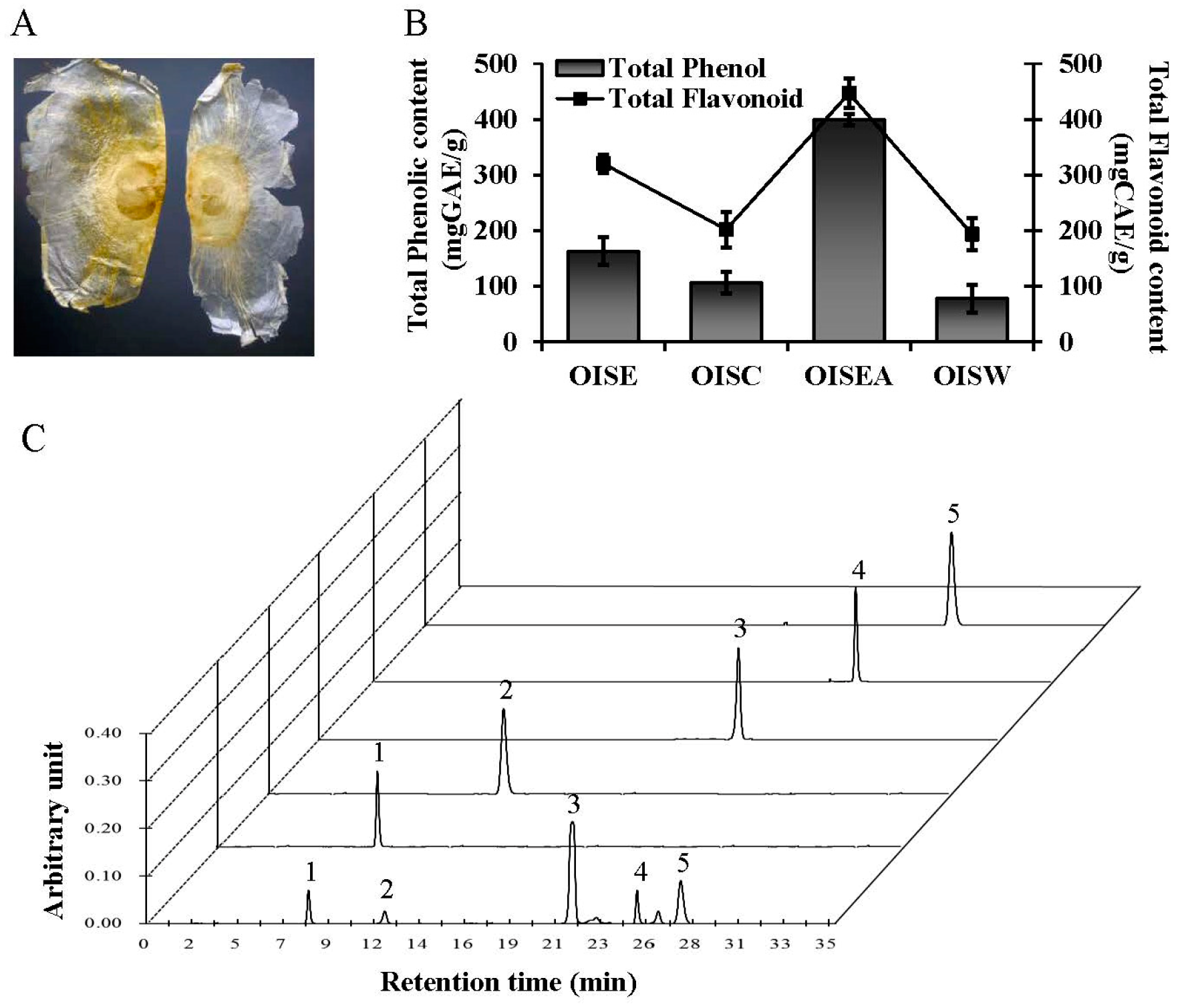

Figure 1. Characteristics of Oroxylum indicum seed. (A) A classical feature of Oroxylum indicum seed. (B) Total phenolic and flavonoid contents are shown. (C) A representative high-performance liquid chromatography (HPLC) profile of Oroxylum indicum seed extract with standards monitored at 280 nm. Gallic acid (Peak 1), caffeic acid (Peak 2), baicalein (Peak 3), chrysin (Peak 4), and oroxylin B (Peak 5) are also presented. OISE: ethanol extract; OISC: chloroform fraction; OISEA: ethyl acetate fraction; and OISW: aqueous fractions of Oroxylum indicum seed.
Figure 1. Characteristics of Oroxylum indicum seed. (A) A classical feature of Oroxylum indicum seed. (B) Total phenolic and flavonoid contents are shown. (C) A representative high-performance liquid chromatography (HPLC) profile of Oroxylum indicum seed extract with standards monitored at 280 nm. Gallic acid (Peak 1), caffeic acid (Peak 2), baicalein (Peak 3), chrysin (Peak 4), and oroxylin B (Peak 5) are also presented. OISE: ethanol extract; OISC: chloroform fraction; OISEA: ethyl acetate fraction; and OISW: aqueous fractions of Oroxylum indicum seed.
Ijms 19 00760 g001

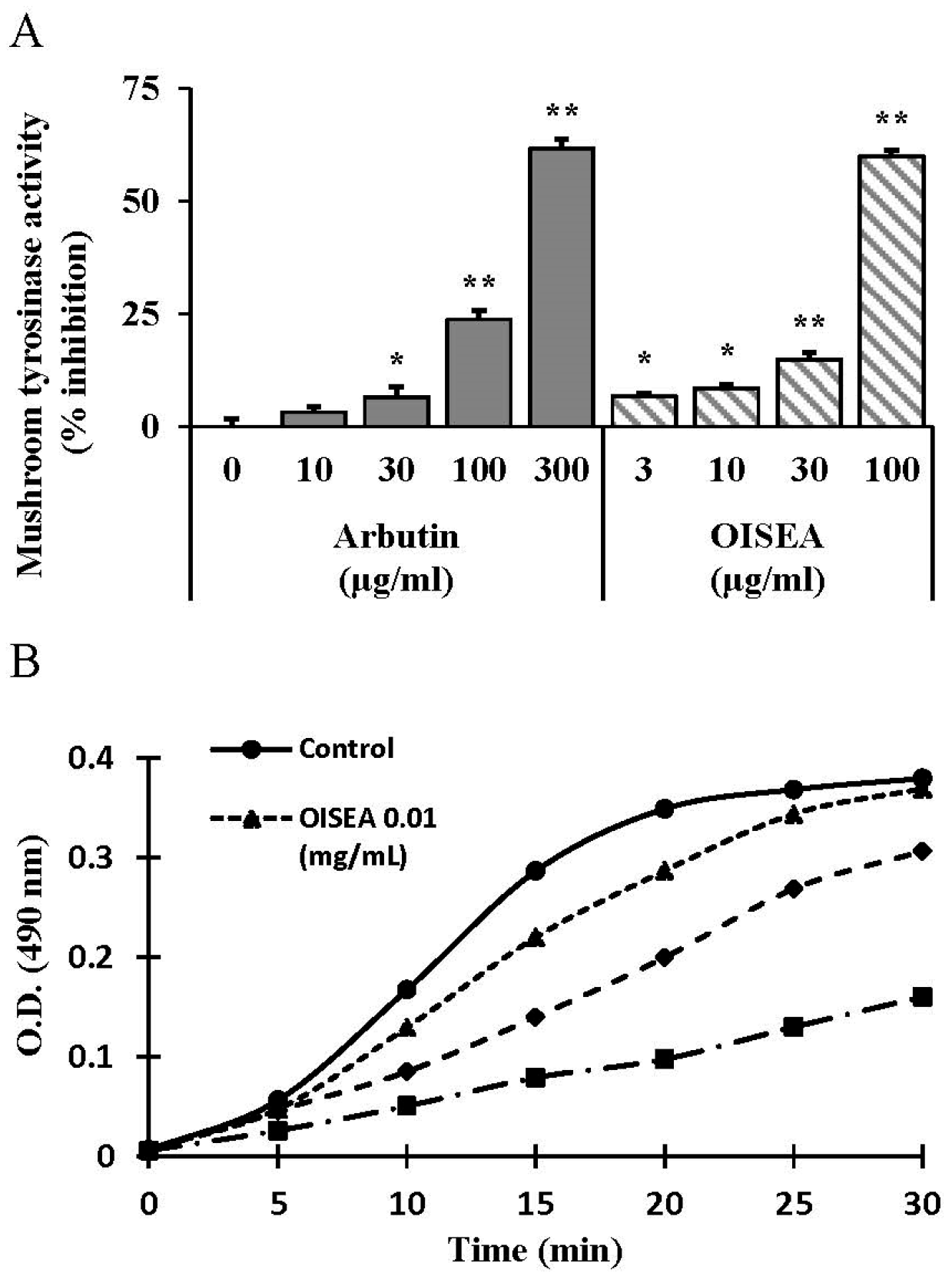

Figure 2. Inhibitory effects of OISEA on mushroom tyrosinase activity. (A) Different concentrations of OISEA or arbutin were incubated with the same units of mushroom tyrosinase. Following incubation, amounts of dopachrome produced were determined at 490 nm spectrophotometrically. (B) Effects of OISEA on the monophenolase activity of tyrosinase. Enzyme activity was tested in the presence of l-tyrosine, as substrate. Results are presented as the means ± SD of three experiments. * p < 0.05, ** p < 0.01, versus non-treated controls, Arb: Arbutin.
Figure 2. Inhibitory effects of OISEA on mushroom tyrosinase activity. (A) Different concentrations of OISEA or arbutin were incubated with the same units of mushroom tyrosinase. Following incubation, amounts of dopachrome produced were determined at 490 nm spectrophotometrically. (B) Effects of OISEA on the monophenolase activity of tyrosinase. Enzyme activity was tested in the presence of l-tyrosine, as substrate. Results are presented as the means ± SD of three experiments. * p < 0.05, ** p < 0.01, versus non-treated controls, Arb: Arbutin.
Ijms 19 00760 g002

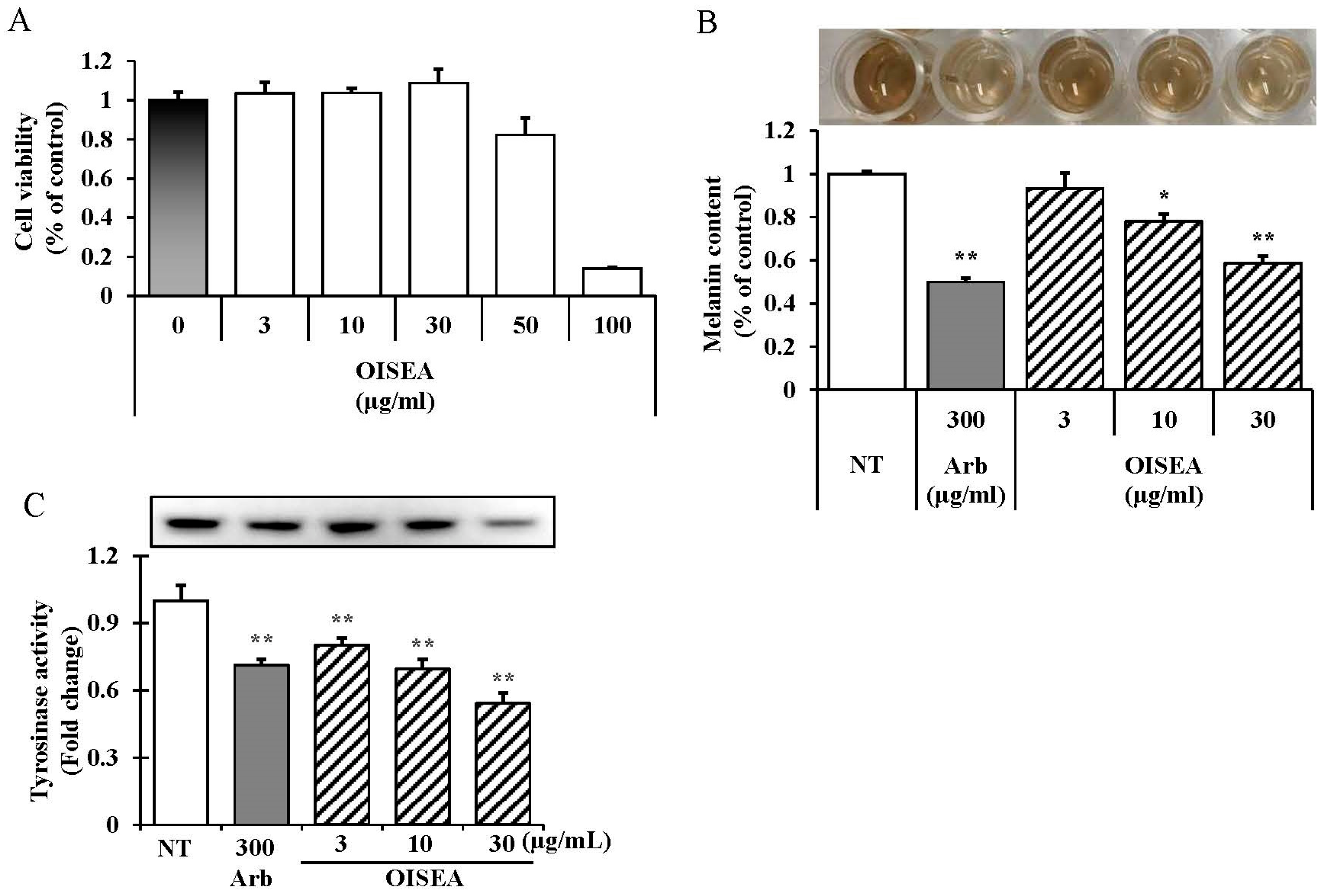

Figure 3. Effects of OISEA on melanogenesis in melan-a cells. Cells were cultured with OISEA (3–10 μg/mL) for 3 days. (A) Cytotoxicities, (B) melanin contents, and (C) tyrosinase activities were measured as described in Materials and Methods. Experiments were performed in triplicate, and results are presented as means ± SD. * p < 0.05, ** p < 0.01, NT: No treatment; Arb: Arbutin.
Figure 3. Effects of OISEA on melanogenesis in melan-a cells. Cells were cultured with OISEA (3–10 μg/mL) for 3 days. (A) Cytotoxicities, (B) melanin contents, and (C) tyrosinase activities were measured as described in Materials and Methods. Experiments were performed in triplicate, and results are presented as means ± SD. * p < 0.05, ** p < 0.01, NT: No treatment; Arb: Arbutin.
Ijms 19 00760 g003

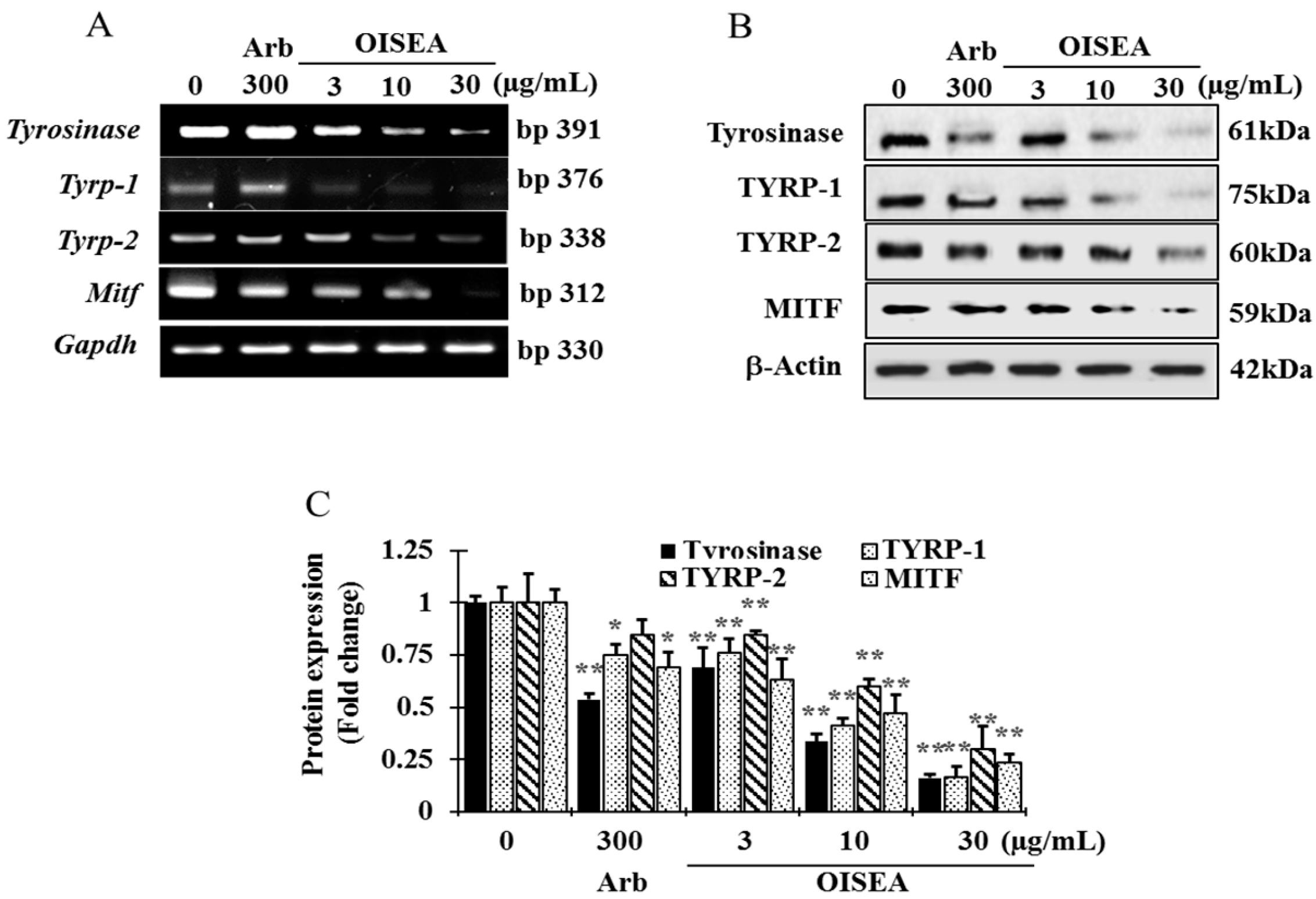

Figure 4. Effect of OISEA on the levels of melanogenesis related mRNA and proteins in melan-a cells. (A) Cells (5 × 105 cells/mL) were cultured for 24 h; the medium was replaced with fresh medium containing the indicated concentration of OISEA or arbutin for 24 h, and the mRNA was extracted using TRIzol. mRNA expression was analyzed by reverse transcription-polymerase chain reactions. (B) Cells (5 × 105 cells/mL) were cultured for 24 h; the medium was replaced with fresh medium containing the indicated concentrations of OISEA or arbutin for 3 days. Total cell lysates were extracted and assayed by Western blotting using antibodies against tyrosinase, TYRP-1, TYRP-2, and MITF. Equal amounts of protein loading were confirmed using β-actin. (C) Statistical analysis of the band intensity of tyrosinase, TYRP-1, TYRP-2, and MITF obtained by Western blot analysis. Results are presented as means ± SD. * p < 0.05, ** p < 0.01, versus the non-treated group.
Figure 4. Effect of OISEA on the levels of melanogenesis related mRNA and proteins in melan-a cells. (A) Cells (5 × 105 cells/mL) were cultured for 24 h; the medium was replaced with fresh medium containing the indicated concentration of OISEA or arbutin for 24 h, and the mRNA was extracted using TRIzol. mRNA expression was analyzed by reverse transcription-polymerase chain reactions. (B) Cells (5 × 105 cells/mL) were cultured for 24 h; the medium was replaced with fresh medium containing the indicated concentrations of OISEA or arbutin for 3 days. Total cell lysates were extracted and assayed by Western blotting using antibodies against tyrosinase, TYRP-1, TYRP-2, and MITF. Equal amounts of protein loading were confirmed using β-actin. (C) Statistical analysis of the band intensity of tyrosinase, TYRP-1, TYRP-2, and MITF obtained by Western blot analysis. Results are presented as means ± SD. * p < 0.05, ** p < 0.01, versus the non-treated group.
Ijms 19 00760 g004

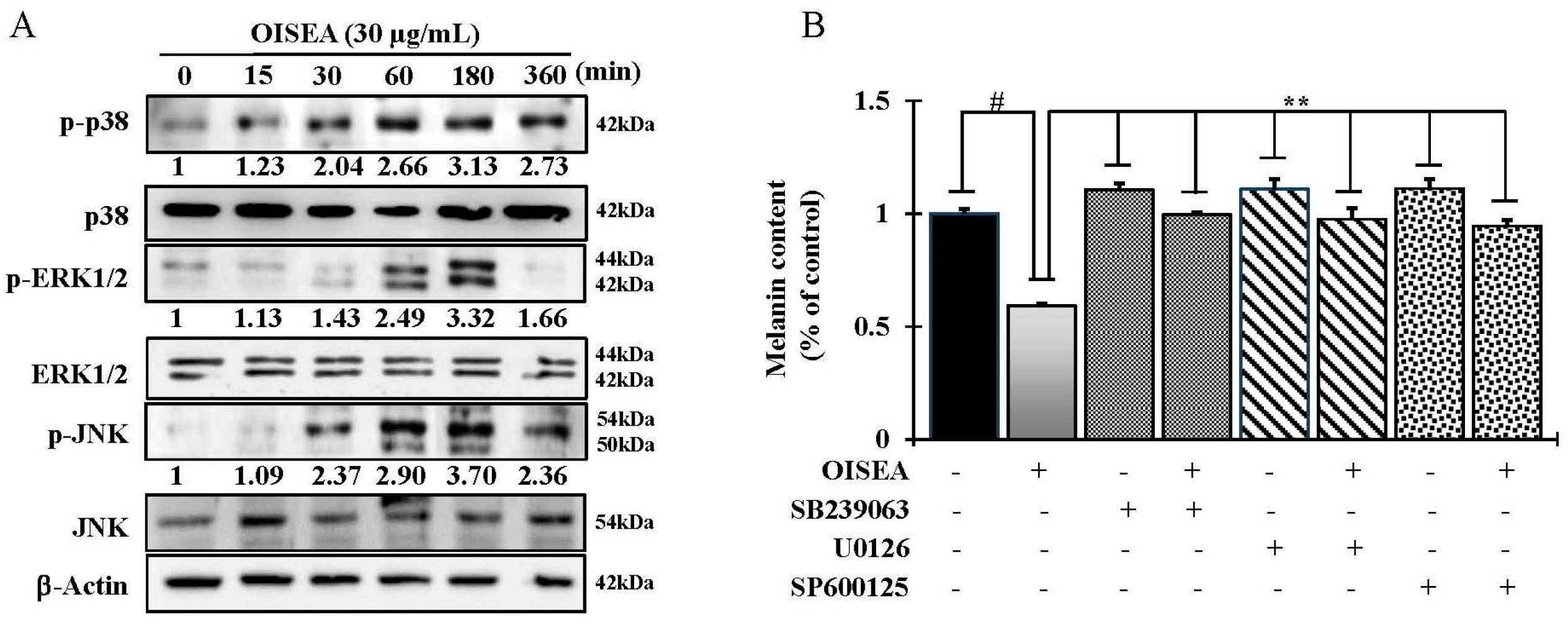

Figure 5. Effect of HLA on MAP kinase-dependent signaling in melan-a cells. (A) Cells (5 × 105 cells/mL) were cultured for 24 h, and the medium was replaced with fresh medium containing various concentrations of test compounds or arbutin for the indicated times. Phosphorylation of JNK, ERK, and p38 MAPK was analyzed using phospho-specific JNK, ERK, and p38 MAPK antibodies. Equal protein loading was checked using β-actin antibodies. Numbers (each phospho-antibody) mean the relative band intensity. (B) OISEA was cotreated with selective inhibitors of p38 (SB239063), ERK (U0126), and JNK (SP600125) signaling molecules in melan-a cells. Melanin content was determined. Each determination was made in triplicate, and the data represent the means ± SD. # p < 0.05, ** p < 0.01, versus the control group.
Figure 5. Effect of HLA on MAP kinase-dependent signaling in melan-a cells. (A) Cells (5 × 105 cells/mL) were cultured for 24 h, and the medium was replaced with fresh medium containing various concentrations of test compounds or arbutin for the indicated times. Phosphorylation of JNK, ERK, and p38 MAPK was analyzed using phospho-specific JNK, ERK, and p38 MAPK antibodies. Equal protein loading was checked using β-actin antibodies. Numbers (each phospho-antibody) mean the relative band intensity. (B) OISEA was cotreated with selective inhibitors of p38 (SB239063), ERK (U0126), and JNK (SP600125) signaling molecules in melan-a cells. Melanin content was determined. Each determination was made in triplicate, and the data represent the means ± SD. # p < 0.05, ** p < 0.01, versus the control group.
Ijms 19 00760 g005

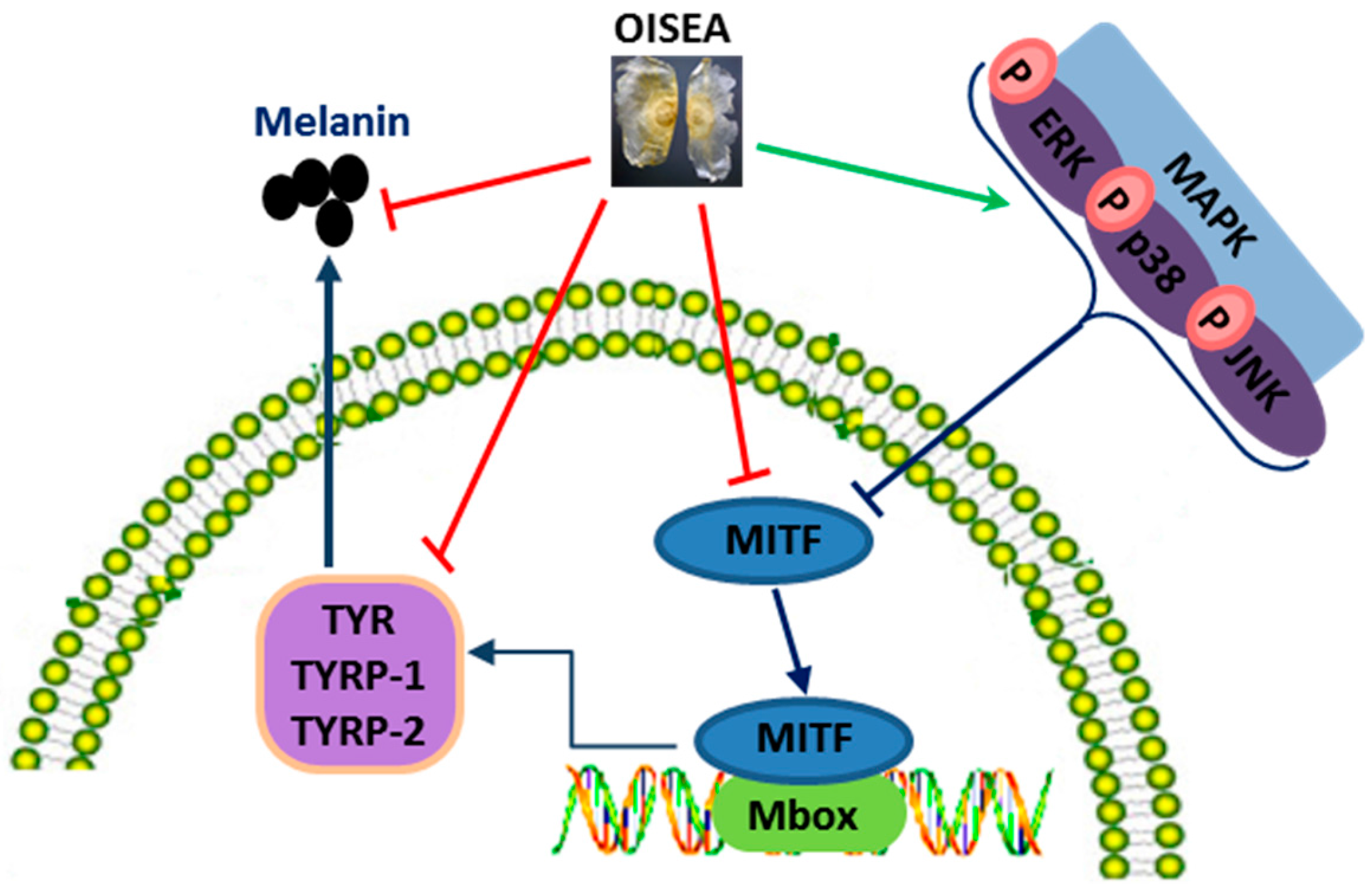

Figure 6. A proposed molecular mechanism of OISEA against melanogenesis process.
Figure 6. A proposed molecular mechanism of OISEA against melanogenesis process.
Ijms 19 00760 g006
Table 1. List of the primer used in this study.
Table 1. List of the primer used in this study.
Gene Name Sequences
TyrosinaseForwardCCC AGA AGC CAA TGC ACC TA
ReverseATA ACA GCT CCC ACC AGT GC
TRYP-1ForwardGCT GCA GGA GCC TTC TTT CT
ReverseAGA CGC TGC ACT GCT GGT C
TYRP-2ForwardGGA TGA CCG TGA GCA ATG GC
ReverseCGG TTG TGA CCA ATG GGT GC
MITFForwardCAG GCT AGA GCG CAT GGA CT
ReverseCTC CGT TTC TTC TGC GCT CA
GAPDHForwardGC GAG ACC CCA CTA ACA TCA
ReverseGAG TTG GGA TAG GGC CTC TCT
