Article

Modelling of Octahedral Manganese II Complexes with Inorganic Ligands: A Problem with Spin-States

1
Department of Chemistry, Warsaw University, Pasteur 1 Street, 02-083 Warsaw, Poland
2
Department of Chemistry, University of Arizona, Tucson, Arizona 85721, USA
*
Author to whom correspondence should be addressed.
Int. J. Mol. Sci. 2003, 4(8), 503-511; https://doi.org/10.3390/i4080503
Submission received: 10 April 2003 / Accepted: 18 June 2003 / Published: 30 August 2003

Abstract

:
Quantum mechanical ab initio UHF, MP2, MC-SCF and DFT calculations with moderate Gaussian basis sets were performed for MnX6, X = H2O, F-, CN-, manganese octahedral complexes. The correct spin-state of the complexes was obtained only when the counter ions neutralizing the entire complexes were used in the modelling at the B3LYP level of theory.

Introduction

It is usual to assume that octahedral manganese II complexes are high-spin molecules and such an assumption has been widely used in almost every work concerning this type of complexes [1,2]. There are many arguments, both experimental and theoretical, which support this assumption, but some of them can be questioned. Since Mn II complexes are often present in active centers of enzymes, e.g., superoxide dismutaze [3], peroxidaze [4], aminopeptidase [5], sialyl and fucosyl transferase [6,7,8] or various integrins [9,10], it is important to improve our understanding of their structures and properties, and to explain the discrepancies between the theory and experimental data occurring. In this work some basic concepts concerning the octahedral Mn II complexes are discussed in view of the results of the comparative calculations performed.
According to the simple theory of transition metal complexes - the crystal field theory (CFT) [11,12,13] - the metal cation is affected by the purely electrostatic field created by the nearest neighbour ligands represented by point charges or point dipoles. Despite its simplicity the CFT method leads to very useful results that in most cases are qualitatively in agreement with the experimental data.
The CFT assumes that the 5-fold degeneracy of the cation d-orbitals is removed when the central ion is surrounded by a set of negative charges or negative ends of dipoles representing the ligands. Surrounding the cation by six ligands splits the orbitals into two sets with different energies - the triply degenerated t2g level and the doubly degenerated eg level. The occupation of the t2g and eg orbitals is dependent on the difference between the splitting energy (energy difference between the t2g and eg levels) and the pairing energy (energy of placing two electrons with different spins in the same orbital). If the pairing energy is greater than the splitting energy we get a high-spin state; in other cases the complex is in a low-spin state [11,12,13,14,15]. Mean pairing energies for most ions and splitting energies for many ligands can be estimated based on the spectroscopic data. Using these data it is possible to determine the spin of most complexes.
The Molecular Orbital Theory, which uses group theory and quantum mechanics, can be an alternative tool for predicting the spin-state of the transition metal complexes. Its advantage is to give not only qualitative, like CFT, but also quantitative results, concerning the spin-state and the structure of the complex.
There has been extensive research on manganese (II) complexes with water ligands, both experimental, including X-ray and EXAFS [16,17,18,19,20], and theoretical using the ab-initio SCF method [21], the molecular dynamics simulation [22,23] and very recently also combined quantum mechanical/molecular mechanical and Monte Carlo simulations [24,25,26]. The Mn-H2O complex can be a model species for all high-spin manganese complexes, which include the majority of all Mn II complexes. This is because for Mn II the pairing energy is very high and there are only few known structures with ligands creating a sufficiently strong field to force the complex into the low-spin state. The low-spin complexes, e.g. [Mn(CN)6]4- and [Mn(CNR)6]4- (R=CH3, C2H5), have been studied much less frequently than the high-spin complexes because their occurrence in biological and other systems is very rare.
In the present work we intended to determine the spin-states of several manganese complexes shown on figure 1, including low-spin Mn(CN)64- complex, but we encountered difficulties when using models reduced to the first coordination shell. An improved model, where the counter ions are added, were subsequently used and the results obtained for this improved model are discussed in this work. The calculations proposed in this paper concentrate on DFT methods since density functional theory became a standard tool for theoretical modelling of biological systems. For comparison, the ab initio calculations (UHF, MP2, MC-SCF, medium-size basis sets) were also performed.
According to the CFT theory the two ligands, H2O and F-, considered in this study should form high-spin-state complexes with the manganese cation. The third complex, [Mn(CN)6]4-, should appear in the low-spin state due to the strong electrostatic perturbation created by the ligands [14,15,27,28].

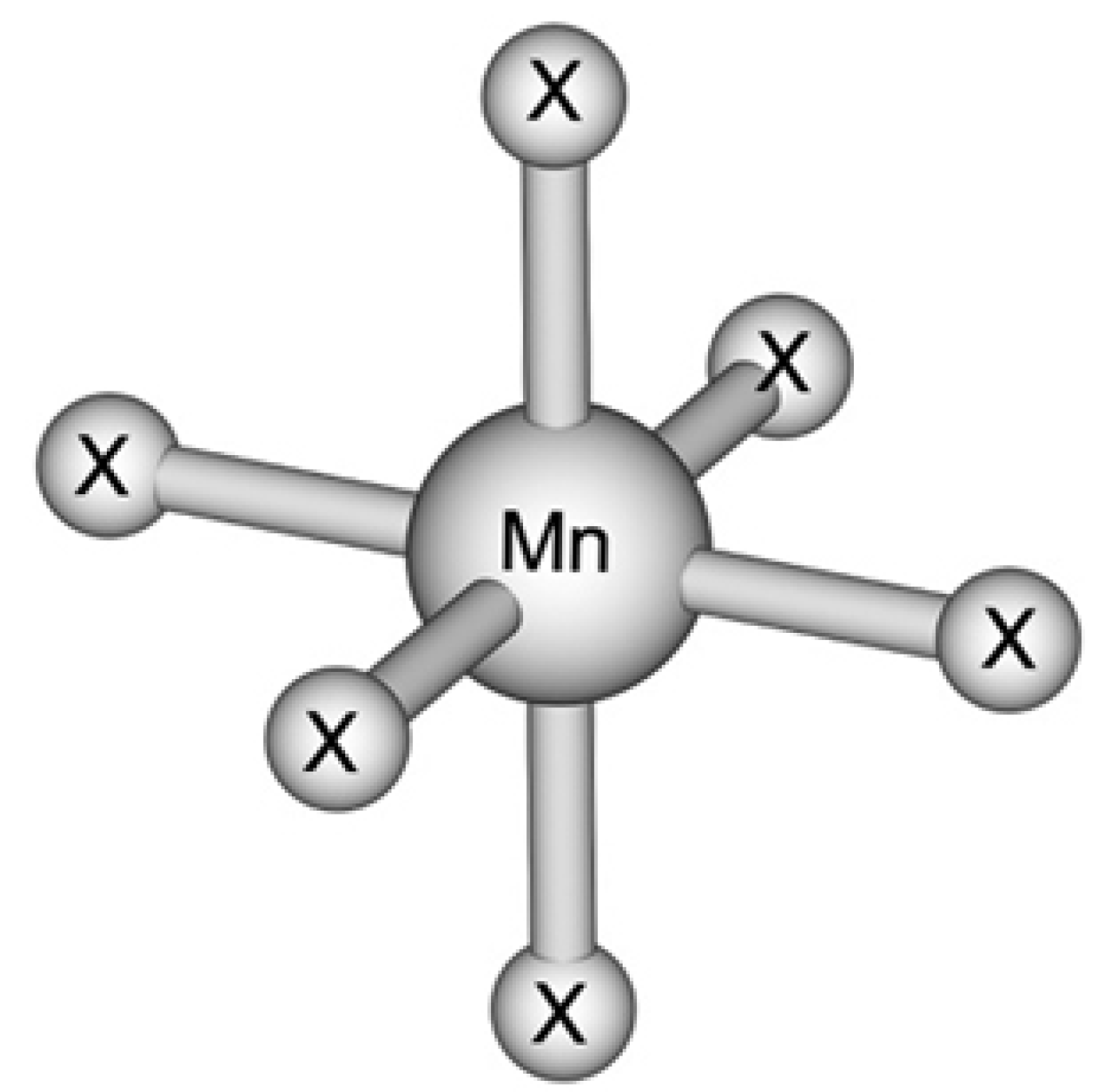

Figure 1. MnX6 model, X=H2O, F-, CN-.
Figure 1. MnX6 model, X=H2O, F-, CN-.
Ijms 04 00503 g001

Computational Details

The geometries of the metal complexes were fully optimized assuming several possible multiplicities (2, 4 or 6). The ab initio UHF [29,30,31], MP2 [32], and MC-SCF [33,34], as well as the density functional BLYP [35,36], SVWN [37,38], B3PW91 [39,40] and B3LYP [39,36] methods were used with the standard 3-21G*, 6-31G*, 6-31G** and AhlrichsVDZ basis sets. The starting geometry in each calculation was the regular octahedral structure with the Mn-ligand distance set to 2.2 Angstroms (the mean ionic radius of manganese complexes [41,42]).
Also, a set of calculations using different Mn-ligand distances as the starting points for the geometry optimization was performed. In these calculations the Mn-ligand distance was set to 2.0, 2.1, 2.3, 2.4 and 2.5 Angstroms, respectively, in order to check the influence of the choice of the starting point on the final geometry and on the spin-state of the lowest energy structure.
Complexes with other central ions were also examined for comparison using the UHF and B3LYP methods and the 6-31G* basis set. Two transition metal cations, Fe II and Fe III, and their complexes with H2O and CN- ligands were considered in the calculations. As in the manganese II case, both Fe II and Fe III form high-spin complexes with water ligands and low-spin complexes with the CN- ions [27,28]. The initial geometry in these calculations was also chosen to be the regular octahedral structure with the Fe-ligand distances set to 2.55 Angstroms.
To estimate the role of the counter-ions, usually omitted in simplified modeling of the transition metal complexes, Na+ cations were added to the model. Two model systems with four Na+ ions neutralizing the MnX44-, X=F-, CN-, complexes were built. Again the starting point for the B3LYP and MC-SCF structure calculations with the 3-21G* and 6-31G* basis sets was chosen to be the regular octahedral complex, in which the Mn-ligand distance was set to 2.2 Angstroms. Na+ ions were placed at the distance consistent with the radius of the second hydration shell of the manganese II complexes taken form experimental data available [43,44,45,46,47]. The energy differences between the high-spin and low-spin states of the uncharged complexes were compared to the energies obtained for the negatively charged ones.
The calculations were performed on the single-processor NEC SX-4B/2A and four-processor Cray SV1 supercomputers using Gaussian 98 [48], and on Intel Pentium III using the Jaguar 4.0 [49] and Dalton 1.2 [50] software.

Results and Discussion

The simulations carried out using the DFT methods revealed a very poor convergence of the iterative procedure for finding the solution of the Kohn-Sham equations. In many cases the geometry optimization of the Mn complexes using DFT methods diverged, which in turn made it impossible to determine the total energy of the complexes. On the other hand UHF converged in all cases, but it frequently gave completely unrealistic and wrong geometries, what is a known problem within the Hartree-Fock theory.
For the cases where satisfactory convergence was obtained the geometries of the complexes remained almost perfectly octahedral, in agreement with the experimental data. The distances between the central cation and the nearest-neighboring atoms of the ligands were also in good agreement with both the experimental data [29,16,17,18,19,20] and with the previous theoretical calculations [30,21,22,23,24,25,26,2].
The complexes with the lowest total molecular energies corresponded to the high-spin complexes in all of the above mentioned calculations. According to the CFT theory and in agreement with the experimental data, the octahedral complexes of Mn(II) with six H2O ligands or six F- ions should appear in the high-spin state, whereas the cyanide complex should be in the low-spin state. The high-spin state of Mn(H2O)62+ complex was confirmed by the calculations, but, according to the calculations the [Mn(CN)6]4- complex should also exist in the high-spin state and the calculations failed to reproduce this feature. Such a situation was observed independently on the method (UHF, MP2, BLYP, SVWN, B3PW91, B3LYP, MC-SCF) and on the basis set (3-21G*, 6-31G*, 6-31G**) used. The energy difference between the high and the low-spin state was in all cases high enough to favor the high-spin state.
Table 1. Energy difference between high-spin and low-spin states of MnX6 complexes using different calculation methods; ΔE=E(high-spin) – E(low-spin)
Table 1. Energy difference between high-spin and low-spin states of MnX6 complexes using different calculation methods; ΔE=E(high-spin) – E(low-spin)
complexUHF a (kcal/mol)B3LYP a (kcal/mol)MP2 a (kcal/mol)MC-SCF b (kcal/mol)
[Mn(H2O)6]2+-149-102-157-105
[MnF6]4-+57+56-118-132
[Mn(CN)6]4--92-176-352-102
a in 6-31G* basis set.
b in AhlrichsVDZ basis set: F-(7s4p|3s2p); Na-(10s5p|4s1p); Mn-(14s8p5d|5s2p2d); the MCSCF wavefunction for the low-spin state (S=2) was composed of 75 configurations (5 electrons on 5 active orbitals, remaining doubly occupied orbitals assumed inactive); for the high-spin state (S=6) the wave function corresponded to a single configuration (5 electrons on 5 active orbitals)
Interestingly, the predicted spin-state of the [MnF6]4- complex varied depending on the calculation method and basis set used. The UHF method predicted the preference of the high-spin state within the 3-21G* basis set what is in agreement with the experimental data but failed in the calculations using larger basis set. When the B3LYP functional within the DFT theory was used, the pairing of the electrons forced the system to convert into the low-spin state, but on MP2 or MC-SCF levels of theory the results were again correct.
Another interesting observation is the fact that the distances between the central ion and the ligands are much shorter for the low-spin complexes than for the high-spin complexes. The Mn-X bond shortening ranges from 0.04 to 0.4 Angstroms. Thus it is clear that the spin-state of the complex has a non negligible effect not only on its electronic structure but also on the geometry of the complex. On the other hand the electrostatic perturbation produced by CN- anions or any other ligand directly depends on the distance between the central ion and the ligands. Ligands laying closer to the manganese cation can produce a stronger electric field, which in turn can affect the spin-state of the complex. To investigate this effect a set of calculations, in which the Mn-X distance in the starting point of the geometry optimization was set to 2.0, 2.1. 2.3, 2.4 and 2.5 Angstroms, respectively, was performed. The results were compared to the previous calculations where the starting distance was set to 2.2 Angstroms. After the optimizations were completed there was no significant change of the geometry of the complex, and [Mn(CN)6]4- remained in the high-spin state.
A similar situation was observed in the case of the Fe II and Fe III complexes. Non-correlated calculations (UHF) again did not correctly predict the spin-state of the Fe charged complexes. Moreover the methods with the electron correlation included (DFT/B3LYP) also failed to predict the spin-state of the iron complexes. Interestingly, for the Fe complexes almost no convergence problems appeared in the calculations.
The next step in the calculations was to estimate the role of the counter-ions usually omitted in simplified modeling of the transition metal complexes, although they can noticeably alter the strength of the ligand field. In those calculations we used four Na+ ions to neutralize the manganese MnX44-, X=F-, CN-, complexes. Such a representation with the entire complex being uncharged seems to be closer to the situation found in the real systems. Four different complexes were studied using the B3LYP fuctional and the two different basis sets used in the calculations of the charged complexes. We also used the MC-SCF method in the calculations. As before the starting point in the geometry optimizations was chosen to be the regular octahedral complex in which the Mn-ligand distance was set to 2.2 Angstroms. In Table 2 the energy differences between the high-spin and low-spin states of the uncharged complexes are compared to the corresponding negatively charged states.
The results from Table 2 show that adding counter-ions to the manganese complexes is crucial in obtaining the correct spin-state at the B3LYP level of theory. In the case of Na4[Mn(CN)6] complex the low-spin state was obtained using a small basis set, such as 3-21G*. Unfortunately the calculation with a larger basis set (6-31G*) did not confirm this result – in fact it showed again that the high-spin
Table 2. Energy difference between high-spin and low-spin states of [MnX6]4- and Na4[MnX6] complexes using different calculation methods; ΔE=E(high-spin) – E(low-spin)
Table 2. Energy difference between high-spin and low-spin states of [MnX6]4- and Na4[MnX6] complexes using different calculation methods; ΔE=E(high-spin) – E(low-spin)
complexB3LYP/3-21G* (kcal/mol)B3LYP/6-31G* (kcal/mol)MP2/6-31G* (kcal/mol)MC-SCF/AhlrichsVDZ a) (kcal/mol)
[Mn(CN)6]4--188-176-352-102
Na4[Mn(CN)6]+119-16-44-53
[MnF6]4-+126+56-118-171
Na4[MnF6]+207-25-131-129
a see footnote to Table 1.
state was preferred. However the difference between the preferred high-spin state and the low-spin state was much smaller than in the case of Mn(CN)64- complex. The same situation can be observed using the MP2 and MC-SCF calculations. In the case of the second complex, Na4[MnF6], the small basis set did not produce correct results, but with the larger 6-31G* basis set the complex reached the correct high-spin state.
The influence of the counter-ions on the electronic structure of manganese complexes at the B3LYP/3-21G* level was observed by considering the gap between the highest occupied (HOMO) and lowest unoccupied (LUMO) molecular orbitals in these systems (fig. 2). In the case of the negatively charged Mn(CN)64- complex, the gap between HOMO an LUMO was quite large while in the neutral complexes the gap was considerably smaller. It seems that a small gap between HOMO and LUMO in

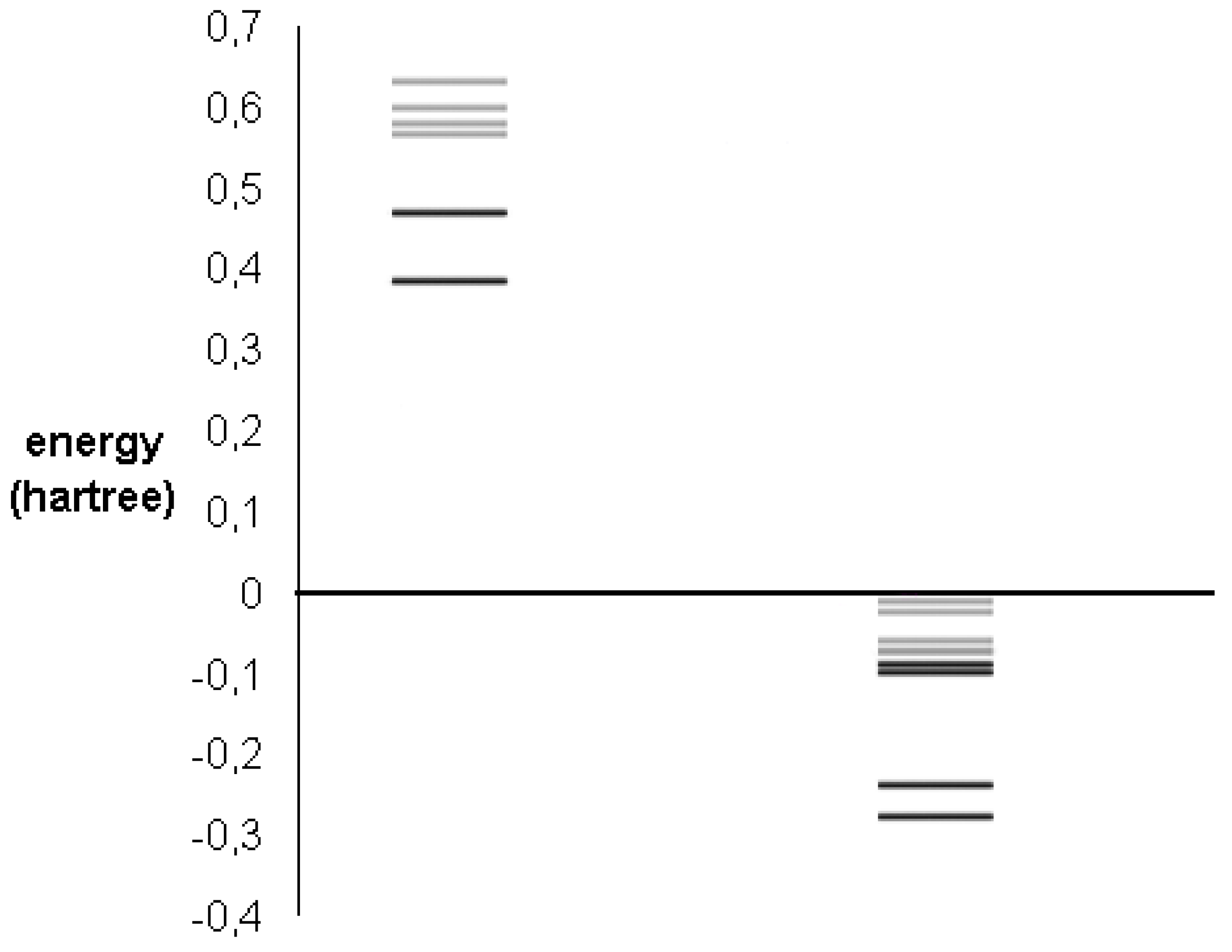

Figure 2. [MnCN6]4- (on the left) and Na4[MnCN6] (on the right) orbitals calculated at B3LYP/3-21G* level. Black color denotes occupied, and gray color denotes unoccupied orbitals. The gap between between HOMO and LUMO for the Na4[MnCN6] complex is much smaller than that for the [MnCN6]4-.
Figure 2. [MnCN6]4- (on the left) and Na4[MnCN6] (on the right) orbitals calculated at B3LYP/3-21G* level. Black color denotes occupied, and gray color denotes unoccupied orbitals. The gap between between HOMO and LUMO for the Na4[MnCN6] complex is much smaller than that for the [MnCN6]4-.
Ijms 04 00503 g002
the neutral complex facilitates to accommodate the correct spin-state easier than in the negatively charged complexes. However, adding counter-ions is not a remedy to alleviate the problems with theoretical prediction of correct spin state. In the case of the ions creating a weak ligand field, the calculations with the Na+ cations reproduced well the desired high-spin state, but in the case of the CN- ligands UHF, MC-SCF and MP2 methods failed to predict the correct, low-spin state.

Summary and Conclusions

Theoretical studies of manganese octahedral complexes with the central ion surrounded by six small ligands showed that reproducing the correct spin-state of such complexes in the calculations can be a difficult problem. This problem occurred at different levels of theory and did not go away despite changing the basis set. In addition, changing the initial geometry in the calculation of the optimal structure did not lead to the correct results.
Adding counter-ions to the model in order to correct the problem with the wrong spin state worked at the DFT level of theory when some basis sets were used, but did not work for other basis sets. The counter-ions interacting with the ligands caused reduction of the orbital energy gaps between the various spin-states of the Mn complexes. This in turn led to significant alteration of the molecular and electronic structure of the complexes.
Including counter-ions in the calculations failed to predict the low-spin states for the low-spin complexes at other than the DFT levels of theory, including UHF and MC-SCF. The cause of the discrepancy between the experimental data and the theoretical calculations, as well as the cause of the discrepancy between the theoretical results obtained at different levels of theory, is a serious problem that needs to be addressed in the future theory development.

Acknowledgement

CPU time support from Interdiscplinary Centre for Mathematical and Computational Modelling in Warsaw is gratefully acknowledged.

References

  1. Siegbahn, P.E.M. Theor. Chem. Acc. 2001, 105, 197–206. [CrossRef]
  2. Waizumi, K.; Ohtaki, H.; Masuda, H.; Fukushima, N.; Watanabe, Y. Chem. Lett. 1992, 8, 1489.
  3. Borgstahl, G.E.; Parge, H.E.; Hickey, M.J.; Beyer Jr., W.F.; Hallewell, R.A.; Tainer, J.A. Cell 1992, 71, 107.
  4. Sundaramoorthy, M.; Kishi, K.; Gold, M.H.; Poulos, T. L. J. Biol. Chem. 1994, 269, 32759–32767.
  5. Wilce, M.C.; Bond, C.S.; Dixon, N.E.; Freeman, H.C.; Guss, J.M.; Lilley, P.E.; Wilce, J.A. Proc. Natl. Acad. Sci.USA 1998, 95, 3472–3477. [CrossRef]
  6. Palcic, M.M.; Ripka, J.; Kaur, K.J.; Shoreibah, M.; Hindsgaul, O.; Pierce, M. J. Biol. Chem. 1990, 265, 6759–6759.
  7. Yousefi, S.; Higgins, E.; Daoling, Z.; Pollex-Kruger, A.; Hindsgaul, O.; Dennis, J.W. J. Biol. Chem. 1991, 266, 1772–1782.
  8. Beyer, T.A.; Hill, R.L. J. Biol. Chem. 1980, 255, 5373–5379.
  9. Lee, J.O.; Bankston, L.A.; Arnaout, M.A.; Liddington, R.C. Structure 1995, 3, 1333–1340.
  10. Qu, A.; Leahy, D.J. Proc. Natl. Acad. Sci. USA 1995, 92, 10277–10281. [CrossRef]
  11. Bethe, H. Ann. Phys. 1929, 3, 1933.
  12. Bethe, H. Z. Phys. 1930, 60, 218. [CrossRef]
  13. Van Vleck, J.H. Phys. Rev. 1932, 41, 208. [CrossRef]
  14. Cotton, F.A.; Wilkinson, G.; Gauss, P.L. Basic inorganic chemistry, Second Edition ed; John Wiley and Sons, 1987. [Google Scholar]
  15. Griffith, J.S. The Theory of Transition Metal Ions; Cambrdge University Press, 1971. [Google Scholar]
  16. Ohtaki, H.; Radnai, T. Chem. Rev. 1993, 93, 1157–1204.
  17. Cotton, F.A.; Daniels, L.M.; Murillo, C.A.; Quesada, J.F. Inorg. Chem. 1993, 32, 4861–4867. [CrossRef]
  18. Neilson, G.W.; Newsome, J.R.; Sandstrom, M.J. J. Chem. Soc. Faraday Trans. 2 1981, 17, 1245. [CrossRef]
  19. Ozutsumi, K.; Koide, M.; Ishiguro, S. J. Phys. Chem. 1993, 97, 500–502. [CrossRef]
  20. Marcus, Y. Chem. Rev. 1988, 88, 1475–1498.
  21. Akesson, R.; Pettersson, L.G.M.; Sandstrom, M.J.; Siegbahn, P.E.M.; Wahlgren, U. J. Phys. Chem 1992, 96, 10773–10779. [CrossRef]
  22. Babu, C.S.; Lim, C.J. J. Phys. Chem. 1999, 103, 7958–7968. [CrossRef]
  23. Sivaraja, M.; Stouch, T.R.; Dismukes, G.C. J. Am. Chem. Soc. 1992, 114, 9600–9602. [CrossRef]
  24. Yague, J.I.; Mohammed, A.M.; Loeffler, H.; Rode, B.M. J. Phys. Chem. A 2001, 105, 7646–7650. [CrossRef]
  25. Loeffler, H.; Yague, J.I.; Rode, B.M. J. Phys. Chem. A 2002, 106, 9529–9532. [CrossRef]
  26. Yague, J.I.; Mohammed, A.M.; Loeffler, H.; Rode, B.M. J. Mol. Struct: THEOCHEM 2003, 620, 15–20. [CrossRef]
  27. Van Vleck, J.H. J. Chem. Phys. 1935, 3, 807.
  28. Howard, P.J. J. Chem. Phys. 1935, 3, 813.
  29. Roothaan, C.C.J. Rev. Mod. Phys 1951, 23, 69. [CrossRef]
  30. McWeeny, R.; Dierksen, G. J. Chem. Phys. 1968, 49, 4852.
  31. Pople, J.A.; Nesbet, R.K. J. Chem. Phys. 1954, 22, 571.
  32. Moller, C.; Plesset, M.S. Phys. Rev. 1934, 46, 618.
  33. Jonsson, B.; Roos, B.O.; Taylor, P.R.; Siegbahn, P.E.M. J. Chem. Phys 1981, 74, 4566.
  34. Roos, B.O.; Linse, P.; Siegbahn, P.E.M.; Blomberg, M.R.A. Chem. Phys. 1981, 66, 197.
  35. Becke, A.D. Phys. Rev. A 1988, 38, 3098. [CrossRef]
  36. Lee, C.; Yang, W.; Parr, R.G. Phys. Rev. B 1988, 37, 785. [CrossRef]
  37. Slater, J.C. Quantum Theory of Molecular and Solids. Vol. 4: The Self-Consistent Field for Molecular and Solids; McGraw-Hill: New York, 1974. [Google Scholar]
  38. Vosko, S.H.; Wilk, N.; Nusair, M. Can. J. Phys. 1980, 58, 1200.
  39. Becke, A.D. J. Chem. Phys. 1993, 98, 5648.
  40. Perdew, J.P.; Burke, K.; Wang, Y. Phys. Rev. B 1996, 54, 16533. [CrossRef]
  41. Ohtaki, H.; Yamaguchi, T.; Maeda, M. Bull. Chem. Soc. Jpn. 1976, 49, 701. [CrossRef]
  42. Shapovalov, I.M.; Radchenko, I.V. J. Struct. Chem. 1971, 12, 705. [CrossRef]
  43. Beagley, B.; McAuliffe, C.A.; Smith, S.P.B.; White, E.W. J. Phys.: Condens. Matter 1991, 3, 7919. [CrossRef]
  44. Caminiti, R.; Cucca, P.; Pintori, T. Chem. Phys. 1984, 88, 155.
  45. Caminiti, R.; Marongia, G.; Paschina, G. Z. Naturforsch. A 1984, 37, 581.
  46. Caminiti, R.; Cucca, P.; Monduzzi, M.; Saba, G.; Crisponi, G. J. Chem. Phys. 1984, 81, 543.
  47. Licheri, G.; Paschina, G.; Piccaluga, G.; Pinna, G. J. Chem. Phys. 1984, 81, 6059.
  48. Frisch, M.J.; Trucks, G.W.; Schlegel, H.B.; Scuseria, G.E.; Robb, M.A.; Cheeseman, J.R.; Zakrzewski, V.G.; Montgomery Jr., J.A.; Stratmann, R.E.; Burant, J.C.; Dapprich, S.; Millam, J.M.; Daniels, A.D.; Kudin, K.N.; Strain, M.C.; Farkas, O.; Tomasi, J.; Barone, V.; Cossi, M.; Cammi, R.; Mennucci, B.; Pomelli, C.; Adamo, C.; Clifford, S.; Ochterski, J.; Petersson, G.A.; Ayala, P.Y.; Cui, Q.; Morokuma, K.; Malick, D.K.; Rabuck, A.D.; Raghavachari, K.; Foresman, J.B.; Cioslowski, J.; Ortiz, J.V.; Baboul, A.G.; Stefanov, B.B.; Liu, G.; Liashenko, A.; Piskorz, A.; Komaromi, I.; Gomperts, R.; Martin, R.L.; Fox, D.J.; Keith, T.; Al-Laham, M.A.; Peng, C.Y.; Nanayakkara, A.; Gonzalez, C.; Challacombe, M.; Gill, P.M.W.; Johnson, B.; Chen, W.; Wong, M.W.; Andres, J.L.; Gonzalez, C.; Head-Gordon, M.; Replogle, E.S.; Pople, J.A. Gaussian 98, Revision A.7. Gaussian, Inc.: Pittsburgh PA, 1998. [Google Scholar]
  49. Jaguar 4.0. Schrodinger, Inc.: Portland, Oregon, 2000.
  50. Dalton, a molecular electronic structure program, Release 1.2. 2001; Helgaker, T.; Jensen, H.J.Aa.; Jorgensen, P.; Olsen, J.; Ruud, K.; Agren, H.; Auer, A.A.; Bak, K.L.; Bakken, V.; Christiansen, O.; Coriani, S.; Dahle, P.; Dalskov, E.K.; Enevoldsen, T.; Fernandez, B.; Hattig, C.; Hald, K.; Halkier, A.; Heiberg, H.; Hettema, H.; Jonsson, D.; Kirpekar, S.; Kobayashi, R.; Koch, H.; Mikkelsen, K.V.; Norman, P.; Packer, M.J.; Pedersen, T.B.; Ruden, T.A.; Sanchez, A.; Saue, T.; Sauer, S.P.A.; Schimmelpfennig, B.; Sylvester-Hvid, K.O.; Taylor, P.R; Vahtras, O. [Google Scholar]
  51. Montgomery, H.; Chastain, R.V.; Lingafelter, E.C. Acta Cryst. 1966, 20, 731–733.
  52. Clack, D.W.; Farrimond, M.S. J. Chem. Soc. (A) 1971, 299, 1971.
